Ricoh TS20 PARTS CATALOG

ST20A/ST20B (C560/C561)

PARTS CATALOG

INTRODUCTION

This chapter instructs you the numbers and names of parts on this machine.

INDEX to PARTS CATALOG

1.1st Transport Section (C560) ........................................................ 2

2.1st Transport Unit (C560).............................................................. 4

3.1st Delevery Table 1 (C560).......................................................... 6

4.1st Delevery Table 2 (C560).......................................................... 8

5.1st Paper Tray Unit (C560)............................................................10

6.2nd Transport Section (C561) .......................................................12

7.2nd Transport Unit (C561).............................................................14

8.1st Sorter Exterior (C560)..............................................................16

9.2nd Sorter Exterior (C561) ............................................................18

10.Sorter Section 1 (C560/C561) ......................................................20

11.Sorter Section 2 (C560/C561) ......................................................22

12.Sorter Section 3 (C560/C561) ......................................................24

13.Sorter Bin Section (C560/C561)...................................................26

14.Staple Unit 1 (C560/C561) ...........................................................28

15.Staple Unit 2 (C560/C561) ...........................................................30

PARTS INDEX .................................................................................. 33

July, 31’95

1. 1ST TRANSPORT SECTION (C560)

2

1. 1ST TRANSPORT SECTION (C560)

Index
No.

1 VFM6 0689 Lift Unit 1
2 VFM6 0686 Transfer Unit 1
3 VFE6 2651 Front Cover 1
4 VFE6 2652 Rear Cover 1
5 VFE6 2654 Rear Stay 1
6 VFE6 2655 Joint Plate 1
7 VFE6 2656 Joint Cover 1
8 VFE6 2657 Support Plate 1
9 VFE6 2658 Back Plate 1
10 VFE6 2659 Stay Bracket 1
11 VFE6 2666 Stay Front Cover 1
12 VFE6 2670 Stay Rear Cover 1
13 VFA6 1023 Adjusting Pin 1
14 VFE6 2647 Paper Tray Stopper 2
15 VFM6 0657 IPC Harness 1
16 VFS0 9026 Buttfley Nut 2
17 VFM6 0663 Sorter Interface Board 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 1105 0312 Spacer
101 0354 0060D Sunk Screw - 4x6
102 0951 4006W Philips Screw With Flat Waser-M4x6
103 0951 4010W Philips Screw With Flat Waser-M4x10
104 0705 0040B Toothed Washer

Part No.

Description

Q’ty Per
Assembly

3

2. 1ST TRANSPORT UNIT (C560)

4

2. 1ST TRANSPORT UNIT (C560)

Index
No.

1 VFE6 2677 Belt Drive Shaft 1
2 VFE6 2687 Transfer Belt 6
3 VFE6 2697 Middle Support Plate 1
4 VFE6 2698 Support Plate 2
5 VFE6 2699 Buccume Fan Box 1
6 VFE6 2708 Jumper Plate 1
7 VFE6 2709 Jumper Shaft 1
8 VFE6 2686 Belt Driven Shaft 1
9 VFE6 2738 Middle Right Guide 1
10 VFE6 2739 Middle Left Guide 1
11 VFE6 2741 Antistatic Brush 1
12 VFE6 2682 Transfer Shaft 1
13 VFS0 2079 Jumper Spring 1
14 VFS0 3122 Pulley - 30Z 1
15 VFS2 6305 Exit Roller 2
16 VWT2 5035 Edge Sadle 1
17 VFK6 7127 Vaccum Fan Motor 1
18 VFK6 7835 Photointerruptor 1
19 VFM6 0687 Transfer Moter Ass’y 1
19 VFE6 2681 Drive Gear Shaft 1
19 VFS0 0107 Bevel Gear 1
19 VFS0 3121 Pulley - 20Z 1
19 VFE6 2685 Timing Belt - 240 1
19 VFE6 2702 Transfer Motor Bracket 1
19 VFE6 2703 Sensor Bracket 1
19 VFS3 0089 Bevel Gear 1
19 VFA5 4876 Encoder 1
19 VFS1 1190 Bushing 1
19 VFS1 1213 Bushing - 6mm 1
19 VFK6 7128 Transfer Motor 1
19 VWG8 5038 Photointerrupter 1
20 C560 9002 Screw - M4x55 1
21 C560 9003 Bearing - M14 2
22 VFM6 0655 Sensor Relay Harness 1
23 C560 9007 Pallarel Pin - 3x12 1

a
b
c
d
e
f
g
h
i
j
k
l

Part No.

Description

Q’ty Per
Assembly

Index
No.

24 C560 9008 Pallarel Pin - 2x8 1
25 VFE6 2780 Relay Duct 1
26 VFE6 2782 Duct Fin 1

100 0353 0040W Philips Pan Bind Screw - M3x4
101 0951 4006W Philips Screw With Flat Waser-M4x6
102 0705 0040B Toothed Washer
103 C560 9009 Retaining Ring - M2.4
104 C560 9010 Retaining Ring - M3.2
105 0720 0060Z Retaining Ring - M6
106 0553 0060E Allen Screw - M3x6
107 0554 0060E Allen Screw - M4x6
108 0951 3006W Philips Screw With Flat Waser-M3x6

Part No.

Description

Q’ty Per
Assembly

5

3. 1ST DELEVERY TABLE 1 (C560)

6

3. 1ST DELEVERY TABLE 1 (C560)

Index
No.

1 VFE6 2630 Front Side Plate - Tray 1
2 VFS1 9076 Stepped Screw - M1.9 4
3 VFE6 2631 Rear Side Plate - Tray 1
4 VFE6 2636 Slide Core 2
5 VFE6 2637 Front Chain Holder 1
6 VXG9 0097 Bearing 1
7 VFE6 2628 Front Side Plate 1
8 VFE6 2642 Sprocket Shaft 2
9 VFS1 3067 Sprocket 4
10 VFM6 0693 Copy Tray Ass’y 1
11 VFE6 2742 Roller Chain 25 2
12 C560 9001 Bearing 2
13 VFE6 2653 Lower Right Cover 1
14 VFE6 2648 Middle Fan Cover 1
15 VFM6 0692 Lift Drive Shaft Ass’y 1
15 VFE6 2646 Gear - 54 1
15 VFE6 2645 Clutch 1
15 VFS0 2076 Clutch Spring 1
16 VFM6 0691 Brake 1
16 VFL6 0688 Brake Solenoid 1
17 VFM6 0690 Lift Motor Ass’y 1
17 VFL6 0678 Lift Motor 1
17 VFE6 2634 Lift Motor Bracket 1
17 VFE6 2644 Adaptor 1
17 VFA2 6523 Brake Plate 1
18 VFL6 0691 Lift Motor Stay 1
19 VFE6 2672 Safety Cover 1
20 VFE6 2629 Rear Side Plate 1
21 VFE6 2650 Support Stay 1
22 VFE6 2633 Middle Stay 4

a
b
c

a

a
b
c
d

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0354 0060D Sunk Screw - 4x6
101 0951 4006W Philips Screw With Flat Waser-M4x6
102 0354 0100Z Bind Screw - M4x10
103 0705 0040B Toothed Washer
104 0951 5006Z Philips Pan Head Screw W/W - M5x6
105 0954 0006Z Philips Pan Head Screw W/W - M4x6
106 C560 9012 Retaining Ring - M6.4
107 0725 0080Z Retaining Ring - M6.4
108 0553 0060E Allen Screw - M3x6

Part No.

Description

Q’ty Per
Assembly

7

4. 1ST DELEVERY TABLE 2 (C560)

8

4. 1ST DELEVERY TABLE 2 (C560)

Index
No.

1 VFE6 2732 Spring Plate Holder 2
2 VFE6 2733 Sensor Spring 2
3 VFS2 9394 Stepped Screw - M1.4 1
4 VXZ9 0326 Magnet Catch 1
5 VFK6 7620 Microswitch 2
6 VFK6 7611 Microswitch 1
7 VFE6 2640 Limit Sensor Bracket 1
8 VFE6 2643 Sensor Actuator 1
9 VWT2 0256 Edge Sadle 2
10 VFE6 2638 Rear Chain Holder 1
11 VFE6 2639 Sensor Bracket 1
12 VWG8 5038 Photointerrupter 1
13 VFE6 2649 Sensor Cover 1
14 VFM6 0658 Sensor Harness 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0354 0060D Sunk Screw - 4x6
101 0353 0160W Philips Pan Head Screw - M3x16
102 0353 0040W Philips Pan Bind Screw - M3x4
103 0951 4006W Philips Screw With Flat Waser-M4x6
104 0951 3006W Philips Screw With Flat Waser-M3x6
105 0353 0060W Philips Pan Head Screw - M3x6
106 0705 0040B Toothed Washer

Part No.

Description

Q’ty Per
Assembly

9

5. 1ST PAPER TRAY UNIT (C560)

10

5. 1ST PAPER TRAY UNIT (C560)

Index
No.

1 VFE6 2721 Copy Tray 1
2 VFE6 2722 Sub Tray 1
3 VFE6 2723 End Fence Rail 1
4 VFE6 2710 Side Fence 2
5 VFE6 2707 Tray Lower Cover 1
6 VFS0 2074 Cover Sring 1
7 VFE6 2743 Grip 1
8 C209 6142 Guide Fence Slider 3
9 C209 6143 Guide Fence Knob 2
10 C209 6144 Guide Fence Shaft 3
11 C209 6145 Guide Fence Bracket 3
12 C209 6149 Guide Fence Spring 3
13 C209 3141 Stopper - Scanner Unit 1
14 C207 6132 Support End Fence 1
15 VFE6 2758 Tray Spring 2
16 VFL6 0686 Side Fence Guide Rail 1
17 VFM6 0694 Staple Cover Ass’y 1
17 VFE6 2725 Staple Cover 1
17 VFE6 2724 Staple End Fence 1
17 VFE6 2736 End Fence Spring 2
17 VFS2 6304 Roller - 20 2
17 VFS1 9073 Stepped Screw - 8.2 2
17 VFS1 9076 Stepped Screw - M1.9 2
18 VFS2 9394 Stepped Screw - M1.4 1
19 VFS2 9461 Stepped Screw - M4 1
20 VFS1 9076 Stepped Screw - M1.9 1
21 VFS1 9010 Stepped Screw - M2.2 1
22 V4F1 0171 Front Cover 1
23 VFS0 2080 End Spring 1
24 VFS1 9166 Stepped Screw - M4 2
25 VFE6 2789 Front Upper Guide 1
26 VFE6 2790 Rear Upper Guide 1

a
b
c
d
e
f

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0951 3006W Philips Screw With Flat Waser-M3x6
101 0951 4006W Philips Screw With Flat Waser-M4x6
102 0354 0060D Sunk Screw - 4x6
103 VXA9 0679 Screw

Part No.

Description

Q’ty Per
Assembly

11

6. 2ND TRANSPORT SECTION (C561)

12

6. 2ND TRANSPORT SECTION (C561)

Index
No.

1 VFM6 0696 Transfer Unit Ass’y 1
2 VFE6 2673 Hold Tape 1
3 VFE6 2701 Joint Stay 1
4 VFE6 2728 Joint Frint Cover 1
5 VFE6 2729 Joint Rear Cover 1
6 VFL6 0694 Joint Stay Cover 1
7 VFE6 2748 Joint Bottom Cover 1
8 VFE6 2636 Slide Core 6
9 VFA6 6416 Front Joint Stay 1
10 VFA6 6417 Rear Joint Stay 1
11 VFC1 9613 Upper Joint Stay 1
12 VFA6 1023 Adjusting Pin 2

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0354 0060D Sunk Screw - 4x6
101 0354 0100D Sunk Screw - 4x10
102 0705 0040B Toothed Washer

Part No.

Description

Q’ty Per
Assembly

13

7. 2ND TRANSPORT UNIT (C561)

14

7. 2ND TRANSPORT UNIT (C561)

Index
No.

1 VFE6 2677 Belt Drive Shaft 1
2 VFE6 2678 Belt Driven Shaft 1
3 VFE6 2696 Belt Driven Shaft 1
4 VFE6 2679 Transfer Belt - 1 2
5 VFE6 2680 Transfer Belt - 2 4
6 VFE6 2697 Middle Support Plate 1
7 VFE6 2698 Support Plate 2
8 VFE6 2700 Buccume Fan Box 1
9 VFS0 3122 Pulley - 30Z 1
10 VFE6 2690 Transfer Shaft 1
11 VFE6 2691 Transfer Shaft Holder 1
12 VFE6 2727 Transfer Cover 1
13 VFE6 2737 Right Cover 1
14 VFE6 2740 Left Cover 1
15 VFE6 2741 Antistatic Brush 1
16 VFE6 2682 Transfer Shaft 1
17 VFE6 2683 Tension Spring 1
18 VFE6 2684 Tension Spring 1
19 VFS2 6305 Exit Roller 8
20 VWT2 5035 Edge Sadle 1
21 VFS2 6304 Roller - 20 2
22 VFS1 9073 Stepped Screw - 8.2 2
23 VFS3 2178 Rear Guide Spring 1
24 VFK6 7127 Vaccum Fan Motor 1
25 VFK6 7835 Photointerruptor 1
26 VFM6 0687 Transfer Moter Ass’y 1
26 VFE6 2681 Drive Gear Shaft 1
26 VFS0 0107 Bevel Gear 1
26 VFS0 3121 Pulley - 20Z 1
26 VFE6 2685 Timing Belt - 240 1
26 VFE6 2702 Transfer Motor Bracket 1
26 VFE6 2703 Sensor Bracket 1
26 VFS3 0089 Bevel Gear 1
26 VFA5 4876 Encoder 1
26 VFS1 1190 Bushing 1

a
b
c
d
e
f
g
h
i

Part No.

Description

Q’ty Per
Assembly

Index
No.

26 VFS1 1213 Bushing - 6mm 1
26 VFK6 7128 Transfer Motor 1
26 VWG8 5038 Photointerrupter 1
27 C560 9002 Screw - M4x55 1
28 C560 9003 Bearing - M14 6
29 VFM6 0655 Sensor Relay Harness 1
30 VFM6 0653 Transfer Harness 1
31 C560 9007 Pallarel Pin - 3x12 1
32 C560 9008 Pallarel Pin - 2x8 1
33 VFE6 2781 Duct 1
34 VFE6 2782 Duct Fin 1

100 0353 0040W Philips Pan Bind Screw - M3x4
101 0951 4006W Philips Screw With Flat Waser-M4x6
102 0705 0040B Toothed Washer
103 C560 9009 Retaining Ring - M2.4
104 C560 9010 Retaining Ring - M3.2
105 0720 0060Z Retaining Ring - M6
106 0553 0060E Allen Screw - M3x6
107 0554 0060E Allen Screw - M4x6
108 0720 0050Z Retaining Ring - M5
109 0951 3006W Philips Screw With Flat Waser-M3x6

j
k
l

Part No.

Description

Q’ty Per
Assembly

15

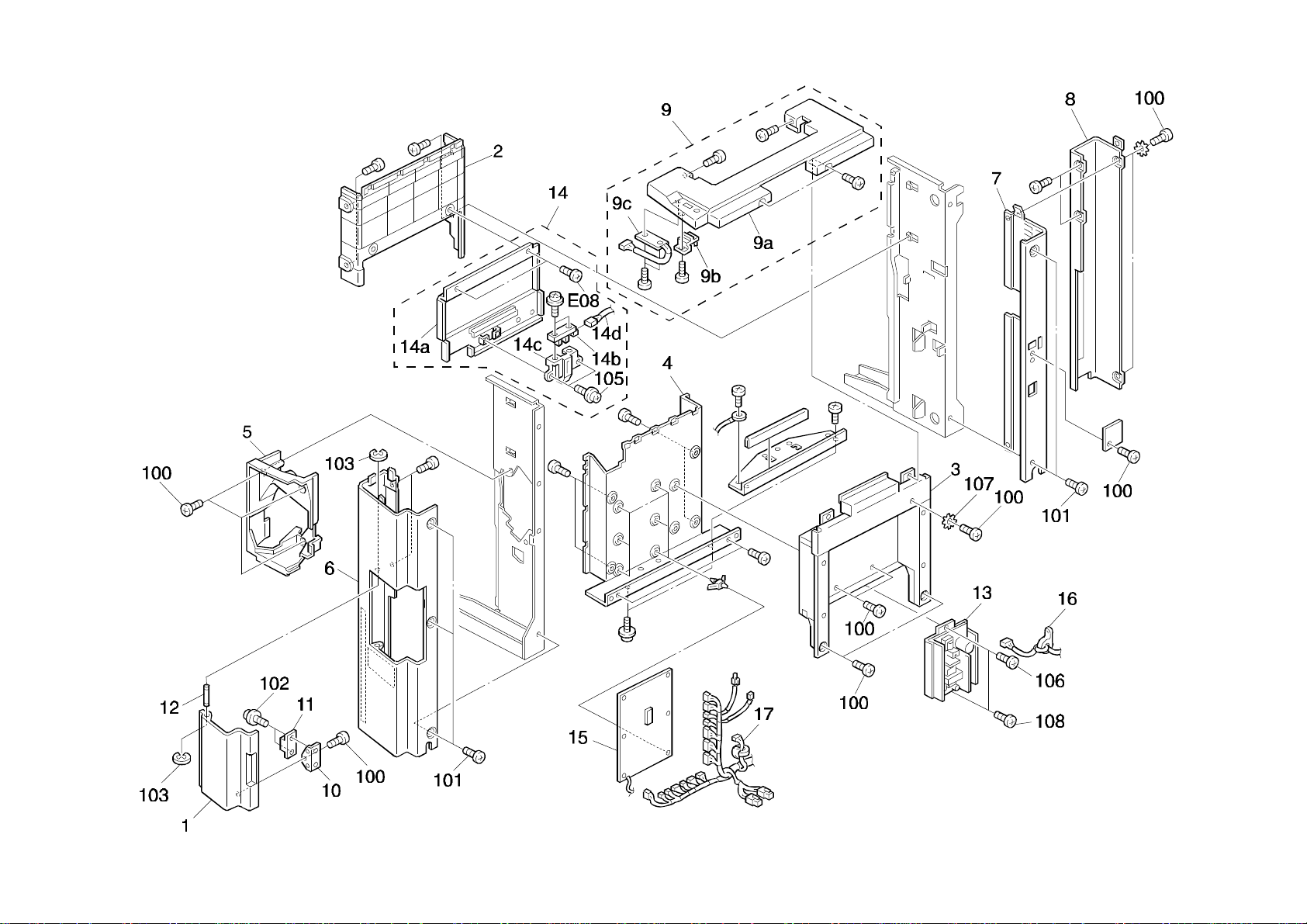

8. 1ST SORTER EXTERIOR (C560)

16

8. 1ST SORTER EXTERIOR (C560)

Index
No.

1 VFL6 0689 Staple Door 1
2 VFE6 2719 Upper Left Cover 1
3 VFE6 2726 Upper Right Cover 1
4 VFM6 0709 Stapler Frame 1
5 VFA6 6247 Staple Inner Cover 1
6 V4F1 0171 Front Cover 1
7 VFL6 0695 Rear Left Cover 1
7 VFE6 2715 Rear Panel Cover 1
8 VFL6 0680 Rear Right Cover 1
9 VFM6 0710 Upper Cover Ass’y 1
9 VFL6 0693 Upper Cover 1
9 VFA6 6212 Staple Botton 1
9 VFG1 8404 Operation Panel Ass’y 1
9 VVD5 0161 Huse - 125V 1AS 1
10 VFA6 6229 Magnet Holder 1
11 VXZ9 0326 Magnet Catch 1
12 VFA5 4823 Door Hinge 1
13 VFK6 3209 Power Supply Unit 1
13 VFK6 3210 Power Supplu Unit - 230V 1
14 VFM6 0703 Left Cover Ass’y 1
14 VFE6 2704 Left Cover 1
14 VFH7 7023 Photointerrupter 1
14 VRG1 0424 Sensor Ass’y 1
14 VFM6 0656 Sensor Harness 1
15 VFM6 0662 DC Control Board A 1
16 VFM6 0664 DC Harness A 1
17 VFM6 0654 DC Harness B 1

a
b
c
d

a
b
c
d

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0354 0060D Sunk Screw - 4x6
101 0951 4006W Philips Screw With Flat Waser-M4x6
102 0951 2010W Philips Pan Head Screw W/W - M2x10
103 C561 9012 Retaining Ring - M6.4
104 0353 0040D Philips Pan Head Screw - M3x4
105 0353 0080D Philips Truus Head Screw - M3x8
106 0354 0060W Philips Truus Head Screw - M4x6
107 0705 0040B Toothed Washer
108 0354 0060W Philips Truus Head Screw - M4x6

Part No.

Description

Q’ty Per
Assembly

17

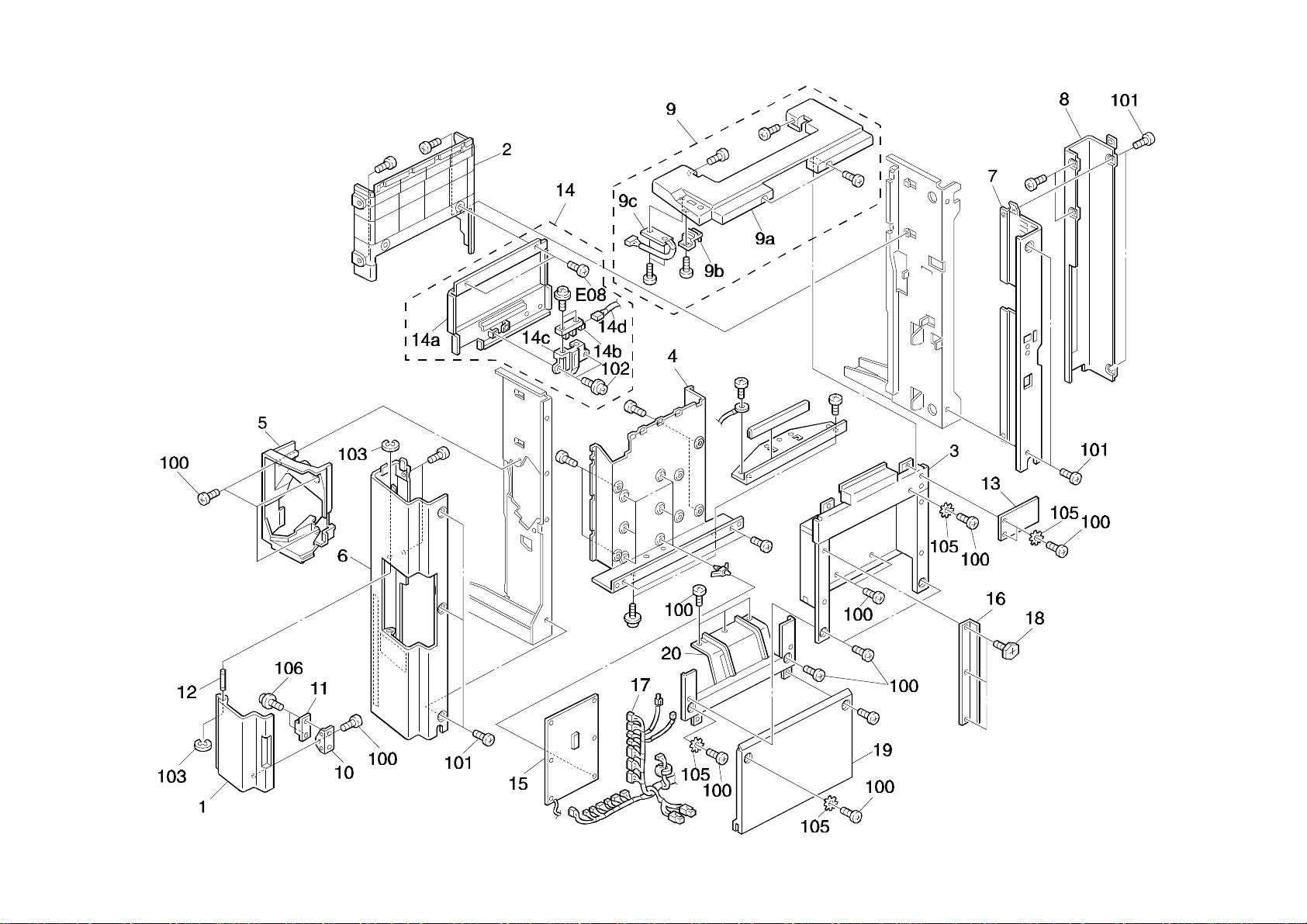

9. 2ND SORTER EXTERIOR (C561)

18

9. 2ND SORTER EXTERIOR (C561)

Index
No.

1 VFL6 0689 Staple Door 1
2 VFE6 2719 Upper Left Cover 1
3 VFE6 2726 Upper Right Cover 1
4 VFM6 0709 Stapler Frame 1
5 VFA6 6247 Staple Inner Cover 1
6 V4F1 0171 Front Cover 1
7 VFL6 0696 Rear Right Cover 1
8 VFE6 2753 Rear Left Cover 1
9 VFM6 0683 Upper Cover Ass’y 1
9 VFE6 2720 Upper Cover 1
9 VFA6 6212 Staple Botton 1
9 VFG1 8404 Operation Panel Ass’y 1
9 VVD5 0161 Huse - 125V 1AS 1
10 VFA6 6229 Magnet Holder 1
11 VXZ9 0326 Magnet Catch 1
12 VFA5 4823 Door Hinge 1
13 VFE6 2734 Joint Cover 1
14 VFM6 0703 Left Cover Ass’y 1
14 VFE6 2704 Left Cover 1
14 VFH7 7023 Photointerrupter 1
14 VRG1 0424 Sensor Ass’y 1
14 VFM6 0656 Sensor Harness 1
15 VFM6 0662 DC Control Board A 1
16 VFE6 2730 Stapler Stay 1
17 VFM6 0654 DC Harness B 1
18 VFA4 6702 Hexagonal Headless Set Screw 3
19 VFE6 2676 Lower Right Cover 1
20 VFE6 2675 Paper Guide 1

a
b
c
d

a
b
c
d

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0354 0060D Sunk Screw - 4x6
101 0951 4006W Philips Screw With Flat Waser-M4x6
102 0353 0080D Philips Truus Head Screw - M3x8
103 C560 9612 Retaining Ring - M6.4
104 0353 0040D Philips Pan Head Screw - M3x4
105 0705 0040B Toothed Washer
106 0951 2010Z Philips Pan Head Screw W/W - M2x10

Part No.

Description

Q’ty Per
Assembly

19

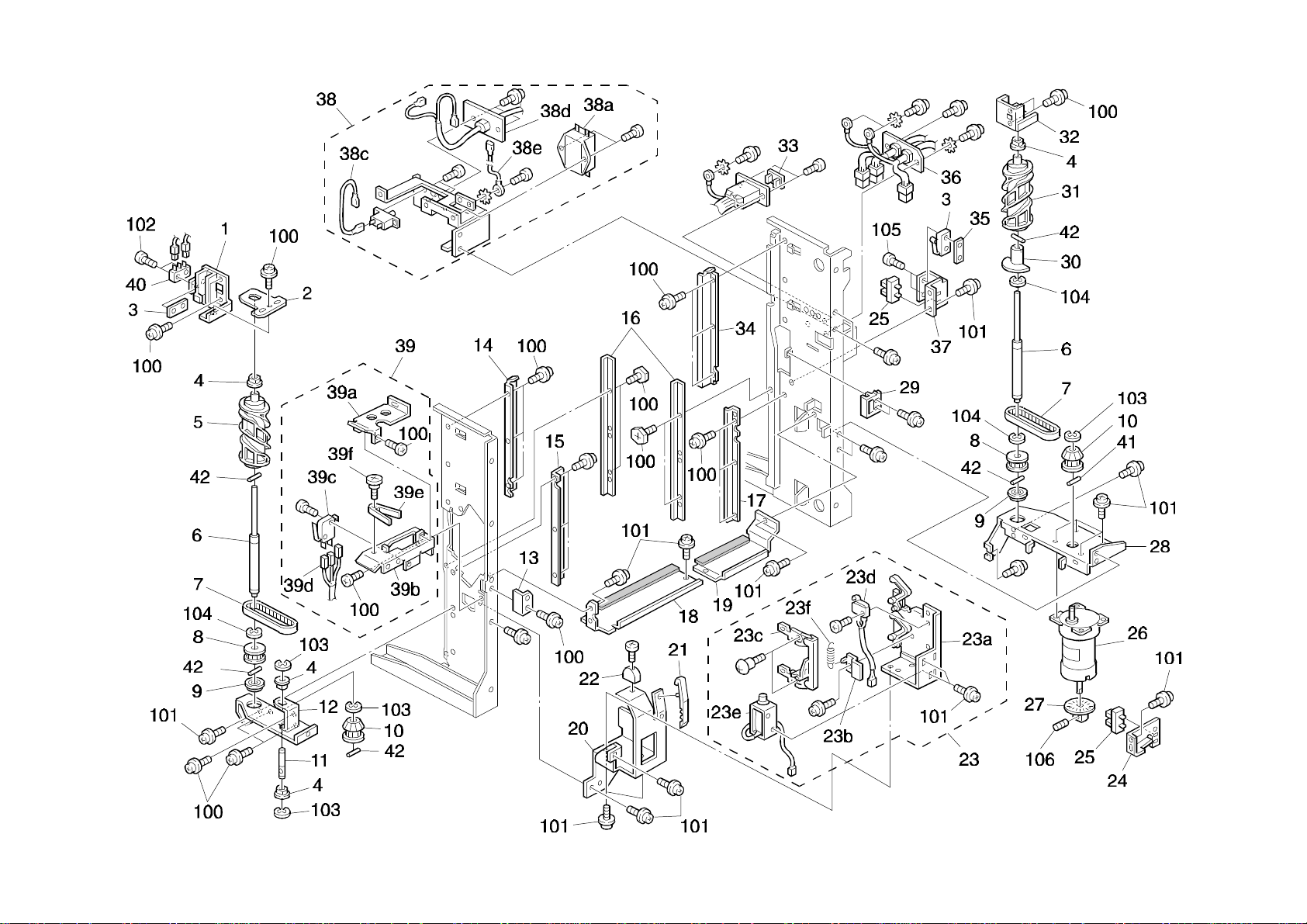

10. SORTER SECTION 1 (C560/C561)

20

10. SORTER SECTION 1 (C560/C561)

Index
No.

1 VFA3 3513 Front Upper Cam Holder 1
2 VFA3 3515 Spring Plate 1
3 VFA3 3516 Nut Plate 2
4 VFS1 1156 Bushing 4
5 VFA6 6206 Front Cam 1
6 VFA6 6213 Cam Shaft 2
7 VXF9 0369 Timing Belt 2
8 VFS2 3445 Pulley 2
9 VXG9 0249 Ball Bearing 2
10 VFS3 0835 Gear Pulley - 30T/18T 2
11 VFA5 4788 Shaft 1
12 VFA5 4774 Front Lower Cam Holder 1
13 VFA6 6232 Magnet Plate 1
14 VFA6 6208 Front Upper Guide 1
15 VFA6 6209 Front Lower Guide 1
16 VFE6 2712 Rail Cover 2
17 VFA6 6211 Rear Lower Guide 1
18 VFL6 0681 Cover Plate 1 1
19 VFL6 0687 Cover Plate 2 1
20 VFE6 2706 Solenoid Bracket 1
21 VFE6 2114 Slide Com 1
22 VFA5 4913 Release Knob 1
23 VFM9 0565 Paper Release Solenoid 1
23 VFF2 4455 Paper Release Plate 1
23 VFA6 6298 Microswitch Cover 1
23 VFL9 0128 Paper Release Link 1
23 VFF2 4178 Paper Release Solenoid 1
23 VFK6 7509 Solenoid 1
23 VFS3 2822 Release Paper Spring 1
24 VFA6 6224 Sensor Bracket 1
25 VWG8 0164 Photointerrupter 2
26 VFH7 1750 Sorter Drive Motor 1
27 VFA5 4876 Encoder 1
28 VFA6 6218 Rear Lower Cam Holder 1
29 VFE9 0036 Lift Guide 1

a
b
c
d
e
f

Part No.

Description

Q’ty Per
Assembly

Index
No.

30 VFA6 6217 Cam Sensor Actuator 1
31 VFA6 6207 Rear Cam 1
32 VFA3 3514 Rear Upper Cam Holder 1
33 VFH2 5824 Dust Cover 1
34 VFA6 6210 Rear Upper Guide 1
35 VFA3 3516 Nut Plate 1
36 VFF2 4169 Stapler Relay Harness 1
37 VFA6 6214 Sensor Bracket 1
38 V4G1 0106 Power Supply Cord 1
38 VFM6 0661 Power Supply Cord - 230V 1
38 VFK6 5069 Noise Filter (230V) 1
38 VFL6 0636 Harness 1
38 VFM6 0660 Power Supply Connector 1
38 VFL6 0617 Grownding Harness 1
39 VFM6 0607 Door Switch 1
39 VFA5 4800 Safety Switch Cover 1
39 VFE6 1417 Safety Switch Plate 1
39 VFK6 7611 Microswitch 1
39 VFL6 1040 Safety Switch Harness 1
39 VFA5 4992 Safety Switch Arm 1
39 VFS1 9102 Stepped Screw - M3 1
40 VWC4 0237 Microswitch 1
41 C560 9005 Parallel Pin - 2x18 1
42 C560 9004 Parallel Pin - 2x14 4

100 0354 0060W Philips Truus Head Screw - M4x6
101 0951 4006W Philips Screw With Flat Waser-M4x6
102 0353 0080W Tapping Screw - M3x8
103 C561 9012 Retaining Ring - M6.4
104 0701 0080Z Flat Washer - M8
105 0951 2010Z Philips Pan Head Screw W/W - M2x10
106 0554 0060E Allen Screw - M4x6

a
b
c
d
e

a
b
c
d
e
f

Part No.

Description

Q’ty Per
Assembly

21

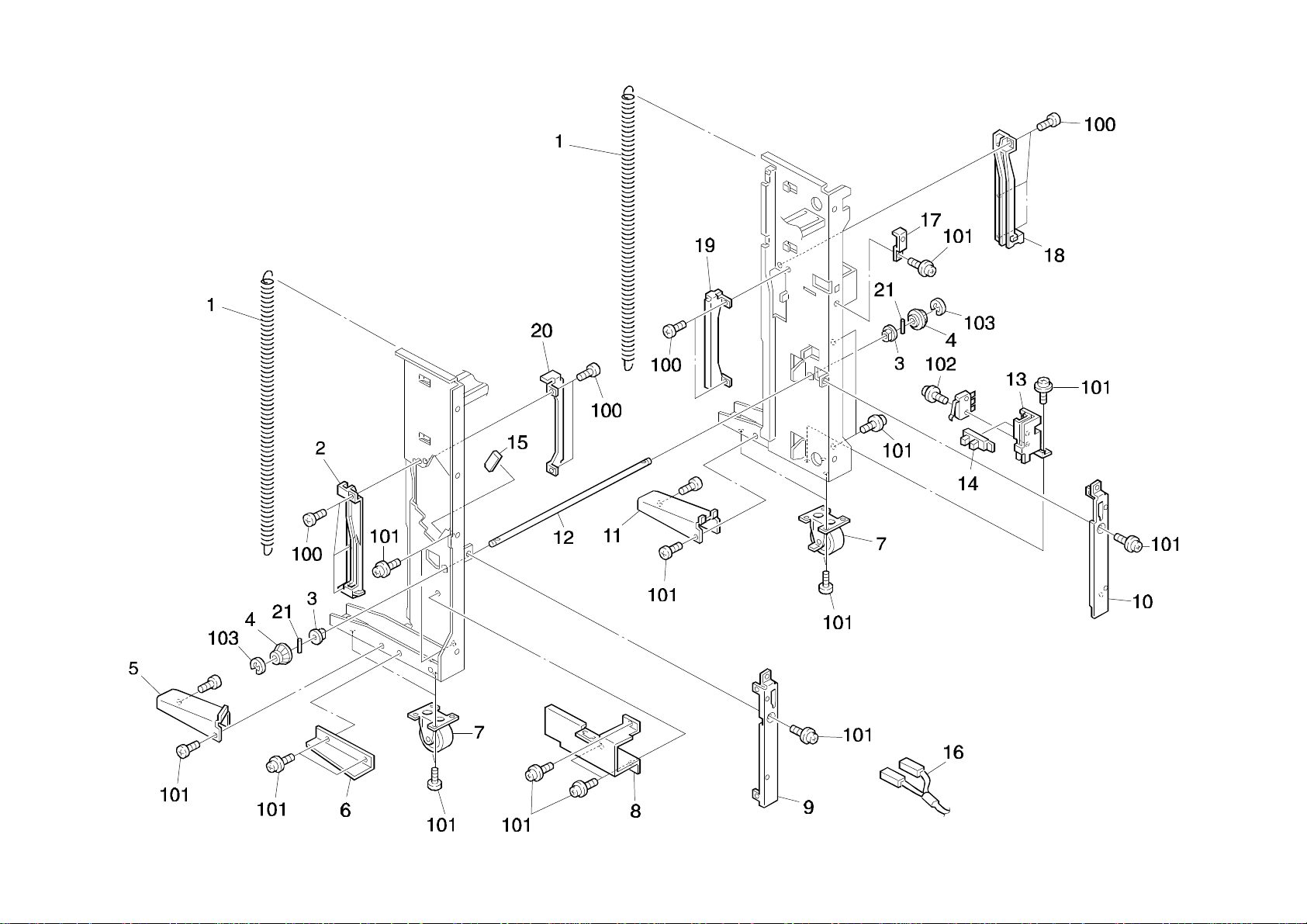

11. SORTER SECTION 2 (C560/C561)

22

11. SORTER SECTION 2 (C560/C561)

Index
No.

1 VFS0 2077 Spring 2
2 VFA6 6219 Front Slide Rail 1
3 VRS1 1054 Bushing 2
4 VFS3 0155 Gear - 30T 2
5 VFE6 2713 Front Caster Cover 1
6 VFA6 6294 Cover 1
7 VFC1 6329 Caster 4
8 VFA6 6233 Harness Cover 1
9 VFE6 2626 Front Suppor Plate 1
10 VFE6 2627 Rear Support Plate 1
11 VFE6 2714 Rear Caster Cover 1
12 VFA5 4786 Drive Joint Shaft 1
13 VFA6 6215 Switch Bracket 1
14 VWG8 0164 Photointerrupter 4
15 VFE6 2694 Edge Cover 1
16 VFF2 4169 Stapler Relay Harness 1
17 VFE6 2661 Switch Cover Braclet 1
18 VFA6 6220 Slide Rail 1
19 VFA6 6222 Rear Support Plate 1
20 VFA6 6221 Front Support Plate 1
21 C560 9006 Parallel Pin - 2x16 2

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0354 0060W Philips Truus Head Screw - M4x6
101 0951 4006W Philips Screw With Flat Waser-M4x6
102 0951 2010W Philips Pan Head Screw W/W - M2x10
103 C561 90123 Retaining Ring - M6.4

Part No.

Description

Q’ty Per
Assembly

23

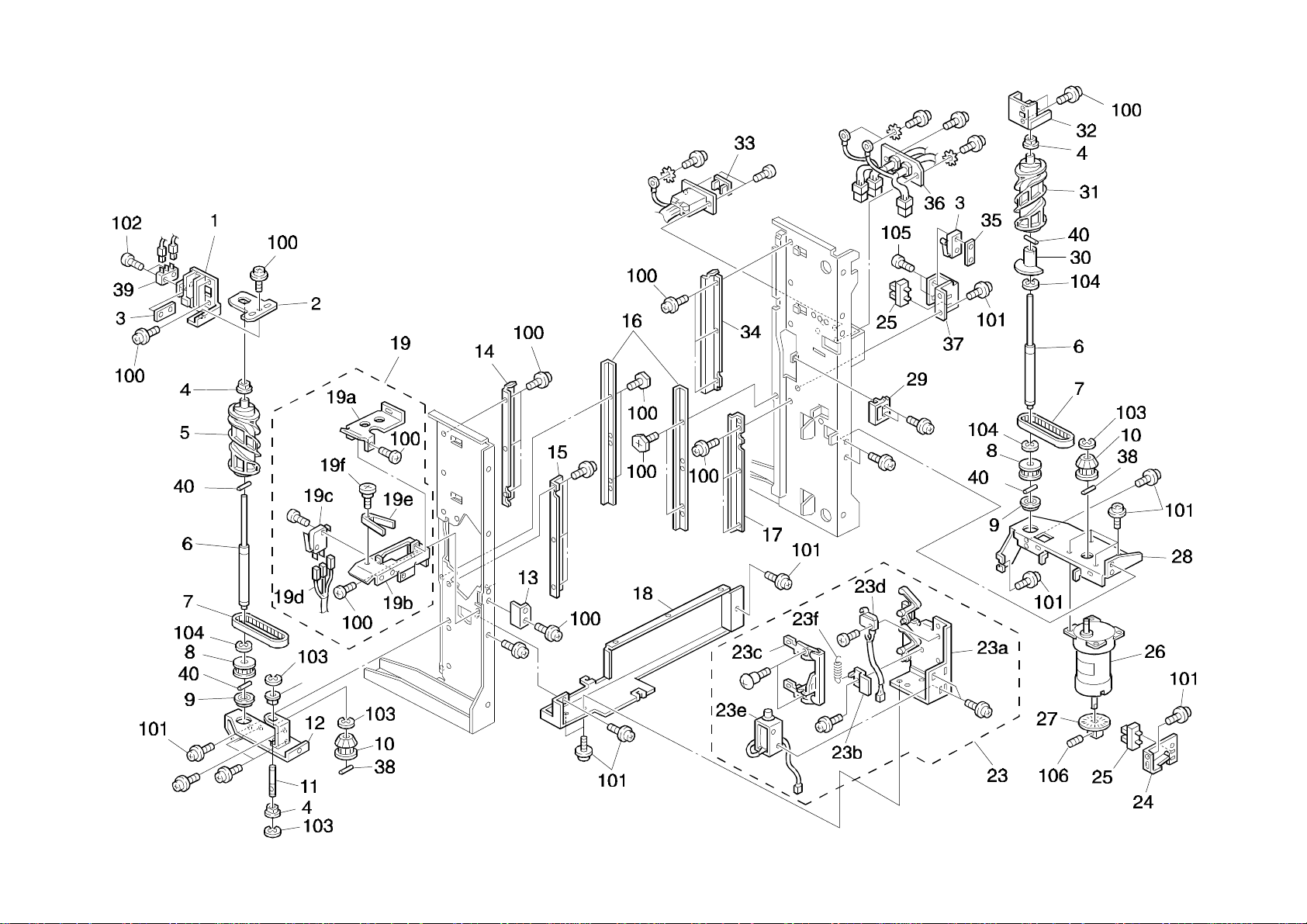

12. SORTER SECTION 3 (C560/C561)

24

12. SORTER SECTION 3 (C560/C561)

Index
No.

1 VFA3 3513 Front Upper Cam Holder 1
2 VFA3 3515 Spring Plate 1
3 VFA3 3516 Nut Plate 2
4 VFS1 1156 Bushing 4
5 VFA6 6206 Front Cam 1
6 VFA6 6213 Cam Shaft 2
7 VXF9 0369 Timing Belt 2
8 VFS2 3445 Pulley 2
9 VXG9 0013 Ball Bearing 2
10 VFS3 0835 Gear Pulley - 30T/18T 2
11 VFA5 4788 Shaft 1
12 VFA5 4774 Front Lower Cam Holder 1
13 VFA6 6232 Magnet Plate 1
14 VFA6 6208 Front Upper Guide 1
15 VFA6 6209 Front Lower Guide 1
16 VFE6 2712 Rail Cover 2
17 VFA6 6211 Rear Lower Guide 1
18 VFE6 2674 Sorter Lower Stay 1
19 VFM6 0607 Door Switch 1
19 VFA5 4800 Safety Switch Cover 1
19 VFE6 1417 Safety Switch Plate 1
19 VFK6 7611 Microswitch 1
19 VFL6 1040 Safety Switch Harness 1
19 VFA5 4992 Safety Switch Arm 1
19 VFS1 9102 Stepped Screw - M3 1
20 VFE6 2706 Solenoid Bracket 1
21 VFE6 2114 Slide Com 2
22 VFA5 4913 Release Knob 1
23 VFM9 0565 Paper Release Solenoid 1
23 VFF2 4455 Paper Release Plate 1
23 VFA6 6298 Microswitch Cover 1
23 VFL9 0128 Paper Release Link 1
23 VFF2 4178 Paper Release Solenoid 1
23 VFK6 7509 Solenoid 1
23 VFS3 2822 Release Paper Spring 1

a
b
c
d
e
f

a
b
c
d
e
f

Part No.

Description

Q’ty Per
Assembly

Index
No.

24 VFA6 6224 Sensor Bracket 1
25 VWG8 0164 Photointerrupter 2
26 VFH7 1750 Sorter Drive Motor 1
27 VFA5 4876 Encoder 2
28 VFA6 6218 Rear Lower Cam Holder 1
29 VFA5 4794 Guide Plate 1
30 VFA6 6217 Cam Sensor Actuator 1
31 VFA6 6207 Rear Cam 1
32 VFA3 3514 Rear Upper Cam Holder 1
33 VFH2 5824 Dust Cover 1
34 VFA6 6210 Rear Upper Guide 1
35 VFA3 3516 Nut Plate 1
36 VFF2 4169 Stapler Relay Harness 1
37 VFA6 6214 Sensor Bracket 1
38 C560 9005 Parallel Pin - 2x18 2
39 VWC4 0237 Microswitch 1
40 C560 9004 Parallel Pin - 2x14 4

100 0354 0060W Philips Truus Head Screw - M4x6
101 0951 4006W Philips Screw With Flat Waser-M4x6
102 0353 0080W Tapping Screw - M3x8
103 C561 9012 Retaining Ring - M6.4
104 0701 0080Z Flat Washer - M8
105 0951 2010W Philips Pan Head Screw W/W - M2x10
106 0554 0060E Allen Screw - M4x6

Part No.

Description

Q’ty Per
Assembly

25

13. SORTER BIN SECTION (C560/C561)

26

13. SORTER BIN SECTION (C560/C561)

Index
No.

1 VFL6 0699 Sorter Bin 2
2 VFS3 2184 Lever Spring 1
3 VFA6 6285 Bin Roller 4
4 VFA6 6282 Top Tray 1
5 VFA6 6283 Front Bin Slider 1
6 VFA6 6284 Rear Bin Slider 1
7 VFK6 7129 Stepping Motor 1
8 VFA6 6271 Bin Support Frame 1
9 VFA4 6702 Hexagonal Headless Set Screw 1
10 VFA5 4951 Rear Paper Guide Arm 1
11 VFA5 4952 Guide Plate Screw 1
12 VFA6 6273 Upper Paper Guide Arm 1
13 VFA5 4954 Spring Plate 1
14 VFA6 6274 Spring Plate 1
15 VFA5 4956 Arm Bracket 1
16 VFA6 6275 Guide Shaft 1
17 VFA6 6276 Guide Shaft 1
18 VFA6 0505 Plate 1
19 VFA6 6288 Sensor Bracket 1 2
20 VFA5 4962 Sensor Bracket 2 1
21 VFA6 6272 Cable Cover 1
22 VFA5 4964 Front Spring Hook 1
23 VFA6 6277 Spacer 1
24 VFA5 4967 Arm 1
25 VFA5 4969 Nylon Ring 2
26 VFE6 2695 Bin Frame 1
27 VFF2 1162 Bottom Plate 1
28 VFG1 5473 LED Sensor 1
29 VFG1 5474 Photo Transister 1
30 VFE6 2671 Bin Rear Cover 1
31 VFS3 0836 Gear - 100T/21T 1
32 VFS3 2132 Spring 1
33 VWG8 0164 Photointerrupter 1
34 VFM6 0659 Sensor Harness 1
35 VFA6 6287 Bin Inner Cover 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

36 VFE9 0115 Fixed Shaft 1
37 VFE9 0112 Fixed Roller 3
38 VFA5 4970 Arm Cover 1
39 VFA4 6702 Hexagonal Headless Set Screw 1
40 VFE6 2705 Bin Stay 1
41 VFE6 2668 Spring Stay 1
42 VFA6 6290 Mylar Cover 1
43 VFE6 2663 Bin Gear Cover 1
44 VFM6 0697 Bin Entrance Guide Ass’y 1
44 VFL6 0683 Dammy Bin 1
44 VFE6 2665 Hinge Plate 1
44 VFE6 2689 Bin Shaft 1
44 VFS0 2075 Guide Spring 1
45 VFM9 0405 Rear Spring Hook 1
45 VFA6 6216 Guide Pin 1
46 VFF2 4176 Grownding Wire 1
47 VFE6 2669 Swing Cover 1

100 0951 4006W Philips Screw With Flat Waser-M4x6
101 0354 0060D Sunk Screw - 4x6
102 0353 0060W Philips Pan Head Screw - M3x6
103 0434 0060W Tapping Screw - M4x6
104 0951 3006W Philips Screw With Flat Waser-M3x6
105 0354 0060W Philips Truus Head Screw - M4x6
106 0434 0080W Tapping Screw - M4x8
107 0951 4004W Philips Screw With Flat Waser-M4x4
108 0951 4006W Philips Screw With Flat Waser-M4x6
109 0705 0040B Toothed Washer
110 0720 0050Z Retaining Ring - M5

a
b
c
d

Part No.

Description

Q’ty Per
Assembly

27

14. STAPLE UNIT 1 (C560/C561)

28

14. STAPLE UNIT 1 (C560/C561)

Index
No.

1 VFF2 4456 Staple Frame 2
2 VFF2 4174 Grownding Wire 1
3 VFA6 6314 Slider Guide 1
4 VFA6 6308 Slider 1
5 VFF2 4458 Slide Shaft 1
6 VFA6 6302 Frame Guide Rail 1
7 VFA6 6317 Gear Cover 1
8 VFF2 4171 Staple Harness 1
8 VWC4 5014 Microswitch 1
9 VFA6 6310 Ring Gear - 64Z 1
10 VFA6 6311 Slide Roller 1
11 VFS3 0834 Gear - 18T/56T 1
12 VFA6 6296 Spring Plate 1
13 VFA6 6301 Stapler Mount Plate 1
14 VFF2 4172 Staple Position Harness 1
14 VWC4 0246 Microswitch 1
15 VFA6 6309 Switch Bracket 1
16 VFF2 4457 Drive Unit Bracket 1
17 VFH7 1751 DC Motor 1
18 VFS2 3365 Pulley - 16T 1
19 VXF9 0217 Timing Belt - 63T 1
20 VFS3 0833 Gear - 18T/48T 1

a

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0354 0060W Philips Truus Head Screw - M4x6
101 0951 4006W Philips Screw With Flat Waser-M4x6
102 0353 0060W Philips Pan Head Screw - M3x6
103 0312 6030W Philips Pan Head Screw - M2.6x3
104 0951 3006W Philips Screw With Flat Waser-M3x6
105 0720 0050Z Retaining Ring - M5
106 0951 2008W Philips Pan Head Screw W/W - M2x18

Part No.

Description

Q’ty Per
Assembly

29

15. STAPLE UNIT 2 (C560/C561)

30

15. STAPLE UNIT 2 (C560/C561)

Index
No.

* Stapler Type C
1 VFA6 6307 Under Guide 1
2 VFA6 6306 Shutter Arm 1
3 VFS3 2823 Spring 1
4 VFA6 6318 Microswitch Cover 1
5 VFF2 4177 Safety Switch Harness 1
5 VWC4 0246 Microswitch 1
6 VFA6 6305 Swing Plate 1
7 VFA6 6315 Roller 1
8 VFH7 7238 Photointerruptor 1
9 VFA6 6300 Stapler Bracket 1
10 VFL6 0685 Staple Cover 1
11 VFA6 6295 Staple Unit 1
11 VFS3 0895 Gear - 12T 1
11 VFS3 0896 Gear - 18T/53T 1
11 VFS3 0897 Gear - 18T/53T 1
11 VFS3 0898 Gear - 53T 1
11 VFS3 0899 Gear - 53T 1

a

a
b
c
d
e

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0353 0060D Sunk Screw - 3x6
101 0354 0060D Sunk Screw - 4x6
102 0951 3006W Philips Screw With Flat Waser-M3x6
103 C560 9011 Retaining Ring - M3.7
104 0951 2008W Philips Pan Head Screw W/W - M2x18

Part No.

Description

Q’ty Per
Assembly

31

PARTS INDEX

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

C207 6132 Support End Fence 11- 14
C209 3141 Stopper - Scanner Unit 11- 13
C209 6142 Guide Fence Slider 11- 8
C209 6143 Guide Fence Knob 11- 9
C209 6144 Guide Fence Shaft 11- 10
C209 6145 Guide Fence Bracket 11- 11
C209 6149 Guide Fence Spring 11- 12
C560 9001 Bearing 7- 12
C560 9002 Screw - M4x55 5- 20
C560 9002 Screw - M4x55 15- 27
C560 9003 Bearing - M14 5- 21
C560 9003 Bearing - M14 15- 28
C560 9004 Parallel Pin - 2x14 21- 42
C560 9004 Parallel Pin - 2x14 25- 40
C560 9005 Parallel Pin - 2x18 21- 41
C560 9005 Parallel Pin - 2x18 25- 38
C560 9006 Parallel Pin - 2x16 23- 21
C560 9007 Pallarel Pin - 3x12 5- 23
C560 9007 Pallarel Pin - 3x12 15- 31
C560 9008 Pallarel Pin - 2x8 5- 24
C560 9008 Pallarel Pin - 2x8 15- 32
C560 9009 Retaining Ring - M2.4 5-103
C560 9009 Retaining Ring - M2.4 15-103
C560 9010 Retaining Ring - M3.2 5-104
C560 9010 Retaining Ring - M3.2 15-104
C560 9011 Retaining Ring - M3.7 31-103
C560 9012 Retaining Ring - M6.4 7-106
C560 9612 Retaining Ring - M6.4 19-103
C561 9012 Retaining Ring - M6.4 17-103
C561 9012 Retaining Ring - M6.4 21-103
C561 9012 Retaining Ring - M6.4 25-103
C561 90123 Retaining Ring - M6.4 23-103
V4F1 0171 Front Cover 11- 22
V4F1 0171 Front Cover 17- 6
V4F1 0171 Front Cover 19- 6

V4G1 0106 Power Supply Cord 21- 38
VFA2 6523 Brake Plate 7- 17
VFA3 3513 Front Upper Cam Holder 21- 1
VFA3 3513 Front Upper Cam Holder 25- 1
VFA3 3514 Rear Upper Cam Holder 21- 32
VFA3 3514 Rear Upper Cam Holder 25- 32
VFA3 3515 Spring Plate 21- 2
VFA3 3515 Spring Plate 25- 2
VFA3 3516 Nut Plate 21- 3
VFA3 3516 Nut Plate 21- 35
VFA3 3516 Nut Plate 25- 3
VFA3 3516 Nut Plate 25- 35
VFA4 6702 Hexagonal Headless Set Screw 19- 18
VFA4 6702 Hexagonal Headless Set Screw 27- 9
VFA4 6702 Hexagonal Headless Set Screw 27- 39
VFA5 4774 Front Lower Cam Holder 21- 12
VFA5 4774 Front Lower Cam Holder 25- 12
VFA5 4786 Drive Joint Shaft 23- 12
VFA5 4788 Shaft 21- 11
VFA5 4788 Shaft 25- 11
VFA5 4794 Guide Plate 25- 29
VFA5 4800 Safety Switch Cover 21- 39
VFA5 4800 Safety Switch Cover 25- 19
VFA5 4823 Door Hinge 17- 12
VFA5 4823 Door Hinge 19- 12
VFA5 4876 Encoder 5- 19
VFA5 4876 Encoder 15- 26
VFA5 4876 Encoder 21- 27
VFA5 4876 Encoder 25- 27
VFA5 4913 Release Knob 21- 22
VFA5 4913 Release Knob 25- 22
VFA5 4951 Rear Paper Guide Arm 27- 10
VFA5 4952 Guide Plate Screw 27- 11
VFA5 4954 Spring Plate 27- 13
VFA5 4956 Arm Bracket 27- 15

d

a
a

h
h

34

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

VFA5 4962 Sensor Bracket 2 27- 20
VFA5 4964 Front Spring Hook 27- 22
VFA5 4967 Arm 27- 24
VFA5 4969 Nylon Ring 27- 25
VFA5 4970 Arm Cover 27- 38
VFA5 4992 Safety Switch Arm 21- 39
VFA5 4992 Safety Switch Arm 25- 19
VFA6 0505 Plate 27- 18
VFA6 1023 Adjusting Pin 3- 13
VFA6 1023 Adjusting Pin 13- 12
VFA6 6206 Front Cam 21- 5
VFA6 6206 Front Cam 25- 5
VFA6 6207 Rear Cam 21- 31
VFA6 6207 Rear Cam 25- 31
VFA6 6208 Front Upper Guide 21- 14
VFA6 6208 Front Upper Guide 25- 14
VFA6 6209 Front Lower Guide 21- 15
VFA6 6209 Front Lower Guide 25- 15
VFA6 6210 Rear Upper Guide 21- 34
VFA6 6210 Rear Upper Guide 25- 34
VFA6 6211 Rear Lower Guide 21- 17
VFA6 6211 Rear Lower Guide 25- 17
VFA6 6212 Staple Botton 17- 9
VFA6 6212 Staple Botton 19- 9
VFA6 6213 Cam Shaft 21- 6
VFA6 6213 Cam Shaft 25- 6
VFA6 6214 Sensor Bracket 21- 37
VFA6 6214 Sensor Bracket 25- 37
VFA6 6215 Switch Bracket 23- 13
VFA6 6216 Guide Pin 27- 45
VFA6 6217 Cam Sensor Actuator 21- 30
VFA6 6217 Cam Sensor Actuator 25- 30
VFA6 6218 Rear Lower Cam Holder 21- 28
VFA6 6218 Rear Lower Cam Holder 25- 28
VFA6 6219 Front Slide Rail 23- 2

VFA6 6220 Slide Rail 23- 18
VFA6 6221 Front Support Plate 23- 20
VFA6 6222 Rear Support Plate 23- 19
VFA6 6224 Sensor Bracket 21- 24

VFA6 6224 Sensor Bracket 25- 24
e
e

b
b

VFA6 6229 Magnet Holder 17- 10

VFA6 6229 Magnet Holder 19- 10

VFA6 6232 Magnet Plate 21- 13

VFA6 6232 Magnet Plate 25- 13

VFA6 6233 Harness Cover 23- 8

VFA6 6247 Staple Inner Cover 17- 5

VFA6 6247 Staple Inner Cover 19- 5

VFA6 6271 Bin Support Frame 27- 8

VFA6 6272 Cable Cover 27- 21

VFA6 6273 Upper Paper Guide Arm 27- 12

VFA6 6274 Spring Plate 27- 14

VFA6 6275 Guide Shaft 27- 16

VFA6 6276 Guide Shaft 27- 17

VFA6 6277 Spacer 27- 23

VFA6 6282 Top Tray 27- 4

VFA6 6283 Front Bin Slider 27- 5

VFA6 6284 Rear Bin Slider 27- 6

VFA6 6285 Bin Roller 27- 3

VFA6 6287 Bin Inner Cover 27- 35

VFA6 6288 Sensor Bracket 1 27- 19

VFA6 6290 Mylar Cover 27- 42

VFA6 6294 Cover 23- 6

VFA6 6295 Staple Unit 31- 11

VFA6 6296 Spring Plate 29- 12

VFA6 6298 Microswitch Cover 21- 23

VFA6 6298 Microswitch Cover 25- 23

VFA6 6300 Stapler Bracket 31- 9

VFA6 6301 Stapler Mount Plate 29- 13

VFA6 6302 Frame Guide Rail 29- 6

VFA6 6305 Swing Plate 31- 6

b
b

35

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

VFA6 6306 Shutter Arm 31- 2
VFA6 6307 Under Guide 31- 1
VFA6 6308 Slider 29- 4
VFA6 6309 Switch Bracket 29- 15
VFA6 6310 Ring Gear - 64Z 29- 9
VFA6 6311 Slide Roller 29- 10
VFA6 6314 Slider Guide 29- 3
VFA6 6315 Roller 31- 7
VFA6 6317 Gear Cover 29- 7
VFA6 6318 Microswitch Cover 31- 4
VFA6 6416 Front Joint Stay 13- 9
VFA6 6417 Rear Joint Stay 13- 10
VFC1 6329 Caster 23- 7
VFC1 9613 Upper Joint Stay 13- 11
VFE6 1417 Safety Switch Plate 21- 39
VFE6 1417 Safety Switch Plate 25- 19
VFE6 2114 Slide Com 21- 21
VFE6 2114 Slide Com 25- 21
VFE6 2626 Front Suppor Plate 23- 9
VFE6 2627 Rear Support Plate 23- 10
VFE6 2628 Front Side Plate 7- 7
VFE6 2629 Rear Side Plate 7- 20
VFE6 2630 Front Side Plate - Tray 7- 1
VFE6 2631 Rear Side Plate - Tray 7- 3
VFE6 2633 Middle Stay 7- 22
VFE6 2634 Lift Motor Bracket 7- 17
VFE6 2636 Slide Core 7- 4
VFE6 2636 Slide Core 13- 8
VFE6 2637 Front Chain Holder 7- 5
VFE6 2638 Rear Chain Holder 9- 10
VFE6 2639 Sensor Bracket 9- 11
VFE6 2640 Limit Sensor Bracket 9- 7
VFE6 2642 Sprocket Shaft 7- 8
VFE6 2643 Sensor Actuator 9- 8
VFE6 2644 Adaptor 7- 17

VFE6 2645 Clutch 7- 15

VFE6 2646 Gear - 54 7- 15

VFE6 2647 Paper Tray Stopper 3- 14

VFE6 2648 Middle Fan Cover 7- 14

VFE6 2649 Sensor Cover 9- 13

VFE6 2650 Support Stay 7- 21

VFE6 2651 Front Cover 3- 3

VFE6 2652 Rear Cover 3- 4

VFE6 2653 Lower Right Cover 7- 13

VFE6 2654 Rear Stay 3- 5

VFE6 2655 Joint Plate 3- 6

VFE6 2656 Joint Cover 3- 7

VFE6 2657 Support Plate 3- 8

VFE6 2658 Back Plate 3- 9

b
b

b

c

VFE6 2659 Stay Bracket 3- 10

VFE6 2661 Switch Cover Braclet 23- 17

VFE6 2663 Bin Gear Cover 27- 43

VFE6 2665 Hinge Plate 27- 44

VFE6 2666 Stay Front Cover 3- 11

VFE6 2668 Spring Stay 27- 41

VFE6 2669 Swing Cover 27- 47

VFE6 2670 Stay Rear Cover 3- 12

VFE6 2671 Bin Rear Cover 27- 30

VFE6 2672 Safety Cover 7- 19

VFE6 2673 Hold Tape 13- 2

VFE6 2674 Sorter Lower Stay 25- 18

VFE6 2675 Paper Guide 19- 20

VFE6 2676 Lower Right Cover 19- 19

VFE6 2677 Belt Drive Shaft 5- 1

VFE6 2677 Belt Drive Shaft 15- 1

VFE6 2678 Belt Driven Shaft 15- 2

VFE6 2679 Transfer Belt - 1 15- 4

VFE6 2680 Transfer Belt - 2 15- 5

VFE6 2681 Drive Gear Shaft 5- 19

VFE6 2681 Drive Gear Shaft 15- 26

a
a

b

a
a

36

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

VFE6 2682 Transfer Shaft 5- 12
VFE6 2682 Transfer Shaft 15- 16
VFE6 2683 Tension Spring 15- 17
VFE6 2684 Tension Spring 15- 18
VFE6 2685 Timing Belt - 240 5- 19
VFE6 2685 Timing Belt - 240 15- 26
VFE6 2686 Belt Driven Shaft 5- 8
VFE6 2687 Transfer Belt 5- 2
VFE6 2689 Bin Shaft 27- 44
VFE6 2690 Transfer Shaft 15- 10
VFE6 2691 Transfer Shaft Holder 15- 11
VFE6 2694 Edge Cover 23- 15
VFE6 2695 Bin Frame 27- 26
VFE6 2696 Belt Driven Shaft 15- 3
VFE6 2697 Middle Support Plate 5- 3
VFE6 2697 Middle Support Plate 15- 6
VFE6 2698 Support Plate 5- 4
VFE6 2698 Support Plate 15- 7
VFE6 2699 Buccume Fan Box 5- 5
VFE6 2700 Buccume Fan Box 15- 8
VFE6 2701 Joint Stay 13- 3
VFE6 2702 Transfer Motor Bracket 5- 19
VFE6 2702 Transfer Motor Bracket 15- 26
VFE6 2703 Sensor Bracket 5- 19
VFE6 2703 Sensor Bracket 15- 26
VFE6 2704 Left Cover 17- 14
VFE6 2704 Left Cover 19- 14
VFE6 2705 Bin Stay 27- 40
VFE6 2706 Solenoid Bracket 21- 20
VFE6 2706 Solenoid Bracket 25- 20
VFE6 2707 Tray Lower Cover 11- 5
VFE6 2708 Jumper Plate 5- 6
VFE6 2709 Jumper Shaft 5- 7
VFE6 2710 Side Fence 11- 4
VFE6 2712 Rail Cover 21- 16

VFE6 2712 Rail Cover 25- 16

VFE6 2713 Front Caster Cover 23- 5

VFE6 2714 Rear Caster Cover 23- 11

VFE6 2715 Rear Panel Cover 17- 7

VFE6 2719 Upper Left Cover 17- 2

VFE6 2719 Upper Left Cover 19- 2

VFE6 2720 Upper Cover 19- 9

VFE6 2721 Copy Tray 11- 1

c

e
e
f
f
a
a

VFE6 2722 Sub Tray 11- 2

VFE6 2723 End Fence Rail 11- 3

VFE6 2724 Staple End Fence 11- 17

VFE6 2725 Staple Cover 11- 17

VFE6 2726 Upper Right Cover 17- 3

VFE6 2726 Upper Right Cover 19- 3

VFE6 2727 Transfer Cover 15- 12

VFE6 2728 Joint Frint Cover 13- 4

VFE6 2729 Joint Rear Cover 13- 5

VFE6 2730 Stapler Stay 19- 16

VFE6 2732 Spring Plate Holder 9- 1

VFE6 2733 Sensor Spring 9- 2

VFE6 2734 Joint Cover 19- 13

VFE6 2736 End Fence Spring 11- 17

VFE6 2737 Right Cover 15- 13

VFE6 2738 Middle Right Guide 5- 9

VFE6 2739 Middle Left Guide 5- 10

VFE6 2740 Left Cover 15- 14

VFE6 2741 Antistatic Brush 5- 11

VFE6 2741 Antistatic Brush 15- 15

VFE6 2742 Roller Chain 25 7- 11

VFE6 2743 Grip 11- 7

VFE6 2748 Joint Bottom Cover 13- 7

VFE6 2753 Rear Left Cover 19- 8

VFE6 2758 Tray Spring 11- 15

VFE6 2780 Relay Duct 5- 25

VFE6 2781 Duct 15- 33

a

b
a

c

37

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

VFE6 2782 Duct Fin 5- 26
VFE6 2782 Duct Fin 15- 34
VFE6 2789 Front Upper Guide 11- 25
VFE6 2790 Rear Upper Guide 11- 26
VFE9 0036 Lift Guide 21- 29
VFE9 0112 Fixed Roller 27- 37
VFE9 0115 Fixed Shaft 27- 36
VFF2 1162 Bottom Plate 27- 27
VFF2 4169 Stapler Relay Harness 21- 36
VFF2 4169 Stapler Relay Harness 23- 16
VFF2 4169 Stapler Relay Harness 25- 36
VFF2 4171 Staple Harness 29- 8
VFF2 4172 Staple Position Harness 29- 14
VFF2 4174 Grownding Wire 29- 2
VFF2 4176 Grownding Wire 27- 46
VFF2 4177 Safety Switch Harness 31- 5
VFF2 4178 Paper Release Solenoid 21- 23
VFF2 4178 Paper Release Solenoid 25- 23
VFF2 4455 Paper Release Plate 21- 23
VFF2 4455 Paper Release Plate 25- 23
VFF2 4456 Staple Frame 29- 1
VFF2 4457 Drive Unit Bracket 29- 16
VFF2 4458 Slide Shaft 29- 5
VFG1 5473 LED Sensor 27- 28
VFG1 5474 Photo Transister 27- 29
VFG1 8404 Operation Panel Ass’y 17- 9
VFG1 8404 Operation Panel Ass’y 19- 9
VFH2 5824 Dust Cover 21- 33
VFH2 5824 Dust Cover 25- 33
VFH7 1750 Sorter Drive Motor 21- 26
VFH7 1750 Sorter Drive Motor 25- 26
VFH7 1751 DC Motor 29- 17
VFH7 7023 Photointerrupter 17- 14
VFH7 7023 Photointerrupter 19- 14
VFH7 7238 Photointerruptor 31- 8

VFK6 3209 Power Supply Unit 17- 13

VFK6 3210 Power Supplu Unit - 230V 17- 13

VFK6 5069 Noise Filter (230V) 21- 38

VFK6 7127 Vaccum Fan Motor 5- 17

VFK6 7127 Vaccum Fan Motor 15- 24

VFK6 7128 Transfer Motor 5- 19

VFK6 7128 Transfer Motor 15- 26

VFK6 7129 Stepping Motor 27- 7

VFK6 7509 Solenoid 21- 23

VFK6 7509 Solenoid 25- 23

VFK6 7611 Microswitch 9- 6

VFK6 7611 Microswitch 21- 39

VFK6 7611 Microswitch 25- 19

VFK6 7620 Microswitch 9- 5

VFK6 7835 Photointerruptor 5- 18

VFK6 7835 Photointerruptor 15- 25

d
d
a
a

c
c

b
b

VFL6 0617 Grownding Harness 21- 38

VFL6 0636 Harness 21- 38

VFL6 0678 Lift Motor 7- 17

VFL6 0680 Rear Right Cover 17- 8

VFL6 0681 Cover Plate 1 21- 18

VFL6 0683 Dammy Bin 27- 44

VFL6 0685 Staple Cover 31- 10

VFL6 0686 Side Fence Guide Rail 11- 16

VFL6 0687 Cover Plate 2 21- 19

VFL6 0688 Brake Solenoid 7- 16

VFL6 0689 Staple Door 17- 1

VFL6 0689 Staple Door 19- 1

VFL6 0691 Lift Motor Stay 7- 18

VFL6 0693 Upper Cover 17- 9

VFL6 0694 Joint Stay Cover 13- 6

VFL6 0695 Rear Left Cover 17- 7

VFL6 0696 Rear Right Cover 19- 7

VFL6 0699 Sorter Bin 27- 1

VFL6 1040 Safety Switch Harness 21- 39

a

k
k

e
e

c
c

e
c
a

a

a
a

a

d

38

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

VFL6 1040 Safety Switch Harness 25- 19
VFL9 0128 Paper Release Link 21- 23
VFL9 0128 Paper Release Link 25- 23
VFM6 0607 Door Switch 21- 39
VFM6 0607 Door Switch 25- 19
VFM6 0653 Transfer Harness 15- 30
VFM6 0654 DC Harness B 17- 17
VFM6 0654 DC Harness B 19- 17
VFM6 0655 Sensor Relay Harness 5- 22
VFM6 0655 Sensor Relay Harness 15- 29
VFM6 0656 Sensor Harness 17- 14
VFM6 0656 Sensor Harness 19- 14
VFM6 0657 IPC Harness 3- 15
VFM6 0658 Sensor Harness 9- 14
VFM6 0659 Sensor Harness 27- 34
VFM6 0660 Power Supply Connector 21- 38
VFM6 0661 Power Supply Cord - 230V 21- 38
VFM6 0662 DC Control Board A 17- 15
VFM6 0662 DC Control Board A 19- 15
VFM6 0663 Sorter Interface Board 3- 17
VFM6 0664 DC Harness A 17- 16
VFM6 0683 Upper Cover Ass’y 19- 9
VFM6 0686 Transfer Unit 3- 2
VFM6 0687 Transfer Moter Ass’y 5- 19
VFM6 0687 Transfer Moter Ass’y 15- 26
VFM6 0689 Lift Unit 3- 1
VFM6 0690 Lift Motor Ass’y 7- 17
VFM6 0691 Brake 7- 16
VFM6 0692 Lift Drive Shaft Ass’y 7- 15
VFM6 0693 Copy Tray Ass’y 7- 10
VFM6 0694 Staple Cover Ass’y 11- 17
VFM6 0696 Transfer Unit Ass’y 13- 1
VFM6 0697 Bin Entrance Guide Ass’y 27- 44
VFM6 0703 Left Cover Ass’y 17- 14
VFM6 0703 Left Cover Ass’y 19- 14

d
c
c

d
d

d

VFM6 0709 Stapler Frame 17- 4

VFM6 0709 Stapler Frame 19- 4

VFM6 0710 Upper Cover Ass’y 17- 9

VFM9 0405 Rear Spring Hook 27- 45

VFM9 0565 Paper Release Solenoid 21- 23

VFM9 0565 Paper Release Solenoid 25- 23

VFS0 0107 Bevel Gear 5- 19

VFS0 0107 Bevel Gear 15- 26

VFS0 2074 Cover Sring 11- 6

VFS0 2075 Guide Spring 27- 44

VFS0 2076 Clutch Spring 7- 15

VFS0 2077 Spring 23- 1

VFS0 2079 Jumper Spring 5- 13

VFS0 2080 End Spring 11- 23

VFS0 3121 Pulley - 20Z 5- 19

VFS0 3121 Pulley - 20Z 15- 26

VFS0 3122 Pulley - 30Z 5- 14

VFS0 3122 Pulley - 30Z 15- 9

VFS0 9026 Buttfley Nut 3- 16

VFS1 1156 Bushing 21- 4

VFS1 1156 Bushing 25- 4

VFS1 1190 Bushing 5- 19

VFS1 1190 Bushing 15- 26

VFS1 1213 Bushing - 6mm 5- 19

VFS1 1213 Bushing - 6mm 15- 26

VFS1 3067 Sprocket 7- 9

VFS1 9010 Stepped Screw - M2.2 11- 21

VFS1 9073 Stepped Screw - 8.2 11- 17

VFS1 9073 Stepped Screw - 8.2 15- 22

VFS1 9076 Stepped Screw - M1.9 7- 2

VFS1 9076 Stepped Screw - M1.9 11- 17

VFS1 9076 Stepped Screw - M1.9 11- 20

VFS1 9102 Stepped Screw - M3 21- 39

VFS1 9102 Stepped Screw - M3 25- 19

VFS1 9166 Stepped Screw - M4 11- 24

b
b

d
c

c
c

i
i
j
j

e

f

f
f

39

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

VFS2 3365 Pulley - 16T 29- 18
VFS2 3445 Pulley 21- 8
VFS2 3445 Pulley 25- 8
VFS2 6304 Roller - 20 11- 17
VFS2 6304 Roller - 20 15- 21
VFS2 6305 Exit Roller 5- 15
VFS2 6305 Exit Roller 15- 19
VFS2 9394 Stepped Screw - M1.4 9- 3
VFS2 9394 Stepped Screw - M1.4 11- 18
VFS2 9461 Stepped Screw - M4 11- 19
VFS3 0089 Bevel Gear 5- 19
VFS3 0089 Bevel Gear 15- 26
VFS3 0155 Gear - 30T 23- 4
VFS3 0833 Gear - 18T/48T 29- 20
VFS3 0834 Gear - 18T/56T 29- 11
VFS3 0835 Gear Pulley - 30T/18T 21- 10
VFS3 0835 Gear Pulley - 30T/18T 25- 10
VFS3 0836 Gear - 100T/21T 27- 31
VFS3 0895 Gear - 12T 31- 11
VFS3 0896 Gear - 18T/53T 31- 11
VFS3 0897 Gear - 18T/53T 31- 11
VFS3 0898 Gear - 53T 31- 11
VFS3 0899 Gear - 53T 31- 11
VFS3 2132 Spring 27- 32
VFS3 2178 Rear Guide Spring 15- 23
VFS3 2184 Lever Spring 27- 2
VFS3 2822 Release Paper Spring 21- 23
VFS3 2822 Release Paper Spring 25- 23
VFS3 2823 Spring 31- 3
VRG1 0424 Sensor Ass’y 17- 14
VRG1 0424 Sensor Ass’y 19- 14
VRS1 1054 Bushing 23- 3
VVD5 0161 Huse - 125V 1AS 17- 9
VVD5 0161 Huse - 125V 1AS 19- 9
VWC4 0237 Microswitch 21- 40

VWC4 0237 Microswitch 25- 39

VWC4 0246 Microswitch 29- 14

VWC4 0246 Microswitch 31- 5

d

g
g

a
b
c
d
e

f
f

c
c

d
d

VWC4 5014 Microswitch 29- 8

VWG8 0164 Photointerrupter 21- 25

VWG8 0164 Photointerrupter 23- 14

VWG8 0164 Photointerrupter 25- 25

VWG8 0164 Photointerrupter 27- 33

VWG8 5038 Photointerrupter 5- 19

VWG8 5038 Photointerrupter 9- 12

VWG8 5038 Photointerrupter 15- 26

VWT2 0256 Edge Sadle 9- 9

VWT2 5035 Edge Sadle 5- 16

VWT2 5035 Edge Sadle 15- 20

VXA9 0679 Screw 11-103

VXF9 0217 Timing Belt - 63T 29- 19

VXF9 0369 Timing Belt 21- 7

VXF9 0369 Timing Belt 25- 7

VXG9 0013 Ball Bearing 25- 9

VXG9 0097 Bearing 7- 6

VXG9 0249 Ball Bearing 21- 9

VXZ9 0326 Magnet Catch 9- 4

VXZ9 0326 Magnet Catch 17- 11

VXZ9 0326 Magnet Catch 19- 11

a
a

l
l

40

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

0312 6030W Philips Pan Head Screw - M2.6x3 29-103
0353 0040D Philips Pan Head Screw - M3x4 17-104
0353 0040D Philips Pan Head Screw - M3x4 19-104
0353 0040W Philips Pan Bind Screw - M3x4 5-100
0353 0040W Philips Pan Bind Screw - M3x4 9-102
0353 0040W Philips Pan Bind Screw - M3x4 15-100
0353 0060D Sunk Screw - 3x6 31-100
0353 0060W Philips Pan Head Screw - M3x6 9-105
0353 0060W Philips Pan Head Screw - M3x6 27-102
0353 0060W Philips Pan Head Screw - M3x6 29-102
0353 0080D Philips Truus Head Screw - M3x8 17-105
0353 0080D Philips Truus Head Screw - M3x8 19-102
0353 0080W Tapping Screw - M3x8 21-102
0353 0080W Tapping Screw - M3x8 25-102
0353 0160W Philips Pan Head Screw - M3x16 9-101
0354 0060D Sunk Screw - 4x6 3-101
0354 0060D Sunk Screw - 4x6 7-100
0354 0060D Sunk Screw - 4x6 9-100
0354 0060D Sunk Screw - 4x6 11-102
0354 0060D Sunk Screw - 4x6 13-100
0354 0060D Sunk Screw - 4x6 17-100
0354 0060D Sunk Screw - 4x6 19-100
0354 0060D Sunk Screw - 4x6 27-101
0354 0060D Sunk Screw - 4x6 31-101
0354 0060W Philips Truus Head Screw - M4x6 17-106
0354 0060W Philips Truus Head Screw - M4x6 17-108
0354 0060W Philips Truus Head Screw - M4x6 21-100
0354 0060W Philips Truus Head Screw - M4x6 23-100
0354 0060W Philips Truus Head Screw - M4x6 25-100
0354 0060W Philips Truus Head Screw - M4x6 27-105
0354 0060W Philips Truus Head Screw - M4x6 29-100
0354 0100D Sunk Screw - 4x10 13-101
0354 0100Z Bind Screw - M4x10 7-102
0434 0060W Tapping Screw - M4x6 27-103
0434 0080W Tapping Screw - M4x8 27-106

0553 0060E Allen Screw - M3x6 5-106

0553 0060E Allen Screw - M3x6 7-108

0553 0060E Allen Screw - M3x6 15-106

0554 0060E Allen Screw - M4x6 5-107

0554 0060E Allen Screw - M4x6 15-107

0554 0060E Allen Screw - M4x6 21-106

0554 0060E Allen Screw - M4x6 25-106

0701 0080Z Flat Washer - M8 21-104

0701 0080Z Flat Washer - M8 25-104

0705 0040B Toothed Washer 3-104

0705 0040B Toothed Washer 5-102

0705 0040B Toothed Washer 7-103

0705 0040B Toothed Washer 9-106

0705 0040B Toothed Washer 13-102

0705 0040B Toothed Washer 15-102

0705 0040B Toothed Washer 17-107

0705 0040B Toothed Washer 19-105

0705 0040B Toothed Washer 27-109

0720 0050Z Retaining Ring - M5 15-108

0720 0050Z Retaining Ring - M5 27-110

0720 0050Z Retaining Ring - M5 29-105

0720 0060Z Retaining Ring - M6 5-105

0720 0060Z Retaining Ring - M6 15-105

0725 0080Z Retaining Ring - M6.4 7-107

0951 2008W Philips Pan Head Screw W/W - M2x18 29-106

0951 2008W Philips Pan Head Screw W/W - M2x18 31-104

0951 2010W Philips Pan Head Screw W/W - M2x10 17-102

0951 2010W Philips Pan Head Screw W/W - M2x10 23-102

0951 2010W Philips Pan Head Screw W/W - M2x10 25-105

0951 2010Z Philips Pan Head Screw W/W - M2x10 19-106

0951 2010Z Philips Pan Head Screw W/W - M2x10 21-105

0951 3006W Philips Screw With Flat Waser-M3x6 5-108

0951 3006W Philips Screw With Flat Waser-M3x6 9-104

0951 3006W Philips Screw With Flat Waser-M3x6 11-100

0951 3006W Philips Screw With Flat Waser-M3x6 15-109

41

Part No.

0951 3006W Philips Screw With Flat Waser-M3x6 27-104
0951 3006W Philips Screw With Flat Waser-M3x6 29-104
0951 3006W Philips Screw With Flat Waser-M3x6 31-102
0951 4004W Philips Screw With Flat Waser-M4x4 27-107
0951 4006W Philips Screw With Flat Waser-M4x6 3-102
0951 4006W Philips Screw With Flat Waser-M4x6 5-101
0951 4006W Philips Screw With Flat Waser-M4x6 7-101
0951 4006W Philips Screw With Flat Waser-M4x6 9-103
0951 4006W Philips Screw With Flat Waser-M4x6 11-101
0951 4006W Philips Screw With Flat Waser-M4x6 15-101
0951 4006W Philips Screw With Flat Waser-M4x6 17-101
0951 4006W Philips Screw With Flat Waser-M4x6 19-101
0951 4006W Philips Screw With Flat Waser-M4x6 21-101
0951 4006W Philips Screw With Flat Waser-M4x6 23-101
0951 4006W Philips Screw With Flat Waser-M4x6 25-101
0951 4006W Philips Screw With Flat Waser-M4x6 27-100
0951 4006W Philips Screw With Flat Waser-M4x6 27-108
0951 4006W Philips Screw With Flat Waser-M4x6 29-101
0951 4010W Philips Screw With Flat Waser-M4x10 3-103
0951 5006Z Philips Pan Head Screw W/W - M5x6 7-104
0954 0006Z Philips Pan Head Screw W/W - M4x6 7-105
1105 0312 Spacer 3-100

Description

Page and
Index No.

Part No.

Description

Page and
Index No

42
