Ricoh ST28 Modification Bulletin

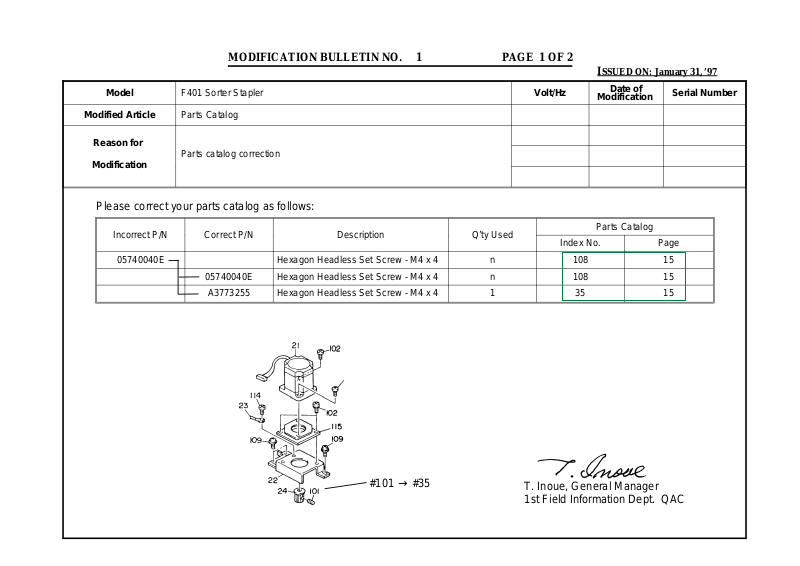

MODIFICATION BULLETIN NO. 1 PAGE 1 OF 2
ISSUED ON: January 31, ’97
Model F401 Sorter Stapler Volt/Hz
Modified Article Parts Catalog
Reason for
Parts catalog correction
Modification
Please correct your parts catalog as follows:
Incorrect P/N Correct P/N Description Q’ty Used
05740040E Hexagon Headless Set Screw - M4 x 4 n 108 15
05740040E Hexagon Headless Set Screw - M4 x 4 n 108 15
A3773255 Hexagon Headless Set Screw - M4 x 4 1 35 15
Date of
Modification
Parts Catalog
Index No. Page
Serial Number
#101 → #35
T. Inoue, General Manager
1st Field Information Dept. QAC
MODIFICATION BULLETIN NO. 1 PAGE 2 OF 2
JAPAN PRODUCTION
ISSUED ON: January 31 ’97
MODEL NAME
Savin ST28 120/60 U.S.A. A606 - 15
Ricoh ST28
NRG ST28
Infotec ST28 230/50 Europe A606 - 26
NRG ST28P 120/60
Savin ST28P 120/60 U.S.A. A606 - 55
Ricoh ST28P 120/60 U.S.A., etc. A606 - 57
NRG ST28P 120/60
V/Hz DESTINATION
120/60 U.S.A., etc.
230/50 Europe, etc.
120/60
230/50 Europe, etc.
U.S.A. , Canada,
etc.
U.S.A. , Canada,
etc.
U.S.A. , Canada,
etc.
CODE SERIAL NUMBER
A606 - 17
A606 - 22
A606 - 52
A606 - 62
NRG ST28P 230/60 Europe A606 - 66
Ricoh ST28P 230/50 Europe A606 - 67
M
Model:
F401 Sorter Stapler
odification
B
Date:
ulletin
15-Feb-98
No:
PAGE: 1/2
2
Modified Article:
From:
QAC Field Information Dept.
Reason for
Modification:
Gripper Solenoid Bracket etc
Parts catalog correction
To facilitate assembly
Part standardization
Vendor change
To improve reliability
Other
Prepared by:
To meet standards
F.Noguchi
( )
Old part New part Description Qty Int Page Index Note
number number
A3774436 A6644436 Gripper Solenoid Bracket 1-1 O/O 7 10
A6064441 A6644441 Slider Support Brack et 1-1 O/O 7 22
A6064721 A6644721 Stapler Slide Brack et 1-1 O/O 9 16
A3774745 A6644745 Harness Cover 1-1 O/O 9 24
A3773311 A6643311 End Fence Bracket 1-1 O/O 11 34
A3774131 A6644131 Upper Jogger Stay 1-1 O/O 13 13
A3774133 A6644133 Lower Jogger Stay 1-1 O/O 15 4
A6061141 A6641141 Upper Stay 1-1 O/O 17 10
AF022068 AF022097 Driven Roller 3-3 O/O 17 13
4-4 O/O 19 13
A3772311 A6642311 Right Guide Plate 1-1 O/O 17 17
A3771151 A6641151 Stay 2-2 O/O 17 20
1-1 O/O 21 10
A3772131 A6642131 Right Lower Guide 1-1 O/O 19 10
A3771126 A6641126 Front Cover Plate 1-1 O/O 19 15
A6061171 A6641171 Exit Stay 1-1 O/O 19 19
A6061181 A6641181 Middle Stay 1-1 O/O 19 24
A6067311 A6067316 Hopper Bracket 1-1 O/O 23 1
Due to part standardization, the parts listed above have been changed.
M
Model:
MODEL NAME V/ Hz DESTINATION CODE SERIAL NUMBER
Savin ST28 120/ 60 U. S. A. A606 - 15
Ricoh ST28 A606 - 17
NRG ST28 120/ 60 U. S. A. ,
Infotec ST28 230/ 50 Europe A606 - 26
NRG ST28P 120/ 60 U. S. A. ,
Savin ST28P 120/ 60 U. S. A. A606 - 55
Ricoh ST28P 120/ 60 U. S. A., etc. A606 - 57
NRG ST28P 120/ 60 U. S. A. ,
NRG ST28P 230/ 60 Europe A606 - 66
Ricoh ST28P 230/ 50 Europe A606 - 67
F401 Sorter Stapler
120/ 60 U. S. A., etc.
230/ 50 Europe, etc.
230/ 50 Europe, etc.
odification
Canada, etc.
Canada, etc.
Canada, etc.
ulletin
B
Date:
A606 - 22
A606 - 52
A606 - 62
15-Feb-98
No:
2
PAGE: 2/2
