Ricoh rf780 PARTS CATALOG

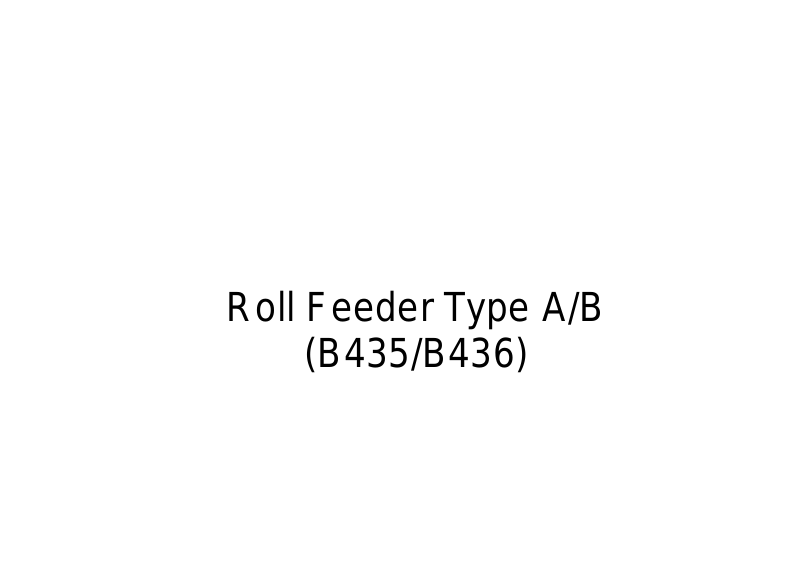

Roll Feeder Type A/B
(B435/B436)
Roll Feeder Type A/B (B435/B436)
PARTS CATALOG
This catalog gives the numbers and names of parts on this machine.
CONTENTS
1.Roll Feed Tray 1 (B435/B436)............................. |
2 |
2.Roll Feed Tray 2 (B435/B436)............................. |
4 |
3.Roll Feed Tray 3 (B435/B436)............................. |
6 |
4.Roll Feed Tray 4 (B435/B436)............................. |
8 |
5.Roll Feed Tray 5 (B435/B436)............................ |
10 |
6.Roll Feed Tray 6 (B435/B436)............................ |
12 |
7.Roll Feed Tray 7 (B435/B436)............................ |
14 |
8.Decals And Documents (B435/B436) ................. |
16 |
PARTS INDEX ......................................................... |
19 |
May ,30 ' 2001
1.Roll Feed Tray 1 (B435/B436)
2
1.Roll Feed Tray 1 (B435/B436)
Index |
Part No. |
Description |
Q’ty Per |
|
No. |
Assembly |
|||
|
|
|||
|
|
|
|
|
1 |
B435 1068 |
Left Stand Bracket |
1 |
|
2 |
AA14 3773 |
Stand |
2 |
|
3 |
B435 2993 |
Roller |
2 |
|
4 |
B435 1066 |
Left Stand Guide Plate |
1 |
|
5 |
AA06 3302 |
Spring - Positioning |
2 |
|
6 |
AA07 0054 |
Left Slide Rail (B435) |
1 |
|
6 |
B010 2936 |
Left Slide Rail (B436) |
1 |
|
7 |
B010 2918 |
Pin Bracket |
2 |
|
8 |
B010 2916 |
Positioning Pin |
2 |
|
9 |
B435 2817 |
Harness Cover |
1 |
|
10 |
AW01 0045 |
Paper End Sensor |
2 |
|
11 |
AA14 3062 |
Shoulder Screw - M4 |
2 |
|
12 |
B435 2814 |
Paper End Sensor Bracket |
1 |
|
13 |
B435 2562 |
Heater - 30W 115V |
1 |
|
13 |
B435 2563 |
Heater - 30W 230V |
1 |
|
14 |
AA00 0306 |
Decal - Warning |
1 |
|
15 |
B435 2601 |
Left Cover - Relay |
1 |
|
16 |
B435 2595 |
Front Cover - Relay (NA) |
1 |
|
16 |
B435 2596 |
Front Cover - Relay (EU) |
1 |
|
17 |
B435 2602 |
Right Cover - Relay |
1 |
|
18 |
AA07 0055 |
Right Slide Rail (B435) |
1 |
|
18 |
B010 2938 |
Right Slide Rail (B436) |
1 |
|
19 |
B435 1071 |
Right Stand Guide Plate |
1 |
|
20 |
B435 1069 |
Right Stand Bracket |
1 |
|
21 |
A714 3045 |
Caster |
4 |
|
22 |
5400 1041 |
Leveling Foot |
4 |
|
23 |
AA14 3718 |
Stepped Screw - M4 |
2 |
|
24 |
B435 2939 |
Slide Rail Plate |
2 |
|
25 |
B435 2951 |
Rear Connector Bracket |
1 |
|
26 |
B435 5607 |
DC Connector Harness - Paper Feed Unit |
1 |
|
27 |
AA06 3532 |
Spring |
2 |
|
28 |
AA14 3452 |
Stepped Screw |
2 |
|
29 |
B435 2815 |
Rear Harness Cover |
2 |
|
30 |
B435 1067 |
Rear Cover |
1 |
|
31 |
B435 6955 |
Harness Cover - RF |
1 |
Index |
Part No. |
Description |
Q’ty Per |
|
No. |
Assembly |
|||
|
|
|||
|
|
|
|
|
32 |
A571 6965 |
Ground Plate |
2 |
|
33 |
AA00 0642 |
Decal - Dehumidifier Switch |
1 |
|
34 |
5918 3120 |
Stud - M4 |
2 |
|
35 |
B435 5600 |
AC Harness |
1 |
|
36 |
B435 2603 |
Size Indicator |
1 |
|
37 |
B435 5110 |
Paper Feed Board |
1 |
|
38 |
B435 5605 |
DC Harness - Paper Feed Motor |
1 |
|
39 |
B435 5606 |
DC Harness - Paper Feed Board |
1 |
|
40 |
B047 2606 |
Outer Lower Guide Plate |
1 |
|
41 |
A163 1318 |
Cover Bracket |
1 |
|
42 |
B435 2630 |
Left Side Fence |
1 |
|
43 |
B435 2631 |
Rightside Fence |
1 |
1010802 5282 Tapping Screw - M4x8
1020954 4008B Philips Screw - M4x8
1030451 4008B Philips Tapping Screw - M4x8
1040954 5010B Polished Round Spring Washer Screw
1050451 3006B Tapping Screw - M3x6
1060720 0050E Retaining Ring - M5
1070951 4006Z Philips Screw With Flat Washer - M4
108 1204 2406 Locker Switch
1090451 4008H Tapping Screw - 4x8
1101106 0458 Bushing - 9.9mm
1110343 0080F Philips Truss Head Screw - M3x8
3
2.Roll Feed Tray 2 (B435/B436)
4
2.Roll Feed Tray 2 (B435/B436)
Index |
Part No. |
Description |
Q’ty Per |
|
No. |
Assembly |
|||
|
|
|||
|
|
|
|
|
1 |
AB01 1413 |
Drive Gear - 27z |
1 |
|
2 |
AF02 0525 |
Exhaust Drive Roller |
1 |
|
3 |
B435 5603 |
DC Harness - Leading Edge |
1 |
|
4 |
B435 2723 |
Exit Guide Myler |
3 |
|
5 |
B435 2725 |
Exit Guide Plate |
1 |
|
6 |
AW01 0027 |
Photosensor - ON2530 CT |
1 |
|
7 |
B435 2724 |
Guide Plate - Photo Refiection Sensor |
1 |
|
8 |
B010 2726 |
Roller Guide Plate |
1 |
|
9 |
B435 2930 |
Left Inner Cover |
1 |
|
10 |
5053 0223 |
Bushing - 8mm |
4 |
|
11 |
B010 2898 |
Right Lock Lever |
1 |
|
12 |
5403 1030 |
Tension Spring |
2 |
|
13 |
B010 2900 |
Grip Lever |
1 |
|
14 |
AA14 0748 |
Lever Shaft |
1 |
|
15 |
B435 2903 |
Actuator |
1 |
|
16 |
B010 2896 |
Left Lock Lever |
1 |
|
17 |
A675 2596 |
Sensor Bracket |
1 |
|
18 |
AW02 0075 |
Photointerruptor |
1 |
|
19 |
5413 1875 |
Knob Screw |
2 |
|
20 |
B435 2719 |
Exit Guide Stay |
1 |
|
21 |
B010 2926 |
Front Cover |
1 |
|
22 |
B435 2721 |
Sheet - Exit Guide Stay |
1 |
|
23 |
B435 2820 |
Tray Lock Plate |
1 |
|
|
|
|
|
Index |
Part No. |
Description |
Q’ty Per |
|
No. |
Assembly |
|||
|
|
1010720 0060E Retaining Ring - M6
1021106 0458 Bushing - 9.9mm
1030451 4008B Philips Tapping Screw - M4x8
1040451 4010B Tapping Screw - 4x10
1051105 0534 Clamp - LWSM-0605
1060453 3012B Binding Self Tapping Screw - 3x12
5
3.Roll Feed Tray 3 (B435/B436)
6
3.Roll Feed Tray 3 (B435/B436)
Index |
Part No. |
Description |
Q’ty Per |
|
No. |
Assembly |
|||
|
|
|||
|
|
|
|
|
1 |
B435 2710 |
Guide Plate - Outer Exit |
1 |
|
2 |
5887 4155 |
Shaft Guide - Turn Driven |
6 |
|
3 |
5205 4527 |
Spring - Exit |
2 |
|
4 |
AF02 2034 |
Exit Roller |
3 |
|
5 |
AA06 3122 |
Exit Roller Spring |
4 |
|
6 |
AA06 0854 |
Tightener Spring |
2 |
|
7 |
B435 2718 |
Exit Roller Pressure Lever |
2 |
|
8 |
AA14 3718 |
Stepped Screw - M4 |
4 |
|
9 |
B435 2776 |
Front Lower Stay |
1 |
|
10 |
B010 2807 |
Positioning Plate (NA) |
1 |
|
10 |
B010 2758 |
Positioning Plate (EU) |
1 |
|
11 |
B010 2794 |
Middle Holder - Paper Holder |
1 |
|
12 |
5918 3120 |
Stud - M4 |
3 |
|
13 |
B340 2729 |
Guide Plate - Lower Rear Position |
1 |
|
14 |
5353 1539 |
Spring Anchor |
2 |
|
15 |
5353 1539 |
Spring Anchor |
2 |
|
|
|
|
|
Index |
Part No. |
Description |
Q’ty Per |
|
No. |
Assembly |
|||
|
|
1010720 0040E Retaining Ring - M4
1020451 4008B Philips Tapping Screw - M4x8
7
