RICOH R2221T, R2221L, R2223T, R2223L Technical data

R2221T/L R2223T/L

2-wire Serial Interface Real Time Clock IC

NO.EA-227-110822

OUTLINE

The R2221T/L,R2223T/L is a CMOS real-time clock IC connected to the CPU by two signal lines, SCL, SDA, and
configured to perform serial transmission of time and calendar data to the CPU. The periodic interrupt circuit is
configured to generate interrupt signals with six selectable interrupts ranging from 0.5 seconds to 1 month. The 2
alarm interrupt circuits generate interrupt signals at preset times. As the oscillation circuit is driven under constant
voltage, fluctuation of the oscillator frequency due to supply voltage is small, and the time keeping current is small
(TYP. 0.18μA at 3V). The oscillation halt sensing circuit can be used to judge the validity of internal data in such
events as power-on; the supply voltage monitoring circuit is configured to record a drop in supply voltage below
supply voltage monitoring threshold settings. The 32.768kHz clock output function (CMOS output with control pin)
is intended to output sub-clock pulses for the external microcomputer. The oscillation adjustment circuit is
intended to adjust time counts with high precision by correcting deviations in the oscillation frequency of the crystal
oscillator. Since the package for these ICs are TSSOP10G (4.0x2.9x1.0:R2221T,R2223T) or QFN018018-12
(1.8x1.8x0.43: R2221L, R2223L), high density mounting of ICs on boards is possible.

FEATURES

• Minimum Timekeeping supply voltage TYP:0.6 to 5.5v (Worst: 0.9V to 5.5v); VDD pin

• Ultra low power consumption 0.18μA TYP at V

• Two signal lines (SCL, SDA) required for connection to the CPU.

• Time counters (counting hours, minutes, and seconds) and calendar counters (counting years, months, days,

and weeks) (in BCD format)

• Interrupt circuit configured to generate interrupt signals (w ith interrupts ranging from 0.5 seconds to 1 month) to
the CPU and provided with an interrupt flag and an interrupt halt

• 2 alarm interrupt circuits (Alarm_W for week, hour, and minute alarm settings and Alarm_D for hour and minute
alarm settings)

• With Power-on flag to prove that the power supply starts from 0V

• 32-kHz clock output pin (CMOS push-pull output with control pin)

• Supply voltage monitoring circuit with supply voltage monitoring threshold settings

• Automatic identification of leap years up to the year 2099

• Selectable 12-hour and 24-hour mode settings

• High precision oscillation adjustment circuit

• Built-in oscillation stabilization capacitors (CG and CD)

• Package TSSOP10G (4.0mm x 2.9mm x 1.0mm: R2221T, R2223T)

QFN018018-12 (under development) (1.8mm x 1.8mm x 0.43mm: R2221L, R2223L)

• CMOS process

DD=3V (0.65μA MAX.)

1

R2221L/T, R2223L/T (Preliminary)

A

R

A

A

R

PIN CONFIGURATION

R2221T(TSSOP10G)

32KOUT

SCL

SDA

ECO

1
2

3
4
56

TOP VIEW

R2223T(TSSOP10G)

32KOUT

SCL

SDA

INTRB

1
2

3
4
56

10

9
8
7

10

9
8
7

VDD
OSCIN
OSCOUT
CLKC

INTR VSS

VDD
OSCIN
OSCOUT
CLKC

INTRAVSS

R2221L(QFN018018-12:underdevelopment)

SCL

SD

10
11
12

32KOUT

9

NC

1

VSS

VDD

7

8

6

OSCIN

5

OSCOUT

4

2

CLKC ECO

3

NC

INT

TOP VIEW

R2223L(QFN018018-12:

SCL

SD

10
11
12

32KOUT

under development)

VDD

NC

1

VSS

7

8

6
5

4

2

3

NC

9

INTR

OSCIN
OSCOUT
CLKC INTRB

TOP VIEW

BLOCK DIAGRAM

32KOUT

CLKC

*2)
ECO

OSCIN

OSCOUT

INTRA
INTR

*1)

INTRB

*1) As an interrupt pin, the R2221L/T has

INTRB

*2) The R2221L/T has

OSC

pin.

32kHz

OUTPUT

CONTROL

DIVIDER

CORREC

OSC

DETECT

-TION

INTERRUPT CONTROL

ECO

pin. The R2223L/T can set ECO mode with the internal resister.

DIV

TOP VIEW

COMPARATOR_W

COMPARATOR_D

TIME COUNTER

(SEC,MIN,HOUR,WEEK,DAY,MONTH,YEAR)

ADDRESS
DECODER

SHIFT REGISTER

INT

, the R2223L/T has

ALARM_W REGISTER

(MIN,HOUR, WEEK)

ALARM_D REGISTER

(MIN,HOUR)

ADDRESS

REGISTER

INTRA

VDD

VOLTAGE

DETECT

POWER_ON

RESET

VSS

I/O

CONTROL

SCL
SDA

pin. The R2221T does not have

2

R2221L/T, R2223L/T (Preliminar

y)

CO

SELECTION GUIDE

In the R2221L/T, R2223L/T, users can select the IC with designating the package, function version according to
the application. The designation can be made by part number as below:
Part Number is designated as follows:
R2221T-E2 ←Part Number R2223T-E2←Part Number
↑ ↑ ↑ ↑
R2221a-bb R2223a-bb

Code Description

Designation of the package.

a
bb Designation of the taping type. Only E2 is available.

T: TSSOP10G
L:QFN018018-12 (under development)

PIN DESCRIPTION

Symbol Item Description

SCL Serial Clock

Line

SDA Serial Data Line The SDA pin is used to input and output data intended for writing and

32KOUT 32kHz Clock

Output

CLKC Clock Control The CLKC pin is used to control output of the 32KOUT pin. The clock

INTRA

(R2223L/T)

INTRB

(R2223L/T)

INTR

(R2221L/T)

ECO

(R2221L/T)

VDD
VSS
OSCIN
OSCOUT

NC No connection

Interrupt
Output A

Interrupt
Output B

Interrupt
Output

Oscillator mode
select pin

Positive/Negative
Power Supply Input

Oscillation
Circuit
Input / Output

The SCL pin is used to input clock pulses synchronizing the input and
output of data to and from the SDA pin. Allows a maximum input voltage of

5.5v regardless of supply voltage.
reading in synchronization with the SCL pin. Allows a maximum input

voltage of 5.5v regardless of supply voltage. Nch. open drain output.
The 32KOUT pin is used to output 32.768-kHz clock pulses. The pin is
CMOS push-pull output. The output is disabled and held “L” when CLKC
pin is set to “L” or open, or certain register setting. This pin is enabled at
power-on from 0v. Allows a maximum input voltage of 5.5v regardless of
supply voltage.

output is disabled and held “L” when this pin is set to “L” or open.
Incorporated pull down register.

INTRA

The
interrupt signals to the CPU. Disabled at power-on from 0V. N-channel
open drain output. Allows a maximum pull-up voltage of 5.5v regardless of
supply voltage.

INTRB

The
Disabled at power-on from 0V. N-channel open drain output. Allows a
maximum pull-up voltage of 5.5v regardless of supply voltage.

INTR

The
periodic interrupt signals to the CPU. Disabled at power-on from 0V.
N-channel open drain output. Allows a maximum pull-up voltage of 5.5v
regardless of supply voltage.
Ultra low consumption oscillator mode (ECO mode) select pin

When the
oscillator mode. In the actual usage, set this pin at ”L” or ”H”. (R2223L/T
realizes the ultra low consumption oscillator mode by resister. ) For further
information to know the technical notes, refer to the item "ECO mode" at
P.30.
The VDD pin is connected to the power supply. The VSS pin is grounded.

The OSCIN and OSCOUT pins are used to connect the 32.768-kHz crystal
oscillator (with all other oscillation circuit components built into the
R2221L/T, R2223L/T).

pin is used to output alarm interrupt (Alarm_D) and periodic

pin is used to output alarm interrupt (Alarm_W) to the CPU.

pin is used to output alarm interrupt (Alarm_D、Alarm_W) and

E

pin is “L”, the oscillator becomes ultra low consumption

3

R2221L/T, R2223L/T (Preliminary)

R

R

R

ABSOLUTE MAXIMUM RATINGS

(VSS=0V)

Symbol Item Pin Name Description Unit

VDD Supply Voltage VDD -0.3 to +6.5 V
VI Input Voltage 1 SCL, SDA, CLKC,

ECO

*1)

VO

PD Power Dissipation
Topt Operating Temperature -40 to +85
Tstg Storage Temperature -55 to +125

*1)R2221L/T:

Output Voltage 1

Output Voltage 2 32KOUT -0.3 to V

ECO ,INT

R2223L/T:

SDA,

Topt = 25°C

INTRA,INTRB

INTRB

INTRA

INT

,

,

*1)

.

-0.3 to +6.5 V

-0.3 to +6.5

DD + 0.3

300 mW

V

°C
°C

RECOMMENDED OPERATING CONDITIONS

(VSS=0V, Topt=-40 to +85°C)

Symbol Item Pin Name Min, Typ. Max. Unit

Vaccess Supply Voltage Power supply voltage

for interfacing
with CPU

VCLK Time keeping Voltage
VCLKL Minimum Time keeping

Voltage

Vxstp Oscillation halt sensing

Voltage

fXT Oscillation Frequency 32.768 kHz
VPUP Pull-up Voltage

*1) CGout is connected between OSCIN and VSS, CDout is connected between OSCOUT and VSS.

R2221L//T, R2223L/T incorporates the capacitors between OSCIN and VSS, between OSCOUT and VSS.
Then normally, CGout and CDout are not necessary.
For more detail, refer to the item named “•Cofiguration of Oscillation Circuit, ECO mode, and Correction of

Time

Count Deviations” on P.29.

*2) Quartz crystal unit: CL (load capacity)=6 to 12.5pF, R1 (equivalent series resistance)=under 75 to

80KΩ(Max.) The adjustment method depends on the CL value, R1 value, use or unuse of ECO mode. For
more detail, “•Cofiguration of Oscillation Circuit, ECO mode, and Correction of Time Count Deviations” on

P.29.
*3) XSTP is the crystal oscillation halt sensing flag. When the crystal oscillation halts, XSTP=1.
*4)R2221L/T:

ECO ,INT

. R2223L/T:

CGout,CDout=0pF
*1), *2)
CGout,CDout=0pF
*1), *2)
power supply which
satisfies the condition
XSTP=1 *3)
CGout=CDout=0pF
*1)*2)

INTRA

INTR

INTRA, INTRB

INTRB

,
*4)

,

1.5 5.5 V

0.9 5.50

0.6 0.9

0.6 0.9 V

5.5 V

V

4

R2221L/T, R2223L/T (Preliminar

y)

R

R

R

DC ELECTRICAL CHARACTERISTICS

(Unless otherwise specified: VSS=0V, VDD=3.0V, Topt=-40 to +85°C, Crystal oscillator 32768Hz)

Symbol Item Pin Name Conditions Min. Typ. Max. Unit

VIH “H” Input Voltage 0.8x

SCL, SDA,
CLKC,

VIL “L” Input Voltage
IOH “H” Output

ECO

*1)

32KOUT VOH=VDD-0.5V -0.5 mA

DD=1.5 to 5.5V

V

VDD

-0.3 0.2x

Current
IOL1 32KOUT 0.5
IOL2

IOL3
IIL Input Leakage

ICLKC Pull-down Resister

“L” Output

Current

Current

INTRA
INTRB

INT

*1)
SDA
SCL,

ECO

*1)
CLKC VI=5.5V 0.2 1.00

OL=0.4V

V

I=5.5V or VSS

V
VDD=5.5V

2.0

3.0

-0.2 0.2

Input Leakage Current

IOZ

Output Off-state
Current

IDD1 Time Keeping Current

(ECO mode =ON)

SDA,

INTRA
INTRB

INT

VDD

,
,

*1)

O=5.5V or VSS

V
VDD=5.5V

VDD=3V,
Topt=-40 to +85°C

-0.2 0.2

*2) *3) *4)

DD=3V,

V

0.18 0.5
Topt=-30 to +70°C
*2) *3) *4)

IDD2 Time Keeping Current

(ECO mode =OFF)

VDD

VDD=3V,
Topt=-40 to +85°C

0.35 0.9
*2) *3) *5)

DD=3V,

V

0.35 0.75
Topt=-30 to +70°C
*2) *3) *5)

VDET Supply Voltage

Monitoring Voltage

VDD

Topt=-30 to +70°C

1.20 1.35 1.50 V

5.5
V

VDD

mA

μA

μA

μA

0.18 0.65

μA
μA

μA

μA

*1) R2221L/T:

ECO ,INT

R2223L/T:

INTRA, INTRB

*2) CGout,CDout=0pFFor time keeping current when outputting 32.768kHz from the 32KOUT pin, see “P.44

•TYPICAL CHARACTERISTICS”. For time keeping current when CGOUT, CDOUT is not equal to 0pF, see

“P.31 •Adjustment of oscillation frequency”.
*3) VDD=3V,SCL=SDA=0V, CLKC=0V(32KOUT=OFF), OUTPUT=OPEN, CGout=CDout=0pf
*4) R1 of Crystal=30kΩ
*5) R1 of Crystal=55kΩ

5

R2221L/T, R2223L/T (Preliminary)

AC ELECTRICAL CHARACTERISTICS

Unless otherwise specified: VSS=0V,Topt=-40 to +85°C
Input and Output Conditions: V

Sym

-bol

f

SCL Clock Frequency 400 kHz

SCL

t

SCL Clock Low Time 1.3

LOW

t

SCL Clock High Time 0.6

HIGH

t

Start Condition Hold Time 0.6

HD;STA

t

Stop Condition Set Up Time 0.6

SU;STO

t

Start Condition Set Up Time 0.6

SU;STA

t

Data Set Up Time 100 ns

SU;DAT

t

Data Hold Time 0 ns

HD;DAT

t

SDA “L” Stable Time

PL;DAT

After Falling of SCL

t

SDA off Stable Time

PZ;DAT

After Falling of SCL

tR Rising Time of SCL and SDA

(input)

tF Falling Time of SCL and SDA

(input)

tSP Spike Width that can be

removed with Input Filter

t

Recovery Time from Stop

RCV

Condition to Start Condition *)

*) For , Recovery Time see “P.28 Interfacing with the CPU •Data Transmission under Special Conditions”.

S

IH=0.8×VDD,VIL=0.2×VDD,VOH=0.8×VDD,VOL=0.2×VDD,CL=50pF

Item Condi-

Tions

Min. Typ. Max.

DD≥1.5V *1)

V

0.9

0.9
300 ns
300 ns
50 ns
31

Sr P

Unit

μs
μs
μs
μs
μs

μs
μs

μs

S

SCL

SDA(IN)

SDA(OUT)

Sr

t

LOW

t

HD;STA

Start Condition

Repeated Start Condition

t

SU;DAT

t

PL;DAT

PS

t

HIGH

t

HD;DAT

t

PZ;DAT

Stop Condition

t

HD;STA

t

SU;STA

tSP

t

SU;STO

t

RCV

6

y)

PACKAGE DIMENSIONS

• R2221L, R2223L(under development)

1.8±0.05

1PIN INDEX

1.8±0.05

12

R2221L/T, R2223L/T (Preliminar

1

1

12

0.4

(BOTTOM VIEW)

0.43Max

unit: mm

7

R2221L/T, R2223L/T (Preliminary)

M

• R2221T, R2223T

2.9±0.2

10

6

0 to 10

2.8±0.2

4.0±0.2

°

0.55±0.2

1

5

0.5

0.13

+0.1

-0.05

(0.75)

0.1

0.2±0.1

0.15

-0.05

+0.1

0.1

0.85±0.15

unit: mm

8

R2221L/T, R2223L/T (Preliminar

y)

R

GENERAL DESCRIPTION

• Interface with CPU

The R2221L/T,R2223L/T is connected to the CPU by two signal lines, SCL and SDA, through which it reads and
writes data from and to the CPU. Since the I/O pin of SDA is open drain, data interfacing with a CPU different
supply voltage is possible by applying pull-up resistors on the circuit board. The maximum clock frequency of
400kHz (at VDD≥1.5V) of SCL enables data transfer in I

• Clock and Calendar Function

The R2221L/T, R2223L/T reads and writes time data from and to the CPU in units ranging from seconds to the last
two digits of the calendar year. The calendar year will automatically be identified as a leap year when its last two
digits are a multiple of 4. Consequently, leap years up to the year 2099 can automatically be identified as such.

*) The year 2000 is a leap year while the year 2100 is not a leap year.

• Alarm Function

The R2221L/T, R2223L/T incorporates the alarm interrupt circuit configured to generate interrupt signals to the
CPU at preset times. The alarm interrupt circuit allows two types of alarm settings specified by the Alarm_W
registers and the Alarm_D registers. The Alarm_W registers allow week, hour, and minute alarm settings including
combinations of multiple day-of-week settings such as "Monday, Wednesday, and Friday" and "Saturday and
Sunday". The Alarm_D registers allow hour and minute alarm settings. In case of R2221L/T the Alarm outputs

INT

from
pin. Each alarm function can be checked from the CPU by using a polling function.

In case of R2223L/T the Alarm_W outputs from

• High-precision Oscillation Adjustment Function

2

C bus fast mode.

INTRB

pin, and the Alarm_D outputs from

INTRA

The R2221L/T, R2223L/T has built-in oscillation stabilization capacitors (CG and CD), which can be connected to
an external crystal oscillator to configure an oscillation circuit. Two kinds of accuracy for this function are
alternatives. To correct deviations in the oscillator frequency of the crystal, the oscillation adjustment circuit is
configured to allow correction of a time count gain or loss (up to ±1.5ppm or ±0.5ppm at 25°C) from the CPU. The
maximum range is approximately ±189ppm (or ±63ppm) in increments of approximately 3ppm (or 1ppm). Such
oscillation frequency adjustment in each system has the following advantages:
* Allows timekeeping with much higher precision than conventional RTCs while using a crystal oscillator with a
wide range of precision variations.
* Corrects seasonal frequency deviations through seasonal oscillation adjustment.
* Allows timekeeping with higher precision particularly with a temperature sensing function out of RTC, through
oscillation adjustment in tune with temperature fluctuations.

• Power-on Reset, Oscillation Halt Sensing Function and Supply Voltage Monitoring Function

The R2221L/T, R2223L/T incorporates an oscillation halt sensing circuit equipped with internal registers configured
to record any past oscillation halt.
Power on reset function reset the control resisters when the system is powered on from 0V. At the same time, the
fact is memorized to the resister as a flag, thereby identifying whether they are powered on from 0V or battery
backed-up.
The R2221L/T, R2223L/T also incorporates a supply voltage monitoring circuit equipped with internal registers
configured to record any drop in supply voltage below a certain threshold value. Supply voltage monitoring
threshold is V
The oscillation halt sensing circuit and the power-on reset flag are configured to confirm the established
invalidation of time data in contrast to the supply voltage monitoring circuit intended to confirm the potential
invalidation of time data. Further, the supply voltage monitoring circuit can be applied to battery supply voltage
monitoring.

DET

.

9

R2221L/T, R2223L/T (Preliminary)

• Periodic Interrupt Function

The R2221L/T, R2223L/T incorporates the periodic interrupt circuit configured to generate periodic interrupt signals
aside from interrupt signals generated by the alarm interrupt circuit for output from the

INTRA
seconds), 1 Hz (once per 1 second), 1/60 Hz (once per 1 minute), 1/3600 Hz (once per 1 hour), and monthly (the
first day of every month). Further, periodic interrupt signals also have two selectable waveforms, a normal pulse
form (with a frequency of 2 Hz or 1 Hz) and special form adapted to interruption from the CPU in the level mode
(with second, minute, hour, and month interrupts). The condition of periodic interrupt signals can be monitored with
using a polling function.

(R2223L/T) pin. Periodic interrupt signals have five selectable frequency settings of 2 Hz (once per 0.5

INTR

(R2221L/T) or

• 32kHz Clock Output

The R2221L/T, R2223L/T incorporates a 32-kHz clock circuit configured to generate clock pulses with the
oscillation frequency of a 32.768kHz crystal oscillator for output from the 32KOUT pin. The 32KOUT pin is CMOS
push-pull output and the output is enabled and disabled when the CLKC pin is held high, and low or open,
respectively. The 32-kHz clock output can be disabled by certain register settings but cannot be disabled without
manipulation of any two registers with different addresses to prevent disabling in such events as the runaway of the
CPU. The 32-kHz clock circuit is enabled at power-on, when the CLKC pin is held high.

• ECO mode

In the case that the equivalent series resistance of the crystal oscillator:R1 is small, （approximately, R1 equal or
less than 60kΩ to 65kΩ）, by the pin or setting of the resister, ECO mode can be active, and time keeping
consumption current can be reduced. ECO mode is realized by pin as for the R2221L/T, by the resister as for the
R2223L/T. In terms of the R2223L/T, if the power supply starts up from 0V, ECO mode turns off. If ECO mode is
inactive, if the equivalent series resistance of the crystal oscillator: R1 is large, (approximately equal or less than
R1=75 kΩ to 80kΩ), it is possible to use with. When the ECO mode is inactive, time keeping current increases a
little. And the oscillation frequency might change slightly whether the ECO mode being turned on or turned off.

10

R2221L/T, R2223L/T (Preliminar

y)

A

A

A

Address Mapping

Address Register Name D a t a

[A3:A0] D7 D6 D5 D4 D3 D2 D1 D0

0 [0000] Second Counter -

*2)
1 [0001] Minute Counter - M40 M20 M10 M8 M4 M2 M1 xxh
2 [0010] Hour Counter - - H20

3 [0011] Day-of-week

Counter

4 [0100] Day-of-month

Counter

5 [0101] Month Counter

and Century Bit
6 [0110] Year Counter Y80 Y40 Y20 Y10 Y8 Y4 Y2 Y1 xxh
7 [0111] Oscillation

Adjustment

Register *3)
8 [1000] Alarm_W

(Minute Register)
9 [1001] Alarm_W

(Hour Register)
A [1010] Alarm_W

(Day-of-week

Register)
B [1011] Alarm_D

(Minute Register)

C [1100] Alarm_D

(Hour Register)

D [1101] User RAM RAM7 RAM6 RAM5 RAM4 RAM3 RAM2 RAM1 RAM0 00h
E [1110] Control Register

1 *3)

F [1111] Control Register

2 *3)

Notes:
* 1) All the data listed above accept both reading and writing.
* 2) The data marked with "-" is invalid for writing and reset to 0 for reading.
* 3) When the PON bit is set to 1 in Control Register 2, all the bits are reset to 0 in Oscillation Adjustment

Register, Control Register 1 and Control Register 2 excluding the XSTP bit and VDET bit.

* 4) When DEV=0, the oscillation adjustment circuit is configured to allow correction of a time count gain or loss

up to ±1.5ppm. When DEV=1, the oscillation adjustment circuit is configured to allow correction of a time

count gain or loss up to or ±0.5ppm.
* 5) PON is a power-on-reset flag.
* 6) R2221L/T=SCRATCH, R2223L/T=ECO
* 7) Default value means read / written values when the PON bit is set to “1” due to VDD power-on from 0 volt.

“xxh” means indifinite.

- - - - - W4 W2 W1 xxh

- - D20 D10 D8 D4 D2 D1 xxh

- - - MO10 MO8 MO4 MO2 MO1 xxh

DEV

*4)

- WM40 WM20 WM10 WM8 WM4 WM2 WM1 xxh

- - WH20

- WW6 WW5 WW4 WW3 WW2 WW1 WW0 xxh

- DM40 DM20 DM10 DM8 DM4 DM2 DM1 xxh

- - DH20

WALE DALE

ECO

*6)

S40 S20 S10 S8 S4 S2 S1 xxh

H10 H8 H4 H2 H1 xxh

P/

F6 F5 F4 F3 F2 F1 F0 00h

WH10 WH8 WH4 WH2 WH1 xxh

WP/

DH10 DH8 DH4 DH2 DH1 xxh

DP/

12

VDET XSTP PON

/24

CLEN2

*5)

TEST CT2 CT1 CT0 00h

CLEN1

CTFG WAFG DAFG 70h

Default

*7)

11

R2221L/T, R2223L/T (Preliminary)

Register Settings

• Control Register 1 (ADDRESS Eh)

D7 D6 D5 D4 D3 D2 D1 D0

WALE DALE
WALE DALE

0 0 0 0 0 0 0 0 Default Settings *)

*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD

power-on from 0 volt.

12
12

/24
/24

CLEN2
CLEN2

(1) WALE, DALE Alarm_W Enable Bit, Alarm_D Enable Bit

WALE,DALE Description

0 Disabling the alarm interrupt circuit (under the control of the settings

of the Alarm_W registers and the Alarm_D registers).

1 Enabling the alarm interrupt circuit (under the control of the settings

of the Alarm_W registers and the Alarm_D registers)

12

(2)

(3)

/24

12

/24

0 Selecting the 12-hour mode with a.m. and p.m. indications. (Default)
1 Selecting the 24-hour mode

Setting the

Setting the

CLEN2

Setting the
specifies generating clock pulses with the oscillation frequency of the 32.768-kHz crystal oscillator for output
from the 32KOUT pin. Conversely, setting both the
specifies disabling (”L”) such output.

12

/24 bit to 0 and 1 specifies the 12-hour mode and the 24-hour mode, respectively.

24-hour mode 12-hour mode 24-hour mode 12-hour mode

00 12 (AM12) 12 32 (PM12)
01 01 (AM 1) 13 21 (PM 1)
02 02 (AM 2) 14 22 (PM 2)
03 03 (AM 3) 15 23 (PM 3)
04 04 (AM 4) 16 24 (PM 4)
05 05 (AM 5) 17 25 (PM 5)
06 06 (AM 6) 18 26 (PM 6)
07 07 (AM 7) 19 27 (PM 7)
08 08 (AM 8) 20 28 (PM 8)
09 09 (AM 9) 21 29 (PM 9)
10 10 (AM10) 22 30 (PM10)
11 11 (AM11) 23 31 (PM11)

12

/24 bit should precede writing time data

32kHz Clock Output Bit 2

CLEN2

CLEN2

0 Enabling the 32-kHz clock circuit (Default)
1 Disabling the 32-kHz clock circuit

12

/24-hour Mode Selection Bit

Description

bit or the

CLEN1

bit (D3 in the control register 2) to 0, and the CLKC pin to high

(4) TEST Test Bit

TEST Description

0 Normal operation mode. (Default)
1 Test mode.

The TEST bit is used only for testing in the factory and should normally be set to 0.

TEST CT2 CT1 CT0 (For Writing)
TEST CT2 CT1 CT0 (For Reading)

(Default)

Description

CLEN1

and

CLEN2

bit to 1 or CLKC pin to low

12

R2221L/T, R2223L/T (Preliminar

y)

A

R

(5) CT2, CT1, and CT0 Periodic Interrupt Selection Bits

Description CT2 CT1 CT0

Wave form

mode

0 0 0 - OFF(H) (Default)
0 0 1 - Fixed at “L”
0 1 0 Pulse Mode

*1)

0 1 1 Pulse Mode

*1)

1 0 0 Level Mode

*2)

1 0 1 Level Mode

*2)

1 1 0 Level Mode

*2)

1 1 1 Level Mode

*2)

* 1) Pulse Mode: 2-Hz and 1-Hz clock pulses are output in synchronization with the increment of the second
counter as illustrated in the timing chart below.

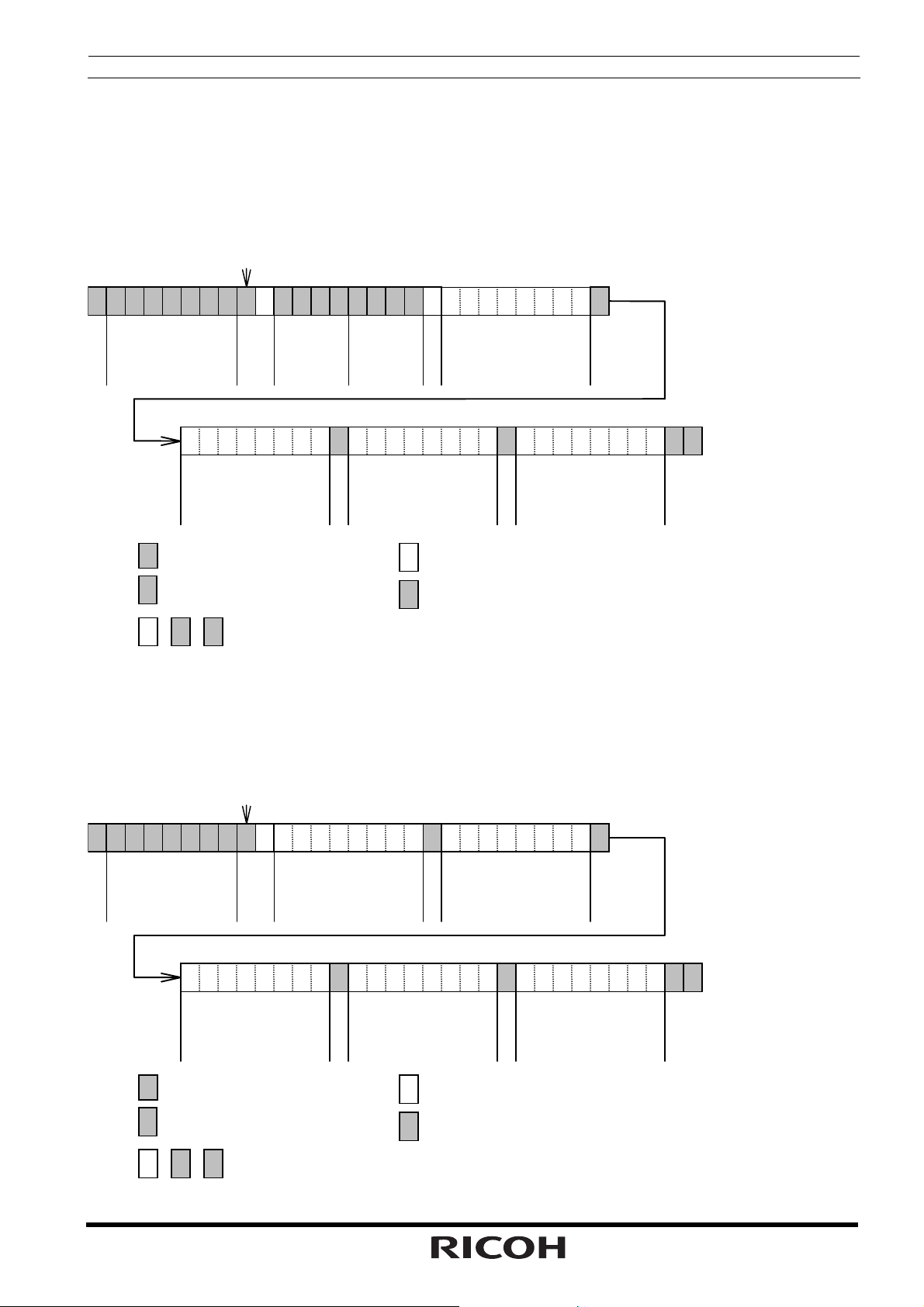

Interrupt Cycle and Falling Timing

2Hz (Duty50%)
1Hz (Duty50%)
Once per 1 second (Synchronized with

second counter increment)
Once per 1 minute (at 00 seconds of every
minute)
Once per hour (at 00 minutes and 00
seconds of every hour)
Once per month (at 00 hours, 00 minutes,
and 00 seconds of first day of every month)

INTRA Pin
INTR for the R2221L/T

CTFG Bit

(Increment of second counter)

pprox. 46μs

Rewriting of the second counter

In the pulse mode, the increment of the second counter is delayed by approximately 46 μs from the falling
edge of clock pulses. Consequently, time readings immediately after the falling edge of clock pulses may
appear to lag behind the time counts of the real-time clocks by approximately 1 second. Rewriting the
second counter will reset the other time counters of less than 1 second, driving the

INTRA

INTR

(

) pin low.

* 2) Level Mode: Periodic interrupt signals are output with selectable interrupt cycle settings of 1 second, 1
minute, 1 hour, and 1 month. The increment of the second counter is synchronized with the falling edge of
periodic interrupt signals. For example, periodic interrupt signals with an interrupt cycle setting of 1 second
are output in synchronization with the increment of the second counter as illustrated in the timing chart below.

CTFG Bit

INTRA Pin

(INTR)

Setting CTFG bit to 0

Setting CTFG bit to 0

(Increment of
second counter)

(Increment of
second counter)

(Increment of
second counter)

At the level mode, the moment right after writing CT2-CT0,

INTRA

INT

(

) pin becomes "L" in very

short moment. In such a case, ignore it or confirm it by CTFG bit.

*1), *2) When the oscillation adjustment circuit is used, the interrupt cycle will fluctuate once per 20sec. or
60sec. as follows:
Pulse Mode: The “L” period of output pulses will increment or decrement by a maximum of ±3.784 ms. For
example, 1-Hz clock pulses will have a duty cycle of 50 ±0.3784%.
Level Mode: A periodic interrupt cycle of 1 second will increment or decrement by a maximum of ±3.784 ms.

13

R2221L/T, R2223L/T (Preliminary)

• Control Register 2 (Address Fh)

D7 D6 D5 D4 D3 D2 D1 D0

ECO or
Scratch
ECO or
Scratch

0 1 1 1 0 0 0 0 Default Settings *)
*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD
power-on from 0 volt.

(1) ECO(R2223L/T),SCRATCH(R2221L/T) Oscillation Mode Selection Bit

When “1” is written on this bit, the IC mode becomes ultra low consumption current oscillation mode (ECO
mode). In terms of the selection of ECO mode, refer to the item “ECO mode” on P.30. This bit is available only
for the R2223L/T. As for the R2221L/T, “write” and “read” on this bit is possible just same as RAM, but the result
has no influence on any function, or SCRATCH bit.

(2) VDET Supply Voltage Monitoring Result Indication Bit

Once the VDET bit is set to 1, the supply voltage monitoring circuit will be disabled while the VDET bit will
hold the setting of 1. The VDET bit accepts only the writing of 0, which restarts the supply voltage monitoring
circuit. Conversely, setting the VDET bit to 1 causes no event.

(3) XSTP Oscillation Halt Sensing Monitor Bit

The XSTP bit will be set to “1” when the oscillation halt is detected. Once this bit becomes “1”, unless
otherwise “0” is written, this bit never return to “0”. If “1” is written, nothing will change.

(4) PON Power-on-reset Flag Bit

The PON bit is for sensing power-on reset condition.

* The PON bit will be set to 1 when VDD power-on from 0 volt. The PON bit will hold the setting of 1 even
after power-on.
* When the PON bit is set to 1, all bits will be reset to 0, in the Oscillation Adjustment Register, Control
Regist1, and Control Register 2, except PON,XSTP and VDET . As a result,
the R2221L/T) pin stops outputting.
* The PON bit accepts only the writing of 0. Conversely, setting the PON bit to 1 causes no event.

VDET XSTP PON
VDET XSTP PON

ECO Description

0 Normal mode (Default)
1 Low current mode.

VDET Description

0 Indicating supply voltage above the supply voltage monitoring

threshold settings.

1 Indicating supply voltage below the supply voltage monitoring

threshold settings.

XSTP Description

0 Sensing a normal condition of oscillation
1 Sensing a halt of oscillation (Default)

PON Description

0 Normal condition
1 Detecting VDD power-on -reset (Default)

CLEN1
CLEN1

CTFG WAFG DAFG (For Writing)
CTFG WAFG DAFG (For Reading)

(Default)

INTRA

INTRB(INTR

and

for

14

R2221L/T, R2223L/T (Preliminar

y)

A

A

CLEN1

(5)

Setting the
specifies generating clock pulses with the oscillation frequency of the 32.768-kHz crystal oscillator for output
from the 32KOUT pin. Conversely, setting both the
specifies disabling (”L”) such output.

(6) CTFG Periodic Interrupt Flag Bit

The CTFG bit is set to 1 when the periodic interrupt signals are output from the
R2221L/T) pin (“L”). The CTFG bit accepts only the writing of 0 in the level mode, which disables (“H”) the

INTRA

setting the CTFG bit to 1 causes no event.

(7) WAFG,DAFG Alarm_W Flag Bit and Alarm_D Flag Bit

The WAFG and DAFG bits are valid only when the WALE and DALE have the setting of 1, which is caused
approximately 15μs after any match between current time and preset alarm time specified by the Alarm_W
registers and the Alarm_D registers. The WAFG (DAFG) bit accepts only the writing of 0.

INTRA

INTRA
setting the WAFG and DAFG bits to 1 causes no event. The WAFG and DAFG bits will have the reading of
0 when the alarm interrupt circuit is disabled with the WALE and DALE bits set to 0. The settings of the
WAFG and DAFG bits are synchronized with the output of the
pin as shown in the timing chart below.

32kHz Clock Output Bit 1

CLEN1

0 Enabling the 32-kHz clock circuit (Default)
1 Disabling the 32-kHz clock circuit

CLEN1

bit or the

CLEN2

bit (D4 in the control register 1) to 0, and the CLKC pin to high

CTFG Description

0 Periodic interrupt output = “H” (Default)
1 Periodic interrupt output = “L”

INTR

(

for the R2221L/T) pin until it is enabled (“L”) again in the next interrupt cycle. Conversely,

WAFG,DAFG Description

0 Indicating a mismatch between current time and preset alarm time (Default)
1 Indicating a match between current time and preset alarm time

INTRB

/

INTRB

/

(

INTR

(

INTR

for the R2221L/T) pin outputs off (“H”) when this bit is set to 0. And

for the R2221L/T) pin outputs “L” again at the next preset alarm time. Conversely,

pprox. 15μs

Description

CLEN1

and

pprox. 15μs

CLEN2

INTRA

bit to 1 or CLKC pin to low

INTRB

/

INTR

(

INTRA

INTR

(

for the R2221L/T)

for the

WAFG(DAFG) Bit

INTRB / INTRA Pins
INTR pin for the R2221L/T

Writing of 0 to

WAFG(DAFG) bit
(Match between
current time and
preset alarm time)

(Match between
current time and
preset alarm time)

Writing of 0 to

(Match between
current time and
preset alarm time)

WAFG(DAFG) bit

15

R2221L/T, R2223L/T (Preliminary)

A

A

• Time Counter (Address 0-2h)

Second Counter (Address 0h)

D7 D6 D5 D4 D3 D2 D1 D0

- S40 S20 S10 S8 S4 S2 S1 (For Writing)
0 S40 S20 S10 S8 S4 S2 S1 (For Reading)
0 Indefi

nite

Minute Counter (Address 1h)

D7 D6 D5 D4 D3 D2 D1 D0

- M40 M20 M10 M8 M4 M2 M1 (For Writing)
0 M40 M20 M10 M8 M4 M2 M1 (For Reading)
0 Indefi

nite

Hour Counter (Address 2h)

D7 D6 D5 D4 D3 D2 D1 D0

- -

0 0

0 0 Indefi

*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD
power-on from 0 volt.

* Time digit display (BCD format) as follows:

The second digits range from 00 to 59 and are carried to the minute digit in transition from 59 to 00.
The minute digits range from 00 to 59 and are carried to the hour digits in transition from 59 to 00.
The hour digits range as shown in "P12 • Control Register 1 (ADDRESS Eh) (2)
Mode Selection Bit" and are carried to the day-of-month and day-of-week digits in transition from PM11 to

AM12 or from 23 to 00.
* Any writing to the second counter resets divider units of less than 1 second.
* Any carry from lower digits with the writing of non-existent time may cause the time counters to malfunction.
Therefore, such incorrect writing should be replaced with the writing of existent time data.

Indefi

nite

Indefi

nite

P/

or

H20

P/

or

H20

nite

Indefi

nite

Indefi

nite

H10 H8 H4 H2 H1 (For Writing)

H10 H8 H4 H2 H1 (For Reading)

Indefi

nite

Indefi

nite

Indefi

nite

Indefi

nite

Indefi

nite

Indefi

nite

Indefi

nite

Indefi

nite

Indefi

nite

Indefi

nite

Indefi

nite

Indefi

nite

Indefi

nite

Default Settings *)

Default Settings *)

Default Settings *)

12

/24: 12/24-hour

• Day-of-week Counter (Address 3h)

D7 D6 D5 D4 D3 D2 D1 D0

- - - - - W4 W2 W1 (For Writing)
0 0 0 0 0 W4 W2 W1 (For Reading)
0 0 0 0 0 Indefi

nite
*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD
power-on from 0 volt.

* The day-of-week counter is incremented by 1 when the day-of-week digits are carried to the day-of-month
digits.
* Day-of-week display (incremented in septimal notation):
(W4, W2, W1) = (0, 0, 0) → (0, 0, 1)→…→(1, 1, 0) → (0, 0, 0)
* Correspondence between days of the week and the day-of-week digits are user-definable (e.g. Sunday = 0,

16

Indefi

nite

Indefi

nite

Default Settings *)
