Ricoh PT200 Modification Bulletin

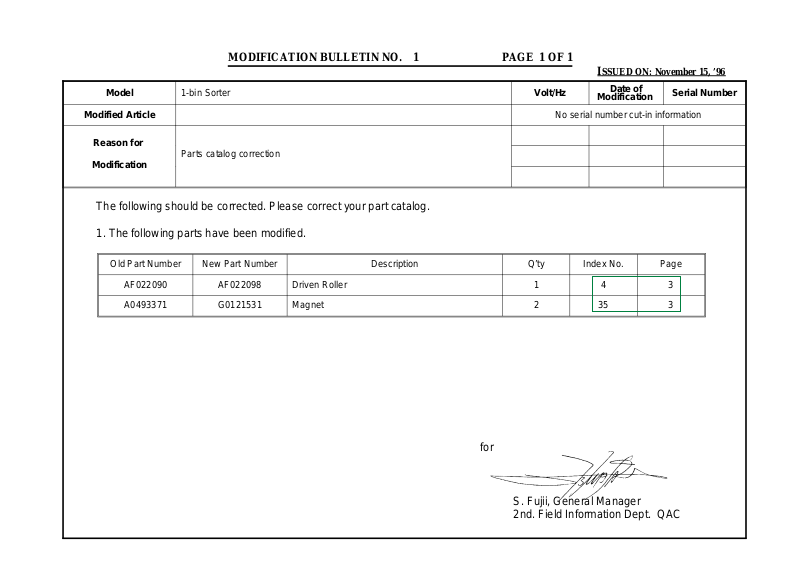

MODIFICATION BULLETIN NO. 1 PAGE 1 OF 1

ISSUED ON: November 15, ’96

Model 1-bin Sorter Volt/Hz

Modified Article No serial number cut-in information

Reason for

Parts catalog correction

Modification

Date of

Modification

Serial Number

The following should be corrected. Please correct your part catalog.

1. The following parts have been modified.

Old Part Number New Part Number Description Q’ty Index No. Page

AF022090 AF022098 Driven Roller 1 4 3
A0493371 G0121531 Magnet 2 35 3

for

S. Fujii, General Manager
2nd. Field Information Dept. QAC

RICOH Modification Bulletin PAGE: 1/1

Model: PT200 Date: 19-Mar-97
Modified Article: Bushing-6mm Prepared by: K.Ugaeri
From: QAC 2nd Field Information Dept. Checked by: S. Fujii
Reason for
Modification:

To reduce the noise from the 6mm Bushing, the material has been changed from January
Production ‘97.

Old part New part Description Qty Int Page Index Note

number number

AA080220 Bushing-6mm 2-2 x/o 2 3

Parts catalog correction
To facilitate assembly
Part Standardization

Vendor change
To improve reliability
Other

No: 2

To meet standards

( )
