36*
PARTS CATALOG
INTRODUCTION
This chapter ins tru cts you the numbers and names of parts o n th is machine.
INDEX to PARTS CATALOG
1.Exterior (G697) ..................................................................... 2
2.Paper Feed Section (G697)................................................... 4
3.Drive and Electrical Section (G697)....................................... 6
4.Paper Tray(G697).................................................................. 8
Parts Index................................................................................ 11
September, 10’96
1. Exterior (G697)
1
04
1
8
1
04
1
03
1
04
1
01
1
4
2
1. Exterior (G697)
Index
No.
1 G697 1253 Front Cover 1
2 G697 1256 Left Cover 1
3 G697 1090 Upper Stay 2
4 G697 6150 Fixing Plate 1
5 G697 1265 Transport Guide Plate 1
6 G697 1250 Rear Cover 1
7 G697 1095 Grounding Plate 2
8 A048 2838 Nylon Rivet 1
9 G697 1264 Stopper - Transport Guid e Pla te 1
10 G697 1263 Magnetic Catch Plate 1
11 AF02 0283 Pressure Roller 6
12 G697 1276 Pressure Plate - Driven Roller 12
13 G697 1261 Magnetic Catch Brack et 4
14 G697 1270 Vertical Right Cover 1
15 G697 6155 Stepped Screw - M3 1
16 G697 6165 Stand 2
17 AG07 0012 Magnetic Cat ch 2
18 C218 3051 Philips Screw - M3
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0453 3006Z Tapping Screw - 3x6
103 0450 4008B Tapping Screw - 4x8
104 0802 5254 Tapping Screw - M3x6
105 0453 3008B Tapping Screw - M3x8
Part No.
Description
Q’ty Per
Assembly
3
2. Paper Feed Section (G697)
4
2. Paper Feed Section (G697)
Index
No.
1 G697 1081 Stopper Bracket 2
2 G697 2566 Bracket - Paper End Sensor 2
3 AW02 0075 Photointerrupter 2
4 AW02 0091 Photointerruptor 2
5 G697 5330 Rela y Harness - Feed Unit 2
6 G697 2555 Stay - Paper Feed Unit 2
7 G697 2565 Paper Sensor Bracket 2
8 AW02 0089 Photointerruptor 2
9 AA06 0665 Pressure Spring - Feed Roller 4
10 AB01 4018 Gear - 14Z 2
11 AB01 4017 Gear - 16Z 2
12 G697 2557 Collar 2
13 G697 2559 Upper Guide - Paper F eed 2
14 G697 2556 Feed Roller Arm 2
15 G697 2561 Bushing 4
16 AA14 0627 Drive Shaft - Feed Roller 2
17 AB01 0104 Gear - 24Z 4
18 AB01 0103 Relay Gear 2
19 AX20 0128 Paper Feed Clutch 2
20 G697 2558 Bracket - Feed Clutch Shaft 2
21 AA14 0628 Feed Clutch Shaft 2
22 5447 2681 Snap Ring 6
23 G697 2563 Supprot Roller 4
24 AF03 1033 Paper Feed Roller 4
25 G697 2560 Feed Roller Shaft 2
26 5053 0223 Bushing - 8mm 4
27 AF02 0377 Transport Roller 2
28 G697 2562 Guide Roller 2
29 AX20 0129 Relay Clutch 2
30 AB01 4016 Gear - 46Z 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 1105 0113 Edge - P108
103 1105 0199 Clamp
104 0720 0060E Retaining Ring - M6
105 0805 3386 Bushing - 8mm
106 1106 0411 Bushing - 11.5mm
Part No.
Description
Q’ty Per
Assembly
5

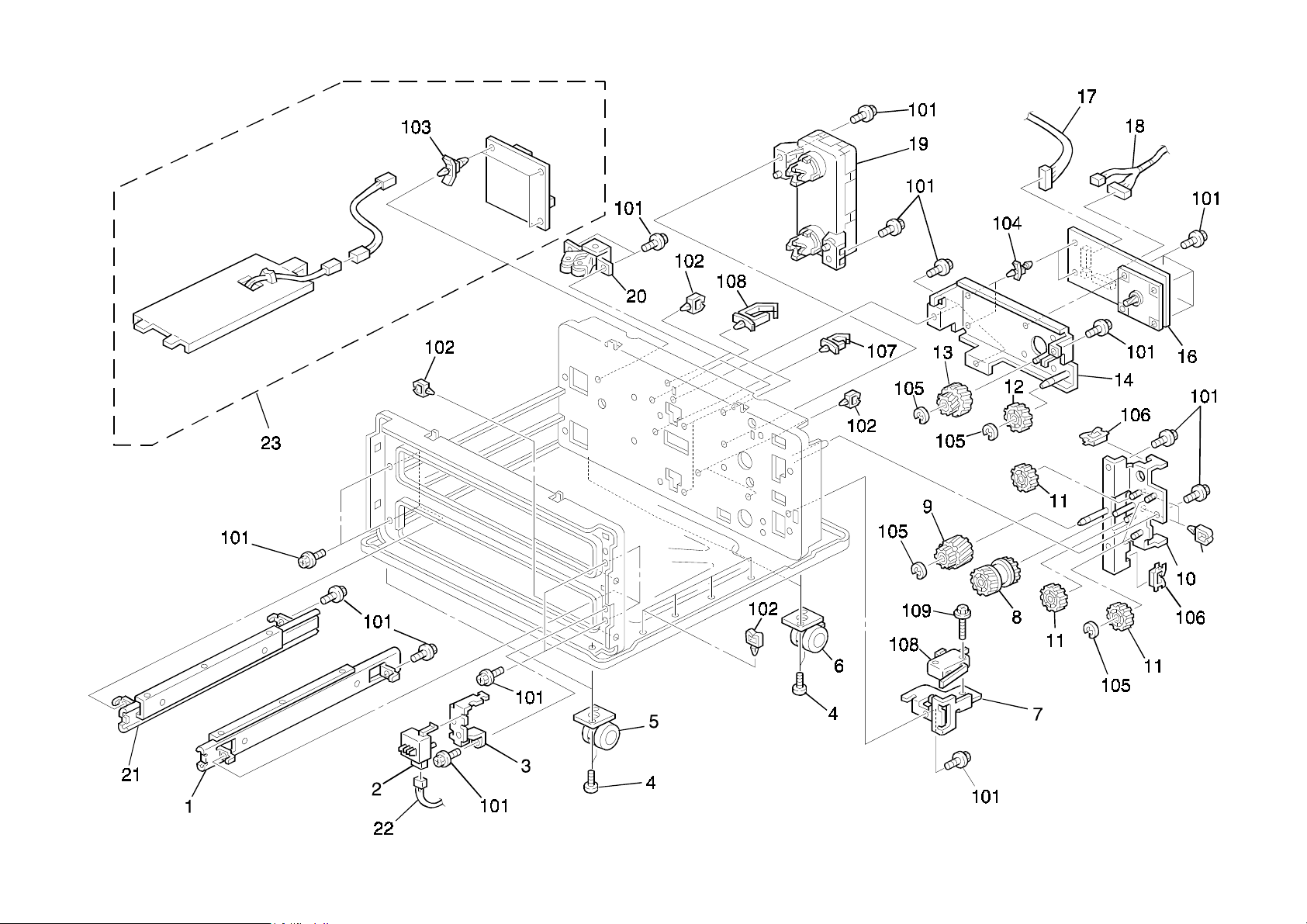

3. Drive and Electrical Section (G697)
1
10
6
3. Drive and Electrical Section (G697)
Index
No.
1 G697 1100 Accuride 1
2 G020 2620 Paper Size Detector 1
3 G697 2634 Bracket - Paper Size Detector 1
4 A507 1096 Philips Screw - M5x6 4
5 AH01 2013 Stopper Caster - 60kgf 2
6 AH01 2014 Caster - 60kgf 2
7 G697 1131 Safety Switch Bracket 1
8 AB01 7425 Gear - 30Z 1
9 AB01 7424 Gear - 27Z/15Z 1
10 G697 2581 Gear Bracket 1
11 AB01 4020 Gear - 24Z 4
12 AB01 1371 Gear - 30Z 1
13 AB01 7426 Gear - 27Z/40Z 1
14 G697 2591 Motor Bracket 1
16 AX05 0102 Main Motor - DC 9.0W S 1
17 G697 5310 Relay Harness 1
18 G697 5300 Main Harness - Paper Bank 1
19 AX04 0090 Lift Motor - DC 0.5W 1
20 G697 1082 Tray Holder 1
21 G697 1110 Accuride 1
22 G697 5320 Relay Harness - Paper Size Detector 1
23 G697 9800 Bank Tray Heater 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 1105 0229 Clamp
103 1105 0194 Locking Support
104 1105 0192 Locking Support
105 0720 0040E Retaining Ring - M4
106 1105 0113 Edge - P108
107 1105 0310 Wire Clamp
108 1204 2355 Micro Switch - AM51632A531
109 0451 3014B Tapping Screw - M3-14
110 1105 0199 Clamp
Part No.
Description
Q’ty Per
Assembly
7

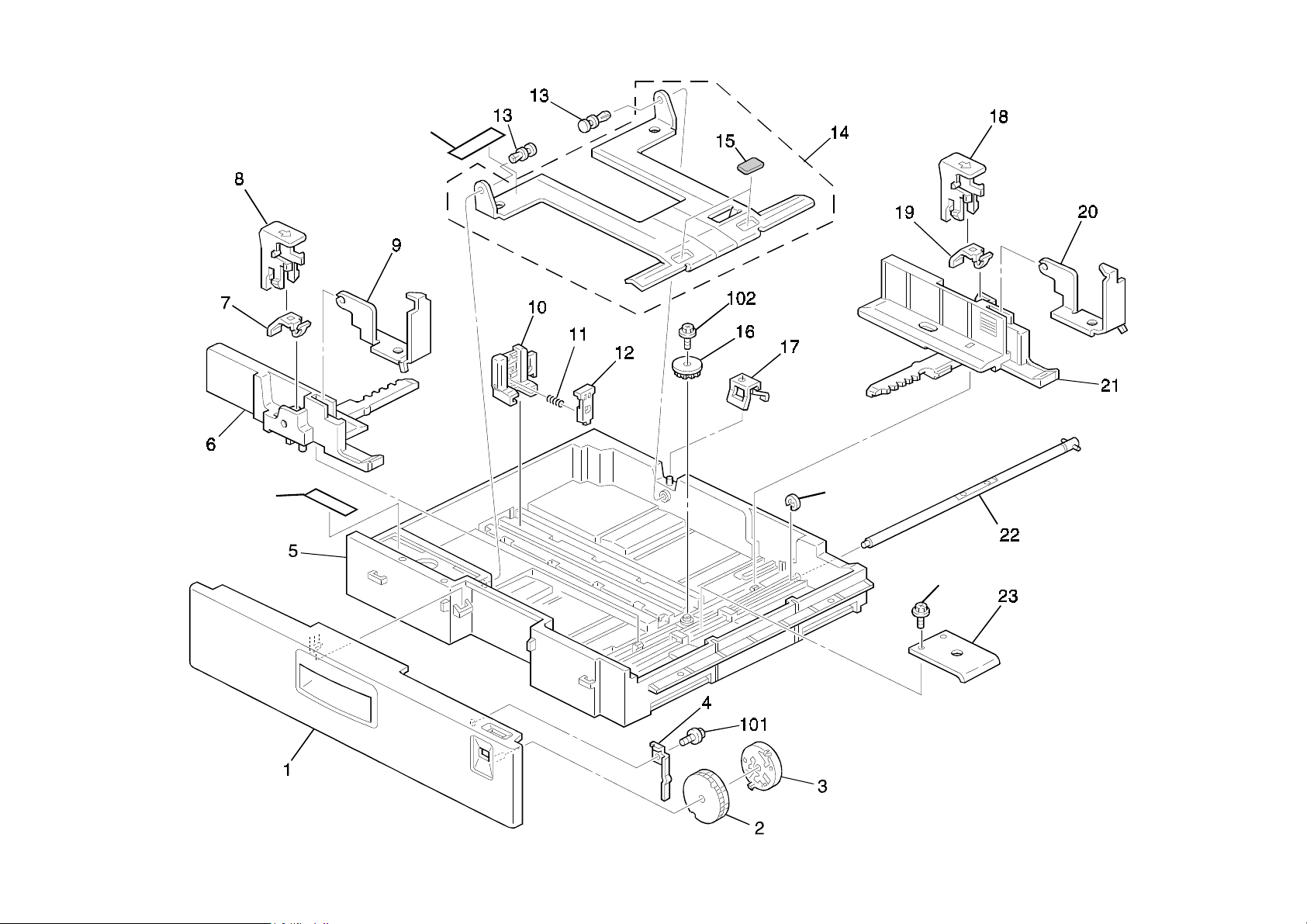

4. Paper Tray(G697)
2
4
2
5
1
04
1
03
8
4. Paper Tray(G697)
Index
No.
1 G697 2681 Paper Tray Cover 1
2 G020 2593 Paper Size Dial (LT) 1
2 G020 2595 Paper Size Dial (A4) 1
3 G020 2663 Paper Size Actuator 1
4 G020 2648 Holder - Paper Size Detector 1
5 AF01 0068 Paper Tray 1
6 AF01 6082 Front Side Fence 1
7 A134 2978 Spring Plate 1
8 A157 2766 Front Stopper Lever 1
9 AF01 4015 Front Paper Separator 1
10 AF01 7018 End Fence 1
11 AA06 3390 Rear Fence Spring 1
12 G697 2666 End Fence Holder 1
13 A048 2838 Nylon Rivet 1
14 G697 2670 Bottom Plate 2
15 AF01 3015 Friction Pad 1
16 AB01 3868 Gear - 16Z 2
17 A157 2765 Bottom Plate Spring 1
18 G697 2678 Stopper Lever 1
19 G697 2677 Spring Plate - Side Fence 1
20 AF01 4016 Rear Paper Separator 1
21 AF01 6083 Rear Side Fence 1
22 G697 2667 Lift Lever Shaft - Bottom Plate 1
23 G697 2669 Lift Bracket - Bottom Plate 1
24 G697 2642 Decal - Paper Set 1
25 AA00 2204 Paper Size Decal 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 3008B Tapping Screw - M3x8
102 0450 4008B Tapping Screw - 4x8
103 0451 4006B Tapping Screw - 4x6
104 0720 0060E Retaining Ring - M6
Part No.
Description
Q’ty Per
Assembly
9
PARTS INDEX
PM Parts Index
Section Name
Paper Feed Section ( G 697) AF03 1033 Paper Feed Roller Paper Feed Roller 1 5- 24
Part No.
Description in Servi ce M anual
Description in Parts Catalog
Q’ty Per
Assembly
Page and
Index No
14
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
G697 1081 Stopper Bracket 5- 1
G697 1082 Tray Holder 7- 20
G697 1090 Upper Stay 3- 3
G697 1095 Grounding Plate 3- 7
G697 1100 Accuride 7- 1
G697 1110 Accuride 7- 21
G697 1131 Safety Switch Bracket 7- 7
G697 1250 Rear Cover 3- 6
G697 1253 Front Cover 3- 1
G697 1256 Left Cover 3- 2
G697 1261 Magnetic C atch Bracket 3- 13
G697 1263 Magnetic C atch Plate 3- 10
G697 1264 Stopper - Trans por t Guide Plate 3- 9
G697 1265 Transport G ui de Plat e 3- 5
G697 1270 Vertical Right Cover 3- 14
G697 1276 Pressure Plate - Driven Roller 3- 12
G697 2555 Stay - Paper Feed U ni t 5- 6
G697 2556 Feed Roller Arm 5- 14
G697 2557 Collar 5- 12
G697 2558 Bracket - Feed C lutc h Shaf t 5- 20
G697 2559 Upper Gu id e - Paper Feed 5- 13
G697 2560 Feed Roller Shaft 5- 25
G697 2561 Bushing 5- 15
G697 2562 Guide Roller 5- 28
G697 2563 Supprot Roller 5- 23
G697 2565 Paper Sensor Bracket 5- 7
G697 2566 Bracket - Paper End Sensor 5- 2
G697 2581 Gear Bracket 7- 10
G697 2591 Motor Bracket 7- 14
G697 2634 Bracket - Paper Size Det ector 7- 3
G697 2642 Decal - Paper Set 9- 24
G697 2666 End Fence Holder 9- 12
G697 2667 Lift Lever Shaft - Bottom Plate 9- 22
G697 2669 Lift Bracket - Bottom Plate 9- 23
G697 2670 Bottom Plate 9- 14
G697 2677 Spring Plate - Side Fence 9- 19
G697 2678 Stopper Lever 9- 18
G697 2681 Paper Tray Cover 9- 1
G697 5300 Main Harness - Paper Bank 7- 18
G697 5310 Relay Harness 7- 17
G697 5320 Relay Harness - Paper Size Detector 7- 22
G697 5330 Relay Harness - Feed Unit 5- 5
G697 6150 Fixing Plate 3- 4
G697 6155 Stepped Screw - M3 3- 15
G697 6165 Stand 3- 16
G697 9800 Bank Tray Heater 7- 23
15
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
AA00 2204 Paper Size Decal 9- 25
AA06 0665 Pressure Spring - Fe ed R oll er 5- 9
AA06 3390 Rear Fence Spring 9- 11
AA14 0627 Drive Shaft - Feed Rolle r 5- 16
AA14 0628 Feed Clutch Shaft 5- 21
AB01 0103 Relay Gear 5- 18
AB01 0104 Gear - 24Z 5- 17
AB01 1371 Gear - 30Z 7- 12
AB01 3868 Gear - 16Z 9- 16
AB01 4016 Gear - 46Z 5- 30
AB01 4017 Gear - 16Z 5- 11
AB01 4018 Gear - 14Z 5- 10
AB01 4020 Gear - 24Z 7- 11
AB01 7424 Gear - 27Z/15Z 7- 9
AB01 7425 Gear - 30Z 7- 8
AB01 7426 Gear - 27Z/40Z 7- 13
AF01 0068 Paper Tray 9- 5
AF01 3015 Friction Pad 9- 15
AF01 4015 Front Paper Separator 9- 9
AF01 4016 Rear Paper Separator 9- 20
AF01 6082 Front Side Fence 9- 6
AF01 6083 Rear Side Fence 9- 21
AF01 7018 End Fence 9- 10
AF02 0283 Pressure Roller 3- 11
AF02 0377 Transport Roller 5- 27
AF03 1033 Paper Feed Roller 5- 24
AG07 0012 Magnetic C at ch 3- 17
AH01 2013 Stopper Caster - 60kgf 7- 5
AH01 2014 Caster - 60kgf 7- 6
AW02 0075 Photointerrupter 5- 3
AW02 0089 Photointerruptor 5- 8
AW02 0091 Photointerruptor 5- 4
AX04 0090 Lift Motor - DC 0.5W 7- 19
AX05 0102 Main Motor - DC 9.0W S 7- 16
AX20 0128 Paper Feed Clutch 5- 19
AX20 0129 Relay Clutch 5- 29
C218 3051 Philips Screw - M3 3- 18
G020 2593 Paper Size Dial (LT) 9- 2
G020 2595 Paper Size Dial (A4) 9- 2
G020 2620 Paper Size Detector 7- 2
G020 2648 Holder - Paper Size D et ect or 9- 4
G020 2663 Paper Size Actuator 9- 3
G697 1081 Stopper Bracket 5- 1
G697 1082 Tray Holder 7- 20
G697 1090 Upper Stay 3- 3
G697 1095 Grounding Plate 3- 7
G697 1100 Accuride 7- 1
G697 1110 Accuride 7- 21
G697 1131 Safety Switch Bracket 7- 7
G697 1250 Rear Cover 3- 6
G697 1253 Front Cover 3- 1
G697 1256 Left Cover 3- 2
G697 1261 Magnetic C atch Bracket 3- 13
G697 1263 Magnetic C atch Plate 3- 10
G697 1264 Stopper - Trans por t Guide Plate 3- 9
G697 1265 Transport G ui de Plat e 3- 5
G697 1270 Vertical Right Cover 3- 14
G697 1276 Pressure Plate - Driven Roller 3- 12
G697 2555 Stay - Paper Feed U ni t 5- 6
G697 2556 Feed Roller Arm 5- 14
G697 2557 Collar 5- 12
G697 2558 Bracket - Feed C lutc h Shaf t 5- 20
G697 2559 Upper Gu id e - Paper Feed 5- 13
G697 2560 Feed Roller Shaft 5- 25
G697 2561 Bushing 5- 15
G697 2562 Guide Roller 5- 28
G697 2563 Supprot Roller 5- 23
G697 2565 Paper Sensor Bracket 5- 7
G697 2566 Bracket - Paper End Sensor 5- 2
G697 2581 Gear Bracket 7- 10
16
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
G697 2591 Motor Bracket 7- 14
G697 2634 Bracket - Paper Siz e D et ect or 7- 3
G697 2642 Decal - Paper Set 9- 24
G697 2666 End Fence Holder 9- 12
G697 2667 Lift Lever Shaft - Bottom Plate 9- 22
G697 2669 Lift Bracket - Bo ttom Pl at e 9- 23
G697 2670 Bottom Plate 9- 14
G697 2677 Spring Plate - Side Fence 9- 19
G697 2678 Stopper Lever 9- 18
G697 2681 Paper Tray Cover 9- 1
G697 5300 Main Harness - Paper Bank 7- 18
G697 5310 Relay Harness 7- 17
G697 5320 Relay Harness - Paper Size Detector 7- 22
G697 5330 Relay Harness - Feed Unit 5- 5
G697 6150 Fixing Plate 3- 4
G697 6155 Stepped Scr ew - M 3 3- 15
G697 6165 Stand 3- 16
G697 9800 Bank Tray Heater 7- 23
A048 2838 Nylon Rivet 3- 8
A048 2838 Nylon Rivet 9- 13
A134 2978 Spring Plate 9- 7
A157 2765 Bottom Plate Spring 9- 17
A157 2766 Front Stopper Le ver 9- 8
A507 1096 Philips Screw - M5x6 7- 4
5053 0223 Bushing - 8mm 5- 26
5447 2681 Snap Ring 5- 22
17
Part No.
0450 3008B Tapping Screw - M3x8 9-101
0450 4008B Tapping Screw - 4x8 3-103
0450 4008B Tapping Screw - 4x8 9-102
0451 3006B Tapping Screw - M3x6 3-101
0451 3006B Tapping Screw - M3x6 5-101
0451 3006B Tapping Screw - M3x6 7-101
0451 3014B Tapping Screw - M3-14 7-109
0451 4006B Tapping Screw - 4x6 9-103
0453 3006Z Tapping Screw - 3x6 3-102
0453 3008B Tapping Screw - M3x8 3-105
0720 0040E Retaining Ring - M4 7-105
0720 0060E Retaining Ring - M6 5-104
0720 0060E Retaining Ring - M6 9-104
0802 5254 Tapping Screw - M3x6 3-104
0805 3386 Bushing - 8mm 5-105
1105 0113 Edge - P108 5-102
1105 0113 Edge - P108 7-106
1105 0192 Locking Support 7-104
1105 0194 Locking Support 7-103
1105 0199 Clamp 5-103
1105 0199 Clamp 7-110
1105 0229 Clamp 7-102
1105 0310 Wire Clamp 7-107
1106 0411 Bushing - 11.5mm 5-106
1204 2355 Micro Switch - AM51632A531 7-108
Description
Page and
Index No.
Part No.
Description
Page and
Index No
18
Loading...
