These safety instructions are to ensure the long life of your projector and to prevent re and shock. Please read them
carefully and heed all warnings.
Installation
• Do not place the projector in the following conditions:
- on an unstable cart, stand, or table.
- near water, baths, or damp rooms.
- in direct sunlight, near heaters, or heat radiating appliances.
- in a dusty, smoky or steamy environment.
- on a sheet of paper or cloth, rugs or carpets.
- in an air-tight location, such as inside a box.
Doing so may result in malfunctions and/or a shorter service life for your projector.
• If you wish to have the projector installed on the ceiling:
- Do not attempt to install the projector yourself.
- The projector must be installed by qualied technicians in order to ensure proper operation and reduce the risk
of bodily injury.
- In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance
with any local building codes.
- Please consult your dealer for more information.
WARNING
• Do not use any other object than the projector’s sliding lens cover to cover the lens while the projector is on.
Doing so can cause the object to get extremely hot, and possibly resulting in a re or damage due to the heat
emitted from the light output.
• Do not place any objects, which are easily affected by heat, in front of the projector lens. Doing so could lead
to the object melting from the heat that is emitted from the light output.
iii
Page 6
Important Information
Place the projector in a horizontal position
Be sure to use the projector within a tilt angle range from 30° above horizontal to 30°below (including the maximum
tilt angle 10° created by extending the tilt foot).
Using the projector in any way other than the desktop and ceiling mount may result in failures of the projector. If the
projector is used over a tilt angle of 10° above horizontal or 10°below, the lamp life will decrease*.
* If using the projector within a range from ± (plus or minus) 10° to ± (plus or minus) 30° (shown by shaded area), it
is recommended to replace the lamp when the remaining lamp life reaches 25% . Even if the remaining lamp life
shows 25 % or more, the lamp may break or fail to illuminate depending on individual lamp characteristics and
usage conditions. To show the remaining life of the lamp, press the Help button on the remote control and select
[INFO.] → [USAGE TIME] from the projector on-screen menu. (→ page 109)
Up to +30° Up to +30°
+10° +10°
Desktop 0° Ceiling mount 0°
-10° -10°
Up to -30° Up to -30°
iv
Page 7
Important Information
Fire and Shock Precautions
• Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your
projector. Allow at least 4 inches (10cm) of space between your projector and a wall.
• Do not try to touch the exhaust vent on the left front (when seen from the front) as it can become heated while the
projector is turned on and immediately after the projector is turned off. Parts of the projector may become temporarily
heated if the projector is turned off with the Power button or if the AC power supply is disconnected during normal
projector operation.
Use caution when picking up the projector.
• Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve
any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your
projector. If something should fall into your projector, disconnect it immediately and have the object removed by a
qualied service personnel.
• Do not place any objects on top of the projector.
• Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or re.
• The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power supply
ts this requirement before attempting to use your projector.
• Do not look into the lens while the projector is on. Serious damage to your eyes could result.
• Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the
lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause
unpredictable outcome such as re or injury to the eyes.
• Do not place any objects, which are easily affected by heat, in front of a projector exhaust vent.
Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the exhaust.
• Do not splash water over the projector. Doing so can cause electrical shock or re. If the projector gets wet, turn off
the projector, unplug the power cord and have the projector serviced by a qualied service personnel.
• Handle the power cord carefully. A damaged or frayed power cord can cause electric shock or re.
- Do not use any power cord other than the one supplied with the projector.
- Do not bend or tug the power cord excessively.
- Do not place the power cord under the projector, or any heavy object.
- Do not cover the power cord with other soft materials such as rugs.
- Do not heat the power cord.
- Do not handle the power plug with wet hands.
• Turn off the projector, unplug the power cord and have the projector serviced by a qualied service personnel under
the following conditions:
- When the power cord or plug is damaged or frayed.
- If liquid has been spilled into the projector, or if it has been exposed to rain or water.
- If the projector does not operate normally when you follow the instructions described in this user’s manual.
- If the projector has been dropped or the cabinet has been damaged.
- If the projector exhibits a distinct change in performance, indicating a need for service.
• Disconnect the power cord and any other cables before carrying the projector.
• Turn off the projector and unplug the power cord before cleaning the cabinet or replacing the lamp.
• Turn off the projector and unplug the power cord if the projector is not to be used for an extended period of time.
• When using a LAN cable (only models with the RJ-45 LAN port):
For safety, do not connect to the connector for peripheral device wiring that might have excessive voltage.
v
Page 8
Important Information
CAUTION
• Do not use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or hanging on the wall can cause damage to the projector.
• Do not send the projector in the soft case by parcel delivery service or cargo shipment. The projector inside the
soft case could be damaged.
• Select [HIGH] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select
[SETUP] → [OPTIONS(1)] → [FAN MODE] → [HIGH].)
• The projector's power cannot be turned off, even if you turn off the power switch, while the Power indicator is
ickering blue. Do not turn off the AC power to turn off the power while the Power indicator is ickering blue. Doing
so may cause the lamp to explode or may greatly shorten the lamp's life.
Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not short, heat, or take apart batteries.
• Do not throw batteries into re.
• If you will not be using the remote control for a long time, remove the batteries.
• Ensure that you have the batteries’ polarity (+/−) aligned correctly.
• Do not use new and old batteries together, or use different types of batteries together.
• Dispose of used batteries according to your local regulations.
Note for US Residents
The lamp in this product contains mercury. Please dispose according to Local, State or Federal Laws.
Lamp Replacement
• Use the specied lamp for safety and performance.
• To replace the lamp, follow all instructions provided on page 155.
• Be sure to replace the lamp and lter when the message [THE LAMP HAS REACHED THE END OF ITS USABLE
LIFE. PLEASE REPLACE THE LAMP. USE THE SPECIFIED LAMP FOR SAFETY AND PERFORMANCE.]
appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may
shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may
cause injury.
If this happens, contact your dealer for lamp replacement.
A Lamp Characteristic
The projector has a high-pressure mercury lamp as a light source.
A lamp has a characteristic that its brightness gradually decreases with age. Also repeatedly turning the lamp on
and off will increase the possibility of its lower brightness.
The actual lamp life may vary depending upon the individual lamp, the environmental conditions and usage.
CAUTION:
• DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off
and then disconnect the power cord. Allow at least one hour for the lamp to cool before handling.
• When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass
fragments could fall if the lamp has been burned out.
vi
Page 9
Important Information
About High Altitude mode
•
Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes approximately 5500 feet/1700 meters or
higher.
Using the projector at altitudes approximately 5500 feet/1700 meters or higher without setting to [HIGH ALTITUDE]
can cause the projector to overheat and the protector could shut down. If this happens, wait a couple minutes and
turn on the projector.
• Using the projector at altitudes less than approximately 5500 feet/1700 meters and setting to [HIGH ALTITUDE]
can cause the lamp to overcool, causing the image to icker. Switch [FAN MODE] to [AUTO].
• Using the projector at altitudes approximately 5500 feet/1700 meters or higher can shorten the life of optical components such as the lamp.
About Copyright of original projected pictures:
Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue
such as a coffee shop or hotel and employing compression or expansion of the screen image with the following functions may raise concern about the infringement of copyrights which are protected by copyright law.
[ASPECT], [KEYSTONE], Magnifying feature and other similar features.
This device is not intended for use in the direct eld of view at visual display workplaces. To avoid incommoding reections at visual display workplaces this device must not be placed in the direct eld of view.
Power management function
The projector has power management functions. To reduce power consumption, the power management functions (1
and 2) are factory preset as shown below. To control the projector from an external device via a LAN or serial cable
connection, use the on-screen menu to change the settings for 1 and 2.
1. STANDBY MODE (Factory preset: POWER-SAVING)
To control the projector from an external device, select [NORMAL] for [STANDBY MODE].
NOTE:
• When [POWER-SAVING] is selected for [STANDBY MODE], the following connectors and functions will not work:
PC Control port, Monitor Out connector, Audio Out connector, USB (PC) port, LAN functions, Mail Alert function, DDC/CI.
2. POWER OFF ON NO SIGNAL (Factory preset: 20 minutes)
To control the projector from an external device, select [OFF] for [POWER OFF ON NO SIGNAL].
NOTE:
• When [20 MIN.] is selected for [POWER OFF ON NO SIGNAL], you can enable the projector to automatically turn off in 20 minutes
if there is no signal received by any input or if no operation is performed.
vii
Page 10
Important Information
Safety Labels of This Machine
1 Do not look into the lens while the projector is on. Serious damage to your eyes could result. Do not use any other
object than the projector's sliding lens cover to cover the lens while the projector is on. Doing so can cause the
object to get extremely hot, and possibly resulting in a re or damage due to the heat emitted from the light output.
2 Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated while the projec-
tor is turned on and immediately after the projector is turned off. Parts of the projector may become temporarily heated if the
projector is turned off with the Power button or if the AC power supply is disconnected during normal projector operation.
Use caution when picking up the projector.
3 Do not remove any screws except the lamp cover screws. Do not block or cover the vents.
4 To replace the lamp, rst unplug the power cord then wait for more than 1 hour. The lamp might be broken. Be
careful of pieces of broken glass.
3
1
2
4
viii
Page 11
Table of Contents
Important Information ............................................................................................i
1. Introduction .......................................................................................................... 1
❶ What’s in the Box? ......................................................................................................... 1
❷ Introduction to the Projector ........................................................................................... 2
Congratulations on Your Purchase of the Projector .................................................. 2
Features you’ll enjoy: ................................................................................................ 2
About this user’s manual .......................................................................................... 3
❸ Part Names of the Projector .......................................................................................... 4
Front/Top .................................................................................................................. 4
Rear ......................................................................................................................... 5
Top Features ............................................................................................................ 6
Terminal Panel Features .......................................................................................... 7
❹ Part Names of the Remote Control ................................................................................ 8
Battery Installation ................................................................................................... 9
Remote Control Precautions .................................................................................... 9
Operating Range for Wireless Remote Control ........................................................ 9
❺ Operating Environment for Software Included on CD-ROM .........................................10
Operating Environment ...........................................................................................11
2. Projecting an Image (Basic Operation) ...............................................13
❶ Flow of Projecting an Image .........................................................................................13
❷ Connecting Your Computer/Connecting the Power Cord ..............................................14
❸ Turning on the Projector ................................................................................................15
Note on Startup screen (Menu Language Select screen) .......................................16
❹ Selecting a Source .......................................................................................................17
Selecting the computer or video source ..................................................................17
❺ Adjusting the Picture Size and Position ........................................................................19
Adjusting the vertical position of a projected image (Lens shift) ............................ 20
Focus ..................................................................................................................... 21
Zoom ...................................................................................................................... 22
Adjust the Tilt Foot ................................................................................................. 23
❻ Correcting Keystone Distortion [KEYSTONE] .............................................................. 24
❼ Optimizing Computer Signal Automatically .................................................................. 26
Adjusting the Image Using Auto Adjust .................................................................. 26
❽ Turning Up or Down Volume ........................................................................................ 26
❾ Turning off the Projector ............................................................................................... 27
❿ After Use ...................................................................................................................... 28
3. Convenient Features ..................................................................................... 29
❶ Turning off the Image and Sound ................................................................................. 29
❷ Freezing a Picture ........................................................................................................ 29
❸ Enlarging a Picture ...................................................................................................... 29
❹ Changing Eco Mode/Checking Energy-Saving Effect .................................................. 30
Using Eco Mode [LAMP POWER] ......................................................................... 30
Checking Energy-Saving Effect [CARBON METER] .............................................. 31
❺ Preventing the Unauthorized Use of the Projector [SECURITY] .................................. 33
ix
Page 12
Table of Contents
❻ Using 4-Point Corner to Correct Keystone Distortion [CORNERSTONE] .................... 36
Cornerstone ........................................................................................................... 36
Operating Your Computer’s Mouse Functions from the Projector’s Remote Control
❼
via the USB Cable (Remote Mouse Function) ...........................................................39
❽ Projecting Your Computer’s Screen Image from the Projector via the USB Cable
(USB Display) ........................................................................................................ 40
❾ Controlling the Projector by Using an HTTP Browser .................................................. 42
❿ Projecting Your Computer’s Screen Image from the Projector via a Network
[NETWORK PROJECTOR] .................................................................................... 49
⓫ Using the Projector to Operate Your Computer via a Network
[REMOTE DESKTOP] ............................................................................................ 53
⓬ Connecting Your Microphone ...................................................................................... 58
4. Using the Viewer ............................................................................................. 59
❶ What you can do with the Viewer ................................................................................. 59
❷ Preparing presentation materials ................................................................................. 62
❸ Projecting images stored in a USB memory device ..................................................... 63
Starting the Viewer ................................................................................................. 63
Exiting the Viewer .................................................................................................. 65
Names and functions of Viewer screen .................................................................. 66
Viewer option settings ............................................................................................ 71
❹ Projecting data from shared folder ................................................................................74
Connecting the projector to the shared folder ........................................................74
Disconnecting the shared folder from the projector................................................ 77
❺ Projecting data from media server ............................................................................... 78
Setting up “Media Sharing” in Windows Media Player 11 ....................................... 78
Setting up “Media Sharing” in Windows Media Player 12 ....................................... 80
Connecting the projector to the media server ........................................................ 81
Disconnecting the projector from the media server ................................................ 82
5. Using On-Screen Menu ................................................................................ 83
❶ Using the Menus .......................................................................................................... 83
❷ Menu Elements ............................................................................................................ 84
❸ List of Menu Items ....................................................................................................... 85
❹ Menu Descriptions & Functions [INPUT] ..................................................................... 88
COMPUTER .......................................................................................................... 88
HDMI1 and 2 .......................................................................................................... 88
VIDEO .................................................................................................................... 88
S-VIDEO ................................................................................................................ 88
VIEWER ................................................................................................................. 88
NETWORK ............................................................................................................. 88
USB DISPLAY ........................................................................................................ 88
❺ Menu Descriptions & Functions [ADJUST] .................................................................. 89
[PICTURE] ............................................................................................................. 89
[IMAGE OPTIONS] ................................................................................................ 92
[AUDIO] .................................................................................................................. 96
❻ Menu Descriptions & Functions [SETUP] .................................................................... 97
[GENERAL] ............................................................................................................ 97
x
Page 13
Table of Contents
[MENU] .................................................................................................................. 99
[INSTALLATION] ...................................................................................................101
[OPTIONS(1)] .......................................................................................................103
[OPTIONS(2)] .......................................................................................................106
❼ Menu Descriptions & Functions [INFO.] .....................................................................109
[USAGE TIME] ......................................................................................................109
[SOURCE(1)] ........................................................................................................ 110
[SOURCE(2)] ........................................................................................................ 110
[WIRED LAN] ........................................................................................................110
[WIRELESS LAN] ................................................................................................. 111
[VERSION(1)] ....................................................................................................... 111
[VERSION(2)] ....................................................................................................... 111
[OTHERS] .............................................................................................................112
❽ Menu Descriptions & Functions [RESET] ................................................................... 113
Returning to Factory Default [RESET] ..................................................................113
❾ Application Menu ........................................................................................................114
ADVANCED NETWORK / PROJECTION UTILITY ............................................... 114
NETWORK PROJECTOR .....................................................................................115
REMOTE DESKTOP CONNECTION ...................................................................115
NETWORK SETTINGS ......................................................................................... 116
TOOLS ..................................................................................................................132
6. Installation and Connections ..................................................................137
❶ Setting Up the Screen and the Projector ....................................................................137
Selecting a Location..............................................................................................137
Throw Distance and Screen Size ..........................................................................139
❷ Making Connections ...................................................................................................141
Connecting Your Computer ...................................................................................141
Connecting an External Monitor ............................................................................143
Connecting Your DVD Player or Other AV Equipment ...........................................144
Connecting Component Input ...............................................................................145
Connecting HDMI Input .........................................................................................146
Connecting to a Wired LAN ...................................................................................147
Connecting to a Wireless LAN (sold separately) ...................................................148
7. Maintenance .....................................................................................................151
❶ Cleaning the Filters .....................................................................................................151
❷ Cleaning the Lens.......................................................................................................154
❸ Cleaning the Cabinet ..................................................................................................154
❹ Replacing the Lamp and the Filters ............................................................................155
8. User Supportware ..........................................................................................161
❶ Installing Software Program ........................................................................................161
Installation for Windows software ..........................................................................161
❷ Projecting Your Computer’s Screen Image or Video from the Projector over a LAN
(Projection Utility) ..................................................................................................164
Starting Projection Utility from a USB Memory or SD Card .................................169
xi
Page 14
Table of Contents
❸ Projecting an Image from an Angle
(Geometric Correction Tool in Projection Utility) ....................................................171
What you can do with GCT ...................................................................................171
Projecting an Image from an Angle (GCT) ............................................................171
❹ Projecting Images from the Projector over a LAN (Advanced Network Utility)............173
What you can do with Advanced Network Utility ...................................................173
Connecting the projector to a LAN ........................................................................174
Basic Operation of Advanced Network Utility .......................................................175
❺ Converting Presentation Files to JPEG Files Using JPEG Conversion Tool ...............179
Operating environment..........................................................................................179
Installing JPEG Conversion Tool ...........................................................................179
❻ Managing the Projector Using Projector Management Utility ......................................181
Operating environment..........................................................................................181
Installing Projector Management Utility .................................................................181
9. Appendix ..............................................................................................................182
❶ Troubleshooting ..........................................................................................................182
Indicator Messages ...............................................................................................182
Common Problems & Solutions ............................................................................183
If there is no picture, or the picture is not displayed correctly. ...............................184
❷ Specications .............................................................................................................185
❸ Cabinet Dimensions ...................................................................................................187
❹ Pin Assignments of D-Sub Computer Input Connector ...............................................188
❺ Compatible Input Signal List .......................................................................................189
❻ PC Control Codes and Cable Connection ..................................................................190
xii
Page 15
1. Introduction
❶ What’s in the Box?
Make sure your box contains everything listed. If any pieces are missing, contact your dealer.
Please save the original box and packing materials if you ever need to ship your projector.
NOTE: The bundled items may vary depending on the product destination.
Projector
Power cord Computer cable (VGA)
• Important Infomation
• Quick Setup Guide
(Y156079)
CD-ROM
User’s manual (PDF), the utility
software and the source code
Remote control Batteries (AAA × 2)
Unless otherwise described in the user’s manual, the drawings for the projector cabinet show examples of the RICOH
PJ X5371N.
1
Page 16
1. Introduction
❷ Introduction to the Projector
This section introduces you to your new projector and describes the features and controls.
Congratulations on Your Purchase of the Projector
This projector is one of the very best projectors available today. The projector enables you to project precise images
up to 300 inches across (measured diagonally) from your PC or Mac computer (desktop or notebook), VCR, DVD
player, or document camera.
You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen,
and the projector can be permanently mounted on a ceiling*1. The remote control can be used wirelessly.
1
*
Do not attempt to mount the projector on a ceiling yourself.
The projector must be installed by qualied technicians in order to ensure proper operation and reduce the risk
of bodily injury.
In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance
with any local building codes. Please consult your dealer for more information.
Features you’ll enjoy:
• Quick start (3 seconds*2), Quick Power Off, Direct Power Off
3 seconds*
The projector can be put away immediately after the projector is powered down. No cool down period is required
after the projector is turned off from the remote control or cabinet control panel.
The projector has a feature called “Direct Power Off”. This feature allows the projector to be turned off (even when
projecting an image) by using the Main Power Switch or disconnecting the AC power supply.
To turn off the AC power supply when the projector is powered on, use a power strip equipped with a switch and
a breaker.
2
*
The quick start time is only when [STANDBY MODE] is set to [NORMAL] in the on-screen message.
• 0.21 W (100-130 V AC)/0.43 W (200-240 V AC) in standby condition with energy saving technology
Selecting [POWER-SAVING] for [STANDBY MODE] from the menu can put the projector in power-saving mode
that consumes only 0.21 W (100-130 V AC)/0.43 W (200-240 V AC). The wattage is a typical value.
• Carbon Meter
This feature will show energy-saving effect in terms of CO
projector’s [LAMP POWER] is set to [AUTO ECO], [ECO1], or [ECO2].
The amount of CO
in the INFO of the on-screen menu.
• Lamp life up to 6000 hours
Using in Eco Mode (ECO) allows you to prolong the projector’s lamp life up to 6000 hours (up to 3500 hours in
ECO MODE OFF).
• Two HDMI inputs supports digital signals
The two HDMI inputs provide HDCP compatible digital signals. The HDMI input also supports audio signal.
• 16 W built-in speaker for an integrated audio solution
Powerful 16 watt monaural speaker provides volume need for large rooms.
• Mic Input provided
A Mic input jack for a commercially available dynamic microphone is useful for your presentation in a conference
room or lecture in a classroom.
2
after turning on the power, the projector is ready to display PC or video images.
emission reduction (kg) and electricity cost when the
2
emission reduction will be displayed in the conrmation message at the time of power-off and
2
2
Page 17
1. Introduction
• The supplied remote control allows you to assign a CONTROL ID to the projector
Multiple projectors can be operated separately and independently with the same single remote control by assigning
an ID number to each projector.
• Keystone correction
Keystone vertical/horizontal/pincushion and cornerstone features allows you to correct almost all distortions in the
image.
• Wired/wireless LAN compatibility (wireless LAN unit sold separately)
The projector is equipped with a LAN port (RJ-45) for connection to a wired LAN for transferring images from a
computer to the projector, controlling the projector from a computer, etc.
Furthermore, the projector can be used in a wireless LAN by mounting the separately sold wireless LAN unit
(NP02LM).
• Software programs (User Supportware) contained in the supplied CD-ROM
The supplied RICOH Projector includes programs: Projection Utility, Advanced Network Utility, Projection Utility for
Mac OS, JPEG Conversion Tool, and Projector Management Utility.

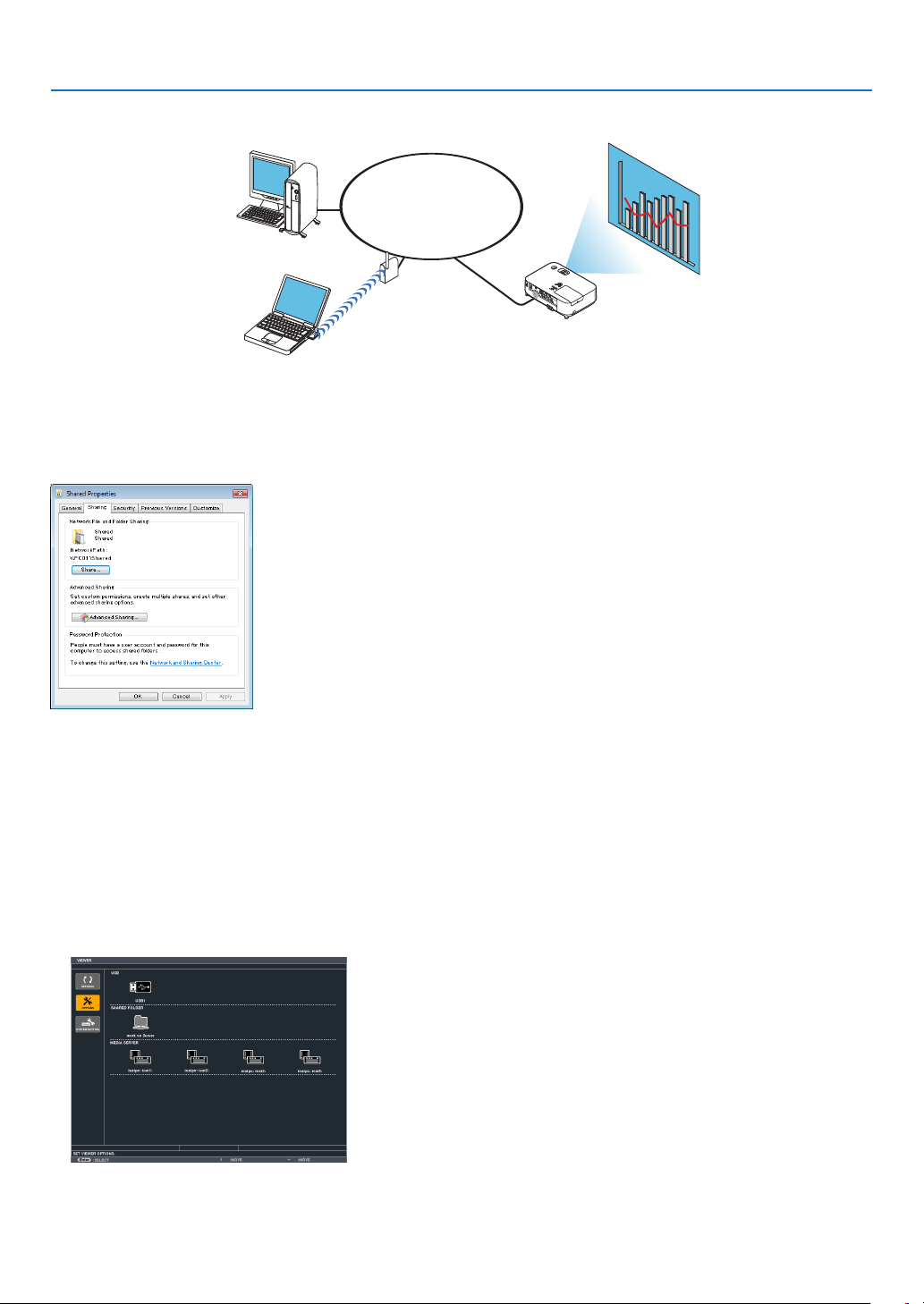

• LAN-compatible Viewer
The projector’s built-in Viewer allows you to view images or movie les in the shared folder of your PC connected
to a wired or wireless LAN.
* The Viewer supports the Media Sharing function of Windows Media Player 11.
• Audio transfer capability (for Windows only)
Projection Utility allows you to send the computer’s screen image and audio to the projector.
* Audio transfer capability is available only when the computer connects with the projector in peer-to-peer network.
* Audio transfer capability is available with USB Display connection.
• Streaming video transfer capability (for Windows only)
Projection Utility allows you to send streaming video from the computer to a single projector over wired or wireless
LAN without the need of connecting a computer cable.
• USB Display
Using a commercially available USB cable (compatible with USB 2.0 specications) to connect the computer with
the projector allows you to send your computer screen image and audio to the projector without the need of a
traditional computer cable (VGA).
• AUTO POWER ON and POWER OFF ON NO SIGNAL features
The POWER ON METHOD, AUTO POWER ON(COMP.), POWER OFF ON NO SIGNAL, and OFF TIMER features
eliminate the need to always use the Power button on the remote control or projector cabinet.
• Preventing unauthorized use of the projector
Enhanced smart security settings for keyword protection, cabinet control panel lock, security slot, and security
chain opening to help prevent unauthorized access, adjustments and theft deterrence.
• High resolution up to WUXGA
High resolution display - up to WUXGA compatible, XGA (RICOH PJ X5371N)/WXGA (RICOH PJ WX5361N) na-
tive resolution.
• CRESTRON ROOMVIEW compatibility
The projector supports CRESTRON ROOMVIEW, allowing multiple devices connected in the network to be man-
aged and controlled from a computer or controller.
About this user’s manual
The fastest way to get started is to take your time and do everything right the rst time. Take a few minutes now to
review the user’s manual. This may save you time later on. At the beginning of each section of the manual you’ll nd
an overview. If the section doesn’t apply, you can skip it.
3
Page 18
❸ Part Names of the Projector
Front/Top
1. Introduction
Zoom Lever
Heated air is exhausted from here.
Adjustable Tilt Foot Lever
(→ page 22)
Focus Lever
(→ page 21)
Exhaust Vent
Lens Cover
(→ page 23)
Adjustable Tilt Foot
(→ page 23)
Controls
(→ page 6)

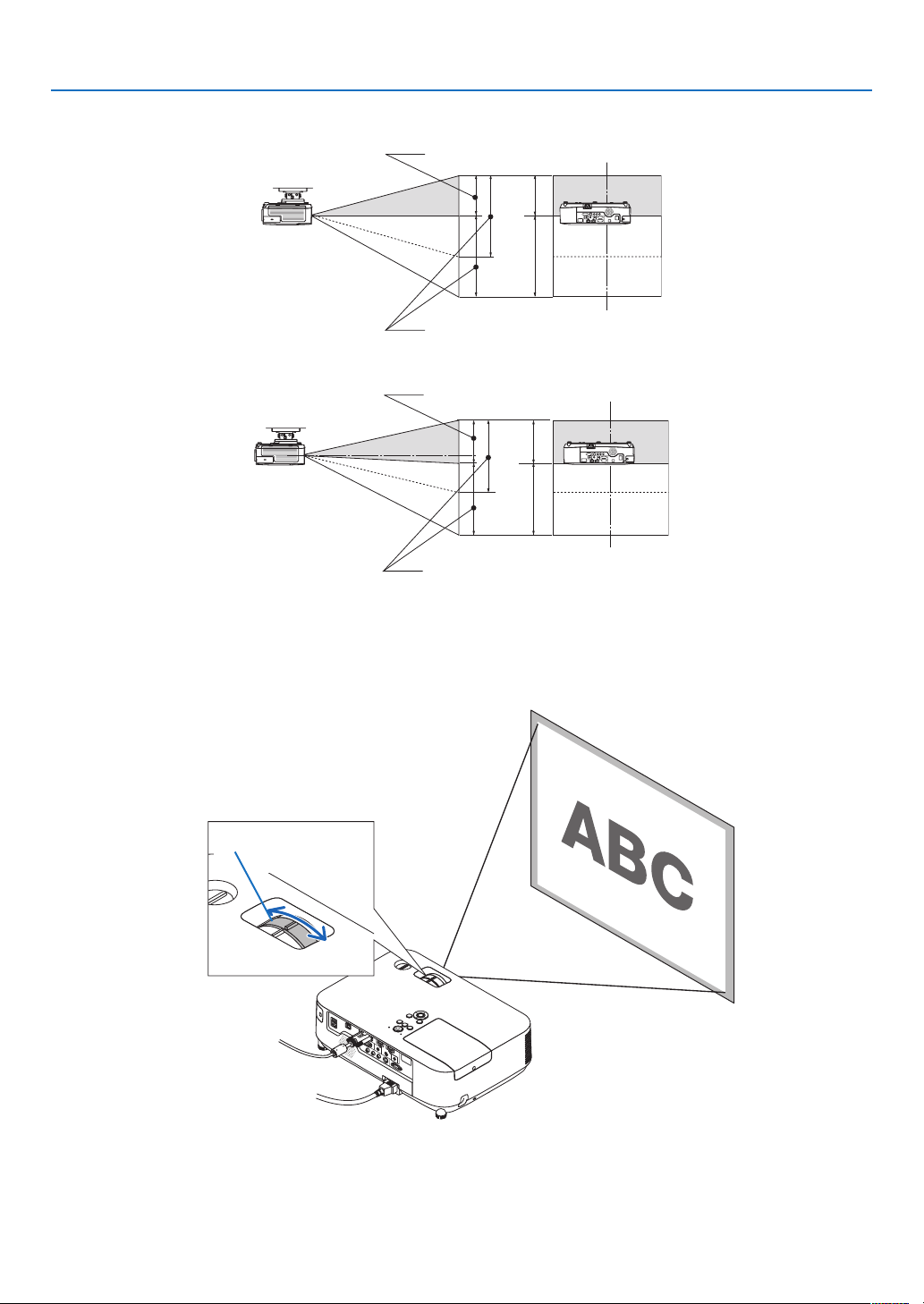

Lens Shift Dial (Vertical)
(→ page 20)
Intake Vent / Filter Cover
(→ page 151, 159)
Remote Sensor
(→ page 9)
Lens
4
Page 19
Rear
1. Introduction
Port Cover for Optional USB
Wireless LAN Unit
When using the optional USB
Wireless LAN Unit, rst remove
the cover. (→ page 148)
Monaural Speaker (16 W)
Terminal Panel (→ page 7)
AC Input
Connect the supplied power cord’s
three-pin plug here, and plug the
other end into an active wall outlet.
(→ page 14)
* This security slot supports the MicroSaver ® Security System.
Opening and closing the lens cover
Slide the lens cover to the left to uncover the lens.
Lamp Cover (→ page 157)
Security chain opening
Attach an anti-theft device.
The security chain opening accepts security wires or chains up to
0.18 inch/4.6 mm in diameter.
Built-in Security Slot ( )*
Rear Foot (→ page 23)
To cover the lens, slide the lens cover to the right.
NOTE:
• The lens cover works in conjunction with the AV-MUTE function. Closing the lens cover will turn off the image and sound during
normal projector operation; opening it will restore the image and sound.
With the lens cover closed the image and sound is turned off, however the lamp is still lit. If the projector stays this way for about
2 hours, it will turn off automatically.
• Do not pull the lens cover with excessive force or apply strong pressure in either the up or down direction. Doing so can cause
damage to the lens cover sliding mechanism!
5
Page 20
Top Features
9
10
1. Introduction
8 11
5
6
3
1/2
1. (Power) Button
(→ page 15, 27)
2. Power Indicator
(→ page 14, 15, 27, 182)
3. Status Indicator
(→ page 182)
4. Lamp Indicator
(→ page 155, 182)
5. Eco Button
(→ page 30)
6. Input Button
(→ page 17)
7. Auto Set Button
(→ page 26)
8. Menu Button
(→ page 83)
9. / Volume Buttons / Keystone Button
(→ page 24, 26)
10. Enter Button
(→ page 83)
11. Back Button
(→ page 83)
7
4
6
Page 21
Terminal Panel Features
1 35 6
12
7
11
4
1. Introduction
13
1. Computer In / Component Input Connector (Mini
D-Sub 15 Pin) (→ page 141, 145)
2. Audio In Mini Jack (Stereo Mini)
(→ page 141, 145)
3. HDMI 1 In Connector (Type A)
(→ page 141, 146)
4. HDMI 2 In Connector (Type A)
(→ page 141, 146)
5. USB (PC) Port (Type B)
(→ page 39, 40, 141)
6. Monitor Out (Comp.) Connector (Mini D-Sub 15 Pin)
(→ page 143)
7. Audio Out Mini Jack (Stereo Mini) (→ page 143)
8. S-Video In Connector (Mini DIN 4 Pin)
(→ page 144)
9. Video In Connector (RCA) (→ page 144)
10. Video/S-Video Audio In (L/Mono, R) Connectors
(RCA)
(→ page 144)
11. Mic Input Jack (Monaural Mini) (→ page 58)
12. USB Port (Type A) (→ page 65)
13. LAN Port (RJ-45) (→ page 147)
14. PC Control Port (D-Sub 9 Pin)
(→ page 190)
Use this port to connect a PC or control system. This
enables you to control the projector using serial communication protocol. If you are writing your own program,
typical PC control codes are on page 190. Be sure to use
a crossing cable.
8 2
149 10
7
Page 22
❹ Part Names of the Remote Control
1
3
7
2
4
8
9
11
14
17
18
21
22
23
26
31
1. Infrared Transmitter
(→ page 9)
2. Power On Button
(→ page 15)
3. Power Standby Button
(→ page 27)
4, 5, 6. Computer 1/2/3 Button
(→ page 17)
(Computer 2/3 button is not available.)
7. Auto Set Button
(→ page 26)
8. Video Button
(→ page 17)
9. S-Video Button
(→ page 17)
10. HDMI Button (→ page 17)
* Mouse L Click and Mouse R Click buttons work only when a USB cable is connected with your computer.
5
6
10
15
13
12
16
19
20
25
27
24
28
29
30
11. Viewer Button (→ page 17, 63)
12. Network Button (→ page 17)
13. USB Display Button (→ page 17)
14. ID Set Button
(→ page 102)
15. Numeric Keypad Button/Clear Button
(→ page 102)
16. Freeze Button
(→ page 29)
17. AV Mute Button
(→ page 29)
18. Menu Button
(→ page 83)
19. Back Button (→ page 83)
20. Button (→ page 83)
21. Enter Button (→ page 83)
22. Magnify (+)(–) Button
(→ page 29)
23. Mouse L Click Button*
(→ page 39)
24. Mouse R Click Button*
(→ page 39)
25. Page / Button
(→ page 39)
26. Eco Button (→ page 30)
27. Keystone Button
(→ page 24, 36)
28. Picture Button
(→ page 89, 91)
29. Volume (+)(–) Button
(→ page 26)
30. Aspect Button
(→ page 94)
31. Help Button
(→ page 109)
1. Introduction
8
Page 23
Battery Installation
1. Introduction
1
Press rmly and slide the battery
cover off.
OPEN
2
Install new batteries (AAA). Ensure
that you have the batteries’ polarity
(+/−) aligned correctly.
3
Slip the cover back over the batteries until it snaps into place. Do not
mix different types of batteries or
new and old batteries.
Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not short, heat, or take apart batteries.
• Do not throw batteries into re.
• If you will not be using the remote control for a long time, remove the batteries.
• Ensure that you have the batteries’ polarity (+/−) aligned correctly.
• Do not use new and old batteries together, or use different types of batteries together.
• Dispose of used batteries according to your local regulations.
Operating Range for Wireless Remote Control
OPEN
22 feet/7 m
30°
30°
30°
30°
Remote control
• The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree angle of
the remote sensor on the projector cabinet.
• The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls
on the sensor. Weak batteries will also prevent the remote control from properly operating the projector.
Remote sensor on projector cabinet
30°
30°
22 feet/7 m
30°
30°
22 feet/7 m22 feet/7 m
9
Page 24
1. Introduction
❺ Operating Environment for Software Included on CD-ROM
Names and Features of Bundled Software Programs
Name of software program Features
Projection Utility • This is a software program used to project your computer’s screen, streaming
movie, or sound from the computer over the USB cable* or the wired/wireless
network. The computer cable (VGA) is not required. (→ page 40, page 164)
* Streaming movies cannot be played with USB Display connection.
• This software program can be used to control the power ON/OFF and source
selection of the projector from your computer.
• The Geometric Correction Tool (GCT) and audio function allows you to correct
distortion of images projected on a curved wall. (→ page 171) The GCT function
is not available for streaming video.
Projection Utility for Mac OS • This is a software program used to project your computer’s screen over the
wired/wireless network. The computer cable (VGA) is not required. (→ page
40, 170)
• This software program can be used to control the power ON/OFF and source
selection of the projector from your computer.
* “Audio transmission”, “USB Display”, and “GCT” functions are not supported
by Mac.
Advanced Network Utility • This is a software program used to send the screens of your personal comput-
ers to the projector via wired/wireless LAN (Meeting mode).
Projected images can be transferred and saved to personal computers.
When “Meeting Mode” is used, projected images can be sent and saved to the
personal computers. Images can be sent from a personal computer to not only
one projector but also to two or more projectors at the same time. (→ page 173)
JPEG Conversion Tool • The JPEG Conversion Tool converts JPEG les not supported by the projec-
tor, image les in other formats, PowerPoint les, and other similar les into
JPEG les. (→ page 179)
Projector Management Utility • Projector Management Utility conforms to the PJLink class 1 standards, and
is compatible with all class 1 commands.
A maximum of 100 projectors connected to the network can be managed
using one computer. (→ page 181)
Projector Management Utility’s operating environment, see page 181.
NOTE:
• Projection Utility and Projection Utility for Mac OS do not support “Meeting Mode” in Advanced Network Utility.
10
Page 25
1. Introduction
Operating Environment
The following is the operating environment for Projection Utility. For the operating environment of other software program, refer to the help function of each software program.
[Windows]
Supported OS Windows 8 (Core Edition)
Windows 8 Pro
Windows 8 Enterprise
Windows 7 Home Basic
Windows 7 Home Premium
Windows 7 Professional
Windows 7 Ultimate
Windows 7 Enterprise
Windows Vista Home Basic
Windows Vista Home Premium
Windows Vista Business
Windows Vista Ultimate
Windows Vista Enterprise
Windows XP Home Edition (32-bit version) Service Pack 3 or later
Windows XP Professional (32-bit version) Service Pack 3 or later
• Windows power-saving function is not supported.
• To use the audio transfer capability, Windows 8/Windows 7/Windows Vista Service
Pack 1 or later is required.
Processor • Windows 8/Windows 7/Windows Vista
Pentium M 1.2 GHz equivalent or higher required
Dual core 1.5 GHz or higher recommended
• Windows XP
Pentium M 1.0 GHz equivalent or higher required
Dual core 1.0 GHz or higher recommended
Memory • Windows 8/Windows 7/Windows Vista
512 MB or more required
1 GB or more recommended
• Windows XP
256 MB or more required
512 MB or more recommended
* More memory may be required to run additional applications simultaneously.
Graphic processor • Windows 8/Windows 7/Windows Vista
The “Graphics” score 3.0 or more of “Windows Experience Index” recommended.
Network environment TCP/IP-compatible wired LAN or wireless LAN
* Use a wireless LAN unit complying with the Wi-Fi standard.
* Audio transfer capability requires 3 Mbps or more throughput.
Resolution • Windows 8/Windows 7/Windows Vista
SVGA (800 × 600) or higher required
XGA (1024 × 768) recommended
• Windows XP
VGA (640 × 480) or higher required
XGA (1024 × 768) recommended
1024 dots × 768 lines - 1280 dots × 800 lines recommended (RICOH PJ WX5361N)
Screen Colors High Color (15 bits, 16 bits)
True Color (24 bits, 32 bits) (recommended)
• 256 or fewer colors are not supported.
• Support for Windows XP
Our projector’s will no longer support Windows XP, in line with Microsoft’s end of support for Windows XP.
11
Page 26
[Mac]
Supported OS Mac OS X v10.6, v10.7, v10.8
®
Processor (CPU) Intel
Memory 512 MB or higher required
Network environment Wired or wireless LAN required that supports TCP/IP
Supported Resolution SVGA (800 × 600) or higher required
Supported Screen Colors 16.70 million colors required
Core™ Duo processor 1.5 GHz or higher required
Intel® Core™ 2 Duo processor 1.6 GHz or higher recommended
* PowerPC® is not supported
* The following LAN adapters are veried to work with Projection Utility:
• Wired LAN adapter built into Mac
• Wireless LAN adapter built into Mac
• Apple USB Ethernet adapter
“Easy Connection” supports only wireless LAN.
XGA (1024 × 768) recommended
(1024 × 768 – 1280 × 800 recommended for RICOH PJ WX5361N)
1. Introduction
12
Page 27
2. Projecting an Image (Basic Operation)
This section describes how to turn on the projector and to project a picture onto the screen.
❶ Flow of Projecting an Image
Step 1
• Connecting your computer / Connecting the power cord (→ page 14)
Step 2
• Turning on the projector (→ page 15)
Step 3
• Selecting a source (→ page 17)
Step 4
• Adjusting the picture size and position (→ page 19)
• Correcting keystone distortion [KEYSTONE] (→ page 24)
Step 5
• Adjusting a picture and sound
- Optimizing a computer signal automatically (→ page 26)
- Turning up or down volume (→ page 26)
Step 6
• Making a presentation
Step 7
• Turning off the projector (→ page 27)
Step 8
• After use (→ page 28)
13
Page 28
2. Projecting an Image (Basic Operation)
❷ Connecting Your Computer/Connecting the Power Cord
1. Connect your computer to the projector.
This section will show you a basic connection to a computer. For information about other connections, see "❷
Making Connections" on page 141.
Connect the computer cable (VGA) between the projector’s Computer In connector and the computer’s port (mini
D-Sub 15 Pin). Turn two thumb screws of both connectors to x the computer cable (VGA).
2. Connect the supplied power cord to the projector.
First connect the supplied power cord’s three-pin plug to the AC IN of the projector, and then connect the other
plug of the supplied power cord in the wall outlet.
The projector’s Power indicator will ash for a few seconds and then will light red* (standby mode).
* This will apply for indicator when [POWER-SAVING] is selected for [STANDBY MODE]. See the Power Indicator
section.(→ page 182)
Make sure that the prongs are fully inserted into
both the AC IN and the wall outlet.
→ To wall outlet
CAUTION:
Parts of the projector may become temporarily heated if the projector is turned off with the Power button or if the AC
power supply is disconnected during normal projector operation.
Use caution when picking up the projector.
14
Page 29
❸ Turning on the Projector
1. Slide the lens cover to the left to uncover the lens.
2. Projecting an Image (Basic Operation)
2. Press the
or the Power On button on the remote control.
The Power indicator will turn to blue and the projector will
become ready to use.
TIP:
• When the message “Projector is locked! Enter your password.”
is displayed, it means that the [SECURITY] feature is turned on.
(→ page 33)
• When the ECO message is displayed, it means that [ON] is
selected for [ECO MESSAGE]. (→ page 100)
• Pressing buttons such as Power button and Menu button will
make sound. To turn off the beep sound, select [OFF] for [BEEP]
from the menu. (→ page 105)
After you turn on your projector, ensure that the computer or
video source is turned on and that the lens cover is open.
NOTE: When no input signal is present, the no-signal guidance is
displayed (factory menu setting).
(Power) button on the projector cabinet
Standby Blinking Power On
Steady red light Blinking blue light Steady blue light
(→ page 182)
15
Page 30
2. Projecting an Image (Basic Operation)
Note on Startup screen (Menu Language Select screen)
When you rst turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one
of the 19 menu languages.
To select a menu language, follow these steps:
1. Use the , , or button to select one of the 19
languages from the menu.
2. Press the Enter button to execute the selection.
After this has been done, you can proceed to the menu operation.
If you want, you can select the menu language later.
(→ [LANGUAGE] on page 85 and 99)
NOTE:
• When turning off the power supply and then back on by using a power strip or breaker.
Allow a minimum of 1 second between turning off the main power supply and turning it back on again.
Failing to do so could result in no power to the projector. (There will be no stand-by LED)
Should this happen, unplug the power cord and plug it in again. Turn on the main power.
• If one of the following things happens, the projector will not turn on.
- If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this condition the
projector will not turn on to protect the internal system. If this happens, wait for the projector’s internal components to cool
down.
- When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp.
- If the Status indicator lights orange with the Power button pressed, it means that the [CONTROL PANEL LOCK] is turned on.
Cancel the lock by turning it off. (→ page 101)
- If the lamp fails to light, and if the Status indicator flashes on and off in a cycle of six times, wait a full minute and then turn on
the power.
• While the Power indicator is blinking blue in short cycles, the power cannot be turned off by using the Power button.
• Immediately after turning on the projector, screen flicker may occur. This is normal. Wait 3 to 5 minutes until the lamp lighting is
stabilized.
• When the projector is turned on, it may take some time before the lamp light becomes bright.
• If you turn on the projector immediately after the lamp is turned off or when the temperature is high, the fans run without displaying an image for some time and then the projector will display the image.
16
Page 31
2. Projecting an Image (Basic Operation)

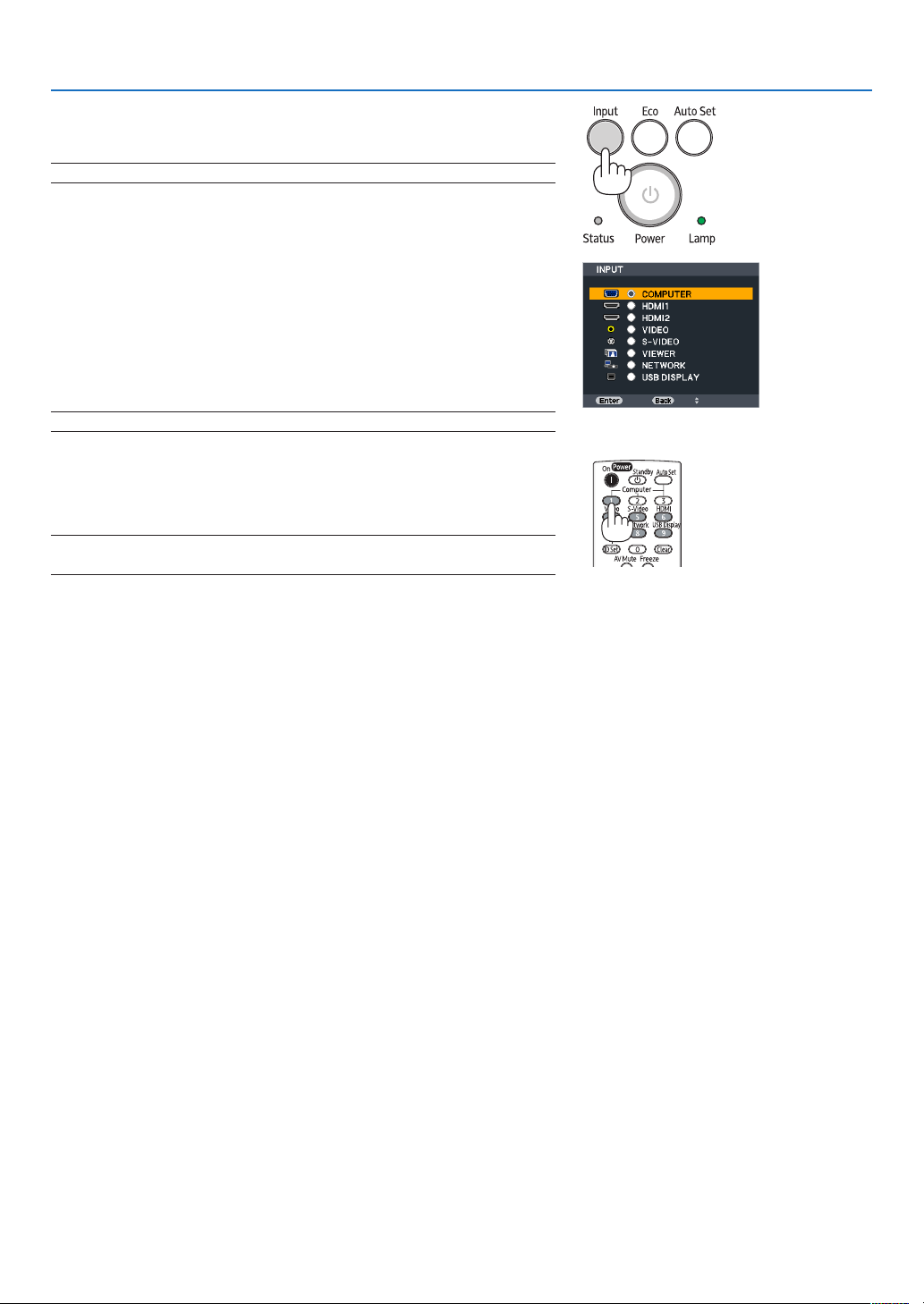

❹ Selecting a Source
Selecting the computer or video source
NOTE: Turn on the computer or video source equipment connected to the projector.
Detecting the Signal Automatically
Press the Input button once. The projector will search for the available
input source and display it. The input source will change as follows:
COMPUTER → HDMI1 → HDMI2 → VIDEO → S-VIDEO → VIEWER
→ USB DISPLAY → COMPUTER → ...
• With the INPUT screen displayed, you can press the Input button a
few times to select the input source.
TIP: If no input signal is present, the input will be skipped.
Using the Remote Control
Press any one of the Computer 1, HDMI, Video, S-Video, Viewer, Network,
or USB Display buttons.
NOTE: The HDMI button on the remote control will toggle between “HDMI1” and
“HDMI2”.
17
Page 32
2. Projecting an Image (Basic Operation)
Selecting Default Source
You can set a source as the default source so that it will be displayed
each time the projector is turned on.
1. Press the Menu button.
The menu will be displayed.
2. Press the button twice to select [SETUP] and press the button
or the Enter button to select [GENERAL].
3.
Press the button four times to select [OPTIONS(2)].
4. Press the button ve times to select [DEFAULT SOURCE SELECT]
and press the Enter button.
The [DEFAULT SOURCE SELECT] screen will be displayed.
(→ page 107)
5. Select a source as the default source, and press the Enter button.
6. Press the Back button a few times to close the menu.
7. Restart the projector.
The source you selected in step 5 will be projected.
NOTE: Even when [AUTO] is turned on, the [NETWORK] will not be automatically
selected. To set your network as the default source, select [NETWORK].
TIP:
• When the projector is in Standby mode, applying a computer signal from a
computer connected to the Computer In input will power on the projector and
simultaneously project the computer’s image.
([AUTO POWER ON(COMP.)] → page 107)
• On Windows 7, a combination of the Windows and P keys allows you to set up
external display easily and quickly.
18
Page 33
2. Projecting an Image (Basic Operation)
❺ Adjusting the Picture Size and Position
Use the Lens Shift dial, the adjustable tilt foot lever, the Zoom lever and the Focus lever to adjust the picture size and
position.
In this chapter drawings and cables are omitted for clarity.
Adjusting the vertical position of a projected image
[Lens shift]
(→ page 20)
Finely adjusting the size of an image
[Zoom lever]
(→ page 22)
Adjusting the focus
[Focus lever]
(→ page 21)
Adjusting the throw angle (the height of an image)
[Tilt foot] *¹
(→ page 23)
Adjusting the left and right tilt of an image
[Rear foot]
(→ page 23)
NOTE*1: Adjust the throw angle (the height of an image) when the image position is higher than the lens shift adjustable range.
Adjusting the vertical and horizontal keystone correction
[Keystone]
(→ page 24)
19
Page 34
2. Projecting an Image (Basic Operation)

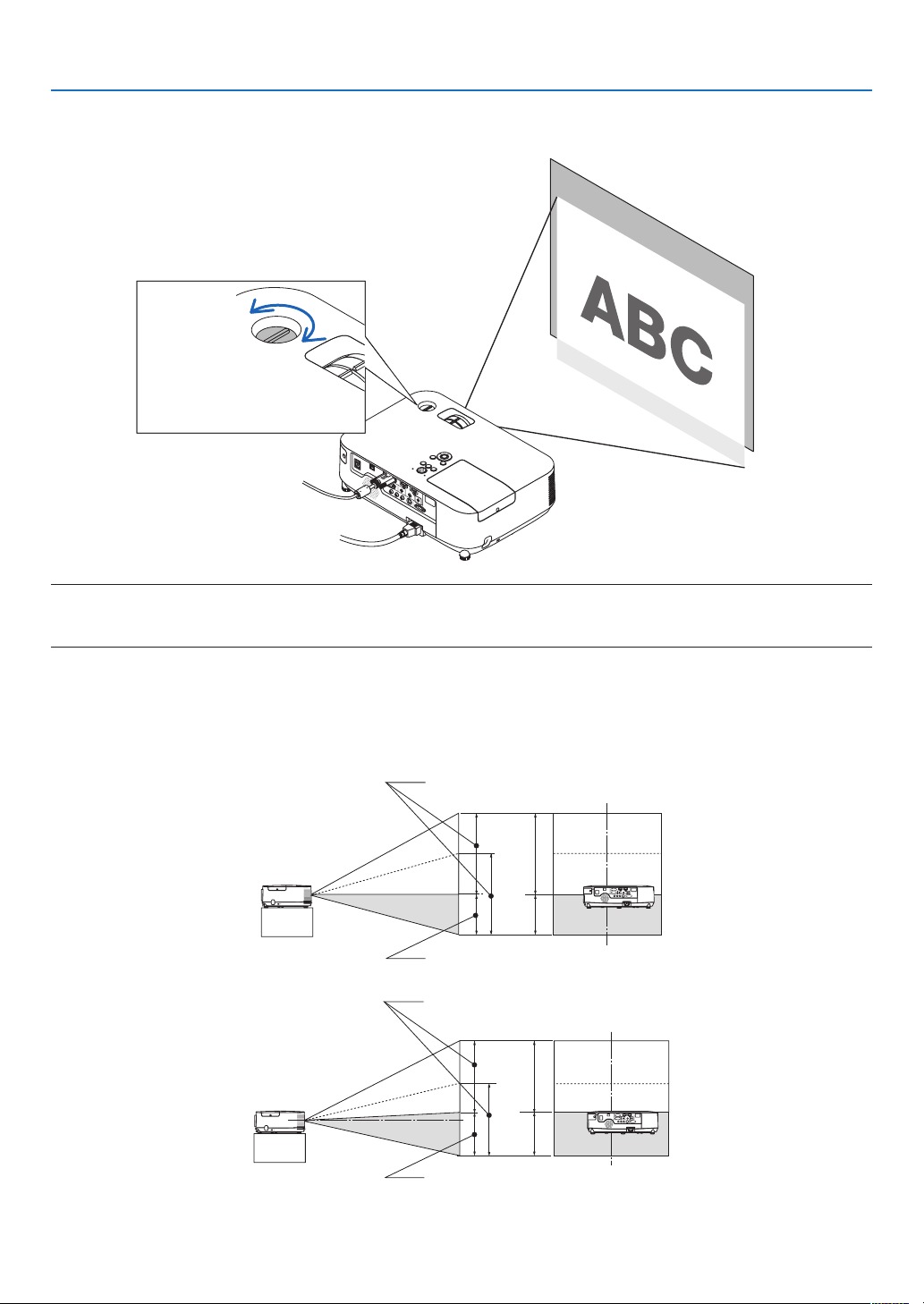

Adjusting the vertical position of a projected image (Lens shift)
Rotate the Lens Shift dial.
Downward
Upward
Lens Shift dial
NOTE:
The Lens Shift dial cannot be rotated beyond the maximum upward or downward shift. Forcibly rotating may cause damage to the
projector.
TIP:
Lens shift can be adjusted with the range below. If you wish to move up the image higher than this limit, use the tilt foot of the projector.
Desktop front projection
[RICOH PJ X5371N]
[RICOH PJ WX5361N]
Height of projected image
Vertical shift range (0 to 0.5V)
Height of projected image
Vertical shift range (0 to 0.6V)
20
Page 35
Ceiling front projection
[RICOH PJ X5371N]
2. Projecting an Image (Basic Operation)
Vertical shift range (0 to 0.5V)
Height of projected image
[RICOH PJ WX5361N]
Focus
Use the Focus lever to obtain the best focus.
Focus Lever
Vertical shift range (0 to 0.6V)
Height of projected image
21
Page 36
Zoom
Use the Zoom lever to adjust the image size on the screen.
Zoom Lever
2. Projecting an Image (Basic Operation)
22
Page 37
Adjust the Tilt Foot
1. Lift the front edge of the projector.
2. Projecting an Image (Basic Operation)
CAUTION:
Do not try to touch the ventilation outlet during Tilt Foot adjustment
as it can become heated while the projector is turned on and after it
is turned off.
2. Push up and hold the Adjustable Tilt Foot Lever on the front of the
projector to extend the adjustable tilt foot.
3. Lower the front of the projector to the desired height.
4. Release the Adjustable Tilt Foot Lever to lock the Adjustable tilt
foot.
The tilt foot can be extended up to 1.6 inch/40 mm.
There is approximately 10 degrees (up) of adjustment for the front of
the projector.
Rotate the rear foot to the desired height in order to square the image
on the projection surface.
CAUTION:
• Do not use the tilt-foot for purposes other than originally intended.
Misuses such as using the tilt foot to carry or hang (from the wall or
ceiling) the projector can cause damage to the projector.
Adjusting the left and right tilt of an image [Rear foot]
• Rotate the rear foot.
The rear foot can be extended up to 0.5 inch/12 mm. Rotating the rear
foot allows the projector to be placed horizontally.
2
Adjustable Tilt Foot
Lever
3
1
Adjustable Tilt Foot
NOTE:
• Do not extend the rear foot beyond its height limit (0.5 inch/12 mm). Doing so
may cause the rear foot to come out of the projector.
Up Down
23
Rear foot
Page 38
2. Projecting an Image (Basic Operation)
❻ Correcting Keystone Distortion [KEYSTONE]
When the projector is not exactly perpendicular to the screen, keystone distortion occurs. To overcome it, you can use the
“Keystone” function, a digital technology that can adjust for keystone-type distortion, resulting in a crisp, square image.
The following procedure explains how to use the [KEYSTONE] screen from the menu to correct trapezoidal distortions.
When the projector is placed diagonally to the screen,
When the projector is set up at an angle in relation to the screen, adjust the Horizontal option of the Keystone menu
so that the top and bottom of sides of the projected image are parallel.
NOTE:
• Before performing the horizontal keystone correction, set the lens shift to the position of 0.5V (RICOH PJ X5371N)/0.6V (RICOH
PJ WX5361N).
1. Press the button on the projector cabinet.
The Keystone screen will be displayed on the screen.
• Press the Keystone button when using the remote control.
• See page for PINCUSHION.
• See page for CORNERSTONE.
• See page for RESET.
2. Press the button to select [KEYSTONE VERTICAL] and then use
the or so that the left and right sides of the projected image
are parallel.
* Adjust the vertical keystone distortion.
Screen frame
Projected area
3. Align the left (or right) side of the screen with the left (or right)
side of the projected image.
• Use the shorter side of the projected image as the base.
• In the right example, use the left side as the base.
24
Align left side
Page 39
2. Projecting an Image (Basic Operation)
4. Press the button to select [KEYSTONE HORIZONTAL] and then
use the or so that the top and bottom sides of the projected
image are parallel.
• Adjust the horizontal keystone distortion.
5. Repeat steps 2 and 4 to correct keystone distortion.
6. After completing Keystone correction, press the Exit button.
The Keystone screen will disappear.
• To perform Keystone correction again, press the button to display
the Keystone screen and repeat above steps 1 to 6.
To return the keystone adjustments to default:
1. Press the button to select [RESET] and press the Enter button.
2. Press the or button to select [YES] and press the Enter button.
The adjustments will be reset.
All the adjustments for all the ve items will be reset at the same time.
• The KEYSTONE feature can cause an image to be slightly blurred because the correction is made electronically.
25
Page 40
2. Projecting an Image (Basic Operation)
❼ Optimizing Computer Signal Automatically
Adjusting the Image Using Auto Adjust
Optimizing a computer image automatically. (COMPUTER)
Press the Auto Set button to optimize a computer image automatically.
This adjustment may be necessary when you connect your computer for the rst time.
[Poor picture]
[Normal picture]
NOTE:
Some signals may take time to display or may not be displayed correctly.
• If the Auto Adjust operation cannot optimize the computer signal, try to adjust [H-POSITION], [V-POSITION], [FREQUENCY], and
[PHASE] manually. (→ page 92, 93)
❽ Turning Up or Down Volume
Sound level from the speaker can be adjusted.
Increase volume
Decrease volume
TIP: When no menus appear, the and buttons on the projector cabinet work
as a volume control.
NOTE:
• Volume control is not available with the or button when an image is enlarged
by using the Magnify (+) button or when the menu is displayed.
• Volume control is not available with the or button when VIEWER is used.
TIP:
• The [BEEP] sound volume cannot be adjusted. To turn off the [BEEP] sound,
from the menu, select [SETUP] → [OPTIONS(1)] → [BEEP] → [OFF].
• Volume can be controlled from the menu ([ADJUST] → [AUDIO])
26
Page 41
❾ Turning off the Projector
To turn off the projector:
1. First, press the (Power) button on the projector cabi-
net or the Power Standby button on the remote control.
The conrmation message will be displayed.
2. Projecting an Image (Basic Operation)
2. Secondly, press the Enter button or press the (Power)
Power On
Standby
or the Power Standby button again.
The lamp will turn off and the projector will go into standby
mode. In standby mode, the Power indicator lights red if
[POWER-SAVING] is selected for [STANDBY MODE].
Steady blue light
Steady
red light
CAUTION:
Parts of the projector may become temporarily heated if the projector is turned off with the Power button or if the AC
power supply is disconnected during normal projector operation.
Use caution when picking up the projector.
NOTE:
• The projector’s power cannot be turned off, even if you turn off the power switch, while the Power indicator is flickering blue.
Do not turn off the AC power to turn off the power while the Power indicator is flickering blue. Doing so may cause the lamp to
explode or may greatly shorten the lamp’s life.
• You cannot turn off the power for 60 seconds immediately after turning it on and displaying an image.
• Do not disconnect the AC power supply to the projector within 10 seconds of making adjustment or setting changes and closing
the menu. Doing so can cause loss of adjustments and settings.
27
Page 42
❿ After Use
Preparation: Make sure that the projector is turned off.
1. Unplug the power cord.
2. Disconnect any other cables.
• Remove the USB memory if it is inserted into the projector.
3. Retract adjustable tilt foot if extended.
4. Slide the lens cover to the right to cover the lens.
2. Projecting an Image (Basic Operation)
28
Page 43
3. Convenient Features

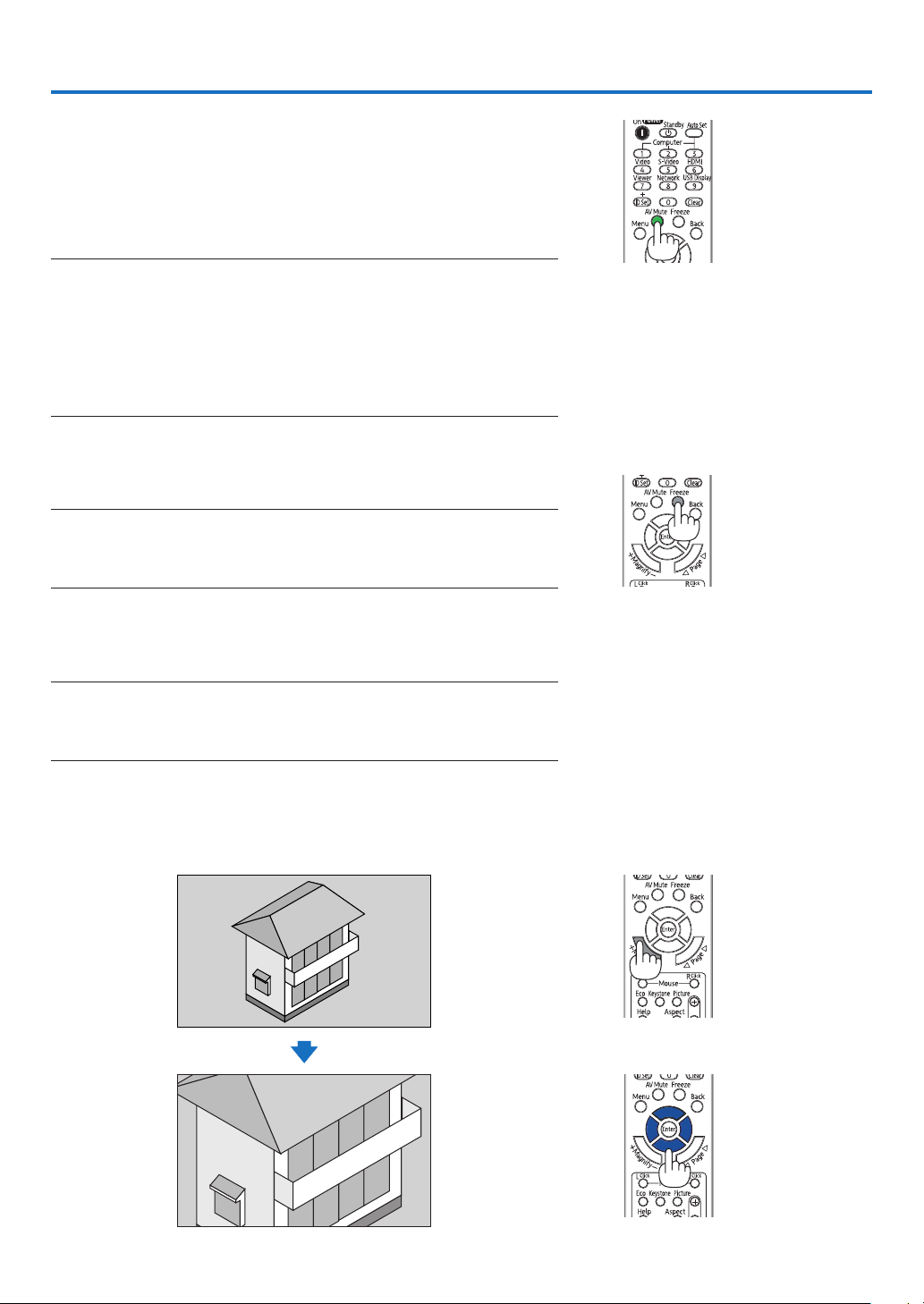

❶ Turning off the Image and Sound
Press the AV Mute button to turn off the image and sound for a short period
of time. Press again to restore the image and sound.
The projector’s power-saving function will work 10 seconds after the image is turned off.
As a result, the lamp power will be reduced.
NOTE:
• Even though the image is turned off, the menu still remains on the screen.
• Sound from the Audio Out jack (Stereo mini) can be turned off.
• Even when the power-saving function works, the lamp power may be restored
to its original level temporarily.
• To restore the image, even if you press the AV Mute button immediately after
the start of the power-saving function, the lamp brightness may not be restored
to its original level.
❷ Freezing a Picture
Press the Freeze button to freeze a picture. Press again to resume motion.
NOTE:
• The image is frozen but the original video is still playing back.
• With Projection Utility including USB Display, pressing the Freeze button will
eliminate sound temporarily during display of freezed image.
❸ Enlarging a Picture
You can enlarge the picture up to four times.
NOTE:
• Depending on the input signal, the maximum magnification may be less than
four times, or this feature is not available.
• This feature is not available with USB Display.
To do so:
1. Press the Magnify (+) button to magnify the picture.
To move the magnied image, use the ,, or button.
29
Page 44
3. Convenient Features
2. Press the button.
The area of the magnied image will be moved
3. Press the Magnify (−) button.
Each time the Magnify (−) button is pressed, the image is reduced.
NOTE:
• The image will be enlarged or reduced at the center of the screen.
• Displaying the menu will cancel the current magnification.
❹ Changing Eco Mode/Checking Energy-Saving Effect
Using Eco Mode [LAMP POWER]
The LAMP POWER (ECO1 and ECO2) increases lamp life, while lowering power consumption and cutting down on
CO2 emissions.
Four brightness modes of the lamp can be selected: [STND.], [AUTO ECO], [ECO1] and [ECO2] modes.
[LAMP POWER] Description Status of Lamp indicator
[STND.] The lamp brightness is 100%.
[AUTO ECO]
[ECO1]
[ECO2]
To turn on the [LAMP POWER], do the following:
1. Press the Eco Button on the remote control to display [LAMP POWER] screen.
2. Press the Eco button again to select a mode you wish.
• Each time the Eco button is pressed, the choices will be changed:
STND. → AUTO ECO → ECO1 → ECO2 → STND.
TIP:
• The leaf symbol at the bottom of the menu shows the current selection of ECO mode.
Lamp power consumption will be changed between
[STND.] and [ECO1] automatically according to
picture level
NOTE: A bright gradation may be less visible depending
on the image.
Lamp power consumption. (approx.80% brightness )
The lamp life will extend by lowering the lamp power.
Lamp power consumption. (approx.60% brightness)
The lamp life will extend longer than the one on
ECO1 mode by controlling power appropriate for the
lamp. The maximum power becomes equivalent to
the power in ECO1.
Off
Steady Green
light
30
Page 45
3. Convenient Features
NOTE:
• The [LAMP POWER] can be changed by using the menu.
Select [SETUP] → [GENERAL] → [LAMP POWER].
• The lamp life remaining and lamp hours used can be checked in [USAGE TIME]. Select [INFO.] → [USAGE TIME].
• The projector is always in [ECO1] for 90 seconds after the lamp is turned on and while the Power indicator is blinking green. The
lamp condition will not be affected even when [LAMP POWER] is changed.
• After a lapse of 1 minute from when the projector displays no-signal guidance, a blue, black or logo screen, [LAMP POWER] will
automatically switch to [ECO1]. The projector will return to the [STND.] once a signal is accepted.
• If the projector is overheated in [STND.] mode, there may be a case where the [LAMP POWER] automatically changes to [ECO1]
mode to protect the projector. When the projector is in [ECO1] mode, the picture brightness decreases. When the projector comes
back to normal temperature, the [LAMP POWER] returns to [STND.] mode.
Thermometer symbol [
is too high.
• Immediately after [LAMP POWER] is changed from [ECO2] to one of [STND.], [AUTO ECO], or [ECO1], the lamp brightness may
decrease temporarily. This is not a malfunction.
] indicates the [LAMP POWER] is automatically set to [ECO1] mode because the internal temperature
Checking Energy-Saving Effect [CARBON METER]
This feature will show energy-saving effect in terms of CO2 emission reduction (kg) when the projector’s [LAMP POWER]
is set to [AUTO ECO] , [ECO1], or [ECO2]. This feature is called as [CARBON METER].
There are two messages: [TOTAL CO2 REDUCTION] and [CARBON SAVINGS-SESSION]. The [TOTAL CO2 REDUCTION] message shows the total amount of CO2 emission reduction from the time of shipment up to now. You can
check the information on [USAGE TIME] from [INFO.] of the menu. (→ page 109)
The [CARBON SAVINGS-SESSION] message shows the amount of CO2 emission reduction between the time of
changing to LAMP POWER immediately after the time of power-on and the time of power-off. The [CARBON SAVINGSSESSION] message will be displayed in the [POWER OFF/ ARE YOU SURE ?] message at the time of power-off.
31
Page 46
3. Convenient Features
TIP:
• The formula as shown below is used to calculate the amount of CO
Amount of CO
ECO2 for LAMP POWER) × CO
closed, the amount of CO
* Calculation for amount of CO
emission reduction = (Power consumption in STND. for LAMP POWER − Power consumption in AUTO ECO/ECO1/
2
conversion factor.* When the image is turned off with the AV Mute button or with the lens cover
2
emmission reduction will also increase.
2
emission reduction is based on an OECD publication “CO2 Emissions from Fuel Combustion, 2012
2
Edition”.
• The [TOTAL CO2 REDUCTION] is calculated based on savings recorded in 15 minutes intervals.
• This formula will not apply to the power consumption which is not affected by whether [LAMP POWER] is turned on or off.
• The factors for [TOTAL COST SAVINGS] can be changed from the menu ([CARBON CONVERT] and [CURRENCY CONVERT]). (→
page 108)
• The currency unit for [TOTAL COST SAVINGS] can be changed from the menu ([CURRENCY]). (→ page 108)
emission reduction.
2
32
Page 47
3. Convenient Features
❺ Preventing the Unauthorized Use of the Projector [SECURITY]
A keyword can be set for your projector using the Menu to avoid operation by an unauthorized user. When a keyword is
set, turning on the projector will display the Keyword input screen. Unless the correct keyword is entered, the projector
cannot project an image.
• The [SECURITY] setting cannot be cancelled by using the [RESET] of the menu.
To enable the Security function:
1. Press the Menu button.
The menu will be displayed.
2. Press the button twice to select [SETUP] and press the button or the Enter button to select [GENERAL].
3. Press the button to select [INSTALLATION].
4. Press the button three times to select [SECURITY] and press the Enter button.
The OFF/ON menu will be displayed.
5. Press the button to select [ON] and press the Enter button.
The [SECURITY KEYWORD] screen will be displayed.
6. Type in a combination of the four buttons and press the Enter button.
NOTE: A keyword must be 4 to 10 digits in length.

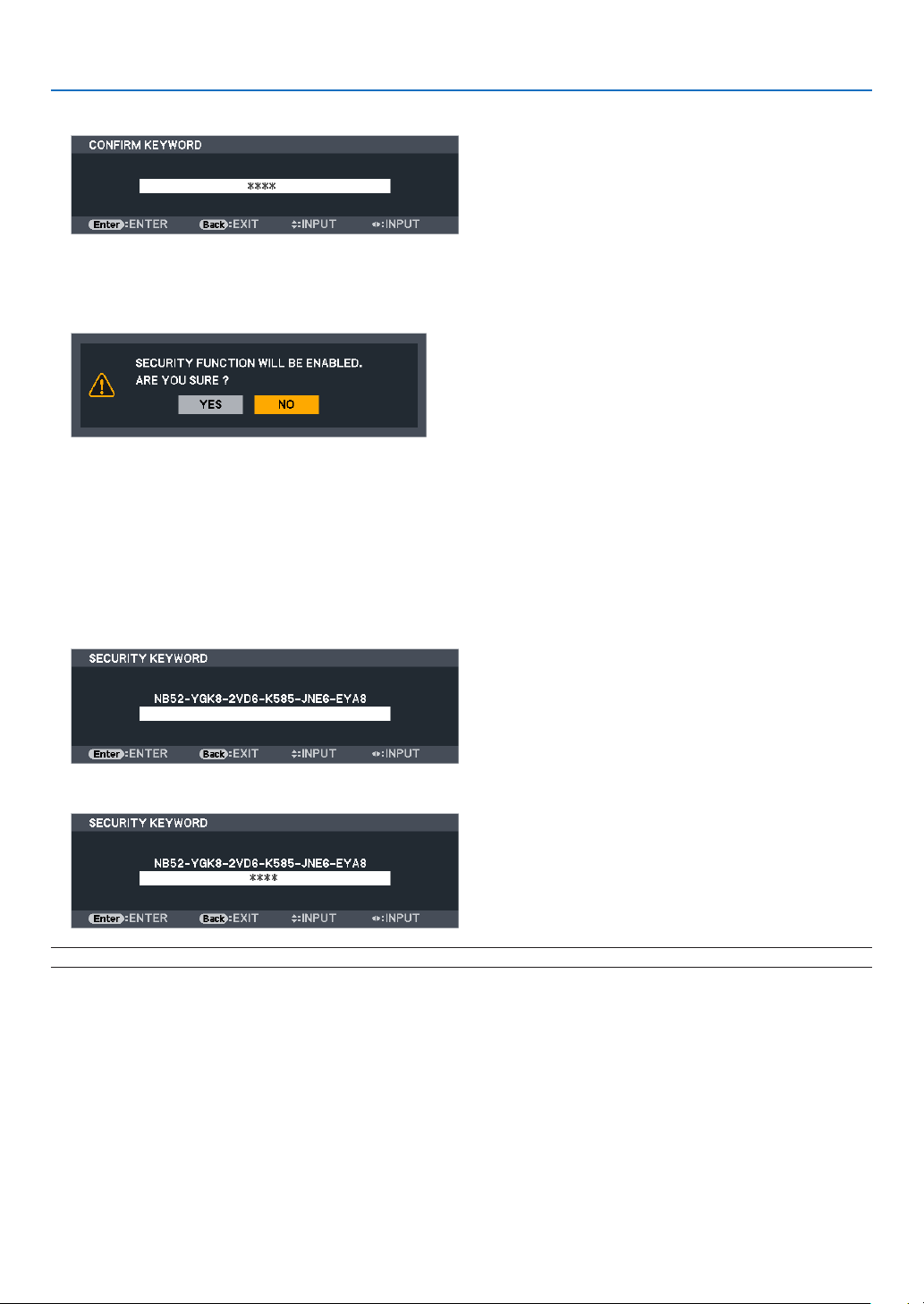

The [CONFIRM KEYWORD] screen will be displayed.
33
Page 48
3. Convenient Features
7. Type in the same combination of buttons and press the Enter button.
The conrmation screen will be displayed.
8. Select [YES] and press the Enter button.
The SECURITY function has been enabled.
To turn on the projector when [SECURITY] is enabled:
1. Press the Power button.
The projector will be turned on and display a message to the effect that the projector is locked.
2. Press the Menu button.
3. Type in the correct keyword and press the Enter button. The projector will display an image.
NOTE: The security disable mode is maintained until the main power is turned off or unplugging the power cord.
34
Page 49
To disable the SECURITY function:
1. Press the Menu button.
The menu will be displayed.
2. Select [SETUP] → [INSTALLATION] → [SECURITY] and press the Enter button.
The OFF/ON menu will be displayed.
3. Select [OFF] and press the Enter button.
3. Convenient Features
The SECURITY KEYWORD screen will be displayed.
4. Type in your keyword and press the Enter button.
When the correct keyword is entered, the SECURITY function will be disabled.
NOTE: If you forget your keyword, contact your dealer. Your dealer will provide you with your keyword in exchange for your request
code. Your request code is displayed in the Keyword Confirmation screen. In this example [NB52-YGK8-2VD6-K585-JNE6-EYA8]
is a request code.
35
Page 50
3. Convenient Features

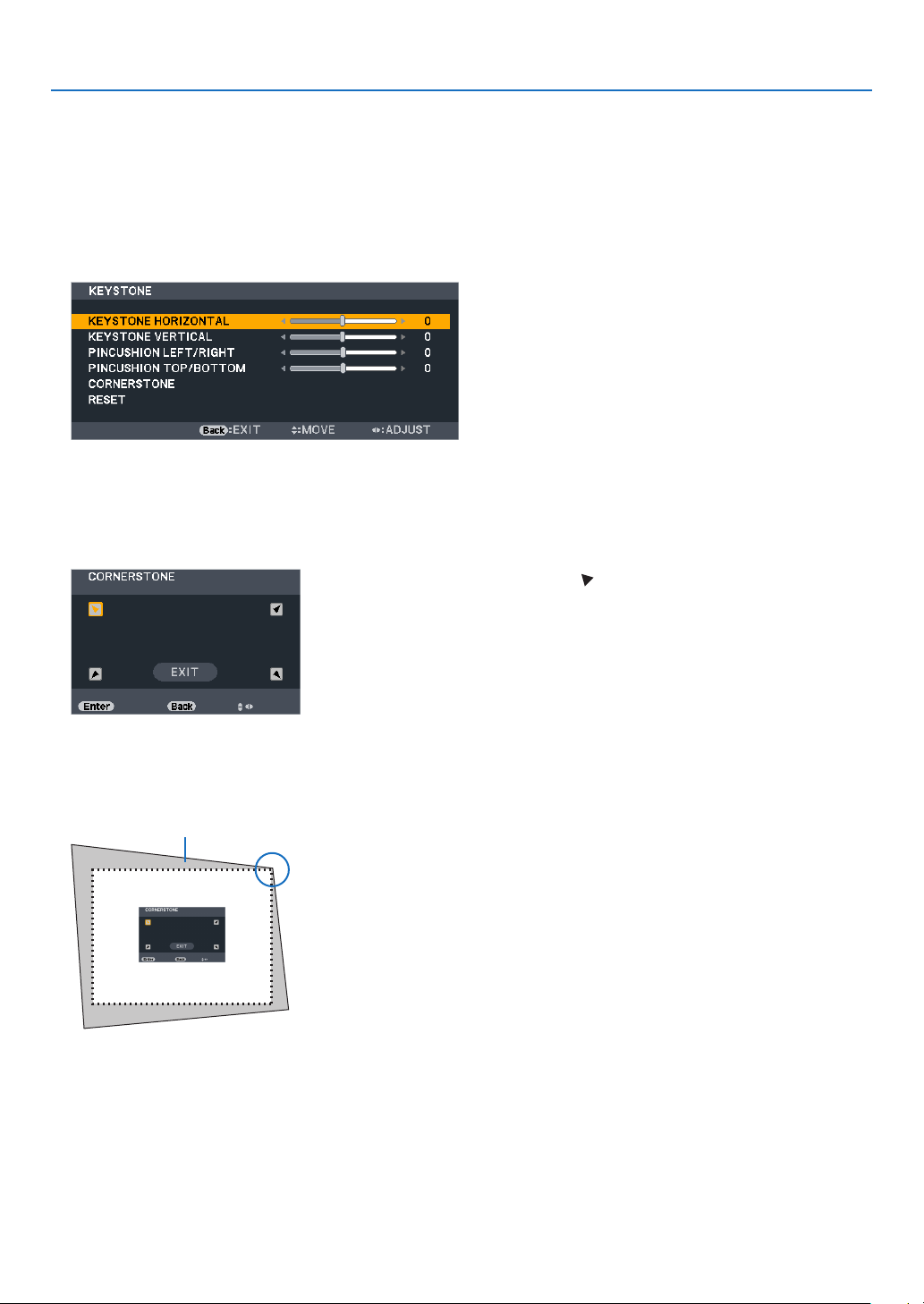

❻ Using 4-Point Corner to Correct Keystone Distortion [CORNERSTONE]
Use the [CORNERSTONE] feature to correct keystone (trapezoidal) distortion to make the top or bottom and the left
or right side of the screen longer or shorter so that the projected image is rectangular
Cornerstone
1. Press the Keystone button with no menu displayed.
The KEYSTONE screen will be displayed.
• Press the Keystone button when using the remote control.
• See page for PINCUSHION.
2. Press the button to select [CORNERSTONE] and press the Enter button.
The drawing shows the upper left icon ( ) is selected.
The CORNERSTONE screen will be displayed
3. Project an image so that the screen is smaller than the area of the raster.
4. Pick up any one of the corners and align the corner of the image with a corner of the screen.
Projected image
The drawing shows the upper right corner.
TIP: If you are adjusting [KEYSTONE HORIZONTAL], [KEYSTONE VERTICAL], [PINCUSHION LEFT/RIGHT], or
[PINCUSHION TOP/BOTTOM], the [CORNERSTONE] item will not be available. If this happens, reset the [KEYSTONE] adjustments.
5. Use the button to select one icon () which points in the direction you wish to move the projected
image frame.
6. Press the Enter button.
36
Page 51
3. Convenient Features
7. Use the button to move the projected image frame as shown on the example.
8. Press the Enter button.
9. Use the button to select another icon which points in the direction.
On the Cornerstone adjustment screen, select [EXIT] or press the Exit button on the remote control.
The conrmation screen is displayed.
10.
Press the or button to highlight the [OK] and press the Enter button.
This completes the Cornerstone correction.
Selecting [CANCEL] will return to the adjustment screen without saving changes (Step 3).
Selecting [RESET] will return to the factory default.
Selecting [UNDO] will exit without saving changes..
37
Page 52
The adjustable ranges for 3D Reform are as follows:
3. Convenient Features
CORNERSTONE
KEYSTONE
* The following are conditions under which the maximum angle is achieved:
• When the lens shift is set to the center
When the lens shift is used and yet the image is not displayed in the center of the screen, the adjustable range will
be increased or decreased.
• Image is projected in maximum wide with the zoom
NOTE:
• Even when the projector is turned on, the last used correction values are applied.
• If the Cornerstone screen is unavailable (grayed), reset the current correction data. The Cornerstone function becomes available.
• The range of keystone correction is not the maximum tilt angle of projector.
NOTE: Using [KEYSTONE] correction can cause the image to be slightly blurred because the correction is made electronically.
HORIZONTAL VERTICAL
Max. +/− 30° approx. Max. +/− 30° approx.
38
Page 53
3. Convenient Features
❼
Operating Your Computer’s Mouse Functions from the Projec-
tor’s Remote Control via the USB Cable (Remote Mouse Function)
The built-in remote mouse function enables you to operate your computer’s mouse functions from the supplied remote
control when the projector is connected to a computer via a commercially available USB cable (compatible with USB
2.0 specications).
The Remote Mouse function works for the Computer input while the computer screen is displayed.
The Remote Mouse function will not work while you freeze or magnify an image.
- Using the USB cable to connect the projector and the computer will also start USB Display function.
USB cable (not supplied)
NOTE:
• A USB cable must support the USB 2.0 Specifications.
• The mouse function can be used with the following operating systems:
Windows 8, Windows 7, Windows XP, or Windows Vista
• In SP2 or older version of Windows XP, if the mouse cursor will not move correctly, do the following:
Clear the Enhance pointer precision check box underneath the mouse speed slider in the Mouse Properties dialog box [Pointer
Options tab].
• Wait at least 5 seconds after disconnecting the USB cable before reconnecting it and vice versa. The computer may not identify
the USB cable if it is repeatedly connected and disconnected in rapid intervals.
• Connect the projector to the computer with a USB cable after starting the computer. Failure to do so may fail to start the computer.
Operating your computer’s mouse from the remote control
You can operate your computer’s mouse from the remote control.
Page / Button ����������������������������scrolls the viewing area of the window or to move to the previous or next slide in PowerPoint
on your computer�
Buttons ������������������������������moves the mouse cursor on your computer�
Mouse L Click/Enter Button �������������works as the mouse left button�
Mouse R Click Button ����������������������works as the mouse right button�
NOTE:
• When you operate the computer using the or button with the menu displayed, both the menu and the mouse pointer
will be affected. Close the menu and perform the mouse operation.
TIP: You can change the Pointer speed on the Mouse Properties dialog box on the Windows. For more information, see the user
documentation or online help supplied with your computer.
39
Page 54
3. Convenient Features
❽ Projecting Your Computer’s Screen Image from the Projector via the USB Cable (USB Display)
Using a commercially available USB cable (compatible with USB 2.0 specications) to connect the computer with
the projector allows you to send your computer screen image and audio to the projector for displaying. Power On/Off
and source selection of the projector can be done from your computer without connecting a computer cable (VGA).
NOTE:
• To make USB DISPLAY available on Windows XP, the Windows user account must have “Administrator” privilege.
• USB Display uses functions of Projection Utility contained on CD-ROM (→ page 164).
Starting USB Display, however, will not install Projection Utility on your computer. This is because USB Display executes the
projector’s program only.
• When Projection Utility is installed to both your computer and the projector, the one installed to your computer always start even
if it is older version than the one installed to the projector.
If audio transfer capability and other features will not work, try uninstalling Projection Utility from your computer. This will allow
you to use all the features.
• USB Display will not work in [POWER-SAVING] or [NETWORK STANDBY] of [STANDBY MODE]. (→ page 106)
• When [USB DISPLAY] is selected for [AUDIO SELECT] from [SETUP] → [OPTIONS(1)], the sound for the USB DISPLAY source
is output to the projector speaker.
1. Start the computer.
2. Connect the projector’s power cord to the wall outlet and put the projector into standby condition.
• Open the projector’s lens cover.
3. Use the USB cable to connect the computer with the projector.
USB cable (not supplied)
Power cord (supplied)
The message “The projector is in standby mode. Connect it?” will be displayed on the computer screen.
• The control window of Projection Utility will be displayed on the top of the screen.
NOTE: Depending on the computer setting, the “AutoPlay” window may be displayed when the computer detects the connection to
the projector. If this happens, click the “Start USB Display” window.
4. Click “Yes”.
The projector will turn on and the message “The projector is getting ready. Please wait.” will be displayed on the
computer screen. This message will disappear in a few seconds.
→ To wall outlet
40
Page 55
5. Operate the control window.
(1) (2) (3) (4) (5)(6)
(1) (Source) ����� Selects an input source of the projector�
(Picture) ���� Turns on or off AV-MUTE (Picture mute), and turns on or off FREEZE (Freeze a picture)�
(2)
(Sound) ����� Turns on or off AV-MUTE (Sound mute), play the sound and turns up or down the volume�
(3)
(Others) ����� Uses “Update”, “HTTP Server”*, “Settings” and “Information”�
(4)
* The HTTP Server cannot be selected when a USB cable is connected�
(Exit) ���������� Exit Projection Utility� You can also turn off the projector at the same time�
(5)
(Help) ����������� Displays the help of Projection Utility�
(6)
3. Convenient Features
41
Page 56
3. Convenient Features
❾ Controlling the Projector by Using an HTTP Browser
Overview
The HTTP Server function provides settings and operations for:
1. Setting for wired/wireless network (NETWORK SETTINGS)
To use wireless LAN connection, the optional USB Wireless LAN Unit is required. (→ page 148)
2. Setting Alert Mail (ALERT MAIL)
When the projector is connected to a wired/wireless network, lamp replace time or error messages will be sent
via e-mail.
3. Operating the projector
Power on/off, selecting input, volume control and picture adjustments are possible.
4. Congure the settings such as PJLink PASSWORD
This device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting
method will vary depending on the version of browser. Please refer to the help les and the other information provided
in your software.
Two ways of access to the HTTP server function are available:
• Start the Web browser on the computer via the network connected to the projector and enter the following
URL :
http://<the projector’s IP address> /index.html
• Use Projection Utility contained on the supplied CD-ROM.
TIP: The factory setting IP address is [DHCP ON].
NOTE:
• To use the projector in a network, consult with your network administrator about network settings.
• The display’s or button’s response can be slowed down or operation may not be accepted depending the settings of your network.
Should this happen, consult your network administrator. The projector may not respond if its buttons are repeatedly pressed in
rapid intervals. Should this happen, wait a moment and repeat. If you still can’t get any response, turn off and back on the projector.
• If the PROJECTOR NETWORK SETTINGS screen does not appear in the web browser, press the Ctrl+F5 keys to refresh your web
browser (or clear the cache).
• This device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method will
vary depending on the version of browser. Please refer to the help files and the other information provided in your software.
Preparation before Use
Connect the projector to a commercially available LAN cable before engaging in browser operations. (→ page 147)
Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the
setting method. Although the type of proxy server will be a factor, it is possible that items that have actually been set
will not be displayed depending on the effectiveness of the cache, and the contents set from the browser may not be
reected in operation. It is recommended that a proxy server not be used unless it is unavoidable.
42
Page 57
3. Convenient Features
Handling of the Address for Operation via a Browser
Regarding the actual address that is entered for the address or entered to the URL column when operation of the projector is via a browser, the host name can be used as it is when the host name corresponding to the IP address of the
projector has been registered to the domain name server by a network administrator, or the host name corresponding
to the IP address of the projector has been set in the “HOSTS” le of the computer being used.
Example 1: When the host name of the projector has been set to “pj.ricoh.co.jp”, access is gained to the network
setting by specifying
http://pj.ricoh.co.jp/index.html
for the address or the entry column of the URL.
Example 2: When the IP address of the projector is “192.168.73.1”, access is gained to the network setting by
specifying
http://192.168.73.1/index.html
for the address or the entry column of the URL.
PROJECTOR ADJUSTMENT
POWER: This controls the power of the projector.
ON ������������������������� Power is switched on�
OFF ������������������������Power is switched off�
VOLUME: This controls the volume of the projector.
��������������������������� Increases the volume adjustment value�
��������������������������� Decreases the volume adjustment value�
AV MUTE: This controls the mute function of the projector.
PICTURE (On) �������� Mutes the video�
PICTURE (Off) ������� Cancels the video muting�
SOUND (On) ���������� Mutes the audio�
SOUND (Off) ���������� Cancels the audio muting�
ALL ON ������������������ Mutes each of the video, and audio functions�
ALL OFF ����������������� Cancels the muting of each of the video, and audio functions�
43
Page 58
3. Convenient Features
PICTURE: Controls the video adjustment of the projector.
BRIGHTNESS �����������������Increases the brightness adjustment value�
BRIGHTNESS �����������������Decreases the brightness adjustment value�
CONTRAST ���������������������Increases the contrast adjustment value�
CONTRAST ���������������������Decreases the contrast adjustment value�
COLOR SATURATION
COLOR SATURATION
TINT �������������������������������Increases the hue adjustment value�
TINT �������������������������������Decreases the hue adjustment value�
SHARPNESS ������������������Increases the sharpness adjustment value�
SHARPNESS ������������������Decreases the sharpness adjustment value�
• The functions that can be controlled will vary depending on the signal being input to the projector. (→ page 91)
SOURCE SELECT: This switches the input connector of the projector.
COMPUTER ������������������������Switches to the Computer In connector�
HDMI1 �������������������������������� Switches to the HDMI 1 In connector�
HDMI2 �������������������������������� Switches to the HDMI 2 In connector�
VIDEO ��������������������������������� Switches to the Video In connector�
S-VIDEO �����������������������������Switches to the S-Video In connector�
VIEWER ������������������������������ Switches to the data on the USB memory device�
NETWORK ��������������������������Switches to a LAN signal�
USB DISPLAY ���������������������Switches to the USB Port (PC)�
���������������Increases the color adjustment value�
���������������Decreases the color adjustment value�
PROJECTOR STATUS: This displays the condition of the projector.
LAMP LIFE REMAINING �����Displays the remaining life of the lamp as a percentage�
LAMP TIME ������������������������Displays how many hours the lamp has been used�
FILTER HOURS USED ���������Displays how many hours the filter has been used�
ERROR STATUS ������������������ Displays the status of errors occurring within the projector�
LOGOFF: Logging off your projector and returning to the authentication screen (LOGON screen).
44
Page 59
3. Convenient Features

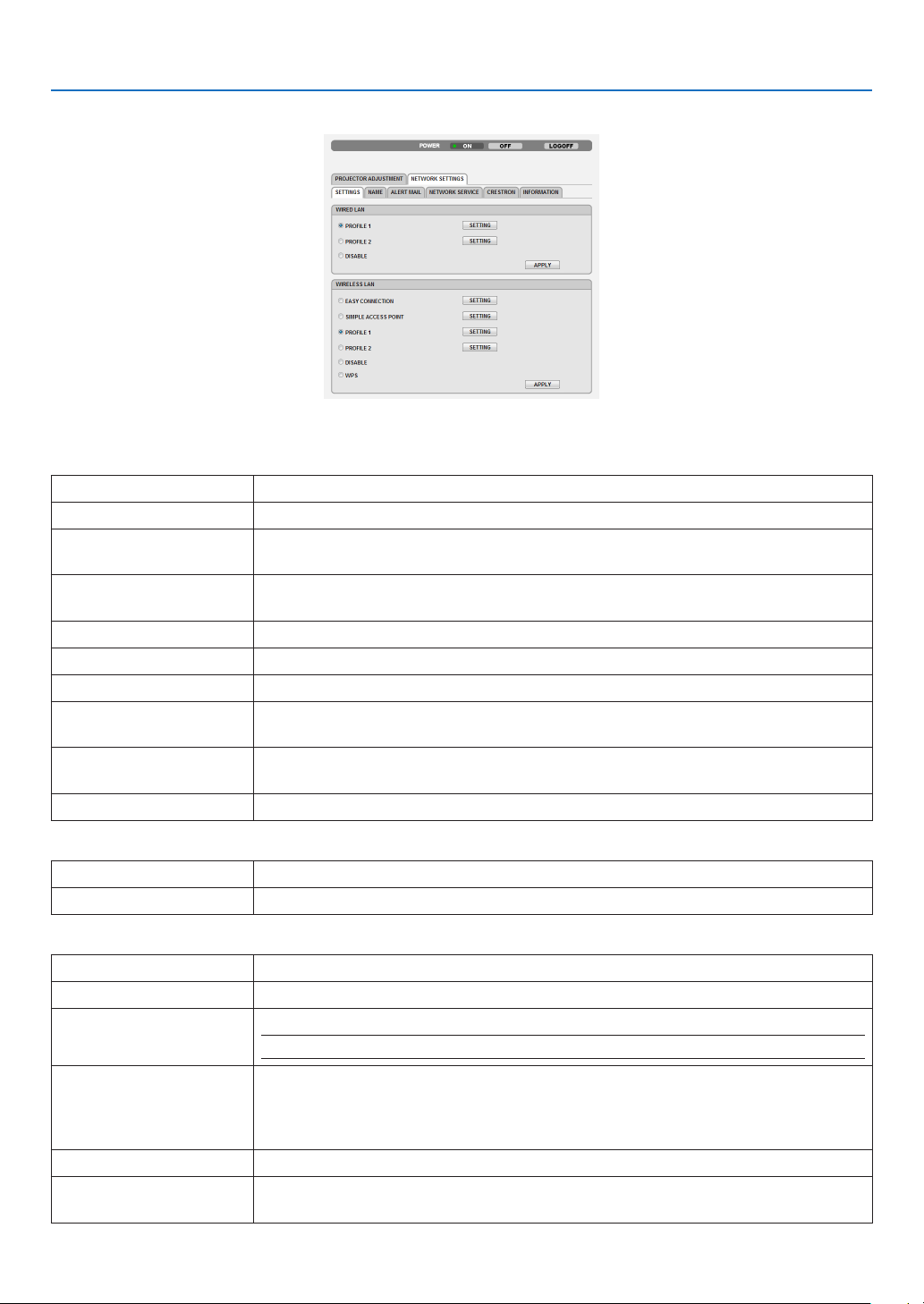

NETWORK SETTINGS
• SETTINGS
WIRED LAN or WIRELESS LAN
SETTING Set for wired LAN or for wireless LAN.
APPLY Apply your settings to wired LAN or wireless LAN.
DHCP ON Automatically assign IP address, subnet mask, and gateway to the projector from your
DHCP server.
DHCP OFF Set IP address, subnet mask, and gateway to the projector assigned by your network
administrator.
IP ADDRESS Set your IP address of the network connected to the projector.
SUBNET MASK Set your subnet mask number of the network connected to the projector.
GATEWAY Set the default gateway of the network connected to the projector.
WINS Set the IP address of your WINS server of the network connected to the projector when
[DHCP] is turned on, this option is not available.
AUTO DNS ON DHCP server will automatically assign IP address of DNS server connected to the
projector.
AUTO DNS OFF Set your IP address of DNS server connected to the projector.
Setting for WIRED LAN
PROFILE 1/PROFILE 2 Two settings can be set for wired LAN connection. Select PROFILE 1 or PROFILE 2.
DISABLE Turn off wired LAN connection
Setting for WIRELESS LAN (the optional Wireless LAN Unit required)
EASY CONNECTION Execute a wireless LAN using EASY CONNECTION.
SIMPLE ACCESS POINT Set the projector for simple access point.
WPS
CHANNEL Select a channel. Available channels vary depending on the country and region. When
PROFILE 1/PROFILE 2 Two settings can be set for wireless LAN connection. Select PROFILE 1 or PROFILE 2.
SSID Enter an identier (SSID) for wireless LAN. Communication can be done only with
Use WPS (Wi-Fi Protected Setup™) to set up the wireless LAN for the projector.
NOTE: Use the projector’s menus to make WPS connections and change the WPS profile settings.
you select [INFRASTRUCTURE], make sure that the projector and your access point
are on the same channel; when you select [ADHOC], make sure that the projector and
your computer are on the same channel.
equipment whose SSID matches SSID for your wireless LAN.
45
Page 60
3. Convenient Features
SITE SURVEY Displays a list of available SSIDs for wireless LAN on site. Select an SSID which you
can access.
COMMUNICATION
MODE
SECURITY TYPE
Select communication method when using wireless LAN.
INFRASTRUCTURE: Select this option when communicating with one or more equip-
ment connected to the wireless LAN network via a wireless access point.
ADHOC: Select this option when using the wireless LAN to directly communicate with
a computer in peer-to-peer mode.
Turn on or off the encryption mode for secure transmission. When turn on the encryp-
tion mode, set WEP key or encrypted key.
DISABLE Will not turn on the encryption feature. Your communications may
be monitored by someone.
WEP 64 bit Uses 64-bit datalength for secure transmission.
WEP 128 bit Uses 128-bit datalength for secure transmission. This option will
increase privacy and security when compared to use of 64-bit
datalength encryption.
WPA-PSK TKIP/ WPA-PSK AES/
WPA2-PSK TKIP/ WPA2-PSK AES/
WPA-EAP TKIP EAP-TLS/
WPA-EAP AES EAP-TLS/
WPA-EAP TKIP PEAP-MSCHAP v2/
WPA-EAP AES PEAP-MSCHAP v2/
WPA2-EAP TKIP EAP-TLS/
WPA2-EAP AES EAP-TLS/
WPA2-EAP TKIP PEAP-MSCHAP v2/
WPA2-EAP AES PEAP-MSCHAP v2
These options provide stronger security
than WEP.
NOTE:
• The WEP settings must be the same as communication devices such as PC or access point in
your wireless network.
• When you use WEP, your image transmission speed will slow down.
• Other encryption keys than WEP 64bit and WEP 128bit are not available when [ADHOC] is
selected from [COMMUNICATION MODE].
• To install a digital certificate, use the projector’s menu. (→ page 121)
INDEX Select encryption key when selecting [WEP 64 bit] or [WEP 128 bit] in [SECURITY
TYPE].
KEY When selecting [WEP 64 bit] or [WEP 128 bit] in [SECURITY TYPE]:
Enter WEP key.
Select Characters (ASCII) Hexadecimal digit (HEX)
WEP 64 bit Up to 5 characters Up to 10 characters
WEP 128 bit Up to 13 characters Up to 26 characters
When selecting [WPA PSK-TKIP], [WPA PSK-AES], [WPA2 PSK-TKIP] or [WPA2
PSK-AES]:
Enter encryption key. Key length must be 8 or greater and 63 or less.
USERNAME Set a user name for WPA-EAP/WPA2-EAP.
PASSWORD Set a password for WPA-EAP TKIP PEAP-MSCHAP v2/WPA-EAP AES PEAP-MSCHAP
v2/WPA2-EAP TKIP PEAP-MSCHAP v2/WPA2-EAP AES PEAP-MSCHAP v2.
USE DIGITAL CERTIFI-
CATE
Select this if you use a digital certicate for WPA-EAP TKIP PEAP-MSCHAP v2/WPA-
EAP AES PEAP-MSCHAP v2/WPA2-EAP TKIP PEAP-MSCHAP v2/WPA2-EAP AES
PEAP-MSCHAP v2.
46
Page 61
3. Convenient Features
• NAME
PROJECTOR NAME Enter a name for your projector so that your computer can identify the projector. A
projector name must be 16 characters or less.
TIP: Projector name will not be affected even when [RESET] is done from the menu.
HOST NAME Enter the hostname of the network connected to the projector. A host name must be
15 or less.
DOMAIN NAME Enter the domain name of the network connected to the projector. A domain name
must be 60 characters or less.
• ALERT MAIL
ALERT MAIL (English
only)
SENDER’S ADDRESS Enter sender’s address.
SMTP SERVER NAME Enter the SMTP server name to be connected to the projector.
RECIPIENT’S ADDRESS
1,2,3
TEST MAIL
This option will notify your computer of lamp replace time or error messages via e-mail
when using wireless or wired LAN.
Placing a checkmark will turn on the Alert Mail feature.
Clearing a checkmark will turn off the Alert Mail feature.
Sample of a message to be sent from the projector:
The lamp and lters are at the end of its usable life. Please replace the lamp and
lters.
Projector Name: RICOH Projector
Lamp Hours Used: 100 [H]
Enter your recipient’s address. Up to three addresses can be entered.
Send a test mail to check whether your settings are correct or not
NOTE:
• If you execute a test, you may not receive an Alert mail. Should this happen, check if network
settings are correct.
• If you entered an incorrect address in a test, you may not receive an Alert mail. Should this
happen, check if the Recipient’s Address is correct.
SAVE Click this button to reect the above settings.
47
Page 62
3. Convenient Features
• NETWORK SERVICE
PJLink PASSWORD Set a password for PJLink*. A password must be 32 characters or less. Do not forget
your password. However, if you forget your password, consult with your dealer.
HTTP PASSWORD Set a password for HTTP server. A password must be 10 characters or less.
*What is PJLink?
PJLink is a standardization of protocol used for controlling projectors of different manufacturers. This standard protocol is established by Japan Business Machine and Information System Industries Association (JBMIA) in 2005.
The projector supports all the commands of PJLink Class 1.
Setting of PJLink will not be affected even when [RESET] is done from the menu.
CRESTRON ROOMVIEW compatibility
The projector supports CRESTRON ROOMVIEW, allowing multiple devices connected in the network to be managed
and controlled from a computer or a controller.
For more information, visit http://www.crestron.com
<Setting Procedure>
Access to the HTTP server function, and make necessary settings for [CRESTRON] in [NETWORK SETTINGS].
• ROOMVIEW for managing from the computer.
DISABLE Disables ROOMVIEW.
ENABLE Enables ROOMVIEW.
• CRESTRON CONTROL for managing from the controller.
DISABLE Disables CRESTRON CONTROL.
ENABLE Enables CRESTRON CONTROL.
IP ADDRESS Set your IP address of CRESTRON SERVER.
IP ID Set your IP ID of CRESTRON SERVER.
TIP: The CRESTRON settings are required only for use with CRESTRON ROOMVIEW.
For more information, visit http://www.crestron.com
• INFORMATION
WIRED LAN Display a list of settings of wired LAN connection.
WIRELESS LAN Display a list of settings of wireless LAN connection.
UPDATE Reect settings when they are changed.
48
Page 63
3. Convenient Features
❿ Projecting Your Computer’s Screen Image from the Projector via a Network [NETWORK PROJECTOR]
By selecting the projector connected to the same network as that of your PC, the PC screen image can be projected
to the screen via network. There is no need of connection using the computer cable (VGA).
Operation Environment
Applicable OS Windows 8 Pro
Windows 8 Enterprise
Windows 7 Professional
Windows 7 Ultimate
Windows 7 Enterprise
Windows Vista Home Premium
Windows Vista Business
Windows Vista Ultimate
Windows Vista Enterprise
Hardware specications The specications recommended by Microsoft as the operation environment for
Windows 8/Windows 7/Windows Vista should be satised.
Network Environment Wired LAN or wireless LAN environment that supports TCP/IP is required.
Screen color High Color (16 bits)
True Color (24 bits and 32 bits)
* Setting with 256 colors or less is not available.
Setting the Projector to Network Projector Input Mode

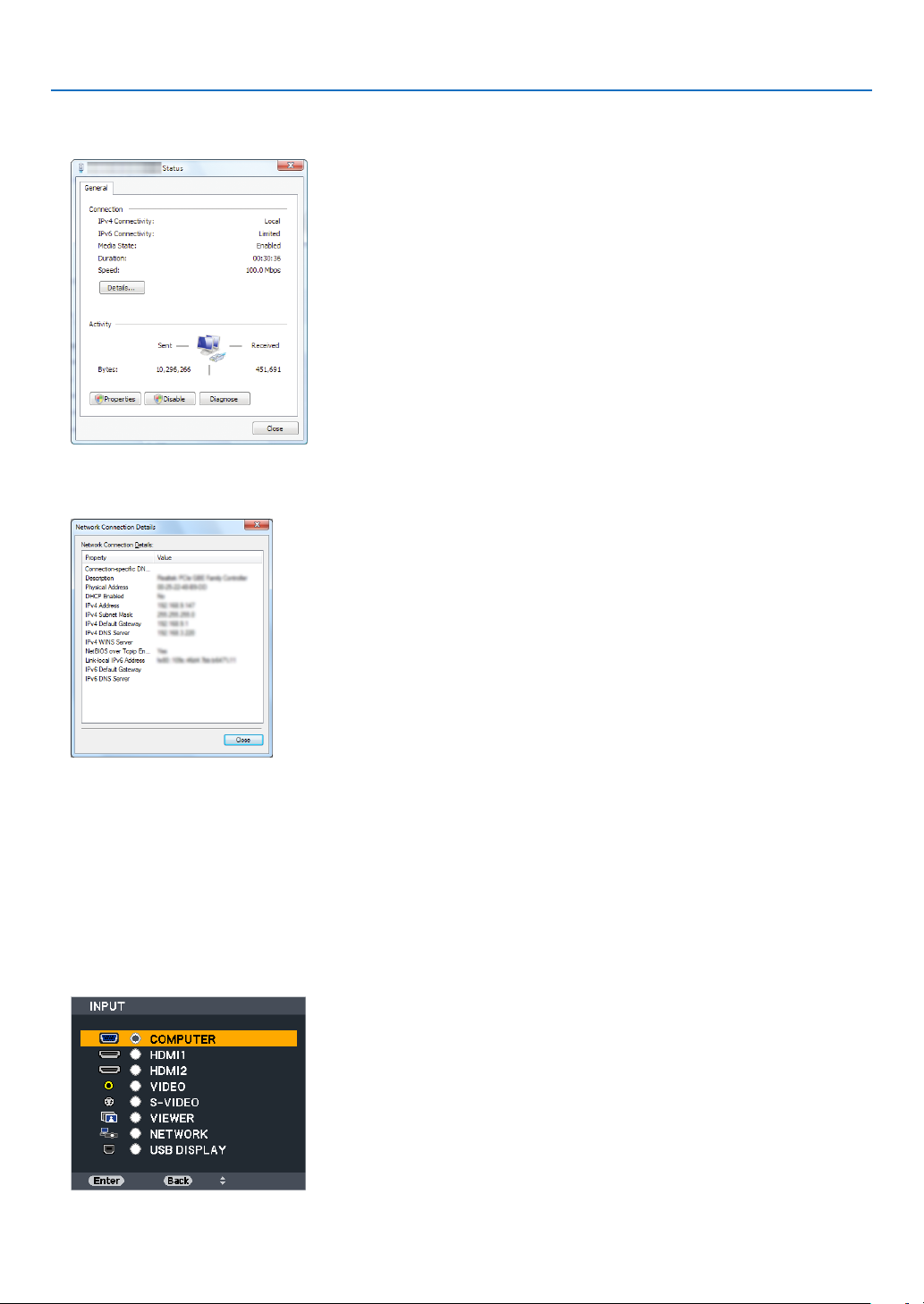

1. With the projector turned on, press the Input button.
The input selection window appears.
Another way to display the input selection window is to press the Network button on the remote control. The AP-
PLICATION MENU screen will be displayed. Go to step 3.
49
Page 64
3. Convenient Features
2. Press the SELECT or button to select [NETWORK] and press the Enter button.
In the screen, the [APPLICATION MENU] menu is displayed.

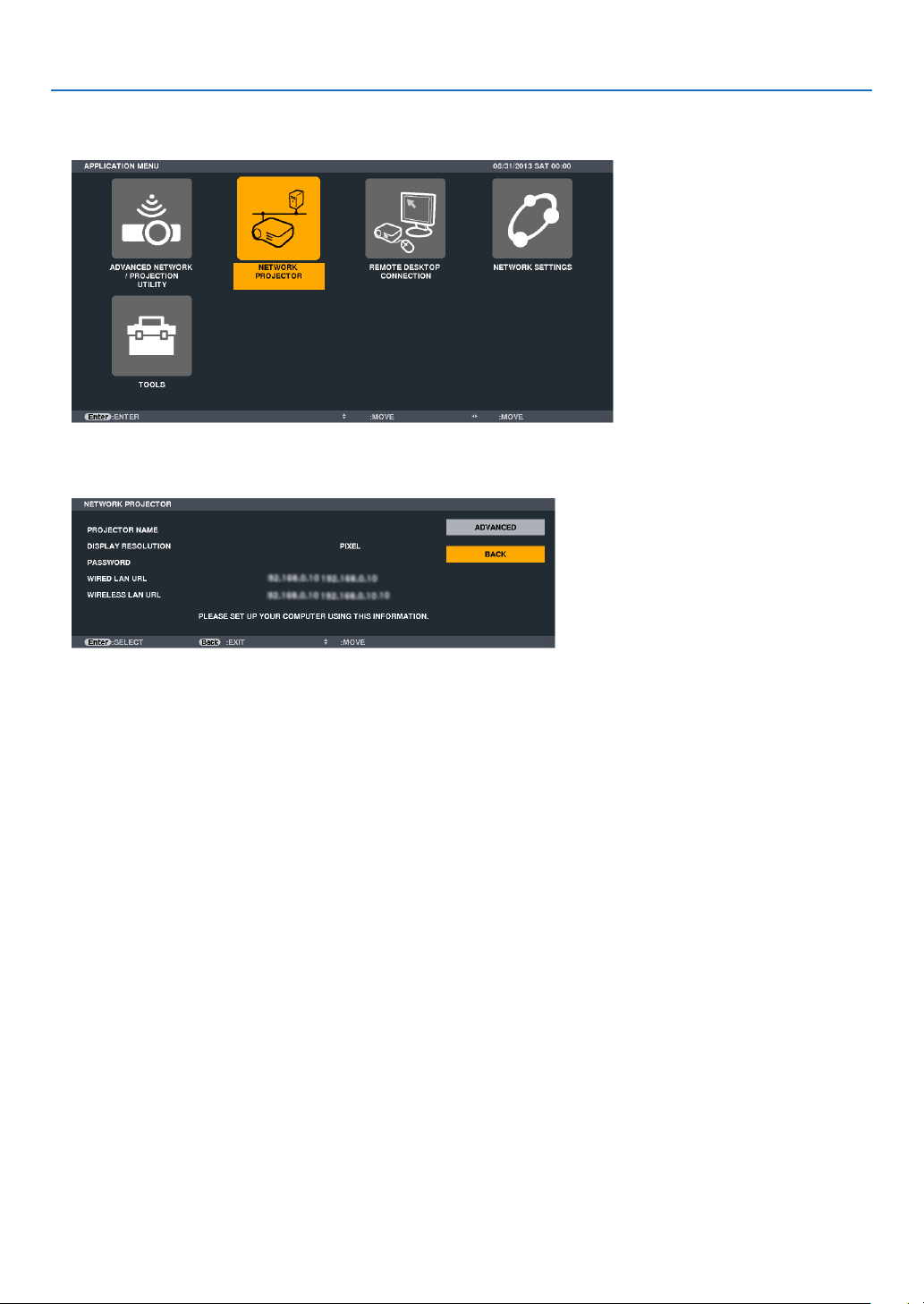

3. From the [APPLICATION MENU] menu, select [NETWORK PROJECTOR].
The [PROJECTOR NAME/DISPLAY RESOLUTION/PASSWORD/URL] will be displayed.
50
Page 65
3. Convenient Features
Projecting the Image with Network Projector
Windows 7 / Vista
1. Click [Start] from the desktop of Windows 7.
2. Click [All Programs].
3. Click [Accessories].
4. Click [Connect to a Network Projector].
When the [Windows Firewall is blocking the network projector from communicating with your computer] window
appears,click [Allow the network projector to communicate with my computer].
The “Connect to a Network Projector” window appears.
5. Click [→ Search for a projector (recommended)].
In the “Available projectors” box, “X5371N/WX5361N” is displayed.
6. Click [X5371N/WX5361N].
The message “Enter the password for the projector that you selected.” is displayed at the bottom of the window.
51
Page 66
3. Convenient Features

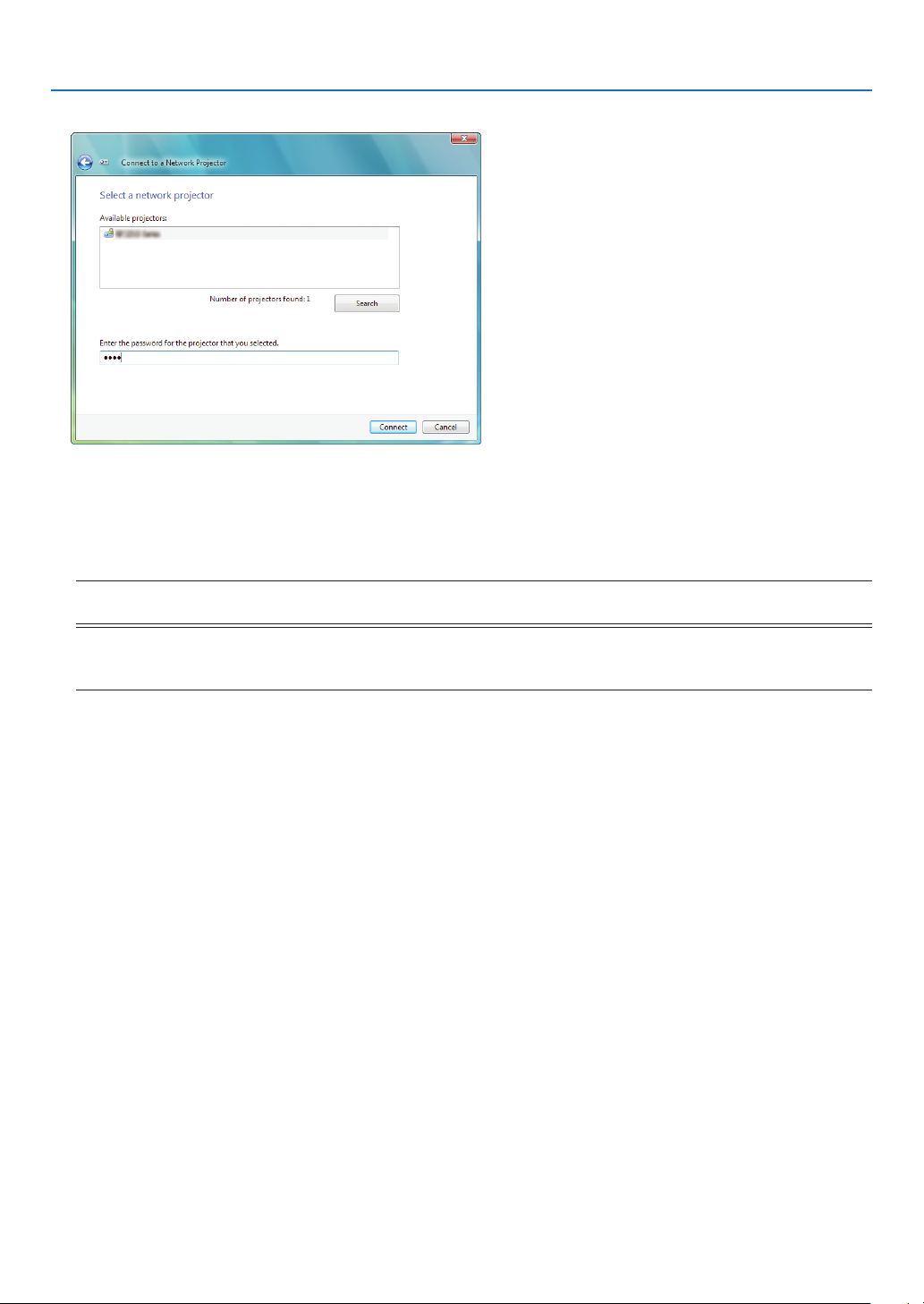

7. Input the password to the password input box displayed by the operation at step 3 on page 50.
8. Click [Connect].
The network projector function works and the screen of Windows 7 is projected from the projector.
• If the resolution of your computer’s screen is different from the projector’s screen resolution, the NETWORK
PROJECTOR function may not work. If this happens, change the resolution of the computer’s screen to lower
resolution than the one displayed at Step 3 on page 50.
NOTE: When the network projector function works, the background color of the desktop changes to black. When the network
projector function is stopped, the original background color is restored.
Reference: If the projector cannot be found at Step 5, click [ → Enter the projector network address]. Then, input the “Network
address” (Input example: http://10.32.97.61/lan) and “Projector password” (Input example: 82291627) displayed in the screen
projected from the projector.
Exiting the Network Projector Operation
1. Click [Projecting: X5371N/WX5361N] in the Windows Vista task bar.
2. Click [Disconnect].
The Network Projector function is stopped.
3. Press the Input button of the projector to select an input terminal other than [NETWORK].
When using the remote control, press a button other than the Network button.
52
Page 67
3. Convenient Features
⓫ Using the Projector to Operate Your Computer via a Network [REMOTE DESKTOP]
• By selecting the PC connected to the same network as that of the projector, the PC screen image can be projected
to the screen via network.
Then, by operating the keyboard, you can operate Windows 8, Windows 7, Windows Vista or Windows XP on the
PC connected with the network.
• With the Remote Desktop function, you can remotely operate the PC placed at a distance from the projector.
Meeting room
Office
NOTE:
• The [REMOTE DESKTOP] function will work on the following Windows editions.
Windows 8 Pro, Windows 8 Enterprise,
Windows 7 Professional, Windows 7 Ultimate, Windows 7 Enterprise,
Windows Vista Home Premium, Windows Vista Business, Windows Vista Ultimate, Windows Vista Enterprise,
Windows XP Professional with Service Pack 3
(Note)
• In this user’s manual this feature is described using Windows 7 as an example.
• A keyboard is required to use the Remote Desktop function.
• The Remote Desktop function can be operated with a keyboard. Using a wireless mouse with a wireless keyboard is more useful
for operating.
Use a commercially available wireless keyboard, a wireless mouse, and a USB wireless receiver.
Use a commercially available USB keyboard and USB mouse.
• A USB keyboard with a built-in USB hub cannot be used with the projector.
• A wireless keyboard or mouse that supports Bluetooth cannot be used with the projector.
• We do not warrant that the USB port of the projector will support all USB devices in the market.
• Support for Windows XP
Our projector's will no longer support Windows XP, in line with Microsoft's end of support for Windows XP.
Prepare a commercially available wireless keyboard (US layout version).
Connect the USB wireless receiver to the USB port (Type A) of the projector. Make all necessary settings for your
wireless keyboard and mouse.
USB
53
Page 68
3. Convenient Features
Setting the password to the user account of Windows 7
TIP: If a password has been set for an account, the steps 1 to 9 can be skipped.
1. Click [Start] from the desktop of Windows 7.
2. Click [Control Panel].
3. Click [Add or remove user accounts] displayed under [User Accounts and Family Safety].
4. When the [User Account Control] conrmation window appears, click [Yes].
5. Click [Administrator].
6. Click [Create a password].
7. Input the password to the [New password] box.
8. Input the same password as that at Step 7 to the [Conrm new password] box.
9. Click [Create a password].
The Administrator is changed to [Password protected].
Setting the Remote Access
1. Click [Start] from the desktop of Windows 7.
2. Click [Control Panel].
3. Click [System and Security].
4. Click [Allow remote access] displayed under [System].
5. When the [User Account Control] conrmation window appears, click [Yes].
The [System Properties] window appears.
6. Click [Allow connections from computers running any version of Remote Desktop (less secure)] in the
Remote Desktop box and click [OK].
Checking the IP address on Windows 7
1. Click [Start] from the desktop of Windows 7.
2. Click [Control Panel].
3. Click [View network status and tasks] displayed under [Network and Internet].
54
Page 69
3. Convenient Features
4. Click [Local Area Connection] displayed in blue on the right of [Connections] in the window.
The [Local Area Connection Status] window appears.
5. Click [Details...].
Write down the value for “IPv4 Address” (xxx.xxx.xxx.xxx) displayed.
6. Click [Close].
7. Click [X] at the upper right of the window.
The system goes back to the desktop.
Starting the Remote Desktop
1. With the projector turned on, press the Input button.
The input selection window appears.
Another way to display the input selection window is to press the Network button on the remote control. The AP-
PLICATION MENU screen will be displayed. Go to step 3.
55
Page 70
3. Convenient Features
2. Press the SELECT or button to select [NETWORK] and press the Enter button.
The [APPLICATION MENU] menu will be displayed.
3. From the [APPLICATION MENU] menu, use the wireless keyboard to select [REMOTE DESKTOP CONNEC-
TION].
The [REMOTE DESKTOP CONNECTION] window appears.
4. Operate the wireless keyboard to input the IP address of Windows 7 and click [CONNECTION].
The log-on screen of Windows 7 is displayed in the screen projected by the projector.
5. Operate the wireless keyboard to input the user’s password and press “Enter”.
The remote desktop function is started.
Windows 7 desktop is displayed in the screen projected by the projector.
Log out the computer.
Use the wireless keyboard connected to the projector to operate Windows 7.
NOTE: When the projection is made with the remote desktop function, the background color of the desktop is changed to solid color.
56
Page 71
3. Convenient Features
Exiting the Remote Desktop
1. Operate the wireless keyboard to click [Start] from the desktop screen projected by the projector.
2. Click [X] on the right of the start menu.
The remote desktop function is stopped.
3. Press the Input button of the projector to select an input terminal other than [NETWORK].
When using the remote control, press a button other than the Network button.
TIP:
Setting [ADVANCED] in REMOTE DESKTOP
Clicking [ADVANCED] displays the [ADVANCED] screen.
Making settings to [ADVANCED] will allow you to display the desktop background, or to enable the window animation function during
the Remote Desktop operation. However, doing this will cause the display’s or mouse’s response to slow down.
If the display’s or mouse’s response is slowed down, try one or more of the following:
DESKTOP BACKGROUND: Clear the check mark to display the desktop background in monochrome.
MENU AND WINDOW ANIMATION: Clear the check mark to disable menu and window animation.
THEMES: Clear the check mark not to use Themes.
SHOW CONTENTS OF WINDOW WHILE DRAGGING: Clear the check mark to show only the window pane while
dragging.
57
Page 72
3. Convenient Features
⓬ Connecting Your Microphone
Connecting a commercially available dynamic microphone to the Mic input jack allows you to output your mic sound
from the built-in speaker.
Sound from COMPUTER, VIDEO, S-VIDEO, and HDMI audio inputs or sound of VIEWER/NETWORK input will be
heard from the speaker with your microphone voice.
Microphone sensitivity can be adjusted. From the menu, select [SETUP] → [INSTALLATION] → [MIC GAIN]. (→ page 103)
NOTE:
• The Mic input jack does not support plugin power microphones.
• If there is no signal when either HDMI input is selected, sound output may not work.
Mic
58
Page 73
4. Using the Viewer
❶ What you can do with the Viewer
The Viewer feature allows you to view slides or movie les stored on a USB memory on the projector, or a shared
folder in a computer connected to the network.
The Viewer has the following features.
• When a commercially available USB memory that stores image les is inserted into the USB port (Type A) of the
projector, the Viewer allows you to view the image les on the USB memory.
Even if no computer is available, presentations can be conducted simply with the projector.
• Movie le with audio can be played back.
• Image and movie les stored in a shared folder in a computer connected to a network can be projected.
The computer with “Media Sharing” of Windows Media Player 11 turned on can be used as a media server.
Supported graphic formats
Format File name extension
JPEG .jpg, .jpe, .jpeg (CMYK is not supported.)
BMP .bmp (bit eld not supported)
PNG .png (Interlaced PNG and α channel PNG are not supported.)
GIF .gif (Interlaced GIF, transparation GIF, and animation GIF are not supported.)
* If an unsupported image is selected, the icon
NOTE:
Maximum number of pixels of image which can be displayed are:
• Baseline JPEG: 10000 × 10000
• Progressive JPEG: 1280 × 1280
• GIF: 1280 × 1280
• Others: 4000 × 4000
• Some files supported by the above requirements may not be displayed.
will be displayed.
Supported movie les
File name extension Video compression/expansion method Audio compression/expansion method
.mpg, .mpeg. MPEG2 MPEG Audio Layer2
MPEG Audio Layer3
.wmv VC-1/WMV9 WMA9 Standard
.mp4 H.264/AVC AAC-LC
Playback requirements:
Resolution: 320 × 240 to 1280 × 720
Video frame rate: up to 30fps
Bitrate: up to 15Mbps
Audio sampling rate: up to 48kHz
Channel: up to 2ch stereo
Audio bit rate: up to 256 Kbps
Max. le size: up to 2GB
59
Page 74
4. Using the Viewer
NOTE:
• Movie files converted by using the video/audio format which is not supported by this projector cannot be played back.
In this case, there will be no icon to show that playback is not possible.
• Files with Digital Rights Management(DRM) protection cannot be played back.
• Some of the movie files that meet the above requirements may not be played back. Movie files may not be played back correctly
depending on your network environment or the bit rate of your file.
• WMV format video file will be displayed in an aspect ratio of 1 to 1 independently of its original aspect ratio.
• Files that can be played back on the media server are graphics and movie files. In Windows Media Player 11 (Windows XP/
Windows Vista) mp4 files cannot be played back.
Supported USB memory devices
- Be sure to use a USB memory device formatted with the FAT, exFAT, FAT32 or FAT16 le system.
The projector does not support NTFS formatted USB memory.
If the projector does not recognize your USB memory, check if the format is supported.
To format your USB memory in your computer, refer to the document or help le that comes with your Windows.
- We do not warrant that the USB port of the projector will support all USB memories in the market.
60
Page 75
4. Using the Viewer
Notices on shared folder and media server
• Files from a shared folder or media server may not be projected if security or antivirus software is installed on your
computer.
• Open the following rewall ports:
- Media server
Port number Protocol
1900 UDP
2869 TCP
10243 TCP
10280-10284 UDP
- Shared folder
Port number Protocol
137 UDP/TCP
138 UDP/TCP
139 UDP/TCP
445 UDP/TCP
• Set your computer for sharing and security to grant access to les in the shared folder and set your security or
antivirus software to grant access to les in the shared folder. Consult your network administrator for more information.
• Movie les in the shared folder or the media server may not be played back correctly depending on your network
environment or the bit rate of your le.
NOTE
• The following operations by using the buttons on the projector are not possible when the VIEWER screen such as the slide screen
and the thumbnail screen is displayed.
- Keystone correction by using the or button
- Auto Adjustment by using the Auto Set button
- Volume control with the or button
• Freezing picture by using the Freeze, Aspect, or Auto Set button on the remote control is not possible when the VIEWER screen
such as the slide screen and the thumbnail screen is displayed.
• Executing [RESET] → [ALL DATA] from the menu will return the settings for the Viewer toolbar to the factory default.
61
Page 76
4. Using the Viewer
❷ Preparing presentation materials
1. Create your presentation materials and save them in a supported le format to your computer.
2. Save a le to your drive.
To save a le to your USB memory:
Use the Windows Explore to copy the le to your USB memory.
To place a le in a shared folder you create in your computer, see page 74.
To use “Media Sharing” in Windows Media Player 11, see page 78.
62
Page 77
4. Using the Viewer

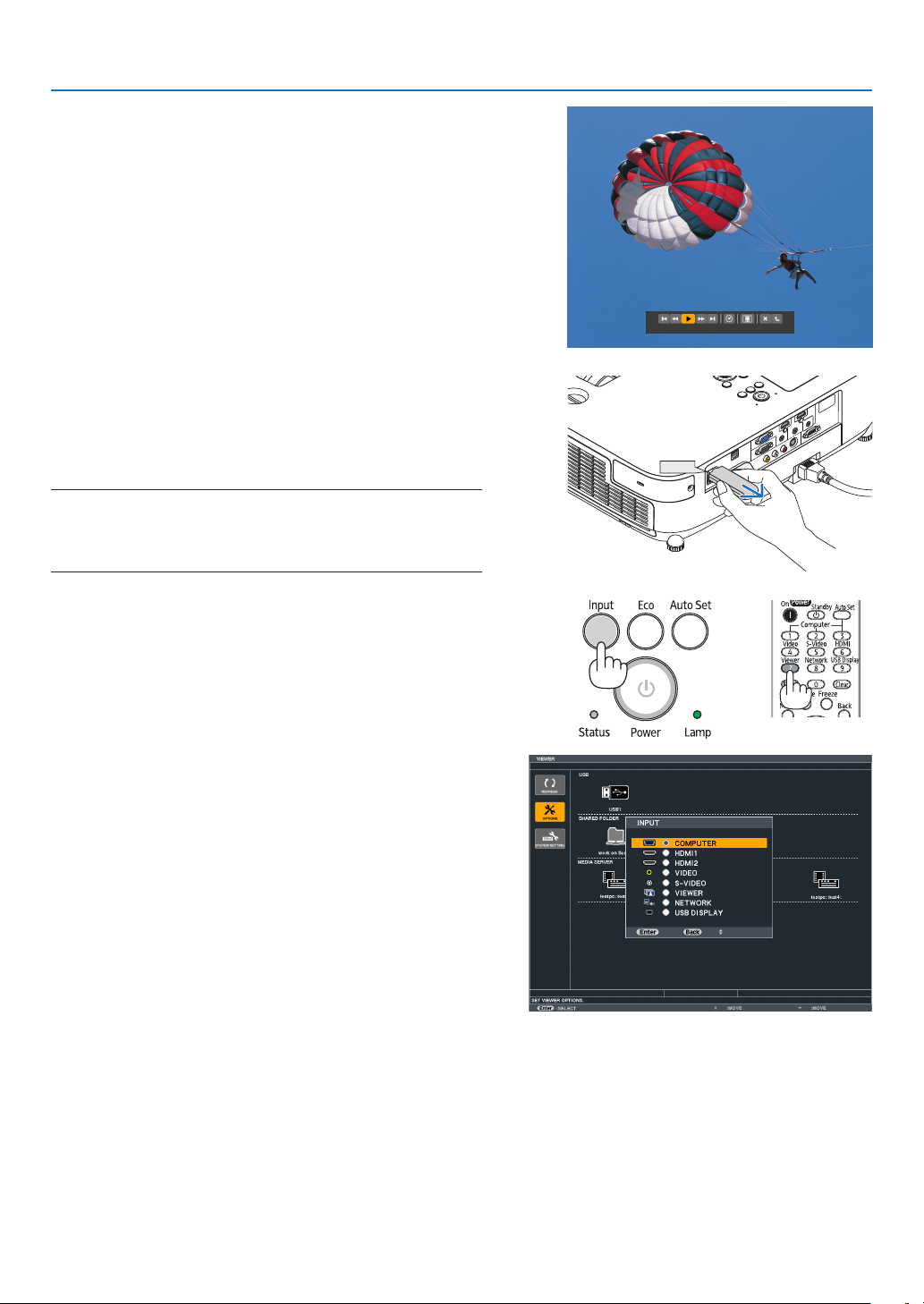

❸ Projecting images stored in a USB memory device
This section explains the basic operation of the Viewer.
The explanation provides the operational procedure when the Viewer toolbar is set to the factory default.
Preparation: Before starting the Viewer, store images to the USB memory using your computer.
Starting the Viewer
1. Turn on the projector. (→ page 15)
2. Insert the USB memory into the USB port of the projec-
tor.
NOTE:
• Do not remove the USB memory from the projector while it’s LED
flashes. Doing so may corrupt the data.
TIP:
You can a USB memory insert the projector when the drive list screen
is displayed.
USB
3. Press the Input button to select [VIEWER].
A press of the Input button will display the source select
screen.
A few more presses of the Input button will display the drive
list screen.
Another way to select [VIEWER] is to press the Viewer but-
ton on the remote control.
TIP:
• For more information about the drive list screen, see page 66.
• To display graphics in a shared folder, see page 74; to display still
images or movie files in a media server, see page 78.
63
Page 78
4. Press the button to select “USB1” and press the Enter
button.
The “USB1” thumbnail screen will be displayed.
TIP:
• For more information about thumbnail screen, see page 68.
5. Use the or button to select an icon.
• The → (arrow) symbol on the right indicates there are
more pages. Pressing the Page (page down) button
will show the next page: pressing the Page (page up)
will show the previous page.
4. Using the Viewer
6. Press the Enter button.
Operation varies depending on the selected le.
• Still image
The selected slide will be displayed.
The or button can be used to select the next (right)
slide or the previous (left) slide in the thumbnail screen.
• Pressing the Enter button will display the control bar with
which is used to select or rotate an slide.(→ page 69)
64
Page 79
• Movie le
The movie le will start playing.
After nishing the playback, the screen will turn to black.
Press the Back button to return to the thumbnail screen.
• Pressing the Enter button will display the movie’s control
bar with which you can pause or fastforward and some
other operations.
7. Remove the USB memory from the projector.
Return to the drive list screen. Make sure that the LED on
the USB memory is not ashing before removing the USB
memory.
NOTE: If you remove the USB memory from the projector with a slide
displayed, the projector may not operate correctly. If this happens,
turn off the projector and unplug the power cord. Wait 3 minutes, then
connect the power cord, and turn on the projector.
4. Using the Viewer
USB
Exiting the Viewer
1. Press the Input button to select a source other than
[VIEWER].
A press of the Input button will display the source select
screen.
A few more presses of the Input button will display another
source.
• To exit the Viewer using the remote control, select a
source other than [VIEWER].
65
Page 80
Names and functions of Viewer screen
The Viewer has three screens: Drive list screen, Thumbnail screen, and Slide screen.
Cursor (yellow)
4. Using the Viewer
Cursor (yellow)
Menu Menu
[Drive list screen] [Thumbnail screen]
Path information
Drive information/File information
Menu guide
Scroll bar
Folder icon
Operation button guide
Control bar
* The operation for still image differs from that for movie.
[Slide screen]
• Drive list screen
Displays a list of drives connected to the projector.
Menu operation
• Use the or button to move the cursor up or down. Select the menu item and press the Enter button to
display the submenu.
Operation for Drive list screen
1. Press the button to move the cursor to the drive list.
(Use the or button to switch between the menu and the drive list.)
Press the or button to select a type of drive; press the or button to select the drive connected to the
projector.
2. Select the drive and press the Enter button to switch to the thumbnail screen of the selected drive.
66
Page 81
Functions
Name Description
REFRESH Displays additional media servers in the drive list screen.
OPTIONS Opens the OPTIONS menu.
SLIDE SETTING Sets up slides. (→ page 71)
MOVIE SETTING Sets up movie les. (→ page 72)
AUTO PLAY SETTING Sets up auto play. (→ page 72)
SHARED FOLDER Sets up a shared folder. (→ page 74)
MEDIA SERVER Sets up a media server. (→ page 78)
RETURN Closes the OPTIONS menu.
SYSTEM SETTING Switches to the system setting menu. See wired LAN, wireless LAN, WPS,
network information, mouse, and keyboard in "❾ Application Menu". (→
page 114)
USB Displays the icon for a USB memory inserted into the USB port of the
projector.
SHARED FOLDER Displays up to four drives of a computer connected to a LAN (set for con-
necting a shared folder).
* See page 74 for setting up for connecting a shared folder of the projector.
MEDIA SERVER Displays up to four drives of a computer connected to a LAN (set for con-
necting a media server).
* See page 78 for setting up for connecting a media server of the projector
Path information Displays the location of a folder or le.
Drive information [Example]
USB1 314MB FREE/492MB
4. Using the Viewer
Displays the drive. Displays free space and capcity of
a drive. (USB only)
Menu guide Displays the description of a selected menu.
Operation button guide Displays information about operation buttons.
* It is displayed in three-digit number (rounding up)
NOTE:
When the OPTIONS menu is displayed, the drive list screen or thumbnail screen is not displayed. To display it, select the [RETURN]
icon and press the Enter button.
67
Page 82
4. Using the Viewer
• Thumbnail screen
Displays a list of folders, thumbnails, and icons in the drive selected on the drive list screen.
Menu operation
• Use the or button to move the cursor up or down. Select the menu item and press the Enter button to
display the menu or setting screen.
Operation for Thumbnail screen
1. Press the button to move the cursor to the thumbnail screen when the OPTIONS menu is not displayed.
2. Press the , , , or button to select a le or folder.
3. Press the Enter button to start slideshow or playback of the selected le. Selecting a folder will display its
thumbnail screen.
Functions
Name Description
UP Goes to one upper level menu.
THUMBNAIL Switches two displays between thumbnail and icon.
SORT SETTING Rearranges folders or les.
DRIVE LIST Returns to the drive list screen.
OPTIONS Changes to the OPTIONS menu.
SYSTEM SETTING
Scroll bar Thumbnail screen will display 12 les with 4 by 3. If the thumbnail screen has twelve
Path information Displays the location of a folder or le.
Thumbnail information [Example]
Menu guide Displays the description of a selected menu.
Operation button guide Displays information about operation buttons.
TIP:
• If an unsupported image is selected, the icon [?] will be displayed,
• The maximum displayable number of images is 300 in the thumbnail screen including the number of folders.
• If a file name or path of a folder is longer than specified, it will be displayed with center characters or path skipped.
Example: “123456789.jpg” will be displayed in “123..789.jpg”.
Opens the system setting menu.
or more les or folders, the scroll bar will be displayed at the right side. Using the Page
or Page button will scroll the whole screen down or up.
005.jpg 5/200 11/03/2010 13:25:12 502KB
Selected folder
name or le
name
Numbers and order of
les in a folder (only
when folder selected)
Create/Change date:
M/D/Y/H/M/B
Displays le
capacity
68
Page 83
4. Using the Viewer
• Slide screen (still image/movie)
Plays a le selected from a list of thumbnails or icons.
Control bar operation
• The control bar will be displayed only when a still image and a movie le is selected.
• The control bar for still images differs from that for movie les.
1. Pressing the Enter button in Slide screen will display the control bar at the bottom of the screen.
2. Use the or button to select a le and press the Enter button.
• The selected function will be executed.
Functions of still image control bar
Name Description
PREV Goes back to the previous image
PLAY Plays the image. This button also is used to stop or start playing an image.
NEXT Goes to the next image.
RIGHT Rotates the image 90° clockwise.
• To cancel, select another folder.
LEFT Rotates the image 90° counter clockwise.
• To cancel, select another folder.
SIZE
CLOSE Closes the control bar.
END Stops playing slides or slideshow, and closes the control bar to return to the thumbnail screen.
BEST FIT Displays the image with its aspect ratio in the projector’s displayable
maximum resolution.
ACTUAL
SIZE
• You can also press the Back button to close the control bar.
Displays the image in its actual size.
69
Page 84
Functions of movie control bar
Name Description
PREV Goes back to the beginning of a movie le.
• Goes back to the beginning of the previous movie le if executed immediately after being
started playing.
FR Fast-rewinds a movie le for about 7 seconds.
4. Using the Viewer
PLAY/PAUSE
FF Fast-forwards a movie le for about 7 seconds.
NEXT Goes to the beginning of a next movie le.
TIME Displays an elapsed time for playback or pause.
SIZE
CLOSE Closes the control bar.
END Stops playing a movie, and closes the control bar to return to the thumbnail screen.
PLAY Plays a movie le.
PAUSE Stops playing a movie le.
BEST FIT Displays the image with its aspect ratio in the projector’s displayable
maximum resolution.
ACTUAL
SIZE
• You can also press the Back button to close the control bar.
Displays the image in its actual size.
70
Page 85
4. Using the Viewer
Viewer option settings
• SLIDE SETTING
Sets still images or slides.
Name Options Description
SCREEN SIZE BEST FIT Displays the image with its aspect ratio in the projector’s display-
able maximum resolution.
ACTUAL SIZE Displays the image in its actual size.
PLAY MODE MANUAL Selects manual play.
AUTO Selects auto play.
DISPLAY INTERVAL 5 - 300 seconds Species interval time when [AUTO] is selected for PLAY MODE.
REPEAT Check mark Turns on or off the repeat function.
TIP
• To play one or more slides, place those files into a folder.
71
Page 86
4. Using the Viewer
• MOVIE SETTING
Sets the functions for a movie le.
Name Options Description
SCREEN SIZE BEST FIT Displays the image with its aspect ratio in the projector’s display-
able maximum resolution.
ACTUAL SIZE Displays the image in its actual size.
REPEAT OFF Turns on or off the repeat function.
ONE REPEAT Repeats one le only.
ALL REPEAT Repeats all les in the current folder.
TIP
• Turning on [REPEAT] will display black screen during intermission between movies.
• AUTO PLAY SETTING
Sets auto play for slideshow when a USB memory device is inserted into the USB port of the projector, or when
[VIEWER] is selected for [INPUT].
Name Options Description
AUTO PLAY OFF —
PICTURE Plays a rst found still image in a drive.
MOVIE Plays a rst found movie le in a drive.
TIP
• Auto play behavior is different between when a USB memory device is inserted into the USB port of the projector and when
[VIEWER] is selected for [INPUT].
• Auto play starts for the first found file supporting the file type set up for Auto Play. The file will be searched in the drive root or
lower level.
• When [VIEWER] is selected for [INPUT], the last selected file will be automatically played if it is found, or the last selected folder
will be searched and the first found file will be automatically played.
To automatically play a movie file in a USB memory, store one movie file or change its file name so that it can be searched first.
72
Page 87
4. Using the Viewer

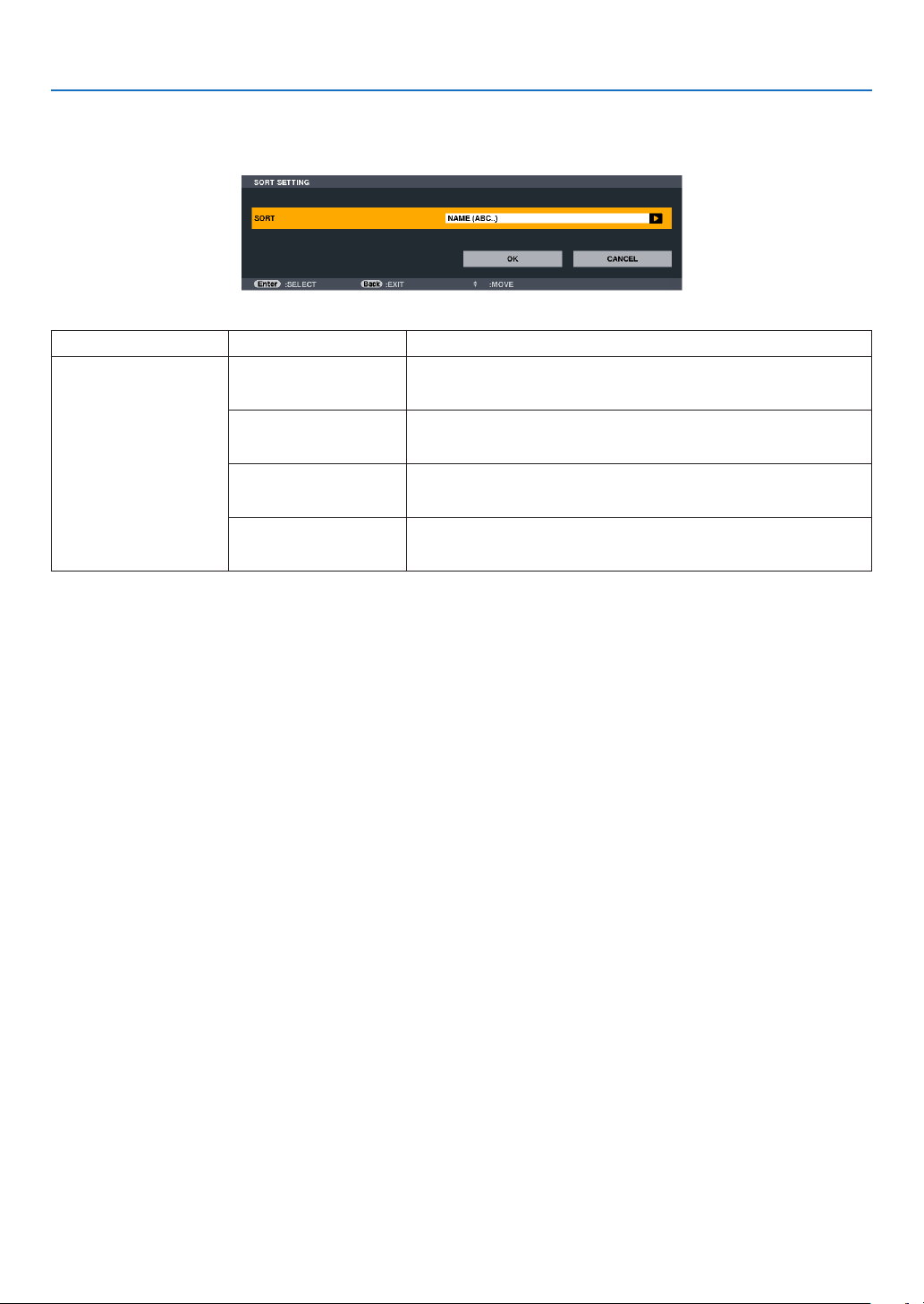

• SORT SETTING
Sets the order of displaying thumbnails or slides.
Name Options Description
SORT NAME (ABC..) Displays the les alphabetically by name in ascending order.
NAME (ZYX..) Displays the les alphabetically by name in descending order.
EXT. (ABC..) Displays the les alphabetically by extension in ascending order.
EXT. (ZYX..) Displays the les alphabetically by extension in descending order.
DATE (NEW) Displays the les in reverse chronological order.
DATE (OLD) Displays the les in chronological order.
SIZE (BIG) Displays the les in descending order of its le size.
SIZE (SMALL) Displays the les in ascending order of its le size.
73
Page 88
4. Using the Viewer
❹ Projecting data from shared folder
LAN
Shared folder
Wireless LAN
Projector
Shared folder
Preparation
For projector: Connect the projector to the network.
For computer: Place les to be projected in a shared folder and note the folder’s path. Memorize or write down the
path for later use.
• For sharing a folder, refer to your user guide or help le accompanied with your Windows computer.
• Use a keyboard to give a name to the shared folder in alphanumeric characters.
• To connect the shared folder beyond the subnet, set [WINS CONFIGURATION] in [NETWORK SETTINGS] from
the menu.
• Digital signature (SMB signature) is not supported.
Connecting the projector to the shared folder
1. Press the Viewer button on the remote control.
The drive list window will be displayed.
• Another way to start the VIEWER is to press the Input button a few times on the projector cabinet. (→ page 17)
74
Page 89

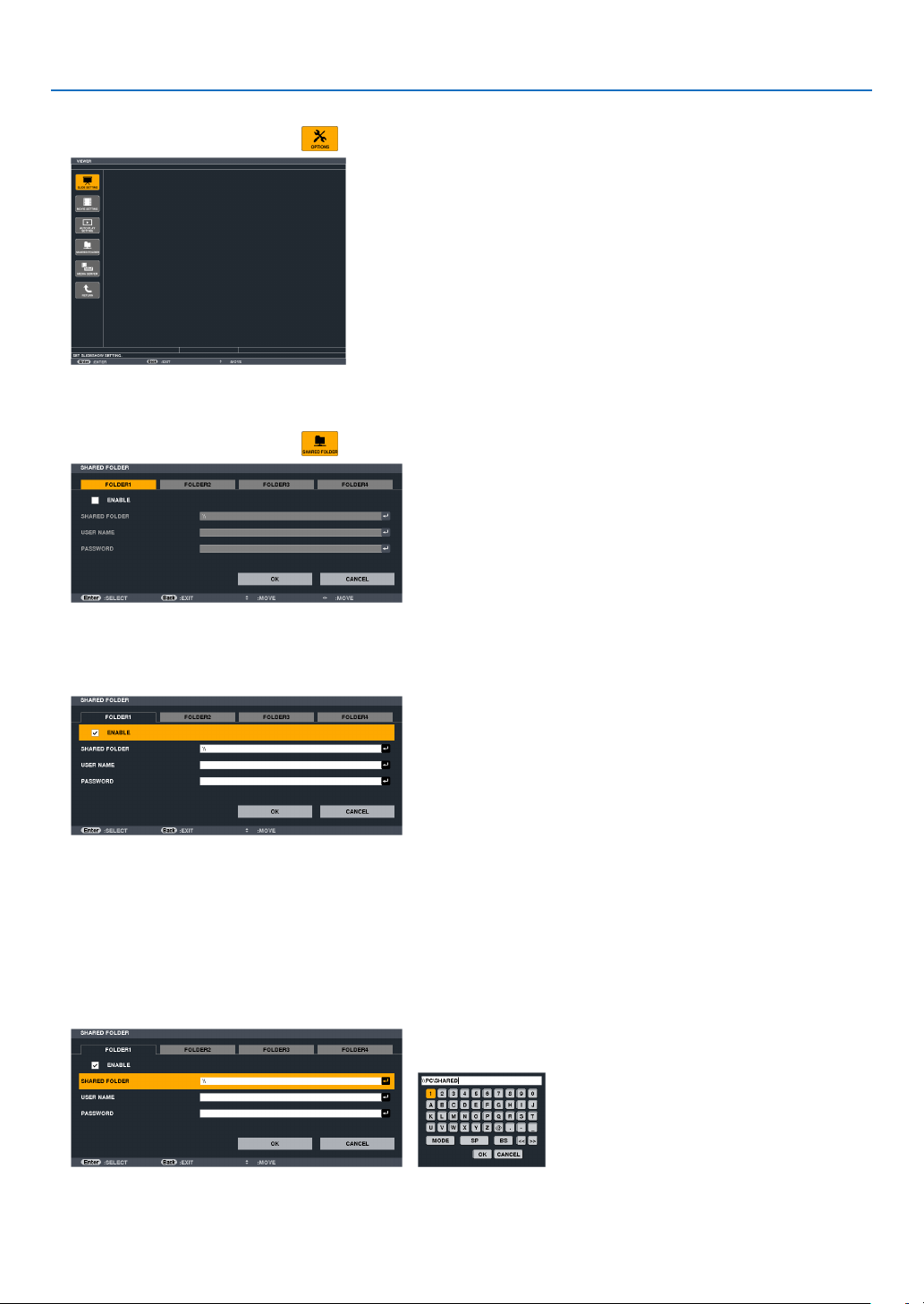

2. Displays the [OPTIONS] menu.
Press the button to select the
• When the OPTIONS menu is displayed, the drive list will not be displayed.
3. Display the [SHARED FOLDER] screen.
Press the button to select the
(OPTIONS) icon and press the Enter button.
(SHARED FOLDER) icon and press the Enter button.
4. Using the Viewer
4. Select a folder number and place to enable it.
Press the or button to a shared folder number and press the button to select [ENABLE], and then press
the Enter button.
5. Enter the path, user name, and password for the shared folder.
Press the button to select the [SHARED FOLDER] eld. The software keyboard will be displayed.
For using the software keyboard, see page 127.
• If your computer is not password protected, entering a password is not required.
• Up to four shared folders can be added.
• The maximum length of a path of the shared folder must be 15 alphanumeric characters for computer name
and 23 alphanumeric characters for folder name.
75
Page 90
6. Exit the setting.
Press the button to select [OK] and press the Enter button.
This will close the [SHARED FOLDER] screen.
• If an error message appear, your settings are not correct. Try again.
4. Using the Viewer
76
Page 91
4. Using the Viewer
Disconnecting the shared folder from the projector
• Disable the number of a shared folder you wish to disconnect
Press the button to select [ENABLE] and press the Enter button to clear it.
TIP:
• Connecting settings for Shared folder
Settings of up to four folders can be saved.
Restarting the projector will display setting-saved shared folders in grey folder icon on the drive list screen.
Selecting the grey icon folder will skip entry for a folder path.
• Failing to connect with a shared folder will display the folder icon with “x” mark. If this happen, check your folder setting.
77
Page 92
❺ Projecting data from media server
Media server
LAN
4. Using the Viewer
Media server
Media server
Preparation
For projector: Connect the projector to the network.
For computer: Prepare image les or movie les to be projected, and set up “Media Sharing” in Windows Media Player
11 or Windows Media Player 12.
NOTE:
• Both the projector and the media server must be on the same subnet. Connecting to the media server beyond the subnet is not
possible.
• Types of images and movies which can be shared may vary depending on Windows version.
Wireless LAN
Projector
Setting up “Media Sharing” in Windows Media Player 11
1. Start Windows Media Player 11.
2. Select “Media Sharing” from “Library”.
The “Media Sharing” dialog box will be displayed.
78
Page 93
3. Select “Share my media” check box, and then select OK.
A list of accessible devices will be displayed.
4. Select “X5371N/WX5361N” and then “Allow”.
A check mark will be added to the “X5371N/WX5361N” icon.
• The “X5371N/WX5361N” is a projector name specied in [NETWORK SETTINGS].
5. Select “OK”.
4. Using the Viewer
This will make pictures and video in “Library” available from the projector.
79
Page 94
Setting up “Media Sharing” in Windows Media Player 12
1. Start Windows Media Player 12.
2. Select “Stream”, and then select “Automatically allow devices to play my media”.
The “Allow All Media Devices” windows will be displayed.
3. Select “Automatically allow all computers and media devices”.
4. Using the Viewer
Graphics and movie les in “Library” can be used from the projector.
80
Page 95
4. Using the Viewer
Connecting the projector to the media server
Press the Viewer button on the remote control.
The VIEWER will start.
• Another way to start the VIEWER is to press the Input button a few times on the projector cabinet. (→ page 17)
• This will start searching for a computer with “media sharing” enabled in the network and add it to the “Media server”
of the thumbnail screen.
Another way to do this is to point the cursor to “Media server” and select [REFRESH] from the thumbnail menu
and press the Enter button.
NOTE:
• Up to four accessible media servers can be automatically searched and displayed. The fifth device or later cannot be displayed.
(→ page 63)
81
Page 96
Disconnecting the projector from the media server
1. Display the OPTIONS menu.
Press the button to select the [OPTIONS] icon and select the Enter button.
2. Display the MEDIA SERVER setting screen.
4. Using the Viewer
Press the button to select the MEDIA SERVER icon and press the Enter button.
3. Disable the connection.
Press the Enter button to clear the checkmark to disable the connection.
Press the button to select [OK] and press the Enter button to close the MEDIA SERVER setting screen.
82
Page 97
5. Using On-Screen Menu
❶ Using the Menus
NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected.
1. Press the Menu button on the remote control or the projector cabinet to display the menu.
NOTE: The commands such as Enter, Back, , in the bottom show available buttons for your operation.
2. Press the buttons on the remote control or the projector cabinet to display the submenu.
3. Press the Enter button on the remote control or the projector cabinet to highlight the top item or the rst
tab.
4. Use the buttons on the remote control or the projector cabinet to select the item you want to adjust or
set.
You can use the buttons on the remote control or the projector cabinet to select the tab you want.
5. Press the Enter button on the remote control or the projector cabinet to display the submenu window.
6. Adjust the level or turn the selected item on or off by using the buttons on the remote control or the
projector cabinet.
Changes are stored until adjusted again.
7. Repeat steps 2 -6 to adjust an additional item, or press the Back button on the remote control or the projec-
tor cabinet to quit the menu display.
NOTE: When a menu or message is displayed, several lines of information may be lost, depending on the signal or settings.
8. Press the Menu button to close the menu.
To return to the previous menu, press the Back button.
83
Page 98

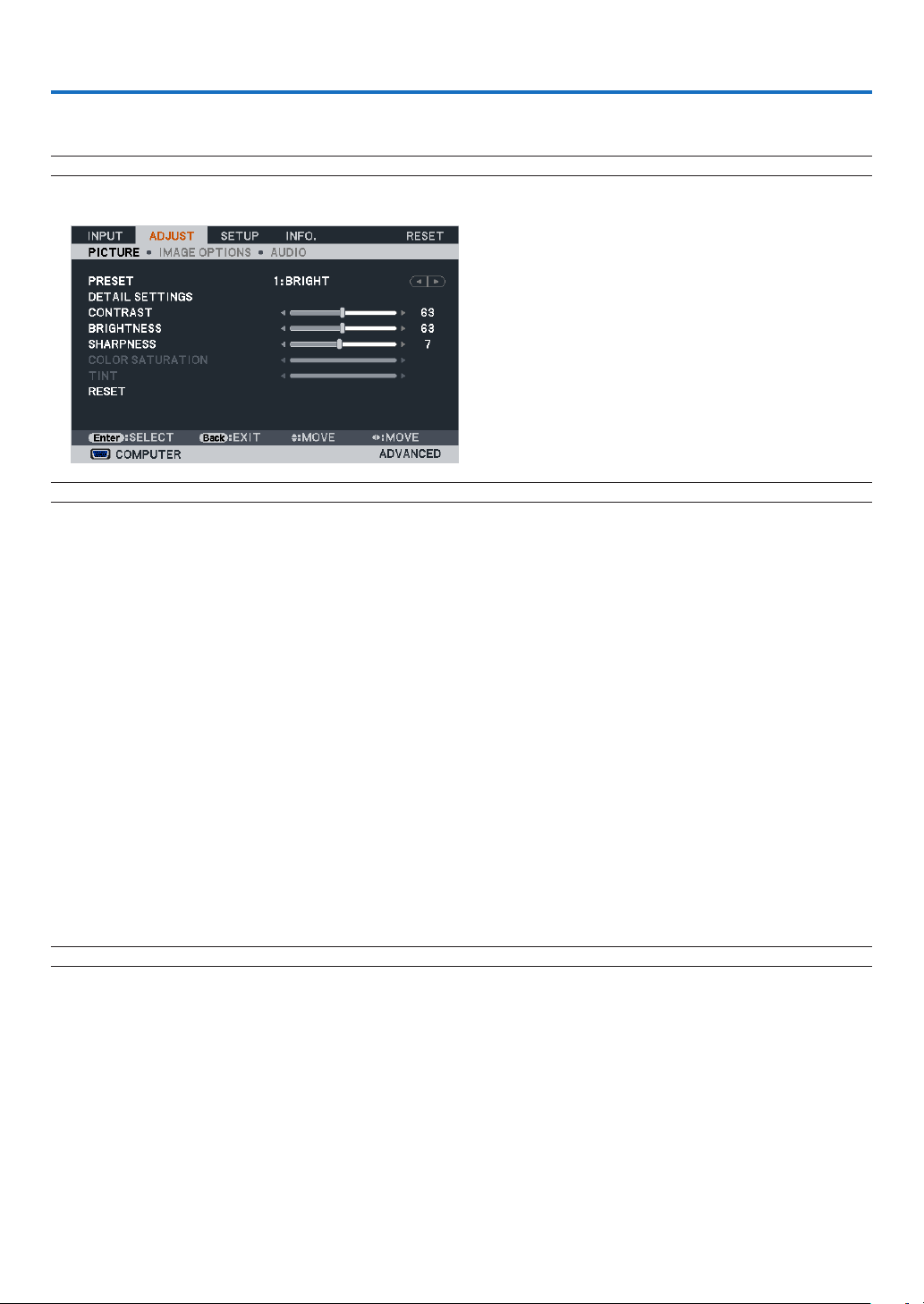

❷ Menu Elements
5. Using On-Screen Menu
Available buttons
Highlight
Source
Tab
Slide bar
Solid triangle
Radio button
Wireless symbol
ECO mode symbol
High Altitude symbol
Thermometer symbol
Key Lock symbol
Off Timer remaining
time
Menu windows or dialog boxes typically have the following elements:
Highlight ����������������������������� Indicates the selected menu or item�
Solid triangle ����������������������Indicates further choices are available� A highlighted triangle indicates the item is active�
Tab ��������������������������������������Indicates a group of features in a dialog box� Selecting on any tab brings its page to the front�
Radio button �����������������������Use this round button to select an option in a dialog box�
Source �������������������������������� Indicates the currently selected source�
Off Timer remaining time ����Indicates the remaining countdown time when the [OFF TIMER] is preset�
Slide bar �����������������������������Indicates settings or the direction of adjustment�
ECO mode symbol �������������� Indicates LAMP POWER is set�
Key Lock symbol ����������������Indicates the [CONTROL PANEL LOCK] is enabled�
Thermometer symbol ���������Indicates the [LAMP POWER] is forcibly set to [ECO1] mode because the internal temperature is
too high�
High Altitude symbol ����������Indicates the [FAN MODE] is set to [HIGH ALTITUDE] mode�
Wireless symbol ����������������� Indicate the wireless LAN connection is enabled�
84
Page 99
5. Using On-Screen Menu
❸ List of Menu Items
Basic menu items are indicated by shaded
area�
Some menu items are not available depending on the input source.
Menu Item Default Options
INPUT
ADJUST
SETUP GENERAL
COMPUTER *
HDMI1 *
HDMI2 *
VIDEO *
S-VIDEO *
VIEWER *
NETWORK *
USB DISPLAY *
OPTIONS
AUDIO VOLUME 11
PRESET * 1–7
DETAIL
SETTINGS
CONTRAST 63
BRIGHTNESS 63
SHARPNESS 7
COLOR SATURATION 31
TINT 31
RESET
FREQUENCY *
PHASE *
H-POSITION *
V-POSITION *
OVERSCAN * NORMAL, 0[%], 5[%], 10[%]
ASPECT
DETAILED SIGNAL SETTINGS (Not
available on RICOH PJ WX5361N)
KEYSTONE 0
WALL COLOR MODE OFF
LAMP POWER AUTO ECO STND., AUTO ECO, ECO1, ECO2
CLOSED CAPTION OFF OFF, CC-1, CC-2, CC-3, CC-4, T-1, T-2, T-3, T-4
OFF TIMER OFF OFF, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00
LANGUAGE ENGLISH
GENERAL
REFERENCE *
GAMMA
CORRECTION*
SCREEN SIZE*
COLOR
TEMPERATURE
DYNAMIC
CONTRAST
IMAGE MODE * STILL, MOVIE
COLOR
ENHANCEMENT
WHITE BALANCE
CONTRAST R 0
CONTRAST G 0
CONTRAST B 0
BRIGHTNESS R *
BRIGHTNESS G *
BRIGHTNESS B *
1
2
BRIGHT, PRESENTATION, VIDEO, MOVIE, GRAPHIC,
sRGB, DICOM SIM. MODE
DYNAMIC, NATURAL, BLACK DETAIL
* LARGE, MEDIUM, SMALL
* 5000, 6500, 7800, 8500, 9300, 10500
* OFF, ON
* OFF, ON
3
3
3
*
*
0
RICOH PJ X5371N: NORMAL, 4:3, 16:9, 15:9, 16:10, WIDE
ZOOM, NATIVE
RICOH PJ WX5361N: NORMAL, 4:3, 16:9, 15:9, 16:10,
LETTERBOX, NATIVE
KEYSTONE HORIZONTAL, KEYSTONE VERTICAL,
PINCUSHION LEFT/RIGHT, PINCUSHION TOP/BOTTOM,
CORNERSTONE, RESET
OFF, WHITEBOARD, BLACKBOARD, GRAY, LIGHT YELLOW,
LIGHT GREEN, LIGHT BLUE, SKYBLUE, LIGHT ROSE,
PINK
ENGLISH, 日本語, ESPAÑOL, РУССКИЙ, FRANÇAIS,
PORTUGUÊS, DEUTSCH, ITALIANO, NEDERLANDS,
POLSKI,
ČEŠTINA, SVENSKA, SUOMI, MAGYAR, NORSK,
DANSK, 中文（简体字）,
, 한국어
* The asterisk (*) indicates that the default setting varies depending on the signal.
*1 The [GAMMA CORRECTION] item is available when an item other than [DICOM SIM. MODE] is selected for [REFERENCE].
*2 The [SCREEN SIZE] item is available when [DICOM SIM. MODE] is selected for [REFERENCE].
*3 The default setting varies depending on the setting of [REFERENCE].
85
Page 100
5. Using On-Screen Menu
Menu Item Default Options
MENU
INSTALLATION
SETUP
OPTIONS(1)
OPTIONS(2)
COLOR SELECT COLOR COLOR, MONOCHROME
SOURCE DISPLAY ON OFF, ON
ID DISPLAY ON OFF, ON
ECO MESSAGE OFF OFF, ON
DISPLAY TIME AUTO 45 SEC MANUAL, AUTO 5 SEC, AUTO 15 SEC, AUTO 45 SEC
BACKGROUND ON NOSIGNAL BLUE BLUE, NONE, LOGO
FILTER MESSAGE OFF OFF, 100[H], 500[H], 1000[H], 2000[H]
PROJECTION MODE STANDARD STANDARD, REAR CEILING, REAR, CEILING
CONTROL PANEL LOCK OFF OFF, ON
SECURITY OFF OFF, ON
COMMUNICATION SPEED 9600bps 4800bps, 9600bps, 19200bps, 38400bps
REMOTE SENSOR FRONT/BACK FRONT/BACK, FRONT, BACK
CONTROL ID
TEST PATTERN
MIC GAIN 2 0, 1, 2, 3
NETWORK SETTINGS
AUTO SET SIGNALS NORMAL OFF, NORMAL, FINE
FAN MODE AUTO AUTO, HIGH, HIGH ALTITUDE
SIGNAL SELECT
WXGA MODE
DEINTERLACE ON OFF, ON
HDMI
SETTINGS
AUDIO
SELECT
BEEP ON OFF, ON
TOOLS
STANDBY MODE POWER-SAVING NORMAL, POWER-SAVING, NETWORK STANDBY
POWER ON METHOD MANUAL MANUAL, AUTO.
AUTO POWER ON(COMP.) OFF OFF, ON
POWER OFF ON NO SIGNAL 20 MIN. OFF, 5 MIN., 10 MIN., 20 MIN., 30 MIN., 60 MIN.
DEFAULT SOURCE SELECT LAST
CARBON CONVERT
CURRENCY $, €, JP¥, RMB¥
CURRENCY CONVERT
CONTROL ID
NUMBER
CONTROL ID OFF OFF, ON
COMPUTER
VIDEO AUTO
S-VIDEO AUTO
RGB INPUT
HDMI1
RANGE
RGB INPUT
HDMI2
RANGE
HDMI1
HDMI2
NETWORK
USB DISPLAY
1 1–254
RGB/
COMPONENT
RICOH PJ
X5371N: OFF
RICOH PJ
WX5361N: ON
AUTO. AUTO., FULL, STANDARD
AUTO. AUTO., FULL, STANDARD
HDMI1 HDMI1, COMPUTER
HDMI2 HDMI2, COMPUTER
NETWORK NETWORK, COMPUTER
USB DISPLAY USB DISPLAY, COMPUTER
RGB/COMPONENT, RGB, COMPONENT
AUTO, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60,
SECAM
AUTO, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60,
SECAM
OFF, ON
LAST, AUTO, COMPUTER, HDMI1, HDMI2, VIDEO,
S-VIDEO, VIEWER, NETWORK, USB DISPLAY
* The asterisk (*) indicates that the default setting varies depending on the signal.
86
