Ricoh PJ WX3131, PJ X3131, PJ X3241 User Manual

PJ X3131 PJ WX3131 PJ X3241 DATA PROJECTOR

OWNER’S MANUAL

PreparationsOperationsMaintenanceOthers Before Using

For safe and correct use, be sure to read “Before Using” before using the machine. In the spaces provided below, record the Model and Serial No. located at the bottom of your projector. Model No. Serial No. Retain this information for future reference.

Before Using

SAFETY PRECAUTIONS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to aler t the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

USA only

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.

MODEL NAME: PJ X3131 / PJ WX3131 / PJ X3241

TRADE NAME: DATA PROJECTOR MODEL NAME: PJ X3131 / PJ WX3131 / PJ X3241

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

FCC NOTICE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against har mful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

USA only

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the sales representative or an experienced radio/TV technician for help.

RESPONSIBLE PARTY: Ricoh Americas Corporation

5 Dedrick Place, West Caldwell, NJ 07006 Phone: 973-882-2000

Before Using

CAUTION:

USA only

Notice:

CANADA only

Changes or modiﬁcations made to this equipment, not expressly approved by Ricoh, or parties authorized by Ricoh, could void the user’s authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND

INSTRUCTIONS GIVEN IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This unit is fully transistorized and does not contain any parts that can be repaired by the user.

WARNING: DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE

EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read Owner’s Manual

After unpacking this product, read the owner’s manual carefully, and follow all the operating and other instructions.

2. Power Sources

This product should be operated only from the type of power source which does not exceed the voltage range speciﬁed on the rating label and the power cord. If you are not sure of the type of power supply to your home, consult your sales representative or local power company.

3. Source of Light

Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyesight.

4. Ventilation

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. Never block an opening by placing the product on a bed, sofa, rug or other similar surface. Do not place it in a built-in installation such as a bookcase or rack, unless proper ventilation is provided.

5. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including ampliﬁers) that produce heat.

6. Water and Moisture

Do not use this product near water.

- for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and the like.

7. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Always use a soft cloth for cleaning.

8. Be sure that you ﬁrmly insert the plug into the wall outlet.

Incorrect or faulty connections may result in ﬁre or electric shock. Avoid using an unsound or loose outlet.

Before Using

9. Power Cord Protection

Power cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

10. Overloading

Do not overload wall outlets. To reduce the risk of electric shock, do not use the polarized plug with an extension cord , receptacle, or other outlet unless the blades can be inserted completely with threewire grounding type to prevent blade exposure. Failure to follow these instructions may result in ﬁre or electric shock.

IMPORTANT SAFETY INSTRUCTIONS (Continued)

11. Lightning storms

For added protection for this product during a storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges. Never operate this unit on AC power during a thunderstorm. If you see lightning or hear thunder, never touch the unit, cables and/or peripherals. An electric surge caused by the storm, may result in an electrical shock or damage to the unit.

12. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. Never spill liquid of any kind on the product.

13. Do not place or keep the projector within the reach of the children.

It may fall or tip over, possibly causing serious injury.

14. Do not place the product vertically

Do not use the product in the upright position or any other vertical positions to project the pictures. It may fall which could result in serious injury and/or damage to the product.

15. Stack Inhibited

Do not stack other equipment on this product and do not place this product on other equipment. The top and bottom surface of this product increase in temperature during normal use and may damage the other unit.

16. Attachments

S3125A

Do not use attachments not recommended by the product manufacturer. Use of an incompatible attachments could cause hazards or damage to the product.

17. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

18. Damage Requiring Service

Unplug this product from the wall outlet and take the product to qualiﬁed service personnel if you encounter any of the following conditions:

a) The power supply cord or plug is

damaged.

b) Liquid has been spilled, or objects

have fallen into the product.

c) The product has been exposed to

rain or water.

d) The product does not operate

normally when following the operating instructions. Adjust only those controls that are covered by the operating instructions since an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to restore the product to its normal operation.

e) The product has been dropped or

damaged in any way (If the cabinet should break, please handle with care to avoid injury) .

f) The product exhibits a distinct

change in performance, which indicates a need for service.

Before Using

IMPORTANT SAFETY INSTRUCTIONS (Continued)

19. If glass components, including lens and lamp, should break, contact your sales representative for repair service.

This product incorporates glass components, including a lens and a lamp. If these should break, please handle with care to avoid injury and contact your sales representative for repair service. Avoid any broken pieces of glass since they may cause injury. In the unlikely event that the lamp ruptures, thoroughly clean the area around the projector and discard any edible items placed in that area since they may be contaminated.

20. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualiﬁed service personnel.

21. Do not place anything in front of the lens while the projector is operating

Things placed in front of the lens may overheat and burn or start a ﬁre. If you want to temporarily stop the projected image, use the mute on the remote control.

22. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts speciﬁed by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in ﬁre, electric shock, or other hazards. (Only the replacement of the lamp should be made by users.)

23. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to verify that the product is in proper operating condition.

24. Do not leave thermalpaper documents or easily deformed items on top of the unit or near the air exhaust for long periods of time.

The heat from the unit could erase the information on the thermal paper, or cause deformation or warping.

25. Do not use the product in a closed installation location.

Do not place the product in a box or in any other closed installation location. Otherwise it may overheat, which could result in a risk of ﬁre.

POWER SUPPLY INFORMATION

Plug configuration

Plug type

Australian 240 V 10 A

North American 240 V 15 A

Switzerland 240 V 6 A

Line voltage

EURO

220 – 240 V

200 – 240 V

Plug configuration

Plug type Line voltage

Use a 5 A fuse which is approved by ASTA or BSI to BSI362. Always replace the fuse cover after changing the fuse.

p.41

If your line voltage is 220 to 240 V, use one of the following types of cable/plug.

IMPORTANT PRECAUTIONS

Moisture Condensation

Never operate this unit immediately after moving it from a cold location to a warm location. When the unit is exposed to such a change in temperature, moisture may condense on the lens and the crucial internal parts. Do not use the unit for at least 2 hours when there is an extreme or sudden change in temperature to prevent the unit from possible damage.

Place and Manner of Installation

Do not place in hot locations, such as near heating equipment. Doing so could cause

• malfunction, and shorten the life of the projector. Avoid locations with oil or cigarette smoke. Doing so will dirty the optical parts, shortening

• their lives, and darkening the screen. Do not use this product in the upright position or tilt it up or down by more than 20° from

• level. Doing so may cause a failure or shorten the life of the product. Using this instrument near a TV or radio may cause interference to the images or audio

• sound. If this happens, move it away from the TV or radio. Moving the projector from a low-temperature room to a high-temperature room may cause

• condensation on the lens or internal parts. If you continue to use it in that situation, it may malfunction. Wait until the condensation naturally disappears. In a high altitude location where air is thin, cooling efﬁciency is reduced so use the

• projector with [Fan mode] set to [High]. Only plug the power cord into outlets rated for use with the power cord’s speciﬁed voltage range.

• Do not overload extension cords or power strips as this can result in ﬁre or electric shock. Route the power cable or the connecting cable away from where people could trip over it.

• The projector may fall down, which could result in severe injury. Be sure the power cord is easily reached for unplugging in case of emergency. Do not

• place any obstacles near a wall outlet in which the cord is plugged.

Before Using

Avoid Volatile Liquid

Do not use volatile liquids, such as an insect spray, near the unit. Do not leave rubber or plastic products touching the unit for a long time as they will leave marks on the ﬁnish. Do not use a chemically saturated cloth.

IMPORTANT PRECAUTIONS (Continued)

LCD Panel

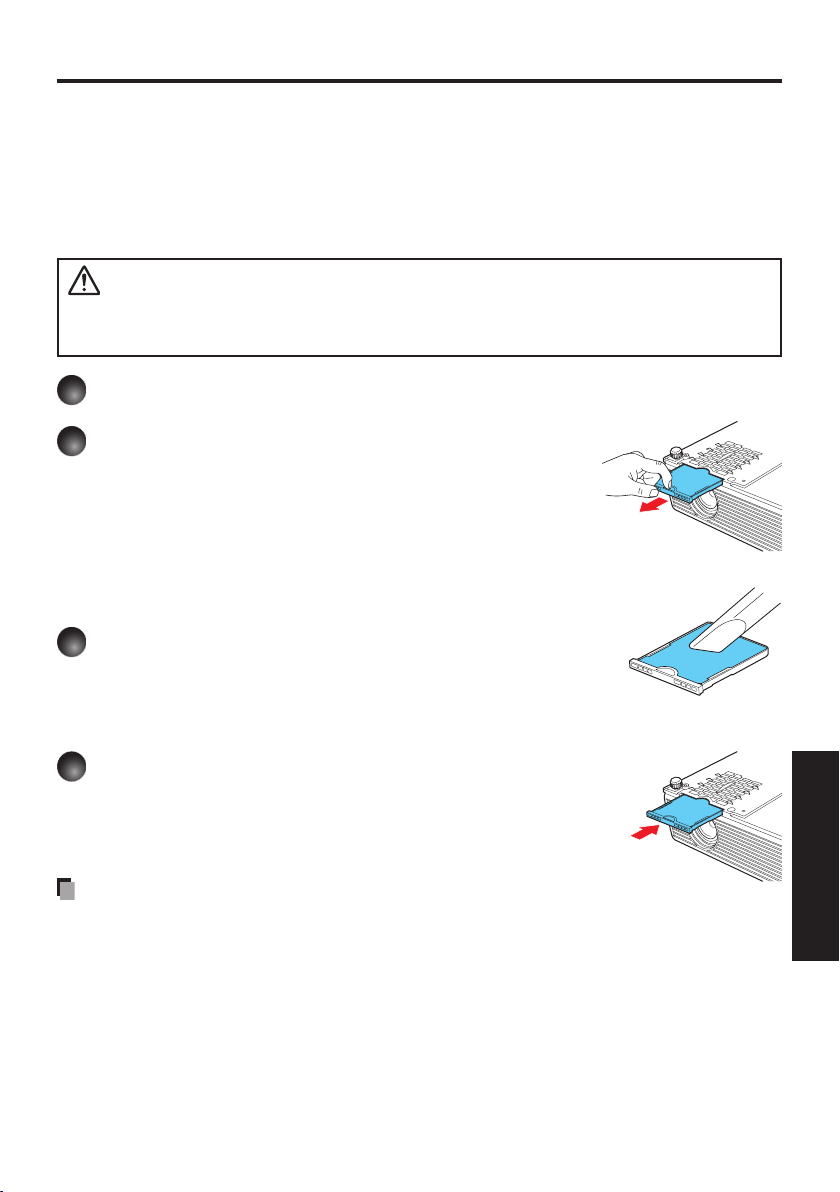

If the air ﬁlter is stained and is clogged up, the main unit inner temperature rises. As a

• result, the life of the LCD is shortened and a malfunction may also occur. Clean the air ﬁlter from time to time and replace it regularly. It is recommended that this replacement be done at the time of replacing a lamp. (Ask your sales representative where the unit was purchased or your nearby service station about an air ﬁlter for replacement.)

EXEMPTION CLAUSES

Ricoh Corporation bears no responsibility in the case of damages arising from natural

• disaster such as earthquakes, lightning, etc., ﬁre not liable to Ricoh Corporation, acts by third parties, other accidents, or use under abnormal conditions including erroneous or improper operation and other problems. Ricoh Corporation bears no responsibility for incidental damages (lost proﬁt, work

• interruption, corruption or loss of the memory contents, etc.) arising from the use of or the inability to use this unit. Ricoh Corporation accepts no liability whatsoever for any damages arising from not

• having followed the descriptions in this Owner’s Manual. Ricoh Corporation accepts no liability whatsoever for any damages arising from

• malfunctions arising from combination with equipment or software that is not related to Ricoh Corporation.

OTHER INFORMATION

Copyrights

Showing or transmitting commercial imaging software or broadcast or cable-broad casting programs with the purpose of other than the personal and private viewing, including modifying images using the freeze or resize functions, or displaying with the varying aspect ratio of the images, could violate the direct or indirect copyrights of the imaging software or broadcast program, etc., if done without ﬁrst consulting with the copyright holder. For this reason, please take appropriate measures before performing one of the actions listed above, including obtaining a license from the copyright holder.

Disposal

This product contains substances which are harmful to humans and the environment.

The lamp contains mercury.

• Please dispose of this product or used lamps in accordance with local regulations.

Following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofﬁce, your household waste disposal service or the shop where you purchased the product.

OTHER INFORMATION (Continued)

p.36

Trademarks

VGA, SVGA, XGA, SXGA, UXGA, WXGA are trademarks or registered trademarks of

• International Business Machines Corporation. Mac is a registered trademark of Apple Computer, Inc.

• Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries.

• Adobe and Acrobat Reader are registered trademarks of Adobe Systems Incorporated.

• All other brand and product names are trademarks or registered trademarks of their

• respective companies.

Notational Conventions Used in This Manual

References to pages with related information are annotated as follows.

• For example, if making a reference to page 36: The illustrations in this document are for reference purposes only and may not reﬂect

• your package exactly. Illustrations in this manual show the PJ X3131/WX3131models. The shape of the PJ

• X3241model differs slightly.

REMOTE CONTROL BATTERIES

Warning

Never throw batteries into a ﬁre.

•

Using the batteries improperly may cause them to explode or leak and may result in serious injury. If battery-leaking ﬂuid contacts skin, wash the ﬂuid off immediately with clean water and consult a doctor. If the ﬂuid spills on an instrument, avoid contact and wipe it off using tissue paper. Then dispose of the used tissue paper as ﬂammable garbage after moistening with water.

Before Using

Notes

Be sure to use AAA (R03) size batteries.

• Dispose of batteries in a designated disposal area.

• Attention should be drawn to the environmental aspects of battery disposal.

• Do not mix different battery types or combine used batteries with new ones.

• If the remote control does not operate correctly, or if the operating range becomes

• reduced, replace both batteries with new ones. If the batteries are dead or if you will not be using the remote control for a long time,

• remove the batteries to prevent battery acid from leaking into the battery compartment.

Following information is only for EU-member states:

• [Disposal of batteries and/or accumulators] The crossed out wheeled dust bin symbol indicates that batteries and/or

accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the speciﬁed values of lead (Pb), mercury (Hg), and/or cadmium (Cd) deﬁned in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city ofﬁce or the shop where you purchased the product.

Before Using

SAFETY PRECAUTIONS .............................................................................2

IMPORTANT SAFETY INSTRUCTIONS ....................................................... 4

POWER SUPPLY INFORMATION ................................................................9

IMPORTANT PRECAUTIONS ....................................................................... 9

EXEMPTION CLAUSES .............................................................................10

OTHER INFORMATION .............................................................................. 10

REMOTE CONTROL BATTERIES ..............................................................11

CONTENTS ................................................................................................ 12

Preparations

Checking the package contents ..................................................................14

Names of each part on the main unit ..........................................................15

Names of each part on the control panel and remote control .....................16

Names of the terminals on the rear panel ................................................... 18

Preparing and using the remote control ......................................................19

Placement ...................................................................................................20

Connection ..................................................................................................23

Operations

Turning the power on and off .......................................................................24

Basic operations ..........................................................................................26

Using handy features ..................................................................................29

Using auto setting (For computer input only) ........................................... 29

Correcting the keystone distortion ...........................................................29

Resizing image ........................................................................................30

Cutting off the picture and sound temporarily (Mute) ...............................31

Changing picture mode ............................................................................31

Changing screen size ..............................................................................31

Freezing the image (Freeze) .................................................................... 32

Setting the password ...............................................................................32

Using the menus .........................................................................................34

Setup using the Setting display ................................................................ 34

The image adjustment menu ...................................................................35

The display setting menu ......................................................................... 37

The Default setting menu .........................................................................40

Displaying Information (Status display) .................................................... 42

Maintenance

Lamp replacement ...................................................................................... 44

Air ﬁlter cleaning ..........................................................................................47

Lens and main unit cleaning ....................................................................... 48

Others

Trouble indications ....................................................................................... 49

Troubleshooting ........................................................................................... 50

Speciﬁcations ..............................................................................................52

Before Using

Preparations

Checking the package contents

Please make sure that the following items are included in the box, along with the main unit. If any item is missing, immediately contact the store where you purchased the product.

(1) (4) (7)

(2) (5)

(3) (6)

(1) Remote control



(2) R03 (SIZE AAA) batteries for remote control (2)



(3) CD-ROM



(4)

Owner’s Manual



Notes

1: To maintain original performance, always use the supplied cables. 2: The shape and number of supplied power cords vary depending on the product destination.

(5)

RGB cable (3 m)



(6)

Power cord



(7)

Carrying bag



[Note 1]

[Note 1, 2]

Save Original Packing Materials

The original shipping carton and packing materials will come in handy if you ever have to ship your projector. For maximum protection when shipping your projector, repack the set as it was originally packed at the factory.

The Supplied CD-ROM



The supplied CD-ROM contains an owner’s manual including information not available for the printed Owner’s manual (Getting started) in Portable Document Format (PDF). Please

use Acrobat Reader 5 or later version to view the manual.

Adobe® Acrobat® Reader® or Adobe® Reader





The supplied CD-ROM does not contain Acrobat® Reader®. If you cannot read PDF ﬁles, please install Acrobat Reader software in your computer by downloading it from the Adobe Systems website.

Viewing the manual





Double-click the PDF ﬁle in the folder with the name of a language on the CD-ROM. Acrobat® Reader® launches, and the Owner’s Manual cover and list of bookmarks appear. Click on a bookmark title to view that section of the manual. Click on p. to view a reference page with related information. See the Help menu for more information about Acrobat® Reader®.

Names of each part on the main unit

(16)(15) (15)(14) (14)(13)(10)(11) (12)

(9)(5)(4) (8)

(7)(6)(1)

(3)

(2)

p.16

p.27

p.44

p.19

p.18

p.27

p.47

Back Front

Name : Function (1) Control panel : (2) Zooming lever : (3) Focusing lever : (4) Lamp cover : (5) Air exhaust : Expels air that has grown hot inside the projector. (6) Air intake : Draws in air from outside the projector for internal cool

(7) Lens cap :

(8) Lens : Projects expanded image. (9) Infrared remote sensor : (10) AC IN socket : Connects the supplied power cord here. (11)

Terminals on the rear panel (12) Speaker : Outputs audio sound. (13) Antitheft lock slot : Attach a safety cable or any other antitheft device. (14)

Foot adjuster release button (15) Foot adjuster : (16) Air ﬁlter : Prevents dirt and dust from getting into the inside of the

Operates the projector. Adjusts screen size. Adjusts screen focus. Remove to replace lamp.

down. Replace the cap when not using the projector to protect the lens.

Senses commands from the remote control.

Connects external devices.

Press to set up or stow the foot adjuster. Adjusts the vertical projection angle.

projector.

Preparations

Names of each part on the control panel and remote control

(1)

(8)

(3) (2) (4)

(6) (5) (7)

(7)

(9)

(8)

(10)

(11)

(12)

(13)

(1)

(2)

(3)

(4)

(6)

(5)

Battery cover

p.26

p.34

p.31

p.25

p.49

p.25

p.32

p.34

Remote ControlControl panel

Name : Main Function

Control panel

(1) ENTER button : Accepts the selected mode.

INPUT button :

(2) (3) MENU button : (4) RETURN/MUTE button : Goes back one screen. Also, cuts off the picture and

(5) ON/STANDBY button/ :

(6) TEMP indicator : (7) LAMP indicator : (8) Selection button :

ON/STANDBY indicator :

Remote control

(1) ON/STANDBY button : (2) FREEZE button : (3) MENU button :

Selects input. Displays menus.

sound temporarily. Turns the power on/off (standby). Displays whether power is on or off (standby). Lights when internal temperature is too high. Displays lamp mode. Menu selections and adjustments, volume control,

Keystone adjustment, etc.

Turns the power on/off (standby). Pauses image. Displays menus.

Name : Main Function

p.30

p.31

p.29

p.26

p.31

(4) ENTER button : Accepts the selected mode. (5) RESIZE button : Enlarges image. (6) SCREEN SIZE button : Changes screen size. (7) MUTE button : (8) AUTO SET button : (9) INPUT button :

RETURN button

(10) (11) Selection button :

Cuts off the picture and sound temporarily. Performs auto-adjustment of input signals from computer. Selects input.

: Goes back one screen.

Menu selections and adjustments, volume control,

Keystone adjustment, etc. (12) PICTURE button : Changes image mode. (13) Ten-Key button : Use when entering password.

Remote

control

button

Input items

Remote

control

[1]

[2]

[3]

[4]

[5] Deletes one character.

[6]

button

Note

For the remainder of this manual, buttons are referred to as follows:

• Selection buttons ⇒ ; ENTER button ⇒

Input items

[7]

[8]

[9]

[0]

Preparations

Names of the terminals on the rear panel

(5)

(4)(3)(1) (2)

(8)

(7)(6)

(9)

p.55

Name : Main Function

(1)

AUDIO IN terminal

S-VIDEO terminal : Input S video signals from video equipment.

(2) (3) COMPUTER 1 IN (Y/PB/PR 1) terminal

(4) COMPUTER 2 IN (Y/PB/PR 2) terminal/MONITOR OUT terminal

(5) Switch : (6) AC IN socket : Connects the supplied power cord here. (7) AUDIO OUT terminal : Outputs audio signals. (8) VIDEO terminal : Input video signals from video equipment. (9) CONTROL terminal : When operating the projector via a computer, connect this

: Input audio signals from a computer or video equipment.

(Multiple use for COMPUTER 1 IN/2 IN, VIDEO and S-VIDEO)

: Input analog RGB signal from a computer, or a

component video signal (Y/PB/PR) from video equipment.

Inputs analog RGB signal from a computer or a component video signal ( equipment. It can also be used as MONITOR OUT terminal by the switch of (5).

Switches between COMPUTER 2 IN and MONITOR OUT.

to the controlling computer’s RS-232C port.

Y/PB/PR) from video

Approx.15°

Appr

Preparing and using the remote control

Loading dry-cell batteries



into the remote control

Remove the battery cover.

Insert the dry-cell batteries.

Be sure to align the plus and minus ends of the batteries properly.

Two batteries (R03, SIZE AAA) are used.

Replace the battery cover.

Operating the remote



control

Point toward the projector’s infrared remote sensor, and press any button on the remote control.

Operating the projector from the front

•

When operating the remote control from behind the projector, the infrared signal is reﬂected on the projecting surface and may travel a shorter distance to reach the projector depending on the shape and material of the projecting surface.

Preparations

Dry-cell batteries

Before using the batteries, be sure to observe the Safety Precautions described in

• previous pages. Remove batteries from remote control when not using for extended periods.

• If the remote control stops working, or if its range decreases, replace all the batteries

• with new ones. (2 batteries (R03, SIZE AAA)) Keep the batteries away from the reach of children.

• Batteries are choking hazards and can be very dangerous if swallowed. If the batteries are swallowed, seek medical assistance immediately.

The remote control

The remote control may fail to operate if the infrared remote sensor is exposed to bright

• sunlight or ﬂuorescent lighting. Do not drop or bang.

• Do not leave in hot or humid locations.

• Do not allow it to get wet or place it on top of wet objects.

• Do not take apart.

• In rare cases, ambient conditions could impede the operation of the remote control. If

• this happens, point the remote control at the main unit again, and repeat the operation.

p.41

Placement

Placement Styles

As shown in the ﬁgures below, this device can be placed in 4 different styles. The factory setting is “ﬂoor-mounted front projection.” Set the [Projection mode] in the

Default setting 2 menu

Floor-mounted front projection

Floor-mounted rear projection

Ceiling-mounted front projection

, in accordance with your needs.

Ceiling-mounted rear projection

WARNING

Always obey the instructions listed in IMPORTANT SAFETY INSTRUCTIONS

• when placing the unit. Attempting to clean and replace the lamp in a high location by yourself may cause you to fall, resulting in injury.

If you wish to mount the projector on the ceiling, be sure to ask your sales

• representative before doing so. Mounting the projector on a ceiling requires special ceiling brackets (sold separately) and specialized knowledge. Improper mounting could cause the projector to fall, possibly resulting in injury and damage, to the unit.

If the projector is ceiling-mounted, install the breaker for turning off the power in

• case of anomaly. Let everyone involved with the use of the projector know that fact.

90°

Projection Distance and Size

90°

Use the ﬁgures, tables, and formulas below to determine the projection size and projection distance. (Projection sizes are approximate values for full-size picture with no keystone adjustment.)

PJ X3131

Screen

As seen from above

As seen from the side

Lens center

a is the distance (m, feet) between the lens and the screen, and corresponds to a range of 0.89 m (2.92 ft.) to 10.93 m (35.86 ft.). H is the height from the image bottom to the center of the lens.

PJ WX3131

Screen

As seen from above

As seen from the side

Lens center

a is the distance (m, feet) between the lens and the screen, and corresponds to a range of 0.94 m (3.08 ft.) to11.58 m (37.99 ft.). The lens center is in the same level with an image bottom.

a (min length) =

32.885

a (max length) =

27.397

Projection

size

30 inches 0.89 m (2.92 ft.) 1.07 m (3.51 ft.) 6.50 cm (0.21 ft.) 40 inches 1.19 m (3.90 ft.) 1.44 m (4.72 ft.) 8.70 cm (0.29 ft.) 50 inches 1.50 m (4.92 ft.) 1.80 m (5.91 ft.) 10.90 cm (0.36 ft.) 60 inches 1.80 m (5.91 ft.) 2.17 m (7.12 ft.) 13.10 cm (0.43 ft.) 70 inches 2.10 m (6.89 ft.) 2.53 m (8.30 ft.) 15.20 cm (0.50 ft.) 80 inches 2.41 m (7.91 ft.) 2.90 m (9.51 ft.) 17.40 cm (0.57 ft.)

90 inches 2.71 m (8.89 ft.) 3.26 m (10.70 ft.) 19.60 cm (0.64 ft.) 100 inches 3.02 m (9.91 ft.) 3.63 m (11.91 ft.) 21.80 cm (0.72 ft.) 120 inches 3.63 m (11.91 ft.) 4.36 m (14.30 ft.) 26.10 cm (0.86 ft.) 150 inches 4.54 m (14.90 ft.) 5.45 m (17.88 ft.) 32.70 cm (1.07 ft.) 200 inches 6.06 m (19.88 ft.) 7.28 m (23.88 ft.) 43.50 cm (1.43 ft.) 250 inches 7.58 m (24.87 ft.) 9.10 m (29.86 ft.) 54.40 cm (1.78 ft.) 300 inches 9.10 m (29.86 ft.) 10.93 m (35.86 ft.) 65.30 cm (2.14 ft.)

a (min length) =

31.022

a (max length) =

25.845

Projection

size

30 inches 0.94 m (3.08 ft.) 1.14 m (3.74 ft.)

40 inches 1.27 m (4.17 ft.) 1.52 m (4.99 ft.)

50 inches 1.59 m (5.22 ft.) 1.91 m (6.27 ft.)

60 inches 1.91 m (6.27 ft.) 2.30 m (7.55 ft.)

70 inches 2.23 m (7.32 ft.) 2.68 m (8.79 ft.)

80 inches 2.55 m (8.37 ft.) 3.07 m (10.07 ft.)

90 inches 2.88 m (9.45 ft.) 3.46 m (11.35 ft.) 100 inches 3.20 m (10.50 ft.) 3.84 m (12.60 ft.) 120 inches 3.84 m (12.60 ft.) 4.62 m (15.16 ft.) 150 inches 4.81 m (15.78 ft.) 5.78 m (18.96 ft.) 200 inches 6.42 m (21.06 ft.) 7.71 m (25.30 ft.) 250 inches 8.03 m (26.35 ft.) 9.65 m (31.66 ft.) 300 inches 9.65 m (31.66 ft.) 11.58 m (37.99 ft.)

Projection size (inches) - 0.795

Projection size (inches) - 0.673

Projection distance a

min length

(zooming max)

Projection size (inches) - 0.758

Projection size (inches) - 0.643

Projection distance a

min length

(zooming max)

max length

(zooming min)

max length

(zooming min)

Height (H)

Preparations

Placement (Continued)

90°

PJ X3241

a (min length) =

32.863

Screen

As seen from above

As seen from the side

Lens center

a is the distance (m, feet) between the lens and the screen, and corresponds to a range of 0.89 m (2.92 ft.) to 10.94 m (35.89 ft.).

H is the height from the image bottom to the center of the lens.

a (max length) =

27.363

Projection

size

30 inches 0.89 m (2.92 ft.) 1.07 m (3.51 ft.) 6.50 cm (0.21 ft.) 40 inches 1.19 m (3.90 ft.) 1.44 m (4.72 ft.) 8.70 cm (0.29 ft.) 50 inches 1.49 m (4.89 ft.) 1.80 m (5.91 ft.) 10.90 cm (0.36 ft.) 60 inches 1.80 m (5.91 ft.) 2.17 m (7.12 ft.) 13.10 cm (0.43 ft.) 70 inches 2.10 m (6.89 ft.) 2.53 m (8.30 ft.) 15.20 cm (0.50 ft.) 80 inches 2.41 m (7.91 ft.) 2.90 m (9.51 ft.) 17.40 cm (0.57 ft.)

90 inches 2.71 m (8.89 ft.) 3.26 m (10.70 ft.) 19.60 cm (0.64 ft.) 100 inches 3.02 m (9.91 ft.) 3.63 m (11.91 ft.) 21.80 cm (0.72 ft.) 120 inches 3.62 m (11.88 ft.) 4.36 m (14.30 ft.) 26.10 cm (0.86 ft.) 150 inches 4.54 m (14.90 ft.) 5.46 m (17.91 ft.) 32.70 cm (1.07 ft.) 200 inches 6.06 m (19.88 ft.) 7.28 m (23.88 ft.) 43.50 cm (1.43 ft.) 250 inches 7.58 m (24.87 ft.) 9.11 m (29.89 ft.) 54.40 cm (1.78 ft.) 300 inches 9.10 m (29.86 ft.) 10.94 m (35.89 ft.) 65.30 cm (2.14 ft.)

Projection size (inches) - 0.890

Projection size (inches) - 0.748

Projection distance a

min length

(zooming max)

max length

(zooming min)

Height (H)

Connection

p.53

p.55

p.18

Before connection

Read the owner’s manual of the device you are connecting to the projector.

• Some computers cannot be used with or connected to this projector.

• Check for an RGB output terminal, supported signal

Turn off the power of both devices before connecting.

• The ﬁgure below shows sample connections. This does not mean that all of these devices

• can or must be connected simultaneously. (Dotted lines mean items can be exchanged.)

Video recorder,

DVD player, etc.

Computer

, etc.

DVD video recorder, etc.

To audio

output

White (L)/

Red (R)

Audio cable

(not supplied)

Audio ampliﬁer, etc.

* The connection for COMPUTER 1 IN terminal described here is also applicable for COMPUTER 2 IN terminal.

To video output

Video cable

(not supplied)

Audio cable (not supplied)

To audio input White (L)/Red ( R)

S-video output

S-video cable (not supplied)

To RGB output

RGB cable

(supplied)

Audio cable

(not supplied)

Control cable (not supplied)

Computer (for control)

Conversion adapter

BNC-pin (not supplied)

To Y/CB/CR output

Green(Y)/Blue(CB)/

To audio output

Monitor cable Mini

D-sub 15P-BNC

Audio cable (not supplied)

To RS-232C terminal

Red (CR)

(not supplied)

Monitor

To audio output White (L)/ Red (R)

It is necessary to switch to MONITOR OUT by the switch.

Notes

When COMPUTER 2 IN terminal is used as MONITOR OUT terminal, the signal which is

• input to COMPUTER 1 IN terminal is output. Signals are output from MONITOR OUT terminal even in standby mode.

• However, from AUDIO OUT terminal, no audio signal is output. A computer monitor cannot accept Y/PB/PR signals correctly.

• The AUDIO IN terminal can be used for devices connected to COMPUTER 1 terminal,

• COMPUTER 2 terminal, VIDEO terminal and S-VIDEO terminal. When an AUDIO OUT terminal is connected, sound is not output from the projector speaker.

• Output volume of AUDIO OUT terminal can be adjusted by the VOL button.

•

Preparations

p.37

p.26

p.40

p.41

p.33

Operations

Turning the power on and off

Connecting the power cord



Insert the power cord connector into the AC IN socket of the projector.

Insert the power cord plug into a

wall or other power outlet.

The ON/STANDBY indicator ﬂashes green and the projector enters standby mode.

Turning the power on



Removing the lens cap

Be sure to remove the lens cap when the power is turned on. If the cap is left on the projector, it could become deformed due to heat.

Power cord connector (Supplied)

Control panel

Remote

control

Press the ON/STANDBY button.

The power turns on with a beep sound (if the beep sound is set to [On]), and the ON/STANDBY indicator ﬂashes orange, and then ﬂashes green. After a moment, the start-up screen appears.

CAUTION

Do not look into the lens while the lamp is on. The strong light from the lamp may cause

•

damage to your eyesight. Do not block the air intake or exhaust. Doing so could cause a ﬁre due to internal overheating.

•

Do not place your hands, face, or other objects near the air exhaust, the lamp cover or the

•

bottom of the unit. Doing so could result in injury and/or damage the object.

Notes

The start-up screen will disappear after a moment. You can conﬁgure the system to

• prevent the start-up screen from appearing. To do this, use the Display setting menu

The ﬁrst time you use the projector after purchase, after the start-up screen disappears,

• the start menu is displayed You can disable the beep sound in the Default setting 1 menu

• When [Key lock] is [On], the operation buttons of the projector do not work

• When [Password] is [On], enter password then the start-up screen is displayed after the

• Password entry screen disappears Do not touch the lens directly with your hand.

• If ﬁngerprints or stains are left on the projection lens surface, they may interfere with the projector’s ability to project images on the screen.

Turning the power off



Press the ON/STANDBY button.

When the setting of beep sound is [On], the projector beeps, and a message appears on the screen, conﬁrming that you wish to shut off the power. To shut off the power, press the ON/STANDBY button again. If you do not wish to shut off the power, wait for a while without conducting any operations. This message will disappear after a moment. (This operation is no longer valid after the message disappears.)

Press the ON/STANDBY button again.

When the setting of beep sound is [On], the projector beeps, and the screen disappears, but the internal cooling fan continues to operate. Then, the projector goes into standby mode. During cooling, the ON/STANDBY indicator ﬂashes. While the indicator is ﬂashing, the power can not be turned back on. There is no problem with unplugging the power cord in this state.

Control panel

Replace the lens cap.

After use, replace the lens cap.

Note

The projector consumes about 4.5W of power in standby. We recommend that you

• unplug the power cord if you will not be using the projector for an extended period.

Remote

control

Operations

Precautions

When you wish to restart the projector again right after turning off the power, give the

• lamp time (about 5 minutes) to cool before plugging it back in. If the lamp overheats, it may fail to light. Right after turning off the power, the unit may become very hot, especially air exhaust,

• lamp cover or the bottom of the unit. Please handle with care to avoid burn injuries.

Basic operations

p.24

English French German Italian Spanish Portuguese Russian Swedish Turkish

Polish Norwegian Finnish Czech Hungarian Greek Danish Dutch Rumanian

Japanese Chinese (simpliﬁed) Chinese (traditional) Korean Indonesian Thai Arabic

p.41

p.37

p.40

Turn on the power.

Turn on the power by following the instructions in “Turning the power on”

Select the language and the lamp power (When using the

ﬁrst time).

When the projector is used for the ﬁrst time after purchase, the start menu for language (to display the menus and messages on the screen) and lamp power selection and conﬁguration is displayed in English. (If the screen is out of focus, adjust it according to the step 6.)

Use the

press the button.

Message for setup conﬁrmation is displayed in a selected language. Then, the menu for lamp power selection and conﬁguration is displayed. It is automatically set as Standard. To change the setting, follow the step 2.

Use the

button.

The lamp power, if selected, will be toggled without pressing the automatically disappears in a few seconds.

Notes

•

When the projector is turned on the next time, the start menu does not appear upon startup. However, if [Reset all] is executed from the Default setting 2 menu the start menu will be displayed the next time when the power is turned on.

•

The language can also be set via the Display setting menu via the Default setting 1 menu

•

This owner’s manual assumes that English has been selected.

or button to select the lamp power and press the

button to select the desired language and

button. The display

and Lamp power

Activate the connected device.

Turn on and start the connected device such as a computer.

Press the INPUT button.

An image of the connected equipment is projected. Each time you press the INPUT button, it switches to the input of the connected equipment that is outputting video signals.

Notes

p.40

When [Auto input search] is set to [Off] in the Default setting 1 menu

• (factory setting is [On]), the Input select menu appears if you press the INPUT button. If no signal is being output from the connected equipment, pressing the INPUT button

• does not change the input and “There is no other input signal.” message will appear.

Projector placement angle adjustments

The placement angle and the height of the projected image can be adjusted by the foot adjuster.

Lift up the front of the projector to

the desired angle, then press the foot adjuster release button upward.

The foot adjuster extends. Release the button to lock the position.

To ﬁne adjust the angle, twist the foot

adjuster.

To stow the foot adjuster, hold up the

• projector while pressing the foot adjuster release button, then slowly lower the projector.

Note

When [Auto keystone] is set to [On] in the Default setting 1 menu, the keystone

• distortion will automatically be corrected based on the projector placement angle. If you do not desire the automatic keystone correction, set [Auto keystone] to [Off].

Adjusting the screen size and focus

Operations

Use the zooming lever to adjust the screen size.

Use the focusing lever to adjust the focus.

Adjusting the volume with the buttons

The speaker volume can be adjusted when an audio signal is being input.

Front

p.53

Basic operations (Continued)

p.47

Precautions

Lamp characteristics may rarely cause the brightness to ﬂuctuate slightly.

• The LCD panel is made using extremely advanced technology. There may be black spots

• (pixels that do not light) or bright spots (pixels that are constantly lit) on the panel. These are intrinsic characteristics of the technology and are not malfunctions.

Notes

A lamp is consumable item. If used for extended periods, images will appear dark, and

• the lamp could burn out. This is characteristic of a lamp, and is not malfunction. (The lifetime of the lamp depends on conditions of use.) Although this projector supports a wide range of RGB signals

• not supported by this projector (XGA for X3131/X3241, WXGA for WX3131) will be expanded or shrunk, which will affect image quality slightly. To view high-quality images, set the computer’s external output to XGA for X3131/X3241, WXGA for WX3131. With some models of computer having LCD displays or the like, displaying images

• simultaneously on the projector and the monitor’s display may prevent the images from displaying properly. If this happens, turn off the computer’s LCD display. For information on how to turn off the LCD display, see the computer’s owner’s manual. If no signal is being input from the connected equipment or signal input is stopped while

• projecting, the “No signal” message will appear. If a signal not supported by the projector is input, the “Unsupported signal” message

• will appear.

If an unavailable operation button is pressed, the icon will appear with a beep sound

• (if the beep sound is set to [On]).

Moving pictures played back on computers using DVD software may appear unnatural

• when projected with this projector. However, it is not a malfunction of the projector.

, any resolutions

LCD Panels

LCD panels wear out. In order to prolong the lifetime of your LCD panel, take the following precautions.

• In order to extend the lifetime of the LCD panel, always turn off the power when not in use, and make sure that the lamp is off. Keeping the lamp off is also very effective at saving electricity.

• If the air ﬁlter becomes dirty and clogged, the projector’s internal temperature will rise, shortening the lifetime of the LCD panel and causing malfunctions. We recommend regular and thorough cleaning of the air ﬁlter

• If the air ﬁlter becomes damaged, replace it. Contact your sales representative for a new ﬁlter. If you continue to use the projector when its ﬁlter is damaged, dust and dirt will enter the interior and this could cause the projector to stop working or break down.

Using handy features

p.35

p.53, p.54

p.35

Using auto setting (For computer input only)



This function automatically sets up the projector to the optimum state. It sets up sampling phase, frequency and screen position, for each type of the input signal by using simple operations.

Press the remote control’s AUTO SET button.

The icon will appear during processing. You can set as well by selecting [Auto setting] in the Image

adjustment menu

Notes

The image may not be projected or auto adjustment/setting may not be performed

• correctly for input signals other than those supported by the projector If auto setting fails adjustment, adjust manually with [Position] in the Image

•

adjustment menu

Correcting the keystone distortion



When the projector placement angle against the screen is changed while projecting the image, the picture will undergo keystone (trapezoidal) distortion. This projector is capable of correcting this keystone distortion.

Before correction

After correction

Remote

control

The keystone distortion will be corrected automatically based on the projector’s

• placement angle.

Adjusting Keystone distortion Manually

Use the buttons for keystone adjustment.

Control panel

Notes

Depending on the amount of keystone adjustment

• and the content of images, some information may be lost, or the picture quality may suffer. Even if [Auto keystone] is set to [On], keystone

• distortion can be adjusted manually. Note that if you change the position or angle of the projector, automatic keystone correction will be performed again. When [Auto keystone] is set to [On], the automatic keystone correction will be

• performed each time the power is turned on. The keystone correction settings are memorized after the power has been turned off.

• Therefore, it is recommended that you set [Auto keystone] to [Off], if the case is that the projector placement angle against the screen remains unchanged and you do not wish to change the keystone adjustment that you set.

Remote

Operations

control

Using handy features (Continued)

Resizing image



The projected image can be resized (zoomed in/out).

Press the remote control’s RESIZE button.

Each time you press the RESIZE button, zoom ratio is up. You can keep pressing.

To zoom out, press the remote control’s RESIZE

button.

Each time you press the RESIZE button, zoom ratio is down. You can keep pressing. (However, the image cannot be smaller than the original size.)

Remote

control

To move the area to zoom in, use the

buttons.

You can keep pressing.

When the image returns to the original size by pressing RESIZE

button several times, the zoom will be reset.

Pressing the RETURN button during resizing also resets the zoom.

Notes

The icon appears while resizing.

•

Operating a function other than Mute will release resizing.

•

As zooming is processed digitally, the image quality is degraded in larger zoom ratio.

•

During resizing or moving the zooming area, the image may be distorted.

Cutting off the picture and sound temporarily

p.35

p.37 p.38



(Mute)

When you want to project the images of another projector, overhead projector, etc. temporarily, this projector’s images and sound can be turned off.

Press the remote control’s MUTE button or the RETURN/

MUTE button on the projector control panel.

The picture and sound are cut off. (Pressing the MUTE button or the RETURN/MUTE button again cancels the Mute function and restores the picture and sound.) The RETURN/MUTE button on the control panel cannot be used for muting in the following situations:

• The projected image is resized.

• A menu is displayed.

Notes

•

The icon will appear while mute is in effect.

•

Operating any other functions will also cancel the muting.

Remote

control

Changing picture mode



The projected image mode can be selected.

Press the remote control’s PICTURE button.

Pressing the button switches 1/2/3 in turn. 1: Bright 2:

Standard

3: True color

Note

•

[Picture mode] of the Image adjustment menu has the same function

Changing screen size



The screen size for the projected image can be changed.

Press the remote control’s SCREEN SIZE button.

Pressing the button switches in turn as follows: X3131/X3241 : Normal/Full/Thru/Wide WX3131 : Normal/Full/Thru/4:3 zoom

Notes

Thru display is available for Computer-input images.

• Wide or 4:3 zoom display is available for Y/PB/PR, Video and S-video-input images.

•

[Screen size] of the Display setting menu has the same function If you use this function on commercial video software, broadcast or cable-

• broadcasting except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.

Remote

control

Operations

Remote

control

Using handy features (Continued)

Freezing the image (Freeze)



The projected image can be frozen. This function is to be used to pause a video during a presentation, etc.

Press the remote control’s FREEZE button.

The picture pauses. (The Freeze function is released by pressing the FREEZE button again.)

Notes

The icon will appear while freeze is in effect.

• Other operations will also release the freeze.

• Even if an image is frozen on the projector, the pictures are running

• on the video or other equipment. If you use this function on commercial video software, broadcast

• or cable-broadcasting except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.

Setting the password



How to change password

The default password is 000000.

Select [Password] in the Default setting 2 menu and press the or

button.

Select [Password registration] in the password registration, setting

menu, and press the button.

The password entry screen is displayed.

Enter the current password (6-digit number) using numeric keys of the

remote control.

Enter [000000] (6 zeros) for the ﬁrst change.

• The password is not displayed. Instead it appears as [******].

•

Enter a new password (6-digit number).

Re-enter the same password for conﬁrmation.

Remote

control

Note

Please do not forget your password. If you forget the password, you can not

• release the password by yourself. In such a case, please inquire your sales representative.

How to set password (from [Off] to [On])

Select [Password] in the Default setting 2 menu and press the or

button.

Select [Password setting] next, and press the or

Select [On].

Select [OK] and press the button.

The password entry screen is displayed.

Enter the password using numeric keys of the remote control.

The password setting will be set as [On].

button.

How to operate when password is [On]

Turn on the power.

The lamp lights and the password entry screen appears.

Enter the password using numeric keys of the remote control.

If the entered password is correct, the start-up screen appears and the projector goes into normal operation. If the password is wrong, a message appears to prompt you to re-enter the password, and again the password entry screen is displayed. If you enter a wrong password for more than 5 times, the projector will automatically power off and enter standby mode.

Note

When the password setting is [On], the password function will be enabled only

• when the projector is restarted after the power cord has been unplugged. The password that you set will not be enabled when restarting from standby mode without unplugging the power cord.

Operations

How to set password (from [On] to [Off])

Select [Password] in the Default setting 2 menu and press the or button.

The password entry screen is displayed.

Enter the password using numeric keys of the remote control.

Select [Password setting] next, and press the or

Select [OFF].

Select [OK] and press the button.

button.

Using the menus

p.16

These marks signify that there are options. Press or to display a list of options.

* When no item is

changed, press .

These marks signify that there are setting screens. Press or to display a list of setting screens.

Toggle items with . Select items with and press . Fix selection with .

Display the Setting display menu.

1. Press the MENU button

2. Select a Category

3. Adjustments & Settings

• The figure shows displays given for operation instructions purposes. As the display may differ depending on the item, refer to the following applicable pages for the menu item you desire.

• To return to previous item, press the RETURN button.

Item

Adjustment/Setting Value

These marks signify the items can be adjusted/set by using

These marks signify the items can be selected from the list by using . After an item is selected, apply it by pressing .

Press or to open the menu.

4. End Press the MENU button once more.

(The menu will disappear automatically after 30 seconds, if no operation is conducted.)

Select a category by using

There are following 5 categories:

Displays the current adjustments and settings of selected category. Item shown with gray cannot be adjusted with the current input source.

p.35

Image adjustment menu

p.37

Display setting menu

Default setting 1 menu

p.40

Default setting 2 menu

p.41

Status display menu

p.42

You can call up on-screen menus, and conduct a number of adjustments and settings using the MENU button

Setup using the Setting display



The menu shown below is for operation instructions purposes and might differ from the actual display.

on the control panel (main unit side) and remote control.

The image adjustment menu



Use this menu to set or adjust image-related items. Items that can be set or adjusted are marked “Yes”, and those that cannot are marked “No”. (When an item is masked, it indicates that you cannot select for the current input.)

Item Description

Contrast

Brightness

Color

Sharpness

Noise reduction

Picture mode

R-level

G-level

B-level

NTSC mode

Auto setting

Position

Adjust the image contrast.

Higher

Brighter

Deeper

Sharper

Off (Disable)

More red

More green

More blue

Lower

Adjust the brightness of the image.

Darker

Adjust the color of the image.

Lighter

Adjust the sharpness of the image.

Softer

Set the function to reduce screen noise.

On (Enable)

Press . Toggle the picture mode with . 1/2/3

Adjust red of the image color.

Less red

Adjust green of the image color.

Less green

Adjust blue of the image color.

Less blue

Set the black level with . US : NTSC (US) mode JAPAN : NTSC (JAPAN) mode

Automatically adjusts items such as

the sampling phase depending on the

type of input signal.

Press then change mode using

and adjust with

Phase

Adjust to eliminate ﬂicker.

Frequency

Adjust to eliminate periodic patterns

and ﬂickering when many ﬁne vertical

lines appear on the screen.

H-position

Adjust the horizontal position of the

image.

Computer

Y/PB/PR Video S-video

Yes Yes Yes Yes

No Yes Yes Yes

Yes Yes Yes Yes

No Yes Yes Yes

Yes Yes Yes Yes

No No Yes Yes

Yes No No No

Operations

Using the menus (Continued)

Item

Position

*1: [Noise reduction] may not work depending on signal type. *2: [NTSC mode] can be displayed and adjusted only when the video signal is set to [NTSC] or

[NTSC4.43]. NTSC mode is set to JAPAN when the language is set to Japanese. It is set to US for other languages.

V-position

Adjust the vertical position of the

image.

Clamp 1

Adjusts the clamp pulse position.

Clamp 2

Adjusts the clamp pulse width.

Description

Computer

Y/PB/PR Video S-video

Yes No No No

The display setting menu



Use this menu to set screen display-related items. (The items in gray color cannot be set with the current input selection.)

Item

Screen size Screen size setting

[ or : Enter setting] [ :Selection] [Enter: ]

X3131/X3241 : Normal/Full/Thru/Wide WX3131 : Normal/Full/Thru/4:3 zoom

Up/down shift

Blackboard mode

Language Select one of the languages below to use for displaying the menu and messages

Background Screen to display when there is no input signal

Icon Display icons as function guides On Off

Start-up screen

User logo Display a logo customized by the user for the start-up screen or when there is no

Lets the projected images shift vertically when the screen size setting is selected Wide for X3131/X3241 (within the range of 1024 x 768) and 4:3 zoom for WX3131 (within the range of 1280 ×800). Lower the image Raise the image

When projecting on a non-screen surface, select a color in accordance with the projecting surface. Press and switch with and . Off/Green/Black/Brown/Blue/Beige

[ or : Enter setting] [ :Selection] [Enter: ]

/ / / / / / / / / / / / / /

/ / / / / / Indonesia /

[ or : Enter setting] [ :Selection] [Enter: ]

Logo/Blue/None

Display start-up screen when power is turned on On Off

input signal. [ or : Enter setting] [ : Selection]

Logo registration Press to display the registration menu.

Display style

Background Black Blue White

Logo conﬁrmation Press .

Reset logo Yes No

Description

/ /

Operations

Using the menus (Continued)

Detailed description

[Screen size]

Normal• : Enlarge an input image to ﬁt the screen without changing the aspect

ratio of video signals.

Full• : Displays an input image in 1024 × 768 dot resolution by enlarging it to

ﬁll the entire screen. (X3131/X3241) Displays an input image in 1280 x 800 dot resolution by enlarging it to ﬁll the entire screen. (WX3131)

Thru• :

Wide

• : Displays an input image in the center of the screen with a 16:9 aspect (X3131/ X3241)

4:3 zoom

• : Displays an input image with a 4:3 aspect ratio by enlarging it (WX3131)

For Y/PB/PR input, screen size setting function is not available for the video signals

• with a 16:9 aspect ratio.

Note

If you use the screen size setting function on commercial video software, broadcast

•

or cable-broadcasting programs to display images with the varying aspect ratio except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.

[Up/down shift]

Shifts the projected image vertically when [Screen size] is [Wide] for X3131/X3241. Shifts the projected image vertically when [Screen size] is [4:3 zoom] for WX3131.

[Blackboard mode]

Projects the image in colors more like projecting on a screen.

Precaution

The projected image may differ depending on the type, color, and material of the

•

blackboard and wall even if the selected color is the same as the projected screens.

[Background]

RICOH is set for [Logo] by factory setting.

•

If user’s logo has been registered, it is displayed when [Logo] is set for background.

•

[Start-up screen]

If user’s logo has been registered and this setting is [On], the logo is displayed at start-up.

[User logo]

Registers a part of the image that is input from computer, as a stationary picture and displays it as a logo at start-up and when no signal is input.

Displays an input image in the native resolution of the video signals. Thru display is not available for Y/PB/PR, Video and S-Video-input images. The larger image than the screen size will be displayed over the screen. The input image may appear vertically long with some frequencies of video signals.

ratio by enlarging it to ﬁt the width of the screen. The upper and lower portions of the image will be compressed. Wide display is not available for Computer-input images.

vertically. The enlarged image will be displayed over the screen. 4:3 zoom display is not available for computer images.

How to register user logo

Project a picture to register.

Select [User logo] in the Display setting menu, and press the or

button.

Select <Logo registration> from the displayed menu list and press

the button.

The registration area is displayed for conﬁrmation. Select [OK]

and press the button.

If the registered picture does not fall within the display area, operate the

• computer to scroll the screen.

Select [Yes] to register and press the button. Registration starts.

A message is displayed while registration is in process.

•

Notes

You can register a logo when the input is set to Computer.

• The area that can be registered is 512 x 384 dots for X3131/X3241 and 640 x 400

• dots for WX3131, at the center of the screen. To register a company logo, prepare the image within the limit. Only one logo can be registered. When a new image is registered, the old one is

• erased. The time needed to register or display the image varies depending on the data size.

• If you use this function on commercial video software, broadcast or cable-

• broadcasting except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.

Select the size of the registered logo.

: Displays the registered image in original size at center of the screen.

: Displays the registered image by enlarging fully in the screen.

(As processed digitally, the image quality is degraded.)

Sets background color when [Center] is selected for the logo [Display style].

You can preview the registered logo.

You can reset the registered logo, display style and background to the factory setting. (The logo set for the start-up screen and background is reset.)

Operations

Computer 1 Y/PB/PR 1 Computer 2 Y/PB/PR 2 Video S-video

Input select

/ shows whether signal is input or not.

Using the menus (Continued)

The Default setting menu



This menu shows placement status and other settings.

Default setting 1 menu

Item

Auto keystone Always correct keystone distortion automatically. On Off

No signal power off

Auto input search

Beep Beep when operation is made. On Off

Power on Sets whether to turn on the power when the ON/STANDBY button is pressed

Lamp power

Set the time to wait for the power to be turned off after the last operation is made with no input signal.

Set whether the input with signals is only selected or not. On Off

(Manual), or when the power cord is plugged in (Auto). Manual Auto

Set the lamp power.

Description

Off (not turned off)

Low

30 min.

Standard

Detailed description

[Auto input search]

[On]: Automatically searches the signals that can be

projected, and switches input from the connected device that outputs the video signals each time the INPUT button is pressed. The input from the connected device that outputs no video signals is

skipped. [Off]: Displays the Input select menu. Toggle with

(The input without signals can be also selected.)

Note

In normal operation, set [Auto input search] to [On].

• Set to [Off] when you want to select the input source from Input select menu, or if the image does not appear properly.

[Power on]

If [Power on] is set to [Auto] and there is a power outage, the projector will come on once power is restored.

[Lamp power]

When [Lamp power] is set to [Low], the screen becomes a little darker, but the cooling fan noise gets quieter.

buttons and press button.

Input select menu

Default setting 2 menu

p.20

p.32

Item

Projection mode

Fan mode Sets the cooling fan speed. Standard

Key lock Lock the control panel buttons.

Closed Caption Closed Caption settings.

Reset all

Password

Sets projection mode in accordance with Placement Style.

(Standard)

[ or : Enter setting] [

:Select OK to end

[ Press [Cancel] to return.

Press and switch with and . Off/ CC1/ CC2/CC3/CC4/T1/T2/T3/T4

Press . (The password and user logo are not reset.) Resets all adjustments and settings to their factory settings.

Password setting Press . Password registration/Password setting

]

Detailed description [Fan mode]

Setting [Fan mode] to [High] increases the cooling fan speed. (The cooling fan noise gets louder.) Set this option to use the projector, for example, at high altitude (over 1,500 meters above sea level).

Do not set Fan mode to [High] when using the projector at a lower altitude.

•

[Key lock]

Protect from operating errors by locking on the control panel buttons of the projector. (The remote control operations are available.) Control panel operations are locked after the setting is done, and accordingly operation with the control panel buttons is disabled.

To release the key lock, set the [Key lock] to [Off] using remote control. Pressing

• the [RETURN/MUTE] button on the projector for 10 seconds also sets the [Key lock] to [Off]. (When operating the main unit, the 2 indicators of LAMP and TEMP light orange for 3 seconds, and at the same time the projector beeps.).

[Closed Caption]

Off : Closed Caption is not displayed.

• CC1-CC4 : Displays the dialogue and narration of TV programs and videos that are

• (Caption) closed captioned. T1-T4 :

• (Text) stock data or the

Displays information not related to the current program, such as weather,

like, when it is provided by individual station.

Note

Closed Caption is available for Video and S-Video input images.

• This projector supports a special feature called closed captioning which allows

• subtitles to be displayed at the bottom of the picture. This is pursuant to the Regulations set forth by the US Federal Communications Commission (FCC). Due to the different broadcasting or signaling system, it may not operate correctly in other regions or countries where TV programs do not support closed captioning. Closed Caption may not appear correctly depending on the signal conditions or the

• recording conditions of videotapes. If text is not available, only a black rectangle background may appear on screen.

• To prevent this from appearing, set the Closed Caption to [Off].

Description

(Rear)

: Select On/Off

(Ceiling)

] [ : Conﬁrm]

Yes

(Rear ceiling)

High

Operations

p.53

Using the menus (Continued)

Displaying Information (Status display)



This displays information about the input signal, lamp use time, etc.

“Yes”: displayed, “No”: not displayed

Item Description Computer Y/PB/PR Video S-video

Input Input source name Yes Yes Yes Yes

Mode name RGB input mode

Resolution Resolution (in dots) Yes No No No

Frequency Sync frequency Yes No No No

Sync Sync signal polarity

Signal format Y/PB/PR signal format No Yes No No

Video mode Color method of video signal No No Yes Yes

Lamp time Time of lamp use

Lamp reset count The count for lamp replacement Yes Yes Yes Yes

Total time The total time that this projector is

used.

Version Firmware version

Notes

1: The mode of supported RGB signals 2: Sync signal polarity shown as P (positive) or N (negative) for [H/V]. 3:

Displays [Lamp time] as a measure of when the lamp should be replaced. (Cannot be used as a counter of guaranteed lamp time.)

4: [Version] shows the version of the projector’s internal control program. This version will

be requested for customer service purposes.

Note

The displayed information will not be refreshed if the status changes. To refresh the

• information, dismiss the display, then display it again.

[Note 1]

[Note 3]

[Note 4]

[Note 2]

Yes No No No

Yes Yes Yes Yes

is shown.

Operations

Maintenance

Lamp replacement

A lamp is consumable supplies. If used for extended periods, images will appear dark, and the lamp could burn out. This is characteristic of a lamp, and is not malfunction. (The lifetime of the lamp depends on condition of use.) If this happens, replace it with a new one.

WARNING

If the projector is mounted on the ceiling, it is recommended to use your sales

• representative when the lamp has to be exchanged. Uncovering the lamp while the projector is mounted on a ceiling may lead to a danger of damage from falling pieces of glass if the lamp is broken. Besides, working at high elevations can also be hazardous. Do not attempt to replace the lamp by yourself.

When replacing, always use lamp “PJ Replacement Lamp Type1” (sold

• separately). If the lamp other than the speciﬁed one is used, it may cause a malfunction or damage to the unit due to the difference in the connector shape or the lamp rate.

CAUTION

If you have been using the projector, the lamp will be very hot, and may cause

• burn injuries. Wait for the lamp to cool (for longer than 1 hour) before replacing it.

If the lamp should break, please handle with care to avoid injury due to broken

•

pieces and contact your sales representative for repair service.

Unplug power cord.

Wait until lamp is sufﬁciently cooled.

Wait for at least 1 hour.

Remove the outer lamp cover.

To remove the outer lamp cover, loosen the screw on the side of the projector, and then slide the cover out and up (as shown in the illustration).

Remove the inner lamp cover.

To remove the inner lamp cover, fully remove both screws, and then lift the cover (as shown in the illustration). Be careful not to loose the screws.

Outer lamp cover

Inner lamp cover

Pull out the lamp.

Loosen the 3 lamp locking screws, pull up the handle, and press the tab to remove the lamp.

Mount the new lamp.

Align the orientation, press down the new lamp until the bottom is reached, and lock in place using the 3 lamp locking screws.

Tab

Replace the inner lamp cover.

Reattach both screws removed in step 4. Tighten the screws until the inner lamp cover is fully immobile.

Replace the outer lamp cover.

Reseat the outer lamp cover by sliding it in the direction of the arrows (as shown in the illustration), and then tighten the screw loosened in step 3. Tighten the screw until the outer lamp cover is fully immobile. (The outer lamp cover must be attached.)

Reset the lamp time.

See the lamp’s manual for instructions on resetting the lamp time.

Inner lamp cover

Outer lamp cover

Maintenance

p.42

p.40

Lamp replacement (Continued)

Notes and Precautions

The [Lamp time] item in the Status display menu indicates the time of lamp use (as a

• rough guide) Please replace the lamp after 2000 hours of use with [Lamp power] in the Default

•

setting 1 menu set to [Standard], and 3000 hours of use with [Lamp power] in the Default setting 1 menu set to [Low].

There are cases that the lamp can not work before the above mentioned period expires

• or before the replacement message is displayed. Attach the outer lamp cover correctly so that it is not loose. If it is not attached correctly,

• the projector may fail to be powered on or the lamp may fail to come on. Always replace the lamp with a new one.

• The lamp is made out of glass. Do not touch the glass surface with your bare hands,

• bang it, or scratch it. (Dirt, jolts, scratches and the like could break the lamp.)

About lamp replacement messages

The lamp replacement message of this projector displays an appropriate

• period according to the use period for [Standard] / [Low] of the [Lamp power] respectively. When the replacement time approaches, the message of “The lamp life is ending.

• Please change the lamp.” is displayed every time the power is turned on. This display disappears when you press the button.

Used Lamps

This projector’s lamps contain trace amounts of environmentally harmful inorganic mercury. Be careful not to break used lamps, and dispose of them in accordance with local regulations or contact your sales representative.

Air ﬁlter cleaning

The air ﬁlter prevents dust and debris from getting inside the projector. Never run the projector with the ﬁlter removed. It is recommended that the air ﬁlter is cleaned regularly.

• The message “Check the air ﬁlter for dirt.” is displayed every 100 hours. (If the usage time exceeds 100 hours, this message is displayed for about 30 seconds when the image is displayed for the ﬁrst time after power is turned on. This display will be dismissed with any operation.)

• Check out the ﬁlter and any debris is found, use the following procedure for cleaning.

WARNING

• Request cleaning and maintenance of a ceiling-mounted unit from your sales representative.

Unplug power cord.

Remove the air ﬁlter.

Pull out the air ﬁlter by holding the release knob with your ﬁngers as shown in the ﬁgure.

Clean the ﬁlter.

Carefully remove the dust and dirt from the air ﬁlter with a vacuum cleaner or the like.

Replace the air ﬁlter.

Insert the air ﬁlter ﬁrmly until you hear a click.

Notes

• When dirt and dust build up in the air ﬁlter, the air circulation inside the projector is affected and the internal temperature will rise, causing the projector to stop working or malfunction.

• Push the air ﬁlter fully in. If the projector is used with the air ﬁlter only partially inserted, dust and dirt will enter the interior and this could cause the projector to stop working or break down.

• If you wash the air ﬁler with water, make sure to dry it completely before replacing it.

Maintenance

Lens and main unit cleaning

WARNING

Request cleaning and maintenance of a ceiling-mounted unit from your sales

• representative. Attempting to clean or replace the lamp in a high location by yourself may cause you to fall, resulting in injury.

Lens cleaning



Clean the lens with a commercially available blower

• and/or lens cleaner. The lens is easily scratched, so do not rub it with hard

• objects, or strike it.

Main unit cleaning



Unplug the power cord before cleaning the main unit.

• Wipe dirt off the main unit gently with a soft cloth.

• Do not wipe the main unit with a damp cloth. Doing

• so may allow water to get inside, resulting in an electric shock or unit failure. Do not use benzene, thinner and the like as they

• may deform or discolor the unit or damage the paint surface. Do not use a chemically saturated cloth.

•

p.44

Others

Trouble indications

The indicator illuminates and a beep sound informs you of internal abnormalities.

No power

⇒

Problem with projector

Unplug the power cord, and contact your sales representative.•

Lamp went out during use, or won’t come on

Lamp temperature is high so that it is difﬁcult to turn on, the

⇒

lifetime of the lamp has ended or the projector is malfunctioning.

Unplug the power cord and wait for a short while, then turn the

• power back on. If a lamp burns out, replace it with a new one.

•

Power went out during use

Internal overheating, or the outside temperature is too high.

⇒

Place the projector so that the air intake and exhaust are not

• blocked. Unplug the power cord and wait for a short while, then turn the

• power back on.

The icon will appear before the power goes out.



Power went out during use

Problem with internal cooling fan.

⇒

Unplug the power cord, and contact your sales representative.

• The icon will appear before the power goes out.



Power went out during use, or power won’t come on

The lamp cover is not properly attached.

⇒

Unplug the power cord, and reattach the lamp cover.

•

Power went out during use

Problem inside the projector.

⇒

Unplug the power cord and wait for a short while, then turn the

• power back on. If the above action will not clear the problem, unplug the power

• cord, and contact your sales representative.

The icon will appear before the power goes out.



(Red

ﬂashing)

(Red lit)

(Orange

ﬂashing)

(Orange lit)

(OFF)

(Red

ﬂashing)

(Green

ﬂashing)

(Red lit)

Note

After there is an abnormal indication, the abnormal status remains until the power cord

• is unplugged.

Others

p.49

p.44

p.49

p.40

p.31

p.35

p.23

p.26

p.31

p.27

p.23

p.53 p.54

p.48

p.27

p.21

p.27

p.35

p.42

p.35

p.37

p.42

p.41

Troubleshooting

If you think something is wrong, check the followings before contacting customer service. Please see “Trouble indications”

If This Happens Check

Is the power cord plugged in? Is it connected to the projector?

No power

Power goes out during use

No picture Is the input source selected correctly? (When [Auto input search]

• Is the outer lamp cover attached properly?

•

Is the ambient temperature high?

• Is the air intake or air exhaust blocked?

•

• is [Off]) Is the mute function on?

• Is the brightness setting minimized?

• Are the connections set up correctly?

• Are all the connected devices functioning properly?

•

No audio

Picture not displayed correctly

Picture blurred Part of picture out of focus

Did you press the input button?

• Is the mute function on?

• Is the volume setting minimized?

• Are the connections set up correctly?

• Are all the connected devices functioning properly?

•

Is the input signal supported by the projector?

• Is there something generating an abnormal video signal, for

• instance the video tape?

Is the lens dirty?

• Is the lens focus adjusted optimally?

• Is the projection distance within the projector’s supported range?

•

as well.

Image is dark

Colors too light Bad shading

Control panel key doesn’t work

Is the projector’s screen placement angle tilted too far?

• Are the sharpness or sampling phase adjustments off?

•

Are the brightness or contrast adjustments off?

• Is the lamp nearing the end of its service life?

•

Are the color, R-level, G-level, or B-level adjustments off?

• Is the screen dirty?

• Is the blackboard mode set properly?

• Is the lamp nearing the end of its service life?

•

Is the key lock function on?

•

If This Happens Check

p.19

Remote control doesn’t work

Are the remote control’s batteries drained?

• Are the batteries inserted into the remote control correctly?

• Is the remote control being used within the effective range?

• Are there any obstructions between the remote control and

• projector? Are there any ﬂuorescent or other bright lights shining at the

• projector’s infrared remote sensor?

Others

Speciﬁcations

List of general speciﬁcations



Item Speciﬁcation

Consumption Power 270 W

Weight

External Dimensions (including protruding parts)

Cabinet material PC+ABS resin and PC resin (Some parts including Mg alloy) Conditions for usage environment

Display method 3-panel transmission

Panel size

LCD Panel

Drive system TFT active matrix

Picture elements

Lens

Lamp High-pressure mercury lamp (180 W) Projection screen size 30-300 inches

Projection distance

Speaker 1 W (Mono)

COMPUTER 1 IN terminal Mini D sub 15 pin RGB / Y/PB/PR (dual use)

COMPUTER 2 IN terminal

S-VIDEO terminal Mini DIN 4 pin VIDEO terminal RCA Pin Jack, 1 V (p-p), 75

AUDIO IN terminal

AUDIO OUT terminal 3.5 mm dia. stereo mini-jack

Connection terminal

CONTROL terminal D sub 9 pin (RS-232C)

X3131/WX3131: 1.8 kg X3241: 1.9 kg X3131/WX3131: 272 × 82 × 189 mm (W × H × D) X3241: 295 × 82 × 196 mm (W × H × D)

Temp: 5°C to 35°C; relative humidity: 30% to 70%

X3131: 0.63 type WX3131: 0.59 type X3241: 0.70 type

X3131/X3241: 786,432 pixels (1024 H × 768 V) WX3131: 1,024,000 pixels (1280 H × 800 V) X3131/WX3131: F=1.7 ~ 1.87 f=19.2 ~ 23.00 mm X3241: F=1.6 ~ 1.76 f=21.5 ~ 25.80 mm

X3131: 0.89 m ~ 10.93 m WX3131: 0.94 m ~ 11.58 m X3241: 0.89 m ~ 10.94 m

Mini D sub 15 pin RGB / Y/PB/PR/MONITOR OUT (multiple use)

3.5 mm dia. stereo mini-jack: 1.5 V (rms), 22 k COMPUTER 1 IN, 2 IN/VIDEO/S-VIDEO (multiple use)

or more

Notes

This model complies with the above speciﬁcations.

• Designs and speciﬁcations are subject to change without notice.

• This model may not be compatible with features and/or speciﬁcations that may be added

• in the future.

Separately sold product



PJ Replacement Lamp Type1 PJ Replacement Air ﬁlter Type1

List of supported signals (RGB signals)



This projector supports the following RGB signals. Note, however, that depending on the computer model, the screen may show ﬂicker or streaking. Please adjust the projector if this happens.

Resolution Mode

720 x 400 720x400_85

640 x 480 VGA_60 59.940 31.469 25.175

VGA_72 72.809

VGA_75 75.000 37.500 31.500

VGA_85 85.008 43.269 36.000

800 x 600 SVGA_56 56.250 35.156 36.000

SVGA_60 60.317 37.879 40.000

SVGA_72 72.188

SVGA_75 75.000 46.875 49.500

SVGA_85 85.061 53.674 56.250

832 x 624

1024 x 768

1152 x 864

*1280 x 800

1280 x 960

1280 x 1024

1400 x 1050 SXGA+ 59.978 65.317 121.750

1600 x 1200

* : 1280 x 800 is available only for WX3131

MAC16" 74.550 49.725 57.283

XGA_60 60.004 48.363 65.000

XGA_70 70.069 56.476 75.000

XGA_75 75.029 60.023 78.750

XGA_85 84.997 68.667 94.500

MAC19" 74.700 60.134 79.857

SXGA1_75 75.000 67.500 108.000

WXGA_60 59.880 49.580 83.300

QuadVGA_60 60.000 60.000 108.000

QuadVGA_85 85.002 85.938 148.500

SXGA3_60 60.020 63.981 108.000

SXGA3_75 75.025 79.976 135.000

SXGA3_85 85.024 91.146 157.500

UXGA_60 60.000 75.000 162.000

UXGA_65 65.000 81.250 175.500

UXGA_70 70.000 87.500 189.000

UXGA_75 75.000 93.750 202.500

UXGA_85 85.000 106.250 229.500

Refresh rate

(Hz)

85.039 37.927 35.500

H-frequency

(kHz)

37.861 31.500

48.077 50.000

Clock

(MHz)

Note

Signals whose resolution exceeds the native resolution mentioned below will be compressed.

• For this reason, some information may be lost, or image quality may be affected. X3131/X3241 : 1024 × 768 resolution WX3131 : 1280 × 800 resolution

Others

Speciﬁcations (Continued)

List of supported signals (Component signals)



Signal format fh(kHz) fv(Hz)

480i(525i)@60Hz

480p(525p)@60Hz

576i(625i)@50Hz 576p(625p)@50Hz 31.25 720p(750p)@60Hz 720p(750p)@50Hz

1080i(1125i)@60Hz

1080i(1125i)@50Hz 28.13 1080p(1125p)@60Hz 1080p(1125p)@50Hz 56.25

List of supported signals (Video, S-Video signals)



Video mode fh(kHz) fv(Hz) fsc(MHz)

NTSC 15.73 60 3.58

PAL 15.63 50 4.43

SECAM 15.63 50 4.25 or 4.41

PAL-M 15.73 60 3.58 PAL-N 15.63 50 3.58

PAL-60 15.73 60 4.43

NTSC4.43 15.73 60 4.43

Pin assignment of COMPUTER 1 IN, COMPUTER 2 IN &



MONITOR terminals

15.73 59.94

31.47 59.94

15.63 50.00

50.00

45.00 60.00

37.50 50.00

33.75 60.00

50.00

67.50 60.00

50.00

Mini D sub 15 Pin connector

Input Signal

RGB input

• RGB signals: 0.7 V (p-p) 75 Horizontal sync signal: TTL level (Pos/neg polarity) Vertical sync signal: TTL level (Pos/neg polarity)

Y/PB/PR input

• Y signal: 1.0 V (p-p) 75 PB/PR signals: 0.7 V (p-p) 75

Pin No.

Do not connect anything.

During RGB input 1 Video signal (R) 2 Video signal (G) 3 Video signal (B) 4 GND 5 GND 6 GND(R) GND(PR) 7 GND(G) GND(Y) 8 GND(B) GND(PB) 9 N.C

10 GND 11 GND 12

N.C

Horizontal sync signal

Vertical sync signal

15 N.C

Pin description

During Y/PB/PR input Color difference signal (PR) Luminance signal (Y) Color difference signal (PB)

* *

* * * * * * *

CONTROL terminal





Pin assignment

Pin No.

D sub 9 pin connector



Interface format

1. Communication method RS-232C, 9600 bps, No Parity, Data Length: 8 bits;

2. Communication format

Only 1 command valid per communication.

3. Data format

4. Replies Acknowledge

No acknowledge

If commands are to be sent consecutively, wait for the response from the projector before sending the next command.

Signal Name Description

1 DCD Data carrier detect

3 RXD Receiving data

5 GND Signal ground

6 DSR Data set ready

7 RTS Request to send

8 CTS Consent to send

9 RI Ring indicator

Stop Bit Length: 1 bit

STX (02 h) Command (3 Byte) ETX (03 h)

For input commands, only ASCII-compliant alluppercase alphanumeric characters supported.

ACK (06 h) CR(0 Dh) Data

ACK (06 h) ESC(1 Bh)

NAK (15 h)

TXD Sending data

DTR

Data terminal ready

... Aborted

... Normally ended



Main Commands

Item Command

Power on PON Power off POF Icon display on MO0 Icon display off MO1 Auto setting (RGB input) PAT Status display on DON Status display off DOF

Others
