Ricoh MP7060S User Manual

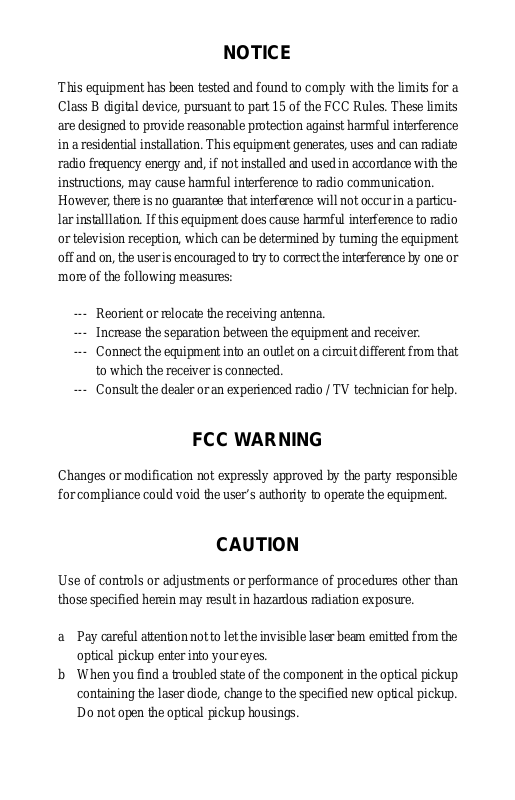

NOTICE

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particu­lar installlation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

--- Reorient or relocate the receiving antenna.

--- Increase the separation between the equipment and receiver.

--- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

--- Consult the dealer or an experienced radio / TV technician for help.

FCC W ARNING

Changes or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

CAUTION

Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.

a Pay careful attention not to let the invisible laser beam emitted from the

optical pickup enter into your eyes.

b When you find a troubled state of the component in the optical pickup

containing the laser diode, change to the specified new optical pickup.
Do not open the optical pickup housings.

Akustischer Geräuschpegel

Dieser Drucker überschreitet einen Geräuschpegel von 70 dB (A) während
dem Betrieb nicht.

Declaration of Conformity

“The Product complies with the requirements of the EMC Direc­tive 89/366/EEC and the Low V oltage Directive 73/23/EEC.”

 Please take notice that the manufacturer of this equipment does not

offer any warranty against data loss due to inappropriate installation
or handling, or direct or indirect damages.

 Please take notice that the manufacturer will bear no responsibility

for direct or indirect damages caused by the use of this product or its
malfunction.

 Please take notice that the manufacturer will bear no responsibility

for damage to data caused by this product.

 Please backup (copy) all important data as protection against data

loss.

 PC DOS is a trademark of IBM Inc.
 Adaptec, and the Adaptec logo are trademarks of the Adaptec Cor-

poration.

 MS-DOS, Windows, and Windows 95 are trademarks registered in

the United States and other countries by the Microsoft Corporation.

 The company names and product names written in this manual are

trademarks or registered trademarks.

i

Handling Procedures

Obey the following cautions when handling the drive or discs.

Cautions During Installation

• Install the drive in accordance with the specifications. Be careful to

avoid locations likely to cause vibration or shock.

• Avoid locations where there is high humidity, much dust, or poor

ventilation.

• A void locations in direct sunlight, with severe changes in humidity,

or places where there are extremely high or low temperatures.

• Don't use the drive near radio or television receivers. It may inter-

fere with their reception.

• Dismantling the drive to attempt repairs or for other reasons is dan-

gerous because the laser may radiate outside the unit. Do not disas­semble the drive.

Cautions During Use

• Don't suddenly move the drive from a cold place to a warm one, or

suddenly raise the room temperature. Condensation may occur, caus­ing abnormal operation.

• Make sure to remove the disc before moving the drive. The disc may

be damaged, causing data loss.

• Be careful to prevent foreign objects such as liquids or metal from

entering the drive. Should by chance a foreign object enter the drive,
please consult the dealer where the drive was purchased.

• Don't use benzene or thinner to clean dirt from the drive. Don't al-

low chemicals such as insecticides to contact the drive. Use a soft
cloth to wipe the drive, or moisten a cloth with neutral detergent
diluted with water and use it to clean particularly dirty areas.

• Don't cutoff the electric power while the drive is operating.

• If two different devices with the same SCSI ID are connected to the

SCSI bus, the system may fail to function. Be careful that none of
the SCSI IDs are the same when installing the equipment.

• Keep the total length of the SCSI cable within 6 meters.

• When connecting the SCSI cable to the drive, make sure the power

is OFF.

• Never insert a damaged disc into the drive.

• In wintertime, don't use a disc soon after bringing in from outdoors.

Use it only after it has reached room temperature.

ii

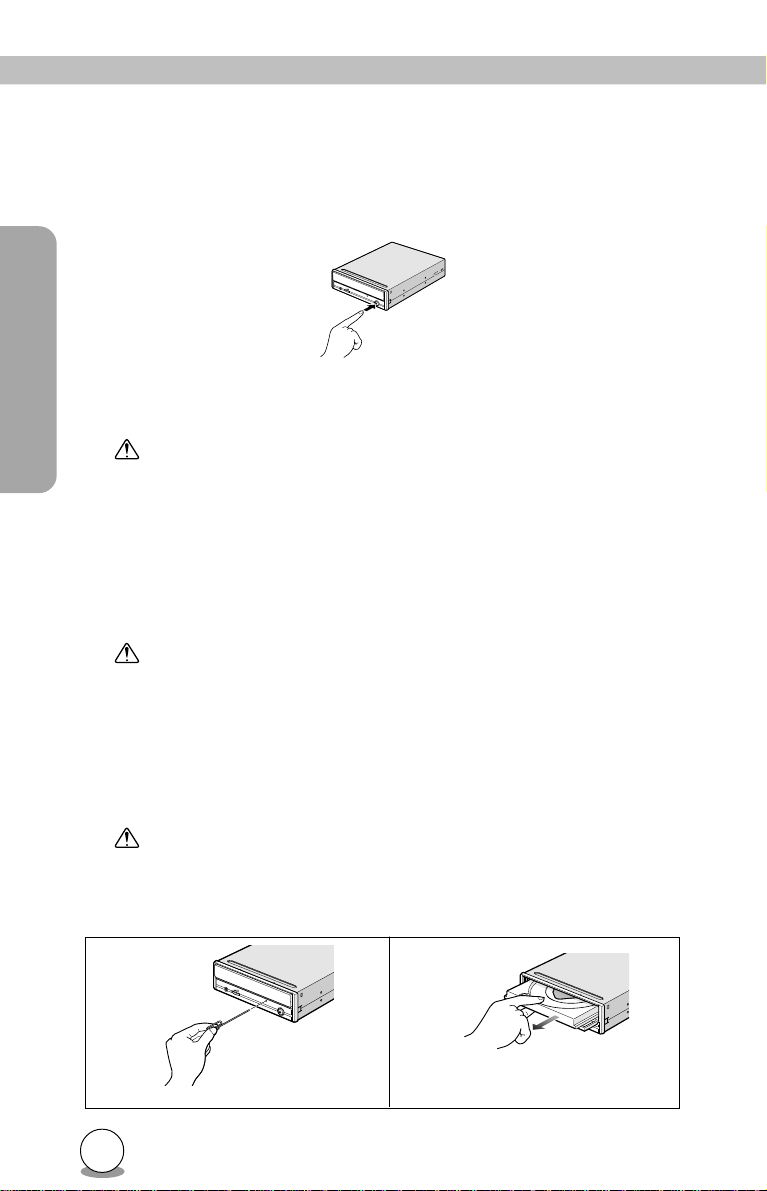

Cautions Concerning Disc Cleaning

• Remove the disc by pressing the eject button.

• Use compressed air to clear dust from the drive. (Spray the com-

pressed air for about 5 seconds). (See Fig. 1)

• Check to see if there is dirt on the surface of the disc. Be careful not

to touch the disc with the fingers when doing this. (See Fig. 2)

• After cleaning the disc with compressed air, place it on the disc tray

and mount it.

W e suggest using Perfect Duster II (80z.) as compressed air for clean­ing.

Disc tray

Check

Recording surface

Fig. 1 Fig. 2 Fig. 3

Other Cautions

• When moving the equipment, make sure that the disc has been re-

moved from the drive.

• When connecting connectors, make sure that the power is OFF. If

the power is ON, there is a possibility of short circuit.

• When not using the drive for a long period, dust may adhere to the

disc tray. Before using the drive again, use dry air cleaner to remove
the dust from the tray.

iii

Introduction

Thank you for purchasing the Multimedia Printer Series (Compact Disc
Recorder/ReWriter) MP 7060S series (abbreviated CD-R/RW drive).

Be sure to read this manual carefully before using this product.

This manual explains everything you need to know to operate this product.
Keep it in a safe place and refer to it whenever necessary.

Writing software must be installed in the host computer in order to write on
the CD-R/RW discs. Refer to the software manual for details.

Multimedia Printer series

The Multimedia Printer Series Drive (the CD-R/RW Drive) can do much
more than read and write the usual CD-R discs. When loaded with a rewritable
CD-RW disc, you can record, read and edit any kind of data. This is because
the CD-RW discs allow you to rewrite information that has already been
recorded.

iv

Features:

z Ricoh’ s original completely sealed door construction provides high

reliability.

z Running OPC*1 gives a uniform writing signal that improves reli-

ability.

z An improved anti-heat design means that no cooling fan is needed.
z Easy-to-use tray model.
z Uses the world standard SCSI II Interface.*
z Compliant with industry standard Orange Book Part II (CD-R)

and Part III (CD-RW).

z Can read not only CD-R and CD-RW discs, but also video CDs,

music CDs, photo CDs, and CD-Text

z Can read data at 24x speed (3.6MB/sec data transfer rate) and write

data at 6x speed*3(900KB/sec data transfer rate).*

z The recorded CD-RW media can be played in a DVD player or a

multiread CD-ROM Player, maintaining future compatibility.

z Supports random UDF for easy writing to CD-RW discs.

1 Continuously monitors the signal level during recording and adjusts the

*

laser power to compensate when the disc is dirty , insuring a uniform signal.

2 The SCSI interface board is not included with this product. You need to

*

purchase it separately.

3 Can write to CD-RW discs at 4X speed (600 KB/second data transfer

*

rate).

2

3

v

The MP 7060S Series

The MP 7060S Series

1

1. System environment

This unit can be operated in the system environment explained here.

System

MP 7060S Series

requirements

Hard disk Hard disk with average access time of

SCSI Interface Adaptec Inc. AHA-154x, 2940recommended.
Drive bay 5.25-inch half height bay required
Power +5V/+12V power socket required
Software Required OS Windows 98/95, Windows NT Workstation V er .

CD-R, CD-RW discs Ricoh, Mitsubishi Chemical, Taiyo Yuden,

CPU 166MHz (or faster) Pentium
Memory Windows 98/95: 32MB or greater.

Windows NT Workstation Ver. 4.0: 32MB or
greater (64MB or more recommended)

19msec or less, and data transfer speed of
1,200KB/sec or greater. 75MB or more free
space.(The free space needed for writing de­pends on the quantity of data.)*

4.0 (Service Pack 3) or later

Mitsui Chemicals, Ritek, CMC, Princo, TDK
or Kodak discs are recommended.

 Occasionally the CD-R and CD-RW discs written by the CD-R/RW drive

cannot be read by other CD drives*2. These unreadable discs should be
read using the CD-R/RW drive.

*1For write at 6X speed, average access time of 12 msec or less and data

transfer speed of 5 MB/sec or greater are recommended.

*2The disc written using the CD-R/RW drive may not be readable by CD-

ROMs other than Multi-read compatible (Random UDF compatible) CD­ROMs.

1

Multiread compatible (Random UDF compatible) CD-ROMs are:

(1) CD-ROMs that can read low reflectance
(2) CD-ROMs that support Packet Write.

2

2.

Drive functions and settings

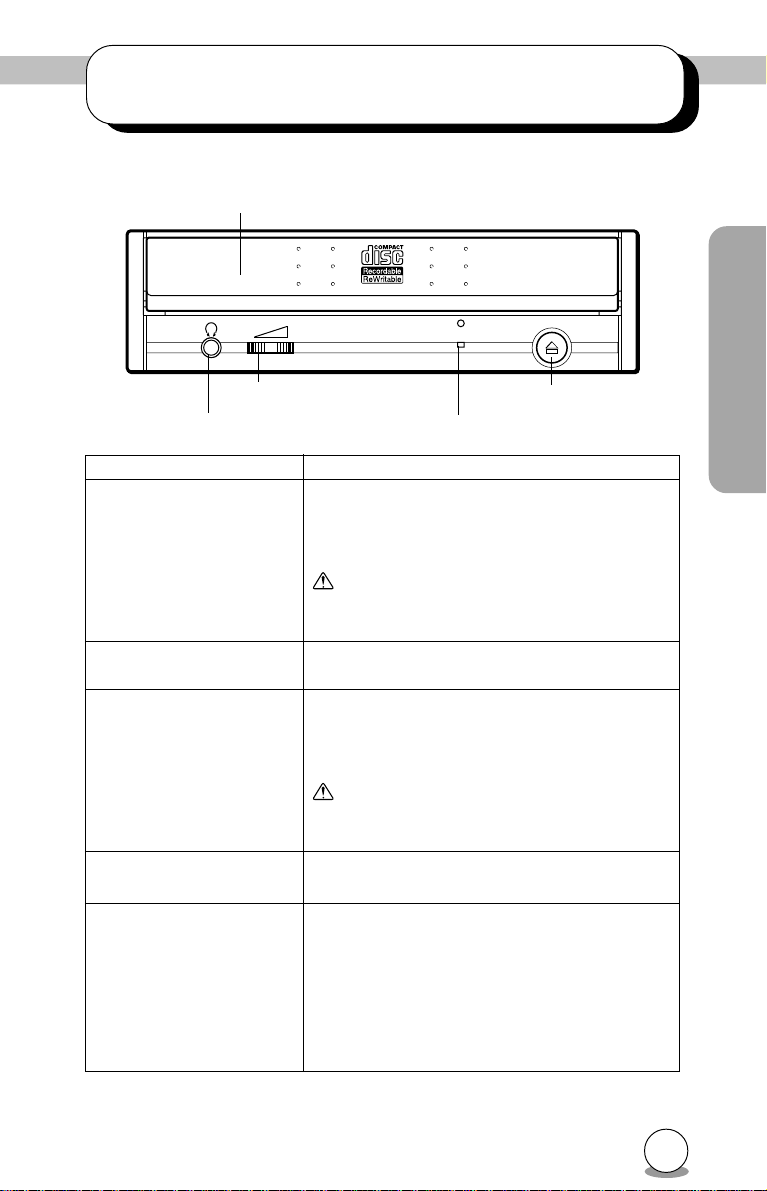

2.1 Front Panel

Headphone jack

Disc tray This is the tray for the disc. Place the disc on

Eject button This is the button used to eject or insert in the

Volume control This is used to adjust the output volume of

Headphone jack This jack is for connecting headphones or

Drive activity indicator This indicator lights green when the power is

Disc tray

Volume control

Drive activity indicator

Name Function

the ejected disc tray, then lightly push the tray
(or push the eject button) and the CD will be
mounted.

Don't use force to pull out or push in the
disc tray. This might cause damage to
the loading section of the drive.

disc tray.

the headphone jack. It can't be used to adjust
the output volume for the audio output con­nectors on the rear panel.

Turn the volume down before turning on
the power. Sudden loud noises can dam­age your hearing.

mini-speakers.

turned on. When a disc is mounted into the
drive and the disc is being accessed, it
flashes or lights orange. When the disc is not
being accessed, it lights green. When an ille­gal disc is mounted or hardware trouble oc­curs, the indicator blinks.

Eject button

MP 7060S Series

3

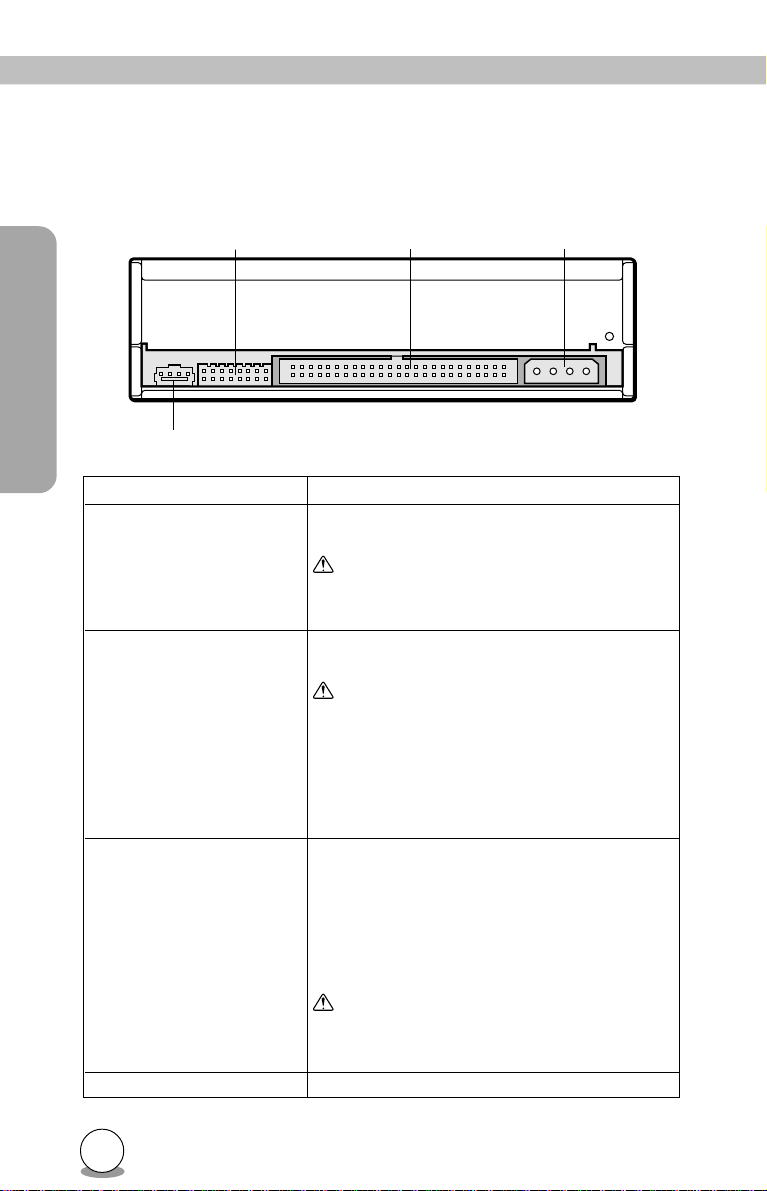

2.2 Rear panel

MP 7060S Series

Audio output connector

Name Function

Power Connector Connects to the power supply (5- and 12-V

SCSI interface connector Use a 50 pin double-end flat SCSI cable to

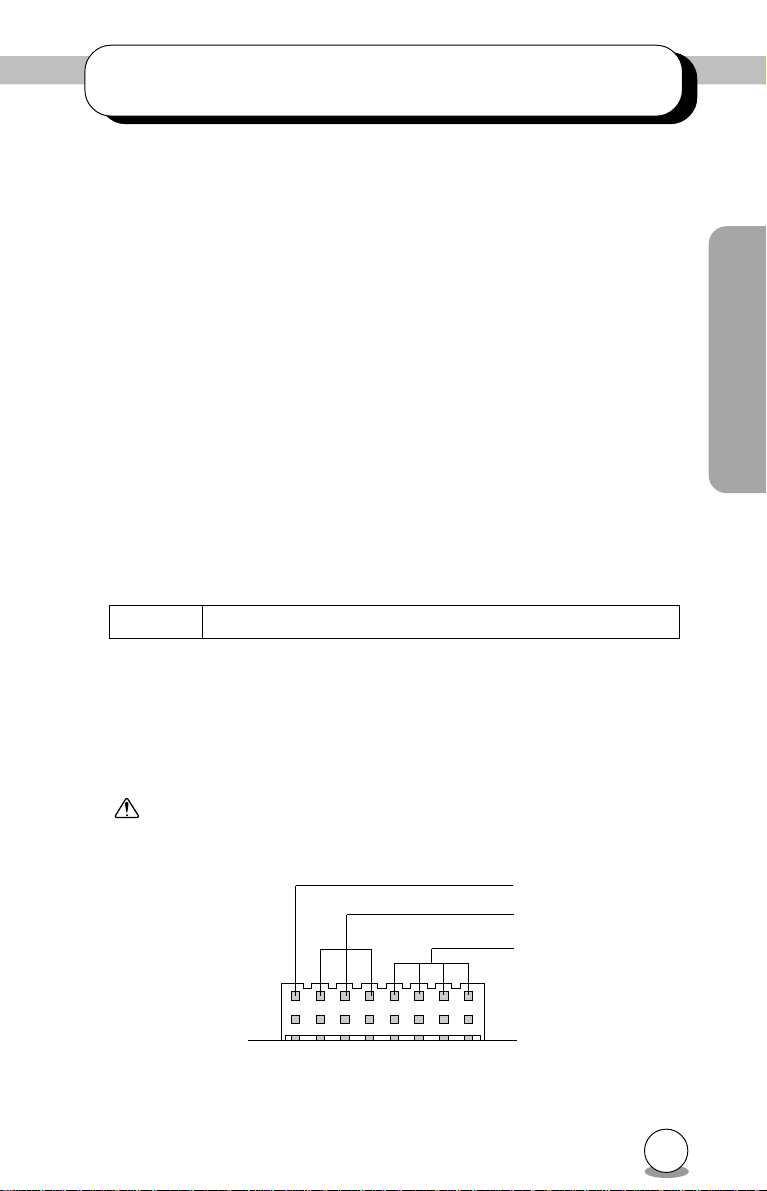

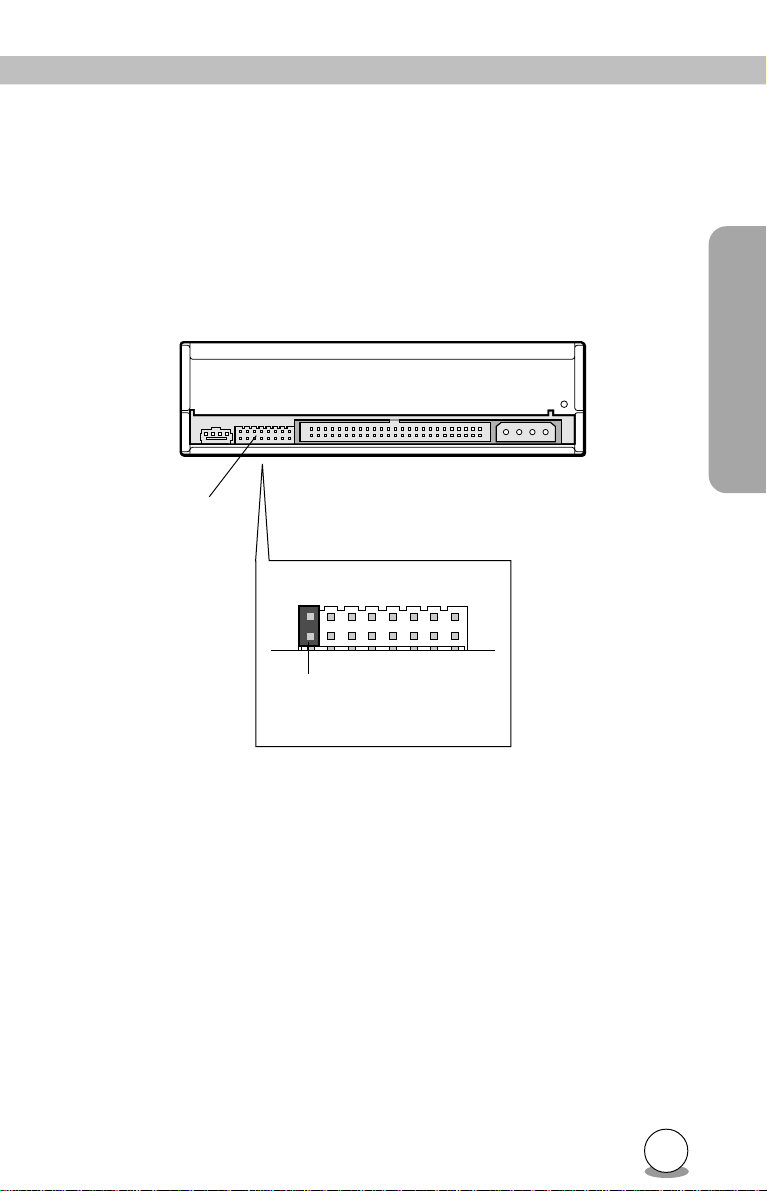

Option connector Used when selecting the SCSI ID number.

Audio output connector Provides output to a sound card.

Option connector

SCSI interface connector

DC) of the host computer.

Be careful to connect with the proper po­larity. Connecting the wrong way may dam­age the system (and is not guaranteed).

connect to the SCSI interface.

Connecting or disconnecting connectors
while power is on may result in a short cir­cuit, causing damage to the equipment.
When connecting or disconnecting con­nectors, make sure to turn off the power
beforehand.

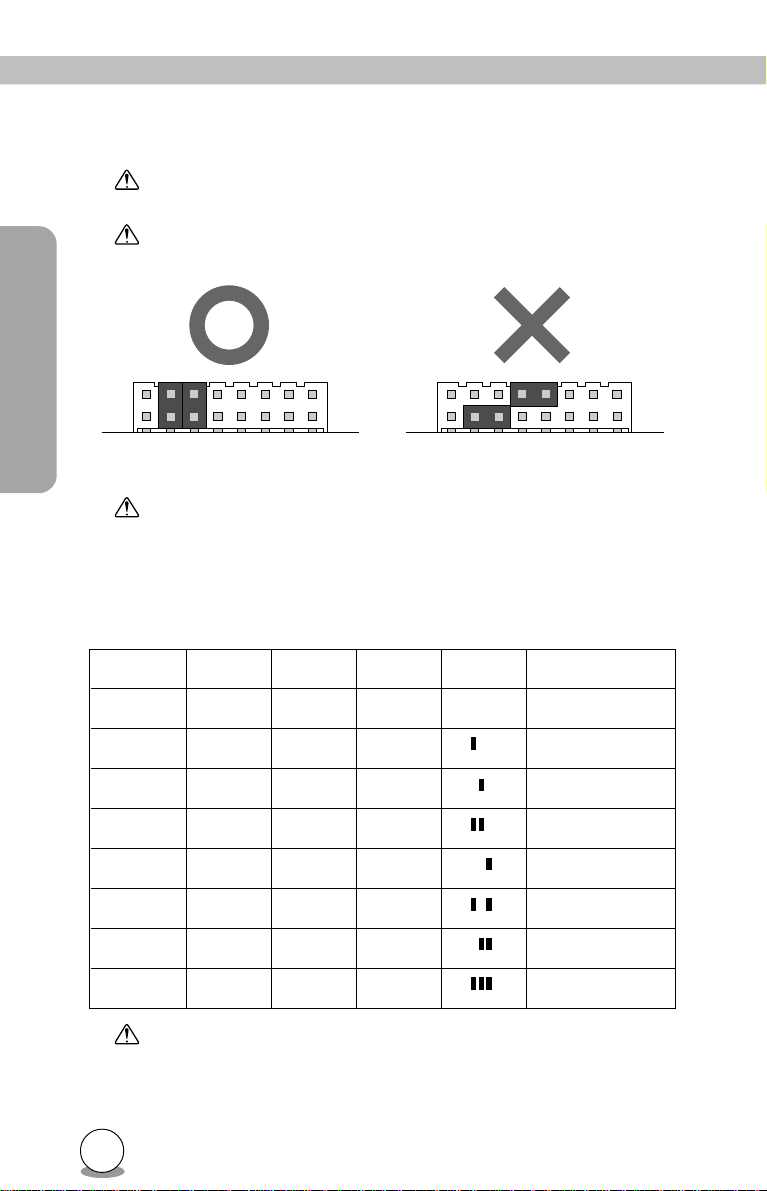

Don't use jumpers to change anything besides
the SCSI ID, but keep the drive as initially
set(no jumper pins: ID 0) SCSI ID changes
become valid after power is turned off, then
on again.

Installing jumper pins besides the ones for
SCSI ID settings may be the cause of dam­age or abnormal drive operation.

Power connector

4

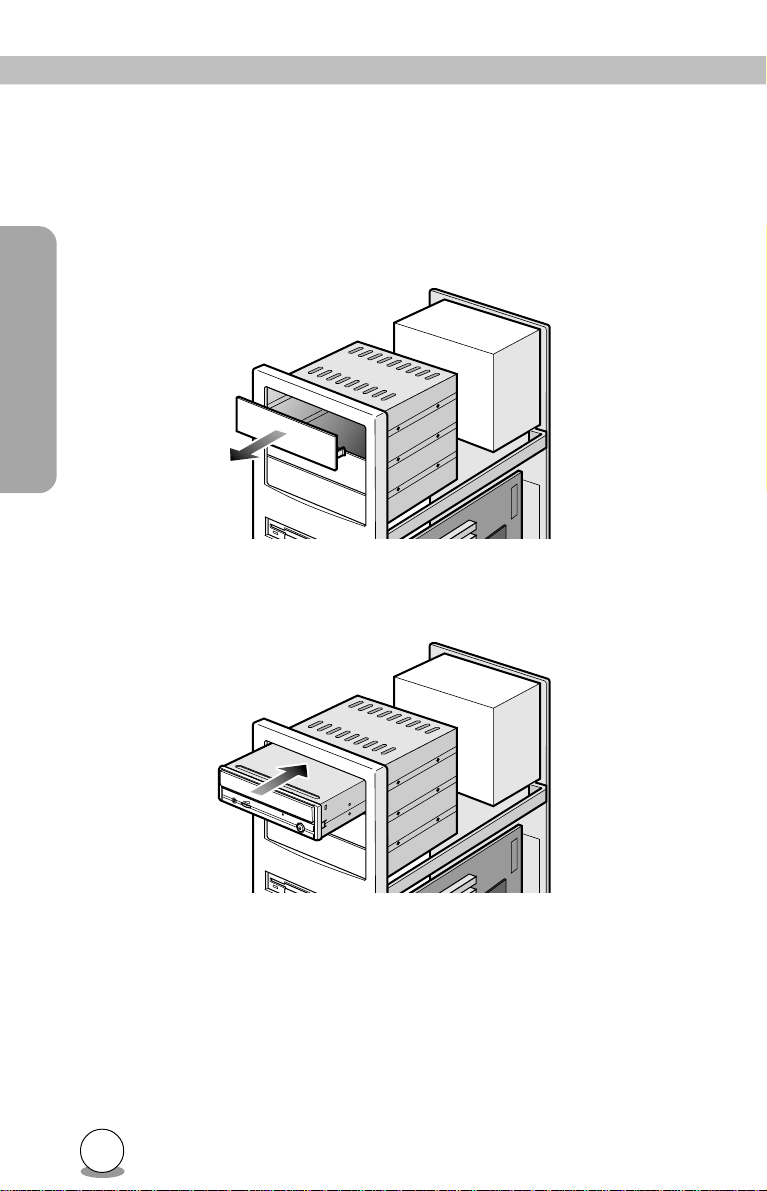

3. Installing the Drive

3.1 Before Installation

Before installing the drive, please note the following points.
z You will need the following:

• SCSI interface board and manual (The SCSI interface board is not

included with this product. You need to purchase it separately. Also,
see page 2 in the "System environment" section for a list of recom
mended models.)

• Computer manual (You need the manual in order to find out loca

tion of the bus slot for installing the SCSI interface board.)

• A Phillips head screw driver of a suitable size to fit the securing

screws for the drive unit.

z Turn of f all peripheral appliances of the computer, and the computer itself

, and disconnect their power cords from the wall sockets.

z Discharge any static electricity by touching the computer covers etc.
z Record the serial number of the drive unit in the box below.

Serial No.

MP 7060S Series

3.2 SCSI ID Settings

Before installation, set SCSI ID on the rear panel. A single SCSI interface can
connect with a maximum of seven peripheral SCSI devices. When using
multiple SCSI devices, a different SCSI must be set for each of them.

If two peripheral devices use the same SCSI ID number, it will cause the
host computer to operate abnormally or fail to start up.

Terminator
SCSI ID

Reserve (Fixed OFF)

ON (When the jumper is attached)
OFF (When the jumper is removed)

5

Before attaching or removing jumpers, make sure the power to the drive is
turned OFF.

Attach the pins as shown in Figure 1. If the pins are attached sideways as

MP 7060S Series

shown in Figure 2, the drive may be damaged.

Figure 1. Figure 2.

The pins besides pins 2-4 don't have any function. If jumpers are attached
to them, abnormal operation may result.

The SCSI ID number is decided by which of the jumper pins Nos.2, 3 and 4
are connected. Refer to the following table when changing the SCSI ID.

SCSI ID Pin No.2 Pin No.3 Pin No.4 Jumper Note

0 OFF OFF OFF

1 ON OFF OFF

2 OFF ON OFF

3 ON ON OFF

4 OFF OFF ON

5 ON OFF ON

6 OFF ON ON

7ONONON

2 3 4

2 3 4

2 3 4

2 3 4

2 3 4

2 3 4

2 3 4

2 3 4

Initial setting

The initial setting for the SCSI interface board is generally set at SCSI ID 7.
Confirm the SCSI ID of the SCSI interface board before setting other num­bers.

6

SCSI board

3.3 Terminator Setting

When no other SCSI peripheral devices besides the CD-R/RW drive are
connected to the host computer, a terminator must be attached to the drive.
Also, when multiple peripheral devices are connected, this drive needs a
terminator if it is the last in the line.

Option Connector

Terminator
ON : (When the junmper is attached)
OFF : (When the jumper is removed)

MP 7060S Series

The terminator of this product can be set by installing (terminator: ON) or
removing (terminator: OFF) the jumper pin from the option connector. When
shipped, the jumper pin is installed (terminator: ON). Install or remove the
pin as required.

7

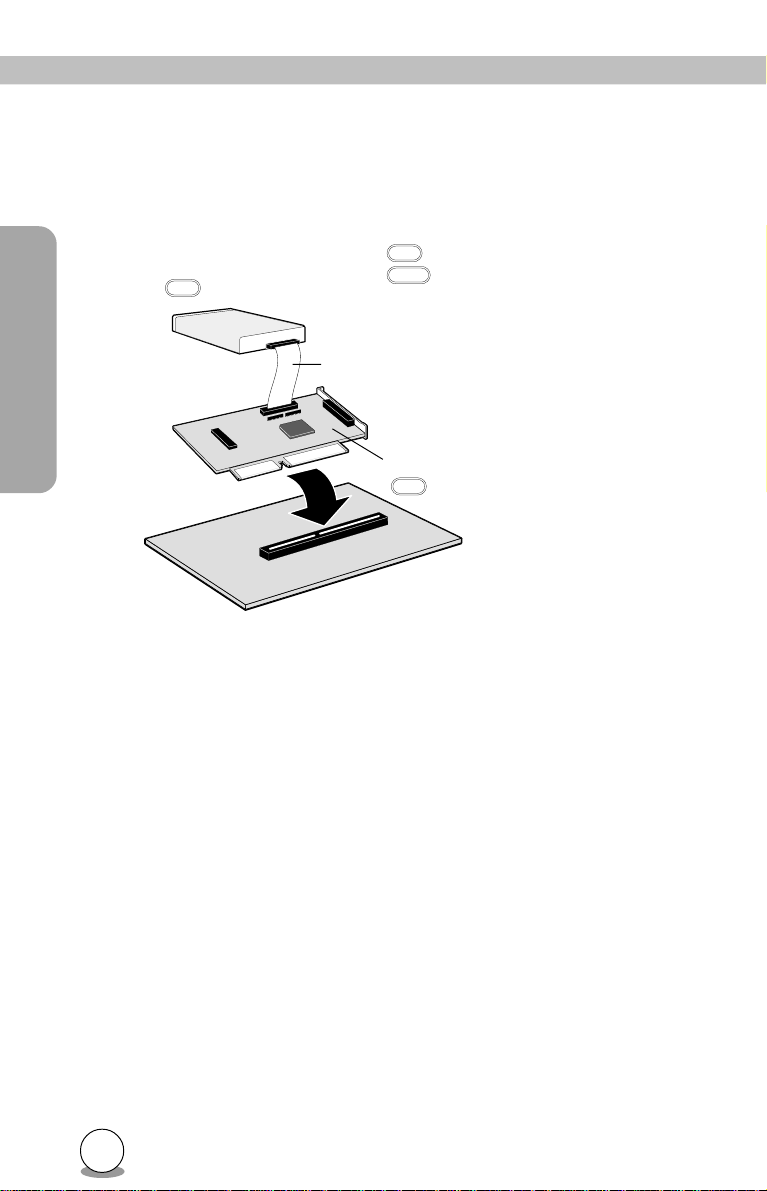

When one drive is connected

MP 7060S Series

CD-R/RW drive
ON

ON Terminator is attached
OFF Terminator is not attached

SCSI cable

SCSI interface board

ON

Host computer

8

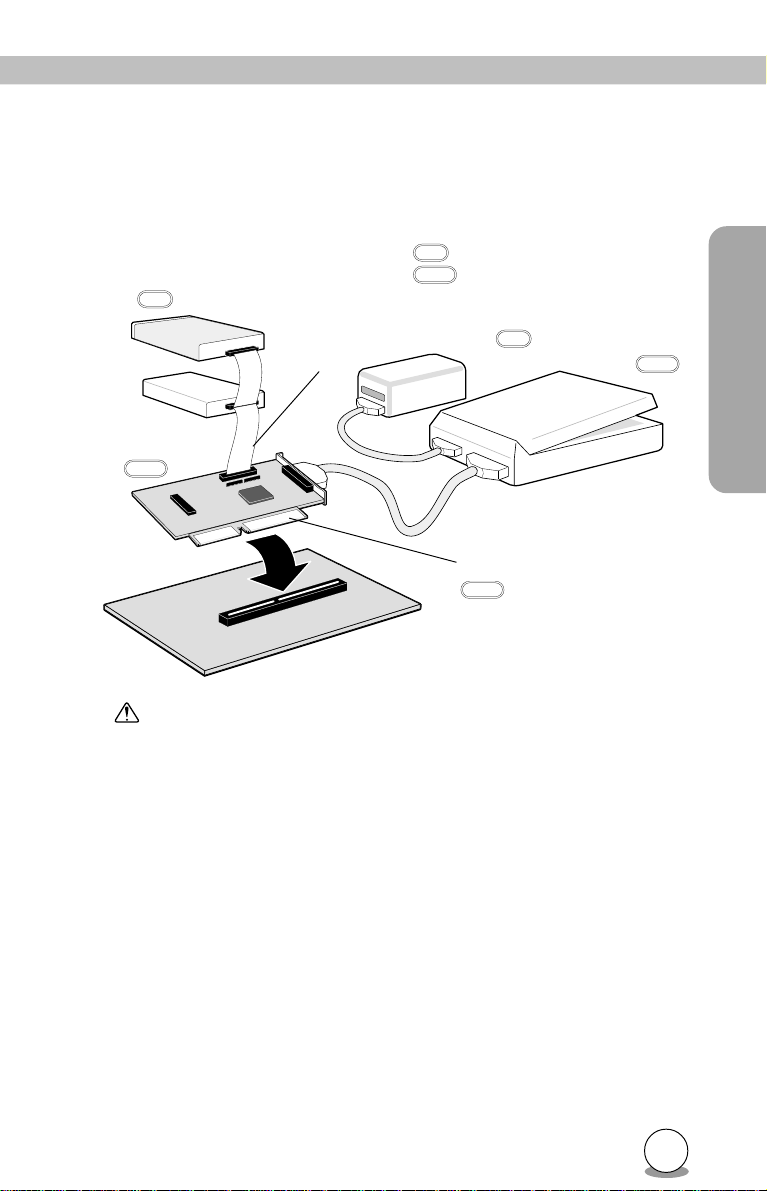

When the drive and multiple peripheral devices are attached

ON Terminator is attached

CD-R/RW drive

ON

OFF Terminator is not attached

SCSI cable

MO drive

OFF

Host computer

External HDD ON

Scanner

SCSI interface board
OFF

When attaching terminators to other peripheral devices, use the termina­tors that came with those devices.

OFF

MP 7060S Series

9

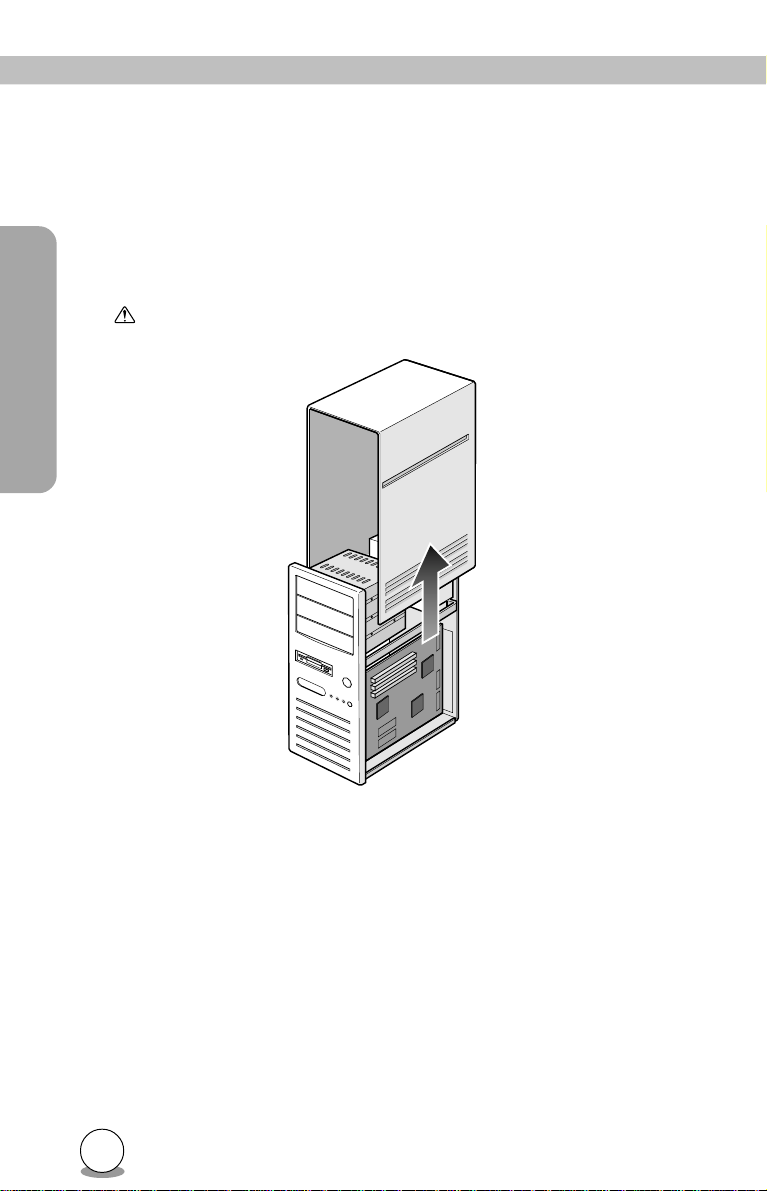

3.4 Removing the Computer Cover

Make sure all peripheral devices of the computer and the computer itself are
turned off, and then remove the cover . Refer to the manual for the computer

MP 7060S Series

for details about removing the cover.

There may be sharp edges inside the computer so care must be taken to
avoid injury.

10

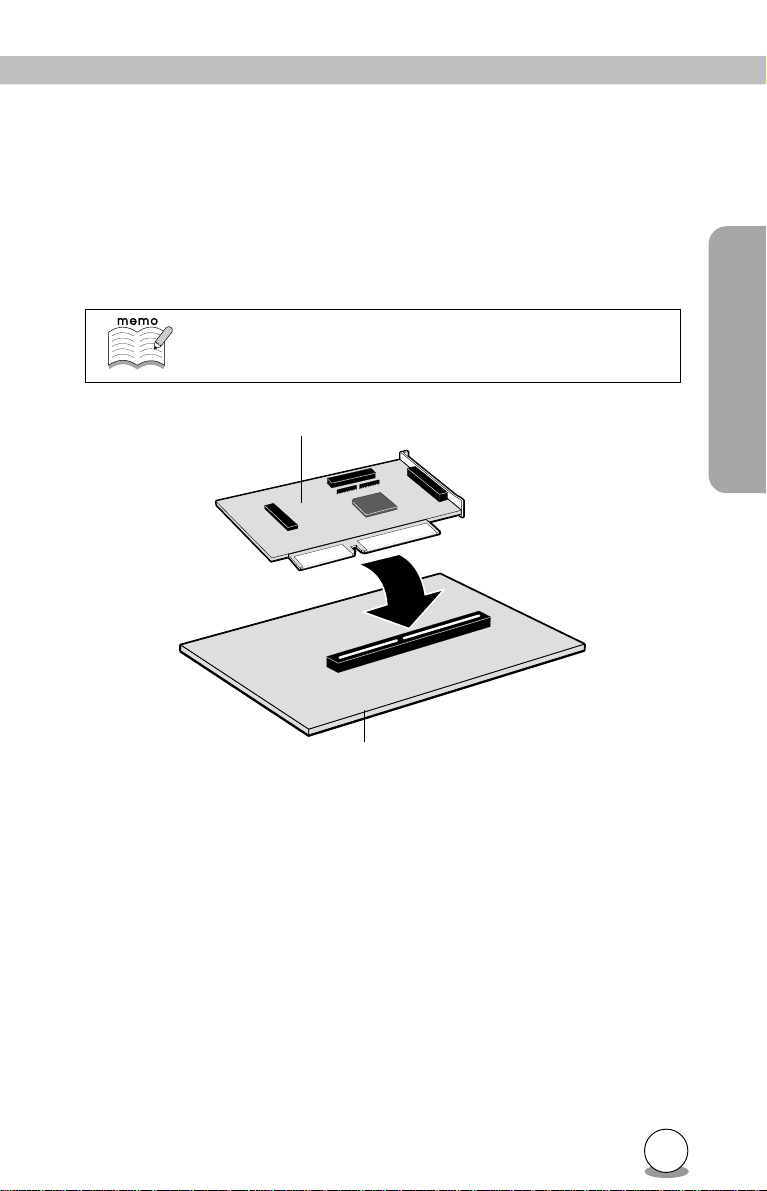

3.5

SCSI

Insert the SCSI interface board into the specified bus (ISA, PCI) slots for
each of them. Firmly push board until it is all the way in and completely in
contact with its slot.

Interface Board Installation

For a detailed explanation, refer to the manuals for the SCSI
interface board.

SCSI Interface board

Host computer

MP 7060S Series

11

3.6 Mounting the Drive

1. Remove the 5 inch drive bay panel from the computer. Refer to the manual

MP 7060S Series

for the computer for details.

2. Insert the drive unit into the bay. Do not apply excessive pressure to the
cables inside the computer.

12

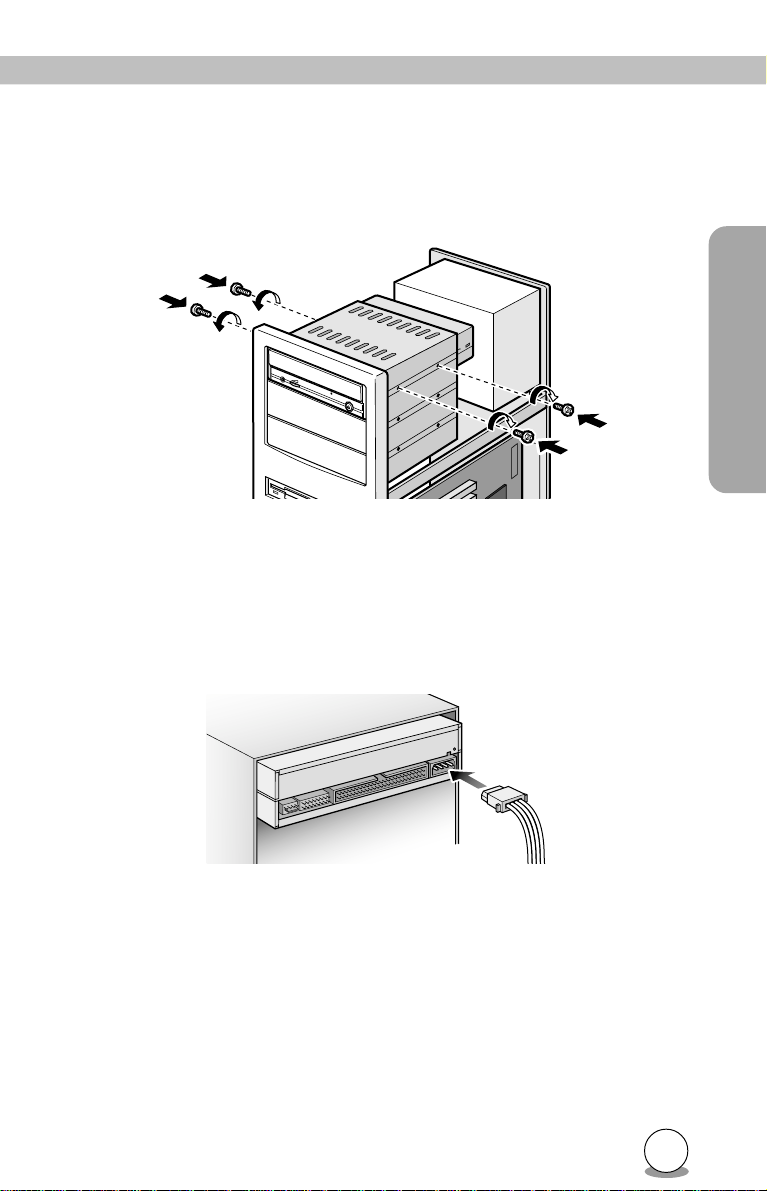

3. Secure the drive with the screws provided. If there is not enough space
behind the drive, connect the SCSI cables etc. before securing the drive.

3.7 Connecting the Power Connector.

Connect the power cable from the computer’s power supply to the socket on
the drive unit, fitting the connector snugly into the socket.
if there is no spare power cable available in the computer, you will have to
purchase a splitter cable of a suitable type.

MP 7060S Series

13

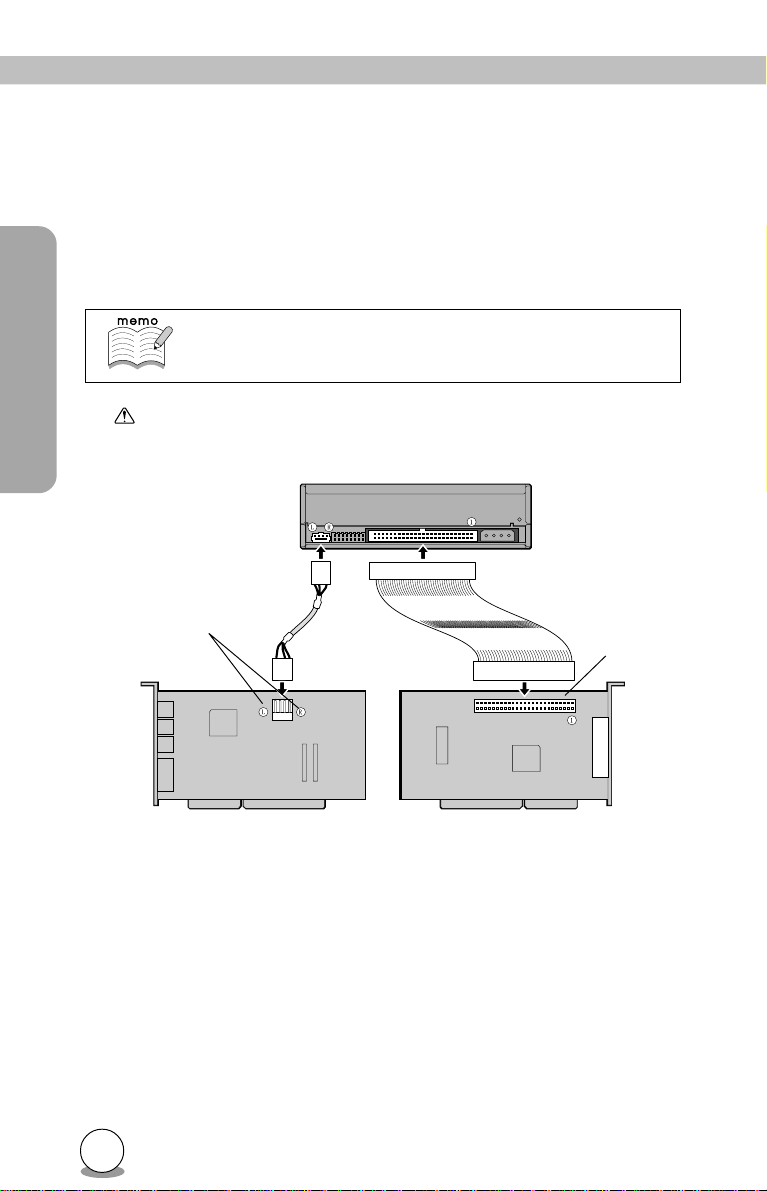

3.8

SCSI Interface and Sound Card Connection

Connect the SCSI interface board to the drive.
If the computer is using a sound card. The drive is connected to the sound

MP 7060S Series

card with an audio cable.

For a detailed explanation, refer to the manuals for the SCSI
interface board and the sound card.

Be careful not to reverse the connectors when connecting the SCSI interface
board and the sound card to the dive.

MP7060S

14

When L,R

Sound card

SCSI connector

SCSI interface board

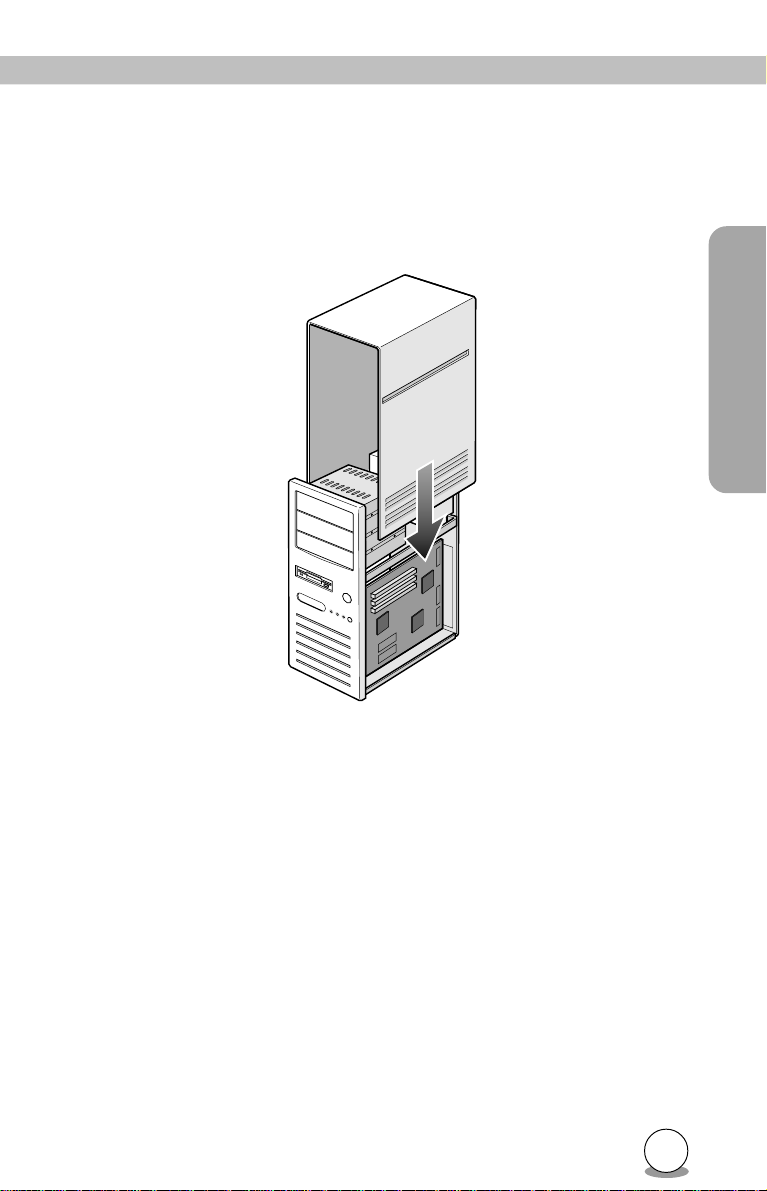

3.9 Replacing the Computer Cover

When the installation of the drive unit is complete, replace the computer
cover.

MP 7060S Series

15

4. Device Drivers

When using Windows 98/95 or W indow NT Workstation Ver. 4.0, the instal­lation of any special device drivers are not required.

4.1 For Windows 98/95 Users

MP 7060S Series

z In order to ensure normal drive operation, please check the following:

• The drive is displayed in

[control panels] - [system] - [device manager] - [CD-ROM]

• 32-bit is displayed in

[control panels] - [system] - [performance]

z If the drive is not recognized by your computer, please check the follow-

ing items.

• If a indicator is displayed on the SCSI adapter in

[control panels] - [system] -[devices manager]-[SCSI controllers], you will
need to contact your PC’s manufacturer or the motherboard’ s manufacturer
and get the appropriate SCSI controller driver.

4.2 For Windows NT Workstation Ver.4.0 Users

z In order to ensure normal drive operation, please check the following:

• The drive is displayed on the SCSI controller in

[control panels] - [SCSI adapter] -[devices]

z If the drive is not recognized by your computer, please check the follow-

ing items.

• If a indicator is displayed on the SCSI controller in

[control panels] - [SCSI adapter] -[devices] , you will need to contact your
PC’s manufacturer or the motherboard’s manufacturer and get the appro­priate SCSI controller driver.

When using this drive, please be sure to use the latest SCSI device
driver available with your SCSI interface board. The latest device
driver (miniport driver) can be obtained from the manufacturer of
your SCSI interface board.

16

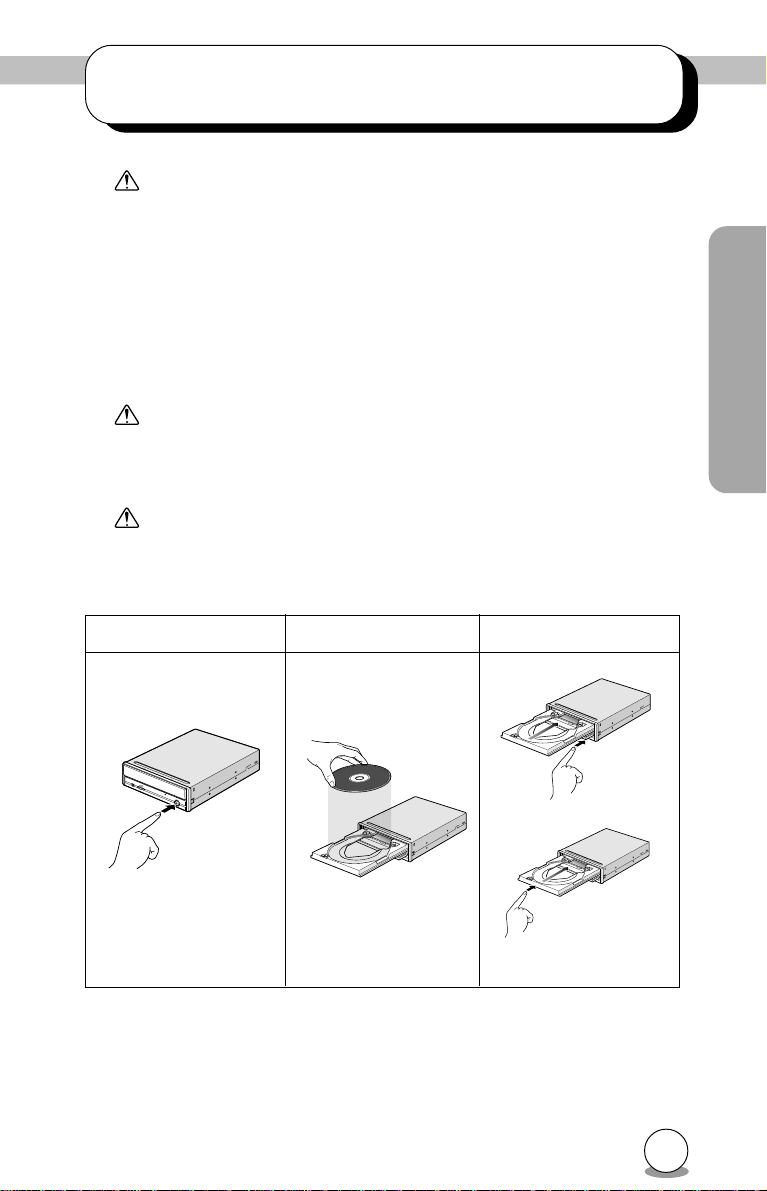

5. How to Use the Discs

When using CD-ROM discs, CD-R discs or CD-RW discs, do not attach
any stickers or labels to the discs. Using discs with labels attached not only
causes read and write errors, but data on the disc may be lost due to damage
to the disc itself.

5.1 Load the disc

(1) Press the eject button.
(2) Place the disc on the disc tray.

When using a 120mm CD, place it in the large round depression. The face
with the label on it should be up. Never place both discs in the tray at the
same time.
* This drive cannot be used with 80 mm CDs.

Be careful not to touch the recording surface of the disc.

(3) Load the disc by pressing the eject button or by lightly pushing in the

disc tray .

MP 7060S Series

(1)

(2)

(3)

17

5.2 Disc ejection

(1) Press the eject button

MP 7060S Series

(2) Slowly take the disc out of the disc tray
(3) Press the eject button or push the disc tray and the tray will be inserted

back into the drive.

After ejecting the disc, return the tray inside the unit quickly. When the
tray is in the ejected position, dust and other debris will enter, possibly
causing read errors, write errors, or drive failure.

5.3 Emergency Eject

This drive has a function that allows the CD to be ejected manually if this
becomes necessary in an emergency such as failure of the drive or a power
outage. Follow the following procedures in such a case.

Don't use this feature except in an emergency .

(1) Turn the power to OFF.
(2) Poke a fine tipped object into the small hole above the eject button. The

front door pops open and the disk tray comes partway out.

(3) Pull the front door to open it all the way , then grip the disc tray between

thumb and forefinger and gently pull it straight out.

This feature is a last measure to be used only in an emergency. Using it
excessively will cause malfunction.

* If you cannot get a good grip on the disc tray with your fingers, use a

steel binder clip or spring clamp to pull it out.

18

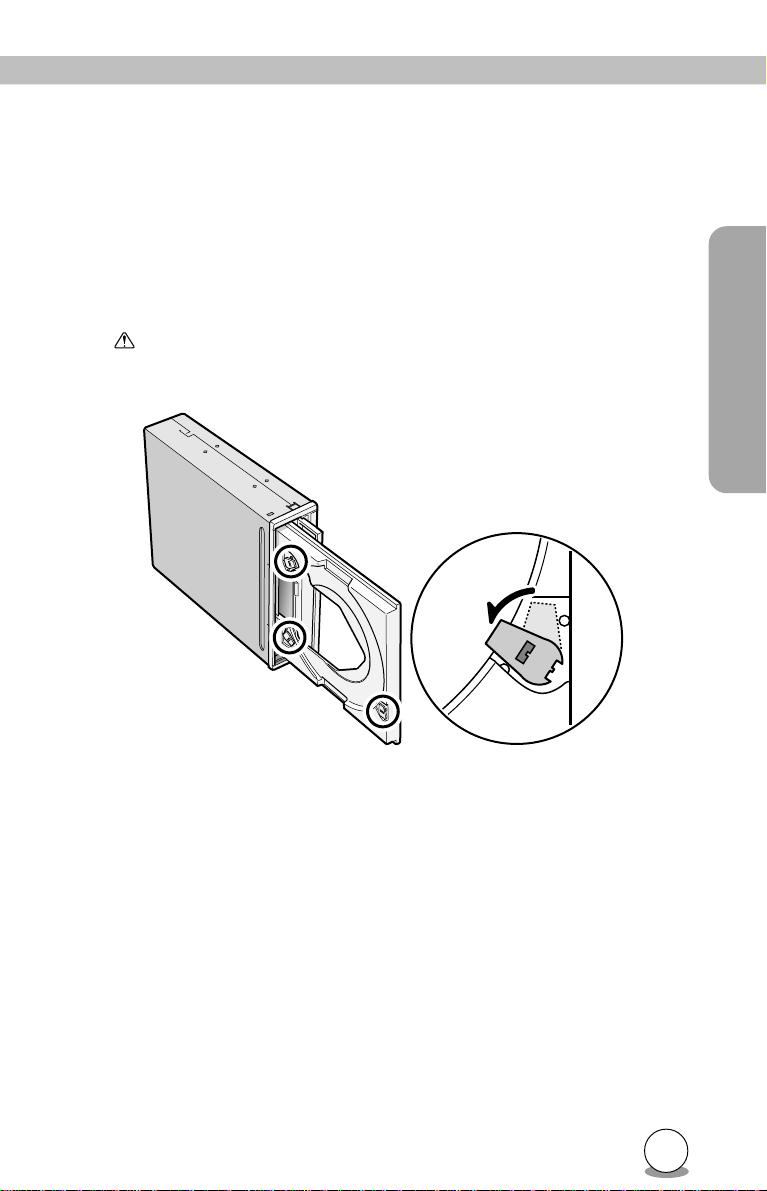

5.4 Using the Drive in a Vertical Position

The drive can be installed in a vertical position. If this is done, the tabs on
the disk tray will need to be rotated to stop the disk from falling out. With
your finger, rotate the tabs inwards until you hear a click, so they face the
center of the tray. The disk is inserted on the inside of these tabs.

Make sure the eject button is at the top of the unit when installing the unit
in a vertical position.

MP 7060S Series

19

Appendix

Appendix

21

1. Specifications

< Drive : MP7060S>

Type Internal type (bare drive)
Interface SCSI-2
Data buffer memory 2MB
Data transfer speed Max. 5 MB/sec.(Async.), 8 MB/sec.(Sync.)
Write/Read speed (Ave) 24×:3.60MB/sec. (Mode1, Mode2, Form1) <Only read>

20×:3.00MB/sec. (Mode1, Mode2 ,Form1) <Only read>
20×:3.40MB/sec. (Mode2, Form2) <Only read>
8×: 1.2MB/sec. (Mode1, Mode2, Form1) <Only read>
8×: 1.36MB/sec. (Mode2, Form2) <Only read>
6×: 900KB/sec. (Mode1, Mode2, Form1)
6×: 1.02MB/sec. (Mode2, Form2)
4×: 600KB/sec. (Mode1, Mode2, Form1)
4×: 681KB/sec. (Mode2, Form2)
2× : 300KB/sec. (Mode1, Mode2, Form1)
2× : 340KB/sec. (Mode2 Form2)
1× : 150KB/sec. (Mode1, Mode2, Form1)

1× : 170KB/sec. (Mode2, Form2)
Average access time 120m sec. or less
Initial processing time CD-ROM 14 sec.

Appendix

Mounting direction horizontal/vertical(eject button at top when vertical)
Compatible formats Format <Write> <Read> <Play>

Loading system Tray type (automatic loading/eject)
Power DC5V, DC12V
Power consumption 12w max (normal operation) 6w max (standby)
Weight Less than 1.5 Kg.
Dimensions 148.4 × 198 × 42.5 mm (Width, depth, height)
Reliability
Error Rate 10

MTBF 100,000 hours or greater
MTTR Within 30 minutes

Environmental Conditions When operating When not operating
Temperature 5°C to 40°C (No air cooling) -30°C to 65°C
Humidity

Speed is automatically reduced if reading is unsuccessful.

CD-R/RW 19 sec.

CD-DA zzz

CD-ROM zz

CD-Extra zzz

CD-ROM XA zzz

Photo CD zz

CD-I zz

CD-ROM + CD-DA zzz

Video CD zzz

CD-Text zz

-12

5% to 90% R.H. (No condensation)

bits or less

5% to 95% R.H. (No condensation)

22

(continued)
Environmental Conditions When operating When not operating
Vibration 0.035mmpp (10 to 45Hz)

0.025mmpp (45 to 65Hz)

0.2 × 9.8 m/s2 (65 to 150Hz)

Shock 2 × 9.8 m/s

(6m sec. half sine) (11m sec. half sine)
Environmental dust Class 3 million or less (3 million particles of 0.5 micron dust

per cubic foot or less)

2

1 × 9.8 m/s
(5 to 300Hz)

40 × 9.8 m/s

2

2

The drive’s appearance and specifications may change without notice.

<Disc>

CD-R CD-RW
Characteristic CD-R CD-RW
Dimensions (External diameter) φ120 mm φ120 mm
(Internal diameter) φ15 mm φ15 mm
(Thickness) 1.2 mm 1.2 mm
Recording area (User area) φ50 to 116 mm φ50 to 116 mm
Recording capacity (Time) 74 minutes 63 minutes 74 minutes
(Capacity)* 650MB 550MB 650 MB
(Linear speed) 1.2 m/s 1.4 m/s 1.2 m/s
Track pitch 1.6 ± 0.1µm 1.6 ± 0.1µm
Substrate material Polycarbonate Polycarbonate
Recording material

Reflectance (R to p) 65% or more 15 to 20%
Eccentricity 70µm or less 70µm or less
Maximum camber angle 0.4°or less 0.4°or less
Recommended recording power6 to 7mW(at λ:785nm, NA:0.5)8 to 14mW(at λ:785nm, NA:0.5)
Playback power 1mW or less 1mW or less
Playback stability 10

Environment for use -5 to 55°C 10 to 40°C

Storage life

Number of times rewritable ---- 1,000 times or more

Organic pigment (phthalocya-

nine) / Au or Ag lamination

(Organic protective layer

attached)

6

times or more (0.7mW)

5 to 95%RH 10 to 80%RH

100 years or more
(5 to 25°C, 5 to 60%RH
Avoiding direct sunlight)

* The above specifications are for Ricoh CD-R and CD-RW discs
* Recommended Discs

CD-R : Ricoh, Taiyo Yuden, Mitsubishi Chemical, Mitsui Chemicals, Ritek, CMC,

Princo, TDK, and Kodak discs

CD-RW : Ricoh, Mitsubishi Chemical discs

* This drive cannot be used with 80 mm CDs.

Ag-In-Sb-T e phase change

recording material

6

10

times or more

(Playback power = 1mW)

30 years or more

5 to 25°C, 5 to 60%RH

Appendix

23

* All references to the product in this document are to specifications in effect
when the product was released.

Copyright RICOH Co.Ltd.

All rights reserved.
