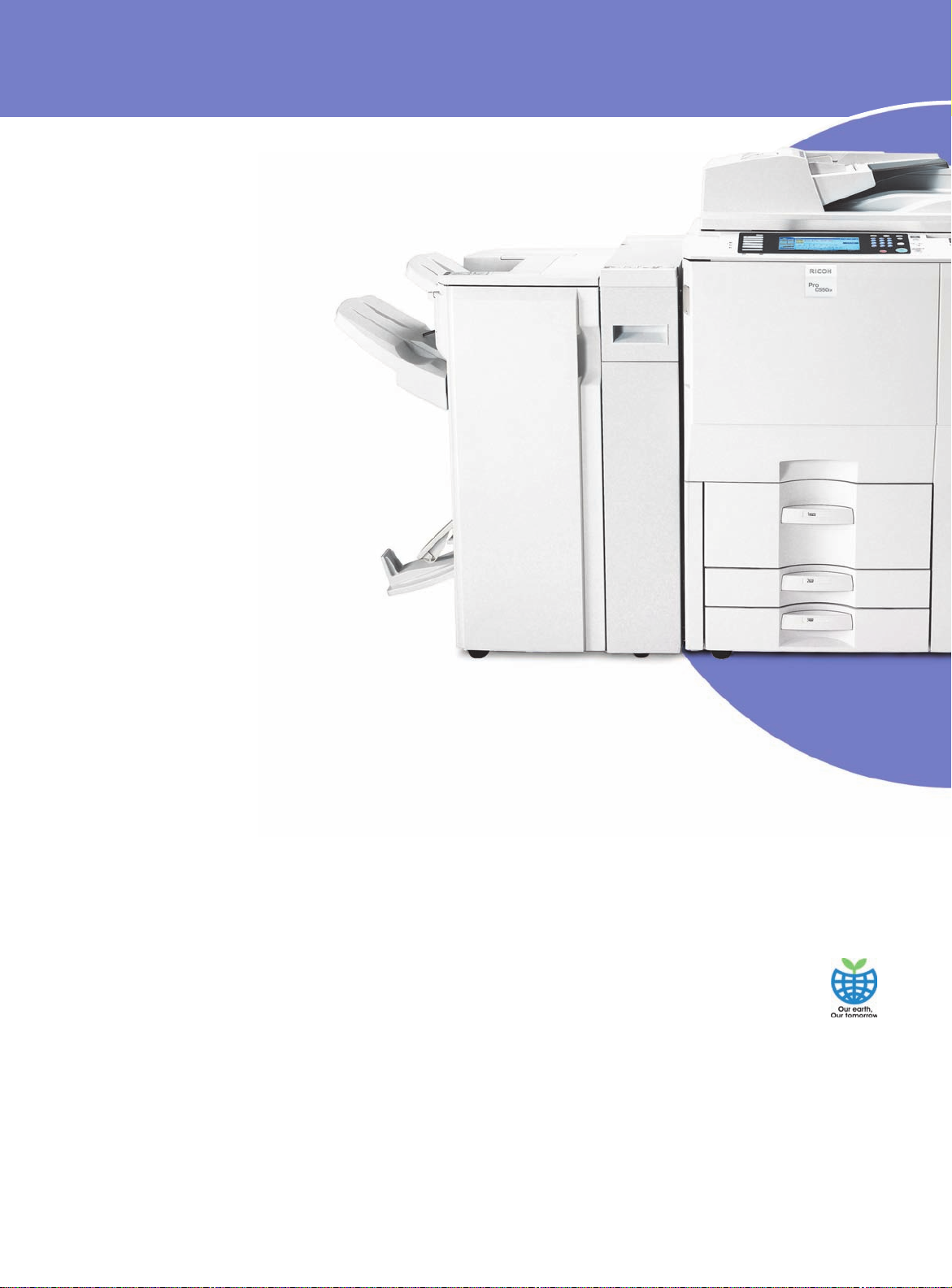

RICOH Pro C550EX/C700EX
Color Digital Imaging System
Productive High-Speed Color
flexibility
VersatilityFinishingCapacityConvenience
Optional Cover Interposers:
Feed pre-printed sheets from one or
two sources for front and back covers.
Optional Z-Fold Unit: Insert larger
sheets within smaller-format documents.
Optional 3,000-Sheet
Finishers:
from 50- or 100-sheet
stapling and 2- or 3hole punching.
Optional 2,000-Sheet
Booklet Finisher:
Fold and staple
documents to produce
finished booklets.
Choose
100-Sheet Automatic
Reversing Document Feeder
(ARDF): Scan a color page in
1.0 seconds or a black & white
page in 0.8 seconds.
WVGA Control Panel: Set up
jobs in seconds with the large,
full-color LCD touch-screen.
Tandem 2 x 1,100-Sheet Paper Tray,
Two 550-Sheet Paper Trays and Bypass:
The system holds 5,300 sheets in its
standard configuration.
GBC StreamPunch III
BK5010 Production
Booklet Maker
Standard Large Capacity Tray:
Using the Bypass Tray and an air-assist mechanism,
the standard RT4000 DLT/LCT feeds 2,000 sheets
(up to 12" x 18" and 110 lb. Cover [300 g/m2])
with outstanding reliability.
Ring Binder RB5000
Use the GBC StreamPunch III to produce clean,
precisely punched documents in a range of styles.
Create saddle-stitch square fold booklets up to
120 pages.
In-Line Ring Binding—with the new Ring Binder
RB5000—eliminates the time and expense of
inserting binding elements off-line, dramatically
saving time and labor.
FlexibilityPowerEfficiencyControl
Optimize Image Quality
In addition to its state-of-the-art controller,
the RICOH Pro C550EX/C700EX
includes several features that help
ensure excellent image quality.
• Sharpen every image with new PxP
toner technology. Smaller toner
particles ensure smooth, even
distribution, which enhances edge
definition, coverage and density while
improving color matching.
• Parallel calibration ensures consistent
color quality over long job runs.
• Remove trace indentations that can occur
after fusing. The system incorporates a
smaller, more precise mechanism for moving
paper in and out of the fuser unit.
Finishing and
Media Flexibility
Configure the system
with one or more in-line
finishing options and run a
diverse array of media to
meet your customers’ most pressing needs.
• Handle a very wide range of stock. The paper trays accommodate
weights up to 80 lb. Cover and will duplex up to 90 lb. Index.
• Run longer jobs on more sizes with the standard Large Capacity Tray.
It accepts sizes up to 12" x 18" and weights up to 110 lb. Cover,
and holds up to 2,000 sheets.
• Produce booklets up to 60 pages (15 sheets) with the optional
SR4020 Booklet Maker.
• Insert maps, drawings, plans and other large documents in smallerformat documents with the Z-Fold Unit.
Smooth, Easy Operation
Light production environments need to
move quickly, with no room for error.
This system ensures simple, convenient
operation at all times.
• Locate E-8100 features immediately by pressing the Fiery Driven
key located on the system’s control panel.
• Never say no to your customers. Take advantage of a comprehensive
lineup of copying, scanning, and storage capabilities to handle
virtually any task.
• Place the system anywhere in the shop—especially in locations
where floor space is at a premium—with its small footprint.
The Total
Green Solution
Ricoh continues its
long-standing commitment
to developing solutions with
environmentally friendly and superior
energy- and supply-saving features,
without compromising productivity.
SpeedColorReliabilityPerformance
Accelerate Productivity
Outpace your competition and turn important
jobs around quickly with exceptional speed
for full-color and black & white output.
• Make quick work of any job with the RICOH Pro C550EX, which
delivers 55 color or 60 black & white pages per minute (ppm), or
the RICOH Pro C700EX, which achieves speeds of 70 color or 75
black & white ppm. Duplexing runs at 100% of rated speed.
• Reduce wait-time between jobs. The multitasking E-8100 enables you
to print one job while simultaneously RIPing a second. Its standard
2.13 GHz processor and 2GB memory help ensure fast performance,
even for complex, color-intense files.
• Hit deadlines every time, especially rush orders. Together, the
RICOH Pro C700EX and the E-8100 form the fastest color output
combination in this segment.
• Ensure smooth operation with the large, full-color WVGA control
panel, which offers an intuitive menu that makes it easy for any
user to find the right settings.
• Minimize interruptions by maximizing paper input capacity.
The systems hold up to 5,300 sheets to support extended runs.
The integrated touch-panel display puts all primary
Fiery features and functions at your fingertips.
Maximize Color Control
The high-performance E-8100 provides
the extra horsepower you need to ensure
consistency, control workflow and deliver
vivid full-color output.
• Understand complex jobs at a glance with a new user interface.
Simple, easy-to-follow menus allow anyone to navigate sophisticated
imposition settings.
• Manage workflow from a single PC with the Command
WorkStation®utility, which enables you to rearrange job queues
and edit multiple jobs on the fly.
• Maximize efficiency and speed with extensive job management
features, including Rush Print, Process Next, Print Next and
Paper Catalog.
• Ensure optimal color quality with the optional Fiery Graphic Arts
Package Premium Edition, which allows you to optimize screen
settings, simulate dithering patterns and perform manual or
automatic trapping.
• Prepare jobs rapidly with optional EFI Impose. This utility enables
users to choose imposition settings, selecting gang-up style, gutter
size and binding method.
• Reduce errors and reprints with the optional EFI Compose
utility, which lets you preview and edit pre-processed jobs
prior to final output.
• Increase color accuracy across many different platforms,
applications and media types with EFI Spot-On utility.
• Accelerate processing with Hot Folders, which allow users to
drag a job into a folder and automatically apply a pre-determined
configuration of job settings.
• Create customized marketing and promotions with optional support
for a variety of variable data printing techniques.
Meet customer requests for on-demand printing
and other one-to-one marketing tools with
extensive variable data printing support.
The icon-driven Fiery Driver streamlines preproduction steps for creating booklets and other
professionally finished documents.
RICOH Pro C550EX/C700EX
Build your business with high-speed color.
Designed to help all kinds of production environments
grow revenue and strengthen profitability, the RICOH
Pro C550EX/C700EX color digital imaging system
delivers outstanding speed, reliability and flexibility,
as well as a powerful EFI Fiery®E-8100 Print Server for
high-quality color with precise control. Add this fast,
dependable system to increase productivity and take
on a wider variety of jobs, so you can keep every
customer coming back for more.
®
The RICOH Pro C550EX/
C700EX provides an ideal
balance of speed and color
quality for a variety of
production applications.
RICOH Pro C550EX/C700EX
System Specifications
Copier Specifications
Configuration Console
Scanning Element Flatbed with moving 3-line CCD
Toner PxP Chemical toner
System Memory 320GB (160GB x 2)
Document Feeder Standard 100-Sheet ARDF
Copy Resolution 600 x 600 dpi
Color 256 Levels
Image Density Manual & Automatic
Quantity Indicator 1 - 9,999
Original Type Sheet/Book/Object
Original Size Up to 11" x 17"
Warm-Up Time Pro C550EX Less than 90 sec.
First-Copy Out Time Pro C550EX 5.7/7.5 sec. (BW/FC)
Speed Pro C550EX 60/55 cpm (BW/FC)
Standard Paper 1st Tray 1,100 x 2
Capacity 550 Sheets x 2nd & 3rd Trays,
Paper Size 5.5" x 8.5" to 12" x 18"
Paper Weight 14 lb. Bond - 80 lb. Cover (std. Trays)
Magnification 7 reduction and 5 enlargement
Zoom 25% to 400% in 1% increments
Power Source C550EX/120V/20A/60Hz
Dimensions (WxDxH) 29.5" x 33.5" x 43.1" (excluding ARDF)
Weight 656.9 lb.
array image-scanning
Pro C700EX Less than 75 sec.
Pro C700EX 4.9/6.4 sec. (BW/FC)
Pro C700EX 75/70 cpm (BW/FC)
2,000-Sheet RT4000
5,300 Sheet std. max capacity
17 lb. Bond - 90 lb. Index (Duplex)
14 lb. Bond - 110 lb. Cover (LCT)
C700EX/208-240V/12A/60Hz
Color Controller E-8100
Controller Type Server type
CPU Intel Core 2 Duo 2.13GHz
Host Interface 1000/100/10Base-T
Memory 2GB
Internal HDD 160GB
DVD/CD-RW Drive DVD Drive Available
Operating System XPe
Network Protocol TCP/IP(IPv4/IPv6), AppleTalk (Auto
Printer Description Adobe PostScript 3 (Standard)
Languages PCL5c, PCL6 (Standard)
Print Resolution 600 dpi
Scan Resolution Max. 600 dpi
Fonts PS3: 136 fonts
Operation Panel Pro C550EX/C700EX operation
Controller LED Power LED
User Interface LCD LED and 7 buttons for UIB (User
Fiery Scan Scan to: E-mail, Mailbox, Hold
Switching), SMB, Bonjour
PCL: 80 scalable fonts
panel is commonly used for
printer/scanner function as “Fiery Menu”
Interface board) available on the
upper area of E-8100
Queue, FTP, Internet Fax, SMB,
Local HDD
Utility (Standard) CommandWorkStation (Windows
Options Fiery Graphic Arts Package Premium
Color Management ICC Profile, (newest ICC profile
Tools ICCv4 is supported) Color Chart,
Calibration ColorCal, Densitometer,
Edition)
CommandWorkStation (Macintosh
Edition)
ColorWise Pro Tools (Spot-on)
Fiery Scan (Twain plug-in, Remote Scan)
Printer Delete Utility
Fiery Web Tools
Auto-Trapping/Hot Folders/Spot-on
Paper Catalog
Edition
FACI Kit/FACI Furniture
EFI Impose
EFI Compose
EFI Server HDD Security
EFI Server Kit Option (UV version)
Color Profiler Suite (UV version)
CMYK Color Reference Pages, RGB
Color Tests, Trapping Support,
ColorWise Pro Tools
Spectrophotometer
Accessories
RT4000 DLT/LCT (standard)
Paper Capacity 2,000 Sheets
Paper Size Up to 12" x 18"
Paper Weight 14 lb. - 110 lb. Cover
Size 38.1" x 28"x 29.3"
Weight 192 lbs.
CS391 9-Bin Mailbox
Number of Bins 9
Stack Capacity of Bins 100 Sheets
Paper Size 5.5" x 8.5" - 11" x 17"
Paper Weight 14 lb. - 34 lb. Bond
Size 21" x 24" x 26"
Weight 33 lbs.
Z-Fold Unit
Paper Size 8.5" x 11" and 11" x 17"
Paper Weight 17 lb. - 20 lb. Bond
Size 7" x 24" x 38"
Weight 121 lbs.
2 Source Cover Interposer
Paper Size 5.5" x 8.5" - 12" x 18"
Paper Weight 17 lb. Bond - 110 lb. Index
Size 28" x 29" x 50"
Weight 99 lbs.
SR5000 100-Sheet Staple Finisher**
Paper Size 5.5" x 8.5" - 12" x 18"
Capacity (Shift Tray) 8.5" x 11" - 3,000 Sheets
Paper Weight 14 lb. Bond - 110 lb. Cover
Staple 8.5" x 11" - 100 Sheets
Size 31" x 29" x 39"
Weight 165 lbs.
**SR5000 must include Finisher Adapter Type C.
SR4010 50-Sheet Staple Finisher
Paper Size 5.5" x 8.5" - 12" x 18"
Capacity (Shift Tray) 8.5" x 11" - 3,000 Sheets
Paper Weight 14 lb. Bond- 110 lb. Cover
Staple 8.5" x 11" - 50 Sheets
Size 26" x 24" x 38"
Weight 119 lbs.
SR4020 Booklet Maker
Paper Size 5.5" x 8.5" - 12" x 18"
Capacity (Shift Tray) 8.5" x 11" - 2,000 Sheets
Paper Weight 14 lb. Bond - 110 lb. Cover
Staple 8.5" x 11" - 50 Sheets
Saddle Stitch Staple*** 8.5" x 11" - 12" x 18" - 15 Sheets
Size 26" x 24" x 38"
Weight 139 lbs.
***Paper weight for saddle stitch stapling is 28 lb. Bond max.
Ring Binder RB5000
Paper Sizes Supported 8.5" x 11"(long edge feed only)
Maximum Binding 100 Sheets/booklet
Capacity
GBC StreamPunch III
Paper Sizes Supported 8.5" x 11"(long edge feed only)
Die Sets Supported 7 customer replaceable die sets
BK5010 Production Booklet Maker
Paper Sizes Supported Width: 8.1" to 12.6"
Maximum Booklet Size 30 sheets or 120 pages
8.5" x 14" - 11" x 17" - 50 Sheets
8.5" x 14" - 11" x 17" - 30 Sheets
8.5" x 14" - 11" x 17" - 30 Sheets
Length: 10.8" to 18"
(based on 20 lb. Bond)
Additional Accessories
Punch Unit for SR5000
Punch Unit for SR4010/4020
Jogger Option for 4010/4020
11 x 17 Tray Type 2105
Copy Connector Kit Type 3260
Tab Sheet Unit Type 3260
Java VM Card Type F
Hard Drive Encryption Unit Type A
DataOverwriteSecuritySystem (DOSS) Unit
Cover Interposer Type 3260
Copy Tray Type 2075
Key Counter Bracket Type 1027
Optional Counter Interface Unit Type 1
precision
www.ricoh-usa.com
Bringing Ricoh Value to Your Organization
Ricoh technology offers a diverse portfolio of solutions to help your organization stay
competitive and move ahead. Let Ricoh show you how to empower your business to
improve critical processes, keep information secure, ensure compliance and promote
environmental sustainability while reducing the total cost of ownership.
Ricoh Americas Corporation, Five Dedrick Place, West Caldwell, NJ 07006
Ricoh®and the Ricoh Logo are registered trademarks of Ricoh Company, Ltd. All other
trademarks are the property of their respective owners. Print speed may be affected
by network, application or PC performance. Specifications and external appearances
are subject to change without notice. Products are shown with optional features.
R3017-1
control
10%
Cert no. SGS-COC-2807
Loading...
