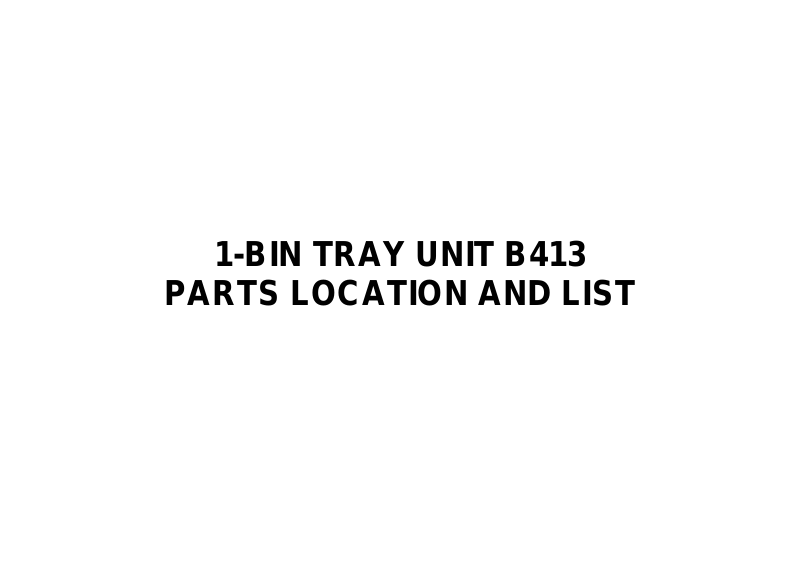

Page 1
1-BIN TRAY UNIT B413
PARTS LOCATION AND LIST
Page 2
Page 3
This section instructs you as to the numbers and names of parts on this machine.
Page 4
1.1 Bin Tray (B413)
B413 2 Parts Location and List
Page 5
1.1 Bin Tray (B413)
Index
No.
1 B413 2611 Tray - Exit 1
2 B413 2615 Guide - Tray Exit 1
3 B413 2612 Tray - Exit Auxiliary 1
4 A898 2622 Film Guide Upper 1
5 B413 2621 Guide - Tray Exit Upper 1
6 A898 1321 Cover Drive 1
7 B413 1131 Frame - Lower 1
8 A898 1331 Pulley - 22/31Z 2
9 AA04 3522 Timing Belt - B30S3M189 1
10 A898 1231 Pulley - 15Z 1
11 AA06 3341 Compression Spring 2
12 A898 1221 Exit Roller Drive 1
13 AA12 0094 Antistatic Brush 1
14 5447 2681 Snap Ring 1
15 B413 1121 Frame - Upper 1
16 A898 1151 Roller Driven Entrance 4
17 AA06 6317 Torsion Spring 1
18 A898 1421 LED Harness 1
19 A629 5110 Paper Indicator Board 1
20 AW01 0088 Sensor GP2A200LCS - Assembly 1
21 A898 1161 Exit Roller Driven 1
22 AA08 0232 Bushing - M4 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 3008B Tapping Screw - M3x8
102 0805 3480 Bushing - 6mm
103 0451 3008B Tapping Screw - M3x8
Part No.
Description
Q’ty Per
Assembly
B413 3 Parts Location and List
Page 6
Page 7
1-BIN TRAY UNIT B413
PARTS INDEX
Page 8
This section instructs you as to the numbers and names of parts on this machine.
Page 9
Parts Index
Part No.
B413 1121 Frame - Upper 3- 15
B413 1131 Frame - Lower 3- 7
B413 2611 Tray - Exit 3- 1
B413 2612 Tray - Exit Auxiliary 3- 3
B413 2615 Guide - Tray Exit 3- 2
B413 2621 Guide - Tray Exit Upper 3- 5
Page and
Index No.
Part No.Description
AA04 3522 Timing Belt - B30S3M189 3- 9
AA06 3341 Compression Spring 3- 11
AA06 6317 Torsion Spring 3- 17
AA08 0232 Bushing - M4 3- 22
AA12 0094 Antistatic Brush 3- 13
AW01 0088 Sensor GP2A200LCS - Assembly 3- 20
B413 1121 Frame - Upper 3- 15
B413 1131 Frame - Lower 3- 7
B413 2611 Tray - Exit 3- 1
B413 2612 Tray - Exit Auxiliary 3- 3
B413 2615 Guide - Tray Exit 3- 2
B413 2621 Guide - Tray Exit Upper 3- 5
Description
Page and
Index No.
B413 2 Parts Index
Page 10
Part No.
A629 5110 Paper Indicator Board 3- 19
A898 1151 Roller Driven Entrance 3- 16
A898 1161 Exit Roller Driven 3- 21
A898 1221 Exit Roller Drive 3- 12
A898 1231 Pulley - 15Z 3- 10
A898 1321 Cover Drive 3- 6
A898 1331 Pulley - 22/31Z 3- 8
A898 1421 LED Harness 3- 18
A898 2622 Film Guide Upper 3- 4
Page and
Index No.
Part No.Description
5447 2681 Snap Ring 3- 14
Description
Page and
Index No.
B413 3 Parts Index
Page 11
Part No.
0450 3008B Tapping Screw - M3x8 3-101
0451 3008B Tapping Screw - M3x8 3-103
0805 3480 Bushing - 6mm 3-102
Page and
Index No.
Part No.Description
Description
Page and
Index No.
B413 4 Parts Index
