LEGEND

PRODUCT CODE COMPANY

B064 6002 LD060 Aficio 1060 2560 B065 7502 LD075 Aficio 1075 2575 B140 DSm660 LD160 Aficio 2060 4060 B141 DSm675 LD175 Aficio 2075 4075 B142 DSm660 SP LD160 SP Aficio 2060 SP 4060 SP B143 DSm675 SP LD175 SP Aficio 2075 SP 4075 SP B163 DSm651 LD151 Aficio 2051 4051 B228 DSm651 SP LD151 SP Aficio 2051 SP 4051 SP G126 P7575 LP175hdn AP900 MLP75n A812 Punch Unit Type 850 B328 Copy Connector Cable Type 2105 B377 Punch Kit Type 1045 B452 Key Counter Bracket Type 1027

B468/B469 3000-Sheet Finisher SR850/SR860

GESTETNER LANIER RICOH SAVIN

B470 Cover Interposer Tray Type 1075 B471 Mail Box CS390

B473/B474/B475 LCT RT43/8½”x14” Paper Size Tray Type 1075/A3/11”x17” Tray Unit Type 1075

B476 Copy Tray Type 1075 B478 3000-Sheet Finisher SR840 B513 Jogger Unit Type 1075 B531 Punch Unit Type 1075/1090

B659/B581/B582/B735 Printer/Scanner Unit Type 2075/IEEE1394/IEEE802.11B/Security Unit

B660 Z-Folding Unit Type 2105 B674 3000-Sheet Finisher SR861 B706 3000-Sheet Finisher SR841

G338/G339/G336/B525 Printer/Scanner Kit Type 1075/IEEE1394/IEEE802.11B

DOCUMENTATION HISTORY

REV. NO. DATE COMMENTS

*

1 11/2002 B478, B513, B531 Additions

2 11/2004 B140/B141/B142/B143/B163/B228 Addition

3 05/2005 G126 Addition

06/2002 Original Printing

B064/B065/B140/B141/B142/

B143/B163/B228/G126

1 A294 1292 Door Switch Bracket 1 2 B065 1361 Decal - Misfeed Removal (B064/B065) 1 2 B140 1361 Decal:Misfeed Removal:Main 1 (B140/B141/B142/B143/B163/B228) 3 B065 1329 Upper Right Door Seal 1 4 B098 1342 Hinge:Upper 1 5 B065 1366 Decal - Toner Supply 1 6 B065 1301 Front Door 1 7 B065 1327 Door Catch 1 8 B065 1325 Main Switch Cover 1 9 B140 1223 Hinge Lower Ass'y 1 10 B065 1323 Guide Plate Lever 1 11 B065 1326 Micro Switchlever 1 12 B064 7012 Model Name Plate -Aficio 1060 1 12 B163 7012 Model Name Plate -Aficio 2051[TSB#084] 1 12 B140 7012 Model Name Plate -Aficio 2060[TSB#084] 1 12 B141 7012 Model Name Plate -Aficio 2075[TSB#084] 1 12 B064 7015 Model Name Plate -GES 6002 1 12 B163 7015 Model Name Plate -GES DSm651[TSB#084] 1 12 B140 7015 Model Name Plate -GES DSm660[TSB#084] 1 12 B141 7015 Model Name Plate -GES DSm675[TSB#084] 1 12 B064 7018 Model Name Plate -Lanier LD060 1 12 B163 7018 Model Name Plate -Lanier LD151[TSB#084] 1 12 B140 7018 Model Name Plate -Lanier LD160[TSB#084] 1 12 B141 7018 Model Name Plate -Lanier LD175[TSB#084] 1 12 B065 7012 Model Name Plate -Aficio 1075 1 12 B065 7015 Model Name Plate -GES 7502 1 12 B065 7018 Model Name Plate -Lanier LD075 1 12 G126 7012 Model Name Plate - RIC AP900 (G126) 1 12 G126 7015 Model Name Plate - GES P7575 (G126) 1 12 G126 7016 Model Name Plate - NSH P7575 (G126) 1 12 G126 7017 Model Name Plate - REX P7575 (G126) 1 13 B065 1363 Decal - Main Switch (NA/ASIA/KOR) 1 13 B065 1364 Decal - Main Switch (EU/CHN/TWN) 1 14 B065 1315 Inner Cover - Main Switch 1

Part No.

Description

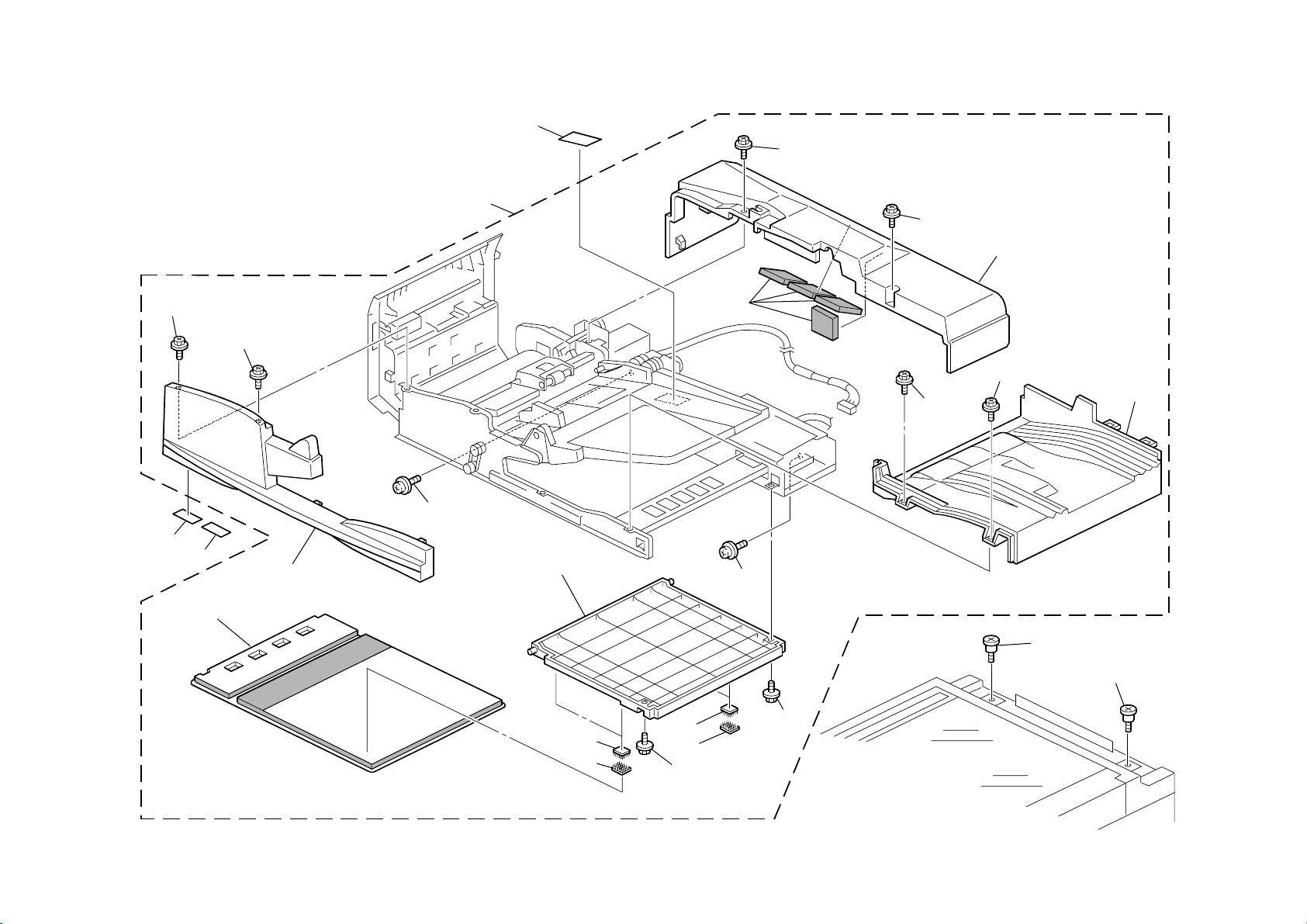

Q’ty Per

Assembly

Rev. 05/01/2005

Index

No.

15 B065 1316 Fusing Inner Cover 1 16 B065 3699 Decal - Release Lever 1 17 B065 1313 PCU Inner Cover 1 18 AX64 0137 Cooling Fan - 24V 1 19 B065 1318 PCU Duct Inner Cover 1 20 A060 2512 Registration Roller Knob 2 21 A294 1378 Decal - Total Counter 1 22 B065 1367 Decal - Front Door 1 23 B065 1314 Lower Right Inner Cover 1 24 A229 3290 Right Inner Cover 1 25 A229 3291 Right Inner Cover 1 26 AA10 0006 Nut - M3.6 1 27 B065 6184 Paper Feed Inner Cover 1 28 B027 8521 O/I Holder 1 29 B023 1101 Stand Holder 2 30 B065 8490 Decal Sheet - Paper Size 1 31 B070 1307 Decal - Caution Chart Paper Set 3 32 B477 4371 Decal - Cleaning 1 32 B065 7133 Decal - Cleaning (CHN) 1 32 B065 7134 Decal - Cleaning (TWN) 1 33 B477 4431 Decal - Original Table 1 34 GA00 3035 Energy Decal 1 (B140/B141/B142/B143/B163/B228) 35 B065 3342 Decal - Toner Supply 1 35 B065 3345 Toner Supply Decal - German 1 35 B065 3346 Toner Supply Decal - French 1 35 B065 3347 Toner Supply Decal - Italian 1 35 B065 3348 Toner Supply Decal - Spanish 1 36 B065 4276 Decal:D1/E1:Multi 1 101 0450 3008N Tapping Screw - M3x8 102 0450 4010N Tapping Screw - 4x10 103 0354 0080N Screw - M4X8 104 0451 4008N Philips Tapping Screw - M4x8 105 0951 4008N Philips Screw With Washer - M4x8 106 0951 4012N Philips Screw With Flat Washer

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 15 Parts Location and List

2.EXTERIOR 2

B140/B141/B142/B143/B163/B228

22

26

102

103

24

23

16

12

9

1

0 1

2 0

7

1 0 6

2 7

1

101

6

1 0

105

15

106

13

104

1

12

14

106

104

101

17

19

18

101

21

26

101

36

25

28

29

8

101

5

35

4

3

2

1

B064/B065/B140/B141/B142/B143/B163/B228/G126 16 Parts Location and List

12

30

101

31

101

32

101

33

34

2.EXTERIOR 2

Index

No.

1 B065 3689 Toner Collection Bottle Bracket 1 2 A096 3712 Ratch 1 3 B065 3681 Toner Collection Bottle 1 4 AA00 0059 Caution Decal - English 1 4 AA00 0550 Caution Decal - CHN 1 5 A007 3751 Large Cap - Toner Collection Tank 1 6 B065 1334 Lower Left Cover 1 7 B065 4480 Decal - Cover 1 8 B065 1344 G4 Cap 1 9 B065 1304 Upper Left Cover (B064/B065) 1 9 B140 1304 Left Upper Cover 1 (B140/B141/B142/B143/B163/B228) 10 B065 1311 Upper Left Cover 1 11 B477 4391 Decal - Exposure Glass Cleaning 1 12 AA14 3416 Stepped Screw - M4x3 4 13 B065 1312 Operation Inner Cover 1 14 AX64 0110 Axial Fan - Mm40 24V 1 15 B065 1345 Fan Bracket 1 16 B065 1309 Upper Rear Cover 1 17 AA15 2701 Duct Seal 1 18 AA01 2128 Machine Or Copier Filter 1 19 B065 1332 Louver 1 20 B065 1243 Operation Panel Inner Cover 1 21 B065 1305 Upper Rear Cover (B064/B065) 1 21 B140 1305 Rear Upper Cover 1 (B140/B141/B142/B143/B163/B228) 22 AA01 0108 Ozone Filter 1

23 AA01 0114 Front Ozone Filter 1

24 A293 1332 Duct Holder 1 25 B065 1237 Exhaust Cover Duct 1 26 B065 1308 Lower Rear Cover (B064/B065) 1 26 B140 1308 Rear Lower Cover 1 (B140/B141/B142/B143/B163/B228) 27 B065 1244 Upper Left Cover 1 28 B065 1302 Upper Right Cover 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

29 B065 1343 NCU Cap 1 30 B065 1303 LCT Cover 1 31 B065 1310 Upper Right Cover 1 32 B065 1333 Lower Right Cover 1 33 B065 1341 Connector Cap 2 34 B065 1342 Coupling Cap 1 35 AA15 2315 Tank Seal 1 36 B140 1309 Control Board Louver 1 (B140/B141/B142/B143/B163/B228)

101 0451 4010N Tapping Screw - 4x10 102 0450 3008N Tapping Screw - M3x8 103 0451 3012N Tapping Screw - 3x12 104 0313 0100N Philips Pan Head Screw - M3x10 105 0450 4008N Tapping Screw - 4x8 106 0451 4008N Philips Tapping Screw - M4x8

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 17 Parts Location and List

2.EXTERIOR 2 (G126)

Rev. 05/01/2005

1 0 2

2

5

6

4

7

14

3

1 0 5

101

11

10

1 0 3

8

9

12

104

13

1

10 1

B064/B065/B140/B141/B142/B143/B163/B228/G126 18 Parts Location and List

2.EXTERIOR 2 (G126)

Index

No.

1 B065 1243 Operation Panel Inner Cover 1

Part No.

2 B065 1345 Fan Bracket 1 3 AX64 0110 Axial Fan – MM40 24V 1 4 G126 1451 Lens LED 1 5 G126 5466 Harness – Scanner Unit 1 6 G126 1912 Opeation Panel EXP 1 7 AA14 3416 Stepped Screw – M4x3 2 8 G126 5406 Harness – OPU Earth 1 9 G126 1450 Cover Operation 1 10 G126 1261 Cap Cover 1 11 G126 1260 Cover Upper 1 12 B065 1343 NCU Cap 1 13 B065 1344 G4 Cap 3 14 G126 1419 Decal: User Cautions 1

Description

Q’ty Per

Assembly

Rev. 05/01/2005

Index

No.

101 0451 4008B Philips Tapping Screw – M4x8 102 0450 4008B Tapping Screw – 4x8 103 0451 4008N Tapping Screw – M4x8 104 0451 4010H Tapping Screw – 4x10 105 0313 0100B Philips Pan Head Screw – M3x10

Part No.

Description

Q’ty Per

Assembly

Refer to Section 2 Exterior 2 (pages 17-18) for parts not listed on this page.

B064/B065/B140/B141/B142/B143/B163/B228/G126 19 Parts Location and List

3.OPERATION PANEL

27

2

1

23

9

24

101

10

15

14

13

26

16

4

10

20

11

22

21

12

9

101

17

18

19

3

25

5

101

8

101

7

101

6

101

B064/B065/B140/B141/B142/B143/B163/B228/G126 20 Parts Location and List

3.OPERATION PANEL

Index

No.

1 B065 1406 Operation Panel Ass'y - A4 (B064/B065 EU) 1 1 B065 1404 Operation Panel Ass'y - LT (B064/B065) 1 1 B065 1418 Operation Panel Ass’y - A4 1 (B064/B065 KOR) 1 B065 1416 Operation Panel Ass'y - A4 1 (B064/B065 CHN) 1 B065 1408 Operation Panel Ass'y - A4 1 (B064/B065 TWN) 1 B065 1414 Operation Panel Ass'y - A4 1 (B064/B065 ASIA) 1 B140 1404 Operation Panel:Mat:NA:Ass'y 1 (B140/B141/B142/B143/B163/B228) 1 B140 1406 Operation Panel:Mat:EU:Ass'y 1 (B140/B141/B142/B143/B163/B228) 1 B140 1408 Operation Panel:ASIA:Ass'y 1 (B140/B141/B142/B143/B163/B228) 2 B065 1448 Cap - Application 1 3 B065 1456 Sheet - Left Operation 1 4 B065 1440 Keytop - 10key 1 5 B065 1423 Left Operation PCB (B064/B065) 1 5 B140 1423 PCB Left Operation Sub-ass'y 1 (B140/B141/B142/B143/B163/B228) 6 B065 5173 LCDC Board - LT (B064/B065) 1 6 B163 5173 PCB:OPU:NA:Ass'y 1 (B140/B141/B142/B143/B163/B228) 6 B065 5174 LCDC Board - A4 (B064/B065) 1 6 B163 5174 PCB:OPU:EU:Ass'y 1 (B140/B141/B142/B143/B163/B228) 6 B065 5239 LCDC Board - A4 (B064/B065 TWN/ASIA) 1 6 B163 5180 PCB:OPU:TWN:Ass'y 1 (B140/B141/B142/B143/B163/B228) 6 B065 5240 LCDC Board - A4 (B064/B065 CHN) 1 6 B065 5241 LCDC Board - A4 (B064/B065 KOR) 1 7 B065 1470 LCDC Bracket 1 8 B140 1430 LCD:EXP:Sub-Ass'y 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

9 B065 1459 LCD Short Sheet 2 10 B065 1458 LCD Long Sheet 2 11 B065 1454 Sheet - Right Operation 1 12 B065 1422 Right Operation PCB Ass'y (B064/B065) 1 12 B140 1422 PCB Right Operation Sub-ass'y 1 (B140/B141/B142/B143/B163/B228) 13 A229 5216 Touch Panel 1 14 B065 1457 Sheet - Touch Panel 1 15 B065 1447 Keytop - Counter 1 16 B065 1439 Keytop - Reset Switch 1 17 B065 1446 Keytop - Function 1 18 B065 1444 Keytop - Power Source 1 19 B065 1455 Sheet - Power Source 1 20 B065 1443 Keytop - Sample Print 1 21 B065 1441 Keytop - Start 1 22 B065 1442 Keytop - Clear/Stop 1 23 B065 1460 Keytop - Application - LT 1 23 B065 1462 Keytop - Application - A4 1 23 G338 1449 Keytop:PRT/SCN:NA (B142/B143/B228) 1 24 B065 1461 Keytop - Display - LT 1 24 B065 1463 Keytop - Display - A4 1 25 B065 1451 Lens - Application 1 26 B065 1425 Operation Panel Case - LT 1 26 B065 1427 Operation Panel Case - A4 1 27 G338 1421 Keytop - Printer/Scanner - US 1 (B142/B143/B228)

101 0451 3006N Tapping Screw - M3x6

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 21 Parts Location and List

4.DF EXTERIOR

12

102

101

11

9

1

8

102

7

6

102

3

101

5

2

10

4 4

4

102

B064/B065/B140/B141/B142/B143/B163/B228/G126 22 Parts Location and List

4.DF EXTERIOR

Index

No.

1 B477 1891 Front Cover 1 2 B477 2711 Pressure Plate 1 3 B477 1922 Lower Cover 1 4 B477 2715 Pressure Plate Tape 8 5 B477 1861 Exit Cover 1 6 B477 4911 Rear Cover Sponge 4 7 B477 1912 Rear Cover 1 8 B477 4431 Decal - Original Table 1 9 B477 4381 Caution Decal - CIS 1 10 A859 7211 Stepped Screw 2 11 B477 4362 Decal - Misfeed Removal - Exit 1 12 B065 7003 ADF Unit 1

Part No.

Description

Q’ty Per

Assembly

Rev. 10/20/2005

Index

No.

101 0951 5010N Philips Screw With Washer - M5x10 102 0451 3006N Tapping Screw - 3x6

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 23 Parts Location and List

5.DF ORIGINAL FEED 1

B064/B065/B140/B141/B142/B143/B163/B228/G126 24 Parts Location and List

5.DF ORIGINAL FEED 1

Index

No.

1 B477 2272 Table Side Fence 1 2 A376 4599 Side Fence Pad 1 3 G564 4151 Rail - Side Fence 1 4 B477 4311 Decal - Original Base 1 5 5206 2686 Snap Ring 1 6 A806 1351 Original Sensor Feeler 1 7 B477 2286 Original Sensor Feeler Stud 1 8 B477 2262 Original Table Base 1 9 B477 2263 Cushion 1 10 AW02 0086 Photointerruptor 2 11 B477 2281 Original Sensor Bracket 1 12 B477 2323 Base Lift Lever 1 13 B477 2322 Base Lift Shaft 1 14 5053 0447 Bushing - 6mm 1 15 A806 1335 Original Table Guide Plate 1 16 B477 2264 Base Cushion Sheet 1 17 B477 5741 Original Connecting Harness 1 18 5053 0223 Bushing - 8mm 1 19 A806 2281 Gear - Z47 1 20 B477 1731 Face Original Table 1 21 5215 2621 Snap Ring - M6 1 22 5447 2681 Snap Ring 1 23 B477 2291 Original Table Stay 1 24 5415 4145 Stud 1 25 B477 1765 Spring Plate - Original Table Stop 1 26 B477 1761 Original Table Stopper 1 27 B477 1755 Back Original Table 1 28 AW01 0087 Photo Sensor - Ass'y 3 29 B477 5631 Original Table Harness 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0450 3008N Tapping Screw - M3x8 102 0450 3006N Tapping Screw - M3x6 103 0802 5279 Tapping Screw - With Washer - M3X8 104 0632 0140G Parallel Pin 105 0720 0040E Retaining Ring - M4 106 0720 0060E Retaining Ring - M6 107 1105 0310 Harness Clamp - LWS-1S

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 25 Parts Location and List

6.DF ORIGINAL FEED 2

B064/B065/B140/B141/B142/B143/B163/B228/G126 26 Parts Location and List

6.DF ORIGINAL FEED 2

Index

No.

1 A806 2271 Gear - Z18 1 2 A806 2151 Timing Pulley - T19/Z23 S2M/M0.6 1 3 B477 2222 Pick-up Roller Bracket 1 4 5447 2681 Snap Ring 2 5 5053 0447 Bushing - 6mm 2

6 B477 2225 Pick-up Roller 1

7 AA13 2171 Spacer - 6x20x1 1 8 A806 4118 Timing Belt - B40S2M148 1 9 B477 2231 Pick-up Roller Lever 1 10 B477 2182 Rear Entrance Guide 1 11 A806 1163 Guide Plate Cushion 4 12 A806 2153 Timing Pulley - T27 S2M 1 13 A628 1225 Bushing - 8mm 4 14 B477 2191 Separation Shaft 1 15 A806 1293 Feed Belt Drive Roller 1 16 A680 1621 Feed-in Unit Stopper 1 17 B477 2172 Front Entrance Guide 1 18 AA13 2013 Spacer 1 19 AA06 3315 Spring - Belt Drive Shaft 1 20 A418 1158 Spacer - M6.5x1 1 21 B301 1286 Bushing - 6x10x6 1

22 A806 1295 Feed Belt 1

23 A806 4261 Spring Belt Guide Roller 2 24 A806 1292 Feed Belt Bracket 1 25 A806 1298 Transport Belt Roller Shaft 1 26 A806 1294 Feed Belt Driven Roller 1 27 B477 2226 Pickup Roller:Coupling 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0720 0060E Retaining Ring - M6 102 0720 0040E Retaining Ring - M4

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 27 Parts Location and List

7.DF ORIGINAL TRANSFER 1

103

20

24

12

103

107

19

105

14

15

16

17

18

101

5

8

11

9

6

7

10

106

20

19

104

21

104

22

23

25

102

13

6

5

4

102 101

3

2

27

26

22

29

28

1

103

B064/B065/B140/B141/B142/B143/B163/B228/G126 28 Parts Location and List

7.DF ORIGINAL TRANSFER 1

Index

No.

1 5446 2824 Screw - Duplex Guide Plate 1 2 B477 1841 Front Cover Bracket 1 3 B477 4912 Paper Feed Cover Sponge 8 4 B477 1851 Rear Cover Bracket 1 5 B477 1825 Paper Feed Release Lever 2 6 B477 4117 Spring 2 7 B477 1831 Grip Shaft 1 8 G564 6077 Decal:Exposure Glass:5-lang 1 8 B477 4341 Decal - Exposure Glass (CHN) 1 8 B477 4342 Decal - Exposure Glass (TWN) 1 9 B477 4352 Decal - Misfeed Removal 1 10 B477 1821 Paper Feed Cover Grip 1 11 B477 4331 Decal - Original Size 1 12 B477 2361 Pull Out Roller Bracket 1 13 B477 1791 Paper Feed Cover 1 14 B477 2391 Paper Feed Grounding Plate 1 15 B477 5651 Paper Size Relay Harness 1 16 AW02 0104 Photointerruptor 3 17 AW02 0095 Photointerruptor 1 18 B477 2382 Paper Size Sensor Bracket 1 19 AA08 0037 Bushing - 6mm 2 20 B477 4111 Spring 2 21 B477 2351 Driven Pull Out Roller 1 22 AW01 0049 Photo Reflection Sensor 2 23 B477 2373 Relay Roller Arm 4 24 B477 2372 Driven Paper Feed Roller 4 25 B477 4113 Spring 4 26 B477 2342 Guide:Paper Feed:Upper 1 27 B477 5671 Registration Relay Harness 1 28 B065 1371 Cloth Holder 1 29 B065 1374 Cloth - DF Exposure Glass 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0805 0089 Retaining Ring - M4 102 0451 3008N Tapping Screw - M3x8 103 0450 3008N Tapping Screw - M3x8 104 0720 0040E Retaining Ring - M4 105 0451 3006N Tapping Screw - M3x6 106 1105 0310 Harness Clamp - LWS-1S 107 1105 0511 Harness Clamp - LWS-0306ZC

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 29 Parts Location and List

8.DF ORIGINAL TRANSFER 2

B064/B065/B140/B141/B142/B143/B163/B228/G126 30 Parts Location and List

8.DF ORIGINAL TRANSFER 2

Index

No.

1 B477 2581 Entrance Scanning Guide 1 2 B477 2145 Guide Bracket 1 3 B477 4115 Spring 4 4 B477 2577 Driven Entrance Scanning Roller 2 5 5324 1658 Bushing- 4x8x4.5mm 1 6 A374 2181 Spacer 1 7 B477 2575 Entrance Scanning Roller Shaft 1 8 B477 2574 Roller Arm 4 9 A422 1063 Seal - 0.7x13x20 1 10 B477 2561 Entrance Scanning Base 1 11 AA08 2141 Bushing - 16x18x5 1 12 B477 1775 Paper Feed Cover Bracket 1 13 AA14 3074 Stepped Screw - M4x5 1 14 B477 2111 Pull Out Roller 1 15 B477 2411 Drive Entrance Scanning Roller 1 16 B477 2121 Drive Relay Roller 1 17 AW01 0049 Photo Reflection Sensor 1 18 B477 2665 Registration Sensor Bracket 1 19 A859 3225 Discharge Brush 1 20 B477 2471 Entrance Scanning Guide Plate 1 21 5206 2684 Shoulder Screw - M3 1 22 B477 2143 Lower Anti-static Brush 1 23 B477 2141 Lower Paper Feed Guide 1 24 B477 2151 Separation Cap 1 25 B477 2161 Lower Grounding Plate 1 26 B477 5681 Registration Sensor Relay Harness 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006N Tapping Screw - M3x6 102 0720 0060E Retaining Ring - M6 103 0742 3808 Ball Bearing - 8x16x5 104 0450 3008N Tapping Screw - M3x8 105 0453 3006N Tapping Screw - M3x6 106 1105 0514 Edge Saddle - EDS-0607l

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 31 Parts Location and List

9.DF ORIGINAL TRANSFER 3

B064/B065/B140/B141/B142/B143/B163/B228/G126 32 Parts Location and List

9.DF ORIGINAL TRANSFER 3

Index

No.

1 B477 1191 Front Left Stopper 1 2 5415 4145 Stud 1 3 B477 4121 Spring 2 4 B477 4123 Spring 2 5 B477 1131 Front Scanning Bracket 1 6 B477 2517 Scanning Guide Plate 1 7 5053 0447 Bushing - 6mm 1 8 B477 2511 Scanning Roller 1 9 B477 2431 Front Scanning Arm 1 10 B477 2425 Front Scanning Roller Arm 1 11 B477 2421 Drive Scanning Roller 1 12 B477 1141 Rear Scanning Bracket 1 13 A697 2131 Antistatic Brush 1 14 B477 2453 Rear Lock Hook - CIS 1 15 B477 2452 Lever Shaft - Misfeed Removal 1 16 B477 4125 Spring 1 17 B477 2455 Front Lock Hook - CIS 1 18 B477 2495 Paper Feed Sensor Bracket 1 19 AW01 0049 Photo Reflection Sensor 1 20 B477 2491 Anti-static Brush 1 21 B477 2481 Entrance Scanning Guide 1 22 B477 2487 Upper Exit Scanning Sheet 1 23 B477 2521 Scanning Roller Cover 1 24 B477 3817 Timing Belt 1 25 B477 2516 Discharge Brush 1 26 B477 2451 Rear Lever Shaft - Misfeed Removal 1 27 B477 2480 Upper Exit Scanning Guide Plate 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006N Tapping Screw - M3x6 102 0720 0060E Retaining Ring - M6 103 0742 3808 Ball Bearing - 8x16x5 104 0805 0089 Retaining Ring - M4 105 1105 0511 Harness Clamp - LWS-0306ZC

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 33 Parts Location and List

10.DF ORIGINAL TRANSFER 4

B064/B065/B140/B141/B142/B143/B163/B228/G126 34 Parts Location and List

10.DF ORIGINAL TRANSFER 4

Index

No.

1 A422 1078 Bushing - 6x12x4mm 1 2 B477 2621 Anti-static Brush 1 3 B477 3245 Pulley 1 4 B477 3819 Timing Belt 1 5 B477 3243 Pulley 1 6 B477 3933 Cis Inverter Bracket 1 7 B477 2683 CIS Sheet 1 8 B477 2682 CIS Sheet Bracket 1 9 5447 2681 Snap Ring 1

10 A859 2241 Reverse Roller 1

11 A294 6700 Torque Limiter - 53mnxm 1 12 B477 3131 Reverse Roller Shaft 1 13 B477 2131 Inverter Roller Stay 1 14 B477 5840 Contact Image Sensor 1 15 B477 2441 Exit Cis Roller 1 16 B477 2811 Drive Exit Roller 1 17 B477 2820 Upper Exit Guide Plate 1 18 B351 3835 Discharge Brush - Exit 1 19 AW02 0075 Photointerruptor 2

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006N Tapping Screw - M3x6 102 1105 0159 PCB Stud 103 0720 0040E Retaining Ring - M4 104 0632 0120G Parallel Pin - 2x12 105 0805 0089 Retaining Ring - M4 106 0720 0060E Retaining Ring - M6 107 0742 3808 Ball Bearing - 8x16x5 108 0741 3706 Ball Bearing - 6x10x3

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 35 Parts Location and List

11.DF ORIGINAL EXIT

B064/B065/B140/B141/B142/B143/B163/B228/G126 36 Parts Location and List

11.DF ORIGINAL EXIT

Index

No.

1 B477 3241 Gear - 21Z 1 2 B477 2661 Back Scanning Positioning Pin 1 3 B477 2641 Long Arm Shaft 1 4 B477 2631 Lower Exit Guide Plate 1 5 B477 2645 Short Arm Shaft 1 6 B477 2636 Driven Exit Scanning Roller 8 7 B477 4127 Exit Arm Spring 4 8 B477 2637 Driven Exit Arm 4 9 B477 2653 Bushing - 6mm 1 10 B477 4129 Spring - 12n 2 11 B477 2651 Back Scanning Roller 1 12 B477 2621 Anti-static Brush 1 13 B477 2715 Pressure Plate Tape 4 14 B477 2611 Lower Exit 1 15 B477 2881 Guide Plate Bracket 1 16 A697 2131 Antistatic Brush 1 17 A859 4836 Bushing- Exit Driven Roller 4 18 B477 4131 Spring 4 19 B477 2861 Driven Exit Roller 2 20 B477 2872 Exit Arm 4 21 B477 4132 Spring 4 22 B477 2851 Lower Exit Guide Plate Sheet 4 23 B477 2841 Lower Exit Guide 1 24 B477 2875 Exit Shaft 1 25 A422 1063 Seal - 0.7x13x20 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0805 0089 Retaining Ring - M4 102 0720 0030E Retaining Ring - M3 103 0450 3008N Tapping Screw - M3x8 104 0451 3006N Tapping Screw - M3x6 105 0802 5276 Tapping Screw With Washer - M3x6

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 37 Parts Location and List

12.DF DRIVE/ELECTRICAL 1

B064/B065/B140/B141/B142/B143/B163/B228/G126 38 Parts Location and List

12.DF DRIVE/ELECTRICAL 1

Index

No.

1 B477 3711 Paper Feed Motor 1 2 B477 3115 Paper Feed Motor Stay 1 3 B477 3111 Paper Feed Motor Bracket 1 4 AA06 0842 Tension Spring 1 5 B477 3163 Gear - 50Z 1 6 B477 3161 Gear - 37Z 1 7 B477 3151 Gear - 31Z 1 8 A548 2139 Pulley 2 9 5447 2681 Snap Ring 3 10 B477 3121 Separation Roller Shaft 1 11 B477 3123 Gear - 24Z 1 12 A806 2244 Separation Shaft Stopper 1 13 AW02 0075 Photointerruptor 1 14 A859 2230 Ball Bearing - 6x13x5 4 15 B477 3820 Timing Belt 1 16 5053 0447 Bushing - 6mm 2 17 B477 3811 Timing Belt 1 18 B477 3145 Pulley 1 19 B477 3181 Paper Feed Drive Bracket 1 20 A680 2262 Feeler - Pick-up Roller Cam 1 21 B477 3251 Pick-up Roller Cam 1 22 B477 3141 Gear - 23Z 1 23 B477 3812 Timing Belt 1 24 B477 3143 Gear - 20Z 1 25 AX04 0096 Stepping Motor - DC 18W 1 26 B477 3177 Pulley 1 27 B477 3173 Pulley 1 28 B477 3821 Timing Belt 1 29 B477 3813 Timing Belt 1 30 B477 3171 Pulley 1 31 B301 2141 Pulley - 39Z 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 4006N Tapping Screw - 4x6 102 0451 3006N Tapping Screw - M3x6 103 0632 0120G Parallel Pin - 2x12 104 0720 0040E Retaining Ring - M4 105 0720 0060E Retaining Ring - M6 106 1105 0310 Harness Clamp - LWS-1S 107 1105 0511 Harness Clamp - LWS-0306ZC

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 39 Parts Location and List

13.DF DRIVE/ELECTRICAL 2

109

101

1

101

3

101

37

2

10

101

8

5

6

108

7

101

9

101

4

101

12

13

11

14

101

102

103

101

36

107

101

102

101

16

17

15

104

17

18

104

19

21

30

20

106

101

22

20

28

29

24

27

23

31

35

34

25

26

101

33

32

33

105

B064/B065/B140/B141/B142/B143/B163/B228/G126 40 Parts Location and List

13.DF DRIVE/ELECTRICAL 2

Index

No.

1 B477 5751 Interface Harness 1 2 A680 1171 Harness Holder 1 3 B477 5601 Registration Sensor Harness 1 4 B477 5611 Detection Sensor Harness 1 5 B477 5621 Original Sensor Harness 1 6 B477 5731 ADF-CIS Harness 1 7 B477 5711 Pick-up Motor Harness 1 8 B477 5581 ADF Main Control Board Ass'y 1 9 B477 5691 Paper Feed Motor Harness 1 10 B477 5721 CIS Harness 1 11 B477 3731 Exit Motor 1 12 A697 1125 Stepped Screw - Lever 1 13 B477 3721 Scanning Motor 1 14 B477 3215 Scanning Motor Stay 1 15 B477 3211 Scanning Motor Bracket 1 16 AA06 0846 Tension Spring 1 17 B477 3217 Pulley 2 18 B477 3815 Timing Belt 1 19 B477 3818 Timing Belt 1 20 5936 2321 Rubber Bushing - Vibration Damper 2 21 B477 3814 Timing Belt 1 22 B477 3816 Timing Belt 1 23 A806 2285 Gear - Z20/Z47 1 24 A806 2287 Gear - Z20/Z47 1 25 A806 2283 Gear - Z20/Z47 2 26 A806 2161 Timing Pulley - T30/Z20 S2M/M0.8 1 27 AA13 2152 Spacer - 8x20x1 1 28 A806 4117 Timing Belt - B40S2M158 1 29 B477 2332 Motor Bracket 1 30 A806 2911 Stepper Motor Ass`y - DC 13W 1 31 B477 4141 Spring - 12.6n 1 32 5215 2621 Snap Ring - M6 1 33 B477 3175 Pulley 2 34 5419 5714 Stepped Screw - M4 1 35 B477 3231 Tighter 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

36 B477 5761 CIS Harness 1 37 B477 5515 Main ROM 1

101 0451 3006N Tapping Screw - M3x6 102 1607 0623 Ferrite Core - TFC-16-8-13 103 0451 4006N Tapping Screw - 4x6 104 0720 0040E Retaining Ring - M4 105 0720 0060E Retaining Ring - M6 106 0353 0050N Philips Truss Head Screw - M3x5 107 1105 0310 Harness Clamp - LWS-1S 108 1107 0884 Fuse - 5A 250V 109 1607 0622 Ferrite Core TFC16816

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 41 Parts Location and List

14.DF FRAME SECTION

B064/B065/B140/B141/B142/B143/B163/B228/G126 42 Parts Location and List

14.DF FRAME SECTION

Index

No.

1 B477 1111 Front Side Plate 1 2 B477 1121 Rear Side Plate 1 3 B477 2333 Motor Bracket Cushion 1 4 B477 1171 Arm Shaft 1 5 AA14 3039 Spring Holder 2 6 B301 1136 Spring Plate - 0.4mm 2 7 B477 1152 Stay:Frame:Left 1 8 A351 4281 Anti-vibration Cushion 2 9 B477 1550 Hinge:Left:Ass'y 1 10 A806 1135 Contact Point Shaft 1 11 B477 1161 Right Frame Stay 1 12 B477 1520 Right Hinge 1 13 B477 1185 Sensor Feeler 1 14 AW02 0075 Photointerruptor 2 15 B477 1181 Sensor Bracket 1 16 B477 4921 Clamp 2

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0720 0030E Retaining Ring - M3 102 0451 3006N Tapping Screw - M3x6 103 1105 0310 Harness Clamp - LWS-1S 104 1105 0290 Harness Clamp - HORIZONTAL 105 1105 0511 Harness Clamp - LWS-0306ZC

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 43 Parts Location and List

15.OPTICS SECTION 1

10

Option

102

5

23

7

101

102

9

8

6

5

4

23

101

20

8

19

20

11

104

107

22

106

14

106

104

106

12

106

13

15

103

8

18

8

105

106

105

17

3

20

2

102

1

21

20

101

104

101

16

B064/B065/B140/B141/B142/B143/B163/B228/G126 44 Parts Location and List

15.OPTICS SECTION 1

Index

No.

1 AW01 0034 Original Width Sensor 1 2 AA15 0704 Seal - 90x29.5x0.2 1 3 B065 1787 Scale Bracket 1 4 B065 1782 Seal 1 5 B065 1784 Ground Plate 2 6 BC01 2003 Sheet Through Exposure Glass 1 7 B065 1772 Left Scale 1 8 AA14 3520 Shoulder Screw - M3 6 9 AX40 0063 Anticondensation Heater - 120V 9W 1 9 AX40 0064 Anticondensation Heater - 230V 9W 1 10 B065 1775 Sheet Through Scale (LT) 1 10 B065 1776 Sheet Through Scale (A4) 1 11 B065 1779 Decal - Scale (LT) 1 11 B065 1778 Decal - Scale (A4) 1 12 A628 3112 Shielding Sheet 1 13 AC01 2067 Exposure Glass 1 14 B065 1093 ADF Bracket 2 15 B065 1070 Upper Front Stay 1 16 B065 1785 Right Stay 1 17 B065 1841 Inner Cover 1 18 AW01 0059 Original Sensor - H=1-66 2 19 B065 1788 Printing Rear Scale 1 20 5442 1924 Exposure Glass Cushion 4 21 B477 5741 Original Connecting Harness 1 22 B065 1843 Grounding Plate 1 23 B065 1773 Scale Bracket Seal 2

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0353 0040N Screw - M3X4 102 0353 0060N Philips Pan Head Screw - M3x6 103 0450 3008N Tapping Screw - M3x8 104 0353 0080N Screw - M3X8 105 0354 0080N Screw - M4X8 106 0451 4008N Philips Tapping Screw - M4x8 107 0453 3006N Tapping Screw - M3x6

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 45 Parts Location and List

16.OPTICS SECTION 2

B064/B065/B140/B141/B142/B143/B163/B228/G126 46 Parts Location and List

16.OPTICS SECTION 2

Index

No.

1 B140 1691 Cover:Polygon Mirror Motor:Ass'y 1 2 G029 1982 LD - Decal 1 2 AA00 0250 LD - Decal (CHN) 1 3 B065 1798 Filter:Duct:Scanner 1 4 B065 1791 Left Scanner Duct 1 5 B065 1801 Right Scanner Duct 1 6 B065 1721 Image Scanning Board 1 7 B140 5469 Harness - FFC SBU 15WICK/120mm 2 8 B140 5470 Harness - FFC SBU 40WICK/120mm 1 9 B065 1171 Development Fan Bracket 1 10 B065 1833 Harness Bracket 1 11 B065 1698 Development Cooling Duct 1 12 B065 5401 20p Cable - LVDS SBU 1 13 B065 5650 Scanner Unit Harness 1 14 B065 5405 LCDC Harness 1 15 B065 5195 VIB Board 1 16 B065 5501 VIB Power Source Harness 1 17 AX64 0135 Cooling Fan - 24V 2 18 B065 1172 Development Fan Harness 1 19 B065 1834 Insulating Sheet 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 1105 0516 Clamp 102 0353 0060N Philips Pan Head Screw - M3x6 103 0354 0080N Screw - M4X8 104 0951 3008N Philips Screw With Flat Washer - M3x8 105 0451 4020N Tapping Screw - M4x20 106 1105 0306 Metal Clamp - Al-4 107 1105 0516 Clamp 108 0451 4008N Philips Tapping Screw - M4x8 109 1105 0511 Harness Clamp - LWS-0306ZC

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 47 Parts Location and List

17.OPTICS SECTION 3

B064/B065/B140/B141/B142/B143/B163/B228/G126 48 Parts Location and List

17.OPTICS SECTION 3

Index

No.

1 AB03 2717 Pulley - 26Z 4 2 AA13 2174 Spacer - M8 2 3 A096 1873 Scanner Shoe Pin 8 4 A293 1766 2nd Mirror Plate 4 5 A069 1883 Shoe - Scanner 8 6 B065 1766 Second Mirror 2 7 B065 1753 Adjusting Plate 1 8 B065 1751 2nd Scanner Unit 1 9 AX50 0081 Exposure Lamp 1 10 A294 1712 Rear Holder - Lamp 1 11 B065 1735 Reflector 1 12 B065 1736 Inverter Cover 1 13 B065 1741 Harness Guide 1 14 B065 1733 1st Scanner Front Side Plate 1 15 B065 1737 Clamp 2 16 B065 1740 Harness Plate 1 17 B065 1734 1st Scanner Rear Side Plate 1 18 B065 1743 1st Mirror 1 19 B065 1732 1st Scanner Frame 1 20 B065 1738 Spring Plate 2 21 B065 5610 1st Scanner Harness (B064/B065) 1 21 B140 5610 Harness - Scanner No.1 1 (B140/B141/B142/B143/B163/B228) 22 B065 5220 Relay Board 1 23 AZ50 0060 Exposure Lamp Inverter 1 24 B065 1742 Insulator 1 25 B065 1731 1st Scanner Unit (B064/B065) 1 25 B140 1731 Carriage No.1 Ass'y 1 (B140/B141/B142/B143/B163/B228)

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0452 3006P Tapping Screw - M3x6 102 0453 3006N Tapping Screw - M3x6 103 0954 4008N Philips Screw - M4x8 104 0951 3006N Philips Screw With Flat Washer - M3x6 105 0954 3008N Philips Screw - M3x8 106 0720 0060E Retaining Ring - M6 107 0951 3006 Philips Screw With Flat Washer M3x6

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 49 Parts Location and List

18.OPTICS SECTION 4

103

8

3

103

10

9

2

102

110

104

1

103

1

110

103

2

102

5

103

27

101

26

7

11 12

103

13

103

109

103

4

30

110

104

105

29

103

107

14

106

15

109

103

5

101

7

6

28

107

17

103

101

18

19

21

22

108

105

16

20

103

18

101

19

25

108

24

23

B064/B065/B140/B141/B142/B143/B163/B228/G126 50 Parts Location and List

18.OPTICS SECTION 4

Index

No.

1 A293 1674 Front Slide Rail 2 2 AB03 2717 Pulley - 26Z 2 3 B065 1830 Scanner Board Guide 1 4 B065 1831 Scanner Board Bracket 1 5 B140 1715 Scanner Drive Wire 2 6 B065 1713 Rear Wire Tension Bracket 1 7 AA06 0221 Gripper Solenoid Spring 2 8 B065 1685 Rear Frame 1 9 B065 5454 HP Sensor Relay Harness 1 10 AW02 0056 Photointerruptor - EE-SX4235A-P1 1 11 B065 1825 H.P. Sensor Bracket 1 12 A267 1820 Sheet - Photointerrupter 1 13 B065 5180 SDRD Board 1 14 B065 1706 Bracket - Scanner Motor 1 15 A134 1724 Cushion - Stepper Motor 1 16 B065 1708 Stepper Motor 1 17 AA06 0763 Tension Spring 1 18 B140 1680 Idle Pulley 2 19 B065 1718 Screw - M4X8 3 20 B065 1717 Timing Belt 1 21 AB03 0727 Pulley - 58Z 1 22 AB03 2070 Pulley 1 23 B065 1688 Lens Holder Block 2 24 B065 1711 Drive Shaft 1 25 AB03 2069 Pulley 1 26 B065 1712 Front Wire Tension Bracket 1 27 B065 1682 Front Frame 1 28 AA00 0250 LD - Decal (CHN/TWN) 1 28 G029 1982 LD - Decal 1 29 B065 5471 Grounding Wire 1 30 B140 1837 FFC Insulating Sheet 1 (B140/B141/B142/B143/B163/B228)

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0354 0080N Screw - M4X8 102 0720 0060E Retaining Ring - M6 103 0353 0060N Philips Pan Head Screw - M3x6 104 0314 0080N Philips Pan Head Screw - M4x8 105 0314 0120N Philips Pan Head Screw - M4x12 106 0314 0060N Philips Pan Head Screw - M4x6 107 0354 0060N Screw - M4X6 108 0805 3368 Ball Bearing - 8x16x5mm 109 1105 0487 Harness Clamp 110 1105 0489 Harness Clamp - LWS 1316

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 51 Parts Location and List

19.LASER UNIT

105

101

5

4

6

30

104

101

7

8

103

1

101

10

9

11

2

12

3

102

13

14

15

102

16

101

17

19

101

20

23

103

101

18

101

20

101

21

22

103

24

29

28

101

25

26

101

27

101

B064/B065/B140/B141/B142/B143/B163/B228/G126 52 Parts Location and List

19.LASER UNIT

Index

No.

1 B065 5403 12P Cable - LVDS LIDB 1 2 B065 5489 Harness (B065/B141/B143) 1 2 B140 5491 Harness:60 (B140/B142) 1 3 B065 1951 Seal - 2 1 4 B065 5477 LD Relay Harness 1 5 B065 5437 LD Control Harness 1 6 B065 1859 LD Unit 1 7 B065 1950 Seal - 1 1 8 B065 1912 Lens Holder - L0 1 9 AC02 4007 Lens - L0 1 10 AC03 0147 1st Mirror 1 11 B065 1915 1st Mirror Holder 1 12 B065 5453 Relay Polygon Motor Harness 1 13 AX06 0277 Polygon Mirror Motor Ass'y 1 14 B065 1955 Seal - Lens L1 1 15 B065 1952 Seal - 3 1 16 G570 2827 Supporting Plate 1 17 B065 1925 Lens Holder - L2 Right 1 18 B065 1926 Lens Holder - L2 Left 1 19 GC02 5010 Lens L2 1 20 B065 1930 2nd Mirror Holder 2 21 B065 1932 Middle Mirror Holder 1 22 AC03 0148 2nd Mirror 1 23 B065 1953 Seal - 4 1 24 B065 1946 Seal - Shield Glass Holder 1 25 B065 1944 Shield Glass Holder 1 26 B065 1945 Seal - Shield Glass 1 27 B065 1940 Shield Glass Rail 1 28 AC01 5037 Shield Glass 1 29 B140 5301 PCB:Sync Detector 1 30 B140 1852 Imaging Unit:Ass'y 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0353 0080N Screw - M3X8 102 0354 0080N Screw - M4X8 103 0451 4010N Tapping Screw - 4x10 104 1105 0306 Metal Clamp - Al-4 105 0353 0060N Philips Pan Head Screw - M3x6

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 53 Parts Location and List

20.TANDEM TRAY 1

37

104

6

111

7

104

111

104

5

12

8

4

104

104 6

14

10

9

32

33

34

104

11

104

106

107

15

36

104

20

104

28

104

106

110

31

110

35

106

17

21

22

30

102

101

110

29

16

109

104

23

28

26

108

19

27

109

104

103

106

18

104

24

106

25

35

2

1

3

101

105

13

B064/B065/B140/B141/B142/B143/B163/B228/G126 54 Parts Location and List

20.TANDEM TRAY 1

Index

No.

1 B065 6630 Tandem Cover 1 2 B065 6635 Decal - Paper Tray 1 1 3 AW02 0008 Photointerruptor 1 4 A248 6646 Cover Bracket (B064/B065) 1 4 B098 6646 Bracket:Cover:Tandem LCT (B140 Series) 1 5 B065 6846 Decal - Paper Set - Left 1 6 A293 6647 Support Bracket - End Fence (B064/B065) 2 6 B098 6647 End Fence:Auxiliary (B140 Series) 2 7 A248 6645 Side Plate - Left (B064/B065) 1 7 B098 6645 Side Plate:Tandem LCT:Left Sideways 1 (B140 Series) 8 A293 6643 Side Fence - Left Front (B064/B065) 1 8 B098 6643 Side Fence:Tandem LCT:Left Front 1 (B140 Series) 9 A293 6640 Tray Bottom Plate - Left Front (B064/B065) 1 9 B098 6640 Tray Bottom Plate:Left Front (B140 Series) 1 10 A248 6639 Tray Bottom Plate - Left Middle (B064/B065) 1 10 B065 6833 Tray Bottom Plate -Left Middle 1 (KOR/CHN/TWN) 10 B098 6639 Tray Bottom Plate:Left Middle:Ass'y 1 (B140 Series) 11 A293 6642 Tray Bottom Plate - Left Rear (B064/B065) 1 11 B098 6642 Tray Bottom Plate:Left Rear (B140 Series) 1 12 A096 6678 Decal - Left Paper Set 1 12 B065 6879 Decal - Left Paper Set (KOR/CHN/TWN) 1 13 B065 6831 Sensor Bracket 1 14 AA00 2010 Decal - Paper Level 1 15 A293 6644 Side Fence - Left Rear (B064/B065) 1 15 B098 6644 Side Fence:Tandem LCT:Left Rear 1 (B140 Series) 16 A293 6646 Rear Cover - Tandem LCT (B064/B065) 1 16 B098 6649 Cover:Rear:Tandem LCT:Ass'y (B140 Series) 1 17 A293 6649 Rear Cover Cushion - Tandem LCT 1 18 A248 6624 Left Back Fence 1 19 B065 6823 Timing Belt Cover 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

20 AB03 3085 Timing Pulley - 15T 1 21 AA14 0685 Shaft - Back Fence Slider 1 22 A248 6623 Slider - Left Back Fence 1 23 B065 6830 Pulley Bracket 1 24 AA04 3271 Timing Belt S3M196T 1 25 A248 6615 Coupling Lever - Left 1 26 A247 5428 DC Harness - Left 1 27 AB03 3084 Timing Pulley - 15T 1 28 5053 0447 Bushing - 6mm 2 29 AA14 0686 Shaft - Timing Pulley 1 30 AB01 9475 Gear - 48T 1 31 AA06 0759 Tension Spring 1 32 B065 6821 Pulley Bracket 1 33 B070 6666 Left DC Motor Bracket 1 34 AX04 0107 DC Motor - 19.2W 1 35 AW02 0056 Photointerruptor - EE-SX4235A-P1 2 36 AB01 3798 Gear - Z18 1 37 B065 6614 Left Tandem Tray Ass’y (B064/B065) 1 37 B140 6615 Tandem LCT:Left:Letter:Ass'y (B140 Series) 1 37 B140 6603 Left Tandem LCT Ass'y (A4) (B140 Series) 1

101 1105 0230 Clamp 102 1105 0328 Harness Clamp - ES-0505 103 0313 0080N Philips Pan Head Screw - M3x8 104 0434 0060N Pan Head Self-tapping Screw - M4x6 105 0314 0060N Philips Pan Head Screw - M4x6 106 0720 0040E Retaining Ring - M4 107 0801 0146 Screw - M4X4 108 0452 4008N Binding Self Tapping Screw - M4x8 109 0452 4010N Tapping Bind Screw - M4x10 110 0965 3008P Tapping Screw With Flat Washer - M3x8 111 0951 4008N Philips Screw With Washer - M4x8

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 55 Parts Location and List

21.TANDEM TRAY 2

102

104

12

8

7

103

6

106

10

5

106

13

102

11

9

10

14

101

15

101

102

16

102

19

21

23

17

18

102

20

102

107

3

107

105

4

105

2

24

102

10

1

108

22

108

B064/B065/B140/B141/B142/B143/B163/B228/G126 56 Parts Location and List

21.TANDEM TRAY 2

Index

No.

1 B065 6873 Sensor Bracket 1 2 B065 6859 Right Stopper 1 3 AA00 2246 Decal - Caution 1 4 A248 6745 Inner Cover - Tandem LCT 1 5 B065 6875 Protection - Inner Cover 1 6 B065 6877 Decal - Paper Set - Right 1 7 A096 6671 Paper Guide Plate 1 8 A293 6736 Side Fence - Right Front (B064/B065) 1 8 B098 6736 Side Fence:Tandem LCT:Right Front 1 (B140/B141/B142/B143/B163/B228) 9 B065 6706 Paper Volume Sensor Bracket 1 10 AW02 0120 Photointerruptor - Flat 5 11 5201 2858 Friction Pad 1 12 A096 6677 Decal - Right Paper Set 1 12 B065 6878 Decal - Right Paper Set (KOR/CHN/TWN) 1 13 A294 6670 Base - Right Tandem Tray (B064/B065) 1 13 B098 6670 Base:Tandem LCT:Right:Ass'y 1 (B140/B141/B142/B143/B163/B228) 13 B065 6885 Base - Right Tandem Tray (KOR/CHN/TWN) 1 14 B065 6874 Bracket - Paper Volume sensor 1 15 A248 6738 Side Fence - Right Rear (B064/B065) 1 15 B098 6738 Side Fence:Tandem LCT:Right Rear 1 (B140/B141/B142/B143/B163/B228) 16 A293 6739 Inner Cover - Right Rear (B064/B065) 1 16 B098 6739 Supporting Plate:Tandem:Right Rear 1 (B140/B141/B142/B143/B163/B228) 17 AA15 3063 Seal - 4x10x70 1 18 AA15 3138 Inner Cover Cushion - Right Rear 1 19 A176 6695 Misfeed Removal Guide 1 20 B065 6672 Tandem Connecting Guide 1 21 AA00 2010 Decal - Paper Level 1 22 A248 6666 Side Plate 1 23 B065 6605 Right Tandem Tray Ass'y (B064/B065) 1 23 B140 6606 Tandem LCT:Right:Letter:Ass'y 1 (B140/B141/B142/B143/B163/B228)

Part No.

Description

Q’ty Per

Assembly

Index

No.

23 B140 6605 Right Tandem LCT Ass'y (A4) 1 (B140/B141/B142/B143/B163/B228) 24 B065 6814 Inner Cover:Tandem LCT:Ass'y 1 (B140/B141/B142/B143/B163/B228)

101 0801 0146 Screw - M4X4 102 0434 0060N Pan Head Self-tapping Screw - M4x6 103 0451 4008N Philips Tapping Screw - M4x8 104 0951 4006N Philips Screw With Washer - M4x6 105 0314 0060N Philips Pan Head Screw - M4x6 106 0452 4008N Binding Self Tapping Screw - M4x8 107 0951 4008N Philips Screw With Washer - M4x8 108 0453 4008N Tapping Bind Screw - M4x8

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 57 Parts Location and List

22.TANDEM TRAY 3

B064/B065/B140/B141/B142/B143/B163/B228/G126 58 Parts Location and List

22.TANDEM TRAY 3

Index

No.

1 A248 6714 DC Solenoid - Front End Fence 1 2 B070 6683 Lever:Release:Front 1 3 AA06 0758 Tension Spring - Short 2 4 A248 6713 Hook - Tension Spring 2 5 AA06 0757 Tension Spring - Long 2 6 A293 6713 Front End Fence 1 7 B065 6712 End Fence Guide (A4) 2 8 B065 6881 Detector Bracket 1 9 AW02 0056 Photointerruptor - EE-SX4235A-P1 4 10 A293 6714 Rear End Fence 1 11 B065 6884 Detector Bracket 1 12 A248 6727 DC Solenoid - Rear End Fence 1 13 B065 6811 Side Plate - Right Rear 1 14 B070 6684 Lever:Release:Rear 1 15 AB03 2058 Wire Pulley - M10 2 16 A248 6695 Guide - Pulley 4 17 AB03 2719 Pulley - M10 2 18 A248 6687 Right Drive Shaft 1 19 A293 6684 Pulley:Drive Were:Ass'y 2 20 5053 0223 Bushing - 8mm 2 21 B065 6744 Right Tandem Harness 1 22 B065 6743 Right Connecting Bracket 1 23 B065 6862 Large Lever 1 24 AA13 2203 Spacer - 6mm 1 25 A010 5700 Sensor 1 26 AA16 1129 Cushion - Large 1 27 B065 6851 Right Base - Tandem LCT 1 28 AF02 2105 Roller - Slide Rail 1 29 AA16 1130 Cushion - Small 2 30 B065 6864 Small Lever 1 31 A248 6694 Wire Ring 4 32 B065 6870 Stay - Rightbase 2 33 A294 6690 Feeler - Paper Height Sensor 1 34 B065 6717 Paper Volume Shield Plate 1 35 B065 6710 Front Right Side Plate 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

36 A248 6701 Oil Damper 1 37 AB01 3781 Gear - 30Z 1 38 B065 6872 Oil Damper Bracket 1 39 A294 6655 Front Roller - Slide Rail 1

101 0633 0200G Pin - M3x20 102 0720 0040E Retaining Ring - M4 103 0720 0060E Retaining Ring - M6 104 0434 0060N Pan Head Self- Tapping Screw - M4x6 105 0313 0080N Philips Pan Head Screw - M3x8 106 1105 0267 Harness Clamp - YMC-10-0 107 1105 0291 Harness Clamp - LWS-3S 108 1106 0411 Bushing - 11.5mm 109 0951 3006N Philips Screw With Flat Washer - M3x6 110 0313 0120N Philips Pan Head Screw - M3x12 111 0452 3006N Tapping Screw - M3x6

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 59 Parts Location and List

23.UNIVERSAL TRAY

B064/B065/B140/B141/B142/B143/B163/B228/G126 60 Parts Location and List

23.UNIVERSAL TRAY

Index

No.

1 B065 6502 Paper Tray Assembly (LT)(B064/B065) 1 1 B065 6504 Paper Tray Assembly (A4)(B064/B065) 1 1 B140 6502 Paper Tray:Universal:NA:Ass'y 1 (B140/B141/B142/B143/B163/B228) 1 B140 6504 Paper Tray:Universal:EU:Ass'y 1 (B140/B141/B142/B143/B163/B228) 2 B065 6576 Coupling Link 1 3 A293 6585 Knob - Paper Size Selection 1 4 AF01 0092 Paper Tray - LT 1 4 AF01 0091 Paper Tray (A4) 1 5 A293 6579 Link Guide 1 6 AA00 2258 Decal - Paper Size - LT 1 6 AA00 2259 Decal - Paper Size - A4 1 7 AA00 2261 Decal - Universal Tray 1 8 B065 6545 Decal - Positioning 2 9 AF01 6079 Left Rear Side Fence 1 10 A096 6553 Side Fence Pad 2 11 B065 6534 Front Side Fence 1 12 A134 2978 Spring Plate 1 13 B065 6538 Positioning Stopper Lever 1 14 B065 6533 Front Side Fence Ass'y 1 15 AF01 7029 Paper End Fence 1 16 A048 2838 Nylon Rivet 2 17 AF01 3005 Bottom Plate Pad 1 18 AF01 1043 Bottom Plate 1 19 AB01 3868 Gear - 16Z 1 20 B065 6591 Paper Tray Holder Base 1 21 AA00 2010 Decal - Paper Level 1 22 B065 6543 Side Fence:Inner Back:Adhesion 1 23 A267 2859 Side Fence Stopper 1 24 A267 2860 Rear Lever Stopper 1 25 A267 2857 Spring Plate - Side Fence 1 26 A176 6570 Paper Stopper 1 27 B065 6542 Side Fence:Inner Back:Ass'y 1 28 B065 6571 Paper Size Detection 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

29 A293 6574 Actuator Guide 1 30 B065 6524 Bottom Plate Lift Shaft 1 31 B065 6526 Lift Lever 1 32 A176 6695 Misfeed Removal Guide 1 33 B065 6581 Paper Tray Holder Stay 1 34 B065 6633 Paper Tray Cover - Short (2nd) 1 34 B065 6632 Paper Tray Cover - Long (3rd) 1 35 A229 6556 Tray Bottom Plate (B064/B065) 1 35 B098 6557 Tray Bottom Plate 1 (B140/B141/B142/B143/B163/B228) 36 B065 6588 Right Support Plate 1 37 B065 6589 Left Support Plate 1 38 B065 6636 Decal - Paper Tray 2 1 38 B065 6637 Decal - Paper Tray 3 1 39 B065 6579 Tapping Screw - M4x8 1

101 0451 3008N Tapping Screw - M3x8 102 0451 4008N Philips Tapping Screw - M4x8 103 0453 4008N Tapping Bind Screw - M4x8 104 0360 4008N Screw - M3 X 8 105 0720 0060E Retaining Ring - M6 106 0450 4008N Tapping Screw - 4x8 107 0450 3008N Tapping Screw - M3x8

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 61 Parts Location and List

24.BY-PASS FEED TRAY

B064/B065/B140/B141/B142/B143/B163/B228/G126 62 Parts Location and List

24.BY-PASS FEED TRAY

Index

No.

1 B065 2743 Front Shaft - By-pass 1 2 5206 2686 Snap Ring 1 3 B065 2729 Paper End Feeler 1 4 B065 2721 Paper Feed Guide Plate - By-pass 1 (B064/B065) 4 B140 2721 Manual Feed Guide Plate 1 (B140/B141/B142/B143/B163/B228) 5 B065 2660 Paper Feed Cover (B064/B065) 1 5 B140 2660 Machine Or Copier Paper Feed Cover 1 (B140/B141/B142/B143/B163/B228) 6 B065 2662 Magnet Catch Bracket (B064/B065) 1 6 B140 2662 Magnet Catch Bracket 1 (B140/B141/B142/B143/B163/B228) 7 A096 2780 Feed Guide Gear 2 8 B065 2730 By-pass Table 1 9 B065 2746 Decal - Paper Set 1 10 B065 2737 Front Side Fence - By-pass 1 11 B351 4135 Magnet Catch - Original Table 1 12 B065 2735 Rear Side Fence - By-pass 1 13 B065 2732 Manual Feed Table 1 14 B065 2738 Front Support Stay - By-pass 1 15 B065 2740 Rear Support Stay - By-pass 1 16 B065 2741 Sensor Bracket 1 17 B098 3492 Gear:Manual Feed Table 1 18 A096 5335 Paper Size Switch 1 19 B065 2733 By-pass Table Cover 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0450 3008N Tapping Screw - M3x8 102 0453 3006N Tapping Screw - M3x6 103 0452 3008N Binding Self-tapping Screw - 3x8 104 0451 4008N Philips Tapping Screw - M4x8

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 63 Parts Location and List

25.PAPER FEED UNIT 1

B064/B065/B140/B141/B142/B143/B163/B228/G126 64 Parts Location and List

25.PAPER FEED UNIT 1

Index

No.

1 AF03 0051 Pick-up Roller (B064/B065) 1 1 AF03 0081 Paper Feed Roller:Pickup 1 (B140/B141/B142/B143/B163/B228)

2 5447 2681 Snap Ring 2

3 AF03 1065 Pare Feed Roller (B064/B065) 1 3 AF03 1082 Paper Feed Roller:Feed 1 (B140/B141/B142/B143/B163/B228)

4 B065 6350 Pick-up Gear Cover 1 5 AB01 1465 Idler Gear 1 6 B065 6357 Pick-up Arm 1 7 AA08 2118 Bushing - M6 2 8 AA06 0898 Spring 1 9 AA14 0828 Feed Roller Shaft 1 10 B065 6445 Feed Lever 1 11 AA06 0899 Spring 1 12 B065 6358 Paper Feed Sensor Bracket 1 13 AW01 0098 Photointerruptor 3 14 B065 6364 Feed Stay 1 15 B065 6375 Paper Feed Unit Stay 1 16 AB01 7617 Gear - 21Z/38Z 1 17 B065 6318 Pick-up Solenoid 1 18 AA06 0897 Spring 1 19 B065 6488 Upper Paper Feed Harness 1 20 B065 6487 Lower Paper Feed Harness 1 21 B065 6345 Paper End Sensor Bracket 1 22 AW02 0056 Photointerruptor - EE-SX4235A-P1 1 23 B065 6339 Feed Guide Plate (B064/B065) 1 23 B140 6339 Paper Feed Guide Plate 1 (B140/B141/B142/B143/B163/B228) 24 AF02 0562 Transport Roller 1 25 AB01 1466 Gear - 35Z 1 26 B065 6353 Feed Gear Cover 1 27 B065 6366 Drive Bracket 1 28 5894 2540 Arm Screw 1 29 B065 6457 Driven Pressure Lever 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

30 AA06 0896 Spring 1 31 B065 6334 Heat Sink Base 1 32 B065 6337 Heat Sink 1 33 B065 6338 Heat Sink Sheet 1 34 AA06 3889 Heat Sink Spring 1

101 0451 4008N Philips Tapping Screw - M4x8 102 1105 0328 Harness Clamp - ES-0505 103 1105 0511 Harness Clamp - LWS-0306ZC 104 0353 0040N Screw - M3X4 105 0720 0040E Retaining Ring - M4 106 0720 0060E Retaining Ring - M6 107 0742 3808 Ball Bearing - 8x16x5 108 1102 6249 Relay Connector - 6P 109 1102 6251 Connector - 8P 110 1102 6252 Connector - 9P 111 1105 0542 Harness Clamp - MSBS-1207

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 65 Parts Location and List

26.PAPER FEED UNIT 2

1

31

104

101

106

32

108

104

2

3

7

3

5

6

104

43

102

27

4

6

104

103

9

10

104

26

8

11

10

103

12

103

30

109

14

13

105

103

10

25

45

16

15

17

18

19

20

107

21

108

22

23

24

103

33

29

10

103

38

44

39

104

37

101

42

41

40

34

35

36

B064/B065/B140/B141/B142/B143/B163/B228/G126 66 Parts Location and List

26.PAPER FEED UNIT 2

Index

No.

1 B065 6372 Guide Plate 1 2 AF02 2149 Transport Roller 1 3 AA08 0327 Bushing - M4 2 4 AA14 0829 Driven Shaft 1 5 B065 6453 Transport Roller Lever 1 6 AA14 3402 Screw - Scale 2 6 AA14 3812 Screw - Scale (B142/B143/B228) 2 7 B065 6454 Driven Release Lever 1 8 B065 6455 Driven Pressure Lever 1 9 B065 6317 Relay Shaft 1 10 AA08 2118 Bushing - M6 4 11 AB01 1469 Gear - 19Z 1 12 B065 6330 Rear Side Plate - Paper Feed 1 13 AB01 1470 Gear - 18Z 1 14 B065 6452 Tray Link Guide 1 15 B065 6346 Paper Tray Link 1 16 AA14 3718 Stepped Screw - M4 1 17 AA06 0901 Spring 1 18 AA04 3575 Timing Belt 1 19 AB01 7690 Pulley:Idler:30t/24z 1 20 B065 6456 Vertical Transport Link 1 21 AA06 0900 Spring 1 22 AB03 0734 Pulley - 30Z 1 23 AB01 1490 Gear - 38Z 1 24 AB01 1491 Gear - 21Z 1 25 B065 6306 Reverse Drive Shaft 1 26 AB01 1471 Reverse Gear 1 27 AB01 1391 Driven Reverse Gear - 21Z 1 29 B140 6321 Reverse Roller:Pressure Release 1 30 B065 6333 Reverse Housing 1 31 B065 6371 Support Guide Plate 1 32 B065 6336 Front Side Plate - Paper Feed 1 33 B065 6416 Ball Bearing - 6x12x4.5 1 34 B065 6307 Reverse Driven Shaft 1 35 B065 6399 Torque limiter 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

36 AF03 2050 Separation Roller (B064/B065) 1 36 AF03 2080 Paper Feed Roller:Separate 1 (B140/B141/B142/B143/B163/B228)

37 5447 2681 Snap Ring 1 38 B065 6323 Paper Feed Motor 1 39 B065 6394 Motor Bracket 1 40 AA06 0904 Spring 1 41 AB03 0733 Pulley - 20T 1 42 AA04 3576 Timing Belt 1 43 B065 6415 Motor Base 1 44 B140 6378 Ground Plate:Stepper Motor:Paper Feed Unit 1 45 B140 6377 Ground Plate:Reverse:Paper Feed Unit 1

101 0353 0040N Screw - M3X4 102 0573 0030E Hexagon Headless Set Screw - M3x3 103 0720 0040E Retaining Ring - M4 104 0451 4008N Philips Tapping Screw - M4x8 105 1105 0522 Edge Saddle - Les0510 106 1105 0328 Harness Clamp - ES-0505 107 0720 0060E Retaining Ring - M6 108 0450 4008N Tapping Screw - 4x8

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 67 Parts Location and List

27.VERTICAL TRANSPORT

101

3

105

104

101

1

2

6

104

107

4

106

105

5

103

9

17

101

104

7

8

19

18

101

26

27

25

101

30

102

28

29

101

13

10

11

12

101

14

15

101

16

20

23

24

21

22

24

31

B064/B065/B140/B141/B142/B143/B163/B228/G126 68 Parts Location and List

27.VERTICAL TRANSPORT

Index

No.

1 B065 6201 Paper Feed Unit:Paper Bank:Ass'y 3 (B064/B065) 1 B140 6200 Paper Feed Unit Ass'y 3 (B140/B141/B142/B143/B163/B228) 2 B065 6361 Relay Guide Plate - Paper Feed (B064/B065) 1 2 B140 6361 Paper Bank Connecting Guide Plate 1 (B140/B141/B142/B143/B163/B228) 3 B065 6489 Relay Unit Harness 1 4 B065 6323 Paper Feed Motor 1 5 AF02 0562 Transport Roller 1 6 AB01 1466 Gear - 35Z 1 7 AA04 3575 Timing Belt 1 8 AB01 7619 Gear - 24Z/40Z 1 9 B065 6472 Relay Unit Guide Plate (B064/B065) 1 9 B140 6472 Joint Unit Guide Plate Ass'y 1 (B140/B141/B142/B143/B163/B228) 10 AA06 3878 Spring 1 11 B065 6429 Release Cover - Vertical Transport 1 12 A029 2984 Decal - Grip 1 13 B065 6426 Release Lever - Vertical Transport 1 14 B065 6428 Release Button - Vertical Transport 1 15 B065 6427 Release Lever - Vertical Transport 1 16 5201 1796 Stepped Screw - M4 3 17 B065 6403 Front Side Plate - Vertical Transport 1 18 B065 6405 Guide Plate - Vertical Transport 1 19 B065 6404 Rear Side Plate - Vertical Transport 1 20 AF02 0295 Vertical Driven Roller 4 21 AA08 0241 Bushing - M4 8 22 AA06 3487 Spring - 10mm 8 23 B065 6407 Transport Pressure Plate 1 24 AA14 3715 Stepped Screw - M5 4 25 B065 6402 Transport Pressure Plate 1 26 A096 5528 Micro Switch Sheet 1 27 B065 6122 Micro Switchbracket 1 28 A423 4433 Spring 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

29 AA14 3809 Shoulder Screw - M2.5 1 30 B065 6078 LCT Stay 1 31 B140 6420 Vertical Transport Unit Ass'y 1 (B140/B141/B142/B143/B163/B228)

101 0451 4008N Philips Tapping Screw - M4x8 102 1204 2521 Micro Switch 103 0353 0040N Screw - M3X4 104 0720 0060E Retaining Ring - M6 105 0742 3808 Ball Bearing - 8x16x5 106 1102 6249 Relay Connector - 6P 107 1105 0511 Harness Clamp - LWS-0306ZC

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 69 Parts Location and List

28.PAPER REGISTRATION 1

B064/B065/B140/B141/B142/B143/B163/B228/G126 70 Parts Location and List

28.PAPER REGISTRATION 1

Index

No.

1 B065 2763 Relay Registration Harness 1 2 AW01 0098 Photointerruptor 1 3 B065 2621 Sensor Bracket 1 4 B065 2620 Paper Dust Removal Case 1 5 AA15 2441 Case Seal 4 6 B065 2608 Development Connector Bracket 1 7 B065 2614 Front Upper Guide Plate (B064/B065) 1 7 B140 2614 Upper Front Registration Guide 1 (B140/B141/B142/B143/B163/B228) 8 A096 2622 Front Lower Registration Guide (B064/B065) 1 8 B140 2622 Lower Front Registration Guide 1 (B140/B141/B142/B143/B163/B228) 9 B065 2682 Paper Feed Stay 1 10 5447 2681 Snap Ring 2

11 AF03 1066 Paper Feed Roller (B064/B065) 1 11 AF03 1083 Paper Feed Roller:Feed:Manual Feed 1 (B140/B141/B142/B143/B163/B228)

12 AB01 1478 Gear - 18Z 1 13 AA08 2116 Bushing - M8 3 14 AA06 0888 Spring 1 15 B065 2688 Pick-up Roller Arm 1 16 5447 2706 Gear - 15T 1

17 AF03 0050 Pick-up Roller (B064/B065) 1 17 AF03 0080 Paper Feed Roller:Pickup 1 (B140/B141/B142/B143/B163/B228)

18 AA14 0819 Feed Roller Shaft 1 19 AA06 0887 Spring 1 20 B065 2690 Pick-up Roller Solenoid 1 21 AA08 3019 Bushing 1 22 AX20 0242 Magnetic Clutch 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 1102 6247 Connector - 4P 102 1102 6260 Relay Connector - 3P 103 1102 6279 Connector - 3P 104 0451 4008N Philips Tapping Screw - M4x8 105 1105 0511 Harness Clamp - LWS-0306ZC 106 0720 0060E Retaining Ring - M6 107 0805 0088 Retaining Ring - M6

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 71 Parts Location and List

29.PAPER REGISTRATION 2

5

6

7

2

1

101

103

(Model C1)

34

103

4

102

32

3

103

31

109

33

14

15

32

13

101

12

17

16

9

8

101

18

106

2101

1

11

105

3

10

104

22

4

19

108

20

103

102

10

13

23

103

10

13

101

107

102

27

24

102

21

101

30

31

102

29

102

28

109

101

26

25

102

B064/B065/B140/B141/B142/B143/B163/B228/G126 72 Parts Location and List

29.PAPER REGISTRATION 2

Index

No.

1 5205 2697 Bushing - Upper Registration Roller 2 2 5442 2754 Spring - Registration Roller 2 3 A247 2800 Ball Bearing - 8x12x5 2 4 AA13 2025 Spacer - 1x8x12 2 5 B065 2627 Lower Registration Roller 1 6 B065 2623 Upper Registration Roller 1 7 B140 2612 Lower Registration Guide 1 8 B065 2701 Lower Guide Plate - By-pass (B064/B065) 1 9 A053 2916 Friction Pad - B (B064/B065) 1 10 G011 1058 Snap Ring 3 11 AB01 7608 Reverse Gear 1 12 B110 2713 Shaft:Reverse:Drive:Ass'y 1 13 AA08 2118 Bushing - M6 3 14 5447 2681 Snap Ring 1

15 AF03 2050 Separation Roller (B064/B065) 1 15 AF03 2080 Paper Feed Roller:Separate 1 (B140/B141/B142/B143/B163/B228)

16 B065 6399 Torque limiter 1 17 B065 2714 Separation Roller Shaft 1 18 B065 2699 Separation Roller Stay 1 19 AB01 7609 Reverse Gear 1 20 AB01 4077 Registration Roller Gear 1 21 AA04 3944 Timing Belt 1 22 AW01 0098 Photointerruptor 1 23 B065 2708 Middle Sensor Bracket 1 24 B065 2707 Paper End Sensor Bracket 1 25 AW02 0056 Photointerruptor - EE-SX4235A-P1 1 26 AA06 0911 Spring 1 27 B065 2709 Reverse Pressure Lever 1 28 B065 2752 Motor Bracket 1 29 B065 6323 Paper Feed Motor 1 30 AB01 7606 Gear - 24Z/46Z 1 31 B065 6445 Feed Lever 1 32 B140 2700 Reverse Stay Ass'y 1 (B140/B141/B142/B143/B163/B228)

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0720 0040E Retaining Ring - M4 102 0451 4008N Philips Tapping Screw - M4x8 103 0720 0060E Retaining Ring - M6 104 0632 0100G Pin - 2x10mm 105 0805 3145 Ball Bearing - 6x12x4mm 106 1105 0487 Harness Clamp 107 1105 0511 Harness Clamp - LWS-0306ZC 108 1105 0522 Edge Saddle - LES0510 109 0453 3006N Tapping Screw - M3x6

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 73 Parts Location and List

30.PAPER REGISTRATION 3

B064/B065/B140/B141/B142/B143/B163/B228/G126 74 Parts Location and List

30.PAPER REGISTRATION 3

Index

No.

1 5205 2697 Bushing - Upper Registration Roller 2 2 AA06 3254 Driven Roller Spring 2 3 A229 2717 Lock Lever 1 4 AA00 1213 Decal - B2 1 5 AA14 0486 Lock Shaft 1 6 5443 2668 Bushing - 4x6x7mm 2 7 A229 2655 Read Rock 1 8 AA06 6211 Rear Lock Spring 1 9 B065 2647 Registration Guide Plate (B064/B065) 1 9 B140 2647 Open And Close Guide Ass'y 1 (B140/B141/B142/B143/B163/B228) 10 A096 2633 Front Lock 1 11 AA08 2116 Bushing - M8 2 12 AF02 0564 Connecting Roller 1 13 AB01 1457 Transport Roller Gear 1 14 A469 2123 Rubber Cushion - 1x10x10mm 2 15 B065 2671 Duplex Exit Guide Plate (B064/B065) 1 15 B140 2671 Exit Duplex Guide Ass'y 1 (B140/B141/B142/B143/B163/B228) 16 AA08 0034 Bushing - 4x5x7 2 17 AA06 3255 Exit Roller Spring 2 18 A294 2678 Roller - Duplex Exit 1 19 AF02 2110 Transport Driven Roller 1 20 B065 2665 Relay Guide Plate (B064/B065) 1 20 B140 2665 Paper Bank Guide Plate Ass'y 1 (B140/B141/B142/B143/B163/B228) 21 B065 2762 Relay Paper Feed Harness 1 22 AW02 0120 Photointerruptor - Flat 1 23 B065 2675 LCT Guide Plate (B064/B065) 1 23 B140 2675 Option Tray Guide Ass'y 1 (B140/B141/B142/B143/B163/B228) 24 A048 2838 Nylon Rivet 2 25 AA16 2079 Cushion 1 26 B065 2673 Upper Exit Guide Plate (B064/B065) 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

26 B140 2673 Open And Close Option Tray Exit Guide 1 (B140/B141/B142/B143/B163/B228) 27 B065 2761 By-pass Harness 1 28 AB03 0722 Pulley - 13mm 2 29 AA06 0890 Spring 1 30 B140 2655 DC Solenoid:Guide Plate 1 31 B065 2754 Tightener Bracket 1 32 AB01 7607 Gear - 22Z/39Z 1 33 B065 2607 Front Support Plate 1 34 B065 2605 Front Paper Feed Side Plate 1 35 B065 2600 Rear Paper Feed Side Plate 1

101 1102 6246 Relay Connector - 4P 102 1102 6257 Relay Connector - 14P 103 1102 6258 Relay Connector - 15P 104 1105 0328 Harness Clamp - ES-0505 105 1105 0487 Harness Clamp 106 1105 0511 Harness Clamp - LWS-0306ZC 107 1105 0518 Edge Saddle - LES-1010 108 1105 0522 Edge Saddle - LES0510 109 0720 0040E Retaining Ring - M4 110 0453 3006N Tapping Screw - M3x6 111 0720 0030E Retaining Ring - M3 112 0720 0060E Retaining Ring - M6 113 0720 0040E Retaining Ring - M4 114 0742 3808 Ball Bearing - 8x16x5 115 0451 4008N Philips Tapping Screw - M4x8

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 75 Parts Location and List

31.TONER HOPPER SECTION

21

22

23

13

25

24

10

9

8

7

1

101

106

12

11

36

28

105

39

29

16

38

17

15

37

105

41

3

103

102

33

101

34

2

42

35

4

5

101

18

19

20

107

27

26

14

104

101

30

6

32

108

104

105

31

B064/B065/B140/B141/B142/B143/B163/B228/G126 76 Parts Location and List

31.TONER HOPPER SECTION

Index

No.

1 A293 3231 Shield Holder 1 2 B065 3309 Toner Bottle Drive Bracket 1 3 AA06 0291 Spring 1 4 A229 3240 DC Motor 1 5 AA14 5817 Idler Shaft - Toner Bottle 1 6 B065 3311 Toner Bottle Turn Bracket 1 7 A229 3263 Outer Shutter Shield 1 8 A229 3261 Outer Shutter 1 9 A229 3262 Inner Shutter 1 10 A229 3266 Upper Shutter Shield 1 11 A229 3264 Shutter Lever 1 12 A229 3285 Shutter Cover 1 13 A229 3219 Rubber Bushing - Toner Supply Unit 1 14 B065 3304 Bottle Holder 1 15 A096 3224 Bottle Roller 2 16 B065 3307 Toner Bottle Gear 1 17 A293 3234 Shield Plate - Toner Bottle 1 18 A293 3230 Toner Bottle Chuck 1 19 A293 3227 Toner Slider 1 20 AA14 3816 Flat Screw:Chuck:Bottle 1 21 AA14 3758 Stepped Screw 1 22 A229 3232 Chuck Roller 1 23 A134 3179 Chuck Shaft 1 24 AA06 3366 Chuck Spring 1 25 A293 3220 Toner Bottle Stopper 1 26 A293 3282 Toner Bottle Pawl 1 27 AA06 3575 Toner Bottle Spring 1 28 B065 3273 Upper Stay 1 29 B065 3316 Hinge Bracket 1 30 A222 2724 External Circlip - Mm8 1 31 B065 3271 Lower Stay 1 32 A229 3258 Toner Catchpan 1 33 AA13 2024 Spacer - M6 1 34 A229 3243 Motor Joint Gear 1 35 A229 3242 Toner Bottle Joint Gear 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

36 A134 3192 Seal - Toner Bottle 1 37 AA00 1394 Decal - Toner Supply 1 38 A229 3217 Retaining Ring Seal 1 39 B065 3301 Drive Bottle 1 41 B065 3342 Decal - Toner Supply 1 41 B065 3343 Decal - Toner Supply (CHN) 1 41 B065 3344 Decal - Toner Supply (TWN) 1 41 B065 3345 Toner Supply Decal - German 1 41 B065 3346 Toner Supply Decal - French 1 41 B065 3347 Toner Supply Decal - Italian 1 41 B065 3348 Toner Supply Decal - Spanish 1 42 B065 3306 Gear:Toner Bottle:Ass'y 1

101 0450 3008N Tapping Screw - M3x8 102 0800 0072 Philips Pan Head Screw - M2.6x4 103 0720 0040E Retaining Ring - M4 104 1105 0229 Clamp 105 0451 4008N Philips Tapping Screw - M4x8 106 0805 0072 CS Ring 107 0450 3006N Tapping Screw - M3x6 108 0354 0080N Screw - M4X8

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 77 Parts Location and List

32.TONER SUPPLY UNIT

B064/B065/B140/B141/B142/B143/B163/B228/G126 78 Parts Location and List

32.TONER SUPPLY UNIT

Index

No.

1 B065 3161 Toner Separation Case 1

2 B065 3122 Toner Separation Joint Seal 1 3 B065 3123 Rear Toner Separation Joint Seal 1 4 B065 3125 Toner Separation Drive Shaft 1 5 5053 0447 Bushing - 6mm 2 6 B065 3120 Right Upper Case Seal 1 7 B065 3720 Transport Collection Coil - Exit 1 8 A229 3154 Case Seal 1 9 B065 3138 Idle Gear 1 10 B065 3139 Toner Collection Gear 1 11 AW31 0003 Toner End Sensor 1 12 A096 3181 Slitter 1 13 AA15 0361 Slitter Cover Seal 1 14 B065 3146 Nut 1 15 B065 3152 Lower Front Case Seal - Rear 2 16 B065 3153 Lower Filter Case Filter 1 17 B065 3151 Lower Right Case Seal 1 18 B065 3111 Toner Supply Unit 1 19 B065 3140 Upper Cover 1 20 B065 3141 Exit Toner Pile 1 21 B065 3143 Toner Separation Spring 1 22 B065 3142 Toner Separation Shutter 1 23 A096 3175 Bushing 8x14x8 1 24 AA06 0291 Spring 2 25 AB01 3748 Joint Gear - 15Z 2 26 AB01 3747 Gear - 16Z 1 27 AB01 3749 Gear - 15Z 1 28 A096 3176 Bushing - 6x12x8.5 1 29 B065 3121 Left Upper Case Seal 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0452 3008P Binding Self Tapping Screw - M3x8 102 0727 0060E Retaining Ring C - 6 103 0720 0060E Retaining Ring - M6 104 0720 0040E Retaining Ring - M4 105 0450 4008N Tapping Screw - 4x8 106 0727 0060E Retaining Ring - M6 107 0314 0060N Philips Pan Head Screw - M4x6 108 0354 0080N Screw - M4X8

Part No.

Description

Q’ty Per

Assembly

B064/B065/B140/B141/B142/B143/B163/B228/G126 79 Parts Location and List

33.DEVELOPMENT UNIT 1

103

16

3

5

103

現像部 2

4

105

103

105

1

2

6

11

103

14

13

15

102

104

12

19

17

18

102

78

9

10

20

101

B064/B065/B140/B141/B142/B143/B163/B228/G126 80 Parts Location and List

Ricoh B064, B065, B140, B141, B142 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

LEGEND

DOCUMENTATION HISTORY

TABLE OF CONTENTS

LOCATIONS OF UNITS
