Contents
Preface
About this manualxi
About the documentationxii
How the Fiery 3850C worksxiii
About printer drivers and PPDs/PDDsxiii
Supported paper sizesxiii
Before you beginxiv
Chapter 1: Printing from Windows Computers
Printing from applications1-1
Setting options and printing from Windows 9x/Me1-1
Setting options and printing from Windows NT 4.01-12
Setting options and printing using the PostScript printer driver or the PCL driver on Windows
20001-16

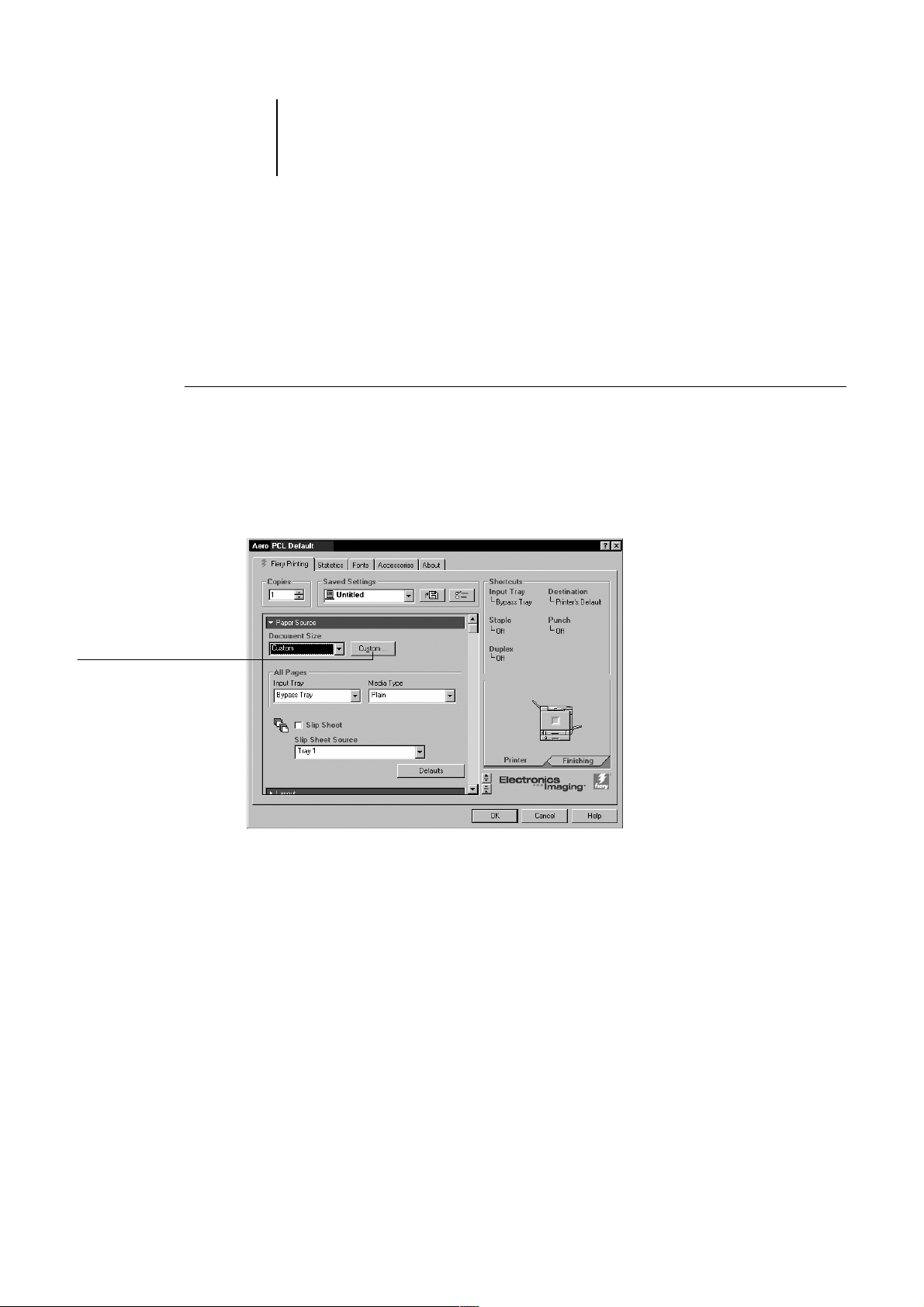

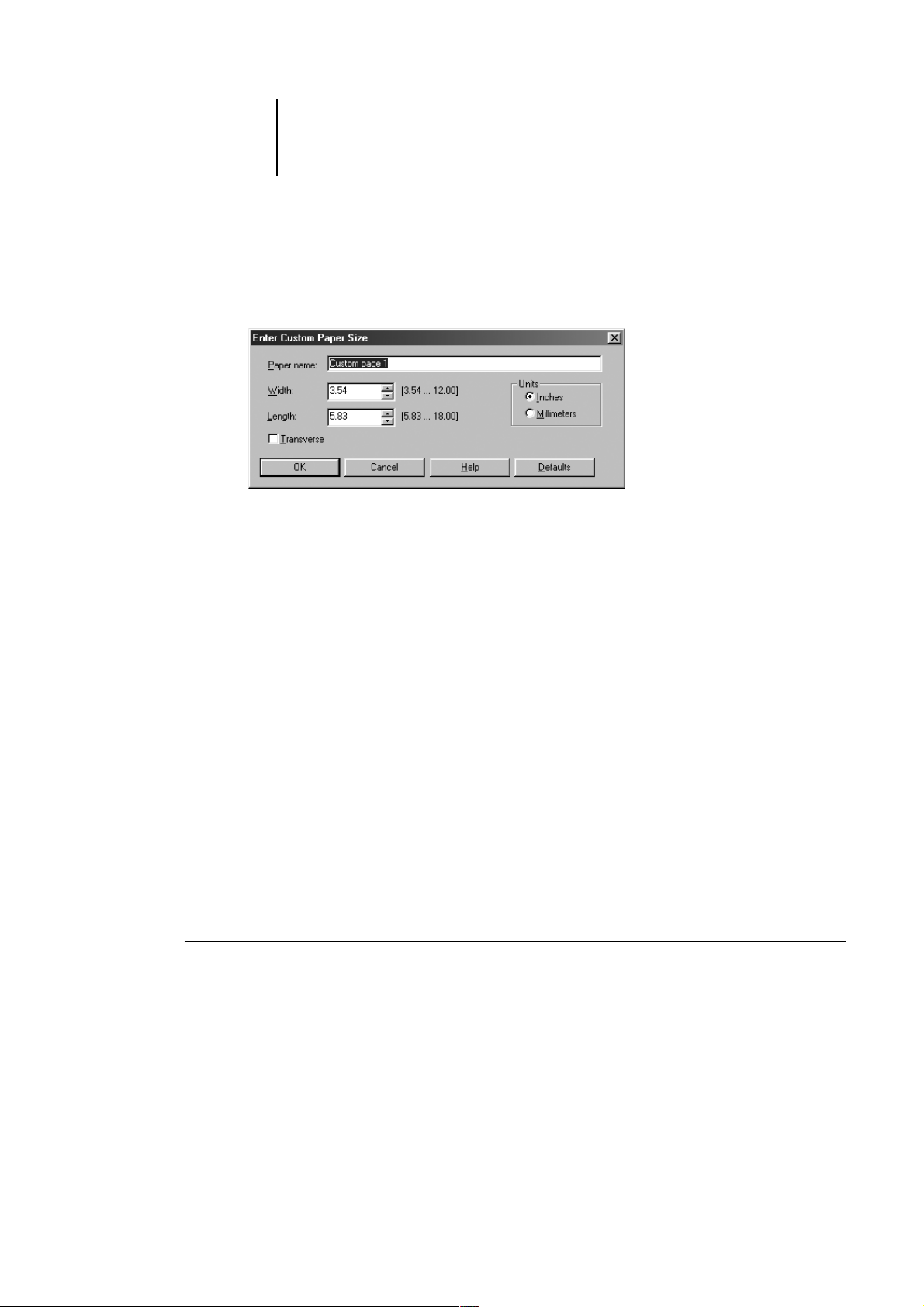

Working with custom page sizes in Windows 9x/Me1-22

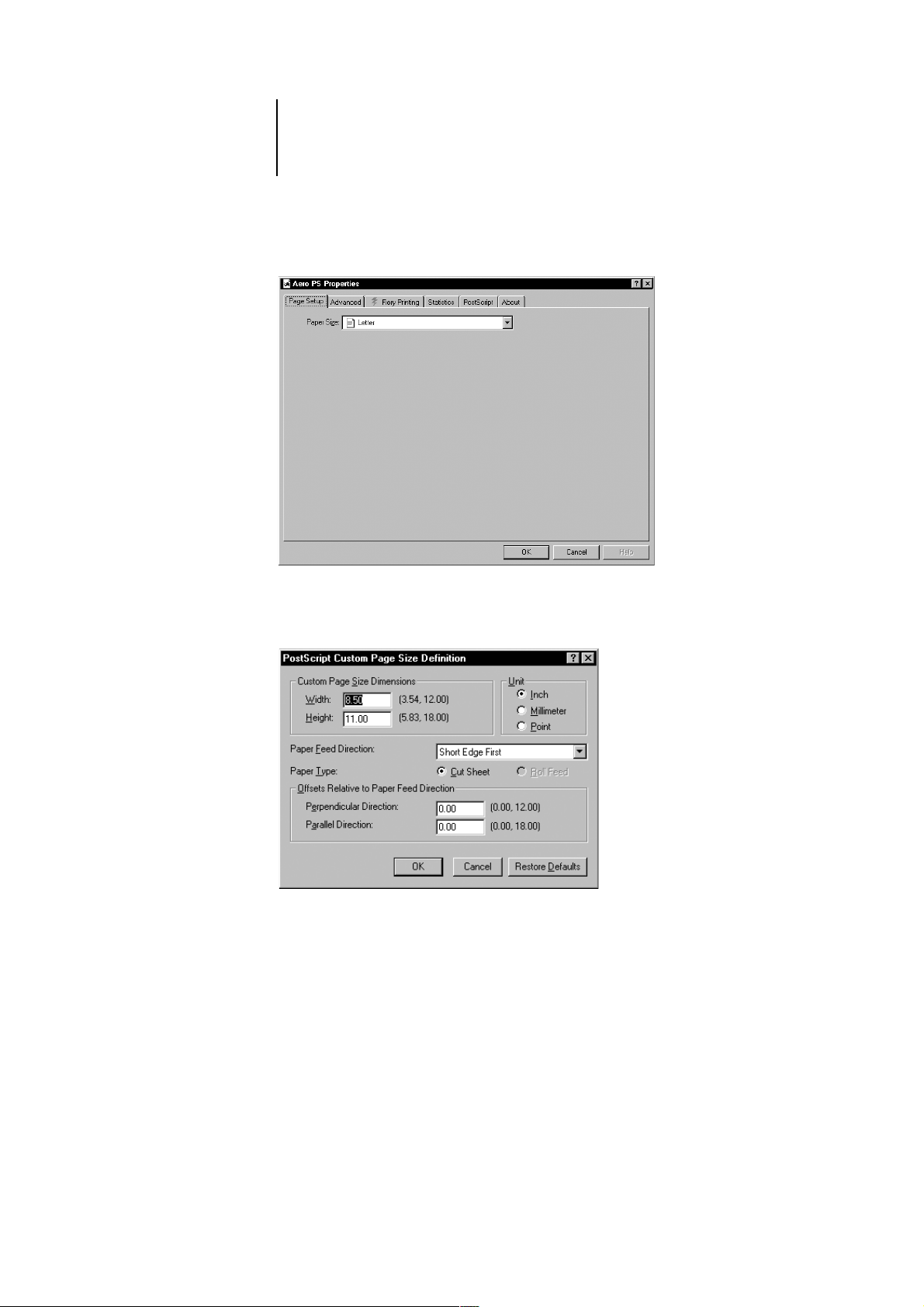

Working with custom page sizes in Windows NT 4.01-24
Working with custom page sizes in Windows 20001-29
Printing to the parallel port1-34
Saving files to print at a remote location1-34
Chapter 2: Printing from Mac OS Computers
Printing from applications2-1

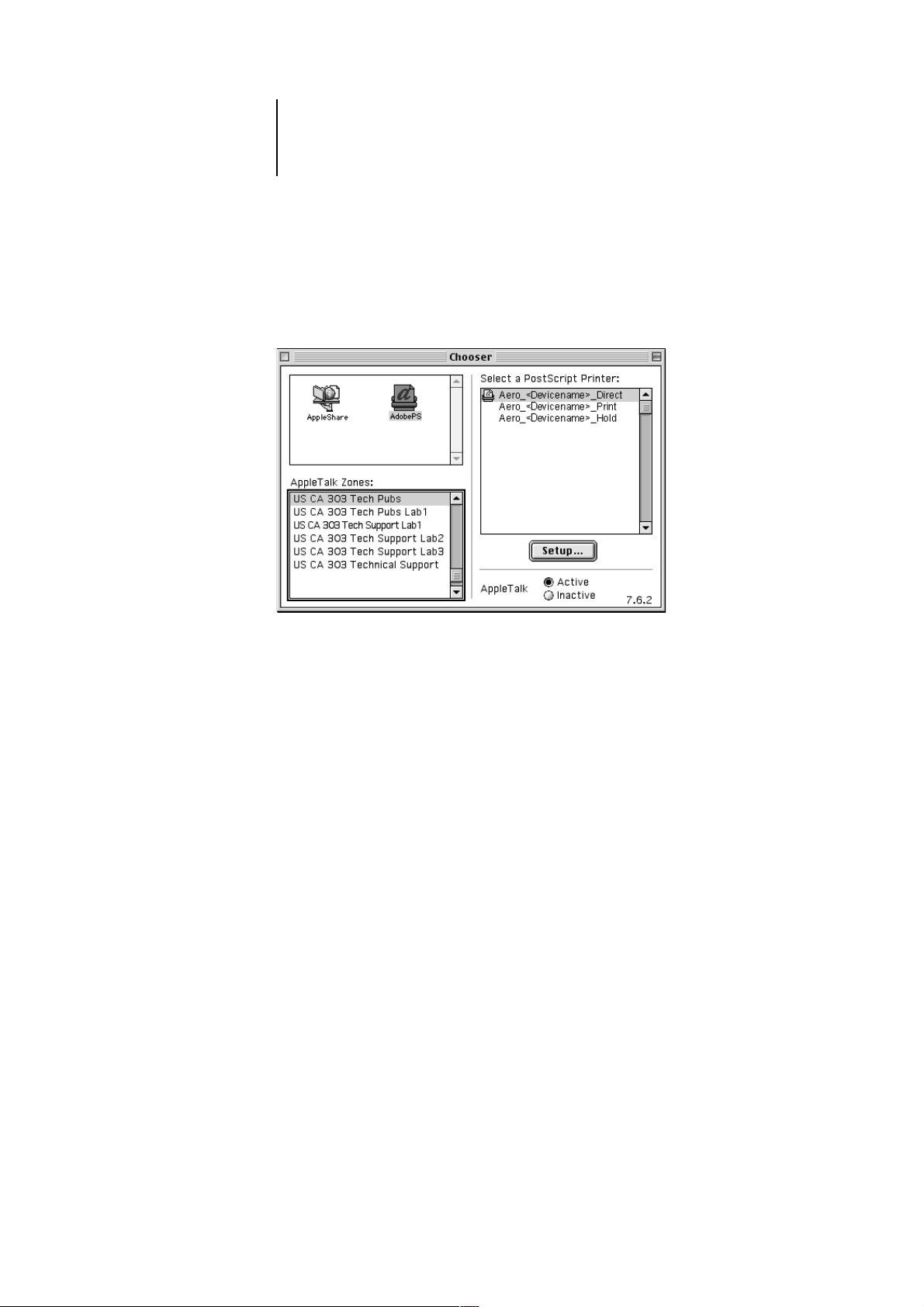

Selecting the Fiery 3850C in the Chooser2-1

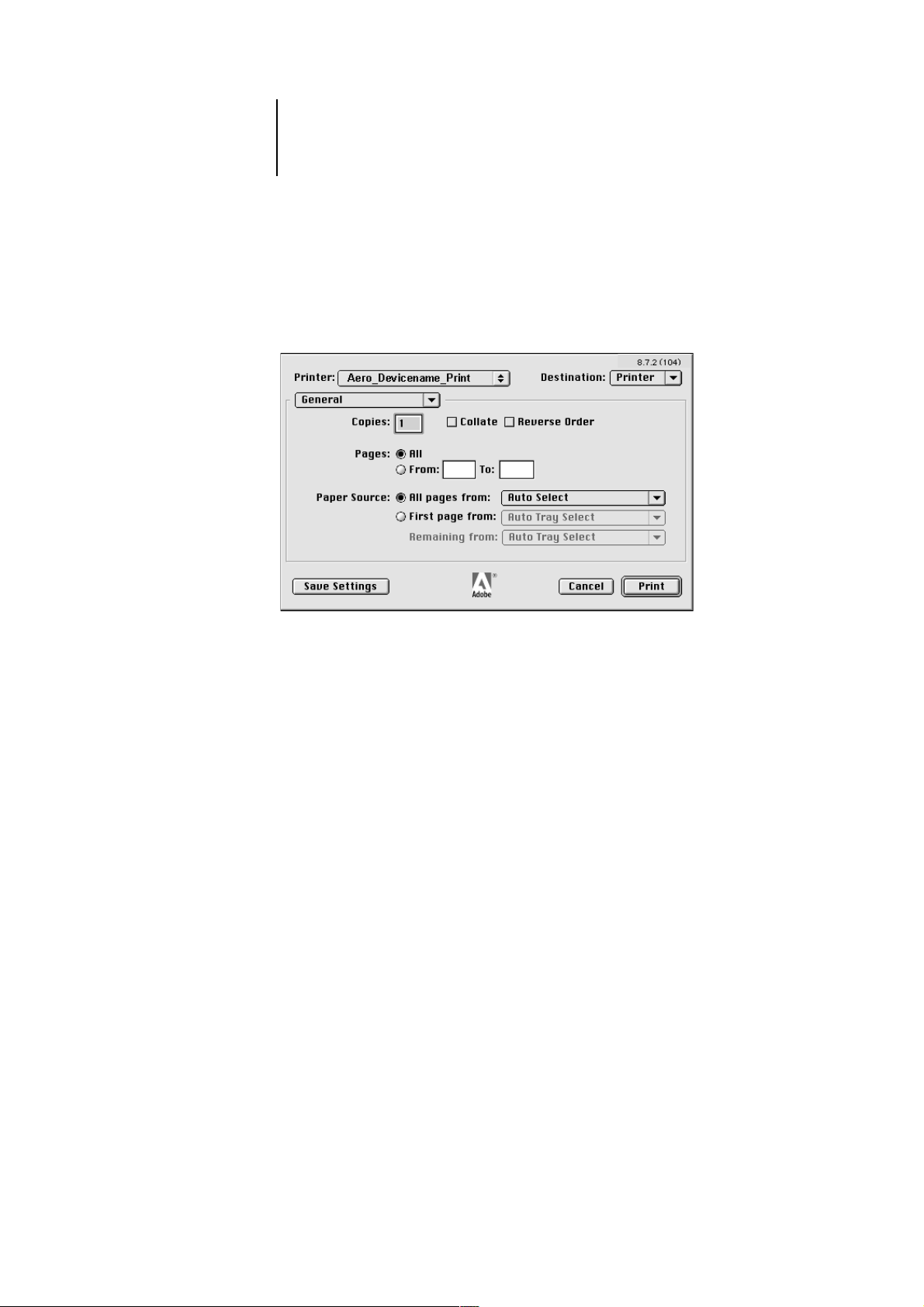

Setting options and printing from Mac OS computers2-3

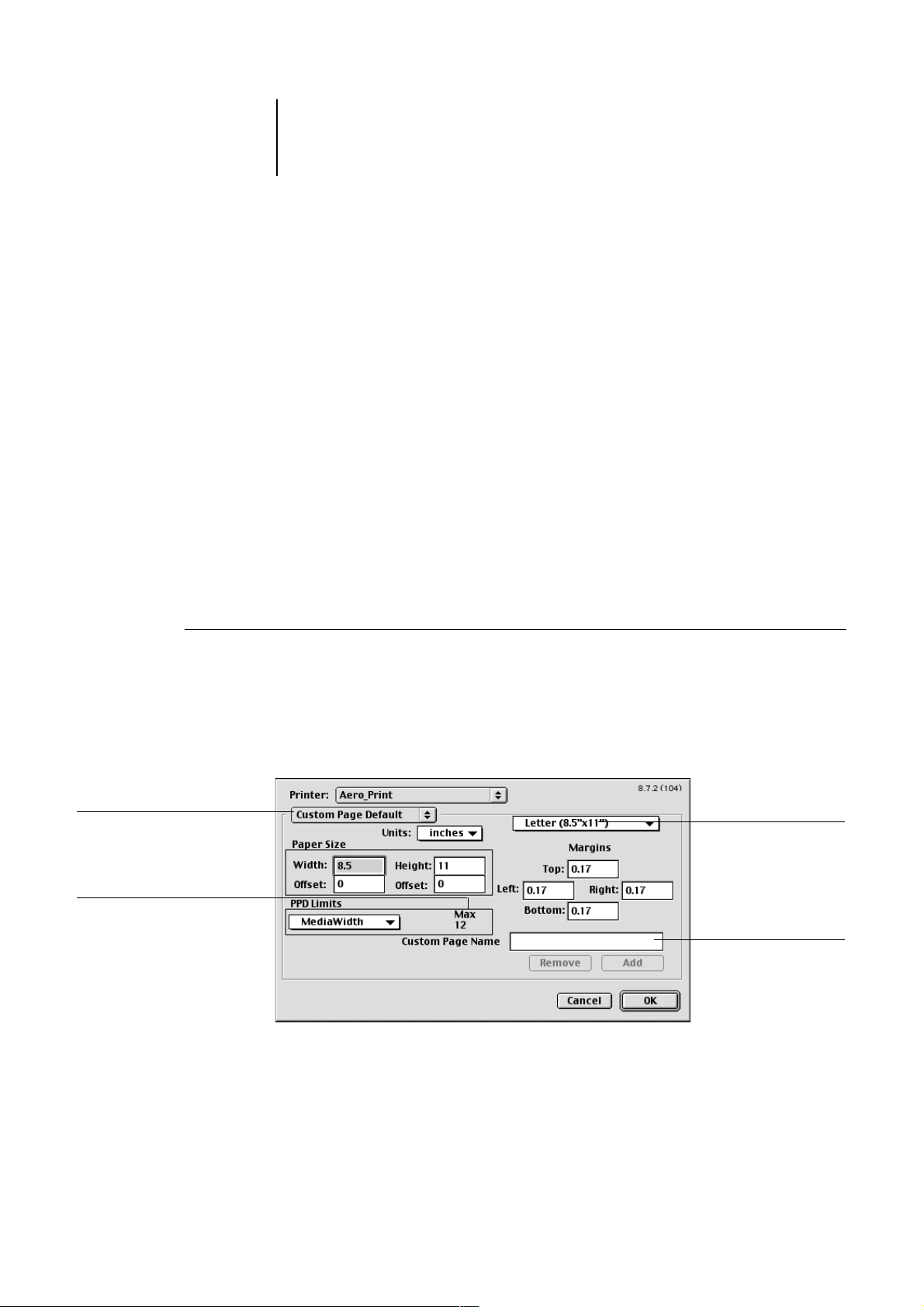

Defining custom page sizes2-6
Chapter 3: Printing from UNIX Workstations
Printing to the Fiery 3850C3-1
viii Contents
Chapter 4: Special Features
Printing simulations4-1
Printing duplex pages4-2
Check and Print Jobs4-2
Secured Print Jobs4-4

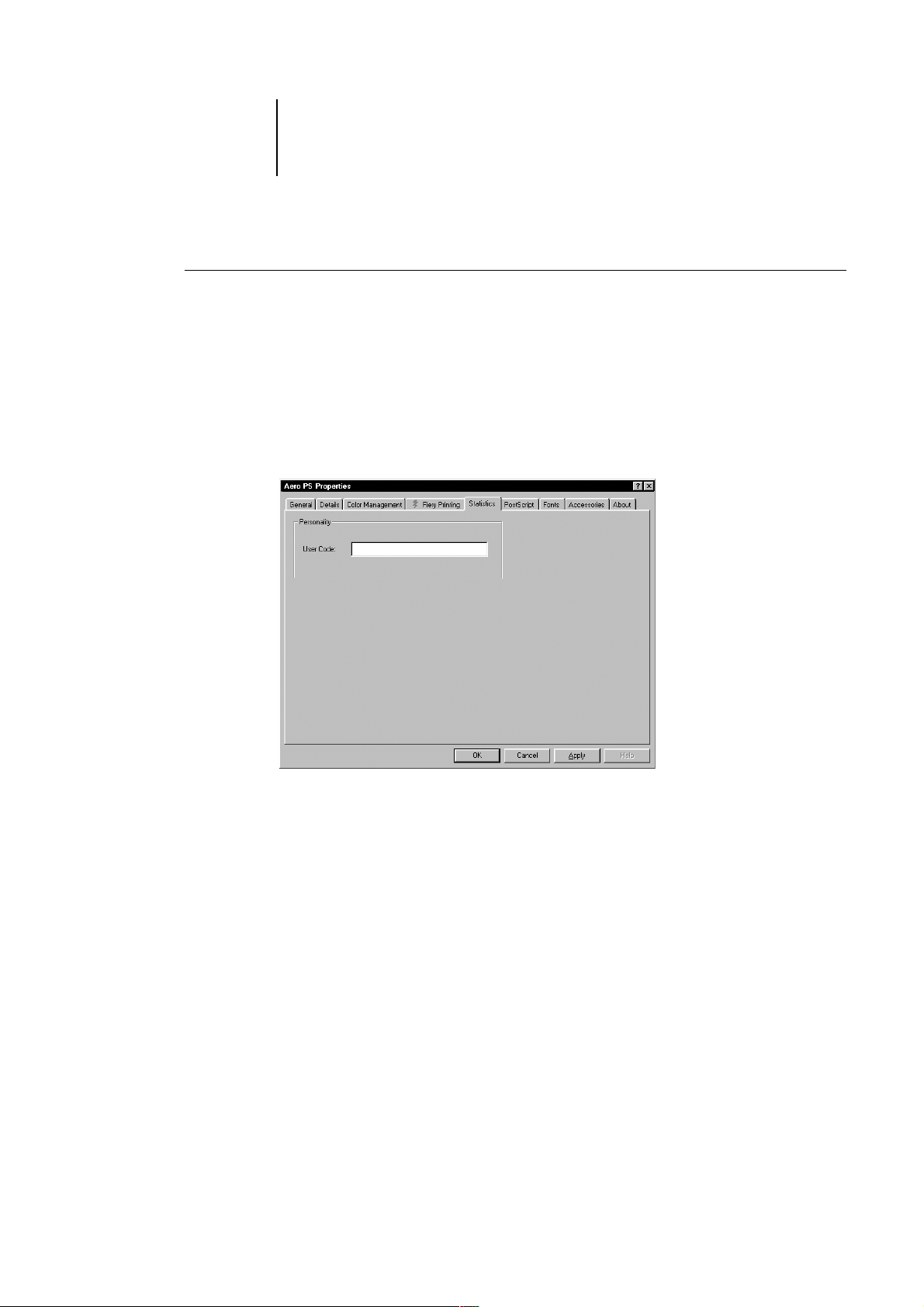

Entering User Codes4-5
Chapter 5: Tracking and Managing Print Jobs
Fiery WebTools5-1
Checking Fiery 3850C status with the Status WebTool5-2
Accessing information with WebLink5-3

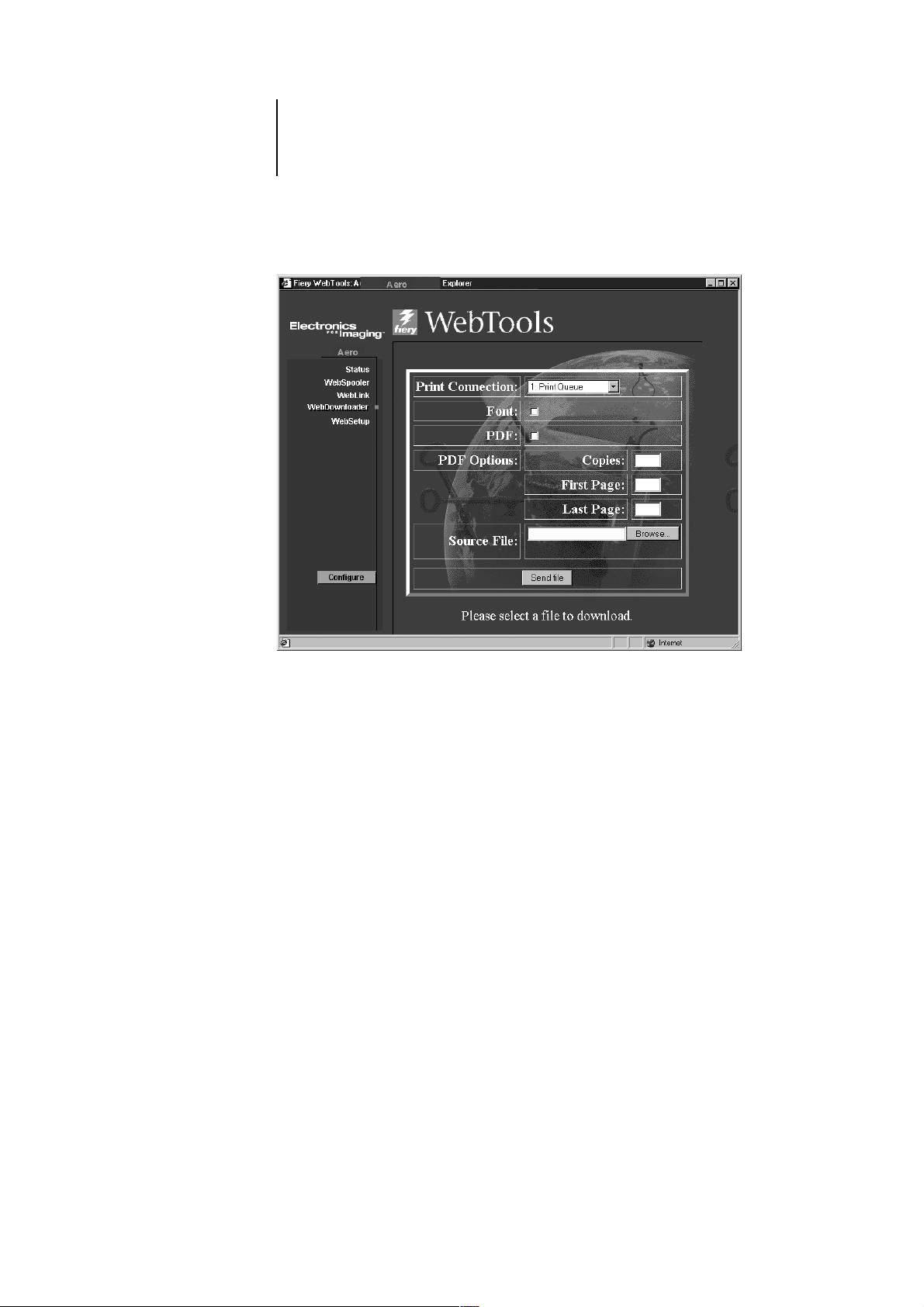

Downloading files with WebDownloader5-3
Appendix A: Print Options
Where to set print optionsA-1
Print option override hierarchyA-2
Default settingsA-2
More about print optionsA-10
Appendix B: Font Lists
PostScript and PCL printer fontsB-1
Adobe Type 1 fontsB-1
TrueType fontsB-7
PCL printer fontsB-8
ix Contents
Appendix C: Troubleshooting
Maintaining optimal system performanceC-1
TroubleshootingC-2
General printing problemsC-2
Problems with print quality C-4
Problems with Fiery DownloaderC-5
Problems with Fiery WebToolsC-6
Index
xi About this manual
Preface
The Fiery 3850C™ enables you to use your printer as a networked printer . You can use
the Fiery 3850C to print final documents or to proof jobs you will later print on an
offset press. You send a print job to the Fiery 3850C as you would to any other
printer—you select it from the Printers dialog box on Microsoft Windows computers,
or in the Chooser on Apple Mac OS computers—and then print from within any
application.
NOTE: The name “Aero” is used in illustrations to represent the F iery 3850C. The term
“Windows 9x/Me” is used in this manual to refer to Windows 95/98/Me. Individual
differences are noted. Windows XP is supported. If you are using Windows XP, follow
the procedures for Windows 2000.
If you have purchased the Command WorkStation, the Fiery 3850C includes
™
Command W or kS tation
software, which enables an operator to manage all jobs sent
to the Fiery 3850C. Some of the job management features of the Command
™
WorkStation
are also available from Fiery WebSpooler. Although it might not be the
case at all sites, it is assumed that an operator controls and manages jobs sent by users
from remote workstations. For information of the features of the Command
WorkStation, see the Job Management Guide.
About this manual
This manual is intended for those remote users who send jobs via the network between
their workstation and the Fiery 3850C. It covers the following topics:
• Printing from a Windows computer
• Printing from a Mac OS computer
• Printing from UNIX
• Using special features, such as printing duplex pages
™
• Monitoring jobs and accessing information using Fiery WebTools
.
• Specifying and overriding job settings, a list of fonts installed on the Fiery 3850C,
and troubleshooting information
xii Preface
About the documentation
This manual is part of a set of Fiery 3850C documentation that includes the following
manuals for users and system administrators:
• The Configuration Guide explains basic configuration and administration of the
Fiery 3850C for the supported platforms and network environments. It also
includes guidelines for setting up UNIX, Windows NT 4.0, W indows 2000/XP and
Novel NetWare servers to provide PCL and PostScript printing services to clients.
• Getting Started describes how to install software to enable users to print to the
Fiery 3850C. Specifically, it describes installation of the PCL and PostScript printer
drivers, printer description files, and other user software provided on the User
Software CD. It also explains how to connect each user to the network.
• The Printing Guide describes the printing features of the Fiery 3850C for users who
send jobs via remote workstations on the network or via a direct parallel port
connection.
• The Color Guide provides information on managing the color output of your
Fiery 3850C. It addresses concepts and issues associated with printing to the
Fiery 3850C and outlines key workflow scenarios. This manual explains how to
calibrate your printer and take advantage of the ColorWise color management
system, as well as features of ColorWise Pro Tools. In addition, the Color Guide
offers information on printing from popular Windows and Mac OS applications.
• The Job Management Guide explains the functions of the Fiery 3850C client
utilities, including the Command WorkStation, and how they can be used to
manage jobs. This book is intended for an operator or administrator, or a user with
the necessary access privileges, who needs to monitor and manage job flow and
troubleshoot problems that may arise.
• Release Notes provide last-minute product information and workarounds for some of
the problems you may encounter.
xiii How the Fiery 3850C works
How the Fiery 3850C works
The Fiery 3850C receives files from computers on the network, processes (RIPs) those
files, and then sends them to the printer’s print engine for printing.
Windows and Mac OS computers communicate with the Fiery 3850C by means of a
PostScript printer driver and PostScript printer description (PPD) files. Windows
computers can also communicate with the Fiery 3850C by means of a Printer Control
Language (PCL) printer driver and PDD files (PCL’s equivalent of PPD files). Both
drivers enable you to use special features of the Fiery 3850C from the P rint dialog bo x.
About printer drivers and PPDs/PDDs
A printer driver manages printing communication between your application software
and the printer. It interprets the instructions generated by the application software,
merges those instructions with printer-specific PPD/PDD options you specify, and
translates all that information into PostScript or PCL, a language the printer
understands. In other words, the printer driver writes a P ostScript or PCL file based on
your original file and the options you set from the Print dialog box.
A PPD/PDD file contains information about a particular device’s features and
capabilities (for example, what paper sizes and media types are supported). The printer
driver reads the information in the PPD/PDD file and presents that information to
you in the form of options you can choose from the Print dialog box. The PPD/PDD
for the Fiery 3850C includes information about the features of both the printer and
the Fiery 3850C.
For information on the PPD/PDD options, see Appendix A.
Supported paper sizes
The Fiery 3850C supports PostScript at 600 and 1200 dpi (dots per inch) and PCL at
600 dpi on a wide range of paper sizes. For more information, see the description of
the Paper Size print option in Appendix A.
xiv Preface
Before you begin
Before using the Fiery 3850C, follow these steps:
1. Confirm that the system administrator has completed Setup, as described in the
Configuration Guide.
2. Find out what printer defaults the administrator specified in Setup.
These default settings can affect the results of your print jobs. Check with your
administrator or operator for information on these default settings.
3. Confirm that the user software is installed correctly on your workstation, as
described in Getting Started.
4. Find out how your workstation is configured for printing on the network.
If your site has an operator who controls all printing, you may have access to the Hold
queue only. In this case, all jobs you send are spooled to the Fiery 3850C and held
until the operator sends them to their next stage of processing.
You may also have access to the Print queue. If you send jobs to this queue, jobs spool
to the Fiery 3850C and proceed to RIP and print according to your job settings—
unless someone (you, or an operator, for example) intervenes.
Lastly, you may have access to the Direct connection, which sends jobs straight to the
server without spooling.
5. Find out whether the Fiery 3850C is set up to use Fiery WebT ools and what your access
privileges are.
The administrator may or may not have enabled access to the server via the Internet
(or an intranet). If access is enabled, a password may be required to utilize certain
functions.
1-1 Printing from applications
1
Chapter 1:
Printing from
Windows
Computers
This chapter describes how to print to the Fiery 3850C from Windows 9x/Me,
Windows NT 4.0, and Windows 2000. You can print from a networked Windows
computer, from a computer using Windows (SMB) printing. If you plan to print files
at another location, you should follow the procedures described in “Saving files to
print at a remote location” on page 1-34.
NOTE: If you are using Windows XP, follow the procedures for Windows 2000.
Another way to print from a Windows computer is to download PCL, PostScript,
Encapsulated PostScript (EPS), or Portable Document Format (PDF) files using
WebDownloader. For details on using WebDownloader, see Chapter 5.
NOTE: For information on setting up the Windows environment for printing with
Windows servers connected to the Fiery 3850C, see the Configuration Guide. For
information on how to connect to the Fiery 3850C over the network, install printer
drivers, and install the Fiery utilities, see Getting Started.
Printing from applications
Once you have installed the Fiery 3850C printer driver and set it to the proper port as
described in Getting Started, you can print directly from most Windows applications.
Simply choose the Print command from within your application.
Setting options and printing from Windows 9x/Me
To print from Windows 9x/Me, use either the PCL printer driver or the Adobe
PostScript printer driver for Windows 9x/Me. Both drivers are included with the
Fiery 3850C user software. See Getting Started for more information.
Once you have installed the PCL printer driver and PDD file, or the Adobe PostScript
printer driver and the PPD file, you can specify print settings for a particular job and
print it to the Fiery 3850C.
1-2 Printing from Windows Computers
P
S
1
To print from Windows 9x/Me applications by connecting your computer to a print
server via the network, one of the following is required: a NetWare server, a
Windows NT 4.0 server, or a UNIX server. For more information, see the
Configuration Guide.
To print from Windows 9x/Me applications without connecting to a print server, you
can use Windows (SMB) printing. For more information, see Getting Started.
The procedures provide examples on how to use the driver to specify print options. F or
information about specific print options, refer to Appendix A, “Print Options” .
NOTE: The following procedures use Windows 98 PostScript illustrations.
NOTE: The interface may vary slightly depending on whether you are using the
PostScript or PCL driver.
TOSETPRINTOPTIONSANDPRINTFROM WINDOWS 9X/MEUSINGTHE
OR ADOBE POSTSCRIPTPRINTERDRIVER
PCL
1. Click the Start button, point to Settings, and click Printers.
2. Select the icon for the Fiery 3850C and choose Properties from the File menu.
3. Click the Fiery Printing tab.
aved settings, see page 1-5
rint option bars, see below
Shortcuts, see page 1-10
Click to display all print options
Click to hide all print options
1-3 Printing from applications
1

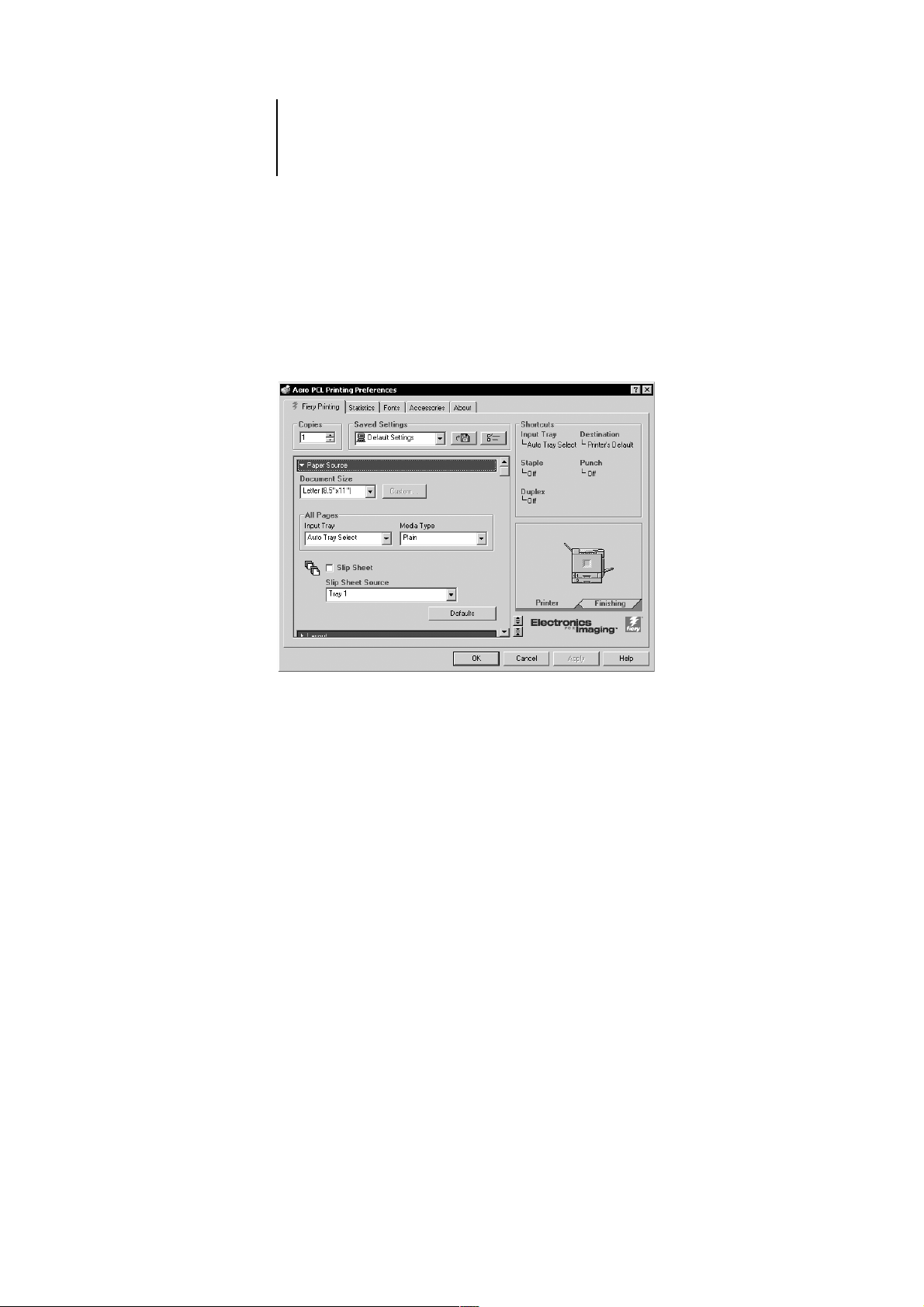

4. Click the Paper Source print option bar.
The Fiery Printing tab serves as the control center for all frequently used printing
functions.
In the Document Size area, specify the page size for the job.
From the Input Tray menu, choose the paper source tray for the job. For example, you
can specify that the job should be printed on pages from the Large Capacity Tray.
In the Media Type area, specify the type of media to use for the job.
For information on other print options, see Appendix A, “Print Options” .
1-4 Printing from Windows Computers
1
5. Click the ColorWise (PS) or Color Settings (PCL) print option bar.
Illustration to be provided.
Specify the color profile options for the job.
NOTE: Expert Settings is not supported for PCL drivers.
6. Specify the settings from the remaining print option bars.
These print options are specific to the Fiery 3850C and the printer. They override
settings specified in Fiery 3850C Printer Setup, but can be overridden fr om Command
WorkStation using the job’s Properties dialog box, or WebSpooler using the job’s
Override Print Settings dialog box. For information about these options and overrides,
see Appendix A, “Print Options” .
NOTE: Some options listed in the printer driver could also be set from an application
(for example, collation). In these cases, use the driver option to perform the function,
rather than setting it from the application. The application may not set up the file
properly for printing on the Fiery 3850C and may also take longer to process.
7. Click OK.
8. From your application, choose Print.
Make sure the Fiery 3850C is selected as your current printer.
9. Click OK.
1-5 Printing from applications
1
Using saved settings
Print option settings can be saved on your hard disk so you can easily load specifically
configured settings for a particular job. Settings files can also be shared ov er a network,
using the Import and Export features.
NOTE: Although the user interface differs slightly, the following procedures are the
same for both PCL and PostScript printer drivers on Windows 9x/Me and Windows
NT 4.0.
TOCREATESAVEDSETTINGS
1. Make sure that Default Settings appear in the Saved Settings pop-up menu.
2. Configure the options from the print option bars.
As soon as you change any settings, the Saved Settings menu displays Untitled instead
of Default Settings.
Click the disk icon
1-6 Printing from Windows Computers
1
3. Click the disk icon.
4. Using a maximum of 28 characters, enter a Settings Name and click OK.
The name appears in the Saved Settings pop-up menu.
TOLOADSAVEDSETTINGS
1. From the Fiery Printing tab, click the Saved Settings pop-up menu.
2. Choose the settings you want to use.
The printer driver is automatically configured with the saved settings.
Click the disk icon
1-7 Printing from applications
1
TODELETESAVEDSETTINGS
1. From the Fiery Printing tab, click the list icon.
2. Select the settings you wish to delete and click Delete.
3. Click Yes to confirm deletion, and click OK.
TOMODIFYSAVEDSETTINGS
1. From the Fiery Printing tab, click the Saved Settings pop-up menu.
2. Choose the settings you want to modify.
The PostScript and PCL options are automatically configured with the saved settings.
Click the disk icon
1-8 Printing from Windows Computers
1
3. Configure the new settings from the print option bars, and click the disk icon.
4. Click OK to save the modified settings.
TO EXPORTSAVEDSETTINGS
1. From the Fiery Printing tab, click the list icon.
2. Select the Saved Settings you want to export, and click Export.
1-9 Printing from applications
1
3. Browse to the location wher e you w ant to sav e the file , enter a file name, and click OK.
OTE: The file name must include the .sav extension and can be up to eight characters
N
long (not including the extension). The file name does not have to match the Settings
Name.
4. Click OK in the Settings dialog box.
TOIMPORTSAVEDSETTINGS
1. From the Fiery Printing tab, click the list icon.
2. Click the Import button.
3. Browse to the location of the saved settings file you wish to import.
4. Select the file, and click OK.
1-10 Printing from Windows Computers
1
5. Click OK in the Settings dialog box.
N
OTE: When you import saved settings, they appear in the S aved Settings menu under
their Settings Name, not the file name. In the example above, the file present.sav (file
name) was imported, but it appears in the Saved Settings menu as Presentation
(Settings Name).
Using Shortcuts
The Shortcuts section of the driver interface displays the current settings for some of
the most common print options. You can access and change these settings quickly and
easily using the Shortcuts. You can also access some page layout and finishing options
by right-clicking the image of the page directly below Shortcuts.
NOTE: You cannot modify the Shortcuts.
NOTE: Although the user interface differs slightly, the following procedures are the
same for both PCL and PostScript printer drivers on Windows 9x/Me and Windows
NT 4.0.
1-11 Printing from applications
1
TOSETPRINTOPTIONSUSING SHORTCUTS
1. From the Fiery Printing tab, place your cursor over the print option you wish to set.
When your cursor is directly over the print option name, the cursor turns into a hand
and the option name is underlined; see the Orientation print option in the example
below.
Selected print option
2. Click the selected print option and specify the appropriate settings.
Alternatively, you can right-click the print option and specify the settings directly.
3. Click OK.
TOSETPRINTOPTIONSUSINGTHEPAGESHORTCUTS
1. From the Fiery Printing tab, click the Finishing tab, place your cursor over the page
image, and right-click.
1-12 Printing from Windows Computers
1
2. Specify the appropriate settings for the print options.
Right-click the page image
3. Click OK.
Setting options and printing from Windows NT 4.0
You can print from Windows NT 4.0 using the PCL printer driver or the Adobe
PostScript printer driver, both of which are included on the User Software CD. See
Getting Started for more information.
Once you have installed PCL printer driver and PDD file or the Adobe PostScript
printer driver and the Fiery 3850C PPD file, you can specify print options. You can
also change settings for a particular job when you print it to the Fiery 3850C.
Y ou can set options on a job-b y-job basis (see below), or establish default settings for all
jobs printed from your computer to the Fiery 3850C (see page 1-15).
NOTE: The following procedures use Windows NT Postscript illustrations. The
interface may vary slightly depending on whether you are using the PostScript or PCL
driver.
1-13 Printing from applications
1
TOSETPRINTOPTIONSFORASPECIFIC WINDOWS NT 4.0 PRINT JOBUSINGTHE
PCL
ORTHE ADOBE POSTSCRIPTPRINTERDRIVER
1. Choose Print in your application.
2. Make sure the Fiery 3850C is selected as your printer and click Properties.
3. Click the Fiery Printing tab.
The Fiery Printing tab serves as the control center for all frequently used printing
functions.
1-14 Printing from Windows Computers
1
4. Click the Paper Source print option bar and specify the appropriate settings for the
print job.
In the Document Size area, specify the page size for the job.
From the Input Tray menu, choose the paper source tray for the job. For example, you
can specify that the job should be printed on pages from Large Capacity Tray.
In the Media Type area, specify the type of media to use for the job.
For information on other print options, see Appendix A, “Print Options” .
5. Click the ColorWise (PS) or Color Setting (PCL) print option bar.
1-15 Printing from applications
1
Specify the color profile options for the job.
NOTE: Expert Settings is not supported for PCL drivers.
6. Specify the settings from the remaining print option bars.
These print options are specific to the Fiery 3850C and the printer. They override
settings specified in Fiery 3850C Printer Setup, but can be overridden fr om Command
W orkS tation using the job’s P r operties dialog box, or from F iery WebSpooler using the
job’s Override Print Settings dialog box. For information about these options and
overrides, see Appendix A, “Print Options” .
7. Click OK and then click OK in the Print dialog box.
TOSETDEFAULTPRINTOPTIONSFORALL WINDOWS NT 4.0 JOBSUSINGTHE PCL
ORTHE ADOBE POSTSCRIPTPRINTERDRIVER
1. Click the Start button, point to Settings, and click Printers.
2. Right-click to select the Fiery 3850C and choose Document Defaults.
3. Click the Fiery Printing tab.
4. Specify the default settings for your print jobs as described in the procedure starting
on page 1-13.
5. Click OK.
1-16 Printing from Windows Computers
1
Setting options and printing using the PostScript printer
driver or the PCL driver on Windows 2000
You can print from Windows 2000 using the PCL printer driver or Microsoft printer
driver, both of which are included with your Windows 2000 system, and the
PostScript PPD included on the User Software CD. See Getting Started for more
information.
Once you have installed the PCL printer driver and PDD file or the printer driver and
the PPD file, you can specify print options.
To print from Windows 2000 applications by connecting your computer to a print
server via the network, one of the following is required: a NetWare server, a Windows
server, or a UNIX server. For more information, see the Configuration Guide. To print
from Windows 2000 applications without connecting to a print server, you can use
SMB printing. For more information, see the Getting Started.
TOSETPRINTOPTIONSFORA WINDOWS 2000 PRINTJOBUSING
THE MICROSOFT POSTSCRIPTPRINTERDRIVER
1. Choose Print in your application.
1-17 Printing from applications
1
2. Click the Fiery 3850C icon.
OTE: The dialog box that appears may vary, depending on the application you are
N
printing from.
3. Select printing options from the General, Layout, and Paper/Quality tabs.
1-18 Printing from Windows Computers
1
4. Click the Advanced button on the Layout or Paper/Quality tab to display the
Advanced Options dialog box.
Select a setting from the Paper Size pop-up menu.
5. Scroll down to Printer Features, and select the appropriate settings for the print job.
1-19 Printing from applications
1
6. Click OK.
7. Click Print.
These print options are specific to the Fiery 3850C and the printer. They override
settings in Fiery 3850C Printer Setup, but can be changed in the Properties dialog box
with the Command WorkStation, or in the Override Print Settings dialog box with
Fiery W ebSpooler. F or information about these options and overrides, see A ppendix A,
“Print Options” .
NOTE: As you select print options, incompatible print settings appear with a caution
icon next to their names. If you specify incompatible print settings the Incompatible
Print Settings dialog box appears. Follow the on-screen instructions to resolve the
conflict.
The job prints with the specified settings.
TOSETPRINTOPTIONSFORA WINDOWS 2000 PRINTJOBUSING
THE PCL PRINTER DRIVER
1. Choose Print in your application.
2. Make sure the Fiery 3850C is selected as your printer and click Properties.
3. Click the Fiery Printing tab.
1-20 Printing from Windows Computers
1
4. Click the Paper Source print option bar and specify the appropriate settings for the
The Fiery Printing tab serves as the control center for all frequently used printing
functions.
print job.
In the Page Size area, specify the page size for the job.
From the Paper Source menu, choose the paper source tray for the job. For example,
you can specify that the job should be printed on pages from Auto Select Tray.
In the Media Type area, specify the type of media to use for the job.
For information on other print options, see Appendix A, “Print Options” .
1-21 Printing from applications
1
5. Click the Color Settings print option bar.
Specify the Print Mode and Rendering Style options for the job.
6. Specify the settings from the remaining print option bars.
These print options are specific to the Fiery 3850C and the printer. They override
settings specified in Fiery 3850C Printer Setup, but can be overridden fr om Command
W orkS tation using the job’s P r operties dialog box, or from F iery WebSpooler using the
job’s Override Print Settings dialog box. For information about these options and
overrides, see Appendix A, “Print Options” .
7. Click OK and then click OK in the Print dialog box.
1-22 Printing from Windows Computers
1
Working with custom page sizes in Windows 9x/Me
With custom page sizes, you can define the dimensions of the page. After you define a
custom page size, you can use it from within an application without having to redefine
it each time you print.
The printer must be set to print custom page sizes. See your printer service
representative to enable custom page printing.
TODEFINEACUSTOMPAGESIZEWITHTHE WINDOWS 9X/ME POSTSCRIPT
OR PCL PRINTERDRIVER
1. Click the Start button, point to Settings, and choose Printers.
2. Right-click the Fiery 3850C PS or PCL icon and choose Properties.
Click Custom
3. Click the Fiery Printing tab and click the Paper Source print option bar.
N
OTE: For PostScript drivers, you must set the Input Tray to Bypass Tray before you
click the Custom button. For PCL drivers, set the I nput Tray to Bypass Tray and select
Custom for the Document Size before you click the Custom button.
1-23 Printing from applications
1
4. Click the Custom button.
5. Specify options to define the custom page size.
The Enter Custom Paper Size dialog box appears.
—Specify the width of the print job.
Width
Length—Specify the length of the print job.
Units—Specify the unit of measurement for the print job.
Transverse—Check this option to swap Width and Length dimensions to correspond
to the paper feed direction of the print job when printing from the PostScript driver.
Paper name—Enter a name for your custom page size. The new custom paper name
appears in the Page Size pop-up menu.
NOTE: You cannot enter a name for the custom page size for PCL.
6. Click OK.
7. To define the unprintable area of the custom page, click the Unprintable Ar ea button,
enter the desired information, and click OK.
N
OTE: The Unprintable Area feature is supported only on the PostScript printer driver.
8. Click OK.
TO EDITACUSTOMPAGESIZEWITHTHE WINDOWS 9X/ME POSTSCRIPT
OR PCL PRINTERDRIVER
1. Click the Start button, point to Settings, and choose Printers.
2. Right-click the Fiery 3850C PS or PCL icon, and choose Properties.
3. Click the Fiery Printing tab, and click the Paper Source print option bar.
1-24 Printing from Windows Computers
1
4. Select the custom page that you want to edit.
5. Click the Custom button.
The Enter Custom Paper Size dialog box appears.
6. Specify your edits, as described in step 5 on page 1-23, and click OK.
TOPRINTACUSTOMPAGESIZEWITHTHE WINDOWS 9 X/ME P OSTSCRIPT
OR PCL PRINTERDRIVER
1. Choose Print from your application.
2. Make sure the Fiery 3850C PS or PCL is selected as the printer, then click Properties.
3. Click the Fiery Printing tab, then click the Paper Source print option bar.
4. Select the custom page size from the Document Size menu.
5. Click OK and then click OK again to print the job.
Working with custom page sizes in Windows NT 4.0
With custom page sizes, you can define the dimensions of the page. After you define a
custom page size, you can use it from within an application without having to redefine
it each time you print.
The printer must be set to print custom page sizes. See your printer service
representative to enable custom page printing.
TODEFINEACUSTOMPAGESIZEWITHTHE WINDOWS NT 4.0
OSTSCRIPTPRINTERDRIVER
P
1. Click the Start button, point to Settings, and choose Printers.
2. Right-click the Fiery 3850C PS icon, and choose Document Defaults.
3. From the Page Setup tab, click the Paper Size menu.
Select to keep the setting and change it later.
1-25 Printing from applications
1
4. Select PostScript Custom Page Size.
The PostScript Custom Page Size Definition dialog box appears.
5. Specify options to define the custom page size.
Custom Page Size Dimensions
Unit—Specify the unit of measurement for the print job.
Paper Feed Direction—Specify the paper feed direction of the print job.
Paper Type—Specify the type of paper for the print job.
Offsets Relative to P aper Feed Dir ection—S pecify the offsets (margins) of the print job
relative to the paper feed direction.
—Specify the width and height of the print job.
1-26 Printing from Windows Computers
1
6. Select the appropriate Paper Source.
7. Click OK.
TO EDITACUSTOMPAGESIZEWITHTHE WINDOWS NT 4.0 POSTSCRIPT
PRINTERDRIVER
1. Click the Start button, point to Settings, and choose Printers.
2. Right-click the Fiery 3850C PS icon and choose Document Defaults.
3. Click the Advanced tab.
4. For Paper Size, select PostScript Custom Page Size.
The PostScript C ustom Page Size Definition dialog box automatically opens. If it does
not, click the Edit Custom Page Size button.
5. Specify your edits, as described in step 5 on page 1-25, and click OK.
TOPRINTACUSTOMPAGESIZEWITHTHE WINDOWS NT 4.0 POSTSCRIPT
PRINTERDRIVER
1. Choose Print from your application.
1-27 Printing from applications
1
2. Make sure the Fiery 3850C PS is selected as the printer, and click Properties.
3. Select PostScript Custom Page from the Document Size menu.
4. Click OK and click OK again to print the job.
TO DEFINE ACUSTOMPAGESIZEWITHTHEWINDOWS NT 4.0 PCL PRINTERDRIVER
1. Click the Start button, point to Settings, and choose Printers.
2. Right-click the Fiery 3850C PCL icon and choose Properties.
3. Click the Fiery Printing tab and click the Paper Source print option bar.
Click Custom
N
OTE: Set the Input Tray to Bypass Tray and select Custom for the Document Size
before you click the Custom button.
1-28 Printing from Windows Computers
1
4. Click the Custom button.
5. Specify options to define the custom page size.
The Enter Custom Paper Size dialog box appears.
—Specify the width of the print job.
Width
Length—Specify the length of the print job.
Units—Specify the unit of measurement for the print job.
6. Click OK.
7. Click OK again.
TO EDITACUSTOMPAGESIZEWITHTHE WINDOWS NT 4.0 PCL PRINTER
DRIVER
1. Click the Start button, point to Settings, and choose Printers.
2. Right-click the Fiery 3850C PCL icon, and choose Properties.
3. Click the Fiery Printing tab, and click the Paper Source print option bar.
4. Select Custom from the Document Size menu.
5. Click the Custom button.
The Enter Custom Paper Size dialog box appears.
6. Specify your edits, as described in step 5 in the previous section, and click OK.
TOPRINTACUSTOMPAGESIZEWITHTHE WINDOWS NT 4.0 PCL
PRINTERDRIVER
1. Choose Print from your application.
1-29 Printing from applications
1
2. Make sure the Fiery 3850C PCL is selected as the printer, then click Properties.
3. Click the Fiery Printing tab, then click the Paper Source print option bar.
4. Select the custom page size from the Document Size menu.
5. Click OK and then click OK again to print the job.
Working with custom page sizes in Windows 2000
With custom page sizes, you can define the dimensions of the page. After you define a
custom page size, you can use it from an application without having to redefine it each
time you print.
The printer must be set to print custom page sizes. See your printer service
representative to enable custom page printing.
TODEFINEACUSTOMPAGESIZEWITHTHE W INDOWS 2000 POSTSCRIPT
PRINTERDRIVER
1. Click the Start button, point to Settings, and choose Printers.
2. Right-click the Fiery 3850C PS icon, and choose Printing Preferences.
1-30 Printing from Windows Computers
1
3. Click the Advanced button.
4. Select PostScript Custom Page Size from the Paper Size pop-up menu.
The PostScript Custom Page Size Definition dialog box appears.
5. Specify options to define the custom page size.
Custom Page Size Dimensions
Unit—Specify the unit of measurement for the print job.
Paper Feed Direction—Specify the paper feed direction of the print job.
—Specify the width and height of the print job.
1-31 Printing from applications
1
Paper Type—Specify the type of paper for the print job.
Offsets Relative to P aper Feed Dir ection—S pecify the offsets (margins) of the print job
relative to the paper feed direction.
6. Click OK to close the Advanced Options dialog box.
7. Click OK to close the Printing Preferences dialog box.
You can now specify the custom page size from an application.
TO EDITACUSTOMPAGESIZEWITHTHE WINDOWS 2000 POSTSCRIPT
PRINTERDRIVER
1. Click the Start button, point to Settings, and choose Printers.
2. Right-click the Fiery 3850C PS icon, and choose Printing Preferences.
3. Click the Advanced button.
4. Select PostScript Custom Page Size from the Paper Size pop-up menu.
The PostScript C ustom Page Size Definition dialog box automatically opens. If it does
not, click the Edit Custom Page Size button.
5. Specify your edits, as described in step 5 on page page 1-30 and click OK.
1-32 Printing from Windows Computers
1
TOPRINTACUSTOMPAGESIZEWITHTHE WINDOWS 2000 POSTSCRIPT
PRINTERDRIVER
1. Choose Print from your application.
2. Right-click the Fiery 3850C PS icon, and choose Printing Preferences.
3. Click the Advanced button.
4. Select PostScript Custom Page Size from the Paper Size pop-up menu.
5. Verify the custom page size settings and click OK.
6. Click OK to close the Advanced Options dialog box.
7. Click OK to close the Printing Preferences dialog box.
Click Custom
TO DEFINEACUSTOMPAGESIZEWITHTHEWINDOWS 2000 PCL PRINTERDRIVER
1. Click the Start button, point to Settings, and choose Printers.
2. Right-click the Fiery 3850C PCL icon and choose Properties.
3. Click the Fiery Printing tab and click the Paper Source print option bar.
N
OTE: Set the Input Tray to Bypass Tray and select Custom for the Document Size
before you click the Custom button.
1-33 Printing from applications
1
4. Click the Custom button.
5. Specify options to define the custom page size.
The Enter Custom Paper Size dialog box appears.
—Specify the width of the print job.
Width
Length—Specify the length of the print job.
Units—Specify the unit of measurement for the print job.
6. Click OK then click OK again to print the job.
TO EDITACUSTOMPAGESIZEWITHTHE WINDOWS 2000 PCL PRINTER
DRIVER
1. Click the Start button, point to Settings, and choose Printers.
2. Right-click the Fiery 3850C PCL icon, and choose Properties.
3. Click the Fiery Printing tab, and click the Paper Source print option bar.
4. Select Custom from the Document Size menu.
5. Click the Custom button.
The Enter Custom Paper Size dialog box appears.
6. Specify your edits, as described in step 5 in the previous section, and click OK.
TOPRINTACUSTOMPAGESIZEWITHTHE W INDOWS 2000 PCL PRINTER
DRIVER
1. Choose Print from your application.
1-34 Printing from Windows Computers
1
2. Make sure the Fiery 3850C PCL is selected as the printer, then click Properties.
3. Click the Fiery Printing tab, then click the Paper Source print option bar.
4. Select the custom page size from the Document Size menu.
5. Click OK and then click OK again to print the job.
Printing to the parallel port
The Fiery 3850C has a parallel port that enables you to print most files directly from a
Windows computer if your network administrator has connected the Windows
computer’s parallel port to the Fiery 3850C parallel port.
TOPRINTFILESTOTHEPARALLELPORT
1. Make sure the parallel port is enabled on the Fiery 3850C.
Check with your site administrator or operator to see whether printing to the parallel
port is enabled. See Getting Started for information on setting up parallel port printing
on your Windows computer.
2. Select the printer port that is connected to the Fiery 3850C parallel port.
Select one of the local ports: LPT1, LPT2, or LPT3. For instructions, see your
Windows documentation.
3. Print from within your application.
Saving files to print at a remote location
If you do not have the Fiery 3850C and are preparing files to take to a service bureau
or other location, print the final files to the File port (as opposed to one of the local
ports). For instructions on printing to the F ile port, see your W indows documentation.
2-1 Printing from applications
2
Chapter 2:
Printing
from Mac OS
Computers
Y ou can print to the F iery 3850C just as you would print to any other printer from any
application software. Select the Fiery 3850C as the current printer in the Chooser, and
print the file from within the application.
Another way to print from a Mac OS computer is to download PostScript,
Encapsulated PostScript (EPS), or Portable Document Format (PDF) files using
WebDownloader. For details on using WebDownloader, see Chapter 5.
Printing from applications
Before you can print to the Fiery 3850C from applications, you must select the
Fiery 3850C in the Chooser. Then, using the Adobe PostScript printer driver and the
correct PostScript Printer Description file (PPD), you can control many Fiery 3850C
printing features by specifying job settings from print dialog boxes.
Selecting the Fiery 3850C in the Chooser
Before you print a job, make sure the Fiery 3850C is the currently selected printer.
NOTE: For information about setting up the Fiery 3850C in the Chooser, see Getting
Started.
TOSELECTTHE FIERY 3850C ASTHECURRENTPRINTER
1. Make sure the Fiery 3850C is connected to the network and turned on.
2. Choose Chooser from the Apple menu.
3. Click the AdobePS icon to select it.
N
OTE: Make sure AppleTalk is set to Active.
4. If your network is divided into zones, select the zone in which the Fiery 3850C is
located.
2-2 Printing from Mac OS Computers
2
5. Select the Fiery 3850C by <Server Name>_<Device Name>_<Queue Name> from the
“Select a PostScript Printer” list.
The names of all supported printers in the zone appear in the scroll list on the right.
NOTE: If your system administrator has not enabled the connection to the Print queue
or the Direct connection, the corresponding names will not appear in this list. For
example, if your site has an operator who controls the flow of print jobs from the
Command WorkStation, you may be able to print only to the Hold queue. See the
Configuration Guide for more information on enabling printer connections.
6. Close the Chooser window.
The Fiery 3850C remains selected as the current printer until you choose a new printer
in the Chooser.
2-3 Printing from applications
2
Setting options and printing from Mac OS computers
In Mac OS applications, print options are set from both the P age S etup dialog box and
the Print dialog box. For details on specific print options, see Appendix A, “Print
Options” .
NOTE: Some default print options are set by the administrator during Setup. Check
with the administrator or the operator for information on the current server default
settings.
1. Open a file and choose Page Setup from the application’s File menu.
2. In the dialog box that appears, specify the Page Attributes settings for your print job.
Make sure to select the Fiery 3850C in the “Printer” menu.
NOTE: Page Setup dialog boxes vary across applications.
3. Click OK.
2-4 Printing from Mac OS Computers
2
4. Choose Print from the application’s File menu.
Make sure the Fiery 3850C is selected as your printer and specify settings for the print
options displayed.
NOTE: Print dialog boxes vary across applications.
From the Paper Source pop-up menu, choose the paper tray for the job. For example,
you can specify that the job should be printed on pages. The Paper Source selection is
valid for the current job only.
NOTE: If paper loaded in the selected tray is a different size, orientation, and/or media
type than that of the job you are sending, the Fiery 3850C displays an error message
and the job will not print. You should then load the correct paper in the selected tray
or cancel the job.
2
Choose Fiery Job Notes
from the pop-up menu
2-5 Printing from applications
5. Go to Fiery Job Notes.
Enter a User ID for your print job or a Secure Print Password to enter at the printer
LCD if you are printing a secure print job.
Choose Printer Specific
Options from the pop-up
menu
For more information on entering User Codes, see Chapter 4.
6. Go to Printer Specific Options and specify the appropriate settings for your print job.
These print options are specific to the Fiery 3850C and the printer (you may need to
scroll to see all the options). They override settings in Fiery 3850C Printer Setup, but
can be overridden from Fiery WebSpooler using the job’s Override Print Settings
dialog box. For information about these options and ov errides, see A ppendix A, “P rint
Options” .
2-6 Printing from Mac OS Computers
2
7. If you want to make the new settings the default settings, click Save Settings.
8. Click Print.
NOTE: Some PPD options can also be set from an application (for example, Reverse
Order printing or collation). In these cases, use the PPD option to perform the
function, rather than setting it from the application. The application may not set up
the file properly for printing on the Fiery 3850C and may also take longer to process.
N
OTE: The Fiery 3850C does not support printing the Cover Page from the AdobePS
printer driver.
Defining custom page sizes
With custom page sizes, you define the page dimensions and margins. After you define
a custom page size, you can use it from within an application, without having redefine
it each time you print.
TODEFINEACUSTOMPAGESIZE
Choose Custom Page Default
Limits for selected dimension
displayed here
1. Choose Page Setup from the application’s File menu.
2. For Paper, choose Custom.
3. From the pull-down menu, choose Custom Page Default.
Custom page names
displayed here
Enter a custom
page name
4. Enter the page dimensions and margins.
You can view the minimum and maximum sizes by using the pull-down menu under
PPD Limits.
2-7 Printing from applications
2
If you enter invalid sizes, an error message appears. Click Cancel and enter sizes
specified within the PPD Limits.
5. To save this custom page size, enter a name for it and click Add.
Saved custom page sizes appear in the menu of page sizes at the top right of the dialog
box. To remove a saved custom page size, select it from the menu and click Remove.
6. Click OK.
TOPRINTACUSTOMPAGESIZE
1. Choose Page Setup from the application’s File menu
2. For Paper, choose Custom.
3. Click OK.
4. Choose Print from your application’s file menu.
Specify your printing options.
5. Click Print.
3-1 Printing to the Fiery 3850C
3
Chapter 3:
Printing
from UNIX
Workstations
You can print to the Fiery 3850C directly from UNIX workstations. Jobs printed to
the Fiery 3850C are sent to the xjprint or xjhold queue and can be manipulated from
the Command W orkS tation or from W indows and Mac OS computers on the network
using Fiery WebSpooler.
NOTE: If you print to the xjhold queue, an operator must intervene from the
Command WorkStation or Fiery WebSpooler for the job to print; jobs sent to the
xjhold queue are spooled to disk and held.
The queue name and Fiery 3850C printer name are determined by your system
administrator. Contact your system administrator for the names of your queues.
For information about setting up printing from TCP/IP, see your UNIX system
documentation.
Printing to the Fiery 3850C
You can use UNIX commands to print PostScript and text files to the Fiery 3850C.
In general, use basic print commands (lpr, lpq, lprm) to send print jobs to the
Fiery 3850C. See UNIX manual pages or other documentation for information
about UNIX commands.
TOPRINTFROM UNIX
•On a system running SunOS 4.1.x or another BSD-based variant, use the lpr command
to send a job to the Fiery 3850C as follows:
lpr <-Pprinter> <-#copies><filename>
For example, if the xjprint queue of your Fiery 3850C is named print_Server, your file
is named
lpr -Pprint_Server -#2 Sample
Sample, and you want to print two copies, type:
3-2 Printing from UNIX Workstations
3
•On a system running Solaris 2.x or any System V implementation of UNIX, use the lp
command to send a job to the Fiery 3850C as follows:
lp -d <printername> {-n <copies>} <filename>
For example, if the xjprint queue of your Fiery 3850C is named print_Server, your file
is named
lp -d print_Server -n 2 Sample
TODISPLAYALISTOFJOBSINTHEQUEUE
•On a system running SunOS 4.1.x or another BSD-based variant, use the lpq
command to see printer jobs in the queue as follows:
lpq <-Pprinter>
Sample, and you want to print two copies, type:
For example, if the xjprint queue of your Fiery 3850C is named print_Server, type:
lpq -Pprint_Server
Your workstation displays the contents of the queue.
•On a system running Solaris 2.x or any System V implementation of UNIX, use the
lpstat command to see printer jobs in the queue as follows:
lpstat -o <printername>
For example, if the xjprint queue of your Fiery 3850C is named print_Server, type:
lpstat -o print_Server
Your workstation displays the contents of the queue.
3-3 Printing to the Fiery 3850C
3
TOREMOVEJOBSFROMTHEQUEUE
NOTE: Unless you log in as the root user, you can remove only your own jobs.
•On a system running SunOS 4.1.x or another BSD-based variant, use the lprm
command to remove jobs from the queue as follows.
lprm <-Pprinter><job #…>
You can use the lpq command to check the job number.
For example, to remove job number
named
lprm -Pprint_Server 123
The lprm command reports the names of any files it removes.
•On a system running Solaris 2.x or any System V implementation of UNIX, use the
cancel command to remove jobs from the queue.
cancel <printername> <job ID>
For example, to remove job number
named
cancel print_Server 123
print_Server, type:
print_Server, type:
123 from the xjprint queue of your Fiery 3850C
123 from the xjprint queue of your Fiery 3850C
4-1 Printing simulations
4
Chapter 4:
Special Features
This chapter describes some of the special features supported by the Fiery 3850C
including:
• Printing simulations
• Printing duplex pages
• Check and Print Jobs
• Secured Print Jobs
• Entering User Codes
Printing simulations
You can use the Fiery 3850C to proof offset press jobs or to simulate the output of
other print devices by specifying settings for the CMYK Simulation Profile (from the
printer driver) print option. This option affects CMYK data only.
The Fiery 3850C provides CMYK Simulation targets for the major international press
standards: SWOP, DIC, and Euroscale. You can also create, save, and import custom
simulation profiles using ColorWise Pro Tools (see the Color Guide).
• The Fiery 3850C provides CMYK Simulation targets for the major international
press standards: SWOP, DIC, and Euroscale.When printing simulations on the
Fiery 3850C, choose the CMYK Simulation Profile setting corresponding to the
press standard for which the CMYK data was prepared, or choose a custom
simulation profile.
• T o simulate the color of a copy made from the printer glass, choose the M atch Copy
setting. This setting bypasses Fiery 3850C calibration.
4-2 Special Features
4
Printing duplex pages
You can use the Fiery 3850C to print 2-sided (duplex) pages.
TOPRINTDUPLEXPAGES
1. When specifying print options, set Duplex to the desired setting.
prints both sides using the same long edge.
prints using the same short edge.
2. Set other options and click OK.
3. Click Print.
Check and Print Jobs
Use this option to specify if you want to print and proof a copy of your print job
before printing multiple copies of the job.
TOSPECIFYA CHECKAND PRINT JOBONA WINDOWS
COMPUTER
1. Choose Print from the application’s File menu.
The print dialog box appears.
2. Select the Fiery 3850C and click Properties (Windows 9x/Me), Document Defaults
(Windows NT), or Printing Preferences (Windows 2000/XP).
N
OTE: The Check and P rint F eatur e does not work with Windows 2000/XP PostScript
printer drivers.
3. Click the Fiery printing tab.
4. Under the Finishing print option bar, select Check and Print under the Job Type print
option.
5. Select other print options and click OK
6. Click Print
A copy of your job will print at the Fiery 3850C.
7. Proof and verify your print job.
4-3 Check and Print Jobs
4
If you want to print out or cancel the remaining copies at the control panel, see the
“To retrieve Check and Print job copies at the control panel” on page 4-3.
TOSPECIFYA CHECKAND PRINT JOBONA MAC COMPUTER
1. Choose Print from the application’s File menu.
2. Select Printer Specific options from the pull-down menu.
3. Under the Job Type print option, select Check and Print.
4. Click Print.
TORETRIEVE CHECKAND PRINTJOBCOPIESATTHE
CONTROLPANEL
1. From the control panel, select the Menu button and select Check and Print.
2. Press the Enter button.
Verify the user name and the name of the document displays.
3. Press the Enter button.
Verify the number of copies remaining.
NOTE: Y ou can change the number of copies using the arr ow keys. If you want to cancel
the job, select 0.
4. Press the Enter button to print out the remaining copies.
4-4 Special Features
4
Secured Print Jobs
This option is used to specify if you want to enter a specific user name and password to
make your print job private.
TOSPECIFYASECUREPRINTJOBONA WINDOWSCOMPUTER
1. Choose Print from the application’s File menu.
The print dialog box appears.
2. Select the Fiery 3850C and click Properties (Windows 9x/Me), Document Defaults
(Windows NT) or Printing Preferences (Windows 2000/XP).
3. Click the Fiery printing tab.
4. Under the Finishing print option bar, select Secure Print under the Job Type print
option.
5. Enter a User ID and a Secure Print Password to enter at the control panel.
N
OTE: If you do not enter the User ID and Password, the job will be lost and you will
not be able to retrieve the job.
NOTE: The User ID must not exceed 8 characters and the Secure Print Password must
be 4 digits.
6. Set other print options and click OK.
7. Click Print.
Your job will not print until you retrieve it at the Fiery 3850C. See the procedure, “To
retrieve a secure print job from the control panel” on page 4-5 on how to retrieve
secured print jobs.
TOSPECIFYASECUREPRINTJOBONA MAC OS COMPUTER
1. Choose Print from the application’s File menu.
2. Select Printer Specific options from the pull-down menu.
4-5 Entering User Codes
4
3. Under the Job Type print option, select Secure Print.
4. Select Fiery Job Notes from the pull-down menu.
5. Enter a User ID and a Secure Print Password.
N
OTE: The User ID must not exceed 8 characters and the Secure Print Password must
be 4 digits.
TORETRIEVEASECUREPRINTJOBFROMTHECONTROL
PANEL
1. From the control panel, select the Menu button and select Secure Print.
2. Press the Enter button.
Verify the User ID and name of document displays.
3. Press the Enter button.
Scroll by using the left/right buttons and enter the password digits by using the arrow
buttons.
NOTE: If you enter the wrong password, you will be prompted to retry.
4. Press Enter and use the arrow buttons to choose to print or delete your secure print
job.
Entering User Codes
A User Code can be entered by using the Statistics tab in the Windows printer driver
or in Fiery Job N otes in the Mac printer driver. A User Code can be assigned optionally
to each print job. A tally of all jobs printed using a User Code can be viewed or
exported.
To view or export a tally of all jobs printing using a User Code, see your printer’s
documentation.
NOTE: Supported tabs may vary. The following procedure uses Windows 98 windows
with any Windows Me and/or Windows NT/2000/XP differences noted.
1. In the Printer’s window, right-click the Fiery 3850C icon and choose Properties
(Windows 9x/Me), Document Defaults (Windo ws NT) or Printing Prefer ences (Windows
2000/XP).
N
OTE: Entering User Codes does not work on Windows 2000/XP PostScript printer
drivers.
2. Click the Statistics tab.
3. Using a maximum of 8 digits, enter a User Code.
When a User Code is entered, a tally of all jobs printed using this code can be viewed
and printed.
4. Click OK.
For more information on exporting or viewing a tally of jobs, see your copier’s
documentation.
4
TOENTERA USER CODEFROMTHE MAC PRINTER DRIVER
Choose Fiery Job Notes
from the pop-up menu
4-7 Entering User Codes
1. Open a file and choose Print from the application’s File menu.
2. Go to Fiery Job Notes.
3. Using a maximum of 8 digits, enter a User Code in the User Code field.
4. Verify print option settings and click Print.
For more information on exporting or viewing a tally of jobs, see your copier’s
documentation.
5-1 Fiery WebTools
5
Chapter 5:
Tracking
and Managing
Print Jobs
Fiery 3850C user software includes a variety of tools that allow you to track and
manage print jobs. Access to some tools is controlled by your site administrator,
but other tools are available to all users.
• The Status, WebLink, and WebDownloader WebTools do not require any special
access privileges. As long as the administrator has provided users with the IP address
of the Fiery 3850C, anyone can use these WebTools.
• The Command WorkStation and Fiery WebSpooler all provide the capability to
view and control the flow of print jobs to the Fiery 3850C. If the administrator has
set an Administrator password in Setup, you need the password to perform most
Command WorkStation and Fiery WebSpooler functions. For information on these
tools and the access privileges needed to use them, see the Job Management Guide.
• For more information on the WebSetup Webtool, see the Configuration Guide.
Fiery WebTools
Fiery W ebTools reside on the Fiery 3850C hard disk drive but can be accessed over the
network from a variety of platforms. The Fiery 3850C has a home page that lets you
view server functions and manipulate jobs remotely. This chapter describes only the
W ebDownloader, Status, and W ebLink,. F or information on F iery W ebSpooler, see the
Job Management Guide. For information on WebSetup, see the Configuration Guide.
TOACCESS FIERY WEBTOOLS
1. Start up your Internet browser application.
See Getting Started for information about supported platforms and browsers.
2. Enter the IP address or the DNS name of the Fiery 3850C.
Check with the operator or administrator for this information.
5-2 Tracking and Managing Print Jobs
5
3. If a Log In dialog box appears, select Guest and click OK.
4. When the Fiery 3850C home page appears, click to select one of the Fiery WebTools.
The Log In dialog box appears only if the administrator has set a password. Guest
access is sufficient to use the WebDownloader, Status, WebLink, Webspooler, and
Installer, WebTools as described in this chapter.
Move the cursor over the buttons to display information about the selections.
Checking Fiery 3850C status with the Status WebTool
You can use the Status W ebTool to see what jobs are currently processing and printing.
To access the Status WebTool, point your browser to the Fiery 3850C home page and
click the Status button. The current RIP Status and Printer Status appear in the
window.
To open a new browser window for the Status display, click Float. You can then close
other browser windows and leave the Status window open to continue checking the
status of the Fiery 3850C. As long as you keep the Status window open, it is
dynamically updated.
To obtain more information about the status of jobs, use Fiery WebSpooler or the
Command WorkStation, as described in the Job Management Guide.
5-3 Tracking and Managing Print Jobs
5
Accessing information with WebLink
The WebLink button on the Fiery 3850C home page provides a link to another web
page or to multiple web pages, provided you have a valid Internet connection. The
administrator at your site can set the WebLink destination. Check your Fiery 3850C
WebLink for any information available there.
Downloading files with WebDownloader
Using WebDownloader, you can send PostScript, Encapsulated PostScript (EPS), and
Portable Document Format (PDF), PCL, or text files to the printer without first
opening the file in an application.
You can also download PostScript and Adobe Type 1 fonts (*.pfb). When downloading
fonts, be sure to check the Font box.
TODOWNLOADAFILEWITH WEBDOWNLOADER
1. Start up your Internet browser application.
See Getting Started for information about supported platforms and browsers.
2. Enter the IP address or the DNS name of the Fiery 3850C.
3. When the Fiery 3850C home page appears, click the WebDownloader WebTool.
4. Click the WebDownloader WebTool.
5-4 Tracking and Managing Print Jobs
5
5. Select the destination.
A file can be downloaded to the Direct connection, P rint, or Hold queues. F iles sent to
the Print queue are spooled in the printer’s memory. Files sent to the Hold queue
remain in memory until they are moved to the Print queue or are deleted.
6. Select if you want to automatically download fonts to your system by indicating a
checkmark in the Font checkbox.
7. Select if you are downloading a PDF file. and PDF options, such as the number of
copies and page range.
8. Click Browse to search for the file, then select the file and click Open.
9. Click Send File.
A-1 Print Options
A
Appendix A:
Print Options
Print options give you access to all the special features of your printer and
Fiery 3850C. Print options can be specified in several places—in Fiery 3850C Setup,
from the printing application, from ColorWise Pro Tools, from the Command
WorkStation and from Fiery WebSpooler. The table in this appendix briefly describes
each print option, gives its default setting, and provides information on any constraints
or requirements in effect.
Where to set print options
• During Setup
Some settings are specified during Setup by the administrator. For information on
the current default server settings, check with the administrator or the operator.
• From applications
With the Adobe PostScript printer rivers, you can specify job settings when you
print a job. See Chapter 1, “Printing from Windows Computers” and Chapter 2,
“Printing from Mac OS Computers” for information about specifying job settings
from applications.
• From ColorWise Pro Tools
You can set the default CMYK Simulation Profile, RGB Source Profile, Output
Profile, Rendering S tyle, S pot Color Matching, P ure B lack Text/Graphics, and Black
Overprint settings. See the Color Guide for more information on using ColorWise
Pro Tools.
• Overrides from the Command WorkStation or Fiery WebSpooler.
To change job settings from the Command WorkStation, double-click a job to
display the Properties dialog box. To change job settings from Fiery WebSpooler,
double-click a job to display the Override Print Settings dialog box. For more
information, see the Job Management Guide.
A-2 Print Options
A
Print option override hierarchy
The override hierarchy is as follows:
• A user’s printer driver settings override the Fiery 3850C Setup and ColorWise Pro
Tools settings.
• Settings made from the Command WorkStation or Fiery WebSpooler override the
user’s printer driver settings.
Default settings
In the following table, underlined settings in the “Option and settings” column
indicate default printer driver settings (PPD defaults). In other words, if you do not
use the printer driver interface to configure a particular option, the Fiery 3850C prints
the job with the underlined setting.
For options that can be configured during Setup from the Control Panel, Command
WorkStation, WebSetup, or ColorWise Pro Tools choosing
the Fiery 3850C printing the job with the Setup setting specified. For options that
cannot be configured during Setup, the Fiery 3850C prints the job with a
pre-configured “Printer’s default” setting. For more information, see the
“Requirements, constraints, and information” column.
Printer’s default results in
To find out about the current Setup defaults, print the Configuration page from the
Command WorkStation or from the Fiery 3850C Control Panel.
A-3 Print Options
A
Option and settings:
(Default setting is underlined)
Black Overprint
On/Printer’
Brightness
85% Lightest/90% Lighter/95% Light/
100% Normal
110% Darker/115% Darkest
Select Off to print black text with
knockouts.
Select
On to overprint black text.
Select 85% for a substantially lighter
image,
115% for a substantially darker
image, or use one of the settings in
between.
Specify the simulation goal to be used for
the current print job.
Requirements, constraints,
and information:
Printer’s default setting reflects the
The
setting specified in Fiery 3850C Setup.
For Windows 9x/Me and Windows NT
4.0, choose
Mode to access this option.
If this option is set to
Separations option must be set to
Setting this option to
sets the Pure Black Text/Graphics option
to
On.
This option is not available for PCL.
For more information, see page A-10 and
the Color Guide.
The Printer’s default setting reflects the
setting specified in Fiery 3850C Setup.
For Windows 9x/Me And Windows NT
4.0, choose
Mode to access this option.
This option is not available for PCL.
For more information, see the Color Guide.
Expert Color as the Color
On, the Combine
Off.
On automatically
Expert Color as the Color
Collate
/On/
Off
Specify how to output
multiple-page/multiple-copy jobs.
For more information, see page A-11.
A-4 Print Options
A
Option and settings:
(Default setting is underlined)
Color Mode
s default/CMYK/Grayscale (from
Printer’
the Mac OS and Windows 2000/XP
drivers)
OR
Print Mode (PS)
d Color/Expert Color/Grayscale
Standar
the Windows 9x/Me and Windows
(from
NT 4.0 driver
OR
Print Mode (PCL)
Color
(from the Windows 9x/Me, Windows
Specify the paper tray to use for your job. The AutoSelect setting automatically
Specify what type of print job you want
to execute.
Select
Check and Print to print one copy
of your print job to proof before printing
multiple copies.
Select
Secure Print to make your print job
private by selecting a user ID and
password to enter at the copier LCD.
Specify the type of media for your print
job.
Select
Transparency if you will be printing
on transparencies.
Specify the orientation of the document.
Select
Rotated if you want to rotate the
pages of your job 180 degrees.
Requirements, constraints,
and information:
selects the tray containing the paper size
specified for the job.
For more information on Check and
Print and Secure Print jobs, see Chapter
4, “Special Features”.
(Other) Gamma
s default/1.0/1.2/1.4/1.6/
Printer’
1.8/2.0/2.2/2.4/2.6/2.8/3.0
Specify a source gamma value for
printing RGB images, objects, and text.
Setting this option to Printer’s default
produces the same result as the
setting.
This option is not available for PCL.
To enable this option, RGB Source
Profile must be set to
For more information, see the
Color Guide.
Specify a source phosphors value for
printing RGB images, objects, and text.
Specify a source white point value for
printing RGB images, objects, and text.
Specify the output profile to be used for
the current print job.
Requirements, constraints,
and information:
Setting this option to Printer’s default
produces the same result as the
setting.
This option is not available for PCL.
To enable this option, RGB Source
Profile must be set to
For more information, see the
Color Guide.
Setting this option to Printer’s default
produces the same result as the
(D50
) setting.
This option is not available for PCL.
To enable this option, RGB Source
Profile must be set to
For more information, see the
Color Guide.
The Printer’s default setting reflects the
setting specified in ColorWise Pro Tools.
For Windows 9x/Me and Windows NT
4.0, choose
Mode to access this option.
This option is not available for PCL.
See page A-12 and the Color Guide for
more information.
Expert Color as the Color
Other.
Other.
SMPTE
5000 K
Punch
Left/Top/Right
Off/
Punch Two Hole
Yes
No/
Specify where you want to punch holesThe punch option must be installed. See
the Getting Started for more information
on installable options.
Specify if you want to punch two side by
side holes.
RGB Source Profile
Printer’
Apple Standard/Other/Source-1/
Source-2/Source-3/Source-4/Source-5/
Source-6/Source-7/Source-8/Source-9/
Source-10/None
/ 1200x1200 dpi
s default/EFIRGB/sRGB (PC)/
Description:
Select Off to print black text and graphics
as a four color black using C, M, Y , and K
toner, and to use normal PostScript
rendering.
Select
On to print black text and graphics
as a one color black, using 100% black
toner only.
Specify a default color rendering
dictionary (CRD) to be used when you
print RGB images, objects, and text.
Specify a resolution for your print job.This option is not available for PCL.
Specify a source color space definition for
printing RGB images, objects, and text.
Requirements, constraints,
and information:
The
Printer’s default setting reflects the
setting specified in Fiery 3850C Setup.
For Windows 9x/Me and Windows NT
4.0, choose
Mode to access this option.
This option is not available for PCL.
This option is automatically set to
the Black Overprint option is set to
For more information, see the Color Guide.
The Printer’s default setting reflects the
setting specified in Fiery 3850C Setup.
For Windows 9x/Me and Windows NT
4.0, choose
Mode to access this option.
For more information, see page A-13.
The Printer’s default setting reflects the
setting specified in Fiery 3850C Setup.
For Windows 9x/Me and Windows NT
4.0, choose
Mode to access this option.
See page A-13 and the Color Guide for
more information.
This option is not available for PCL.
Expert Color as the Print
Expert Color as the Color
Expert Color as the Color
On if
On.
Rotate 180
Yes/No
Specify if you want to rotate the pages of
your job 180 degrees.
This option is only available from
Mac OS. For Windows, use the
Orientation option.
Depending on the application you are
using, your landscape job may print with
the incorrect orientation; if this occurs, or
if you select a Stapler Mode (other than
Off) and the staple is inserted in the
wrong place, select
Yes.
A-9 Print Options
A
Option and settings:
(Default setting is underlined)
Secure Print Password
Slip Sheet
On/Off
Slip Sheet Source
ray 1/ Tray 2/ Tray 3/ Tray 4/ Tray 3
T
(LCT)/ Bypass Tray
Spot Color Matching
s default/Off/On
Printer’
Description:
Specify a password to enter at the copier
LCD to retrieve your private job if you
have selected the Secure Print job type.
Specify whether to insert a slip sheet
between copies of multiple-copy jobs.
Select the tray for the slip sheet source
Select Off to print specified PANTONE
colors in your job using the current
CMYK Simulation and CMYK
Simulation Method.
Select
On to activate the PANTONE
Lookup Table. The Fiery 3850C prints
specified PANTONE colors in your job
by matching the CMYK print blend to
the same color from the PANTONE
library.
Requirements, constraints,
and information:
The Secure Print Password field has an
4-digit character limit.
To use this option, your Media Type
must be set to
Source must be set to
The
Printer’s default setting reflects the
setting specified in Fiery 3850C Setup.
For Windows 9x/Me and Windows NT
4.0, choose
Mode to access this option.
This option is not available for PCL.
For more information, see the
Color Guide.
Transparency and Paper
Bypass Tray.
Expert Color as the Color
Staple
/ Upper Left Slant/ Upper Left
Off
Vertical/ Upper Left Horizontal/ Left
2/ Top 2/ Upper Right Slant/ Upper
Right Vertical/ Upper Right Horizontal/
Right 2
User ID
User Code
Specify whether or not and how to staple
the job.
Specify a User ID to enter at the copier
LCD to retrieve your private job if you
have selected the Secure Print job type
Specify a User Code to tally all jobs
printed using that User Code.
The User ID field has an 8-character
limit.
The User Code field has an 8-digit limit.
For more information on entering User
Codes, see Chapter 4, “Special Features”.
A-10 Print Options
A
More about print options
The following sections provide additional information about print options. See the
table above for information on the settings, requirements, and constraints in effect for
these options.
Black Overprint
When printing black text in combination with a color background or graphics, the text
can be printed in one of two ways: either as part of the color background, or on top of
the color background. Black Overprint allows you to choose a specific way to print the
black text for such a job.
Off—Prints the black text with knockouts. The Fiery 3850C first prints the color
background with the black text areas ‘knocked out’ (no color is printed in the text
areas); the black text is then printed in the knocked out area, filling in the areas not
printed in color. The result is a flatter appearance for the black text.
On—Overprint the black text. Used in combination with the P ure Black Text/Graphics
option, the Fiery 3850C first prints the full color background, then lays the black text
on top of the color background as 100% K toner. The result is a darker and glossier
appearance for the black text. Overprinting also minimizes misregistration and
‘haloing’ problems.
CMYK Simulation Profile
CMYK Simulation Profile allows you to change the simulation goal for the current
print job. As the job begins processing, the simulation goal selected in CMYK
Simulation Profile is applied before printing.
NOTE: Choosing Printer’s default results in the job being printed with the simulation
goal currently set on the Fiery 3850C.
SWOP-Coated—Uses the United States press standard.
DIC—Uses the Japanese press standard.
Euroscale—Uses the European press standard.
Simulation-1 (2,3,4,5...10)—Uses a custom simulation goal. Before selecting this
setting, you are required to create a new simulation goal with ColorWise P ro T ools and
link the new simulation to one of the custom simulation names, for example,
Simulation-1.
A-11 Print Options
A
None—Uses no simulation goal. Select this setting when the CMYK data for your job
has already been separated for your specific printer (for example, when using the Color
Management System built into your computer to convert the CMYK data to the
printer’s color space).
For more information about simulation and calibration, see the Color Guide.
Collate
Use this option to specify sorting options.
Off—Copies of a complete job are output, uncollated into the top tray.
On—Copies of a complete job are collated and output into the top tray.
A-12 Print Options
A
Duplex
All duplex printing features are available only with plain paper media type.
TOPRINTDUPLEXPAGES:
1. Choose Print in your application, and locate the Duplex print option.
The location of Fiery 3850C print options varies, depending on the printer driver you
are using.
2. Choose one of the Duplex settings:
The following table shows how the Duplex settings correspond to printed output:
Side BindingTop Binding
2
Portrait
12
Landscape
12
Output Profile
Output-1 through Output-10—Uses a custom output profile. Before selecting this
setting, you are required to download or create the output profile with ColorWise Pro
Tools, then link it with one of the custom output profile names, for example,
Output-1.
For information on output color space and color management, see the Color Guide.
1
2
1
A-13 Print Options
A
Rendering Style
Use this option to select a default color rendering dictionary (CRD) to be used when
you print RGB images, objects, and text.
Photographic—Optimizes the range of colors on the Fiery 3850C to produce the best
results for photographic or bitmapped images.
Presentation—Optimizes the output of pure, saturated colors such as those used in
business presentations.
Relative Colorimetric— Provides a close match to the CMYK device being simulated,
regardless of the media being used.
Absolute Colorimetric— Provides the closest match to the CMYK device being
simulated, including rendering the paper color as the background.
RGB Source Profile
This option is used to specify a source color space for RGB data.
EFIRGB—Optimal source space for printing to the Fiery 3850C. This setting provides
consistent output across platforms.
sRGB (PC)—Specifies the source space of a generic Windows computer monitor.
Apple Standard—Specifies the source space of a Mac OS computer monitor.
Other—Allows you to specify a custom RGB source setting using the (Other) Gamma,
(Other) Phosphors, and (Other) White Point print options.
Source-1 through Source-10—Uses a custom source profile. Before selecting this
setting, you are required to download the source profile to the Fiery 3850C with
ColorWise Pro Tools, then link it with one of the custom source profile names, for
example, Source-1.
For information on source color space and color management, see the Color Guide.
B-1 Font Lists
B
Appendix B:
Font Lists
This appendix lists the built-in PostScript and PCL printer fonts included with your
Fiery 3850C.
PostScript and PCL printer fonts
The following tables list the 136 built-in PostScript printer fonts and 46 PCL printer
fonts on the Fiery 3850C.
In addition to the PostScript fonts listed below, two Adobe Multiple Master fonts are
included and are used for font substitution in PDF files.
NOTE: For Mac OS computers, install the corresponding screen fonts from the User
Software CD. For instructions, see Getting Started.
Adobe Type 1 fonts
The Fiery 3850C includes 126 Adobe Type 1 fonts:
• The Mac OS column lists the name as it appears on the Font menu on a Mac OS
computer. For example, in most applications, to use “Bodoni-Bold,” choose Bodoni
Bold from the Font menu.
• The Windows menu name is the name as it appears on the Font menu on a
Windows computer. The style refers to the style that must be selected in the
application to access the particular PostScript font. For example, to use
“Bodoni-Bold,” choose Bodoni from the Font menu and Bold from the Style menu.
PostScript name:Mac OS menu name:Windows menu name, style:
AlbertusMT-Light Albertus MT Lt Albertus MT Lt
AlbertusMT Albertus MT Albertus MT
AlbertusMT-Italic Albertus MT It Albertus MT, Italic
AntiqueOlive-Roman Antique Olive Roman Antique Olive Roman
AntiqueOlive-Bold Antique Olive Bold Antique Olive Roman, Bold
AntiqueOlive-Italic Antique Olive Italic Antique Olive Roman, Italic
B-2 Font Lists
B
PostScript name:Mac OS menu name:Windows menu name, style:
Bold Italic
Symbol Symbol Symbol
Tekton Tekton Tekton
Times-Roman TimesTimes
Times-BoldTimes BoldTimes, Bold
Times-ItalicTimes ItalicTimes, Italic
Times-BoldItalicTimes BoldItalicTimes, Bold Italic
TimesNewRomanPS-BoldMTTimes New Roman BoldTimes New Roman, Bold
B-6 Font Lists
B
PostScript name:Mac OS menu name:Windows menu name, style:
PostScript name:Mac OS menu name:Windows menu name, style:
Apple-ChanceryApple ChanceryApple Chancery
ChicagoChicagoChicago
GenevaGenevaGeneva
HoeflerText-BlackHoefler Text BlackHoefler Text Black
HoeflerText-BlackItalicHoefler Text BlackHoefler Text Black, Italic
HoeflerText-ItalicH oefler TextHoefler T ext, Italic
HoeflerText-RegularHoefler TextHoefler T ext
MonacoMonacoMonaco
New YorkNew YorkNew York
Wingdings-RegularWingdingsWingdings
B-8 Font Lists
B
PCL printer fonts
The following 46 PCL fonts are resident on the Fiery:
• Letter Gothic, Letter Gothic Bold, Letter Gothic Italic
• Line Printer (a bitmap font)
• Marigold
• Symbol
• Times New, Times New Bold, Times New Italic, Times New Bold Italic
• Univers Bold, Univers Bold Condensed, U nivers Bold Condensed Italic, U nivers I talic,
Univers Medium, Univers Medium Condensed, Univers Medium Condensed Italic,
Univers Bold Italic
• Wingdings
C-1 Troubleshooting
C
Appendix C:
Troubleshooting
This appendix provides troubleshooting tips.
Maintaining optimal system performance
The Fiery 3850C does not require maintenance. Beyond the routine requirements of
servicing and maintaining the printer and replenishing consumables there are a few
things you can do to improve the overall performance of your system:
• Reduce unnecessary two-way communication.
If users notice that the server is frequently too busy to receive jobs, it may be because
several users are running utilities that are updated often. Large numbers of remote
users running Fiery WebTools may have a significant effect on Fiery 3850C
performance.
• Schedule the printing workload by checking job ticket information before printing.
Print jobs with the same output and paper specifications together to minimize paper
changes. Also, print routine jobs while you prepare to print jobs with special
instructions or special media.
• Avoid printing with the server “Disk full” warning.
If you see this warning, delete jobs from the Queues window that have been held for
a long time and are not likely to be needed. Avoid this condition b y deleting old jobs
on a regular basis. The date associated with a job is the original date it was sent.
C-2 Troubleshooting
C
Troubleshooting
In case of problems, and before you call for service, check the guidelines in this section.
If you are unable to resolve the problem, make a note of the error condition and
contact your authorized service/support center.
This section provides some troubleshooting guidelines should a problem arise. If you
are unable to resolve a problem after referring to this section, contact your site operator
or administrator.
General printing problems
If this happens:Try this:
You cannot select or view
one of the queues.
Printing ties up your
computer for too long.
Message requests a paper size
that you do not have.
• Have your system administrator enable the queue in Setup.
• Print to a queue instead of to the Direct connection.
When you print to a queue, the job is stored on the Fiery 3850C until it can be
processed and printed; when you print to the Direct connection, the job cannot be sent
to the Fiery 3850C until the previous job is finished processing, so you must wait
longer to use your computer.
• Cancel the job and do one of the following:
If you are printing a file from an application, change the page size in the Page Setup
dialog box.
C-3 Troubleshooting
C
If this happens:Try this:
Fiery 3850C does not
respond
to a Print command.
The Test Page, or other
pages, do not print from
the Control Panel.
• Did you select the Fiery 3850C as the current printer?
Before printing, you must select the Fiery 3850C as the current printer from your Mac
OS, Windows, or UNIX workstation.
• Make sure that the printer is switched on.
Someone may have turned the printer off. Even with the printer off, the Fiery 3850C
appears in the Chooser as long as the Fiery 3850C itself is turned on.
• Make sure that the printer is online.
• If you are printing over an IPX (Novell) network, verify through the PCONSOLE utility
that the job was sent to the Novell queue and that the queue is being used by the
Fiery 3850C.
• Make sure that the job does not contain a PostScript error.
Check with the operator, or use Fiery WebSpooler to check the job’s status. A job
containing a PostScript error appears in red in the Fiery WebSpooler display.
To obtain information on the PostScript error, make sure the Print to PS Error setup
option is set to Yes. See the Configuration Guide for more information.
• Check the printer display for an error message and correct the problem.
• Restart the Fiery 3850C.
If there is no error message at the printer, you should restart the Fiery 3850C.
C-4 Troubleshooting
C
Problems with print quality
If this happens:Try this:
Print settings for your job
output do not match the
settings you gave.
You get poor printing results.
Your printed file appears too
dark.
QuickDraw fill patterns print
as solids.
• Make sure that you did not override the setting for the job in another place.
For information about options and overrides, see Appendix A.
• Does your application require one of the Fiery 3850C printer description files?
If you are printing from Adobe PageMaker, make sure that the Fiery 3850C printer
description file is installed correctly. For information about installing these files, see
Getting Started and the documentation for your application software.
• Adjust the Brightness option.
You can use the Brightness option when printing from an application or from Fiery
Downloader to lighten your image whenever you print a PostScript or Encapsulated
PostScript (EPS) file.
• Use the Adobe PostScript Printer driver.
C-5 Troubleshooting
C
Problems with Fiery Downloader
If this happens:Try this:
General problems
You have problems
downloading a font with
Fiery Downloader.
Extra blank page prints after a
Fiery Downloader job.
• Make sure that the connections are properly set.
See Getting Started.
• Check with the administrator to make sure that the Direct connection is enabled.
The Direct connection must be used to download fonts. (Files can be downloaded via
the Print or Hold queue.)
• Turn off the “Showpage (after EPS file)” option.
This option adds a special PostScript command that will cause an extra blank page to
print if it is not needed.
C-6 Troubleshooting
C
Problems with Fiery WebTools
If this happens:Try this:
You cannot connect to
Fiery WebTools, or it takes a
long time to connect.
• Check with the administrator to make sure Web Services are enabled in Fiery 3850C
Setup.
• Make sure you have the correct IP address or DNS name for the Fiery 3850C.
Check with the administrator or print a Configuration page from the Fiery 3850C
Control Panel.
• Clear the cache (Netscape Communicator) or history (Microsoft Internet Explorer).
