MODIFICATION BULLETIN NO. 06 Page 1 of 3 ISSUED ON: Oct. 31, 90
Model ADF for F11 (Ricoh DF52) Volt/Hz
Modified Article Left Hinge
Reason for
To ensure the DF up and down operation
Modification
Draw
No.
Old Parts
No.
A4221394 A4221393 Left Hinge 1 -- 1 x/o 4 7
New Parts
No.
Description
Date of
Modification
A.B.C. Q’ty Used
Old →
Rank Part No. Description Index No. Page
New
Inter-
change-
ability
Part needed for replacement by new part Parts Catalog
Serial Number
Rank: A : Replace with new parts immediately. B : Replace with new parts at time of repair. C : Replace with new parts at time of overhall.
Interchangeability:
(1) When old and new parts are not mutually interchangeable, use additional parts or an assembly part as indicated in "Parts needed for replacement by new part" to
install the new part.
(2) The mark to the left of the slash indicates whether the old part can be used in the new machine, and the mark to the right indicates whether the new part can be used
in the old machine. x = Not interchangeable o = Interchangeable
MODIFICATION BULLETIN NO. 06 Page 2 of 3 ISSUED ON: Oct. 31, 90
DETAILS OF MODIFICATION
When the operator opens the DF, it may open too
fast after it reaches approximately 30 degrees as
shown in the illustration.
To prevent this, tension of the springs in the DF left
hinge has been changed. The new left hinge will
not let the DF open too fast even after it reaches
approximately 60 degrees.
ADF
60°
30°
Copier
T.Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 06 Page 3 of 3 ISSUED ON: Oct. 31, 90
MODEL NAME
Ricoh DF52 115/60 USA, Canada A422-17 2330100001
Ricoh DF52 220,240/50 Europe, etc. A422-27 2330100101
V/Hz DESTINATION CODE SERIAL NUMBER
MODIFICATION BULLETIN NO. 07 Page 1 of 2 ISSUED ON: Oct. 31, ’90
Model ARDF for F11 (Ricoh DF52) Volt/Hz
Modified Article Front Frame
Reason for
Parts standardization with ARDF for N230
Modification
Due to parts standardization with the ARDF for the N230, the front frame has been changed with the i nterchangeability
code O/O.
Old P/N New P/N Description
Q’ty
Used
Index No. Page
Date of
Modification
Serial Number
A4651100 A3181100 Front Frame 1 -- 1 27 3
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 07 Page 2 of 2 ISSUED ON: Oct. 31, ’90
MODEL NAME
Ricoh DF52 115/60 USA, Canada A422-17
Ricoh DF52 220,240/50 Europe, etc. A422-27
V/Hz DESTINATION CODE SERIAL NUMBER
MODIFICATION BULLETIN NO. 9 Page 1 of 2 ISSUED ON: April 15 , ’91
Model ARDF for F11 (Ricoh DF52) Volt/Hz
Modified Article Belt Pressure Roller
Reason for
Parts standardization with other model
Modification

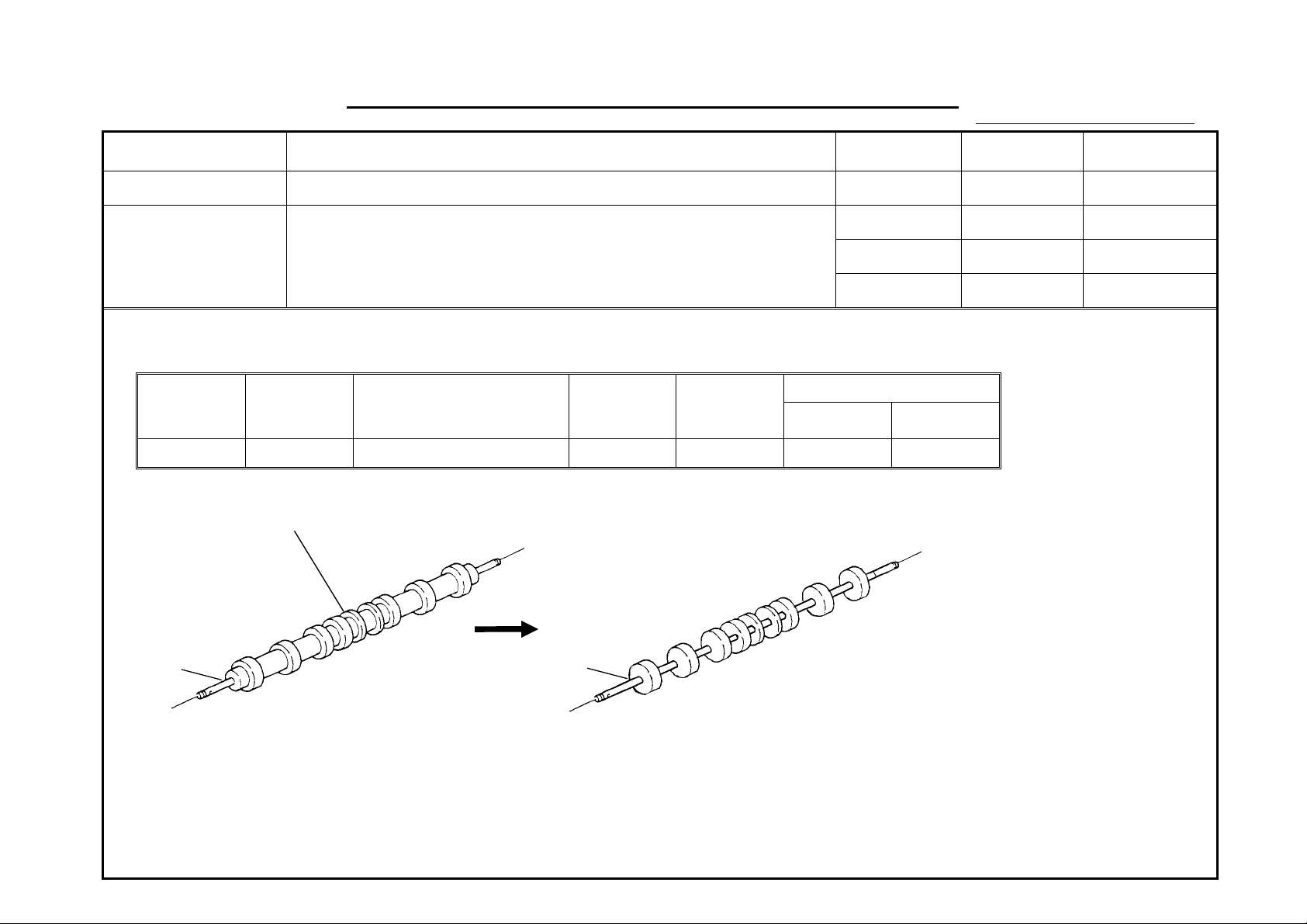

Due to parts standardization with other model, the belt pressure roller has been changed.
The interchangeability is O/O.
Old P/N New P/N Description Q’ty Index Page
A4221116 A4971101 Belt Pressure Roller 1 40 3
Date of
Modification
Serial Number
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 9 Page 2 of 2 ISSUED ON: April 15 , ’91
MODEL NAME
Ricoh DF52 115/60 USA, Canada A422-17 2331030001
Ricoh DF52 220,240/50 Europe, etc. A422-27 233104XXXX
V/Hz DESTINATION CODE SERIAL NUMBER
MODIFICATION BULLETIN NO. 10 Page 1 of 3 ISSUED ON: June 30, ’91
Model ARDF for F11 (Ricoh DF52) Volt/Hz
Modified Article Friction Belt and Friction Roller
Reason for
To ensure separation
Modification
Draw
No.
Old Parts
No.
A4221354 A4971170 Firiction belt
A4221069 Friction Roller
New Parts
No.
Description
Modification
A.B.C.
Rank Part No. Description
Q’ty Used
Old →
New
1 → 1
1 → 0
Inter-
change-
ability
X/O 69 5
Part needed for replacement by new part Parts Catalog
Date of
Serial Number
Index
No.
72 5
Page
Rank: A : Replace with new parts immediately. B : Replace with new parts at time of repair. C : Replace with new parts at time of overhaul.
Interchangeability:
(1) When old and new parts are not mutually interchangeable, use additional parts or an assembly part as indicated in "Parts needed for replacement by new part" to
install the new part.
(2) The mark to the left of the slash indicates whether the old part can be used in the new machine, and the mark to the right indicates whether the new part can be used
in the old machine. x = Not interchangeable o = Interchangeable
MODIFICATION BULLETIN NO. 10 Page 2 of 3 ISSUED ON: June 30, ’91
DETAILS OF MODIFICATION
To ensure the original separation, we found that it is more effective to increase the angle ( θ) as shown.
These are the modifications on production machines to change the angle from θ1 to θ2 :
1. The friction roller has been removed.
2. The mylar on the friction belt has been removed.
3. The dimension of the friction belt has been changed.
Friction Roller
60
Friction Belt
Old
θ
θ2 > θ
1
Mylar
58.5
Friction Belt
θ
2
New
1
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 10 Page 3 of 3 ISSUED ON: June 30, ’91
MODEL NAME
Ricoh DF52 115/60 USA, Canada A422-17 2331050001
Ricoh DF52 220,240/50 Europe, etc. A422-27 2331050224
V/Hz DESTINATION CODE SERIAL NUMBER
MODIFICATION BULLETIN NO. 11 Page 1 of 2 ISSUED ON: November 15, ’91
Model ARDF for F11 (Ricoh DF52) Volt/Hz
Modified Article Harness - Pulse Generator
Reason for
Parts standardization with other model
Modification
Due to parts standardization with other model, the pulse generator harness has been changed.
The interchangeability is O/O. According to this change, the grounding wire has been removed.
Old P/N New P/N Description Q’ty Page Index
A4225202 A4975202 Harness - Pulse Generator 1 → 1 5 10
A4225212 Grounding Wire 1 → 0 5 95
Date of
Modification
Serial Number
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 11 Page 2 of 2 ISSUED ON: November 15, ’91
MODEL NAME
Ricoh DF52 115/60 USA, Canada A422-17 2331090001
Ricoh DF52 220,240/50 Europe, etc. A422-27 2331090081
V/Hz DESTINATION CODE SERIAL NUMBER
MODIFICATION BULLETIN NO. 12 Page 1 of 3 ISSUED ON: January 15, ’93
Model ARDF for F11 (Ricoh DF52) Volt/Hz
Mod i fied Article Original Table
Reason for
To preve nt the original table from bein g broke n
Modification
Draw
No.
Old Parts
No.
A4221323 A3181241 Original Table 1 → 1X/O 8 3
New Parts
No.
Description
Date of
Modification
A.B.C.
Rank Part No. Description I ndex No. Page
Q’ty Used
Old New
Inter-
change-
ability
Part needed for replacement by new part Parts Catalog
Serial Numbe r
Rank: A : Replace wit h ne w par t s immediately. B : Replace with new parts at t ime of repair. C : Replace with new parts at time of overhaul.
Interchangeability:
(1) W hen old and new parts are not mutually interchangeable, use additional parts or an assembly part as indicated in "P arts needed for replaceme nt by new part" to
install the ne w pa rt.
(2) The mark to the left of the slash indicates whethe r the old part can be used in the ne w ma chine, and the mark to the right indicates whethe r the new part can be used
in the old machine. x = Not interchangeable o = Inte rchangeable
MODIFICATION BULLETIN NO. 12 Page 2 of 3 ISSUED ON: January 15, ’93
DETAILS OF MODIFICATION
The operato rs often open and clo se th e DF by h olding the original table. After abo ut 1000 ∼ 3000 times, A of the original table will break.
To prevent this problem, the material of A has been changed to metal.
A
Old
Metal Plate
New
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 12 Page 3 of 3 ISSUED ON: January 15, ’93
MODEL NAME
Ricoh DF52 115/60 USA, Canada A422-17 Service Parts Only
Ricoh DF52 220,240/50 Europe, etc. A422-27 Service Parts Only
V/Hz DESTINATION CODE SERIAL NUMBER
MODIFICATION BULLETIN NO. 13 Page 1 of 5 ISSUED ON: January 15, ’93
Model ARDF for F11 (Ricoh DF52) Volt/Hz
Mod i fied Article Friction Belt
Reason for
To ensure the original separation
Modification
Draw
No.
Old Parts
No.
A4221352 A4221360 Friction Belt Holder 1 → 1X/X 68 5
A4971170 A4221358 Friction Belt 1 → 1 X/X as a set X/O 69 5
A4221003 A4971034 Feed Roller 1 → 1X/X 47 5
New Parts
A4971024 Guide Mylar 0 → 1* 975
No.
Description
Date of
Modification
A.B.C.
Rank Part No. Description I ndex No. Page
Q’ty Used
Old New
Inter-
change-
ability
Part needed for replacement by new part Parts Catalog
* New Index No.
Serial Numbe r
Rank: A : Replace wit h ne w par t s immediately. B : Replace with new parts at t ime of repair. C : Replace with new parts at time of overhaul.
Interchangeability:
(1) W hen old and new parts are not mutually interchangeable, use additional parts or an assembly part as indicated in "P arts needed for replaceme nt by new part" to
install the ne w pa rt.
(2) The mark to the left of the slash indicates whethe r the old part can be used in the ne w ma chine, and the mark to the right indicates whethe r the new part can be used
in the old machine. x = Not interchangeable o = Interchangeable
DETAILS OF MODIFICATION
Mylar (This mylar has no parts number)
To ensure the original separation, the following parts have been modified.
1. Fric tio n Belt Ho lder : The configuratio n o f the frictio n belt h older has been changed as sho wn.
MODIFICATION BULLETIN NO. 13 Page 2 of 5 ISSUED ON: January 15, ’93
Old
2. Friction Belt : The configuration of the belt has been changed and a mylar has been added to improve feeding of the original.
Old
New
New
MODIFICATION BULLETIN NO. 13 Page 3 of 5 ISSUED ON: January 15, ’93
DETAILS OF MODIFICATION
3. Original Feed Roller : To improve feeding of the original, the gro ove h as been added to the feed ro ller.
Old
Flat
Groove
New
T. Ito, Manager
Copier Technical Support
Guide Mylar
Guide Mylar
MODIFICATION BULLETIN NO. 13 Page 4 of 5 ISSUED ON: January 15, ’93
DETAILS OF MODIFICATION
4. Guide Mylar: A g uid e mylar has been added to th e original guide to improve feed ing of t he original.
Old
Original Guide
Feed Roller
Original Guide
Original Guide
New
97
MODIFICATION BULLETIN NO. 13 Page 5 of 5 ISSUED ON: January 15, ’93
MODEL NAME
Ricoh DF52 115/60 USA, Canada A422-17 Service Parts Only
Ricoh DF52 220,240/50 Europe, etc. A422-27 Service Parts Only
V/Hz DESTINATION CODE SERIAL NUMBER
MODIFICATION BULLETIN NO. 14 Page 1 of 2 ISSUED ON: January 15, ’93
Model ARDF for F11 (Ricoh DF52) Volt/Hz
Mod i fied Article Photocoupler
Reason for
Due to vendor change
Modification
Due to ven dor change, the following pa rt has been changed. The interchangeability is O/O.
Page Index Old P/N New P/N Description
9 119 14030388 Photocoupler - ON3111
9 119 14030784 Photocoupler - ON3131
Date of
Modification
Serial Numbe r
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 14 Page 2 of 2 ISSUED ON: January 15, ’93
MODEL NAME
Ricoh DF52 115/60 USA, Canada A422-17 Service Parts Only
Ricoh DF52 220,240/50 Europe, etc. A422-27 Service Parts Only
V/Hz DESTINATION CODE SERIAL NUMBER
MODIFICATION BULLETIN NO. 15 PAGE 1 OF 2
ISSUED ON: September 30, ’93
Model ARDF for F11 (Ricoh DF 52) Volt/Hz
Modified Article Covers
Reason for
Material change
Modification
The material of the following parts have been changed.
NOTE: In this modification, the color of the follo wing part s have been changed from black to silver.
Old P/N New P/N Description Q’ty Used
A4221500 A4221472 Belt Drive Motor Cover
A4221183 A4221475 Main Board Cover
A4221184 A4221481 Feed-out Motor Cover
1 → 1
1 → 1
1 → 1
Inter-
change-
ability
O/O 50 3
O/O 51 3
O/O 46 3
Parts Catalog
Index No. Page
Date of
Modification
Serial Number
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 15 PAGE 2 OF 2
ISSUED ON: September 30, ’93
MODEL NAME
Ricoh DF52 115/60 USA, Canada A422-17 Service Parts Only
Ricoh DF52 220,240/50 Europe, etc. A422-27 Service Parts Only
V/Hz DESTINATION CODE SERIAL NUMBER
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 16 PAGE 1 OF 2
ISSUED ON: September 30, ’93
Model ARDF for F11 (Ricoh DF52) Volt/Hz
Modified Article Pull-out Bracket
Reason for
To prevent original misfeed
Modification
Date of
Modification
The DF registration senso r is activated by paper dust on the sensor pad, affecting its color. This is because, when the
original roller starts rotating, the DF upper plat e is warpe d sligh tly downwa rd. The clearance between the DF
registration senso r and the sensor pad is reduced. To prevent th is the pull-out bracket has been modified to imp rove
the clearance.
Old P/N New P/N Description Q’ty Used
A4651057 A4971052 Pull-out Bracket
1 → 1
Inter-
change-
ability
X/O 3 5
Parts Catalog
Index No. Page
Serial Number
(Old)
(New)
ISSUED ON: September 30, ’93
MODIFICATION BULLETIN NO. 16 PAGE 2 OF 2
MODEL NAME
Ricoh DF52 115/60 USA, Canada A422-17 Service Parts Only
Ricoh DF52 220,240/50 Europe, etc. A422-27 Service Parts Only
V/Hz DESTINATION CODE SERIAL NUMBER
ISSUED ON: September 30, ’93
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 17 PAGE 1 OF 2
Model ARDF for F11 (Ricoh DF52) Volt/Hz
Modified Article Inverter Roller
Reason for
Parts standardization
Modification
To standardize the parts with other models, the followin g parts have been changed.
Inter-
Old P/N New P/N Description Q’ty Used
A4221210 A4972090 Inverter Roller
1 → 1
change-
ability
O/O 38 7
Index No. Page
Inverter Roller
Parts Catalog
Date of
Modification
Serial Number
38
Old
38
New
MODIFICATION BULLETIN NO. 17 PAGE 2 OF 2
ISSUED ON: September 30, ’93
MODEL NAME
Ricoh DF52 115/60 USA, Canada A422-17 Service Parts Only
Ricoh DF52 220,240/50 Europe, etc. A422-27 Service Parts Only
V/Hz DESTINATION CODE SERIAL NUMBER
Loading...
