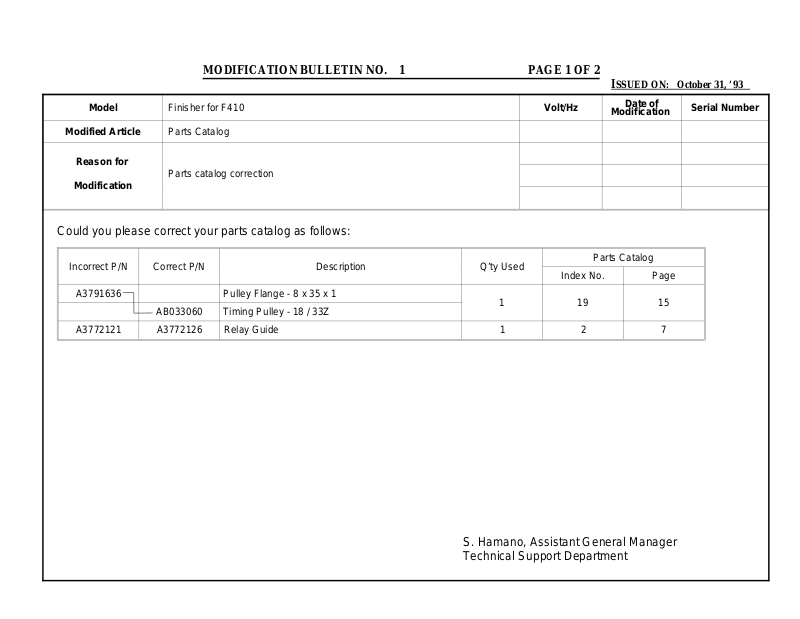

MODIFICATION BULLETIN NO. 1 PAGE 1 OF 2
ISSUED ON: October 31, ’93
Model Finisher for F410 Volt/Hz
Modified Article Parts Catalog
Reason for
Parts catalog correction
Modification
Modification
Could you please correct your parts catalog as follows:
Incorrect P/N Correct P/N Description Q’ty Used
Index No. Page
A3791636 Pulley Flange - 8 x 35 x 1
11915
AB033060 Timing Pulley - 18 / 33Z
A3772121 A3772126 Relay Guide 1 2 7
Parts Catalog
Date of
Serial Number
S. Hamano, Assistant General Manager
Technical Support Department
MODIFICATION BULLETIN NO. 1 PAGE 2 OF 2
JAPN PRODUCTION
ISSUED ON: October 31, ’93
MODEL NAME
Savin 9550/9650
Finisher
Ricoh SR400
NRG CFN55
Infotec Stapler III 230/50 Europe A379 - 26
V/Hz DESTINATION
CODE SERIAL NUMBER
120/60 U.S.A. A379 - 15
120/60 U.S.A. etc.
230/50 Europe etc.
120/60
230/50 Europe etc.
U.S.A. , Canada
etc.
A379 - 17
A379 - 22
MODIFICATION BULLETIN NO. 2 PAGE 1 OF 2
ISSUED ON: January 31, ’94
Model Finisher for F410 Volt/Hz
Modified Article Parts Catalog
Reason for
Parts catalog correction
Modification
Inter-
Old P/N New P/N Description Q’ty Used
A3792610 A3532116 Paddle Roller
A3792610 Exit Transport Roller
A3792617 Paddle
4 → 4
2 → 0
0 → 2
change-
ability
Date of
Modification
Parts Catalog
Index No. Page
14 13
15 13
15 13
Serial Number
S. Hamano, Assistant General Manager
Technical Support Department
MODIFICATION BULLETIN NO. 2 PAGE 2 OF 2
JAPAN PRODUCTION
ISSUED ON: January 31, ’94
MODEL NAME
Savin 9550/9650
Finisher
Ricoh SR400
NRG CFN55
Infotec Stapler III 230/50 Europe A379 - 26
V/Hz DESTINATION
CODE SERIAL NUMBER
120/60 U.S.A. A379 - 15
120/60 U.S.A. etc.
230/50 Europe etc.
120/60
230/50 Europe etc.
U.S.A. , Canada
etc.
A379 - 17
A379 - 22
MODIFICATION BULLETIN NO. 3 PAGE 1 OF 2
OLD
ISSUED ON: January 31, ’94
Model Finisher for F410 Volt/Hz
Modified Article Exit Transport Roller etc.
Reason for
To improve the paper stuck in jogger unit
Modification
To improve the paper stuck in jogge r u nit , the front and rear brush rolle r have been modified.
Inter-
Old P/N New P/N Description Q’ty Used
A3792610 A3792631 Exit Transport Roller
A3003271 A3792635 Positioning Brush
A3003272 A3792636 Rear Positioning Brush
1 → 1
1 → 1
1 → 1
change-
ability
X/O 11 13
X/O 12 13
X/O 13 13
Date of
Modification
Parts Catalog
Index No. Page
Serial Number
NEW
S. Hamano, Assistant General Man ag er
Technical Support Departme nt
MODIFICATION BULLETIN NO. 3 PAGE 2 OF 2
JAPAN PRODUCTION
ISSUED ON: January 31, ’94
MODEL NAME
Savin 9550/9650
Finisher
Ricoh SR400
NRG CFN55
Infotec Stapler III 230/50 Europe A379 - 26 3E11130001
V/Hz DESTINATION
CODE SERIAL NUMBER
120/60 U.S.A. A379 - 15 415110001
120/60 U.S.A. etc.
230/50 Europe etc.
120/60
230/50 Europe etc.
U.S.A. , Canada
etc.
A379 - 17 A3413100326
A379 - 22 5353110001
MODIFICATION BULLETIN NO. 4 PAGE 1 OF 2
Old
Reissued on: January 15, ’95
ISSUED ON: October 15, ’94
Model Finisher for F410 / 420 Volt/Hz
Modified Article Actuator Bracket
Reason for
To increase the strength
Modification
To increase the streng th , the actuator shape has bee n cha ng ed as shown .
For details, please ref er to RTB No. 27 for F400 / 410.
Inter-
P/N New P/N Description Q’ty Used
A3533171 Actuator Bracket
A3791225 Upper Sensor Actuator
1 → 0
0 → 1
change-
ability
X/O 1 15
Index No. Page
Parts Catalog
Date of
Modification
Serial Number
New
S. Hamano, Assistant General Manager
Technical Support Department
MODIFICATION BULLETIN NO. 4 PAGE 2 OF 2
JAPAN PRODUCTION
Reissued on: January 15, ’95
ISSUED ON: October 15, ’94
MODEL NAME
Savin 9550/9650
Finisher
Ricoh SR400
NRG CFN55
Infotec Stapler III 230/50 Europe A379 - 26 3E10440001
V/Hz DESTINATION
CODE SERIAL NUMBER
120/60 U.S.A. A379 - 15 4154070001
120/60 U.S.A. etc.
230/50 Europe etc.
120/60
230/50 Europe etc.
U.S.A. , Canada
etc.
A379 - 17 A3414040001
A379 - 22 5354040001
