RICOH GROUP COMPANIES
A265/A267
PARTS CATALOG
000883MIU
PARTS CATALOG
®
®
A265/A267
RICOH GROUP COMPANIES
A265/A267
PARTS CATALOG
000883MIU
LEGEND
PRODUCT CODE COMPANY
GESTETNER RICOH SAVIN
A265 3222 Aficio 220 9922DP
A267 3227 Aficio 270 9927DP
A858 Auto Recirculating Document Feeder (DF69)
A86011 Paper Tray Unit (PS440)
A862 Large Capacity Tray (PS420)
A898 1-Bin Tray Unit (PT270)
A896 Duplex Unit (AD360)
A681 Finisher (SR720)
A897 Bridge Unit Type 270
B313 Internal Shift Sort Tray Type 270
A899 Bypass Tray Type 270
B300 Interchange Unit Type 270
A890/A891/A892/A294 Fax Option
A892/A894/A895 Fax Option / TR29
B306/G690 Printer Option
DOCUMENTATION HISTORY
REV. NO. DATE COMMENT
* 12/99 First Printing
A265/A267 PARTS CATALOG
TABLE OF CONTENTS
A265/A267 PARTS LOCATION AND LIST
LOCATION OF UNIT.................................................. 2
1. EXTERIOR 1 (A265/A267).................................... 8
2. EXTERIOR 2 (A265/A267).................................... 10
3. OPERATION PANEL (A265/A267) ....................... 12
4. PLATEN COVER (OPTION A893)........................ 14
5. OPTICS SECTION 1 (A265/A267)........................ 16
6. OPTICS SECTION 2 (A265/A267)........................ 18
7. OPTICS SECTION 3 (A265/A267)........................ 20
8. LASER UNIT (A265/A267)......... .. .. .. .. .. .. ............... 22
9. TRANSFER UNIT (A265/A267) ................. .. .. .. .. .. . 24
10. PAPER FEED SECTION 1 (A265/A267) .............. 26
11. PAPER FEED SECTION 2 (A265/A267) .............. 28
12. PAPER FEED SECTION 3 (A265/A267) .............. 30
13. TONER HOPPER UNIT (A265/A267)................... 32
14. PAPER REGISTRATION (A265/A267)................. 34
15. PAPER TRAY 1 (A265/A267) ............................... 36
16. PAPER TRAY 2 (A265/A267) ............................... 38
17. FUSING UNIT 1 (A265/A267) ............................... 40
18. FUSING UNIT 2 (A265/A267) ............................... 42
19. PAPER EXIT (A265/A267)..... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . 44
20. DRIVE SECTION 1 (A265/A267).......................... 46
21. DRIVE SECTION 2 (A265/A267).......................... 48
22. DRIVE SECTION 3 (A265/A267).......................... 50
23. ELECTRICAL SECTION 1 (A265/A267)............... 52
24. ELECTRICAL SECTION 2 (A265/A267)............... 54
25. FRAME SECTION (A265/A267).... .............. .......... 56
26. I/O BOARD (A265/A267)....................................... 58
27. BICU BOARD (A265/A267)................................... 62
28. DECAL AND DOCUMENT (A265/A267)............... 68
29. SPECIAL TOOLS (A265/A267)............................. 70
A265/A267 PARTS LOCATION AND LIST
PARTS INDEX ............................................................ 2
AUTO RECIRCULATING DOCUMENT FEEDER A858
PARTS LOCATION AND LIST
1. ARDF 1 (A858)......................... .. .. .. .. .. .. .. .. .. .. .. .. .. .... 2
2. ARDF 2 (A858)......................... .. .. .. .. .. .. .. .. .. .. .. .. .. .... 4
3. ARDF 3 (A858)......................... .. .. .. .. .. .. .. .. .. .. .. .. .. .... 6
4. ARDF 4 (A858)......................... .. .. .. .. .. .. .. .. .. .. .. .. .. .... 8
5. ARDF 5 (A858). .. .. .. .. .. .. .... .. .. .. .. .. .. .. .... .. .. .. .. .. .. .. .... .. 10
6. ARDF 6 (A858). .. .. .. .. .. .. .... .. .. .. .. .. .. .. .... .. .. .. .. .. .. .. .... .. 12
7. ARDF 7 (A858). .. .. .. .. .. .. .... .. .. .. .. .. .. .. .... .. .. .. .. .. .. .. .... .. 14
8. DECAL AND DOCUMENT (A858)....................... .. 16
AUTO RECIRCULATING DOCUMENT FEEDER A858
PARTS INDEX
PARTS INDEX ............................................................ 2
PAPER TRAY UNIT A86011 PARTS LOCATION AND LIST
1. EXTERIOR (A86011)....................................... ......... 2
2. PAPER TRAY (A86011)......... .. .. ...................... .. .. ..... 4
3. PAPER FEED/TRANSFER (A86011) ....................... 6
4. ELECTRICAL SECTION 1 (A86011)........................ 8
5. ELECTRICAL SECTION 2 (A86011)........................ 10
6. ELECTRICAL SECTION 3 (A86011)........................ 12
7. DECAL AND DOCUMENT (A86011)............... .. .. ..... 16
PAPER TRAY UNIT A86011 PARTS INDEX
PARTS INDEX............................................................... 2
LARGE CAPACITY TRAY A862 PARTS LOCATION AND
LIST
1. EXTERIOR (A862)................... ............ ............ .......... 2
2. PAPER FEED SECTION (A862)................................ 4
3. TANDEM TRAY 1 (A862)........................................... 6
4. TANDEM TRAY 2 (A862)........................................... 8
5. TANDEM TRAY 3 (A862)........................................... 10
6. DRIVE/ELECTRICAL SECTION (A862) .................... 12
7. DECAL AND DOCUMENT (A862)............................. 14
LARGE CAPACITY TRAY A862 PARTS INDEX
PARTS INDEX............................................................... 2
1 BIN TRAY UNIT A898 PARTS LOCATION AND LIST
1. 1 BIN TRAY UNIT (A898) .......................................... 2
1 BIN TRAY UNIT A898 PARTS INDEX
PARTS INDEX............................................................... 2
DUPLEX UNIT A896 PARTS LOCATION AND LIST
1. DUPLEX UNIT 1 (A896) .......................... .............. .... 2
2. DUPLEX UNIT 2 (A896) .......................... .............. .... 4
3. DUPLEX UNIT 3 (A896) .......................... .............. .... 6
DUPLEX UNIT A896 PARTS INDEX
PARTS INDEX ..... .................................... ...................... 2
FINISHER (A681) PARTS LOCATION AND LIST
LOCATION O F UNIT......... ............ ............ .. ............ ....... 2
1. EXTERIOR........................ ........................................ 4
2. STAPLE TRAY 1....................................................... 6
3. STAPLE TRAY 2....................................................... 8
4. TRAY DRIVE SECTION............................................ 10
5. TRANSPOR T SECTION 1..................... ............ ....... 12
6. TRANSPOR T SECTION 2..................... ............ ....... 14
7. DRIVE SECTION .... .................................................. 16
8. ELECTRICAL SECTION........................................... 18
9. DECAL AND DOCUMENT........................................ 20
FINISHER (A681) PARTS INDEX
PARTS INDEX ..... .................................... ...................... 2
BRIDGE UNIT TYPE 270 (A897) PARTS LOCATION AND
LIST
1. BRIDGE UNIT 1 (A897) .............................. .............. 2
2. BRIDGE UNIT 2 (A897) .............................. .............. 4
3. BRIDGE UNIT 3 (A897) .............................. .............. 6
BRIDGE UNIT TYPE 270 (A897) PARTS INDEX
PARTS INDEX ..... .................................... ...................... 2
INTERNAL SHIFT SORT TRAY TYPE 270 PARTS LOCATION
AND LIST
1. INTERNAL SHIFT TRAY (B313)............... .. .. .. ....... 2
INTERNAL SHIFT SORT TRAY TYPE 270 PARTS INDEX
PARTS INDEX... ................................................ ......... 2
BYPASS TRAY TYPE 270 (A899) PARTS LOCATION AND LIST
1. BYPASS TRAY 1 (A899) .................... ................... 2
2. BYPASS TRAY 2 (A899) .................... ................... 4
8. ISDN BOARD (A895)............... .. .. .. ........................ 22
FAX OPTION / TR29 (A892/A894/A895) PARTS INDEX
PARTS INDEX ............................................................ 2
PRINTER OPTION B306/G690 PARTS LOCATION AND LIST
1. PRINTER CONTROL UNIT 1 (B306)..................... 2
2. PRINTER CONTROL UNIT 2 (B306)..................... 4
3. PRINTER HDD UNIT (G690) ............. .. .. ................ 6
4. PRINTER CONTROL BOARD (B306).................... 8
BYPASS TRAY TYPE 270 (A899) PARTS INDEX
PARTS INDEX................................... ......................... 2
INTERCHANGE UNIT TYPE 270 (B300) PARTS LOCATION
AND LIST
1. INTERCHANGE UNIT 1 (B300)............................. 2
2. INTERCHANGE UNIT 2 (B300)............................. 4
INTERCHANGE UNIT TYPE 270 (B300) PARTS INDEX
PARTS INDEX... ................................................ ......... 2
FAX OPTION / TR29 (A892/A894/A895) PARTS LOCATION
AND LIST
1. FAX OPTION 1 (A895).................................... ....... 2
2. FAX OPTION 2 (A895).................................... ....... 4
3. G3 INTERFACE UNIT (A895)................................ 6
4. ISDN OPTION (A895)................... .. ....................... 8
5. FAX FUNCTION UPGRADE TYPE 185 (A892)..... 10
6. PC FAX EXPANDER TYPE 185 (A894)......... .. .. .. . 12
7. FCU BOARD (A895)......... .. .. ........................ .. .. ..... 14
PRINTER OPTION B306/G690 PARTS INDEX
PARTS INDEX............................................................ 2
A265/A267
PARTS LOCATION AND LIST
This section instructs you as to the numbers and names of parts on this machine .
LOCATION OF UNIT
1. EXTERIOR 1 (A265/A267)
See Page 9
4. PLATEN COVER (OPTION A893)
2. EXTERIOR 2 (A265/A267)
See Page 11
5. OPTICS SECTION 1 (A265/A267)
3. OPERATION PANEL (A265/A267)
See Page 13
6. OPTICS SECTION 2 (A265/A267)
See Page 15
A265/A267 2 Parts Location and List
See Page 17
See Page 19
LOCATION OF UNIT
7. OPTICS SECTION 3 (A265/A267)
See Page 21
10. PAPER FEED SECTION 1 (A265/A267)
8. LASER UNIT (A265/A267)
See Page 23
11. PAPER FEED SECTION 2 (A265/A267)
9. TRANSFER UNIT (A265/A267)
See Page 25
12. PAPER FEED SECTION 3 (A265/A267)
See Page 27
A265/A267 3 Parts Location and List
See Page 29
See Page 31
LOCATION OF UNIT
13. TONER HOPPER UNIT (A265/A267)
See Page 33
16. PAPER TRAY 2 (A265/A267)
14. PAPER REGISTRATION (A265/A267)
See Page 35
17. FUSING UNIT 1 (A265/A267)
15. PAPER TRAY 1 (A265/A267)
See Page 37
18. FUSING UNIT 2 (A265/A267)
See Page 39
A265/A267 4 Parts Location and List
See Page 41
See Page 43
LOCATION OF UNIT
19. PAPER EXIT (A265/A267)
See Page 45
22. DRIVE SECTION 3 (A265/A267)
20. DRIVE SECTION 1 (A265/A267)
See Page 47
23. ELECTRICAL SECTION 1 (A265/A267)
21. DRIVE SECTION 2 (A265/A267)
See Page 49
24. ELECTRICAL SECTION 2 (A265/A267)
See Page 51
A265/A267 5 Parts Location and List
See Page 53
See Page 55
LOCATION OF UNIT
25. FRAME SECTION (A265/A267)
See Page 57
A265/A267 6 Parts Location and List
1. EXTERIOR 1 (A265/A267)
A265/A267 8 Parts Location and List
1. EXTERIOR 1 (A265/A267)
Index
No.
1 A265 7051 Front Cover (A265 RIC NA) 1
1 A265 7071 Front Cover (A265 RIC EU) 1
1 A265 7111 Front Cover (A265 INF) 1
1 A267 7051 Front Cover (A267 RIC NA) 1
1 A267 7071 Front Cover (A267 RIC EU) 1
1 A267 7111 Front Cover (A267 INF) 1
1 A267 7096 Front Cover Ass’y (SVN/LAN/NRG NA) 1
1 A267 7296 Front Cover Ass’y (LAN/NRG EU) 1
2 G020 1332 Hinge - Front Cover 2
3 A134 1383 Emblem (RIC) 1
3 A217 7905 Support Cover (INF) 1
4 A291 1302 Cover - Main Switch 1
5 A267 1264 Magnet Catch - Front Cover 2
6 A267 1268 Jam Removal Sheet 1
7 AA00 1389 Large Decal - Energy Star 1
8 A267 1340 Copy Tray 1
9 A267 1343 Sub Copy Tray 1
10 AG07 1011 Magnet Catch 2
11 A267 1388 Small Front Cover 1
12 A267 1305 Upper Paper Exit Cover 1
13 A267 1325 Cap - LED 1
14 A267 1320 Front Right Upper Cover 1
15 A267 1321 Inner Cover (120V) 1
15 A267 7075 Inner Cover (230V) 1
16 A267 1348 Paper Support Cover 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 3008B Tapping Screw - M3x8
102 0451 3008H Tapping Screw - M3x8
103 0451 3006B Tapping Screw - M3x6
Part No.
Description
Q’ty Per
Assembly
A265/A267 9 Parts Location and List
2. EXTERIOR 2 (A265/A267)
A265/A267 10 Parts Location and List
2. EXTERIOR 2 (A265/A267)
Index
No.
1 A267 1345 Paper Exit Cover 1
2 A267 1378 Cap - Bridge Unit 1
3 A267 1282 Left Rear Cover 1
4 A267 1281 Left Cover 1
5 A267 1280 Left Upper Cover 1
6 A267 1250 Left Scanner Cover 1
6 A267 6210 Left Scanner Cover (A265 RIF) 1
7 A267 1252 Right Scanner Cover 1
7 A267 6211 Right Scanner Cover (A265 RIF) 1
8 A267 1251 Rear Upper Cover 1
9 A267 1290 Rear Cover 1
10 A176 1365 Cap - 38x77 2
11 A193 1345 Rivet - M20 1
12 A267 1374 Cap - Paper Tray Unit 1
13 A250 1374 Rivet - M14 1
14 A267 1375 Cap - Heater 1
15 A267 1371 Cap - Duplex Connector 1
16 A267 1291 Lower Rear Cover 1
17 A267 1270 Right Cover 1
18 A267 1370 Cap - Duplex 1
19 A267 2715 Driven Roller - Vertical Transport 1
20 AA08 0249 Bushing - Vertical Transport 2
21 AA06 3334 Spring - Vertical Transport 2
22 A267 1304 Rear Cover - Paper Tray 1
23 A267 1285 Left Application Cover 1
24 A267 2709 Guide Mylar 1
25 A267 2705 Middle Right Cover 1
26 A153 6409 Decal - Keytop Cover (GES) 1
26 C225 2866 Decal - Keytop Cover (REX) 1
26 C225 2867 Decal - Keytop Cover (NSA) 1
27 A267 2717 Right Rear Lower Cover 1
28 A267 2713 Hexagonal Set Screw - M3X8 2
29 A267 2708 Cap - Bypass Feed 1
30 A267 2710 Stay - Cap 1
31 A267 2716 Right Front Lower Cover 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
32 A267 2727 Middle Right Cover 1
101 0451 3008H Tapping Screw - 3x8
102 0353 0050Z Philips Truss Head Screw - M3x5
103 0720 0030E Retaining Ring - M3
Part No.
Description
Q’ty Per
Assembly
A265/A267 11 Parts Location and List
3. OPERATION PANEL (A265/A267)
A265/A267 12 Parts Location and List
3. OPERATION PANEL (A265/A267)
Index
No.
1 A267 1255 Lower Cover - Operation Panel 1
2 A267 7160 Operation Panel Ass’y (120V) 1
2 A267 7180 Operation Panel Ass’y (230V) 1
2 A267 7200 Operation Panel Ass’y (ASIA) 1
3 A267 1474 Cover - Behind 1
4 A267 1487 Right LCD Cover 1
5 A267 1488 Cover - Application 1
6 A267 7157 Upper Cover - Operation Panel (120V) 1
6 A267 7177 Upper Cover - OperatIon Panel (230V) 1
7 A267 7162 Operation Panel Case (120V) 1
7 A267 7182 Operation Panel Cover 1
8 A267 7164 Decal - Behind (120V/ASIA) 1
8 A267 7184 Decal - Behind (230V) 1
9 A267 1465 Keytop - Behind 1
10 A267 1495 Left Pin - Behind 1
11 A267 1494 Right Pin - Behind 1
12 A193 1477 Key Top - Start 1
13 A193 1479 Key Top - Interrupt 1
14 A193 1480 Key Top - Program Mode 1
15 A193 1481 Key Top - Clear 1
16 A267 7166 Keytop - 10 Key (120V) 1
16 A267 1460 Keytop - 10 Key (230V) 1
16 A267 7206 Keytop - 10 Key (ASIA) 1
17 A267 7167 Decal - Image Density (120V/ASIA) 1
17 A267 7185 Decal - Image Density (230V) 1
18 A267 7165 Keytop - Clear Modes 1
19 A267 1461 Keytop - Energy Saver 1
20 A267 1463 Keytop - Check Mode 1
21 A267 1464 Keytop - Image Adjust 1
22 A267 1472 Lower Case - Operation Panel 1
23 A267 1479 Lens - LED 1
24 A267 1492 Cover - Operation Switch (120V) 1
24 A267 7186 Cover - Operation Switch (230V) 1
25 A267 1489 Operation Panel Board 1
26 A267 7163 Decal Operation (120V/ASIA) 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
26 A267 7183 Decal Operation (230V) 1
27 A267 7169 LCD (120V/ASIA) 1
27 A267 7189 LCD (230V) 1
28 A267 7168 Decal - Operation Switch (120V) 1
29 A267 1480 Lens - Data In (120V) 1
30 A267 1466 Key Top - Operation Switch (120V) 1
31 A267 1496 Ground Plate - Sub Operation Unit 3
32 A267 1497 Shield Sheet 1
101 0450 3008B Tapping Screw - M3x8
Part No.
Description
Q’ty Per
Assembly
A265/A267 13 Parts Location and List
4. PLATEN COVER (OPTION A893)
A265/A267 14 Parts Location and List
4. PLATEN COVER (OPTION A893)
Index
No.
1 5448 2804 Platen Cover Sheet 1
2 AA16 2067 Platen Cover Pad 1
3 A053 1957 Flex Hinge - Platen Cover 2
4 A193 1386 Front Platen Cover 1
5 A193 1396 Original Holder 1
6 A193 1391 Rear Platen Cover 1
7 A193 1246 Platen Cover Hinge Ass’y 1
8 A250 1384 Feeler Platen Cover 1
9 A548 6121 Screw - M4 2
10 A250 1383 Bracket - Platen Cover 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 4012B Tapping Screw - M4x12
Part No.
Description
Q’ty Per
Assembly
A265/A267 15 Parts Location and List
5. OPTICS SECTION 1 (A265/A267)
A265/A267 16 Parts Location and List
5. OPTICS SECTION 1 (A265/A267)
Index
No.
1 A267 1814 Hinge Bracket - Platen Cover 1
1 A267 6207 Hinge Bracket - Platen Cover (A265 RIF) 1
2 A267 1813 Scanner Frame 2
2 A267 6206 Scanner Frame (A265 RIF) 2
3 5442 1924 Exposure Glass Cushion 2
4 AW02 0086 Photointerruptor 2
5 A267 1743 Bracket - Scale 1
6 A250 1670 Left Scale 1
7 A193 1759 Stepped Screw 5
8 A250 1701 Rear Scale 1
9 A250 1752 Exposure Glass 1
10 A267 5208 Harness - Home Position Sensor 1
11 A267 1815 Right Inner Cover 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0353 0050Z Philips Truss Head Screw - M3x5
103 0802 5276 Tapping Screw With Washer - M3x6
104 0451 3008B Tapping Screw - M3x8
105 1105 0460 Clamp
Part No.
Description
Q’ty Per
Assembly
A265/A267 17 Parts Location and List
6. OPTICS SECTION 2 (A265/A267)
A265/A267 18 Parts Location and List
6. OPTICS SECTION 2 (A265/A267)
Index
No.
1 AX50 0069 Exposure Lamp 1
2 A267 1758 Harness Guide - Exposure Lamp 1
3 A267 5703 Flexible Cable 1
4 A193 1766 Wire Clamp 1
5 A267 1752 1st Scanner Housing 1
6 A193 1769 Clamp - Rear Wire 1
7 A193 1767 1st Mirror Holder 2
8 A250 1784 1st Mirror 1
9 A250 1761 Original Sensor - H=2-66 (120V) 2
9 A250 1761 Original Sensor - H=2-66 (230V) 3
10 A267 5226 Harness - APS Sensor (120V) 1
10 A267 7615 Harness - APS Sensor (230V) 1
11 A267 1673 Lens Holder 1
12 A267 5225 Harness - SBU 1
13 A250 5736 Lamp Stabilizer 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0453 3014B Taping Screw - M3x14
102 0802 5276 Tapping Screw With Washer - M3x6
103 1105 0460 Clamp
104 1105 0195 PCB Stud
105 0451 3006B Tapping Screw - M3x6
Part No.
Description
Q’ty Per
Assembly
A265/A267 19 Parts Location and List
7. OPTICS SECTION 3 (A265/A267)
A265/A267 20 Parts Location and List
7. OPTICS SECTION 3 (A265/A267)
Index
No.
1 A267 1809 Front Stay Bracket 1
2 A267 1849 Tension Bracket 2
3 A193 1783 Tension Spring 3
4 A267 1846 Idler Bracket 2
5 A267 1853 Pulley - Front Left 2
6 A267 1817 Slide Rail - 2 2
7 A193 1816 Slide Rail 2
8 A267 1777 Mirror Holder 4
9 A267 1776 Guide - FPC 1
10 AC03 0123 3rd Mirror 1
11 A267 1810 Rear Stay Bracket 1
12 AB03 0630 Timing Pulley - 60T 1
13 A267 1854 Pulley - Rear Left 2
14 A267 1819 Insulating Sheet - Side Plate 1
15 A267 1816 Guide - Flexible Board 1
16 A193 1829 Ball Bearing - M8 2
17 AA05 0107 Scanner Wire 2
18 AB03 2066 Front Pulley - Wire Drive 1
19 A267 1825 Scanner Drive Shaft 1
20 AA04 3523 Timing Belt - S2M - 250 1
21 AB03 2067 Rear Pulley - Wire Drive 1
22 A267 1690 Scanner Motor - DC 3.78W 1
23 A193 1784 Tension Spring 1
24 A250 1821 Heater - 9W (120V) 1
24 A250 1822 Heater - 9W (230V) 1
25 A267 1830 Heater Harness Cover 1
26 A267 1770 2nd Scanner Housing 1
27 A267 8465 Heater Ass’y (120V) 1
27 A267 8466 Heater Ass’y (230V) 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0575 0050E Hexagon Headless Set Screw - M5x5
103 0451 3008B Tapping Screw - M3x8
104 0802 5276 Tapping Screw With Washer - M3x6
105 1105 0460 Clamp
Part No.
Description
Q’ty Per
Assembly
A265/A267 21 Parts Location and List
8. LASER UNIT (A265/A267)
A265/A267 22 Parts Location and List
8. LASER UNIT (A265/A267)
Index
No.
1 A267 1900 Laser Exposure Unit Ass’y 1
2 A267 1917 Cover - Polygon Motor 1
3 A232 1922 Rear Holder - F Theta Mirror 1
4 G029 1980 Decal - LD 1
5 A267 1938 Cover - Laser Unit 1
6 A267 1942 Mirror Holder 2
7 AC01 0005 Mirror 1
8 A267 1941 Rear Holder - BTL 1
9 G020 1969 BTL Lens 1
10 A267 1940 Front Holder - BTL 1
11 AC03 0077 Shield Glass 1
12 A267 5224 Harness - Polygon Mirror Motor 1
13 AX06 0181 Polygon Mirror Motor 1
14 A232 1916 Collar - Polygon Motor 1
15 A232 5310 Laser Sync. Detector 1
16 A267 5222 Harness - Sync. Detector 1
17 A267 1944 Plate - Sync. Detector Board 1
18 A267 1915 LD Unit 1
19 G020 1966 Cylindrical Lens 1
20 A232 1927 Cylindrical Lens Holder 1
21 G029 1975 Cylindrical Lens 1
22 G020 1937 Shield Glass - Polygon Mirror Motor 1
23 A232 1921 Front Holder - F Theta Mirror 1
24 A267 1933 Mirror Holder - Sync. Detector 1
25 G020 1911 Sync Detector Mirror 1
26 G020 1968 F Theta Mirror 1
27 A232 1971 Support Cover - Imaging Unit 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0452 3010B Tapping Bind Screw - M3x10
102 1105 0487 Harness Clamp
103 0452 3008B Tapping Screw - M3x8
104 0451 3008B Tapping Screw - M3x8
Part No.
Description
Q’ty Per
Assembly
A265/A267 23 Parts Location and List
9. TRANSFER UNIT (A265/A267)
Rev. 03/28/2000
A265/A267 24 Parts Location and List
9. TRANSFER UNIT (A265/A267)
Rev. 03/28/2000
Index
No.
1 A267 3857 Right Cover 1
2 A267 3901 ID Sensor 1
3 A267 3931 Shutter Lever 1
4 AA06 3599 Pressure Spring 1
5 AA06 3335 Pressure Spring 2
6 A267 2685 Bushing - Driven Roller 2
7 A267 2744 Guide Mylar 1
8 AF02 1064 Registration Driven Roller 1
9 A267 3921 Grounding Terminal 1
10 A267 2711 Right Guide Plate - Regist Roller 1
11 A232 3962 Spring Plate - Band Stopper 1
12 5214 4975 Decal - High Voltage 1
13 A267 3830 Transfer/Separation Unit 1
14 A267 3941 Band - Vertical Transport Cover 1
15 AA06 3598 Pressure Spring 1
16 A267 3871 Lever - Transfer/Separation Unit 1
17 AA08 0255 Bushing - Transfer Roller 2
18 AA06 3607 Pressure Spring 1
19 A267 3861 Terminal - Transfer Roller 1
20 A267 3862 Terminal - Separation 1
21 A267 3905 Cover - ID Sensor 1
22 AA15 0708 Front Discharge Sheet 1
23 AA15 0709 Rear Discharge Sheet 1
24 A267 2712 Cleaner - Regist Driven Roller 1
25 A267 3855 Cover - Transfer Unit 1
26
27 A267 3858 Decal - Right Cover 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 3008B Tapping Screw - M3x8
102 0451 3006B Tapping Screw - M3x6
Part No.
Description
Q’ty Per
Assembly
A265/A267 25 Parts Location and List
10. PAPER FEED SECTION 1 (A265/A267 )
A265/A267 26 Parts Location and List
10. PAPER FEED SECTION 1 (A265/A267 )
Index
No.
1 A267 7350 Heater Ass’y (120V) 1
1 A267 7363 Heater Ass’y (230V) 1
2 AH01 0009 Rubber Pad - H5 4
3 A267 2588 Shoe - Right Rail 2
4 A267 2589 Shoe - Supporter 2
5 A267 2564 Front Grip Plate 2
6 A267 2567 Rear Grip Plate 2
7 A267 2576 Left Bracket - Grip Plate 1
8 AA00 0401 Decal - High Temperature 1
9 A267 2573 Right Bracket - Grip Plate 1
10 A267 2736 Vertical Transport Guide 1
11 A267 2733 Upper Guide - Vertical Transport 1
12 A267 2732 Lower Guide - Vertical Transport 1
13 G020 5626 Push Switch 1
14 A267 2740 Stopper Band 1
15 5206 2686 Snap Ring 1
16 AF02 2118 Pull Out Roller - Option Tray 1
17 AA08 0249 Bushing - Vertical Transport 2
18 AA06 3334 Spring - Vertical Transport 2
19 A267 2724 Lower Paper Guide Plate 1
20 A267 2728 Cover - Vertical Transport 1
21 AG07 0014 Magnet Catch 2
22 A267 2680 Spring Plate - Roller Clutch 1
23 A267 2677 Roller Clutch Bracket 1
24 A267 2737 Decal - Right Cover 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0720 0030E Retaining Ring - M3
Part No.
Description
Q’ty Per
Assembly
A265/A267 27 Parts Location and List
11. PAPER FEED SECTION 2 (A265/A267 )
A265/A267 28 Parts Location and List
11. PAPER FEED SECTION 2 (A265/A267 )
Index
No.
1 A267 2873 Bracket - Paper Size Sensor 1
2 G020 2620 Push Switch - Paper Size 1
3 A267 2792 Lock Lever - Feed Roller 1
4 A267 2787 Tension Spring - Lock Lever 1
5 A267 2785 Lock Lever Shaft - Feed Roller 1
6 A267 2805 Bracket - Paper End Sensor 1
7 AW02 0075 Photointerruptor 1
8 A267 5215 Relay Harness - Paper End Sensor 1
9 A267 2803 Feeler - Paper End Sensor 1
10 A267 2751 Paper Feed Roller
11 A267 2847 Bushing - Motor Shaft 2
12 A267 2788 Torsion Spring - Lock Lever 1
13 A267 2666 Bushing - Roller Guide 1
14 A267 2800 Upper Guide Plate - Paper Feed Roller 1
15 A267 2754 Shaft - Paper Feed Roller 1
16 A267 2663 Bracket - Photointerruptor 1
17 AW02 0111 Photointerruptor 1
18 H521 3355 C Ring - Paper Feed Roller 2
19 A267 2577 Roller Guide Bracket 2 2
20 A267 2681 Roller Clutch - Vertical Transport 1
21 A267 2665 Upper Roller Guide 1
22 A267 2587 Guide Plate 1
23 A267 2828 Guide Plate - Pressure Release 1
24 AF02 0500 Driven Roller 1
25 AA08 0252 Bushing - M4 1
26 A267 2813 Cushion - Guide Plate 2
27 AA16 1143 Cushion - Link 2
28 H521 3356 Bushing - Paper Feed Roller 2
Part No.
Description
Q’ty Per
Assembly
1
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0805 3480 Bushing - 6mm
103 0720 0040E Retaining Ring - M4
104 1105 0329 Clamp - ES-0510
105 1105 0511 Harness Clamp - LWS-0306ZC
106 0951 3004B Philips Screw With Flat Washer - M3X4
107 1105 0501 Harness Clamp - RLMC-05TV0
Part No.
Description
Q’ty Per
Assembly
A265/A267 29 Parts Location and List
12. PAPER FEED SECTION 3 (A265/A267 )
A265/A267 30 Parts Location and List
12. PAPER FEED SECTION 3 (A265/A267 )
Index
No.
1 AW02 0111 Photointerruptor 1
2 A267 2660 Bracket - Photointerruptor 1
3 AF02 0472 Transport Roller 1
4 AA08 0252 Bushing - M4 1
5 A267 2842 Guide Plate - Pressure Release 1
6 A267 2882 Sensor Bracket - Special Paper 1
7 AW50 0022 Push Switch 1
8 G020 2620 Push Switch - Paper Size 1
9 A267 2792 Lock Lever - Feed Roller 1
10 A267 2787 Tension Spring - Lock Lever 1
11 A267 2785 Lock Lever Shaft - Feed Roller 1
12 A267 2805 Bracket - Paper End Sensor 1
13 AW02 0075 Photointerruptor 1
14 A267 5215 Relay Harness - Paper End Sensor 1
15 A267 2788 Torsion Spring - Lock Lever 1
16 A267 2803 Feeler - Paper End Sensor 1
17 A267 2751 Paper Feed Roller 1
18 A267 2847 Bushing - Motor Shaft 2
19 A267 2814 Cushion - Guide Plate 2 1
20 A267 2754 Shaft - Paper Feed Roller 1
21 A267 2808 Lower Guide Plate - Paper Feed Roller 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0805 3480 Bushing - 6mm
103 0720 0040E Retaining Ring - M4
104 1105 0329 Clamp - ES-0510
105 1105 0511 Harness Clamp - LWS-0306ZC
106 1105 0501 Harness Clamp - RLMC-05TV0
Part No.
Description
Q’ty Per
Assembly
A265/A267 31 Parts Location and List
13. TONER HOPPER UNIT (A265/A267)
A265/A267 32 Parts Location and List
13. TONER HOPPER UNIT (A265/A267)
Index
No.
1 A267 3500 Toner Supply Unit Ass’y (RIC 120V) 1
1 A267 7470 Toner Supply Unit (OEM) 1
1 G038 3500 Toner Supply Unit (RIC 230V) 1
2 A267 3605 Cam - Handle 1
3 A184 3421 Chuck Shaft 1
4 A184 3422 Toner Slider 1
5 A267 3550 Case - Toner Supply Ass’y 1
6 A184 3411 Chuck Spring 1
7 G020 3334 Slider Ass‘y 1
8 A184 3420 Bottle Chuck 1
9 A267 3560 Cover - Toner Supply Unit (RIC 120V) 1
9 A267 7480 Cover - Toner Supply Unit 1
9 G038 3560 Cover - Toner Supply Unit (RIC 230V) 1
10 AX05 0140 Toner Bottle Motor - DC 2.6W 1
11 A267 7440 Bracket - Toner Supply Motor 1
12 A267 1054 Guide Plate - Toner Supply Unit 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0452 3008B Tapping Screw - M3x8
102 0451 3006B Tapping Screw - M3x6
Part No.
Description
Q’ty Per
Assembly
A265/A267 33 Parts Location and List
14. PAPER REGISTRATION (A265/A267)
A265/A267 34 Parts Location and List
14. PAPER REGISTRATION (A265/A267)
Index
No.
1 A267 2722 Sub Guide Plate - Upper Entrance 1
2 A267 2695 Grounding Plate - Regist Roller 1
3 A267 2721 Upper Entrance Guide Plate 1
4 A267 2691 Left Guide Plate - Regist Roller 1
5 5215 2621 Snap Ring - M6 1
6 G024 3344 Snap Ring - M4 2
7 A267 5237 Relay Harness - Registration Sensor 1
8 AW01 0057 Registration Sensor 1
9 A267 2698 Bracket - Registration Sensor 1
10 A267 2665 Upper Roller Guide 1
11 A267 2700 Registration Roller Cleaner 1
12 A267 3452 Quenching Lamp 1
13 A267 2674 Bushing - Registration Roller 2
14 AF02 0473 Registration Roller 1
15 A267 1096 Heater Bracket 1
16 A267 1051 PCU Guide Plate 1
17 A267 1059 PCU Seal 1
18 H521 3356 Bushing - Paper Feed Roller 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 1105 0460 Clamp
102 0451 3006B Tapping Screw - M3x6
103 0452 3008B Tapping Screw - M3x8
104 1105 0283 Clamp
Part No.
Description
Q’ty Per
Assembly
A265/A267 35 Parts Location and List
15. PAPER TRAY 1 (A265/A267)
A265/A267 36 Parts Location and List
15. PAPER TRAY 1 (A265/A267)
Index
No.
1 A267 2899 Sponge - Paper Feed Tray 2
2 A267 2850 Paper Tray 1
3 A267 2851 Front Side Fence 1
4 A267 2858 Front Stopper Lever 1
5 G697 2677 Spring Plate - Side Fence 1
6 A267 2874 Base Slider 1
7 A267 2853 End Fence 1
8 A267 2866 Upper Slider 1
9 A267 2861 Bottom Plate 1
10 A267 2917 Base Pad 1
11 A267 2869 Gear - 16Z 1
12 A232 2987 Roller - Paper Tray 2
13 A267 2878 Spring Plate - Grounding 1
14 A267 2860 Rear Lever Stopper 1
15 A267 2859 Side Fence Stopper 1
16 A267 2857 Spring Plate - Side Fence 1
17 A267 2852 Rear Side Fence 1
18 A267 2856 Bracket - Rising 1
19 A267 2865 Shaft - Roller 1
20 A267 2864 Roller Bracket 1
21 A267 2854 Shaft - Tray Raising 1
22 A267 2831 Friction Pad 1
23 A267 2834 Pressure Spring - Friction Pad 1
24 A267 2868 Spring Plate 1
25 A267 7343 Paper Size Detector - 1 1
26 A267 2892 Decal - Paper Set Direction 1
27 A267 2897 Shield - Side Fence 2
28 A267 2898 Sheet - Paper Tray Holder 1
29 A267 2884 Front Side Fence 1
30 A267 2885 Rear Side Fence 1
31 A267 2875 Spring Plate - Slider 1
32 A267 2900 Seal - End Fence 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 4008B Tapping Screw - 4x8
102 0451 4006B Tapping Screw - 4x6
103 0720 0030E Retaining Ring - M3
104 0720 0060E Retaining Ring - M6
105 0805 0083 Retaining Ring - M4
Part No.
Description
Q’ty Per
Assembly
A265/A267 37 Parts Location and List
16. PAPER TRAY 2 (A265/A267)
A265/A267 38 Parts Location and List
16. PAPER TRAY 2 (A265/A267)
Index
No.
1 A267 7352 Decal - Rear Fence 1
2 A267 2850 Paper Tray 1
3 A267 2851 Front Side Fence 1
4 A267 2858 Front Stopper Lever 1
5 G697 2677 Spring Plate - Side Fence 1
6 A267 2874 Base Slider 1
7 A267 2853 End Fence 1
8 A267 2866 Upper Slider 1
9 A267 2861 Bottom Plate 1
10 A267 2917 Base Pad 1
11 A267 2869 Gear - 16Z 2
12 A232 2987 Roller - Paper Tray 1
13 A267 2878 Spring Plate - Grounding 1
14 A267 2860 Rear Lever Stopper 1
15 A267 2859 Side Fence Stopper 1
16 A267 2857 Spring Plate - Side Fence 1
17 A267 2852 Rear Side Fence 1
18 A267 2856 Bracket - Rising 1
19 A267 2865 Shaft - Roller 1
20 A267 2864 Roller Bracket 1
21 A267 2854 Shaft - Tray Raising 1
22 A267 2831 Friction Pad 1
23 A267 2834 Pressure Spring - Friction Pad 1
24 A267 2868 Spring Plate 1
25 A267 7344 Paper Size Detector - 2 1
26 A267 2892 Decal - Paper Set Direction 1
27 A267 2897 Shield - Side Fence 2
28 A267 2898 Sheet - Paper Tray Holder 1
29 A267 2881 Dial - Special Paper 1
30 A267 7351 Decal - Special Paper 1
31 A267 2884 Front Side Fence 1
32 A267 2885 Rear Side Fence 1
33 A267 2875 Spring Plate - Slider 1
34 A267 2900 Seal - End Fence 1
35 A267 2899 Sponge - Paper Feed Tray 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 4008B Tapping Screw - 4x8
102 0451 4006B Tapping Screw - 4x6
103 0720 0030E Retaining Ring - M3
104 0720 0060E Retaining Ring - M6
105 0805 0083 Retaining Ring - M4
106 1105 0415 Spacer - 12.7mm
Part No.
Description
Q’ty Per
Assembly
A265/A267 39 Parts Location and List
17. FUSING UNIT 1 (A265/A267)
A265/A267 40 Parts Location and List
17. FUSING UNIT 1 (A265/A267)
Index
No.
* A267 7280 Fusing Unit Ass’y 120V 1
* A267 7530 Fusing Unit Ass’y 230V 1
1 A267 4151 Upper Frame - Fusing Unit 1
2 AA14 3219 Stepped Screw 1
3 A267 4114 Tension Spring - Pressure Roller 1
4 A267 4103 Spring - Fusing Stripper 5
5 AE04 4025 Hot Roller Stripper 5
6 A267 4101 Bracket - Fusing Stripper 1
7 A267 7274 Fusing Connector - 120V 1
7 A267 7524 Fusing Connector - 230V 1
8 AX44 0118 Fusing Lamp - 120V 770W 1
8 AX44 0119 Fusing Lamp - 230V 770W 1
9 AA00 0301 Decal - Warning (High Temperature) 1
10 A267 4092 Terminal Plate - Fusing Lamp 1
11 A267 4056 C Ring - Hot Roller 2
12 AB01 1400 Gear - 48Z 1
13 AE03 0029 Ball Bearing - 30x42x7 2
14 AE01 1048 Hot Roller 1
15 AE03 0030 Ball Bearing - 8x19x6 2
16 AE02 0086 Pressure Roller 1
17 A267 4066 Spring - Hot Roller 1
18 A267 4161 Knob Screw 1
19 A267 4075 Shielding Plate - Harness 1
20 AA00 0300 Decal - High Temperature 1
21 G038 4141 Bracket - Fusing Connector 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0954 3006B Screw - M3X6
103 0450 3010B Tapping Screw - M3x10
104 0720 0060E Retaining Ring - M6
105 0720 0030E Retaining Ring - M3
106 0451 3008B Tapping Screw - M3x8
Part No.
Description
Q’ty Per
Assembly
A265/A267 41 Parts Location and List
18. FUSING UNIT 2 (A265/A267)
A265/A267 42 Parts Location and List
18. FUSING UNIT 2 (A265/A267)
Index
No.
1 A267 4112 Grip - Fusing Pressure 1
2 A267 4113 Front Lever - Pressure Roller 1
3 A267 4121 Front Side Plate - Fusing Unit 1
4 A267 4111 Shaft - Fusing Pressure 1
5 A267 4115 Rear Lever - Pressure Roller 1
6 A267 4125 Rear Side Plate - Fusing Unit 1
7 A267 4083 Sub Pressure Lever 1
8 A267 4081 Tension Spring - Pressure Lever 1
9 A267 4082 Pressure Lever 1
10 AA08 2073 Roller Bushing 2
11 AA06 3570 Tension Spring 2
12 AE04 2029 Fusing Cleaning Roller 1
13 A267 4133 Thermofuse 1
14 A267 4091 Terminal Plate - Thermofuse 1
15 A232 2374 Spur 2
16 A267 4076 Spacer - Safety Switch 1
17 A267 4085 Fusing Entrance Guide 1
18 AW10 0050 Thermistor 1
19 G029 4153 Decal - High Temperature 1
20 A267 4072 Lower Frame - Fusing Unit 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0954 3006B Screw - M3X6
102 0450 3008B Tapping Screw - M3x8
103 0451 3006B Tapping Screw - M3x6
104 0450 3010B Tapping Screw - M3x10
105 0954 3010B Philips Screw - M3x10
Part No.
Description
Q’ty Per
Assembly
A265/A267 43 Parts Location and List
19. PAPER EXIT (A265/A267)
A265/A267 44 Parts Location and List
19. PAPER EXIT (A265/A267)
Index
No.
1 A267 1349 Stopper - Right Upper Cover 1
2 AG07 0014 Magnet Catch 2
3 A267 1346 Right Upper Cover 1
4 A267 4452 Stay - Paper Exit 1
5 AF02 2112 Driven Roller 4
6 AB01 1404 Gear - 19Z 1
7 G020 5626 Push Switch 1
8 A267 5207 Relay Harness - Paper Exit Section 1
9 AA12 0094 Antistatic Brush 1
10 A267 4476 Feeler - Paper Feed Sensor 1
11 AF02 0475 Exit Roller 1
12 A267 4478 Feeler - Paper Overflow 1
13 A267 4479 Shaft - Paper Overflow 1
14 A267 4474 Spring Plate - Tension Roller 1
15 AF04 0566 Tension Roller 2
16 A267 4486 Stopper 2
17 A267 4483 Spring Plate - Tension Roller 2
18 AF04 0567 Tension Roller 2
19 A267 4487 Outer Stopper 2
20 AW02 0086 Photointerruptor 2
21 A267 3958 Roller - Lever 2
22 A267 4454 Guide Plate - Paper Exit 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0802 5276 Tapping Screw With Washer - M3x6
102 0805 3480 Bushing - 6mm
103 0720 0040E Retaining Ring - M4
104 1105 0460 Clamp
105 1105 0283 Clamp
Part No.
Description
Q’ty Per
Assembly
A265/A267 45 Parts Location and List
20. DRIVE SECTION 1 (A265/A267)
A265/A267 46 Parts Location and List
20. DRIVE SECTION 1 (A265/A267)
Index
No.
1 A267 2593 Left Cover Pin 2
2 A267 5831 Bracket - Power Supply Cord 1
3 G697 1082 Tray Holder 2
4 A267 2908 Bracket - Paper Tray Holder 2
5 A267 2837 Upper Bracket - Paper Lift Motor 1
6 AW02 0075 Photointerruptor 4
7 A267 2839 Harness Cover - Paper Feed 1
8 A267 2781 Bracket - Pressure Lever 2
9 A267 2794 Sub Pressure Lever 2
10 A267 2849 Shutter - Photointerruptor 2
11 A267 2776 Lever - DC Motor 4
12 A267 2847 Bushing - Motor Shaft 2
13 A267 2848 Holder - Pressure Spring 2
14 A267 2846 Holder - Spring 2
15 A267 2844 Compression Spring - Return 2
16 A267 2845 Bushing - DC Motor Shaft 2
17 A267 2838 Lower Bracket - Paper Lift Motor 2
18 A267 2840 Shaft - DC Motor 2
19 AX04 0119 DC Motor - 1.92W 2
20 AA13 2208 Spacer - M6 6
21 A267 2771 Tension Spring - Main 2
22 A267 2773 Bracket - Rising 2 2
23 A267 2767 Torsion Spring - Joint 2
24 AA08 2070 Bushing - 8x16x7 2
25 A267 2777 Actuator - Paper height Sensor 2
26 A267 2592 Right Cover Pin 1
27 A267 2815 Bracket - Upper Paper Lift 2
28 A267 2770 Vibrating Plate 2
29 A267 2765 Stopper - Pressure Lever 2
30 A267 2595 Spring Guard - Paper Feed 2
31 A267 2766 Tension Spring - Stopper 2
32 A267 2772 Tension Spring - Sub 2
33 A267 2780 Tray Lift Assembly 2
34 A267 2916 Bracket - Heater Harness 1
35 A267 2836 Pin - M6 6
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0802 5276 Tapping Screw With Washer - M3x6
103 1105 0460 Clamp
104 0451 4008B Philips Tapping Screw - M4x8
105 1105 0329 Clamp - ES-0510
106 0801 0150 Philips Screw - M4x8
107 0451 3030B Tapping Screw - 3x30
108 1105 0283 Clamp
109 1105 0488 Harness Clamp
110 0720 0060E Retaining Ring - M6
111 0720 0040E Retaining Ring - M4
Part No.
Description
Q’ty Per
Assembly
A265/A267 47 Parts Location and List
21. DRIVE SECTION 2 (A265/A267)
A265/A267 48 Parts Location and List
21. DRIVE SECTION 2 (A265/A267)
Index
No.
1 A267 5824 Bracket - Harness 1
2 A267 1183 Bracket - Paper Feed Drive 1
3 A267 5826 Connector Bracket - Bypass Feed 1
4 A267 5244 Harness - Bypass/Duplex (120V) 1
4 A267 7634 Harness - By-pass/Duplex (230V) 1
5 AB01 4050 Gear - 44Z 1
6 AA04 3516 Timing Belt - S3M - 342 1
7 AB01 7504 Gear - 24Z 1
8 AB03 3091 Timing Pulley - 31T/36T 1
9 A267 1115 Tension Bracket 1
10 AA06 0792 Tension Spring 1
11 G020 5829 Shoulder Screw - M3x2.5 2
12 A267 5156 PCU Detector Board 1
13 AX20 0165 Magnetic Clutch 1
14 AA04 3514 Timing Belt - S3M - 420 1
15 AB03 3092 Timing Pulley - 27T/48T 1
16 AB01 7503 Gear - 35Z/28Z 1
17 AA04 3515 Timing Belt - S3M - 225 1
18 A267 1162 Cover - Fusing Drive 1
19 AB01 1204 Gear - 27Z 1
20 A267 1170 Drive Gear - 36Z 1
21 AB01 1203 Gear - 30Z 1
22 A267 1159 Bracket - Fusing Drive 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 1105 0460 Clamp
103 1105 0488 Harness Clamp
104 0451 3008H Tapping Screw - 3x8
105 0802 5276 Tapping Screw With Washer - M3x6
106 0802 5279 Tapping Screw With Washer - M3x8
107 0720 0060E Retaining Ring - M6
108 0720 0040E Retaining Ring - M4
Part No.
Description
Q’ty Per
Assembly
A265/A267 49 Parts Location and List
22. DRIVE SECTION 3 (A265/A267)
A265/A267 50 Parts Location and List
22. DRIVE SECTION 3 (A265/A267)
Index
No.
1 A267 2596 Right Drive Guard 2
2 AX20 0167 Magnetic Clutch 2
3 AX20 0166 Magnetic Clutch 2
4 AB01 1199 Gear - 31Z/54Z 2
5 AB03 0626 Timing Pulley - 20T 2
6 A267 2605 Support Bracket - Transport Clutch 1
7 AA06 0792 Tension Spring 1
8 A267 2604 Stopper - Feed Clutch 1
9 A267 2602 Tensioner 1
10 AB03 0627 Timing Pulley - 18T 1
11 AB01 1200 Gear - 38Z 1
12 A267 2601 Positioning Guide - Bypass Feed 1
13 AA04 3517 Timing Belt - S3M - 315 1
14 A267 5236 Relay Harness - ID Sensor 1
15 G020 5626 Push Switch 2
16 A267 5203 Harness - PCU Detector Board 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0720 0060E Retaining Ring - M6
102 0451 3006B Tapping Screw - M3x6
103 0802 5279 Tapping Screw With Washer - M3x8
104 1105 0460 Clamp
105 1105 0283 Clamp
106 1102 4924 CT Connector - 4p
Part No.
Description
Q’ty Per
Assembly
A265/A267 51 Parts Location and List
23. ELECTRICAL SECTION 1 (A265/A267)
A265/A267 52 Parts Location and List
23. ELECTRICAL SECTION 1 (A265/A267)
Index
No.
1 A267 5823 Bracket - Main Switch (120V) 1
2 A267 5209 Harness - Paper Feed Clutch 1
3 A250 5725 Rocker Switch (230V) 1
4 A267 5223 Relay Harness - Polygon Motor 1
5 A267 5221 Harness - LDD 1
6 A267 5210 Harness - IOB 1
7 A265 5120 I/O Board - C1A (A265) 1
7 A267 5120 I/O Board - C1B (A267) 1
8 A267 5230 Harness - Paper Feed Motor 1
9 A267 5233 Harness - Upper Paper Feed 1
10 A267 5234 Harness - Lower Paper Feed 1
11 A267 5231 Harness - Paper Size Detector 1
12 A267 5204 Harness - Front Cover Switch (120V) 1
12 A267 7633 Harness - Front Cover Switch (230V/TWN) 1
13 A267 5202 Harness - Main Motor 1
14 A267 5201 Harness - Registration Sensor 1
15 A267 5205 Harness - Quenching Lamp 1
16 A267 5217 Harness - PP 1
17 A267 5206 Harness - Paper Exit Section 1
18 A267 5200 Harness - Scanner Motor 1
18 A267 7637 Harness - Scanner Motor (Lanier) 1
19 A267 5838 Bracket - IOB 1
20 A267 5822 Main Switch Ass’y (120V) 1
20 A267 7571 Main Switch Ass’y (230V) 1
21 A267 7611 Power Supply Cord - 120V 1
21 A267 7631 Power Supply Cord - 230V 1
21 A267 7691 Power Supply Cord 1
22 A267 9001 NVRAM - Minus Counter 1
23 A267 5721 Power Supply Unit - 100-120V 1
23 A267 7630 Power Supply Unit - 230V 1
23 A267 7690 Power Supply Unit - 230V 1
24 A267 7635 Harness - Anticondensation Heater 1
25 A267 7612 Harness - Fusing (120V) 1
25 A267 7632 Harness - Fusing (230V) 1
26 A267 5212 Harness - Power Supply Unit 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
27 A265 7601 BICU Board - C1A (A265 120V) 1
27 A265 7621 BICU Board - C1A (A265 230V) 1
27 A265 7641 BICU Board - C1A (A265 ASIA) 1
27 A265 7681 BICU Board - C1A (A265 CHN) 1
27 A267 7601 BICU Board - C1B (A267 120V) 1
27 A267 7621 BICU Board - C1B (A267 230V) 1
27 A267 7641 BICU Board - C1B (A267 ASIA) 1
27 A267 7681 BICU Board - C1B (A267 CHN) 1
28 A279 5350 Harness - Mother Board 1
101 0451 3006B Tapping Screw - M3x6
102 1204 2477 Rocker Switch - AC250V 10A (120V)
103 1105 0292 Wire Saddle
104 1105 0334 Edge - 17
105 0804 6075 Hexagonal Bolt - M3x8
106 0801 0149 Philips Pan Head Screw - M4x6
107 1105 0488 Harness Clamp
108 1105 0460 Clamp
109 1107 0629 Fuse (Ceramic Case) - 15A - 125V
110 1107 0919 Fuse - 8A 125V
111 1107 0793 Fuse - S505 3.15A (230V)
111 1107 0919 Fuse - 8A 125V
111 1107 0748 Fuse - 2A 250V
112 1107 0906 Fuse - 4A 125V
112 1107 0751 Fuse - 4A 250V
Part No.
Description
Q’ty Per
Assembly
A265/A267 53 Parts Location and List
24. ELECTRICAL SECTION 2 (A265/A267)
A265/A267 54 Parts Location and List
24. ELECTRICAL SECTION 2 (A265/A267)
Index
No.
1 AX06 0199 Main Motor - DC 28W 1
2 A267 1184 Fly Wheel 2
3 A267 5218 Harness - High Voltage Line 1
4 A267 5840 Lower Stand - IOB 1
5 A267 5839 Upper Stand - IOB 1
6 G020 5871 Spacer - KGLS-12RF 2
7 A267 3461 Receptacle - Change Roller 1
8 A267 5832 High Voltage Supply Board 1
9 A267 3950 Receptacle - Transfer/Separation Unit 1
10 A267 5242 Harness - ADF 1
11 A267 5235 Harness - Bridge Unit 1
12 A267 7612 AC Harness - Fusing Unit (120V) 1
12 A267 7632 AC Harness - Fusing Unit (230V) 1
13 AA14 3301 Stepped Screw - M3x4 2
14 G038 1076 Rear Guide Plate - Fusing Unit 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0802 5276 Tapping Screw With Washer - M3x6
102 0951 3008B Philips Screw With Flat Washer - M3x8
103 0451 3006B Tapping Screw - M3x6
104 1105 0499 Spacer - KGPS-12RF
105 0451 3008H Tapping Screw - 3x8
106 1105 0460 Clamp
107 1105 0488 Harness Clamp
108 1105 0290 Harness Clamp - Horizontal
109 1105 0283 Clamp
110 1105 0352 Clamp
111 1105 0334 Edge - 17
112 1105 0490 Harness Clamp - IWS-2218
113 1105 0292 Wire Saddle
114 1105 0487 Harness Clamp
Part No.
Description
Q’ty Per
Assembly
A265/A267 55 Parts Location and List
25. FRAME SECTION (A265/A267)
A265/A267 56 Parts Location and List
25. FRAME SECTION (A265/A267)
Index
No.
1 A267 1088 Hinge - Front Cover 2
2 A267 1930 Positioning Bracket - Laser Unit 1
3 AX31 0038 Mechanical Counter 1
4 A267 5815 Lever - Door Switch 1
5 A267 5820 Compression Spring 1
6 A267 5812 Bracket - Door Switch 1
7 A267 5813 Bracket - Micro Switch 1
8 A267 5821 Tension Spring - Door Switch 1
9 A267 1106 Guide Plate - Exhaust Duct 1
10 A267 1085 Support Bracket - Rear Left 1
11 A267 1105 Exhaust Fan Motor - DC 2.88W 1
12 A267 1090 Grounding Plate - Lower Right 1
13 A267 1102 Duct - Fan Motor 1
14 A267 1089 Grounding Plate - Upper Rear 1
15 A267 5808 Safety Switch Ass’y (120V) 1
15 A267 7578 Safety Switch Ass’y (230V) 1
16 A267 5204 Harness - Front Cover Switch (120V) 1
16 A267 7633 Harness - Front Cover Switch (230V/TWN) 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0313 0350B Philips Pan Head Screw - M3x35
103 0314 0300B Philips Pan Head Screw - M4x30
104 0802 5276 Tapping Screw With Washer - M3x6
105 1105 0296 Spacer - KGLS-16RT
106 1204 2510 Micro Switch
107 1105 0487 Harness Clamp
108 1105 0329 Clamp - ES-0510
Part No.
Description
Q’ty Per
Assembly
A265/A267 57 Parts Location and List
26. I/O BOARD (A265/A267)
A265/A267 58 Parts Location and List
26. I/O BOARD (A265/A267)
A265/A267 59 Parts Location and List
26. I/O BOARD (A265/A267)
A265/A267 60 Parts Location and List
A265/A267 60 Parts Location and List
A
26. I/O BOARD (A265/A267)
Index
No.
* A265 5120 I/O Board - C1A (A265) 1
* A267 5120 I/O Board - C1B (A267) 1
1 A232 5355 IC - GATEX 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 1102 3822 Connector - 20P
102 1102 4201 Connector - 2P
103 1102 4203 CT Header - 4P
104 1102 4205 CT Header- 6p
105 1102 4207 Connector - 8P
106 1102 4208 Connector - 9P
107 1102 4209 CT Header - 10P
108 1102 4210 Connector - 11P
109 1102 4211 CT Header - 12P
110 1102 4497 Connector - 13P
111 1102 4619 Connector - 2P
112 1102 4621 CT Header - 4P
113 1102 4622 CT Connector - 5p
114 1102 4623 CT Connector - 6p
115 1102 4625 CT Connector 8p
116 1102 4628 Connector - 11P
117 1102 4647 Connector - 6P
118 1102 4821 Connector - 26P
119 1102 5007 CT Header - 14P
120 1102 5305 Connector - 6P
121 1102 6297 Connector - 4P
122 1102 6299 Connector - 6P
123 1102 6304 Connector - 11P
124 1102 6305 Connector - 12P
125 1102 6319 Connector - 12P
126 1102 6396 Connector - 1P
127 1102 6662 Connector - 4P
128 1102 6893 Connector - 30P
129 1102 8063 Connector
130 1109 0015 Circuit Protector - SMD050
131 1400 0448 Transistor - 2SC2712-GR
132 1400 0700 Transistor - DTD133HK
133 1400 0728 Transistor - 2SD2170
134 1401 0303 IC - TD62308AP
135 1402 1336 Diode - 1SS355
Part No.
Description
Q’ty Per
Assembly
A265/A267 61 Parts Location and List
Index
No.
136 1402 1342 Diode - 1SR154-400
137 1402 1380 Diode - PTZ 6.2A
138 1403 0404 LED - SEL2110R
139 1407 2187 TTLIC - SN74LS07NS
140 1407 2219 IC - TD62003AP
141 1407 2261 IC - NJM2902M
142 1407 3357 Comparator - BA10393F
143 1407 3486 CMOS - IC - TC74HC153AF
144 1408 1204 IC - TA8083P
145 1408 1408 IC-STK672-060
146 1503 0865 Oscillator - 9.8304MHZ
147 1600 1871 Resistor - 0 Ω 1/6W
148 1601 5237 Resistor - 220 Ω ±5%
149 1601 7751 Resistor - 4.7KΩ ±5%
150 1601 7752 Resistor Array - 10K Ω ±5%
151 1601 7791 Resistor Array - 1K Ω ±5%
152 1601 7796 Resistor Array - 2.2K O
153 1601 7867 Resistor - 33 Ω ±5% 1/16W
154 1630 1820 Resistor - 82 Ω ±5% 1/4W
155 1630 2221 Resistor - 220
156 1630 3471 Resistor - 470Ω - 1/10W
157 1630 4100 Resistor - 10 Ω ±5% 1/16W
158 1630 4102 Resistor - 1.0KΩ ±5% 1/16W
159 1630 4103 Resistor - 10KW ±5% 1/16W
160 1630 4104 Resistor - 100 Ω ±5% 1/16W
161 1630 4105 Resistor - 1.0MΩ ±5% 1/16W
162 1630 4106 Resistor -10m Ω ±5% 1/16W
163 1630 4220 Resistor - 22 Ω ±5% 1/16W
164 1630 4222 Resistor - 2.2K Ω ±5%
165 1630 4243 Resistor - 24K Ω ±5% 1/16W
166 1630 4330 Resistor - 33 Ω ±5% 1/8W
167 1630 4332 Resistor - 3.3K Ω ±5% 1/16W
168 1630 4472 Resistor - 4.7KΩ ±5% 1/16W
169 1632 3900 Resistor - 390 OHM ±1% 1/8W
Part No.
Description
Ω
Q’ty Per
Assembly
Index
No.
170 1633 1000 Resistor - 100Ω±1% 1/10W
171 1633 1600 Resistor - 160 Ω ±1% 1/10W
172 1633 4700 Resistor - 470 Ω - ±1% - 1/10W
173 1634 0000 Resistor - 0 Ω 1/16W
174 1634 2871 Resistor - 2.87K Ω ±1% 1/16W
175 1634 5601 Resistor - 5.60K Ω ±1% 1/16W
176 1640 5101 Capacitor - 100µF±20% 50V
177 1642 1101 Capacitor - 100µF±20% 16V
178 1642 1470 Capacitor 47µF±20% 16V
179 1642 5100 Capacitor - 10µF±20% 50V
180 1643 1100 Capacitor - 10µF±20% 16V
181 1660 0100 Capacitor - 10PF ±0.5pF 50V
182 1660 2270 Capacitor - 27pF ±20% 35V
183 1660 2471 Capacitor - 470pF - ±5% - 50V
184 1660 6103 Capacitor - 10000pF - +80%-20% 50V
185 1660 7104 Capacitor - 100000pF 50V
Part No.
Description
Q’ty Per
Assembly
A265/A267 61 Parts Location and List
A

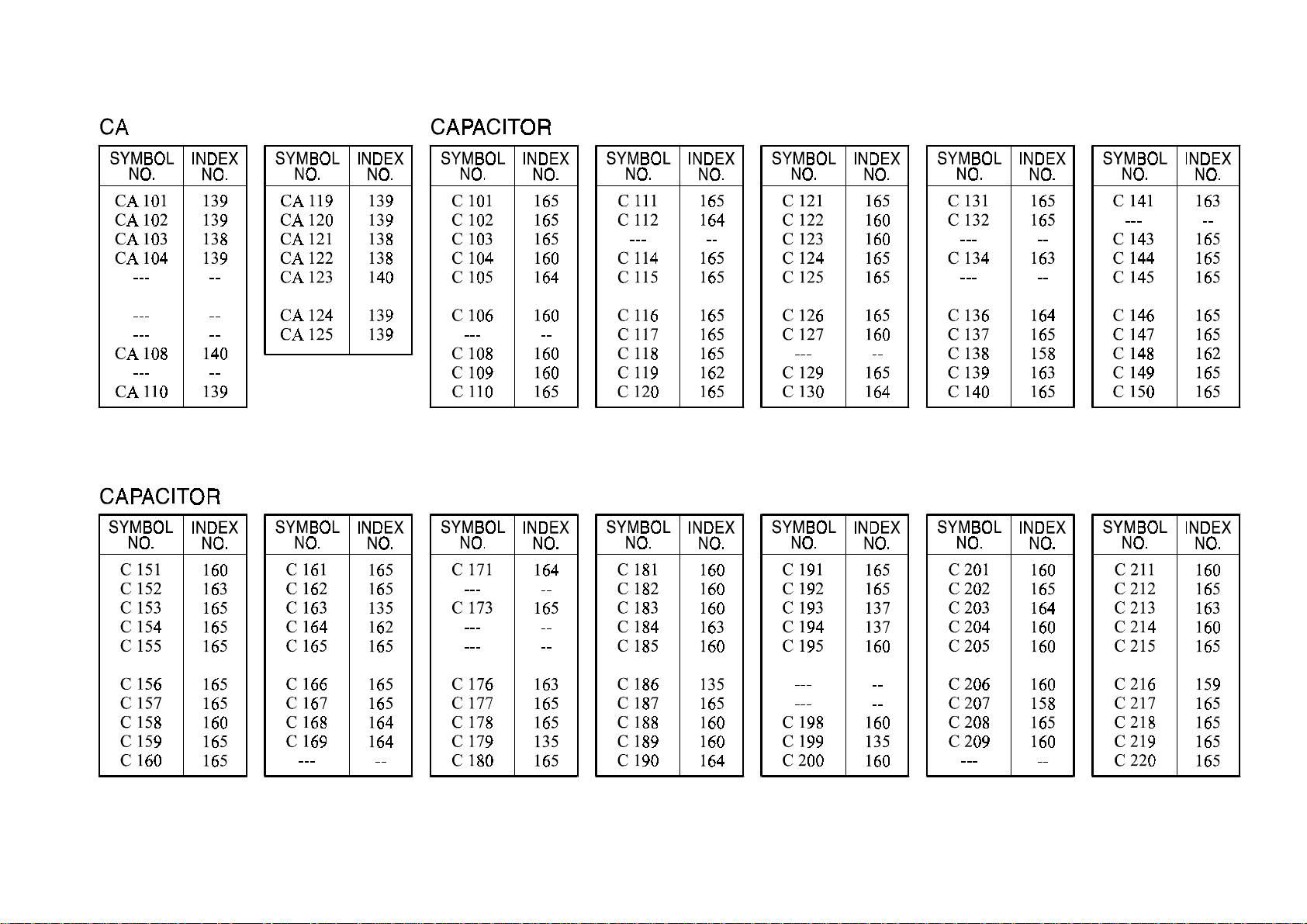

27. BICU BOARD (A265/A267)
A265/A267 62 Parts Location and List
27. BICU BOARD (A265/A267)
A265/A267 63 Parts Location and List
27. BICU BOARD (A265/A267)
A265/A267 64 Parts Location and List
27. BICU BOARD (A265/A267)
A265/A267 65 Parts Location and List
27. BICU BOARD (A265/A267)
A265/A267 66 Parts Location and List
27. BICU BOARD (A265/A267)
Index
No.
* A265 7601 BICU Board - C1A (A265 120V) 1
* A265 7621 BICU Board - C1A (A265 230V) 1
* A265 7641 BICU Board - C1A (A265 ASIA) 1
* A265 7681 BICU Board - C1A (A265 CHN) 1
* A267 7601 BICU Board - C1B (A267 120V) 1
* A267 7621 BICU Board - C1B (A267 230V) 1
* A267 7641 BICU Board - C1B (A267 ASIA) 1
* A267 7681 BICU Board - C1B (A267 CHN) 1
1 A250 5501 IC - G8 HG71C106FL 1
2 A250 5503 IC - V-IPU 1
3 A267 5508 IC - IMAC_R RF5C490 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 1102 5249 Connector - 6P
102 1102 5538 Connector - 10P
103 1102 7496 Connector
104 1102 8027 Connector - FCN-568P068-G/05-V4
105 1102 8060 Connector - 1-353520-3
106 1102 8062 Connector - 53643-0800
107 1102 8063 Connector - 54373-0600
108 1102 8064 Connector - DF11F-32DP-2V
109 1102 8078 Connector - FX2-60S-1.27SVL
110 1102 8079 Connector - 176125-7
111 1104 0759 IC Socket 28P 2-382409-3
112 1400 0702 Transistor - DTD143EK
113 1400 0753 Transistor - DTC114VKA
114 1402 1058 Diode Array - DA114
115 1402 1380 Diode - PTZ 6.2A
116 1402 1487 Diode - RB480K
117 1403 0829 Diode - SEC1201C
118 1407 1600 TTLIC - SN74LS244NS
119 1407 2080 IC - SN74LS21NS
120 1407 2187 TTLIC - SN74LS07NS
121 1407 3008 TTL - SN74ALS244CNS
122 1407 4724 IC - HD6413003TF-16
123 1407 5061 IC - Flash Memory - 16MX8/16 70NS
124 1408 0575 IC - M51957BFP
125 1408 1308 Regulator - PQ3RF33
126 1503 0863 Oscillator - 14.7456MHZ
127 1503 0871 Oscillator - 44MHZ
128 1601 7751 Resistor - 4.7KΩ ±5%
129 1601 7752 Resistor Array - 10K Ω ±5%
130 1601 7791 Resistor Array - 1K Ω ±5%
131 1601 7814 Resistor 3.3k Ω ±5%
132 1601 7833 Resistor Array - 330Ω ±5% 1/16W
133 1601 7867 Resistor - 33Ω ±5% 1/16W
134 1601 7871 Resistor - 68 Ω ±5% 1/16W
135 1604 4683 Capacitor - 100µF± 20% 10V
Part No.
Description
Q’ty Per
Assembly
A265/A267 67 Parts Location and List
Index
No.
136 1605 0577 Capacitor - 0.33µF+80-20%
137 1605 0781 Capacitor - 5pF 50V
138 1606 2103 Capacitor - 0.01µF+80 -20
139 1606 8041 Resistor Array - CKCA43CH1H10
140 1606 8042 Resistor Array - CKCA43CH1H470K
141 1607 0815 BLM41P600SPB
142 1607 1018 Filter - ACB1608H-120
143 1607 1106 IC - LC0805L473M
144 1630 3471 Resistor - 470Ω - 1/10W
145 1630 4102 Resistor - 1.0KΩ ±5% 1/16W
146 1630 4103 Resistor - 10KW ±5% 1/16W
147 1630 4105 Resistor - 1.0MΩ ±5% 1/16W
148 1630 4222 Resistor - 2.2K Ω ±5%
149 1630 4271 Resistor - 270 Ω ±5% 1/16W
150 1630 4330 Resistor - 33 Ω ±5% 1/8W
151 1630 4331 Resistor - 330 Ω ±5% 1/16W
152 1630 4332 Resistor - 3.3K Ω ±5% 1/16W
153 1630 4680 Resistor - 68 Ω ±5% 1/16W
154 1633 0000 Resistor - 0 Ω 1/10W
155 1634 0000 Resistor - 0 Ω 1/16W
156 1634 1002 Resistor - 10 Ω ±5% 1/16W
157 1634 3831 Resistor - 3.83K Ω ±1%
158 1644 2100 Capacitor - 10µF±20% 25V
159 1644 5479 Capacitor - 4.7µF±20% 50V
160 1660 0100 Capacitor - 10PF ±0.5pF 50V
161 1660 2120 Capacitor - 12 pF ±5% 50V
162 1660 2470 Capacitor - 47pF ±5% 50V
163 1660 2471 Capacitor - 470pF - ±5% - 50V
164 1660 6103 Capacitor - 10000pF - +80%-20%, 50V
165 1660 8104 Capacitor - 0.1µF+80-20% 25V
166 1902 0042 SRAM 1M X8 70NS TSOP G2
167 1903 1006 Dram 16m 1mx16 60ns EDO G4
168 1907 0001 IC - DRAM 64M 4MX16 60NS EDO G1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
A265/A267 67 Parts Location and List
A
28. DECAL AND DOCUMENT (A265/A267) 28. DECAL AND DOCUMENT (A265/A267)
A265/A267 68 Parts Location and List
28. DECAL AND DOCUMENT (A265/A267)
Index
No.
1 A267 2892 Decal - Paper Set Direction 1
2 A267 2893 Decal - Paper Tray 1
3 A267 7164 Decal - Behind (NA) 1
3 A267 7184 Decal - Behind 1
4 A267 7167 Decal - Adjust Image (NA) 1
4 A267 7185 Decal - Image Density 1
5 A267 7351 Decal - Special Paper 1
6 AA00 0300 Decal - High Temperature 1
7 AA00 0401 Decal - High Temperature 1
8 AA00 1389 Large Decal - Energy Star 1
9 A267 2737 Decal - Right Cover 1
10 A267 6607 Operating Instructions - Copy-NA 1
10 A267 6608 Operating Instructions - Copy-ASIA 1
11 A267 6707 Operating Instructions - CS-NA 1
11 A267 6708 Operating Instructions - CS-ASIA 1
12 A267 8607 Operating Instructions - System-NA 1
12 A267 8608 Operating Instructions - Sys-ASIA 1
13 A153 6409 Decal - Keytop Cover 1
13 C225 2866 Decal - Keytop Cover 1
13 C225 2867 Decal - Keytop Cover 1
14 A267 7163 Decal Operation (115V) 1
14 A267 7183 Decal Operation (230V) 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
A265/A267 69 Parts Location and List
29. SPECIAL TOOLS (A265/A267)
A265/A267 70 Parts Location and List
29. SPECIAL TOOLS (A265/A267)
Index
No.
1 A230 9003 Adjusting Cam - Laser Unit 1
2 A267 9002 Positioning Pin - Laser Unit 1
3 A230 9352 Flash Memory Card - 4MB 1
4 A230 9351 Case - Flash Memory Card 1
5 A006 9104 Adjusting Scanner Pin (4pcs/set) 1
6 5420 9516 Test Chart - OS - A3 (10pcs/set) 1
7 A029 9387 Digital Multimeter - FLUKE87 1
8 A028 9300 Grease Barrierta JFE 55/2 1
9 5203 9501 Grease 501 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
A265/A267 71 Parts Location and List
A265/A267
PARTS INDEX
This section instructs you as to the number and names of parts on this machine.
PM Parts Index
Section Name
TRANSFER UNIT (A265/A267) A267 3830 Transfer/Separation Unit Transfer/Separation Unit 1 25- 13
PAPER FEED SECTION 2 (A265/A267) A267 2751 Paper Feed Roller Paper Feed Roller 1 29- 10
PAPER TRAY 1 (A265/A267) A267 2831 Friction Pad Friction Pad 1 37- 22
Part No.
AE01 1048 Hot Roller Hot Roller 1 41- 14
AE02 0086 Pressure Roller Pressure Roller 1 41- 16
AE04 4025 Hot Roller Stripper Hot Roller Stripper 5 41- 5
Description in Service Manual
Description in Parts Catalog
Q’ty Per
Assembly
Page and
Index No
A265/A267 2 Parts Index
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
A265 5120 I/O Board - C1A (A265) 53- 7
A265 5120 I/O Board - C1A (A265) 61- *
A265 7051 Front Cover (A265 RIC NA) 9- 1
A265 7071 Front Cover (A265 RIC EU) 9- 1
A265 7111 Front Cover (A265 INF) 9- 1
A265 7601 BICU Board - C1A (A265 120V) 53- 27
A265 7601 BICU Board - C1A (A265 120V) 67- *
A265 7621 BICU Board - C1A (A265 230V) 67- *
A265 7621 BICU Board - C1A (A265 230V) 53- 27
A265 7641 BICU Board - C1A (A265 ASIA) 67- *
A265 7641 BICU Board - C1A (A265 ASIA) 53- 27
A265 7681 BICU Board - C1A (A265 CHN) 53- 27
A265 7681 BICU Board - C1A (A265 CHN) 67- *
AA00 0300 Decal - High Temperature 41- 20
AA00 0300 Decal - High Temperature 69- 6
AA00 0301 Decal - Warning (High Temperature) 41- 9
AA00 0401 Decal - High Temperature 69- 7
AA00 0401 Decal - High Temperature 27- 8
AA00 1389 Large Decal - Energy Star 9- 7
AA00 1389 Large Decal - Energy Star 69- 8
AA04 3514 Timing Belt - S3M - 420 49- 14
AA04 3515 Timing Belt - S3M - 225 49- 17
AA04 3516 Timing Belt - S3M - 342 49- 6
AA04 3517 Timing Belt - S3M - 315 51- 13
AA04 3523 Timing Belt - S2M - 250 21- 20
AA05 0107 Scanner Wire 21- 17
AA06 0792 Tension Spring 51- 7
AA06 0792 Tension Spring 49- 10
AA06 3334 Spring - Vertical Transport 27- 18
AA06 3334 Spring - Vertical Transport 11- 21
AA06 3335 Pressure Spring 25- 5
AA06 3570 Tension Spring 43- 11
AA06 3598 Pressure Spring 25- 15
AA06 3599 Pressure Spring 25- 4
AA06 3607 Pressure Spring 25- 18
AA08 0249 Bushing - Vertical Transport 27- 17
AA08 0249 Bushing - Vertical Transport 11- 20
AA08 0252 Bushing - M4 29- 25
AA08 0252 Bushing - M4 31- 4
AA08 0255 Bushing - Transfer Roller 25- 17
AA08 2070 Bushing - 8x16x7 47- 24
AA08 2073 Roller Busing 43- 10
AA12 0094 Antistatic Brush 45- 9
AA13 2208 Spacer - M6 47- 20
AA14 3219 Stepped Screw 41- 2
AA14 3301 Stepped Screw - M3x4 55- 13
AA15 0708 Front Discharge Sheet 25- 22
AA15 0709 Rear Discharge Sheet 25- 23
A265/A267 3 Parts Index
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
AA16 1143 Cushion - Link 29- 27
AA16 2067 Platen Cover Pad 15- 2
AB01 1199 Gear - 31Z/54Z 51- 4
AB01 1200 Gear - 38Z 51- 11
AB01 1203 Gear - 30Z 49- 21
AB01 1204 Gear - 27Z 49- 19
AB01 1400 Gear - 48Z 41- 12
AB01 1404 Gear - 19Z 45- 6
AB01 4050 Gear - 44Z 49- 5
AB01 7503 Gear - 35Z/28Z 49- 16
AB01 7504 Gear - 24Z 49- 7
AB03 0626 Timing Pulley - 20T 51- 5
AB03 0627 Timing Pulley - 18T 51- 10
AB03 0630 Timing Pulley - 60T 21- 12
AB03 2066 Front Pulley - Wire Drive 21- 18
AB03 2067 Rear Pulley - Wire Drive 21- 21
AB03 3091 Timing Pulley - 31T/36T 49- 8
AB03 3092 Timing Pulley - 27T/48T 49- 15
AC01 0005 Mirror 23- 7
AC03 0077 Shield Glass 23- 11
AC03 0123 3rd Mirror 21- 10
AE01 1048 Hot Roller 41- 14
AE02 0086 Pressure Roller 41- 16
AE03 0029 Ball Bearing - 30x42x7 41- 13
AE03 0030 Ball Bearing - 8x19x6 41- 15
AE04 2029 Fusing Cleaning Roller 43- 12
AE04 4025 Hot Roller Stripper 41- 5
AF02 0472 Transport Roller 31- 3
AF02 0473 Registration Roller 35- 14
AF02 0475 Exit Roller 45- 11
AF02 0500 Driven Roller 29- 24
AF02 1064 Registration Driven Roller 25- 8
AF02 2112 Driven Roller 45- 5
AF02 2118 Pull Out Roller - Option Tray 27- 16
AF04 0566 Tension Roller 45- 15
AF04 0567 Tension Roller 45- 18
AG07 0014 Magnet Catch 27- 21
AG07 0014 Magnet Catch 45- 2
AG07 1011 Magnet Catch 9- 10
AH01 0009 Rubber Pad - H5 27- 2
AW01 0057 Registration Sensor 35- 8
AW02 0075 Photointerruptor 29- 7
AW02 0075 Photointerruptor 47- 6
AW02 0075 Photointerruptor 31- 13
AW02 0086 Photointerruptor 45- 20
AW02 0086 Photointerruptor 17- 4
AW02 0111 Photointerruptor 31- 1
AW02 0111 Photointerruptor 29- 17
AW10 0050 Thermistor 43- 18
AW50 0022 Push Switch 31- 7
AX04 0119 DC Motor - 1.92W 47- 19
AX05 0140 Toner Bottle Motor - DC 2.6W 33- 10
AX06 0181 Polygon Mirror Motor 23- 13
AX06 0199 Main Motor - DC 28W 55- 1
AX20 0165 Magnetic Clutch 49- 13
AX20 0166 Magnetic Clutch 51- 3
AX20 0167 Magnetic Clutch 51- 2
AX31 0038 Mechanical Counter 57- 3
AX44 0118 Fusing Lamp - 120V 770W 41- 8
AX44 0119 Fusing Lamp - 230V 770W 41- 8
AX50 0069 Exposure Lamp 19- 1
C225 2866 Decal - Keytop Cover 69- 13
C225 2866 Decal - Keytop Cover (REX) 11- 26
C225 2867 Decal - Keytop Cover 69- 13
C225 2867 Decal - Keytop Cover (NSA) 11- 26
G020 1332 Hinge - Front Cover 9- 2
G020 1911 Sync Detector Mirror 23- 25
G020 1937 Shield Glass - Polygon Mirror Motor 23- 22
G020 1966 Cylindrical Lens 23- 19
G020 1968 F Theta Mirror 23- 26
A265/A267 4 Parts Index
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
G020 1969 BTL Lens 23- 9
G020 2620 Push Switch - Paper Size 29- 2
G020 2620 Push Switch - Paper Size 31- 8
G020 3334 Slider Ass‘y 33- 7
G020 5626 Push Switch 45- 7
G020 5626 Push Switch 51- 15
G020 5626 Push Switch 27- 13
G020 5829 Shoulder Screw - M3x2.5 49- 11
G020 5871 Spacer - KGLS-12RF 55- 6
G024 3344 Snap Ring - M4 35- 6
G029 1975 Cylindrical Lens 23- 21
G029 1980 Decal - LD 23- 4
G029 4153 Decal - High Temperature 43- 19
G038 1076 Rear Guide Plate - Fusing Unit 55- 14
G038 3500 Toner Supply Unit (RIC 230V) 33- 1
G038 3560 Cover - Toner Supply Unit (RIC 230V) 33- 9
G038 4141 Bracket - Fusing Connector 41- 21
G697 1082 Tray Holder 47- 3
G697 2677 Spring Plate - Side Fence 37- 5
G697 2677 Spring Plate - Side Fence 39- 5
H521 3355 C Ring - Paper Feed Roller 29- 18
H521 3356 Bushing - Paper Feed Roller 29- 28
H521 3356 Bushing - Paper Feed Roller 35- 18
A006 9104 Adjusting Scanner Pin (4pcs/set) 71- 5
A028 9300 Grease Barrierta JFE 55/2 71- 8
A029 9387 Digital Multimeter - FLUKE87 71- 7
A053 1957 Flex Hinge - Platen Cover 15- 3
A134 1383 Emblem (RIC) 9- 3
A153 6409 Decal - Keytop Cover (GES) 11- 26
A153 6409 Decal - Keytop Cover 69- 13
A176 1365 Cap - 38x77 11- 10
A184 3411 Chuck Spring 33- 6
A184 3420 Bottle Chuck 33- 8
A184 3421 Chuck Shaft 33- 3
A184 3422 Toner Slider 33- 4
A193 1246 Platen Cover Hinge Ass’y 15- 7
A193 1345 Rivet - M20 11- 11
A193 1386 Front Platen Cover 15- 4
A193 1391 Rear Platen Cover 15- 6
A193 1396 Original Holder 15- 5
A193 1477 Key Top - Start 13- 12
A193 1479 Key Top - Interrupt 13- 13
A193 1480 Key Top - Program Mode 13- 14
A193 1481 Key Top - Clear 13- 15
A193 1759 Stepped Screw 17- 7
A193 1766 Wire Clamp 19- 4
A193 1767 1st Mirror Holder 19- 7
A193 1769 Clamp - REAR WIRE 19- 6
A193 1783 Tension Spring 21- 3
A193 1784 Tension Spring 21- 23
A193 1816 Slide Rail 21- 7
A193 1829 Ball Bearing - M8 21- 16
A217 7905 Support Cover (INF) 9- 3
A230 9003 Adjusting Cam - Laser Unit 71- 1
A230 9351 Case - Flash Memory Card 71- 4
A230 9352 Flash Memory Card - 4MB 71- 3
A232 1916 Collar - Polygon Motor 23- 14
A232 1921 Front Holder - F Theta Mirror 23- 23
A265/A267 5 Parts Index
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
A232 1922 Rear Holder - F Theta Mirror 23- 3
A232 1927 Cylindrical Lens Holder 23- 20
A232 1971 Support Cover - Imaging Unit 23- 27
A232 2374 Spur 43- 15
A232 2987 Roller - Paper Tray 37- 12
A232 2987 Roller - Paper Tray 39- 12
A232 3962 Spring Plate - Band Stopper 25- 11
A232 5310 Laser Sync. Detector 23- 15
A232 5355 IC - GATEX 61- 1
A250 1374 Rivet - M14 11- 13
A250 1383 Bracket - Platen Cover 15- 10
A250 1384 Feeler Platen Cover 15- 8
A250 1670 Left Scale 17- 6
A250 1701 Rear Scale 17- 8
A250 1752 Exposure Glass 17- 9
A250 1761 Original Sensor - H=2-66 (230V) 19- 9
A250 1761 Original Sensor - H=2-66 (120V) 19- 9
A250 1784 1st Mirror 19- 8
A250 1821 Heater - 9W (120V) 21- 24
A250 1822 Heater - 9W (230V) 21- 24
A250 5501 IC - G8 HG71C106FL 67- 1
A250 5503 IC - V-IPU 67- 2
A250 5725 Rocker Switch (230V) 53- 3
A250 5736 Lamp Stabilizer 19- 13
A267 1051 PCU Guide Plate 35- 16
A267 1054 Guide Plate - Toner Supply Unit 33- 12
A267 1059 PCU Seal 35- 17
A267 1085 Support Bracket - Rear Left 57- 10
A267 1088 Hinge - Front Cover 57- 1
A267 1089 Grounding Plate - Upper Rear 57- 14
A267 1090 Grounding Plate - Lower Right 57- 12
A267 1096 Heater Bracket 35- 15
A267 1102 Duct - Fan Motor 57- 13
A267 1105 Exhaust Fan Motor - DC 2.88W 57- 11
A267 1106 Guide Plate - Exhaust Duct 57- 9
A267 1115 Tension Bracket 49- 9
A267 1159 Bracket - Fusing Drive 49- 22
A267 1162 Cover - Fusing Drive 49- 18
A267 1170 Drive Gear - 36Z 49- 20
A267 1183 Bracket - Paper Feed Drive 49- 2
A267 1184 Fly Wheel 55- 2
A267 1250 Left Scanner Cover 11- 6
A267 1251 Rear Upper Cover 11- 8
A267 1252 Right Scanner Cover 11- 7
A267 1255 Lower Cover - Operation Panel 13- 1
A267 1264 Magnet Catch - Front Cover 9- 5
A267 1268 Jam Removal Sheet 9- 6
A267 1270 Right Cover 11- 17
A267 1280 Left Upper Cover 11- 5
A267 1281 Left Cover 11- 4
A267 1282 Left Rear Cover 11- 3
A267 1285 Left Application Cover 11- 23
A267 1290 Rear Cover 11- 9
A267 1291 Lower Rear Cover 11- 16
A267 1304 Rear Cover - Paper Tray 11- 22
A267 1305 Upper Paper Exit Cover 9- 12
A267 1320 Front Right Upper Cover 9- 14
A267 1321 Inner Cover (120V) 9- 15
A267 1325 Cap - LED 9- 13
A267 1340 Copy Tray 9- 8
A267 1343 Sub Copy Tray 9- 9
A267 1345 Paper Exit Cover 11- 1
A267 1346 Right Upper Cover 45- 3
A267 1348 Paper Support Cover 9- 16
A267 1349 Stopper - Right Upper Cover 45- 1
A267 1370 Cap - Duplex 11- 18
A267 1371 Cap - Duplex Connector 11- 15
A267 1374 Cap - Paper Tray Unit 11- 12
A267 1375 Cap - Heater 11- 14
A267 1378 Cap - Bridge Unit 11- 2
A265/A267 6 Parts Index
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
A267 1388 Small Front Cover 9- 11
A267 1460 Keytop - 10 Key (230V) 13- 16
A267 1461 Keytop - Energy Saver 13- 19
A267 1463 Keytop - Check Mode 13- 20
A267 1464 Keytop - Image Adjust 13- 21
A267 1465 Keytop - Behind 13- 9
A267 1466 Key Top - Operation Switch (120V) 13- 30
A267 1472 Lower Case - Operation Panel 13- 22
A267 1474 Cover - Behind 13- 3
A267 1479 Lens - LED 13- 23
A267 1480 Lens - Data In (120V) 13- 29
A267 1487 Right LCD Cover 13- 4
A267 1488 Cover - Application 13- 5
A267 1489 Operation Panel Board 13- 25
A267 1492 Cover - Operation Switch (120V) 13- 24
A267 1494 Right Pin - Behind 13- 11
A267 1495 Left Pin - Behind 13- 10
A267 1496 Ground Plate - Sub Operation Unit 13- 31
A267 1497 Shield Sheet 13- 32
A267 1673 Lens Holder 19- 11
A267 1690 Scanner Motor - DC 3.78W 21- 22
A267 1743 Bracket - Scale 17- 5
A267 1752 1st Scanner Housing 19- 5
A267 1758 Harness Guide - Exposure Lamp 19- 2
A267 1770 2nd Scanner Housing 21- 26
A267 1776 Guide - FPC 21- 9
A267 1777 Mirror Holder 21- 8
A267 1809 Front Stay Bracket 21- 1
A267 1810 Rear Stay Bracket 21- 11
A267 1813 Scanner Frame 17- 2
A267 1814 Hinge Bracket - Platen Cover 17- 1
A267 1815 Right Inner Cover 17- 11
A267 1816 Guide - Flexible Board 21- 15
A267 1817 Slide Rail - 2 21- 6
A267 1819 Insulating Sheet - Side Plate 21- 14
A267 1825 Scanner Drive Shaft 21- 19
A267 1830 Heater Harness Cover 21- 25
A267 1846 Idler Bracket 21- 4
A267 1849 Tension Bracket 21- 2
A267 1853 Pulley - Front Left 21- 5
A267 1854 Pulley - Rear Left 21- 13
A267 1900 Laser Exposure Unit Ass’y 23- 1
A267 1915 LD Unit 23- 18
A267 1917 Cover - Polygon Motor 23- 2
A267 1930 Positioning Bracket - Laser Unit 57- 2
A267 1933 Mirror Holder - Sync. Detector 23- 24
A267 1938 Cover - Laser Unit 23- 5
A267 1940 Front Holder - BTL 23- 10
A267 1941 Rear Holder - BTL 23- 8
A267 1942 Mirror Holder 23- 6
A267 1944 Plate - Sync. Detector Board 23- 17
A267 2564 Front Grip Plate 27- 5
A267 2567 Rear Grip Plate 27- 6
A267 2573 Right Bracket - Grip Plate 27- 9
A267 2576 Left Bracket - Grip Plate 27- 7
A267 2577 Roller Guide Bracket 2 29- 19
A267 2587 Guide Plate 29- 22
A267 2588 Shoe - Right Rail 27- 3
A267 2589 Shoe - Supporter 27- 4
A267 2592 Right Cover Pin 47- 26
A267 2593 Left Cover Pin 47- 1
A267 2595 Spring Guard - Paper Feed 47- 30
A267 2596 Right Drive Guard 51- 1
A267 2601 Positioning Guide - Bypass Feed 51- 12
A267 2602 Tensioner 51- 9
A267 2604 Stopper - Feed Clutch 51- 8
A267 2605 Support Bracket - Transport Clutch 51- 6
A267 2660 Bracket - Photointerruptor 31- 2
A267 2663 Bracket - Photointerruptor 29- 16
A267 2665 Upper Roller Guide 29- 21
A265/A267 7 Parts Index
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
A267 2665 Upper Roller Guide 35- 10
A267 2666 Bushing - Roller Guide 29- 13
A267 2674 Bushing - Registration Roller 35- 13
A267 2677 Roller Clutch Bracket 27- 23
A267 2680 Spring Plate - Roller Clutch 27- 22
A267 2681 Roller Clutch - Vertical Transport 29- 20
A267 2685 Bushing - Driven Roller 25- 6
A267 2691 Left Guide Plate - Regist Roller 35- 4
A267 2695 Grounding Plate - Regist Roller 35- 2
A267 2698 Bracket - Registration Sensor 35- 9
A267 2700 Registration Roller Cleaner 35- 11
A267 2705 Middle Right Cover 11- 25
A267 2708 Cap - Bypass Feed 11- 29
A267 2709 Guide Mylar 11- 24
A267 2710 Stay - Cap 11- 30
A267 2711 Right Guide Plate - Regist Roller 25- 10
A267 2712 Cleaner - Regist Driven Roller 25- 24
A267 2713 Hexagonal Set Screw - M3X8 11- 28
A267 2715 Driven Roller - Vertical Transport 11- 19
A267 2716 Right Front Lower Cover 11- 31
A267 2717 Right Rear Lower Cover 11- 27
A267 2721 Upper Entrance Guide Plate 35- 3
A267 2722 Sub Guide Plate - Upper Entrance 35- 1
A267 2724 Lower Paper Guide Plate 27- 19
A267 2727 Middle Right Cover 11- 32
A267 2728 Cover - Vertical Transport 27- 20
A267 2732 Lower Guide - Vertical Transport 27- 12
A267 2733 Upper Guide - Vertical Transport 27- 11
A267 2736 Vertical Transport Guide 27- 10
A267 2737 Decal - Right Cover 69- 9
A267 2737 Decal - Right Cover 27- 24
A267 2740 Stopper Band 27- 14
A267 2744 Guide Mylar 25- 7
A267 2751 Paper Feed Roller 29- 10
A267 2751 Paper Feed Roller 31- 17
A267 2754 Shaft - Paper Feed Roller 29- 15
A267 2754 Shaft - Paper Feed Roller 31- 20
A267 2765 Stopper - Pressure Lever 47- 29
A267 2766 Tension Spring - Stopper 47- 31
A267 2767 Torsion Spring - Joint 47- 23
A267 2770 Vibrating Plate 47- 28
A267 2771 Tension Spring - Main 47- 21
A267 2772 Tension Spring - Sub 47- 32
A267 2773 Bracket - Rising 2 47- 22
A267 2776 Lever - DC Motor 47- 11
A267 2777 Actuator - Paper height Sensor 47- 25
A267 2780 Tray Lift Assembly 47- 33
A267 2781 Bracket - Pressure Lever 47- 8
A267 2785 Lock Lever Shaft - Feed Roller 31- 11
A267 2785 Lock Lever Shaft - Feed Roller 29- 5
A267 2787 Tension Spring - Lock Lever 29- 4
A267 2787 Tension Spring - Lock Lever 31- 10
A267 2788 Torsion Spring - Lock Lever 29- 12
A267 2788 Torsion Spring - Lock Lever 31- 15
A267 2792 Lock Lever - Feed Roller 29- 3
A267 2792 Lock Lever - Feed Roller 31- 9
A267 2794 Sub Pressure Lever 47- 9
A267 2800 Upper Guide Plate - Paper Feed Roller 29- 14
A267 2803 Feeler - Paper End Sensor 31- 16
A267 2803 Feeler - Paper End Sensor 29- 9
A267 2805 Bracket - Paper End Sensor 31- 12
A267 2805 Bracket - Paper End Sensor 29- 6
A267 2808 Lower Guide Plate - Paper Feed Roller 31- 21
A267 2813 Cushion - Guide Plate 29- 26
A267 2814 Cushion - Guide Plate 2 31- 19
A267 2815 Bracket - Uppe Paper Lift 47- 27
A267 2828 Guide Plate - Pressure Release 29- 23
A267 2831 Friction Pad 39- 22
A267 2831 Friction Pad 37- 22
A267 2834 Pressure Spring - Friction Pad 39- 23
A265/A267 8 Parts Index
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
A267 2834 Pressure Spring - Friction Pad 37- 23
A267 2836 Pin - M6 47- 35
A267 2837 Upper Bracket - Paper Lift Motor 47- 5
A267 2838 Lower Bracket - Paper Lift Motor 47- 17
A267 2839 Harness Cover - Paper Feed 47- 7
A267 2840 Shaft - DC Motor 47- 18
A267 2842 Guide Plate - Pressure Release 31- 5
A267 2844 Compression Spring - Return 47- 15
A267 2845 Bushing - DC Motor Shaft 47- 16
A267 2846 Holder - Spring 47- 14
A267 2847 Bushing - Motor Shaft 29- 11
A267 2847 Bushing - Motor Shaft 47- 12
A267 2847 Bushing - Motor Shaft 31- 18
A267 2848 Holder - Pressure Spring 47- 13
A267 2849 Shutter - Photointerruptor 47- 10
A267 2850 Paper Tray 39- 2
A267 2850 Paper Tray 37- 2
A267 2851 Front Side Fence 37- 3
A267 2851 Front Side Fence 39- 3
A267 2852 Rear Side Fence 39- 17
A267 2852 Rear Side Fence 37- 17
A267 2853 End Fence 39- 7
A267 2853 End Fence 37- 7
A267 2854 Shaft - Tray Raising 37- 21
A267 2854 Shaft - Tray Raising 39- 21
A267 2856 Bracket - Rising 37- 18
A267 2856 Bracket - Rising 39- 18
A267 2857 Spring Plate - Side Fence 39- 16
A267 2857 Spring Plate - Side Fence 37- 16
A267 2858 Front Stopper Lever 37- 4
A267 2858 Front Stopper Lever 39- 4
A267 2859 Side Fence Stopper 37- 15
A267 2859 Side Fence Stopper 39- 15
A267 2860 Rear Lever Stopper 37- 14
A267 2860 Rear Lever Stopper 39- 14
A267 2861 Bottom Plate 37- 9
A267 2861 Bottom Plate 39- 9
A267 2864 Roller Bracket 39- 20
A267 2864 Roller Bracket 37- 20
A267 2865 Shaft - Roller 39- 19
A267 2865 Shaft - Roller 37- 19
A267 2866 Upper Slider 39- 8
A267 2866 Upper Slider 37- 8
A267 2868 Spring Plate 37- 24
A267 2868 Spring Plate 39- 24
A267 2869 Gear - 16Z 39- 11
A267 2869 Gear - 16Z 37- 11
A267 2873 Bracket - Paper Size Sensor 29- 1
A267 2874 Base Slider 37- 6
A267 2874 Base Slider 39- 6
A267 2875 Spring Plate - Slider 37- 31
A267 2875 Spring Plate - Slider 39- 33
A267 2878 Spring Plate - Grounding 37- 13
A267 2878 Spring Plate - Grounding 39- 13
A267 2881 Dial - Special Paper 39- 29
A267 2882 Sensor Bracket - Special Paper 31- 6
A267 2884 Front Side Fence 37- 29
A267 2884 Front Side Fence 39- 31
A267 2885 Rear Side Fence 37- 30
A267 2885 Rear Side Fence 39- 32
A267 2892 Decal - Paper Set Direction 69- 1
A267 2892 Decal - Paper Set Direction 37- 26
A267 2892 Decal - Paper Set Direction 39- 26
A267 2893 Decal - Paper Tray 69- 2
A267 2897 Shield - Side Fence 37- 27
A267 2897 Shield - Side Fence 39- 27
A267 2898 Sheet - Paper Tray Holder 37- 28
A267 2898 Sheet - Paper Tray Holder 39- 28
A267 2899 Sponge - Paper Feed Tray 39- 35
A267 2899 Sponge - Paper Feed Tray 37- 1
A265/A267 9 Parts Index
Loading...
