Page 1
B003/B004/B006/B007
PARTS CATALOG
RICOH GROUP COMPANIES
001123MIU
Page 2
Page 3
®
®
B003/B004/B006/B007
PARTS CATALOG
RICOH GROUP COMPANIES
Page 4
Page 5
001123MIU
B003/B004/B006/B007
PARTS CATALOG
Page 6
Page 7
LEGEND
PRODUCT CODE COMPANY
GESTETNER RICOH SAVIN
B003 3502 Aficio 1035 2535
B004 4502 Aficio 1045 2545
B006 3502p Aficio 1035P 2525p
B007 4502p Aficio 1045P 2545p
B351 Auto Reverse Document Feeder
B352 Two Tray Finisher
B376 1-Bin Finisher
B377 Punch Kit Type 1045
B397 Bridge unit Type 1045
B360/B366/B367 Fax/G3/ISDN Unit Type 1045
B362 Printer Unit Type 1045
DOCUMENTATION HISTORY
REV. NO. DATE COMMENTS
* 4/2001 Original Printing
Page 8
Page 9
B003/B004/B006/B007
TABLE OF CONTENTS
B003/B004/B006/B007 PARTS LOCATION AND LIST
LOCATION OF UNIT ............................................................. 2
1.EXTERIOR 1 (B003/B004/B006/B007)............................. 8
2.EXTERIOR 2 (B003/B004/B006/B007)............................ 10
3.EXTERIOR 3 (B003/B004/B006/B007)............................ 12
4.PLATEN COVER (B003/B004/B006/B007) ..................... 14
5.OPERATION PANEL ASS'Y (B003/B004/B006/B007).... 16
6.OPTICS UNIT 1 (B003/B004/B006/B007) ....................... 18
7.OPTICS UNIT 2 (B003/B004/B006/B007) ....................... 20
8.LASER UNIT (B003/B004/B006/B007)............................ 22
9.BY-PASS FEED UNIT 1 (B003/B004/B006/B007) .......... 24
10.BY-PASS FEED UNIT 2 (B003/B004/B006/B007) ......... 26
11.PAPER TRAY UNIT (B003/B004/B006/B007)................ 28
12.PAPER FEED SECTION (B003/B004/B006/B007) ........ 30
13.PAPER REGISTRATION (B003/B004/B006/B007)........ 32
14.TONER HOPPER UNIT (B003/B004/B006/B007).......... 34
15.PCU UNIT 1 (B003/B004/B006/B007) ............................ 36
16.PCU UNIT 2 (B003/B004/B006/B007) ............................ 38
17.TRANSFER UNIT 1 (B003/B004/B006/B007) ................ 40
18.TRANSFER UNIT 2 (B003/B004/B006/B007) ................ 42
19.DEVELOPMENT UNIT (B003/B004/B006/B007) ........... 44
20.FUSING UNIT (B003/B004/B006/B007) ......................... 46
21.PAPER SEPARATION UNIT (B003/B004/B006/B007) .. 48
22.DUPLEX UNIT 1 (B003/B004/B006/B007) ..................... 50
23.DUPLEX UNIT 2 (B003/B004/B006/B007) ..................... 52
24.DUPLEX UNIT 3 (B003/B004/B006/B007) ..................... 54
25.DRIVE SECTION 1 (B003/B004/B006/B007)................. 56
26.DRIVE SECTION 2 (B003/B004/B006/B007) ................ 58
27.ELECTRICAL SECTION 1 (B003/B004/B006/B007)..... 60
28.ELECTRICAL SECTION 2 (B003/B004/B006/B007)..... 62
29.FRAME SECTION 1 (B003/B004/B006/B007)............... 64
30.FRAME SECTION 2 (B003/B004/B006/B007)............... 66
31.EXPANSION BOX (B003/B004/B006/B007).................. 68
32.IOB BOARD (B003/B004/B006/B007) ........................... 70
33.BICU BOARD (B003/B004/B006/B007)......................... 74
34.CONTROLLER BOARD (B003/B004/B006/B007)......... 78
35.DECAL AND DOCUMENT (B003/B004/B006/B007)..... 82
36.SPECIAL TOOLS (B003/B004/B006/B007)................... 84
B003/B004/B006/B007 PARTS INDEX
PARTS INDEX ....................................................................... 2
AUTO REVERSE DOCUMENT FEEDER B351 PARTS
LOCATION AND LIST
LOCATION OF UNIT .............................................................. 2
1.ARDF1 (B351).................................................................. 4
2.ARDF2 (B351).................................................................. 6
3.ARDF3 (B351).................................................................. 8
4.ARDF4 (B351)................................................................. 10
5.ARDF5 (B351)................................................................. 12
6.ARDF6 (B351)................................................................. 14
7.ARDF7 (B351)................................................................. 16
8.ARDF8 (B351)................................................................. 18
9.ARDF9 (B351)................................................................. 20
Page 10
10.MAIN CONTROL BOARD (B351)................................... 22
11.DECAL AND DOCUMENTS ........................................... 24
AUTO REVERSE DOCUMENT FEEDER B351 PARTS INDEX
PARTS INDEX........................................................................ 2
TWO TRAY FINISHER B352 PARTS LOCATION AND LIST
LOCATION OF UNIT ............................................................. 3
1.EXTERIOR 1 (B352)......................................................... 6
2.EXTERIOR 2 (B352)......................................................... 8
3.PUNCH FRAME (B352)................................................... 10
4.PAPER TRANSFER 1 (B352).......................................... 12
5.PAPER TRANSFER 2 (B352).......................................... 14
6.PAPER TRANSFER 3 (B352).......................................... 16
7.STAPLE TRAY 1 (B352).................................................. 18
8.STAPLE TRAY 2 (B352).................................................. 20
9.STAPLE UNIT (B352) ...................................................... 22
10.UPPER PAPER EXIT 1 (B352)....................................... 24
11.UPPER PAPER EXIT 2 (B352)....................................... 26
12.UPPER PAPER EXIT 3 (B352)....................................... 28
13.LOWER PAPER EXIT (B352)......................................... 30
14.SHIFT DRIVE 1 (B352)................................................... 32
15.SHIFT DRIVE 2 (B352)................................................... 34
16.DRIVE SECTION (B352) ................................................ 36
17.ELECTRICAL SECTION (B352) ..................................... 38
18.MAIN CONTROL BOARD (B352)................................... 40
19.DECAL AND DOCUMENT (B352).................................. 44
TWO TRA Y FINISHER B352 PARTS INDEX
PARTS INDEX....................................................................... 2
1 BIN TRAY B376 PARTS LOCATION AND LIST
1.1 BIN TRAY 1 (B376)........................................................ 2
2.1 BIN TRAY 2 (B376)........................................................ 4
1 BIN TRAY B376 PARTS INDEX
PARTS INDEX ...................................................................... 7
PUNCH KIT TYPE1045 B377 PARTS LOCATION AND LIST
1.PUNCH KIT TYPE1045 (B377)........................................ 2
PUNCH KIT TYPE1045 B377 PARTS INDEX
PARTS INDEX ...................................................................... 5
BRIDGE UNIT TYPE 1045 B397 PARTS LOCATION AND LIST
1.BRIDGE UNIT 1 (B397).................................................... 2
2.BRIDGE UNIT 2 (B397).................................................... 4
BRIDGE UNIT TYPE 1045 B397 PARTS INDEX
PARTS INDEX ...................................................................... 7
FAX/G3/ISDN UNIT TYPE 1045 PARTS LOCATION AND LIST
1.FAX OPTION (B360)........................................................ 2
2.G3/G4 OPTION (B366/B367)........................................... 4
3.NCU BOARD (B360)........................................................ 6
4.FCU BOARD (B360)......................................................... 8
5.SIG4 Board (B367).......................................................... 12
6.NCU Board (B366) .......................................................... 16
FAX/G3/ISDN UNIT TYPE 1045 PARTS INDEX
PARTS INDEX ..................................................................... 19
PRINTER/SCANNER UNIT TYPE 1045 B362 PARTS LOCATION
AND LIST
1.PRINTER/SCANNER UNIT TYPE 1045 (B362/B361)....... 2
PRINTER/SCANNER UNIT TYPE 1045 B362 PARTS INDEX
PARTS INDEX ........................................................................ 5
Page 11
B003/B004/B006/B007
PARTS LOCATION AND LIST
Page 12
Page 13
This section instructs you as to the numbers and names of parts on this machine.
Page 14
LOCATIONS OF UNITSLOCATIONS OF UNITS
LOCATIONS OF UNITS
LOCATIONS OF UNITS
LOCATIONS OF UNITS
1. EXTERIOR 1 (B003/B004/B006/B007)
See Page 9
4. PLATEN COVER
(B003/B004/B006/B007)
2. EXTERIOR 2 (B003/B004/B006/B007)
See Page 11
5. OPERATION PANEL ASS'Y
3. EXTERIOR 3 (B003/B004/B006/B007)
See Page 13
6. OPTICS UNIT 1 (B003/B004/B006/B007)
See Page 15
B003/B004/B006/B007 2 Parts Location and List
See Page 17
See Page 19
Page 15
LOCATIONS OF UNITSLOCATIONS OF UNITS
LOCATIONS OF UNITS
LOCATIONS OF UNITS
LOCATIONS OF UNITS
7. OPTICS UNIT 2 (B003/B004/B006/B007)
See Page 21
10. BY-PASS FEED UNIT 2
(B003/B004/B006/B007)
8. LASER UNIT (B003/B004/B006/B007)
See Page 23
11. PAPER TRAY UNIT
(B003/B004/B006/B007)
9. BY-PASS FEED UNIT 1
(B003/B004/B006/B007)
See Page 25
12. PAPER FEED SECTION
(B003/B004/B006/B007)
See Page 27
B003/B004/B006/B007 3 Parts Location and List
See Page 29
See Page 31
Page 16
LOCATIONS OF UNITSLOCATIONS OF UNITS
LOCATIONS OF UNITS
LOCATIONS OF UNITS
LOCATIONS OF UNITS
13. PAPER REGISTRATION
(B003/B004/B006/B007)
See Page 33
16. PCU UNIT 2 (B003/B004/B006/B007)
14. TONER HOPPER UNIT
(B003/B004/B006/B007)
See Page 35
17. TRANSFER UNIT 1
(B003/B004/B006/B007)
15. PCU UNIT 1 (B003/B004/B006/B007)
See Page 37
18. TRANSFER UNIT 2
(B003/B004/B006/B007)
See Page 39
B003/B004/B006/B007 4 Parts Location and List
See Page 41
See Page 43
Page 17
LOCATIONS OF UNITSLOCATIONS OF UNITS
LOCATIONS OF UNITS
LOCATIONS OF UNITS
LOCATIONS OF UNITS
19. DEVELOPMENT UNIT
(B003/B004/B006/B007)
See Page 45
22. DUPLEX UNIT 1 (B003/B004/B006/B007)
20. FUSING UNIT (B003/B004/B006/B007)
See Page 47
23. DUPLEX UNIT 2 (B003/B004/B006/B007) 24. DUPLEX UNIT 3 (B003/B004/B006/B007)
21. PAPER SEPARATION UNIT
See Page 49
See Page 51
B003/B004/B006/B007 5 Parts Location and List
See Page 53
See Page 55
Page 18
LOCATIONS OF UNITSLOCATIONS OF UNITS
LOCATIONS OF UNITS
LOCATIONS OF UNITS
LOCATIONS OF UNITS
25. DRIVE SECTION 1
(B003/B004/B006/B007)
See Page 57
28. ELECTRICAL SECTION 2
(B003/B004/B006/B007)
26. DRIVE SECTION 2
(B003/B004/B006/B007)
See Page 59 See Page 61
29. FRAME SECTION 1
(B003/B004/B006/B007)
27. ELECTRICAL SECTION 1
(B003/B004/B006/B007)
30. FRAME SECTION 2
(B003/B004/B006/B007)
See Page 63
B003/B004/B006/B007 6 Parts Location and List
See Page 65
See Page 67
Page 19
LOCATIONS OF UNITSLOCATIONS OF UNITS
LOCATIONS OF UNITSLOCATIONS OF UNITSLOCATIONS OF UNITS
31. EXPANSION BOX
(B003/B004/B006/B007)
See Page 69
B003/B004/B006/B007 7 Parts Location and List
Page 20
1.EXTERIOR 1 (B003/B004/B006/B007)
B003/B004/B006/007 8 Parts Location and List
Page 21
1.EXTERIOR 1 (B003/B004/B006/B007)
Index
No.
1 B351 6511 Left Scale - (EU)(Asia)(CHN)(TWN) 1
1 B351 6521 Left Scale (NA) 1
2 AA14 3520 Shoulder Screw - M3 7
3 A232 1357 Left Cover - Scanner 1
4 AC01 2067 Exposure Glass 1
5 A232 1677 Rear Scale 1
6 B004 1350 Upper Rear Cover - Scanner 1
7 B004 1356 Right Cover - Scanner 1
8 B004 1303 Cover - Guide Plate - Rear 1
9 B004 1301 Cover - Guide Plate - Scanner Unit 1
10 B004 7232 Operation Panel Ass'y (NA)(B003/B004) 1
10 B004 7632 Operation Panel Ass'y (EU)(B003/B004) 1
10 B004 7932 Operation Panel Ass'y (TWN)(B003/B004) 1
10 B004 7942 Operation Panel Ass'y (CHN)(B003/B 004) 1
10 B004 7952 Operation Panel Ass'y (Asia)(B003/B004) 1
10 B007 7232 Operation Panel Ass'y (NA)(B006/B007) 1
11 B004 1358 Lower Cover 1
12 B004 5538 Harness - OPU 1
13 AA14 3523 Shoulder Screw - M3 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3008H Tapping Screw - M3x8
102 0451 3012H Tapping Screw - 3x12
103 0451 3010H Tapping Screw - 3x10
104 0804 6075 Hexagonal Bolt - M3x8
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 9 Parts Location and List
Page 22
2.EXTERIOR 2 (B003/B004/B006/B007)
B003/B004/B006/007 10 Parts Location and List
Page 23
2.EXTERIOR 2 (B003/B004/B006/B007)
Index
Index
No.
No.
1 B004 7226 Left Front Cover - NA 1
1 B004 7626 Left Front Cover - EU 1
2 AA06 3563 Spring 2
3 A232 1282 Cap - Switch 1
4 B004 1283 Left Rear Cover 1
5 B004 1285 Left Cover-paper Feed Sub-unit 1
6 A230 1268 Upper Cover - Paper Feed 1
7 G020 1332 Hinge - Front Cover 2
8 B004 1261 Front Cover Ass'y 1
9 B003 7210 Emblem (RIC)(B003) 1
9 B003 7211 Emblem (RIC-GSA)(B003) 1
9 B003 7212 Emblem (SVN)(B003) 1
9 B003 7213 Emblem (SVN-GSA)(B003) 1
9 B003 7214 Emblem (GES)(B003) 1
9 B003 7217 Emblem (INF)(B003) 1
9 B003 7218 Emblem (LAN)(B003) 1
9 B004 7210 Emblem (RIC)(B004) 1
9 B004 7211 Emblem (RIC-GSA)(B004) 1
9 B004 7212 Emblem (SVN)(B004) 1
9 B004 7213 Emblem (SVN-GSA)(B004) 1
9 B004 7214 Emblem (GES)(B004) 1
9 B004 7217 Emblem (INF)(B004) 1
9 B004 7218 Emblem (LAN)(B004) 1
9 B006 7210 Emblem (RIC)(B006) 1
9 B006 7212 Emblem (SVN)(B006) 1
9 B006 7218 Emblem (LAN)(B006) 1
9 B007 7210 Emblem (RIC)(B007) 1
9 B007 7212 Emblem (SVN)(B007) 1
9 B007 7218 Emblem (LAN)(B007) 1
10 B004 1385 Jam Removal Sheet 1
11 A232 2876 Lower Cover - Vertical Transport 1
12 5206 2686 Snap Ring 1
13 A232 2863 Stopper Band 1
14 AA06 3564 Tension Spring 2
15 AA08 0254 Bushing - M4 4
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
16 AF02 0409 Driven Roller 2
17 A232 2860 Entrance Seal 1
18 A232 2859 Lower Support Plate 1
19 AA00 1392 Decal - A1 1
20 AG07 0014 Magnet Catch 1
21 A232 2857 Cover - Vertical Transport 1
22 A176 1317 Cap - 34x55 1
23 A232 2723 Support Plate - Knob 1
24 A232 2860 Entrance Seal 1
25 A232 2858 Upper Support Plate 1
26 A232 1272 Right Rear Cover 1
27 AB03 0584 Timing Pulley - 15T 1
28 AA00 0204 Decal - Right Lower Cover 1
29 A232 2724 Knob Cover 1
30 A232 2720 Gear Bracket 1
31 AA04 3416 Timing Belt - 40S3M192 1
32 A232 2722 Knob 1
33 AB03 0564 Pulley - M17 1
34 A232 5838 Spring Plate - BICU 1
35 A232 1286 Stopper - Plate 1
36 A232 2862 Driven Roller 2
37 A232 6780 Decal - ON (CHN) 1
38 A232 6781 Decal - Stand-by (CHN) 1
101 0451 3008H Tapping Screw - M3x8
102 0451 3006B Tapping Screw - M3x6
103 0720 0060E Retaining Ring - M6
104 0720 0030E Retaining Ring - M3
105 0450 3008B Tapping Screw - M3x8
106 0450 3012B Tapping Screw -3x12
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 11 Parts Location and List
Page 24
3.EXTERIOR 3 (B003/B004/B006/B007)
B003/B004/B006/007 12 Parts Location and List
Page 25
3.EXTERIOR 3 (B003/B004/B006/B007)
Index
Index
No.
No.
1 A232 4497 End Fence - Copy Tray 1
2 B004 4436 Copy Tray Guide 1
3 B004 4435 Sub Copy Tray 1
4 B004 1250 Upper Cover 1
5 B004 1324 Cover - Scanner Connector 1
6 A176 1317 Cap - 34x55 2
7 A232 1252 Duct - Upper Cover 1
8 AA15 3390 Sponge - 202x3.5x4 1
9 AG07 1010 Magnet Catch 2
10 A232 1381 Decal - Total Counter 1
11 AX31 0039 Total Counter - 7fig 24v 1
12 A284 1376 Inner Cover-left 1
13 A284 1372 Inner Cover-upper 1
13 B004 1093 Rear Stay 1
14 B004 5836 Front Grounding Plate 1
15 A232 1094 Nut 2
16 B004 1101 Front Bracket - Scanner Unit 1
17 B004 1104 Rear Bracket - Scanner Unit 1
18 B004 1296 Rear Cover - Paper Feed Sub-unit 1
19 B004 1291 Rear Cover 1
20 A232 1173 Sheet - Duct 1
21 B004 1043 Spacer - Scanner Unit 1
22 A232 1284 Spring Holder 2
23 A232 1251 Duct Cover - Lower Exhaust Ass'y 1
24 AA14 3501 Stepped Screw - M8 2
25 B004 1049 Scanner Arm Unit 1
26 B004 1048 Supporting Plate - Scanner Unit 1
27 B004 1038 Guide Plate - Scanner Unit 1
28 A232 4499 Copy Tray Mylar 4
29 A232 1257 Cap - Upper Cover 1
30 AA15 0685 Seal - 215x10 1
31 B004 1297 Rear Cover - Paper Feed Sub-unit 1
32 AA15 3070 Dehumidifier Sheet 1
33 G034 1253 Cover - Small - Upper Right 1
34 B004 7222 Css Cover 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
35 A232 5837 Rear Grounding Plate 1
101 0451 3008H Tapping Screw - M3x8
102 0354 0080B Screw - M4X8
103 0450 3006B Tapping Screw - M3x6
104 0451 3006B Tapping Screw - M3x6
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 13 Parts Location and List
Page 26
4.PLATEN COVER (B003/B004/B006/B007)
B003/B004/B006/007 14 Parts Location and List
Page 27
4.PLATEN COVER (B003/B004/B006/B007)
Index
No.
1 5448 2804 Platen Cover Sheet 1
2 AA16 2067 Platen Cover Pad 1
3 A134 1394 Front Platen Cover 1
4 A053 1957 Flex Hinge - Platen Cover 2
5 A134 1395 Rear Platen Cover 1
6 A134 1396 Original Holder 1
7 A153 1383 Platen Cover Feeler 1
8 A153 1370 Platen Cover Hinge 1
9 AC00 1060 Platen Cover Ass'y 1
10 A153 1380 Platen Cover Bracket 1
11 AA14 8447 Guide Pin - Platen Cover 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0414 0142B Binding Self Tapping Screw - M
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 15 Parts Location and List
Page 28
5.OPERATION PANEL ASS'Y (B003/B004/B006/B007)
B003/B004/B006/007 16 Parts Location and List
Page 29
5.OPERATION PANEL ASS'Y (B003/B004/B006/B007)
Index
Index
No.
No.
* B004 7232 Operation Panel Ass'y (NA)(B00 3/ B00 4) 1
* B004 7632 Operation Panel Ass'y (EU)(B003/B004) 1
* B004 7932 Operation Panel Ass'y (TW N)( B003/ B00 4) 1
* B004 7942 Operation Panel Ass'y (CHN)(B003/B004) 1
* B004 7952 Operation Panel Ass'y (Asia)(B0 03/ B0 04) 1
* B007 7232 Operation Panel Ass'y (NA)(B00 6/ B00 7) 1
1 B004 7238 Sheet-operation 1
2 B004 1502 Keytop - 10key (EU) 1
2 B004 7236 Keytop - 10key (NA) 1
3 B004 1505 Keytop - Start 1
4 B004 1503 Keytop - Clear/Stop 1
5 B004 1518 Operation Panel Board - Right 1
6 B004 1512 Keytop - Interrupt 1
7 B004 1509 Keytop - Block Diagram 1
8 B004 1506 Keytop - Power Source 1
9 B004 1504 Keytop - Try Print 1
10 B004 1535 Cover - Basic 1
11 B004 1534 Cover - Application 3
12 B004 1532 Keytop - Copy 2 (CHN)(B004) 1
12 B004 7242 Keytop - Copy 2 (NA) 1
12 B004 7642 Keytop - Copy 2 (EU) 1
13 B004 1531 Keytop - Copy 1 (CHN)(B004) 1
13 B004 7241 Keytop - Copy 1 (NA) 1
13 B004 7641 Keytop - Copy 1 (EU) 1
14 B004 1507 Keytop - Reset Switch 1
14 B004 7237 Keytop - Clear Modes 1
15 B004 1508 Keytop - Preheat 1
16 B004 1510 Keytop - Confirm 1
17 A229 5216 Touch Panel 1
18 B004 1511 Keytop - Counter 1
19 B004 1513 Dial - Contrast 1
20 B004 5203 Operation Panel Board (N A) (B00 3/B 004) 1
20 B004 5204 Operation Panel Board (E U)( B00 3/B 004) 1
20 B004 5205 Operation Panel Board (As ia/TWN)(B003/B004) 1
20 B004 5206 Operation Panel Board (CHN)( B 003 /B 004) 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
21 B004 1521 LCDC Cover 1
22 B004 1520 LCDC Bracket 1
23 B004 1519 Operation Panel Board - Left 1
24 B004 1501 Operation Panel Case (CHN) 1
24 B004 7234 Operation Panel Case (NA) 1
24 B004 7634 Operation Panel Case (EU) 1
25 A232 7234 Sheet - Switch (LT) 1
25 A232 7634 Sheet - Switch (A4) 1
26 B004 5215 LCD - HVGA U95 BL 1
27 B004 1515 Sheet - Prevent Fence Sheet - Right 1
28 B004 1517 Earth Sheet - Touch Panel 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 17 Parts Location and List
Page 30
6.OPTICS UNIT 1 (B003/B004/B006/B007)
B003/B004/B006/007 18 Parts Location and List
Page 31
6.OPTICS UNIT 1 (B003/B004/B006/B007)
Index
No.
1 B004 1678 Left Scale Bracket 1
2 AW01 0056 Original Sensor - H=2-66 2
3 B004 1681 Inner Cover 1
4 B351 6522 ADF Exposure Glass 1
5 AA15 0711 Shield -base 1
6 B004 1831 Lens Holder Ass’y 1
7 A284 1738 Hinge Bracket 1
8 AW02 0100 Photointerrupter - P1CH2MM 1
9 B004 1849 ARDF Connector Bracket 1
10 B004 5541 Harness- ADF 1
11 AA06 0702 Tension Spring 1
12 A232 1682 Right Stay - Scanner Unit 1
13 AZ50 0055 Xenon Lamp Stabilizer 1
14 B004 5543 Harness - SIB 1
15 A232 1683 Spacer - Inner Cover 1
16 A232 1681 Cushion - Lens Block 1
17 B004 5538 Harness - OPU 1
18 B004 5397 Motor Drive Board 1
19 B004 1841 Scanner Interface Cable 1
20 A284 1751 Scanner Motor Stopper 1
21 B004 5542 Harness - SBU-50wick 80mm 1
22 AW01 0059 Original Sensor - H=1-66 1
23 B004 5387 Scanner Interface Board 1
24 B004 1324 Cover - Scanner Connector 1
25 B004 1846 Motor Drive Board Bracket - L 1
26 B004 1732 Fan Bracket 1
27 AX64 0128 Fan Motor - 24V 1
28 B004 1847 Motor Drive Board Bracket - R 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0314 0120B Philips Pan Head Screw - M4x12
103 0353 0060B Philips Pan Head Screw - M3x6
104 1105 0162 Locking Support
105 0451 3008B Tapping Screw - M3x8
106 0314 0180B Philips Pan Head Screw - M4x18
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 19 Parts Location and List
Page 32
7.OPTICS UNIT 2 (B003/B004/B006/B007)
B003/B004/B006/007 20 Parts Location and List
Page 33
7.OPTICS UNIT 2 (B003/B004/B006/B007)
Index
Index
No.
No.
1 B004 1809 Carriage Pulley - 22MM 2
2 B004 1713 Pulley 2 - 22MM 2
3 G404 2810 Spring Plate - Mirror - Second 4
4 B004 1820 2nd Mirror Ass'y 2
5 A232 1808 Harness Guide 1
6 A232 1798 2nd Scanner Ass'y 1
7 AA15 0702 Front Shield Plate 1
8 AX50 0073 Xenon Lamp - 8.5MM 1
9 A232 1791 Front Wire Holder 1
10 A232 1782 1st Scanner Ass'y 1
11 A232 1792 Rear Wire Holder 1
12 A232 1788 Reflector 1
13 AC03 0110 Scanner Mirror 1
14 A232 1789 1st Mirror Holder 2
15 B004 1843 Exposure Lamp Harness 1
16 A232 1728 Rail Supporter 2
17 A284 1736 Rear Side Plate 1
18 AA16 1133 Cushion - 4x15x1 2
19 AW02 0056 Photointerrupter - EE-SX4235A-P1 1
20 A232 1839 Bracket - Sensor 1
21 B004 1737 Base - Scanner - Rear 1
22 B004 1726 Rail - Flexible Board 1
23 B004 1728 Bracket - Heater 2
24 A232 1722 Rear Tension Plate - Scanner Wire 1
25 AA05 0106 Carriage Drive Wire 2
26 AA06 0703 Tension Spring 2
27 A232 1731 Scanner Rail 2
28 A232 1771 Bushing - M8 1
29 A232 3566 Ball Bearing - 8x16x5 1
30 AB03 2062 Rear Scanner Pulley 1
31 AB03 0572 Timing Pulley - Z61 1
32 AA04 3439 Timing Belt - S2M-224 1
33 B004 1714 Idler Bracket 2
34 A232 1732 Rail Bracket 2
35 A232 1713 Lens Block Supporter 2
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
36 AH01 0009 Rubber Pad - H5 4
37 AB03 2061 Front Scanner Pulley 1
38 A232 1712 Front Tension Plate - Scanner Wire 1
39 A284 1735 Front Side Plate 1
40 A232 1707 Second Slide Rail 2
41 A284 1674 Exposure Glass Holder 4
42 AX40 0140 Heater - 120V 15W 1
42 AX40 0142 Heater - 240V 15W 1
43 B004 1741 Power Supply Cord 1
101 0451 3006B Tapping Screw - M3x6
102 0720 0060E Retaining Ring - M6
103 0951 3006B Philips Screw With Flat Washer - M3x6
104 1005 0728 Rivet - NRP335
105 0450 3008B Tapping Screw - M3x8
106 1105 0292 Wire Saddle
107 1105 0291 Harness Clamp - LWS-3S
108 0575 0050E Hexagon Headless Set Screw - M5x5
109 1105 0460 Clamp
110 1105 0162 Locking Support
111 0802 5276 Tapping Screw With Washer - M3x6
112 0314 0060B Philips Pan Head Screw - M4x6
113 1105 0292 Wire Saddle
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 21 Parts Location and List
Page 34
8.LASER UNIT (B003/B004/B006/B007)
B003/B004/B006/007 22 Parts Location and List
Page 35
8.LASER UNIT (B003/B004/B006/B007)
Index
Index
No.
No.
* B003 1873 Optical Housing Unit(NA/TWN)(B003/B006) 1
* B003 1877 Optical Housing Unit(EU/Asia/CHN)(B003) 1
* B004 1873 Optical Housing Unit(NA/TWN)(B004/B007) 1
* B004 1877 Optical Housing Unit(EU/Asia/CHN)(B004) 1
1 A284 1904 Cover - Optical Housing 1
2 G020 1918 Decal - Laser Diode (230V) 1
2 G020 1920 Decal - Laser Diode (115V) 1
3 G020 1917 Decal - LD 1
4 A232 1904 Cap - Laser Unit Cover 1
5 A232 1971 Support Cover - Imaging Unit 1
6 A232 1900 Housing - Laser Unit 1
7 AA15 2403 Sponge - Laser Unit Cover 1
8 AC01 5025 Shield Glass 1
9 AX06 0141 Polygon Mirror Motor (B003/B006) 1
9 AX06 0180 Polygon Mirror Motor (B004/B007) 1
10 A232 1918 Heat Sink - Polygon Motor 1
11 A232 1920 Decal - Heat Sink 1
12 G020 1966 Cylindrical Lens 1
13 A232 1927 Cylindrical Lens Holder 1
14 A232 1926 Mirror Holder 2
15 A232 1925 Middle Mirror Holder 1
16 AC03 0115 Mirror 1
17 A232 1923 Front Holder - BTL 1
18 A232 1924 Rear Holder - BTL 1
19 G020 1969 BTL Lens 1
20 A232 1921 Front Holder - F Theta Mirror 1
21 A232 1922 Rear Holder - F Theta Mirror 1
22 G020 1968 F Theta Mirror 1
23 A232 1928 Holder - Sync. Detector Mirror 1
24 GC03 0020 Sync. Detector Mirror 1
25 A293 5310 Sync Detector Board 1
26 B002 1891 LD Unit (B003/B006) 1
26 B004 1891 LD Unit (B004/B007) 1
27 A232 5444 Harness - Laser Unit (B004/B007) 1
27 A232 5445 Harness - Laser Unit (B003/B006) 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
28 AC01 5024 Shield Glass - Polygon Motor 1
101 0951 3008B Philips Screw With Flat Washer - M3x8
102 0450 3010B Tapping Screw - M3x10
103 0450 3008B Tapping Screw - M3x8
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 23 Parts Location and List
Page 36
9.BY-PASS FEED UNIT 1 (B003/B004/B006/B007)
B003/B004/B006/007 24 Parts Location and List
Page 37
9.BY-PASS FEED UNIT 1 (B003/B004/B006/B007)
Index
No.
1 A232 6106 Middle Lower Cover 1
2 A232 6095 Frame By-pass Unit Holder 1
3 A232 6109 Front Cover - By-pass Unit 1
4 A232 6108 Rear Cover - By-pass Unit 1
5 A232 6107 Middle Upper Cover 1
6 A232 6090 Bracket Positioning Pin 1
7 A232 6091 Positioning Pin 1
8 AA08 2070 Bushing - 8x16x7 1
9 AA06 6574 Torsion Spring 1
10 A232 6067 By - Pass Feed Table 1
11 A232 6068 Cover By-pass Table 1
12 A232 6082 Front Rack 1
13 G011 3305 Gear - 16T 1
14 A232 6083 Rear Rack 1
15 A232 6080 Paper Size Detector 1
16 A232 6073 Decal - By-pass Feed 1
17 A232 6085 Guide By - Pass Table 1
18 A232 6092 Roller - Holder 1
19 A232 6070 Rear Side Fence 1
20 A232 6072 Sub - Rear Fence 1
21 A232 6069 Front Side Fence 1
22 A232 6071 Sub - Front Fence 1
23 AF04 0559 Driven Roller - M9 1
24 A232 6009 By-pass Feed Table Ass'y 1
25 A232 6010 Support Stay 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3008H Tapping Screw - M3x8
102 1105 0349 Edge Saddle
103 0720 0060E Retaining Ring - M6
104 0451 3008B Tapping Screw - M3x8
105 0451 4010B Tapping Screw - 4x10
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 25 Parts Location and List
Page 38
10.BY-PASS FEED UNIT 2 (B003/B004/B006/B007)
B003/B004/B006/007 26 Parts Location and List
Page 39
10.BY-PASS FEED UNIT 2 (B003/B004/B006/B007)
Index
Index
No.
No.
1 5447 2681 Snap Ring 2
2 AF03 2036 Separation Roller 1
3 A284 2783 Torque Limiter 1
4 A232 6033 Shaft Driven Roller 1
5 AA06 3499 Pressure Spring 1
6 AF01 3016 Bottom Plate Pad 1
7 AB01 1389 Gear - 20Z 1
8 AB01 1388 Gear - Z16 1
9 A232 6035 Shaft - Drive Roller 1
10 A232 6028 Guide Plate Paper Separator 1
11 A232 6038 Gear Cover 1
12 AF03 1036 Feed Roller 1
13 A232 6022 Housing - By-pass Feed 1
14 5216 4198 Stepped Screw - Guide Plate 4
15 A232 6023 Grounding Plate - Reverse 1
16 A232 6055 Paper End Feeler 1
17 A134 2661 Feeler Roller 1
18 AF04 0031 Driven Roller 2
19 AW02 0056 Photointerrupter - EE-SX4235A-P1 1
20 A232 6043 Arm Paper Pick Up 1
21 AA14 0660 Feed Shaft 1
22 AF03 0036 Pick Up Roller 1
23 AB01 1387 Gear - 23Z 1
24 A232 6044 Support Plate 1
25 A232 6046 Grounding Plate - Feed 1
26 AA06 3568 Pressure Spring 1
27 A232 6051 Pickup Solenoid 1
28 A232 5427 Harness By-pass Feed 1
29 AA06 3567 Tension Spring 1
30 AA08 3010 Clutch Roller - 6x14x10 1
31 AX20 0140 Electrical Clutch 1
32 AB01 7454 Gear - 24Z/30Z 1
33 A232 6059 Arm Tightener 1
34 AB01 1390 Gear - 27Z 1
35 GA08 0002 Bushing - 6mm 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
36 AA06 3569 Spring 1
37 A232 6049 Solenoid Bracket 1
38 A232 6061 Tightener Bracket 1
39 A232 6065 Rail - By-pass Feed 1
40 A232 6057 Bracket-by-pass Feed Drive 1
101 0451 3008B Tapping Screw - M3x8
102 0805 3480 Bushing - 6mm
103 0720 0040E Retaining Ring - M4
104 1105 0267 Harness Clamp - YMC-10-0
105 0353 0040B Screw - M3X4
106 0450 3008B Tapping Screw - M3x8
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 27 Parts Location and List
Page 40
11.PAPER TRAY UNIT (B003/B004/B006/B007)
B003/B004/B006/007 28 Parts Location and List
Page 41
11.PAPER TRAY UNIT (B003/B004/B006/B007)
Index
No.
1 B004 2905 Universal Paper Tray (NA) 1
1 B004 2910 Universal Paper Tray (EU) 1
2 B004 2932 Rear Stopper Lever 1
3 AF01 6166 Front Side Fence 1
4 B004 2940 Bottom Plate 1
5 AF01 3006 Bottom Plate Pad 1
6 AF01 7026 End Fence 1
7 AA00 3007 Decal- Paper Set Direction 1
8 B004 2988 Handle - Paper Tray 1
9 B004 2951 Stopper-right 1
10 A232 2975 Bottom Lift Plate 1
11 A232 2987 Roller - Paper Tray 2
12 B004 2915 Bottom Lift Shaft 1
13 B004 2943 Grounding Plate - Paper Tray 1
14 AF01 6167 Rear Side Fence 1
15 A232 2989 Screw Holder 1
16 B004 2947 Spring Plate-Paper Si ze Sens or 1
17 B004 2952 Shoe- Left 1
18 B004 2933 Rear Stopper 1
19 B004 2934 Spring Plate - Lock Lever 1
20 B004 2954 Paper Size Dial (LT) 1
20 B004 2955 Paper Size Dial (A4) 1
21 B004 2948 Paper Size Sensor 1
22 B004 2924 Paper Guide Plate - Front 1
23 B004 2935 Paper Guide Plate - Rear 1
24 B004 2936 Gear - 16Z 1
25 B004 2920 Front Side Fence 1
26 B004 2922 Release Lever - Side Fence 1
27 B004 2923 Spring Plate - Release Lever 1
28 B004 2930 Rear Side Fence 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0720 0060E Retaining Ring - M6 1
102 0353 0060B Philips Pan Head Screw - M3x6 1
103 0450 4008B Tapping Screw - 4x8 1
104 0452 3008B Tapping Screw - M3x8 1
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 29 Parts Location and List
Page 42
12.PAPER FEED SECTION (B003/B004/B006/B007)
B003/B004/B006/007 30 Parts Location and List
Page 43
12.PAPER FEED SECTION (B003/B004/B006/B007)
Index
Index
No.
No.
1 AF03 0034 Pick-up Roller 1
2 A232 2763 Pick-up Arm 1
3 AB01 1188 Gear - 21Z 1
4 AA06 0691 Tension Spring 1
5 5447 2681 Snap Ring 1
6 AF03 1035 Feed Roller 1
7 AB01 1189 Gear - 18Z 1
8 AA08 2070 Bushing - 8x16x7 1
9 A232 2760 Housing - Paper Feed Unit 1
10 A232 2765 Front Grounding Plate 1
11 B004 2783 Torque Limiter 1
12 B004 2777 Shaft - Paper Separation 1
13 A232 2762 Paper End Feeler 1
14 B004 2782 Rear Feed Mylar 1
15 A232 2776 Release Lever 1
16 5206 2686 Snap Ring 3
17 AB01 0107 Gear - 23Z 2
18 A232 2770 Stay - Paper Separation 1
19 AB01 0106 Gear - 24Z 1
20 AA14 0656 Shaft - Gear 1
21 A232 2774 Pressure Lever 1
22 A232 2775 Link Lever 1
23 AA06 0864 Tension Spring 1
24 A232 2786 Guide Plate 1
25 A232 2787 Vertical Transport Guide 1
26 AA08 2072 Bushing - M6 3
27 A232 2764 Rear Grounding Plate 1
28 AA14 0655 Shaft - Paper Feed 1
29 AA08 3014 One-way Clutch 1
30 A232 5428 Harness - Paper Feed Unit 1
31 AW02 0056 Photointerrupter - EE-SX4235A-P1 2
32 AF02 0404 Transport Roller 1
33 A232 2780 Stay - Paper Feed 1
34 A232 2781 Sensor Bracket 1
35 AW02 0096 Photointerrupter 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
36 AF03 2035 Separation Roller 1
37 AA06 0693 Tension Spring 1
38 B004 2750 Paper Feed Unit 1
39 AB01 4090 Gear - 18Z 1
40 A232 2766 Feed Mylar 1
41 A232 2785 Vertical Guide 1
101 0451 3008B Tapping Screw - M3x8
102 0720 0040E Retaining Ring - M4
103 0720 0060E Retaining Ring - M6
104 0805 3480 Bushing - 6mm
105 0805 0089 Retaining Ring - M4
106 1105 0283 Clamp
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 31 Parts Location and List
Page 44

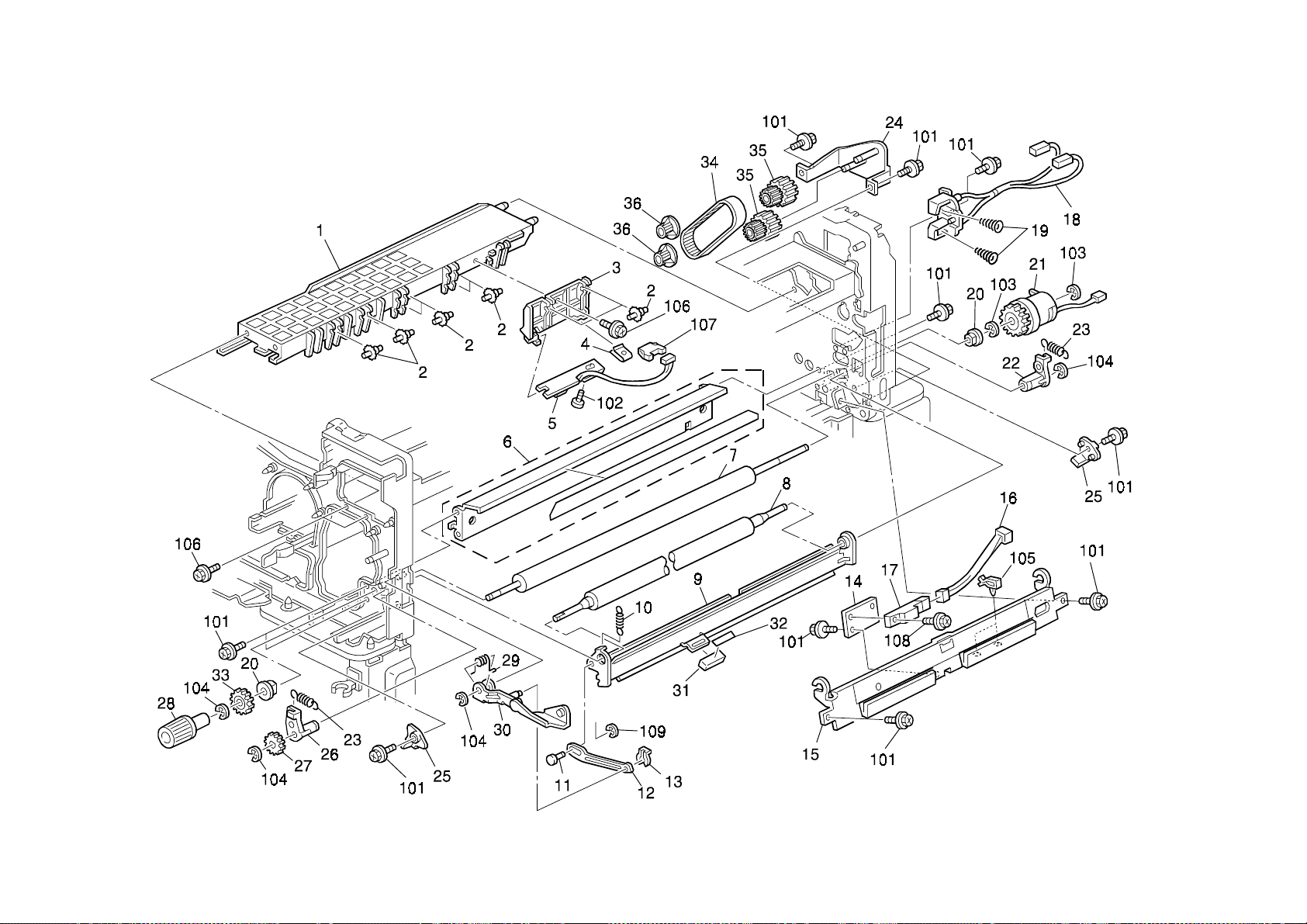

13.PAPER REGISTRATION (B003/B004/B006/B007)
B003/B004/B006/007 32 Parts Location and List
Page 45
13.PAPER REGISTRATION (B003/B004/B006/B007)
Index
Index
No.
No.
1 A232 2365 Guide Rail - PCU 1
2 B004 2310 Spur 8
3 A232 2366 Holder - ID Sensor 1
4 A232 1284 Spring Holder 1
5 A232 2367 ID Sensor 1
6 A232 1072 Lower Stay - PCU 1
7 AF02 0410 Registration Roller 1
8 AF02 1059 Driven Registration Roller 1
9 A232 2574 Upper Entrance Guide 1
10 AA06 2305 Tension Spring 1
11 AA14 9291 Pin - Link 1
12 A232 2596 Link Lever 1
13 5206 2686 Snap Ring 1
14 A232 2594 Bracket - Registration Sensor 1
15 A232 2583 Lower Entrance Guide 1
16 A232 5420 Harness - Registration Sensor 1
17 AW01 0048 Photosensor - GP2A28N1 1
18 AD02 1127 Receptacle 1
19 AA06 3304 Terminal Spring 2
20 AA08 2080 Bushing - M8 2
21 AX20 0138 Electrical Clutch - MICE-13 1
22 AA08 0230 Rear Bushing - M6 1
23 AA06 2304 Pressure Spring 2
24 B004 1165 Bracket - Timing Pulley 1
25 A232 2578 Stopper - Guide Plate 2
26 AA08 0229 Front Bushing - M6 1
27 AB01 4051 Gear - 16Z 1
28 AG05 0085 Registration Roller Knob 1
29 AA06 6577 Torsion Spring 1
30 A232 3985 Link - Cover 1
31 B004 2575 Knob - Entrance Guide 1
32 AA00 1393 Decal - A2 1
33 AB01 3485 Gear - 20Z 1
34 AA04 3554 Timing Belt - B60S3M129 1
35 AB03 0669 Timing Pulley - Registration 2
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
36 B004 1167 Flange - 24MM 2
101 0451 3006B Tapping Screw - M3x6
102 0353 0060B Philips Pan Head Screw - M3x6
103 0720 0060E Retaining Ring - M6
104 0720 0040E Retaining Ring - M4
105 1105 0283 Clamp
106 0450 3008B Tapping Screw - M3x8
107 1102 6246 Relay Connector - 3P
108 0313 0060B Philips Pan Head Screw - M3x6
109 0720 0020E Retaining Ring - M2
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 33 Parts Location and List
Page 46
14.TONER HOPPER UNIT (B003/B004/B006/B007)
B003/B004/B006/007 34 Parts Location and List
Page 47
14.TONER HOPPER UNIT (B003/B004/B006/B007)
Index
No.
1 B004 3206 Toner Supply Unit 1
2 A232 3266 Seal - Slide Rail 2
3 B004 3262 Slide Rail-toner Supply 1
4 AA14 5810 Slide Shaft 1
5 A232 3261 Handle - Toner Supply 1
6 A232 3230 Case - Toner Supply Ass'y 1
7 A232 3263 Spring Plate - Toner Bottle 1
8 AA06 3623 Pressure Spring 1
9 A232 3251 Chuck Shaft 1
10 A232 3252 Slider Ass'y 1
11 A134 3180 Bottle Chuck 1
12 A232 3240 Cover- Toner Bottle Ass'y 1
13 AA15 3083 Seal - Toner Supply Unit Cover 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0452 3010B Tapping Bind Screw - M3x10
102 0450 3008B Tapping Screw - M3x8
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 35 Parts Location and List
Page 48

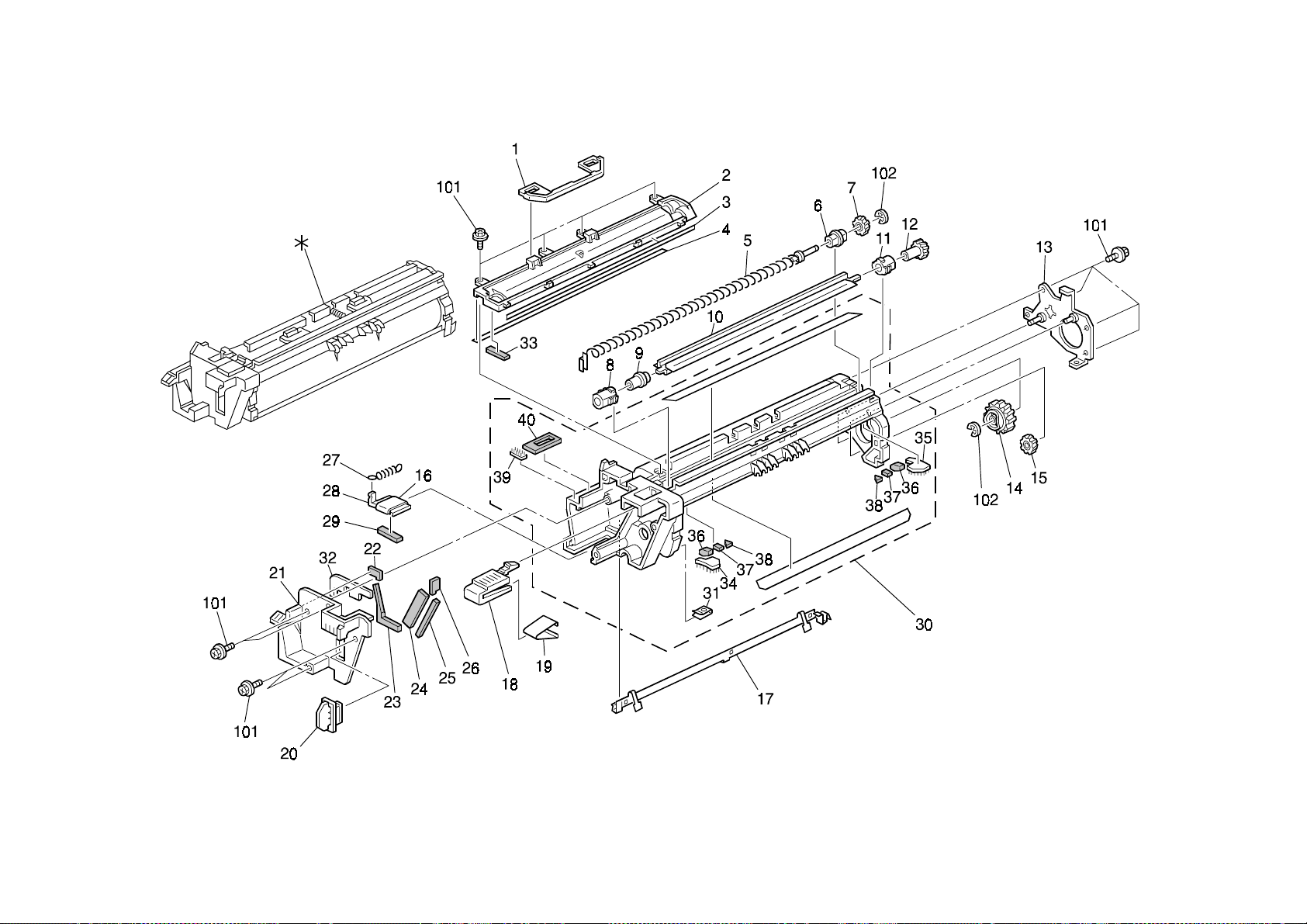

15.PCU UNIT 1 (B003/B004/B006/B007)
B003/B004/B006/007 36 Parts Location and List
Page 49
15.PCU UNIT 1 (B003/B004/B006/B007)
Index
Index
No.
No.
* B004 7361 PCU 1
1 A232 2293 Handle - PCU 1
2 A232 2281 Cover - Cleaning Unit 1
3 A232 2420 Right Seal - Cleaning Cover 1
4 A232 2419 Left Seal - Cleaning Cover 1
5 AD04 3050 Toner Collection Coil 1
6 A232 2292 Bushing - Toner Collection Coil 1
7 AB01 1377 Gear - 14Z 1
8 A232 2289 Front Bushing - Collection Mylar 1
9 A232 2288 Shaft - Toner Collection Mylar 1
10 AD04 4000 Toner Collection Mylar 1
11 A232 2290 Bushing - Collection Mylar 1
12 AB01 1378 Gear - 19Z 1
13 G065 2290 Idler Bracket 1
14 AB01 1380 Cam - Cleaning Blade 1
15 AB01 1379 Gear - 19Z 1
16 A232 2322 Shield - Shutter - Toner Supply 1
17 A232 2403 Receptacle - Charge Roller 1
18 A232 2329 Stopper - PCU 1
19 A232 2408 Spring Plate 1
20 A232 2328 Cap - Toner Supply 1
21 A232 2323 Front Cover - PCU 1
22 A232 2417 Seal - 1x7x12.5 1
23 A232 2413 Seal - Front Lower 1
24 A232 2414 Seal - 2x20x45 1
25 A232 2416 Seal - 1x3x80 1
26 A232 2412 Seal - 2x7x14.5 1
27 AA06 2303 Tension Spring 1
28 A232 2321 Shutter - Toner Supply 1
29 B004 2211 Shield - Shutter - Middle 1
30 A232 7365 Upper Frame - PCU 1
31 A232 1284 Spring Holder 1
32 B004 2210 Shield - PCU - Upper Left 1
33 B004 2212 Front Seal - Cleaning Cover 1
34 A232 2277 Seal - Drum Front 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
35 A232 2278 Seal - Drum Rear 1
36 A232 2399 Seal - Blade 13x9.5x3 2
37 A232 2348 Seal - Blade 12x7x3 2
38 A232 2350 Seal - Entrance 2
39 A232 3267 Seal - Toner Supply-entrance-front 1
40 A232 2279 Seal - Toner Supply-entrance 1
101 0450 3008B Tapping Screw - M3x8
102 0720 0040E Retaining Ring - M4
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 37 Parts Location and List
Page 50
16.PCU UNIT 2 (B003/B004/B006/B007)
B003/B004/B006/007 38 Parts Location and List
Page 51
16.PCU UNIT 2 (B003/B004/B006/B007)
Index
No.
1 A232 2316 Stud - Cleaning Bracket 1
2 A232 2406 Lower Frame - OPC 1
3 AD02 5021 Pick-off Pawl 2
4 A232 2340 Holder - Pick-off Pawl 2
5 AA06 2310 Pressure Spring 2
6 A232 2339 Spur 2
7 A232 2280 Tape - Entrance Seal 1
8 AD04 7023 Cleaning Entrance Seal 1
9 A232 2356 Stepped Screw - M6 2
10 A232 2298 Bracket - Charge Cleaning 1
11 AA06 2301 Tension Spring 1
12 A232 2300 Roller - Cleaning 1
13 G065 2280 Cleaning Pad 1
14 5447 2681 Snap Ring 2
15 A232 2303 Front Arm - Charge Unit 1
16 AA06 3561 Pressure Spring 2
17 A232 2315 Front Bushing - Cleaning Bracket 1
18 AA06 2299 Pressure Spring 1
19 AA06 2300 Tension Spring 1
20 A232 2310 Bracket - Cleaning Blade 1
21 A232 2318 Collar - Cleaning 1
22 A232 2353 Cleaning Blade Ass' y 1
23 A232 2305 Rear Arm - Charge Unit 1
24 A232 2308 Rear Terminal - Charge Roller 1
25 A232 2421 Bushing - 6x10x3 2
26 AD02 7006 Charge Roller 1
27 A232 2354 Front Terminal - Charge Roller 1
28 A232 3553 Ball Bearing - 8x16x5 1
29 A230 9510 OPC Drum 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 3008B Tapping Screw - M3x8
102 0451 3008B Tapping Screw - M3x8
103 0450 3006B Tapping Screw - M3x6
104 0450 4010B Tapping Screw - 4x10
105 0720 0040E Retaining Ring - M4
106 0720 0015E Retaining Ring - 1.5
107 0451 3006B Tapping Screw - M3x6
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 39 Parts Location and List
Page 52
17.TRANSFER UNIT 1 (B003/B004/B006/B007)
B003/B004/B006/007 40 Parts Location and List
Page 53
17.TRANSFER UNIT 1 (B003/B004/B006/B007)
Index
Index
No.
No.
* B004 7270 Transfer Unit 1
1 B004 3900 Case - Transfer Unit 1
2 A232 3925 Front Bushing - Cleaning Holder 1
3 A232 3935 Shaft - Transfer Unit Stopper 1
4 A232 3916 Pressure Lever - Transfer Belt 2
5 A232 3911 Rear Lever - Transfer Belt 1
6 A232 3912 Front Lever - Transfer Belt 1
7 A232 3921 Spring Anchor 2
8 AA06 3305 Torsion Spring 2
9 AA15 0401 Seal - 70x20 2
10 AA06 0711 Pressure Spring 2
11 AW31 0006 Toner Overflow Sensor 1
12 AB01 4189 Gear - 27Z 1
13 A232 3924 Rear Bushing - Cleaning Holder 1
14 A232 3917 Release Lever - Transfer Belt 1
15 A232 3908 Seal - Rear Case 1
16 B004 3911 Mylar - Remove Paper Dust 1
17 A232 3903 Tape - Entrance Mylar 1
18 A232 3905 Seal - Shield Plate 1
19 A232 3907 Seal - Transfer Exit 1
20 A232 3923 Bracket - Cleaning Blade 1
21 A232 3830 Cleaning Blade - Transfer Belt 1
22 A232 3909 Seal - Front Case 1
23 A232 3880 Transfer Belt 1
24 A232 3894 Drive Roller - Transfer Belt 1
25 A232 3893 Arm - Transfer Belt 2
26 AA08 0246 Bushing - Bias Roller 1
27 AA06 0712 Torsion Spring 2
28 A232 3889 Bias Roller 1
29 A232 3885 Driven Roller - Transfer Unit 1
30 A232 3883 Spring Plate - Transfer Unit 1
31 A232 3887 Rear Terminal - Transfer Belt 1
32 AA08 2054 Bushing - M4 1
33 A232 3891 Bias Terminal 1
34 AB01 1190 Gear - 25Z 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
35 A232 3882 Flange - Transfer Unit 1
36 A232 3906 Seal - Rear Transfer Exit 1
37 B004 3915 Entrance Mylar - Transfer Unit 1
38 A232 3926 Transfer Belt Roller 2
39 A232 3927 Shield - Transfer Belt - Exit 2
40 B004 3914 Mylar - Belt Drive Roller 1
101 0451 3006B Tapping Screw - M3x6
102 0951 3006B Philips Screw With Flat Washer - M3x6
103 0450 3008B Tapping Screw - M3x8
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 41 Parts Location and List
Page 54
18.TRANSFER UNIT 2 (B003/B004/B006/B007)
B003/B004/B006/007 42 Parts Location and List
Page 55
18.TRANSFER UNIT 2 (B003/B004/B006/B007)
Index
Index
No.
No.
1 A232 3941 Fulcrum Pin - Right Cover 1
2 A232 3942 Stopper - Right Cover 1
3 AA08 2079 Bushing - 6x8x5.8 1
4 A232 3940 Right Cover 1
5 A232 3991 Decal - Shield Cover 1
6 A232 3977 Shield Cover 1
7 A232 3945 Front Hook - Right Cover 1
8 AA06 6575 Torsion Spring 1
9 AA14 0666 Shaft - Hook 1
10 G034 1373 Inner Cover - Right 1
11 AA15 3392 Sponge - 24x6x5 1
12 AA06 6576 Torsion Spring 1
13 A232 3948 Rear Hook - Right Cover 1
14 A232 3999 Lower Entrance Guide 1
15 A232 3998 Upper Entrance Guide 1
16 AF04 0571 Guide Roller 3
17 B004 4323 Bracket- Exit Sensor 1
18 B004 4322 Guide Plate- Fusing Exit 1
19 AA06 3855 Spring - 3.5N 2
20 B004 4327 Bushing - 4mm 2
21 AF02 0516 Driven Roller 1
22 A232 3963 Band Stopper 1
23 A232 3962 Spring Plate - Band Stopper 1
24 A232 1160 Bracket - Switch Lever 1
25 AA05 1027 Wire - Fusing Drive 1
26 AA06 0689 Tension Spring 1
27 A232 1161 Lever - Interlock Switch 1
28 B004 5454 Right Rear Harness 1
29 AA15 3393 Frame Seal - Rear Vertical 1
30 A232 3950 Hook Lever 1
31 5447 2681 Snap Ring 2
32 AG05 1137 Handle Lever 1
33 AA15 3391 Frame Seal - Rear Right 1
34 B004 5466 Harness - Toner Overflow Sensor 1
35 B004 4329 Grounding Plate - Exit Sens or 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
36 AW01 0090 Exit Sensor- Fusing 1
37 B004 4330 Screw - 4.5mm 1
101 0451 3006B Tapping Screw - M3x6
102 0450 3008B Tapping Screw - M3x8
103 0451 3008H Tapping Screw - M3x8
104 0720 0060E Retaining Ring - M6
105 0720 0030E Retaining Ring - M3
106 1105 0165 Flat Cable Clamp
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 43 Parts Location and List
Page 56

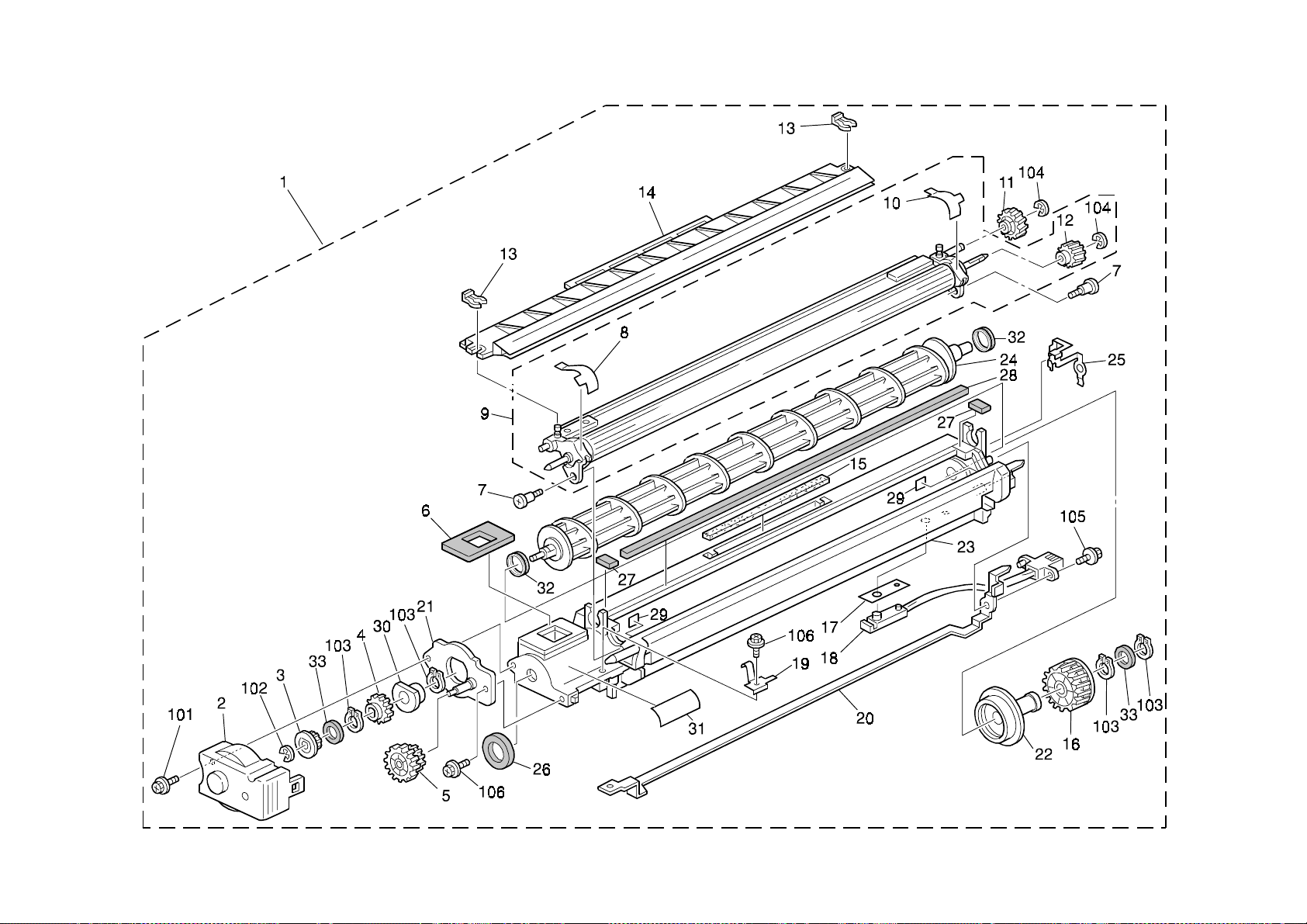

19.DEVELOPMENT UNIT (B003/B004/B006/B007)
B003/B004/B006/007 44 Parts Location and List
Page 57
19.DEVELOPMENT UNIT (B003/B004/B006/B007)
Index
No.
1 B004 7460 Development Unit 1
2 A232 3155 Front Cover - Development Unit 1
3 AB01 4061 Gear - 13Z 1
4 AB01 4060 Gear - 21Z 1
5 AB01 4062 Gear - 17Z/25Z 1
6 AA15 3052 Entrance Seal - Toner Supply 1
7 AA14 3219 Stepped Screw 2
8 A232 3132 Rear Shield - Development Sleeve 1
9 B004 3100 Development Roller Ass'y 1
10 A232 3131 Front Shield - Development Sleeve 1
11 AB01 1384 Gear - 29Z 1
12 AB01 1386 Development Sleeve Gear 1
13 5206 2686 Snap Ring 2
14 A232 3150 Entrance Seal Ass'y 1
15 AA01 2102 Development Filter 1
16 B004 3078 Joint - Paddle 1
17 A232 3067 Tape - TD Sensor 1
18 B004 3065 TD Sensor 1
19 A232 3068 Front Bias Terminal - Development 1
20 A232 3069 Rear Bias Terminal - Development 1
21 A232 3096 Flange - Side Plate 1
22 A232 3081 Flange - Paddle 1
23 B004 3056 Lower Development Case 1
24 AD03 8078 Paddle 1
25 B004 3062 Ground Plate- Doctor Blade 1
26 AA15 3062 Sponge - M46 1
27 AA15 3054 Sponge - 17x7x5 2
28 AA15 3053 Sponge - 317x5x5 1
29 AA15 3077 Shield Case - Development 2
30 AA08 0234 Bushing - 12x18x6 1
31 A232 3066 Decal - Development Unit 1
32 AA15 2283 Ring - M12 2
33 A232 3077 Spacer - M5 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 3010B Tapping Screw - M3x10
102 0720 0030E Retaining Ring - M3
103 0725 0110E C Ring - M11
104 0720 0040E Retaining Ring - M4
105 0450 3008B Tapping Screw - M3x8
106 0450 3010B Tapping Screw - M3x10
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 45 Parts Location and List
Page 58
20.FUSING UNIT (B003/B004/B006/B007)
B003/B004/B006/007 46 Parts Location and List
Page 59
20.FUSING UNIT (B003/B004/B006/B007)
Index
Index
No.
No.
1 B004 7320 Fusing Unit (115V) 1
1 B004 7720 Fusing Unit (230V) 1
2 AA14 3520 Shoulder Screw - M3 2
3 B004 4131 Fusing Cover 1
4 B004 4135 Guide Plate-fusing Exit 1
5 B004 4111 Front Heater Socket 1
6 AE04 4030 Hot Roller Stripper 7
7 AA06 0879 Tension Spring 7
8 B004 4105 Housing - Thermostat 2
9 B004 4115 Rear Heater Socket 1
10 B004 4081 Upper Frame - Fusing Unit 1
11 AW10 0053 Thermistor - Rear 1
12 B004 4106 Thermostat 1
13 B004 4055 Stay - Thermostat 1
14 AX43 0063 Heater - 120V 550W 335mm 1
14 AX43 0064 Heater - 230V 550W 335mm 1
15 A232 4064 C Ring - Hot Roller 2
16 AE03 0047 Ball Bearing - 30x42x7 2
17 AE01 1064 Hot Roller - 39.8mm T0.4 1
18 AB01 3882 Gear - 40Z 1
19 AG05 0090 Knob - Hot Roller 1
20 B004 4133 Cap- Fusing Cover 1
21 AE03 0048 Ball Bearing - 8x22x7 2
22 AE02 0108 Pressure Roller 1
23 A232 4059 Positioning Plate - Pressure Lever 1
24 A232 4057 Front Collar - Pressure Lever 1
25 B004 4056 Pressure Lever 2
26 AA06 0840 Pressure Spring - 29N 2
27 A232 4053 Fusing Lower Shield 1
28 A232 4051 Frame - Fusing Unit 1
29 AB01 4046 Gear - 25Z 1
30 A232 4058 Rear Collar - Pressure Lever 1
31 B004 4095 Terminal Plate - Fusing Unit 1
32 B004 4092 Bracket- Fusing Connector 1
33 B004 4117 Harness- Fusing Unit (120V) 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
33 B004 4127 Harness- Fusing Unit (230V) 1
34 AA14 0140 Screw - M3X4.5 2
35 AE04 2039 Fusing Cleaning Roller 1
36 AA08 2073 Roller Bushing 2
37 AA06 3570 Tension Spring 2
38 A232 4123 Upper Fusing Entrance Guide 1
39 B004 4126 Lower Entrance Guide Plate 1
40 B004 4087 Plate- Thermistor 2
41 AW10 0052 Thermistor - Center 1
42 AX44 0128 Heater - 120V 650W 215mm 1
42 AX44 0129 Heater - 230V 650W 215mm 1
101 0451 3006B Tapping Screw - M3x6
102 0451 3008B Tapping Screw - M3x8
103 0954 3012B Screw - M3X12
104 0801 0149 Philips Pan Head Screw - M4x6
105 0720 0030E Retaining Ring - M3
106 0804 6075 Hexagonal Bolt - M3x8
107 0957 3012B Double Sems Screw - M3 X 12
108 0451 3006B Tapping Screw - M3x6
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 47 Parts Location and List
Page 60
21.PAPER SEPARATION UNIT (B003/B004/B006/B007)
B003/B004/B006/007 48 Parts Location and List
Page 61
21.PAPER SEPARATION UNIT (B003/B004/B006/B007)
Index
Index
No.
No.
1 AF04 0571 Guide Roller 7
2 B004 4453 Lower Guide Plate 1
3 B004 4460 Shaft-pressure Roller 2
4 AF04 0573 Pressure Roller 1
5 B004 4458 Pressure Arm - Exit 1
6 AA06 3854 Pressure Spring 1
7 B004 4466 Bracket - Contact Point 1
8 B004 4437 Supporting Plate - Left Lower 1
9 B004 4463 Pressure Arm - Entrance 1
10 B004 4455 Frame - Left Lower 1
11 AF04 0575 Driven Roller 2
12 B004 4469 Spring Plate - Exit Roller 2
13 B004 4478 Entrance Junction Gate 1
14 B004 4438 Bushing 2
15 B004 4493 Joint 1
16 B004 4494 Paper Feed Sensor Bracket 1
17 AW01 0049 Photo Reflection Sensor 1
18 B004 5459 Exit Harness 1
19 AA04 3555 Timing Belt - S2M234 1
20 AB01 7458 Gear Pulley - 18Z/22T 1
21 AB03 0672 Idler Pulley 1
22 AB01 4049 Gear - 24Z 1
23 B004 4472 Rear Plate 1
24 B004 4479 Lever - Entrance Junction Gate 1
25 AA06 0855 Return Spring 1
26 AA06 2313 Gate Pawl Spring 1.5N 1
27 AB03 0568 Pulley - 23T 1
28 B004 4486 DC Solenoid 1
29 B004 4490 Right Supporting Plate 1
30 AF02 0515 Transport Roller 1
31 B004 4481 Exit Junction Gate 1
32 B004 4477 Upper Guide Plate 1
33 AF02 0514 Exit Roller 1
34 B004 4497 Ground Plate - Discharge Brush 1
35 B004 4471 Front Plate 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
36 A232 4484 Solenoid - Exit Gate 1
37 AA06 2312 Pressure Spring 1
38 AF04 0572 Pressure Roller - Entrance 1
39 AA08 2058 Bushing - 6x10x9mm 5
40 AA16 1628 Link Cushion - 10x5x2 2
41 5447 2681 Snap Ring 1
42 AF04 0574 Guide Roller 3
43 AA12 0089 Antistatic Brush 1
44 AA06 0716 Tension Spring 1
45 B004 4439 Protect Bracket - Middle 1
101 0353 0040B Screw - M3X4
102 0720 0030E Retaining Ring - M3
103 0720 0040E Retaining Ring - M4
104 1105 0511 Harness Clamp - LWS-0306ZC
105 0450 3006B Tapping Screw - M3x6
106 0451 3006B Tapping Screw - M3x6
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 49 Parts Location and List
Page 62
22.DUPLEX UNIT 1 (B003/B004/B006/B007)
B003/B004/B006/007 50 Parts Location and List
Page 63
22.DUPLEX UNIT 1 (B003/B004/B006/B007)
Index
No.
1 A232 4720 Inner Cover - Duplex Unit 1
2 B004 4852 Decal - Duplex Jam 1
3 AF02 0511 Reverse Roller - Driven 1
4 B004 4645 Guide Plate - Middle 1
5 5447 2681 Snap Ring 1
6 A232 4730 Rear Inner Cover 1
7 A232 4810 Harness Cover - Duplex Unit 1
8 A232 4793 Bracket - Link Lever 1
9 A232 4653 Pressure Plate - Guide Plate 2
10 AA08 0034 Bushing - 4x5x7 4
11 B004 4711 Right Cover - Duplex Unit 1
12 B004 4851 Decal - Jam Removal 1
13 A232 4647 Driven Guide Plate 1
14 AF02 5036 Duplex Junction Gate 1
15 AA06 0709 Tension Spring 1
16 AA06 3303 Pressure Spring 4
17 AF02 0512 Driven Roller - Duplex 2
18 B004 4701 Duplex Unit Cover 1
19 A680 1181 Magnetic Catch 2
20 B004 4710 Right Cover - Duplex Unit 1
21 B004 4853 Upper Decal - Duplex Unit 1
22 AA06 0839 Pressure Spring - Driven 2
23 AA08 0227 Bushing - M4 2
24 B004 5843 Shoulder Screw 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3008H Tapping Screw - M3x8
102 0451 3006B Tapping Screw - M3x6
103 0450 3008H Tapping Screw M3x8
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 51 Parts Location and List
Page 64
23.DUPLEX UNIT 2 (B003/B004/B006/B007)
B003/B004/B006/007 52 Parts Location and List
Page 65
23.DUPLEX UNIT 2 (B003/B004/B006/B007)
Index
No.
1 AA08 2074 Bushing - M8 4
2 A232 4684 Handle - Unit Release 1
3 AW01 0048 Photosensor - GP2A28N1 1
4 AA06 6152 Tension Spring 1
5 A232 4685 Hook - Unit Release 1
6 B004 4763 Bracket - Entrance Sensor 1
7 AA16 2046 Cushion - 347x10x5 1
8 B004 4634 Guide Plate - Reverse 1
9 AF02 0511 Reverse Roller - Driven 1
10 AA08 0227 Bushing - M4 2
11 AA06 0839 Pressure Spring - Driven 2
12 AF02 0509 Reverse Roller - Duplex 2
13 B004 4642 Side Plate-rear 1
14 B004 4800 Main Board Bracket 1
15 B004 5140 Main Board - Duplex 1
16 B004 5460 Main Harness - Duplex Unit 1
17 B004 5461 Sensor Harness - Duplex Unit 1
18 AB03 0670 Gear - 24Z 1
19 AB01 4162 Gear - 46Z 1
20 AA04 3443 Timing Belt - S2M 140 1
21 B004 4666 Bracket - Inverter Motor 1
22 B004 4664 DC Motor - 28W 1
23 AB01 4161 Reverse Roller Gear 2
24 B004 4690 Link Solenoid Ass'y 1
25 B004 4638 Front Side Plate 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0720 0060E Retaining Ring - M6
102 0802 5276 Tapping Screw With Washer - M3x6
103 1105 0460 Clamp
104 0451 3006B Tapping Screw - M3x6
105 0720 0030E Retaining Ring - M3
106 1204 2466 Micro Switch - V-16506-1c25
107 0353 0120B Bind Screw - M3x12
108 1105 0328 Harness Clamp - ES-0505
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 53 Parts Location and List
Page 66
24.DUPLEX UNIT 3 (B003/B004/B006/B007)
B003/B004/B006/007 54 Parts Location and List
Page 67
24.DUPLEX UNIT 3 (B003/B004/B006/B007)
Index
No.
1 AA04 3444 Timing Belt - S2M 350 1
2 AB03 0474 Pulley - 24T 2
3 AA08 2075 Bushing - M6 2
4 AF02 0510 Exit Transport Roller 1
5 B004 4622 Guide Plate - Right Lower 1
6 AF02 0513 Transport Roller 1
7 B004 4630 Lower Stay - Duplex 1
8 A232 4757 Bracket - Feed Sensor 1
9 AW02 0102 Photointerrupter 1
10 AA04 3443 Timing Belt - S2M 140 1
11 AB03 0671 Gear Pulley - Transport 1
12 B004 4678 Bracket - Feed Motor 1
13 AB01 1088 Gear - 30Z 1
14 B004 4664 DC Motor - 28W 1
15 AW02 0056 Photointerrupter - EE-SX4235A-P1 1
16 B004 4791 Sensor Bracket 1
17 AA06 6335 Torsion Spring 1
18 B004 4697 Micro Switch Bracket 1
19 AA14 3461 Stepped Screw - M2.5 1
20 A232 4790 Link - Duplex Unit 1
21 B004 4792 Middle Stay 1
22 B004 5462 Sensor Harness 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0805 3480 Bushing - 6mm
102 0451 3006B Tapping Screw - M3x6
103 1105 0291 Harness Clamp - LWS-3S
104 1105 0328 Harness Clamp - ES-0505
105 0802 5276 Tapping Screw With Washer - M3x6
106 0720 0040E Retaining Ring - M4
107 1105 0283 Clamp
108 1204 2466 Micro Switch - V-16506-1c25
109 0313 0060B Philips Pan Head Screw - M3x6
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 55 Parts Location and List
Page 68
25.DRIVE SECTION 1 (B003/B004/B006/B007)
B003/B004/B006/007 56 Parts Location and List
Page 69
25.DRIVE SECTION 1 (B003/B004/B006/B007)
Index
Index
No.
No.
1 A232 1138 Belt Holder 1
2 AB01 4048 Gear - 30Z 1
3 AA04 3442 Timing Belt - S3M-264 1
4 AB01 7460 Gear - Pulley - 30Z/24T 1
5 AB01 7461 Gear Pulley - 30Z/20T 1
6 A232 1136 Bracket - Belt Stopper 1
7 A232 2372 Lock Lever - Transfer Unit 1
8 AA06 0696 Tension Spring 1
9 A232 2379 Transfer Unit Clutch 1
10 AW02 0097 Photointerrupter 1
11 A232 5437 Relay Harness - Charge Contact Sensor 1
12 AB01 4045 Gear - 33Z 2
13 AB01 4043 Gear - 39Z 1
14 A232 1124 Bracket - Gear 1
15 AA06 0690 Spring 1
16 A232 1115 Fusing Relay Gear 1
17 AB01 4041 Gear - 37Z 1
18 AB01 4042 Gear - 37Z 1
19 G020 1189 Fly Wheel 2
20 G020 1184 Flange - Fly Wheel 1
21 AB03 0574 Timing Pulley - 79T 1
22 AA04 3553 Timing Belt - B60S2M316 1
23 AX05 0168 DC Motor - Toner Bottle 1
24 A232 3552 Ball Bearing - 8x22x7 1
25 A232 7210 Drum Holder 1
26 A232 2383 Harness - Development Bias 1
27 A232 2381 Harness - Charge Roller 1
28 A232 2382 Terminal Plate - Development Bias 1
29 AA06 3371 Spring 1
30 A232 2380 Terminal Plate - Change Roller 1
31 AD01 5020 Drum Shaft 1
32 B004 1096 Development Drive Bracket 1
33 B004 1138 Development Drive Unit 1
34 B004 1156 Bracket - OPC Drum 1
35 AX06 0206 Main Motor - DC 17W (B003/B006) 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
35 AX06 0205 Main Motor - DC 21W (B004/B007) 1
36 AA04 3551 Timing Belt - B50S3M213UG 1
36 AA04 3569 Timing Belt - B50S3M228 1
37 B004 1153 Timing Pulley - Paddle 1
38 B004 1147 Tightener Development Drive 1
39 B004 1150 Spring - Tightener 1
101 0451 3006B Tapping Screw - M3x6
102 0451 3008B Tapping Screw - M3x8
103 1105 0328 Harness Clamp - ES-0505
104 1105 0329 Clamp - ES-0510
105 1105 0349 Edge Saddle
106 0534 0050E Headless Screw - M4 X 5
107 0451 3014B Tapping Screw - M3-14
108 0802 5276 Tapping Screw With Washer - M3x6
109 0720 0080E Retaining Ring - M8
110 0720 0060E Retaining Ring - M6
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 57 Parts Location and List
Page 70
26.DRIVE SECTION 2 (B003/B004/B006/B007)
B003/B004/B006/007 58 Parts Location and List
Page 71
26.DRIVE SECTION 2 (B003/B004/B006/B007)
Index
Index
No.
No.
1 AX20 0231 Magnetic Clutch - 0.5N M-28Z 2
2 AB01 4219 Gear - 24Z 2
3 AB03 0625 Timing Pulley - 20Z 2
4 AA04 3445 Timing Belt - S3M-360 1
5 AB01 4160 Idler Gear-registration 1
6 A232 2692 Cover - Paper Drive 1
7 B004 5453 Drawer Harness - Development 1
8 B004 5455 Harness - Paper Size Sensor 1
9 AB01 4038 Gear - 22Z 2
10 B004 1938 Holder - Optical Housing Unit 1
11 AA04 3446 Timing Belt - S3M-312 1
12 A232 2705 Tightener - Paper Feed 1
13 AA06 0694 Tension Spring 1
14 AB03 0562 Timing Pulley - 31Z/20T 1
15 B004 1177 Spacer - By-pass Feed 1
16 AB03 0590 Pulley - M17 2
17 AB03 0561 Timing Pulley - 31Z/20T 2
18 AX04 0078 DC Motor - 3W 1
19 AX20 0138 Electrical Clutch - MICE-13 1
20 B004 5130 PFB Board 1
21 AB01 4039 Gear - 31Z 1
22 A232 5405 Main Harness - Paper Feed 1
23 AB01 4040 Gear - 29Z 1
24 B004 1179 Lower Holder Plate 1
25 B004 1162 Upper Holder Plate 1
26 A232 2882 Bracket - Micro Switch 1
27 B004 1172 Support Bracket 1
28 AB03 0567 Timing Pulley - 18T 1
29 A232 3552 Ball Bearing - 8x22x7 2
30 AA14 9515 Gear Shaft 1
31 B004 1163 Pulley Bracket 1
32 AB03 0566 Timing Pulley - 20T 1
33 B004 1169 Tightener 1
34 AA06 0695 Tension Spring 1
35 B004 5457 Safety Switch Harness 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
36 AX06 0207 Feed/dev. Motor - DC 30W (B004/B007) 1
36 AX06 0208 Feed/dev. Motor - DC 24W (B003/B006) 1
37 B004 1321 Shield Plate - BICU 1
38 B004 1320 Base Cover 1
39 B004 1939 Holder - Optical Housing Unit 1
40 B004 1936 Plate - Optical Housing Unit 2
41 AB01 4159 Gear - 49Z 1
42 B004 1322 Shield Plate - DC Motor 1
43 AB01 4164 Gear - 28T 1
44 AA14 3301 Stepped Screw - M3x4 2
45 G020 2620 Push Switch - Paper Size 1
101 0805 3480 Bushing - 6mm
102 0720 0060E Retaining Ring - M6
103 1204 2466 Micro Switch - V-16506-1c25
104 0451 3014B Tapping Screw - M3-14
105 1105 0267 Harness Clamp - YMC-10-0
106 0451 3006B Tapping Screw - M3x6
107 1102 7672 Connector - 54111-1615
108 0451 3008H Tapping Screw - M3x8
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
B003/B004/B006/007 59 Parts Location and List
Page 72
27.ELECTRICAL SECTION 1 (B003/B004/B006/B007)
B003/B004/B006/007 60 Parts Location and List
Page 73
27.ELECTRICAL SECTION 1 (B003/B004/B006/B007)
Index
No.
1 AX64 0113 Fan Motor - 80mm 2
2 A232 1172 Duct - Cooling Fan 1
3 A232 1170 Left Duct 1
3 G034 1170 Duct - Main Frame - Left (GSA) 1
4 A232 1171 Right Duct 1
5 AZ32 0086 High Voltage Supply - Cbt 1
6 B004 5812 Bracket - High Voltage Supply 1
7 B004 1082 Support Plate - Scanner Arm 1
8 B004 1936 Plate - Optical Housing Unit 1
9 B004 5897 Bracket - Connector 1
10 B004 5811 Bracket - High Voltage Supply 1
11 B004 5520 Harness - DC Power Supply 1
12 B004 5611 Harness - Heater 1
13 A232 5526 Power Supply Cord - 115V 1
13 A232 5527 Power Supply Cord - 230V 1
13 A232 5528 Power Supply Cord - 230V (CHN) 1
14 AZ24 0060 Po wer Su pp l y Unit - 115V 302W (NA/TWN) 1
14 AZ24 0061 Po wer Su pp l y Unit - 230V 302W (EU/Asia) 1
14 AZ24 0062 Power Supply Unit - 230V 302W (CHN) 1
15 B004 5457 Safety Switch Harness 1
16 B004 5898 Bracket - Power Supply Cord 1
17 A232 5410 Connector - Finisher 1
18 A232 7757 Bracket - Circuit Breaker 1
19 A232 7756 Harness - Circuit Breaker 1
20 N607 4540 Choke Coil - RITL-9901 (120V) 1
20 N607 4542 Choke Coil - RITL-0006 (230V) 1
21 N607 6527 Fan Motor - DC 0.96W 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 1105 0291 Harness Clamp - LWS-3S
102 0451 3006B Tapping Screw - M3x6
103 1105 0310 Harness Clamp - LWS-1S
105 0451 3008H Tapping Screw - M3x8
106 1107 0472 Circuit Breaker - W28xQ1A 8A 25V
107 0801 0149 Philips Pan Head Screw - M4x6
108 1105 0437 Locking Support - FGS-4S
109 0450 4035B Philips Tapping Screw - M4x35
110 1107 0907 Fuse - 6.3A 125V (120V)
110 1107 0920 Fuse - 6.3A 250V (230V)
111 1107 0908 Fuse - 10A 125V (120V)
111 1107 0979 Fuse - LM20 TOMEI
112 1107 0629 Fuse (Ceramic Case) - 15A - 125V
113 1107 0910 Fuse - 2A 125V (120V)
113 1107 0922 Fuse - 2A 250V (230V)
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 61 Parts Location and List
Page 74
28.ELECTRICAL SECTION 2 (B003/B004/B006/B007)
B003/B004/B006/007 62 Parts Location and List
Page 75
28.ELECTRICAL SECTION 2 (B003/B004/B006/B007)
Index
No.
1 A232 5403 Harness - IOB / pFB 1
2 B004 5451 DC Harness - Front Lower 1
3 B004 5452 DC Harness - Front Upper 1
4 B004 5125 IOB Board 1
5 B004 5831 Bracket - IOB 1
6 B004 5055 BICU Board 1
7 B004 5520 Harness - DC Power Supply 1
8 B004 5291 Harness - Laser Diode Control 1
9 B004 5450 DC Main Harness - Upper 1
10 B004 5825 Connector Bracket 1
11 B004 5608 Main Harness - Fusing Unit (230V) 1
11 B004 5609 Main Harness - Fusing Unit (120V) 1
12 A232 5861 Lever - Interlock Switch 1
13 A232 5860 Bracket - Interlock Switch 1
14 AA14 3512 Stepped Screw - M2.5 4
15 B004 5866 Bracket - Power Switch 1
16 A232 5862 Cover - Switch Lever 1
17 B004 5021 Safety & Power Switch As s 'y 1
18 A232 5865 Lever - Push Switch 1
19 B004 5606 Harness - AC Switch 1
20 AA14 3301 Stepped Screw - M3x4 2
21 AA06 0713 Tension Spring 1
22 B004 5024 Safety Switch Ass'y 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 1204 2466 Micro Switch - V-16506-1C25
102 1204 2477 Rocker Switch - AC250V 10A
103 1204 2521 Micro Switch
104 0451 3006B Tapping Screw - M3x6
105 0950 4006M Philips Screw With Flat Washer - M4x6
107 1102 6261 Relay Connector - 4P
108 1102 6249 Relay Connector - 6P
109 1102 6246 Relay Connector - 3P
110 1102 6260 Relay Connector - 3P
111 1102 6263 Connector - 6P
112 1102 6245 Relay Connector - 2P
113 1102 6943 Relay Connector -10p
114 1102 6266 Relay Connector - 9P
115 1102 6256 Relay Connector - 13P
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 63 Parts Location and List
Page 76

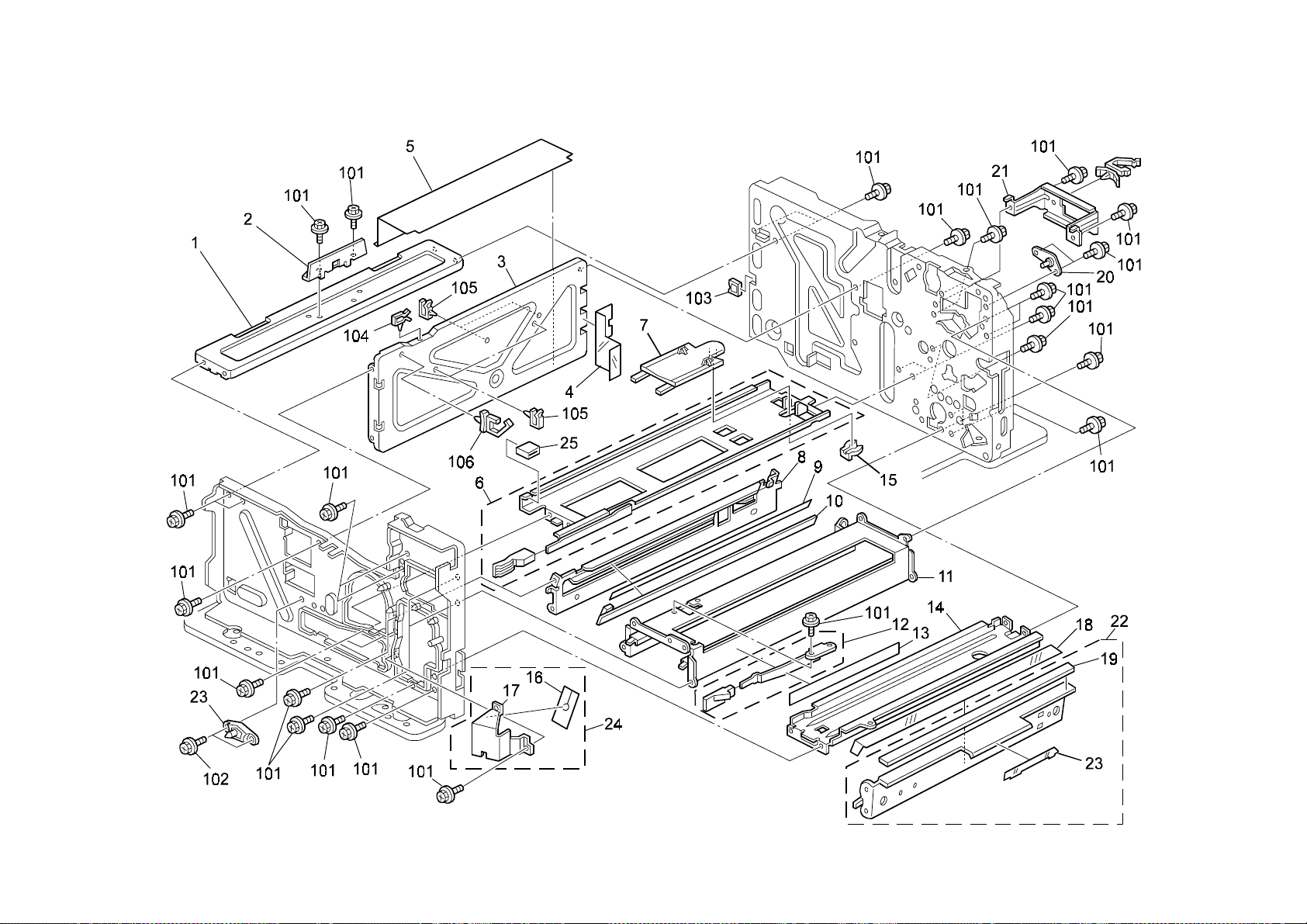

29.FRAME SECTION 1 (B003/B004/B006/B007)
B003/B004/B006/007 64 Parts Location and List
Page 77
29.FRAME SECTION 1 (B003/B004/B006/B007)
Index
No.
1 A232 1082 Left Stay - Paper Exit 1
2 A232 1083 Bracket - Bridge Unit 1
3 A232 1081 Center Frame 1
4 AA15 0684 Shield Plate 1
5 A232 1089 Upper Plate - Laser Unit 1
6 B004 3210 Guide - Toner Supply Unit 1
7 B004 3215 Toner Bottle Holder 1
8 A232 2362 Stay - PCU 1
9 A267 3455 Magnetic - Discharge Lamp 1
10 AX50 0046 Quenching Lamp 1
11 A232 1075 Guide Rail - Fusing Unit 1
12 A232 4201 Stopper - Fusing Unit 1
13 B004 4122 Decal - Warning (High Temperature) 1
14 A232 1071 Guide Rail - Development Unit 1
15 5206 2686 Snap Ring 1
16 G034 1971 Sheet - Shading Plate 1
17 B004 1969 Shield Plate - LDDR 1
18 A284 1021 Shield - Stay - PCU - Lower 1
19 AA15 3442 Shield - Stay - PCU 1
20 A232 4780 Pin - Stopper 1
21 B004 1081 Bracket - Fusing Connector 1
22 A232 1072 Lower Stay - PCU 1
23 A232 1937 Positioning Pin - Laser Unit Ass'y 1
24 B004 1968 Shield Plate Ass'y - LDDR 1
25 A232 3264 Stopper - Slide Rail 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0451 3008B Tapping Screw - M3x8
103 1105 0349 Edge Saddle
104 1105 0267 Harness Clamp - YMC-10-0
105 1105 0290 Harness Clamp - Horizontal
106 1105 0291 Harness Clamp - LWS-3S
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 65 Parts Location and List
Page 78
30.FRAME SECTION 2 (B003/B004/B006/B007)
B003/B004/B006/007 66 Parts Location and List
Page 79
30.FRAME SECTION 2 (B003/B004/B006/B007)
Index
No.
1 A232 1266 Left Hinge - Front Cover 1
2 A232 1177 Development Bracket 1
3 B004 1176 Lower Development Bracket 1
4 A230 2699 Stopper - Front Grip 1
5 A230 2696 Front Grip 1
6 B004 2995 Cap - Positioning 2
7 A232 2995 Front Positioning Guide 2
8 A232 2990 Guide Rail - Paper Tray 2
9 AH01 0009 Rubber Pad - H5 4
10 A232 1267 Right Hinge - Front Cover 1
11 B004 1089 Stay - Rear 1
12 A232 2996 Rear Positioning Guide 1
13 A230 2525 Stopper - Heater 1
14 AX40 0137 Heater - 120V 9W 1
14 AX40 0138 Heater - 230V 9W 1
15 A230 2520 Heat Sink - Heater 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 1105 0488 Harness Clamp
103 0451 4006B Tapping Screw - 4x6
104 1105 0487 Harness Clamp
105 1105 0349 Edge Saddle
106 1105 0267 Harness Clamp - YMC-10-0
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 67 Parts Location and List
Page 80
31.EXPANSION BOX (B003/B004/B006/B007)
B003/B004/B006/007 68 Parts Location and List
Page 81
31.EXPANSION BOX (B003/B004/B006/B007)
Index
No.
1 B004 5192 Mother Board 1
2 B004 5871 Expansion Box 1
3 B004 5876 Stay - Rack 1
4 B004 5885 Rack Panel 1
5 A284 5842 Gasket - Rack 1
6 B004 5850 Bracket - Control Board (B003/B004) 1
6 B007 5850 Bracket - Control Board (B006/B007) 1
7 B004 5854 Connector Cover 1
8 A285 5893 Card Cover 1
9 B004 5890 Bracket - HDD - Ass'y 1
10 AA16 1125 Rubber Cushion 4
11 B004 5893 HDD - 20G Byte 1
12 B004 5475 Harness - HDD 1
13 B004 5476 DC Power Harness 1
14 AA14 3499 Stepped Screw 4
15 B004 5845 Control Board Ass’y 1
16 B004 5100 Control Board 1
17 B004 9099 NVRAM - Minus Counter 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/007 69 Parts Location and List
Page 82
32.IOB BOARD (B003/B004/B006/B007)
B003/B004/B006/007 70 Parts Location and List
Page 83
32.IOB BOARD (B003/B004/B006/B007)
B003/B004/B006/007 71 Parts Location and List
Page 84
32.IOB BOARD (B003/B004/B006/B007)
B003/B004/B006/B007 71A Parts Location and List
Page 85
32.IOB BOARD (B003/B004/B006/B007)
B003/B004/B006/B007 72 Parts Location and List
Page 86
32.IOB BOARD (B003/B004/B006/B007)
Index
No.
* B004 5125 IOB Board 1
1 A232 5355 IC - GATEX 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 1102 3822 Connector - 20P
102 1102 5306 Connector - 7P
103 1102 6299 Connector - 6P
104 1102 6301 Connector - 8P
105 1102 6306 Connector - 13P
106 1102 6311 Connector - 4P
107 1102 6319 Connector - 12P
108 1102 6334 Connector - 3P
109 1102 6339 Connector - 8P
110 1102 6341 Connector - 10P
111 1102 6342 Connector - 11P
112 1102 6354 Connector
113 1102 6396 Connector - 1P
114 1102 6401 Connector - 26P
115 1102 6402 Connector - 2P
116 1102 6896 Connector - 50P
117 1102 7700 Connector - 50P
118 1204 2480 Dip Switch - Dss808
119 1400 0398 Transistor - 2SC2412K
120 1400 0556 Transistor - DTB143EK
121 1402 1142 Diode Array - DAN217
122 1402 1322 Diode Array - DAN202U
123 1402 1336 Diode - 1SS355
124 1402 1378 Diode - PTZ12A
125 1402 1380 Diode - PTZ 6.2A
126 1402 1572 Diode - HZU3ALL
127 1404 0360 Thermistor - 103HT
128 1407 1535 IC - TD62308AP
129 1407 1596 TTLIC - SN74LS14NS
130 1407 1880 TTLIC - SN74LS04NS
131 1407 2187 TTLIC - SN74LS07NS
132 1407 2219 IC - TD62003AP
133 1407 3290 IC - TC74HC02AF
134 1407 4687 IC - TA8083F
135 1407 5085 IC - TC4066BF(N)
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/B007 72A Parts Location and List
Page 87
Index
No.
136 1408 1065 Comparator BA10339F
137 1408 1095 IC - BA10324AF
138 1503 0865 Oscillator - 9.8304MHZ
139 1601 5414 Resistor - 330 Ω ±5% 1W
140 1601 7752 Resistor Array - 10K Ω ±5%
141 1601 7791 Resistor Array - 1K Ω ±5%
142 1630 1221 Resistor - 220 Ω ±5% 1/4W
143 1630 2221 Resistor - 220 Ω
144 1630 4100 Resistor - 10 Ω ±5% 1/16W
145 1630 4102 Resistor - 1.0KΩ ±5% 1/16W
146 1630 4103 Resistor - 10KΩ ±5% 1/16W
147 1630 4104 Resistor - 100 Ω ±5% 1/16W
148 1630 4105 Resistor - 1.0MΩ ±5% 1/16W
149 1630 4161 Resistor - 160 Ω ±5% 1/16W
150 1630 4204 Resistor - 200KΩ ±5% 1/16W
151 1630 4222 Resistor - 2.2K Ω ±5%
152 1630 4223 Resistor - 22K Ω ±5% 1/16W
153 1630 4472 Resistor - 4.7KΩ ±5% 1/16W
154 1630 4562 Resistor - 5.6k Ω - ±5% - 1/16W
155 1630 4681 Resistor - 680 Ω ±5% 1/16W
156 1630 4821 Resistor - 820 Ω ±5% 1/16W
157 1631 1000 Resistor - 100 Ω ±1% 1/4W
158 1634 1002 Resistor - 10 Ω ±5% 1/16W
159 1634 1003 Resistor - 100KΩ ±1% 1/16W
160 1634 1403 Resistor - 140kΩ ±1% 1/16W
161 1634 2002 Resistor - 20K Ω ±1% 1/16W
162 1634 2401 Resistor - 2.4KΩ ±1% 1/16W
163 1634 2402 Resistor - 24K Ω ±1% 1/16W
164 1634 4641 Resistor - 4.64kΩ ±1% 1/16W
165 1634 5621 Resistor - 5.62kΩ ±1% 1/16W
166 1640 2470 Capacitor - 47µF±20% 25V
167 1640 5101 Capacitor - 100µF±20% 50V
168 1642 5330 Capacitor - 33µF±20% 50V
169 1660 2101 Capacitor - 100pF - ±10% - 50V
170 1660 2270 Capacitor - 27pF ±20% 35V
Part No.
Description
Q’ty Per
Assembly
Index
No.
171 1660 2471 Capacitor - 470pF - ±5% - 50V
172 1660 4102 Capacitor - 1000pF ±10% 50 V
173 1660 4472 Capacitor - 4700pF ±10% 50 V
174 1660 6103 Capacitor - 10000pF - +80%-20%50V
175 1660 8104 Capacitor - 0.1µF+80-20% 25V
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/B007 73 Parts Location and List
Page 88
33.BICU BOARD (B003/B004/B006/B007)
B003/B004/B006/B007 74 Parts Location and List
Page 89
33.BICU BOARD (B003/B004/B006/B007)
B003/B004/B006/B007 75 Parts Location and List
Page 90
33.BICU BOARD (B003/B004/B006/B007)
B003/B004/B006/B007 76 Parts Location and List
Page 91
33.BICU BOARD (B003/B004/B006/B007)
Index
No.
* B004 5055 BICU Board 1
1 B004 5120 IC - HG71C114FL 1
2 B004 5250 IC - CDIC Rl5C481 1
3 B004 5260 IC - VIPU_S KS5M9U1198CFP 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 1102 5305 Connector - 6P
102 1102 6297 Connector - 4P
103 1102 6595 Connector - 11P
104 1102 7196 Connector - 50P
105 1102 7389 Connector - FH12-50S-0.5SV
106 1102 7456 Connector 176125-5
107 1102 7729 Connector - DX10G1M-50SE
108 1102 8243 Connector - FH12-33S-0.5SV
109 1102 8272 Connector - TX25-100P-12ST-H1
110 1400 0392 Transistor - DTC114EK
111 1400 0398 Transistor - 2SC2412K
112 1402 1336 Diode - 1SS355
113 1402 1345 Diode - UDZ3.6B
114 1402 1380 Diode - PTZ 6.2A
115 1403 0907 Diode - SML-310LT
116 1403 0978 LED - SML-310DT
117 1407 2187 TTLIC - SN74LS07NS
118 1407 2218 TTLIC - SN74LS06NS
119 1407 3008 TTL - SN74ALS244CNS
120 1407 4771 IC - MC68334GFC16
121 1407 4827 IC - MBM29F400BC-70pFTN-SFK
122 1407 4876 CMOS IC - 74VHC244 TSSOP
123 1407 4879 CMOS IC - 74VHC74 TSSOP
124 1407 5090 IC - DS90CF364MTD
125 1408 0892 IC - RH5Vl30A
126 1408 1041 IC - MB3793-42
127 1408 1295 IC - UPC2933T
128 1408 1470 Series Regulator - TA18M025F(LBS1.S)
129 1503 0460 Oscillator - 32.768KHZ
130 1503 0936 Crystal Oscillator - 19.6608Mhz
131 1503 0937 Crystal Oscillator - 40.97Mhz
132 1601 7751 Resistor - 4.7KΩ ±5%
133 1601 7752 Resistor Array - 10K Ω ±5%
134 1601 7759 Resistor Array - 100k Ω ±5% 0.063W
135 1601 7791 Resistor Array - 1K Ω ±5%
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/B007 76A Parts Location and List
Page 92
Page 93
Index
No.
136 1601 7796 Resistor Array - 2.2KO
137 1601 7814 Resistor - 3.3k Ω ±5%
138 1601 7867 Resistor - 33 Ω ±5% 1/16W
139 1601 7869 Resistor - 1.2k Ω ±5% 1/16W
140 1601 7899 Resister Array - 56 Ω ±5% 1/16W
141 1605 0781 Capacitor - 5pF 50V
142 1605 0989 Capacitor - 0.22µF+80 -20% 16V
143 1605 1084 Capacitor - 0.68µF±10% 10V
144 1630 4100 Resistor - 10 Ω ±5% 1/16W
145 1630 4102 Resistor - 1.0KΩ ±5% 1/16W
146 1630 4103 Resistor - 10KΩ ±5% 1/16W
147 1630 4104 Resistor - 100 Ω ±5% 1/16W
148 1630 4105 Resistor - 1.0MΩ ±5% 1/16W
149 1630 4106 Resistor - 10m Ω ±5% 1/16W
150 1630 4222 Resistor - 2.2K Ω ±5%
151 1630 4223 Resistor - 22K Ω ±5% 1/16W
152 1630 4330 Resistor - 33 Ω ±5% 1/8W
153 1630 4334 Resistor - 330K Ω ±5% 1/16W
154 1630 4391 Resistor - 390Ω ±5.00% 1/16W
155 1630 4470 Resistor - 470 Ω ±5% 1/16W
156 1630 4472 Resistor - 4.7KΩ ±5% 1/16W
157 1630 4473 Resistor - 47k Ω - ±5% - 1/16W
158 1630 4510 Resistor - 51 Ω ±5% 1/16W
159 1630 4560 Resistor - 56Ω ±5% 1/16W
160 1630 4562 Resistor - 5.6k Ω - ±5% - 1/16W
161 1630 4751 Resistor - 50Ω±5.00% 1/16W
162 1634 0000 Resistor - 0 Ω 1/16W
163 1644 1470 Capacitor - 47µF±20% 16V
164 1660 2101 Capacitor - 100pF - ±10% - 50V
165 1660 2150 Capacitor - 15pF ±5% 50V
166 1660 2220 Capacitor - 22pF ±20% 35V
167 1660 2330 Capacitor - 33pF - ±5% - 50V
168 1660 2471 Capacitor - 470pF - ±5% - 50V
169 1660 4102 Capacitor - 1000pF ±10% 50 V
Part No.
Description
Q’ty Per
Assembly
Index
No.
170 1660 4103 Capacitor - 10000pF - ±10% - 50V
171 1660 6103 Capacitor - 10000pF - +80%-20%50V
172 1660 8104 Capacitor - 0.1µF+80-20% 25V
173 1902 0042 RAM - 1M X8 70ns TSOP G2
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/B007 77 Parts Location and List
Page 94
34.CONTROLLER BOARD (B003/B004/B006/B007)
B003/B004/B006/B007 78 Parts Location and List
Page 95
34.CONTROLLER BOARD (B003/B004/B006/B007)
B003/B004/B006/B007 79 Parts Location and List
Page 96
Page 97
34.CONTROLLER BOARD (B003/B004/B006/B007)
B003/B004/B006/B007 79A Parts Location and List
Page 98
34.CONTROLLER BOARD (B003/B004/B006/B007)
B003/B004/B006/B007 80 Parts Location and List
Page 99
34.CONTROLLER BOARD (B003/B004/B006/B007)
Index
No.
* B004 5100 Control Board 1
1 B004 5266 ASIC - SIMAC4 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 1100 1474 Test Pin
102 1102 2391 Connector - HIF3FB-40PA-2.54DSA
103 1102 3566 Connector - S8B-XH-A(8pin)
104 1102 6297 Connector - 4P
105 1102 6789 Connector - 100P
106 1102 6815 Connector - 53258-0410
107 1102 8153 Connector - FCN-568P068-G/05A-V4
108 1102 8189 Dimm Connector - 54534-1440
109 1102 8355 Connector - Dimm - DMM2-SD72A-1131
110 1102 8358 Connector - WR-100P-VF60-1
111 1102 8523 Connector - 57RE-40360-830B(D7A)
112 1102 8567 Connector - 52775-0800
113 1104 0588 Dip Socket - 28p
114 1204 1385 Push Switch
115 1204 1542 Dip Switch
116 1400 0591 Transistor - DTC113ZK
117 1401 1055 Fet - SI9934DY
118 1402 0595 Diode Array - DAN202K
119 1402 1265 Diode - RB411D
120 1402 1444 Diode - RB051L-40
121 1403 0907 Diode - SML-310LT
122 1407 2187 TTLIC - SN74LS07NS
123 1407 4913 IC - 74VHC244
124 1407 5040 IC - SN74LVC161284DL
125 1407 5273 CPU - RM5231-200Q-REV1.2C
126 1407 5274 CMOS Logic - 74LVCH162244A TSSOP
127 1407 5275 CMOS Logic - 74LVCHR16245A TSSOP
128 1407 5278 Clock Generator - ICS9148BF-17
129 1407 5324 RAM - M48T35AV-10PC1
130 1407 5327 CMOS Logic - 74LVC139A TSSOP
131 1407 5328 CMOS Logic - 74ALVCH162827 TSSOP
132 1407 5337 CMOS Logic - 74LVCH16373A TSSOP
133 1408 1514 IC - M62293FP
134 1408 1538 IC - M62032AFP
135 1503 0842 Oscillator - 14.31818mhz
Part No.
Description
Q’ty Per
Assembly
B003/B004/B006/B007 80A Parts Location and List
Page 100
Loading...
