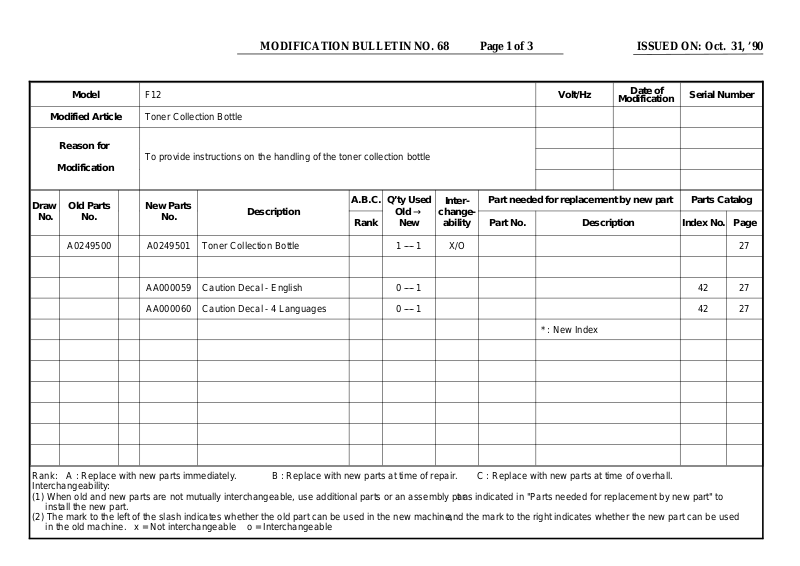

MODIFICATION BULLETIN NO. 68 Page 1 of 3 ISSUED ON: Oct. 31, ’90
Model F12 Volt/Hz
Modified Article Toner Collection Bottle
Reason for
To provide instructions on the handling of the toner collection bottle
Modification
Draw
No.
Old Parts
No.
A0249500 A0249501 Toner Collection Bottle 1 ---- 1 X/O 27
New Parts
No.
AA000059 Caution Decal - English 0 ---- 1 42 27
AA000060 Caution Decal - 4 Languages 0 ---- 1 42 27
Description
Date of
Modification
A.B.C. Q’ty Used
Old →
Rank Part No. Description Index No. Page
New
Inter-
change-
ability
Part needed for replacement by new part Parts Catalog
* : New Index
Serial Number
Rank: A : Replace with new parts immediately. B : Replace with new parts at time of repair. C : Replace with new parts at time of overhall.
Interchangeability:
(1) When old and new parts are not mutually interchangeable, use additional parts or an assembly part as indicated in "Parts needed for replacement by new part" to
install the new part.
(2) The mark to the left of the slash indicates whether the old part can be used in the new machine, and the mark to the right indicates whether the new part can be used
in the old machine. x = Not interchangeable o = Interchangeable
Page 2
DETAILS OF MODIFICATION
The decal shown below has been applied to the toner collection bottle to instruct customer
engineers on proper handling. Also, a 4 language decal set (German, French, Italian, and
Spanish) has been added to the new part to replace the English decal as occasion calls. The
English and 4 language decals have been registered as service parts individually.
MODIFICATION BULLETIN NO. 68 Page 2 of 3 ISSUED ON: Oct. 31, ’90
Caution Decal - English (#AA000059)
T.Ito, Manager
Copier Technical Support
Page 3
MODIFICATION BULLETIN NO. 68 Page 3 of 3 ISSUED ON: Oct. 31, ’90
V/Hz DESTINATION JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
P.B. M522 115/60 USA, Canada A024-11 009XXXX A024-07
Savin 7220 115/60 USA, Canada A024-15 76008XXXXX A024-08
Ricoh FT4430 115/60 USA, Canada A024-17 209008XXXX A024-06
Ricoh FT4400 115/60 USA, Canada A024-18 209009XXXX A024-98 Service Parts Only
Ricoh 4430 110/60 Taiwan A024-19 209008XXXX
infotec 9120Z 220/50 Europe A024-26 370090XXXX A024-46
Ricoh 4430 220,240/50 Europe, etc. A024-27 209008XXXX A024-47
Ricoh 4430 220,240/60 Phillipin, etc. A024-28 209008XXXX
Ricoh 4430 220,240/50 Asia, etc. A024-29 209008XXXX
Nashua 7125S 115/50 S. America, etc. A024-56 141009XXXX
Ricoh 4410 115/60 USA, Canada A024-57 230009XXXX A024-97
Ricoh 4470 110/60 Taiwan A024-59 231009XXXX
Nashua 7125S 220/50 Europe, etc. A024-65 140008XXXX A024-85
infotec 9125Z 220/50 Europe A024-66 379090XXXX A024-86
Ricoe FT4470 220,240/50 Europe, etc. A024-67 231009XXXX A024-87
Ricoe FT4470 220,240/50 Asia, etc. A024-69 2310080133
aurora AC2503 110/60 Taiwan A024-99 00800XXXXX
Page 4
MODIFICATION BULLETIN NO. 69 Page 1 of 2 ISSUED ON: Oct. 31, ’90
Model F12 (SAVIN only) Volt/Hz
Modified Article Power Supply Unit Cover
Reason for
To ensure copy tray installation
Modification
To ensure copy tray installation, the power supply unit cover has been modified as shown.
Old P/N New P/N Description Q’ty Interchangeability Index No. Page
A0241145 A0241152 Power Supply Unit Cover 1 ---- 1 X/O 13 33
Date of
Modification
Serial Number
Old
New
T.Ito, Manager
Copier Technical Support
Page 5
MODIFICATION BULLETIN NO. 69 Page 2 of 2 ISSUED ON: Oct. 31, ’90
V/Hz DESTINATION JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
P.B. M522 115/60 USA, Canada A024-11 A024-07
Savin 7220 115/60 USA, Canada A024-15 76008XXXXX A024-08
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06
Ricoh FT4400 115/60 USA, Canada A024-18 A024-98 Service Parts Only
Ricoh 4430 110/60 Taiwan A024-19
infotec 9120Z 220/50 Europe A024-26 A024-46
Ricoh 4430 220,240/50 Europe, etc. A024-27 A024-47
Ricoh 4430 220,240/60 Phillipin, etc. A024-28
Ricoh 4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56
Ricoh 4410 115/60 USA, Canada A024-57 A024-97
Ricoh 4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 A024-85
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoe FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoe FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 6
MODIFICATION BULLETIN NO. 70 Page 1 of 2 ISSUED ON: Feb. 28, ’91
Model F12/F13/F23 Volt/Hz
Modified Article Screw
Reason for
Parts Standardization
Modification
Due to parts standardization, the following parts have been changed. The interchangeability is O/O.
Page Index Old P/N New P/N Description
29 113 09513005 09513005B Philips Screw With Flat Washer - M3 x 5
Date of
Modification
Serial Number
T. Ito, Manager
Copier Technical Support
Page 7
MODIFICATION BULLETIN NO. 70 Page 2 of 2 ISSUED ON: Feb. 28, ’91
V/Hz DESTINATION JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
P.B. M522 115/60 USA, Canada A024-11 A024-07
Savin 7220 115/60 USA, Canada A024-15 A024-08
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06
Ricoh FT4400 115/60 USA, Canada A024-18 A024-98 Service Parts Only
Ricoh FT4430 110/60 Taiwan A024-19
infotec 9120Z 220/50 Europe A024-26 A024-46
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47
Ricoh FT4430 220,240/60 Phillipin, etc. A024-28
Ricoh FT4430 220,240/50 Asia, etc. A024-29 A024-89
Nashua 7125S 115/50 S. America, etc. A024-56
Ricoh FT4410 115/60 USA, Canada A024-57 A024-97
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 A024-85
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
Aurora AC2503 110/60 Taiwan A024-99
Page 8
MODIFICATION BULLETIN NO. 72 Page 1 of 2 ISSUED ON: April 15, ’91
Model F12/13/23 Volt/Hz
Modified Article Cleaning Blade
Reason for
Parts standardization
Modification
For the purpose of parts standardization, a new cleaning blade (P/N A0073565) replaces
cleaning blade P/N A0093565 and P/N 52053565.
The interchangeability of the old and new blades is O/O.
Old P/N New P/N Description Q’ty interchangeability Index No. Page
A0093565 A0073565 Cleaning Blade 1 → 1 O/O 15 21
Date of
Modification
Serial Number
P/N Model in which cleaning blade is used
52053565 F3/4, F9, F30/31, F33/34, F80, F85, F90
A0093565 F12, F13, F23, F24, F25
T .Ito, Manager
Copier Technical Support
Page 9
MODIFICATION BULLETIN NO. 72 Page 2 of 2 ISSUED ON: April 15, ’91
V/Hz DESTINATION JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
P.B. M522 115/60 USA, Canada A024-11 A024-07
Savin 7220 115/60 USA, Canada A024-15 A024-08
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06
Ricoh FT4400 115/60 USA, Canada A024-18 A024-98
Ricoh 4430 110/60 Taiwan A024-19
infotec 9120Z 220/50 Europe A024-26 A024-46
Ricoh 4430 220,240/50 Europe, etc. A024-27 A024-47
Ricoh 4430 220,240/60 Phillipin, etc. A024-28
Ricoh 4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56
Ricoh 4410 115/60 USA, Canada A024-57 A024-97
Ricoh 4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 A024-85
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoe FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoe FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 10
Reissued on: December 31, ’91
MODIFICATION BULLETIN NO. 73 Page 1 of 2 ISSUED ON: April 30, ’91
Model F12/F13/F23 Volt/Hz
Modified Article Development Sleeve
Reason for
Due to vendor change
Modification
Due to vendor cahgne, the development sleeve has been changed. The interchagneability is O/O.
Old P/N New P/N Description Page Index
AD031049 AD031206 Development Sleeve 23 19
Date of
Modification
Serial Number
T. Ito, Manager
Copier Technical Support
Page 11
Reissued on: December 31, ’91
MODIFICATION BULLETIN NO. 73 Page 2 of 2 ISSUED ON: April 30, ’91
V/Hz DESTINATION JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
P.B. M522 115/60 USA, Canada A024-11 003XXXX A024-07 Service Parts Only
Savin 7220 115/60 USA, Canada A024-15 76103XXXXX A024-08 7610356071
Ricoh FT4430 115/60 USA, Canada A024-17 209103XXXX A024-06 Service Parts Only
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts Only A024-98 Service Parts Only
Ricoh FT4430 110/60 Taiwan A024-19 209103XXXX
infotec 9120Z 220/50 Europe A024-26
Ricoh FT4430 220,240/50 Europe, etc. A024-27 209103XXXX A024-47 Service Parts Only
Ricoh FT4430 220,240/60 Phillipin, etc. A024-28 209103XXXX
Ricoh FT4430 220,240/50 Asia, etc. A024-29 2091020001
Nashua 7125S 115/50 S. America, etc. A024-56 1411020001
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts Only A024-97 Service Parts Only
Ricoh FT4470 110/60 Taiwan A024-59 231103XXXX
Nashua 7125S 220/50 Europe, etc. A024-65 1401020073 A024-85
infotec 9125Z 220/50 Europe A024-66
Ricoh FT4470 220,240/50 Europe, etc. A024-67 231103XXXX A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69 2311020001
aurora AC2503 110/60 Taiwan A024-99 00300XXXX
370041XXXX A024-46 Service Parts Only
379041XXXX A024-86
Page 12
MODIFICATION BULLETIN NO. 74 Page 1 of 2 ISSUED ON:May 31, ’91
Model F12/F13/F23 Volt/Hz
Modified Article Bottom Plate, etc.
Reason for
Parts Standardization
Modification
Due to parts standardization, the following parts have been changed.
Old P/N New P/N Description interchangeability Page Index
A0082710 A0302910 Bottom Plate O/O 7 23
52152713 AF013012 Bottom Plate Pad O/O 7 24
A0082734 A0602950 Large Cassette Cover (Ricoh) O/O 7 18
A0082737 A0602955 Small Cassette Cover (Ricoh) O/O 7 18
Date of
Modification
Serial Number
52152911 52152777 Large Cassette Cover (P.B.) O/O 7 18
52152916 52152778 Small Cassette Cover (P.B.) O/O 7 18
52156445 52156675 Large Cassette Cover (SVN,NSA,KAL) O/O 7 18
52156446 52156676 Small Cassette Cover (SVN, NSA, KAL) O/O 7 18
T. Ito, Manager
Copier Technical Support
Page 13
MODIFICATION BULLETIN NO. 74 Page 2 of 2 ISSUED ON:May 31, ’91
V/Hz DESTINATION JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
P.B. M522 115/60 USA, Canada A024-11 1040001 A024-07
Savin 7220 115/60 USA, Canada A024-15 7610400801 A024-08
Ricoh FT4430 115/60 USA, Canada A024-17 2091050001 A024-06
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts Only A024-98 Service Parts Only
Ricoh FT4430 110/60 Taiwan A024-19 209105XXXX
infotec 9120Z 220/50 Europe A024-26 370051XXXX A024-46 Service Parts Only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 209105XXXX A024-47 Service Parts Only
Ricoh FT4430 220,240/60 Phillipin, etc. A024-28 209105XXXX
Ricoh FT4430 220,240/50 Asia, etc. A024-29 2091050009
Nashua 7125S 115/50 S. America, etc. A024-56 1411040001
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts Only A024-97 Service Parts Only
Ricoh FT4470 110/60 Taiwan A024-59 231105XXXX
Nashua 7125S 220/50 Europe, etc. A024-65 1401040001 A024-85
infotec 9125Z 220/50 Europe A024-66 379051XXXX A024-86
Ricoe FT4470 220,240/50 Europe, etc. A024-67 231105XXXX A024-87
Ricoe FT4470 220,240/50 Asia, etc. A024-69 2311050001
aurora AC2503 110/60 Taiwan A024-99 0031050001
Page 14
Reissued on: December 31, ’91
2nd Reissued on : March 31, ’92
MODIFICATION BULLETIN NO. 75 Page 1 of 3 ISSUED ON: June 30, ’91
Model F12/F13/F23 Volt/Hz
Modified Article Development Guide Rail Ass’y
Reason for
To prevent the release lever for the development unit from being damaged
Modification
Draw
No.
Old Parts
No.
A0091687 Aid Guide - Development Unit 1 → 0 18 19
A0091688 Stopper Plate 1 → 0 69 19
New Parts
No.
A0083099 Development Guide Rail Ass’y 0 → 1 X/O 18 19
A0083499 Guide Rail - Development 0 → 1 * 71 19
A0083498 Development lock Plate 0 → 1 * 72 19
08030017 Knob Screw - M4x6.5 0 → 1 * 119 19
Description
Date of
Modification
A.B.C.
Rank Part No. Description Index No. Page
Q’ty Used
Old → New
Inter-
change-
ability
Part needed for replacement by new
part
Serial Number
Parts Catalog
04340060W Tapping Screw - M4x 6 n → n-1 106 19
* New Index
Rank: A : Replace with new parts immediately. B : Replace with new parts at time of repair. C : Replace with new parts at time of overhaul.
Interchangeability:
(1) When old and new parts are not mutually interchangeable, use additional parts or an assembly part as indicated in "Parts needed for replacement by new part" to
install the new part.
(2) The mark to the left of the slash indicates whether the old part can be used in the new machine, and the mark to the right indicates whether the new part can be used
in the old machine. x = Not interchangeable o = Interchangeable
Page 15
DETAILS OF MODIFICATION
Reissued on: December 31, ’91
2nd Reissued on : March 31, ’92
MODIFICATION BULLETIN NO. 75 Page 2 of 3 ISSUED ON: June 30, ’91
Development Rail Guide Ass’y(P/N A0083099)
Old
Stopper Plate
(P/N A0091688)
" A "
When the customer pulls the development unit out without lifting the release lever
(above illustration " A "), the development unit hits the release lever. If the unit is
pulled too strongly, the release lever sometimes may damaged. To prevent this
problem, the development guide rail and the lock plate of the same type as the
F85/F90 (instead of the aid guide ) have been added as shown above. Also, the
stopper plate has been removed.
Aid Guide - Development Unit
(P/N A0091687)
New
Guide Rail - Development
(P/N A0083499)
Development Lock Plate
(P/N A0083498)
Knob Screw
(P/N 08030017)
T. Ito, Manager
Copier Technical Support
Page 16
Reissued on: December 31, ’91
2nd Reissued on : March 31, ’92
MODIFICATION BULLETIN NO. 75 Page 3 of 3 ISSUED ON: June 30, ’91
V/Hz DESTINATION JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
P.B. M522 115/60 USA, Canada A024-11 1050001 A024-07 Service Parts Only
Savin 7220 115/60 USA, Canada A024-15 7610400804 A024-08 Service Parts Only
Ricoh FT4430 115/60 USA, Canada A024-17 209105XXXX A024-06 Service Parts Only
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts Only A024-98 Service Parts Only
Ricoh FT4430 110/60 Taiwan A024-19 209105XXXX
infotec 9120Z 220/50 Europe A024-26 370051XXXX A024-46 Service Parts Only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 2091040001 A024-47 Service Parts Only
Ricoh FT4430 220,240/60 Phillipin, etc. A024-28 209105XXXX
Ricoh FT4430 220,240/50 Asia, etc. A024-29 2091040101
Nashua 7125S 115/50 S. America, etc. A024-56 1411040001
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts Only A024-97 Service Parts Only
Ricoh FT4470 110/60 Taiwan A024-59 231105XXXX
Nashua 7125S 220/50 Europe, etc. A024-65 1401040001 A024-85 1401270239
infotec 9125Z 220/50 Europe A024-66 379051XXXX A024-86 3792810001
Ricoe FT4470 220,240/50 Europe, etc. A024-67 231105XXXX A024-87 2311280001
Ricoe FT4470 220,240/50 Asia, etc. A024-69 2311040001
aurora AC2503 110/60 Taiwan A024-99 0031040001
Page 17
Reissued on: December 31, ’91
MODIFICATION BULLETIN NO. 76 Page 1 of 3 ISSUED ON: July 31, ’91
Model F12/F13/F23 Volt/Hz
Modified Article Toner collection bottle seals
Reason for
To ensure adhesion of seals
Modification
Draw
No.
Old Parts
No.
AA151284 Seal - 15x26x3 1 → 0 41 27
52153888 Both Sided Tape - Holder 1 → 0 * 43 27
New Parts
No.
AA151700 Seal - 15x26x5 0 → 1 X/O 41 27
A0073763 Adhesive Tape - Sensor Holder 0 → 1 X/O * 43 27
Description
Date of
Modification
A.B.C.
Rank Part No. Description Index No. Page
Q’ty Used
Old → New
Inter-
change-
ability
Part needed for replacement by new part Parts Catalog
* New Index
Serial Number
Rank: A : Replace with new parts immediately. B : Replace with new parts at time of repair. C : Replace with new parts at time of overhaul.
Interchangeability:
(1) When old and new parts are not mutually interchangeable, use additional parts or an assembly part as indicated in "Parts needed for replacement by new part" to
install the new part.
(2) The mark to the left of the slash indicates whether the old part can be used in the new machine, and the mark to the right indicates whether the new part can be used
in the old machine. x = Not interchangeable o = Interchangeable
Page 18
DETAILS OF MODIFICATION
Seal - 15x26x3 Seal - 15x26x5
Reissued on: December 31, ’91
MODIFICATION BULLETIN NO. 76 Page 2 of 3 ISSUED ON: July 31, ’91
To ensure the adhesion of seal between the sensor holder and toner
collection bottle, the thickness of the seals (Holder Both Side Tape and seal
- 15x26x3) have been increased by around 2mm.
Also, the shape of the holder both side tape has been changed because of
part standardization with other models.
7.5
48
24
7.5
48
7.5
0.1
38.5
54
31
8
40
23.5
32
15
29.5
23.5
35
2
53
T. Ito, Manager
Copier Technical Support
Page 19
Reissued on: December 31, ’91
MODIFICATION BULLETIN NO. 76 Page 3 of 3 ISSUED ON: July 31, ’91
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
P.B. M522 115/60 USA, Canada A024-11 1060001 A024-07 Service Parts Only
Savin 7220 115/60 USA, Canada A024-15 761070XXXX A024-08 Service Parts Only
Ricoh FT4430 115/60 USA, Canada A024-17 2091060001 A024-06 Service Parts Only
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts Only A024-98 Service Parts Only
Ricoh FT4430 110/60 Taiwan A024-19 209107XXXX
infotec 9120Z 220/50 Europe A024-26 370071XXXX A024-46 Service Parts Only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 209107XXXX A024-47 Service Parts Only
Ricoh FT4430 220,240/60 Phillipin, etc. A024-28 209107XXXX
Ricoh FT4430 220,240/50 Asia, etc. A024-29 2091060021
Nashua 7125S 115/50 S. America, etc. A024-56 1411060001
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts Only A024-97 Service Parts Only
Ricoh FT4470 110/60 Taiwan A024-59 231107XXXX
Nashua 7125S 220/50 Europe, etc. A024-65 1401060001 A024-85
infotec 9125Z 220/50 Europe A024-66 379071XXXX A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 231107XXXX A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69 2311070001
aurora AC2503 110/60 Taiwan A024-99 0031060001
Page 20
MODIFICATION BULLETIN NO. 78 Page 1 of 2 ISSUED ON:June 30, ’92
Model F12 /F13/ F23 Volt/Hz
Modified Article Drum
Reason for
To standardize the part number
Modification
The part number has been changed to standardize the part number of the drum.
Old P/N New P/N Description Q’ty Used Interchangeability
54429590 54429510 Drum
1 → 1
O/O
Date of
Modification
Serial Number
T. Ito, Manager
Copier Technical Support
Page 21
MODIFICATION BULLETIN NO. 78 Page 2 of 2 ISSUED ON:June 30, ’92
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
P.B. M522 115/60 USA, Canada A024-11 A024-07
Savin 7220 115/60 USA, Canada A024-15 A024-08
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06
Ricoh FT4400 115/60 USA, Canada A024-18 A024-98
Ricoh 4430 110/60 Taiwan A024-19
infotec 9120Z 220/50 Europe A024-26 Service Parts Only A024-46 Service Parts Only
Ricoh 4430 220,240/50 Europe, etc. A024-27 Service Parts Only A024-47 Service Parts Only
Ricoh 4430 220,240/60 Phillipin, etc. A024-28
Ricoh 4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56
Ricoh 4410 115/60 USA, Canada A024-57 A024-97
Ricoh 4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 Service Parts Only A024-85 Service Parts Only
infotec 9125Z 220/50 Europe A024-66 Service Parts Only A024-86 Service Parts Only
Ricoh FT4470 220,240/50 Europe, etc. A024-67 Service Parts Only A024-87 Service Parts Only
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 22
MODIFICATION BULLETIN NO. 79 Page 1 of 2 ISSUED ON: July 31, ’92
Model F12 / F13 / F23 Volt/Hz
Modified Article Decal - Paper Level
Reason for
Due to parts standardization (OEM only)
Modification
Due to parts standardization, the paper level decal has been changed. The Interchangeability is O/O.
Old P/N New P/N Description Page Index
54134835 AA002010 Decal - Paper level
7
57
22
14
Date of
Modification
....... OEM only
Serial Number
T. Ito, Manager
Copier Technical Support
Page 23
MODIFICATION BULLETIN NO. 79 Page 2 of 2 ISSUED ON: July 31, ’92
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Gestetner 2525Z 115/60 USA, Canada A024-10
P.B. M522 115/60 USA, Canada A024-11 A024-07
Savin 7220 115/60 USA, Canada A024-15 A024-08
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06
Ricoh FT4400 115/60 USA, Canada A024-18 A024-98
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22
infotec 9120Z 220/50 Europe A024-26 A024-46
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47
Ricoh FT4430 220,240/60 Phillipin, etc. A024-28
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56
Ricoh FT4410 115/60 USA, Canada A024-57 A024-97
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 A024-85
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 24
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 80 Page 1 of 2 ISSUED ON: August 15, ’92
Model F12 / F13 / F23 Volt/Hz
Modified Article Operating Instructions - Chinese
Reason for
Customs clearance (Taiwan)
Modification
To clear this copier through Taiwan ese customs, the Chinese operat ing instructions now have
to be included in the machine carton box. Please add the following part number to your parts
catalog.
Page Index P/N Description
57 22 A0248618 Operating Instructions - Chinese
57 22 A0248619 Operating Instructions - Chinese (Aurora)
Date of
Modification
Serial Number
Page 25
MODIFICATION BULLETIN NO. 80 Page 2 of 2 ISSUED ON: August 15, ’92
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME
Gestetner 2525Z 115/60 USA, Canada A024-10
P.B. M522 115/60 USA, Canada A024-11 A024-07
Savin 7220 115/60 USA, Canada A024-15 A024-08
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06
Ricoh FT4400 115/60 USA, Canada A024-18 A024-98
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22
infotec 9120Z 220/50 Europe A024-26 A024-46
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47
Ricoh FT4430 220,240/60 Phillipin, etc. A024-28
V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56
Ricoh FT4410 115/60 USA, Canada A024-57 A024-97
Ricoh FT4470 110/60 Taiwan A024-59 2311110001
Nashua 7125S 220/50 Europe, etc. A024-65 A024-85
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99 0031110001
Page 26
MODIFICATION BULLETIN NO. 81 Page 1 of 2 ISSUED ON: September 30 ’92
Model F12/F13/F23 Volt/Hz
Modified Article Exterior and Operating Instructions
Reason for
Gestetner version information (F23 Gestetner only)
Modification
To start F23 production of the Ge ste tn er bra nd mode l, th e followin g pa rts have be en re gist ere d.
New P/N Description Q’ty Used Index No. Page
A0246710 Front Cover (GES) 1 31 3
A0248685 Operating Instructions - 5 Language (GES) 1 22 59
AF043004 Receiving Tray (GES) 1 1 3
NOTE : Other parts are common with the curre nt Nashu a bra nd model.
Date of
Modification
Serial Number
T. Ito, Manager
Copier Technical Support
Page 27
MODIFICATION BULLETIN NO. 81 Page 2 of 2 ISSUED ON: September 30 ’92
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME
Gestetner 2525Z 115/60 USA, Canada A024-10 From 1st Production
P.B. M522 115/60 USA, Canada A024-11 A024-07
Savin 7220 115/60 USA, Canada A024-15 A024-08
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06
Ricoh FT4400 115/60 USA, Canada A024-18 A024-98
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22 From 1st Production
infotec 9120Z 220/50 Europe A024-26 A024-46
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47
V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Ricoh FT4430 220,240/60 Philippine, etc. A024-28
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56
Ricoh FT4410 115/60 USA, Canada A024-57 A024-97
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 A024-85
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 28
MODIFICA TION BULLETIN NO. 82 Page 1 of 4 ISSUED ON: October 31, ’92
Model F12 / F13 / F23 Volt/Hz
Mod i fied Article Exteriors and Operating Instructions
Reason for
At Gestetner’s request
Modification
Date of
Modification
Serial Numbe r
At Gestetner’s request, the Nashua brand models (A024-56, -65, -85) have been modified for sale under all their
brands. The mach ine codes have been standardized (A024-56 → A024-10, A024-65, -85 → A024-22).
Old P/N New P/N Description Q’ty Interchangeability Index Page
A0246707 Front Cover (NSA) 1 → 0313
A0246710 Front Cover (GES) 1 → 0313
A0246713 Front Cover (NRG) 0 → 1313
A0247050 Name Plate (GES) 0 → 1* 603
A0247051 Name Plate (NST) 0 → 1* 603
X/X
* 1
x/o as a set
A0546330 Decal - Key Top Cover (NST) 0 → 1
A0546335 Decal - Key Top Cover (GES) 0 → 1
* 46
* 23
* 46
* 23
11
57
11
57
Note * 1 : Even though the model name is missing from the new front co ver, it can be placed by sticking one of the new
name plate. The old fron t cover is no longer supplied .
* New Index
Page 29
MODIFICA TION BULLETIN NO. 82 Page 2 of 4 ISSUED ON: October 31, ’92
Inter
Old P/N New P/N Description Q’ty
A0248645 Operating Instructions - 5 Languages (NSA) 1 → 02257
- change
- ability
Index P a ge
A0248697
A0248645 Operating Instructions - 5 Languages (NSA) 1 → 02257
A0248695
A0248685 Operating Instructions - 5 Languages (GES) 1 → 02257
A0248697
A0248685 Operating Instructions - 5 Languages (GES) 1 → 02257
A0248695
Operating Instructions - 5 Languages
(NR G USA)
Operating Instructions - 5 Languages
(NR G Europe)
Operating Instructions - 5 Languages
(NR G USA)
Operating Instructions - 5 Languages
(NR G Europe)
0 → 1 X/O 22 57 A024-56 only
0 → 1 X/O 22 57 A024-65 only
0 → 1 X/O 22 57 A024-10 only
0 → 1 X/O 22 57 A024-22 only
P/N A0247050
Front Cover
P/N A0247051
Name Plate
Page 30
DETAILS OF MODIFICATION
P/N A0546335
Decal - Key Top Cover
MODIFICA TION BULLETIN NO. 82 Page 3 of 4 ISSUED ON: October 31, ’92
P/N A0546330
Operatio n Panel
T. Ito, Manager
Copier Technical Support
Page 31
MODIFICA TION BULLETIN NO. 82 Page 4 of 4 ISSUED ON: October 31, ’92
JAPAN PR ODUCTION R P L P RODUCTION REI PRODUCTION
MODEL NAME V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Gestetner 2525Z 115/60 USA, Canada A024-10 1412100001
P.B. M522 115/60 USA, Canada A024-11 A024-07
Savin 7220 115/60 USA, Canada A024-15 A024-08
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06
Ricoh FT4400 115/60 USA, Canada A024-18 A024-98
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22 1202090001
infotec 9120Z 220/50 Europe A024-26 A024-46
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47
Ricoh FT4430 220,240/60 Philippine, etc. A024-28
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56 Service Parts Only
Ricoh FT4410 115/60 USA, Canada A024-57 A024-97
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 Service Parts Only A024-85 Service Parts Only
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 32
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 83 Page 1 of 2 ISSUED ON: December 31, ’92
Model F12 / F13 / F23 Volt/Hz
Modified Article Parts Catalog
Reason for
Parts Catalog Correction
Modification
Please correct your parts catalog as follows:
1. Parts Number Correction
Incorrect P/N Correct P/N Description Q’ty Index Page
52152716 Front Side Fence
A0082715 Side Fence - Front
1 → 0
0 → 1
25 7
25 7
2. Illustration Correction
Please add the paper level decal (Index No. 22) to the illustra tio n as shown.
# 25
Date of
Modification
Serial Number
Incorrect
3. Quantity Correction
P/N Description Q’ty Index Page
AA002010 Decal - Paper Level
1 → 2
# 22
Correct
22 7
Page 33
MODIFICATION BULLETIN NO. 83 Page 2 of 2 ISSUED ON: December 31, ’92
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME
Gestetner 2525Z 115/60 USA, Canada A024-10
P.B. M522 115/60 USA, Canada A024-11 A024-07 Service Parts Only
Savin 7220 115/60 USA, Canada A024-15 A024-08 Service Parts Only
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06 Service Parts Only
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts Only A024-98 Service Parts Only
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22
infotec 9120Z 220/50 Europe A024-26 A024-46 Service Parts Only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47 Service Parts Only
Ricoh FT4430 220,240/60 Philippine, etc. A024-28
V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56 Service Parts Only
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts Only A024-97 Service Parts Only
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 Service Parts Only A024-85 Service Parts Only
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 34
T. Ito, Manager
Copier Technical Support
---------- OEM only
MODIFICATION BULLETIN NO. 84 Page 1 of 2 ISSUED ON: December 31, ’92
Model F12 / F13 / F23 Volt/Hz
Modified Article Rear Side Fence
Reason for
Due to parts standardization (OEM only)
Modification
Due to parts standardizat ion , the rear side fence of the casse tte has been changed.
The interchangeability is O/O.
Old P/N New P/N Description Q’ty Index Page
52152727 A0082727 Side Fence - Rear
1 → 1
20 7
Date of
Modification
Serial Number
Page 35
MODIFICATION BULLETIN NO. 84 Page 2 of 2 ISSUED ON: December 31, ’92
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Gestetner 2525Z 115/60 USA, Canada A024-10
P.B. M522 115/60 USA, Canada A024-11 A024-07 Service Parts Only
Savin 7220 115/60 USA, Canada A024-15 A024-08
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06
Ricoh FT4400 115/60 USA, Canada A024-18 A024-98
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22
infotec 9120Z 220/50 Europe A024-26 A024-46 Service Parts Only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47
Ricoh FT4430 220,240/60 Philippine, etc. A024-28
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56 Service Parts Only
Ricoh FT4410 115/60 USA, Canada A024-57 A024-97
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 Service Parts Only A024-85 Service Parts Only
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 36
ISSUED ON: June 15, ’93
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 85 PAGE 1 OF 2
Model F12 / F13 / F23 Volt/Hz
Modified Article Photothyristor
Reason for
To meet safety standards (220/240V Only)
Modification
Modification
To meet safety stand ard s, the photothyristor on the fusin g lamp drive board has been changed.
Inter-
Old P/N New P/N Description Q’ty Used
14050151 Photothyristor - TLP545J (220V) 1 → 0 105 39
14050250 Photothyristor - TLP741J (220V) 0 → 1 X/O 105 39
change-
ability
Index No. Page
Parts Catalog
Date of
Serial Number
Page 37
MODIFICATION BULLETIN NO. 85 PAGE 2 OF 2
ISSUED ON: June 15, ’93
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME
Gestetner 2525Z 115/60 USA, Canada A024-10
P.B. M522 115/60 USA, Canada A024-11 A024-07 Service Parts Only
Savin 7220 115/60 USA, Canada A024-15 A024-08 Service Parts Only
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06 Service Parts Only
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts Only A024-98 Service Parts Only
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22 1203050001
infotec 9120Z 220/50 Europe A024-26 370063XXXX A024-46 Service Parts Only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 209306XXXX A024-47 Service Parts Only
Ricoh FT4430 220,240/60 Philippine, etc. A024-28 209306XXXX
V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Ricoh FT4430 220,240/50 Asia, etc. A024-29 2093050001
Nashua 7125S 115/50 S. America, etc. A024-56 Service Parts Only
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts Only A024-97 Service Parts Only
Ricoh FT4470 110/60 Taiwan A024-59 231306XXXX
Nashua 7125S 220/50 Europe, etc. A024-65 Service Parts Only A024-85 Service Parts Only
infotec 9125Z 220/50 Europe A024-66 379063XXXX A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 231306XXXX A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69 2313050048
aurora AC2503 110/60 Taiwan A024-99
Page 38
MODIFICATION BULLETIN NO. 86 PAGE 1 OF 2
ISSUED ON: September 30, ’93
Model F12 / F13 / F23 Volt/Hz
Modified Article Arm Holder
Reason for
Parts standardization
Modification
Due to parts standardizat ion wit h A7 , th e arm ho lder has been changed. The inte rcha ng ea bilit y is O/ O.
Old P/N New P/N Description Q’ty Used
52152834 A0691972 Arm Holder
1 → 1
Parts Catalog
Index No. Page
87
Date of
Modification
Serial Number
T. Ito, Manager
Copier Technical Support
Page 39
MODIFICATION BULLETIN NO. 86 PAGE 2 OF 2
ISSUED ON: September 30, ’93
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Gestetner 2525Z 115/60 USA, Canada A024-10
P.B. M522 115/60 USA, Canada A024-11 A024-07 Service Parts Only
Savin 7220 115/60 USA, Canada A024-15 A024-08 Service Parts Only
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06 Service Parts Only
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts Only A024-98 Service Parts Only
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22
infotec 9120Z 220/50 Europe A024-26 A024-46 Service Parts Only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47 Service Parts Only
Ricoh FT4430 220,240/60 Philippine, etc. A024-28
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56 Service Parts Only
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts Only A024-97 Service Parts Only
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 Service Parts Only A024-85 Service Parts Only
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 40
MODIFICATION BULLETIN NO. 87 PAGE 1 OF 2
ISSUED ON: September 30, ’93
Model F12 / F13 / F23 Volt/Hz
Modified Article Photointerrupter
Reason for
Due to vendor change
Modification
Due to vendor change, The photointerrupter has be en chan ge d. The interchangeability is O/O.
Old P/N New P/N Description Q’ty Used
52055251 LED Sensor Type - T
AW020041 Photointerrupter
1 → 0
0 → 1
Parts Catalog
Index No. Page
10
28
10
28
15
17
15
17
Date of
Modification
Serial Number
T. Ito, Manager
Copier Technical Support
Page 41
MODIFICATION BULLETIN NO. 87 PAGE 2 OF 2
ISSUED ON: September 30, ’93
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Gestetner 2525Z 115/60 USA, Canada A024-10
P.B. M522 115/60 USA, Canada A024-11 A024-07 Service Parts Only
Savin 7220 115/60 USA, Canada A024-15 A024-08 Service Parts Only
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06 Service Parts Only
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts Only A024-98 Service Parts Only
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22
infotec 9120Z 220/50 Europe A024-26 A024-46 Service Parts Only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47 Service Parts Only
Ricoh FT4430 220,240/60 Philippine, etc. A024-28
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56 Service Parts Only
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts Only A024-97 Service Parts Only
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 A024-85 Service Parts Only
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 42
MODIFICATION BULLETIN NO. 88 PAGE 1 OF 2
ISSUED ON: January 31, ’94
Model F12 / F13 / F23 Volt/Hz
Modified Article Exposure Glass Seal, etc.
Reason for
Due to parts standardization
Modification
Date of
Modification
Due to parts standardization, the following parts have been changed.
Old P/N New P/N Description Q’ty Used
54421950 Seal - Glass
A1211942 Seal - 150 x 20
A0091683 A1211783 Sensor Actuator
1 → 0
0 → 1
1 → 1
Inter-
change-
ability
O/O
O/O 4 15
Parts Catalog
Index No. Page
53
18
53
18
3
17
3
17
Due to parts standardizat ion wit h Ricoh mo de l, th e fusing unit for Nashua and info tec versions has been changed as
follows: (-22, -26, -65, -66 version s only)
Serial Number
Old P/N New P/N Description Q’ty Used
A0244308 A0244307 Fusing Unit - 220V
1 → 1
Inter-
change-
ability
O/O * 29
Parts Catalog
Index No. Page
S. Hamano, Assistant General Man ag er
Technical Support Departme nt
Page 43
MODIFICATION BULLETIN NO. 88 PAGE 2 OF 2
ISSUED ON: January 31, ’94
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Gestetner 2525Z 115/60 USA, Canada A024-10
P.B.. M522 115/60 USA, Canada A024-11 A024-07 Service Parts only
Savin 7220 115/60 USA, Canada A024-15 A024-08 Service Parts only
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06 Service Parts only
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts only A024-98 Service Parts only
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22
infotec 9120Z 220/50 Europe A024-26 A024-46 Service Parts only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47 Service Parts only
Ricoh FT4430 220,240/60 Philippic, etc. A024-28
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56 Service Parts only
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts only A024-97 Service Parts only
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 A024-85 Service Parts only
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 44
MODIFICATION BULLETIN NO. 89 PAGE 1 OF 2
ISSUED ON: March 15, ’94
Model F12/F13/F23 Volt/Hz
Modified Article Supporter - Registration
Reason for
Due to parts standardization
Modification
Due to parts standardization, the registration clutch supporter has been changed.
Inter-
Old P/N New P/N Description Q’ty Used
A0092802 A1212802 Supporter - Resitration
1 → 1
change-
ability
O/O 18 25
Date of
Modification
Parts Catalog
Index No. Page
Serial Number
S. Hamano, Assistant General Manager
Technical Support Department
Page 45
MODIFICATION BULLETIN NO. 89 PAGE 2 OF 2
ISSUED ON: March 15, ’94
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Gestetner 2525Z 115/60 USA, Canada A024-10
P.B. M522 115/60 USA, Canada A024-11 A024-07 Service Parts only
Savin 7220 115/60 USA, Canada A024-15 A024-08 Service Parts only
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06 Service Parts only
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts only A024-98 Service Parts only
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22
infotec 9120Z 220/50 Europe A024-26 A024-46 Service Parts only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47 Service Parts only
Ricoh FT4430 220,240/60 Phillipin, etc. A024-28
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56 Service Parts only
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts only A024-97 Service Parts only
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 A024-85 Service Parts only
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 46
MODIFICATION BULLETIN NO. 90 PAGE 1 OF 2
ISSUED ON: June 30, ’94
Model F12 / F13 / F23 Volt/Hz
Modified Article Hot Roller, etc
Reason for
Due to parts standardization
Modification
Date of
Modification
Serial Number
Due to parts standardization , th e following parts have been changed.
Old P/N New P/N Description Q’ty Used
52154320 AE011003 Hot Roller
A0096615 Cover Exit Ass’y
A1216615 Exit Cover
52151085 A1211085 Motor Cover
1 → 1
1 → 0
0 → 1
1 → 1
Inter-
change-
ability
O/O 8 31
O/O 3 33
O/O 9 29
Index No. Page
Parts Catalog
333
According the these chan ge s (hot roller and exit cover), the parts number of the fusing unit has also cha ng ed as follows:
Old P/N New P/N Description Q’ty Used
A0244306 A0244304 Fusing Unit - 115V
A0244307 A0244305 Fusing Unit - 220V
1 → 1
1 → 1
Inter-
change-
ability
O/O * 29
O/O * 29
Index No. Page
Parts Catalog
S. Hamano, Assistant General Manager
Technical Support Department
Page 47
MODIFICATION BULLETIN NO. 90 PAGE 2 OF 2
ISSUED ON: June 30, ’94
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME
Gestetner 2525Z 115/60 USA, Canada A024-10
P.B. M522 115/60 USA, Canada A024-11 A024-07 Service Parts Only
Savin 7220 115/60 USA, Canada A024-15 A024-08 Service Parts Only
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06 Service Parts Only
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts Only A024-98 Service Parts Only
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22
infotec 9120Z 220/50 Europe A024-26 A024-46 Service Parts Only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47 Service Parts Only
V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Ricoh FT4430 220,240/60 Phillipin, etc. A024-28
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56 Service Parts Only
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts Only A024-97 Service Parts Only
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 A024-85 Service Parts Only
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Page 48
MODIFICATION BULLETIN NO. 91 PAGE 1 OF 2
ISSUED ON: September 30, ’94
Model F12 / F13 / F23 Volt/Hz
Modified Article Platen Cover Pad
Reason for
Due to parts standardization with other model
Modification
Due to parts standardizat ion wit h ot he r mo de l, th e platen cover pad has been change d.
Inter-
Old P/N New P/N Description Q’ty Used
54482803 AA162053 Platen Cover Pad
1 → 1
change-
ability
O/O 5 7
Date of
Modification
Parts Catalog
Index No. Page
Serial Number
S. Hamano, Assistant General Manager
Technical Support Department
Page 49
MODIFICATION BULLETIN NO. 91 PAGE 2 OF 2
ISSUED ON: September 30, ’94
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME V/Hz DESTINATION
CODE SERIAL NO. CODE SERIAL NO. CODE SERIAL NO.
Gestetner 2525Z 115/60 USA, Canada A024-10
P.B. M522 115/60 USA, Canada A024-11 A024-07 Service Parts only
Savin 7220 115/60 USA, Canada A024-15 A024-08 Service Parts only
Ricoh FT4430 115/60 USA, Canada A024-17 A024-06 Service Parts only
Ricoh FT4400 115/60 USA, Canada A024-18 Service Parts only A024-98 Service Parts only
Ricoh FT4430 110/60 Taiwan A024-19
Gestetner 2525Z 220/50 Europe, etc. A024-22
infotec 9120Z 220/50 Europe A024-26 A024-46 Service Parts only
Ricoh FT4430 220,240/50 Europe, etc. A024-27 A024-47 Service Parts only
Ricoh FT4430 220,240/60 Phillipin, etc. A024-28
Ricoh FT4430 220,240/50 Asia, etc. A024-29
Nashua 7125S 115/50 S. America, etc. A024-56 Service Parts only
Ricoh FT4410 115/60 USA, Canada A024-57 Service Parts only A024-97 Service Parts only
Ricoh FT4470 110/60 Taiwan A024-59
Nashua 7125S 220/50 Europe, etc. A024-65 A024-85 Service Parts only
infotec 9125Z 220/50 Europe A024-66 A024-86
Ricoh FT4470 220,240/50 Europe, etc. A024-67 A024-87
Ricoh FT4470 220,240/50 Asia, etc. A024-69
aurora AC2503 110/60 Taiwan A024-99
Loading...
