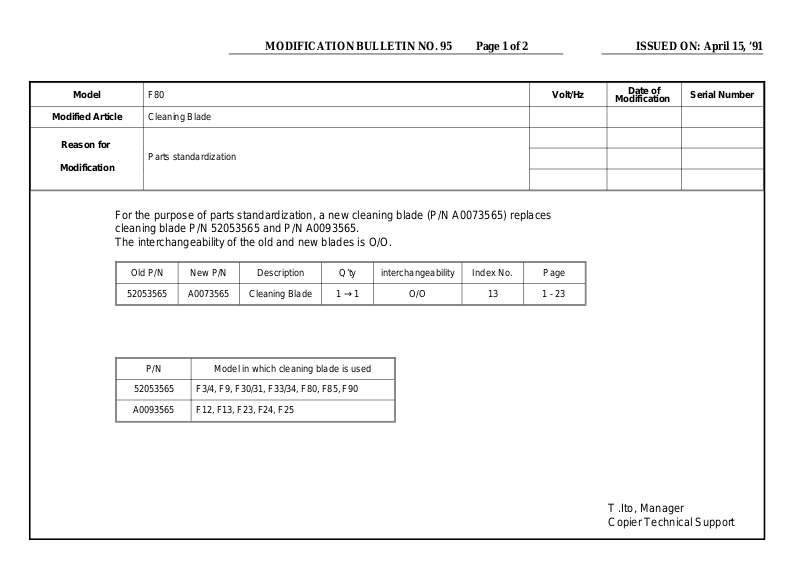

MODIFICATION BULLETIN NO. 95 Page 1 of 2 ISSUED ON: April 15, ’91
Model F80 Volt/Hz
Modified Article Cleaning Blade
Reason for
Parts standardization
Modification
For the purpose of parts standardization, a new cleaning blade (P/N A0073565) replaces
cleaning blade P/N 52053565 and P/N A0093565.
The interchangeability of the old and new blades is O/O.
Old P/N New P/N Description Q’ty interchangeability Index No. Page
52053565 A0073565 Cleaning Blade 1 → 1 O/O 13 1 - 23
Date of
Modification
Serial Number
P/N Model in which cleaning blade is used
52053565 F3/4, F9, F30/31, F33/34, F80, F85, F90
A0093565 F12, F13, F23, F24, F25
T .Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 95 Page 2 of 2 ISSUED ON: April 15, ’91
MODEL NAME V/Hz DESTINATION
NASHUA 5131 115/60 S. AMERICA etc. A004 - 16
RICOH FT5000 115/60 USA, CANADA A004 - 17 5215 - 06
RICOH FT5000 110/60 TAIWAN A004 - 19
NASHUA 5131 220,240/50 EUROPE etc. A004 - 25 A004 - 45
INFOTEC 9032 220,240/50 EUROPE etc. A004 - 26 A004- 46
RICOH FT5000 220,240/50 EUROPE A004 - 27 A004- 47
RICOH FT5000 220,240/60 PHILLIPN etc. A004 - 28
RICOH FT5000 220,240/50 ASIA A004 - 29
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
CODE SERIAL NUMBER CODE SERIAL NUMBER CODE SERIAL NUMBER
MODIFICATION BULLETIN NO. 96 Page 1 of 2 ISSUED ON:April 30, ’91
Model F80 Volt/Hz
Modified Article Development Sleeve
Reason for
Due to vendor change
Modification
Due to vendor change, the development sleeve has been changed. The interchangeability is O/O.
Old P/N New P/N Description Page Index
52153124 AD031214 Development Sleeve 21 18
Date of
Modification
Serial Number
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 96 Page 2 of 2 ISSUED ON:April 30, ’91
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
MODEL NAME V/Hz DESTINATION
CODE SERIAL NUMBER CODE SERIAL NUMBER CODE SERIAL NUMBER
NASHUA 5131 115/60 S. AMERICA etc. A004 - 16 SERVICE PART ONLY
RICOH FT5000 115/60 USA, CANADA A004 - 17 SERVICE PART ONLY A004 - 06 SERVICE PART ONLY
RICOH FT5000 110/60 TAIWAN A004 - 19 SERVICE PART ONLY
NASHUA 5131
INFOTEC 9032
RICOH FT5000
RICOH FT5000
RICOH FT5000
220,240/50
220,240/50
220,240/50
220,240/60
220,240/50
EUROPE etc. A004 - 25 SERVICE PART ONLY A004 - 45 SERVICE PART ONLY
EUROPE etc. A004 - 26 SERVICE PART ONLY A004- 46 SERVICE PART ONLY
EUROPE A004 - 27 SERVICE PART ONLY A004- 47 SERVICE PART ONLY
PHILLIPN etc. A004 - 28 SERVICE PART ONLY
ASIA A004 - 29 SERVICE PART ONLY
MODIFICATION BULLETIN NO. 97 Page 1 of 2 ISSUED ON:May 31, ’91
Model F80 Volt/Hz
Modified Article Bottom Plate and Cassette Cover
Reason for
Parts Standardization
Modification
Due to parts standardization, the following parts have been changed. The interchangeability is O/O.
Page Index Old P/N New P/N Description
7 24 A0082710 A0302910 Bottom Plate
7 23 52152713 AF013012 Bottom Plate Pad
7 19 52152737 52152774 Small Cassette Cover (Ricoh)
7 19 52152734 52152771 Large Cassette Cover (Ricoh)
Date of
Modification
Serial Number
7 19 52156445 52156675 Large Cassette Cover (Nashua, Infotec)
7 19 52156446 52156676 Small Cassette Cover (Nashua, Infotec)
T. Ito, Manager
Copier Technical Support
MODIFICATION BULLETIN NO. 97 Page 2 of 2 ISSUED ON:May 31, ’91
MODEL NAME V/Hz DESTINATION
NASHUA 5131 115/60 S. AMERICA etc. A004 - 16 SERVICE PART ONLY
RICOH FT5000 115/60 USA, CANADA A004 - 17 SERVICE PART ONLY 5215 - 06 SERVICE PART ONLY
RICOH FT5000 110/60 TAIWAN A004 - 19 SERVICE PART ONLY
NASHUA 5131 220,240/50 EUROPE etc. A004 - 25 SERVICE PART ONLY A004 - 45 SERVICE PART ONLY
INFOTEC 9032 220,240/50 EUROPE etc. A004 - 26 SERVICE PART ONLY A004- 46 SERVICE PART ONLY
RICOH FT5000 220,240/50 EUROPE A004 - 27 SERVICE PART ONLY A004- 47 SERVICE PART ONLY
RICOH FT5000 220,240/60 PHILLIPN etc. A004 - 28 SERVICE PART ONLY
RICOH FT5000 220,240/50 ASIA A004 - 29 SERVICE PART ONLY
JAPAN PRODUCTION RPL PRODUCTION REI PRODUCTION
CODE SERIAL NUMBER CODE SERIAL NUMBER CODE SERIAL NUMBER
MODIFICATION BULLETIN NO. 98 Page 1 of 3 ISSUED ON: July 31, ’91
Model F80 Volt/Hz
Modified Article Toner collection bottle seals
Reason for
To ensure adhesion of seals
Modification
Draw
No.
Old Parts
No.
AA151284 Seal - 15x26x3 1 → 0 44 15
52153888 Both Sided Tape - Holder 1 → 0 * 47 15
New Parts
No.
AA151700 Seal - 15x26x5 0 → 1 X/O 44 15
A0073763 Adhesive Tape - Sensor Holder 0 → 1 X/O * 47 15
Description
Date of
Modification
A.B.C.
Rank Part No. Description Index No. Page
Q’ty Used
Old → New
Inter-
change-
ability
Part needed for replacement by new part Parts Catalog
* New Index
Serial Number
Rank: A : Replace with new parts immediately. B : Replace with new parts at time of repair. C : Replace with new parts at time of overhaul.
Interchangeability:
(1) When old and new parts are not mutually interchangeable, use additional parts or an assembly part as indicated in "Parts needed for replacement by new part" to
install the new part.
(2) The mark to the left of the slash indicates whether the old part can be used in the new machine, and the mark to the right indicates whether the new part can be used
in the old machine. x = Not interchangeable o = Interchangeable
DETAILS OF MODIFICATION
Seal - 15x26x3 Seal - 15x26x5
MODIFICATION BULLETIN NO. 98 Page 2 of 3 ISSUED ON: July 31, ’91
To ensure the adhesion of seal between the sensor holder and toner
collection bottle, the thickness of the seals (Holder Both Side Tape and seal
- 15x26x3) have been increased by around 2mm.
Also, the shape of the holder both side tape has been changed because of
part standardization with other models.
Note: The holder both sided tape (#52153888, Index No.47) is not listed in
the parts catalog. Please add it to your parts catalog.
7.5
48
24
7.5
48
7.5
0.1
38.5
54
31
8
40
23.5
32
15
29.5
23.5
35
2
53
T. Ito, Manager
Copier Technical Support
