Page 1
P4
G
P2
P3
R1,100K
R2,100K
C10,.1
C3,.1
R10,100K
C7
100
50V
C11,.1
J1-4
J1-3
J1-5
W1
50VAC
(RED)
SPEAKER
OUTPUT
(BROWN)
SPEAKER
OUTPUT
(WHITE)
W2
HEADPHONE
GROUND
(BLACK)
P1
+36
C
Q2
B
E
C
B
Q1
E
D7
C2
C1
.1
.1
D8
R28
100K
C4
47p
Q5
Q3
D1
D2
C
E
C
E
B
R13,1.2K
B
B
E
E
B
Q7
Q4
C
C
R14,1.2K
C
Q6
B
E
+
C5
22
25V
+
B
C8
2200
50V
R25
.27
5W
C9
2200
50V
+
R29
1K
E
Q9
B
C
C6,.1
R18
.27
5W
R19
.27
5W
C
E
D4
D3
J1-6
CT
GROUND
(YELLOW)
J1-2
D5
D6
J1-1
B
C
E
1.
ALLRESISTORSINOHMS.ALLRESISTORS0.5WUNLESSMARKEDOTHERWISE.
2. ALLCAPACITORSINMICROFARADSUNLESSOTHERPREFIXMARKED,THENREPLACEPREFIX
(MICRO)INUNIT(MICROFARAD)WITHMARKEDPREFIX.ALLCAPACITORS25V(MINIMUM
VOLTAGERATING)UNLESSMARKEDOTHERWISE.
3. ALLVOLTAGESINVOLTS.
4.
TRANSISTORSQ1,Q2:MPSA18.
5.
TRANSISTORSQ3,Q6:MPSA06.
6.
TRANSISTORQ4:MPSA56.
7.
TRANSISTORQ5:2N5088.
8.
TRANSISTORQ7:NSDU06.
9.
TRANSISTORQ8:TIP42B.
10.
TRANSISTORQ9:MPSU56.
11.
TRANSISTORQ10:TIP41B.
12.
DIODESD1,D2:1N4002.
13.
DIODESD3,D4,D5,D6:1N5401.
14.
ZENERDIODESD7,D8:1N5244B.
15.
LASTREFERENCEDDESIGNATIONONP.C.BOARD:
R29,C11,Q10,D8,P4,J1,W2.
RickenbackerInternationalCorp.
3895S.MainStreet
SantaAna,Ca.92707
Tel:714-545-5574Fax:714-754-0135

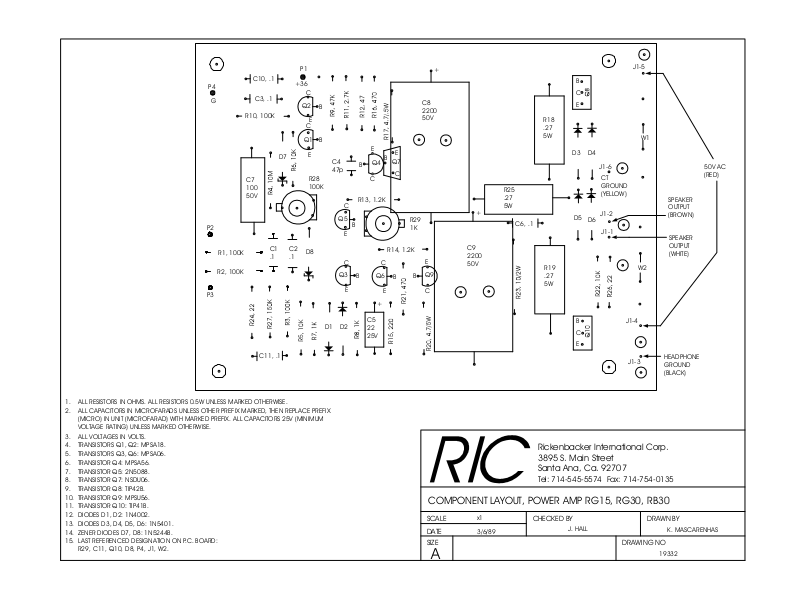

COMPONENTLAYOUT,POWERAMPRG15,RG30,RB30
SCALE
DATE
SIZE
x1
3/6/89
CHECKEDBY DRAWNBY
J.HALL
DRAWINGNO
A
K.MASCARENHAS
19332
