BIOMAT User Manual
Contents
1
Safety Precautions........................................................................................................2
Read before operating the product ..
..........................................................................9
Product components............................................................................................................... 9
Product description ..
............................................................................................................. 12
Product installation.....................................................................................................17
Checklist before product installation ....................................................................................17
Product installation..
.............................................................................................................. 18
Checklist after product installation..
...................................................................................... 19
Product specifications..
......................................................................................................... 21
How to use the product..............................................................................................27
Turning ON and OFF............................................................................................................27
Adjusting the product’s temperature ..
.................................................................................. 29
Adjusting the product’s operation time..
............................................................................... 30
Useful information.......................................................................................................32
How to clean and store the product ..................................................................................... 32
Trouble shooting guide ..
....................................................................................................... 33
Check before contacting customer service ..
....................................................................... 34
Customer service information ..
............................................................................................ 35
Product manufacturing information..
.................................................................................... 35
Application specification ..
..................................................................................................... 41
Symbol glossary..
.................................................................................................................. 44
Product warranty..
................................................................................................................. 45
2
Make sure to use the proper voltage for your country.
- Improper voltage may cause the product to break
or risks electric shock and fire.
Safety Precautions
Danger
Do not alter, change or disassemble the product.
- Doing so may cause the product to malfunction and
risks electric shock and fire.
WARNING :
Use carefully. May cause serious burns. Do not use over sensitive skin
areas or in the presence of poor circulation. The unattended use of the
Biomat by children or incapacitated persons may be dangerous.
Do not modify or tamper with this device without authorization from the
manufacturer.
- If the Biomat is not working properly, contact your local Customer Service Center.
Read and follow all instructions in this manual. Proper use of the Biomat will prevent harm to the user and
damage to private property.
The contents are described in three categories: Danger, Warning, and Caution.
Serious injury or death can occur if instructions are not followed properly.
Property damage and injuries may occur if instructions are not followed properly.
Serious injury or death can occur if instructions are not followed properly.
Danger
Warning
Caution
120V
220V
3
Warning
Make sure the power cord is in good condition
before using. If there are cuts and tears in the
cord do not use.
Do not pull on the power cord, controller or
the connecting part of the controller and Biomat.
Do not plug the Biomat into a power strip with
other devices. Problems may occur. Plug the
Biomat into a dedicated outlet.
If there is a power outage, turn off the power and
disconnect the plug.
Do not use any metal products such as pins to
secure the Biomat.
Do not drop, throw, or mishandle the Biomat
controller.
Be sure the plug is firmly connected to the outlet
before operating.
Turn off and unplug the device if the Biomat
catches fire or begins to smoke.
- Report the problem
to our Customer
Service Center.
OFF
4
Warning
Do not use the Biomat in areas where it is very
humid or can get wet.
- Doing so may cause electric shock or fire.
Do not submerge the Biomat in water to clean.
Simply wipe with a moist towel.
Do not use detergents, solvents, or flammable
chemicals when cleaning the Biomat or controller.
If you do not feel well as a result of using the Biomat, stop using it and consult with a physician.
Do not use the Biomat if you are insensitive to
heat. Doing so may cause problems.
Do not use the Biomat with any ointments,
or creams which generate heat.
Doing so may cause burns or injury to your skin.
If controller is set to 104°F - 158°F (40° - 70°C),
low temperature burns can result if using the Biomat for a long period of time. Use with caution.
When using the Biomat, be sure to cover it with
the cotton pad. Do not lay on the Biomat directly.
- Doing so may cause burns or injury to your skin.
5
Warning
Store the Biomat away from children. Do not
allow a child to wrap the power cord around their
necks. A child can die or be seriously injured.
Store the Biomat away from children. A child can
trip and fall over the power cord causing injury to
the child and damage to the Biomat.
The Biomat is a medical device and should only
be used by a competent adult. Elderly people with
difficulty moving need to be supervised.
Do not use any auxiliary parts with the Biomat.
This is not permitted and may cause injury, elec-
tric shock or fire.
Do not use or connect the Biomat to any other
electronic device. This may cause injury, electric
shock or fire.
6

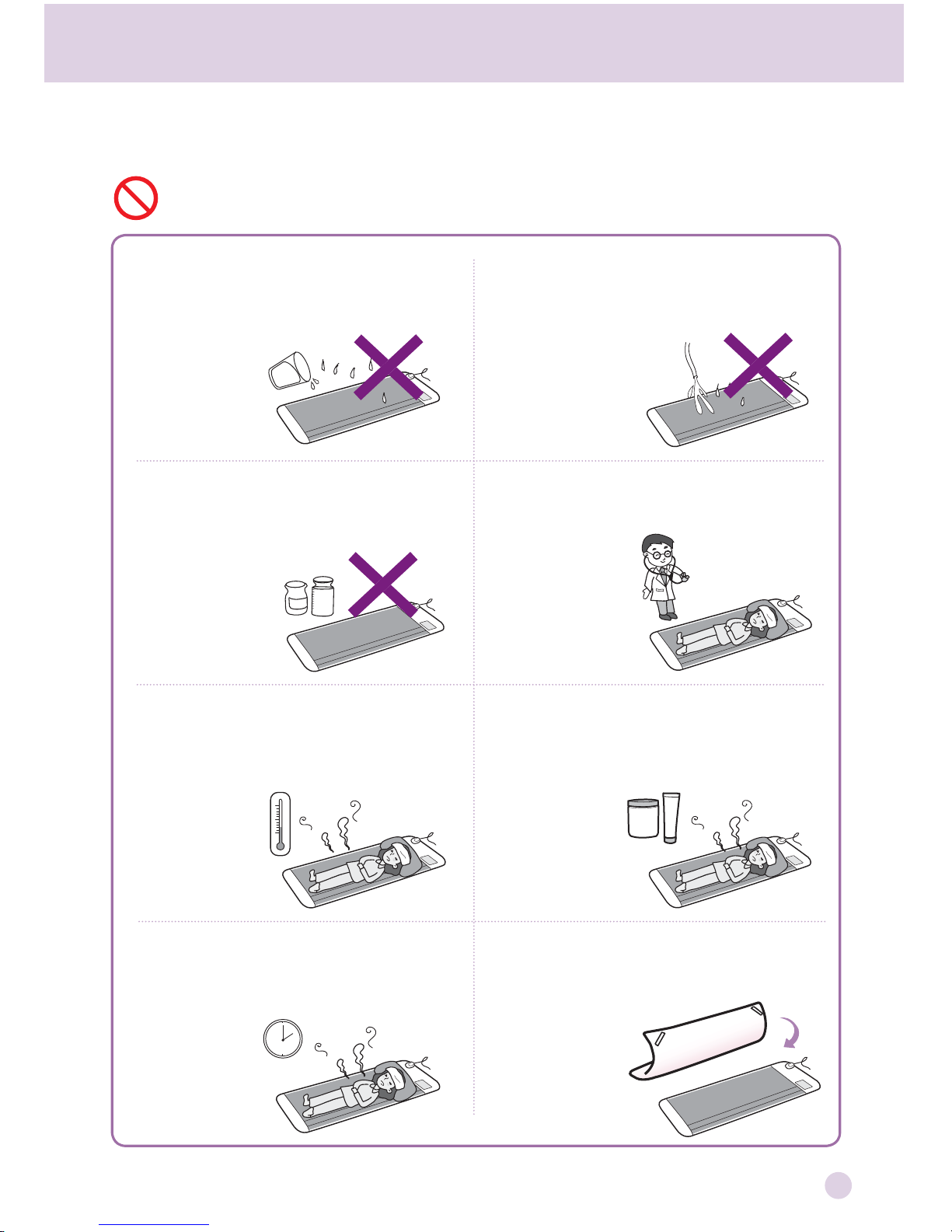

Caution
Keep the Biomat away from sharp objects. Do not
allow anything to puncture the folds of the Biomat.
Do not run, stand, or place heavy objects on the
Biomat.
Do not place the controller on the Biomat when in
use. Keep the controller away from the Biomat.
Do not operate the Biomat near objects which
generate heat or magnetic fields such as ventilation
from heaters, stoves, TV, magnetic objects, etc...
Unplug the Biomat before cleaning it. Use a vacuum to remove the dust on the Biomat’s surface
and use a soft dry fabric to wipe the controller.
When not in use, turn off the power and unplug the
Biomat.
The Biomat should be stored in an area without
humidity and dust.
7
Safety Precautions
1. The Biomat should not be used by infants and young children. The Biomat is not indicated for the elderly. The elderly should
consult with a physician prior to use.
2. If you have the following conditions, do not use the Biomat.
- Person with organ transplants
- Person with high fever
- Person with cognitive disability
- Person with skin problems on the area of use
- Person with acute disease, acute tumor, the visually impaired, and any heart problems
3. If you have the following conditions, do not use the Biomat unless directed by a physician.
- Person with immobility
- Person with internal pacemaker/defibrillator
-
P
erson with Adrenal Suppression Disorders, Addison’s Disease, Adrenal Insufficiency, Systematic Lupus Erythematosus,
and Multiple Sclerosis (MS).
- Person with bypass surgery
- Person with diabetes
- Person with high blood pressure (hypertension)
- Infants
- Person who is pregnant/expectant
- Person who recently received radiation/chemotherapy
- Person with surgical or silicone implants
4. If you have the following conditions, use the Biomat with caution (no heat/negative ions only).
- Person with fever
- Person with joint injuries
- Person with insensitivity to heat
5. Do not use the Biomat if your skin is insensitive to temperature change.
6. FDA has not evaluated the Biomat for use while sleeping.
7
.
If using the Biomat for a long period of time, check your skin to make sure there are no burns or blisters.
Stop using the Biomat if burns or blisters occur.
8. Do not run, stand, or place heavy objects on the Biomat.
9. Keep the Biomat away from sharp objects. Do not allow anything to puncture the folds of the Biomat.
10. Do not pull on the power cord, controller or the connecting part of the controller and Biomat.
11. Do not use the Biomat for any purpose other than heat therapy.
12. Do not alter, change or disassemble the product.
13. Before using the product, inspect the power cord to make sure there is no damage to it.
14. Do not plug the Biomat into a power strip with other devices. Problems may occur. Plug the Biomat into a dedicated outlet.
15. Stop using the Biomat if it is not functioning properly.
16. If there is a power outage, turn off the power and disconnect the plug.
17. If you do not feel well because of the Biomat, stop using it and consult with a physician.
18. Do not drop, throw, or mishandle the Biomat controller.
19. Any person who is sick or pregnant/expectant should consult with a physician before using the Biomat.
20. Do not use the Biomat if you have an external pacemaker.
2
1. If controller is set to 104° - 158°F (40° - 70°C), low temperature burns can result if using the Biomat for a long period of time.
Use with caution.
22. When the Biomat is not in use, unplug it and store it in a dry area without humidity.
23
. Unplug the Biomat before cleaning it. Use a vacuum to remove the dust on the Biomat’s surface and use a soft dry fabric to
wipe the controller.
8
RI
C
HWAY
G
R
OUP
9 Before using the product
9 Product components
12
Product description
BIOMAT
BIOMAT
RICHWAY
9
Product components
The product components are described here.
Ⲽ The components may change without notice due to product improvement.
Read before operating the product
Mini Biomat
Biomat Biomat Controller / Power Cable
User Manual
Cotton Pad Carry Case
BIOMAT
RICHWAY
Elastic BandCarry Case Strap
10
Professional / Single Biomat
Biomat Biomat Controller / Power Cable
Carry Case
*
User Manual
Cotton Pad
Controller Stand
BIOMAT
RICHWAY
*
The Single Biomat does not come with a Carry Case. It comes with a Biomat Bag.
11
Biomat BIOMAT Controller / Power Cable
User Manual
Cotton Pad
Biomat Bag
Controller Stand
Queen / King Biomat
12
Product description
Each part of the Biomat and how to operate it are described here.
Power and Controller connector
The controller / power cable only fits
one way.
Mat
Power and Controller connector
Connect the controller / power cable
here.
Mat
Heat is generated from this region.
y The Queen and King Biomat’s
left and right temperature may be
adjusted individually.
Direction of the mat and the direction of the controller are shown in
the figure on the right.
Reference
Queen / King Front
Controller Front
Right Left
Left Right
13
Temperature adjustment
button
Press the Temp Up or Temp
Down button to increase or
decrease the temperature.
Timer set button
The operation time can be set
by pressing this button.
(Set value: 2/4/8/12 hours)
Power button
Turn the mat OFF or ON
by pressing this button.
E.M.I. auto block
(E.M.I. auto interceptor)
When the plug is inserted
into the correct ground direction, this light will be green.
Power indication lamp
When the Biomat is turned on,
this light will be green.

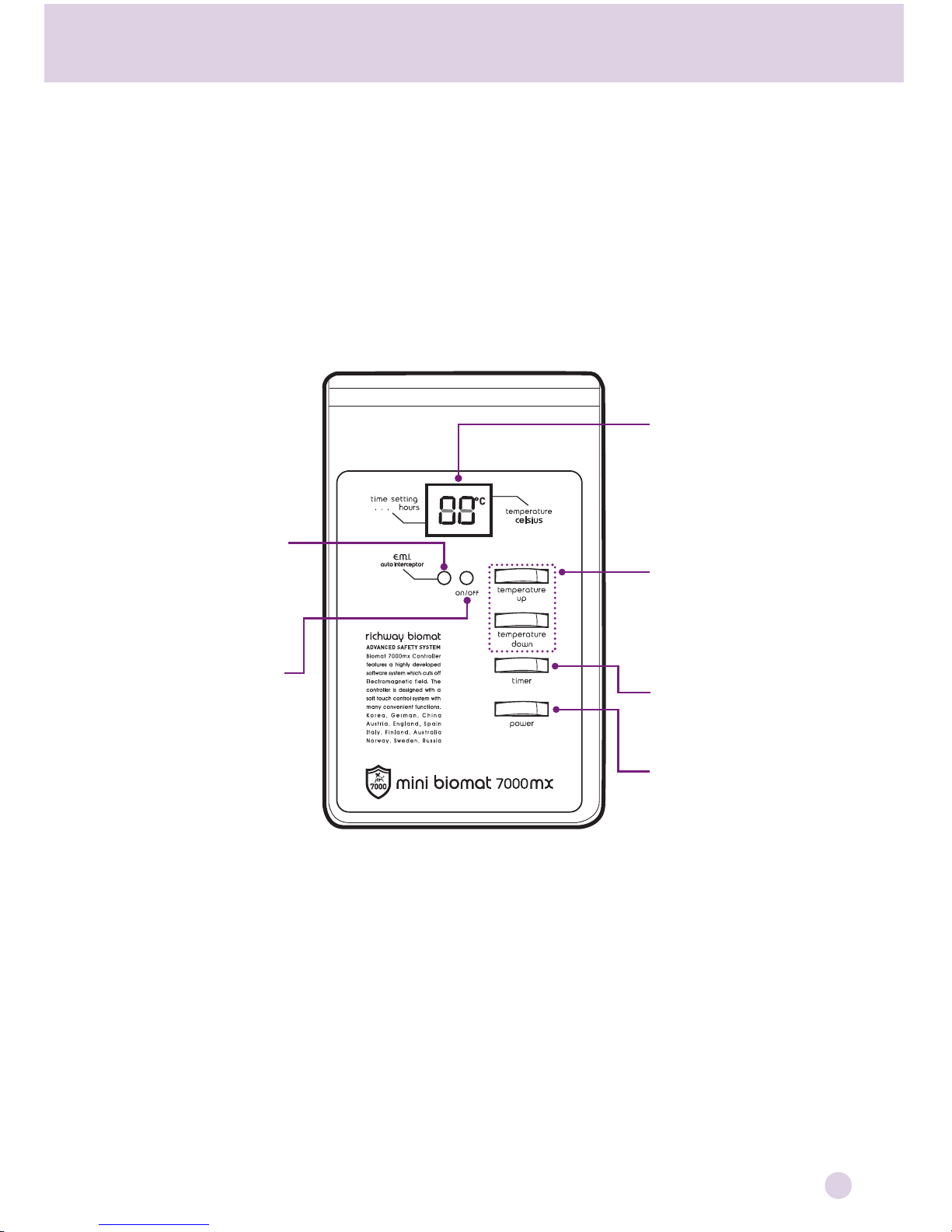

Controller
Temperature indication lamp
The current mat temperature is
indicated.
(Indication value: 104° ~ 158°F
/ 40° ~ 70°C)
Timer indication lamp
The operation time
is indicated in green.
Mini_120V
14
2 4 8 12
Temperature adjustment
button
Press the Temp Up or Temp
Down button to increase or
decrease the temperature.
Timer set button
The operation time can be set
by pressing this button.
(Set value: 2/4/8/12 hours)
Power button
Turn the mat OFF or ON
by pressing this button.
E.M.I. auto block
(E.M.I. auto interceptor)
When the plug is inserted
into the correct ground direc-
tion, this light will be green.
Power indication lamp
When the Biomat is turned on,
this light will be red.
Temperature/timer
indication window
▪ The current mat temperature
is indicated.
(Indication value:
86° ~ 158°F / 30° ~ 70°C)
▪ The operation time is
indicated.
Mini_220V
15
Temperature adjustment
button
Press the Temp Up or
Temp Down button to
increase or decrease the
temperature.
Temperature indication lamp
The current mat temperature
is indicated.
(Indication value: 95 ~ 158°F
/ 35° ~ 70°C)
Timer set button
The operation time can be
set by pressing this button.
(120V Set value: 2/4/8/12 hrs;
; 220V Set value: 2/4/8/12 hrs)
Power button
Turn the mat OFF or ON
by pressing this button.
Timer indicator lamp
The operation time is
indicated in green.
EDNI lamp
When the Biomat
reaches the set temperature, the EDNI lamp will
flash in blue.
Indication lamp
- Infrared ray active (FIR): When the mat temperature is
increased, the green color will turn on and if it reaches
the set temperature, the lamp will turn off.
-E
.M.F. auto block: When the plug is inserted into the
correct ground direction, this light will be green.
-A
larm: If any problems are detected during use, this light
will flash red.
Main power switch
Turn the main power OFF or ON by flipping the switch.
“-“ down = ON
“o” down = OFF
Professional / Single / Queen / King
16
I
C
HWAY
G
R
OUP
17 Product installation
17 Checklist before product installation
18 Product installation
19 Checklist after product installation
21 Product specifications
BIOMAT
BIOMAT
RICHWAY
17
Product installation
Checklist before product installation
Check the following before using the Biomat.
1. Check if the floor of the area for product installation is flat.
▪ If used in a non-flat area, the product may be damaged.
▪ Do not place on surfaces sensitive to heat.
5.Inspect the plug, power cable, and power outlet for any
d
amage.
▪ Do not use the Biomat if any of the above is damaged.
Electric shock or fire can result from damaged components.
2.Do not use the product in area with high humidity or significant dust.
4.Check the voltage before installing the product.
▪
V
oltage for the product: 120V or 220V
▪ Electric shock or damage to the Biomat can result from improper
voltage.
▪ T
he Biomat’s voltage must be the same as the controller’s voltage.
(120V Biomat + 120V Controller / 220V Biomat + 220V Controller)
3.Handle the product with care. Any physical impact such as dropping
the Biomat and/or controller can damage internal components.
120V
18
220V
Product installation
To operate the Biomat follow the steps below.
2. Connect the controller / power cable to the connection port of
the Biomat. To ensure a secure connection, there should be
no space between the two joinings. The connection may be
tight at first.
NOTE: Use care when handling the controller / power cable
to prevent accidental breakage. Do not drop, stand
on or place heavy objects on the controller / power
cable. Never pull the power cable to remove the plug
from the receptacle, be sure to hold the plug.
3. Plug the controller / power cable into a 120V or 220V
o
utlet, depending on the voltage of the controller.
120V
1. Spread the Biomat out on a flat area. The side with the
ridges should be facing up.
19
Checklist after product installation
Test the Biomat.
1. Press the [
Power] button on the controller and then check for any
plug/power system problems.
2.After turning on the Biomat, make sure the power light turns green.
3.Press the [Temperature adjustment] button to see if it is working
properly.
▪ I
f the button of the controller is not working properly, please contact
our Customer Service Center.
Mini
After turning on the Biomat, check the following to make sure the Biomat is operating properly.
20
1. Press the [Main power] switch on the side of the control-
ler to turn on the power of the controller.
2.Press the [Power] button on the controller and then check
for any plug/power system problems.
3.P
ress the [Temperature adjustment] button to see if it is working
properly.
▪ If the button of the controller is not working properly, please contact
our Customer Service Center.
Professional / Single / Queen / King
Check the following to make sure the Biomat is operating properly.
21
Product specifications
Class II ME equipment (single fault safe)
Normal Mode Single Fault Mode
Touch Current < 100 microA < 500 microA
Ground Leakage Current < 5 mA < 10 mA
Testing in accordance with IEC 60601-1-2 indicates the following:
The Biomat needs no special precautions regarding EMC and needs to be installed and put into service.
Portable and mobile RF communications equipment have no adverse effects on the Biomat.
Mini
Category Contents
Product name BIOMAT
Model name Mini Biomat
Country of manufacturing Korea
Product size 500 x 850 mm
Manufacturing number and
manufacturing date, weight or
packing unit
1) Record after manufacturing
2) Weight: 5 KG, packing unit: 1 set
Operating temperature
120V: 104° ~ 158°F / 40° ~ 70°C
220V: 86° ~ 158°F / 30°~70°C
Capability and how to use
1) Capability: Refer to the manual
2) How to use: Refer to the manual
Precaution on use Refer to the manual
Method of keeping and
storage
Refer to the manual
Other
required
matters
Phase, frequency,
rated voltage of
rated power
120V~, 60Hz, 100 W / 220-240V~, 50/60Hz, 120 W
Protection type and
level on electric
shock
Class II equipment, BF-type loading part
Other required
information
Refer to the manual
Type of protection against
electric shock
Class II ME equipment
Degree of protection against
electric shock
Class BF applied parts
- Applied parts: Top of Mat
Degree of protection against
harmful ingress of water
Ordinary equipment (IPX0)
-
E
quipment not suitable for use in presence of a flammable anesthetic
mixture with air or with oxygen or nitrous oxide.
Mode of operation Continuous operation
22
Class II ME equipment (single fault safe)
Normal Mode Single Fault Mode
Touch Current < 100 microA < 500 microA
Ground Leakage Current < 5 mA < 10 mA
Testing in accordance with IEC 60601-1-2 indicates the following:
The Biomat needs no special precautions regarding EMC and needs to be installed and put into service.
Portable and mobile RF communications equipment have no adverse effects on the Biomat.
Professional
Category Contents
Product name BIOMAT
Model name Professional Biomat
Country of manufacturing Korea
Product size 700 x 1850 mm
Manufacturing number and
manufacturing date, weight or
packing unit
1) Record after manufacturing
2) Weight: 13.1 KG, packing unit: 1 set
Operating temperature 95° ~ 158°F / 35° ~ 70°C
Capability and how to use
1) Capability: Refer to the manual
2) How to use: Refer to the manual
Precaution on use Refer to the manual
Method of keeping and
storage
Refer to the manual
Other
required
matters
Phase, frequency,
rated voltage of
rated power
120V~, 60Hz, 180 W / 220-240V~, 50/60Hz, 210 W
Protection type and
level on electric
shock
Class II equipment, BF-type loading part
Other required
information
Refer to the manual
Type of protection against
electric shock
Class II ME equipment
Degree of protection against
electric shock
Class BF applied parts
- Applied parts: Top of Mat
Degree of protection against
harmful ingress of water
Ordinary equipment (IPX0)
-
E
quipment not suitable for use in presence of a flammable anesthetic
mixture with air or with oxygen or nitrous oxide.
Mode of operation Continuous operation
23
Class II ME equipment (single fault safe)
Normal Mode Single Fault Mode
Touch Current < 100 microA < 500 microA
Ground Leakage Current < 5 mA < 10 mA
Testing in accordance with IEC 60601-1-2 indicates the following:
The Biomat needs no special precautions regarding EMC and needs to be installed and put into service.
Portable and mobile RF communications equipment have no adverse effects on the Biomat.
Single
Category Contents
Product name BIOMAT
Model name Single Biomat
Country of manufacturing Korea
Product size 1000 x 2000 mm
Manufacturing number and
manufacturing date, weight or
packing unit
1) Record after manufacturing
2) Weight: 19.2 KG, packing unit: 1 set
Operating temperature 95° ~ 158°F / 35° ~ 70°C
Capability and how to use
1) Capability: Refer to the manual
2) How to use: Refer to the manual
Precaution on use Refer to the manual
Method of keeping and
storage
Refer to the manual
Other
required
matters
Phase, frequency,
rated voltage of
rated power
120V~, 60Hz, 180 W / 220-240V~, 50/60Hz, 210 W
Protection type and
level on electric
shock
Class II equipment, BF-type loading part
Other required
information
Refer to the manual
Type of protection against
electric shock
Class II ME equipment
Degree of protection against
electric shock
Class BF applied parts
- Applied parts: Top of Mat
Degree of protection against
harmful ingress of water
Ordinary equipment (IPX0)
-
E
quipment not suitable for use in presence of a flammable anesthetic
mixture with air or with oxygen or nitrous oxide.
Mode of operation Continuous operation
24
Class II ME equipment (single fault safe)
Normal Mode Single Fault Mode
Touch Current < 100 microA < 500 microA
Ground Leakage Current < 5 mA < 10 mA
Testing in accordance with IEC 60601-1-2 indicates the following:
The Biomat needs no special precautions regarding EMC and needs to be installed and put into service.
Portable and mobile RF communications equipment have no adverse effects on the Biomat.
Queen
Category Contents
Product name BIOMAT
Model name Queen Biomat
Country of manufacturing Korea
Product size 1400 x 2000 mm
Manufacturing number and
manufacturing date, weight or
packing unit
1) Record after manufacturing
2) Weight: 28.37 KG, packing unit: 1 set
Operating temperature 95° ~ 158°F / 35° ~ 70°C
Capability and how to use
1) Capability: Refer to the manual
2) How to use: Refer to the manual
Precaution on use Refer to the manual
Method of keeping and
storage
Refer to the manual
Other
required
matters
Phase, frequency,
rated voltage of
rated power
120V~, 60Hz, 360 W / 220-240V~, 50/60Hz, 440 W
Protection type and
level on electric
shock
Class II equipment, BF-type loading part
Other required
information
Refer to the manual
Type of protection against
electric shock
Class II ME equipment
Degree of protection against
electric shock
Class BF applied parts
- Applied parts: Top of Mat
Degree of protection against
harmful ingress of water
Ordinary equipment (IPX0)
-
E
quipment not suitable for use in presence of a flammable anesthetic
mixture with air or with oxygen or nitrous oxide.
Mode of operation Continuous operation
25
Class II ME equipment (single fault safe)
Normal Mode Single Fault Mode
Touch Current < 100 microA < 500 microA
Ground Leakage Current < 5 mA < 10 mA
Testing in accordance with IEC 60601-1-2 indicates the following:
The Biomat needs no special precautions regarding EMC and needs to be installed and put into service.
Portable and mobile RF communications equipment have no adverse effects on the Biomat.
King
Category Contents
Product name BIOMAT
Model name King Biomat
Country of manufacturing Korea
Product size 1800 x 2000 mm
Manufacturing number and
manufacturing date, weight or
packing unit
1) Record after manufacturing
2) Weight: 34.37 KG, packing unit: 1 set
Operating temperature 95° ~ 158°F / 35° ~ 70°C
Capability and how to use
1) Capability: Refer to the manual
2) How to use: Refer to the manual
Precaution on use Refer to the manual
Method of keeping and
storage
Refer to the manual
Other
required
matters
Phase, frequency,
rated voltage of
rated power
120V~, 60Hz, 360 W / 220-240V~, 50/60Hz, 440 W
Protection type and
level on electric
shock
Class II equipment, BF-type loading part
Other required
information
Refer to the manual
Type of protection against
electric shock
Class II ME equipment
Degree of protection against
electric shock
Class BF applied parts
- Applied parts: Top of Mat
Degree of protection against
harmful ingress of water
Ordinary equipment (IPX0)
-
E
quipment not suitable for use in presence of a flammable anesthetic
mixture with air or with oxygen or nitrous oxide.
Mode of operation Continuous operation
26
RI
C
HWAY
G
R
OUP
27 How to use the product
27 Turning ON and OFF
29 Adjusting the product’s temperature
30 Adjusting the product’s operation time
BIOMAT
BIOMAT
RICHWAY
27
How to use the product
Turning ON and OFF
The Mini Biomat is designed for the purpose of covering the abdomen and may be utilized on parts where
muscle pain is experienced on the shoulder or leg.
1.Turn the Biomat on by pressing the [Power button] on the controller.
The indicator lamp will turn green.
Mini
1. Press the power switch on the side of the controller to the
(-) direction to turn on the power.
2.Turn the Biomat on by pressing the [
Power] button on the
controller.
The Professional / Single Biomat is designed for one-person use.
Professional / Single
28
The Queen / King Biomat is designed for two person use. The left and right sides of the mat can be adjusted
independently. The temperature and usage time can be set independently to save energy.
y P
lease check if the E.M.I./E.M.F. lamp is illuminated when the power is connected. If the
lamp is not turned on after turning on the Biomat, please contact Customer Service.
y W
hen connecting the controller / power cable, check if the E.M.I./E.M.F. auto block lamp is
on. For 220V mats: If the E.M.I./E.M.F. auto block lamp does not turn on green even after
power connection, unplug and re-insert the power plug in the opposite direction.
y W
hen the 158°F / 70°C LED lamp is flashing after power connection, check if the control-
ler and mat are properly and securely connected. To ensure a secure connection, there
should be no space between the two joinings. The connection may be tight at first.
- If the power does not turn on, unplug and re-connect the power plug again.
- If the power does not turn on, check if the outlet voltage is the proper voltage.
If the power still does not turn on after using the methods stated above, please contact the
Customer Service Center.
1. Press the power switch on the side of the controller to the
(-) direction to turn on the power.
2.Turn the Biomat on by pressing the [Power] button on the
controller of the side you want.
Caution
Queen / King
Recommended usage:
y Use for 40-60 minutes per day at 149°F~158°F/ 65°C~70°C.
y We recommend first time users to start at a low temperature and work your way up.
y Always drink water before and after intensive hyperthermia treatment.
29
Adjusting the product’s temperature
3.Once selected, the Biomat will heat to the proper
temperature.
y When using the Biomat, be sure to cover it with the cotton pad. Do not lay on the Biomat
directly. Doing so may cause burns or injury to your skin.
y When the waterproof cover is placed on the Biomat, it may prolong the life of the product.
W
hen using the waterproof cover, be sure to place it over the cotton pad.
Caution

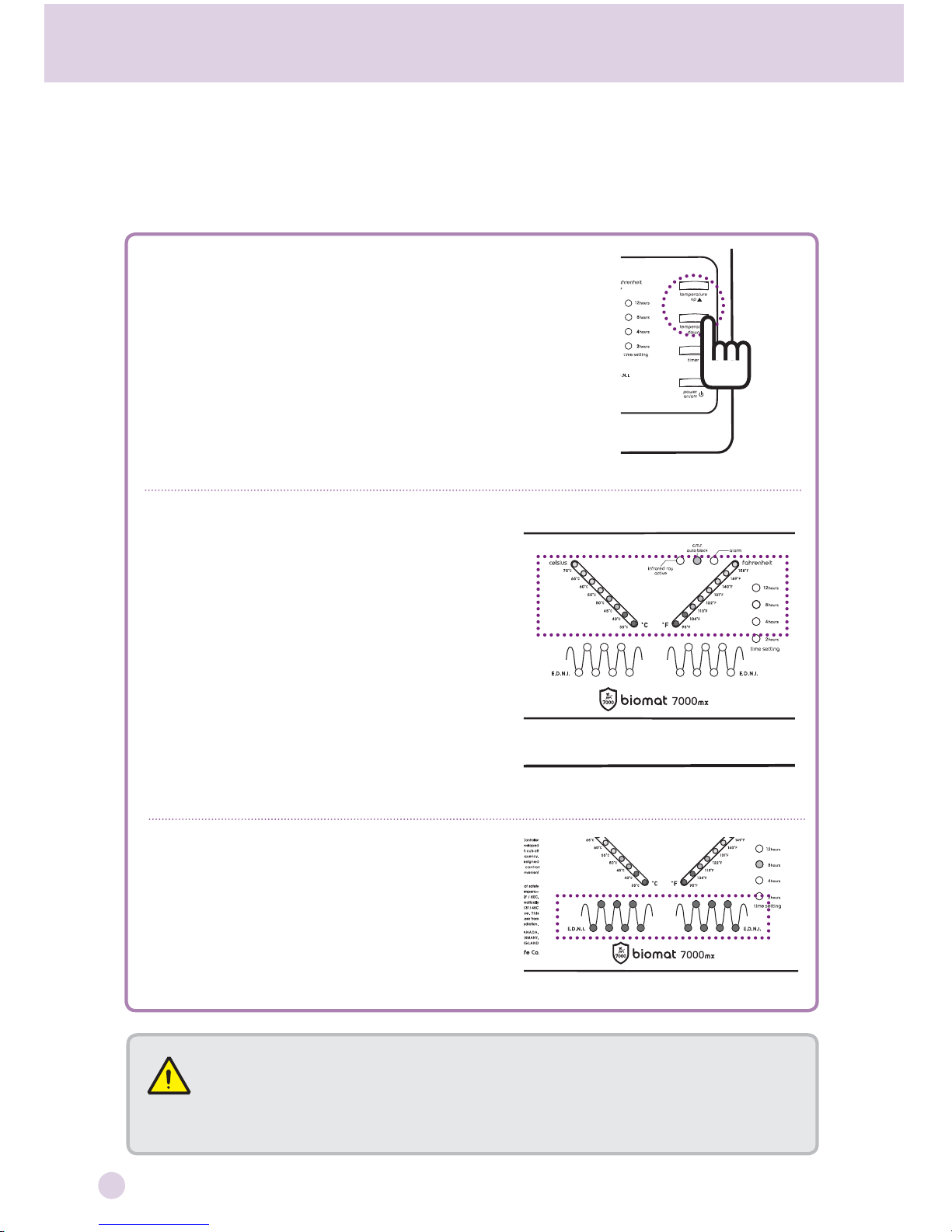

1. When the power is turned on, press the [Temperature Up
/ Down] button to set the desired temperature.
▪ Range of temperature:
Mini: 104° ~ 158°F / 40° ~ 70°C
Professional / Single / Queen / King: 95° ~ 158°F / 35° ~ 70°C
▪ W
hen the [Temperature Up] button is pressed once, the
temperature is increased 5°C (9°F) at a time, and when the
[Temperature Down] button is pressed once, the temperature is decreased 5°C (9°F).
2.When adjusting the temperature, the indicator lamp
will change color depending on the temperature
chosen.
▪
Set for 95° ~ 104°F (35° ~ 40°C): The blue light is
illuminated on the temperature indication part of
the controller.
▪ S
et for 113° ~ 122°F (45° ~ 50°C): The green light
is illuminated on the temperature indication part of
the controller.
▪ S
et for 131° ~ 140°F (55° ~ 60°C): The orange
light is illuminated on the temperature indication
part of the controller.
▪ S
et for 149° ~ 158°F (65° ~ 70°C): The red light is
illuminated on the temperature indication part of
the controller.
4.W
hen the temperature value reaches the set temperature, the EDNI lamp will flash in blue (Professional / Single / Queen / King sizes only).
30
Adjusting the product’s operation time
y When using the Biomat, if the timer is set for 8 or 12 hours at 131°F (55°C) or higher, it
will automatically decrease the temperature to 113°F (45°C) or below after 4 hours of
use for the safety of the user. When the set time is reached, the power will turn off.
1. After setting the operation temperature, press the [Timer]
button to adjust and set the desired operation time within
the set value.
▪ Range of operation time: 2 / 4 / 8 / 12 hours
Basic set value: 8 hours
2.When the operation time is set, the timer
indication lamp will illuminate depending on the
set value.
3.When the set time has lapsed, it will stop
the operation and the power is automatically
turned off.
Reference
31
RI
C
HWAY
G
R
OUP
32 Useful information
32 How to clean and store the product
33 Trouble shooting guide
34 Check before contacting customer service
35 Customer service information
35 Product manufacturing information
41 Application specification
44 Symbol glossary
45 Product warranty
BIOMAT
BIOMAT
RICHWAY
32
How to store the Biomat
y Store the Biomat lying flat (not folded) and in a well ventilated area.
y
If you must fold the Biomat, do so the same way as you received it. Folding it in the opposite
direction may cause the internal circuitry to break.
y
Separate the controller from the Biomat and place it in a bag.
Useful information
How to clean and store the product
y After using the Biomat, turn it off by pressing the Power button.
y When the power is turned off, separate the power plug from the outlet.
Check after using the Biomat
How to clean the Biomat
y When cleaning the Biomat, do not wash with water or dry clean.
- Doing so may cause electric shock or short circuit.
y When cleaning the Biomat, make sure to turn off the power and unplug it.
Caution
1. If the Biomat has any moisture or perspiration, use a dry
towel to wipe it off.
▪ Do not leave any moisture on the Biomat after cleaning the
product.
▪ We recommend wiping the vinyl strip on the Biomat once a
month to maintain good condition.
2.W
e recommend washing the cotton pad once a week.
▪ The cotton pad can be machine washed.
y In the event that the controller and stand
are separated, make sure to separate
by pulling in the other direction from the
direction where the stand is integrated.
Caution
33
Trouble shooting guide
If the alarm lamp on the controller flickers while using the Biomat, follow this guide. If the alarm lamp continues to flicker after following following the methods below, stop use of the product and contact Customer
Service.
Product Storage/Transportation
Product Storage/
Transportation
- Storage Temperature: 32 ~ 113°F / 0 ~ 45°C
- Transportation Temperature: -13 ~ 158°F / -25 ~ 70°C
- Humidity: 15 ~ 93%
- Air pressure: 700 ~ 1060 hPa
- Place without humidity and out of direct sunlight
- Place without dust and with good ventilation.
The Biomat has to be stored and transported according to the following appropriate conditions.
y Before moving the Biomat, be sure to turn it off and wait until it has cooled down.
Caution
Mini_120V
Indicator Lamp Cause Resolution method
158°F lamp is flick-
ering in red
Biomat connection
is not secure
y
C
heck if the Biomat cable is appropriately connected to the
controller.
Defective temperature sensor
y
T
emperature sensor wire is broken. Contact our Customer
Service Center.
Mini_220V
Indicator Lamp Cause Resolution method
“EO” is indicated in
the display window
Biomat connection
is not secure
y
C
heck if the Biomat cable is appropriately connected to the
controller.
Defective temperature sensor
y T
emperature sensor wire is broken. Contact our Customer
Service Center.
34
Check before contacting customer service
If there is any malfunction during the use of the product, check the following contents before contacting our
Customer Service Center.
Symptom Resolution method
The power switch is
turned on but the power
indicator light is not
turned on.
y
Check if the power plug is securely connected to the outlet.
y Check if the voltage of the outlet is 120V or 220V.
y Connect the power plug correctly, but if it still does not properly work,
contact our Customer Service Center.
The temperature is set
but the Biomat is not
working.
y
C
heck if the Biomat and the controller are correctly connected.
y Turn off the power of the controller and separate the power cable and then
re-connect again.
y Connect the power cable correctly, but if it still does not properly work,
contact our Customer Service Center.
During the use of the
Biomat, the power suddenly turns off.
y
T
urn the power off and turn it on again.
The alarm lamp has
the red light on and the
Biomat is not working.
y If the alarm lamp is on, turn off the power immediately and separate the
power cable and then contact our Customer Service Center.
Professional / Single / Queen / King
Indicator Lamp Cause Resolution method
Alarm lamp is flick-
ering in red
Biomat connection
is not secure
y
C
heck if the Biomat cable is appropriately connected to the
controller.
Defective temperature sensor
y
T
emperature sensor wire is broken. Contact our Customer
Service Center.
35
Customer service information
If your Biomat is not working properly call our Customer Service Center.
CUSTOMER SERVICE CENTER
North America & International
Richway & Fuji Bio Inc.
Tel: 1-808-589-2800
Toll-Free: 1-855-338-6410 (USA, Canada, Guam, Saipan)
Homepage: www.richwayandfujibio.com
Email: rma@richwayusa.com
China
Shaoxing Richway Trading Co., Ltd.
Tel: +86-575-8110-1350
Europe
Richway Europe B.V.
Tel: +31-(0)20-658-6231
International: +31-(0)20-303-3411
Product manufacturing information
The certificate of complete product manufacturing is attached to the rear side of the controller and the rear
side of the Biomat.
Rear side of Controller
Rear side of Biomat
36
MINI
Front
Side
8
7PMUT
)[
3*$)8":'6+*#*0*/$
3*$)8":'6+*#*0*/$
4PVUI,JOH4USFFU4VJUF
)POPMVMV)J64"
XXXSJDIXBZBOEGVKJCJPDPN
37
PROFESSIONAL
Front
Side
#JPNBU1SPGFTTJPOBM
8
1SPEVDU
7PMUT
)[
3*$)8":'6+*#*0*/$
3*$)8":'6+*#*0*/$
4PVUI,JOH4USFFU4VJUF
)POPMVMV)J64"
XXXSJDIXBZBOEGVKJCJPDPN
38
SINGLE
Front
Side
#*0."54*/(-&
7PMUT
)[
#JPNBU4JOHMF
8BUUT
1SPEVDU
3*$)8":'6+*#*0*/$
3*$)8":'6+*#*0*/$
4PVUI,JOH4USFFU4VJUF
)POPMVMV)J64"
XXXSJDIXBZBOEGVKJCJPDPN
39
Front
Side
QUEEN
#*0."52VFFO
7PMUT
)[
#JPNBU2VFFO
8BUUT
1SPEVDU
3*$)8":'6+*#*0*/$
3*$)8":'6+*#*0*/$
4PVUI,JOH4USFFU4VJUF
)POPMVMV)J64"
XXXSJDIXBZBOEGVKJCJPDPN
40
KING
Front
Side
#*0."5,JOH
7PMUT
)[
#JPNBU,JOH
8BUUT
1SPEVDU
3*$)8":'6+*#*0*/$
3*$)8":'6+*#*0*/$
4PVUI,JOH4USFFU4VJUF
)POPMVMV)J64"
XXXSJDIXBZBOEGVKJCJPDPN
41
Application specification
INDICATION FOR USE
The Biomat is indicated for the temporary relief of minor muscle and joint pain
and stiffness; the temporary relief of joint pain associated with arthritis; the
temporary relief of muscle spasms, minor sprains and strains, and minor muscular back pain; the relaxation of muscles; and the temporary increase of local
circulation where applied.
42
ESD Information
The Biomat is intended for use in the electromagnetic environment specified below.
The customer or the user of the Biomat should assure that it is used in such an environment.
Immunity Test
IEC 60601
Test Level
Compliance Level Electromagnetic Environment - Guidance
Conducted RF
IEC 61000-4-6
3Vrms
150kHz-80MHz 3Vrms
Portable and mobile RF communications
equipment should be used no closer to any
part of the Biomat, including cables, than the
recommended separation distance calculated
from the equation applicable to the frequency
of the transmitter.
Recommended separation distance
Radiated RF
IEC 61000-4-3
3V/m
80MHz-2500 MHz
3V/m
Where P is the maximum output power rating
of the transmitter in watts(W) according to the
transmitter manufacturer and d is the recom-
mended separation distance in meter(m).Field
strengths from fixed RF transmitter, as determined by and electromagnetic site survey
should be less than the compliance level in
each frequency range.Interference may occur
in the vicinity of equipment marked with the
following symbol;
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorp-
tion and reflections from structures, object and people.
ESD 6kV Contact Discharge; 8kV air discharge
Power frequency magnetic fields 3 A/m at 60 Hz
Conducted RF 150 kHx - 80MHz (3Vrms)
Radiated RF 80 MHz - 2500 MHz (3V/m)
a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land
mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically
with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site
survey should be considered. If the measured field strength in the location in which the Biomat is used exceeds
the applicable RF compliance level above, the Biomat should be observed to verify normal operation. If abnormal
performance is observed, additional measures may be necessary, such as reorienting or relocating the Biomat.
b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [V1] 3 V/m.
d = 1.2 P
d = 1.2 P 80MHz to 800MHz
d = 2.3 P 800MHz to 2.5GHz
43
Recommended separation distance
between portable and mobile RF communications equipment and the Biomat
The Biomat is intended for use in an electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the Biomat can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment(transmitter) and
Biomat as recommended below, according to the maximum output of the communications equipment.
Rated maximum output
power of transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2.5GHz
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
For transmitters rated at a maximum output power not listed below, the recommended separation distance d in meter(m) can be estimated using the equipment applicable to the frequency of the transmitter,
where P is the maximum output power rating of the transmitter on watts(W) according to the transmitter
manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects, and people.
d = 1.2 P d = 1.2 P d = 2.3 P
Symbol Meaning
Symbols of general warning
General warning sign
Type BF Applied part
CLASS ll equipmet
Alternating Current
Waste disposal
Stepping prohibited
Sitting prohibited
Keep dry
Serial Number
“ON” (power)
To indicate connection to the main power source, at least for mains switches
or their positions, and all those cases where safety is involved.
“OFF”(power)
To indicate disconnection from the main power source, at least for mains
switches or their positions, and all those cases where safety is involved.
Stand-by
To indicate the switch or switch position by means of which part of the equipment is switched on in order to bring it into the stand-by condition.
Refer to instruction manual
Symbol glossary
~
44
Order information
Product name Biomat Model name
Warranty
period
Limited 3 years from the
date of product purchase
Manufacturing
number
Date of
purchase
Branch of
purchase
Customer
information
Name Purchase price
Product warranty
RICHWAY & FUJI BIO INC.
1314 South King Street Suite 520, Honolulu, HI 96814 USA
Tel: 1-808-589-2800/ Toll-Free: 1-855-338-6410
Homepage: www.richwayandfujibio.com
Richway & Fuji Bio warrants the covered product to be free from defects and malfunctions
at the time sold. “Defects” as used in this warranty, is defined as imperfections, which im-
pair or impede the function and use of the product.
How Long the Warranty Lasts
This warranty lasts 3 years from the date of delivery. This warranty extends to the original purchaser only. Coverage terminates if you sell or otherwise transfer ownership.
What This Warranty Covers
This warranty covers any defects or malfunctions in the electronic components, heating element, and top cover
replacement. If Richway & Fuji Bio determines that such goods are defective, within the period of this warranty,
Richway & Fuji Bio will repair or replace the parts free of charge for the first year. Repair or replacement for the
second and third year requires a fee, which can be found on our website. Repair or replacement is the sole and
exclusive remedy available to the buyer, and shall constitute the fulfillment of all Richway & Fuji Bio obligations
in respect to the goods furnished under this agreement.
What This Warranty Does Not Cover
This warranty does not cover abuse, misuse, natural disaster, insufficient or excessive electrical supply, ordi-
nary wear, fading, failure to follow instructions and improper maintenance. Richway & Fuji Bio shall not be liable
for any incidental or consequential damages as a direct result of negligence or misuse. This warranty does
not extend to the purchase of opened, used, repaired, repackaged, and/or resealed products, including but not
limited to sale of such products on internet sites and/or sales of such products on internet auction sites and/or
sales of such products by surplus or bulk resalers. Any and all warranties or guarantees shall immediately
cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified,
without the prior express and written consent of Richway & Fuji Bio.
How to Get Service
To obtain service under this warranty, contact your local Customer Service Center and provide the purchaser’s
name, RI (Richway Invoice) number, and a detailed description of the problem you are experiencing. They will
provide you with a return merchandise authorization number (RMA). This number is required and must be placed
in a visible area on the front of the package. Ship your product postage paid, include a copy of the original sales
slip, credit card receipt or other proof of the date of the original retail purchase. If servicing within the first two (2)
months, we will send you a prepaid shipping label to cover your shipping costs. If servicing from the third month
and on, the customer is responsible for shipping costs to return the product for repair or replacement. We will
cover the shipping costs to return the product back to the customer.
How Do State Laws Apply
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Any implied warranties last the duration of this warranty. Some states do not allow limitations on how long an
implied warranty lasts and some states do not allow the exclusion or limitation of incidental or consequential
damages, so the limitations or exclusions may not apply to you.
MEMO
DOCUMENT NO: RW-USM-001 (Ver. 1.0, Date: 2016. 6.16.2016)
Manufacturer: R&L Co., Ltd.
Address: 11F, Ace Gwangmyeong Tower B, 108 Haan-Ro,
Gwangmyeong-Si, Gyeonggi-Do, Korea 14319
Loading...
