RT8884B

Multi-Phase PWM Controller for CPU Core Power Supply

General Description

The RT8884B is a 4/3/2/1 multi-phase synchronous Buck

controller designed to meet Intel VR12.5 compatible CPU

specification with a serial VID control interface. The

TM

RT8884B adopts G-NAVP

Richtek's proprietary topology derived from finite DC gain

of EA amplifier with current mode control, making it easy

to set the droop to meet all Intel CPU requirements of

AVP (Adaptive Voltage Positioning). Based on the G-

NAVPTM topology, the RT8884B also features a quick

response mechanism for optimized AVP performance

during load transient. The RT8884B supports mode

transition function with various operating states. A Serial

VID (SVID) interface is built in the RT8884B to

communicate with Intel VR12.5 compliant CPU. The

RT8884B supports VID on-the-fly function with three

different slew rates : Fast, Slow and Decay. By utilizing

the G-NAVPTM topology, the operating frequency of the

RT8884B varies with VID, load current and input voltage

to further enhance the efficiency even in CCM. Besides

G-NAVPTM, the CCRCOT (Constant Current Ripple

Constant On Time) technology provides superior output

voltage ripple over the entire input/output range.

(Green Native AVP) which is

Features



Intel VR12.5 Serial VID Interface Compatible





 4/3/2/1 Phase PWM Controller



 G-NAV P



 0.5% DAC Accuracy



 Differential Remote Voltage Sensing



 Built-in ADC for Platform Programming



 Accurate Current Balance



 System Thermal Compensated AVP



 Diode Emulation Mode at Light Load Condition for



TM

T opology

Single Phase Operation



 Fast T ran sient Respon se



 VR Ready Indicator



 Thermal Throttling



 Current Monitor Output



 OVP, UVP, OCP, NVP, UVLO



 External No-Load Offset Setting



 DVID Enhancement



 Small 32-Lead WQFN Package



 RoHS Compliant and Halogen Free



Applications

 VR12.5 Intel Core Power Supply

 Notebook/Desktop Computer/Servers Multi-phase CPU

Core Power Supply

 AVP Step-Down Converter

Simplified Application Circuit

RT8884B

To PCH

VR_RDY

VR_HOT

To CPU

VCLK

VDIO

ALERT

©

PWM1

PWM2

PWM3

PWM4

DS8884B-01 September 2013 www.richtek.com

RT9624A

V

CORE

1

RT8884B

Ordering Information

RT8884B

Package Type QW : WQFN-32L 4x4 (W-Type)

Lead Plating System G : Green (Halogen Free and Pb Free)

Note :

Richtek products are :

` RoHS compliant and compatible with the current require-

ments of IPC/JEDEC J-STD-020.

` Suitable for use in SnPb or Pb-free soldering processes.

Pin Configurations

(TOP VIEW)

ISEN2N

ISEN2PENPWM2

31 30 29 28

32

ISEN1P ISEN3P ISEN3N ISEN4N ISEN4P

COMP TSEN

1

2

3

4

5

6

IMON

7

VREF VR_HOT

8

10 11 12 13

9

GND

27

25

24

DVD

23

VR_RDY

22

TONSET

21

VCLK

20

ALERT

19

152616

VDIO

18

17

33

14

Marking Information

0F= : Product Code

0F=YM

DNN

YMDNN : Date Code

FB ISEN1N

VCC

SET2 PWM1

SET3 PWM3

SET1

VSEN

RGND

WQFN-32L 4x4

IBIAS PWM4

©

DS8884B-01 September 2013www.richtek.com

2

Functional Pin Description

Pin No. Pin Name Pin Function

1, 30, 2, 5 ISEN [1:4] P Positive Current Sense Inputs of Channel 1, 2, 3 and 4.

32, 31, 3, 4 ISEN [1:4] N Negat ive Curre nt Sense Inputs of Chan nel 1, 2, 3 and 4 .

RT8884B

6 IMON

7 VREF

8 COMP CORE VR Compensation. This pin is an erro r amplifier output pin .

9 FB

10 VSEN

11 R G N D

12 VCC

13 SET1

14 SET2

15 SET3

CPU CORE Current Monitor Outpu t. This pin outputs a voltage proportion al to the output curre nt.

Fixed 0. 6V Output Ref erence Voltage. T his voltage is only used to offset th e output voltage of IMON pin. Connect a 0.47μF decoupling capacitor between this pi n a nd GND.

Negative Input of the Error Amplif ier. This pin is for output voltag e fee dba ck to controller.

VR Voltage Sense Input . This pin is connected to the terminal of VR output voltage .

Return Ground for VR. Th is pin is the negative node of the di fferential rem o te voltage se nsing.

Contro lle r Power Supply. Connect this pin to 5V and place a minimum 2.2μF decoup lin g capacitor. The decoupling capacito r should be pl aced to th is pin as close as possible.

st

1

Platform Setting. Platform can use this pin to set DVID time, RSET, DVID

width and OCS.

nd

2

Platform Setting. Platform can use this p in t o set ICCMAX, QRTH and

QRSET.

rd

3

Platform Setting. Platform can use this to set output offset voltage.

Internal B ias Current Setting. Connect a 100kΩ resistor from this pin to GND for

16 IBIAS

17 TSEN Thermal Sense Input fo r CORE VR.

18

19 VDIO VR and CPU Data Transmission In terface.

20

21 VCLK Synchronous Clock from the CPU.

22 TONSET

23 VR_RDY VR Ready Indicator.

24 DVD

27, 28, 26, 25 PWM [1:4] PWM Outputs for Channel 1, 2, 3 and 4.

29 EN VR Enable.

33

(Exposed Pad)

VR_HOT

ALERT

GND

setting the internal current. Don ’t conn ect a bypass capacit or from this pin to GND.

Thermal Monitor Output. ( Active low).

SVID Alert. (Active low)

On-time Setting. An on-time setting resistor is connected from this pin to input voltage .

Divided Input Voltage Detec tio n of CORE VR. Connect this pin to a vo ltag e divide r from input voltage of power stage to det ect in put voltag e.

Ground. The exposed p ad must be soldered to a la rge PCB and connec ted to GND for maximum power dissipation.

DS8884B-01 September 2013 www.richtek.com

©

3

RT8884B

Function Block Diagram

SET2

SET1

SET3

TSEN

EN

DVD

VCLK

VDIO

ALERT

VR_HOT

IMONI

VCC

VSEN

VR_RDY

IBIAS

RGND

FB

COMP

ISEN1P ISEN1N

ISEN2P

ISEN2N

ISEN3P

ISEN3N

ISEN4P

ISEN4N

From Control Logic

DAC

DVID_TH, DVID_WTH

Soft-Start & Slew

Rate Control

+

-

+

-

+

-

+

-

MUX

ADC

VSET

Current mirror

IB1

Current mirror

IB2

Current mirror

IB3

Current mirror

IB4

ERROR

AMP

+

-

SVID Interface

Configuration Registers

Control Logic

Offset

Cancellation

IMON Filter IMONI

+

OCS

-

UVLO

TON, QR_TH QRWIDTH

DVID_TH, DVID_WTH

RSETOCS

1/2

Ai

OC

To Protection Logic

+

RSET

Loop Control

Protection Logic

PWM

CMP

+

-

QR_TH

QRWIDTH

Current Balance

To Protection Logic

TON GEN

IB4IB3IB1 IB2

OCP

GND

TONSET

PWM1

PWM2

PWM3

PWM4

VSEN

IMON VREF

©

OVP/UVP/NVP

DS8884B-01 September 2013www.richtek.com

4

Operation

The RT8884B adopts G-NAVPTM (Green Native AVP) which

is Richtek's proprietary topology derived from finite DC

gain of EA amplifier with current mode control, making it

easy to set the droop to meet all Intel CPU requirements

of AVP (Adaptive Voltage Positioning).

The RT8884B adopts the G-NAVPTM controller, which is

one type of current mode constant on-time control with

DC offset cancellation. The approach can not only improve

DC offset problem for increasing system accuracy but also

provide fast transient response. For the RT8884B, when

current feedback signal reaches COMP signal to generate

an on-time width to achieve PWM modulation.

TON GEN

Generate the PWM1 to PWM4 sequentially according to

the phase control signal from the Loop Control Protection

Logic.

SVID Interface/Configuration Registers/Control Logic

The interface that receives the SVID signal from CPU and

sends the relative signals to Loop Control Protection Logic

to execute the action by CPU.

RT8884B

Loop Control Protection Logic

It controls the power on sequence, the protection behavior,

and the operational phase number.

Current Balance

Each phase current sense signal is sent to the current

balance circuit which adjusts the on-time of each phase

to optimize current sharing.

Offset Cancellation

Cancel the current/voltage ripple issue to get the accurate

VSEN.

UVLO

Detect the DVD and VCC voltage and issue POR signal as

they are high enough.

DAC

Generate an analog signal according to the digital code

generated by Control Logic.

Soft-Start & Slew Rate Control

Control the Dynamic VID slew rate of VSET according to

the SetVID fast or SetVID slow.

The registers save the pin setting data from ADC output.

The Control Logic controls the ADC timing and generates

the digital code of the VID that is relative to VSEN.

DS8884B-01 September 2013 www.richtek.com

©

5

RT8884B

Table 1. VR12.5 VID Code Table

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX Voltage (V)

0 0 0 0 0 0 0 0 00 0.000

0 0 0 0 0 0 0 1 01 0.500

0 0 0 0 0 0 1 0 02 0.510

0 0 0 0 0 0 1 1 03 0.520

0 0 0 0 0 1 0 0 04 0.530

0 0 0 0 0 1 0 1 05 0.540

0 0 0 0 0 1 1 0 06 0.550

0 0 0 0 0 1 1 1 07 0.560

0 0 0 0 1 0 0 0 08 0.570

0 0 0 0 1 0 0 1 09 0.580

0 0 0 0 1 0 1 0 0A 0.590

0 0 0 0 1 0 1 1 0B 0.600

0 0 0 0 1 1 0 0 0C 0.610

0 0 0 0 1 1 0 1 0D 0.620

0 0 0 0 1 1 1 0 0E 0.630

0 0 0 0 1 1 1 1 0F 0.640

0 0 0 1 0 0 0 0 10 0.650

0 0 0 1 0 0 0 1 11 0.660

0 0 0 1 0 0 1 0 12 0.670

0 0 0 1 0 0 1 1 13 0.680

0 0 0 1 0 1 0 0 14 0.690

0 0 0 1 0 1 0 1 15 0.700

0 0 0 1 0 1 1 0 16 0.710

0 0 0 1 0 1 1 1 17 0.720

0 0 0 1 1 0 0 0 18 0.730

0 0 0 1 1 0 0 1 19 0.740

0 0 0 1 1 0 1 0 1A 0.750

0 0 0 1 1 0 1 1 1B 0.760

0 0 0 1 1 1 0 0 1C 0.770

0 0 0 1 1 1 0 1 1D 0.780

0 0 0 1 1 1 1 0 1E 0.790

0 0 0 1 1 1 1 1 1F 0.800

0 0 1 0 0 0 0 0 20 0.810

0 0 1 0 0 0 0 1 21 0.820

0 0 1 0 0 0 1 0 22 0.830

0 0 1 0 0 0 1 1 23 0.840

0 0 1 0 0 1 0 0 24 0.850

0 0 1 0 0 1 0 1 25 0.860

0 0 1 0 0 1 1 0 26 0.870

0 0 1 0 0 1 1 1 27 0.880

6

©

DS8884B-01 September 2013www.richtek.com

RT8884B

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX Voltage (V)

0 0 1 0 1 0 0 0 28 0.890

0 0 1 0 1 0 0 1 29 0.900

0 0 1 0 1 0 1 0 2A 0.910

0 0 1 0 1 0 1 1 2B 0.920

0 0 1 0 1 1 0 0 2C 0.930

0 0 1 0 1 1 0 1 2D 0.940

0 0 1 0 1 1 1 0 2E 0.950

0 0 1 0 1 1 1 1 2F 0.960

0 0 1 1 0 0 0 0 30 0.970

0 0 1 1 0 0 0 1 31 0.980

0 0 1 1 0 0 1 0 32 0.990

0 0 1 1 0 0 1 1 33 1.000

0 0 1 1 0 1 0 0 34 1.010

0 0 1 1 0 1 0 1 35 1.020

0 0 1 1 0 1 1 0 36 1.030

0 0 1 1 0 1 1 1 37 1.040

0 0 1 1 1 0 0 0 38 1.050

0 0 1 1 1 0 0 1 39 1.060

0 0 1 1 1 0 1 0 3A 1.070

0 0 1 1 1 0 1 1 3B 1.080

0 0 1 1 1 1 0 0 3C 1.090

0 0 1 1 1 1 0 1 3D 1.100

0 0 1 1 1 1 1 0 3E 1.110

0 0 1 1 1 1 1 1 3F 1.120

0 1 0 0 0 0 0 0 40 1.130

0 1 0 0 0 0 0 1 41 1.140

0 1 0 0 0 0 1 0 42 1.150

0 1 0 0 0 0 1 1 43 1.160

0 1 0 0 0 1 0 0 44 1.170

0 1 0 0 0 1 0 1 45 1.180

0 1 0 0 0 1 1 0 46 1.190

0 1 0 0 0 1 1 1 47 1.200

0 1 0 0 1 0 0 0 48 1.210

0 1 0 0 1 0 0 1 49 1.220

0 1 0 0 1 0 1 0 4A 1.230

0 1 0 0 1 0 1 1 4B 1.240

0 1 0 0 1 1 0 0 4C 1.250

0 1 0 0 1 1 0 1 4D 1.260

0 1 0 0 1 1 1 0 4E 1.270

0 1 0 0 1 1 1 1 4F 1.280

DS8884B-01 September 2013 www.richtek.com

©

7

RT8884B

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX Voltage (V)

0 1 0 1 0 0 0 0 50 1.290

0 1 0 1 0 0 0 1 51 1.300

0 1 0 1 0 0 1 0 52 1.310

0 1 0 1 0 0 1 1 53 1.320

0 1 0 1 0 1 0 0 54 1.330

0 1 0 1 0 1 0 1 55 1.340

0 1 0 1 0 1 1 0 56 1.350

0 1 0 1 0 1 1 1 57 1.360

0 1 0 1 1 0 0 0 58 1.370

0 1 0 1 1 0 0 1 59 1.380

0 1 0 1 1 0 1 0 5A 1.390

0 1 0 1 1 0 1 1 5B 1.400

0 1 0 1 1 1 0 0 5C 1.410

0 1 0 1 1 1 0 1 5D 1.420

0 1 0 1 1 1 1 0 5E 1.430

0 1 0 1 1 1 1 1 5F 1.440

0 1 1 0 0 0 0 0 60 1.450

0 1 1 0 0 0 0 1 61 1.460

0 1 1 0 0 0 1 0 62 1.470

0 1 1 0 0 0 1 1 63 1.480

0 1 1 0 0 1 0 0 64 1.490

0 1 1 0 0 1 0 1 65 1.500

0 1 1 0 0 1 1 0 66 1.510

0 1 1 0 0 1 1 1 67 1.520

0 1 1 0 1 0 0 0 68 1.530

0 1 1 0 1 0 0 1 69 1.540

0 1 1 0 1 0 1 0 6A 1.550

0 1 1 0 1 0 1 1 6B 1.560

0 1 1 0 1 1 0 0 6C 1.570

0 1 1 0 1 1 0 1 6D 1.580

0 1 1 0 1 1 1 0 6E 1.590

0 1 1 0 1 1 1 1 6F 1.600

0 1 1 1 0 0 0 0 70 1.610

0 1 1 1 0 0 0 1 71 1.620

0 1 1 1 0 0 1 0 72 1.630

0 1 1 1 0 0 1 1 73 1.640

0 1 1 1 0 1 0 0 74 1.650

0 1 1 1 0 1 0 1 75 1.660

0 1 1 1 0 1 1 0 76 1.670

0 1 1 1 0 1 1 1 77 1.680

8

©

DS8884B-01 September 2013www.richtek.com

RT8884B

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX Voltage (V)

0 1 1 1 1 0 0 0 78 1.690

0 1 1 1 1 0 0 1 79 1.700

0 1 1 1 1 0 1 0 7A 1.710

0 1 1 1 1 0 1 1 7B 1.720

0 1 1 1 1 1 0 0 7C 1.730

0 1 1 1 1 1 0 1 7D 1.740

0 1 1 1 1 1 1 0 7E 1.750

0 1 1 1 1 1 1 1 7F 1.760

1 0 0 0 0 0 0 0 80 1.770

1 0 0 0 0 0 0 1 81 1.780

1 0 0 0 0 0 1 0 82 1.790

1 0 0 0 0 0 1 1 83 1.800

1 0 0 0 0 1 0 0 84 1.810

1 0 0 0 0 1 0 1 85 1.820

1 0 0 0 0 1 1 0 86 1.830

1 0 0 0 0 1 1 1 87 1.840

1 0 0 0 1 0 0 0 88 1.850

1 0 0 0 1 0 0 1 89 1.860

1 0 0 0 1 0 1 0 8A 1.870

1 0 0 0 1 0 1 1 8B 1.880

1 0 0 0 1 1 0 0 8C 1.890

1 0 0 0 1 1 0 1 8D 1.900

1 0 0 0 1 1 1 0 8E 1.910

1 0 0 0 1 1 1 1 8F 1.920

1 0 0 1 0 0 0 0 90 1.930

1 0 0 1 0 0 0 1 91 1.940

1 0 0 1 0 0 1 0 92 1.950

1 0 0 1 0 0 1 1 93 1.960

1 0 0 1 0 1 0 0 94 1.970

1 0 0 1 0 1 0 1 95 1.980

1 0 0 1 0 1 1 0 96 1.990

1 0 0 1 0 1 1 1 97 2.000

1 0 0 1 1 0 0 0 98 2.010

1 0 0 1 1 0 0 1 99 2.020

1 0 0 1 1 0 1 0 9A 2.030

1 0 0 1 1 0 1 1 9B 2.040

1 0 0 1 1 1 0 0 9C 2.050

1 0 0 1 1 1 0 1 9D 2.060

1 0 0 1 1 1 1 0 9E 2.070

1 0 0 1 1 1 1 1 9F 2.080

DS8884B-01 September 2013 www.richtek.com

©

9

RT8884B

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX Voltage (V)

1 0 1 0 0 0 0 0 A0 2.090

1 0 1 0 0 0 0 1 A1 2.100

1 0 1 0 0 0 1 0 A2 2.110

1 0 1 0 0 0 1 1 A3 2.120

1 0 1 0 0 1 0 0 A4 2.130

1 0 1 0 0 1 0 1 A5 2.140

1 0 1 0 0 1 1 0 A6 2.150

1 0 1 0 0 1 1 1 A7 2.160

1 0 1 0 1 0 0 0 A8 2.170

1 0 1 0 1 0 0 1 A9 2.180

1 0 1 0 1 0 1 0 AA 2.190

1 0 1 0 1 0 1 1 AB 2.200

1 0 1 0 1 1 0 0 AC 2.210

1 0 1 0 1 1 0 1 AD 2.220

1 0 1 0 1 1 1 0 AE 2.230

1 0 1 0 1 1 1 1 AF 2.240

1 0 1 1 0 0 0 0 B0 2.250

1 0 1 1 0 0 0 1 B1 2.260

1 0 1 1 0 0 1 0 B2 2.270

1 0 1 1 0 0 1 1 B3 2.280

1 0 1 1 0 1 0 0 B4 2.290

1 0 1 1 0 1 0 1 B5 2.300

1 0 1 1 0 1 1 0 B6 2.310

1 0 1 1 0 1 1 1 B7 2.320

1 0 1 1 1 0 0 0 B8 2.330

1 0 1 1 1 0 0 1 B9 2.340

1 0 1 1 1 0 1 0 BA 2.350

1 0 1 1 1 0 1 1 BB 2.360

1 0 1 1 1 1 0 0 BC 2.370

1 0 1 1 1 1 0 1 BD 2.380

1 0 1 1 1 1 1 0 BE 2.390

1 0 1 1 1 1 1 1 BF 2.400

1 1 0 0 0 0 0 0 C0 2.410

1 1 0 0 0 0 0 1 C1 2.420

1 1 0 0 0 0 1 0 C2 2.430

1 1 0 0 0 0 1 1 C3 2.440

1 1 0 0 0 1 0 0 C4 2.450

1 1 0 0 0 1 0 1 C5 2.460

1 1 0 0 0 1 1 0 C6 2.470

1 1 0 0 0 1 1 1 C7 2.480

10

©

DS8884B-01 September 2013www.richtek.com

RT8884B

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX Voltage (V)

1 1 0 0 1 0 0 0 C8 2.490

1 1 0 0 1 0 0 1 C9 2.500

1 1 0 0 1 0 1 0 CA 2.510

1 1 0 0 1 0 1 1 CB 2.520

1 1 0 0 1 1 0 0 CC 2.530

1 1 0 0 1 1 0 1 CD 2.540

1 1 0 0 1 1 1 0 CE 2.550

1 1 0 0 1 1 1 1 CF 2.560

1 1 0 1 0 0 0 0 D0 2.570

1 1 0 1 0 0 0 1 D1 2.580

1 1 0 1 0 0 1 0 D2 2.590

1 1 0 1 0 0 1 1 D3 2.600

1 1 0 1 0 1 0 0 D4 2.610

1 1 0 1 0 1 0 1 D5 2.620

1 1 0 1 0 1 1 0 D6 2.630

1 1 0 1 0 1 1 1 D7 2.640

1 1 0 1 1 0 0 0 D8 2.650

1 1 0 1 1 0 0 1 D9 2.660

1 1 0 1 1 0 1 0 DA 2.670

1 1 0 1 1 0 1 1 DB 2.680

1 1 0 1 1 1 0 0 DC 2.690

1 1 0 1 1 1 0 1 DD 2.700

1 1 0 1 1 1 1 0 DE 2.710

1 1 0 1 1 1 1 1 DF 2.720

1 1 1 0 0 0 0 0 E0 2.730

1 1 1 0 0 0 0 1 E1 2.740

1 1 1 0 0 0 1 0 E2 2.750

1 1 1 0 0 0 1 1 E3 2.760

1 1 1 0 0 1 0 0 E4 2.770

1 1 1 0 0 1 0 1 E5 2.780

1 1 1 0 0 1 1 0 E6 2.790

1 1 1 0 0 1 1 1 E7 2.800

1 1 1 0 1 0 0 0 E8 2.810

1 1 1 0 1 0 0 1 E9 2.820

1 1 1 0 1 0 1 0 EA 2.830

1 1 1 0 1 0 1 1 EB 2.840

1 1 1 0 1 1 0 0 EC 2.850

1 1 1 0 1 1 0 1 ED 2.860

1 1 1 0 1 1 1 0 EE 2.870

1 1 1 0 1 1 1 1 EF 2.880

DS8884B-01 September 2013 www.richtek.com

©

11

RT8884B

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX Voltage (V)

1 1 1 1 0 0 0 0 F0 2.890

1 1 1 1 0 0 0 1 F1 2.900

1 1 1 1 0 0 1 0 F2 2.910

1 1 1 1 0 0 1 1 F3 2.920

1 1 1 1 0 1 0 0 F4 2.930

1 1 1 1 0 1 0 1 F5 2.940

1 1 1 1 0 1 1 0 F6 2.950

1 1 1 1 0 1 1 1 F7 2.960

1 1 1 1 1 0 0 0 F8 2.970

1 1 1 1 1 0 0 1 F9 2.980

1 1 1 1 1 0 1 0 FA 2.990

1 1 1 1 1 0 1 1 FB 3.000

1 1 1 1 1 1 0 0 FC 3.010

1 1 1 1 1 1 0 1 FD 3.020

1 1 1 1 1 1 1 0 FE 3.030

1 1 1 1 1 1 1 1 FF 3.040

12

©

DS8884B-01 September 2013www.richtek.com

Table 2. Standard Serial VID Commands

RT8884B

Master

Code Commands

00h not supported N/A N/A N/A

01h SetVID_Fast VID code N/A

02h SetVID_Slow VID code N/A

03h SetVID_Decay VID code N/A

04h SetPS

Payload

Contents

Byte

indicating

power states

Slave

Payload

Contents

N/A

1. Set new target VID code, VR jumps to new VID target

with controlled default “fast” slew rate 12.5mV/μs.

2. Set VR_Settled when VR reaches target VID voltage.

1. Set new target VID code, VR jumps to new VID target

with controlled default “slow” slew rate 3.125mV/μs.

2. Set VR_Settled when VR reaches target VID voltage.

1. Set new target VID code, VR jumps to new VID target, but does not control the slew rate. The output voltage decays at a rate proportional to the load current.

2. Low side MOSFET is not allowed to sync current.

3. ACK 11b when target higher than current VOUT voltage.

4. ACK 10b when target lower than current VOUT voltage.

1. Set power state.

2. ACK 11b when not support.

3. ACK 10b even slave not change configuration.

4. ACK 11b for still running SetVID command.

5. VR remains in lower state when receiving SetVID (decay).

Description

Pointer of

05h SetRegADR

06h SetReg DAT

07h GetReg

08h to

1Fh

not supported N/A N/A N/A

registers in

data table

New data

register

content

N/A

Specified

Register

Contents

1. Set the pointer of the data register.

2. ACK 11b for address outside of support.

3. NAK 01b for SetADR (all call).

1. Write the contents to the data register.

2. NAK 01b for SetReg (all call).

1. Slave returns the contents of the specified register as the payload.

2. ACK 11b for non support address.

3. NAK 01b for GetReg (all call).

DS8884B-01 September 2013 www.richtek.com

©

13

RT8884B

Table 3. SVID Data and Configuration Register

Index Register Name Description Access Default

00h Vendor ID Vendor ID RO, Vendor 1Eh

01h Product ID Product ID RO, Vendor 84h

02h Product Revision Product Revision RO, Vendor 00h

05h Protocol ID SVID Protocol ID RO, Vendor 02h

06h Capability

10h Status_1 Data register containing the status of VR.

11h Status-2 Data register containing the status of transmission.

12h

Temperature Zone

15h IOUT

1Ch Status_2_lastread The register contains a copy of the status_2.

21h ICC Max

22h Temp Max

24h SR-fast

25h SR-slow

30h VOUT Max

31h VID Setting Data register containing currently programmed VID. RW, Master 00h

32h Power State Register containing the current programmed power state. RW, Master 00h

33h Offset Set offset in VID steps. RW, Master 00h

34h

Multi VR Configuration

35h Pointer

Bit mapped register, identifies the SVID VR Capabilities and which of the optional telemetry register is supported.

Data register showing temperature zone that has been entered.

At PS0 to PS2, IOUT report data from ADC sense IMON voltage. When power state at PS3, the IOUT report data is fixed to 04h.

Data register containing the ICC max the platform supports. Binary format in A IE 64h = 100A.

Data register containing the temperature max the platform supports. Binary format in °C IE 64h = 100°C.

Data register containing the capability of fast slew rate the platform can sustain. Binary format in mV/μs IE 0Ah = 10 mV/μs.

Data register containing the capability of slow slew rate. Binary format in mV/μs IE 02h = 2mV/μs.

The register is programmed by master and sets the maximum VID.

Bit mapped data register which configures multiple VRs behavior on the same bus.

Scratch pad register for temporary storage of the SetRegADR pointer register.

RO, Vendor 81h

R-M,

W-PWM

R-M,

W-PWM

R-M,

W-PWM

R-M,

W-PWM

R-M,

W-PWM

RO,

Platform

RO,

Platform

00h

7Dh

64h

RO 0Ah

RO 02h

RW, Master B5h

RW, Master 00h

RW, Master 30h

Notes :

RO = Read Only

RW = Read/Write

R-M = Read by Master

W-PWM = Write by PWM Only

Vendor = Hard Coded by VR Vendor

Platform = Programmed by the Master

PWM = Programmed by the VR Control IC

14

©

DS8884B-01 September 2013www.richtek.com

RT8884B

Absolute Maximum Ratings (Note 1)

 VCC to GND --------------------------------------------------------------------------------------------------------- −0.3V to 6.5V

 RGND to GND ------------------------------------------------------------------------------------------------------- −0.3V to 0.3V

 TONSET to GND---------------------------------------------------------------------------------------------------- −0.3V to 6.5V

 Other Pins------------------------------------------------------------------------------------------------------------ −0.3V to (V

 Power Dissipation, P

@ T

D

= 25°C

A

WQFN-32L 4x4 ----------------------------------------------------------------------------------------------------- 3.6W

 Package Thermal Resistance (Note 2)

WQFN-32L 4x4, θJA------------------------------------------------------------------------------------------------ 27.8°C/W

WQFN-32L 4x4, θJC----------------------------------------------------------------------------------------------- 7°C/W

 Junction Temperature ---------------------------------------------------------------------------------------------- 150°C

 Lead Temperature (Soldering, 10 sec.)------------------------------------------------------------------------ 260°C

 Storage Temperature Range ------------------------------------------------------------------------------------- −65°C to 150°C

 ESD Susceptibility (Note 3)

HBM (Human Body Model)--------------------------------------------------------------------------------------- 2kV

CC

+ 0.3V)

Recommended Operating Conditions

 Supply Voltage, VCC ----------------------------------------------------------------------------------------------4.5V to 5.5V

 Junction Temperature Range ------------------------------------------------------------------------------------- − 40°C to 125°C

 Ambient Temperature Range ------------------------------------------------------------------------------------- −40°C to 85°C

(Note 4)

Electrical Characteristics

(VCC = 5V, TA = 25°C, unless otherwise specified)

Parameter Symbol Test Conditions Min Typ Max Unit

Supply Input

Supply Current I

Supply Current at PS3 I

Shutdown Current I

Reference and DAC

DAC Accuracy VFB

Sle w Rate

Dynamic VID Slew Rate SR

V

VC C

VC C_PS3

SH DN

VEN = H, Not switching -- 2.7 -- mA

V

Set VID slow 2.5 3.125 3.75

Set VID fast 10 12.5 15

= H, Not switching -- 4.1 -- mA

EN

= 0V -- -- 5 μA

EN

= 1.5V − 2.3V −0.5 0 0.5

DAC

= 1V − 1.49V −8 0 8

DAC

= 0.5V − 0.99V −10 0 10

DAC

% of

VID

mV

mV/μs

EA Amp lifier

DC Gain ADC R

Gain-Bandwidth Product GBW C

Slew Rate SREA

= 47kΩ 70 -- -- dB

L

= 5pF 4 5 -- MHz

LOAD

C

= 10pF (Gain = −4, RF = 47kΩ,

LOAD

= 0.5V to −3V)

V

OUT

5 -- -- V/μs

DS8884B-01 September 2013 www.richtek.com

©

15

RT8884B

Parameter Symbol Test Conditions Min Typ Max Unit

Output Voltage Range V

Maximum Source/Sink Current I

Load-Line Current Gain Amplifier

Input Offset Voltage V

Current Gain A

Current Sensing Amplifier

Input Offset Voltage V

Impedance at Positive Input R

Current Mirror Gain A

TO N S etting

TONSET Pin Voltage V

On-Time Setting TON I

Input Current Range I

Minimum Off time T

IBIAS

IBIAS Pin Voltage V

OFS Setting

Impedance R

Set OFS Voltage V

Protections

V

Under Voltage Lockout Threshold

ΔV

Over Voltage Protection Threshold VOV

Under Voltage Protection Threshold VUV Respect to VID voltage −400 −350 −300 mV

Negative Voltage Protection Threshold

V

EN and VR_RDY

Logic-High VIH 0.7 -- --

EN Input Voltage

Logic-Low V

Leakage Current of EN −1 -- 1 μA

RL = 47kΩ 0.5 -- 3.6 V

COMP

V

OUTEA

V

ILOFS

V

ILGAIN

OSCS

ISENxP

MIRROR IIMON

TON

RTON

OFF

IBIAS

OFS

V

−0.8 -- 0.8 mV 1 -- -- MΩ

I

V

R

1 -- -- MΩ

Enable OFS function and offset 600mV

Enable OFS function and offset 300mV

= 2V -- 5 -- mA

COMP

= 1V −5 -- 5 mV

IMON

− V

IMON

= V

FB

COMP

/ I

SENxN

= 80μA, V

RTON

= 80μA, V

RTON

= 1.7V 25 -- 280 μA

DAC

= 1.7V -- 400 -- ns

DAC

= 100kΩ 1.85 2 -- V

IBIA S

= 1V

VREF

= 1.7V

-- 1/2 -- A/A

0.97 1 1.03 A/A

= 1.7V 1.6 1.7 1.8 V

DAC

= 1.7V 450 500 550 ns

DAC

1.95 2.4 2.44

1.76 1.8 1.84

Enable OFS function and offset 0V 1.16 1.2 1.24

SET3

Enable OFS function and offset

−50mV

Enable OFS function and offset

−250mV

1.06 1.1 1.14

0.66 0.7 0.74

Disable -- -- 0.55

4.1 4.3 4.45 V

UVLO

Falling edge hysteresis -- 200 -- mV

UVLO

VID higher than 1.5V

VID

+ 300

VID

+ 350

VID

+ 400

VID lower than 1.5V 1800 1850 1900

−100 −70 -- mV

NV

-- -- 0.3

IL

V

mV

V

16

©

DS8884B-01 September 2013www.richtek.com

RT8884B

Parameter Symbol Test Conditions Min Typ Max Unit

VR_RDY Delay T

VR_RDY Pull Low Voltage V

DVD

DVD Input V

Serial VID and VR_HOT

VCLK, VDIO Input Voltage

Logic-High VIH

Logic-Low V

Leakage Current of VCLK, VDIO, ALERT and VR_HOT

VDIO, ALERT and VR_HOT

Pull Low Voltage

V

and V

REF

V

Vol ta g e V

REF

V

Voltage V

BOOT

ADC

Update Period of IMON T

TSEN Threshold for Tmp_Zone [7] transition

VR_RDY

PGOOD

DVD

IL

I

LEAK_IN

V

I

Detect VIN Voltage 2 -- -- V

-- -- 0.45

−1 -- 1 μA

0.55 0.6 0.65 V

REF

No Load, set V

BOOT

IMON

320 400 480 μs

IMON

100°C -- 1.887 -- V

V

TSEN

= VBoot to VR_RDY High 3 4.5 6 μs

SEN

VR_RDY

Respect to INTEL Spec. with 50mV hysteresis

I

VDIO

I

ALERT

I

VR_HOT

V

= 10mA -- -- 0.13 V

0.65 -- --

= 10mA

-- -- 0.13 V

= 10mA

= 1.7V 1.692 1.7 1.708 V

BOOT

IMON

− V

IMON_INI

= 1.6V 252 255 258

= 0.8V 125 128 131 Digital IMON Set V

= 0V 0 0 3

Decimal

V

TSEN Threshold for Tmp_Zone [6] transition

TSEN Threshold for Tmp_Zone [5] transition

TSEN Threshold for Tmp_Zone [4] transition

TSEN Threshold for Tmp_Zone [3] transition

TSEN Threshold for Tmp_Zone [2] transition

TSEN Threshold for Tmp_Zone [1] transition

TSEN Threshold for Tmp_Zone [0] transition

Update Period of TSEN t

Digital Code of ICCMAX

97°C -- 1.837 -- V

V

TSEN

94°C -- 1.784 -- V

V

TSEN

91°C -- 1.729 -- V

V

TSEN

88°C -- 1.672 -- V

V

TSEN

85°C -- 1.612 -- V

V

TSEN

82°C -- 1.551 -- V

V

TSEN

75°C -- 1.402 -- V

V

TSEN

40 50 60 μs

TSEN

C

ICCMAX1

C

ICCMAX2

C

ICCMAX3

V

ICCMAX

= 0.403V 58 64 70

= 0.806V 122 128 134

= 1.6V 248 256 260

Decimal

DS8884B-01 September 2013 www.richtek.com

©

17

RT8884B

Parameter Symbol Test Conditions Min Typ Max Unit

PWM Driving Capability

PWM Source Resistance R

PWM Sink R

Note 1. Stresses beyond those listed “Absolute Maximum Ratings” may cause permanent damage to the device. These are

stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in

the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions may

affect device reliability.

Note 2. θ

Note 3. Devices are ESD sensitive. Handling precaution is recommended. Note 4. The device is not guaranteed to function outside its operating conditions.

is measured at T

JA

measured at the exposed pad of the package.

PWM_SRC

PWM_SNK

= 25°C on a high effective thermal conductivity four-layer test board per JEDEC 51-7. θJC is

A

-- -- 30 Ω

-- -- 10 Ω

18

©

DS8884B-01 September 2013www.richtek.com

Typical Application Circuit

Ω

E S N E S _ S S

V

E S N

R37 R38

E S _ C C

V

RT8884B

T U O _ E R O

LOAD

C

V

C22

22µFx19

C23

560µF/7m

x4

C22

Optional

L1

C13

390µF

360nH / 0.72mΩ

510

R29

C12

22µF

V 2 1

Q1

C11

0.1µF

R27 0

R26 2.2

BOOT

Optional

PHASE

UGATE

R28

C14

Q2 x 2

LGATE

V 2 1

C17

L2

C19

390µF

360nH / 0.72mΩ

C18

22µF

Optional

Q3

0.1µF

R33 0

R32 2.2

BOOT

PHASE

UGATE

R30

Optional

C15 1µF

RT9624A

PWM

0.1µF

GND

EN

R31 680

5V

27

1

PWM1

ISEN1P

V 2 1

32

ISEN1N

VCC

C10

V 2 1

VCC

C16

0.1µF

GND

PWM

28

PWM2

RT8884B

SET2

SET1

C2

SET3

15

2.2µF

Optional for OFS

R4

R6 30k

TSEN

14

13

17

R5

R7

1.833k

R9

9.68k

R12

6.2k

R11 5.6k

R8 75.8k

NTC1

100k

R

R10 100k

ß = 4485

DVD

24

C1

VCC

12

0.1µF

R3

2.2

5V

R2

125k

R1

510k

12V

C21 1µF

510

R35

R34

Q4 x 2

LGATE

RT9624A

EN

5V

R14

130k

R13 1

C20

22

Optional

T E S N O T

VIN

R36

R37 680

30

31

ISEN2P

S A

I B

I

16

R15

100k

C3

0.1µF

ISEN2N

C28

390µF

L3

360nH / 0.72m

C27

22µF

C26

0.1µF

R38 2.2

Q5

BOOT

VCC

C25

R39 0

UGATE

GND

0.1µF

Optional

PHASE

PWM

V 2 1

26

PWM3

F E R

IMON

V

6

7

R18

5.43k

NTC2

100k

R

ß = 4485

R16 12.6k

R17

C4

0.47µF

VCCIO

13.9k

C30 1µF

510

R41

R40

Q6 x 2

LGATE

EN5V

R42

Optional

C29

RT9624A

2

ISEN3P

VR_RDY

23

R19

10k

R20

75

R21

130

R22

130

R23

150

L4

C34

390µF

360nH / 0.72mΩ

C33

22µF

V 2 1

C32

R43 680

V 2 1

3

ISEN3N

VR_HOT

VCLK

VDIO

18

20

21

19

To CPU

Optional

Q7

0.1µF

R45 0

R44 2.2

BOOT

PHASE

UGATE

PWM

VCC

GND

C31

0.1µF

25

PWM4

N E S

29

EN

Enable

V

10

C6

C5

ALERT

C36 1µF

510

R47

R46

Q8 x 2

LGATE

EN

5V

90pF

390pF

R48

Optional

C35

RT9624A

5

COMP

8

R25

59.2k

10k

R24

Optional

CC_SENSE

V

ISEN4P

R49 680

33 (Exposed Pad)

4

GND

ISEN4N

RGND

FB

9

11

C8

Optional

C9

C7

Optional

SS_SENSE

V

VCC

©

DS8884B-01 September 2013 www.richtek.com

19

RT8884B

Typical Operating Characteristics

V

CORE

(2V/Div)

EN

(2V/Div)

VR_RDY

(2V/Div)

UGATE1 (20V/Div)

V

CORE

(2V/Div)

I

LOAD

(150A/Div)

CORE VR Power On from EN

V

= 12V, No Load, Boot VID 1.7V

IN

Time (200μs/Div)

CORE VR OCP

V

CORE

(2V/Div)

EN

(2V/Div)

VR_RDY

(2V/Div)

UGATE1

(20V/Div)

V

CORE

(2V/Div)

VR_RDY

(1V/Div)

CORE VR Power Off from EN

V

= 12V, No Load, Boot VID 1.7V

IN

Time (200μs/Div)

CORE VR OVP

VR_RDY

(2V/Div)

UGATE1 (50V/Div)

V

CORE

(1V/Div)

VCLK

(2V/Div)

VDIO

(2V/Div)

ALERT

(2V/Div)

V

= 12V, Boot VID 1.7V

IN

Time (100μs/Div)

CORE VR Dynamic VID Up

V

= 12V, VID = 1.6V to 1.85V, Slew Rate = Slow

IN

Time (20μs/Div)

UGATE1 (20V/Div)

LGATE1

(20V/Div)

V

CORE

(1V/Div)

VCLK

(2V/Div)

VDIO

(2V/Div)

ALERT

(2V/Div)

V

= 12V, Boot VID 1.7V

IN

Time (40μs/Div)

CORE VR Dynamic VID Down

V

= 12V, VID = 1.85V to 1.6V, Slew Rate = Slow

IN

Time (20μs/Div)

©

DS8884B-01 September 2013www.richtek.com

20

RT8884B

V

CORE

(1V/Div)

VCLK

(2V/Div)

VDI O

(2V/Div)

ALERT

(2V/Div)

V

CORE

(50mV/Div)

VCLK

(1V/Div)

CORE VR Dynamic VID Up

V

= 12V, VID = 1.6V to 1.85V, Slew Rate = Fast

IN

Time (10μs/Div)

CORE VR Mode Transient

V

CORE

(1V/Div)

VCLK

(2V/Div)

VDI O

(2V/Div)

ALERT

(2V/Div)

V

CORE

(50mV/Div)

VCLK

(1V/Div)

CORE VR Dynamic VID Down

V

= 12V, VID = 1.85V to 1.6V, Slew Rate = Fast

IN

Time (10μs/Div)

CORE VR Mode Transient

UGATE1

(20V/Div)

LGATE1

(10V/Div)

TSEN

(1V/Div)

VR_HOT

(1V/Div)

V

= 12V, VID = 1.7V, PS0 to PS2, I

IN

LOAD

= 0.6A

Time (100μs/Div)

CORE VR Thermal Monitoring

V

= 12V, TSEN Sweep from 1.7V to 2.1V

IN

Time (10ms/Div)

UGATE1

(20V/Div)

LGATE1

(10V/Div)

2.5

2.0

1.5

(V)

IMON

1.0

V

0.5

0.0

V

= 12V, VID = 1.7V, PS2 to PS0, I

IN

LOAD

= 0.6A

Time (100μs/Div)

V

vs. Load Current

IMON

0 25 50 75 100 125

Load Current (A)

©

DS8884B-01 September 2013 www.richtek.com

21

RT8884B

Applications information

The RT8884B is a 4/3/2/1 multiphase synchronous Buck

controller designed to meet Intel VR12.5 compatible CPU

specification with a serial SVID control interface. The

controller uses an ADC to implement all kinds of settings

to save a total number of pins for easily using and

increasing PCB space utilization. RT8884B is used in

notebook, desktop computer and server.

G-NAV PTM Control Mode

The RT8884B adopts the G-NAVPTM controller, which is a

current mode constant on-time control with DC offset

cancellation. The approach can not only improve DC offset

problem for increasing system accuracy but also provide

fast transient response. For the RT8884B, when current

feedback signal reaches comp signal to generate an on-

time width to achieve PWM modulation. Figure 1 shows

the basic G-NAVPTM behavior waveforms in continuous

conduct mode (CCM).

Current feedback signal

Comp signal

PWM1

PWM2

PWM3

PWM4

Figure 1 (b). G-NAVPTM Behavior Waveforms in CCM in

Load Transient.

Current feedback signal

Comp signal

PWM1

PWM2

PWM3

PWM4

Figure 1 (a). G-NAVPTM Behavior Waveforms in CCM in

Steady State

Diode Emulation Mode (DEM)

As well-known, the dominate power loss is switching

related loss during light load, hence VR needs to be

operated in asynchronous mode (or called discontinuous

conduct mode, DCM) to reduce switching related loss

since switching frequency is dependent on loading in the

asynchronous mode. RT8884B can operate in Diode

Emulation Mode (DEM) in order to improve light load

efficiency. In DEM operation, the behavior of the low side

MOSFET(s) needs to work like a diode, that is, the low

side MOSFET(s) will be turned on when the phase voltage

is a negative value, i.e. the inductor current follows from

source to drain of low side MOSFET(s). The low side

MOSFET(s) will be turned off when phase voltage is a

positive value, i.e. reversed current is not allowed. Figure

2 shows the control behavior in DEM. Figure 3 shows the

G-NAVPTM operation in DEM to illustrate the control

behaviors. When the load decreases, the discharge time

of output capacitors increases during UGATE and LGATE

are turned off. Hence, the switching frequency and

switching loss will be reduced to improve efficiency in

light load condition.

22

©

DS8884B-01 September 2013www.richtek.com

Inductor current

Phase node

UGATE

LGATE

Figure 2. Diode Emulation Mode (DEM) in Steady State

RT8884B

Inductor

current signal

Output capacitor

discharge slope

Output capacitor

discharge slope

COMP signal

UGATE

LGATE

(a). Lighter Load Condition

Capacitor discharge slope is lower than Figure 3 (b).

Inductor

current signal

COMP signal

UGATE

LGATE

(b). Load Increased Condition

Capacitor discharge slope is higher than Figure 3 (a).

Figure 3. G-NAVPTM Operation in DEM.

DS8884B-01 September 2013 www.richtek.com

©

23

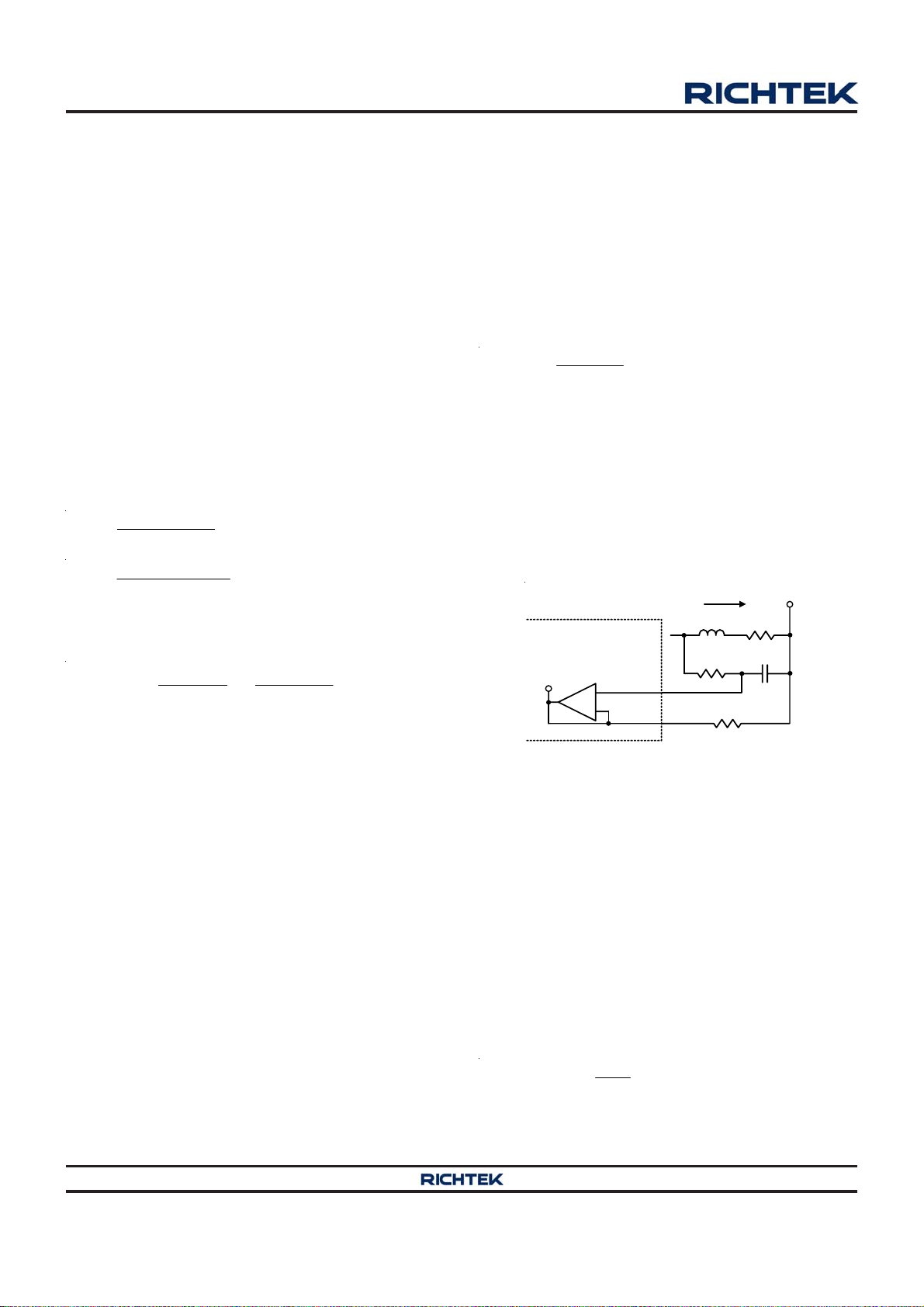

RT8884B

Phase Interleaving Function

RT8884B is a multiphase controller, which has a phase

interleaving function, 90 degree phase shift for 4-phase

operation, 120 degree phase shift for 3-phase operation

and 180 degree phase shift for 2-phase operation which

can help reduce output voltage ripple and EMI problem.

Switching Frequency (TON) Setting

RT8884B is one kind of constant on-time control. The

patented CCRCOT (Constant Current Ripple COT)

technology can generate an adaptive on-time with input

voltage and VID code to obtain a constant current ripple.

So that the output voltage ripple can be controlled nearly

like a constant as different input and output voltage change.

Connect a resistor R

between input terminal and

TON

TONSET pin to set the on-time width.

RC2.2

××

T = V < 2.2V

ON DAC

T = V 2.2V

ON DAC

TON

VV

−

IN DAC

RCV

××

TON DAC

VV

−

IN DAC

()

≥

Where C = 18.2pF. By using the relationship between

TON and fSW, the switching frequency fSW is :

f =

SW(MAX)

⎛⎞⎛ ⎞

1

⎜⎟⎜ ⎟

TV

ON (MAX) IN (MAX)

⎝⎠⎝ ⎠

V

×

DAC (MAX)

Where

Per Phase Current Sense

In the RT8884B, the current signal is used for load-line

setting and OC (Over Current) protection. The inductor

current sense method adopts the lossless current sensing

for allowing high efficiency as illustrated in the Figure 4.

When inductance and DCR time constant is equal to RXC

filter network time constant, a voltage ILX x DCR will drop

on CX to generate inductor current signal. According to

the Figure 4, the ISENxN is as follows :

I DCR

×

ISENxN =

LX

R

CSx

Where LX / DCR = RXCX is held. The method can get high

efficiency performance, but DCR value will be drifted by

temperature, a NTC resistor should add in the resistor

network in the IMON pin to achieve DCR thermal

compensation.

In RT8884B design, the resistance of the R

is restricted

CSx

to 680Ω; moreover, the accuracy of RCS is recommended

to be 1% or higher.

DCR

C

V

X

CORE

I

SENxN

+

-

ISENxP

ISENxN

I

Lx

L

X

R

X

R

CSx

X

f

SW(MAX)

V

is the maximum switching frequency.

DAC(MAX)

IN(MAX)

is the maximum V

is the maximum application input voltage.

of application.

DAC

Figure 4. Lossless Current Sense Method

Total Current Sense

Total current sense method is a patented topology, unlike

T

ON(MAX)

parameters (V

When load increases, on-time keeps constant. The

off-time width will be reduced so that loading can load

more power from input terminal to regulate output voltage.

Hence the loading current increases in case the switching

frequency also increases. Higher switching frequency

operation can reduce power components' size and PCB

space, trading off the whole efficiency since switching

related loss increases, vice versa.

is derived from TON equation with maximum

IN(MAX)

, V

DAC(MAX)

).

conventional current sense method requiring a NTC resistor

in per phase current loop for thermal compensation.

RT8884B adopts the total current sense method requiring

only one NTC resistor for thermal compensation, and NTC

resistor cost can be saved by using this method. Figure 5

shows the total current sense method which connecting

the resistor network between the IMON and VREF pins to

set a part of current loop gain for load-line (droop) setting

and set accurate over current protection.

V V = R (I + I + I + I )

−××

IMON REF EQ L1 L2 L3 L4

DCR

R

CS

REQ includes a NTC resistor to compensate DCR thermal

drifting for high accuracy load-line (droop).

24

©

DS8884B-01 September 2013www.richtek.com

RT8884B

V

I

L1

L

CORE

DCR

CORE

R

I

IMON

R

NTC

R

EQ

SEN1N

I

SEN2N

V

REF

I

SEN3N

+

-

+

-

+

-

ISEN1P

ISEN1N

L

R

ISEN2P

ISEN2N

L

R

ISEN3P

ISEN3N

L

C

R

x I

LL

CC

R

CS

I

L2

DCR

C

V

CORE

R

CS

I

L3

DCR

C

R

CS

I

L4

DCR

Voltage Loop

I

L1.2.3.4

DCR

C

R

CS

Figure 6. Load-Line (Droop)

L

R

ISEN[1:4]P

ISEN[1:4]N

Figure 7. Voltage Loop and Current Loop

Load-line slope = -R

R2

-

R1

+

VID

I

+ I

SEN1N

SEN2N

+ I

I

SEN3N

+

-

SEN4N

IMON

LL

I

CC

TON Generator

+

-

1/2

+

-

+

R

NTC

V

REF

R

EQ

C

R

CS

I

SEN4N

+

-

R

ISEN4P

ISEN4N

Figure 5. Total Current Sense Method

Load-Line (Droop) Setting

The G-NAVPTM topology can set load-line (droop) via the

current loop and the voltage loop, the load-line is a slope

between load current ICC and output voltage V

CORE

as

shown in Figure 6. Figure 7 shows the voltage control and

current loop. By using both loops, the load-line (droop)

can easily be set. The load-line set equation is :

1 DCR

××

2R

A

R = = (m )

LL

I

A

V

CS

R2

R

EQ

Ω

R1

Compensator Design

The compensator of RT8884B doesn't need a complex

type II or type III compensator to optimize control loop

performance. It can adopt a simple type I compensator

(one pole, one zero) in G-NAVPTM topology to achieve

constant output impedance design for Intel VR12.5 ACLL

specification. The one pole one zero compensator is

shown as Figure 8, the transfer function of compensator

should be designed as the following transfer function to

achieve constant output impedance, i.e. Zo(s) = load-line

slope in the entire frequency range :

1 +

s

fsw

×

π

s

ω

ESR

G (s)

CON

≈×

1 +

A

I

R

LL

©

DS8884B-01 September 2013 www.richtek.com

25

RT8884B

Where AI is current loop gain, RLL is load-line, fSW is

switching frequency and ω

located at 1 / (C

x ESR). Then the C1 and C2 should

OUT

is a pole that should be

ESR

be designed as follows :

C1 =

C2 =

1

R1 f

π

××

SW

C ESR

×

OUT

R2

C1

R1

C2

R2

+

VID

Figure 8. Type I Compensator

Multi-Function Pin Setting Mechanism

For reducing total pin number of package, the SET[1:2]

pins adopt the multi-function pin setting mechanism in

RT8884B. Figure 9 illustrates this operating mechanism.

First, external voltage divider is to set the Function 1 and

then internal current source 80μA is to set the Function

2. The setting voltage of Function 1 and Function 2 can

be represented as follows :

V = V

Function 1 CC

V = 80A

Function 2

R2

R1 + R2

×

μ

×

R1 R2

×

R1 + R2

All function setting will be done within 500μs after power

ready (POR).

If V

Function 1

and V

Function 2

are determined, R1 and R2 can

be calculated as follows :

VV

×

R1 =

R2 =

CC Function 2

80 A V

μ

×

Function 1

R1 V

×

Function 1

VV

−

CC Function 1

Function 2

<5:0>

Function 2

<5:0>

Function 1

ADC

Function 1

Register

Function 2

Register

Function 1

ADC

Function 1

Register

Function 2

Register

<5:0>

80µA

SET[1:2]

80µA

SET[1:2]

V

CC

R1

R2

V

CC

R1

R2

Figure 9. Multi-Function Pin Setting Mechanism

Connecting a R3 resistor from SET[1:2] pin to the middle

node of voltage divider can help to fine tune the set voltage

of Function 2, which does not affect the set voltage of

Function 1. The Figure 10 shows the setting method and

the set voltage of Function 1 and Function 2 can be

represented as :

V = V

Function 1 CC

V = 80AR3 +

Function 2

R2

R1 + R2

μ

×

R1 R2

⎛⎞ ⎜⎟

⎝⎠

×

R1 + R2

In addition, Richtek provides a Microsoft Excel-based

spreadsheet to help design the SETx resistor network for

RT8884B.

26

©

DS8884B-01 September 2013www.richtek.com

Function 2

<5:0>

ADC

Function 1

<5:0>

Function 1

Register

Function 2

Register

80µA

SET[1:2]

R3

RT8884B

QR Width

VCORE

V

CC

R1

R2

PWM1

PWM2

PWM3

PWM4

QR Threshold

Load

Function 2

<5:0>

Function 1

ADC

Function 1

Register

Function 2

Register

<5:0>

80µA

SET[1:2]

R3

V

CC

R1

R2

Figure 10. Multi-Function Pin Setting Mechanism with a

R3 Resistor to Fine Tune the Set Voltage of Function 2

Quick Response (QR) Mechanism

When the transient load step-up becomes quite large, it

is difficult for loop response to meet the energy transfer.

Hence, that output voltage generate undershoot to fail

specification. RT8884B has Quick Response (QR)

mechanism being able to improve this issue. It adopts a

nonlinear control mechanism which can disable

interleaving function and simultaneously to turn on all

UGATE one pulse at instantaneous step-up transient load

to restrain the output voltage drooping, Figure 11 shows

the QR behavior.

Figure 11. Quick Response Mechanism

The output voltage signal behavior needs to be detected

so that QR mechanism can be trigged. The output voltage

signal is via a remote sense line to connect at the VSEN

pin that is shown in Figure 12. The QR mechanism needs

to set QR width and QR threshold. Both definitions are

shown in Figure 9. A proper QR mechanism set can meet

different applications. The SET2 pin is a multi-function

pin which can set QR threshold, QR width and ICCMAX.

Current Mirror

V

CC_SENSE

VSEN

QR trigger

I

Mirror

VID

+

-

R

QR

Figure 12. Simplified QR Trigger Schematic

An internal current source 80μA is used in multi-function

pin setting mechanism. For example, 35mV QR threshold

and 1.3 x TON QR width are set. According to the Table

4, the set voltage should be between 0.4504V and 0.4723V.

Please note that a high accuracy resistor is needed for

this setting accuracy, <1% error tolerance is

recommended.

In the Table 4, there are some “No Use” marks in

QRWIDTH section. It means that user should not use it

to avoid the possibility of shift digital code due to tolerance

concern.

DS8884B-01 September 2013 www.richtek.com

©

27

RT8884B

Table 4 : SET2 Pin Setting for QR Threshold and QR Width

R1 R2

×

R1 R2

× +

QR_TH

<2:0>

000

001

010

011

100

QRWIDTH

<2:0>

111

QR

Threshold

Disable

30mV

35mV

40mV

45mV

QR Width

(%TON)

No Use

V = 80A

QR_ SET

Min Typical Max unit

0.000 10.948 21.896 mV 000 No Use

25.024 35.973 46.921 mV 001 155%

50.049 60.997 71.945 mV 010 133%

75.073 86.022 96.970 mV 011 111%

100.098 111.046 121.994 mV 100 89%

125.122 136.070 147.019 mV 101 67%

150.147 161.095 172.043 mV 110 44%

175.171 186.119 197.067 mV

200.196 211.144 222.092 mV 000 No Use

225.220 236.168 247.116 mV 001 155%

250.244 261.193 272.141 mV 010 133%

275.269 286.217 297.165 mV 011 111%

300.293 311.241 322.190 mV 100 89%

325.318 336.266 347.214 mV 101 67%

350.342 361.290 372.239 mV 110 44%

375.367 386.315 397.263 mV

400.391 411.339 422.287 mV 000 No Use

425.415 436.364 447.312 mV 001 155%

450.440 461.388 472.336 mV 010 133%

475.464 486.413 497.361 mV 011 111%

500.489 511.437 522.385 mV 100 89%

525.513 536.461 547.410 mV 101 67%

550.538 561.486 572.434 mV 110 44%

575.562 586.510 597.458 mV

600.587 611.535 622.483 mV 000 No Use

625.611 636.559 647.507 mV 001 155%

650.635 661.584 672.532 mV 010 133%

675.660 686.608 697.556 mV 011 111%

700.684 711.632 722.581 mV 100 89%

725.709 736.657 747.605 mV 101 67%

750.733 761.681 772.630 mV 110 44%

775.758 786.706 797.654 mV

800.782 811.730 822.678 mV 000 No Use

825.806 836.755 847.703 mV 001 155%

850.831 861.779 872.727 mV 010 133%

875.855 886.804 897.752 mV 011 111%

900.880 911.828 922.776 mV 100 89%

925.904 936.852 947.801 mV 101 67%

950.929 961.877 972.825 mV 110 44%

975.953 986.901 997.849 mV

μ

28

©

DS8884B-01 September 2013www.richtek.com

RT8884B

R1 R2

×

R1 R2

× +

QR_TH

<2:0>

101

110

111

QRWIDTH

<2:0>

111

QR

Threshold

50mV

55mV

60mV

QR Width

(%TON)

No Use

V = 80A

QR_ SET

Min Typical Max unit

1000.978 1011.926 1022.874 mV 000 No Use

1026.002 1036.950 1047.898 mV 001 155%

1051.026 1061.975 1072.923 mV 010 133%

1076.051 1086.999 1097.947 mV 011 111%

1101.075 1112.023 1122 .9 7 2 mV 100 8 9%

1126.100 1137.048 1147.996 mV 101 67%

1151.124 1162.072 1173.021 mV 110 44%

1176.149 1187.097 1198.045 mV

1201.173 1212.121 1223.069 mV 000 No Use

1226.197 1237.146 1248.094 mV 001 155%

1251.222 1262.170 1273.118 mV 010 133%

1276.246 1287.195 1298.143 mV 011 111%

1301.271 1312.219 1323.167 mV 100 89%

1326.295 1337.243 1348.192 mV 101 67%

1351.320 1362.268 1373.216 mV 110 44%

1376.344 1387.292 1398.240 mV

1401.369 1412.317 1423.265 mV 000 No Use

1426.393 1437.341 1448.289 mV 001 155%

1451.417 1462.366 1473.314 mV 010 133%

1476.442 1487.390 1498.338 mV 011 111%

1501.466 1512.414 1523.363 mV 100 89%

1526.491 1537.439 1548.387 mV 101 67%

1551.515 1562.463 1573.412 mV 110 44%

1576.540 1587.488 1598.436 mV

μ

Dynamic VID (DVID) Compensation

When VID transition event occurs, a charge current will

be generated in the loop to cause that DVID performance

is deteriorated by this induced charge current, the

phenomenon is called droop effect. The droop effect is

shown in Figure 13. When VID up transition occurs, the

output capacitor will be charged by inductor current. Since

current signal is sensed in inductor, an induced charge

current will appear in control loop. The induced charge

current will produce a voltage drop in R1 to cause output

voltage to have a droop effect. Due to this, VID transition

performance will be deteriorated.

DS8884B-01 September 2013 www.richtek.com

©

The RT8884B provides a DVID compensation function. A

virtual charge current signal can be established by the

SET1 pin to cancel the real induced charge current signal

and the virtual charge current signal is defined in Figure

15. Figure 14 shows the operation of cancelling droop

effect. A virtual charge current signal is established first

and then VID signal plus virtual charge current signal is

generated in FB pin. Hence, an induced charge current

signal flows to R1 and is cancelled to reduce droop effect.

29

RT8884B

V

IN

Q1

Gate

Driver

Q2

Charge current

L

C

O2

O1

R

ESR

CPU

VIN

VID

Ai

+

C2

R2

EA

CCRCOT

Induced charge current signal

COMP

t

ON

Figure 13. Droop Effect in VID Transition

V

IN

VIN

VID

Q1

CCRCOT

Gate

Driver

Induced charge current signal

COMP

t

ON

Q2

+

I

DROOP

VID

VID Transition

+

C1

R1

Output voltage

DVID_Width

DVID_Threshold

Figure 15. Definition of Virtual Charge Current Signal

Charge current

L

C

R

Ai

R2

I

DROOP

EA

O1

C2

ESR

+

O2

Output voltage

CPU

C1

R1

Virtual Charge Current

DVID Event

+

Slew Rate

Control

Virtual Charge

Current

VID

VID Transition

SET1

Generator

Figure 14. DVID Compensation

Table 5 and Table 6 show the DVID_Threshold and

DVID_Width settings in SET1 pin. For example, 25mV

DVID_Threshold and 72μs DVID_Width are designed (OCP

sets as 100% ICCMAX, and RSET sets as 100% Ramp

current). The DVID_Width is set by an external voltage

divider and the DVID_Threshold is set by an internal current

source 80μA by the multi-function pin setting mechanism.

According to the Table 5 and Table 6, the DVID_Threshold

set voltage should be between 0.225V and 0.247V and

the DVID_Width set voltage should be between 0.275V

and 0.297V. Please note that a high accuracy resistor is

needed for this setting, <1% error tolerance is

recommended.

30

©

DS8884B-01 September 2013www.richtek.com

RT8884B

Table 5 : SET1 Pin Setting for DVID_Threshold

R1 R2

V = 80A

DVID_T hreshol d

Min Typical Max unit

0.000 10.948 21.896 mV 000 No Use

25.024 35.973 46.921 mV 001 100%

50.049 60.997 71.945 mV 010 110%

75.073 86.022 96.970 mV 011 120%

100.098 111.046 121.994 mV 100 130%

125.122 136.070 147.019 mV 101 140%

150.147 161.095 172.043 mV 110 150%

175.171 186.119 197.067 mV

200.196 211.144 222.092 mV 000 No Use

225.220 236.168 247.116 mV 001 100%

250.244 261.193 272.141 mV 010 110%

275.269 286.217 297.165 mV 011 120%

300.293 311.241 322.190 mV 100 130%

325.318 336.266 347.214 mV 101 140%

350.342 361.290 372.239 mV 110 150%

375.367 386.315 397.263 mV

400.391 411.339 422.287 mV 000 No Use

425.415 436.364 447.312 mV 001 100%

450.440 461.388 472.336 mV 010 110%

475.464 486.413 497.361 mV 011 120%

500.489 511.437 522.385 mV 100 130%

525.513 536.461 547.410 mV 101 140%

550.538 561.486 572.434 mV 110 150%

575.562 586.510 597.458 mV

600.587 611.535 622.483 mV 000 No Use

625.611 636.559 647.507 mV 001 100%

650.635 661.584 672.532 mV 010 110%

675.660 686.608 697.556 mV 011 120%

700.684 711.632 722.581 mV 100 130%

725.709 736.657 747.605 mV 101 140%

750.733 761.681 772.630 mV 110 150%

775.758 786.706 797.654 mV

800.782 811.730 822.678 mV 000 No Use

825.806 836.755 847.703 mV 001 100%

850.831 861.779 872.727 mV 010 110%

875.855 886.804 897.752 mV 011 120%

900.880 911.828 922.776 mV 100 130%

925.904 936.852 947.801 mV 101 140%

950.929 961.877 972.825 mV 110 150%

975.953 986.901 997.849 mV

μ

×

R1 R2

× +

DVID_TH

<2:0>

000

001

010

011

100

OCS

<2:0>

111

DVID_Threshold OCP = %ICCMAX

15mV

No Use

25mV

No Use

35mV

No Use

45mV

No Use

55mV

No Use

DS8884B-01 September 2013 www.richtek.com

©

31

RT8884B

R1 R2

V = 80A

DVID_Threshold

Min Typical Max unit

1000.978 1011.926 1022.874 mV 000 No Use

1026.002 1036.950 1047.898 mV 001 100%

1051.026 1061.975 1072.923 mV 010 110%

1076.051 1086.999 1097.947 mV 011 120%

1101.075 1112.023 1122.972 mV 100 130%

1126.100 1137.048 1147.996 mV 101 140%

1151.124 1162.072 1173.021 mV 110 150%

1176.149 1187.097 1198.045 mV

1201.173 1212.121 1223.069 mV 000 No Use

1226.197 1237.146 1248.094 mV 001 100%

1251.222 1262.170 1273.118 mV 010 110%

1276.246 1287.195 1298.143 mV 011 120%

1301.271 1312.219 1323.167 mV 100 130%

1326.295 1337.243 1348.192 mV 101 140%

1351.320 1362.268 1373.216 mV 110 150%

1376.344 1387.292 1398.240 mV

1401.369 1412.317 1423.265 mV 000 No Use

1426.393 1437.341 1448.289 mV 001 100%

1451.417 1462.366 1473.314 mV 010 110%

1476.442 1487.390 1498.338 mV 011 120%

1501.466 1512.414 1523.363 mV 100 130%

1526.491 1537.439 1548.387 mV 101 140%

1551.515 1562.463 1573.412 mV 110 150%

1576.540 1587.488 1598.436 mV

μ

×

R1 R2

× +

DVID_TH

<2:0>

101

110

111

OCS

<2:0>

111

DVID_Threshold OCP = %ICCMAX

65mV

No Use

75mV

No Use

85mV

No Use

32

©

DS8884B-01 September 2013www.richtek.com

RT8884B

Table 6 : SET1 Pin Setting for DVID_Width

V = V

DVID_ W idth CC

Min Typical Max unit

0.000 10.948 21.896 mV 000 No Use

25.024 35.973 46.921 mV 001 75%

50.049 60.997 71.945 mV 010 87.5%

75.073 86.022 96.970 mV 011 100%

100.098 111.046 121.994 mV 100 112.5%

125.122 136.070 147.019 mV 101 125%

150.147 161.095 172.043 mV 110 137.5%

175.171 186.119 197.067 mV

200.196 211.144 222.092 mV 000 No Use

225.220 236.168 247.116 mV 001 75%

250.244 261.193 272.141 mV 010 87.5%

275.269 286.217 297.165 mV 011 100%

300.293 311.241 322.190 mV 100 112.5%

325.318 336.266 347.214 mV 101 125%

350.342 361.290 372.239 mV 110 137.5%

375.367 386.315 397.263 mV

400.391 411.339 422.287 mV 000 No Use

425.415 436.364 447.312 mV 001 75%

450.440 461.388 472.336 mV 010 87.50%

475.464 486.413 497.361 mV 011 100%

500.489 511.437 522.385 mV 100 112.5%

525.513 536.461 547.410 mV 101 125%

550.538 561.486 572.434 mV 110 137.5%

575.562 586.510 597.458 mV

600.587 611.535 622.483 mV 000 No Use

625.611 636.559 647.507 mV 001 75%

650.635 661.584 672.532 mV 010 87.50%

675.660 686.608 697.556 mV 011 100%

700.684 711.632 722.581 mV 100 112.50%

725.709 736.657 747.605 mV 101 125%

750.733 761.681 772.630 mV 110 137.5%

775.758 786.706 797.654 mV

800.782 811.730 822.678 mV 000 No Use

825.806 836.755 847.703 mV 001 75%

850.831 861.779 872.727 mV 010 87.5%

875.855 886.804 897.752 mV 011 100%

900.880 911.828 922.776 mV 100 112.50%

925.904 936.852 947.801 mV 101 125%

950.929 961.877 972.825 mV 110 137.5%

975.953 986.901 997.849 mV

R2

R1 R2×+

DVID_WTH

<2:0>

000

001

010

011

100

RSET <2:0>

111

DVID_Width RSET % 130k R

48μs

No Use

72μs

No Use

96μs

No Use

120μs

No Use

144μs

No Use

TON

DS8884B-01 September 2013 www.richtek.com

©

33

RT8884B

V = V

DVID_ W idth CC

Min Typical Max unit

1000.978 1011.926 1022.874 mV 000 No Use

1026.002 1036.950 1047.898 mV 001 75%

1051.026 1061.975 1072.923 mV 010 87.5%

1076.051 1086.999 1097.947 mV 011 100%

1101.075 1112.023 1122.972 mV 100 112.5%

1126.100 1137.048 1147.996 mV 101 125%

1151.124 1162.072 1173.021 mV 110 137.5%

1176.149 1187.097 1198.045 mV

1201.173 1212.121 1223.069 mV 000 No Use

1226.197 1237.146 1248.094 mV 001 75%

1251.222 1262.170 1273.118 mV 010 87.5%

1276.246 1287.195 1298.143 mV 011 100%

1301.271 1312.219 1323.167 mV 100 112.5%

1326.295 1337.243 1348.192 mV 101 125%

1351.320 1362.268 1373.216 mV 110 137.5%

1376.344 1387.292 1398.240 mV

1401.369 1412.317 1423.265 mV 000 No Use

1426.393 1437.341 1448.289 mV 001 75%

1451.417 1462.366 1473.314 mV 010 87.50%

1476.442 1487.390 1498.338 mV 011 100%

1501.466 1512.414 1523.363 mV 100 112.5%

1526.491 1537.439 1548.387 mV 101 125%

1551.515 1562.463 1573.412 mV 110 137.5%

1576.540 1587.488 1598.436 mV

R2

R1 R2×+

DVID_WTH

<2:0>

101

110

111

RSET <2:0>

111

DVID_Width RSET % 130k R

168μs

No Use

192μs

No Use

216μs

No Use

TON

34

©

DS8884B-01 September 2013www.richtek.com

RT8884B

Ramp Compensation

G-NAVPTM topology is one type of ripple based control

that has fast transient response, no beat frequency issue

in high repetitive load frequency operation and lower BOM

cost. However, ripple based control usually has no good

noise immunity. The RT8884B provides that the ramp

compensation to increase noise immunity and reduce jitter

at the switching node. Figure 16 shows the ramp

compensation.

Noise Margin

w/o ramp compensation

IMON-VREF

VCOMP

w/ ramp compensation

IMON-VREF

VCOMP

Figure 16. Ramp Compensation

Current Monitor, IMON

RT8884B includes a current monitor (IMON) function which

can be used to detect over current protection and the

maximum processor current ICCMAX, and also sets a

part of current gain in the load-line setting. It produces an

analog voltage proportional to output current between the

IMON and VREF pins.

The calculation for IMON-VREF voltage is shown as

below :

+ I

L2

DCR

R

CS

+ I

+ IL4 are output current and the

L3

()

V V = R I + I + I + I

−××

IMON REF EQ L1 L2 L3 L4

Where I

L1

definitions of DCR, RCS and REQ can refer to Figure 6.

Maximum Processor Current Setting, ICCMAX

The maximum processor current ICCMAX can be set by

the SET2 pin. ICCMAX register is set by an external voltage

divider by the multi-function mechanism. The Table 7

shows the ICCMAX setting in SET2 pin. For example,

I

= 106A, the V

CCMAX

typically. Additionally, V

1.6V when I

L1

+ I

L2

+ I

L3

signal will be pulled to low level if V

needs to be set as 0.67

ICCMAX

− V

IMON

needs to be set as

REF

+ IL4 = 106A. The ICCMAX alert

IMON

− V

REF

= 1.6V.

For the RT8884B, the ramp compensation also needs to

be considered during mode transition from PS0/1 to PS2.

For achieving smooth mode transition into PS2, a proper

ramp compensation design is necessary. Since the ramp

compensation needs to be proportional to the on-time, in

others words, ramp compensation is dependent on R

design. The Table 6 shows the relationship between R

TON

and ramp compensation. For example, when designed

R

is 100kΩ, the RAMP is set as .

TON

130k 100k

100%

×

DS8884B-01 September 2013 www.richtek.com

©

35

RT8884B

Table 7 : SET2 Pin Setting for ICCMAX

V = V

ICCMAX CC

Min Typical Max Unit

0.000 3.128 6.256 mV 0 A

12.512 15.640 18.768 mV 2 A

25.024 28.152 31.281 mV 4 A

37.537 40.665 43.793 mV 6 A

50.049 53.177 56.305 mV 8 A

62.561 65.689 68.817 mV 10 A

75.073 78.201 81.329 mV 12 A

87.586 90.714 93.842 mV 14 A

100.098 103.226 106.354 mV 16 A

112.610 115.738 118.866 mV 18 A

125.122 128.250 131.378 mV 20 A

137.634 140.762 143.891 mV 22 A

150.147 153.275 156.403 mV 24 A

162.659 165.787 168.915 mV 26 A

175.171 178.299 181.427 mV 28 A

187.683 190.811 193.939 mV 30 A

200.196 203.324 206.452 mV 32 A

212.708 215.836 218.964 mV 34 A

225.220 228.348 231.476 mV 36 A

237.732 240.860 243.988 mV 38 A

250.244 253.372 256.500 mV 40 A

262.757 265.885 269.013 mV 42 A

275.269 278.397 281.525 mV 44 A

287.781 290.909 294.037 mV 46 A

300.293 303.421 306.549 mV 48 A

312.805 315.934 319.062 mV 50 A

325.318 328.446 331.574 mV 52 A

337.830 340.958 344.086 mV 54 A

350.342 353.470 356.598 mV 56 A

362.854 365.982 369.110 mV 58 A

375.367 378.495 381.623 mV 60 A

387.879 391.007 394.135 mV 62 A

400.391 403.519 406.647 mV 64 A

412.903 416.031 419.159 mV 66 A

425.415 428.543 431.672 mV 68 A

437.928 441.056 444.184 mV 70 A

450.440 453.568 456.696 mV 72 A

462.952 466.080 469.208 mV 74 A

475.464 478.592 481.720 mV 76 A

487.977 491.105 494.233 mV 78 A

500.489 503.617 506.745 mV 80 A

R2

R1 R2×+

ICCMAX Unit

V = V

ICCMAX CC

Min Typical Max Unit

513.001 516.129 519.257 mV 82 A

525.513 528.641 531.769 mV 84 A

538.025 541.153 544.282 mV 86 A

550.538 553.666 556.794 mV 88 A

563.050 566.178 569.306 mV 90 A

575.562 578.690 581.818 mV 92 A

588.074 591.202 594.330 mV 94 A

600.587 603.715 606.843 mV 96 A

613.099 616.227 619.355 mV 98 A

625.611 628.739 631.867 mV 100 A

638.123 641.251 644.379 mV 102 A

650.635 653.763 656.891 mV 104 A

663.148 666.276 669.404 mV 106 A

675.660 678.788 681.916 mV 108 A

688.172 691.300 694.428 mV 110 A

700.684 703.812 706.940 mV 112 A

713.196 716.325 719.453 mV 114 A

725.709 728.837 731.965 mV 116 A

738.221 741.349 744.477 mV 118 A

750.733 753.861 756.989 mV 120 A

763.245 766.373 769.501 mV 122 A

775.758 778.886 782.014 mV 124 A

788.270 791.398 794.526 mV 126 A

800.782 803.910 807.038 mV 128 A

813.294 816.422 819.550 mV 130 A

825.806 828.935 832.063 mV 132 A

838.319 841.447 844.575 mV 134 A

850.831 853.959 857.087 mV 136 A

863.343 866.471 869.599 mV 138 A

875.855 878.983 882.111 mV 140 A

888.368 891.496 894.624 mV 142 A

900.880 904.008 907.136 mV 144 A

913.392 916.520 919.648 mV 146 A

925.904 929.032 932.160 mV 148 A

938.416 941.544 944.673 mV 150 A

950.929 954.057 957.185 mV 152 A

963.441 966.569 969.697 mV 154 A

975.953 979.081 982.209 mV 156 A

988.465 991.593 994.721 mV 158 A

1000.978 1004.106 1007.234 mV 160 A

1013.490 1016.618 1019.746 mV 162 A

R2

R1 R2

+

×

ICCMAX Unit

36

©

DS8884B-01 September 2013www.richtek.com

RT8884B

V = V

ICCMAX CC

Min Typical Max Unit

1026.002 1029.13 1032.258 mV 164 A

1038.514 1041.642 1044.770 mV 166 A

1051.026 1054.154 1057.283 mV 168 A

1063.539 1066.667 1069.795 mV 170 A

1076.051 1079.179 1082.307 mV 172 A

1088.563 1091.691 1094.819 mV 174 A

1101.075 1104.203 1107.331 mV 176 A

1113.587 1116.716 1119.844 mV 178 A

1126.100 1129.228 1132.356 mV 180 A

1138.612 1141.740 1144.868 mV 182 A

1151.124 1154.252 1157.380 mV 184 A

1163.636 1166.764 1169.892 mV 186 A

1176.149 1179.277 1182.405 mV 188 A

1188.661 1191.789 1194.917 mV 190 A

1201.173 1204.301 1207.429 mV 192 A

1213.685 1216.813 1219.941 mV 194 A

1226.197 1229.326 1232.454 mV 196 A

1238.710 1241.838 1244.966 mV 198 A

1251.222 1254.350 1257.478 mV 200 A

1263.734 1266.862 1269.990 mV 202 A

1276.246 1279.374 1282.502 mV 204 A

1288.759 1291.887 1295.015 mV 206 A

1301.271 1304.399 1307.527 mV 208 A

R2

R1 R2×+

ICCMAX Unit

V = V

ICCMAX CC

Min Typical Max Unit

1313.783 1316.911 1320.039 mV 210 A

1326.295 1329.423 1332.551 mV 212 A

1338.807 1341.935 1345.064 mV 214 A

1351.320 1354.448 1357.576 mV 216 A

1363.832 1366.960 1370.088 mV 218 A

1376.344 1379.472 1382.600 mV 220 A

1388.856 1391.984 1395.112 mV 222 A

1401.369 1404.497 1407.625 mV 224 A

1413.881 1417.009 1420.137 mV 226 A

1426.393 1429.521 1432.649 mV 228 A

1438.905 1442.033 1445.161 mV 230 A

1451.417 1454.545 1457.674 mV 232 A

1463.930 1467.058 1470.186 mV 234 A

1476.442 1479.570 1482.698 mV 236 A

1488.954 1492.082 1495.210 mV 238 A

1501.466 1504.594 1507.722 mV 240 A

1513.978 1517.107 1520.235 mV 242 A

1526.491 1529.619 1532.747 mV 244 A

1539.003 1542.131 1545.259 mV 246 A

1551.515 1554.643 1557.771 mV 248 A

1564.027 1567.155 1570.283 mV 250 A

1576.540 1579.668 1582.796 mV 252 A

1589.052 1592.180 1595.308 mV 254 A

R1 R2×+

R2

ICCMAX Unit

DS8884B-01 September 2013 www.richtek.com

©

37

RT8884B

Over Current Protection

RT8884B provides Over Current Protection (OCP) which

is set by the SET1 pin. The OCP threshold setting can

refer to ICCMAX current in the Table 7. For example, if

ICCMAX is set as 120A, user can set voltage by using

the external voltage divider in SET1 pin as 0.466V typically

if DVID_Threshold = 35mV, then 144A OCP (120% x

ICCMAX) threshold will be set. When output current is

higher than the OCP threshold, OCP is latched with a

40μs delay time to prevent false trigger. Besides, the OCP

function is masked when dynamic VID transient occurs

and after dynamic VID transition, OCP is masked for 80μs.

Over Output Voltage Protection

An OVP condition is detected when the VSEN pin is

350mV more than VID. When OVP is detected, the upper

gate voltage UGATEx is pulled-low and the lower gate

voltage LGATEx is pulled-high, OVP is latched with a

0.5μs delay time to prevent false trigger.

Negative Voltage Protection

Since the OVP latch continuously turns on all low side

MOSFETs of the VR, the VR will suffer negative output

voltage. When the VSEN detects a voltage below −0.05V

after triggering OVP, the VR will trigger NVP to turn off all

low side MOSFETs of the VR while the high side MOSFETs

remains off. After triggering NVP, if the output voltage rises

above 0V, the OVP latch will restart to turn on all low side

MOSFETs. Therefore, the output voltage may bounce

between 0V and −0.05V due to OVP latch and NVP

triggering. The NVP function will be active only after OVP

is triggered.

Under Voltage Protection

When the VSEN pin voltage is 350mV less than VID, a

UVP will be latched. When UVP latched, both the UGATEx

and LGATEx will be pulled-low. A 3μs delay is used in

UVP detection circuit to prevent false trigger. Besides,

the UVP function is masked when dynamic VID transient

occurs and after dynamic VID transition, UVP is masked

for 80μs.

Under Voltage Lock Out (UVLO)

During normal operation, if the voltage at the VCC or DVD

pin drops below POR threshold 4.1V (min), the VR will

trigger UVLO. The UVLO protection forces all high side

MOSFETs and low side MOSFETs off by shutting down

internal PWM logic drivers.

Power Ready (POR) Detection

During start-up, the RT8884B will detect the voltage at

the voltage input pins : VCC, EN and DVD. When V

4.45V and V

> 2V, the RT8884B will recognize the

DVD

power state of system to be ready (POR = high) and wait

for enable command at the EN pin. After POR = high and

V

> 0.7V, the RT8884B will enter start-up sequence. If

EN

the voltage at any voltage pin drops below low threshold

(POR = low), the RT8884B will enter power down

sequence and all the functions will be disabled. Normally,

connecting system voltage VTT (1.05V) to the EN pin and

power stage VIN (12V, through a voltage divider) to the

DVD pin is recommended. 1ms (max) after the chip has

been enabled, the SVID circuitry will be ready. All the

protection latches (OVP, OCP, UVP) will be cleared only

by VCC. The condition of VEN = low will not clear these

latches. Figure 17 and Figure 18 show the POR detection

and the timing chart for POR process, respectively.

5V

CP

+

-

CP

+

-

CP

+

-

POR

Enable

V

1.05V

VCC

4.45V

R1

DVD

R2

TT

2V

EN

0.7V

Figure 17. POR Detection

VCC

DVD

POR

EN

Invalid Invalid

SVID

1ms

Valid

CC

>

Figure 18. Timing Chart for POR Process

38

©

DS8884B-01 September 2013www.richtek.com

RT8884B

Precise Reference Current Generation, IBIAS

Analog circuits need very precise reference voltage/current

to drive/set these analog devices. The RT8884B provides

a 2V voltage source at the IBIAS pin, and a 100kΩ resistor

is required to be connected between the IBIAS pin and

analog ground to generate a very precise reference current.

Through this connection, the RT8884B will generate a

20μA current from the IBIAS pin to analog ground, and

this 20μA current will be mirrored inside the RT8884B for

internal use. The IBIAS pin can only be connected with a

100kΩ resistor to GND for internal analog circuit use. The

resistance accuracy of this resistor is recommended to

be 1% or higher. Figure 19 shows the IBIAS setting circuit.

Current Mirror

2V

+

-

IBIAS

20µA

100k

Figure 19. IBIAS Setting Circuit

TSEN and VR_HOT

The VR_HOT signal is an open-drain signal which is used

for VR thermal protection. When the sensed voltage in

TSEN pin is over 1.887V, the VR_HOT signal will be pulled-

low to notify CPU that the thermal protection needs to

work. According to Intel VR definition, VR_HOT signal

needs acting if VR power chain temperature exceeds

100°C. Placing an NTC thermistor at the hottest area in

the VR power chain and its connection is shown in Figure

20, to design the voltage divider elements (R1, R2 and

NTC) so that VTSEN = 1.887V at 100°C. The resistance

accuracy of TSEN network is recommended to be 1% or

higher.

V = V = 1.887V

TSEN CC

×

R2 + R1//R

R2

⎡⎤

NTC(100 C)

⎣⎦

°

VDDIO

VR_HOT

VCC

TSEN

+

-

1.887V

R1

NTC

R2

Figure 20. VR_HOT Circuit

Differential Remote Sense Setting

The VR provides differential remote sense inputs to

eliminate the effects of voltage drops along the PC board

traces, CPU internal power routes and socket contacts.

The CPU contains on-die sense pins, V

V

SS_SENSE

V

CC_SENSE

of the error amplifier. The V

. Connecting RGND to V

SS_SENSE

with a resistor to build the negative input path

and the precision voltage

DAC

CC_SENSE

and

and FB to

reference are referred to RGND for accurate remote

sensing.

CPU V

CC_SENSE

V

OUT

R1

R2

SS_SENSE

C

OUT

EA

+

VID

FB

+

-

RGND

CPU V

Figure 21. Remote Sensing Circuit

DS8884B-01 September 2013 www.richtek.com

©

39

RT8884B

NO Load Offset (Platform)

RT8884B provides no load offset for platform users. Users

can disable this function by pulling the SET3 pin to ground.

Figure 22 shows a voltage divider used to set no load

offset voltage. No load offset voltage setting is :

V = V 1.2

OFS SET3

The range of V

For example, a 100mV no load offset requirement, V

1

×−

()

2

is −250mV < V

OFS

< 600mV.

OFS

SET3

needs to be set as 1.4V.

From gm

DAC

+

-

COMP

FB

R1

R2

V

CC

SET3

gm

Phase Disa ble (Before POR)

The number of active phases is determined by the internal

circuitry that monitors the ISENxN voltages during start-

up. Normally, the VR operates as a 4-phase PWM

controller. Pulling ISEN4N to VCC programs a 3-phase

operation, pulling ISEN3N and ISEN4N to VCC programs

a 2-phase operation, and pulling ISEN2N, ISEN3N and

ISEN4N to VCC programs a 1-phase operation. Before

POR, VR detects whether the voltages of ISEN2N,

ISEN3N and ISEN4N are higher than“VCC−1V”

respectively to decide how many phases should be active.

Phase selection is only active during POR. When POR =

high, the number of active phases is determined and

latched. The unused ISENxP pins are recommended to

be connected to VCC and unused PWM pins can be left

floating.

Figure 22. No Load Offset Circuit

40

©

DS8884B-01 September 2013www.richtek.com

Current Loop Design in Details

V

REF

R

IMON3

R

IMON2

0.6V

COMP

+

R

-

1/2

-

R

NTC

+

EQ

+

R

IMON1

IMON

I

SEN1N

I

SEN2N

+

-

+

-

ISEN1P

ISEN1N

ISEN2P

ISEN2N

L1

R1

L2

R2

L3

I

L1

680

I

L2

680

I

L3

DCR1

C1

DCR2

C2

DCR3

RT8884B

V

CORE

Figure 23. Current Loop Structure

Figure 23 shows the whole current loop structure. The

current loop plays an important role in RT8884B that can

decide ACLL performance, DCLL accuracy and ICCMAX

accuracy. For ACLL performance, the correct compensator

design is assumed, if RC network time constant matches

inductor time constant LX/DCRX, an expected load transient

waveform can be designed. If RXCX network time constant

is larger than inductor time constant LX/DCRX, V

CORE

waveform has a sluggish droop during load transient. If

680

I

L4

680

C3

DCR4

C4

I

SEN3N

I

SEN4N

+

-

+

-

R3

ISEN3P

ISEN3N

L4

R4

ISEN4P

ISEN4N

RXCX network is smaller than inductor time constant

LX/DCRX, a worst V

waveform will sag to create an

CORE

undershoot to fail the specification. Figure 24 shows the

variety of RXCX constant corresponding to the output

waveforms.

©

DS8884B-01 September 2013 www.richtek.com

41

RT8884B

]

}

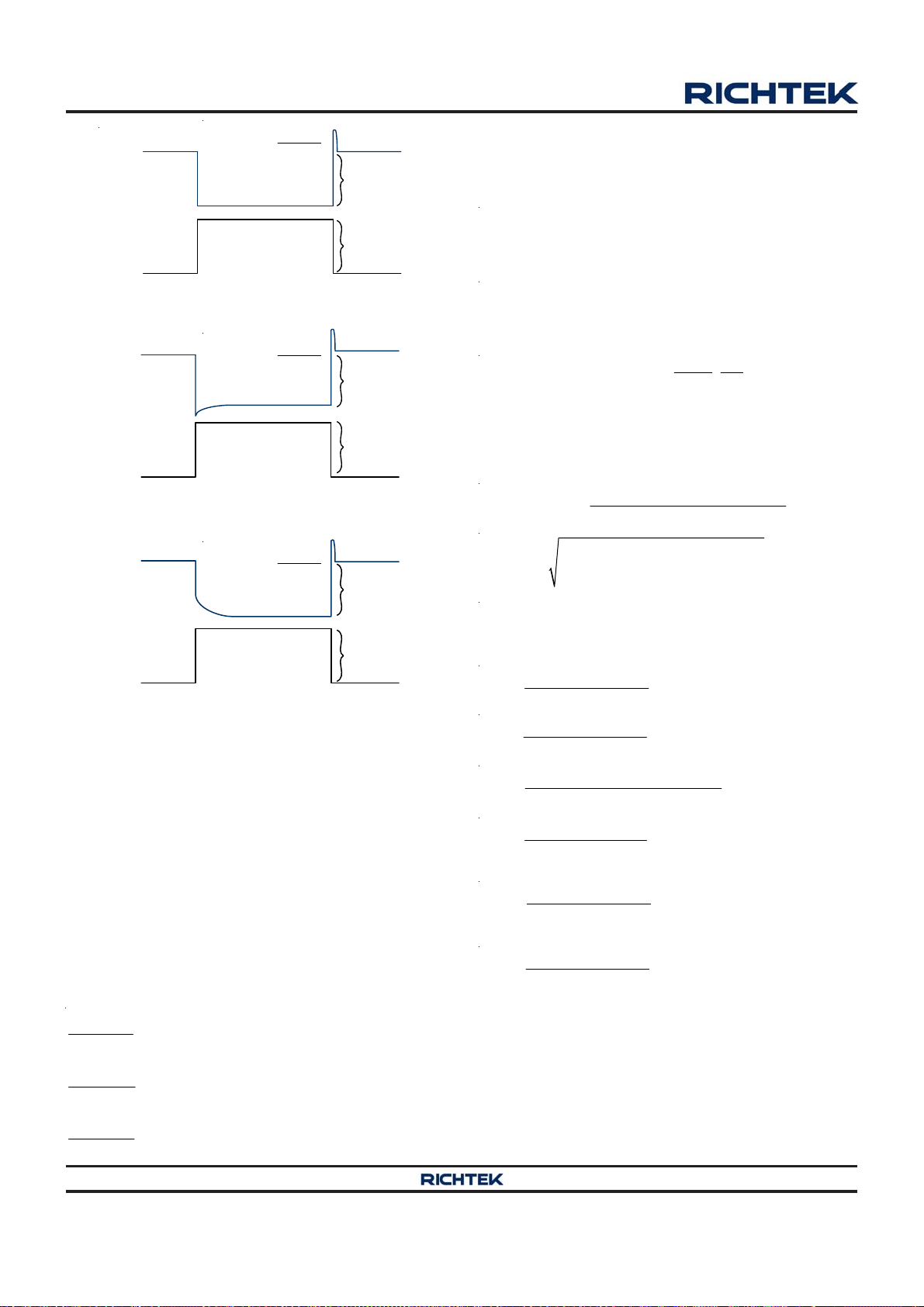

V

CORE

I

OUT

Expected load transient waveform

RC =

×

xx

L

DCR

x

I x RΔ

OUT LL

IΔ

OUT

Where :

(1) The relationship between DCR and temperature is as

follows :

°× −DCR (T) = DCR (25 C) 1+ 0.00393 (T 25)

[

(2) REQ(T) is the equivalent resistor of the resistor network

with a NTC thermistor

R(T)=R +R //R +R (T)

EQ IMON1 IMON2 IMON3 NTC

{

⎡⎤

⎣⎦

L

V

CORE

RC <

×

xx

DCR

x

I x RΔ

OUT LL

follows :

β( )

R (T)=R (25C)e

NTC NTC

°×

11

−

T+273 298

β is in the NTC thermistor datasheet.

And the relationship between NTC and temperature is as

IΔ

OUT

I

OUT

V

CORE

I

OUT

Undershoot created in V

RC >

×

xx

Sluggish droop

L

DCR

CORE

x

I x RΔ

OUT LL

IΔ

OUT

Figure 24. All Kind of RxCx Constants

For DCLL performance and ICCMAX accuracy, since the

copper wire of inductor has a positive temperature

coefficient, hence when temperature goes high in the heavy

load condition then DCR value goes large simultaneously.

A resistor network with NTC thermistor compensation

connecting between IMON pin and REF pin is necessary,

to compensate the positive temperature coefficient of

inductor DCR. The design flow is as follows:

Step3 : Three equations and three unknowns, R

R

and R

IMON2

R=K

IMON1 TR

R=

IMON2

R=-R+K

IMON3 IMON2 R3

can be found out unique solution.

IMON3

R(R+R)

−

R+R +R

2

[K +K (R +R )

R3 R3 NTCTL NTCTR

+R R ]α

NTCTL NTCTR TL

×

IMON2 NTCTR IMON3

Where :

−

KK

α=

TH

α=

TL

K=

R3

K=

TL

K=

TR

TH TR

RR

(α / α )R R

−

NTCTH NTCTR

−

KK

TL TR

−

NTCTL NTCTR

TH TL NTCTH NTCTL

−

1(α /α )

−

TH TL

1.6

GI

×

CS(TL) CC-MAX

1.6

GI

×

CS(TR) CC-MAX

Step1 : Given the three system temperature TL, TR and

TH, at which are compensated.

K=

TH

GI

1.6

×

CS(TH) CC-MAX

Step2 : Three equations can be listed as

DCR (T )

680

DCR (T )

680

DCR (T )

680

42

4

L

××

i R (T ) = 1.6

∑

Li EQ L

i=1

4

R

××

i R (T ) = 1.6

∑

Li EQ R

i=1

4

H

××

iR(T)=1.6

∑

Li EQ H

i=1

©

DS8884B-01 September 2013www.richtek.com

IMON1

,

RT8884B

Design Step :

RT8884B Excel based design tool is available. Users can

contact your Richtek representative to get the

spreadsheet. Three main design procedures for RT8884B

design, first step is initial settings, second step is loop

design and the last step is protection settings. The

following design example is to explain RT8884B design

procedure :

V

Specification

CORE

Input Voltage 12V

No. of Phases 3

Vboot 1.7V

V

DAC(MAX)

1.85V

ICCMAX 90A

ICC-DY 60A

ICC-TDC 55A

Load-Line 1.5mΩ

Fast Slew Rate 12.5mV/μs

Max Switching

Frequency

300kHz

In Shark Bay VRTB Guideline, the output filter

requirements of VRTB specification for desktop platform

are as follows :

Output Inductor : 360nH/0.72mΩ

Output Bulk Capacitor : 560μF/2.5V/5mΩ (max) 4 to 5pcs

Output Ceramic Capacitor : 22μF/0805 (18pcs max sites

on top side)

(1)Initial Settings :

 RT8884B initial voltage is 1.7V

 IBIASE needs to connect a 100kΩ resistor to ground.

 A voltage divider for setting DVD can choose R

510kΩ and R

= 125kΩ to set V

DVD_L

> 2V, RT8884B

DVD

enabled.

(2)Loop Design :

 On time setting : Using the specification, T

t = = 514n(s)

ON

1

fV

SW(MAX) IN

The on time setting resistor R

V

DAC(MAX)

×

= 130kΩ

TON

ON

DVD_U

is

=

 Current sensor adopts lossless RC filter to sense current

signal in DCR. For getting an expected load transient

waveform, RxCx time constant needs to match Lx/DCR

per phase. Cx = 1μF is set, then

L

R= =500

X

 IMON resistor network design : T

X

μ×

1 DCR

F

X

Ω

= 25°C, TR = 50°C

L

and TH = 100°C are decided, NTC thermistor = 100kΩ

@25°C, β = 4485 and ICCMAX = 90A. According to the

sub-section “Current Loop Design in Details”,

R

= 5.43kΩ, R

IMON1

can be decided. The R

 Load-line design : 1.5mΩ droop is required, because

R

(25°C) is decided, the voltage loop Av gain is also

EQ

= 12.6kΩ and R

IMON2

(25°C) = 16.8kΩ.

EQ

IMON3

= 13.9kΩ

decided by the following equation :

1 DCR

××

2R

A

LL

V

A

I

R= = (m)

CS

R2

R

EQ

Ω

R1

Where DCR(25°C) = 0.72mΩ, RCS = 680Ω and

R

(25°C) = 16.8kΩ. Hence the A

EQ

obtained. R

 Typical compensator design can use the following

= 10kΩ usually is decided, so R2 = 59.2kΩ.

1

= R2 / R

V

= 5.92 can be

1

equations to design the C1 and C2 values

C = 106pF

1

C = 79pF

2

1

×π×

Rf

1SW

CESR

OUT

R

≈

×

≈

2

For Intel platform, in order to induce the band width to

enhance transient performance to meet Intel's criterion,

the compensator of Zero can be designed close to 1/10 of

switching frequency.

 SET1 resistor network design : First the DVID

compensation parameters need to be decided. The

DVID_TH can be calculated as the following equation :

V=LLC

DVID_TH OUT

××

Where LL is load-line, C

and dVID/dt is DVID fast slew rate. Thus V

dVID

dt

is total output capacitance

OUT

DVID_TH

= 45mV

is needed in this case. And DVID_Width is chosen as

72μs typically. Next, OCP threshold is designed as 1.4 x

ICCMAX. Last, RAMP = R

/ 130kΩ = 100%, 100% is

TON

x

DS8884B-01 September 2013 www.richtek.com

©

43

RT8884B

)

set. By using above information, the two equations can

be listed by using multi-function pin setting mechanism

R2

0.286 = 5 R1 R2

0.737 = 80μA

×

+

×

R1 R2

×

()

+

R1 R2

R1 = 160kΩ, R2 = 9.77kΩ.

 SET2 resistor network design : the QR mechanism

parameters need to be designed first. Initial QR_TH is

designed as 0.4 x LL x ICC-DY = 36mV and QR_Width

is designed as 1.11 x TON. The ICCMAX is designed as

90A. By using the information, the two equations can

be listed by using multi-function pin setting mechanism

0.566 = 5

0.686 = 80 A

R2

R1 R2

μ×

×

+

R1 R2

⎛⎞ ⎜⎟

R1 R2

⎝⎠

× +

R1 = 75.8kΩ, R2 = 9.68kΩ.

 No load offset function disabled. Just connect a 0Ω

resistor from SET3 pin to ground.

(3) Protection Settings :

 OVP/UVP protections : When VSEN pin voltage is

350mV more than VID, the OVP will be latched. When

V

pin voltage is 350mV less than VID, the UVP will

SEN

be latched.

 TSEN and VR_HOT design : Using the following equation

to calculate related resistances for VR_HOT setting.

V = V = 1.887V

TSEN CC

×

+

R2 R // R1

Choosing R1 = 100kΩ and an NTC thermistor R

R2

⎡⎤

NTC(100 C)

⎣⎦

°

(25°C)

NTC

= 100kΩ which its β =4485. When temperature is 100°C,

the R

(100°C) = 4.85kΩ.Then R

NTC

= 2.8kΩ can be

2

calculated.

Thermal Considerations

For continuous operation, do not exceed absolute

maximum junction temperature. The maximum power

dissipation depends on the thermal resistance of the IC

package, PCB layout, rate of surrounding airflow, and

difference between junction and ambient temperature. The

maximum power dissipation can be calculated by the

following formula :

P

where T

the ambient temperature, and θ

D(MAX)

= (T

J(MAX)

− TA) / θ

J(MAX)

JA

is the maximum junction temperature, TA is

is the junction to ambient

JA

thermal resistance.

For recommended operating condition specifications, the

maximum junction temperature is 125°C. The junction to

ambient thermal resistance, θJA, is layout dependent. For

WQFN-32L 4x4 package, the thermal resistance, θJA, is

27.8°C/W on a standard JEDEC 51-7 four-layer thermal

test board. The maximum power dissipation at TA = 25°C

can be calculated by the following formula :

P

= (125°C − 25°C) / (27.8°C/W) = 3.6W for

D(MAX)

WQFN-32L 4x4 package

The maximum power dissipation depends on the operating

ambient temperature for fixed T

and thermal

J(MAX)

resistance, θJA. The derating curve in Figure 25 allows

the designer to see the effect of rising ambient temperature

on the maximum power dissipation.

4.0

3.5

3.0

2.5

2.0

1.5

1.0

0.5

Maximum Power Dissipation (W

0.0 0255075100125

Ambient Temperature (°C)

Four-Layer PCB

Figure 25. Derating Curve of Maximum Power

Dissipation

44

©

DS8884B-01 September 2013www.richtek.com

Layout Considerations

Careful PC board layout is critical to achieve low switching

losses and clean, stable operation. The switching power

stage requires particular attention. If possible, mount all

of the power components on the top side of the board

with their ground terminals flushed against one another.

Follow these guidelines for optimum PC board layout :

` Keep the high current paths short, especially at the

ground terminals.

` Keep the power traces and load connections short. This

is essential for high efficiency.

` When trade-offs in trace lengths must be made, it's

preferable to let the inductor charging path be longer

than the discharging path.

` Place the current sense component close to the

controller. ISENxP and ISENxN connections for current

limit and voltage positioning must be made using Kelvin

sense connections to guarantee current sense accuracy.

The PCB trace from the sense nodes should be

paralleled back to the controller.

RT8884B

` Route high speed switching nodes away from sensitive

analog areas (COMP, FB, ISENxP, ISENxN, etc...)

` User need to connect exposed pad to the ground plane

through low impedance path. Recommend use of at

least 5 vias to connect to ground planes in PCB internal

layers.

DS8884B-01 September 2013 www.richtek.com

©

45

RT8884B

Outline Dimension

1

2

DETAIL A

Pin #1 ID and Tie Bar Mark Options

Note : The configuration of the Pin #1 identifier is optional,

but must be located within the zone indicated.

Dimensions In Millimeters Dimensions In Inches

Symbol

Min Max Min Max

A 0.700 0.800 0.028 0.031

A1 0.000 0.050 0.000 0.002

A3 0.175 0.250 0.007 0.010

b 0.150 0.250 0.006 0.010

D 3.900 4.100 0.154 0.161

D2 2.650 2.750 0.104 0.108

E 3.900 4.100 0.154 0.161

1 2

E2 2.650 2.750 0.104 0.108

e 0.400 0.016

L 0.300 0.400

0.012 0.016

W-Type 32L QFN 4x4 Package

Richtek Technology Corporation

14F, No. 8, Tai Yuen 1st Street, Chupei City

Hsinchu, Taiwan, R.O.C.

Tel: (8863)5526789

Richtek products are sold by description only. Richtek reserves the right to change the circuitry and/or specifications without notice at any time. Customers should

obtain the latest relevant information and data sheets before placing orders and should verify that such information is current and complete. Richtek cannot

assume responsibility for use of any circuitry other than circuitry entirely embodied in a Richtek product. Information furnished by Richtek is believed to be

accurate and reliable. However, no responsibility is assumed by Richtek or its subsidiaries for its use; nor for any infringements of patents or other rights of third

parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Richtek or its subsidiaries.

DS8884B-01 September 2013www.richtek.com

46

Richtek RT8884B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
