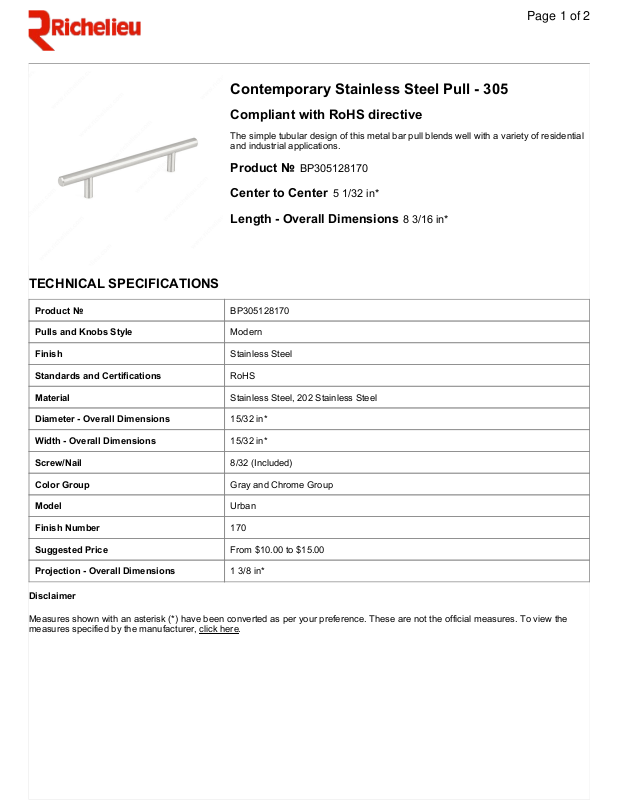

Contemporary Stainless Steel Pull - 305
Compliant with RoHS directive
The simple tubular design of this metal bar pull blends well with a variety of residential
and industrial applications.
Product № BP305128170
Center to Center 5 1/32 in*
Length - Overall Dimensions 8 3/16 in*
TECHNICAL SPECIFICATIONS
Product № BP305128170
Pulls and Knobs Style Modern
Finish Stainless Steel
Standards and Certifications RoHS
Material Stainless Steel, 202 Stainless Steel
Diameter - Overall Dimensions 15/32 in*
Width - Overall Dimensions 15/32 in*
Screw/Nail 8/32 (Included)
Color Group Gray and Chrome Group
Model Urban
Finish Number 170
Suggested Price From $10.00 to $15.00
Projection - Overall Dimensions 1 3/8 in*
Disclaimer
Measures shown with an asterisk (*) have been converted as per your preference. These are not the official measures. To view the
measures specified by the manufacturer, click here.
Page 1 of 2
Page 2
Decorative hardware Line art
Stainless steel grades
and applications
SUGGESTED PRODUCTS
ADVANTAGES AND BENEFITS
The European Community Directive RoHS 2 (2011/65/EU) on the Restriction of Hazardous Substances (commonly known as the RoHS
Directive) aims to eliminate or limit certain substances that are dangerous to the environment and to people. The RoHS directive
specifies maximum levels for restricted substances.
Tested products are RoHS compliant* and are:
- Lead-free
- Mercury-free
- Cadmium-free
- Hexavalent chromium-free
Report No. TR20161205
Date: 2016-03-22
*Based on information provided by an independent lab.
RELATED DOCUMENTS
Breakaway Machine Screw,
Large Truss Head, Combined
Quadrex Slot Drive, 8-32,
Type B Point
Product № 2905
Packaging format: Bag of 50
units
Breakaway Machine Screw,
Large Truss Head, Combined
Quadrex Slot Drive, 8-32,
Type B Point
Product № 2900
Packaging format: Bag of 100
units
Contemporary Stainless
Steel Knob - 305
Product № BP30540170
Page 2 of 2
