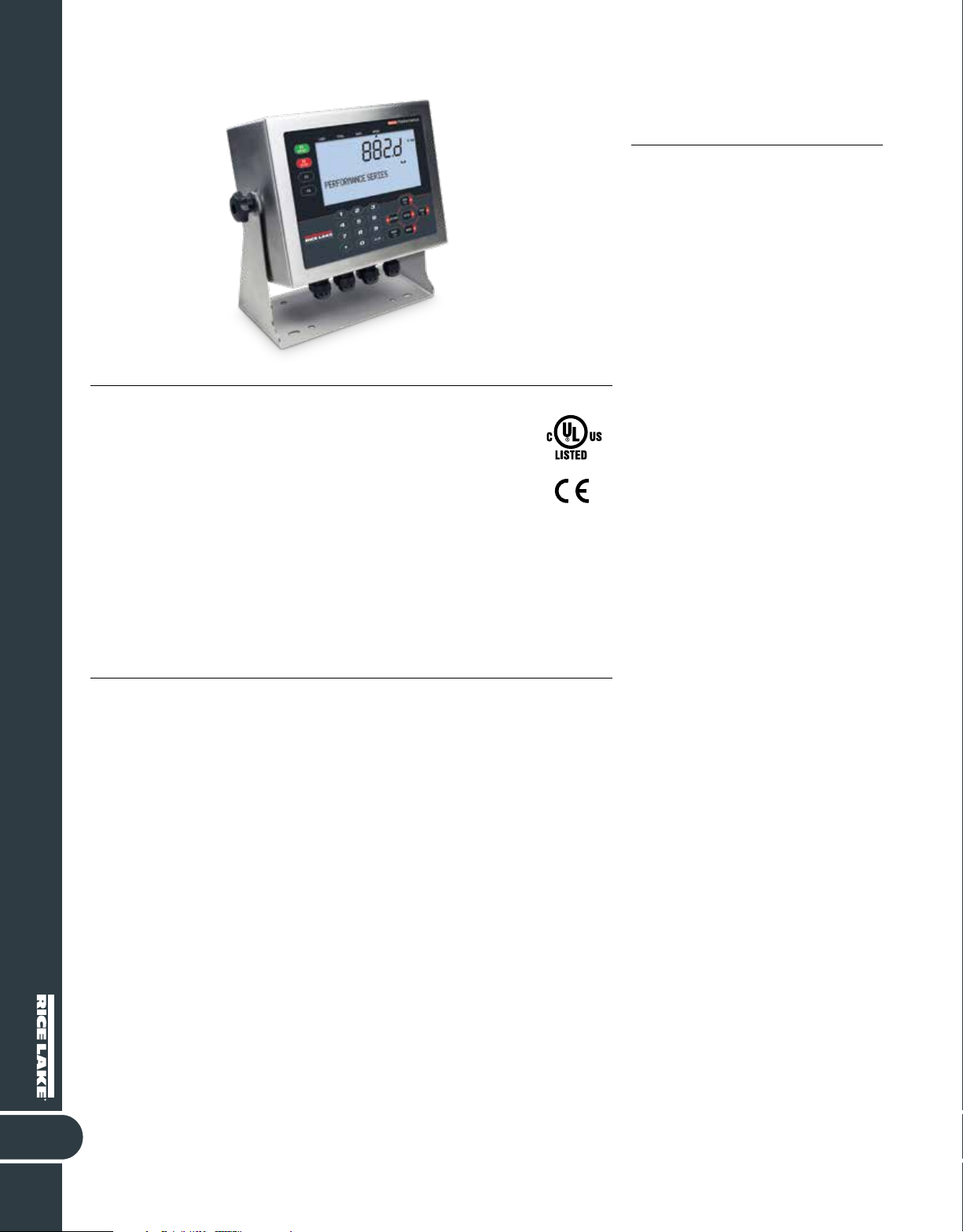

882D Belt Scale Integrator
BELT SCALES
Standard Features
• LCD display, seven-digit, seven-segment weight display, 3 x 20 pixelated prompt area
• RS-232 or RS-485 serial port
• USB device port connects directly to a PC
• Ethernet TCP/IP polled or continuous
• AC or DC models
• Hardware slot for two option card
• Operator functions through menu key for audit trail, preset tare, accumulator,
time & date and setpoints
• Audit trail tracking for configuration and calibration changes. Password protection
for user and configuration changes.
• Setpoints for control and alarms
• Four onboard digital I/O channels
• Four programmable ticket formats up to 1,000 characters
• Filter settings for light, medium and heavy noise
• Speed inputs
www.ricelake.com | Phone: 800-472-6703
Options
Analog Output:
16-bit resolution, 0-10 VDC, 0-20 mA, 4-20 mA
Relay Board:
Four dry contract relays; DC Max: 30 VDC at 3 amps
AC max: 250 VAC at 3 amps per contact
EtherNet/IP Interface:
According to EN 50325-2
Profinet Interface:
According to IEC 61784 (CPF-3/3)
Modbus/TCP Interface:
Up to 8 bytes of I/O data, 100 Mbps full duplex Ethernet
DeviceNet Interface:
According to EN 50325-2
Profibus DP Interface:
According to EN 50170
EtherCAT
According to IEEE 802.3
Digital I/O
24 channel I/O expansion boards available
Approvals
Specifications
Power:
Input voltages: 100-240 VAC; 9-36 VDC
Input frequency: 47-63 Hz
Power Consumption:
AC: 15 watts; DC: 20 watts
Excitation Voltage:
10 VDC 8 x 350 Ω (16 x 700 Ω) load cells
Analog Signal Input Range:
-45 mV to 45 mV
Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz;
1.0 μV/graduation typical at 120 Hz
Sample Rate:
7.5 to 120 Hz, software selectable
Resolution:
Internal: 8 million counts 23 bit
Weight display:
100,000
System Linearity:
± 0.01% full scale
Digital I/O:
Four I/O onboard primary keys, pseudo functions,
batching functions
Circuit Protection:
18 KV, 10 V/meter
Communication Ports:
RS-232 full duplex or RS-485 half duplex; USB micro
A/B connector 2.0; Ethernet TCP/IP
Pulse Input:
Dual inputs for redundancy
Display:
LCD display, seven-digit, seven-segment weight
display, 3 x 20 pixelated prompt area
Status Annunciators:
Load, total, rate, speed, zero
Keyboard:
Flat membrane panel, tactile feel
Operating Temperature:
14° F to 122° F (-10° C to 50° C)
Dimensions:
W x H x D: 9.87 x 9.38 x 4.33 in
(250.7 x 238.3 x 110 mm)
Weight:
12 lb (5.4 kg)
Rating:
IP66
Material:
Stainless steel
Warranty:
Two-year limited warranty
Approvals:
CE Marked
UL/c-UL Listed
176
An ISO 9001 Registered Company © 2019 Rice Lake Weighing Systems 01/19 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.
882D Belt Scale Integrator
H
I
K
L
M
N
O
PQ
J
Part Number/Price
Part # Description Price
Integrators
177708 120 VAC Consult
180847 220 VAC Euro power cord Consult
184683 9-36 VDC Consult
Options/Accessories
Part # Description Price
190527 882D option, digital I/O Consult
190528 882D option, single analog out Consult
190529 882D option, relay interface Consult
Network Cards
190530 882D option, Ethernet/IP Consult
190531 882D option, DeviceNet Consult
190532 882D option, ProfiNet Consult
190534 882D option, Profibus Consult
190533 882D option, Modbus TCP Consult
190535 882D option, EtherCAT Consult
Please complete the Belt Scale Application on page 179 to obtain a quote
A
E
B
F
BELT SCALES
C
D
G
K
L
H
I

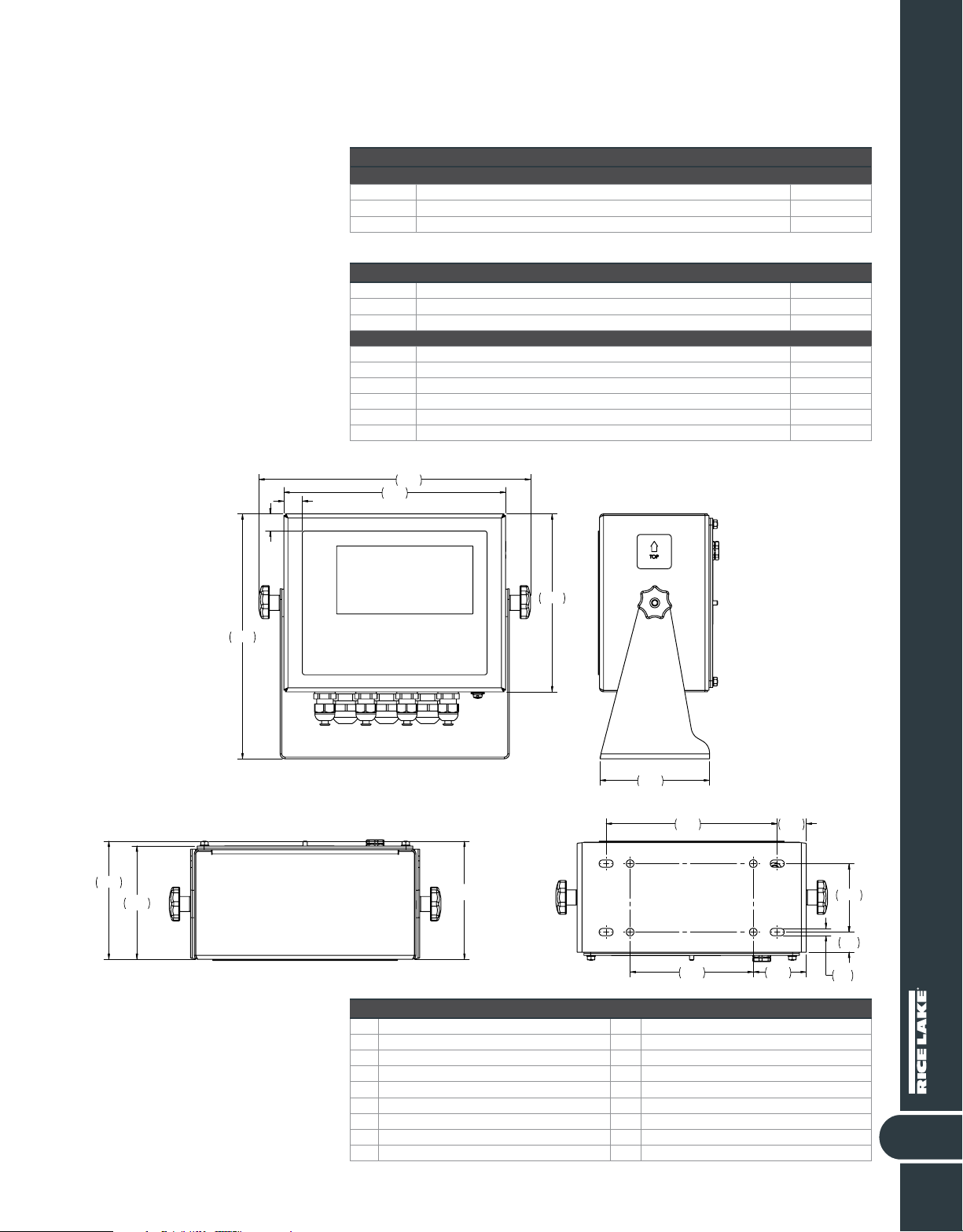

Dimensions
A 9.93 in J 4.32 in
B 8.10 in K 6.25 in
C 6.50 in L 1.06 in
D 8.94 in M 2.50 in
E 0.68 in N 0.73 in
F 0.63 in O 0.27 in
G 4.00 in P 1.93 in
H 4.31 in Q 4.50 in
I 4.14 in
J
PQ
M
N
www.ricelake.com | Phone: 800-472-6703
O
177
An ISO 9001 Registered Company © 2019 Rice Lake Weighing Systems 01/19 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.
