Page 1

320IS

Intrinsically Safe Digital Weight Indicator

Version 2.1

Installation Manual

PN 74612 Rev D

Page 2

An ISO 9001 registered company

Rice Lake Weighing Systems® is a registered trademark of

Rice Lake Weighing Systems.

All other brand or product names within this publication are trademarks or

registered trademarks of their respective companies.

All information contained within this publication is, to the best of our knowledge, complete

and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to

make changes to the technology, features, specifications and design of the equipment

without notice.

The most current version of this publication, software, firmware and all other product

updates can be found on our website:

www.ricelake.com

Page 3

Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.

1.0 Introduction..................................................................................................................................... 1

1.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.3 Factory Mutual Approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.4 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.5 Front Panel Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.6 LED Annunciators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.7 Front Panel Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.8 Indicator Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.8.1 Toggle Gross/Net Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.8.2 Toggle Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.8.3 Zero Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.8.4 Acquire Tare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.8.5 Remove Stored Tare Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.8.6 Print Ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.0 Installation ...................................................................................................................................... 7

2.1 Unpacking and Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 Enclosure Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3 Hazardous Area Installation of the 320IS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3.1 Power Supply to Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3.2 AC Power Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3.3 Battery Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.4 Cable Connections and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4.1 Braided Power Cable Connection with Ferrite Core. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4.2 Braided Power Cable Connection Without Ferrite Core. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.4.3 Braided Load Cell Cable Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.4.4 Foil Load Cell Cable Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.4.5 Load Cells. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.5 Fiber Optics Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.5.1 Assembling Fiber Optics Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.6 Enclosure Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.7 Control Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.0 Configuration ................................................................................................................................ 18

3.1 Configuration Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.2 Configuration Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.2.1 Revolution Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.2.2 EDP Command Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.2.3 Front Panel Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.3 Menu Structures and Parameter Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.3.1 Configuration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.3.2 Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.3.3 Calibration Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.3.4 Serial Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3.3.5 Program Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3.3.6 Print Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.3.7 Analog Output Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3.3.8 Version Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Rice Lake Weighing Systems is an ISO 9001 registered company.

Specifications subject to change without notice.

Version 2.1 August 05, 2016

Contents i

Page 4

4.0 Calibration .................................................................................................................................... 31

Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars

4.1 Front Panel Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.2 EDP Command Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3 Revolution

Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

5.0 EDP Commands............................................................................................................................. 33

5.1 The EDP Command Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.1.1 Key Press Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.1.2 Reporting Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.1.3 The RESETCONFIGURATION Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.1.4 Parameter Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.1.5 Normal Mode Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

5.2 Saving and Transferring Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

5.2.1 Saving Indicator Data to a Personal Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

5.2.2 Downloading Configuration Data from PC to Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

6.0 Print Formatting ............................................................................................................................ 39

6.1 Print Formatting Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

6.2 Customizing Print Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

6.2.1 Using the EDP Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

6.2.2 Using the Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

6.2.3 Using Revolution® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

7.0 Appendix A.................................................................................................................................... 42

7.1 Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.1.1 Displayed Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.1.2 Using the XE EDP Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.2 Status Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

7.2.1 Using the P EDP Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

7.2.2 Using the ZZ EDP Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

7.3 Continuous Output (Stream) Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

7.4 ASCII Character Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

7.5 Conversion Factors for Secondary Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

7.6 Digital Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

7.6.1 DFSENS and DFTHRH Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

7.6.2 Setting the Digital Filter Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

7.7 Analog Output Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

7.8 Test Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

8.0 Appendix B.................................................................................................................................... 53

8.1 Unpacking and Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

8.2 Enclosure Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

8.3 Installation of the I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

8.3.1 AC Wiring/Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

8.3.2 EDP and Printer Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

8.3.3 RS-232 Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

8.3.4 RS-485 Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

8.3.5 RS-422 Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

8.3.6 20mA Current Loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

8.4 Fiber Optics Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

8.5 Analog Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

8.6 Digital Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

8.7 Relay Contact Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

8.8 I/O Module Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

8.9 320IS Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

ii 320IS Installation Manual

Page 5

1.0 Introduction

Important

WARNING

CAUTION

Important

WARNING

This manual is intended for use by service technicians responsible for installing and servicing 320IS digital weight indicators. This manual applies to indicators using Version 2.1 of the 320IS software.

Configuration and calibration of the indicator can be accomplished using the indicator front panel keys, the EDP command set, or the 320IS configuration utility. See Section 3.1 on page 18 for information about configuration methods.

The 320IS is a Factory Mutual-Entity approved component. This approval is valid only if the installation conforms to the guidelines described in this manual and FM-approved control drawing (PN 72717). If

modifications are made to the installation procedure, or the instrumentation is changed in any way, including field repair or modification, Factory Mutual approval is void, and all warranties, expressed or implied are void. The customer becomes fully responsible and liable for such modifications.

Manuals can be viewed or downloaded on the Rice Lake Weighing Systems distributor site at

www.ricelake.com.

Warranty information can be found on the website at;

1. 1 S af e ty

Safety Symbol Definitions

Indicates a potentially hazardous situation that, if not avoided, could result in serious injury or death, and

includes hazards that are exposed when guards are removed.

Indicates a potentially hazardous situation that, if not avoided may result in minor or moderate injury.

Indicates information about procedures that, if not observed, could result in damage to equipment or

corruption to and loss of data.

www.ricelake.com/warranties

General Safety

Do not operate or work on this equipment unless this manual has been read and the instructions and warnings in this manual are understood. Contact any Rice Lake Weighing Systems dealer for replacement manuals.

Failure to heed may result in serious injury or death.

Some procedures described in this manual require work inside the indicator enclosure. These procedures are to be performed by qualified service personnel only.

Do not allow minors (children) or inexperienced persons to operate this unit. Do not use for purposes other than weight taking. Do not operate indicator without enclosure fully assembled. Do not use this product if any of the components are cracked. Do not exceed the rated load limit of the unit. Do not make alterations or modifications to the unit. Do not remove or obscure warning labels. Do not submerge. Before opening the unit, ensure power is disconnected. The non-metallic parts are considered to constitute an electrostatic discharge hazard. Clean only with a damp cloth. Substitution of components may impair intrinsic safety. To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing.

Introduction 1

Page 6

1.2 Overview

WARNING

The 320IS is a single-channel digital weight indicator designed and approved to operate as an intrinsically safe system in a wide variety of scale and weighing applications. The indicator is housed in a NEMA Type 4X/IP66rated stainless steel sealed case. The standard unit is equipped with a tilt stand base for tabletop or wall mounting applications. The indicator front panel consists of a large (0.8'', 20 mm, 16-segment), six-digit LED display, 6-button keypad and eight LED annunciators. Features include:

•Drives up to four 350 or eight 700  load cells

•Supports four-wire and six-wire load cell connections (six-wire remote sense recommended)

•Full-duplex fiber optic interface to attach an external I/O board located in the safe area

The 320IS is NTEP certified and pending Measurement Canada approval for Classes I, II and III at 10,000 divisions. See Section 8.9 on page 61 for detailed specifications.

Available with optional I/O Module (PN 72721):

•Four configurable digital inputs

•Four digitally-controlled single pole single throw-normally open non-latching relay contact outputs

•Electronic data processing (EDP) port communications at up to 38400 bps for full duplex RS-232/RS-422/ RS-485 and Current loop

•Printer port communications at up to 38400 bps for full duplex RS-232/RS-422/RS-485 and Current loop

•Two 16-bit analog output channels provide ±10V or ±5V, 0-5V or 0-10V, and 4-20 mA tracking of gross or net weight values

1.3 Factory Mutual Approval

The 320IS is Factory Mutual (FM) Entity approved for:

•Classes I, II, and III

•Divisions 1 and 2

•Groups A, B, C, D, E, F and G

•T-rating T4

Only devices that have FM Entity Appr oval with proper entity parameters may be used unless specifically listed in this manual or control drawing PN 72717 as part of the Rice Lake Factory Mutual systems approval. Failure to comply with this voids the FM approval.

The classification of hazardous materials are different in the US and European standards. Because of this, the safety class of the 320IS is declared in the US standards: Class I, II, III, DIV1, Groups A-G.

Substitution of components may impair intrinsic safety.

To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing.

1.4 Operating Modes

The 320IS has three modes of operation.

Normal (Primary) Mode

Normal mode is the default mode of the indicator . Th e indicator displays gro ss or net weights as indi cated by LED annunciators (see Figure 1-1) to indicate scale status and the type of weight value displayed.

Setup Mode

Most of the procedures described in this manual require the indicator to be in setup mode including configuration and calibration.

To enter setup mode, remove the large fillister head screw from the enclosure backplate. Insert a small nonconductive tool into the access hole and press the setup switch once. The indicator displays

Test Mode

T est mode provides a number of diagnostic functions for the 320IS indicator. Like setup mode, test mode is entered using the setup switch (Section 7.8 on page 51).

2 320IS Installation Manual

CONFIG.

Page 7

1.5 Front Panel Keypad

Gross

Net

Count

Note

The 320IS has LED annunciators, a keypad, and normal mode key functions, Table 1-1 details the function of each key in different display modes.

The symbols shown above the keys (representing up, down, enter, left, right) describe the key functions assigned in setup mode. In setup mode, the keys are used to navigate through menus, select digits within numeric values, and increment/decrement values. See Section 3.2.3 on page 19 for information about using the front panel keys in setup mode.

Figure 1-1. 320IS Front Panel

Display Mode

Key Normal Setup Te st Count

Turn the indicator on or off

Return gross weight display to zero

Toggle between gross, net and piece count mode

Press to enter an auto tare or keyed tare

Toggle between primary and secondary units

Print using GFMT Move right (horizontally) Print Print using CFMT

SERIAL, PFORMT, DIG IN and ALGOUT menu functions require fiber optics communications with I/O module to operate.

Move up (vertically)/Increment value/Exit (top level only)

Move down (vertically)/ Decrement value

Enter Enter Perform a piece count

Move left (horizontally)/ Previous

Table 1-1. Indicator Display Key Functions

Exit N/A

N/A

Move left (horizontally)

Toggle between gross, net and piece count mode

Select a sample size

Introduction 3

Page 8

1.6 LED Annunciators

The 320IS display uses a set of eight LED annunciators to provide additional information about the value being displayed (see Figure 1-1 on page 3):

LED Annunciators

Gross

Net

Count The Count annunciator is lit to show that the indicator is in piece count mode.

lb lb/kg – indicate the units associated with displayed value: lb=pounds, kg=kilograms. Two units of

Table 1-3 shows which annunciators are used for all combinations of configured primary and secondary units. For example:

•If the primary unit is pounds (lb) and the secondary unit is kilograms (kg), the

kg for secondary units.

•If the primary unit is pounds (lb) and the secondary unit is short tons (tn), the

kg for secondary units. There is no LED for short tons, so the kg LED is used as the secondary units

annunciator.

•If the primary unit is short tons (tn) and the secondary unit is pounds (lb), the (tn), and kg is lit for secondary units (lb). Because there is no LED for short tons, the lb and kg LEDs are used as primary and secondary units annunciators.

See Section 3.3.2 on page 22 for more information about configuring primary and secondary display units.

Gross/Net – indicates whether the displayed weight is a gross or net weight

Center of Zero – gross weight is ±0.25 graduations of zero, lights when the scale is zeroed

Standstill – scale is at standstill or within the specified motion band, tare functions and printing, can only be done when the standstill symbol is lit

Tare Acquired – indicates that a tare value has been entered

measurement can be chosen to toggle between. The displayed units can also be set to ounces (oz), short tons (tn), metric tons (t), grams (g), or they can be disabled. A user-defined unit can also be set as secondary unit by declaring a conversion factor in the setup menu. The lb and kg LED’s function as primary and secondary units annunciators for some combinations of primary and secondary units. If neither primary nor secondary units are lb, kg, oz, or g, the lb annunciator is lit for primary units, kg for secondary units.

Table 1-2. LED Annunciators

lb LED is lit for primary units,

lb LED is lit for primary units

Primary Unit

lb lb / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

kg kg / lb kg / kg kg / lb kg / lb kg / lb kg / lb kg / lb

oz kg / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

tn kg / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

t kg / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

g kg / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

none kg / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

lb kg oz tn t g none

Table 1-3. Unit Annunciators, Primary/Secondary LEDs Used For All Configurations

4 320IS Installation Manual

Secondary Unit

Page 9

1.7 Front Panel Navigation

Move Up and

Down (vertically)

Enter

Move Left and

Right (horizon-

Default value Value Value

When moving through values below the ﬁrst menu level, press to return to the level above. Press or to move to the next parameter on the level below.

Value

1st Level Parameter

2nd Level Parameter

1st Level Parameter

2nd Level Parameter

When editing numeric values, press or to change th e digit selected. Press or to incr ement or decrement the value of t he selected digit, or use t he numeric keypad.

Pr ess to save the value entered and return to the level above.

0 0 0 0 0 0

Figure 1-2. Front Panel Key Functions in Setup Mode

Four front panel keys are used as directional keys to navigate through the menus in setup mode (see Figure 1-2).

UNITS () and PRINT ( ) keys scroll left and right (horizontally) on the same menu level; ZERO () and

The

GROSS/NET ( ) move up and down (vertically) to different menu levels. The TARE key ( ) serves as an enter key

for selecting parameter values within the menus. A label above each of these keys identifies the direction provided by the key when navigating through the setup menus.

Figure 1-3. Setup Mode Menu Navigation

To select a parameter, press or to scroll left or right until the desired menu group appears on the display, then press to move down to the sub-menu or parameter desired. When moving through the menu parameters, the default or previously selected value appears first on the display.

To change a parameter value, scroll left or right to view the values for that parameter. When the desired value appears on the display, press to select the value and move back up one level. To edit numerical values, use the navigation keys to select the digit and to increment or decrement the value or use the numeric keypad.

Figure 1-4. Editing Procedure for Numeric Values

Introduction 5

Page 10

1.8 Indicator Operations

Note

Basic 320IS operations are summarized below.

1.8.1 Toggle Gross/Net Mode

Press to toggle the display mode between gross and net. If a tare value has been entered or acquired, the

net value is the gross weight minus the tare. annunciator is lit when a tare value is currently stored in memory .

1.8.2 Toggle Units

Press to switch between primary and secondary units. The appropriate units LED is lit.

1.8.3 Zero Scale

1. In gross mode, remove all weight from the scale and wait for .

2. Press . annunciator lights to indicate the scale is zeroed.

1.8.4 Acquire Tare

1. Place container on scale.

2. When is lit, press . The indicator switches to net mode.

1.8.5 Remove Stored Tare Value

1. Remove all weight from the scale and wait for the annunciator.

2. When is lit

, press . The indicator switches to

gross mode, indicating the tare value has been

removed.

1.8.6 Print Ticket

Requires optional I/O Module (PN 72721).

When is lit, press to send data to the serial port. must be lit to print.

6 320IS Installation Manual

Page 11

2.0 Installation

CAUTION

Important

WARNING

Junction

Box

(Optional)

AC Power

Supply

(Intrinsically

Safe Output)

FM-Approved

Load Cells

(up to 4–350Ω)

Battery

(Optional)

I/O Module

(Optional)

Battery Charger

(Optional)

Load Cell

Input

Fiber Optic

VDC 115/230VAC

This section describes installation of load cells, power supply, fiber optics, and ferrite bead for the 320IS indicator.

Use a wrist strap to ground yourself and protect components from electrostatic discharge (ESD) when working inside the indicator enclosure.

It is mandatory to return the 320IS to Rice Lake Weighing Systems for circuit board level service. Component level repair, excluding board-swapping, is not permitted on Factory Mutual Approved equipment by anyone other than the manufacturer.

2.1 Unpacking and Assembly

Immediately after unpacking, visually inspect the 320IS to ensure all components are included and undamaged. The shipping carton should contain the indicator with attached tilt stand, this manual, and a parts kit. If any parts are missing or were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. See Table 2-5 on page 15 for parts kit.

2.2 Enclosure Disassembly

The indicator enclosure must be opened to connect cables for load cells, communications, and power.

Before opening the unit, ensure the power is disconnected from the power outlet.

1. Place the indicator face-down on an anti-static work mat.

2. Remove the screws that hold the backplate to the enclosure body.

3. Lift the backplate away from the enclosure and set it aside.

2.3 Hazardous Area Installation of the 320IS

The following information is provided to help the installer with the correct installation of the 320IS system. See Figure 2-1 below for a diagram of a typical intrinsically safe system.

Figure 2-1. Intrinsically Safe System Diagram

Installation 7

Page 12

2.3.1 Power Supply to Indicator

WARNING

Note

Do not, under any circumstances, connect or disconnect the DC wire from the indicator while the AC power is applied to the power supply. This will cause the power supply fuse to blow.

The indicator should be powered by an FM-approved Rice Lake power supply or alternatively from an external battery pack. The power requirements of the 320IS are as follows:

•Minimum input voltage: 5.8 V

•Maximum input voltage: 7.9 V

•Peak current consumption: 190 mA

•Average input current (with four load cells): 140 mA

The DC power cable should be attached to connector CN1. Care must be taken to wire CN1 with the correct DC polarity. See Section 2.4 on page 9 for information on cabling through metal cord grips.

CN1 Pin Function Wire Color

1 + Voltage (5.8 – 7.9 V) Green 2 Ground (V–, Common) Brown

Table 2-1. DC Power Supply Connections

A separate conduit system is recommended for installation. The type suggested for this application is 3/4" rigid steel conduit with pull boxes located at required intervals. The conduit provides additional noise protection for the low-level signals, while automatically complying with the requirements for two-inch separation between intrinsically safe circuits and other electrical cables. Conduit seals are necessary where a gas tight seal is required between hazardous area and safe area.

2.3.2 AC Power Wiring

Standard units are powered by an F.M. approved power supply. We recommend the 100–240 VAC into RLWS ISEPS-100-240 Intrinsically safe DC output power supply (PN 72713).

See the IS-EPS-100-240 Power Supply Instruction Sheet (PN 79820) for information on wiring and power specifications.

2.3.3 Battery Option

The optional battery pack provides an intrinsically safe battery that can replace the power supply. The battery is approved for use in hazardous environments and limited use operations such as bench scales and platform scales. A low battery error message will display to indicate that the battery needs to be recharged. Always charge the battery overnight. The yellow indicator light will remain on until the battery is charged at about 70%, at which point the indicator light will turn green and the charger will switch to float charge mode. Once the light turns green, the battery requires another 3 hours on float charge before the battery is fully charged.

To keep battery at full capacity, it is recommended to leave the battery connected to the charger, in float charge mode, until ready to use. The battery can remain on the charger in float charge mode indefinitely without damaging the battery. See Battery Charging Instruction Sheet (PN 96567) for instructions on charging the battery.

Load Cell Size Quantity of cells Operating Time

350  load cell 1 40 - 50 hours

4 35 - 40 hours

700  load cell 1 45 - 55 hours

4 40 - 50 hours

8 320IS Installation Manual

Table 2-2. Estimated Battery Operating Times

While connected to the DC battery pack with the indicator off, the 320IS still draws a small amount of current that will shorten battery run time. To preserve battery life, disconnect the battery when not in use.

Page 13

2.4 Cable Connections and Installation

Note

WARNING

Note

The following sections contain information on cable connections and installation for the 320IS.

Intrinsically safe cables are specified by control drawing. All cables must have appropriate internal inductance and capacitance. Cable lengths are based on group classifications.

Figure 2-2. Metal Cord Grip

Before connecting the AC power to the power supply:

1. Determine the length of AC power cord necessary to reach from the AC power panel to the power supply

where it is mounted.

2. Cut the AC power cord to that length. If mounting the I.S. power supply in a hazardou s area, all AC power

must be routed through approved conduit, where necessary make allowances in length of the conduit.

3. Install the AC power cord but do not hook up to the AC power.

Do not, under any circumstances, connect or disconnect the DC wire from the indicator while the AC power is applied to the power supply. This will cause the power supply fuse to blow.

4. Determine the length of the DC power cord necessary to reach from the AC power supply to the 320IS

Plus indicator and add 7" to that length.

5. Cut the DC power cord to that length.

2.4.1 Braided Power Cable Connection with Ferrite Core

Use the following procedure for connecting braided power cable with the ferrite core:

1. If using the ferrite core, carefully remove 7 in of the outer blue insulation and 6.5 in of braid from the

cable. If not using the ferrite core, go to Section 2.4.2.

2. Remove the reducing gland and metal sleeve from the center cord grip of the indicator. Place them on a

work surface.

3. Remove the cap and reducing gland from the 320IS parts kit.

The cap and reducing gland from the parts kit have larger holes. Do not confuse these parts with the parts removed from the cord grip of the indicator.

4. Take the metal sleeve (from step 2) and insert it into the reducing gland taken from the parts kit.

5. Place the domed cap and reducing gland that were removed from the 320IS cord grip, into the parts kit (to

be used as spares).

6. Thread the DC cable through the domed cap, then through the reducing gland/metal sleeve combination.

7. Lower the reducing gland assembly so that the end of the metal sleeve is at the edge of the insulation and

fold the braid over the metal sleeve (Figure 2-2). Trim the braid if necessary.

8. Trim the white wire back to match the end of the braid.

9. Tin the green and brown wire ends.

10. Thread the cable through the cord grip stem.

Chassis ground is made through the braid compressed between the metal sleeve and the cord grip stem.

Installation 9

Page 14

11. Lower the domed cap onto the cord grip stem and tighten until a small swelling of the rubber of the

Note

reducing gland appears between the domed cap and cable (see Figure 2-3).

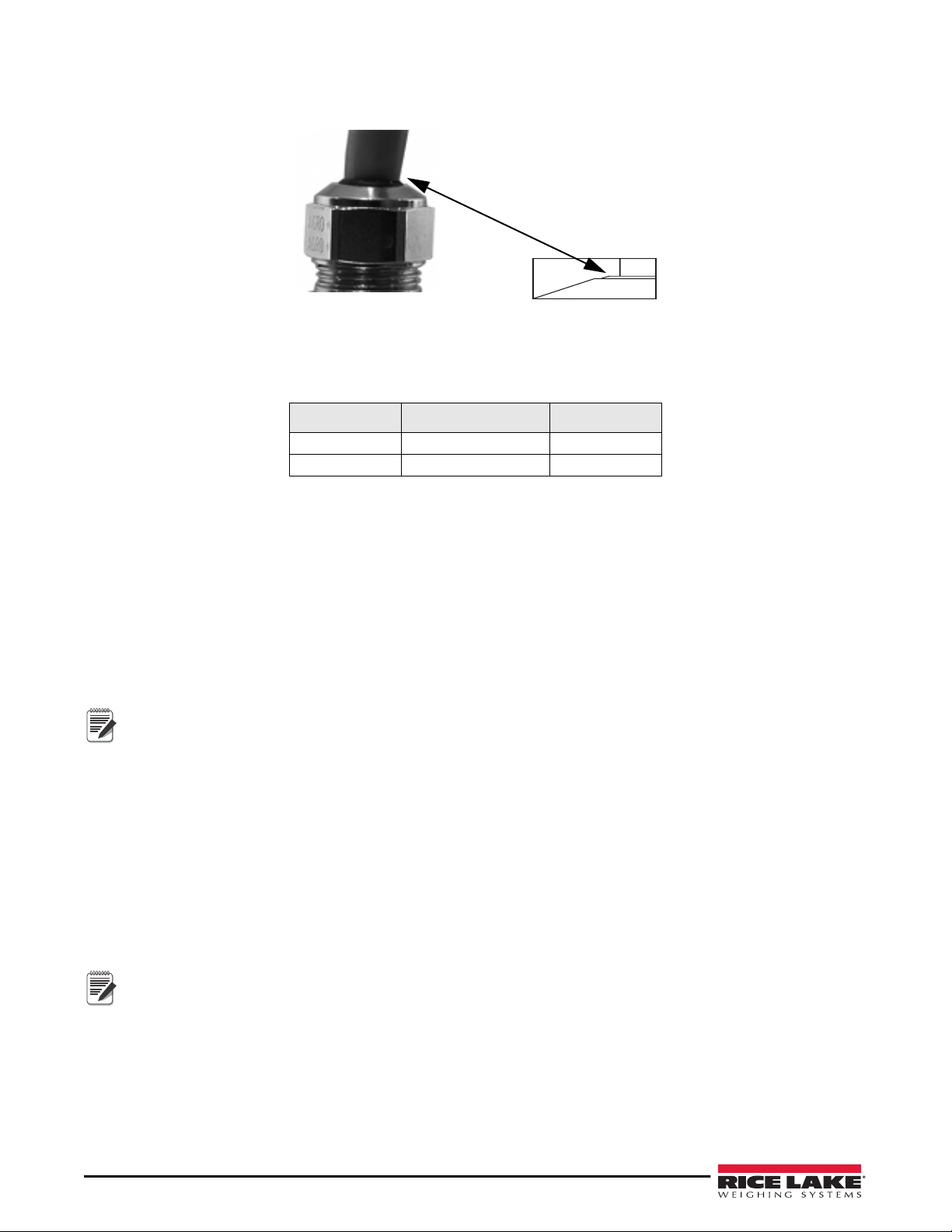

Figure 2-3. Proper Cord Grip Compression

12. Thread the green an d brown wires two times through the ferrite core from the parts kit. See Figure 2-4 as

an example picture.

13. Connect the green and brown wires to the connector for CN1, observing polarities.

CN Pin 1 Function Color

1 + Voltage (5.8 - 7.9) Green 2 Ground (V-, Common) Brown

Table 2-3. DC Power Supply Connections — CN1

14. Plug the connector onto CN1.

15. Connect the AC power.

2.4.2 Braided Power Cable Connection Without Ferrite Core

Use the following procedure for connecting a braided power cable without a ferrite core.

1. If not using a ferrite core, carefully remove 3 in of outer blue insulation and 2.5 in of braid from the cable.

2. Remove the domed cap, reducing gland and the metal sleeve from the center cord grip of the indicator.

Place them on a work surface.

3. Remove the domed cap and reducing gland from the 320IS parts kit.

The domed cap and reducing gland from the parts kit have larger holes. Do not confuse these parts with the parts removed from the cord grip.

4. Take the metal sleeve (from step 2) and insert it into the reducing gland taken from the parts kit.

5. Place the domed cap and reducing gland that were removed from the 320IS cord grip, into the parts kit (to

be used as spares).

6. Thread the DC cable through the domed cap, then through the reducing gland/metal sleeve combination.

7. Lower the reducing gland assembly so that the end of the metal sleeve is at the edge of the insulation and

fold the braid over the metal sleeve (Figure 2-2). Trim the braid if necessary.

8. Trim the white wire back to match the end of the braid.

9. Tin the end of the green and brown wires.

10. Thread the cable through the cord grip stem.

Chassis ground is made through the braid compressed between the metal sleeve and the cord grip stem.

11. Lower the domed cap onto the cord grip stem and tighten until a small swelling of the rubber of the

reducing gland appears between the domed cap and cable (see Figure 2-3).

12. Connect the green and brown wires to the connector for CN1. Observe polarity. See Table 2-3.

13. Plug the cable into CN1.

14. Connect the AC power.

10 320IS Installation Manual

Page 15

2.4.3 Braided Load Cell Cable Connection

Note

Use the following procedure for connecting braided load cell cable:

If Using 6 Wire Load Cell Cable

1. Carefully remove 8 in of outside insulation and 7 1/2'' of braid from the load cell cable.

2. Remove the metal domed cap, reducing gland and metal sleeve from the left metal cord grip. Place them on

a work surface.

3. Remove the reducing gland and metal domed cap from the 320IS parts kit.

These have a larger hole than those removed from the cord grip — do not confuse them.

4. Take the metal sleeve from step 2, and insert it into the reducing gland taken from the parts kit.

5. Retain the cord grips.

6. Thread the load cell cable through the domed cap, then through the reducing gland/metal sleeve assembly.

7. Lower the reducing gland assembly so that the end of the metal sleeve is at the edge of the insulation and

fold the braid back over the sleeve (see Figure 2-2). Trim if necessary.

8. Thread the cable through the cord grip stem.

Chassis ground is made through the braid compressed between the metal sleeve and the cord grip stem.

9. Lower the domed cap onto the cord grip stem and tighten until a small swelling of the rubber of the

reducing gland appears between the dome cap and the cable (see Figure 2-3).

10. Thread the load cell cable through the ferrite core, from the parts kit, twice. Keep the ferrite core as close to

the backplate as possible (see Figure 2-4).

If Using 4 Wire Load Cell Cable

1. Carefully remove 8" of outside insulation and 7 1/2" of braid from the load cell cable.

2. Remove the metal domed cap and reducing gland from cord grip, place them on a work surface.

3. Thread the load cell cable through the domed cap, then through the reducing gland/metal sleeve assembly.

4. Lower the reducing gland assembly so that the end of the metal sleeve is at the edge of the insulation and

fold the braid back over the sleeve (see Figure 2-2). Trim if necessary.

5. Thread the cable through the cord grip stem.

Chassis ground is made through the braid compressed between the metal sleeve and the cord grip stem.

6. Lower the domed cap onto the cord grip stem and tighten until a small swelling of the rubber of the

reducing gland appears between the domed cap and the cable (see Figure 2-3).

7. Thread the load cell cable through the ferrite core, from the parts kit, twice. Keep the ferrite core as close to

the backplate as possible (see Figure 2-4).

Figure 2-4. Ferrite Core Wire Wrap

Installation 11

Page 16

2.4.4 Foil Load Cell Cable Connection

Note

Load cell connector

Power cable connector Green = +Voltage Brown = Return

125mA fully – encapsulated fuses

F1 & F2

Blue optical output

Black optical input

Ferrite cores

Chassis ground

Sense jumpers

J1 & J2

Use the following procedure for connecting foil load cell cable:

1. Carefully remove 8 in of insulation and 7 1/2'' of foil from cable.

2. Remove domed cap, reducing gland and metal sleeve from cord grip and place them on the cable (see

Figure 2-2).

3. Thread the load cell cable through the domed cap, then through the reducing gland metal sleeve assembly.

4. Lower reducing gland metal sleeve assembly to edge of insulation and wrap foil over metal sleeve of

reducing gland leaving the silver side out.

5. Thread the cable through the cord grip stem.

Chassis ground is made through the foil compressed between the metal sleeve and the cord grip stem.

6. Lower the domed cap onto cord grip stem.

7. Tighten until a small swelling of the rubber between the domed cap and the cable builds (see Figure 2-3).

8. Thread wires through ferrite core two times. Keep the ferrite as close to the backplate as possible (see

Figure 2-4).

9. Wire cable to connector CN3.

2.4.5 Load Cells

To attach cable from a load cell or junction box, use six-position connector in parts kit. See Section 2.4 on page 9 for information on cabling through metal cord grips.

Wire the load cell cable from the load cell or junction box to connecto r CN3 as shown in Figure 2-6. If using 6-wire load cell cable (with sense wires), remove jumpers J1 and J2 before installing connector CN3. For four-wire installation, leave jumpers J1 and J2 on.

12 320IS Installation Manual

Figure 2-5. Cabl e Co n nections

Page 17

When connections are complete, reinstall connector CN3 on the board and use two cable ties to secure the load cell

1 2 3 4 5 6

CN3

-Excitation

-Sense

-Signal

+Signal

+Sense

+Excitation

Optical Fiber

Locking Nut

Portioning Foot

Housing

Lens

Mounting Hole

Device

LED

cable to the inside of the enclosure.

Figure 2-6. CN3 Load Cell Connections

Pin Function

1 -Excitation 2-Sense 3-Signal 4+Signal 5+Sense 6 +Excitation

• For six-wire connections, remove jumpers J1 and J2.

• For four-wire connections, leave jumpers J1 and J2 on.

Table 2-4. CN3 Pin Assignments

2.5 Fiber Optics Installation

The 320IS is equipped with a duplex fiber optic port for communicating with an I/O Module located outside the hazardous area. This is the only communications channel of the indicator. The indicator communicates with external devices through the optional I/O Module’s physical interfaces (RS-232, RS-422, RS-485, Current Loop) and provides analog and digital I/O functions such as setpoint relays and analog outputs.

The fiber optics port is located on the indicator CPU board (see Figure 2-5).

2.5.1 Assembling Fiber Optics Connectors

Use the following steps for assembling the fiber optic connectors of the 320IS:

1. Cut off the ends of the fiber optic cable (PN 74000) with a single-edge razor blade or hot knife (PN 85548).

Try to obtain a precise 90º angle.

2. Insert the fiber through the locking nut and into the connector until the core tip seats against the internal

micro-lens.

3. Screw the connector locking nut down to a snug fit, locking the fiber in place.

4. Secure fiber with 3'' nylon cable ties in parts kit and 3/4'' square nylon mounts.

Figure 2-7. Fiber Optics Connector

Installation 13

Page 18

2.6 Enclosure Reassembly

Important

Setup switch access screw

Fillister head screws

Torque pattern

Load cell connection cord grip

DC power cord grip

Fiber optics

cord grip

Ground lug



;

4&561



%4

%4



%4

5 "







%4

%4

%4

'

51

$

3

-

9

$

$

3

$

2

$

3

3

3

2

$

$

$

3

$

2

3

$

$

$

3/

$

$

2

3

3

6

3

$

3

$

3

$

3

3

$

;

;

574&(

+

$

3

51

+

$

$

$

-

3

3

3/

3

$

3

3

3

$

-

2

3

3

3

3

3

.&$$"



48

.

%

%

3

$

$

$

$

(/%

%(/%

6

$

$

$

$

$

$

$

3

$

2

2

2

3

6

$

$

$

6

$

6

$

2

3

2

6

$

(/%



$/

$

$

,&:1"%

$

3

2

3

6

9

.&$$"

6

$

2

2

3

3

3

2

2

3

6

2

3

3

$

$

3

6

.

.

6

3

$

3/

$

3

2

2

%

6

6

;

'

2

$

;

.

6

574"(

;

;

;

;

%

%

6

9

3'*&(

3'*"(

3

2

6

+

;

;

6

(&

$

2

2

*'%

1%

2

$

6

3







4* &9&9 4& 4*

4&

$/

6

6

'

2

$

-%

6

$/

$/

0QUJDBM0VUQVU

0QUJDBM*OQVU

1PXFS

$POOFDUPS

-PBE$FMM$POOFDUPS

1. Position the backplate over the enclosure.

2. Reinstall the backplate screws. Use the torque pattern shown in Figure 2-8 to prevent distorting the

backplate gasket. Torque screws to 15 in-lb (1.7 N-m).

Torqued screws may become less tight as the gasket is compressed during torque pattern, therefore a second torque is required using the same pattern and torque value.

14 320IS Installation Manual

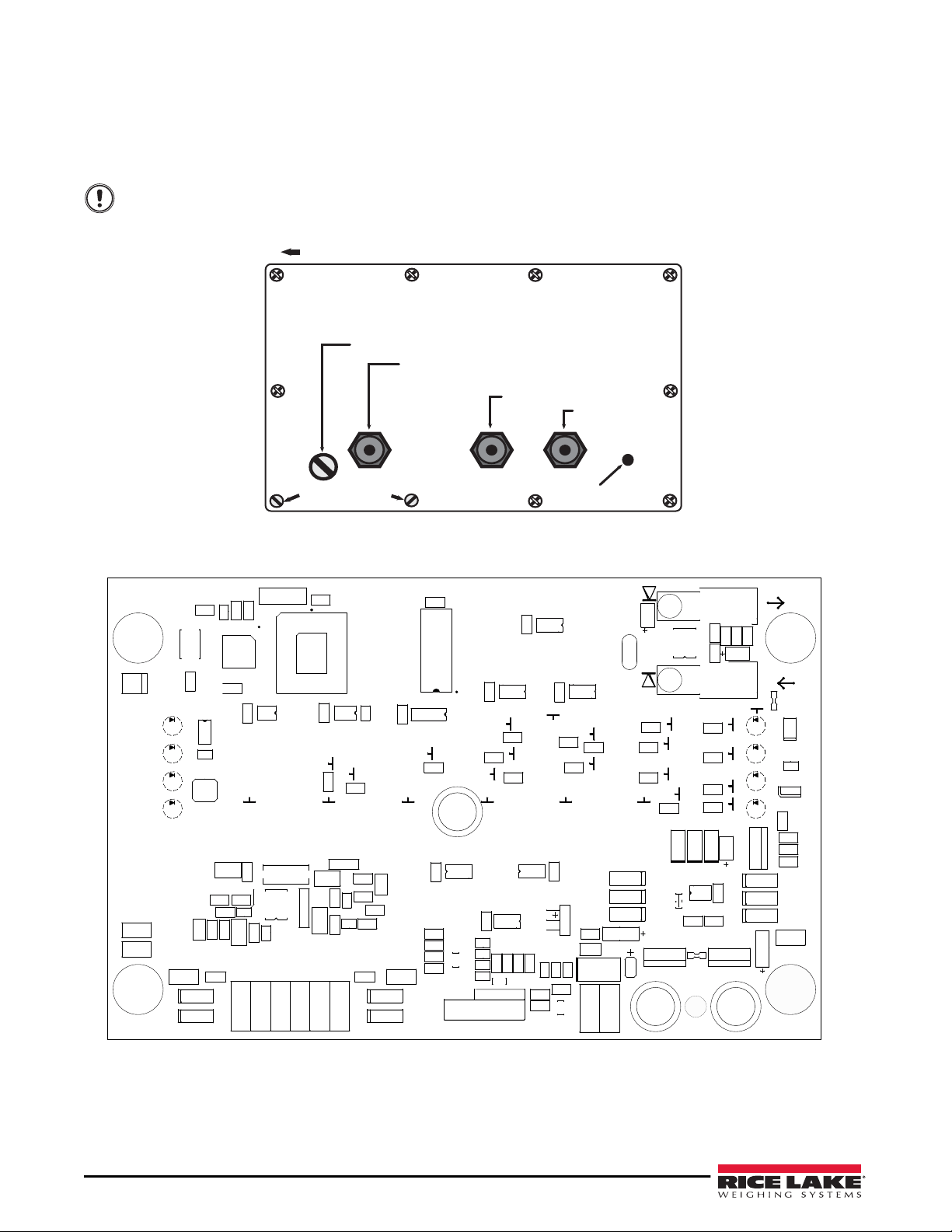

Figure 2-8. 320IS Enclosure Backplate

Figure 2-9. 320IS CPU Board

Page 19

Part No. Description Part No. Description

45043 4 in. W/No. 8 Ground Wire 14626 8–32NC Hex Kep Nut 16892 Earth Ground Label 19538 1.25 x 1 Slotted Black Post 15627 PG–9 Metal Lock Nut 91852 PG–9 Metal Cord Grip 15626 PG–9 Black Cord Grip 82432 125 mA Encapsulated Time–Lag Fuse 50962 PCN–9 Black Nut 72916 Backplate 45042 SS Bonded Sealing Washer, #8 14862 8–32NC x 3/8 Screw 39037 Backplate Gasket 68216 Rice Lake Nameplate 42640 1/4 – 28NF x 1/4 Screw 44676 Bonded Sealing Washer, 1/4" 29635 SS Tilt Stand 68403 1/4 – 20 Two-Prong Black Knob 15144 1/4 x 1 x 1/16 Nylon Washer 100345 Reconditioned/Exchange 320IS

Table 2-5. Hardware Replacement List

Installation 15

Page 20

2.7 Control Drawings

16 320IS Installation Manual

Page 21

Installation 17

Page 22

3.0 Configuration

Note

To configure the 320IS indicator, the indicator must be placed in setup mode. The setup switch is accessed by removing the large fillister head screw on the enclosure backplate. Setup mode is enabled by inserting a non-metallic screwdriver into the access hole and pressing the pushbutton configuration switch.

SERIAL, PFORMT, DIGIN and ALGOUT functions require fiber optics communications with I/O module in order to operate.

When the indicator is placed in setup mode, the word CONFIG is shown on the display. The CONFIG menu is the first of nine main menus used to configure the indicator. See Section 3.3 on page 19. When configuration is complete, scroll to the CONFIG menu then press the ( access screw.

3.1 Configuration Methods

The 320IS indicator can be configured by using the front panel keys to navigate through a series of configuration menus or by sending commands or configuration data to the EDP port of the optional I/O Module. Configuration using the menus is described in Section 3.3 on page 19.

Configuration using the EDP port can be accomplished using either the EDP command set described in Section 5.0 on page 33 o r Version 3.1 or later of the Revolution

3.2 Configuration Methods

The 320IS indicator can be configured by:

• front panel keys

• sending commands or configuration data to the EDP port of the optional I/O Module

Configuration using the EDP port can be accomplished using either the EDP command set described in Section 5.0 on page 44 or the Revolution® configuration software.

ZERO) key to exit setup mode. Replace the setup switch

configuration software.

3.2.1 Revolution Configuration

The Revolution configuration software is the preferred method for configuring the 320IS indicator. Download Revolution on a computer to set the configuration parameters for the indicator. When Revolution configuration is complete, configuration data can be downloaded to the indicator through the optional I/O Module’s EDP port.

Revolution supports both uploading and downloading of indicator configuration data. This capability allows configuration data to be retrieved from one indicator, edited, then downloaded to another.

To use Revolution, do the following:

1. Install Revolution on a computer running Windows

98 or later. Minimum system requirements are 32MB

of system RAM (64MB for NT4/2000/XP) and at least 40MB of available hard disk space.

2. With both the I/O Module and indicator powered off, connect the PC serial port to the RS-232 pins on the

I/O Module’s EDP port (See Section 8.0 on page 53 for terminal pin diagrams).

3. Power up the I/O Module and the indicator. Use the setup switch to place the indicator in setup mode.

4. Start the Revolution program.

Revolution provides online help for each of its configuration sections. Parameter descriptions provided in this manual for front panel configuration can also be used when configuring the indicator using Revolution: the interface is different, but the parameters are the same.

3.2.2 EDP Command Configuration

The EDP command set can be used to configure the 320IS indicator using a personal computer, terminal, or remote keyboard. EDP command configuration sends commands to the indicator EDP port; commands can be sent using any external device capable of sending ASCII characters over a serial connection.

EDP commands duplicate the functions available using the indicator front panel and provide some functions not otherwise available. EDP commands can be used to simulate pressing front panel keys, to configure the indicator, or to dump lists of parameter settings. See Section 5.0 on page 44 for more information about using the EDP command set.

18 320IS Installation Manual

Page 23

3.2.3 Front Panel Configuration

The 320IS indicator can be configured using a series of menus accessed through the indicator front panel when the indicator is in setup mode. Table 3-1 summarizes the functions of each of the main menus.

Menu Menu Function

CONFIG Configuration Configure grads, zero tracking, zero range, motion band, overload, tare function, push button

enable, and digital filtering parameters. FORMAT Format Set format of primary and secondary units, display rate. CALIBR Calibration Calibrate indicator. See Section 4.0 on page 31 for calibration procedures. SERIAL Serial Configure EDP and printer serial ports. PROGRM Program Set regulatory mode, unit ID, auto zero, consecutive number values, and battery standby. PFORMT Print Format Set print format used for gross and net tickets. See Section 6.0 on page 39 for more information. DIGIN Digital Input Assign digital input functions. See Section Figure 3-7. on page 28 for more information. ALGOUT Analog Output Configure analog output. See Section 3.3.7 on page 29 for analog output configuration. VERS Version Display installed software version number.

Table 3-1. 320IS Menu Summary

3.3 Menu Structures and Parameter Descriptions

The following sections provide graphic representations of the 320IS menu structures. In the actual menu structure, the settings you choose under each parameter are arranged horizontally. To save page space, menu choices are shown in vertical columns. The factory default setting appears at the top of each column.

Most menu diagrams are accompanied by a table that describes all parameters and parameter values associated with that menu. Default parameter values are shown in bold type.

To exit configuration mode, with the display showing

CONFIG., press the ZERO key to scroll up.

Configuration 19

Page 24

3.3.1 Configuration Menu

XXXXXXX XXXXXXX

GRADS

10 000

OFF

0.5D

ZTRKBN ZRANGE

1.9%

100%

OFF

MOTBAN

FS+2%

FS+9D

FS+1D

OVRLOA

number

BOTH

PBTARE

NOT ARE

KEYED

T AREFN

VERS ALGOUT DIG IN

PROGRM PFORMT SERIAL CALIBR CONFIG FORMAT

DFTHRH

2DD

NONE

5DD

20DD

10DD

50DD

200DD

100DD

250DD

8OUT

32OUT

16OUT

64OUT

DFSENS

2OUT

128OUT

4OUT

15HZ

SMPRAT

10D

20D

DIGFLT 1

DIGFLT 2

DIGFLT 3

30HZ

15HZ

60HZ

7.5HZ

CONFIG Menu

Parameter Choices Description

Level 2 submenus

GRADS 10000

ZTRKBN OFF

20 320IS Installation Manual

number

0.5D 1D 3D

Figure 3-1. Configuration Menu

Graduations — Specifies the number of full scale graduations. The value entered must be in the range 1–100 000 and should be consistent with legal requirements and environmental limits on system resolution.

To calculate GRADS, use the formula, GRADS = Capacity / Display Divisions. Display divisions for primary and secondary units are specified on the FORMAT menu.

Zero track band — Automatically zeroes the scale when within the range specified, as long as the input is within the configured zero range (ZRANGE parameter). Selections are ± display divisions. Maximum legal value varies depending on local regulations.

Table 3-2. Configuration Menu Parameters

Page 25

CONFIG Menu

Parameter Choices Description

ZRANGE 1.9%

100%

MOTBAN 1D

2D 3D 5D 10D 20D OFF

OVRLOA FS+2%

FS+1D FS+9D FS

SMPRAT 15HZ

30HZ 60HZ

7.5HZ

DIGFLT1 DIGFLT2 DIGFLT3

4 6 8 16 32 64 1

Zero range — Selects the range within which the scale can be zeroed. The 1.9% selection is ± 1.9% around the calibrated zero point, for a total range of 3.8%. Indicator must be at standstill to zero the scale. Use 1.9% for legal-for-trade applications.

Motion band — Sets the level, in display divisions, at which scale motion is detected. If motion is not detected for one second or more, the standstill symbol lights. Some operations, including print, tare, and zero, require the scale to be at standstill. Maximum legal value varies depending on local regulations.

If OFF is selected, ZTRKBN should also be set to OFF.

Overload — Determines the point at which the display blanks and an out-of-range error message is displayed. Maximum legal value varies depending on local regulations.

Sample rate — Selects the analog to digital measurement rate of converted samples per second. Lower sample rate values provide greater signal noise immunity. If instability occurs, use lower sample rate to reduce signal noise.

Digital filtering — Selects the digital filtering rate used to reduce the effects of mechanical vibration from the immediate area of the scale. A higher number gives a more accurate display by minimizing the effect of a few noisy readings, but slows down the settling rate of the indicator.

DFSENS 8OUT

16OUT 32OUT 64OUT 128OUT 2OUT 4OUT

DFTHRH NONE

2DD 5DD 10DD 20DD 50DD 100DD 200DD 250DD

TAREFN BOTH

NOTARE PBTARE KEYED

Digital filter cutout sensitivity — Specifies the number of consecutive readings that must fall outside the filter threshold (DFTHRH parameter) before digital filtering is suspended. If NONE is selected, the filter is always enabled.

Digital filter cutout threshold — Specifies the filter threshold, in display divisions. When a specified number of consecutive scale readings (DFSENS parameter) fall outside of this threshold, digital filtering is suspended. If NONE is selected, the filter is always enabled.

Tare function — Enables or disables push-button and keyed tares. Possible values are:

BOTH: Both push-button and keyed tares are enabled NOTARE: No tare allowed (gross mode only) PBTARE: Push-button tares enabled KEYED: Keyed tare enabled

Table 3-2. Configuration Menu Parameters (Continued)

Configuration 21

Page 26

3.3.2 Format Menu

1.000000

number

PRIMAR

6SEC

4SEC

3SEC

2.5SEC

2SEC

1.5SEC

750MS

500MS

250MS

8SEC

DSPRAT

1SEC

XXXXXXX

XXXXXXX XXXXXXX

VERS ALGOUT DIG IN

PROGRM PFORMT SERIAL CALIBR CONFIG FORMAT

SECNDR

MULT

NONE

UNITS

888880

888888

8888.88

888.888

88.8888

8.88888

888800

DECPNT

DSPDIV

NONE

UNITS

88888.8

Figure 3-2. Format Menu

FORMAT Menu

Parameter Choices Description

Level 2 submenus

PRIMAR UNITS

DECPNT DSPDIV

SECNDR UNITS

MULT

DSPRAT 250MS

500MS 750MS 1SEC

1.5SEC 2SEC

2.5SEC 3SEC 4SEC 6SEC 8SEC

Level 3 Submenus

DECPNT 888888

888880 888800

8.88888

88.8888

DSPDIV 1D

22 320IS Installation Manual

888.888

8888.88

88888.8

2D 5D

Specifies the decimal position, display divisions, and units used for the primary units. See Level 3 submenu parameter descriptions.

Specifies the decimal position, display divisions, units, and conversion multiplier used for the secondary units. See Level 3 submenu parameter descriptions.

Display rate. Sets the update rate for displayed values. Values are in milliseconds (MS) or seconds (SEC).

Decimal point location. Specifies the location of the decimal point or dummy zeroes in the primary unit display. Value should be consistent with local legal requirements.

Display divisions. Selects the minimum division size for the primary units displayed weight.

Table 3-3. Format Menu Parameters

Page 27

FORMAT Menu

WZERO

*CAL*

Display and edit

zero calibration

A/D count value

Display and edit

test weight value

WVAL

*CAL*

Display and edit span calibration A/D count value

WSPAN

CAL*

Press Enter to

remove oset from

zero and span

calibrations

REZERO

XXXXXXX XXXXXXX

XXXXXXXXXXXXXX

ALGOUTDIG IN

PROGRM PFORMTSERIALCALIBRCONFIG FORMAT

XXXXXXX

SETPNT

Parameter Choices Description

UNITS LB

KG OZ

Specifies primary unit for displayed and printed weight. Values are: LB=pound; KG=kilogram; OZ=ounce; G=gram; TN=short ton; T=metric ton. Selecting NONE, removes

the primary units from print. TN T G NONE

Secondary Units

UNITS KG

OZ TN

Specifies secondary units for displayed and printed weight. Values are: LB=pound;

KG=kilogram; OZ=ounce; G=gram; TN=short ton; T=metric ton. An arbitrary unit may be

used by selecting NONE and specifying a multiplier set under MULT. T G NONE LB

MULT 1.00000

number

If a unit other than the presets is to be used, an arbitrary unit may be selected for conversion

to a desired unit. The value entered here is applied as a multiplier to the primary unit - or to

the calibration unit if the primary unit is set to OFF. If the primary unit is changed after setting

this value, the multiplier will also change. Only the first six significant (non-zero) digits of the

set value are stored.

Table 3-3. Format Menu Parameters (Continued)

3.3.3 Calibration Menu

CALIBR Menu

Level 2 submenus

WZERO — Display and edit the zero calibration A/D count value.

WVAL — Display and edit the test weight value. WSPAN — Display and edit the span calibration A/D count value. REZERO — Press ENTER to remove an offset value from the zero and span calibrations.

Figure 3-3. Calibration Menu

Parameter Choices Description

DO NOT adjust this value after WSPAN has been set!

Use this parameter only after WZERO and WSPAN have been set. See Section 4.1 on page 31 for more information about using this parameter.

Table 3-4. Calibration Menu Parameters

Configuration 23

Page 28

3.3.4 Serial Menu

EOLDLY

000

EDP PRINT

BITS TERMIN BAUD

9600

7ODD

7EVEN

8NONE

CR/LF

4800

2400

1200

600

300

XXXXXXX XXXXXXX

VERS ALGOUT DIG IN

PROGRM PFORMT SERIAL CALIBR CONFIG FORMAT

EDP

OFF

STREAM

PRN

EDP

PRNDES

255

PORT

RS232

RS422

RS485

CRLOOP

NONE

ADDRES

number

000

EOLDLY

000

BITS TERMIN BAUD

9600

7ODD

7EVEN

8NONE

CR/LF

255

38400

19200

4800

2400

1200

600

300

38400

19200

ECHO

OFF

PORT

RS232

RS422

RS485

CRLOOP

NONE

ADDRES

number

000

ECHO

OFF

See Section 7.3 on page 44 for information about the 320IS serial data format. The SERIAL menu is used only if

320IS is used with the I/O module (PN 72721).

the

SERIAL Menu

Parameter Choices Description

Level 2 submenus

EDP BAUD

BITS

Specifies the settings for baud rate, data bits, termination characters, and end-of-line delay used by the EDP port.

TERMIN

ADDRES

EOLDLY

PORT

PRINT BAUD

ECHO

BITS TERMIN EOLDLY ADDRES

Specifies the settings for baud rate, data bits, termination characters, and end-of-line delay used by the printer port.

PORT ECHO

Table 3-5. Serial Menu Parameters

24 320IS Installation Manual

Figure 3-4. Serial Menu

Page 29

SERIAL Menu

Parameter Choices Description

STREAM OFF

EDP PRN

PRNDES EDP

PRN

Level 3 Submenus

EDP/Printer Ports

BAUD 9600

19200 38400 300 600 1200 2400 4800

BITS 8NONE

7EVEN 7ODD

TERMIN CR/LF

EOLDLY 000

255

ADDRES 000

number

PORT RS232

RS422 RS485 CRLOOP NONE

ECHO ON

OFF

Selects the serial port used for continuous transmission. See Section 7.3 on page 44 for information about the 320IS continuous data format.

Print destination. Selects the port for data transmission when the PRINT key is pressed or the KPRINT EDP command is sent.

Baud rate. Selects the transmission speed for the EDP or printer port.

Selects the number of data bits and parity of data transmitted from the EDP or printer port.

Termination character. Selects the termination character for data sent from the EDP or printer port.

End-of-line delay. Sets the delay period, in 0.1 second intervals, from when a formatted line is terminated to the beginning of the next formatted serial output. Value specified must be in the range 000-255, in tenths of a second. Example: 10 = 1 second.

Specifies the decimal indicator address for RS-485 connections. RS-232 communications is disabled if an address other than zero is specified for this parameter.

Selects the physical interface for the EDP or printer port.

Enables or disables echoing of the serial commands sent to the indicator.

Table 3-5. Serial Menu Parameters (Continued)

Configuration 25

Page 30

3.3.5 Program Menu

XXXXXXX XXXXXXX

PWRUPM

OIML

REGULA

000000

number

CONSNU

DELAY

PROGRM PFORMT SERIAL CALIBR CONFIG FORMAT

000000

number

CONSTU

NTEP

CANADA

COUNT

VERS DIGIN ALGOUT

DA TFMT

MMDDYY

DA TE

DDMMYY

YYMMDD

YYDDMM

TIMFMT

12HOUR

TIME

24HOUR

TIMSEP

COLON

COMMA

ACCESS SPLSIZ

100

PCWGT

DSABLE

ENABLE

NONE

number

000000

STNDBY

0-255

000

ACCUM

OFF

DA TSEP

SLASH

DASH

SEMI

UID

Figure 3-5. Program Menu

PROGRM Menu

Parameter Choices Description

Level 2 submenus

PWRUPM GO

DELAY

COUNT ACCESS

SPLSIZ

REGULA NTEP

OIML CANADA NONE

CONSNU 000000

CONSTU 000000

number

26 320IS Installation Manual

Power up mode. In GO mode, the indicator goes into operation immediately after a brief power up display test.

In DELAY mode, the indicator performs a power up display test, then enters a 30–second warm up period. If no motion is detected during the warm up period, the indicator becomes operational when the warm up period ends; if motion is detected, the delay timer is reset and the warm up period is repeated.

Specifies whether operator has access to piece count mode and the default sample size used for parts counting. See Level three submenu for parameter descriptions.

Regulatory mode. Specifies the regulatory agency having jurisdiction over the scale site. OIML, NTEP, and CANADA modes allow a tare to be acquired at any weight greater than zero.

NONE allows tares to be acquired at any weight value. OIML, NTEP, and CANADA modes allow a tare to be cleared only if the gross weight is at no

load. NONE allows tares to be cleared at any weight value. NTEP and OIML modes allow a new tare to be acquired even if a tare is already present. In

CANADA mode, the previous tare must be cleared before a new tare can be acquired. NONE, NTEP and CANADA modes allow the scale to be zeroed in either gross or net mode as

long as the current weight is within the specified ZRANGE. In OIML mode, the scale must be in gross mode before it can be zeroed; pressing the ZERO key in net mode clears the tare.

Consecutive numbering. Allows sequential numbering for print operations. The consecutive number value is incremented following each print operation.

The initial value of this parameter is set to the start up value specified on the CONSTU parameter. Changing either CONSTU or CONSNU immediately resets the consecutive number used for printing.

Consecutive number start up value in the range of 000000–999999. Specifies the initial consecutive number (CONSNU) value used when the indicator is powered on.

Table 3-6. Program Menu Parameters

Page 31

PROGRM Menu

Parameter Choices Description

UID 000000

number

ACCUM OFF

DATE DATFMT

DATSEP

TIME TIMFMT

TIMSEP

STNDBY 000

0-255

Level 3 submenus

ACCESS DSABLE

ENABLE

SPLSIZ 10

20 50 100 PCWGT 5

DATFMT MMDDYY

DDMMYY YYMMDD

DATSEP SLASH

DASH SEMI

TIMFMT 24HOUR

12HOUR

TIMSEP COLON

COMMA

Specifies a unit identifier for the indicator in the range of 000000–999999. The unit ID can be added to print ticket formats to identify the indicator used to generate ticket formats.

Accumulator. Specifies whether the accumulator is enabled. if enabled, accumulation occurs whenever a print operation is performed.

Allows selection of date format and date separator. See level three parameter for descriptions.

Allows selection of time format and time separator. See level three parameter for descriptions.

Standby mode delay. Specifies the number of minutes the indicator must be inactive before entering standby mode. Valid values are 000 (off) or 0-255 minutes. After typing a standby time value, press the TARE key to enter this value. The display will go into standby mode, confirmed by a blinking LED on the right side of the display. When in standby mode, power is still supplied to the CPU and draws 1/2 of the current as when the display is powered. Press any key to exit standby mode and reactivate the display.

The indicator enters standby mode if no key presses, serial communications, or scale motion occur for the length of time specified on this parameter. Set this parameter to 000 to disable standby mode.

Operator access to piece count mode. Specify DSABLE if piece count mode will not be used. With access disabled, pressing the GROSS/NET (MODE) key toggles between gross and net modes only.

Sample size. Specify the default size used for counting scale operations. Sample size can be changed in counting mode during sample acquisition.

Specifies the format used to display or print the date.

Specifies the date separator character.

Specifies the format used to display or print the time.

Specifies the time separator character.

Table 3-6. Program Menu Parameters (Continued)

Configuration 27

Page 32

3.3.6 Print Format Menu

GFMT

Display ﬁrst 6

characters of format

(See Note)

NFMT

Display and edit

active character and

ASCII value

Delete active

character

Scroll right in format string Scroll left in format string

Incr ement ASCII value of active character Decr ement ASCII value of active character

Pr ess to insert a space

befor e the active character

XXXXXXX XXXXXXX

VERS ALGOUT DIGIN

PROGRM PFORMT SERIAL CALIBR CONFIG FORMAT

Same as GFMT

NOTE: To change the active character, use the numeric keypad to enter the new ASCII value and press Enter (TARE).

Same as GFMT

CFMT

XXXXXXX XXXXXXX XXXXXXX

ALGOUT DIGIN PROGRM PFORMT SERIAL CALIBR CONFIG

FORMAT

VERS

DIGIN 1 - 4

OFF

ZERO

TARE

NT/GRS

UNITS

ENTER

KBDLOC

HOLD

CLRCN

ACCUM

DSPTAR

GROSS

NET

PRIUNI

SECUNI

CLRTAR

CLRACC

NEWID

See Section 6.0 on page 39 for information about custom print formatting. The PFORMT menu is used only if the

320IS is used with the I/O Module option.

28 320IS Installation Manual

Figure 3-6. Print Format Menu

Figure 3-7. Digital Input Menu

Page 33

DIG IN Menu

SOURCE

GROSS

20%

OFFSET ERRACT

FULLSC

HOLD

000000

number

MIN

10000

number

MAX TWZERO

NET

TWSPAN

ZEROSC

ALOUT1

number

65300

number

ALOUT2

XXXXXXX XXXXXXX

XXXXXXXXXXXXXX

VERSALGOUTDIG IN

PROGRM PFORMTSERIALCALIBRCONFIG FORMAT

XXXXXXX

SETPNT

SOURCE

GROSS

20%

OFFSET ERRACT

FULLSC

HOLD

000000

number

MIN

10000

number

MAX TWZERO

NET

TWSPAN

ZEROSC

number

65300

number

Parameter Choices Description

Level 2 submenus

DIGIN1 DIGIN2 DIGIN3 DIGIN4

OFF ZERO TAR E NT/GRS NET GROSS UNITS PRIUNI SECUNI DSPTAR PRINT CLRCN KBDLOC HOLD CLRTAR CLRACC ACCUM

Specifies the function activated by digital inputs 1– 4.

• ZERO, NT/GRS (net/gross mode toggle), TARE, UNITS, and PRINT provide the same functions as the front panel keys.

• DSPTAR displays the current tare value.

• CLRCN resets the consecutive number to the value specified on the CONSTU parameter (PROGRM menu).

• KBDLOC disables the keypad while the digital input is held low.

• HOLD holds the current display. Releasing this input clears the running average filter.

• CLRTAR clears the current tare.

• CLRACC clears the accumulator.

• ACCUM displays the current accumulator value.

• ENTER simulates pressing the ENTER key in weigh mode (for setpoint and checkweigh value changes from the front panel).

• GROSS, NET, PRIUNI, and SECUNI select gross, net, primary units or secondary display modes.

• NEWID enters the ID number.

ENTER NEWID

Table 3-7. Digital Input Menu Parameters

3.3.7 Analog Output Menu

The ALGOUT menu is used only if the 320IS is used with the I/O Module option. If the I/O Module is installed and the analog output is being used, configure all other indicator functions and calibrate the indicator (see See Section 4.0 on page 31) before configuring the analog output. See Section 7.8 on page 51 for analog output calibration procedures.

Figure 3-8. Analog Output Menu

Configuration 29

Page 34

ALG OUT Menu

SOFTWR

Software Version

I/O Module Version

XXXXXXX XXXXXXX

VERS ALGOUT DIG IN

PROGRM PFORMT SERIAL CALIBR CONFIG FORMAT

I/OMOD

Displays “No Ver”

if no I/O Module is

connected

Parameter Choices Description

ALOUT1 ALOUT2

Level 2 submenus

SOURCE GROSS

OFFSET 0%

ERRACT FULLSC

MIN 000000

MAX 010000

TWZERO 65300

TWSPAN 65300

SOURCE

OFFSET ERRACT MIN MAX TWZERO TWSPAN

NET

20%

HOLD ZEROSC

number

Specifies settings for source, offset, error action, minimum, maximum, tweak zero and tweak span value used by the analog outputs.

Specifies the source tracked by the analog output.

Zero offset. Selects whether the analog output supplies voltage (0-5 V, ±5 V, ±10 V) or current (4–20 mA) output. Select 0% for 0-5 V, ±5 V, ±10 V output, 20% for 4–20 mA output.

Error action. Specifies how the analog output responds to system error conditions. Possible values are:

FULLSC Set to full value HOLD: Hold current value ZEROSC: Set to zero value

Specifies the minimum weight value tracked by the analog output. Specify a weight value (in primary units) in the range 000000–999 990.

Specifies the maximum weight value tracked by the analog output. Specify a weight value (in primary units) in the range 0–999 990.

Tweak zero. Adjust the analog output zero calibration. Use a multimeter to monitor the analog output value. Press and hold or to adjust the output. Press to save the new value.

NOTE: Default value becomes 11000 if OFFSET is set to 20%.

Tweak span. Adjust the analog output span calibration. Use a multimeter to monitor the analog output value. Press and hold or to adjust the output. Press to save the new value.

NOTE: Default value becomes 54900 if OFFSET is set to 20%.

Table 3-8. Analog Output Menu Parameters

3.3.8 Version Menu

The VERS menu is used to check the software or hardware version installed in the indicator. There are no parameters associated with the Version menu; when selected, the indicator displays the installed software or hardware version number.

30 320IS Installation Manual

Figure 3-9. Version Menu

Page 35

4.0 Calibration

WZERO

*CAL*

Display and edit

zero calibration

A/D count value

Display and edit

test weight value

WVAL

*CAL*

Display and edit span calibration A/D count value

WSPAN

*CAL*

Press Enter to

remove oset from

zero and span

calibrations

REZERO

XXXXXXX XXXXXXX

XXXXXXXXXXXXXX

VERSALGOUTDIG IN

PROGRM PFORMTSERIALCALIBRCONFIG FORMAT

XXXXXXX

SETPNT

Note

The 320IS can be calibrated using the front panel, EDP commands, or the Revolution® configuration utility. Each method consists of the following steps:

• Zero calibration

• Entering the test weight value

• Span calibration

• Optional re-zero calibration for test weights using hooks or chains.

The following sections describe the calibration procedure for each of the calibration methods.

Figure 4-1. Calibration (CALIBR) Menu

4.1 Front Panel Calibration

1. Place the indicator in setup mode (display reads CONFIG).

2. Remove all weight from the scale platform.

3. If your test weights require hooks or chains, place the hooks or chains on the scale for zero calibration.

4. Press until the display reads

5. Press to calibrate zero. The indicator displays A/D count for the zero calibration is displayed.

CALIBR. Press . WZERO displays.

*CAL* while calibration is in progress. When complete, the

Do not adjust this value after WSPAN has been set!

6. Press again to save the zero calibration value and go to the next prompt (WVAL).

7. Place test weights on the scale.

8. Press to show the test weight value.

9. Use the numeric keypad to enter the actual test weight.

10. Press to save the value.

11. Press to calibrate span. The indicator displays

WSPAN displays.

*CAL* while calibrating. When complete, the A/D count

for the span calibration is displayed.

12. Press again to save the span calibration value.

REZERO displays.

13. Use the rezero function to remove a calibration offset when hooks or chains are used to hang the test weights.

• If no other apparatus was used to hang the test weights during calibration, remove the test weights and press to return to the CALIBR menu.

• If hooks or chains were used during calibration, remove these and the test weights from the scale. With all weight removed, press to rezero the scale. This function adjusts the zero and span calibration values. The indicator displays

*CAL* while the zero and span calibrations are adjusted. When complete, the

adjusted A/D count for the zero calibration is displayed. Press to save the value, then press to return to the CALIBR menu.

14. Press until the display reads

CONFIG.

15. Press to exit setup mode.

When calibrating to a new scale, after exiting setup mode, press the ZERO key to set Zero and adjust for dead-load.

Calibration 31

Page 36

4.2 EDP Command Calibration

Note

EDP command calibration requires the use of an I/O Module.

To calibrate the indicator using EDP commands, the I/O Module EDP port must be connected to a terminal or personal computer. See Section 5.0 on page 44 for more information about using EDP commands.

1. Place the indicator in setup mode (display reads

CONFIG).

2. Remove all weight from the scale platform.

3. If your test weights require hooks or chains, place the hooks or chains on the scale for zero calibration.

4. Send the WZERO EDP command to calibrate zero. The indicator displays

*CAL* while calibration is in

progress.

5. Place test weights on the scale.

6. Use the WVAL command to enter the test weight value in the following format:

WVAL=nnnnnn<CR>

7. Send the WSPAN EDP command to calibrate span. The indicator displays CAL while calibration is in progress.

8. To remove an offset value, clear all weight from the scale, including hooks or chains used to hang test weights, then send the REZERO EDP command. The indicator displays

*CAL* while the zero and span

calibrations are adjusted.

9. Send the KUPARROW EDP command to exit setup mode.

4.3 Revolution® Calibration

To calibrate the indicator using Revolution, the I/O Module EDP port must be connected to a PC running the Revolution configuration software.

Use the following procedure to calibrate the indicator:

1. Select

2. Revolution uploads calibration data from the indicator then presents the information in a display like that

Calibration Wizard from the Revolution tools menu.

shown in Figure 4-2.

Figure 4-2. Revolution Calibration Wizard

3. Enter the Value of Test Weight to be used for span calibration then click OK.

4. The Zero Calibration dialog box prompts you to remo ve all weight from the scale. Clear the scale and click

OK to begin zero calibration.

If your test weights require hooks or chains, place the hooks or chains on the scale for zero calibration.

5. When zero calibration is complete, the Span Calibration dialog box prompts you to place test weights on the scale for span calibration. Place tests weights on the scale then click OK.

6. When calibration is complete, the

New Settings fields of the Indicator Calibration display are filled in.

Click Exit to save the new values and return to the Revolution main menu; to restore the previous calibration values, click

32 User Manual

Restore Settings.

Page 37

5.0 EDP Commands

Note

The 320IS indicator can be controlled by a personal computer or remote keyboard connected to the I/O Module’s EDP port. Control is provided by a set of EDP commands that can simulate front panel key press functions, display and change setup parameters, and perform reporting functions. The EDP port provides the capability to print configuration data or to save that data to an attached personal computer. This section describes the EDP command set and procedures for saving and transferring data using the EDP port.

5.1 The EDP Command Set

The EDP command set can be divided into five groups: key press commands, reporting commands, the RESETCONFIGURATION special function command, parameter setting commands, an d transmit weight data commands.

When the indicator processes an EDP command, it responds with the message command was received and has been executed. If the command is unrecognized or cannot be executed, the indicator responds with

??.

The following sections list the commands and command syntax used for each of these groups.

5.1.1 Key Press Commands

Key press EDP commands (see Table 5-1) simulate pressing the keys on the front panel of the indicator. Most commands can be used in both setup and weighing mode. Several of the commands serve as “pseudo” keys, providing functions that are not represented by a key on the front panel.

For example, to enter a 15-pound tare weight using EDP commands:

Scale must be at zero gross.

1. Type K1 and press ENTER (or RETURN).

2. Type K5 and press

3. Type KTARE and press

ENTER.

ENTER. The display shifts to net mode when the tare is entered.

OK. The OK response verifies that the

Command Function

KZERO In weighing mode, press the ZERO key KGROSSNET In weighing mode, press the GROSS/NET key KTARE Press the TARE key KUNITS In weighing mode, press the UNITS key KPRINT In weighing mode, press the PRINT key KLEFTARROW In setup mode, move left in the menu KRIGHTARROW In setup mode, move right in the menu KUPARROW In setup mode, move up in the menu KDOWNARROW In setup mode, move down in the menu K0-K9 Enters the number in the entry buffer, used for keyed tare entry. KDOT Press the decimal point (.) KENTER Press the ENTER key KEXIT Exit setup KSAVE Saves configuration without exit KTIMEDATE *Display time and date KTIME *Display time (pseudo key) KDATE *Display date (pseudo key) KDISPACCUM Press ACCUM key KCLRACCUM Clears accumulated register KDISPTARE Display tare (pseudo key) KID Display unit ID entry screen KCOUNT Go to piece count mode (pseudo key) KCLR Press the clear key

* I/O module required

Table 5-1. EDP Key Press Commands

EDP Commands 33

Page 38

5.1.2 Reporting Commands

Note

Reporting commands (see Table 5-2) send specific information to the EDP port. These commands can be used in both setup mode and normal mode.

Command Function

DUMPALL List all parameter values IOVERSION

P Display current displayed weight with units

ZZ Display current weight and annunciator

S Display one frame of stream format

Display

identifier. See Section 7.2.1 on page 43 for more information.

status. See Section 7.2.2 on page 43 for more information.

I/O Module software version

Table 5-2. EDP Reporting Commands

5.1.3 The RESETCONFIGURATION Command

The RESETCONFIGURATION command can be used to restore all configuration parameters to their default values. Before issuing this command, the indicator must be placed in test mode (press and hold setup switch until

TEST

is displayed).

This command is equivalent to using the DEFLT function on the TEST me nu. See Section 7.8 on page 51 for more information about test mode and using the TEST menu.

All load cell calibration settings are lost when the RESETCONFIGURATION command is run.

5.1.4 Parameter Setting Commands

Parameter setting commands allow you to display or change the current value for a particular configuration parameter See Tables 5-3 through 5-12 for more information on menu parameters.

Current configuration parameter settings can be displayed in either setup mode or normal mode using the following syntax:

command<ENTER>

Most parameter values can be changed in setup mode only. Use the following command syntax when changing parameter values:

command=value<ENTER>

where value is a number or a parameter value. Use no spaces before or after the equal (=) sign. If you type an incorrect command or value, the display reads

??. Changes to the parameters are saved as they are entered but

typically do not take effect until you exit setup mode. For example, to set the motion band parameter to 5, type the following:

MOTBAND=5D<ENTER>

Command Description Val ues

GRADS Graduations 1–100 000 ZTRKBND Zero track band OFF, 0.5D, 1D, 3D ZRANGE Zero range 1.9%, 100% MOTBAND Motion band 1D, 2D, 3D, 5D, 10D, 20D, OFF OVRLOAD Overload FS+2%, FS+1D, FS+9D, FS DIGFLTRX* Digital filtering 1, 2, 4, 8, 16, 32, 64 DFSENS Digital filter cutout sensitivity 2OUT, 4OUT, 8OUT, 16OUT, 32OUT, 64OUT, 128OUT DFTHRH Digital filter cutout threshold NONE, 2DD, 5DD, 10DD, 20DD, 50DD, 100DD, 200DD, 250DD TAREFN Tare function BOTH, NOTARE, PBTARE, KEYED SMPRAT Sample rate 15Hz, 30Hz, 60Hz, 7.5Hz

NOTE: * X = 1, 2, 3

Table 5-3. CONFIG EDP Commands

34 320IS Installation Manual

Page 39

Command Description Valu es

PRI.DECPNT Primary units decimal position 8.88888, 88.8888, 888.888, 8888.88, 88888.8, 888888, 888880,

888800 PRI.DSPDIV Primary units display divisions 1D, 2D, 5D PRI.UNITS Primary units LB, KG, OZ, TN, T, G, NONE SEC.UNITS Secondary units LB, KG, OZ, TN, T, G, NONE SEC.MULT Secondary units multiplier 0.00000–9999.99 DSPRATE Display rate 250MS, 500MS, 750MS, 1SEC, 1500SEC, 2SEC, 2500MS, 3SEC,

4SEC, 6SEC, 8SEC

Table 5-4. FORMAT EDP Commands

Command Description Valu es

WZERO Zero calibration -999999 – 999999 WVAL Test weight value 0 – 999999 WSPAN Span calibration -999999 – 999999 REZERO Rezero -999999 – 999999 LC.CD Set deadload coefficient ±268435455 LC.CW Set span coefficient ±268435455

Table 5-5. CALIBR EDP Commands

Command Description Valu es

EDP.BAUD EDP port baud rate 300, 600, 1200, 2400, 4800, 9600, 19200, 38400 EDP.BITS EDP port data bits/parity 8NONE, 7EVEN, 7ODD EDP.TERMIN EDP port termination character CR/LF, CR EDP.EOLDLY EDP port end-of-line delay 0–255 (0.1-second intervals) EDP.ADDRESS EDP port address 0-255 EDP.PORT EDP port selection RS232, RS422, RS485, CRLOOP, NONE EDP.ECHO EDP port echo ON, OFF PRN.BAUD Printer port baud rate 300, 600, 1200, 2400, 4800, 9600, 19200, 38400 PRN.BITS Printer port data bits/parity 8NONE, 7EVEN, 7ODD PRN.TERMIN Printer port termination character CR/LF, CR PRN.EOLDLY Printer port end-of-line delay 0–255 (0.1-second intervals) PRN.ADDRESS Printer port address 0-255 PRN.PORT Printer port selection RS232, RS422, RS485, CRLOOP, NONE PRN.ECHO Printer port echo ON,OFF STREAM Streaming port OFF, EDP, PRN PRNDEST Print destination EDP, PRN

Table 5-6. SERIAL EDP Commands

Command Description Valu es

REGULAT Regulatory compliance NTEP, OIML, CANADA, NONE CONSNUM Consecutive number 0–999 999 CONSTUP Consecutive number start-up value 0–999 999

Table 5-7. PROGRM EDP Commands

EDP Commands 35

Page 40

Command Description Valu es

PWRUPMD Power up mode GO, DELAY SAMPSIZ Sample size 5, 10, 20, 50, 100, PCWGT CNTMOD Count mode access DISABLE, ENABLE UID Unit identifier 000000–999999 STNDBY Standby 0-255 DATEFMT Date format MMDDYY, DDMMYY, YYMMDD, YYDDMM DATESEP Date Separator SLASH, DASH, SEMI TIMEFMT Time format 12HOUR, 24HOUR TIMESEP Time separator COLON, COMMA

Table 5-7. PROGRM EDP Commands (Continued)

Command Description Valu es

GFMT Gross demand print format string See Section 6.0 on page 39 for detailed information NFMT Net demand print format string CFMT Count demand print format

Table 5-8. PFORMT EDP Commands

Command Description Valu es

DIGIN1 DIGIN2 DIGIN3 DIGIN4

Digital input function OFF, ZERO, TARE, NT/GRS, UNITS, DSPTAR, PRINT, CLRCN,

KBDLOC, HOLD, CLRTAR, CLRACC, ACCUM, ENTER, GROSS,

NET, PRIM, SEC, NEWID

Table 5-9. DIG IN EDP Commands

EDP digital output commands only function in TEST mode (see Figure 7-4 on page 51).

Command Description

DON#n Set digital output n on DOFF#n Set digital output n off DOFF#0 Set all digital outputs off DON#0 Set all digital outputs on For commands ending with “#n”, n is the digital output (1–4) being set on or off.

Table 5-10. DIG OUT EDP Commands

Command Description Valu es

AO1.SOURCE Analog output source GROSS, NET AO1.OFFSET Zero offset 0%, 20% AO1.ERRACT Error action FULLSC, HOLD, ZEROSC AO1.MIN Minimum value tracked 0–999 990 AO1.MAX Maximum value tracked 0–999 990 AO1.TWZERO Zero calibration 0–65535 AO1.TWSPAN Span calibration 0–65535

36 320IS Installation Manual

Table 5-11. ALGOUT 1 EDP Commands

Page 41

Command Description Valu es

AO2.SOURCE Analog output source GROSS, NET AO2.OFFSET Zero offset 0%, 20% AO2.ERRACT Error action FULLSC, HOLD, ZEROSC AO2.MIN Minimum value tracked 0–999 990 AO2.MAX Maximum value tracked 0–999 990 AO2.TWZERO Zero calibration 0–65535 AO2.TWSPAN Span calibration 0–65535

Table 5-12. ALGOUT 2 EDP Commands

5.1.5 Normal Mode Commands

The serial transmit weight data commands (see Table 5-13) transmit data to the EDP port on demand. The SX and EX commands are valid only in normal operating mode; all other commands are valid in either setup or normal mode.

Command Description Response Format

SX Start EDP streaming OK or ?? EX Stop EDP streaming OK or ?? RS Reset system — XG Transmit gross weight in displayed units nnnnnn UU

where nnnnnn is the weight value, UU is the units.XN Transmit net weight in displayed units XT Transmit tare weight in displayed units XG2 Transmit gross weight in non-displayed units XN2 Transmit net weight in non-displayed units XT2 Transmit tare weight in non-displayed units XE Query system error conditions xxxxx yyyyy

See Section 7.1.2 on page 42 for detailed information about

the XE command response format. XA Transmit accumulation value UID set unit ID nnnnnn CONSNUM Set consecutive number

Table 5-13. Normal Mode EDP Commands

EDP Commands 37

Page 42

5.2 Saving and Transferring Data

Note

Saving and transferring data requires the use of an I/O Module.

Connecting a personal computer to the 320IS EDP port allows you to save indicator configurati on data to the PC or to download configuration data from the PC to an indicator. The following sections describe the procedures for these save and transfer operations.

Saving and transferring data requires the optional I/O module. See Section 8.0 on page 53 for more information on the I/O module.

5.2.1 Saving Indicator Data to a Personal Computer

Configuration data can be saved to a personal computer connected to the EDP port. The PC must be running a

communications program such as ProComm Plus

78076) OR, Section 8.0 on page 53, for information about serial co mmunications wiring and EDP port pin assignments.

When configuring the indicator, ensure that the values set for the BAUD and BITS parameters on the SERIAL menu match the baud rate, bits, and parity settings configured for the serial port on the PC. Set the PRNDES parameter to EDP.

To save all configuration data, place the indicator in setup mode and send the DUMPALL EDP command to the indicator. The 320IS responds by sending all configuration parameters to the PC as ASCII-formatted text.

5.2.2 Downloading Configuration Data from PC to Indicator

Configuration data saved on a PC or floppy disk can be downloaded from the PC to an indicator. This procedure is useful when a number of indicators with similar configurations are set up or when an indicator is replaced.

To download configuration data, connect the PC to the EDP port as described in Section 5.2.1. Place the indicator in setup mode and use the PC communications software to send the saved configuration data to the indicator. When transfer is complete, calibrate the indicator as described in Section 4.0 on page 31.

Calibration settings are included in the configuration data downloaded to the indicator.

If the receiving indicator is a direct replacement for another 320IS and the attached scale is not changed, recalibration is not required.

or Revolution®. See the I/O Module Installation Manual (PN

1. ProComm Plus is a registered trademark of Symantec Corporation.

38 320IS Installation Manual

Page 43

6.0 Print Formatting

The 320IS provides four print formats, GFMT, NFMT, and CFMT that determine the format of the printed output when the acquired, NFMT is used; otherwise, GFMT is used.

Each print format can be customized to include up to 300 characters of information, such as company name and address, on printed tickets. Use the indicator front panel (PFORMT menu), EDP commands, or the Revolution

configuration utility to customize the print formats.

6.1 Print Formatting Commands

Table 6-1 lists commands that can be used to format the gross and net print formats. Commands included in the format strings must be enclosed between < and > delimiters. Any characters outside of the delimiters are printed as text on the ticket. Text characters can include any ASCII character that can be printed by the output device.

PRINT key is pressed or when a KPRINT EDP command is received. If a tare has been entered or

Ticket Format

Command Description

<G> Gross weight in displayed units 

<G2> Gross weight in non-displayed units 

<N> Net weight in displayed units 

<N2> Net weight in non-displayed units 

<T> Tare weight in displayed units 

<T2> Tare weight in non-displayed units 

<A> Accumulated weight in displayed units 

<AC> Number of accumulator event (5-digit counter) 

<AT> Time of last accumulator event 

<AD> Date of last accumulator event 

<TI> Time  <DA> Date  <TD> Time and date 

<UID> ID number 

<CN> Consecutive number 

<W> Average piece weight in count mode Ö

<C> Piece count Ö

<NL> New line, end of line termination

GFMT/NFMT/CFMT

Table 6-1. Print Format Commands

The default GFMT and NFMT print formats use only the new line (<NL>) command and the commands for gross, net, and tare weights in displayed units (<G>, <N>, and <T>).

The default 320IS print formats are shown in Table 6-2:

Format Default Format String Sample Output

GFMT <G> GROSS<NL> 2046.81 LB GROSS

NFMT <G> GROSS<NL>

CFMT GROSS<G><NL>TARE<SP><T><NL>NET<SP2><N><NL>COUNT<C><NL>APW<SP2>

<W><NL>

NOTE: In OIML and CANADA modes, the letters PT (preset tare) are automatically inserted after the printed tare weight.

Table 6-2. GFMT and NFMT Formats

4053.1 LB GROSS

15.6 LB TARE

4037.5 LB NET

Print Formatting 39

Page 44

The <G2>, <N2>, and <T2> commands listed in Table 6-1 print the gross, net, and tare weights in non-displayed units—

Note

that is, in the units not currently displayed on the indicator.

ID numbers included in the print format string (<UID> command) must be set using the UID=VAL EDP command.

The 300-character limit of each print format string includes the output field length of the print formatting commands, not the command length. For example, if the indicator is configured to show a decimal point, the <G> command generates an output field of 13 characters: the 10-character weight value (including decimal point), one space, and a two-digit units identifier.

6.2 Customizing Print Formats

The following sections describe procedures for customizing the GFMT, NFMT and formats using the EDP port, the front panel (PFORMT menu), and the Revolution® configuration utility.

6.2.1 Using the EDP Port

With a personal computer, terminal, or remote keyboard attached to the I/O Module EDP port, you can use the EDP command set to customize the print format strings.

To view the current setting of a format string, type the name of the string (GFMT or NFMT) and press example, to check the current configuration of the GFMT format, type GFMT and press

ENTER. The indicator

responds by sending the current configuration for the gross format:

GFMT=<G> GROSS<NL>

To change the format, use the GFMT or NFMT EDP command followed by an equals sign (=) and the modified print format string. For example, to add the name and address of a company to the gross format, you could send the following EDP command:

GFMT=FINE TRANSFER CO<NL>32400 WEST HIGHWAY ROAD<NL>SMALLTOWN<NL2><G> GROSS<NL>

A ticket printed using this format might look like the following:

FINE TRANSFER CO 32400 WEST HIGHWAY ROAD SMALLTOWN

ENTER. For

1345 LB GROSS

6.2.2 Using the Front Panel

If you have no access to equipment for communication through the EDP port or are working at a site where such equipment cannot be used, you can use the PFORMT menu (see Figure 6-1 on page 41) to customize the print formats.

Using the PFORMT menu, you can edit the print format strings by changing the decimal values of the ASCII characters in the format string.

Lowercase letters and some special characters cannot be displayed on the 320IS front panel (see the ASCII character chart on Table 7-5 on page 45 and Table 7-7 on page 46) and are shown as blanks. The 320IS can send or receive any ASCII character; the character printed depends on the particular ASCII character set implemented for the receiving device.

40 320IS Installation Manual

Page 45

Figure 6-1. PFO RMT Menu

GFMT

Display rst 6

characters of format

Same as GFMT

NFMT

Display and edit

active character and

ASCII value

Delete active

character

Scroll right in format stringScroll left in format string

Increment ASCII value of active characterDecrement ASCII value of active character

Press to insert a space

before the active character

XXXXXXX XXXXXXX

XXXXXXXXXXXXXX

VERSALGOUTDIG IN

PROGRM PFORMTSERIALCALIBRCONFIG FORMAT

XXXXXXX

SETPNT

6.2.3 Using Revolution®

The Revolution configuration utility provides a print formatting grid with a tool bar. The grid allows you to construct the print format without the formatting commands (<NL> and <SP>) required by the front panel or EDP command methods. Using Revolution, you can type text directly into the grid, then select weight value fields from the tool bar and place them where you want them to appear on the printed ticket.

Figure 6-2. Revolution Ticket Editor

Print Formatting 41

Page 46

7.0 Appendix A

7.1 Error Messages

The 320IS indicator provides a number of error messages. When an error occurs, the message is shown on the indicator LED display. Error conditions can also be checked remotely by using the XE EDP command as described in Section 7.1.2.

7.1.1 Displayed Error Messages

The 320IS provides a number of front panel error messages to assis t in problem diagnosis. Table 7-1 lists these messages and their meanings.

Error Message Description Solution

E A/D A/D physical error Call Rice Lake Weighing Systems (RLWS) Service.

EEPERR EEPROM physical error

EVIREE Virgin EEPROM Use TEST menu to perform DEFLT (restore defaults) procedure, then EPCKSM Parameter checksum error EACKSM A/D calibration checksum error A/D converter requires recalibration. Call RLWS Service. EFCKSM Printer format checksum error Call RLWS Service. ELCKSM Load cell calibration checksum error Recalibrate load cells.

EIDATA Internal RAM error Call RLWS Service.

EREF A/D reference error A/D converter requires recalibration. Call RLWS Service.

LOBTRY Low battery

ENOOPC No optical communication

OVRFLW Overflow Weight value too large to be displayed.

EXDATA External RAM error CNTERR Count error DSPERR Display error

Error Internal program error Check configuration. Run XE command (see Section 7.1.2 on

^^^^^^ Overflow error

______ A/D underrange A/D reading < –4 mV. Check scale for binding or damage.

recalibrate load cells.

page 42) to determine error type. Call RLWS Service if unable to clear error by cycling power or if error

recurs.

Table 7-1. 320IS Error Messages

7.1.2 Using the XE EDP Command

The XE EDP command can be used to remotely query the 320IS for the error conditions shown on the front panel. The XE command returns two 5-digit numbers in the format:

xxxxx yyyyy

where xxxxx contains a decimal representation of any existing error conditions as described in Table 7-2. If more than one error condition exists, the number returned is the sum of the values representing the error

conditions. For example, if the XE command returns the number 1040, this value represents the sum of an A/D reference error (1024) and an A/D calibration checksum error (16).

The second number returned ( test for the error condition was run. For example, the value

yyyyy) uses the same bit assignments as sh own in Table 7-2 to indicate whether th e

yyyyy = 63487 represents the decimal equivalent of the

binary value 1111 0111 1111 1111. Using the bit assignments in Table 7-2, this value indicates all tests were run.

42 320IS Installation Manual

Page 47

Error Code Description Binary Value

1 EEPROM physical error 0000 0000 0000

0001

2 Virgin EEPROM 0000 0000 0000

0010

4 Parameter checksum

error

8 Load cell calibration

checksum error

16 A/D calibration

checksum error

32 Print format checksum

error

64 Internal RAM checksum

error

128 External RAM error 0000 0000 1000

256 No optical

communication

512 A/D physical error 0000 0010 0000

1024 A/D reference error 0000 0100 0000

2048 Count error 0000 1000 0000

4096 Low battery 0001 0000 0000

8192 Display error 0010 0000 0000

16384 A/D underrange 0100 0000 0000

32768 Overflow 1000 0000 0000

0000 0000 0000

0100

0000 0000 0000

1000

0000 0000 0001

0000

0000 0000 0010

0000

0000 0000 0100

0000

0000 0001 0000

0000

Table 7-2. Error Codes Returned on XE Command

7.2 Status Messages

Two EDP commands, P and ZZ, can be used to provide status about the indicator. These commands are described in the following sections.

7.2.1 Using the P EDP Command

The P EDP command returns the current displayed weight value to the EDP port, along with the units identifier. If the indicator is in an underrange or overload condition, the weight value is replaced with ^^^^^^ (overload) or

_ _ _ _

(under range).

7.2.2 Using the ZZ EDP Command

The ZZ EDP command can be used to remotely query which annunciators are currently displayed on the indicator front panel. The ZZ command returns the currently displayed weight and a decimal number representing the LED annunciators currently lit. The format of the returned data is;

wwwwww uu zzz

where wwwwww uu is the current displayed weight and units, zzz is the annunciator status value (see Table 7-3). If more than one annunciator is lit, the second number returned is the sum of the values representing the active annunciators.

Appendix A 43

_ _

Page 48

For example, if the annunciator status value returned on the ZZ command is 148, the gross, standstill, and lb

ASCII

02(decimal)

Polarity:<Space> = Positive <–> = Negative <^> = Overload <]> = Underrange

Weight data: 7 digits, right-justiﬁed, with decimal point, leading zero suppression.

Overload =

^^^^^^^

Underrange =

] ] ] ] ] ] ]

Display overﬂow = OVERFL

L = pounds K = kilogram T = ton G = grams O = ounces <space> = none

G = Gross N = Net

Status:<space> = valid I = Invalid M = In motion O = Over/under range

<CR> <LF>or

<CR>

ASCII 13, 10

(decimal)

annunciators are lit: 148 represents the sum of the values for the standstill annunciator (16), gross mode annunciator (128), and the lb/primary units annunciator (4).

Decimal

Val ue

1Tare 2Count 4lb

8kg 16 Standstill 32 Center of zero 64 Net

128 Gross

Annunciator

Table 7-3. Status Codes Returned on the ZZ Command

7.3 Continuous Output (Stream) Format

Figure 7-1 shows the continuous output format sent to the 320IS EDP or printer port when the STREAM parameter (SERIAL menu) is set to either EDP or PRN.

Figure 7-1. Continuous Output Data Format

44 320IS Installation Manual

Page 49

7.4 ASCII Character Chart

Use the decimal values for ASCII characters listed in Tables 7-5 and 7-7 when specifying print format strings on the 320IS PFORMT menu. The actual character printed depends on the character mapping used by the output device.

The 320IS connected to an I/O Module can send or receive any ASCII character value (decimal 0–255), but the indicator display is limited to numbers, upper-case, unaccented letters, and a few special characters.

Control ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex

Ctrl-@ NUL 00 00 space 32 20 @ 64 40 ` 96 60

Ctrl-A SOH 01 01 ! 33 21 A 65 41 a 97 61 Ctrl-B STX 02 02 “ 34 22 B 66 42 b 98 62 Ctrl-C ETX 03 03 # 35 23 C 67 43 c 99 63 Ctrl-D EOT 04 04 $ 36 24 D 68 44 d 100 64

Ctrl-E ENQ 05 05 % 37 25 E 69 45 e 101 65

Ctrl-F ACK 06 06 & 38 26 F 70 46 f 102 66 Ctrl-G BEL 07 07 ’ 39 27 G 71 47 g 103 67 Ctrl-H BS 08 08 ( 40 28 H 72 48 h 104 68

Ctrl-I HT 09 09 ) 41 29 I 73 49 i 105 69

Ctrl-J LF 10 0A * 42 2A J 74 4A j 106 6A Ctrl-K VT 11 0B + 43 2B K 75 4B k 107 6B

Ctrl-L FF 12 0C , 44 2C L 76 4C l 108 6C Ctrl-M CR 13 0D - 45 2D M 77 4D m 109 6D Ctrl-N SO 14 0E . 46 2E N 78 4E n 110 6E Ctrl-O SI 15 0F / 47 2F O 79 4F o 111 6F

Ctrl-P DLE 16 10 0 48 30 P 80 50 p 112 70 Ctrl-Q DC1 17 11 1 49 31 Q 81 51 q 113 71 Ctrl-R DC2 18 12 2 50 32 R 82 52 r 114 72

Ctrl-S DC3 19 13 3 51 33 S 83 53 s 115 73

Ctrl-T DC4 20 14 4 52 34 T 84 54 t 116 74 Ctrl-U NAK 21 15 5 53 35 U 85 55 u 117 75

Ctrl-V SYN 22 16 6 54 36 V 86 56 v 118 76 Ctrl-W ETB 23 17 7 55 37 W 87 57 w 119 77

Ctrl-X CAN 24 18 8 56 38 X 88 58 x 120 78

Ctrl-Y EM 25 19 9 57 39 Y 89 59 y 121 79

Ctrl-Z SUB 26 1A : 58 3A Z 90 5A z 122 7A

Ctrl-[ ESC 27 1B ; 59 3B [ 91 5B { 123 7B Ctrl-\ FS 28 1C < 60 3C \ 92 5C | 124 7C

Ctrl-] GS 29 1D = 61 3D ] 93 5D } 125 7D Ctrl-^ RS 30 1E > 62 3E ^ 94 5E ~ 126 7E Ctrl-_ US 31 1F ? 63 3F _ 95 5F DEL 127 7F

Table 7-5. ASCII Character Chart (Part 1)

Appendix A 45

Page 50

ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex

Ç 128 80 á 160 A0 192 C0 a 224 E0

ü 129 81 í 161 A1 193 C1 b 225 E1 é 130 82 ó 162 A2 194 C2 G 226 E2 â 131 83 ú 163 A3 195 C3 p 227 E3 ä 132 84 ñ 164 A4 196 C4 S 228 E4 à 133 85 Ñ 165 A5 197 C5 s 229 E5 å 134 86 ª 166 A6 198 C6 m 230 E6 ç 135 87 º 167 A7 199 C7 t 231 E7 ê 136 88 ¿ 168 A8 200 C8 F 232 E8 ë 137 89 169 A9 201 C9 Q 233 E9 è 138 8A ¬ 170 AA 202 CA W 234 EA

ï 139 8B 1/2 171 AB 203 CB d 235 EB î 140 8C 1/4 172 AC 204 CC ¥ 236 EC

ì 141 8D ¡ 173 AD 205 CD f 237 ED Ä 142 8E « 174 AE 206 CE Î 238 EE Å 143 8F » 175 AF 207 CF Ç 239 EF

É 144 90 176 B0 208 D0 º 240 F0 æ 145 91 177 B1 209 D1 ± 241 F1 Æ 146 92 178 B2 210 D2 ³ 242 F2

ô 147 93 179 B3 211 D3 £ 243 F3

ö 148 94 180 B4 212 D4 ó 244 F4

ò 149 95 181 B5 213 D5 õ 245 F5

û 150 96 182 B6 214 D6 ¸ 246 F6

ù 151 97 183 B7 215 D7 » 247 F7

ÿ 152 98 184 B8 216 D8 ° 248 F8

Ö 153 99 185 B9 217 D9 · 249 F9 Ü 154 9A 186 BA 218 DA 250 FA

¢ 155 9B 187 BB 219 DB 251 FB

£ 156 9C 188 BC 220 DC 252 FC

¥ 157 9D 189 BD 221 DD

253 FD

Pts 158 9E 190 BE 222 DE 254 FE

ƒ 159 9F 191 BF 223 DF 255 FF

46 320IS Installation Manual

Table 7-7. ASCII Character Chart (Part 2)

Page 51

7.5 Conversion Factors for Secondary Units

Note

The 320IS has the capability to mathematically convert a weight into many different types of units and instantly display those results with a press of the

Secondary units can be specified on the FORMAT menu using the SECNDR parameter, or by using EDP commands.

• SEC.MULT only applies if UNITS parameter (SECNDR) is set to NONE.

• To configure secondary units using the front panel, use Table 7-8 to find the conversion multiplier for the MULT parameter. For example, if the primary unit is pounds and the secondary unit is short tons, set the MULT parameter to 0.000500

ou must use the MULT parameter to set the decimal point position. Use the numeric keypad or the

RIGHT keys to select the digit. Use the UP/DOWN keys to increment and decrement. LEFT/RIGHT keys also

select decimal placement. To configure secondary units using EDP commands, use the Table 7-8 to find the conversion multiplier for

• the SEC.MULT command. For example, if the primary unit is pounds and the secondary unit is short tons, send the EDP command SEC.MULT= 0.0005<CR> to set the multiplier for the secondary units.

• Long tons and grains units listed in Table 7-8 cannot be directly specified as primary or secondary units on the 320IS indicator. For these or other unlisted units of weight, specify NONE on the UNITS parameter.

Ensure that the secondary decimal point position is set appropriately for the scale capacity in the secondary units. If the converted value requires more digits than are available, the indicator will display an overflow message (OVERFL).

For example, if the primary units are short tons, secondary units are pounds, and the secondary decimal point is set to

8888.88, the indicator will overflow if 5 tons or more are applied to the scale. With 5 tons applied, and a conversion factor of 2000, the secondary units display needs five digits to the left of the decimal point to display the 10000 lb secondary units value.

UNITS key.

LEFT/

Appendix A 47

Page 52

Primary Unit x Multiplier Secondary Unit

grains 0.064799 grams

0.002286 ounces

0.000143 pounds

0.000065 kilograms

ounces 437.500 grains

28.3495 grams

0.06250 pounds

0.02835 kilograms

pounds 7000.00 grains

453.592 grams

16.0000 ounces

0.453592 kilograms

0.000500 short tons

0.000446 long tons

0.000453 metric tons

short tons 2000.00 pounds

907.185 kilograms

0.892857 long tons

0.907185 metric tons

grams 15.4324 grains

0.035274 ounces

0.002205 pounds

0.001000 kilograms

kilograms 15432.4 grains

35.2740 ounces

1000.00 grams

2.20462 pounds

0.001102 short tons

0.000984 long tons

0.001000 metric tons

metric tons 2204.62 pounds

1000.00 kilograms

1.10231 short tons

0.984207 long tons

long tons 2240.00 pounds

1016.05 kilograms

1.12000 short tons

1.01605 metric tons

48 320IS Installation Manual

Table 7-8. Conversion Factors

Page 53

7.6 Digital Filtering

OFF

DIGFLT

128

256

8OUT

32OUT

16OUT

64OUT

DFSENS DFTHRH

2OUT

128OUT

4OUT

2DD

NONE

5DD

20DD

10DD

50DD

200DD

100DD

250DD

The 320IS uses RATTLETRAPTM digital filtering to reduce the effect of vibration on weight readings. Adjustable threshold and sensitivity functions allow quick settling by suspending filter averaging, allowing the weight reading to jump to the new value. Figure 7-2 shows the digital filter parameters on the CONFIG menu.

Figure 7-2. Digital Filtering Parameters on the Configuration (CONFIG) Menu

7.6.1 DFSENS and DFTHRH Parameters

The digital filter can be used to eliminate vibration effects, but heavy filtering also increases settling time. The DFSENS (digital filter sensitivity) and DFTHRH (digital filter threshold) parameters can be used to temporarily override filter averaging and improve settling time:

• DFSENS specifies the number of consecutive scale readings that must fall outside the filter threshold (DFTHRH) before digital filtering is suspended.

• DFTHRH sets a threshold value, in display divisions. When a specified number of consecutive scale readings (DFSENS) fall outside of this threshold, digital filtering is suspended. Set DFTHRH to NONE to turn off the filter override.

7.6.2 Setting the Digital Filter Parameters

Fine-tuning the digital filter greatly improves indicator performance in heavy-vibration environments. Use the following procedure to determine vibration effects on the scale and optimize the digital filtering configuration.

1. In setup mode, set the digital filter to 1. Set DFTHRH to NONE. Return indicator to normal mode.

2. Remove all weight from the scale, then watch the indicator display to determine the magnitude of vibration effects on the scale. Record the weight below which all but a few readings fall. This value is used to calculate the DFTHRH parameter value in Step 4.

For example, if a heavy-capacity scale produces vibration-related readings of up to 50 lb, with occasional spikes to 75 lb, record 50 lb as the threshold weight value.

3. Place the indicator in setup mode and set the digital filter (DIGFLT) to eliminate the vibration effects on the scale. (Leave DFTHRH set to NONE.) Reconfigure as necessary to find the lowest effective value for the digital filter.

4. Calculate the DFTHRH parameter value by converting the weight value recorded in Step 2 to display divisions:

threshold_weight_value / DSPDIV

In the example in Step 2, with a threshold weight value of 50 lb and a display division value of 5D: 50 / 5D

= 10.

DFTHRH should be set to 10DD for this example. See Figure 3-2 on page 22 for more information

on display divisions.

5. Finally, set the DFSENS parameter high enough to ignore transient peaks. Longer transients (typically caused by lower vibration frequencies) cause more consecutive out-of-band readings, so DFSENS should be set higher to counter low frequency transients.

Reconfigure as necessary to find the lowest effective value for the DFSENS parameter.

Appendix A 49

Page 54

7.7 Analog Output Calibration

Note

SOURCE

GROSS

20%

OFFSET ERRACT

FULLSC

HOLD

000000

number

MIN

10000

number

MAX TWZERO

NET

TWSPAN

ZEROSC

ALOUT1

number

65300

number

ALOUT2

XXXXXXX XXXXXXX

XXXXXXXXXXXXXX

VERSALGOUTDIG IN

PROGRM PFORMTSERIALCALIBRCONFIG FORMAT

XXXXXXX

SETPNT

SOURCE

GROSS

20%

OFFSET ERRACT

FULLSC

HOLD

000000

number

MIN

10000

number

MAX TWZERO

NET

TWSPAN

ZEROSC

number

65300

number

The following calibration procedure requires a multimeter to measure voltage or current output from the analog output of the I/O module. If the option is not already installed, see Section 3.3.7 on page 29.

The analog output must be calibrated after the indicator itself has been configured (Section 3.0 on page 18) and calibrated (Section 4.0 on page 31)

Figure 7-3. Analog Output Menu

1. Enter setup mode and go to the ALGOUT menu (see Figure 7-3). See Table 8-7 on page 57 for information on switch settings.

• Set OFFSET to 0% for 0-5 V, ±5 V, ±10 V output, 20% for 4–20 mA output

• Set MIN to lowest weight value to be tracked by the analog output

• Set MAX to highest weight value to be tracked by the analog output

2. Connect multimeter to desired analog output:

• For voltage output, connect voltmeter leads to pins 1 and 3 for ALOUT1 or pins 6 and 5 for ALOUT2

• For current output, connect ampmeter leads to pins 1 an d 2 ALOUT1 or pins 4 and 6 for ALOUT2

3. Adjust zero calibration: Scroll to the TWZERO parameter. Check voltage or current reading on multimeter. Press and hold or to adjust the zero value up or down. Press

Enter to save the displayed value.

4. Adjust span calibration: Scroll to the TWSPAN parameter. Check voltage or current reading on multimeter. Press and hold or to adjust the span value up or down. Press

5. Final zero calibration: Return to the TWZERO parameter and verify that the zero calibration has not drifted. Press and hold or to re-a djust the zero value as required. Press value.

Enter to save the displayed value.

Enter to save the displayed

6. Return to normal mode. Analog output function can be verified using test weights.

50 320IS Installation Manual

Page 55

7.8 Test Mode

A/DTST

TEST

ADCAL-

ADCAL+

D/I 1

D/I 2

D/I 4 D/O 1

D/O 2

D/I 3

D/O 3 D/O 4 A/O 1 A/O 2

DEFLT XMTEDP XMTPRN ECHO R

Exit

Not Used

Enter

Move Left Move Right

In addition to normal and setup modes, test mode provides a number of diagnostic functions for the 320IS, including:

• Display raw A/D count

• Calibrate A/D offset and gain

• Display digital input states

• Reset configuration parameters to default values

• Transmit test character (“U”) from serial port

• Display characters received by external serial port

• Set analog output state to zero or full scale

To enter test mode, press and hold the setup switch until the front panel display shows the word three seconds, the test mode display automatically shifts to the first test menu function, A/DTST.

Figure 7-4 shows the Test Menu structure; Figure 7-5 shows the front panel key functions in test mode. Note that, because the Test Menu functions are all on a single menu level, the

ZERO ( ) key to exit test mode.

GROSS/NET ( ) key has no function. Press the

Table 7-9 on page 52 summarizes the test menu functions.

TEST. After about

Figure 7-4. Test Menu

Figure 7-5. Front Panel Key Functions in Test Mode

Appendix A 51

Page 56

TEST Menu

WARNING

Function Description

A/DTST Display A/D test

Press and hold ENTER key to display raw counts from A/D converter.

ADCAL- (ADOFFS)

A/D calibration functions must only be used by qualified service personnel. Improper A/D calibration may render indicator unusable.

ADCAL+ (ADGAIN)

A/D calibration functions must only be used by qualified service personnel. Improper A/D calibration may render indicator unusable.

D/I 1 Display digital input 1

Press and hold ENTER key to show status of DIGIN1 (DIN1=1 or DIN1=0).

D/I 2 Display digital input 2

Press and hold ENTER key to show status of DIGIN2 (DIN2=1 or DIN2=0).

D/I 3 Display digital input 3

Press and hold ENTER key to show status of DIGIN3 (DIN3=1 or DIN3=0).

D/I 4 Display digital input 4

Press and hold ENTER key to show status of DIGIN4 (DIN4=1 or DIN1=0).

D/O 1 Set digital output 1 to High

Press and hold ENTER key to set digital output 1 to High (DO1=HI).

D/O 2 Set digital output 2 to High

Press and hold ENTER key to set digital output 2 to High (DO2=HI).

D/O 3 Set digital output 3 to High

Press and hold ENTER key to set digital output 3 to High (DO3=HI).

D/O 4 Set digital output 4 to High

Press and hold ENTER key to set digital output 4 to High (DO4=HI).

A/O 1 Set analog output 1 to full scale

Press and hold ENTER key to set analog output 1 to its full-scale value.

A/O 2 Set analog output 2 to full scale

Press and hold ENTER key to set analog output 2 to it full-scale value.

DEFLT Default parameters

Press setup switch and ENTER key at the same time to reset configuration and calibration parameters to factory default values. Load cells must be recalibrated before using the indicator (see Section 4.0 on page 31).

XMTEDP Transmit “U” through EDP port

Press and hold ENTER key to send ASCII “U” characters (decimal 85) from the serial port.

XMTPRN Transmit “U” through PRN port

Press and hold ENTER key to send ASCII “U” characters (decimal 85) from the serial port.

ECHO R Echo received characters

Press and hold ENTER key to view a string of characters terminated with a carriage return <CR> received at either serial port.

52 320IS Installation Manual

Table 7-9. Test Menu Functions

Page 57

8.0 Appendix B

CAUTION

WARNING

This section describes procedures for connecting the analog and digital I/Os, fiber optic and serial communication cables to the 320IS .

Use a wrist strap to ground yourself and protect components from electrostatic discharge (ESD) when working inside the indicator enclosure.

8.1 Unpacking and Assembly

Immediately after unpacking, visually inspect the 320IS to ensure all components are included and undamaged. The shipping carton should contain the 320IS , Installation Manual (PN 78076), and a parts kit. If any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately.

8.2 Enclosure Disassembly

The 320IS enclosure must be opened to connect cables for load cells, communications, and power.

The I/O Module has does not have an on/off switch. Before opening the unit, ensure the power is disconnected.

8.3 Installation of the I/O Module

The following section describes the wiring of various ports of the 320IS . Table 8-1 below lists the connectors of the main board of the 320IS . See Figure 8-1 for port locations.

Connector Description

CN1 Analog Outputs CN2 EDP Port CN3 Printer Port CN4 Digital Inputs CN5 Relay Outputs CN8 DC Power Optical Input Light Port Optical Output Light Port

Table 8-1. I/O Module Wiring Ports

Appendix B 53

Page 58

R34

R22

C27

R65

R3 5

R31

R55

R39

TVS3

C10

C11

R14

R12

R15

D11

R42

R4 3

R45

OP4

R48

C14

TVS4

R17

R21

R32

CN 6

R26

R47

R20

R19

R51

R18

R53

C25

R37

C18

R57

R58

R62

R63

R25

C26

R10

R11

C15

C28

C29

C36

U12

C21

C24

R23

R36

R56

IF-D91

PD 1

C16

C17

C19

R28

C44

U15

R59

R60

R61

R54

CN7

C35

R13

LD1

LD2

D9 D10

R38

R40

R41

SW 1

OP2

OP3

LD 4

D12

R44

R46

TVS6

TVS2

C12

C13

C47

R64

U17

C34

C41

C40

D17

D14 D15

R50

R52

R16

CN8

MH1

OP 6

C43

U14

U10

R33

IF-E96

LD 5

GD1

C30

C31

OP7

TVS5

OP1

OP8

OP9

R49

C20

R29

C23

R30

C32

C46

CN2

TVS1

C22

U13

LD3

C33

U16

GD2

SW 2

C45

U18

CN4

D13

D16

U11

OP5

U19

R27

OP10

T1A

CN1

CN3

CN5

SO16

1A 2B

3 4 5

HI LO LO

3 4 5

+5V

DGND

3 2 4

TD(A)

DGND

23 4

TD(A)

C H

V+ I+

Gnd-

20m A

LIGHT PORT

RS-232/485

SOW16

3A 3B 4B

LO HI LO

AGND

PWR

GND

DGND

IGND

RD(B)

TD(B)

20m A

RD(A) RD(B)

TD(B)

V+ I+

Gnd-

C H

RS-232/485

ASSEMBL

Y P/N

OPTICAL OUTPUT

DGND

DIGIT AL OUTPUTS - Y CONTACTS

DIGITAL INPUTS +5 VOLTS

RD(A)

IGND

OPTICAL INPUT

RICE LAKE WEIGHING SYSTEMS

U20

GND

+VDC

Connector CN8

Figure 8-1. I/O Module Board

The 320IS must be installed in a safe area. The internal power supply unit provides DC voltage for the 320IS ’s main board. The DC power requirements of the I/O panel are as follows:

• Nominal input voltage: 7.5V

• Peak current consumption: 930mA

• Average input current: 630mA

The DC power cable should be attached to connector CN8. Care should be taken to apply the correct DC polarity. Power connection of the main board is listed in Table 8-2.

54 320IS Installation Manual

Pin Description Wire Color

1+VDC Green 2 Ground Brown

Table 8-2. Power Connections (CN8)

Figure 8-2. CN8 - DC Power Connector

Page 59

8.3.1 AC Wiring/Installation

The 320IS is to be permanently mounted with a readily accessible disconnect device incorporated in the building installation wiring. All wiring is to be done in accordance with the National Electric Code (NEC).

8.3.2 EDP and Printer Ports

The indicator communicates with external devices through the 320IS located in a remote locat ion. The I/O board serves as a gateway with several types of communication interfaces (RS-232, RS-422, RS-485, and 20mA current loop). The following sections explain how to install and configure the communication interfaces to establish serial communications with peripheral devices.

8.3.3 RS-232 Communications

To attach a PC or other device to the 320IS ’s RS-232 ports, select RS-232 standard in the indicator SERIAL menu for the appropriate port (EDP and/or printer). EDP and printer ports should be configured separately. See Table 8-3 below for information on connecting RS-232 communications.

Pin Description (Sign)

1 Signal Ground (GND) 2— 3— 4— 5 Receive Data (RXD) 6— 7— 8Transmit Data (TXD)

Table 8-3. RS-232 Connections (CN2 and CN3)

8.3.4 RS-485 Communications

To attach a PC or other device to the 320IS’s RS-485 ports, select RS-485 standard in the indicator SERIAL menu for the desired port (EDP and/or printer). EDP and printer ports should be configured separately. See Table 8-4 below for information on connecting RS-485.

Pin Description (Sign)

1 Signal Ground (GND) 2— 3— 4— 5— 6— 7 RS-485 line (A) 8 RS-485 line (B)

Table 8-4. RS-485 Connections (CN2 and CN3)

Appendix B 55

Page 60

8.3.5 RS-422 Communications

I/O Modul e

Note

To attach a PC or other device to the 320IS ’s RS-422 ports, select RS-422 standard in the indicator SERIAL menu for the desired port (EDP and/or printer). EDP and printer ports should be configured separately. See Table 8-5 below for information on connecting RS-422 communications.

Pin Description (Sign)

1Signal Ground (GND) 2— 3— 4— 5 RS-422 input (R+) 6 RS-422 input (R-) 7 RS-422 output (T+) 8 RS-422 output (T-)

Table 8-5. RS-422 Connections (CN2 and CN3)

Figure 8-3. Typical RS-422 W i ring Paths

8.3.6 20mA Current Loop

To attach a PC or other device to the 320IS ’s 20mA ports, select current loop (CRLOOP) standard in the indicator SERIAL menu for the desired port (EDP and/or printer). EDP and printer ports should be configured separately. See Table 8-6 for information on connecting 20mA current loop.

Pin Description (Sign)

1Signal Ground (GND) 2 Isolated Ground (GNDx) 3 Receive Data (RCL) Passive 4 Transmit Data (TCL) Active 5— 6— 7— 8—

Table 8-6. 20mA Current Loop Connections (CN2 and CN3)

8.4 Fiber Optics Assembly

The 320IS is equipped with duplex fiber optic ports for com municating with other devices located in the safe or hazardous area. It provides electrical isolation and eliminates the use of I/O barriers commonly used in intrinsically safe systems. The fiber optic wires are plastic; no polishing or further preparation is required. See Figure 8-1 on page 54 for the location of the fiber optic ports on the 320IS main board.

The fiber optic connections between the indicator and the 320IS need to be cross-linked. The optical output

56 320IS Installation Manual

of the indicator should be attached to the input of the320IS , and the indicator’s input to the module’s output.

Page 61

Use the following steps for assembling the fiber optics connectors of the 320IS :

Optical Fiber

Locking Nut

Portioning Foot

Housing

Lens

Mounting Hole

Device

LED

1. Cut off the ends of the fiber optic cable with a single-edge razor blade or sharp knife. Try to obtain a precise 90º angle.

2. Insert the fiber through the locking nut and into the connector until the core tip seats against the internal micro-lens.

3. Screw the connector locking nut down to a snug fit, locking the fiber in place.

4. Secure duplex fiber optic cable to wire tie mounting button located on I/O Module circuit board (see Figure 8-1 on page 54) using wire ties included in parts kit.

Figure 8-4. Fiber Optics Connector

8.5 Analog Outputs

The 320IS use s two 16-bit isolated analog output chann els with 4-20mA and voltage (0-5V/±5V/0-10V/±10V) outputs supplied from a DC/DC converter. The output voltage ranges are DIP-switch selectable (see Figure 8-1 on page 54). Analog output configuration is done via setup mode in the indicator used with the 320IS (see the applicable indicator installation manual).

The analog output circuitry consists of two identical channels that can be assigned to gross or net weight values. The analog outputs can be configured to operate as either current or voltage outputs. The voltage output range is selected by configuring DIP switches SW1 (1-6) for channel 1 and SW2 (1-6) for channel 2 (see Figure 8-1 on page 54).

The analog output port is powered by an isolated DC-DC converter. The outputs available on connector CN1 are listed in Table 8-8. See Figure 8-1 on page 54 for the location of CN1 and DIP switches.

Range

0–5V OFF OFF OFF ON X X

0–10V OFF ON X OFF ON X

±5V ON OFF OFF OFF ON X

±10V ON OFF ON OFF OFF ON

SW1-1 SW2-1

SW1-2 SW2-2

SW1-3 SW2-3

SW1-4 SW2-4

Table 8-7. Analog Output Range Configurations

Pin Name

1 Ground (Analog Output 1 Common) 2 Analog Output 1 (current) 3 Analog Output 1 (voltage) 4 Analog Output 2 (current) 5 Analog Output 2 (voltage) 6 Ground (Analog Output 2 Common)

Table 8-8. CN1 Connectors

SW1-5 SW2-5

SW1-6 SW2-6

Appendix B 57

Page 62

8.6 Digital Inputs

The 320IS has four digital inputs that can be used to control pre-defined operations in the indicator. Table 8 -9 outlines the various functions for the digital inputs.

Digital inputs are available on connector CN4 (see Figure 8-1 on page 54). All inputs are individually isolated via optocouplers. Table 8-9 outlines the pin connections for CN4.

Pin State Description

1 Hi Digital Input 1 (+V) 2 Low Ground 1 (–V) 3 Hi Digital Input 2 (+V) 4 Low Ground 2 (–V) 5 Hi Digital Input 3 (+V) 6 Low Ground 3 (–V) 7 Hi Digital Input 4 (+V) 8 Low Ground 4 (–V) 9Hi +5V

10 Low DGND

Table 8-9. CN4 Connections

The digital inputs are designed to receive 0-24V/TTL signals on the incoming lines. Care should be taken to apply the right DC polarity. Pins 9 and 10 (+5V and DGND) can be used to supply power to the digital inputs. Maximum current draw should not exceed 0.25A.

See the applicable indicator installation manual for information on checking current digital input states.

8.7 Relay Contact Outputs

The 320IS features four relay contact outputs, which default to open. This allows switching of maximum +30VDC, 5A or 250VAC, 5A for each of the four digital channels.

The relay contact outputs are controlled by user-configurable setpoints. The setpoint values and operating parameters can be defined in the SETPNT menu of the host indicator. See the indicator installation manual for information on configuring setpoints.

Table 8-10 shows pin connections for CN5 of the 320IS board.

Pin Description

1 Output 1_A 2 Output 1_B 3 Output 2_A 4 Output 2_B 5 Output 3_A 6 Output 3_B 7 Output 4_A 8 Output 4_B

Table 8-10. CN5 Connections

The states of the relay contacts are indicated by LEDs LD1–LD4 (see Figure 8-1 on page 54). When an LED is lit, the contacts of the corresponding relay are closed. See the applicable indicator installation manual for information on checking relay contact functionality.

58 320IS Installation Manual

Page 63

8.8 I/O Module Mounting

Note

7.50

10.84

(11.63)

(12.90)

.40

1.75

4x Ø.25

Ti ghten until clamps bottom out to fully compr ess gasket

The 320IS is capable of being mounted to any surface in the safe area using the mounting holes of the enclosure (see Figure 8-5 on page 59). Use 1/4" or larger mounting hardware.

Mounting surface must be capable of holding four times the weight of the 320IS and wiring.

Figure 8-5. 320IS Enclosure Dimensions

Appendix B 59

Page 64

.6 3

.2 5

1.00

.8 8

F 1

TO P

1.00

230 W. Coleman St. PO Box 272

Rice Lake

I 54868 (715)234-9171

R IC

E LA

E W E

H IN G SY

S T E M

Industrial Solutions on a Global Scal e

TO P

Refer to I/O Module Installation Manual (PN 78076) for a complete parts list.

Figure 8-6. I/O Module Assembly

60 320IS Installation Manual

Page 65

8.9 320IS Specifications

Power

Nominal Voltage Intrinsically safe power supply (7.5

VDC output) or optional 6 VDC battery Minimum Voltage 5.8 VDC Maximum Voltage 7.9 VDC Current Consumption 100 mA average

175 mA maximum (4 x 350load cells) Maximum Surface Temperature T4 Fusing 2 x 125 mA, fully-encapsulated (RLWS

PN 82432)

Analog Specifications

Full Scale Input Signal Up to 22.5 mV Load Cell Excitation 4.3VDC (350); 4.6VDC (700)

Load Cell Current 34 mA (4 x 350or 8 x 700 load

cells) Analog Signal

Input Range -0.5 mV/V to 4.5 mV/V

Analog Signal

Sensitivity 0.3 μV/graduation minimum,

1.5 μV/grad. recommended Input Impedance 200 M typical Internal Resolution 8,000,000 count

Display Resolution 100 000 dd maximum Measurement Rate Up to 60 measurements/sec. System Linearity Within 0.01% of full scale Zero Stability 150 nV/°C, maximum Span Stability 3.5 ppm/°C, maximum Calibration Method Software, constants stored in

EEPROM

RFI Protection Signal, excitation, and sense lines

protected by capacitor bypass

ESD/Transient

Protection 600 watt PPD, Transient

voltage suppressors

IEC 6100-4-2

8kv contact 15kv air discharge

Digital Specifications

Microcomputer Phillips PXAG30K processor @

22.1184 MHz Digital Filter RATTLETRAP

digital filtering

Optical Port

Physical Medium 2.2mm plastic fiber @ 640 nm Max Transmission

Length 246 ft. (75 m)

Operator Interface

Display 6-digit LED display. 16-segment, 0.8 in

(20 mm) digits

LED annunciators Gross, net, center of zero, standstill,

lb/primary units, kg/secondary units, count, tare

Front Panel 6-key flat membrane panel (including

power on/off button)

Environmental

Operating Temperature –10 to +40°C (14 to +104°F) Storage Temperature –25 to +70°C (-13 to +158°F) Humidity 0–95% relative humidity

Enclosure

Enclosure Dimensions 9.5 in x 6 in x 2.75 in

24 cm x 15 cm x 7 cm Weight 2.8 Kg (6.1 lb) Rating/Material UL Type 4X/IP-66

Certifications and Approvals

FM #0Z0AZ.AX

NTEP CoC Number 03-078 Accuracy ClassIII/III L

max

: 10 000

File Number: E151461

•

Appendix B 61

Page 66

62 320IS Installation Manual

Page 67

Page 68

230 W. Coleman St. • Rice Lake, WI 54868 • USA

U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319

Rice Lake Weighing Systems is an ISO 9001 registered company.

www.ricelake.com

August 05, 2016 PN 76412 Rev D

Rice Lake Weighing Systems 320IS Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

1.0 Introduction

1. 1 S af e ty

Safety Symbol Definitions

General Safety

1.2 Overview

1.3 Factory Mutual Approval

1.4 Operating Modes

Normal (Primary) Mode

Setup Mode

Test Mode

1.5 Front Panel Keypad

Figure 1-1. 320IS Front Panel

Table 1-1. Indicator Display Key Functions

1.6 LED Annunciators

Count The Count annunciator is lit to show that the indicator is in piece count mode.

Table 1-2. LED Annunciators

lb lb / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

kg kg / lb kg / kg kg / lb kg / lb kg / lb kg / lb kg / lb

oz kg / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

tn kg / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

t kg / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

g kg / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

none kg / lb lb / kg lb / kg lb / kg lb / kg lb / kg lb / kg

lb kg oz tn t g none

Table 1-3. Unit Annunciators, Primary/Secondary LEDs Used For All Configurations

1.7 Front Panel Navigation

Figure 1-2. Front Panel Key Functions in Setup Mode

Figure 1-3. Setup Mode Menu Navigation

Figure 1-4. Editing Procedure for Numeric Values

1.8 Indicator Operations

1.8.1 Toggle Gross/Net Mode

1.8.2 Toggle Units

1.8.3 Zero Scale

1. In gross mode, remove all weight from the scale and wait for .

2. Press . annunciator lights to indicate the scale is zeroed.

1.8.4 Acquire Tare

1. Place container on scale.

2. When is lit, press . The indicator switches to net mode.

1.8.5 Remove Stored Tare Value

1. Remove all weight from the scale and wait for the annunciator.

1.8.6 Print Ticket

2.0 Installation

2.1 Unpacking and Assembly

2.2 Enclosure Disassembly

1. Place the indicator face-down on an anti-static work mat.

2. Remove the screws that hold the backplate to the enclosure body.

3. Lift the backplate away from the enclosure and set it aside.

2.3 Hazardous Area Installation of the 320IS

Figure 2-1. Intrinsically Safe System Diagram

2.3.1 Power Supply to Indicator

1 + Voltage (5.8 – 7.9 V) Green 2 Ground (V–, Common) Brown

Table 2-1. DC Power Supply Connections

2.3.2 AC Power Wiring

2.3.3 Battery Option

350  load cell 1 40 - 50 hours

4 35 - 40 hours

700  load cell 1 45 - 55 hours

4 40 - 50 hours

Table 2-2. Estimated Battery Operating Times

2.4 Cable Connections and Installation

Figure 2-2. Metal Cord Grip

3. Install the AC power cord but do not hook up to the AC power.

5. Cut the DC power cord to that length.

2.4.1 Braided Power Cable Connection with Ferrite Core

3. Remove the cap and reducing gland from the 320IS parts kit.

4. Take the metal sleeve (from step 2) and insert it into the reducing gland taken from the parts kit.

6. Thread the DC cable through the domed cap, then through the reducing gland/metal sleeve combination.

8. Trim the white wire back to match the end of the braid.

9. Tin the green and brown wire ends.

10. Thread the cable through the cord grip stem.

Figure 2-3. Proper Cord Grip Compression

13. Connect the green and brown wires to the connector for CN1, observing polarities.

1 + Voltage (5.8 - 7.9) Green 2 Ground (V-, Common) Brown

Table 2-3. DC Power Supply Connections — CN1

14. Plug the connector onto CN1.
