Page 1
IMPORTANT
To ensure safe and proper use of the balance, please read
107243
Rice Lake TC
Tuning Fork Compact Electronic Balance
Operation Manual
•
this manual carefully.
• After reading this manual, store it in a safe place near the
balance, so you can review it as needed.
Page 2
(3) Pan base
(4) AC adapter
Round pan
RL-TC -220～620:
Square pan
PREFACE
Thank you for purchasing an RL-TC Series electronic balan ce. This is a precisio n instrument equipped with
exacting mechanisms in a compact body. The RL-TC series provides enhanced functions, including a counting
mode for stock control o f p art s, a pe rc ent ag e mode for comparative measurem en ts given in percentages, and a limit
function for measuring constant quantities by consecutive weighings. Despite its many functions, the balance is
easy to operate and features user-friendly keys. Furthermore, the large liquid-crystal display provides excellent
visibility, and the instrument’s high speed and stability−intrinsic to a tuning fork design−help boost operational
efficiency.
Before using the balance, please check that the following items have been included in the package.
Should you find any missing parts, please contact your local dealer or our marketing division at once.
(1) Main unit of balance
(2) Measurement pan
(one round or square pan)
(one small for the round-pan
balance; one large for the
square-pan balance)
for Round pan
for Square pan
・
φ
・RL-TC -1200:170mm×
140mm
・RL-TC -2200～12K:180mm
×160mm
Page 3
Page 4
© 2011 Rice Lake Weighing Systems. All rights reserved.
CONTENTS
PREFACE ................................................. i
CONTENTS .............................................. i
1. Precautions on the Use ....................... 1
2. Names of Component Parts ................ 4
2.1 Main Unit........................................ 4
2.2 LCD Indicators and Operating Keys 5
2.2.1 Symbols Displayed ................................... 5
2.2.2 Names and Functions of Operating Keys .. 6
3. Basic Operations ................................ 7
3.1 Installation ...................................... 7
3.2 Operation Check ........................... 8
3.3 Operation for Tare Subtraction ....... 9
4. Functions .......................................... 11
4.1 Setup and Checking of Functions 11
4.2 Description of Functions............... 12
4.3 Interface Section .......................... 13
10. Operating the Balance with the Battery
....................................................... 29
10.1 Specifications .............................. 29
10.2 Charging Method ........................ 29
10.3 User Precautions ......................... 29
11. Troubleshooting .............................. 30
12. Specifications ................................. 31
12.1 Basic Specifications ................... 31
12.2 Common Specifications ............. 31
12.3 Minimum Display by Unit of Measurement
................................................... 32
13. Conversion Table of Units................ 34
TC Series Limited Warranty .................... 35
5. Switching Function for Units of Measurement
....................................................... 14
5.1 Switching Units of Measurement .. 14
5.2 Setup of Units of Measurement .... 14
6. Counting Pieces ................................ 16
6.1 Sampling ...................................... 16
6.2 Increasing the Counting Accuracy (Memory
Update Method) .......................... 18
7. Measuring Percentage ...................... 20
8. Limit Function ................................... 22
8.1 Limit Function Setup .................... 22
8.2 Setup of Limit Values by Actual Quantity Loads
................................................... 24
8.3 Setting up Limit Values by Inputting Values
................................................... 25
9. Calibrating the Balance ..................... 27
RL-TC Series Operation Manual i
Printed in the United States of America.
Specifications subject to change without notice.
July 2011
Page 5
ii RL-TC Series Operation Manual
Page 6
This symbol indicates a risk of injury or property damage if the balance is used
i
the improper use may cause serious results.
RECOMMENDED
This term indicates steps that the user should take to ensure the quality and
reliability of the ba l ance.
Meanings of Symbols Each symbol is accompanied by an instruction.
Indicates a “mandatory” action that should be
Indicates a "prohibited" action that must not be executed.
Do not disassemble or modify the unit.
Only AC power (rated value) should be used.
Do not move the balance when a sample is
1. Precautions on the Use
• This Section "Precautions Relating to Use" sets forth precautiona ry notes that the user shou ld observ e in ord er
to prevent physical injury to the user and/or damage to property.
• The nature of problems that may result in the event of improper operation, and consequential effects on the
quality and performance of the balance, are ind ica ted u nder the two categ or ies of " Cauti on" and
"Recommended," and explained using symbols.
mproperly. Be sure to observe these notes to ensure safe use o–f the balance as
executed without fail.
• Could cause malfunction or heat generation
• Contact our Marketing Division or Technical
Service Division.
Only use the dedicated AC adapter.
• Use of other types of power or adapters may
result in heat generation or malfunction of the
balance.
loaded.
• The loaded sample may fall off the
measurement pan and cause an injury.
RL-TC Series Operation Manual 1
Page 7
Do not place the balance on an unstable base
impossible.
Do not lay the AC adapter cable in the path of
balance to fall off, thereby causing injury and/or
Do not touch the AC adapter or balance with
Do not use the balance in a location were it
Do not use the balance with its adjusters (feet)
Do not use the balance in a location where it
RECOMMENDED
Calibrate
Balance
Calibrate the balance after installation or
or use the balance in a location where it may
be subjected to shock.
• The loaded sample may fall off the
measurement pan.
• Accurate measurement may be rendered
traffic.
• Somebody may trip on the cable, causing the
damage to the balance.
wet hands.
• Danger of electric shock
may be subjected to excess moisture.
• Electric shock or short-circuiting could occur.
• The balance may be corroded, with resultant
malfunction.
lifted.
• The balance will become unstable,
preventing accurate measurement.
may be subjected to excess dust.
• Risk of explosion or fire
• Short-circuit or lack of continuity may occur,
leading to a malfunction of the balance.
relocation.
• Measurement values may contain errors,
preventing accurate measurement from being
conducted.
2 RL-TC Series Operation Manual
Page 8
Avoid applying excess force or impact to the
Do not use the balance in a location were it
and less
than 80% relative humidity.
Do not use the balance in a location where it is
measurement.
Unplug
Adapter
If the balance is to be unused for an extended
neutral detergent.
Do not use the balance in a location where it
Do not use the balance on a soft floor.
Check Level
Do not use the balance when it is out of level.
An inclined balance is likely to produce errors,
ce the balance on a level
surface.
balance.
• Place the sample to be measured on the
balance carefully to prevent breakage or
malfunction.
may be subjected to abrupt changes in
ambient temperature or humidity.
• Accurate measurement may not be obtained.
• Optimum operations occur when ambient
temperatures range from 5°C to 35°C,
Do not use the balance when [o - Err]
(Overloaded) is displayed.
• Take down the loaded sample immediately to
prevent breakage or malfunction.
subject to direct sunlight.
• The indications would be illegible.
• An internal temperature increase in the
balance may lead to inaccurate
period of time, unplug the adapter.
• This conserves power and prevents
deterioration.
Do not use volatile solvents for cleaning.
• The body may be distorted.
• To clean the unit of stains, use a piece of dry
cloth or cloth soaked in a small quantity of
RL-TC Series Operation Manual 3
may be subject to air from an air-conditioning
unit.
• Extreme changes in the ambient temperature
may result in inaccurate measurements.
• When loaded with a sample, the balance may
tip or move, preventing accurate
measurements from being conducted.
preventing accurate measurements from
being conducted. Pla
Page 9
Measurement pan
Level for checking the
Operation keys (see page 7)
Adjusters
Measurement
Liquid crystal
RS-232C connector
AC adapter connector
Front View (round-pan t ype )
Square-pan type
2. Names of Component Parts
2.1 Main Unit
Round-pan types (TC-220, TC-420, TC-620)
Square-pan types (TC-1200, TC-2200, TC-4200, TC-6200, TC-12K)
level of the balance.
Turn the adjusters until
the bubble rests in the
center of the red circle.
pan
display (LCD)
See page 6.
Round-pan type: Total of two, one on either
side of the unit’s front
Square-pan type: Total of four, one on either
side at front and rear
4 RL-TC Series Operation Manual
(option)
・TC-1200:170mm×140mm
・TC-2200～TC-12K:180mm×160mm
Page 10
Display
Description
○
[ ] (ct) carat
[ ] (oz) ounce
[ ] (lb) pound
[ ] (ozt) troy ounce
[ ] (dwt) penny weight
[ (Upper right) ] grain
[ Upper right ] (tl Upper right) tael (Singapore,Malaysia)
[ Lower right ] (tl Lower right) tael (Taiwan)
[ ] (to) tola
.
Operating the Balance on the Battery” on page 29.)
0
F
0
0 F
Pcs
#
g
％
ＨＩ
ＯＫ
ＬＯ
2.2 LCD Indicators and Operating Key s
2.2.1 Symbols Displayed
g
→0←
→T←
＊
Pcs
%
mom
M
CAL
Bar graph
Grams
Zero point
Tare being subtracted
Indication of stable balance (If the light is off, the balance is unst able.)
Balance powered up (Lights up when the power is turned off) or data transmitted
Counting mode
Percentage mode
Indication of judgement result (HI/OK/LO) when the limit function is active.
Momme
Display of set values from memory (If a value is flashing, it is being saved.)
Stays on and flashes while span adjustment is in progress.
[ ]（tl）tael (Hong Kong)
Lights up when the balance is battery-operated. The indication changes to
[ ] when the battery capacity decreases and charging is required. (See “10
RL-TC Series Operation Manual 5
Page 11
Operating Key
Function
saves the settings of the number of pieces or
using the limit function.
[Brief press] starts setting the number of pieces or
limit function.
[Brief press] toggle-switches the units to be displayed in
[Longer continuous press] invokes s pan adjustment.
[Brief press] resets the indication to zero when using
balance in the function mode.
2.2.2 Names and Function s of Op erating Keys
On/off key
Memory key
Target key
Function key
Zero/Tare key
Key to turn on/off the unit power
[Brief press] initiates print or output.
[Brief press]
percentages (%), or the limit value when
percentages (%).
[Continuous press] starts setting the limit value when using the
succession (g, Pcs, %, etc.).
[Brief press] moves the flashing digit in the setup of a limit
value when using the value input method.
[Brief press] selects an item when setting the function.
[Continuous press] invokes various functions.
zero-point setup or tare subtraction.
[Brief press] selects a value with the value input method
when using the limit function.
[Brief press] selects a function when operating the
6 RL-TC Series Operation Manual
Page 12
Be sure to mount the pan base in the
, as illustrated below.
2 Securing the exact level of the balance
Turn the adjusters (feet) until the
prevent them from lifting up.
3 Connecting the AC adapter
Connect the AC adapter to the
3. Basic Operations
3.1 Installation
1 Positioning the measurement pan
First, mount the pan base on the
main unit of the balance and place
the measurement pan on top of it.
correct direction
bubble rests in the center of the red
circle on the level.
Round-pan type: total of two
adjusters, one on
either side at front
Square-pan type: total of four
adjusters, one on
either side at front
and rear
<Caution>
Use caution when operating the
adjusters on the square-pan type to
RL-TC Series Operation Manual 7
balance, as illustrated at left.
Page 13
1 Turning on the power
When the balance has the AC
The display section lights up, and the
3 Switching the measurement mode
[%]
4 Verifying changes in the read-out indicator
Press the measurement pan lightly
0
0 F
Pcs
#
g
％
ＨＩ
ＯＫ
ＬＯ
3.2 Operation Check
adapter connected, it displays [＊].
Pressing the On/Off key
balance is ready for operation.
2 Checking the display
Check to see if the display has any
missing indications or unlit parts.
A few seconds after startup, the
indication is reset to zero.
Press the Function key.
Each time the key is pressed, the unit
of measurement changes, as
indicated.
※The balance is shipped from the
factory with the following switching
sequence: [g] → [ct] → [Pcs] →
→ [g] → · · ·
8 RL-TC Series Operation Manual
and make sure that the read-out
indicator changes.
Also, ensure that the read-out
indicator is reset to zero when you
release your hand.
Page 14

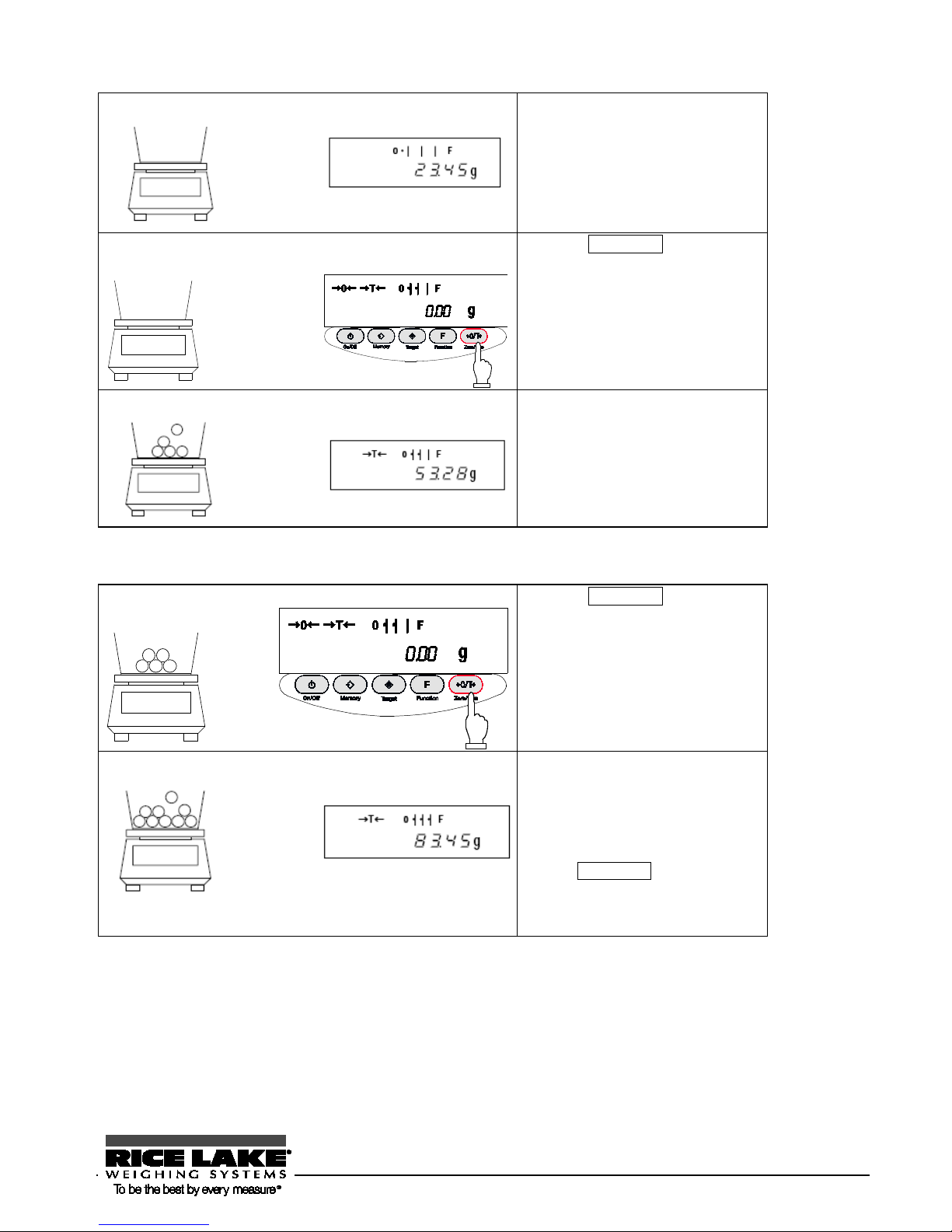

1 Place the tare (container) on the balance.
As you place the tare, the balance
2 Reset read-out indication to zero.
3 Load the sample to be weighed.
The balance will now indicate only
4 Resetting the indication to zero
The total weight of the sample loaded
3.3 Operation for Tare Subtr action
indicates its weight.
Press the Zero/Tare key.
The tare is subtracted and the
balance indicates zero.
the weight of the sample loaded in
the tare.
☆ Weighing only the weight of an added sample
5 Adding samples to be measured
Press the Zero/Tare key.
on the measurement pan is indicated
as zero.
The balance indicates only the
weight of an added sample.
When the weight (of a sample)
currently loaded on the
measurement pan is reset to zero
with the Zero/Tare key, as
mentioned above, only the weight of
the sample will be measured.
RL-TC Series Operation Manual 9
Page 15
ひょ う 量の1/
Zero-
Capacity
point
Half (1/2) capacity
☆ Key Points of the Procedure ☆
The following applies equally to all the measurement modes for weight measurement, counting, and percentages.
1. After the balance is switched off, there is still enough current to display [＊]. This indicates that the AC adapter is
connected to an electrical outlet, but that the balance is turned off.
When the balance is switched on again, [＊] will disappear.
※If the balance is running on batteries and the unit is switched off, the display does not display [＊].
2. The bar graph shows the current load status with respect to the capacity of the
balance. The nearer the [F] mark draws, the smaller the measurable weight becomes.
※Even when the display currently indicates zero with the tare subtracted, the weight
corresponding to the subtracted tare is indicated on the bar.
3. When the balance remains stable, the stability indicator [○] remains
on. If the balance becomes unstable, the stability indicator [○] will disappear.
When a displayed value flickers or the stability mark flashes on and off, it is likely that the balance is being affected
by wind or other vibrations. Use the windshield or vibration dampers to protect against such adverse effects.
4. When the read-out indicator is reset to zero or the tare is subtracted, the balance indicates zero this way: [→ 0 ←].
If the tare is subtracted, the indicator reads as follows: [→ T ←].
point
5. When the tare is subtracted, the measurable range is reduced.
Measurable Range = Capacity - Tare Weight
6. If [
7. In counting mode or percentage mode, if no sample is stored in memory the indicator will not change, even when
8. The measurement mode that is activated when the balance is switched on will be the one that was active when
10 RL-TC Series Operation Manual
0 - Err] appears when a sample is loaded, the measurable range has been exceeded.
the measurement pan is pressed.
last switched off. For example, if the balance was switched off in counting mode, this counting mode will be
reactivated the next time the balance is switched on.
Page 16
2 Selecting the next item
3 Selecting an item
4 Changing the content of an item
Select the item to be changed with
4. Functions
4.1 Setup and Checking of Functions
1 Invoking the function
Press and hold down the
Function key until the indicator
changes to “Func,” then release
the key.
The function setup mode is activated,
and the first item,
1.b.G. 1 (Bar graph) 1] appears.
[
(See “4.2 Description of Functions”
on page 13.)
Press the Function key.
The indication changes to the next
item, 2.SEL 0
Pressing the Function key
advances the function items at the
rate of one item per press.
[(Limit function)].
5 Terminating the function selection
the Function key.
Each press of the Zero/Tare key
changes the digit on the right end.
Select the desired one.
Press the Target key.
The balance terminates the function
setup and returns to measurement
mode.
RL-TC Series Operation Manual 11
Page 17
Item
Set Value
Description
1
0
Disable
1
Enable
2
Disable
1
Enable
21
1
Judge only when the balance is stable (does not judge
if the balance is unstable)
22
Ranges beyond +5 graduation is judged (ranges +5
are not
judged.)
The entire range is judged (the entire range, including
the negative, is judged).
judgement
23.P
1
One-point setup (judges between OK and LO)
Upper-limit and lower-limit values are set up (judges
among HI, OK and LO).
3
0
Disable
1
Enable
4
Disable (balance operates
continuously)
This function is available
only when the balance is
battery
Enable (balance powers off in
approximately three minutes)
5
Measurement by consecutive weighings.
1
2
4
6
3
4
7
0
Disable input/output
1
Six-digit numeric format
2
Seven-digit numeric format
units with
[ ] (ct)
15
[ ] (oz)
16
[ ] (lb)
17
[ ] (ozt)
18
[ ] (dwt)
*
[ ► Lower right ] (grain)
4.2 Description of Functions
Bar graph display
Limit function
Judgement
condition
Judgement
range
Number of
function is activated
points for
Displayed only when limit
Auto-zero
(zero-tracking)
Auto power-off
Response speed
Stability parameters
..b.G..
.SEL
.Co.
.L
.A.O
.A.P.
.rE.
. 5.d.
☆
☆0
Always judge (judges even when the balance is unstable)
☆
2
graduation or below, including negative ranges,
0
☆1
☆2
This function automatically sets the zero point
☆
exactly to zero to prevent slight deviations.
0
☆1
-operated.
0
Fast
☆3
↓
Slow
5
1
Wide (mild)
☆2
↓
Narrow (strict)
Interface
. 1.F.
☆1 01
Setup of units of
measurement to be
displayed
Register selected
measuring
Function key.
Items marked ☆ are the default factory settings.
☆2 14
☆1～☆5: default settings [81.5.u]～[85.5.u.]
*Not available in TC-12K.
12 RL-TC Series Operation Manual
☆
[ g ]
19
Page 18
4.2 Description of Functions (cont. )
4.3 Interface Secti on
☆ denotes a factory-setting
※ The data interval in continuous output mode is 0.1 to 1 second. (The interval varies depending
on weighting conditions and other factors.)
RL-TC Series Operation Manual 13
Page 19
Switching the units of measurement to be displayed
setup:
key.
2 Setting the unit to a pound
Press the Zero/Tare key several times
5. Switching Function for Units of Measurement
Pressing the Function key allows the user to switch the u nit of measurem ent t o [g], [ct], [%], and so on. During setup,
a maximum of five different units can be registered for use in function setup mode.
5.1 Switching Units of Measurement
Press the Function key.
Each press advances through the units
of measurement to be displayed.
※The balance is shipped from the
factory with the following default
[g] → [ct] → [Pcs] → [%] → [g]
→ · · ·
5.2 Setup of Units of Measurement
When values [81.5.u.] to [85.5.u.] are entered prior to use, the desired unit of measurement to be displayed can be
chosen simply by pressing the Function key. For more information on the units of measurement that can be set here,
please refer to “4.2 Description of Functions” on page 13.
Example: To change the default factory settings to pound units, use [82.5.u.] in the factory settings.
1 Display the function item [82.5.u. 14]
Press and hold down the Function
Release the key as [Func] appears on
the display. The function setup mode is
now activated and the first item is
displayed. Press the Function key
several more times until [82.s.u.14]
appears.]
to specify [82. S.u. 16].
14 RL-TC Series Operation Manual
Page 20
3 Pressing the [Target] key to restore measurement mode.
4 Pressing the [Function] key to change the units of
measurement
Pressing the the Target key will reset
the measurement mode.
Press the Function key.
Each press advances through the units
of measurement to be displayed.
※The balance is shipped from the
factory with the following default setup:
[g] → [ct] → [Pcs] → [%] → [g]
→ · · ·
RL-TC Series Operation Manual 15
Page 21
Sampling
Counting Pieces
samples of Number
Weight
pieces 10
g 10
weightunit Sample
weightTotal
g 1
g 500
1 Activating the counting mode
3 Starting the sampling
here.
6. Counting Pieces
To implement piece-counting, the specified samples are loaded on the balance, and their average unit weight
(hereinafter, simply the “unit weight”) is entered and saved. The procedure for saving unit weights is called sampling.
The counting procedure consists of loading articles that have already been sampled on to the balance. The num ber of
pieces is then calculated by dividing the total weight of the loaded articles by the unit weight saved in memory. Piece
counting cannot be implemented unless sampling has already taken place.
=
※If samples to be counted deviate widely in weight, or a higher measure of accuracy is desir ed, it is recommended that
users use the “Raising the Counting Accuracy” method. This procedure results in greater precision by increasing the
number of samples used in the sampling operation.
= 1 g
= Sample
unit weight
=
= 500 pcs.
= Measured
number of
samples
6.1 Sampling
Press the Function key to display [Pcs].
2 Resetting the indication to zero
Place the tare and press the
Zero/Tare key.
The tare is subtracted and the balance
now indicates zero.
16 RL-TC Series Operation Manual
Press the Target key.
The display flashes a number, such as
[
on 10]. This means that ten samples
are to be loaded.
The sampling number that was used in
the previous sampling will be displayed
Page 22
changed, go on to the next step.
6 Saving the unit weight of samples

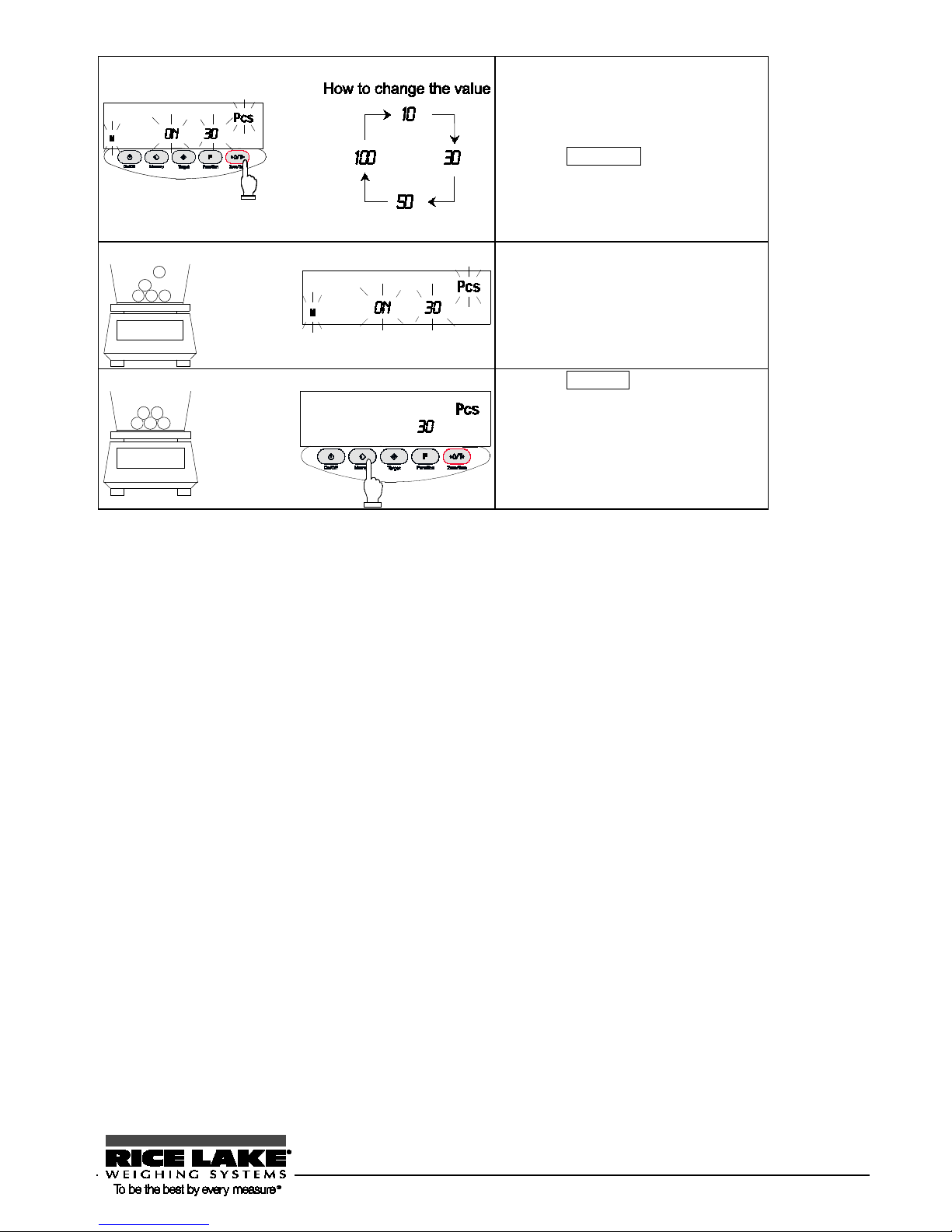

4 Changing the sampling number, if necessary.
5 Loading samples
If samples to be counted widely deviate
in weight, or a higher measure of
accuracy is desired, it is recommended
that users change the sampling number
to a larger value.
Press the Zero/Tare key.
Each press of the key changes the value on
the right end. Select the desired value.
If the sampling number need not be
Load the number of samples displayed.
Count the samples precisely and load
them in the center of the measurement
pan.
Press the Memory key.
The balance saves the unit weight and
reverts to measurement mode.
RL-TC Series Operation Manual 17
Page 23
1 Loading samples
Load the number of samples displayed.
The unit weight of the samples is saved,
☆ Key Points of the Procedure ☆
6.2 Increasing the Counting Accurac y (Memory Update Method)
※This procedure is the same as the sampling procedure described on the previous page up, to the point at which the
sampling number is changed.
2 Saving the samples
Count the samples precisely and load
them on to the center of the
measurement pan.
Press the Target key.
and the display changes to a flashing
value. This flashing value denotes that
the Memory Update Method is currently
active.
18 RL-TC Series Operation Manual
Page 24
the
6 Terminating the sampling
3 Adding samples
4 Saving the samples
5 Repeating the addition and saving of samples
Add approximately an equal number of
samples as the number currently
displayed. Add them gradually, in
groups of approximately the same
number, until the number of samples is
approximately double. The additional
samples need not be counted.
Press the Target key.
After the unit weight of the samples has
been saved, the display begins to flash,
indicating that the Memory Update
Method is still running.
Repeat steps 3 and 4. The eventual
total number of samples to be saved
should be approximately 1/5 to 1/2 of
number of samples to be measured.
Press the Memory key.
The balance saves the unit weight and
returns you to measurement mode.
RL-TC Series Operation Manual 19
Page 25

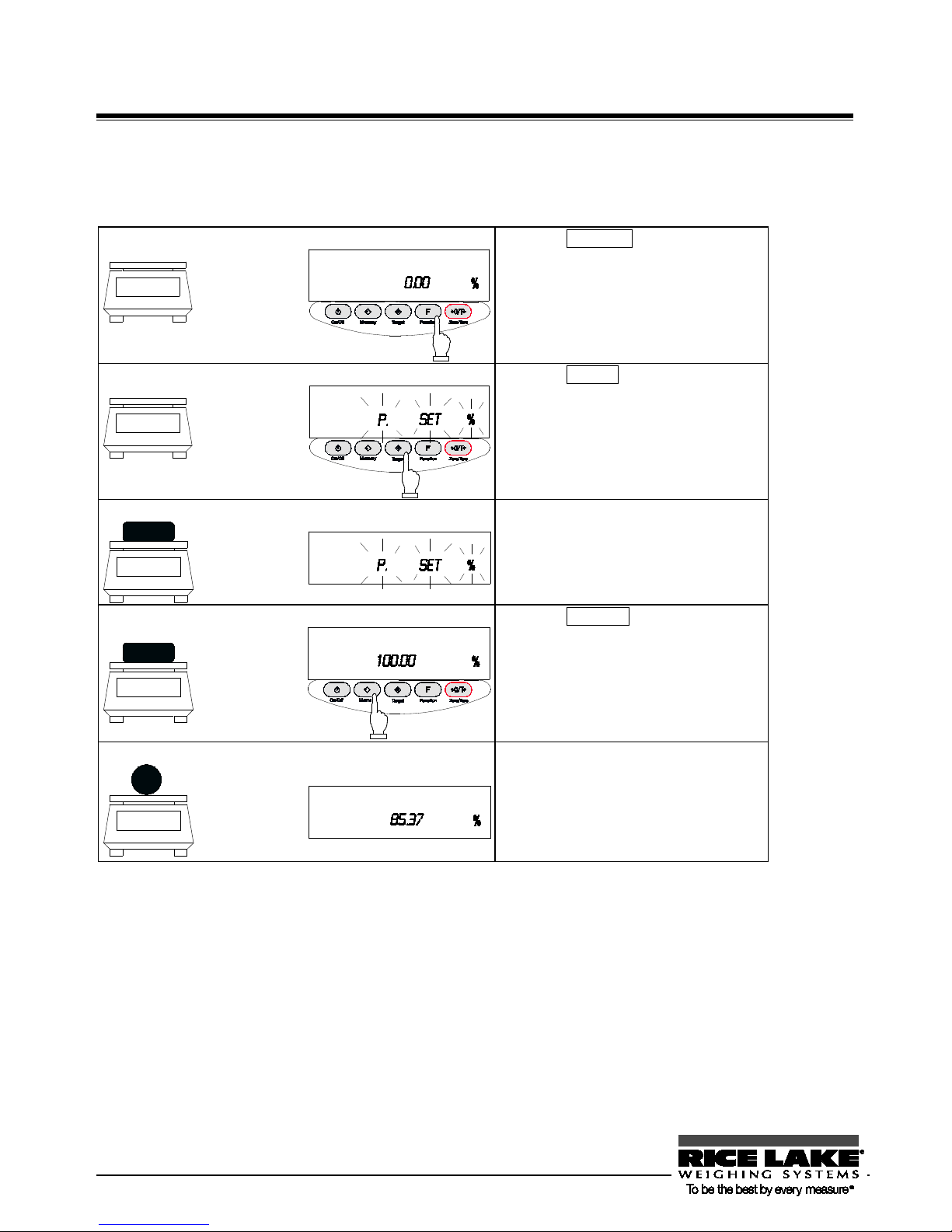

1 Activating the percentage mode
2 Setting the reference value
Press the Target key.
]. The balance is now ready for
4 Saving the reference value
The balance indexes the weight value of
5 Loading a sample to be measured
The balance now indicates the weight of
7. Measuring Percentage
The percentage measurement function operates by weighing an actual sample, selected as the reference, and saving
its weight as the reference value and indexing it as 100%. When a measurement sample loaded on the balance is
lighter or heavier than the reference, its weight is indicated as a percentage (%) value relative to the reference weight.
Press the Function key to disaplay [%].
The display begins flashing
P.SEt
[
reference value setup.
3 Loading the sample
Load the reference sample.
Press the Memory key.
the reference sample as 100% and
returns you to measurement mode.
the loaded sample as a percentage (%)
value relative to the reference value.
20 RL-TC Series Operation Manual
Page 26
☆ Key Points of the Procedure ☆
RL-TC Series Operation Manual 21
Page 27
Judgement Results
Upper/lower-limit setting
One-point setting
Upper-limit value < measurement
value
value ≥ lower-limit value
Lower-limit value > Measurement
value
8. Limit Function
The limit function judges measurements according to a limit value saved in the balance.
The function shows the judgement result by displaying the [
(insufficient). This function is very usef ul when discriminating between conforming and nonconforming articles. It is
also useful when measuring a given constant quantity consecutively, in conjunction with a range of reference weights
defined by upper- and lower-limit values.
This function can be used in weight mode, counting mode, or percentage mode.
◄] mark as either HI (excessive), OK (appropriate), or LO
Limit value input methods
Either of the following two methods can be used in the different modes:
(1) Actual quantity setup method......... An actual sample is loaded on the balance and its weight saved as the limit
value.
(2) Numeric value setup method ......... The limit value is entered with a key stroke.
※The limit values entered are held in memory, even when the balance is powered down.
※The respective limit values for weight mode, counting mode, and percentage mode are set up independently.
Indication of judgment result
The [◄] mark lights up as either HI, OK, or LO on the left side of the display, indicating the result of judgement.
HI (excessive)
No indication
OK (appropriate)
LO (insufficient)
Upper-limit value ≥ measurement
8.1 Limit Function Setup
1 Invoking the function
Limit value ≤ measurement value
Limit value > Measurement value
Press and hold down the Function key.
Release the key when [Func] is
displayed.
The display changes to the function
setup and the first item is displayed.
22 RL-TC Series Operation Manual
Page 28
3 Setting the limit function
Press the Zero/Tare key to set the
4 Setting the judgement condition
5 Setting the judgement range
7 Terminating the function setup
8.1 Limit Function Setup (cont.)
2 Selecting a function item
Press the Function key.
The display changes to the next item
[Limit Function].
value on the rightmost side to [1].
Press the Function key.
The display changes to [Judgement
Condition].
Press the Zero/Tare key to select the
desired condition.
6 Setting the number of judgement points
Press the Function key.
The display changes to [Judgement
Range].
Press the Zero/Tare key to select the
desired choice.
Press the Function key.
The display changes to [Judgement
Points].
Press the Zero/Tare key to select the
desired choice.
Press the Target key.
The balance terminates the function
setup and returns you to measurement
mode.
RL-TC Series Operation Manual 23
Page 29
1 Starting the limit function
3 Saving the lower-limit value
displays it briefly and
limit
4 The upper-limit
limit value
balance displays it briefly and terminates
8.2 Setup of Limit Values by Actual Quantity Loads
Press and hold down the Target key.
Release the key when [L. SEt] is
displayed.
The currently set lower-limit value
flashes.
2 Loading the sample for the lower-limit value
value setup
5 Loading the sample of the upper-limit value
Load the sample of the lower-limit value
on the measurement pan.
Press the Memory key.
After the lower-limit value has been
saved, the balance
proceeds to the following setup.
※If One-poi nt setup was chosen, the
setup is complete.
The display now changes to
H. SET], indicating that the upper-
[
value can be set.
The currently set upper-limit value
flashes.
Load the sample of the upperon the measurement pan.
6 Saving the upper-limit value
Press the Memory key.
After saving the upper-limit value, the
the setup.
24 RL-TC Series Operation Manual
Page 30
1 Starting the limit function
3 Entering a value
Press the Zero/Tare key again.
changes the
is
4 Selecting a digit
rightmost digit position.
5 Repeat Steps 3 and 4
Enter the lower-limit value by selecting a
key,
6 Saving the lower-limit value
7 Setting up the upper-limit value
set, that value will flash.
8.3 Setting up Limit Values by Inputting Values
Press and hold down the Target key.
Release the key when [L. SEt] is
displayed.
The currently set lower-limit value
flashes.
2 Opening the value input screen
Press the Zero/Tare key.
All the digits are displayed, with the one
on the right end flashing. This flashing
digit is the one that can be changed.
Pressing the key repeatedly
flashing value until the desired number
entered.
Press the Function key.
The flashing moves to the digit on the
immediate left. Each time the key is
pressed, the flashing digit moves one
position left. When the leftmost digit is
selected, the flashing advances to the
value with the Zero/Tare key and
moving the digits with the Function
as needed.
RL-TC Series Operation Manual 25
Press the Memory key.
After saving the lower-limit value, the
balance displays it briefly and proceeds
to the next setup.
※If one-point setup was chosen, the
setup is complete.
The display changes to [
indicating that the upper-limit value can
be set.
If there is an upper-limit value already
H. SEt],
Page 31
Follow the same procedure as described
10 Saving the upper-limit value
balance displays it briefly and terminates
8.3 Setting up Limit Values by Inputting Values (cont.)
8 Opening the value input screen
9 Setting the upper-limit value
Press the Zero/Tare key.
Follow the same procedure as in “Step
2.”
for the lower-limit value and enter the
upper-limit value.
Press the Memory key.
After saving the upper-limit value, the
setup.
26 RL-TC Series Operation Manual
Page 32
1 Activating the span adjustment function
2 Starting the span adjustment
Proceed to the calibration of the capacity
9. Calibrating the Balance
Since electronic balances are affected by gravity gravitational acceleration, they produce different values in various
locations. Therefore, before use, balances must be calibrated at the location where they are installed. Calibration is
also required after long periods without use, or if a balance begins to produce inaccurate values.
Calibration of a balance, or “span adjustment,” is required to produce accurate measurements.
※ Span adjustment should be performed with the balance installed perfectly level and without any load on the
measurement pan.
Press and hold down the Function key.
Release the key when the display
changes from [
Func] to [Cal].
3 Zero calibration
Press the Function key while holding
down the Zero/Tare key, then release
both keys simultaneously. The display
flashes [
zero-point calibration is underway.
Zero-point calibration is finished when
the display changes to [
point.
on 0], indicating that
on F.S].
RL-TC Series Operation Manual 27
Page 33
5 Terminating the span adjustment
When the calibration of the capacity
Calibrating the Balance (cont.)
4 Calibrating the capacity point
Load the calibration weight in the center
of the balance.
The display flashes, indicating that
capacity point calibration is in progress.
point is finished, the original
measurement mode is restored.
☆ Key Points of the Procedure ☆
28 RL-TC Series Operation Manual
Page 34
!
10. Operating the Balance with the Battery
This function can be used only when the balance is battery-operated.
10.1 Specifications
• Built-in nickel-cadmium battery
• Charging time:Approximately 12 hours
• Drive time: Approximately 32 continuous hours
• Number of charge/discharge cycles: 300 or more
10.2 Charging Method
※While the balance is battery-operated, [ ] stays on. The indicator flashes [ ] (charging required) when batter y
capacity decreases. If the balance flashes [
(1) Connect the dedicated AC adapter to the balance.
(2) Turn the balance off.
], charge the battery by following these steps:
(3) Charging takes approximately 12 hours, with power switched off. Charging the battery longer than 12 hours
decreases battery life.
10.3 User Precautions
1. Once charging is complete, use the balance without the AC adapter to avoid over-charging. This can occur since
the balance continues to charge the battery with a weak current when the power is switched on. Overcharging will
also decrease battery life.
2. When the balance is used for the first time after purchase, the operating time may be shorter than when using a
fully charged battery. This is due to natural discharge of the battery. Although the balance can be used while
] is flashing, it should be recharged as soon as possible.
[
3. When the battery displays no indication, or an indication disappears quickly after the balance is switched on,
battery capacity is low. In these cases, either charge the battery immediately or plug in the AC adapter.
4. Charging the battery while [
Cautions To operate the balance safely, observe the following (failure to do so could result in malfunctions,
breakage, burst batteries, or fire):
1. Do not disassemble or modify the battery. Do not reverse the balance connection or short-circuit the positive and
negative polarities of the balance.
2. Use only the supplied AC adaptor.
] is displayed reduces battery life.
3. Do not incinerate used batteries. Dispose as hazardous material only.
RL-TC Series Operation Manual 29
Page 35
Symptom
Cause
Possible remediation
There is no indication on
the display.
• The AC adapter is not connected.
→ Check that the AC
adapter is connected (8).
• The balance is subject to air currents or
measured, the measuring pan, or the tare.
→ Check Precautions on
• An error was made in the tare subtraction
after
has been moved to a new location.
→ Review the tare
• The limit function is not selected.
entered.
→ Check the operation of
[Add] appears ([◄ ]
[LO].)
• Likely to produce errors in the counting
insufficient.
→ Execute the Memory
• Gross weight exceeded the capacity of the
→ Check the total weight.
local dealer.
• A foreign object is caught between the
• A section of the mechanism is damaged.
→ Remove the measurement
surface beneath it.
• The balance is exposed to static electricity
malfunctioning.
→ Contact our Technical
• A weight heavier than the capacity was
more.
→ Check that the span
During battery
produced.
• The automatic power-off function was
→ Switch on the power again.
the AC adapter.
11. Troubleshooting
※ The numbers in ( ) indicate reference pages
The display is unstable.
[M] remains flashing
without changing.
Weight indication
contains an error.
The limit function does
not work.
and a value flash at
[o - Err] appears
before the capacity is
reached.
[u - Err] is displayed.
[b - Err] is displayed.
d - Err] is displayed.
[
vibration.
• The balance is situated on an unstable
surface.
• An object is contacting the sample being
procedure.
• The adjusters remain lifted, resulting in an
incorrect level.
• The indication values are inconsistent
long hours of use, or because the balance
• The limit value has been erroneously
mode because the sample weight is
balance (weight range = container +
weight of sample).
• A section of the mechanism is damaged.
measuring pan (pan base) and the balance.
or noise.
• The electrical system of the balance is
Use (2–4).
subtraction (10).
→ Check the level (8).
→ Execute span adjustment
on the balance (27).
the limit function (22 on).
Update Method (19).
→ Execute tare subtraction
again.
→ Contact our Technical
Service Division or your
pan and examine the
Service Division or your
local dealer.
During span adjustment
o - Err] is displayed.
[
1 - Err] is displayed.
[
2 - Err] is displayed.
[
installation:
The indication
disappears.
] flashes.
[
No indication is
30 RL-TC Series Operation Manual
used.
• The reference weight is less than 50% of
the capacity.
• Calibration produced an error of 1.0% or
activated.
• The battery capacity is low.
adjustment procedure
was performed correctly
(27).
Deactivate the Automatic
power-off functi on, if
necessary (13).
→ Recharge the battery (29).
→ Operate the balance with
Page 36
Model
TC-220
TC-420
TC-620
TC-1200
Capacity [g]
220
420
620
1200
Readability [g]
0.01
0.01
0.01
0.1
Measurable unit weight in
counting mode [g]
Minimum weight in
percentage mode [g]
Weight measuring
method
Calibration method
With external calibration weight
Pan Size [mm]
φ140
170x140
Model
TC-2200
TC-4200
TC-6200
TC-12K
Capacity [g]
2200
4200
6200
12000
Readability [g]
0.1
0.1
0.1
1
Measurable unit weight in
counting mode [g]
Minimum weight in
percentage mode [g]
method
Calibration method
With external calibration weight
Pan Size [mm]
180 x 160
12. Specifications
12.1 Basic Specifications
0.01 0.01 0.01 0.1
1 1 1 10
Tuning fork vibration method
0.1 0.1 0.1 1
10 10 10 100
Weight measuring
Tuning fork vibration method
12.2 Common Specifications
(1) Tare subtraction range .................................... Total capacity
(2) Liquid-crystal display (LCD) ............................ Seven segments (two segments in leading part) ,
Maximum digits indication: seven digits,
Segment height: 16.5 mm.
(3) Measuring function.......................................... Weight mode, counting mode, and percentage mode
(4) Overload indication ......................................... [o - Err] is displayed if weight capacity + 9 intervals are exceeded.
(5) Compatible printer...........................................
(6) Operating temperature and humidity ranges .. 5°C to 35°C, 80%RH or less
(7) AC adapter ...................................................... Dedicated AC adapter: 120V AC - 9V DC, or 230V AC - 9V DC
(8) Options............................................................ RS232C Output
CSP-160
RL-TC Series Operation Manual 31
Rechargeable battery operation
Page 37
220
420
620
1200
0.01
0.01
0.01
0.1
1100
2100
3100
6000
0.05
0.05
0.05
0.5
7.7
14
21
42
0.0005
0.0005
0.0005
0.005
0.48
0.92
1.3
2.6
0.00005
0.00005
0.00005
0.0005
7
13
19
38
0.0005
0.0005
0.0005
0.005
140
270
390
770
0.01
0.01
0.01
0.1
3300
6400
9500
18000
0.2
0.2
0.2
2
5.8
11
16
32
0.0005
0.0005
0.0005
0.005
5.8
11
16
31
5.8
11
16
32
0.0005
0.0005
0.0005
0.005
58
110
160
320
0.005
0.005
0.005
0.05
18
36
53
100
0.001
0.001
0.001
0.01
Upper cell：Capacity
Lower cell：Readability
12.3 Minimum Display by Unit of Measurement
Model
Unit_of
measurement
g
(ct)
(oz)
(lb)
(ozt)
(dwt)
TC-220 TC-420 TC-620 TC-1200
► (grain)
(Hong Kong)
(Singapore,
Malaysia)
(Taiwan)
mom
(momme)
(to)
0.0005 0.0005 0.0005 0.005
※The view of the table
32 RL-TC Series Operation Manual
Page 38
2200
4200
6200
12000
0.1
0.1
0.1
1
11000
21000
31000
60000
0.5
0.5
0.5
5
77
140
210
420
0.005
0.005
0.005
0.05
4.8
9.2
13
26
0.0005
0.0005
0.0005
0.005
70
130
190
380
0.005
0.005
0.005
0.05
1400
2700
3900
7700
0.1
0.1
0.1
1
33000
64000
95000
2 2 2
58
110
160
320
0.005
0.005
0.005
0.05
58
110
160
310
58
110
160
320
0.005
0.005
0.005
0.05
580
1100
1600
3200
0.05
0.05
0.05
0.5
180
360
530
1000
0.01
0.01
0.01
0.1
Upper cell：Capacity
Lower cell：Readability
Minimum Display by Unit of Measurement (continued)
Model
Unit of
measurement
g
(ct)
(oz)
(lb)
(ozt)
(dwt)
► (grain)
(Hong Kong)
RL-TC-
2200
RL-TC-
4200
RL-TC-
6200
RL-TC-
12K
(Singapore,
Malaysia)
(Taiwan)
mom
(momme)
(to)
0.005 0.005 0.005 0.05
※The view of the table
RL-TC Series Operation Manual 33
Page 39
1g 1 5
0.03527
0.00220
0.03215
0.64301
1ct
0.2 1 0.00705
0.00044
0.00643
0.12860
1oz
28.34952
141.74762
1
0.06250
0.91146
18.22917
1lb
453.59237
2267.96185
16 1 14.58333
291.66667
1ozt
31.10348
155.51738
1.09714
0.06857
1
20
1GN
0.06480
0.32399
0.00229
0.00014
0.00208
0.04167
1tl (HK)
37.429
187.145
1.32027
0.08252
1.20337
24.06741
1tl (SGP,Mal)
37.79936
188.99682
1.33333
0.08333
1.21528
24.30556
1tl (Taiwan)
37.5
187.5
1.32277
0.08267
1.20565
24.11306
1mom
3.75
18.75
0.13228
0.00827
0.12057
2.41131
unit
Grain
tael
tael
tael
momme
Tola
1g
15.43236
0.02672
0.02646
0.02667
0.26667
0.08574
1ct
3.08647
0.00534
0.00529
0.00533
0.05333
0.01715
1oz
437.5
0.75742
0.75
0.75599
7.55987
2.43056
1lb
7000
12.11874
12
12.09580
120.95797
38.88889
1ozt
480
0.83100
0.82286
0.82943
8.29426
2.66667
1dwt
24
0.04155
0.04114
0.04147
0.41471
0.13333
1GN
1
0.00173
0.00171
0.00173
0.01728
0.00556
1tl (HK)
577.61774
1
0.99020
0.99811
9.98107
3.20899
1tl (SGP,Mal)
583.33333
1.00990
1
1.00798
10.07983
3.24074
1tl (Taiwan)
578.71344
1.00190
0.99208
1
10
3.21507
1mom
57.87134
0.10019
0.09921
0.1 1 0.32151
1to
180
0.31162
0.30857
0.31103
3.11035
1
13. Conversion Table of Units
Unit Gram carat Ounce Pound troy ounce Penny
1dwt 1.55517 7.77587 0.05486 0.00343 0.05 1
Weight
1to 11.66380 58.31902 0.41143 0.02571 0.37500 7.5
(Hong Kong)
(Singapore,
Malaysia)
(Taiwan)
34 RL-TC Series Operation Manual
Page 40
TC Series Limited Warranty
Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems manufactured and sold by
RLWS and properly installed by an authorized RLWS Distributor or Original Equipment Manufacturer (OEM) will
operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and
components are warranted against defects in materials and workmanship for five years.
RLWS warrants that the equipment sold hereunder will conform to the current written specifications authorized by
RLWS. RLWS warrants the equipment against faulty workmanship and defective materials. If any equipment fails to
conform to these warranties, RLWS will, at its option, repair or replace such goods returned within the warranty period
subject to the following conditions:
Upon discovery by Buyer of such nonconformity, RLWS will be given prompt written notice with a
•
detailed explanation of the alleged deficiencies.
• Individual electronic components returned to RLWS for warranty purposes must be packaged to prevent
electrostatic discharge (ESD) damage in shipment. Packaging requirements are listed in a publication,
Protecting Your Components From Static D amage in Shipment, available from RLWS Equipment Return
Department.
• Examination of such equipment by RLWS confirms that the nonconformity actually exists, and was not
caused by accident, misuse, neglect, alteration, improper installation, improper repair or im proper testing;
RLWS shall be the sole judge of all alleged non-conformities.
• Such equipment has not been modified, altered, or changed by any person other than RLWS or its duly
authorized repair agents.
• RLWS will have a reasonable time to repair or replace the defective equipment. Buyer is responsible for
shipping charges both ways.
• In no event will RLWS be responsible for travel time or on-location repairs, including assembly or
disassembly of equipment, nor will RLWS be liable for the cost of any repairs made by others.
THESE WARRANTIES EXCLUDE ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT
LIMITATION WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. NEITHER
RLWS NOR DISTRIBUTOR WILL, IN ANY EVENT, BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
RLWS AND BUYER AGREE THAT RLWS’ SOLE AND EXCLUSIVE LIABILITY HEREUNDER IS LIMIT ED TO
REPAIR OR REPLACEMENT OF SUCH GOODS. IN ACCEPTING THIS WARRANTY, THE BUYER WAIVES ANY
AND ALL OTHER CLAIMS TO WARRANTY.
SHOULD THE SELLER BE OTHER THAN RLWS, THE BUYER AGREES TO LOOK ONLY TO THE SELLER FOR
WARRANTY CLAIMS.
NO TERMS, CONDITIONS, UNDERSTANDING, OR AGREEMENTS PURPORTING TO MODIFY THE TERMS OF
THIS WARRANTY SHALL HAVE ANY LEGAL EFFECT UNLESS MADE IN WRITING AND SIGNED BY A
CORPORATE OFFICER OF RLWS AND THE BUYER.
© 2003 Rice Lake Weighing Systems, Inc. Rice Lake, WI USA. All Rights Reserved.
RICE LAKE WEIGHING SYSTEMS • 230 WEST COLEMAN STREET • RICE LAKE, WISCONSIN 54868 • USA
RL-TC Series Operation Manual 35
Page 41
Page 42
Loading...
