Riccar 1500S User's Guide

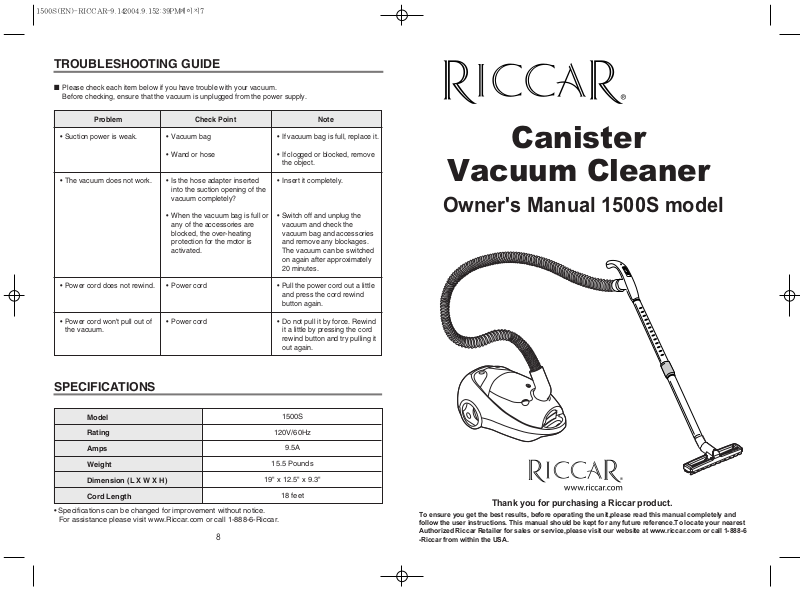

TROUBLESHOOTING GUIDE
■ Please check each item below if you have trouble with your vacuum.
Before checking, ensure that the vacuum is unplugged from the power supply.
Problem
• Suction power is weak.
• The vacuum does not work.
• Power cord does not rewind.
• Power cord won't pull out of
the vacuum.
Check Point
• Vacuum bag
• Wand or hose
• Is the hose adapter inserted
into the suction opening of the
vacuum completely?
• When the vacuum bag is full or
any of the accessories are
blocked, the over-heating
protection for the motor is
activated.
• Power cord
• Power cord
Note
• If vacuum bag is full, replace it.
• If clogged or blocked, remove
the object.
• Insert it completely.
• Switch off and unplug the
vacuum and check the
vacuum bag and accessories
and remove any blockages.
The vacuum can be switched
on again after approximately
20 minutes.
• Pull the power cord out a little
and press the cord rewind
button again.
• Do not pull it by force. Rewind
it a little by pressing the cord
rewind button and try pulling it
out again.
• Specifications can be changed for improvement without notice.
For assistance please visit www.Riccar.com or call 1-888-6-Riccar.
Model
Rating
Amps
Weight
Dimension (L X W X H)
Cord Length
1500S
120V/60Hz
9.5A
15.5 Pounds
19" x 12.5" x 9.3"
18 feet
SPECIFICATIONS
8
Canister
Vacuum Cleaner
Owner's Manual 1500S model
Thank you for purchasing a Riccar product.
To ensure you get the best results, before operating the unit,please read this manual completely and
follow the user instructions. This manual should be kept for any future reference.To locate your nearest
Authorized Riccar Retailer for sales or service,please visit our website at www.riccar.com or call 1-888-6
-Riccar from within the USA.
1500S(EN)-RICCAR-9.14 2004.9.15 2:39 PM 7
3
CONTENTS
2
DESCRIPTION AND USING
..........................................
4 ~ 5
SAFETY PRECAUTIONS
.....................................................
6
REPLACING BAGS & FILTERS
...........................................
7
TROUBLESHOOTING GUIDE
.............................................
8
When using an electrical appliance, basic precautions should always be followed, including the
following :
WARNING -
To reduce the risk of fire, electric shock, or injury :
11. Do not leave appliance when plugged in. Unplug from outlet when not in use and before
servicing.
12. Do not use outdoors or on wet surfaces.
13. Do not allow to be used as a toy. Close attention is necessary when used near children.
14. Use only as described in this manual. Use only manufacturer's recommended attachments.
15. Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center.
16. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around
sharp edges or corners. Do not run appliance over cord.
Keep cord away from heated surfaces.
17. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
18. Do not handle plug or appliance with wet hands.
19. Do not put any object into openings. Do not use with any opening blocked:
keep free of dust, lint, hair, and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
11. Turn off all controls before unplugging.
12. Use extra care when cleaning on stairs.
13. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where
they may be present.
14. This appliance is intended for household use only and not for commercial or industrial use.
15. Do not operate the vacuum if :
- the power cord is damaged.
- the hose shows visible signs of damage.
16. Do not use without vacuum bag and/or filters in place.
17. Hold plug when rewinding the cord into cord reel. Do not allow plug to whip when rewinding.
18. The hose contains electrical wires. Do not use if damaged, cut or punctured.
Avoid picking up sharp objects.
19. To reduce the risk of electric shock, this appliance has a polarized plug.
20. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
SAVE THESE INSTRUCTIONS
Read All Instructions Carefully Before Using This Appliance
IMPORTANT SAFETY INSTRUCTIONS
1500S(EN)-RICCAR-9.14 2004.9.15 2:39 PM 1
