TRANSFORMERS
TRANSFORMER

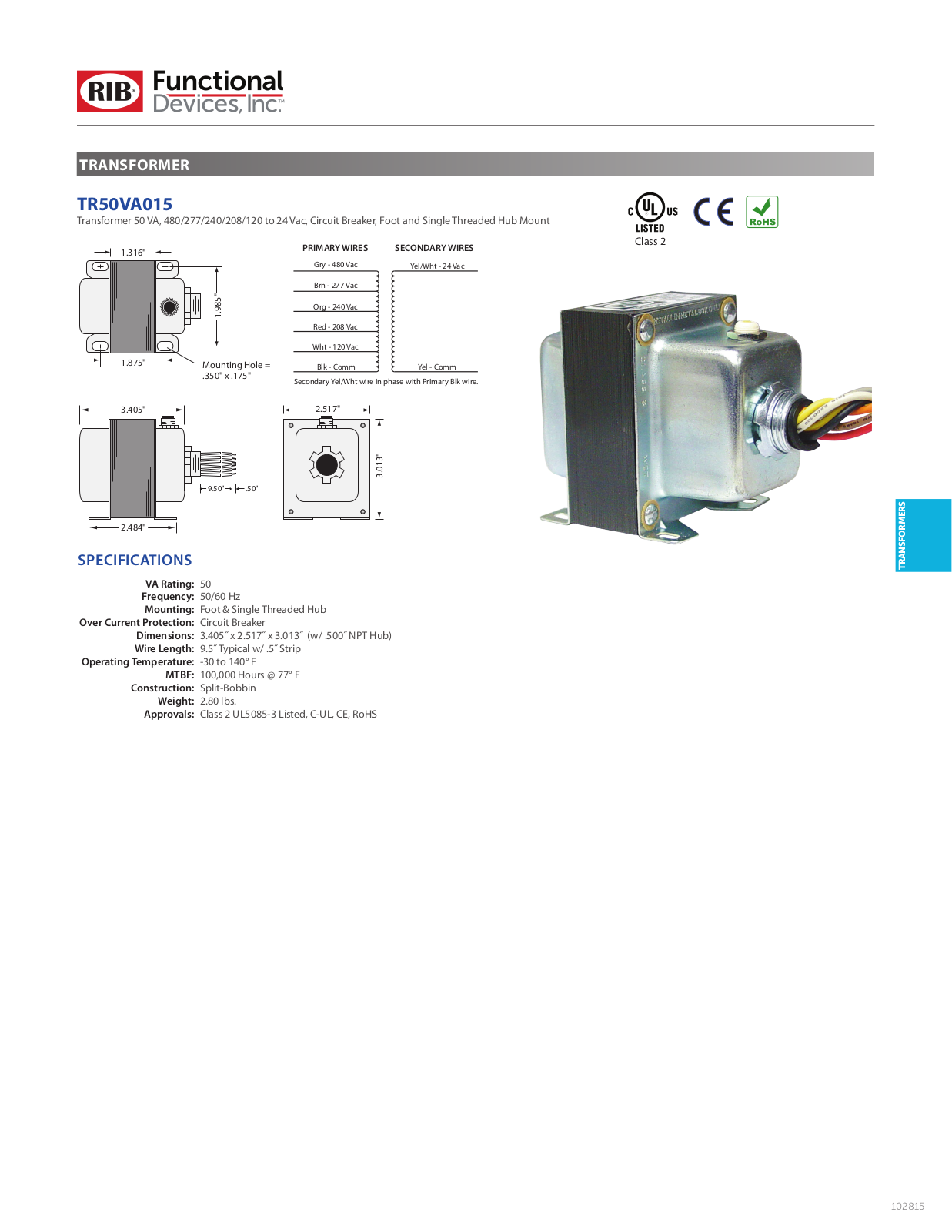

TR50VA015
Transformer 50 VA, 480/277/240/208/120 to 24 Vac, Circuit Breaker, Foot and Single Threaded Hub Mount
1.316"
1.875"
1.985"
Mounting Hole =
.350" x .175"
PRIMARY WIRES SECONDARY WIRES
Gry - 480 Vac
Brn - 277 Vac
Org - 240 Vac
Red - 208 Vac
Wht - 120 Vac
Blk - Comm
Secondary Yel/Wht wire in phase with Primary Blk wire.
Yel/Wht - 24 Vac
Yel - Comm
Class 2
3.405"
2.484"
SPECIFICATIONS
VA Rating:
Frequency:
Mounting:
Over Current Protection:
Dimensions:
Wire Length:
Operating Temperature:
MTBF:
Construction:
Weight:
Approvals:
2.517"
.50"
9.50"
50
50/60 Hz
Foot & Single Threaded Hub
Circuit Breaker
3.405˝ x 2.517˝ x 3.013˝ (w/ .500˝ NPT Hub)
9.5˝ Typical w/ .5˝ Strip
-30 to 140° F
100,000 Hours @ 77° F
Split-Bobbin
2.80 lbs.
Class 2 UL5085-3 Listed, C-UL, CE, RoHS
3.013"
102815
