TRANSFORMERS
TRANSFORMER
PRIMARY WIRES SECONDARY WIRES
TR50VA009

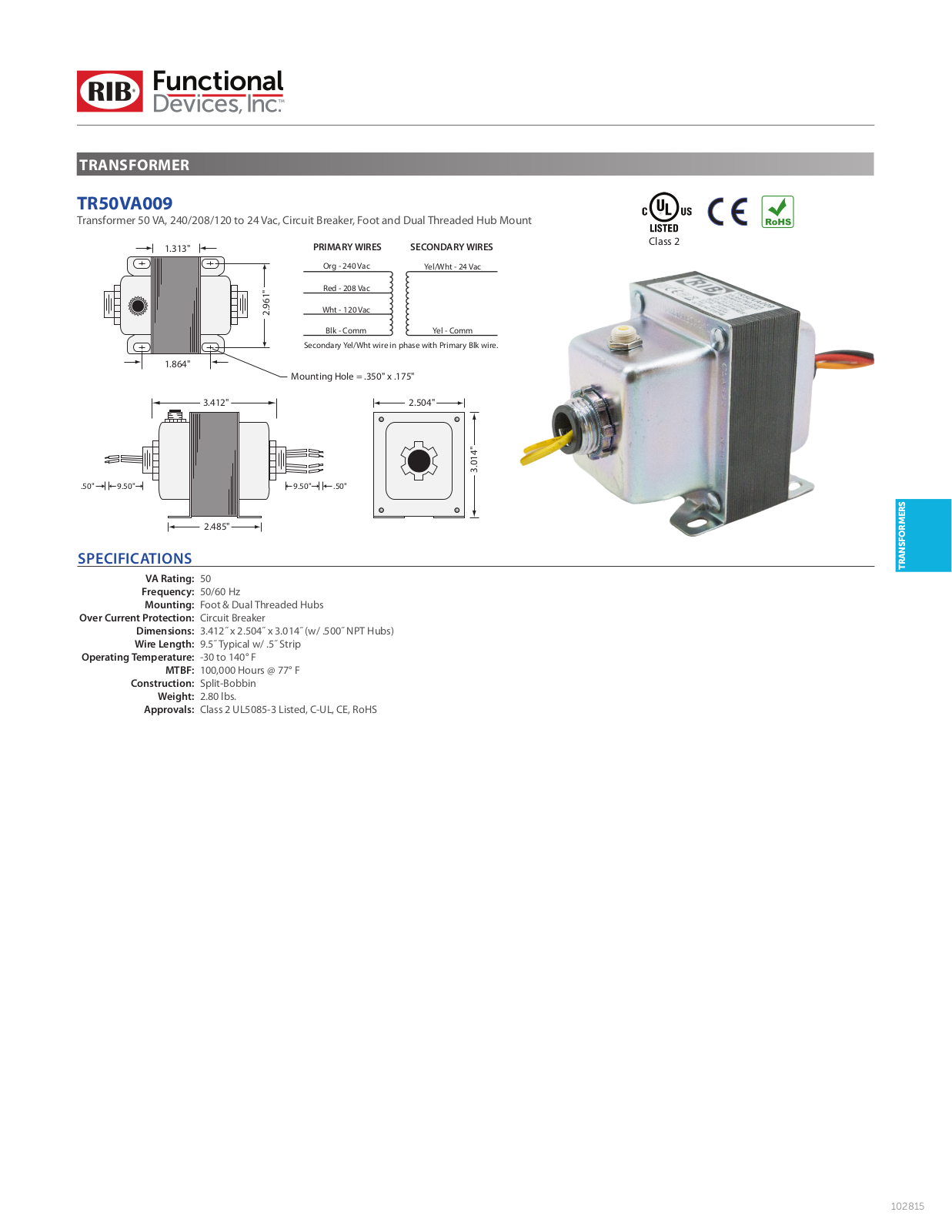

Transformer 50 VA, 240/208/120 to 24 Vac, Circuit Breaker, Foot and Dual Threaded Hub Mount
1.313"
1.864"
.50"
9.50"
SPECIFICATIONS
VA Rating:
Frequency:
Over Current Protection:
Operating Temperature:
Mounting:
Dimensions:
Wire Length:
MTBF:
Construction:
Weight:
Approvals:
Org - 240 Vac
Red - 208 Vac
2.961"
3.412"
2.485"
Wht - 120 Vac
Blk - Comm
Secondary Yel/Wht wire in phase with Primary Blk wire.
Mounting Hole = .350" x .175"
.50"
9.50"
50
50/60 Hz
Foot & Dual Threaded Hubs
Circuit Breaker
3.412˝ x 2.504˝ x 3.014˝ (w/ .500˝ NPT Hubs)
9.5˝ Typical w/ .5˝ Strip
-30 to 140° F
100,000 Hours @ 77° F
Split-Bobbin
2.80 lbs.
Class 2 UL5085-3 Listed, C-UL, CE, RoHS
Yel/Wht - 24 Vac
Yel - Comm
2.504"
3.014"
Class 2
102815
