TRANSFORMERS
TRANSFORMER

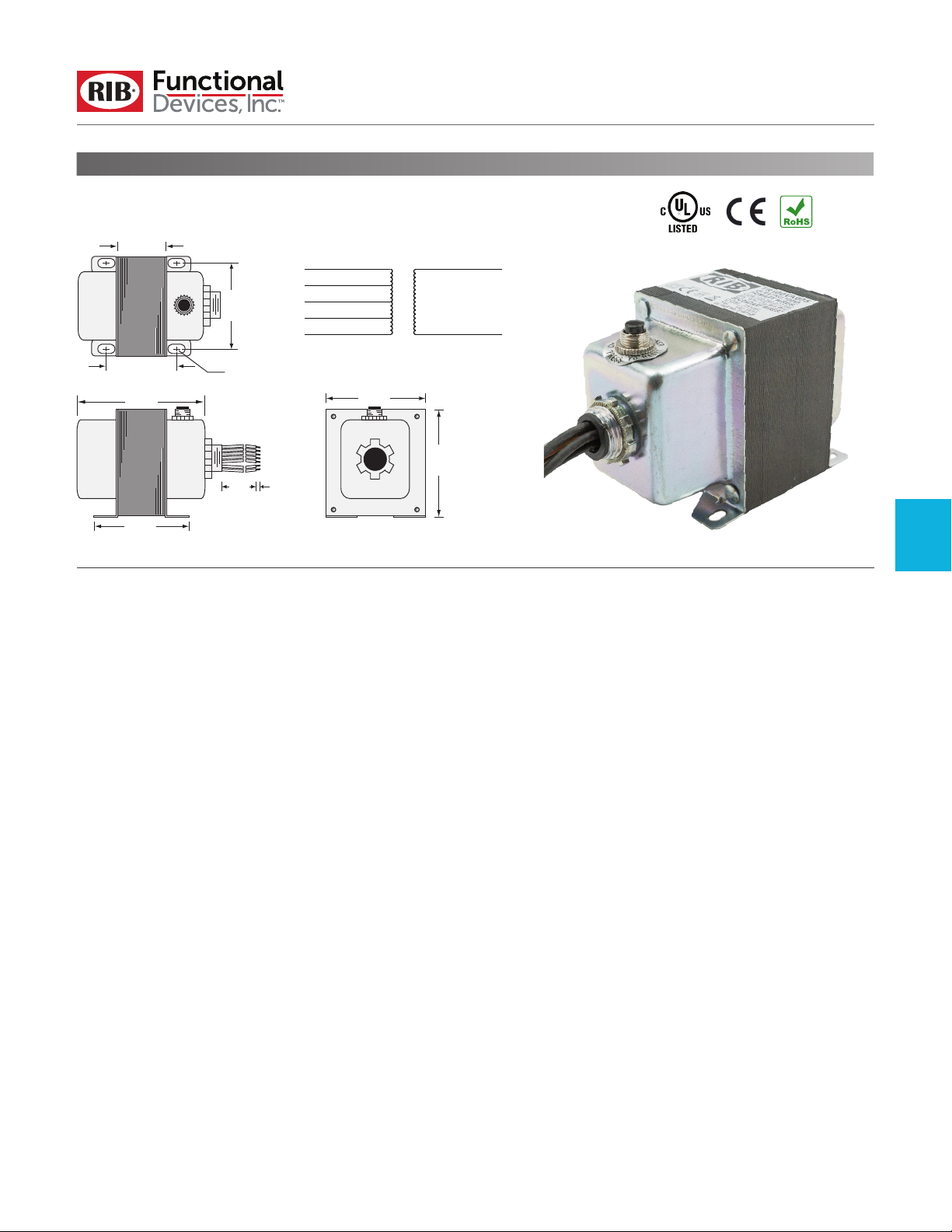

TR100VA005
Transformer 100 VA, 480/277/240/120 to 24 Vac, Circuit Breaker, Foot and Single Threaded Hub Mount
2.065"
2.670"
4.258"
3.260"
SPECIFICATIONS
VA Rating:
Frequency:
Mounting:
Over Current Protection:
Dimensions:
Wire Length:
Operating Temperature:
MTBF:
Construction:
Weight:
Approvals:
1.968"
Mounting Hole = .350" x .175"
8.00"
100
50/60 Hz
Foot & Single Threaded Hub
Circuit Breaker
4.258˝ x 2.510˝ x 3.030˝ (w/ .500˝ NPT Hub)
8˝ Typical w/ .5˝ Strip
-30 to 140° F
100,000 Hours @ 77° F
Split-Bobbin
4.40 lbs.
Class 2 UL5085-3 Listed, C-UL, CE, RoHS
PRIMARY WIRES SECONDARY WIRES
Gry - 480 Vac
Brn - 277 Vac
Org - 240 Vac
Wht - 120 Vac
Blk - Comm
Secondary Yel/Wht wire in phase with Primary Blk wire.
2.510"
.50"
Yel/Wht - 24 Vac
Yel - Comm
3.030"
Class 2
102815
