CURRENT
SENSORS

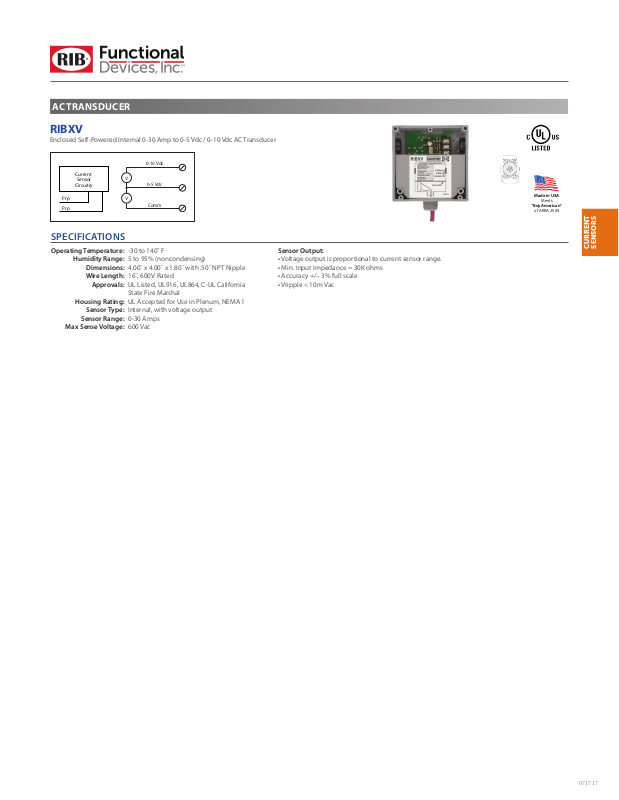

AC TRANSDUCER
RIBXV
Enclosed Self-Powered Internal 0-30 Amp to 0-5 Vdc / 0-10 Vdc AC Transducer
0-10 Vdc
Current
Sensor
Circuitry
Prp
Prp
SPECIFICATIONS
Operating Temperature:
Humidity Range:
Dimensions:
Wire Length:
Approvals:
Housing Rating:
Sensor Type:
Sensor Range:
Max Sense Voltage:
V
0-5 Vdc
V
Comm
-30 to 140˚ F
5 to 95% (noncondensing)
4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple
16˝, 600V Rated
UL Listed, UL916, UL864, C-UL California
State Fire Marshal
UL Accepted for Use in Plenum, NEMA 1
Internal, with voltage output
0-30 Amps
600 Vac
Sensor Output:
• Voltage output is proportional to current sensor range.
• Min. Input Impedance = 30K ohms
• Accuracy +/– 3% full scale
• Vripple < 10m Vac
Made in USA
Meets
“Buy American”
of ARRA 2009
071717
