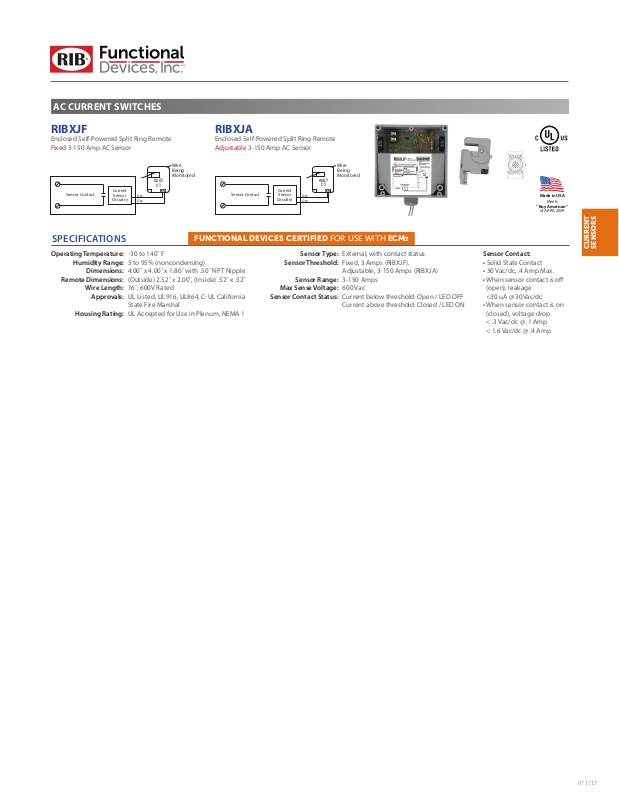

CURRENT
SENSORS
AC CURRENT SWITCHES
RIBXJF
Enclosed Self-Powered Split Ring Remote
Fixed 3-150 Amp AC Sensor
AXGT
Sensor Contact
Current
Sensor
Circuitry
SPECIFICATIONS
Operating Temperature:
Humidity Range:
Dimensions:
Remote Dimensions:
Wire Length:
Approvals:
Housing Rating:
CT
Gry
Gry
-30 to 140˚ F
5 to 95% (noncondensing)
4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple
Outside) 2.52˝ x 2.00˝, (Inside) .52˝ x .52˝
(
16˝, 600V Rated
UL Listed, UL916, UL864, C-UL California
State Fire Marshal
UL Accepted for Use in Plenum, NEMA 1
RIBXJA
Enclosed Self-Powered Split Ring Remote
Adjustable 3-150 Amp AC Sensor
Wire
Being
Monitored
Sensor Contact
Current
Sensor
Circuitry
Gry
Gry
FUNCTIONAL DEVICES CERTIFIED FOR USE WITH ECMS
Sensor Type:
Sensor Threshold:
Sensor Range:
Max Sense Voltage:
Sensor Contact Status:
Wire
Being
Monitored
AXGT
CT
External, with contact status
Fixed, 3 Amps (RIBXJF).
Adjustable, 3-150 Amps (RIBXJA)
3-150 Amps
600 Vac
Current below threshold: Open / LED OFF
Current above threshold: Closed / LED ON
Made in USA
Meets
“Buy American”
of ARRA 2009
Sensor Contact:
• Solid State Contact
• 30 Vac/dc, .4 Amp Max.
• When sensor contact is o
(open), leakage
<30 uA @ 30Vac/dc
• When sensor contact is on
(closed), voltage drop
< .3 Vac/dc @ .1 Amp
< 1.6 Vac/dc @ .4 Amp
071717
