RELAYS
Power Tolerances:
24 Vac = Terminal Strip (20 Vac min. ; 28 Vac max.)
24 Vdc = Terminal Strip (24 Vdc min. ; 28 Vdc max.)
Device Settings by Network:
•
•
•

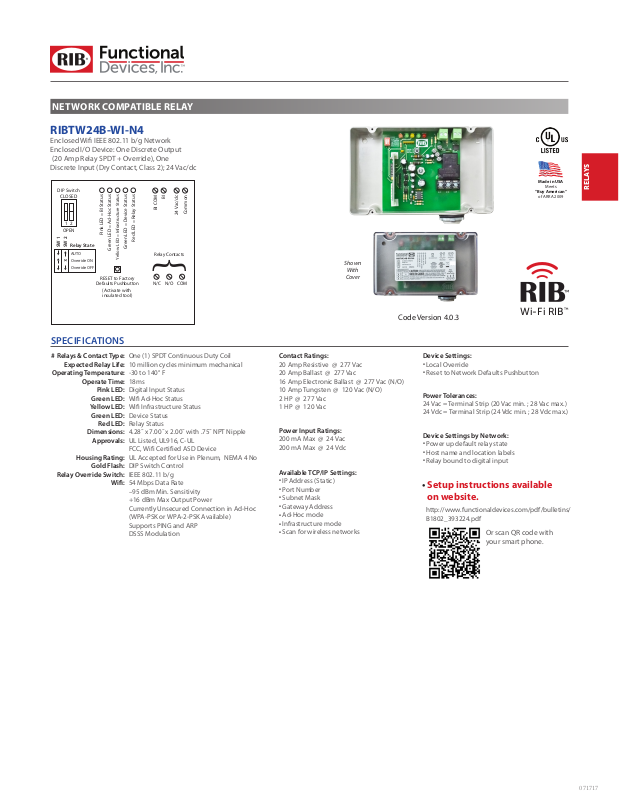

NETWORK COMPATIBLE RELAY
RIBTW24B-WI-N4
Enclosed Wi IEEE 802.11 b/g Network
Enclosed I/O Device: One Discrete Output
(20 Amp Relay SPDT + Override), One
Discrete Input (Dry Contact, Class 2); 24 Vac/dc
DIP Switch
CLOSED
1 2
OPEN
SW 1
X
SW 2
Relay State
AUTO
Override ON
Override OFF
Pink LED = BI Status
Green LED = Ad-Hoc Status
RESET to Factory
Defaults Pushbutton
(Activate with
insulated tool)
SPECIFICATIONS
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Operate Time:
Pink LED:
Green LED:
Yellow LED:
Green LED:
Red LED:
Dimensions:
Approvals:
Housing Rating:
Gold Flash:
Relay Override Switch:
Wi:
Red LED = Relay Status
Green LED = Device Status
Yellow LED = Infrastructure Status
One (1) SPDT Continuous Duty Coil
10 million cycles minimum mechanical
-30 to 140° F
18ms
Digital Input Status
Wi
Wi Infrastructure Status
Device Status
Relay Status
4.28˝ x 7.00˝ x 2.00˝ with .75˝ NPT Nipple
UL Listed, UL916, C-UL
FCC, Wifi Certified ASD Device
UL Accepted for Use in Plenum, NEMA 4 No
DIP Switch Control
IEEE 802.11 b/g
54 Mbps Data Rate
–95 dBm Min. Sensitivity
+16 dBm Max Output Power
Currently Unsecured Connection in Ad-Hoc
(WPA-PSK or WPA-2-PSK Available)
Supports PING and ARP
DSSS Modulation
BI
BI COM
Relay Contacts
N/C N/O COM
Ad-Hoc Status
Common
24 Vac/dc
Shown
With
Cover
Contact Ratings:
20 Amp Resistive @ 277 Vac
20 Amp Ballast @ 277 Vac
16 Amp Electronic Ballast @ 277 Vac (N/O)
10 Amp Tungsten @ 120 Vac (N/O)
2 HP @ 277 Vac
1 HP @ 120 Vac
Power Input Ratings:
200 mA Max @ 24 Vac
200 mA Max @ 24 Vdc
Available TCP/IP Settings:
•
IP Address (Static)
•
Port Number
•
Subnet Mask
•
Gateway Address
• Ad-Hoc mode
• Infrastructure mode
• Scan for wireless networks
Code Version 4.0.3
Device Settings:
•
Local Override
•
Reset to Network Defaults Pushbutton
Power up default relay state
Host name and location labels
Relay bound to digital input
• Setup instructions available
on website.
http://www.functionaldevices.com/pdf/bulletins/
B1802_393224.pdf
Or scan QR code with
your smart phone.
Made in USA
Meets
“Buy American”
of ARRA 2009
Wi-Fi RIB
™
071717
