24 Vac/dc
BO3 COM
BO4 COM

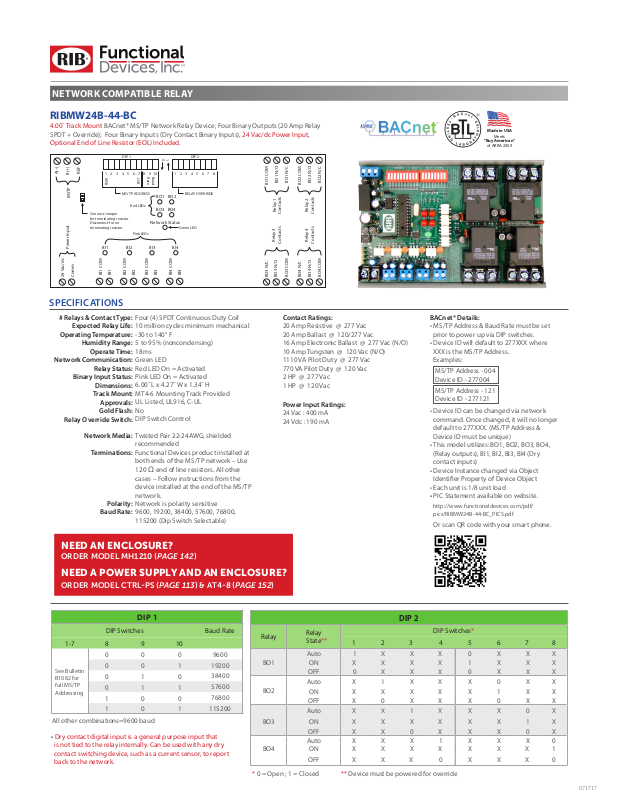

NETWORK COMPATIBLE RELAY
RIBMW24B-44-BC
4.00˝ Track Mount BACnet® MS/TP Network Relay Device; Four Binary Outputs (20 Amp Relay
SPDT + Override); Four Binary Inputs (Dry Contact Binary Inputs), 24 Vac/dc Power Input,
Optional End of Line Resistor (EOL) Included.
REF
A(–)
B(+)
MSTP
Power Input
Comm
1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8
MSB
Connect Jumper
for terminating resistor.
Disconnect for no
terminating resistor.
BI1 BI2 BI3 BI4
BI1 COM
BI1
SPECIFICATIONS
# Relays & Contact Type:
Expec
Operating Temperature:
Network Communication:
ted Relay Life:
Humidity Range:
Operate Time:
Relay Status:
Binary Input Status:
Dimensions:
Track Mount:
Approvals:
Gold Flash:
Relay Override Switch:
Network Media:
Terminations:
Polarity:
Baud Rate:
DIP 1 DIP 2
MS/TP ADDRESS
Red LEDs
Pink LEDs
BI2 COM
BI2
Four (4) SPDT Continuous Duty Coil
10 million cycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
18ms
Green LED
Red LED On = Activated
Pink LED On = Activated
6.00˝ L x 4.27˝ W x 1.34˝ H
MT4-6 Mounting Track Provided
UL Listed, UL916, C-UL
No
DIP Switch Control
Twisted Pair 22-24AWG, shielded
recommended
Functional Devices product installed at
both ends of the MS/TP network – Use
120 Ω end of line r
cases – Follow instructions from the
device installed at the end of the MS/TP
network.
Network is polarity sensitive
9600, 19200, 38400, 57600, 76800,
115200 (Dip Switch Selectable)
LSB
0
Baud
Rate
BO1 BO2
BO3
Network Status
BI3 COM
BI3
1
BO4
Green LED
BI4 COM
RELAY OVERRIDE
BI4
esistors. All other
BO1 N/C
BO1 N/O
BO1 COM
Relay 1
Relay 3
BO3 N/O
BO3 N/C
Contacts
Contacts
BO2 N/O
BO2 COM
Relay 2
Relay 4
BO4 N/O
BO4 N/C
Contacts
Contacts
Contact Ratings:
20 Amp Resistive @ 277 Vac
20 Amp Ballast @ 120/277 Vac
16 Amp Electronic Ballast @ 277 Vac (N/O)
10 Amp Tungsten @ 120 Vac (N/O)
1110 VA Pilot Duty @ 277 Vac
770 VA Pilot Duty @ 120 Vac
2 HP @ 277 Vac
1 HP @ 120 Vac
Power Input Ratings:
24 Vac : 400 mA
24 Vdc : 190 mA
BO2 N/C
Made in USA
Meets
“Buy American”
of ARRA 2009
BACnet® Details:
• MS/TP Address & Baud Rate must be set
prior to power up via DIP switches.
• Device ID will default to 277XXX where
XXX is the MS/TP Address.
Examples:
MS/TP Address - 004
Device ID - 277004
MS/TP Address - 121
Device ID - 277121
• Device ID can be changed via network
command. Once changed, it will no longer
default to 277XXX. (MS/TP Address &
Device ID must be unique)
• This model utilizes: BO1, BO2, BO3, BO4,
(Relay outputs), BI1, BI2, BI3, BI4 (Dry
contact inputs)
• Device Instance changed via Object
Identier Property of Device Object
• Each unit is 1/8 unit load
• PIC Statement available on website.
http://www.functionaldevices.com/pdf/
pics/RIBMW24B-44-BC_PICS.pdf
Or scan QR code with your smart phone.
NEED AN ENCLOSURE?
ORDER MODEL MH1210 (PAGE 142)
NEED A POWER SUPPLY AND AN ENCLOSURE?
ORDER MODEL CTRL-PS (PAGE 113) & AT4-8 (PAGE 152)
DIP 1
DIP Switches Baud Rate
1-7 8 9 10
0 0 0
See Bulletin
B1082 for
full MS/TP
Addressing
0 0 1
0 1 0
0 1 1
1 0 0
1 0 1
All other combinations=9600 baud
• Dry contact digital input is a general purpose input that
is not tied to the relay internally. Can be used with any dry
contact switching device, such as a current sensor, to report
back to the network.
9600
19200
38400
57600
76800
115200
* 0 = Open ; 1 = Closed ** Device must be powered for override
DIP 2
Relay
Relay
State**
1 2 3 4 5 6 7 8
Auto 1 X X X 0 X X X
BO1 ON X X X X 1 X X X
OFF 0 X X X 0 X X X
Auto X 1 X X X 0 X X
BO2
ON X X X X X 1 X X
OFF X 0 X X X 0 X X
Auto X X 1 X X X 0 X
BO3 ON X X X X X X 1 X
OFF X X 0 X X X 0 X
Auto X X X 1 X X X 0
BO4 ON X X X X X X X 1
OFF X X X 0 X X X 0
DIP Switches*
071717
