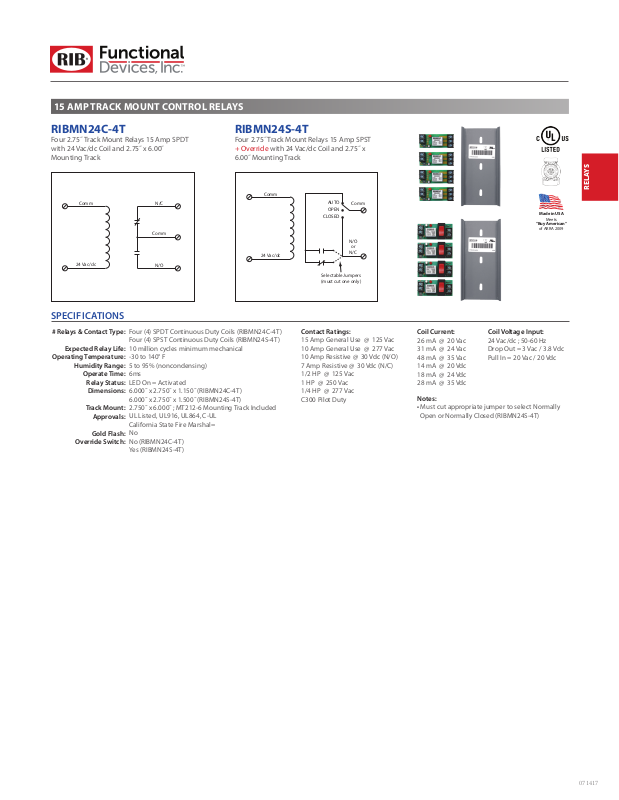

RELAYS
15 AMP TRACK MOUNT CONTROL RELAYS
RIBMN24C-4T
Four 2.75˝ Track Mount Relays 15 Amp SPDT
with 24 Vac/dc Coil and 2.75˝ x 6.00˝
Mounting Track
Comm
24 Vac/dc
SPECIFICATIONS
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Humidity Range:
Operate Time:
Relay Status:
Dimensions:
Track Mount:
Approvals:
Gold Flash:
Override Switch:
N/C
Comm
N/O
Four (4) SPDT Continuous Duty Coils (RIBMN24C-4T)
our (4) SPST Continuous Duty Coils (RIBMN24S-4T)
F
10 million cycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
6ms
LED On = Activated
6.000˝ x 2.750˝ x 1.150˝ (RIBMN24C-4T)
6.000˝ x 2.750˝ x 1.500˝ (RIBMN24S-4T)
2.750˝ x 6.000˝ ; MT212-6 Mounting Track Included
UL Listed, UL916, UL864, C-UL
California State Fire Marshal=
No
No (RIBMN24C-4T)
Yes (RIBMN24S-4T)
RIBMN24S-4T
Four 2.75˝ Track Mount Relays 15 Amp SPST
+ Override with 24 Vac/dc Coil and 2.75˝ x
6.00˝ Mounting Track
Comm
24 Vac/dc
AUTO
Comm
OPEN
CLOSED
N/O
or
N/C
Selectable Jumpers
(must cut one only)
Contact Ratings:
15 Amp General Use @ 125 Vac
10 Amp General Use @ 277 Vac
10 Amp Resistive @ 30 Vdc (N/O)
7 Amp Resistive @ 30 Vdc (N/C)
1/2 HP @ 125 Vac
1 HP @ 250 Vac
1/4 HP @ 277 Vac
C300 Pilot Duty
Made in USA
Meets
“Buy American”
of ARRA 2009
Coil Current:
26 mA @ 20 Vac
31 mA @ 24 Vac
48 mA @ 35 Vac
Coil Voltage Input:
24 Vac/dc ; 50-60 Hz
Drop Out = 3 Vac / 3.8 Vdc
Pull In = 20 Vac / 20 Vdc
14 mA @ 20 Vdc
18 mA @ 24 Vdc
28 mA @ 35 Vdc
Notes:
• Must cut appropriate jumper to select Normally
Open or Normally Closed (RIBMN24S-4T)
071417
