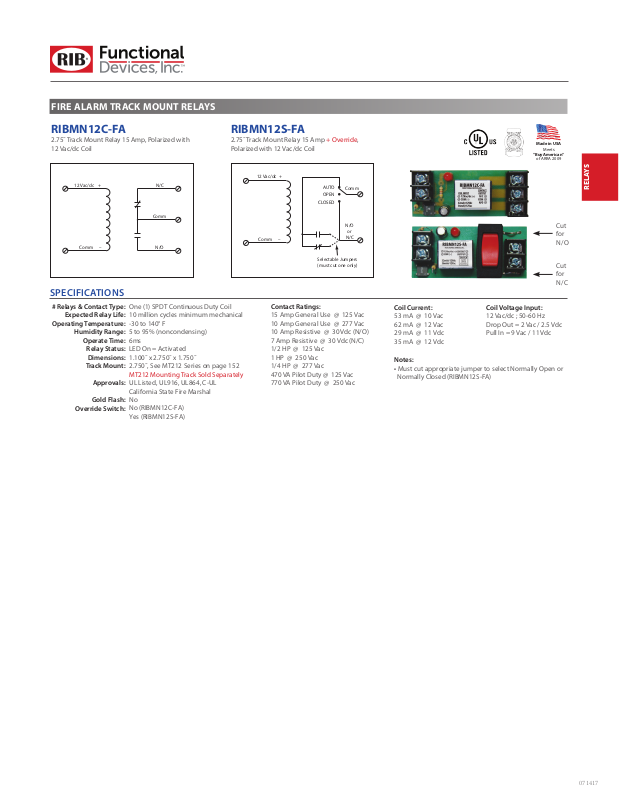

RELAYS
FIRE ALARM TRACK MOUNT RELAYS
RIBMN12C-FA
2.75˝ Track Mount Relay 15 Amp, Polarized with
12 Vac/dc Coil
+
12 Vac/dc
–
Comm
SPECIFICATIONS
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Humidity Range:
Operate Time:
Relay Status:
Dimensions:
Track Mount:
Approvals:
Gold Flash:
Override Switch:
N/C
Comm
N/O
One (1) SPDT Continuous Duty Coil
10 million c
ycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
6ms
LED On = Activated
1.100˝ x 2.750˝ x 1.750˝
2.750˝, See MT212 Series on page 152
MT212 Mounting Track Sold Separately
UL Listed, UL916, UL864, C-UL
California State Fire Marshal
No
No (RIBMN12C-FA)
Yes (RIBMN12S-FA)
RIBMN12S-FA
2.75˝ Track Mount Relay 15 Amp + Override,
Polarized with 12 Vac/dc Coil
+
12 Vac/dc
AUTO
Comm
OPEN
CLOSED
N/O
or
–
Comm
Contact Ratings:
15 Amp General Use @ 125 Vac
10 Amp General Use @ 277 Vac
10 Amp Resistive @ 30 Vdc (N/O)
7 Amp Resistive @ 30 Vdc (N/C)
1/2 HP @ 125 Vac
1 HP @ 250 Vac
1/4 HP @ 277 Vac
470 VA Pilot Duty @ 125 Vac
770 VA Pilot Duty @ 250 Vac
N/C
Selectable Jumpers
(must cut one only)
Made in USA
Meets
“Buy American”
of ARRA 2009
Coil Current:
53 mA @ 10 Vac
62 mA @ 12 Vac
29 mA @ 11 Vdc
Coil Voltage Input:
12 Vac/dc ; 50-60 Hz
Drop Out = 2 Vac / 2.5 Vdc
Pull In = 9 Vac / 11 Vdc
35 mA @ 12 Vdc
Notes:
• Must cut appropriate jumper to select Normally Open or
Normally Closed (RIBMN12S-FA)
Cut
for
N/O
Cut
for
N/C
071417
