RELAYS

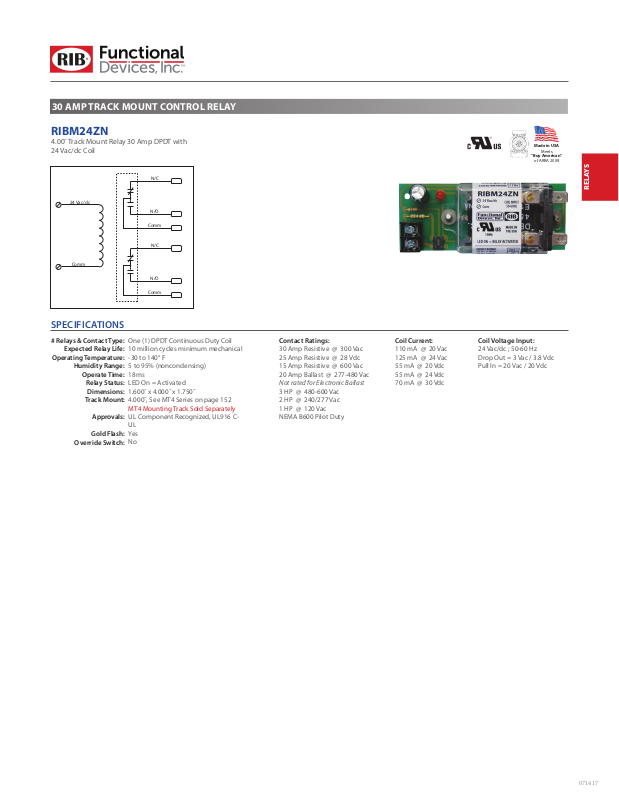

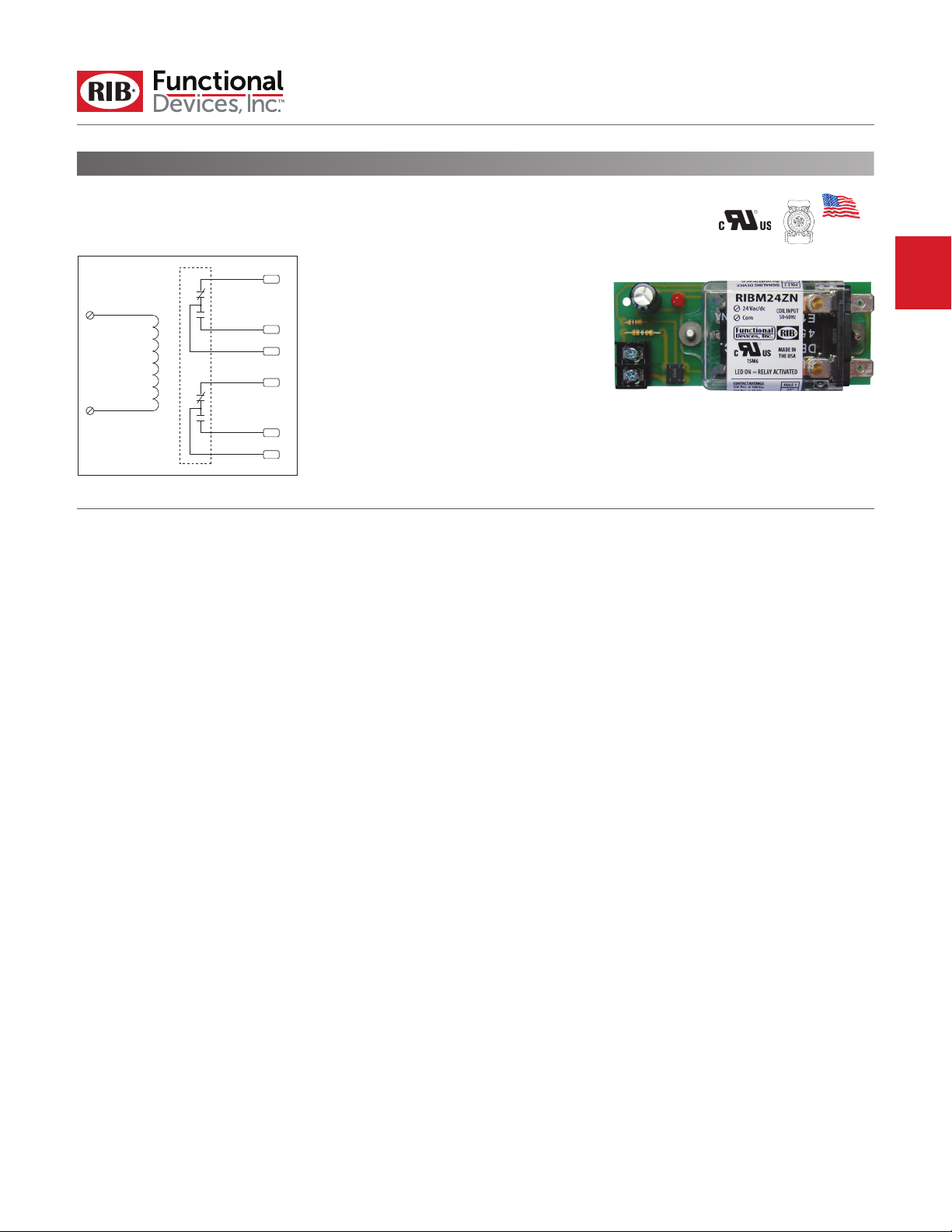

30 AMP TRACK MOUNT CONTROL RELAY
RIBM24ZN
4.00˝ Track Mount Relay 30 Amp DPDT with
24 Vac/dc Coil
N/C
Made in USA
Meets
“Buy American”
of ARRA 2009
24 Vac/dc
Comm
SPECIFICATIONS
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Humidity Range:
Operate Time:
Relay Status:
Dimensions:
Track Mount:
Approvals:
Gold Flash:
Override Switch:
N/O
Comm
N/C
N/O
Comm
One (1) DPDT Continuous Duty Coil
10 million c
ycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
18ms
LED On = Activated
1.600˝ x 4.000˝ x 1.750˝
4.000˝, See MT4 Series on page 152
MT4 Mounting Track Sold Separately
UL Component Recognized, UL916 CUL
Yes
No
Contact Ratings:
30 Amp Resistive @ 300 Vac
25 Amp Resistive @ 28 Vdc
15 Amp Resistive @ 600 Vac
20 Amp Ballast @ 277-480 Vac
Not rated for Electronic Ballast
3 HP @ 480-600 Vac
2 HP @ 240/277 Vac
1 HP @ 120 Vac
NEMA B600 Pilot Duty
Coil Current:
110 mA @ 20 Vac
125 mA @ 24 Vac
55 mA @ 20 Vdc
55 mA @ 24 Vdc
70 mA @ 30 Vdc
Coil Voltage Input:
24 Vac/dc ; 50-60 Hz
Drop Out = 3 Vac / 3.8 Vdc
Pull In = 20 Vac / 20 Vdc
071417
