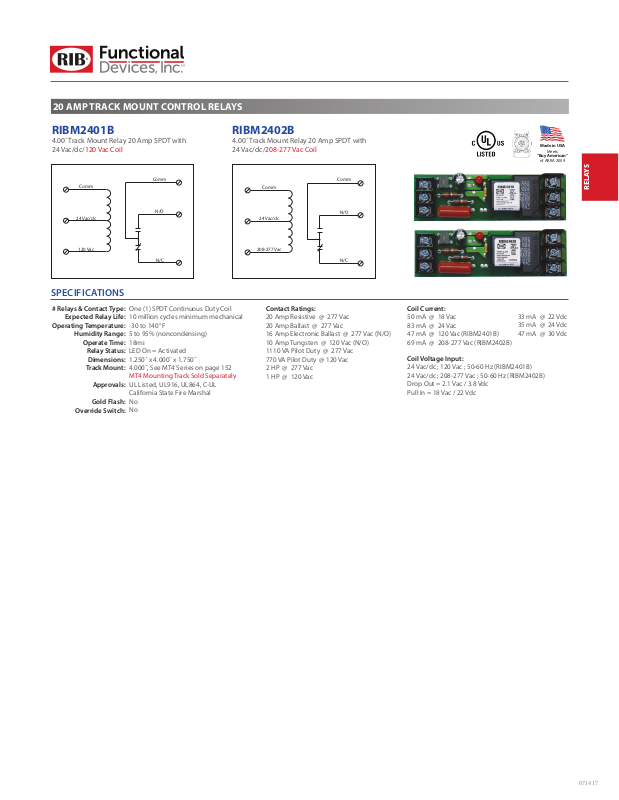

RELAYS
20 AMP TRACK MOUNT CONTROL RELAYS
RIBM2401B
4.00˝ Track Mount Relay 20 Amp SPDT with
24 Vac/dc/120 Vac Coil
Comm
24 Vac/dc
120 Vac
SPECIFICATIONS
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Humidity Range:
Operate Time:
Relay Status:
Dimensions:
Track Mount:
Approvals:
Gold Flash:
Override Switch:
Comm
N/O
N/C
One (1) SPDT Continuous Duty Coil
10 million c
ycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
18ms
LED On = Activated
1.250˝ x 4.000˝ x 1.750˝
4.000˝, See MT4 Series on page 152
MT4 Mounting Track Sold Separately
UL Listed, UL916, UL864, C-UL
California State Fire Marshal
No
No
RIBM2402B
4.00˝ Track Mount Relay 20 Amp SPDT with
24 Vac/dc/208-277 Vac Coil
Comm
24 Vac/dc
208-277 Vac
Contact Ratings:
20 Amp Resistive @ 277 Vac
20 Amp Ballast @ 277 Vac
16 Amp Electronic Ballast @ 277 Vac (N/O)
10 Amp Tungsten @ 120 Vac (N/O)
1110 VA Pilot Duty @ 277 Vac
770 VA Pilot Duty @ 120 Vac
2 HP @ 277 Vac
1 HP @ 120 Vac
Comm
N/O
N/C
“Buy American”
Coil Current:
50 mA @ 18 Vac
83 mA @ 24 Vac
47 mA @ 120 Vac (RIBM2401B)
33 mA @ 22 Vdc
35 mA @ 24 Vdc
47 mA @ 30 Vdc
69 mA @ 208-277 Vac (RIBM2402B)
Coil Voltage Input:
24 Vac/dc ; 120 Vac ; 50-60 Hz (RIBM2401B)
24 Vac/dc ; 208-277 Vac ; 50-60 Hz (RIBM2402B)
Drop Out = 2.1 Vac / 3.8 Vdc
Pull In = 18 Vac / 22 Vdc
Made in USA
Meets
of ARRA 2009
071417
