RELAYS
480 Vac
Comm
N/C
Comm
N/O
N/C
Comm
N/O
N/C
Comm
N/O
Not Used
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Humidity Range:
Operate Time:
Relay Status:
Dimensions:
Track Mount:
Approvals:
Gold Flash:
Override Switch:
One (1) 3PDT Continuous Duty Coil
10 million cycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
20ms
LED On = Activated
3.250˝ x 4.000˝ x 1.750˝
4.000˝, See MT4 Series on page 152
MT4 Mounting Track Sold Separately
UL Component Recognized, UL916, UL864
C-UL, California State Fire Marshal
No
No
RIBM043PN-HD
4.00˝ Track Mount Relay 30 Amp 3PDT with
480 Vac Coil (-HD for More Transient Prone
Environments)
Contact Ratings:
30 Amp General Use @ 300 Vac
30 Amp Resistive @ 28 Vdc
20 Amp Ballast @ 277-480 Vac
Not rated for Electronic Ballast
15 Amp Resistive @ 600 Vac
7.5 HP @ 480 Vac, 3 Phase
5 HP @ 240 Vac, 3 Phase
3 HP @ 480-600 Vac, 1 Phase
2 HP @ 240-277 Vac, 1 Phase
1 HP @ 120 Vac, 1 Phase
Coil Current:
140 mA @ 480 Vac
Coil Voltage Input:
480 Vac/dc ; 50-60 Hz
Drop Out = 140 Vac
Pull In = 340 Vac
Heavy Pilot Duty @ 600 Vac
770 VA @ 120 Vac, 1 Phase
1158 VA @ 240 Vac, 1 Phase
1110 VA @ 277 Vac, 1 Phase
1640 VA @ 480 Vac, 1 Phase
1466 VA @ 240 Vac, 3 Phase
2122 VA @ 480 Vac, 3 Phase

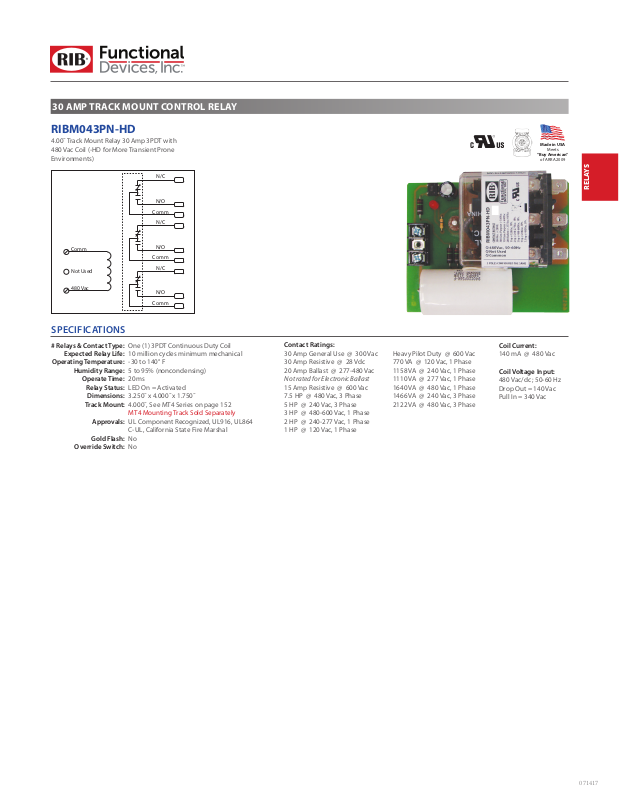

30 AMP TRACK MOUNT CONTROL RELAY
SPECIFICATIONS
Made in USA
Meets
“Buy American”
of ARRA 2009
