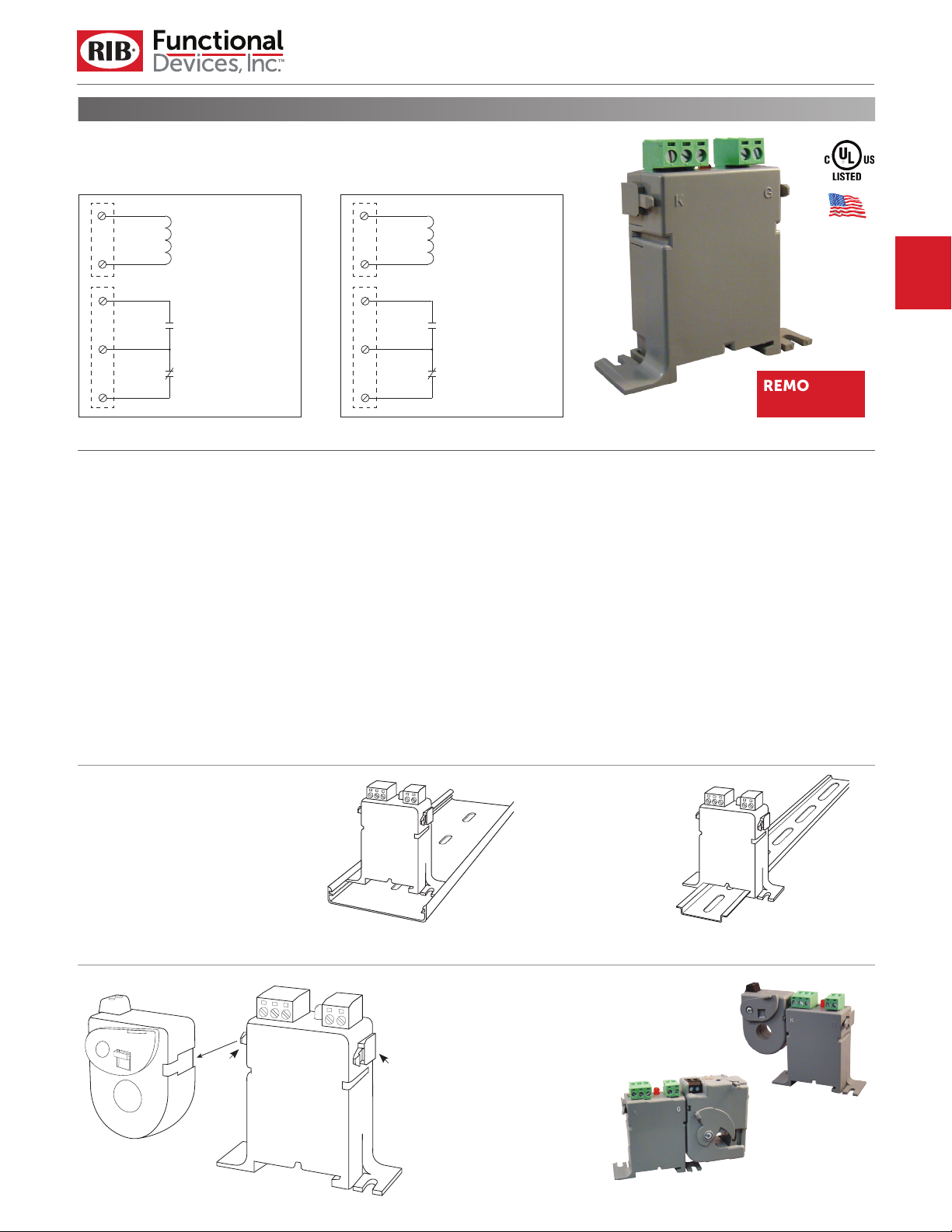

10 AMP TRACK MOUNT CONTROL RELAYS
RIBAN24C
Track Mount Relay 10 Amp SPDT with
24 Vac/dc Coil
24 Vac/dc
N/O
Comm
N/C
SPECIFICATIONS
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Operate Time:
Relay Status:
Dimensions:
Terminals:
Mounting:
Approvals:
Gold Flash:
Override Switch:
One (1) SPDT Continuous Duty Coil
10 million cycles minimum mechanical
-30 to 140° F
6ms
LED On = Activated
1.025˝ x 2.750˝ x 2.850˝
Removable, Accepts 22-16 AWG copper wires
A: 2.750˝ Track Mount, See MT212 Series on page
152. MT212 Mounting Track Sold Separately.
B: 35mm x 7.5mm symmetrical DIN rail EN50022
C: Screw Mount, See DS80625 on page 153.
DS80625 Self-Tapping Drill Screws Sold
S
eparately.
D: Current Sensor Mount, See RIBXG Series on
page 94 or RIBXK Series on page 93.
Current Sensors Sold Separately.
UL Listed, UL508, C-UL
No
No
RIBAN12C
Track Mount Relay 10 Amp SPDT with
12 Vac/dc Coil
12 Vac/dc
N/O
Comm
N/C
Contact Ratings:
10 Amp General Use @ 277 Vac
10 Amp Resistive @ 30 Vdc (N/O)
7 Amp Resistive @ 30 Vdc (N/C)
1/2 HP @ 125 Vac
1 HP @ 250 Vac
1/4 HP @ 277 Vac
C300 Pilot Duty
Coil Voltage Input (RIBAN24C):
24 Vac/dc ; 50-60 Hz
Drop Out = 3 Vac / 3.8 Vdc
Pull In = 20 Vac / 20 Vdc
Coil Voltage Input (RIBAN12C):
12 Vac/dc ; 50-60 Hz
Drop Out = 2 Vac / 2.5 Vdc
Pull In = 9 Vac / 11 Vdc
Made in USA
“Buy American”
of ARRA 2009
REMOVABLE
TERMINALS
Coil Current (RIBAN24C):
26 mA @ 20 Vac
31 mA @ 24 Vac
14 mA @ 20 Vdc
18 mA @ 24 Vdc
28 mA @ 35 Vdc
Coil Current (RIBAN12C):
53 mA @ 10 Vac
62 mA @ 12 Vac
29 mA @ 11 Vdc
35 mA @ 12 Vdc
Notes:
• Set of replacement terminals
available. Order model
number: TS-AN
Meets
RELAYS
RELAY MOUNTING OPTIONS A & B
Mounting Option A:
2.75” Track Mount
MT212 Series
CURRENT SENSOR MOUNTING OPTION D
RIBXK
Series
Mounting
Tab
K
G
K
Mounting
RIBXG
Series
Tab
G
Mounting Option B:
K
G
35mm x 7.5mm symmetrical
DIN rail EN50022
1. Slide current sensor
onto corresponding
mounting tab.
2. Snap into place.
3. Depress tab to remove
current sensor.
071417
