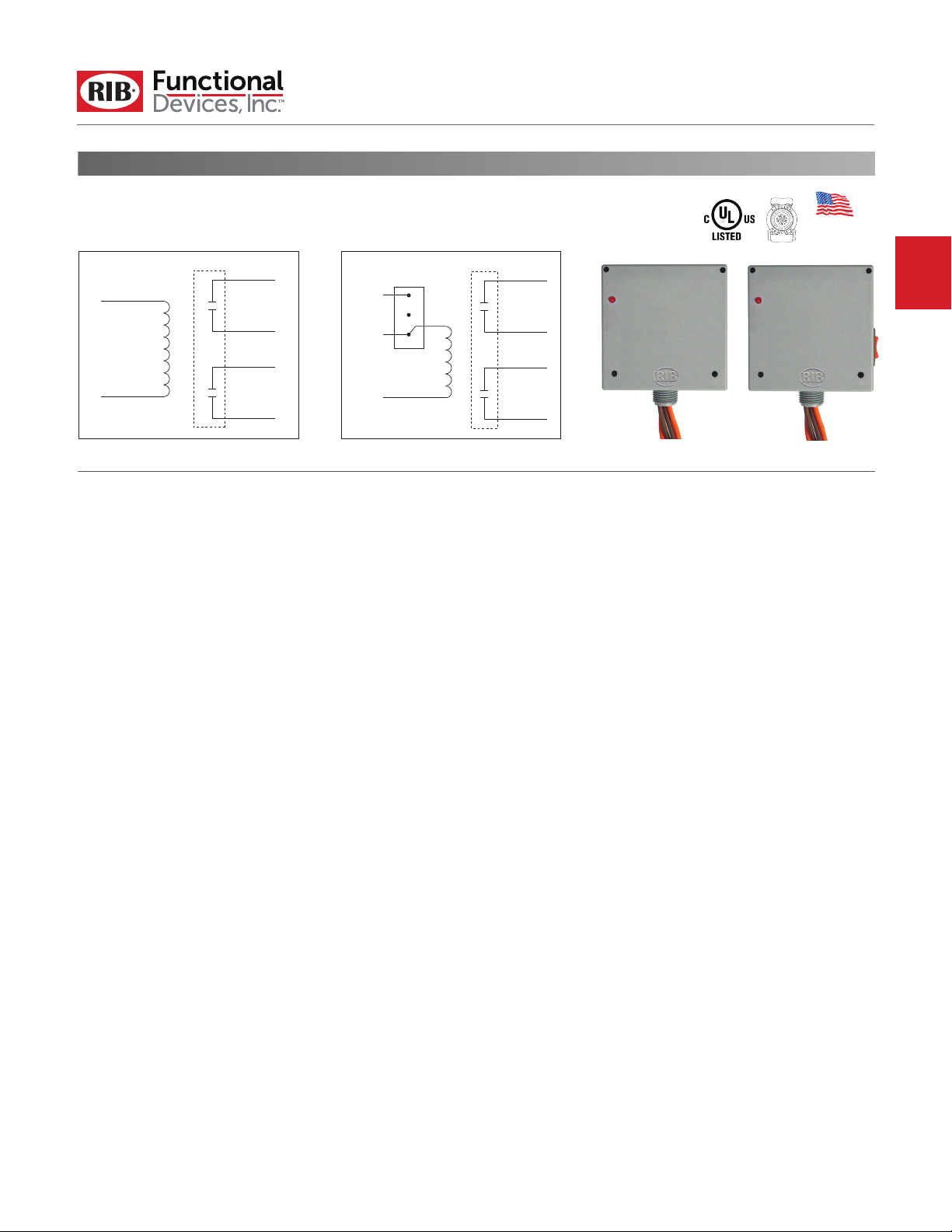

RELAYS
30 AMP POWER CONTROL RELAYS
RIB01P30
Enclosed Relay 30 Amp DPST-N/O with
120 Vac Coil
Org
Wht/Blk
120 Vac
Wht/Blk
120 Vac
SPECIFICATIONS
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Humidity Range:
Operate Time:
Relay Status:
Dimensions:
Wires:
Approvals:
Housing Rating:
Gold Flash:
Override Switch:
One (1) DPST Continuous Duty Coil
10 million cycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
18ms
LED On = Activated
4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple
16˝, 600V R
UL Listed, UL916, UL864, C-UL California
State Fire Marshal
UL Accepted for Use in Plenum, NEMA 1
Yes
No (RIB01P30)
Coil Side (RIB01P30-S)
N/O
Org
N/O
Brn
N/O
Brn
N/O
ated
RIB01P30-S
Enclosed Relay 30 Amp DPST-N/O + Coil Side
Override with 120 Vac Coil
Org
Wht/Blk
120 Vac
Continuous
Wht/Red
120 Vac
Control
Wht/Yel
Neutral
HAND
OFF
AUTO
Contact Ratings:
30 Amp Resistive @ 300 Vac
25 Amp Resistive @ 28 Vdc
20 Amp Ballast @ 277-480 Vac
Not rated for Electronic Ballast
15 Amp Resistive @ 600 Vac
770 VA Pilot Duty @ 120 Vac
1158 VA Pilot Duty @ 240 Vac
1110 VA Pilot Duty @ 277 Vac
1640 VA Pilot Duty @ 480 Vac
Heavy Pilot Duty @ 600 Vac
3 HP @ 480-600 Vac
2 HP @ 240-277 Vac
1 HP @ 120 Vac
N/O
Org
N/O
Brn
N/O
Brn
N/O
Made in USA
Meets
“Buy American”
of ARRA 2009
Coil Current:
105 mA @ 120 Vac
Coil Voltage Input:
120 Vac ; 50-60 Hz
Drop Out = 35 Vac
Control Input: (RIB01P30-S)
Pull In = 85 Vac
Wht/Blk = 120 Vac Continuous
Wht/Red = 120 Vac Control
Wht/Yel = Neutral
Notes:
• Order Both Poles Normally Closed by adding “-NC” to
end of model number
• Order Pole 1 Normally Open and Pole 2 Normally
Closed by adding “-NONC” to end of model number
071417
