POWER
SUPPLIES

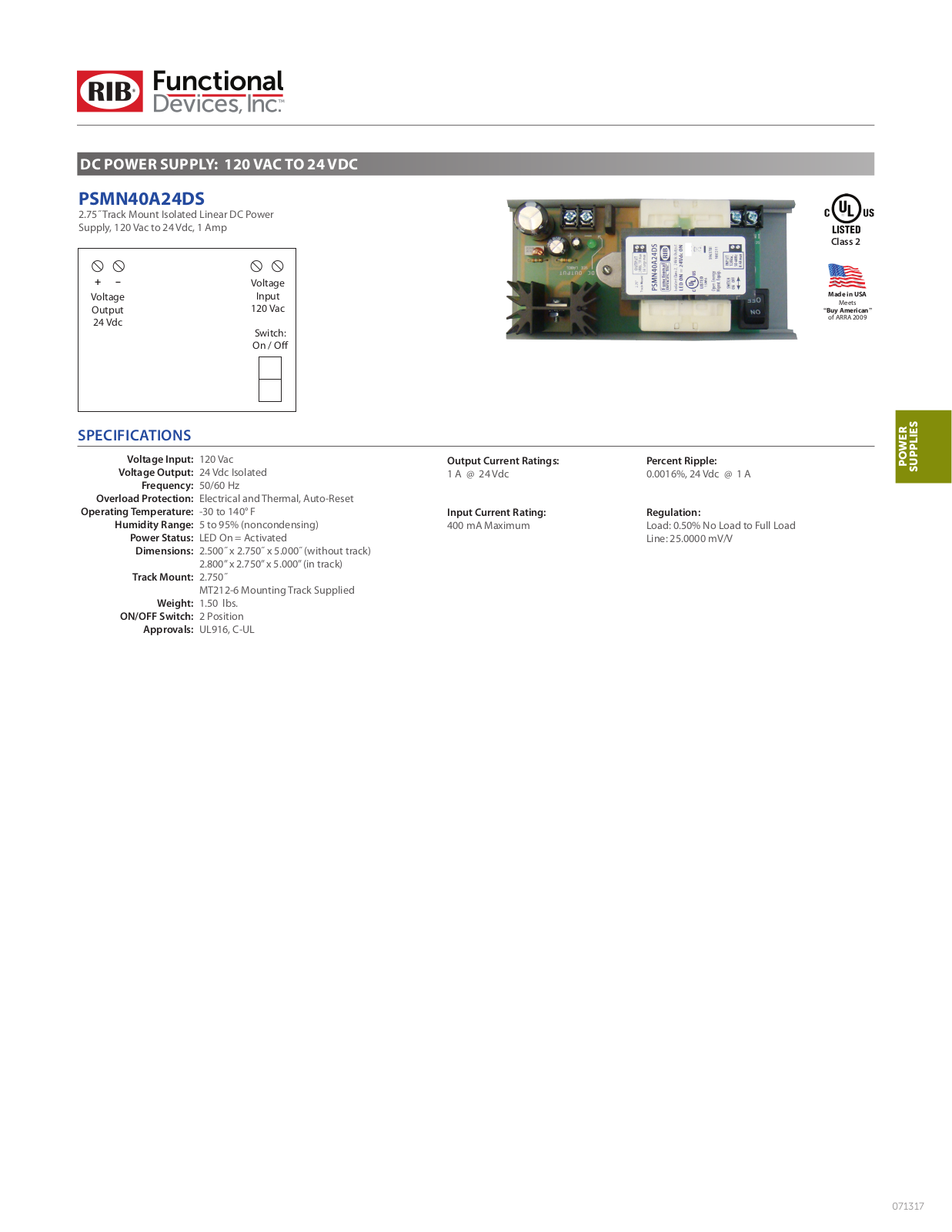

DC POWER SUPPLY: 120 VAC TO 24 VDC
PSMN40A24DS
2.75˝ Track Mount Isolated Linear DC Power
Supply, 120 Vac to 24 Vdc, 1 Amp
Class 2
+ –
Voltage
Output
24 Vdc
SPECIFICATIONS
Voltage Input:
Voltage Output:
Frequency:
Overload Protection:
Operating Temperature:
Humidity Range:
Power Status:
Dimensions:
Track Mount:
Weight:
ON/OFF Switch:
Approvals:
Voltage
Input
120 Vac
Switch:
On / O
120 Vac
24 Vdc Isolat
ed
50/60 Hz
Electrical and Thermal, Auto-Reset
-30 to 140° F
5 to 95% (noncondensing)
LED On = Activated
2.500˝ x 2.750˝ x 5.000˝ (without track)
2.800” x 2.750” x 5.000” (in track)
2.750˝
MT212-6 Mounting Track Supplied
1.50 lbs.
2 Position
UL916, C-UL
Output Current Ratings:
1 A @ 24 Vdc
Input Current Rating:
400 mA Maximum
Percent Ripple:
0.0016%, 24 Vdc @ 1 A
Regulation:
Load: 0.50% No Load to Full Load
Line: 25.0000 mV/V
Made in USA
Meets
“Buy American”
of ARRA 2009
071317
