POWER
SUPPLIES

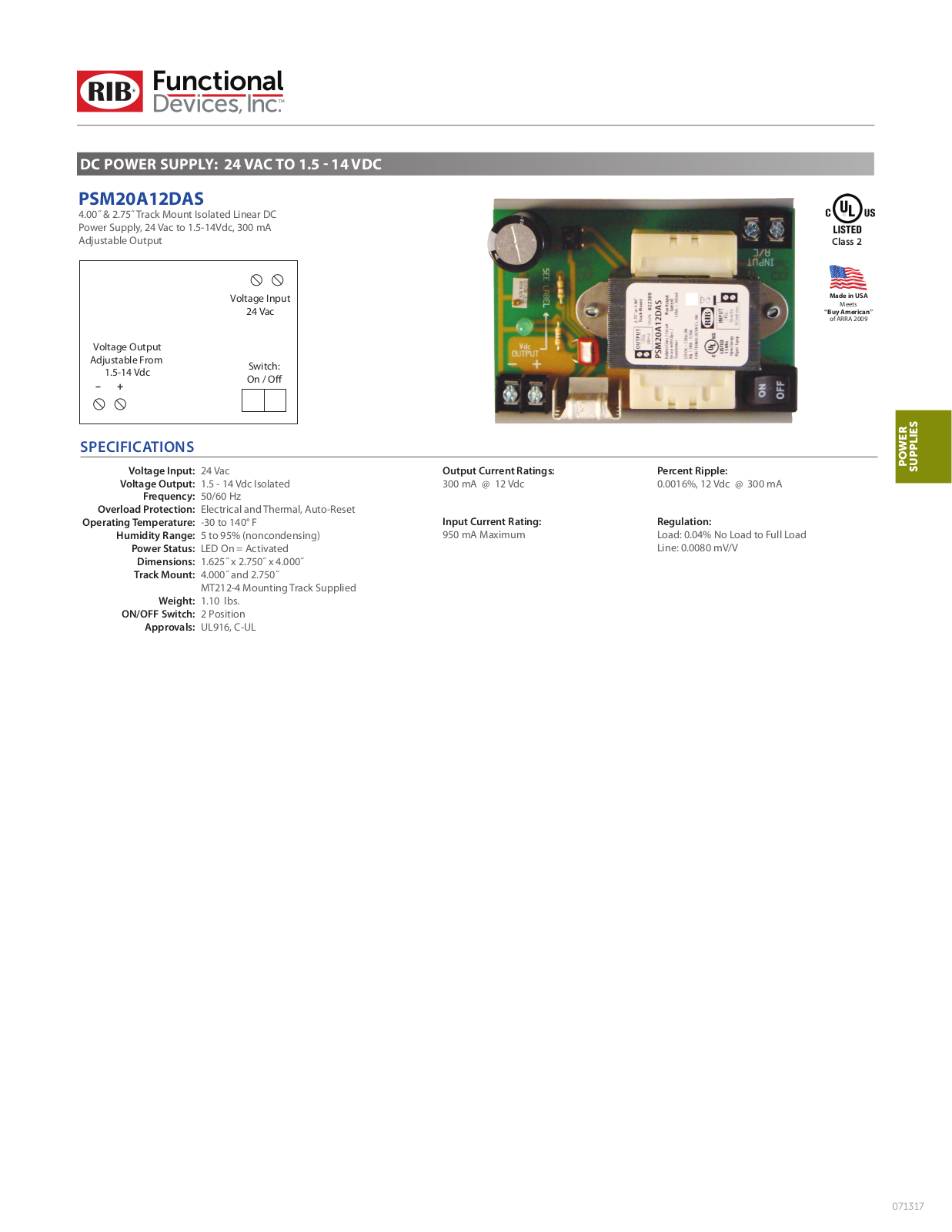

DC POWER SUPPLY: 24 VAC TO 1.5 - 14 VDC
PSM20A12DAS
4.00˝ & 2.75˝ Track Mount Isolated Linear DC
Power Supply, 24 Vac to 1.5-14Vdc, 300 mA
Adjustable Output
Class 2
Voltage Output
Adjustable From
1.5-14 Vdc
+–
SPECIFICATIONS
Voltage Input:
Voltage Output:
Frequency:
Overload Protection:
Operating Temperature:
Humidity Range:
Power Status:
Dimensions:
Track Mount:
Weight:
ON/OFF Switch:
Approvals:
Voltage Input
24 Vac
Switch:
On / O
24 Vac
1.5 - 14 V
dc Isolated
50/60 Hz
Electrical and Thermal, Auto-Reset
-30 to 140° F
5 to 95% (noncondensing)
LED On = Activated
1.625˝ x 2.750˝ x 4.000˝
4.000˝ and 2.750˝
MT212-4 Mounting Track Supplied
1.10 lbs.
2 Position
UL916, C-UL
Output Current Ratings:
300 mA @ 12 Vdc
Input Current Rating:
950 mA Maximum
Percent Ripple:
0.0016%, 12 Vdc @ 300 mA
Regulation:
Load: 0.04% No Load to Full Load
Line: 0.0080 mV/V
Made in USA
Meets
“Buy American”
of ARRA 2009
071317
