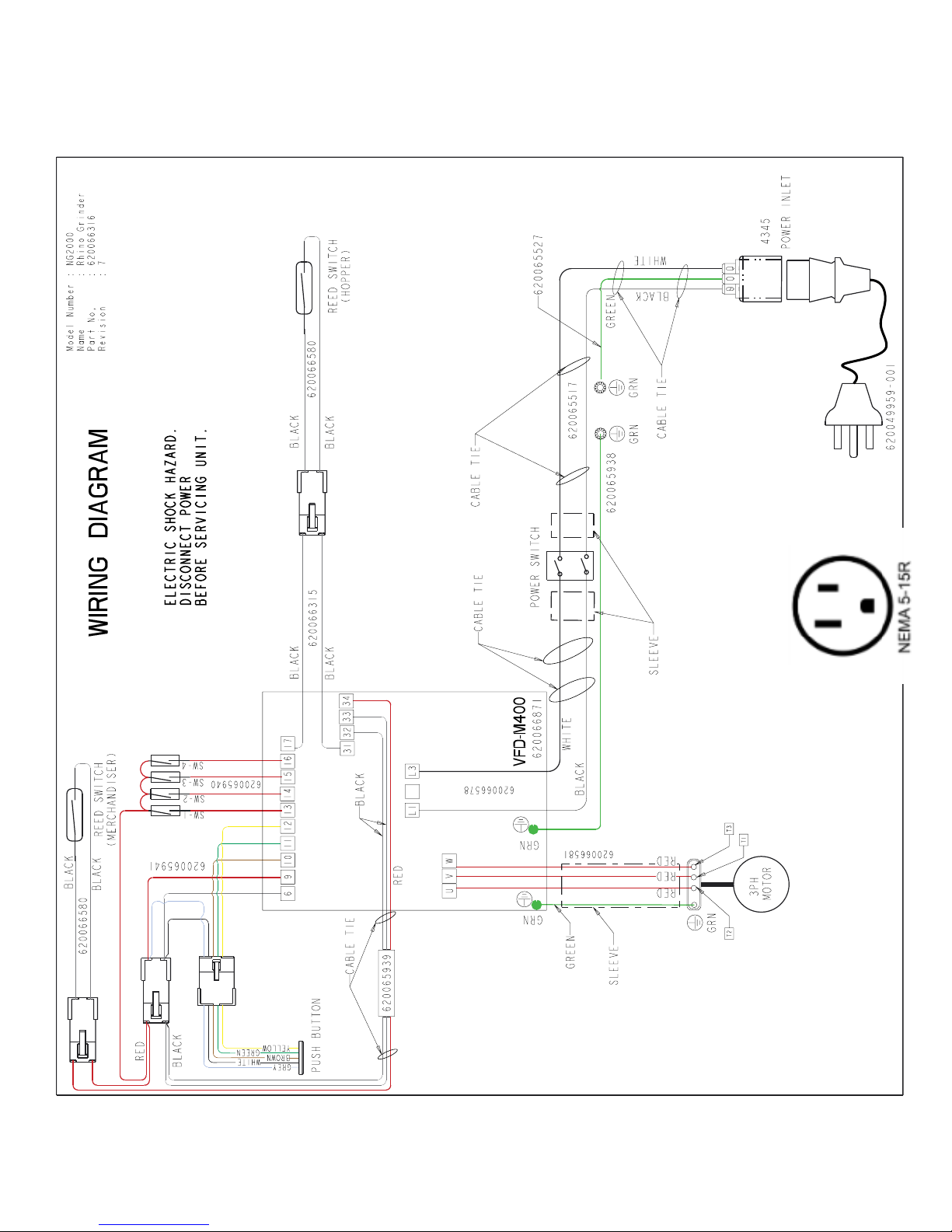

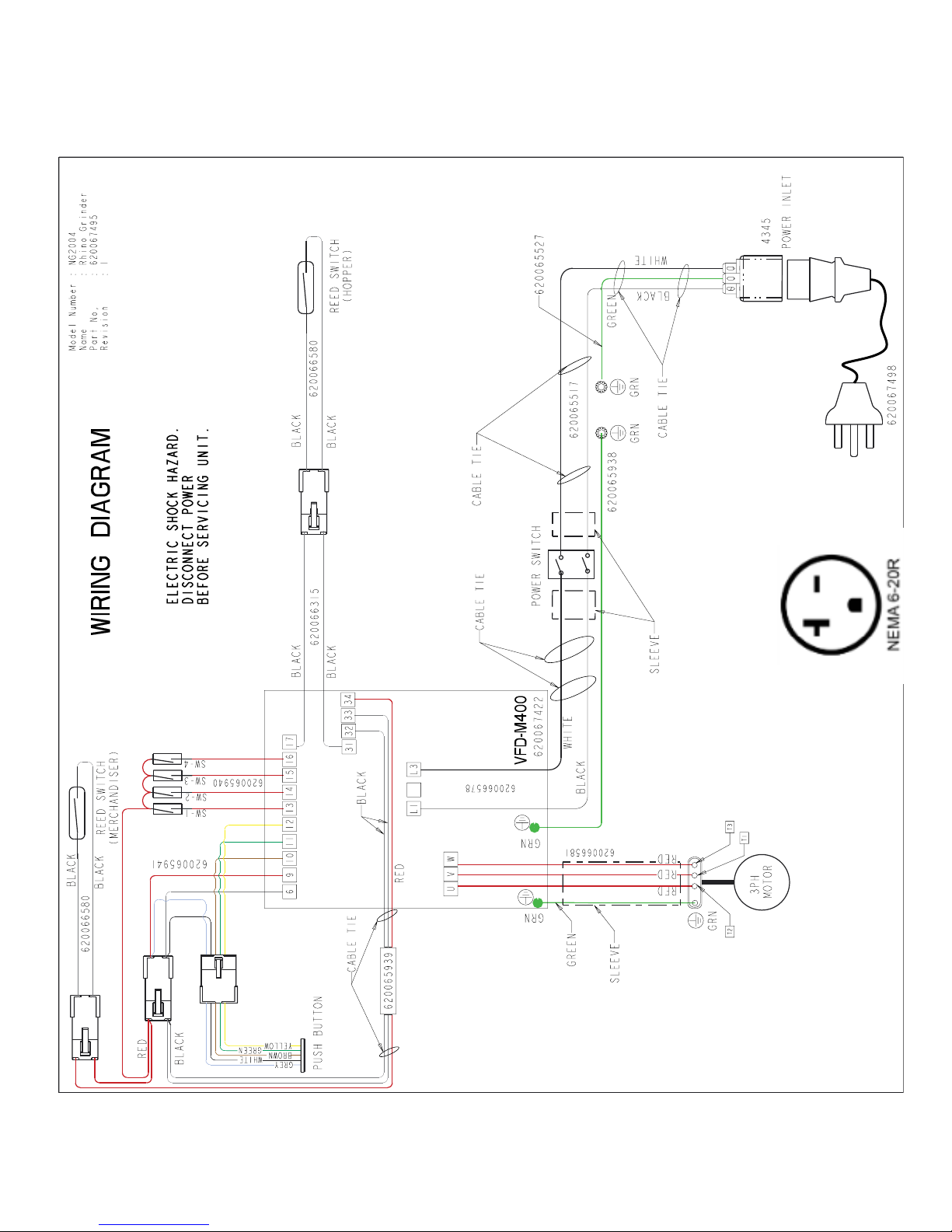

Wiring Schematic 15
Illustrated Parts List 17
Troubleshooting 18
Setting the Timer Switch 22
Setting the Grind Texture (Smooth or Coarse) 23
Warranty Information 25
IMPORTANT: THIS MANUAL IS A GUIDE FOR INSTALLING,
OPERATING, AND MAINTAINING THIS EQUIPMENT. REFER TO
TABLE OF CONTENTS FOR PAGE LOCATION OF DETAILED
INFORMATION PERTAINING TO QUESTIONS THAT ARISE DURING
INSTALLATION, OPERATION, SERVICE AND MAINTENANCE, OR
TROUBLESHOOTING THIS EQUIPMENT.
SHOULD YOUR RHINO® Grind NUT BUTTER GRINDER EVER
LOSE POWER, WE SUGGEST LOOKING AT BOTH THE
POWER ON/OFF SWITCH AND FAQ’S IN THIS MANUAL
TO TROUBLESHOOT BEFORE CONTACTING US.
INTRODUCTION
e RHINO® Grind nut butter
grinder is a free standing machine
that takes nut meat, and grinds it into
a coarse or ne spreadable paste for
consumption by customers at retail.
Our RHINO® Grind nut butter
grinder will be referred to within this
OPERATING MANUAL as the
RHINO, or RHINO® Grind. e
use of terms such as unit, machine, or
equipment are meant to be synonymous with the RHINO® Grind or its
components.
Installation of the RHINO® Grind
nut butter grinder must be on a at
surface, away from heat, and near a
properly grounded, electrical
receptacle for its safe operation.
HOW TO USE/SELL
Customers using the RHINO®
Grind nut butter grinder will
select a container or cup to dispense nut butter into for purchase.
is process begins when the customer places the container or cup below the
dispensing spout, and presses the start/stop button which will activate the motor and
grinding plates. is action grinds the nut meat into a spreadable paste known as nut
butter. Once the machine has delivered the desired amount of product, the consumer
will release the start/stop button which will deactivate the motor causing the grinding
plates and dispensing to stop.
Our RHINO® Grind nut butter grinder will dispense nut butter paste at a ow rate of
2.5Lbs/min. of peanuts. Dierent nut meat ow rates, and how to adjust
settings can be found in this manual. Also, the RHINO® Grind nut butter
grinder ships in the Fine texture setting, with instructions on how to change found
within this manual if needed based on nut meat being ground.
ank you for your interest in nut butter grinding, and your purchase of the
TRADE FIXTURES RHINO® Grind!
SAFETY PRECAUTIONS
SAFETY WARNING SIGNS
WARNING
Read and Follow All Instructions
Read and follow all safety instructions, best practices, and precautions in this
manual and on the RHINO® Grind nut butter grinder (decals and labels).
Retain this manual for future reference.
Read and follow all applicable safety regulations before operating the RHINO®
Grind.
SIGNS USED IN MANUAL AND ON FIXTURE
Please follow these warning signs to prevent injury to users and other persons.
Indicates that a danger of death
WARNING
or serious injury exists.
Indicates that a risk of electrical shock exists. Only trained, licensed
professionals should operate in areas where this warning exists.
SHOCK
Represents something you must NOT do.
Represents something you must follow.
Represents a ground is needed to prevent electrical shock.
It is recommended that this action be handled by a service person.
Disconnect Power to the Unit before Servicing or Cleaning.
Use a lockout/tagout procedure to ensure safety. Verify power is o to the unit before
any work or cleaning is performed.
Do not plug several appliances into the same receptacle.
is could cause overheating and the risk of re.
Make sure the power plug is not squashed, pinched, frayed or damaged and
do not bend the power cord excessively or place heavy articles on it.
A damaged power plug may overheat and cause a re. If the power cord is damaged,
have it replaced immediately.
Do not insert the power plug with wet hands, or if cord/plug is wet.
You may receive an electric shock doing so.
CAUTION
Indicates that a risk of personal
injury or material damage exists.
1
SAFETY PRECAUTIONS
Do not grind anything other than specied nut meat through this unit.
See a list of approved nut meats found on pages 8-9 of this manual.
Do not plug the RHINO® Grind in a power socket and/or circuit breaker
with Ground Fault Circuit Interrupt (GFCI).
If you connect the power cord with GFCI socket and/or GFCI circuit breaker
rated 6mA or less, the GFCI will fault/trip. CAUTION - e RHINO® Grind
will only work with an industrial GFCI rated 30mA or more.
Do not disconnect the power cord by yanking on it.
Damage to the cord may cause a short-circuit, re and/or electrical shock. If the power
cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly
qualied persons immediately in order to avoid a hazard.
Do not disassemble or repair the electrical components of this unit yourself.
You run the risk of causing a re, malfunctions and/or personal injury.
e equipment must be grounded.
You must ground the unit to prevent any power leakage or electrical shock caused by
current leakage. Improper use of the ground plug can result in a risk of electric shock.
If it is necessary to use an extension cord, use only a 3-wire extension cord that has a
3-blade round plug and a 3-slot receptacle that will accept the plug on the equipment.
e marked rating of the extension cord should be AC 115V 120V, 16 A or more. If a
grounding adapter is used, make sure the receptacle box is fully grounded.
Service warranty section
Any changes or modications performed by a 3rd party on a nished product is not
covered under Trade Fixtures warranty service.
Safety caution section
Trade Fixtures does not recommend 3rd party modication; therefore, Trade Fixtures
is not responsible for safety issues that result from 3rd party modications.
Safety Tips
Carefully read all safety messages in this manual and safety signs on equipment. Keep
safety signs in good condition and replace missing or damaged safety signs. Learn how
to operate the equipment and how to use the controls properly.
e unit must be service and maintained by appropriately trained personnel. Keep
your RHINO® Grind in proper operating condition.
Do not allow unauthorized modications to the equipment.
Do not let children or inrm persons operate the equipment without adult supervision.
2
SAFETY PRECAUTIONS
Safety Precautions
CAUTION
SHOCK
NOTE:e RHINO® Grind is not designed for a wash-down environment and
MUST NOT be placed in an area where a water jet could be used.
It is recommended that you do NOT grind two consecutive times without a 30 second rest, or
you run the risk of overheating the RHINO® Grind.
Technicians
CAUTION - Only trained and certied electrical personnel should service this
equipment. ALL WIRING MUST CONFORM TO NATIONAL AND LOCAL
CODES.
Shipping and Storage
CAUTION - RHINO® Grind nut butter grinder must remain upright to avoid
CAUTION
damage, or injury. Always ship, carry, store, and handle the RHINO® Grind nut
butter grinder in an upright position to prevent improper installation and/or tip over.
Proper Lifting Procedures
When placing the RHINO® Grind for the rst time, you will be required to lift and
set approximately 70+ lbs at the location of your choosing. e initial ll, and subsequent
rells of the nut hopper will weigh 20lbs. Where possible, we recommend using a team
approach (2x).
Always use good posture (keeping your back straight and bending your knees, not your
back) to lift. NEVER stand on a step stool, or ladder and reach beyond your arms length
to place the relled hopper back onto the RHINO® Grind nut butter grinder body.
NEVER let the hopper drop into place. It must be set gently to avoid damage to the
RHINO® Grind nut butter grinder body.
STOPPING THE RHINO® Grind
INTERRUPTING/SHUTTING OFF POWER
In the event of motor malfunction, electrical outage, surge, or
any other unusual situation where you want to immediately
shut o power to the RHINO® Grind:
1) Locate Main On/O power switch and move to the OFF position.
2) Remove the power cord from the main socket at the wall.
RESUMING NORMAL OPERATION
Once the issue has been removed and corrected, the power is ready to be restored:
1) Plug power cord into the main socket.
2) Switch the Main On/O power switch to the ON position.
3) Press the activation (start/stop) button on green illumination till the grinder
start dispensing the butter.
3

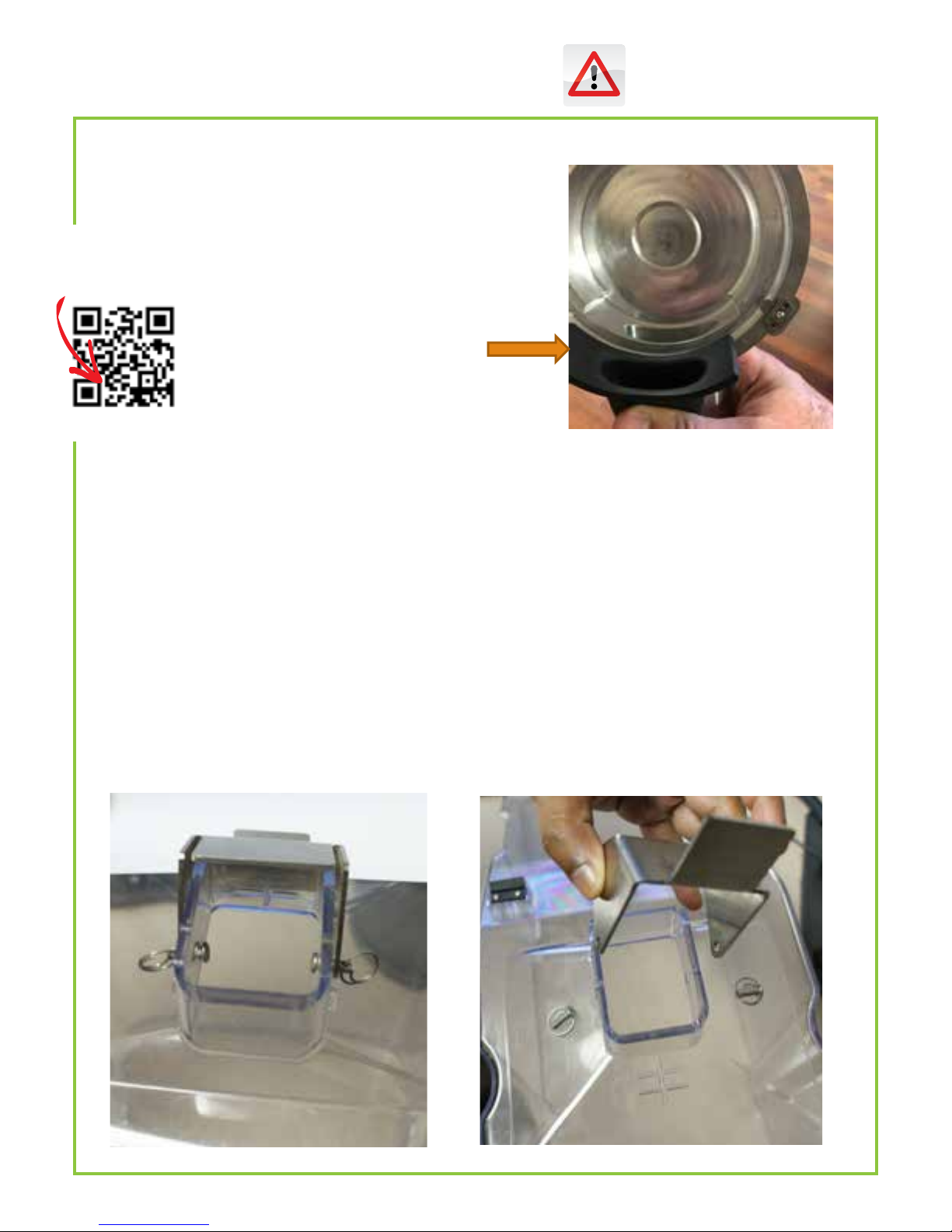

ANTI TIP SAFETY BRACKET
SPECS AND FEATURES
Scan for
WARNING
e RHINO® Grind should be operated on a sturdy level countertop, table or surface capable of supporting 100lbs per completely full unit. e anti-tip device below
should be secured to a wooden surface with the provided Philip head wood screws
(Fig. 1), or to granite, or metal worksurfaces using the machine screws and nuts (provided but not shown). Slide the RHINO® Grind into place and onto the anti-tip
device which will secure it in place (Fig. 2).
Fig. 1
secure anti-tip device to a level,
sturdy wooden countertop using
provided wood screws ...
Help
rhinogrinder.com/help
... or any other worksurface
(steel, metal, or non-wood)
using machine screws, nuts,
and washers for a secure,
snug installation
Simulated countertop surface
Fig. 2
4
General Description
SPECS AND FEATURES
is section gives the unit design data and electronic safety feature of the
RHINO® Grind nut butter grinder.
DESIGN DATA & ELECTRICAL REQUIREMENTS
RHINO® Grind nut butter grinder Style (Model #):
621058631 - Nut Butter Grinder-Stainless Steel (NG2000) 115V/60Hz
621058738 - Nut Butter Grinder-Stainless Steel (NG2004) 220V/60Hz
European model (NG2001) 230V/50Hz
Ambient Operating Temperature 60°F / 15.6C to 72°F / 22.2C
Note: Nut Butter is best dispensed from a 72° ambient room temperature.
Electrical Requirements
Operating Voltage (U.S.) 110-120 VAC, 60 Hz
Current Draw (U.S.) 12.0A U.S. / 7.5A
We recommend a 20A dedicated circuit and breaker with standard 3 prong
ground per RHINO® Grind machine. Typical current draw is 7A.
DIMENSIONS OF RHINO® Grind
e RHINO® Grind measures as follows:

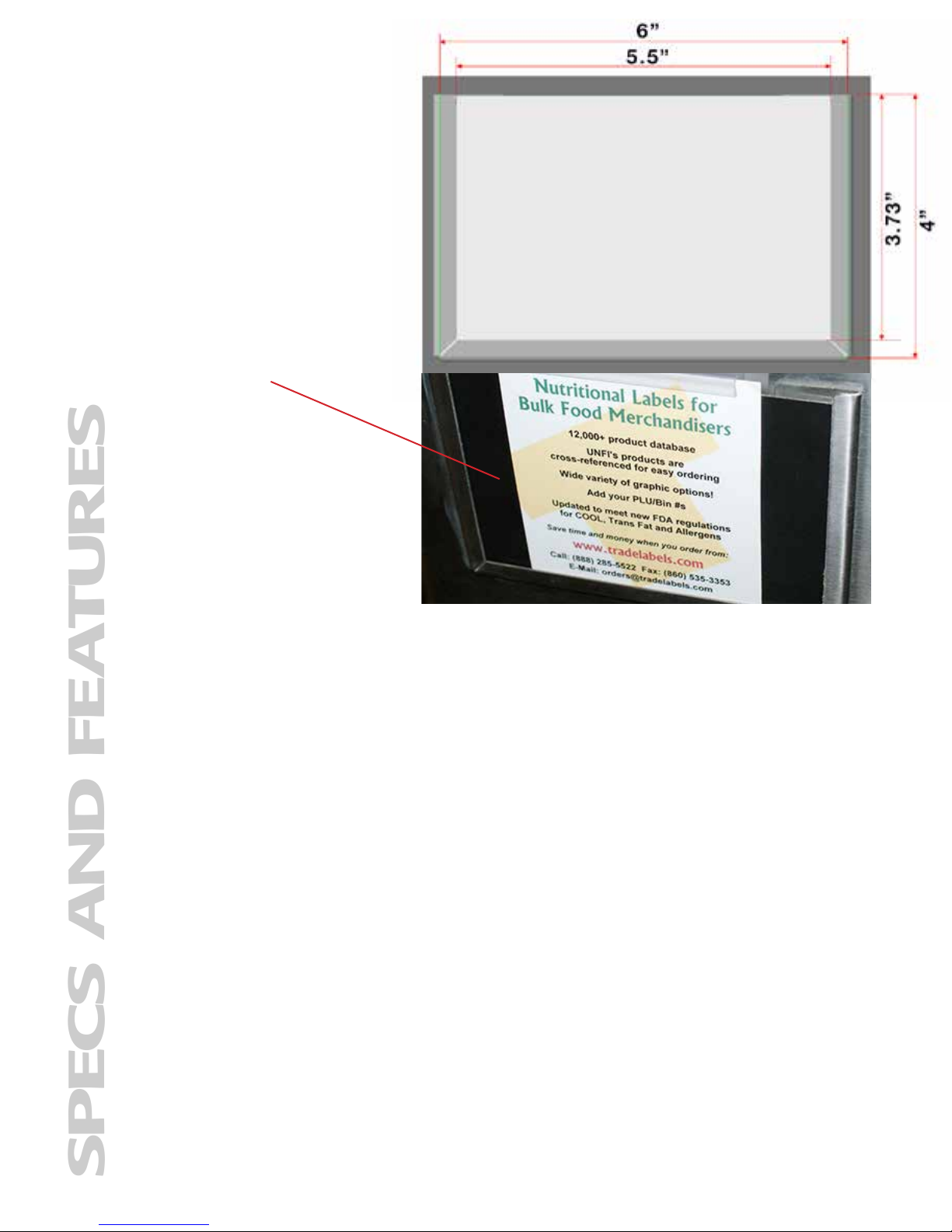

LABEL
Nut
Hopper
32oz deli
cups t
under
spout!
5

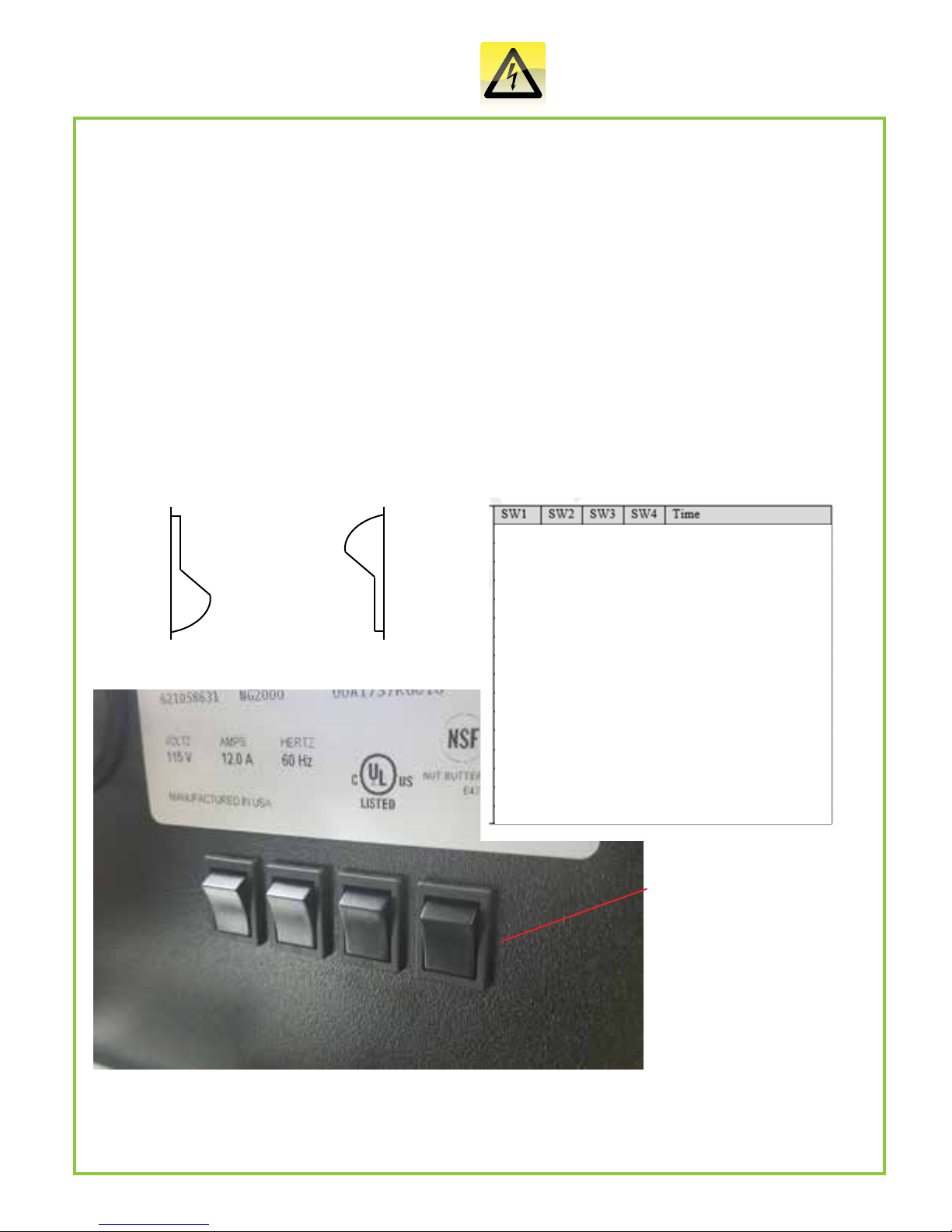

Main On/O power switch
dispensing
spout
activation (start/stop) button
Loading...
