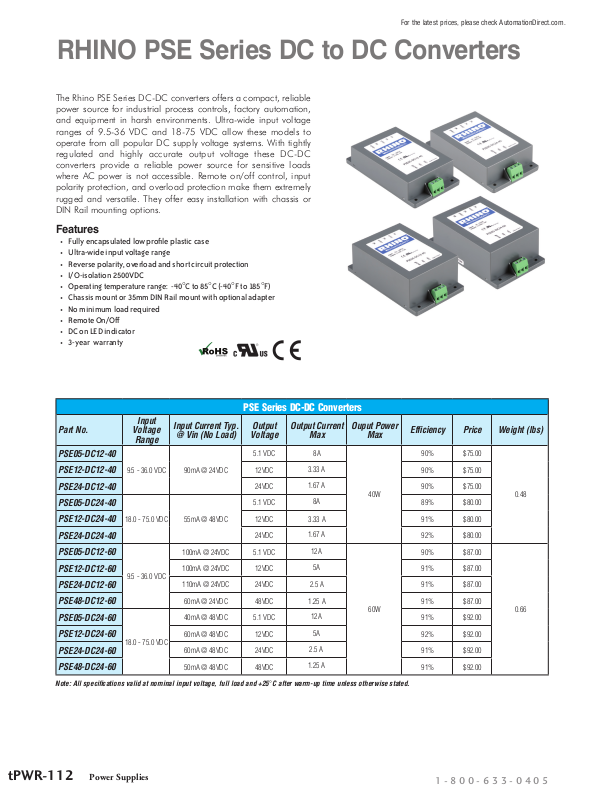

RHINO PSE Series DC to DC Converters
The Rhino PSE Series DC-DC converters offers a compact, reliable
power source for industrial process controls, factory automation,
and equipment in harsh environments. Ultra-wide input voltage
ranges of 9.5-36 VDC and 18-75 VDC allow these models to
operate from all popular DC supply voltage systems. With tightly
regulated and highly accurate output voltage these DC-DC
converters provide a reliable power source for sensitive loads
where AC power is not accessible. Remote on/off control, input
polarity protection, and overload protection make them extremely
rugged and versatile. They offer easy installation with chassis or
DIN Rail mounting options.
Features
• Fully encapsulated low profile plastic case
• Ultra-wide input voltage range
• Reverse polarity, overload and short circuit protection
• I/O-isolation 2500VDC
• Operating temperature range: -40°C to 85°C (-40°F to 185°F)
• Chassis mount or 35mm DIN Rail mount with optional adapter
• No minimum load required
• Remote On/Off
• DC on LED indicator
• 3-year warranty
PSE Series DC-DC Converters
Part No.
Voltage
Range
PSE05-DC12-40
Input
PSE12-DC12-40
9.5 - 36.0 VDC 90mA @ 24VDC
PSE24-DC12-40
PSE05-DC24-40
PSE12-DC24-40
18.0 - 75.0 VDC 55mA @ 48VDC
PSE24-DC24-40
PSE05-DC12-60
PSE12-DC12-60
9.5 - 36.0 VDC
PSE24-DC12-60
PSE48-DC12-60
PSE05-DC24-60
PSE12-DC24-60
18.0 - 75.0 VDC
PSE24-DC24-60
PSE48-DC24-60
Note: All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
Input Current Typ.
@ Vin (No Load)
100mA @ 24VDC 5.1 VDC
100mA @ 24VDC 12VDC
110mA @ 24VDC 24VDC 2.5 A 91% $87.00
60mA @ 24VDC 48VDC 1.25 A 91% $87.00
40mA @ 48VDC 5.1 VDC
60mA @ 48VDC 12VDC
60mA @ 48VDC 24VDC
50mA @ 48VDC 48VDC
Output
Voltage
5.1 VDC 8A
12VDC
24VDC
5.1 VDC
12VDC 3.33 A 91% $80.00
24VDC
Output Current
Max
3.33 A
1.67 A
8A
1.67 A
12A
5A
12A
5A
2.5 A
1.25 A
Ouput Power
Max
40W
60W
Efficiency Price Weight (lbs)
90% $75.00
90% $75.00
90% $75.00
89% $80.00
92% $80.00
90% $87.00
91% $87.00
91% $92.00
92% $92.00
91% $92.00
91% $92.00
0.48
0.66
tPWR-112
Power Supplies
1-800-633-0405
Page 2
For the latest prices, please check AutomationDirect.com.
RHINO PSE Series DC to DC Converters
Input Specifications
Series 40 Watt 60 Watt
Surge Voltage
(100 msec. max.)
Start-Up Time
Conducted Noise (Input)
Start-Up Voltage / Under
Voltage Shut Down
ESD (Electrostatic Discharge)
Radiated Immunity
Fast Transient / Surge (With
External Input Capacitor)
Conducted Immunity
30ms max. 50ms max.
EN 55022 class A, FCC part 15 class A (without external components)
PSExx-DC12 Models: 50V max.
PSExx-DC24 Models: 100V max.
PSExx-DC12 Models: 9VDC max. / 7.5 VDC typical
PSExx-DC24 Models: 18VDC max. / 16VDC typical
EN 61000-4-2, air ±8kV, contact ±4KV, perf. criteria A
EN 61000-4-3, 10 V/m, perf. criteria A
EN61000-4-4, ±2kV, perf. criteria A
EN61000-4-5, ±2kV, perf. criteria A
EN61000-4-6, 10Vrms, perf. criteria A
Output Specifications
Series 40 Watt 60 Watt
Voltage Set Accuracy
Regulation
Input variation (Vin min. to Vin max.): 0.5% max.
Load Variation 0 - 100%: 1.0% max.
w2.0% max.
Input variation (Vin min. to Vin max.): 1.5% max.
Load Variation 0 - 100%: 1.0% max.
Minimum Load
Temperature Coefficient
5.1 VDC models: 100 mVpk-pk. typical
Ripple and Noise (20MHz bandwidth)
Transient Response
12 & 24VDC models: 150 mVpk-pk. typical
48VDC models: 200 mVpk-pk. typical
250µs typical (Alignment to 1% at load step change 75% to 100%)
Over Voltage Protection
Output Current Limitation
Short Circuit Protection
5.1 VDC models: 13,600µF max.
Capacitive Load
Note: All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
12VDC models: 2,400µF max.
24VDC models: 600µF max.
48VDC models: 150µF max.
Not required
±0.02 %/K
120% of Vout (Zener diode clamp)
At 150% of lout max.
Hiccup mode, automatic recovery
5.1 VDC models: 20,000µF max.
12VDC models: 3,540µF max.
24VDC models: 890µF max.
48VDC models: 220µF max.
tPWR-113
Power Supplies
1-800-633-0405
Page 3
For the latest prices, please check AutomationDirect.com.
RHINO PSE Series DC to DC Converters
General Specifications
Series Specification 40 Watt 60 Watt
Operating Ambient with
Natural Convection (20LFM)
IEC/EN/UL60950-1 Approved
Temperature Range
Ambient
Case Temperature
Storage
Load Derating (with Natural Convection 20LFM)
Thermal Impedance (with Natural Convection 20LFM)
Humidity (non condensing)
Reliability, Calculated MTBF (MIL-HDBK-217F, @ +25°C,
ground benign)
Isolation Voltage (60 sec.) Input/Output
Isolation Capacitance Input/Output
Isolation Resistance Input/Output
Switching Frequency
On
Remote On/Off
Off
-40°C to +85°C (-40°F to +185°F) (with derating)
+65°C max. (+149°F max.) (without derating) +60°C max. (+140°F max.) (without derating)
+95°C max. (+203°F max.)
-50°C to +125°C (-58°F to +257°F)
4.5 %/K above +70°C (+158°F) 3.3 %/K above +70°C (+158°F)
4.75 °C/W 3.5 °C/W
95% relative humidity max.
>644,290 hours >242,029 hours
2500VDC
2400pF max. (100kHz, 1V) 3000pF (100kHz, 1V)
>1000MΩ (500VDC)
285kHz typical 210kHz typical
3.5 to 12VDC on terminal 1 reference to -Vin or open circuit
0 to +1.2 VDC on terminal 1 reference to -Vin
Off Idle Current
Environmental Air
Casing Material
Connections
Screw type connector (standard), Recommended tightening torque 0.5-0.6Nm (4.5-5.35 in-lb), wire
Wiring
Soldering Temperature
Safety Standards
Agency Approvals
Note: All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
Max. 260°C (500°F) / 10 seconds (1.5 mm from casing)
UL/cUL 60950-1 2nd edition, CSA C22.2 No. 60950-1-07, 2nd edition
UR/cUR, File E198298; CE; Reach; RoHS
3mA typical
No corrosive gasses permitted
Plastic resin (UL 94V-0 rated)
stripping length 7-8mm
16-26AWG (1.5-0.14 mm²)
tPWR-114
Power Supplies
1-800-633-0405
Page 4
For the latest prices, please check AutomationDirect.com.
RHINO PSE Series DC to DC Converters

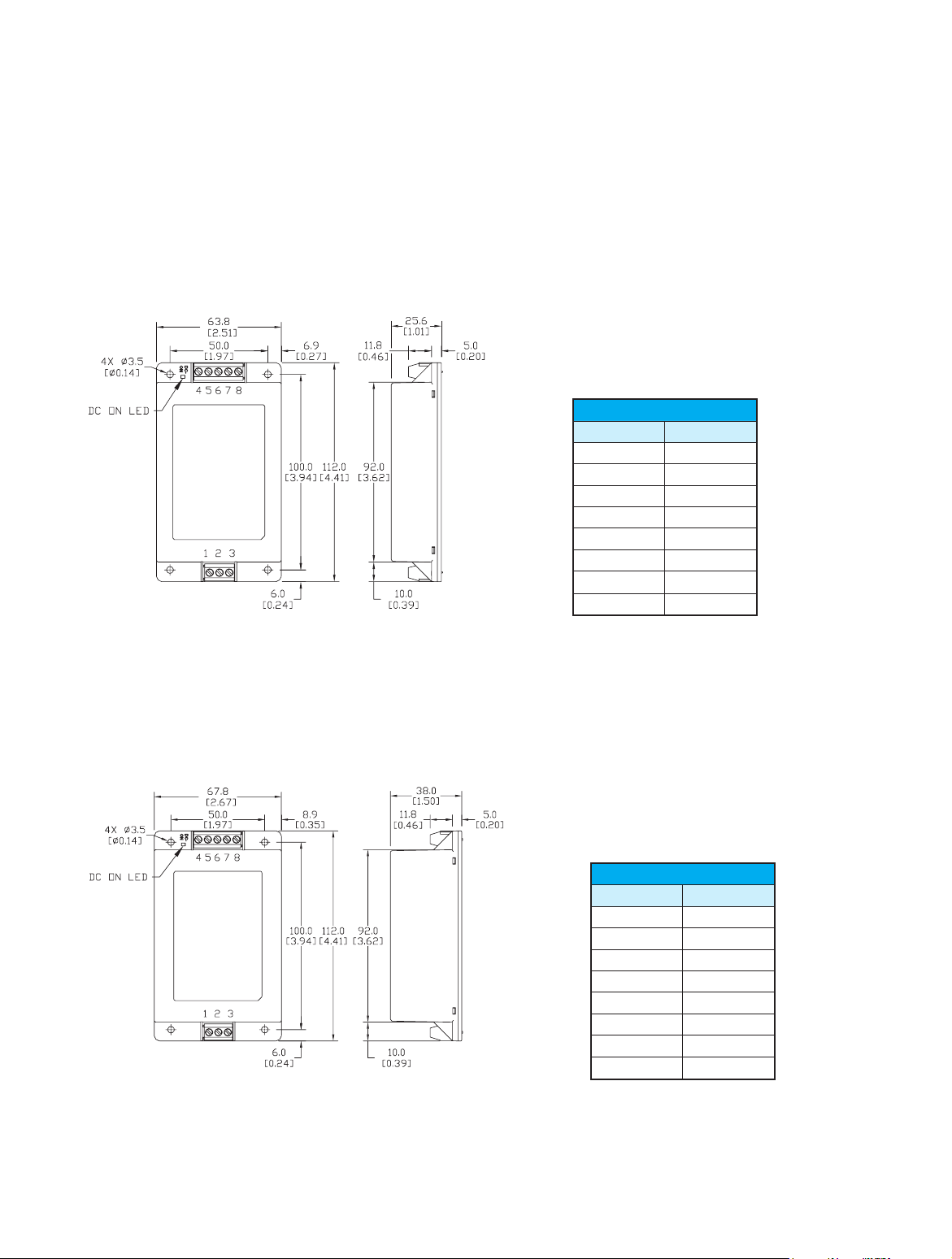

Dimensions
mm [inches]
Part Numbers:
PSE05-DC12-40, PSE12-DC12-40, PSE24-DC12-40,
PSE05-DC24-40, PSE12-DC24-40, PSE24-DC24-40
M3 x 0.5mm screw
size, Typ
Connection
Pin Signal
1 Remote On/Off*
2 -Vin (GND)
3 +Vin (Vcc)
4 +Vout
5 NC
6 -Vout
7 NC
8 NC
* Refer to specifications for voltage
requirements
Part Numbers:
PSE05-DC12-60, PSE12-DC12-60, PSE24-DC12-60,
PSE48-DC12-60, PSE05-DC24-60, PSE12-DC24-60,
PSE24-DC24-60, PSE48-DC24-60
M3 x 0.5mm screw
size, Typ
Connection
Pin Signal
1 Remote On/Off*
2 -Vin (GND)
3 +Vin (Vcc)
4 NC
5 +Vout
6 NC
7 -Vout
8 NC
* Refer to specifications for voltage
requirements
tPWR-115
Power Supplies
See our website www.AutomationDirect.com for complete Engineering drawings
1-800-633-0405
Page 5
For the latest prices, please check AutomationDirect.com.
RHINO PSE Series DC to DC Converters

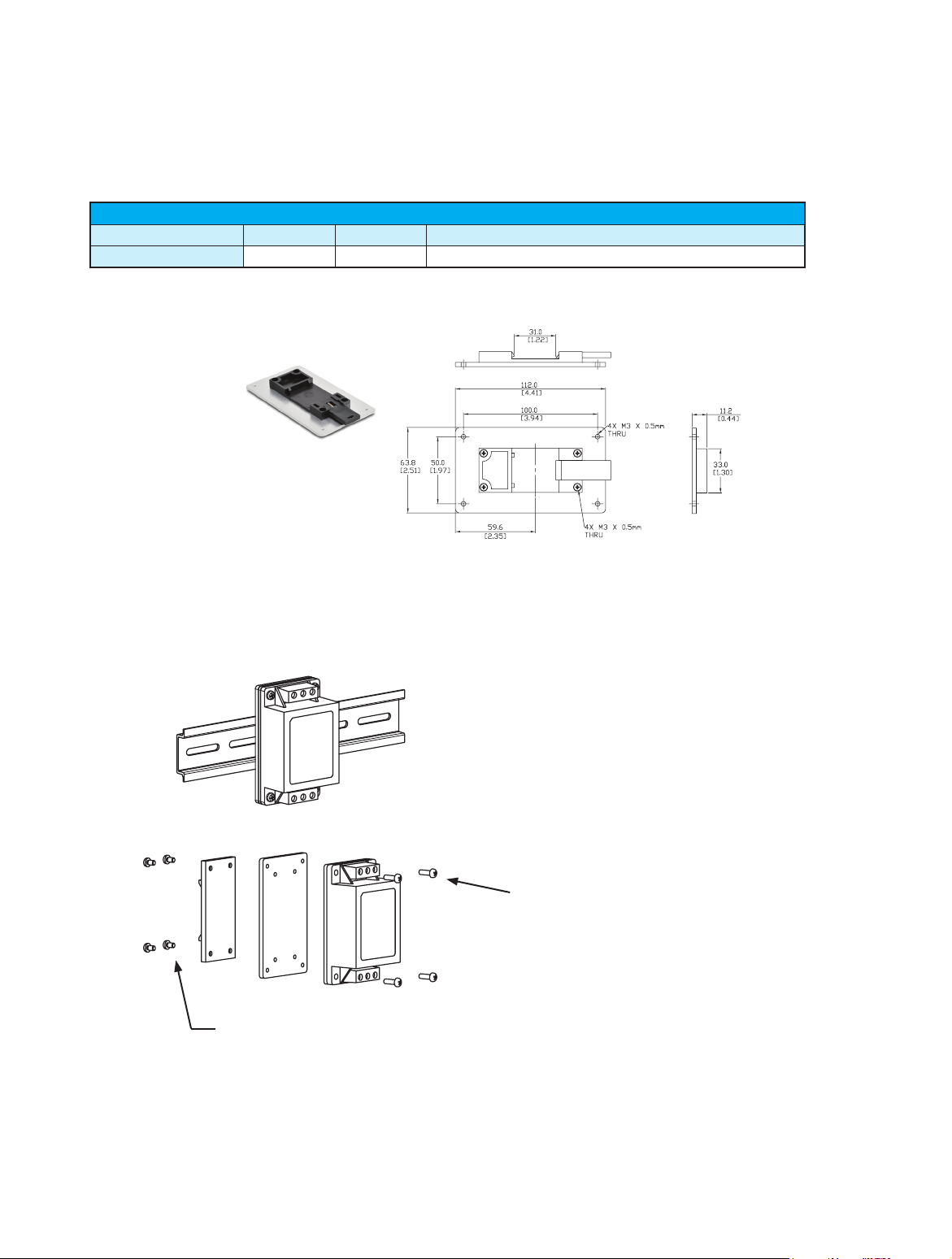

Accessory for chassis mount
35mm DIN Rail Mounting Bracket
Part No. Price Weight (lbs) Description
PSE-BRKT-2
Note: Kit contains interface plate, DIN Rail clip and necessary screws.
Dimensions
mm [inches]
$11.00 0.2 DIN Rail mounting bracket for 30W-60W PSE models
PSE-BRKT-2
Installation Example
Pan Head Phillips
M3 x 0.5 mm thread
12mm long
tPWR-116
Pan Head Phillips
M3 x 0.5 mm thread
8mm long
Power Supplies
See our website www.AutomationDirect.com for complete Engineering drawings
