Tankless Gas Water Heating

Replacement Parts and Accessories Catalog

TANKLESS WATER HEATING

PARTS & ACCESSORIES

2016 CATALOG

Ruud.com

Table Of Contentes

General Terms and Conditions ....................................................................... 3

Contact Information ...................................................................................... 4

Parts Kits ..................................................................................................... 5

Tankless Accessories ..................................................................................... 6

Maintenance and Service ............................................................................. 6

Manifold Systems ......................................................................................... 7

Tankless Venting ........................................................................................... 8-9

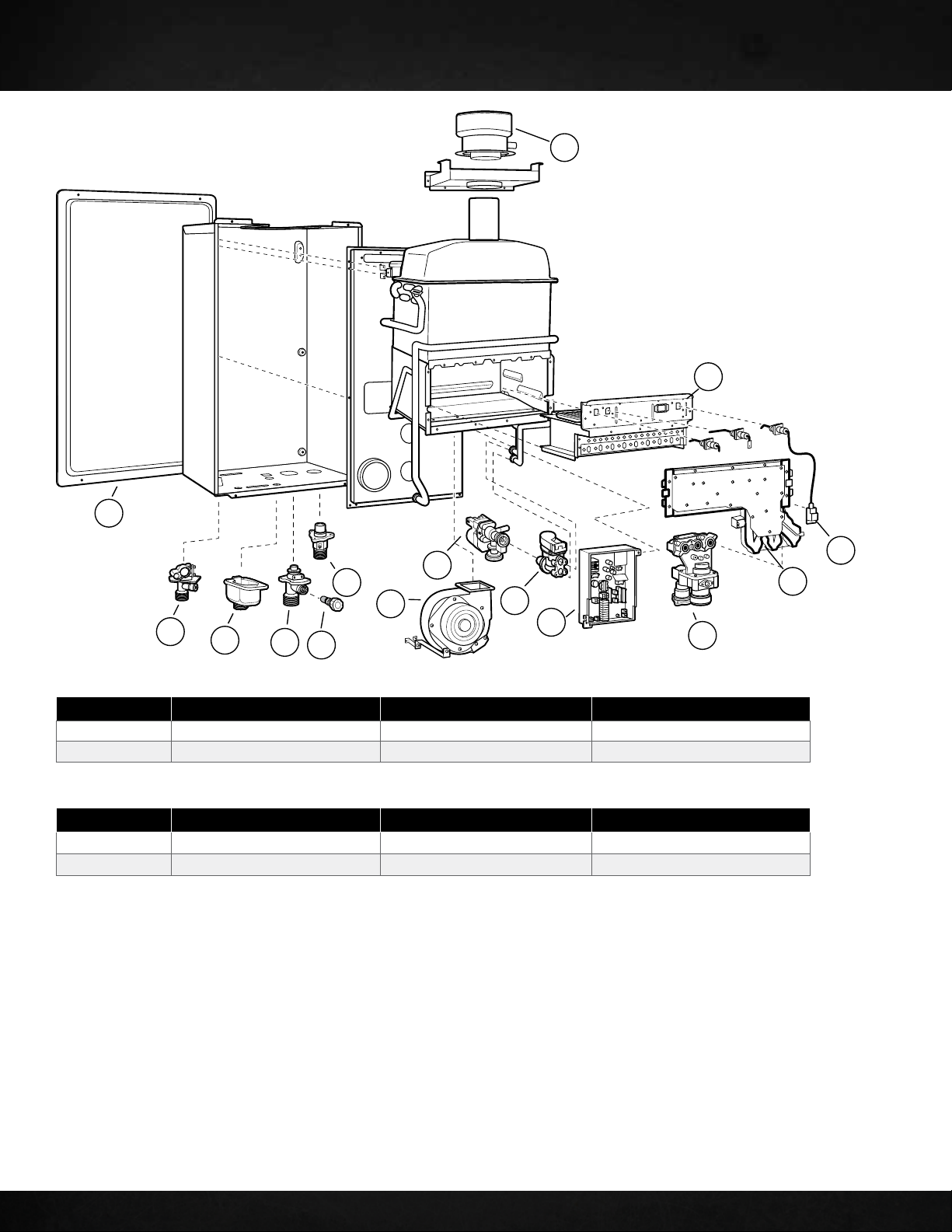

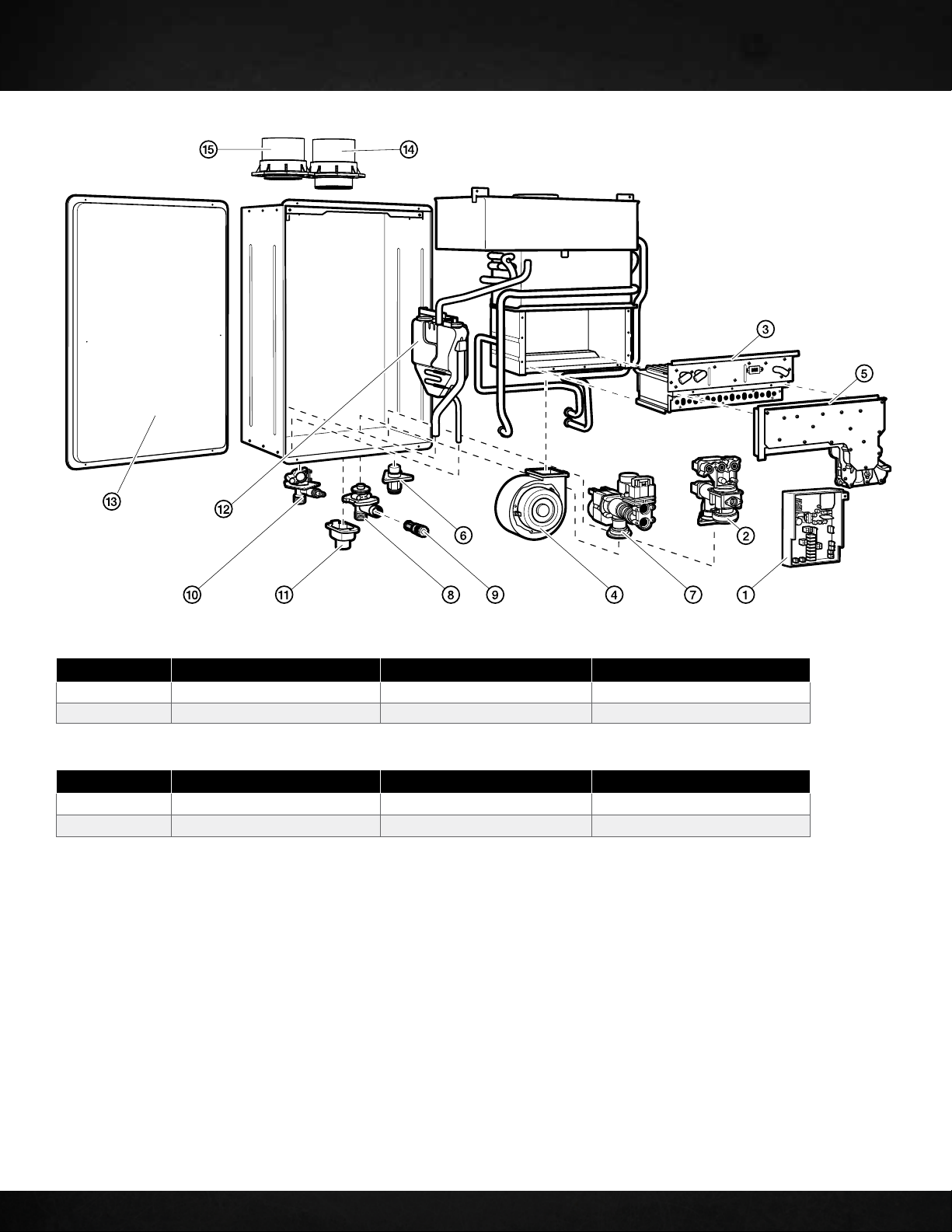

Parts for RUTGH-84DVLN-1, RUTGH-90DVLN-1, RUTGH-95DVLN-1 Series .......... 10-11

Parts for RUTGH-84XLN-1, RUTGH-90XLN-1, RUTGH-95XLN-1 Series ................. 12-13

Parts for RUTG-64DVLN-1, RUTG-84DVLN-1, RUTG-95DVLN-1 Series ................. 14-15

Parts for RUTG-64XLN-1, RUTG-84XLN-1, RUTG-95XLN-1 Series ........................ 16-17

Parts for RUTGH-84DV, RUTGH-90DV, RUTGH-95DV Series .............................. 18-19

Parts for RUTGH-84X, RUTGH-90X, RUTGH-95X Series ..................................... 20-21

Parts for RUTG-64, RUTG-84, RUTG-95, DV and DVL Series .............................. 22-23

Parts for RUTG-64, RUTG-84, RUTG-95, X and XL Series ................................... 24-25

Tankless Model Cross Reference ..................................................................... 26-27

General Terms and Conditions

A comprehensive catalog of approved replacement parts

for Ruud® and Rheem

Freight Allowance

Please see the Tankless Parts and Accessories Price Sheet for Freight Allowances.

Taxes

Prices are subject to the addition of any tax imposed by any present or future Federal, State, County or Municipal law on the sale of such material, unless we have a tax exemption certiﬁcate on ﬁle.

Acceptance of Orders

All orders are subject to ﬁnal approval on the terms and conditions contained in our standard customer acknowledgment form.

Materials Return

Saleable, current component parts in a new or unused condition must have prior authorization by the Parts Packaging Supervisor or Customer Service before being returned. Parts may only be considered for return within 90 days from the original invoice date. Invoice numbers must be provided to Customer Service prior to obtaining a return authorization number. All parts returned without prior authorization will be destroyed or sent back to the sender at their expense. All returns will be subject to our inspection and a 25% restocking charge. Returned parts that are damaged or in a condition that prevents resale will not be credited. Service/Warranty Parts returned in accordance with warranty claim provisions do not require prior authorization, but will be subject to our inspection. See Price Sheet for Additional Conditions.

tankless gas water heaters*.

Parts Warranty

All tankless service parts are warranted for the remainder of the parts warranty covering the product they are being used to service. If no warranty is remaining on said product then the warranty will be for a period of 90 days from the date of purchase. Contact Technical Service for warranty information.

Accessories Warranty

All tankless accessories are warranted for a period of 1 year from the date of original purchase unless covered by a manufacturers warranty. Contact Technical Service for warranty information.

* For Rheem, replace RUTG with RTG

for Ruud tankless water heaters | 3

Contact Information

CONTACT INFORMATION

Customer Service

800-621-5622

Product Information/Online Lookup ruudparts.com

Warranty

MyRuud.com Fax: 800.535.9538 Email: parts@rheem.com

Technical Service

866.720.2076 Email: techserv@rheem.com

To Place an Order

800.621.5622

Fax: 800.535.9538

Located in Randleman, North Carolina with a 185,000 sq. ft. distribution center,

the Replacement Parts Division provides products and services including

the support of new equipment sales by providing OEM replacement parts, and parts identiﬁcation.

In addition, we sell and market aftermarket parts and products that are included in the installation,

maintenance and servicing of HVAC equipment,

water heaters and other residential power equipment.

4 | for Ruud tankless water heaters

Parts Kits

TANKLESS GAS WATER HEATER PARTS KITS

for Ruud Tankless Water Heaters

Ruud introduces the Tankless Gas Water Heater Service parts kits. These kits, designed with the contractor in mind, provide all the basic parts necessary for a complete repair of a Ruud tankless gas water heater.

PROTECH PD966349 - Mid-Efﬁciency direct vent models (RUTG-95DVL-1, RUTG-84DVL-1, RUTG-64DVL-1)

PROTECH PD966350 - Mid-Efﬁciency outdoor models (RUTG-95XL-1, RUTG-84XL-1, RUTG-64XL-1)

PROTECH PD966351 - Condensing models (RUTGH-95DVL-1, RUTGH-90DVL-1, RUTGH-84DVL-1)

(RUTGH-95XL-1, RUTGH-90XL-1, RUTGH-84XL-1)

These kits include 1 each of the following:

Control Board Thermistors Gas Valve Flame Rods Flame Rod Wires Ignitor Coil Ignitor Rod Gas Valve Assembly Gas Inlet Connector Blower Motor Water Control Valves Drain Plug Inlet Water Filter Screw Kit O-ring Kit Remote Control

PROTECH Kits for Older Models:

PROTECH PD966332 - Mid-Efﬁciency direct vent models (RUTG-95DVL, RUTG-84DVL, RUTG-64DVL)

PROTECH PD966333 - Mid-Efﬁciency outdoor models (RUTG-95XL, RUTG-84XL, RUTG-64XL)

PROTECH PD966334 - Condensing models (RUTGH-95DVL, RUTGH-90DVL, RUTGH-84DVL)

(RUTGH-95XL, RUTGH-90XL, RUTGH-84XL)

for Ruud tankless water heaters | 5

Tankless Accessories

Finish and Appearance

Cosmetic Pipe Covers

Pipe covers enhance an indoor or outdoor installation by concealing the piping beneath the water heater. It provides protection from tampering and weather conditions. These covers come in a grey finish to match the tankless heater.

Dimensions: Width and depth of the heater, all are 16-1/2” tall.

• RTG20227 (grey)

For the RUTGH-95DV, RUTGH-95X, RUTGH-90DV, RUTGH-90X, RUTGH-84DV, and RUTGH-84X models*

• RTG20217DVG (grey)

For the RUTG-95DV, RUTG-84DV, RUTG-64DV and RUTG-66DV models*

• RTG20217XG (grey)

For the RUTG-95X, RUTG-84X, RUTG-64X and RUTG-66X models*

*Kits also applicable to models with “-1”

Outdoor Recess Boxes

Recess boxes enhance an outdoor installation by protecting the tankless unit from damage and tampering. It also provides additional protection from extreme weather. These boxes come in a grey finish and can be painted by the customer.

• RTG20226

For the RUTGH-95, RUTGH-90 and RUTGH-84 X and XL models* Rough-in Dimensions: 46" High, 19-1/2" Wide, 9-1/2" Deep

• RTG20253 - Recess Box for Stucco Applications

For the RUTGH-84XL, RUTGH-90XL and RUTGH-95XL models* Rough-in Dimensions: 46" High, 19-1/2" Wide, 9-1/2" Deep

• RTG20218

For the RUTG-64, RUTG-84, and RUTG-95 X and XL models* Rough in Dimensions: 42" High, 14-1/2” Wide, 8-1/2" Deep

• RTG20238 - Retrofit Kit for 74X Recess Box

Allows an RUTG-95XL, RUTG-84XL, RUTG-64XL models*, to be installed in a ﬁrst generation 74 Series Recess box without changing the box out. Kit includes 2 brackets, hardware, and instructions.

• RTG20243 (grey)

For the RUTG-95, RUTG-84, RUTG-64 DV and DVL models*

• RTG20248 - Recess Box for Stucco Applications

For the RUTG-64XL, RUTG-84XL, and RUTG-95XL models* Rough in Dimensions: 42" High, 14-1/2” Wide, 8-1/2" Deep

*Kits also applicable to models with “-1”

Maintenance and Service

Tankless Service Valves

Allow for easy maintenance and service, such as flushing, for your tankless water heater.

• RTG20220AB

Webstone service valves, clean brass for low lead code, includes relief valve

Tankless Flush Kit

Connects easily to tankless service valves. Allows for the flushing the heat exchanger with a cleaning solution such as white vinegar. Simple to use.

• RTG20124

Includes: 5-gallon bucket, submersible pump, and two hoses

Pressure Relief Valve

Provides protection against excessive water pressure for your tankless water heater.

• AP12993C

Watts pressure relief valve, Rated at 150psi – 3/4" threads

Remote Control Options

Tankless Remote Controls

Allow for easy temperature adjustment and maintenance information access. Connect up to 3 remote controls, one of each type, to your tankless system.

• RTG20006DW

UMC-117 Main Remote Control, Generic without branding

AllClear™ Water Treatment System

Combat hard water and scale build up

• RTG20251

AllClear™ Water Treatment System

• RTG20252

Replacement Cartridge

Maximum Comfort

Recirculation Pump Kit (Timer Based)

For use with RUTGH-84DVLN/XN-1, RUTGH-90DVLN/XN-1, RUTGH-95DVLN/XN-1, RUTG-64DVLN/XN-1, RUTG-84DVLN/XN-1

and RUTG-95DVLN/XN-1

• AP17920

Kit contains: valve, (2) Stainless steel ﬂanges and ﬂange gaskets, (4) 7/16"–14 Bolts and nuts, and (1) Installation instruction sheet

6 | for Ruud tankless water heaters

1) Taco® 0015 recirculation pump with internal check

• RTG20006DU

USC1-117 Bath Remote Control, Generic without branding

• RTG20006DV

USC2-117 Second Bath Remote Control, Generic without branding

• RTG20009-1

10-ft. Thermostat Wire, 1 pair 18AWG

Tankless Manifold Systems

EZ-Link™: Connect two tankless water heaters

EZ-Link™ Cable

Connect two tankless water heaters together in a manifold*** This will allow two heaters to communicate together and operate as a single unit. Perfect for when one tankless is just not enough.

†

• RTG20040

6-ft. Long Cable with Connectors, and Wire Support Clamps.

*** Only two units may be connected together with the EZ-Link™ cable. † Only Identical models: all RUTG-95, RUTG-84, RUTG-64, RUTGH-84,

RUTGH-90, and RUTGH-95 models can be used with the EZ-Link Cable.

™

EZ-Link

Cable

MIC-6 Manifold Controller System

Connect up to 6 tankless water heaters

MIC-6 Manifold Controller System

For the RUTGH-95, RUTGH-84, RUTGH-90, RUTG-95, RUTG-84, and RUTG-64 series models only. Connect up to 6 tankless water heaters together in a manifold. This kit mounts inside a single tankless unit and connects to up to 5 additional units for a total of 6.

Notice: This kit will not work on any model manufactured before Jan 2010.

• RTG20213A

Connect up to 6 tankless water heaters together in a manifold Includes (1) 1-ft. control cable, and (1) 6-ft. control cable. Additional Type Q cables are necessary and listed below.

Manifold Control Cables (Type Q)

One required for each tankless water heater installed in a manifold. Connects a single tankless water heater to the MIC-6.

Notice: These cables will not ﬁt the MIC-185 System.

MIC-6 Kit

Enlarged

™

EZ-Link Cable Connector

• RTG20213B - MIC-Q-1 1-ft. Control Cable

• RTG20213C - MIC-Q-6 6-ft. Control Cable

• RTG20213D - MIC-Q-18 18-ft. Control Cable

MIC-185 Manifold Controller System

Connect up to 20 tankless water heaters

MIC-185 Manifold Controller System

• RTG20126A

Manifold and control up to 6 tankless models.* Includes installation cabinet for indoor

or outdoor applications.

MICS-180

MIC-185

* All RUTG-95, RUTG-84, RUTG-64, RUTGH-84, RUTGH-90 and RUTGH-95 models.

Commercial upgraded models will be limited to 185°F in a manifold system. Residential models are limited to 140°F.

** This card provides control cable connection points for 7 - 20 units in multi-unit manifold.

MICS-180 Manifold Controller Expansion Card

• RTG20126B

Add on to the MIC-185 for up to 20 units in total.** Installations of 7 to 20 units require this expansion card. Mounts inside the MIC-185 cabinet. Includes cables

to connect to the MIC-185 board.

Replacement Manifold Control Board

• RTG20126W - MIC-185 Board

Replacement board for the MIC-180 or MIC-185.

MIC-6

Installed

Manifold Control Cables (Type K)

One required for each tankless water heater installed in a manifold. Connects a single tankless water heater to the MIC-180.

Notice: These cables will not ﬁt the MIC-6.

• RTG20126C - MIC-K-16

16-ft. Control Cable

• RTG20126D - MIC-K-32

32-ft. Control Cable

• RTG20126E - MIC-K-65

65-ft. Control Cable

for Ruud tankless water heaters | 7

Tankless Venting

PVC Termination Kits

for RUTGH-84DV, RUTGH-90DV and RUTGH-95DV

Horizontal Vent Termination

• SP20286 for 3” PVC PTX-129

• SP20285 for 2” PVC RXGY-G02

11-3/4” Wide, 8” Tall, 2-1/2” Deep Fits PVC, ABS piping. Offers a clean installation of the intake and exhaust pipes of the condensing tankless water heater.

Exhaust Intake

Horizontal or Vertical Concentric Vent Termination

• SP20245 for 3” PVC RXGY-E03A

39” Long, 7-1/4” Diameter, 4-1/2” opening required. Fits PVC, ABS piping. Offers a clean installation by combining the intake and exhaust pipes of the condensing tankless water heater into a single concentric vent termination.

Exhaust

Intake

Exhaust

Intake

ExhaustIntakeIntake Exhaust ExhaustIntake

3”/5” Stainless Steel Concentric Vent Kits by Metal Fab, Inc.

for RUTG-64DVL, RUTG-84DVL and RUTG-95DVL models

Low-Profile Horizontal Vent TerminationKit by Metal Fab, Inc.

• RTG20231

Contains: 90-Degree Elbow, Short Low-Profile Termination, Screws. For 2” x 4” Wall with 1-1/2” Siding. For up to 6" walls. Can be extended.

MF3CGVVPHK3

• RTG20234

Contains: 90-Degree Elbow, Short Low-Profile Termination, Screws.For 2” x 6” Wall with 1-1/2” Siding. For up to 8" walls.Can be extended.

MF3CGVVPHK4

• RTG20257

Contains: 90-Degree Elbow, Short Low-Profile Termination, Trim Ring, Screws. For up to 10" walls. Can be extended.

• RTG20258

Contains: 90-Degree Elbow, Short Low-Profile Termination, Trim Ring, Screws. For up to 12" walls. Can be extended.

• RTG20230

4” Short Low-Profile Termination

• RTG20233

6” Long Low-Profile Termination

• RTG20259

8” Long Low-Profile Termination

• RTG20260

10” Long Low-Profile Termination

Horizontal Vent Termination Kit by Metal Fab, Inc.

• RTG20210

Contains: 94-Degree Elbow, Long Termination, (1) 12” Wall Plate, Screws. For up to 10" walls. Can be extended.

MF3CGVPHK1

Vertical Vent Termination Kitby Metal Fab, Inc.

• RTG20211

Contains: Storm Collar, 6/12 to 12/12 Pitched Cone Flashing, Vertical Termination with Rain Cap.Does not include vertical vent pipe.

MF3CGVVK1

8 | for Ruud tankless water heaters

Tankless Venting

3"/5” Stainless Steel Concentric Tankless Venting by Metal Fab, Inc.

for RUTG-64DV, RUTG-84DV and RUTG-95DV models

6” Vent Length

• RTG20151W

5.66” overall length

MF3CGV6

90-Degree Elbow

• RTG20151A-1

8.1” rise - 8.1” run

MF3CGV90L

12” Vent Length

• RTG20151R

11.66” overall length

MF3CGV12

45-Degree Elbow

• RTG20151B-1

8.6” rise - 3” run

MF3CGV45L

24” Vent Length

• RTG20151C-1

23.66” overall length

MF3CGV24

Stucco Wall Thimble

• RTG20151Z

17” Wide - 12” Tall Up to 6” Deep Wall with Drywall and Stucco Rings

MF3CGVWPKS

36” Vent Length

• RTG20151D-1

35.66” overall length

MF3CGV36

Wall Thimble

• RTG20151X

12” Square, Up to 8” Deep Wall

MF3CGVWPK

Adjustable Vent Length

• RTG20151E-1

7.5” to 22” overall length

MF3GVL22

Wall Hanger

• RTG20151H

2-point pivot mounting

MF3CGVWH1

Adjustable Vent Length

• RTG20151Y

13” to 20” overall length

MF3CGVVAL20

Wall Support

• RTG20151G

3-point mounting

MF3CGVWS1

Vertical Cap Termination

• RTG20151P

12” overall height

MF3CGVPVT

Appliance Adapter

• RTG20144-3

Fits RUTG-66 or 53DV 5” overall length

MF3CGVPA

Storm Collar

• RTG20151M-1

split ring galvanized

MF3CGVSC

Condensate Drain

• RTG20151S

horizontal and vertical

8.6” overall length

MF3CGVVDS

6/12 to 12/12 Roof Flashing

• RTG20151L-1

15” square base galvanized

MF3CGVF-12

Horizontal Termination

• RTG20128-2

Short for 4” inch wall horizontal only

MF3CGVPHT

2/12 to 5/12 Roof Flashing

• RTG20151K-1

15” square base galvanized

MF3CGVF

Silicone Condensate Drain Tube Kit

• RTG20150A

6’ high temperature silicone tube, 2 clamps, 2 wire ties, instructions

Tall Cone Roof Flashing

• RTG20151J-1

15” square base galvanized

MF3CGVFT

Storm Collar

• RTG20151M-1

split ring galvanized

MF3CGVSC

Trim Ring

• RTG20151AA

Indoor/Outdoor

8.9” Dia - 5.25” Hole - Galv

MF3CGTR

for Ruud tankless water heaters | 9

Support Plate

• RTG20151T

17” square base support/fire stop

MF3CGVPS

NOTICE: The components listed on this page are manufactured by Metal Fab, Inc. and are not compatible with venting components manufactured by Heat-Fab listed in previous versions in the Tankless Parts and Accessories Catalog, or any other brand of venting. Make no attempt to use venting components manufactured by different companies on a single installation.

Parts for RUTGH-84DVLN-1, RUTGH-90DVLN-1, RUTGH-95DVLN-1 Series

Program Chips

Fuel Type RUTGH-84DVLN-1 RUTGH-90DVLN-1 RUTGH-95DVLN-1

Natural RTG20239AJ RTG20239AN RTG20239AE Propane RTG20239AK RTG20239AP RTG20239AF

185°F Temperature Upgrade Kits - Commercial and Hydronic

Fuel Type RUTGH-84DVLN-1 RUTGH-90DVLN-1 RUTGH-95DVLN-1

Natural RTG20256A RTG20255A RTG20254A Propane RTG20256B RTG20255B RTG20254B

Accessories

Venting

Remote Controls

Pipe Covers Service Valves

Relief Valve EZ-Link™ Cable

SP20286 (PTX-129) 3" Horizontal Termination Kit SP20285 (RXGY-G02) 2" Horizontal Termination Kit

SP20245 (RXGY-E03A) 3" Concentric Horizontal/Vertical Termination Kit

RTG20006DW UMC-117 Main Remote Control RTG20006DU USC1-117 Bath Remote Control RTG20006DV USC2-117 Second Bath Remote Control RTG20227 Pipe Cover (grey) RTG20220 Tankless Service Valve Kit with Relief Valve RTG20220AB Tankless Service Valve Kit with Relief Valve - California Code AP12993C Pressure Relief Valve RTG20040 6-ft. EZ-Link™ Cable

10 | for Ruud tankless water heaters

Parts for RUTGH-84DVLN-1, RUTGH-90DVLN-1, RUTGH-95DVLN-1 Series

Ref # Ruud Part # Description

1 RTG20239AC Control Board ● ● ●

RTG20006AR Inlet Thermistor - White ● ● ● RTG20212BC Heat Exchanger Thermistor - Yellow ● ● ● RTG20006BB Outlet Thermistor - Black ● ● ● RTG20006UW Ambient Thermistor - Blue ● ● ● RTG20223L Vent High Temperature Limit Switch ● ● ● RTG20239M Thermistor Wiring Harness ● ● ●

2 RTG20239AY Gas Control Valve ● ● ●

RTG20239AD Gas Control Wiring Harness ● ● ●

3 RTG20235AD Burner Assembly ● ● ●

RTG20235C Igniter Coil ● ● ● RTG20212BD Igniter Rod (IG) (with gasket) ● ● ●

4 RTG20212K Blower Motor ● ● ●

RTG20223K Blower Case ● ● ● 5 RTG20235W Burner Manifold - LP ● ● ● 5 RTG20239AA Burner Manifold NAT ● ● ●

RTG20212BE Flame Rod FL-1 (with gasket) ● ● ●

RTG20235AX Flame Rod Wire (White) ● ● ●

RTG20212BF Flame Rod FL-2 (with gasket) ● ● ●

RTG20223M Flame Rod Wire (Blue) ● ● ● 6 RTG20164K Gas Inlet Connector ¾” ● ● ● 7 RTG20164L Water Control Valve ● ● ●

RTG20235X Bypass Assembly ● ● ● 8 RTG20164J Water Inlet Connector ¾” ● ● ● 9 RTG20164AK Inlet Water Filter ● ● ●

10 RTG20074CE Hot Water Outlet Connector ¾” ● ● ● 11 RTG20164AA Remote Control Terminal Block ● ● ●

RTG20212U Remote Control Terminal ● ● ●

12 RTG20239AX Neutralization Replacement Kit ● ● ● 13 RTG20239Z Front Cover - No Labels or Branding ● ● ● 14 RTG20223Y Exhaust Vent Outlet Connector - PVC ● ● ● 15 RTG20223X Air Intake Inlet Connector - PVC ● ● ●

RTG20074EH Gas Shutoff Valve ¾” ● ● ●

RTG20186 Replacement Screw Kit ● ● ●

RTG20206 Replacement O-Ring Kit ● ● ●

RTG20235AB Thermostat Assembly ● ● ●

RUTGH-84DVLN-1

RUTGH-90DVLN-1

RUTGH-95DVLN-1

See Pages 6 - 9 for additional Accessories, Manifold Systems, and Venting Options.

for Ruud tankless water heaters | 11

Parts for RUTGH-84XLN-1, RUTGH-90XLN-1, RUTGH-95XLN-1 Series

Program Chips

Fuel Type RUTGH-84XLN-1 RUTGH-90XLN-1 RUTGH-95XLN-1

Natural RTG20239AL RTG20239AR RTG20239AG Propane RTG20239AM RTG20239AS RTG20239AH

185°F Temperature Upgrade Kits - Commercial and Hydronic

Fuel Type RUTGH-84XLN-1 RUTGH-90XLN-1 RUTGH-95XLN-1

Natural RTG20256C RTG20255C RTG20254C Propane RTG20256D RTG20255D RTG20254D

Accessories

Remote Controls

Pipe Covers Recess Box Service Valves

Relief Valve EZ-Link™ Cable

RTG20006DW UMC-117 Main Remote Control RTG20006DU USC1-117 Bath Remote Control RTG20006DV USC2-117 Second Bath Remote Control RTG20227 Pipe Cover (grey) RTG20226 Recess Box (grey) RTG20220 Tankless Service Valve Kit with Relief Valve RTG20220AB Tankless Service Valve Kit with Relief Valve - California Code AP12993C Pressure Relief Valve RTG20040 6-ft. EZ-Link™ Cable

12 | for Ruud tankless water heaters

Parts for RUTGH-84XLN-1, RUTGH-90XLN-1, RUTGH-95XLN-1 Series

Ref # Ruud Part # Description

1 RTG20239AC Control Board ● ● ●

RTG20006AR Inlet Thermistor - White ● ● ●

RTG20212BC Heat Exchanger Thermistor - Yellow ● ● ●

RTG20006BB Outlet Thermistor - Black ● ● ●

RTG20006UW Ambient Thermistor - Blue ● ● ●

RTG20239M Thermistor Wiring Harness ● ● ●

2 RTG20239AY Gas Control Valve ● ● ●

RTG20239AD Gas Control Wiring Harness ● ● ●

3 RTG20235U Burner Assembly ● ● ●

RTG20235C Igniter Coil ● ● ●

RTG20212BD Igniter Rod (IG) (with gasket) ● ● ●

4 RTG20212AB Blower Motor ● ● ●

RTG20212AC Blower Case ● ● ●

5 RTG20235W Burner Manifold - LP ● ● ●

5 RTG20239A Burner Manifold NAT ● ● ●

RTG20212BE Flame Rod FL-1 (with gasket) ● ● ●

RTG20235AX Flame Rod Wire (White) ● ● ●

6 RTG20164K Gas Inlet Connector ¾” ● ● ●

7 RTG20164L Water Control Valve ● ● ●

RTG20235X Bypass Assembly ● ● ●

8 RTG20164J Water Inlet Connector ¾” ● ● ●

9 RTG20164AK Inlet Water Filter ● ● ●

10 RTG20074CE Hot Water Outlet Connector ¾” ● ● ●

RTG20006AV Drain Plug with Relief ● ● ●

11 RTG20164AA Remote Control Terminal Block ● ● ●

RTG20212U Remote Control Terminal ● ● ●

12 RTG20239AX Neutralization Replacement Kit ● ● ●

13 RTG20239Y Front Cover - No Labels or Branding ● ● ●

RTG20074EH Gas Shutoff Valve ¾” ● ● ● RTG20186 Replacement Screw Kit ● ● ● RTG20206 Replacement O-Ring Kit ● ● ● RTG20235AB Thermostat Assembly ● ● ●

RUTGH-84XLN-1

RUTGH-90XLN-1

RUTGH-95XLN-1

See Pages 6 - 9 for additional Accessories, Manifold Systems, and Venting Options.

for Ruud tankless water heaters | 13

Parts for RUTG-64DVLN-1, RUTG-84DVLN-1, RUTG-95DVLN-1 Series

Program Chips

Fuel Type RUTG-64DVLN-1 RUTG-84DVLN-1 RUTG-95DVLN-1

Natural RTG20235AN RTG20235AJ RTG20235AE Propane RTG20235AP RTG20235AK RTG20235AF

185°F Temperature Upgrade Kits - Commercial and Hydronic

Fuel Type RUTG-64DVLN-1 RUTG-84DVLN-1 RUTG-95DVLN-1

Natural – RTG20250A RTG20249A Propane – RTG20250B RTG20249B

Accessories

Remote Controls

Pipe Covers Service Valves

Relief Valve EZ-Link™ Cable

RTG20006DW UMC-117 Main Remote Control RTG20006DU USC1-117 Bath Remote Control RTG20006DV USC2-117 Second Bath Remote Control RTG20217DVG Pipe Cover (grey) RTG20220 Tankless Service Valve Kit with Relief Valve RTG20220AB Tankless Service Valve Kit with Relief Valve - California Code AP12993C Pressure Relief Valve RTG20040 6-ft. EZ-Link™ Cable

14 | for Ruud tankless water heaters

Parts for RUTG-64DVLN-1, RUTG-84DVLN-1, RUTG-95DVLN-1 Series

Ref # Ruud Part # Description

1 RTG20235Y Control Board ● ● ●

RTG20006UW Ambient Thermistor - Blue ● ● ● RTG20212BC Heat Exchanger Thermistor - Yellow ● ● ● RTG20006AR Inlet Thermistor - White ● ● ● RTG20006BB Outlet Thermistor - Black ● ● ●

RTG20239M Thermistor Wiring Harness ● ● ● 2 RTG20235AC Gas Valve Assy ● ● ● 3 RTG20235AD Burner Assembly ● ● ● 6 RTG20235V Burner Manifold - NAT ● ● ● 6 RTG20235W Burner Manifold - LP ● ● ●

RTG20212BE Flame Rod “FL1” (Right) w/gasket ● ● ●

RTG20212J Gas Control Resistor ● ● ●

RTG20212BF Flame Rod “Sensor” (Left) w/gasket ● ● ●

RTG20212N Flame Rod Wire (Blue) ● ● ●

RTG20235AX Flame Rod Wire (White) ● ● ● 4 RTG20235C Igniter Coil ● ● ●

RTG20212BD Igniter Rod (Right) w/gasket ● ● ● 5 RTG20212K Blower Motor ● ● ●

RTG20212L Blower Case ● ● ● 7 RTG20164K Gas Inlet Connector ¾” ● ● ● 8 RTG20164L Water Control Valve ● ● ●

8a RTG20235X Water Bypass Valve ● ● ●

9 RTG20164J Water Inlet Connector ¾” ● ● ●

11 RTG20074CE Hot Water Outlet Connector ¾” ● ● ● 14 RTG20212U Remote Control Terminal ● ● ●

RTG20164AA Remote Control Terminal Block ● ● ●

RTG20006AV Drain Plug with Relief ● ● ●

RTG20212A Top Mounting Bracket ● ● ●

RTG20212B Bottom Mounting Bracket ● ● ●

RTG20164AB Screw Pan FT 4X12 ● ● ●

10 RTG20164AK Inlet Water Filter ● ● ● 13 RTG20235AU Front Cover - No Labels or Branding ● ● ● 15 RTG20212BB Concentric Vent Connector Assembly ● ● ●

RTG20074EH Gas Shutoff Valve ¾” ● ● ●

RTG20186 Replacement Screw Kit ● ● ●

RTG20206 Replacement O-Ring Kit ● ● ●

RTG20235AB Thermostat Assembly ● ● ●

RUTG-64DVLN-1

RUTG-84DVLN-1

RUTG-95DVLN-1

See Pages 6 - 9 for additional Accessories, Manifold Systems, and Venting Options.

for Ruud tankless water heaters | 15

Parts for RUTG-64XLN-1, RUTG-84XLN-1, RUTG-95XLN-1 Series

Program Chips

Fuel Type RUTG-64XLN-1 RUTG-84XLN-1 RUTG-95XLN-1

Natural RTG20235AR RTG20235AL RTG20235AG Propane RTG20235AS RTG20235AM RTG20235AH

185°F Temperature Upgrade Kits - Commercial and Hydronic

Fuel Type RUTG-64XLN-1 RUTG-84XLN-1 RUTG-95XLN-1

Natural – RTG20250C RTG20249C Propane – RTG20250D RTG20249D

Accessories

Remote Controls

Pipe Covers Recess Box Service Valves

Relief Valve EZ-Link™ Cable

RTG20006DW UMC-117 Main Remote Control RTG20006DU USC1-117 Bath Remote Control RTG20006DV USC2-117 Second Bath Remote Control RTG20217XG Pipe Cover (grey) RTG20218 Recess Box (grey) RTG20220 Tankless Service Valve Kit with Relief Valve RTG20220AB Tankless Service Valve Kit with Relief Valve - California Code AP12993C Pressure Relief Valve RTG20040 6-ft. EZ-Link™ Cable

16 | for Ruud tankless water heaters

Parts for RUTG-64XLN-1, RUTG-84XLN-1, RUTG-95XLN-1 Series

Ref # Ruud Part # Description

1 RTG20235Y Control Board ● ● ●

RTG20212BC Heat Exchanger Thermistor - Yellow ● ● ●

RTG20006BB Outlet Thermistor - Black ● ● ●

RTG20006AR Inlet Thermistor - White ● ● ●

RTG20006UW Ambient Thermistor - Blue ● ● ●

RTG20239M Thermistor Wiring Harness ● ● ●

2 RTG20235T Gas Valve Assy ● ● ●

RTG20212J Gas Control Resister ● ● ●

3 RTG20235U Burner Assembly ● ● ●

RTG20212BE Flame Rod “FL” (Right) w/gasket ● ● ●

RTG20212BD Igniter Rod (Right) w/gasket ● ● ●

RTG20235AX Flame Rod Connector (White) ● ● ●

4 RTG20235C Igniter Coil ● ● ●

5 RTG20212AB Blower Motor ● ● ●

RTG20212AC Blower Case ● ● ●

6 RTG20235V Burner Manifold - NAT ● ● ●

6 RTG20235W Burner Manifold - LP ● ● ●

7 RTG20164K Gas Inlet Connector ¾” ● ● ●

8 RTG20164L Water Control Valve ● ● ●

8a RTG20235X Water Bypass Valve ● ● ●

9 RTG20164J Water Inlet Connector ¾” ● ● ●

RTG20006AV Drain Plug with Relief ● ● ●

11 RTG20074CE Hot Water Outlet Connector ¾” ● ● ●

RTG20164AA Remote Control Terminal Block ● ● ●

RTG20164AB Screw Pan FT 4X12 ● ● ●

10 RTG20164AK Inlet Water Filter ● ● ●

13 RTG20235AT Front Cover - No Labels or Branding ● ● ●

RTG20074EH Gas Shutoff Valve ¾” ● ● ●

RTG20186 Replacement Screw Kit ● ● ●

RTG20206 Replacement O-Ring Kit ● ● ●

RTG20235AB Thermostat Assembly ● ● ●

RUTG-64XLN-1

RUTG-84XLN-1

RUTG-95XLN-1

See Pages 6 - 9 for additional Accessories, Manifold Systems, and Venting Options.

for Ruud tankless water heaters | 17

Parts for RUTGH-84, RUTGH-90, RUTGH-95 DV and DVL Series

Program Chips

Fuel Type

Natural RTG20228T RTG20228N RTG20239G RTG20239P RTG20239C Propane RTG20228U RTG20228P RTG20239H RTG20239R RTG20239D

RUTGH-84DV RUTGH-95DV RUTGH-84DVL RUTGH-90DVL RUTGH-95DVL

185°F Temp. Upgrade Kits - Commercial and Hydronic

Fuel Type

Natural RTG20225A RTG20224A RTG20241A RTG20244A RTG20240A

Propane RTG20225B RTG20224B RTG20241B RTG20244B RTG20240B

RUTGH-84DV RUTGH-95DV RUTGH-84DVL RUTGH-90DVL RUTGH-95DVL

Accessories

Venting

Remote Controls

Pipe Covers Service Valves

Relief Valve EZ-Link™ Cable RTG20040 6-ft. EZ-Link™ Cable

SP20286 (RXGY-G01) 3” Horizontal Termination Kit SP20285 (RXGY-G02) 2” Horizontal Termination Kit

SP20245 (RXGY-E03A) 3” Concentric Horizontal/Vertical Termination Kit

18 | for Ruud tankless water heaters

Parts for RUTGH-84, RUTGH-90, RUTGH-95 DV and DVL Series

Ref # Ruud Part # Description

1 RTG20223P Control Board ● ● 1 RTG20239B Control Board ● ● ●

RTG20223D Inlet Thermistor - White ● ●

RTG20006AR Inlet Thermistor - White ● ● ●

RTG20223G Heat Exchanger Thermistor - Green ● ●

RTG20212BC Heat Exchanger Thermistor - Yellow ● ● ●

RTG20223H Outlet Thermistor - Black ● ●

RTG20006BB Outlet Thermistor - Black ● ● ●

RTG20223J Ambient Thermistor - Blue ● ● RTG20006UW Ambient Thermistor - Blue ● ● ● RTG20223L Vent High Temperature Limit Switch ● ● ● ● ● RTG20223W Thermistor Wiring Harness ● ● RTG20239M Thermistor Wiring Harness ● ● ●

2 RTG20212V Gas Control Valve ● ● ● ● ●

RTG20223V Gas Control Wiring Harness ● ● RTG20239L Gas Control Wiring Harness ● ● ●

3 RTG20212D Burner Assembly ● ● ● ● ●

RTG20235C Igniter Coil ● ● ● ● ● RTG20212BD Igniter Rod (IG) (with gasket) ● ● ● ● ●

4 RTG20212K Blower Motor ● ● ● ● ●

RTG20223K Blower Case ● ● ● ● ● 5 RTG20212F Burner Manifold LP ● ● 5 RTG20235B Burner Manifold - LP ● ● ● 5 RTG20212X Burner Manifold NAT ● ● 5 RTG20239A Burner Manifold NAT ● ● ●

RTG20212BE Flame Rod FL-1 (with gasket) ● ● ● ● ●

RTG20212P Flame Rod Wire (White) ● ● ● ● ●

RTG20212BF Flame Rod FL-2 (with gasket) ● ● ● ● ●

RTG20223M Flame Rod Wire (Blue) ● ● ● ● ● 6 RTG20164K Gas Inlet Connector ¾” ● ● ● ● ● 7 RTG20223E Water Control Valve ● ●

RTG20164L Water Control Valve ● ● ●

RTG20164M Bypass Assembly ● ● ● ● ● 8 RTG20164J Water Inlet Connector ¾” ● ● ● ● ● 9 RTG20164AK Inlet Water Filter ● ● ● ● ●

10 RTG20074CE Hot Water Outlet Connector ¾” ● ● ● ● ● 11 RTG20164AA Remote Control Terminal Block ● ● ● ● ●

RTG20212U Remote Control Terminal ● ● ● ● ●

12 RTG20223F Neutralization Replacement Kit ● ●

RTG20239N Neutralization Replacement Kit ● ● ●

13 RTG20223B Front Cover - No Labels or Branding ● ● ● ● ● 14 RTG20223Y Exhaust Vent Outlet Connector - PVC ● ● ● ● ● 15 RTG20223X Air Intake Inlet Connector - PVC ● ● ● ● ●

RTG20074EH Gas Shutoff Valve ¾” ● ● ● ● ●

RTG20186 Replacement Screw Kit ● ● ● ● ●

RTG20206 Replacement O-Ring Kit ● ● ● ● ●

RUTGH-84DV

RUTGH-95DV

RUTGH-84DVL

RUTGH-90DVL

RUTGH-95DVL

See Pages 6 - 9 for additional Accessories, Manifold Systems, and Venting Options.

for Ruud tankless water heaters | 19

Parts for RUTGH-84, RUTGH-90, RUTGH-95 X and XL Series

Program Chips

Fuel Type

Natural RTG20228V RTG20228R RTG20239J RTG20239S RTG20239E Propane RTG20228W RTG20228S RTG20239K RTG20239T RTG20239F

RUTGH-84X RUTGH-95X RUTGH-84XL RUTGH-90XL RUTGH-95XL

185°F Temp. Upgrade Kits - Commercial and Hydronic

Fuel Type

Natural RTG20225C RTG20224C RTG20241C RTG20244C RTG20240C

Propane RTG20225D RTG20224D RTG20241D RTG20244D RTG20240D

RUTGH-84X RUTGH-95X RUTGH-84XL RUTGH-90XL RUTGH-95XL

Accessories

Remote Controls

Pipe Covers Recess Box Service Valves

Relief Valve EZ-Link™ Cable

20 | for Ruud tankless water heaters

Parts for RUTGH-84, RUTGH-90, RUTGH-95 X and XL Series

Ref # Ruud Part # Description

1 RTG20223P Control Board ● ●

RTG20239B Control Board ● ● ●

RTG20223D Inlet Thermistor - White ● ●

RTG20006AR Inlet Thermistor - White ● ● ●

RTG20223G Heat Exchanger Thermistor - Green ● ●

RTG20212BC Heat Exchanger Thermistor - Yellow ● ● ●

RTG20223H Outlet Thermistor - Black ● ●

RTG20006BB Outlet Thermistor - Black ● ● ●

RTG20223J Ambient Thermistor - Blue ● ●

RTG20006UW Ambient Thermistor - Blue ● ● ●

RTG20223W Thermistor Wiring Harness ● ●

RTG20239M Thermistor Wiring Harness ● ● ●

2 RTG20212V Gas Control Valve ● ● ● ● ●

RTG20223V Gas Control Wiring Harness ● ●

RTG20239L Gas Control Wiring Harness ● ● ●

3 RTG20212W Burner Assembly ● ● ● ● ●

RTG20235C Igniter Coil ● ● ● ● ●

RTG20212BD Igniter Rod (IG) (with gasket) ● ● ● ● ●

4 RTG20212AB Blower Motor ● ● ● ● ●

RTG20212AC Blower Case ● ● ● ● ●

5 RTG20212F Burner Manifold LP ● ●

5 RTG20235B Burner Manifold - LP ● ● ●

5 RTG20212X Burner Manifold NAT ● ●

5 RTG20239A Burner Manifold NAT ● ● ●

RTG20212BE Flame Rod FL-1 (with gasket) ● ● ● ● ●

RTG20212P Flame Rod Wire (White) ● ● ● ● ●

6 RTG20164K Gas Inlet Connector ¾” ● ● ● ● ●

7 RTG20223E Water Control Valve ● ●

RTG20164L Water Control Valve ● ● ●

RTG20164M Bypass Assembly ● ● ● ● ●

8 RTG20164J Water Inlet Connector ¾” ● ● ● ● ●

9 RTG20164AK Inlet Water Filter ● ● ● ● ●

10 RTG20074CE Hot Water Outlet Connector ¾” ● ● ● ● ●

RTG20006AV Drain Plug with Relief ● ● ● ● ●

11 RTG20164AA Remote Control Terminal Block ● ● ● ● ●

RTG20212U Remote Control Terminal ● ● ● ● ●

12 RTG20223F Neutralization Replacement Kit ● ●

RTG20239N Neutralization Replacement Kit ● ● ●

13 RTG20223A Front Cover - No Labels or Branding ● ● ● ● ●

RTG20074EH Gas Shutoff Valve ¾” ● ● ● ● ● RTG20186 Replacement Screw Kit ● ● ● ● ● RTG20206 Replacement O-Ring Kit ● ● ● ● ●

RUTGH-84X

RUTGH-95X

RUTGH-84XL

RUTGH-90XL

RUTGH-95XL

See Pages 6 - 9 for additional Accessories, Manifold Systems, and Venting Options.

for Ruud tankless water heaters | 21

Parts for RUTG-64, RUTG-84, RUTG-95, DV and DVL Series

Program Chips

Fuel Type

Natural RTG20212AV RTG20212AL RTG20212S RTG20235N RTG20235J RTG20235E Propane RTG20212AW RTG20212AM RTG20212T RTG20235P RTG20235K RTG20235F

RUTG-64DV RUTG-84DV RUTG-95DV RUTG-64DVL RUTG-84DVL RUTG-95DVL

185°F Temp. Upgrade Kits - Commercial and Hydronic

Fuel Type

Natural ─ RTG20216A RTG20214A ─ RTG20237A RTG20236A Propane ─ RTG20216B RTG20214B ─ RTG20237B RTG20236B

RUTG-64DV RUTG-84DV RUTG-95DV RUTG-64DVL RUTG-84DVL RUTG-95DVL

Accessories

Remote Controls

Pipe Covers Service Valves

Relief Valve EZ-Link™ Cable

22 | for Ruud tankless water heaters

Parts for RUTG-64, RUTG-84, RUTG-95, DV and DVL Series

Ref # Ruud Part # Description

1 RTG20212R Control Board ● ● ●

RTG20235D Control Board ● ● ● RTG20164R Ambient Thermistor - Blue ● ● ● RTG20006UW Ambient Thermistor - Blue ● ● ● RTG20212BC Heat Exchanger Thermistor - Yellow ● ● ● ● ● ● RTG20006AR Inlet Thermistor - White ● ● ● ● ● ● RTG20006BB Outlet Thermistor - Black ● ● ● ● ● ●

RTG20239M Thermistor Wiring Harness ● ● ● ● ● ● 2 RTG20212C Gas Valve Assy ● ● ● ● ● ● 3 RTG20212D Burner Assembly ● ● ● ● ● ● 6 RTG20212E Burner Manifold - NAT ● ● ●

RTG20235A Burner Manifold - NAT ● ● ● 6 RTG20212F Burner Manifold - LP ● ● ●

RTG20235B Burner Manifold - LP ● ● ●

RTG20212BE Flame Rod “FL1” (Right) w/gasket ● ● ● ● ● ●

RTG20212J Gas Control Resistor ● ● ● ● ● ●

RTG20212BF Flame Rod “Sensor” (Left) w/gasket ● ● ● ● ● ●

RTG20212N Flame Rod Wire (Blue) ● ● ● ● ● ●

RTG20212P Flame Rod Wire (White) ● ● ● ● ● ● 4 RTG20235C Igniter Coil ● ● ● ● ● ●

RTG20212BD Igniter Rod (Right) w/gasket ● ● ● ● ● ● 5 RTG20212K Blower Motor ● ● ● ● ● ●

RTG20212L Blower Case ● ● ● ● ● ● 7 RTG20164K Gas Inlet Connector ¾” ● ● ● ● ● ● 8 RTG20164L Water Control Valve ● ● ● ● ● ●

8a RTG20164M Water Bypass Valve ● ● ● ● ● ●

9 RTG20164J Water Inlet Connector ¾” ● ● ● ● ● ●

11 RTG20074CE Hot Water Outlet Connector ¾” ● ● ● ● ● ● 14 RTG20212U Remote Control Terminal ● ● ● ● ● ●

RTG20164AA Remote Control Terminal Block ● ● ● ● ● ●

RTG20006AV Drain Plug with Relief ● ● ● ● ● ●

RTG20212A Top Mounting Bracket ● ● ● ● ● ●

RTG20212B Bottom Mounting Bracket ● ● ● ● ● ●

RTG20164AB Screw Pan FT 4X12 ● ● ● ● ● ●

10 RTG20164AK Inlet Water Filter ● ● ● ● ● ● 13 RTG20212BA Front Cover - No Labels or Branding ● ● ● ● ● ● 15 RTG20212BB Concentric Vent Connector Assembly ● ● ● ● ● ●

RTG20074EH Gas Shutoff Valve ¾” ● ● ● ● ● ●

RTG20186 Replacement Screw Kit ● ● ● ● ● ●

RTG20206 Replacement O-Ring Kit ● ● ● ● ● ●

RUTG-64DV

RUTG-84DV

RUTG-95DV

RUTG-64DVL

RUTG-84DVL

RUTG-95DVL

See Pages 6 - 9 for additional Accessories, Manifold Systems, and Venting Options.

for Ruud tankless water heaters | 23

Parts for RUTG-64, RUTG-84, RUTG-95, X and XL Series

Program Chips

Fuel Type

Natural RTG20212AE RTG20212AN RTG20212AX RTG20235R RTG20235L RTG20235G Propane RTG20212AH RTG20212AP RTG20212AY RTG20235S RTG20235M RTG20235H

RUTG-64X RUTG-84X RUTG-95X RUTG-64XL RUTG-84XL RUTG-95XL

185°F Temp. Upgrade Kits - Commercial and Hydronic

Fuel Type

Natural ─ RTG20216C RTG20214C ─ RTG20237C RTG20236C Propane ─ RTG20216D RTG20214D ─ RTG20237D RTG20236D

RUTG-64X RUTG-84X RUTG-95X RUTG-64XL RUTG-84XL RUTG-95XL

Accessories

Remote Controls

Pipe Covers Recess Box Service Valves

Relief Valve EZ-Link™ Cable

24 | for Ruud tankless water heaters

Parts for RUTG-64, RUTG-84, RUTG-95, X and XL Series

Ref # Ruud Part # Description

1 RTG20212AD Control Board ● ● ●

RTG20235D Control Board ● ● ●

RTG20212BC Heat Exchanger Thermistor - Yellow ● ● ● ● ● ●

RTG20006BB Outlet Thermistor - Black ● ● ● ● ● ●

RTG20006AR Inlet Thermistor - White ● ● ● ● ● ●

RTG20006UW Ambient Thermistor - Blue ● ● ● ● ● ●

RTG20239M Thermistor Wiring Harness ● ● ● ● ● ●

2 RTG20212V Gas Valve Assy ● ● ● ● ● ●

RTG20212J Gas Control Resister ● ● ● ● ● ●

3 RTG20212W Burner Assembly ● ● ● ● ● ●

RTG20212G Flame Rod "FL" (Right) ● ● ● ● ● ●

RTG20212BE Flame Rod “FL” (Right) w/gasket ● ● ● ● ● ●

RTG20212M Igniter Rod (Right) ● ● ● ● ● ●

RTG20212BD Igniter Rod (Right) w/gasket ● ● ● ● ● ●

RTG20212P Flame Rod Connector (White) ● ● ● ● ● ●

4 RTG20235C Igniter Coil ● ● ● ● ● ●

5 RTG20212AB Blower Motor ● ● ● ● ● ●

RTG20212AC Blower Case ● ● ● ● ● ●

6 RTG20212X Burner Manifold - NAT ● ● ●

RTG20235A Burner Manifold - NAT ● ● ●

RTG20212F Burner Manifold - LP ● ● ●

RTG20235B Burner Manifold - LP ● ● ●

7 RTG20164K Gas Inlet Connector ¾” ● ● ● ● ● ●

8 RTG20164L Water Control Valve ● ● ● ● ● ●

8a RTG20164M Water Bypass Valve ● ● ● ● ● ●

9 RTG20164J Water Inlet Connector ¾” ● ● ● ● ● ●

RTG20006AV Drain Plug with Relief ● ● ● ● ● ●

11 RTG20074CE Hot Water Outlet Connector ¾” ● ● ● ● ● ●

RTG20212U Remote Control Terminal ● ● ●

RTG20164AA Remote Control Terminal Block ● ● ● ● ● ●

RTG20164AB Screw Pan FT 4X12 ● ● ● ● ● ●

10 RTG20164AK Inlet Water Filter ● ● ● ● ● ●

13 RTG20212AZ Front Cover - No Labels or Branding ● ● ● ● ● ●

RTG20074EH Gas Shutoff Valve ¾” ● ● ● ● ● ●

RTG20186 Replacement Screw Kit ● ● ● ● ● ●

RTG20206 Replacement O-Ring Kit ● ● ● ● ● ●

RUTG-64X

RUTG-84X

RUTG-95X

RUTG-64XL

RUTG-84XL

RUTG-95XL

See Pages 6 - 9 for additional Accessories, Manifold Systems, and Venting Options.

for Ruud tankless water heaters | 25

Tankless Model Cross Reference and Notes

Mid-Efﬁciency Tankless Model Cross Reference

RUUD Rheem Richmond EcoSense

RUTG-64DVN RTG-64DVN RMTG64DVN ECO150DVN3 RUTG-64DVP RTG-64DVP RMTG64DVP ECO150DVP3 RUTG-64XN RTG-64XN RMTG64XN ECO150XN3 RUTG-64XP RTG-64XP RMTG64XP ECO150XP3

RUTG-84DVN RTG-84DVN RMTG84DVN ECO180DVN3 RUTG-84DVP RTG-84DVP RMTG84DVP ECO180DVP3 RUTG-84XN RTG-84XN RMTG84XN ECO180XN3 RUTG-84XP RTG-84XP RMTG84XP ECO180XP3

RUTG-95DVN RTG-95DVN RMTG95DVN ECO200DVN3 RUTG-95DVP RTG-95DVP RMTG95DVP ECO200DVP3 RUTG-95XN RTG-95XN RMTG95XN ECO200XN3 RUTG-95XP RTG-95XP RMTG95XP ECO200XP3

RUTG-64DVLN RTG-64DVLN RMTG64DVLN ECO150DVLN3 RUTG-64DVLP RTG-64DVLP RMTG64DVLP ECO150DVLP3 RUTG-64XLN RTG-64XLN RMTG64XLN ECO150XLN3 RUTG-64XLP RTG-64XLP RMTG64XLP ECO150XLP3

RUTG-84DVLN RTG-84DVLN RMTG84DVLN ECO180DVLN3 RUTG-84DVLP RTG-84DVLP RMTG84DVLP ECO180DVLP3 RUTG-84XLN RTG-84XLN RMTG84XLN ECO180XLN3 RUTG-84XLP RTG-84XLP RMTG84XLP ECO180XLP3

RUTG-95DVLN RTG-95DVLN RMTG95DVLN ECO200DVLN3 RUTG-95DVLP RTG-95DVLP RMTG95DVLP ECO200DVLP3 RUTG-95XLN RTG-95XLN RMTG95XLN ECO200XLN3 RUTG-95XLP RTG-95XLP RMTG95XLP ECO200XLP3

Parts for the Mid-Efﬁciency Tankless Models begin on page 14.

26 | for Ruud tankless water heaters

Tankless Model Cross Reference and Notes

Condensing Tankless Model Cross Reference

RUUD Rheem Richmond EcoSense

RUTGH-95DVN RTGH-95DVN RMTGH95DVN ECOH200DVN RUTGH-95DVP RTGH-95DVP RMTGH95DVP ECOH200DVP RUTGH-95XN RTGH-95XN RMTGH95XN ECOH200XN RUTGH-95XP RTGH-95XP RMTGH95XP ECOH200XP

RUTGH-84DVN RTGH-84DVN RMTGH84DVN ECOH160DVN RUTGH-84DVP RTGH-84DVP RMTGH84DVP ECOH160DVP RUTGH-84XN RTGH-84XN RMTGH84XN ECOH160XN RUTGH-84XP RTGH-84XP RMTGH84XP ECOH160XP

RUTGH-95DVLN RTGH-95DVLN RMTGH95DVLN ECOH200DVLN RUTGH-95DVLP RTGH-95DVLP RMTGH95DVLP ECOH200DVLP RUTGH-95XLN RTGH-95XLN RMTGH95XLN ECOH200XLN RUTGH-95XLP RTGH-95XLP RMTGH95XLP ECOH200XLP

RUTGH-90DVLN RTGH-90DVLN RMTGH-90DVLN RUTGH-90DVLP RTGH-90DVLP RMTGH-90DVLP RUTGH-90XLN RTGH-90XLN RMTGH-90XLN RUTGH-90XLP RTGH-90XLP RMTGH-90XLP

RUTGH-84DVLN RTGH-84DVLN RMTGH84DVLN ECOH160DVLN RUTGH-84DVLP RTGH-84DVLP RMTGH84DVLP ECOH160DVLP RUTGH-84XLN RTGH-84XLN RMTGH84XLN ECOH160XLN RUTGH-84XLP RTGH-84XLP RMTGH84XLP ECOH160XLP

ECOH180DVLN ECOH180DVLP ECOH180XLN ECOH180XLP

Parts for the Condensing Tankless Models begin on Page 10.

for Ruud tankless water heaters | 27

Why Ruud?

Over the last 100 years, we’ve made a habit of delivering reliable water

heating products. No matter how advanced our engineering has become,

we’ll always “make them like we used to.” With Ruud, you get a history

of doing things right and our word that you can Rely on Ruud.

In keeping with its policy of continuous progress and product improvement, Ruud reserves the right to make changes without notice.

Ruud Replacement Parts • 4744 Island Ford Road

Randleman, NC 27317 • 336.495.6800 • 336.495.6897 fax

www.Ruudparts.com

™

Technical Support 800.432.8373 Customer Service 800.621.5622

Montgomery, Alabama 36117-4305 • www.Ruud.com

Printed in U.S.A. 09/16 WP TKRPP-101 Rev. 6

Ruud Water Heating • 101 Bell Road

Rheem TANKLESS WATER HEATING User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
