Rheem RXGY-D05, RXGY-D06 Submittal Sheet
SUBMITTAL COVER SHEET
Quantity
Unit Designation
Model No.
Total Cooling
Sensible Cooling
Air Ent. Evaporator
Air Lvg. Evaporator
Heating Input
Heating Output
CFM/ESP
EER/SEER
Electrical
Minimum Ampacity
Min.-Max. Breaker
Net Unit Weight
Accessory
Catalog Form Number
ACCESSORIES: NOTES:
PRINTED IN U.S.A 01/12 QG FORM NO. M11-1640
PROJECT NAME
LOCATION
ARCHITECT
ENGINEER
CONTRACTOR
SUBMITTED BY DATE
UNIT SUMMARY
FORM NO. X33-1426
Supersedes Form No. X33-1285 Rev. 2
JOB NAME MODEL NO.
CONTRACTOR OUTDOOR UNIT MODEL NO.
ENGINEER LOCATION
SUBMITTED FOR APPROVAL RECORD ORDER NO.
DATE
UNIT DATA
HEATING PERFORMANCE
TOTAL CAPACITY INPUT* ......
_______
MBH [kW]
TOTAL CAPACITY OUTPUT* ..
_______
MBH [kW]
DESIGN TEMP. RISE ..............
_______
°F [°C] DB
AFUE ................................................
_______
%
CALIFORNIA SEASONAL
EFFICIENCY ..................................
_______
%
(*uses blower motor heat)
SUPPLY AIR BLOWER PERFORMANCE
TOTAL AIR SUPPLY ................
_______
CFM [L/s]
TOTAL RESISTANCE EXTERNAL
TO UNIT......................................
_______
IWG
BLOWER SPEED ..........................
_______
RPM
POWER OUTPUT REQUIREMENT ..
_______
BHP
MOTOR RATING ........................
_______
HP [W]
POWER INPUT REQUIREMENT ........
_______
kW
ELECTRICAL DATA
POWER SUPPLY ..............................
_______ Hz
TOTAL UNIT AMPACITY................
_______
AMPS
MINIMUM WIRE SIZE ....................
_______
AWG
MAXIMUM OVERCURRENT DEVICE
FUSES/HACR BREAKER ..........
_______
AMPS
FEATURES FOR R92P
■ 92% residential gas furnace CSA certified
■ 4 way multi-poise design
■ PlusOne
™
Diagnostics 7-Segment LED all units
■ PlusOne
™
Ignition System – DSI for reliability and longevity
■ PlusOne
™
Water Management System with patented Blocked
Drain Sensor
■ Heat exchanger is removable for improved serviceability and
primary is constructed of aluminized steel for maximum
corrosion resistance and thermal fatigue reliability.
■ Low profile “34 inch” cabinet ideal for space constrained
installations.
■ Blower Self design – serviceable in all furnace orientations
■ Pre marked hoses – insures proper system drainage
■ Vent with 2" or 3" PVC
■ Replaceable Collector box
■ Hemmed edges on cabinet and doors
■ Quarter turn fasteners for tool less access
■ Integrated control boards feature dip switches for easy system
set up
■ Self priming condensate trap
✝A.F.U.E. (Annual Fuel Utilization Efficiency) calculated in accordance with Department of Energy test
procedures.
FIELD INSTALLED ACCESSORIES
Plenum Adapter (RXAA-)............................................................
Vent Termination Kits Concentric:
Vertical/Horizontal = RXGY-E03A-E02A (US & Canadian
Installations)................................................................................
Horizontal Two Pipe
RXGY-D05, RXGY-D06 ......................................................
Neutralizer Kit: RXGY-A01 ..................................................
Fossil Fuel Kit: RXPF-F01 and F02............................................
External Bottom Filter Rack RXGF-CB ......................................
External Side Filter Rack RXGF-CD ..........................................

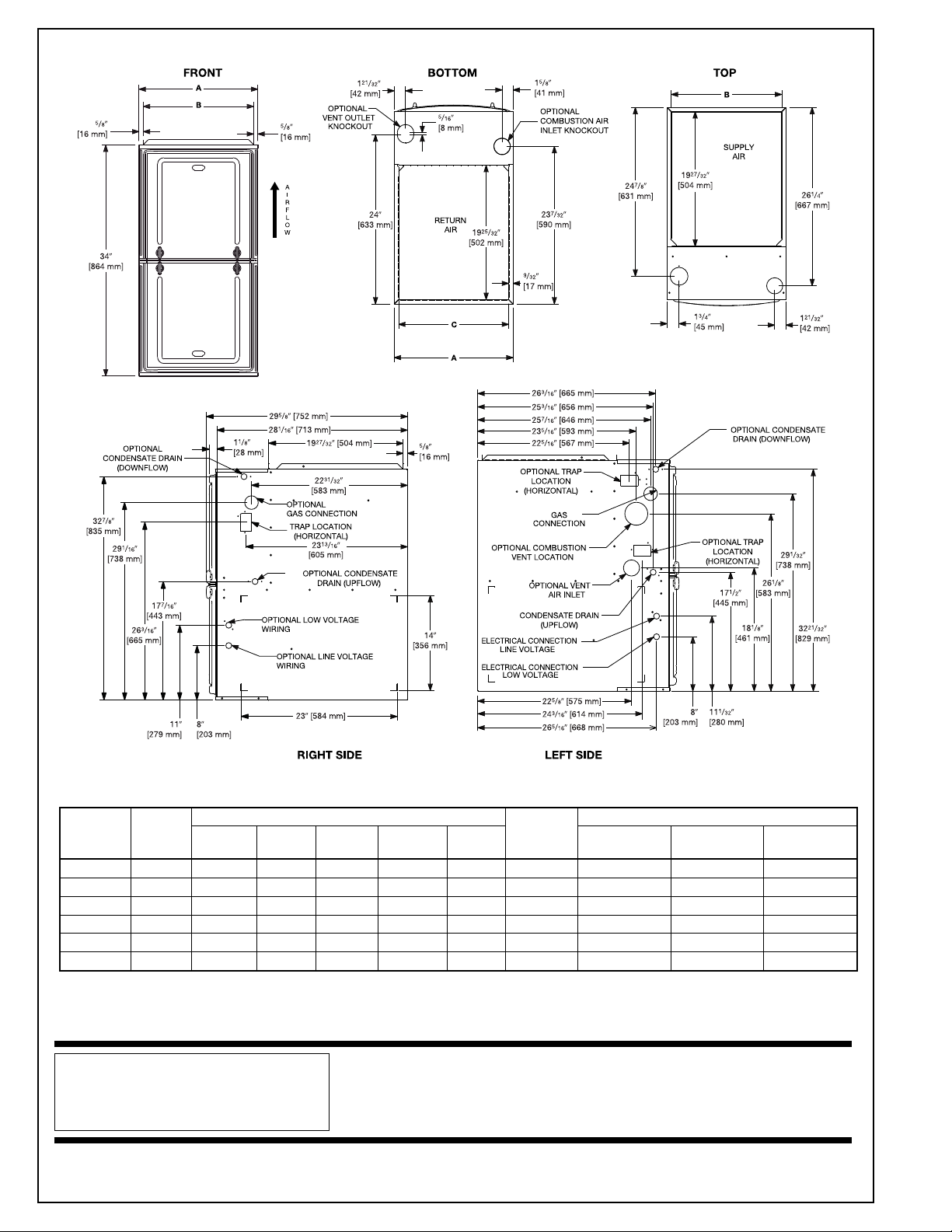

MULTI POSITION GAS FURNACES
R92P Series
92% A.F.U.E.✝
Input Rates 40 to 115 kBTU [11.72 to 33.71 kW]
