Rheem RLNL-B User Manual

Download
Page 1

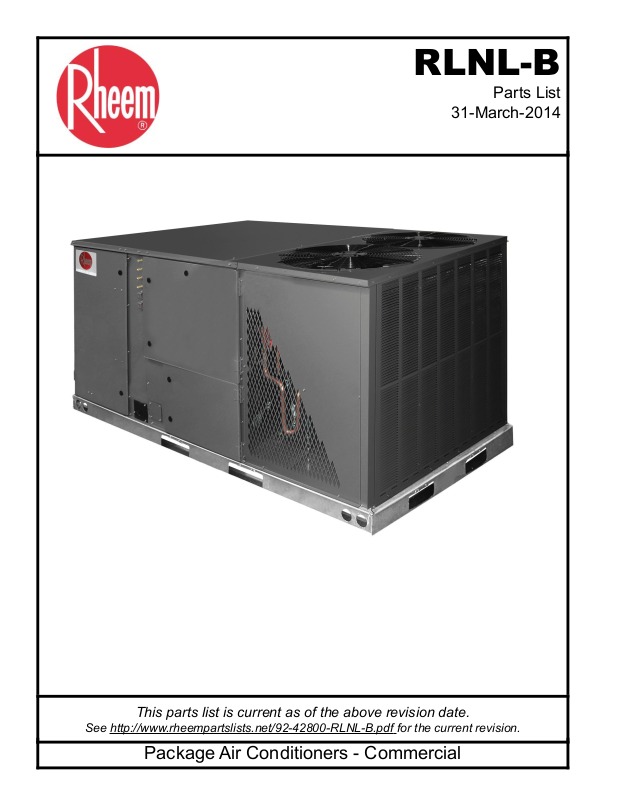

RLNL-B
Parts List
31-March-2014
This parts list is current as of the above revision date.
See http://www.rheempartslists.net/92-42800-RLNL-B.pdf for the current revision.
Package Air Conditioners - Commercial
Page 2
Model Explanation............ . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . Page 3
Parts Numbers
Panels - Miscellaneous (Granite-Steel Gray) 072-151 (1) . . . . . . .................. . . . . . . . . . . . . . .................. . . Page4
Panels - Miscellaneous (Granite-Steel Gray) 072-151 (2) . . . . . . .................. . . . . . . . . . . . . . .................. . . Page5
Panels - Miscellaneous (Neutra Green) 072-151 (1) .. . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . Page6
Panels - Miscellaneous (Neutra Green) 072-151 (2) .. . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . Page7
Panels - Miscellaneous (Granite-Steel Gray) 180-300 (1) . . . . . . .................. . . . . . . . . . . . . . .................. . . Page8
Panels - Miscellaneous (Granite-Steel Gray) 180-300 (2) . . . . . . .................. . . . . . . . . . . . . . .................. . . Page9
Panels - Miscellaneous (Neutra Green) 180-300 (1) .. . . . . .................. . . . . . . . . . . . . . .................. . . . . . . Page 10
Panels - Miscellaneous (Neutra Green) 180-300 (2) .. . . . . .................. . . . . . . . . . . . . . .................. . . . . . . Page 11
Electrical Group 072-151 (1) . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. Page 12
Electrical Group 072-151 (2) . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. Page 13
Electrical Group 180-300 (1) . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. Page 14
Electrical Group 180-300 (2) . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. Page 15
Fan Group 072-090. . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. Page 16
Fan Group 102-150. . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. Page 17
Fan Group 151 .. . ................... . . . . . . . . . . . . ................... . . . . . . . . . . . . ................... . . . . . . . . . . . . . Page18
Fan Group 180-300. . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. Page 19
Blower Group 072-151 (1) . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . Page 20
Blower Group 072-151 (2) . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . Page 21
Blower Group 180-300. . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . Page 22
Coil Parts 072-090. . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . Page 23
Coil Parts 102-150. . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . Page 24
Coil Parts 151 .. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . Page 25
Coil Parts 180-300 (Gray). . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . Page 26
Coil Parts 180-300 (Green) . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. Page 27
Compressor Group 072-090 . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ................. Page 28
Compressor Group 102-151 . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ................. Page 29
Compressor Group 180-300 . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ................. Page 30
Heater Kits .. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . Page 31
Accessories 072-151 . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . Page 32
Accessories 180-300 . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . Page 33
Drawings/Photographs

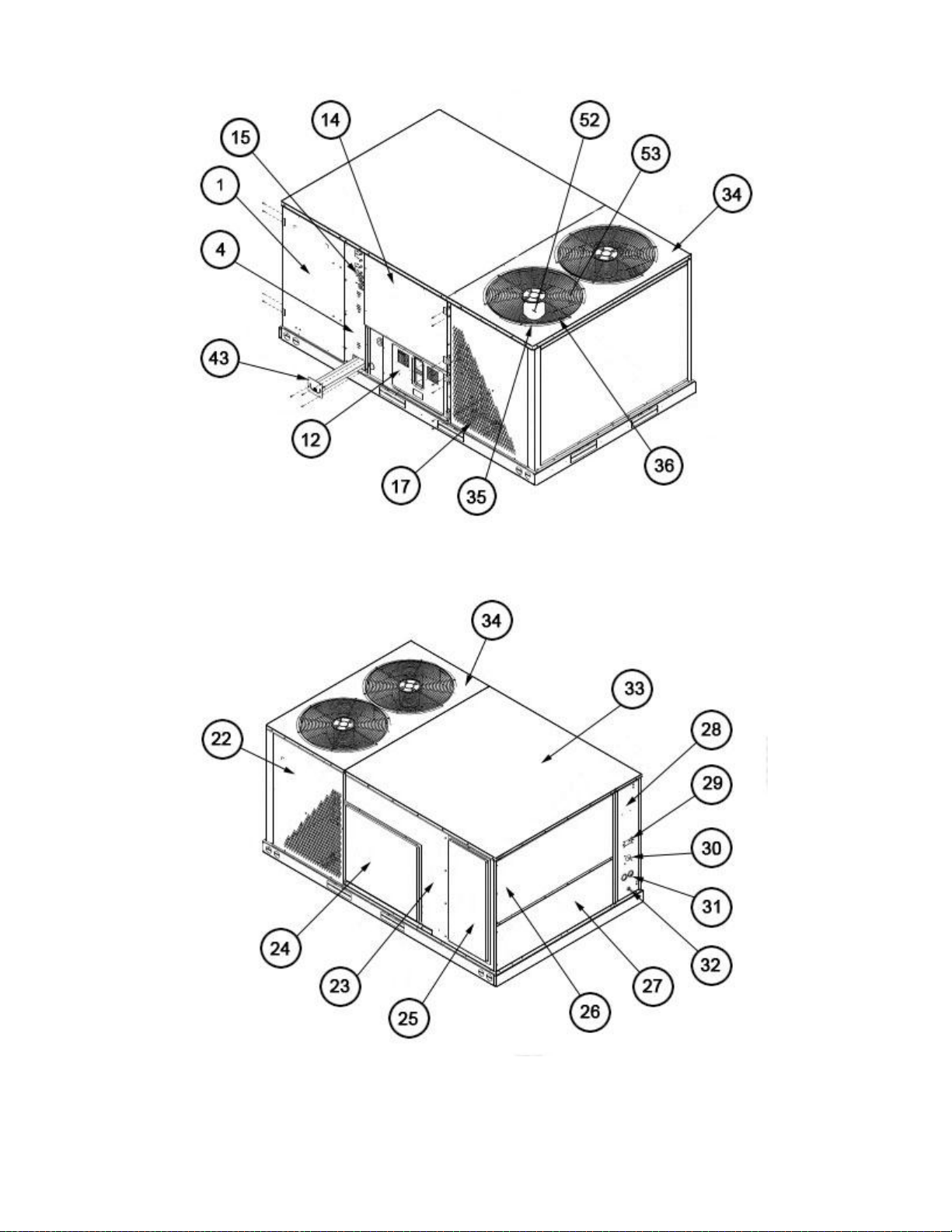

Exploded View 072-151.. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ............ Page 34
Exterior - Front 072-151 . . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ............ Page 35
Exterior - Back 072-151. . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . Page 35

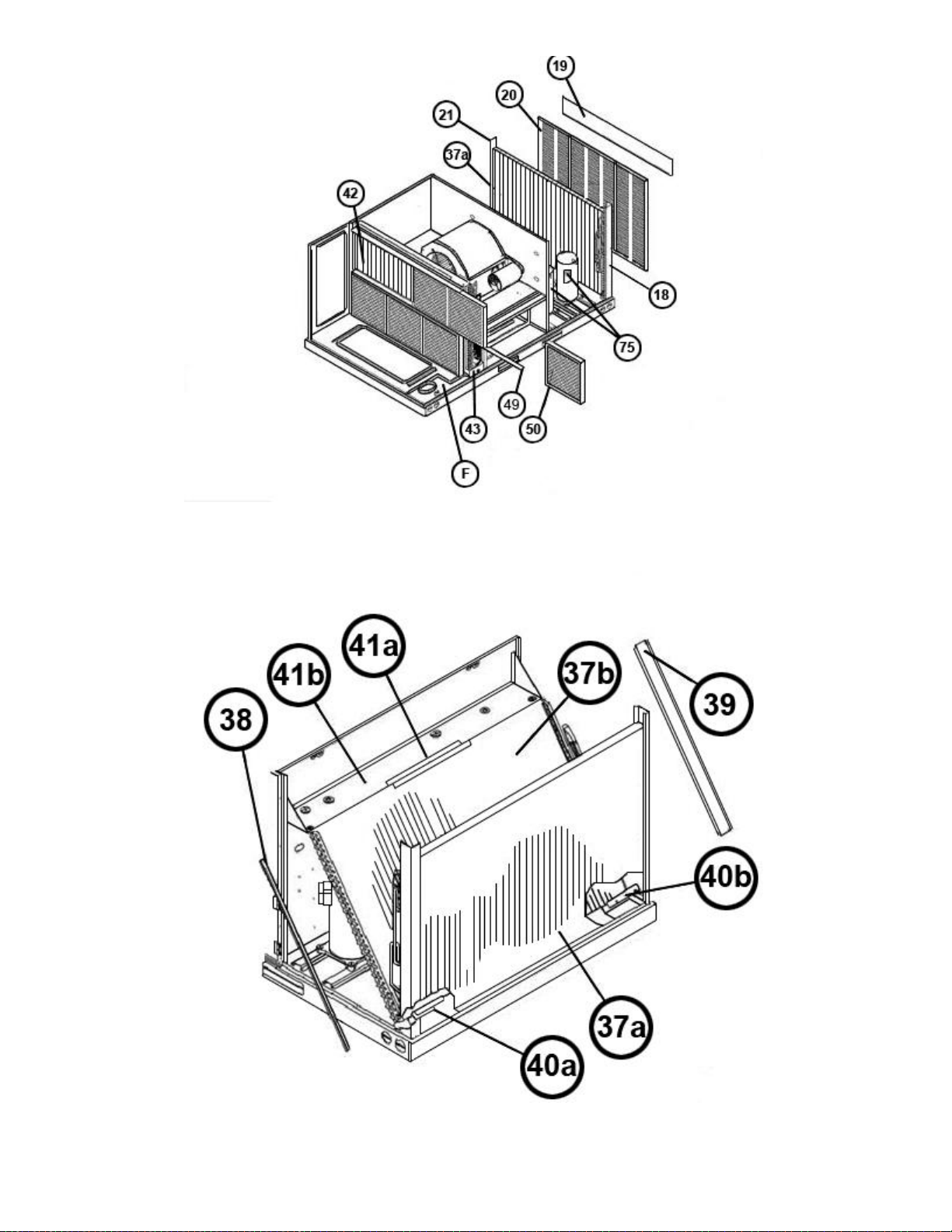

Filter-Coil Assembly 072-151 .. . . . . ................... . . . . . . . . . . . . ................... . . . . . . . . . . . . ............... Page 36
Condenser Coil Assembly 072-151.................................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . Page36

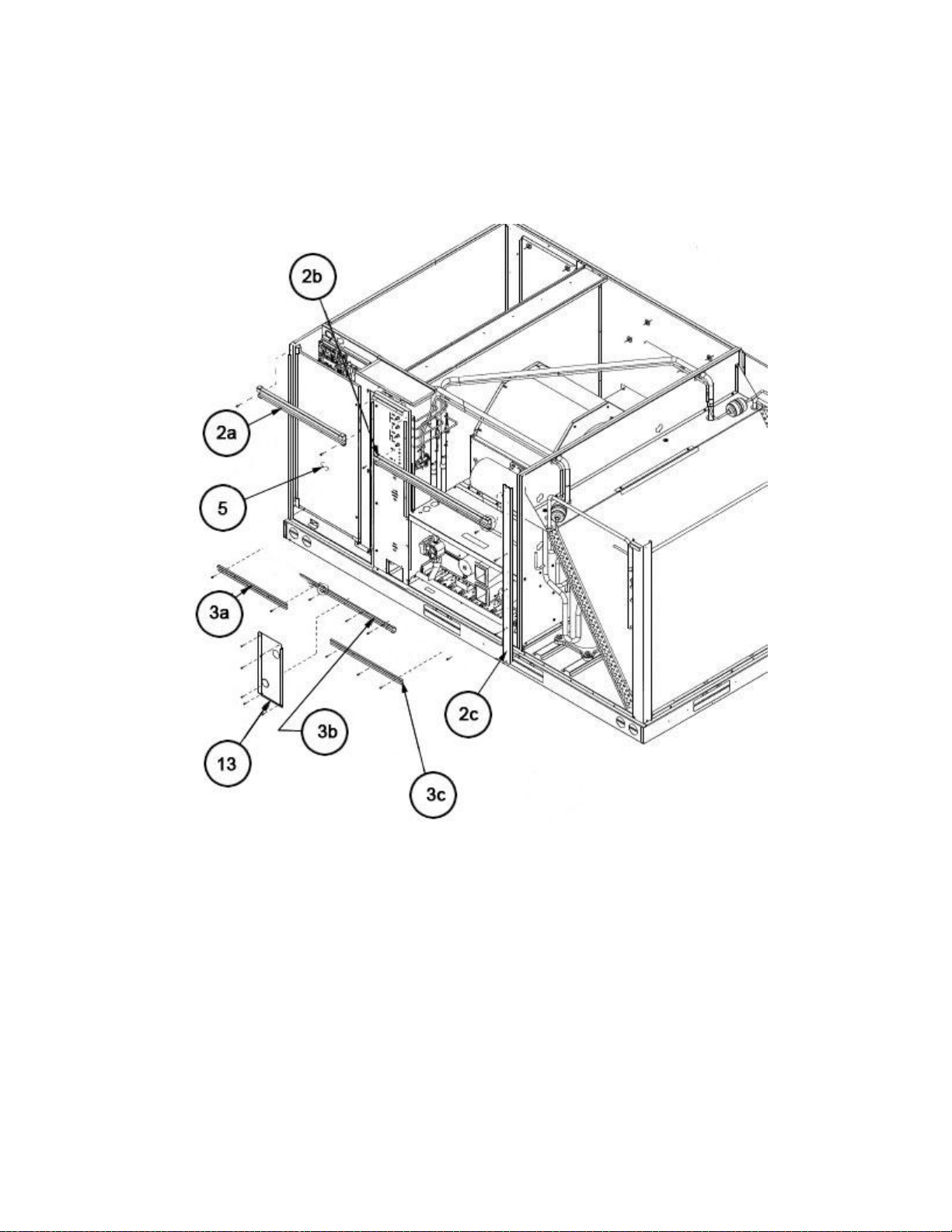

Front Panel Brackets 072-151. . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ......... Page 37
Filter Frame Assembly 072-151 ... . . . . . . . . . . . . ................... . . . . . . . . . . . . ................... . . . . . . . . . . . . .... Page38
Blower Assembly 072-151 .. . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . Page 38
Control Box 072-151. . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ................. Page 39

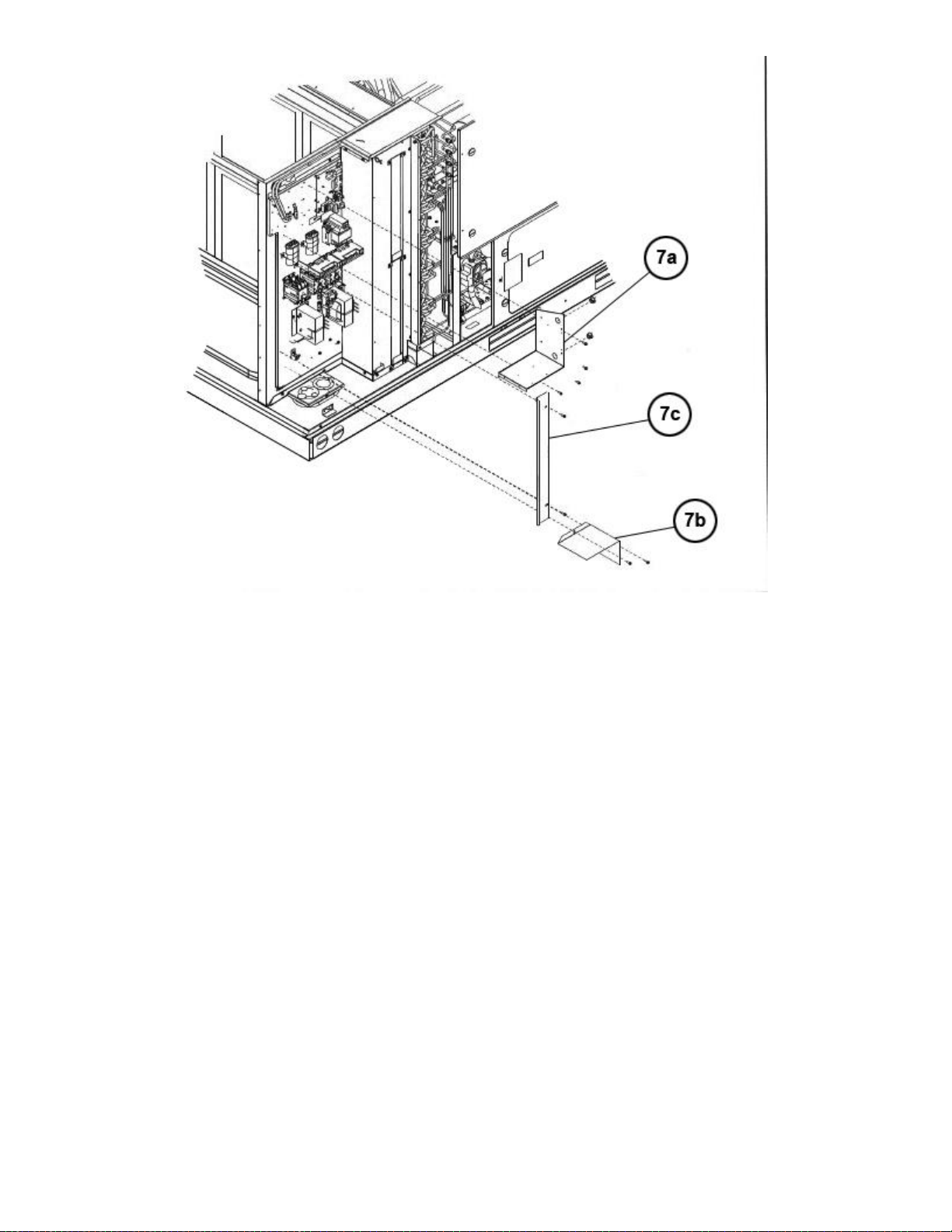

Low Voltage Shields 090-151 ................. . . . . . . . . . . . . ................... . . . . . . . . . . . . ................... . . . . Page 40

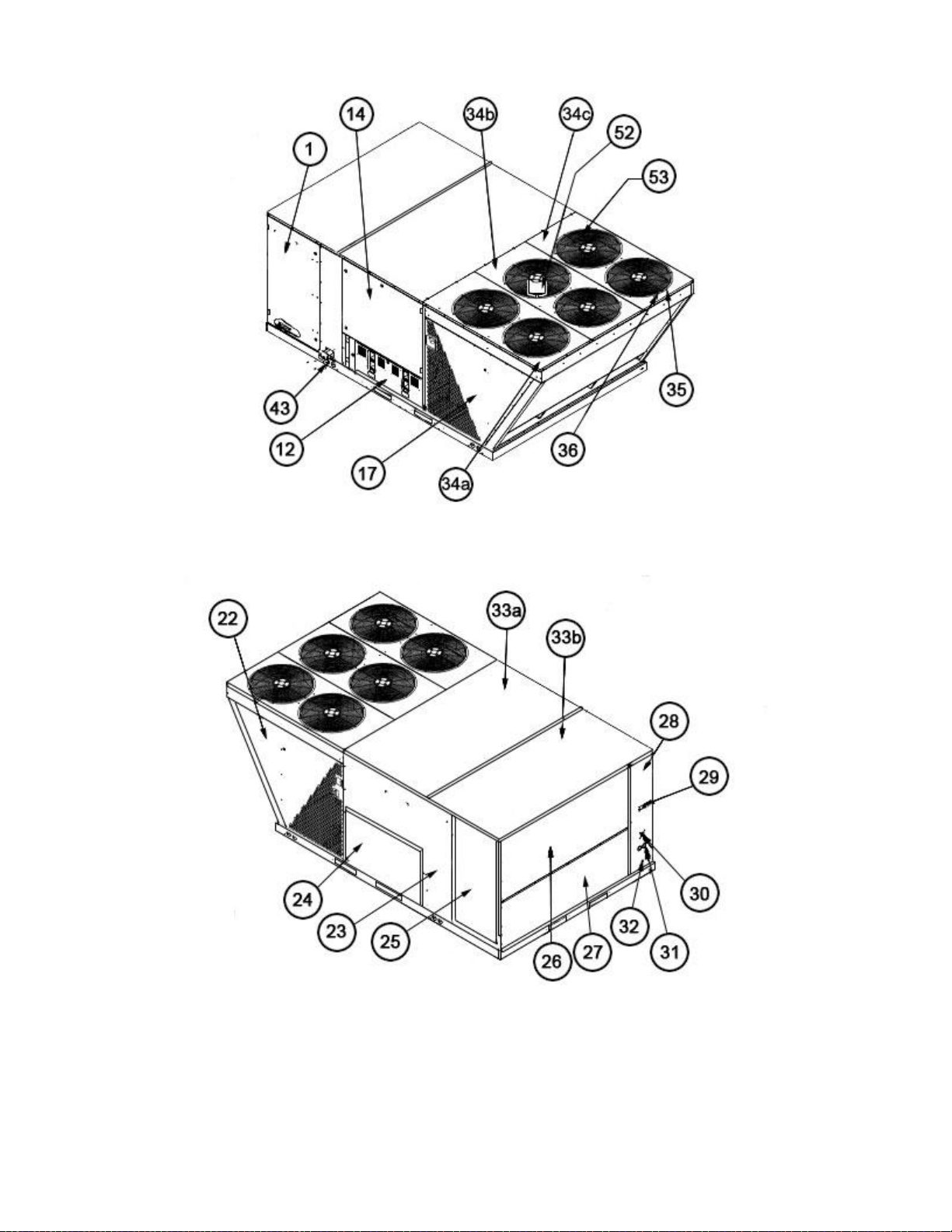

Exterior - Front 180-300 . . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ............ Page 41
Exterior - Rear 180-300............ . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .. Page41

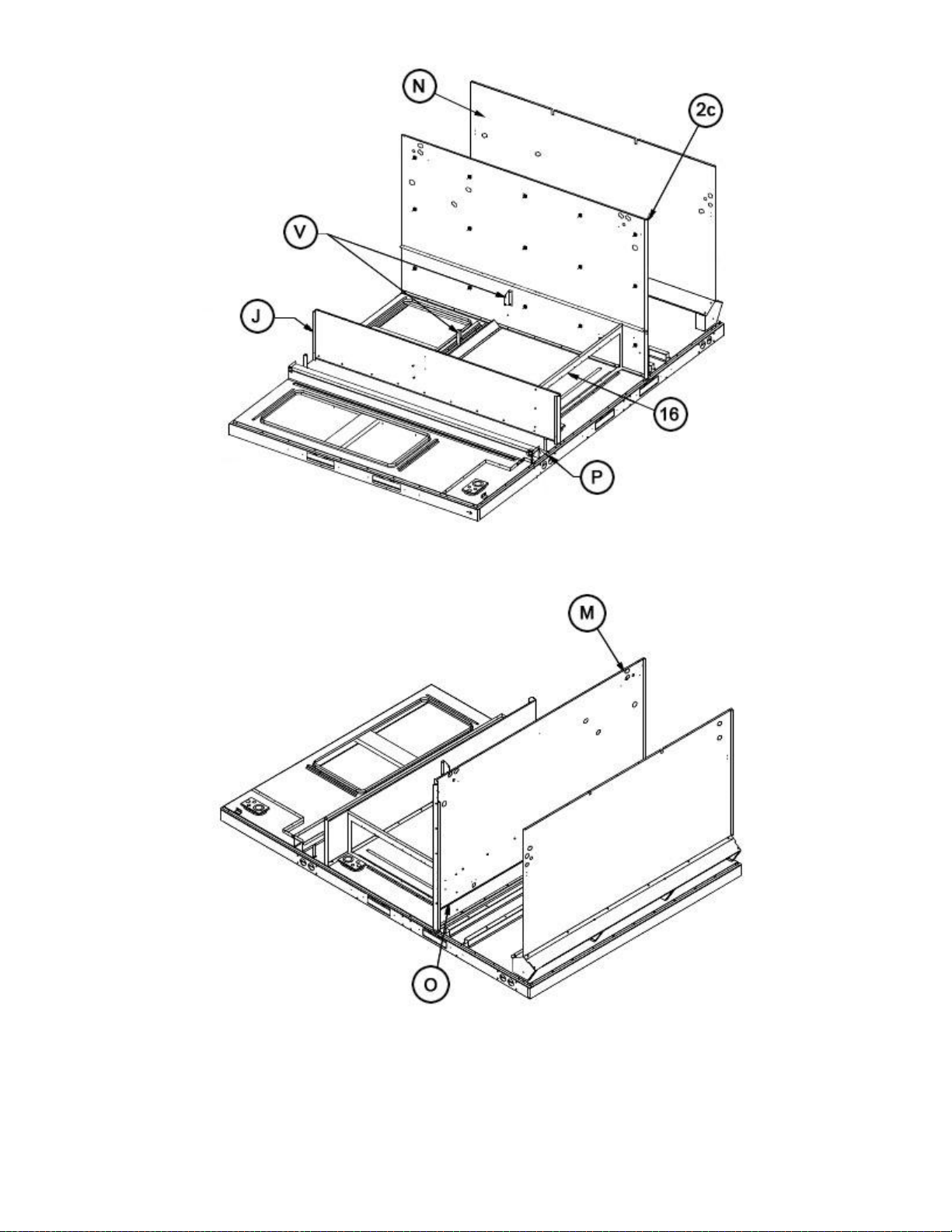

Base Pan Assembly 180-300 ............ . . . . . . . . . . . . ................... . . . . . . . . . . . . ................... . . . . . . . . . Page 42
Base Rail Assembly 180-300 .. . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ............... Page 42
Front Panel Brackets 180-300. . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ......... Page 43
Interior - Coil 180-300 ............. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .. Page43
Heat Compartment 180-300 .. . . . ................... . . . . . . . . . . . . ................... . . . . . . . . . . . . ................. Page 44
Condenser Bulkhead 180-300 .. . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ............... Page 44
Filter Frame Assembly 180-300 .. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ... Page45

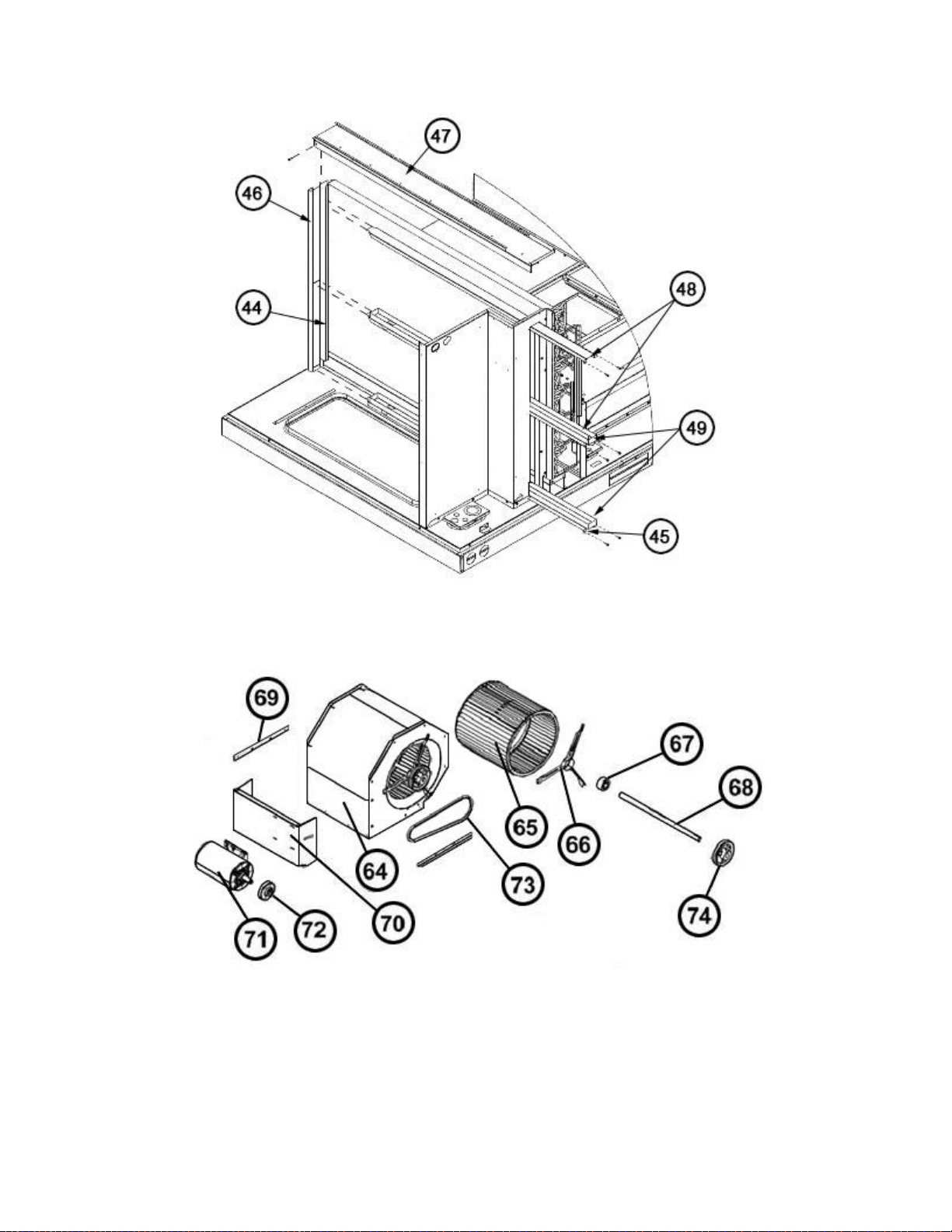

Blower Assembly 180-300 .. . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . Page 45

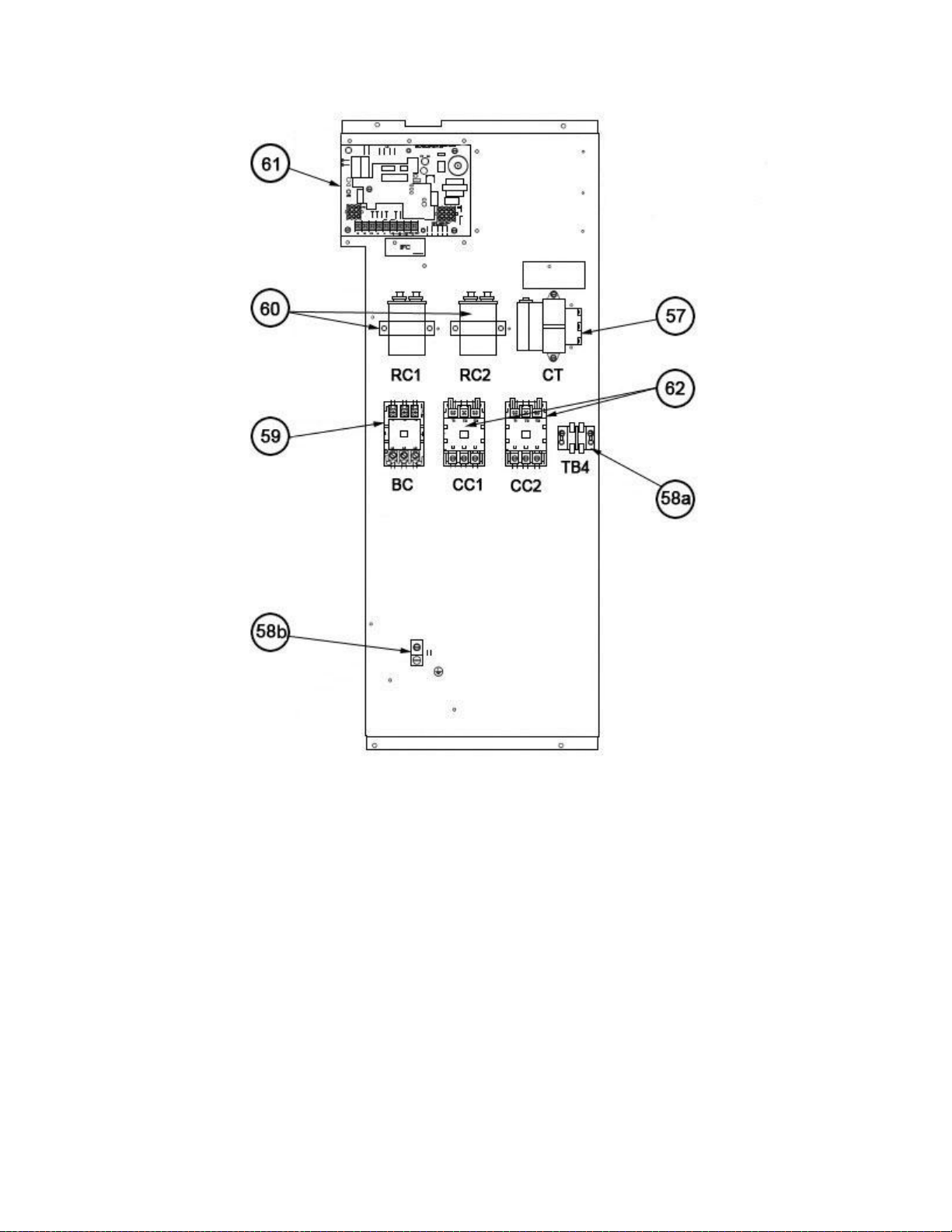

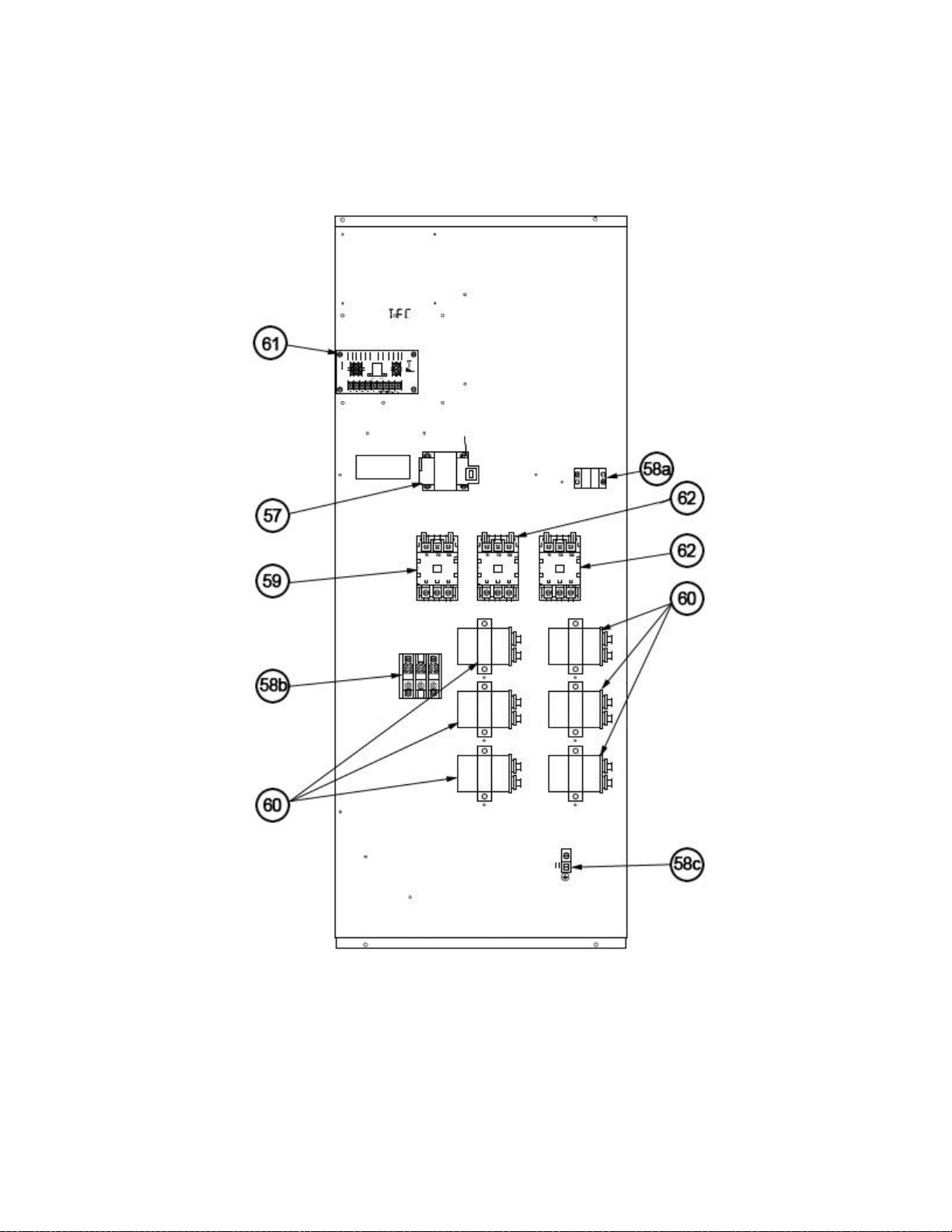

Control Box 180-300. . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ................. Page 46
Electric Heat Block-Off 180-300............. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . Page 47
Notes/Disclaimer . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . .................. . . . . . . . . . . . . . ................. Page 48
Page 2 of 48
31-March-2014
92-42800-RLNL-B
Page 3
R L N L - B 090 C L 000 AA B 1 2 3 4 5 6 7 8 9 10 11
1 TRADE NAME 8 DRIVE PACKAGE L = Belt Drive 2 L = PACKAGE AIR CONDITIONER M = Belt Drive - High Static Commercial N = Belt Drive - RLNL-B090 Only
3 EFFICIENCY DESIGNATION 9 ELECTRIC HEAT- (Resistance Heat) N = High Efficiency (EnergyStar Compliant) 000 = No Resistance Heat 010 = 10 kW Resistance Heat 4 DESIGN SERIES 015 = 15 kW Resistance Heat L = R-410A 020 = 20 kW Resistance Heat 030 = 30 kW Resistance Heat 5 TECHNICAL VARIATION 040 = 40 kW Resistance Heat 050 = 50 kW Resistance Heat 6 COOLING CAPACITY(BTUH) 072/073 = 72,000 10 OPTION CODES 085 = 85,000 AA = No Options 090 = 90,000 102 = 102,000 11 ECONOMIZER OPTIONS 120 = 120,000 A = No Economizer 150 = 150,000 B = Single Enthalpy Economizer 151 = 150,000 with Barometric Relief 180 = 180,000 210 = 210,000 240 = 240,000
7 ELECTRICAL DESIGNATION C= 208-230/3/60 D = 460/3/60 Y = 575/3/60
1 2 3 4 5
1 COMPRESSORIDENTIFICATION NUMBER 2 PRODUCTION LOCATION: 3 WEEK OF PRODUCTION 4 YEAR OF PRODUCTION 5 PRODUCTION NUMBER
1234 F 50 08 00001
MODEL NUMBER EXPLANATION
SERIAL NUMBER EXPLANATION
Page 3 of 48
31-March-2014
92-42800-RLNL-B
Page 4
No.Notes
BASE RAILS:
A Base Rail - Front AE-90575-15 AE-90575-15 AE-90575-15 AE-90575-15 AE-90575-15 AE-90575-15 B Base Rail - Right AE-90576-03 AE-90576-03 AE-90576-03 AE-90576-03 AE-90576-03 AE-90576-03 C Base Rail - Rear AE-90575-04 AE-90575-04 AE-90575-04 AE-90575-04 AE-90575-04 AE-90575-04 D Base Rail - Left AE-90576-04 AE-90576-04 AE-90576-04 AE-90576-04 AE-90576-04 AE-90576-04
BASE PANS:
E Outdoor Coil Base Pan AS-90583-03H AS-90583-03H AS-90583-05H AS-90583-05H AS-90583-05H AS-90577-14H F Indoor Coil Base Pan AS-90577-12 AS-90577-12 AS-90577-12 AS-90577-12 AS-90577-12 AS-90577-12
INSIDE CABINET:
G Entry Plate AE-90614-02 AE-90614-02 AE-90614-02 AE-90614-02 AE-90614-02 AE-90614-02 H Entry Plate AE-90614-01 AE-90614-01 AE-90614-01 AE-90614-01 AE-90614-01 AE-90614-01 J Heat Compartment Side AE-90598-09 AE-90598-09 AE-90598-09 AE-90598-09 AE-90598-09 AE-90598-09 K Blower Deck AS-90592-12 AS-90592-12 AS-90592-13 AS-90592-13 AS-90592-13 AS-90592-13 L Wireway AE-90718-05 AE-90718-05 AE-90718-05 AE-90718-05 AE-90718-05 AE-90718-05 M Condenser Bulkhead AS-90609-22 AS-90609-22 AS-90609-18 AS-90609-18 AS-90609-18 AS-90609-23
No.Notes
1
2a Bracket - TopPanel (Left) AS-102859-16H AS-102859-16H AS-102859-16H AS-102859-16H AS-102859-16H AS-102859-16H 2b Bracket - TopPanel (Center) AS-102859-15H AS-102859-15H AS-102859-15H AS-102859-15H AS-102859-15H AS-102859-15H 2c Post- Blower Section AS-102682-12H AS-102682-12H AS-102682-12H AS-102682-12H AS-102682-12H AS-102682-12H 3a Bracket - Bottom Panel (Left) AS-102859-17H AS-102859-17H AS-102859-17H AS-102859-17H AS-102859-17H AS-102859-17H 3b Bracket - Blower/Heater Compartment AS-102859-14H AS-102859-14H AS-102859-14H AS-102859-14H AS-102859-14H AS-102859-14H 3c Bracket- Bottom Panel (Right) AS-102859-13H AS-102859-13H AS-102859-13H AS-102859-13H AS-102859-13H AS-102859-13H
Latch Assembly - Control Box Door (2) 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01 4 Post Assembly - Indoor Coil Section AS-90620-18H AS-90620-18H AS-90620-17H AS-90620-17H AS-90620-17H AS-90620-24H 5 Control Box Cover AE-90713-02 AE-90713-02 AE-90713-02 AE-90713-02 AE-90713-02 AE-90713-02 6 Control Mounting Plate AE-90712-06 AE-90712-06 AE-90712-06 AE-90712-06 AE-90712-06 AE-90712-06
7a 7a Low Voltage Shield (After F3512) - Upper Angled AE-90742-12 AE-90742-12 AE-90742-12 AE-90742-12 AE-90742-12 AE-90742-12
7b Low Voltage Shield (Before F3512) - Lower AE-90742-03 AE-90742-03 AE-90742-03 AE-90742-03 AE-90742-03 AE-90742-03 7b Low Voltage Shield (After F3512) - Lower AE-90742-11 AE-90742-11 AE-90742-11 AE-90742-11 AE-90742-11 AE-90742-11 7c LowVoltage Shield - Middle Strip AE-90742-09 AE-90742-09 AE-90742-09 AE-90742-09 AE-90742-09 AE-90742-09
8 Control Box Back Insulation Assembly AS-90601-06 AS-90601-06 AS-90601-06 AS-90601-06 AS-90601-06 AS-90601-06 9 Mounting Bracket AE-90779-02 AE-90779-02 AE-90779-02 AE-90779-02 AE-90779-02 AE-90779-02
10 11 Terminal Block See Electrical Group 12
Latch Assembly - Electric Heat Door (2) 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01
13 Power Entry Plate Assembly AS-90774-11H AS-90774-11H AS-90774-11H AS-90774-11H AS-90774-11H AS-90774-11H 14
Latch Assembly - Blower Access Panel (3) 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01
15 High Pressure Guard (2) AS-76160-01H AS-76160-01H AS-76160-01H AS-76160-01H AS-76160-01H AS-76160-01H 16 Heat Mounting Frame Assembly AS-90754-02 AS-90754-02 AS-90754-02 AS-90754-02 AS-90754-02 AS-90754-02 17 Condenser Coil Access Panel-Front AS-90631-10H AS-90631-10H AS-90631-09H AS-90631-09H AS-90631-09H AS-90631-11H 18 Front Corner Post AS-90701-06H AS-90701-06H AS-90701-06H AS-90701-06H AS-90701-06H AS-90701-05H
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - RAILS, BASE PANS,INSIDE CABINET (Granite/Steel Gray, After F4411)
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - FRONT (Granite/Steel Gray, After F4411)
Control Box Door Assembly - w/Hinges, Latch, Gasket, Insulation
Low Voltage Shield (Before F3512) - Upper Straight
Electric Heat Blockoff Plate Assembly (models with no heat)
Electric Heat Access Panel Assembly ­w/Hinges, Latch, Gasket, Insulation
Blower Access Panel Assembly - w/Hinges, Latch, Gasket, Insulation
RLNL-
B
072
RLNL-
B
072
AS-102872-14H AS-102872-14H AS-102872-14H AS-102872-14H AS-102872-14H AS-102872-14H
AE-90742-08 AE-90742-08 AE-90742-08 AE-90742-08 AE-90742-08 AE-90742-08
AS-90720-02 AS-90720-02 AS-90720-02 AS-90720-02 AS-90720-02 AS-90720-02
AS-102872-18H AS-102872-18H AS-102872-18H AS-102872-18H AS-102872-18H AS-102872-18H
AS-102872-16H AS-102872-16H AS-102872-16H AS-102872-16H AS-102872-16H AS-102872-16H
RLNL-
B
073
RLNL-
B
073
RLNL-
B
090
RLNL-
B
090
RLNL-
B
102
RLNL-
B
102
RLNL-
B
120
RLNL-
B
120
RLNL-
B
151
RLNL-
B
151
Page 4 of 48
31-March-2014
92-42800-RLNL-B
Page 5
No.Notes
RIGHT:
19 Air Stop N/A N/A N/A N/A N/A N/A 20 Louver Panel Assembly See Accessories Group AS-90789-03H
REAR:
21 Rear Corner Post AS-90702-03H AS-90702-03H AS-90702-03H AS-90702-03H AS-90702-03H AS-90702-04H 22 Condenser Coil Access Panel-Rear AS-90631-03H AS-90631-03H AS-90631-05H AS-90631-05H AS-90631-05H AS-90631-12H 23 Rear Panel AS-90618-02H AS-90618-02H AS-90618-02H AS-90618-02H AS-90618-02H AS-90618-02H 24 Supply Cover AS-90626-02H AS-90626-02H AS-90626-02H AS-90626-02H AS-90626-02H AS-90626-02H 25 Return Cover AS-90628-02H AS-90628-02H AS-90628-02H AS-90628-02H AS-90628-02H AS-90628-02H
LEFT:
26 Upper Left Panel AS-90624-03H AS-90624-03H AS-90624-03H AS-90624-03H AS-90624-03H AS-90624-03H 27 Lower Left Panel AS-90624-04H AS-90624-04H AS-90624-04H AS-90624-04H AS-90624-04H AS-90624-04H 28 Left Corner Panel AS-90755-07H AS-90755-07H AS-90755-07H AS-90755-07H AS-90755-07H AS-90755-07H 29 Plate - Receptacle AS-90756-02H AS-90756-02H AS-90756-02H AS-90756-02H AS-90756-02H AS-90756-02H 30 Plate - Disconnect AS-90756-03H AS-90756-03H AS-90756-03H AS-90756-03H AS-90756-03H AS-90756-03H 31 Button Plug (2) 45-22980-06 45-22980-06 45-22980-06 45-22980-06 45-22980-06 45-22980-06 32 Button Plug 45-22980-05 45-22980-05 45-22980-05 45-22980-05 45-22980-05 45-22980-05
TOP:
33 Top Panel Assembly AS-90616-06H AS-90616-06H AS-90616-06H AS-90616-06H AS-90616-06H AS-90616-06H 34 Condenser Top Panel AS-90703-09H AS-90703-09H AS-90703-09H AS-90703-09H AS-90703-09H AS-90703-08H
35 Venturi
36 Wire Grille 43 Drain Pan - Removable See Coil Group
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - RIGHT, REAR AND LEFT SIDES (Granite/Steel Gray, After F4411)
RLNL-
B
072
AS-90632-03H
(2)
95-100906-09
(2)
RLNL-
B
073
AS-90632-03H
(2)
95-100906-09
(2)
RLNL-
B
090
AS-90632-03H
(2)
95-100906-09
(2)
RLNL-
B
102
AS-90632-03H
(2)
95-100906-09
(2)
RLNL-
B
120
AS-90632-03H
(2)
95-100906-09
(2)
RLNL-
B
151
AS-90632-03H
(2)
95-100906-09
(2)
Page 5 of 48
31-March-2014
92-42800-RLNL-B
Page 6
No.Notes
BASE RAILS:
A Base Rail - Front AE-90575-15 AE-90575-15 AE-90575-15 AE-90575-15 AE-90575-15 AE-90575-15 B Base Rail - Right AE-90576-03 AE-90576-03 AE-90576-03 AE-90576-03 AE-90576-03 AE-90576-03 C Base Rail - Rear AE-90575-04 AE-90575-04 AE-90575-04 AE-90575-04 AE-90575-04 AE-90575-04 D Base Rail - Left AE-90576-04 AE-90576-04 AE-90576-04 AE-90576-04 AE-90576-04 AE-90576-04
BASE PANS:
E Outdoor Coil Base Pan AS-90583-03A AS-90583-05A AS-90583-05A AS-90583-05A AS-90583-05A AS-90577-14A F Indoor Coil Base Pan AS-90577-12 AS-90577-12 AS-90577-12 AS-90577-12 AS-90577-12 AS-90577-12
INSIDE CABINET:
G Entry Plate AE-90614-02 AE-90614-02 AE-90614-02 AE-90614-02 AE-90614-02 AE-90614-02 H Entry Plate AE-90614-01 AE-90614-01 AE-90614-01 AE-90614-01 AE-90614-01 AE-90614-01 J Heat Compartment Side AE-90598-09 AE-90598-09 AE-90598-09 AE-90598-09 AE-90598-09 AE-90598-09 K Blower Deck AS-90592-12 AS-90592-13 AS-90592-13 AS-90592-13 AS-90592-13 AS-90592-13 L Wireway AE-90718-05 AE-90718-05 AE-90718-05 AE-90718-05 AE-90718-05 AE-90718-05 M Condenser Bulkhead AS-90609-22 AS-90609-21 AS-90609-18 AS-90609-18 AS-90609-18 AS-90609-23
No.Notes
1
2a Bracket - TopPanel (Left) AS-102859-16A AS-102859-16A AS-102859-16A AS-102859-16A AS-102859-16A AS-102859-16A 2b Bracket - TopPanel (Center) AS-102859-15A AS-102859-15A AS-102859-15A AS-102859-15A AS-102859-15A AS-102859-15A 2c Post- Blower Section AS-102682-12A AS-102682-12A AS-102682-12A AS-102682-12A AS-102682-12A AS-102682-12A 3a Bracket - Bottom Panel (Left) AS-102859-17A AS-102859-17A AS-102859-17A AS-102859-17A AS-102859-17A AS-102859-17A 3b Bracket - Blower/Heater Compartment AS-102859-14A AS-102859-14A AS-102859-14A AS-102859-14A AS-102859-14A AS-102859-14A 3c Bracket- Bottom Panel (Right) AS-102859-13A AS-102859-13A AS-102859-13A AS-102859-13A AS-102859-13A AS-102859-13A
Latch Assembly - Control Box Door (2) 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01 4 Post Assembly - Indoor Coil Section AS-90620-18A AS-90620-18A AS-90620-17A AS-90620-17A AS-90620-17A AS-90620-17A 5 Control Box Cover AE-90713-02 AE-90713-02 AE-90713-02 AE-90713-02 AE-90713-02 AE-90713-02 6 Control Mounting Plate AE-90712-06 AE-90712-06 AE-90712-06 AE-90712-06 AE-90712-06 AE-90712-06
7a Low Voltage Shield - Upper Straight AE-90742-08 AE-90742-08 AE-90742-08 AE-90742-08 AE-90742-08 AE-90742-08 7b Low Voltage Shield - Lower AE-90742-03 AE-90742-03 AE-90742-03 AE-90742-03 AE-90742-03 AE-90742-03 7c LowVoltage Shield - Middle Strip AE-90742-09 AE-90742-09 AE-90742-09 AE-90742-09 AE-90742-09 AE-90742-09
8 Control Box Back Insulation Assembly AS-90601-06 AS-90601-06 AS-90601-06 AS-90601-06 AS-90601-06 AS-90601-06 9 Mounting Bracket AE-90779-02 AE-90779-02 AE-90779-02 AE-90779-02 AE-90779-02 AE-90779-02
10 11 Terminal Block See Electrical Group 12
Latch Assembly - Electric Heat Door (2) 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01
13 Power Entry Plate Assembly AS-90774-11A AS-90774-11A AS-90774-11A AS-90774-11A AS-90774-11A AS-90774-11A 14
Latch Assembly - Blower Access Panel (3) 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01 64-102855-01
15 High Pressure Guard (2) AS-76160-01A AS-76160-01A AS-76160-01A AS-76160-01A AS-76160-01A AS-76160-01A 16 Heat Mounting Frame Assembly AS-90754-02 AS-90754-02 AS-90754-02 AS-90754-02 AS-90754-02 AS-90754-02 17 Condenser Coil Access Panel-Front AS-90631-10A AS-90631-09A AS-90631-09A AS-90631-09A AS-90631-09A AS-90631-11A 18 Front Corner Post AS-90701-06A AS-90701-06A AS-90701-06A AS-90701-06A AS-90701-06A AS-90701-05A
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - RAILS, BASE PANS,INSIDE CABINET (Neutra Green, Before F4411)
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - FRONT (Neutra Green, Before F4411)
Control Box Door Assembly - w/Hinges, Latch, Gasket, Insulation
Electric Heat Blockoff Plate Assembly (models with no heat)
Electric Heat Access Panel Assembly ­w/Hinges, Latch, Gasket, Insulation
Blower Access Panel Assembly - w/Hinges, Latch, Gasket, Insulation
RLNL-
B
072
RLNL-
B
072
AS-102872-14A AS-102872-14A AS-102872-14A AS-102872-14A AS-102872-14A AS-102872-14A
AS-90720-02 AS-90720-02 AS-90720-02 AS-90720-02 AS-90720-02 AS-90720-02
AS-102872-18A AS-102872-18A AS-102872-18A AS-102872-18A AS-102872-18A AS-102872-18A
AS-102872-16A AS-102872-16A AS-102872-16A AS-102872-16A AS-102872-16A AS-102872-16A
RLNL-
B
085
RLNL-
B
085
RLNL-
B
090
RLNL-
B
090
RLNL-
B
102
RLNL-
B
102
RLNL-
B
120
RLNL-
B
120
RLNL-
B
150/151
RLNL-
B
150/151
Page 6 of 48
31-March-2014
92-42800-RLNL-B
Page 7
No.Notes
RIGHT:
19 Air Stop N/A N/A N/A N/A N/A N/A 20 Louver Panel Assembly See Accessories Group AS-90789-03A
REAR:
21 Rear Corner Post AS-90702-03A AS-90702-03A AS-90702-03A AS-90702-03A AS-90702-03A AS-90702-04A 22 Condenser Coil Access Panel-Rear AS-90631-03A AS-90631-05A AS-90631-05A AS-90631-05A AS-90631-05A AS-90631-12A 23 Rear Panel AS-90618-02A AS-90618-02A AS-90618-02A AS-90618-02A AS-90618-02A AS-90618-02A 24 Supply Cover AS-90626-02A AS-90626-02A AS-90626-02A AS-90626-02A AS-90626-02A AS-90626-02A 25 Return Cover AS-90628-02A AS-90628-02A AS-90628-02A AS-90628-02A AS-90628-02A AS-90628-02A
LEFT:
26 Upper Left Panel AS-90624-03A AS-90624-03A AS-90624-03A AS-90624-03A AS-90624-03A AS-90624-03A 27 Lower Left Panel AS-90624-04A AS-90624-04A AS-90624-04A AS-90624-04A AS-90624-04A AS-90624-04A 28 Left Corner Panel AS-90755-07A AS-90755-07A AS-90755-07A AS-90755-07A AS-90755-07A AS-90755-07A 29 Plate - Receptacle AS-90756-02A AS-90756-02A AS-90756-02A AS-90756-02A AS-90756-02A AS-90756-02A 30 Plate - Disconnect AS-90756-03A AS-90756-03A AS-90756-03A AS-90756-03A AS-90756-03A AS-90756-03A 31 Button Plug (2) 45-22980-06 45-22980-06 45-22980-06 45-22980-06 45-22980-06 45-22980-06 32 Button Plug 45-22980-05 45-22980-05 45-22980-05 45-22980-05 45-22980-05 45-22980-05
TOP:
33 Top Panel Assembly AS-90616-06A AS-90616-06A AS-90616-06A AS-90616-06A AS-90616-06A AS-90616-06A 34 Condenser Top Panel AS-90703-09A AS-90703-09A AS-90703-09A AS-90703-09A AS-90703-09A AS-90703-08A
35 Venturi
36 Wire Grille 43 Drain Pan - Removable See Coil Group
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - RIGHT, REAR AND LEFT SIDES (Neutra Green, Before F4411)
RLNL-
B
072
AS-90632-03A
(2)
95-100906-09
(2)
RLNL-
B
085
AS-90632-03A
(2)
95-100906-09
(2)
RLNL-
B
090
AS-90632-03A
(2)
95-100906-09
(2)
RLNL-
B
102
AS-90632-03A
(2)
95-100906-09
(2)
RLNL-
B
120
AS-90632-03A
(2)
95-100906-09
(2)
RLNL-
B
150/151
AS-90632-03A
(2)
95-100906-09
(2)
Page 7 of 48
31-March-2014
92-42800-RLNL-B
Page 8
No.Notes

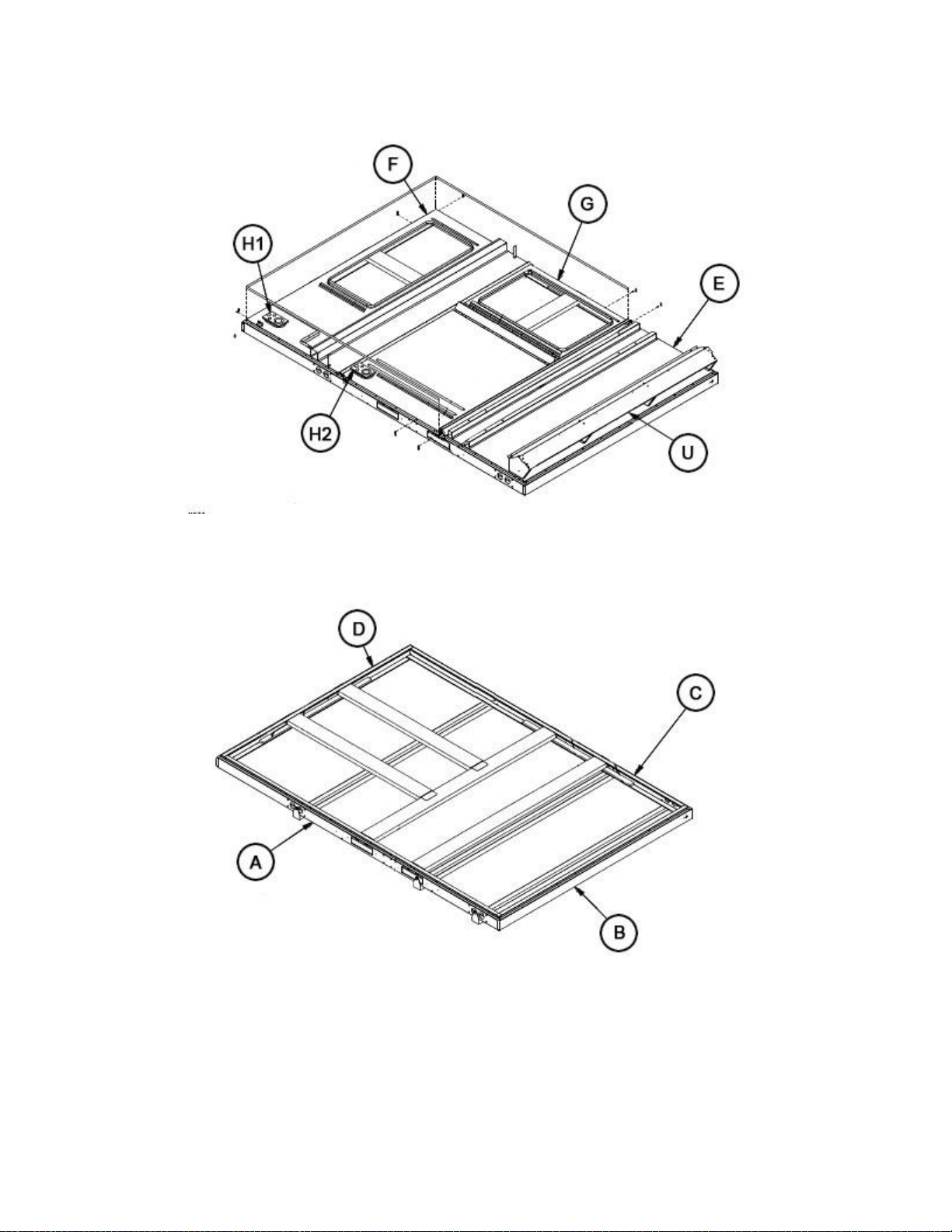

BASE RAILS:
A Front AS-90827-03 AS-90827-03 AS-90827-03 B Right AE-90576-06 AE-90576-06 AE-90576-06 C Rear AS-90827-04 AS-90827-04 AS-90827-04 D Left AE-90576-05 AE-90576-05 AE-90576-05
BASE PANS:
E Outdoor Base Pan AS-90583-09H AS-90583-09H AS-90583-09H F Indoor Coil Base Pan - Return Air AS-90577-09 AS-90577-09 AS-90577-09 G Indoor Coil Base Pan - Supply Air AS-90577-10 AS-90577-10 AS-90577-10
INSIDE CABINET PANEL/PIECES:
H 1 Entry Plate AE-90614-01 AE-90614-01 AE-90614-01 H 2 Entry Plate - Rooftop AE-90614-02 AE-90614-02 AE-90614-02
I Post - Blower Section AS-102682-07H AS-102682-07H AS-102682-07H J Heat Compartment Side AE-90598-08 AE-90598-08 AE-90598-08 K Blower Deck Assembly AS-90592-11 AS-90592-11 AS-90592-11 L Wireway AE-90718-04 AE-90718-04 AE-90718-04 M Condenser Bulkhead AS-90609-17 AS-90609-17 AS-90609-17 N Divider Panel - Between Coils AE-90735-05 AE-90735-05 AE-90735-05 O Bulkhead Support AE-102725-01 AE-102725-01 AE-102725-01 P Primary Drain Pan AS-103030-02 AS-103030-02 AS-103030-02
Air Stop - Outdoor Coil- Front AE-90706-13 AE-90706-13 AE-90706-13
Air Stop - Outdoor Coil- Rear AE-90706-12 AE-90706-12 AE-90706-12 U Coil Support Top AE-102700-03 AE-102700-03 AE-102700-03
No.Notes
1 Control Box Door Assembly - w/Hinges, Latch, Gasket, Insulation AS-102872-04H AS-102872-04H AS-102872-04H

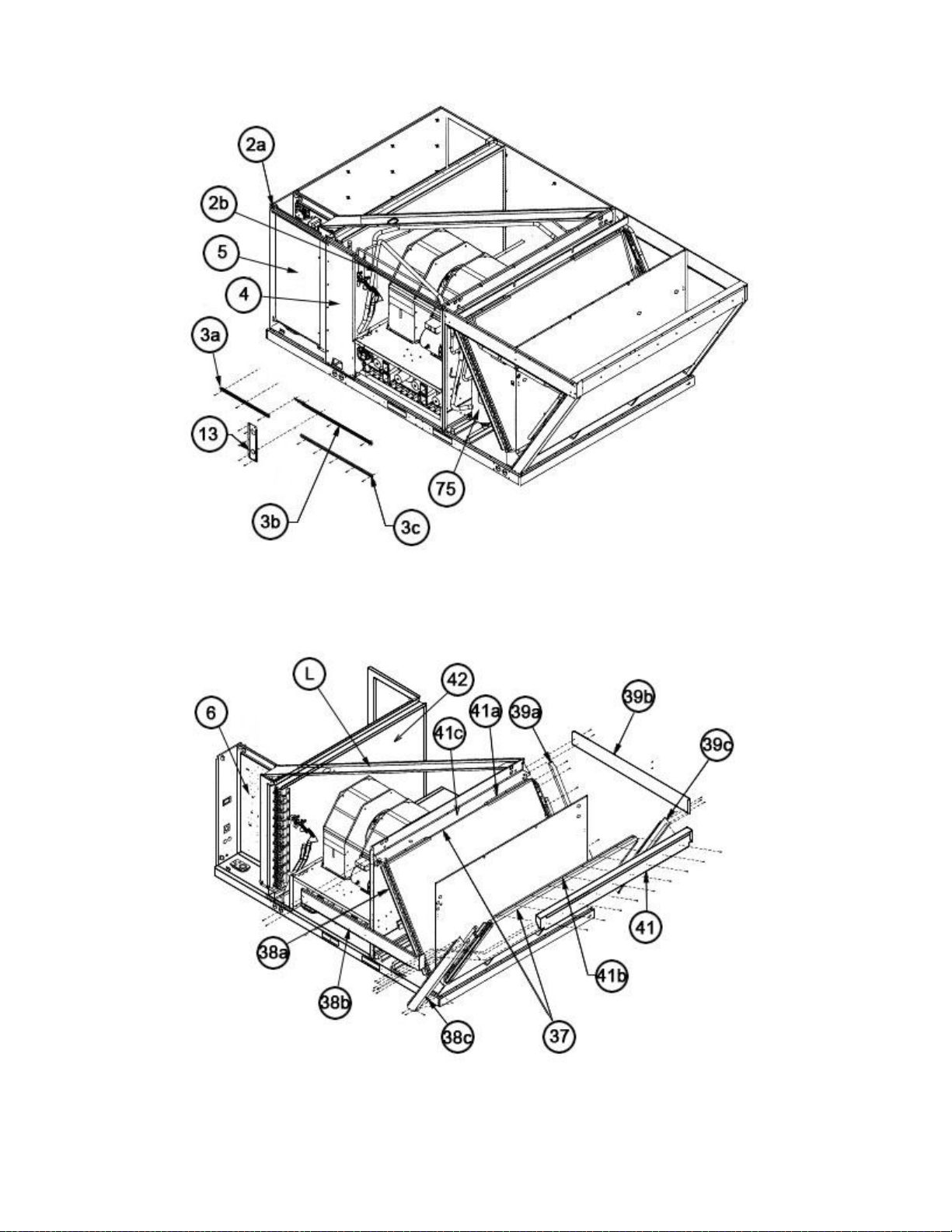

2a Bracket - TopPanel (Left) AS-102859-01H AS-102859-01H AS-102859-01H 2b Bracket - TopPanel (Center) AS-102969-01H AS-102969-01H AS-102969-01H 2c Post- Blower Section AS-102682-07H AS-102682-07H AS-102682-07H 3a Bracket - Bottom Panel (Left) AS-102859-02H AS-102859-02H AS-102859-02H 3b Bracket - Blower/Heater Compartment AS-102859-11H AS-102859-11H AS-102859-11H 3c Bracket- Bottom Panel (Right) AS-102859-12H AS-102859-12H AS-102859-12H
4 Post Assembly - Indoor Coil Section AS-90620-15H AS-90620-15H AS-90620-15H 5 Control Box Cover AE-90713-05 AE-90713-05 AE-90713-05 6 Control Mounting Panel AE-90712-05 AE-90712-05 AE-90712-05
7a Low Voltage Shield - Control Box (Upper Right) AE-90742-07 AE-90742-07 AE-90742-07 7b Low Voltage Shield - Control Box (Lower Left) AE-90742-06 AE-90742-06 AE-90742-06 7c Thermostat Chase Cover AE-102722-01 AE-102722-01 AE-102722-01
8 Control Box Back AS-90601-05 AS-90601-05 AS-90601-05 9 Mounting Bracket AE-90779-02 AE-90779-02 AE-90779-02

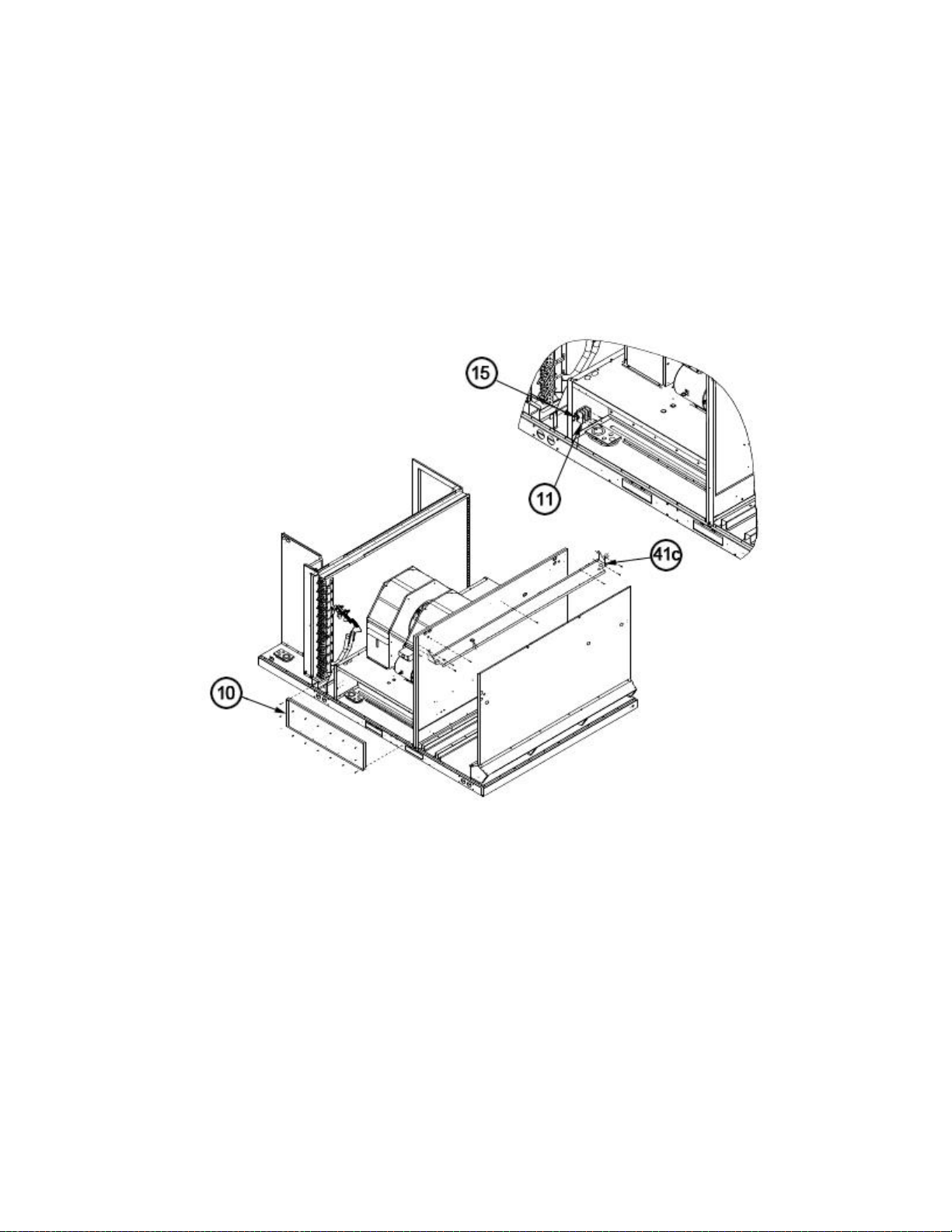

10 Electric Heat Blockoff Plate Assembly (models with no heat) AS-90720-03 AS-90720-03 AS-90720-03 11 Terminal Block - Heat Compartment See Electrical Group 12 Electric Heat Access Panel Assembly - w/Hinges, Latch, Gasket, Insulation AS-102872-06H AS-102872-06H AS-102872-06H 13 Power Entry Plate Assembly AS-90774-13H AS-90774-13H AS-90774-13H 14 Blower Access Panel Assembly - w/Hinges, Latch, Gasket, Insulation AS-102872-02H AS-102872-02H AS-102872-02H 15 Ground Lug - Heat Compartment See Electrical Group 16 Mounting Frame - Heat Exchanger Frame AS-90754-04 AS-90754-04 AS-90754-04
17 Condenser Coil Access Panel-Front AS-90734-08H AS-90734-08H AS-90734-08H 38c Post- Outdoor Coil (Front) See Coil Group 39c Post- Outdoor Coil (Rear) See Coil Group
Louver Panel (Hail Guard) - Left AS-90789-10H AS-90789-10H AS-90789-10H Louver Panel (Hail Guard) - Right AS-90789-09H AS-90789-09H AS-90789-09H
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - RAILS, BASE PANS,INSIDE CABINET (Granite/Steel Gray, After F4411)
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - FRONT AND RIGHT SIDES (Granite/Steel Gray, After F4411)
RLNL-
B
180/210
RLNL-
B
180/210
RLNL-
B
240
RLNL-
B
240
RLNL-
B
300
RLNL-
B
300
Page 8 of 48
31-March-2014
92-42800-RLNL-B
Page 9
No.Notes
REAR:
22 Condenser Coil Access Panel-Rear AS-90734-09H AS-90734-09H AS-90734-09H
23 Rear Panel - Right AS-90618-08H AS-90618-08H AS-90618-08H
24 Supply Cover AS-90628-03H AS-90628-03H AS-90628-03H
25 Return Cover AS-90628-04H AS-90628-04H AS-90628-04H
LEFT:
26 Upper Left Panel AS-90624-09H AS-90624-09H AS-90624-09H
27 Lower Left Panel AS-90624-08H AS-90624-08H AS-90624-08H
28 Left Corner Panel Assembly AS-90755-05H AS-90755-05H AS-90755-05H
Bracket - Left Corner Panel Assembly (2) AE-90779-01 AE-90779-01 AE-90779-01 Gasket for receptacle plate 68-42514-08 68-42514-08 68-42514-08
Gasket for disconnect plate 68-42514-09 68-42514-09 68-42514-09 29 Plate - Install inside Panel-Receptacle AS-90756-02H AS-90756-02H AS-90756-02H 30 Plate - Install inside Panel-Disconnect AS-90756-03H AS-90756-03H AS-90756-03H 31 Button Plug (3) 45-42558-01 45-42558-01 45-42558-01 32 Star Bushing (3) 45-18515-01 45-18515-01 45-18515-01
TOP:
33a Top Panel Assembly - Right AS-90616-04H AS-90616-04H AS-90616-04H 33b Top Panel Assembly - Left AS-90616-05H AS-90616-05H AS-90616-05H 34a Top Panel - Front AS-90633-10H AS-90633-10H AS-90633-10H 34b Top Panel - Middle AS-90633-12H AS-90633-11H AS-90633-11H 34c Top Panel - Rear AS-90633-09H AS-90633-09H AS-90633-09H
35 Venturi
36 Wire Grille 43 Drain Pan - Removable See Coil Group
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - REAR, LEFT, AND TOP (Granite/Steel Gray, After F4411)
RLNL-
B
180/210
AS-90632-03H
(4)
95-100906-09
(4)
RLNL-
B
240
AS-90632-03H
(4)
95-100906-09
(6)
RLNL-
B
300
AS-90632-03H
(6)
95-100906-09
(6)
Page 9 of 48
31-March-2014
92-42800-RLNL-B
Page 10
No.Notes
BASE RAILS:
A Front AS-90827-03 AS-90827-03 AS-90827-03 B Right AE-90576-06 AE-90576-06 AE-90576-06 C Rear AS-90827-04 AS-90827-04 AS-90827-04 D Left AE-90576-05 AE-90576-05 AE-90576-05
BASE PANS:
E Outdoor Base Pan AS-90583-09A AS-90583-09A AS-90583-09A F Indoor Coil Base Pan - Return Air AS-90577-09 AS-90577-09 AS-90577-09 G Indoor Coil Base Pan - Supply Air AS-90577-10 AS-90577-10 AS-90577-10
INSIDE CABINET PANEL/PIECES:
H 1 Entry Plate AE-90614-01 AE-90614-01 AE-90614-01 H 2 Entry Plate - Rooftop AE-90614-02 AE-90614-02 AE-90614-02
I Post - Blower Section AS-102682-07A AS-102682-07A AS-102682-07A
J Heat Compartment Side AE-90598-08 AE-90598-08 AE-90598-08 K Blower Deck Assembly AS-90592-11 AS-90592-11 AS-90592-11 L Wireway AE-90718-04 AE-90718-04 AE-90718-04 M Condenser Bulkhead AS-90609-17 AS-90609-17 AS-90609-17 N Divider Panel - Between Coils AE-90735-05 AE-90735-05 AE-90735-05 O Bulkhead Support AE-102725-01 AE-102725-01 AE-102725-01 P Primary Drain Pan AS-103030-02 AS-103030-02 AS-103030-02
Air Stop - Outdoor Coil- Front AE-90706-13 AE-90706-13 AE-90706-13
Air Stop - Outdoor Coil- Rear AE-90706-12 AE-90706-12 AE-90706-12
U Coil Support Top AE-102700-03 AE-102700-03 AE-102700-03
No.Notes
1 Control Box Door Assembly - w/Hinges, Latch, Gasket, Insulation AS-102872-04A AS-102872-04A AS-102872-04A 2a Bracket - TopPanel (Left) AS-102859-01A AS-102859-01A AS-102859-01A 2b Bracket - TopPanel (Center) AS-102969-01A AS-102969-01A AS-102969-01A 2c Post- Blower Section AS-102682-07A AS-102682-07A AS-102682-07A 3a Bracket - Bottom Panel (Left) AS-102859-02A AS-102859-02A AS-102859-02A 3b Bracket - Blower/Heater Compartment AS-102859-11A AS-102859-11A AS-102859-11A 3c Bracket- Bottom Panel (Right) AS-102859-12A AS-102859-12A AS-102859-12A
4 Post Assembly - Indoor Coil Section AS-90620-15A AS-90620-15A AS-90620-15A
5 Control Box Cover AE-90713-05 AE-90713-05 AE-90713-05
6 Control Mounting Panel AE-90712-05 AE-90712-05 AE-90712-05 7a Low Voltage Shield - Control Box (Upper Right) AE-90742-07 AE-90742-07 AE-90742-07 7b Low Voltage Shield - Control Box (Lower Left) AE-90742-06 AE-90742-06 AE-90742-06 7c Thermostat Chase Cover AE-102722-01 AE-102722-01 AE-102722-01
8 Control Box Back AS-90601-05 AS-90601-05 AS-90601-05
9 Mounting Bracket AE-90779-02 AE-90779-02 AE-90779-02 10 Electric Heat Blockoff Plate Assembly (models with no heat) AS-90720-03 AS-90720-03 AS-90720-03 11 Terminal Block - Heat Compartment See Electrical Group 12 Electric Heat Access Panel Assembly - w/Hinges, Latch, Gasket, Insulation AS-102872-06A AS-102872-06A AS-102872-06A 13 Power Entry Plate Assembly AS-90774-13A AS-90774-13A AS-90774-13A 14 Blower Access Panel Assembly - w/Hinges, Latch, Gasket, Insulation AS-102872-02A AS-102872-02A AS-102872-02A 15 Ground Lug - Heat Compartment See Electrical Group 16 Mounting Frame - Heat Exchanger Frame AS-90754-04 AS-90754-04 AS-90754-04 17 Condenser Coil Access Panel-Front AS-90734-08A AS-90734-08A AS-90734-08A
38c Post- Outdoor Coil (Front) See Coil Group 39c Post- Outdoor Coil (Rear) See Coil Group
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - RAILS, BASE PANS,INSIDE CABINET (Neutra Green, Before F4411)
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - FRONT AND RIGHT SIDES (Neutra Green, Before F4411)
RLNL-
B
180/210
RLNL-
B
180/210
RLNL-
B
240
RLNL-
B
240
RLNL-
B
300
RLNL-
B
300
Page 10 of 48
31-March-2014
92-42800-RLNL-B
Page 11
No.Notes
REAR:
22 Condenser Coil Access Panel-Rear AS-90734-09A AS-90734-09A AS-90734-09A 23 Rear Panel - Right AS-90618-08A AS-90618-08A AS-90618-08A 24 Supply Cover AS-90628-03A AS-90628-03A AS-90628-03A 25 Return Cover AS-90628-04A AS-90628-04A AS-90628-04A
LEFT:
26 Upper Left Panel AS-90624-09A AS-90624-09A AS-90624-09A 27 Lower Left Panel AS-90624-08A AS-90624-08A AS-90624-08A 28 Left Corner Panel Assembly AS-90755-05A AS-90755-05A AS-90755-05A
Bracket - Left Corner Panel Assembly (2) AE-90779-01 AE-90779-01 AE-90779-01 Gasket for receptacle plate 68-42514-08 68-42514-08 68-42514-08
Gasket for disconnect plate 68-42514-09 68-42514-09 68-42514-09 29 Plate - Install inside Panel-Receptacle AS-90756-02A AS-90756-02A AS-90756-02A 30 Plate - Install inside Panel-Disconnect AS-90756-03A AS-90756-03A AS-90756-03A 31 Button Plug (3) 45-42558-01 45-42558-01 45-42558-01 32 Star Bushing (3) 45-18515-01 45-18515-01 45-18515-01
TOP:
33a Top Panel Assembly - Right AS-90616-04A AS-90616-04A AS-90616-04A 33b Top Panel Assembly - Left AS-90616-05A AS-90616-05A AS-90616-05A 34a Top Panel - Front AS-90633-10A AS-90633-10A AS-90633-10A 34b Top Panel - Middle AS-90633-12A AS-90633-11A AS-90633-11A 34c Top Panel - Rear AS-90633-09A AS-90633-09A AS-90633-09A
35 Venturi
36 Wire Grille 43 Drain Pan - Removable See Coil Group
MODEL TECHNICALVARIATION COOLING CAPACITY
PANELS - REAR, LEFT, AND TOP (Neutra Green, Before F4411)
RLNL-
B
180/210
AS-90632-03A
(4)
95-100906-09
(4)
RLNL-
B
240
AS-90632-03A
(6)
95-100906-09
(6)
RLNL-
B
300
AS-90632-03A
(6)
95-100906-09
(6)
Page 11 of 48
31-March-2014
92-42800-RLNL-B
Page 12
MODEL
No.Notes
11 Terminal Block 45-41669-01 45-41669-01 45-41669-01 45-41669-01 45-41669-01 45-41669-01 45-41669-01
CONTROL BOX COMPONENTS: 57 Stk Transformer - Control 46-42515-04 46-42515-04 46-42515-04 46-42515-04 46-42515-04 46-42515-04 46-42515-04
58a Double Row Terminal Block 45-42548-02 45-42548-02 45-42548-02 45-42548-02 45-42548-02 45-42548-02 45-42548-02 58b Ground Lug 45-19000-02 45-19000-02 45-19000-02 45-19000-02 45-19000-02 45-19000-02 45-19000-02
59 Stk Contactor - Blower 42-22464-01 42-22464-01 42-22464-01 42-22464-01 42-22464-01 42-22464-01 42-22464-01 60 Capacitor - Fan Motor See FanGroup
High Pressure Control See Coil Group
Low Pressure Control See Coil Group 61 Control Board 47-102884-01 47-102884-01 47-102884-01 47-102884-01 47-102884-01 47-102884-01 47-102884-01
Pressure Control Board - On or after F4112 N/A N/A N/A N/A N/A N/A
62 Stk Compressor Contactor
WIRING HARNESSES:
Wiring Harness - Motor #1 See Fan Group
Wiring Harness - Motor #2 See Fan Group
Wiring Harness - Twist-Loc 12 Pin to 9 Pin 45-102706-05 45-102706-05 45-102706-05 45-102706-05 45-102706-05 45-102706-05 45-102706-05
Plug Harness - Compressor See Compressor Group
Wirng Harness - Main Power 45-42522-09 45-42522-09 45-42522-09 45-42522-09 45-42522-09 45-42522-09 45-42522-09
Bypass Plug - Economizer 12 Pin AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55
Wiring Harness - 6 Pin to Heater Kit 45-102706-09 45-102706-09 45-102706-09 45-102706-09 45-102706-09 45-102706-09 45-102706-09
No.Notes
11 Terminal Block 45-41669-01 45-41669-01 45-41669-01 45-41669-01 45-41669-01 45-41669-01 45-41669-01
CONTROL BOX COMPONENTS: 57 Stk Transformer - Control 46-42515-05 46-42515-05 46-42515-05 46-42515-05 46-42515-05 46-42515-05 46-42515-05
58a Double Row Terminal Block 45-42548-02 45-42548-02 45-42548-02 45-42548-02 45-42548-02 45-42548-02 45-42548-02 58b Ground Lug 45-19000-02 45-19000-02 45-19000-02 45-19000-02 45-19000-02 45-19000-02 45-19000-02
59 Stk Contactor - Blower 42-22464-01 42-22464-01 42-22464-01 42-22464-01 42-22464-01 42-22464-01 42-22464-01 60 Capacitor - Fan Motor See FanGroup
High Pressure Control See Coil Group
Low Pressure Control See Coil Group 61 Control Board 47-102884-01 47-102884-01 47-102884-01 47-102884-01 47-102884-01 47-102884-01 47-102884-01
Pressure Control Board - On or after F4112 N/A N/A N/A N/A N/A N/A
62 Stk Compressor Contactor
WIRING HARNESSES:
Wiring Harness - Motor #1 See Fan Group
Wiring Harness - Motor #2 See Fan Group
Wiring Harness - Twist-Loc 12 Pin to 9 Pin 45-102706-05 45-102706-05 45-102706-05 45-102706-05 45-102706-05 45-102706-05 45-102706-05
Plug Harness - Compressor See Compressor Group
Wirng Harness - Main Power 45-42522-09 45-42522-09 45-42522-09 45-42522-09 45-42522-09 45-42522-09 45-42522-09
Bypass Plug - Economizer 12 Pin AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55
Wiring Harness - 6 Pin to Heater Kit 45-102706-09 45-102706-09 45-102706-09 45-102706-09 45-102706-09 45-102706-09 45-102706-09
TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
High/Low Pressure Control Assembly (Includes both controls and Wiring Harness)
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
High/Low Pressure Control Assembly (Includes both controls and Wiring Harness)
RLNL-
B
072
C
42-22464-03
(1)
RLNL-
B
072
D
42-22464-03
(1)
RLNL-
B
073
C
ELECTRIC GROUP
42-22464-03
(1)
RLNL-
B
073
D
ELECTRIC GROUP
42-22464-03
(1)
RLNL-
B
085
C
42-22464-03
(1)
RLNL-
B
085
D
42-22464-03
(1)
RLNL-
B
090
C
42-22464-01
(2)
See Coil Group
RLNL-
B
090
D
42-22464-01
(2)
See Coil Group
RLNL-
B
102
C
42-22464-01
(2)
RLNL-
B
102
D
42-22464-01
(2)
RLNL-
B
120
C
42-22464-01
(2)
RLNL-
B
120
D
42-22464-01
(2)
RLNL-
B
150/151
C
47-104319-02
(151 Only)
42-22464-01
(2)
RLNL-
B
150/151
D
47-104319-02
(151 Only)
42-22464-01
(2)
Page 12 of 48
31-March-2014
92-42800-RLNL-B
Page 13
MODEL
No.Notes
11 Terminal Block 45-41669-01 45-41669-01 45-41669-01 45-41669-01 45-41669-01 45-41669-01 45-41669-01
CONTROL BOX COMPONENTS: 57 Stk Transformer - Control 46-42515-05 46-42515-05 46-42515-05 46-42515-05 46-42515-05 46-42515-05 46-42515-05
58a Double Row Terminal Block 45-42548-02 45-42548-02 45-42548-02 45-42548-02 45-42548-02 45-42548-02 45-42548-02 58b Ground Lug 45-19000-02 45-19000-02 45-19000-02 45-19000-02 45-19000-02 45-19000-02 45-19000-02
59 Stk Contactor - Blower 42-22464-01 42-22464-01 42-22464-01 42-22464-01 42-22464-01 42-22464-01 42-22464-01 60 Capacitor - Fan Motor See Fan Group
High Pressure Control See Coil Group
Low Pressure Control SeeCoil Group 61 Control Board 47-102884-01 47-102884-01 47-102884-01 47-102884-01 47-102884-01 47-102884-01 47-102884-01
Pressure Control Board - On or after F4112 N/A N/A N/A N/A N/A N/A
62 Stk Compressor Contactor
WIRING HARNESSES:
Wiring Harness - Motor #1 See FanGroup
Wiring Harness - Motor #2 See FanGroup
Wiring Harness - Twist-Loc 12 Pin to 9 Pin 45-102706-05 45-102706-05 45-102706-05 45-102706-05 45-102706-05 45-102706-05 45-102706-05
Plug Harness - Compressor See Compressor Group
Wirng Harness - Main Power 45-42522-09 45-42522-09 45-42522-09 45-42522-09 45-42522-09 45-42522-09 45-42522-09
Bypass Plug - Economizer 12 Pin AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55 AS-61997-55
Wiring Harness - 6 Pin to Heater Kit 45-102706-09 45-102706-09 45-102706-09 45-102706-09 45-102706-09 45-102706-09 45-102706-09
TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
High/Low Pressure Control Assembly (Includes both controls and Wiring Harness)
RLNL-
B
072
Y
42-22464-03
(1)
RLNL-
B
073
Y
ELECTRIC GROUP
42-22464-03
(1)
RLNL-
B
085
Y
42-22464-03
(1)
RLNL-
B
090
Y
42-22464-01
(2)
See Coil Group
RLNL-
B
102
Y
42-22464-01
(2)
RLNL-
B
120
Y
42-22464-01
(2)
RLNL-
B
150/151
Y
47-104319-02
(151 Only)
42-22464-01
(2)
Page 13 of 48
31-March-2014
92-42800-RLNL-B
Page 14
MODEL
No.Notes
11 Terminal Block - Heater Compartment 45-21134-04 45-21134-04 45-21134-04 15 Ground Lug - Heater Compartment 45-19000-02 45-19000-02 45-19000-02
CONTROL BOX COMPONENTS: 57 Stk Transformer - Control 46-42515-04 46-42515-04 46-42515-04
58a Terminal Block - Double Row 45-42548-02 45-42548-02 45-42548-02 58b Terminal Block - Power Block 45-41765-01 45-41765-01 45-41765-01 58c Ground Lug 45-19000-02 45-19000-02 45-19000-02
59 Stk Contactor - Blower 42-102664-08 42-102664-08 42-102664-08 60 Run Capacitor See FanGroup
High Pressure Control See Coil Group
Low Pressure Control See Coil Group 61 Control Board 47-102884-01 47-102884-01 47-102884-01 62 Stk Compressor Contactor (2) 42-102664-12 42-102664-12 42-22464-04
WIRING HARNESSES:
Wiring Harness - Motor #1 See Fan Group
Wiring Harness - Motor #2 See Fan Group
Plug Harness - Compressor See Compressor Group
Wirng Harness - Main Power 45-42522-92 45-42522-92 45-42522-92
Bypass Plug - Economizer 12 Pin AS-61997-55 AS-61997-55 AS-61997-55
Wiring Harness - 6 Pin to Heater Kit 45-42522-91 45-42522-91 45-42522-91
Wiring Harness - Economizer (12 pin to 9 pin) 45-42522-89 45-42522-89 45-42522-89
High/Low Pressure Control Assembly (Includes both controls and Wiring Harness) See Coil Group
No.Notes
11 Terminal Block - Heater Compartment 45-21134-04 45-21134-04 45-21134-04 15 Ground Lug - Heater Compartment 45-19000-02 45-19000-02 45-19000-02
CONTROL BOX COMPONENTS: 57 Stk Transformer - Control 46-42515-05 46-42515-05 46-42515-05
58a Terminal Block - Double Row 45-42548-02 45-42548-02 45-42548-02 58b Terminal Block - Power Block 45-41765-01 45-41765-01 45-41765-01 58c Ground Lug 45-19000-02 45-19000-02 45-19000-02
59 Stk Contactor - Blower 42-22464-01 42-22464-01 42-22464-01 60 Run Capacitor See FanGroup
High Pressure Control See Coil Group
Low Pressure Control See Coil Group 61 Control Board 47-102884-01 47-102884-01 47-102884-01 62 Stk Compressor Contactor (2) 42-22464-02 42-22464-02 42-22464-04
WIRING HARNESSES:
Wiring Harness - Motor #1 See Fan Group
Wiring Harness - Motor #2 See Fan Group
Plug Harness - Compressor See Compressor Group
Wirng Harness - Main Power 45-42522-92 45-42522-92 45-42522-92
Bypass Plug - Economizer 12 Pin AS-61997-55 AS-61997-55 AS-61997-55
Wiring Harness - 6 Pin to Heater Kit 45-42522-91 45-42522-91 45-42522-91
Wiring Harness - Economizer (12 pin to 9 pin) 45-42522-89 45-42522-89 45-42522-89
High/Low Pressure Control Assembly (Includes both controls and Wiring Harness) See Coil Group
TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
ELECTRIC GROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
ELECTRIC GROUP
RLNL-
B
180/210
C
RLNL-
B
180/210
D
RLNL-
B
240
C
RLNL-
B
240
D
RLNL-
B
300
C
RLNL-
B
300
D
Page 14 of 48
31-March-2014
92-42800-RLNL-B
Page 15
MODEL
No.Notes
11 Terminal Block - Heater Compartment 45-21134-04 45-21134-04 45-21134-04 15 Ground Lug - Heater Compartment 45-19000-02 45-19000-02 45-19000-02
CONTROL BOX COMPONENTS: 57 Stk Transformer - Control 46-42515-05 46-42515-05 46-42515-05
58a Terminal Block - Double Row 45-42548-02 45-42548-02 45-42548-02 58b Terminal Block - Power Block 45-41765-01 45-41765-01 45-41765-01 58c Ground Lug 45-19000-02 45-19000-02 45-19000-02
59 Stk Contactor - Blower 42-22464-01 42-22464-01 42-22464-01 60 Run Capacitor See FanGroup
High Pressure Control See Coil Group
Low Pressure Control See Coil Group 61 Control Board 47-102884-01 47-102884-01 47-102884-01 62 Stk Compressor Contactor (2) 42-22464-02 42-22464-02 42-22464-04
WIRING HARNESSES:
Wiring Harness - Motor #1 See Fan Group
Wiring Harness - Motor #2 See Fan Group
Plug Harness - Compressor See Compressor Group
Wirng Harness - Main Power 45-42522-92 45-42522-92 45-42522-92
Bypass Plug - Economizer 12 Pin AS-61997-55 AS-61997-55 AS-61997-55
Wiring Harness - 6 Pin to Heater Kit 45-42522-91 45-42522-91 45-42522-91
Wiring Harness - Economizer (12 pin to 9 pin) 45-42522-89 45-42522-89 45-42522-89
High/Low Pressure Control Assembly (Includes both controls and Wiring Harness) See Coil Group
TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
ELECTRIC GROUP
RLNL-
B
180/210
Y
RLNL-
B
240
Y
RLNL-
B
300
Y
Page 15 of 48
31-March-2014
92-42800-RLNL-B
Page 16
MODEL
No. Notes
52 Stk Fan Motor (2) 51-42534-24 51-42534-24 51-42534-24 51-42534-24
Wiring Harness - Motor #1 45-102706-01 45-102706-01 45-102706-01 45-102706-01
Wiring Harness - Motor #2 45-102706-02 45-102706-02 45-102706-02 45-102706-02 53 Stk Fan Blade (2) 70-42572-04 70-42572-04 70-42572-04 70-42572-04 60 Stk Capacitor - Fan Motor (2) 43-100496-12 43-100496-12 43-100496-12 43-100496-12
No. Notes
52 Stk Fan Motor (2) 51-42534-25 51-42534-25 51-42534-25 51-42534-25
Wiring Harness - Motor #1 45-102706-01 45-102706-01 45-102706-01 45-102706-01
Wiring Harness - Motor #2 45-102706-02 45-102706-02 45-102706-02 45-102706-02 53 Stk Fan Blade (2) 70-42572-04 70-42572-04 70-42572-04 70-42572-04 60 Stk Capacitor - Fan Motor (2) 43-100496-12 43-100496-12 43-100496-12 43-100496-12
No. Notes
52 Stk Fan Motor (2) 51-42534-26 51-42534-26 51-42534-26 51-42534-26
Wiring Harness - Motor #1 45-102706-01 45-102706-01 45-102706-01 45-102706-01
Wiring Harness - Motor #2 45-102706-02 45-102706-02 45-102706-02 45-102706-02 53 Stk Fan Blade (2) 70-42572-04 70-42572-04 70-42572-04 70-42572-04 60 Stk Capacitor - Fan Motor (2) 43-100496-12 43-100496-12 43-100496-12 43-100496-12
TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
FANGROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
FANGROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
FANGROUP
RLNL-
B
072
C
RLNL-
B
072
D
RLNL-
B
072
Y
RLNL-
B
073
C
RLNL-
B
073
D
RLNL-
B
073
Y
RLNL-
B
085
C
RLNL-
B
085
D
RLNL-
B
085
Y
RLNL-
B
090
C
RLNL-
B
090
D
RLNL-
B
090
Y
Page 16 of 48
31-March-2014
92-42800-RLNL-B
Page 17
MODEL
No. Notes
52 Stk Fan Motor (2) 51-42534-24 51-42534-24 51-42534-29
Wiring Harness - Motor #1 45-102706-01 45-102706-01 45-102706-03
Wiring Harness - Motor #2 45-102706-02 45-102706-02 45-102706-04 53 Stk Fan Blade (2) 70-42572-04 70-42572-04 70-42502-03 60 Stk Capacitor - Fan Motor (2) 43-100496-12 43-100496-12 43-100496-17
No. Notes
52 Stk Fan Motor (2) 51-42534-25 51-42534-25 51-42534-28
Wiring Harness - Motor #1 45-102706-01 45-102706-01 45-102706-03
Wiring Harness - Motor #2 45-102706-02 45-102706-02 45-102706-04 53 Stk Fan Blade (2) 70-42572-04 70-42572-04 70-42502-03 60 Stk Capacitor - Fan Motor (2) 43-100496-12 43-100496-12 43-100496-12
No. Notes
52 Stk Fan Motor (2) 51-42534-26 51-42534-26 51-42534-27
Wiring Harness - Motor #1 45-102706-01 45-102706-01 45-102706-03
Wiring Harness - Motor #2 45-102706-02 45-102706-02 45-102706-04 53 Stk Fan Blade (2) 70-42572-04 70-42572-04 70-42502-03 60 Stk Capacitor - Fan Motor (2) 43-100496-12 43-100496-12 43-100496-48
TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
FANGROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
FANGROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
FANGROUP
RLNL-
B
102
C
RLNL-
B
102
D
RLNL-
B
102
Y
RLNL-
B
120
C
RLNL-
B
120
D
RLNL-
B
120
Y
RLNL-
B
150
C
RLNL-
B
150
D
RLNL-
B
150
Y
Page 17 of 48
31-March-2014
92-42800-RLNL-B
Page 18
MODEL
No. Notes
52 Stk Fan Motor (2) 51-42534-29
Wiring Harness - Motor #1 (before F4112) 45-102706-03
Wiring Harness - Motor #1 (on or after F4112) 45-102706-24
Wiring Harness - Motor #2 (before F4112) 45-102706-04
Wiring Harness - Motor #2 (on or after F4112) 45-102706-27 53 Stk Fan Blade (2) 70-103693-01 60 Stk Capacitor - Fan Motor (2) 43-100496-17
No. Notes
52 Stk Fan Motor (2) 51-42534-28
Wiring Harness - Motor #1 (before F4112) 45-102706-03
Wiring Harness - Motor #1 (on or after F4112) 45-102706-24
Wiring Harness - Motor #2 (before F4112) 45-102706-04
Wiring Harness - Motor #2 (on or after F4112) 45-102706-27 53 Stk Fan Blade (2) 70-103693-01 60 Stk Capacitor - Fan Motor (2) 43-100496-12
No. Notes
52 Stk Fan Motor (2) 51-42534-27
Wiring Harness - Motor #1 (before F4112) 45-102706-03
Wiring Harness - Motor #1 (on or after F4112) 45-102706-24
Wiring Harness - Motor #2 (before F4112) 45-102706-04
Wiring Harness - Motor #2 (on or after F4112) 45-102706-27 53 Stk Fan Blade (2) 70-103693-01 60 Stk Capacitor - Fan Motor (2) 43-100496-48
TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
FANGROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
FANGROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
FANGROUP
RLNL-
B
151
C
RLNL-
B
151
D
RLNL-
B
151
Y
Page 18 of 48
31-March-2014
92-42800-RLNL-B
Page 19
MODEL
Note
No.
52 Stk Fan Motor
Wiring Harness - Motor #1 & #4 45-42522-71 45-42522-71 45-42522-71
Wiring Harness - Motor #2 & #5 N/A 45-42522-70 45-42522-70
Wiring Harness - Motor #3 & #6 45-42522-69 45-42522-69 45-42522-69 53 Stk Fan Blade
60 Stk Run Capacitor
No.
52 Stk Fan Motor
Wiring Harness - Motor #1 & #4 45-42522-71 45-42522-71 45-42522-71
Wiring Harness - Motor #2 & #5 N/A 45-42522-70 45-42522-70
Wiring Harness - Motor #3 & #6 45-42522-69 45-42522-69 45-42522-69 53 Stk Fan Blade
60 Stk Run Capacitor
No.
52 Stk Fan Motor
Wiring Harness - Motor #1 & #4 45-42522-71 45-42522-71 45-42522-71
Wiring Harness - Motor #2 & #5 N/A 45-42522-70 45-42522-70
Wiring Harness - Motor #3 & #6 45-42522-69 45-42522-69 45-42522-69 53 Stk Fan Blade
60 Stk Run Capacitor
TECHNICALVARIATION
s
COOLING CAPACITY ELECTRICAL DESIGNATION
MODEL
Note
TECHNICALVARIATION
s
COOLING CAPACITY ELECTRICAL DESIGNATION
MODEL
Note
TECHNICALVARIATION
s
COOLING CAPACITY ELECTRICAL DESIGNATION
FANGROUP
FANGROUP
FANGROUP
RLNL-
B
180/210
C
51-42534-24
(4)
70-42572-04
(4)
43-100496-12
(4)
RLNL-
B
180/210
D
51-42534-25
(4)
70-42572-04
(4)
43-100496-12
(4)
RLNL-
B
180/210
Y
51-42534-26
(4)
70-42572-04
(4)
43-100496-12
(4)
RLNL-
B
240
C
51-42534-24
(6)
70-42572-04
(6)
43-100496-12
(6)
RLNL-
B
240
D
51-42534-25
(6)
70-42572-04
(6)
43-100496-12
(6)
RLNL-
B
240
Y
51-42534-26
(6)
70-42572-04
(6)
43-100496-12
(6)
RLNL-
B
300
C
51-42534-24
(6)
70-42572-04
(6)
43-100496-12
(6)
RLNL-
B
300
D
51-42534-25
(6)
70-42572-04
(6)
43-100496-12
(6)
RLNL-
B
300
Y
51-42534-26
(6)
70-42572-04
(6)
43-100496-12
(6)
Page 19 of 48
31-March-2014
92-42800-RLNL-B
Page 20
MODEL
No.Notes
64 Stk Blower Assembly (Includes Items 65-68) AS-102711-02 AS-102711-02 AS-90757-01 AS-90757-01 65 Stk Blower Wheel 70-21773-01 70-21773-01 70-42540-02 70-42540-02 66 Bearing Frame Tri-Arm (2) 70-41723-02 70-41723-02 70-42540-05 70-42540-05 67 Bearing with Bearing Lock (2) 70-41911-01 70-41911-01 70-41854-02 70-41854-02 68 Stk Blower Shaft 70-21933-02 70-21933-02 70-42540-04 70-42540-04 69 Blower Mounting Angles (2) AE-90708-01 AE-90708-01 AE-90708-01 AE-90708-01
Blower Angle Stop AE-90709-02 AE-90709-02 AE-90709-02 AE-90709-02 70 Motor Mount AE-90710-05 AE-90710-05 AS-90824-01 AS-90824-01 71 Stk Blower Motor - C/D Voltages 51-41936-03 51-41936-03 51-42536-01 51-42536-01 71 Stk Blower Motor -Y Voltage 51-41936-04 51-41936-04 51-42536-02 51-42536-02 72 Stk Variable Sheave 71-40427-29 71-40427-29 71-42538-02 71-42538-02 73 Stk Belt 71-40235-46 71-40235-46 71-40438-30 71-40438-30 74 Stk Fixed Sheave 71-100772-03 71-100772-03 71-100774-05 71-100774-05
Key 94-22030-01 94-22030-01 94-42551-09 94-42551-09
Stk Bushing for Sheave w/Screws N/A N/A 71-100773-01 71-100773-01
No.Notes
64 Stk Blower Assembly (Includes Items 65-68) AS-90757-01 AS-90757-01 AS-90757-01 AS-90757-01 65 Stk Blower Wheel 70-42540-02 70-42540-02 70-42540-02 70-42540-02 66 Bearing Frame Tri-Arm (2) 70-42540-05 70-42540-05 70-42540-05 70-42540-05 67 Bearing with Bearing Lock (2) 70-41854-02 70-41854-02 70-41854-02 70-41854-02 68 Stk Blower Shaft 70-42540-04 70-42540-04 70-42540-04 70-42540-04 69 Blower Mounting Angles (2) AE-90708-01 AE-90708-01 AE-90708-01 AE-90708-01
Blower Angle Stop AE-90709-02 AE-90709-02 AE-90709-02 AE-90709-02 70 Motor Mount AS-90824-01 AS-90824-01 AS-90824-01 AS-90824-01 71 Stk Blower Motor - C/D Voltages 51-42536-01 51-42536-01 51-42537-01 51-42537-01 71 Stk Blower Motor -Y Voltage 51-42536-02 51-42536-02 51-42537-02 51-42537-02 72 Stk Variable Sheave 71-42538-02 71-42538-02 71-42538-02 71-42538-02 73 Stk Belt 71-40438-27 71-40438-27 71-40438-23 71-40438-23 74 Stk Fixed Sheave 71-100774-02 71-100774-02 71-100774-01 71-100774-01
Key 94-42551-09 94-42551-09 94-42551-09 94-42551-09
Stk Bushing for Sheave w/Screws 71-100773-01 71-100773-01 71-100773-01 71-100773-01
TECHNICALVARIATION COOLING CAPACITY DRIVE PACKAGE
BLOWER ASSEMBLY GROUP - BELT DRIVE
MODEL TECHNICALVARIATION COOLING CAPACITY DRIVE PACKAGE
BLOWER ASSEMBLY GROUP - BELT DRIVE
RLNL-
B
072
L
RLNL-
B
102
L
RLNL-
B
073
L
RLNL-
B
120
L
RLNL-
B
085
L
RLNL-
B
150
L
RLNL-
B
090
L
RLNL-
B
151
L
Page 20 of 48
31-March-2014
92-42800-RLNL-B
Page 21
MODEL
No.Notes
64 Stk Blower Assembly (Includes Items 65-68) AS-102711-02 AS-102711-02 AS-90757-01 AS-90757-01 65 Stk Blower Wheel 70-21773-01 70-21773-01 70-42540-02 70-42540-02 66 Bearing FrameTri-Arm (2) 70-41723-02 70-41723-02 70-42540-05 70-42540-05 67 Bearing with Bearing Lock (2) 70-41911-01 70-41911-01 70-41854-02 70-41854-02 68 Stk Blower Shaft 70-21933-02 70-21933-02 70-42540-04 70-42540-04 69 Blower Mounting Angles (2) AE-90708-01 AE-90708-01 AE-90708-01 AE-90708-01
Blower Angle Stop AE-90709-02 AE-90709-02 AE-90709-02 AE-90709-02 70 Motor Mount AE-90710-05 AE-90710-05 AE-90710-04 AE-90710-04 71 Stk Blower Motor - C/D Voltages 51-41936-03 51-41936-03 51-42536-01 51-42536-01 71 Stk Blower Motor -Y Voltage 51-41936-04 51-41936-04 51-42536-02 51-42536-02 72 Stk Variable Sheave 71-40427-25 71-40427-25 71-42538-02 71-42538-02 73 Stk Belt 71-40235-48 71-40235-48 71-40438-27 71-40438-27 74 Stk Fixed Sheave 71-100772-03 71-100772-03 71-100774-02 71-100774-02
Key 94-22030-01 94-22030-01 94-42551-09 94-42551-09
Stk Bushing for Sheave w/Screws N/A N/A 71-100773-01 71-100773-01
No.Notes
64 Stk Blower Assembly (Includes Items 65-68) AS-90757-01 AS-90757-01 AS-90757-01 AS-90757-01 65 Stk Blower Wheel 70-42540-02 70-42540-02 70-42540-02 70-42540-02 66 Bearing FrameTri-Arm (2) 70-42540-05 70-42540-05 70-42540-05 70-42540-05 67 Bearing with Bearing Lock (2) 70-41854-02 70-41854-02 70-41854-02 70-41854-02 68 Stk Blower Shaft 70-42540-04 70-42540-04 70-42540-04 70-42540-04 69 Blower Mounting Angles (2) AE-90708-01 AE-90708-01 AE-90708-01 AE-90708-01
Blower Angle Stop AE-90709-02 AE-90709-02 AE-90709-02 AE-90709-02 70 Motor Mount AE-90710-04 AE-90710-04 AE-90710-04 AE-90710-04 71 Stk Blower Motor - C/D Voltages 51-42537-01 51-42537-01 51-42498-07 51-102826-06 71 Stk Blower Motor -Y Voltage 51-42537-02 51-42537-02 51-42574-01 51-102826-08 72 Stk Variable Sheave 71-42538-02 71-42538-02 71-40427-11 71-40427-11 73 Stk Belt 71-40438-23 71-40438-23 71-40438-31 71-40438-31 74 Stk Fixed Sheave 71-100774-04 71-100774-04 71-26254-06 71-26254-06
Key 94-42551-09 94-42551-09 94-42551-09 94-42551-09
Stk Bushing for Sheave w/Screws 71-100773-01 71-100773-01 71-100773-01 71-100773-01
No.Notes
64 Stk Blower Assembly (w/o Motor Mount, Belt, Fixed Sheave,and Key) AS-90757-01 AS-90757-01 65 Stk Blower Wheel 70-42540-02 70-42540-02 66 Bearing FrameTri-Arm (2) 70-42540-05 70-42540-05 67 Bearing with Bearing Lock (2) 70-41854-02 70-41854-02 68 Stk Blower Shaft 70-42540-04 70-42540-04 69 Blower Mounting Angles (2) AE-90708-01 AE-90708-01
Blower Angle Stop AE-90709-02 AE-90709-02 70 Motor Mount AE-90710-04 AE-90710-04 71 Stk Blower Motor - C/D Voltages 51-42537-01 51-42537-01 71 Stk Blower Motor -Y Voltage 51-42537-02 51-42537-02 72 Stk Variable Sheave 71-42538-02 71-42538-02 73 Stk Belt 71-40438-23 71-40438-23 74 Stk Fixed Sheave 71-100774-04 71-100774-04
Key 94-42551-09 94-42551-09
Stk Bushing for Sheave w/Screws 71-100773-01 71-100773-01
TECHNICALVARIATION COOLING CAPACITY DRIVE PACKAGE
BLOWER ASSEMBLY GROUP - BELT DRIVE
MODEL TECHNICALVARIATION COOLING CAPACITY DRIVE PACKAGE
BLOWER ASSEMBLY GROUP - BELT DRIVE
MODEL TECHNICALVARIATION COOLING CAPACITY DRIVE PACKAGE
BLOWER ASSEMBLY GROUP - BELT DRIVE
RLNL-
B
072
M
RLNL-
B
102
M
RLNL-
B
085
N
RLNL-
B
073
M
RLNL-
B
120
M
RLNL-
B
090
N
RLNL-
B
085
M
RLNL-
B
150
M
RLNL-
B
090
M
RLNL-
B
151
M
Page 21 of 48
31-March-2014
92-42800-RLNL-B
Page 22
MODEL
No.Notes
64 Stk Blower Assembly - Includes Items 65 and 66 (2) AS-90757-06 AS-90757-06 AS-90757-06 AS-90757-06 65 Stk Blower Wheel (2) 70-42564-02 70-42564-02 70-42564-02 70-42564-02 66 Bearing Frame Tri-Arm (4) 70-42284-04 70-42284-04 70-42284-04 70-42284-04 67 Bearing with Bearing Lock (4) 70-41854-02 70-41854-02 70-41854-02 70-41854-02 68 Stk Blower Shaft 70-42564-03 70-42564-03 70-42564-03 70-42564-03 69 Blower Connector Angles (3) AE-90798-01 AE-90798-01 AE-90798-01 AE-90798-01 70 Motor Mount AE-90710-03 AE-90710-03 AE-90710-03 AE-90710-03 71 Stk Blower Motor - C/D Voltages 51-42537-01 51-42537-01 51-102826-01 51-102826-02 71 Stk Blower Motor -Y Voltage 51-42537-02 51-42537-02 51-42574-01 51-102826-04 72 Stk Variable Sheave 71-42538-02 71-42538-02 71-40427-04 71-40427-59 73 Stk Belt 71-40438-43 71-40438-42 71-40438-51 71-40438-54
74a Stk Fixed Sheave 71-100774-08 71-100774-09 71-100774-06 71-100774-06 74b Key 94-42551-09 94-42551-09 94-42551-09 94-42551-09 74c Stk Bushing for Sheave w/Screws 71-100773-01 71-100773-01 71-100773-01 71-100773-01
No.Notes
64 Stk Blower Assembly - Includes Items 65 and 66 (2) AS-90757-06 AS-90757-06 AS-90757-06 AS-90757-06 65 Stk Blower Wheel (2) 70-42564-02 70-42564-02 70-42564-02 70-42564-02 66 Bearing Frame Tri-Arm (4) 70-42284-04 70-42284-04 70-42284-04 70-42284-04 67 Bearing with Bearing Lock (4) 70-41854-02 70-41854-02 70-41854-02 70-41854-02 68 Stk Blower Shaft 70-42564-03 70-42564-03 70-42564-03 70-42564-03 69 Blower Connector Angles (3) AE-90798-01 AE-90798-01 AE-90798-01 AE-90798-01 70 Motor Mount AE-90710-03 AE-90710-03 AE-90710-03 AE-90710-03 71 Stk Blower Motor - C/D Voltages 51-102826-01 51-102826-01 51-102826-02 51-102826-03 71 Stk Blower Motor -Y Voltage 51-42574-01 51-42574-01 51-102826-04 51-102826-05 72 Stk Variable Sheave 71-40427-04 71-40427-04 71-40427-59 71-40427-60 73 Stk Belt 71-40438-46 71-40438-46 71-40438-54 71-102847-01
74a Stk Fixed Sheave 71-100774-08 71-100774-08 71-100774-06 71-100774-07 74b Key 94-42551-09 94-42551-09 94-42551-09 94-42551-09 74c Stk Bushing for Sheave w/Screws 71-100773-01 71-100773-01 71-100773-01 71-100773-01
TECHNICALVARIATION COOLING CAPACITY DRIVE PACKAGE
BLOWER ASSEMBLY GROUP - BELT DRIVE
MODEL TECHNICALVARIATION COOLING CAPACITY DRIVE PACKAGE
BLOWER ASSEMBLY GROUP - BELT DRIVE
RLNL-
B
180
L
RLNL-
B
180
M
RLNL-
B
210
L
RLNL-
B
210
M
RLNL-
B
240
L
RLNL-
B
240
M
RLNL-
B
300
L
RLNL-
B
300
M
Page 22 of 48
31-March-2014
92-42800-RLNL-B
Page 23
No. Notes
EVAPORATOR COIL GROUP:
42 Stk Evaporator Coil AS-90656-70 AS-90656-88 AS-90656-76 AS-90656-68
Stk Distributor / Flowcheck Piston Assembly 61-102809-94 N/A 61-102912-98 N/A Stk Flowcheck Piston Kit 61-25414-94 N/A N/A N/A Stk Flowcheck Distributor 61-26113-35 N/A N/A N/A TXV - Circuit #1 N/A 61-101351-13 N/A 61-101351-11 TXV - Circuit #2 N/A N/A N/A 61-101351-11 Bulb Strap Kit - TXV (2) N/A N/A N/A 64-101357-01
43 Stk Drain Pan - Removable 68-102699-02 68-102699-02 68-102699-02 68-102699-02
FILTER PIECES: 44 Filter Frame AE-90606-11 AE-90606-11 AE-90606-11 AE-90606-11 45 Air Stop - Bottom AE-102712-10 AE-102712-10 AE-102712-10 AE-102712-10 46 Air Stop - Side AE-102712-06 AE-102712-06 AE-102712-06 AE-102712-06 47 Top Air Stop Assembly AS-90604-06 AS-90604-06 AS-90604-06 AS-90604-06 48 Filter Channel (2) AE-102712-08 AE-102712-08 AE-102712-08 AE-102712-08 49 Filter Slide (2) AE-102712-11 AE-102712-11 AE-102712-11 AE-102712-11 50 Filter (6) 54-42541-01 54-42541-01 54-42541-01 54-42541-01
CONDENSER COIL:
37a Stk Condenser Coil AS-102704-03 AS-102704-03 AS-102704-03 AS-102704-03 37b Stk Condenser Coil N/A N/A AS-102839-03 AS-102704-03
38 Front Air Stop N/A AE-90706-19 AE-90706-19 AE-90706-19 39 Rear Air Stop N/A AE-90706-18 AE-90706-18 AE-90706-18
40a,b Bottom Retainer (2) N/A N/A AE-90700-03 AE-90700-03
41a TopSupport - Condenser Coil N/A N/A AE-90612-09 AE-90612-09 41b TopSupport - Condenser Bulkhead N/A N/A AE-90612-19 AE-90612-03
Filter Drier - Liquid Line
Strap - Filter Drier N/A N/A N/A
Stk High Pressure Control
Stk Low Pressure Control - Before F2710
Stk Low Pressure Control - After F2710
High/Low Pressure Control Assembly (Includes both controls and Wiring Harness) AS-102877-01 AS-102877-01 AS-102877-01 AS-102877-01
MODEL TECHNICALVARIATION COOLING CAPACITY
COIL GROUP
RLNL-
B
072
83-22755-05
(1)
47-23699-05
(1)
47-101529-05
(1)
47-101529-09
(1)
RLNL-
B
073
83-22755-10
(1)
47-23699-05
(1)
N/A
47-101529-09
(1)
RLNL-
B
085
83-40386-05
(1)
47-23699-05
(1)
47-101529-05
(1)
47-101529-09
(1)
RLNL-
B
090
83-22755-05
(2)
AE-102132-01
(2)
47-23699-05
(2)
47-101529-05
(2)
47-101529-09
(2)
Page 23 of 48
31-March-2014
92-42800-RLNL-B
Page 24
No. Notes
EVAPORATOR COIL GROUP: 42 Stk Evaporator Coil AS-90656-77 AS-90656-69 AS-90656-75
TXV - Circuit #1 61-101351-12 61-101351-13 61-101351-14
TXV - Circuit #2 61-101351-12 61-101351-13 61-101351-14
Bulb Strap Kit - TXV (2) 64-101357-01 64-101357-01 64-101357-01 43 Stk Drain Pan - Removable 68-102699-02 68-102699-02 68-102699-02
FILTER PIECES: 44 Filter Frame AE-90606-11 AE-90606-11 AE-90606-11 45 Air Stop - Bottom AE-102712-10 AE-102712-10 AE-102712-10 46 Air Stop - Side AE-102712-06 AE-102712-06 AE-102712-06 47 Top Air Stop Assembly AS-90604-06 AS-90604-06 AS-90604-06 48 Filter Channel (2) AE-102712-08 AE-102712-08 AE-102712-08 49 Filter Slide (2) AE-102712-11 AE-102712-11 AE-102712-11 50 Filter (6) 54-42541-01 54-42541-01 54-42541-01
CONDENSER COIL:
37a Stk Condenser Coil AS-90656-25 AS-90656-42 65-101478-01 37b Stk Condenser Coil AS-90656-25 AS-90656-42 65-101478-01
38 Front Air Stop AE-90706-19 AE-90706-19 N/A 39 Rear Air Stop AE-90706-18 AE-90706-18 N/A
40a,b Bottom Retainer (2) AE-90700-02 AE-90700-02 N/A
40a Micro-Channel Coil Mounting Base - Left N/A N/A 68-102752-01 40b Micro-Channel Coil Mounting Base - Right N/A N/A 68-102752-02 41a TopSupport - Condenser Coil AE-90612-02 AE-90612-02 AE-90612-13 41b TopSupport - Condenser Bulkhead AE-90612-03 AE-90612-03 AE-90612-05
Filter Drier - Liquid Line
Strap - Filter Drier
Stk High Pressure Control
Stk Low Pressure Control - Before F2710
Stk Low Pressure Control - After F2710
High/Low Pressure Control Assembly (Includes both controls and Wiring Harness) AS-102877-01 AS-102877-01 AS-102877-01
MODEL TECHNICALVARIATION COOLING CAPACITY
COIL GROUP
RLNL-
B
102
83-22755-05
(2)
AE-102132-01
(2)
47-23699-05
(2)
47-101529-05
(2)
47-101529-09
(2)
RLNL-
B
120
83-22755-05
(2)
AE-102132-01
(2)
47-23699-05
(2)
47-101529-05
(2)
47-101529-09
(2)
RLNL-
B
150
83-22755-05
(2)
AE-102132-01
(2)
47-23699-05
(2)
47-101529-05
(2)
47-101529-09
(2)
Page 24 of 48
31-March-2014
92-42800-RLNL-B
Page 25
No. Notes
EVAPORATOR COIL GROUP: 42 Stk Evaporator Coil AS-90656-75
TXV - Circuit #1 61-101351-14
TXV - Circuit #2 61-101351-14
Bulb Strap Kit - TXV (2) 64-101357-01 43 Stk Drain Pan - Removable 68-102699-02
FILTER PIECES: 44 Filter Frame AE-90606-11 45 Air Stop - Bottom AE-102712-10 46 Air Stop - Side AE-102712-06 47 Top Air Stop Assembly AS-90604-06 48 Filter Channel (2) AE-102712-08 49 Filter Slide (2) AE-102712-11 50 Filter (6) 54-42541-01
CONDENSER COIL:
37a Stk Condenser Coil 65-101478-08 37b Stk Condenser Coil 65-101478-08
38 Front Air Stop N/A 39 Rear Air Stop N/A
40a,b Bottom Retainer (2) N/A
40a Micro-Channel Coil Mounting Base - Left 68-102752-01 40b Micro-Channel Coil Mounting Base - Right 68-102752-02 41a TopSupport - Condenser Coil AE-90612-13 41b TopSupport - Condenser Bulkhead AE-90612-05
Filter Drier - Liquid Line
Strap - Filter Drier
Stk High Pressure Control - Before F4112
Stk High Pressure Control - On or After F4112
Stk Low Pressure Control
High/Low Pressure Control Assembly (Includes both controls and Wiring Harness) - Before F4112
MODEL TECHNICALVARIATION COOLING CAPACITY
COIL GROUP
RLNL-
B
151
83-22755-05
(2)
AE-102132-01
(2)
47-23699-05
(2)
47-103669-01
(2)
47-101529-09
(2)
AS-102877-01
(2)
Page 25 of 48
31-March-2014
92-42800-RLNL-B
Page 26
No. Notes
EVAPORATOR COIL GROUP: 40 Air Flow Panel AS-90828-02H AS-90828-02H AS-90828-02H AS-90828-02H 42 Stk Complete Coil - Indoor AS-102821-03 AS-102821-03 AS-102652-03 AS-102428-03
Stk TXV/Distributor Assembly - Circuit #1 61-102845-01 61-102845-01 61-102687-01 61-102815-01
Stk TXV/Distributor Assembly - Circuit #2 61-102845-01 61-102845-01 61-102687-01 61-102815-01 43 Stk Drain Pan - Removable 68-102699-01 68-102699-01 68-102699-01 68-102699-01
FILTER PIECES: 44 Filter Frame AE-90606-10 AE-90606-10 AE-90606-10 AE-90606-10 45 1 Air Stop - Bottom (Before F1811) - See Note 1 AE-102712-05 AE-102712-05 AE-102712-05 AE-102712-05 45 Air Stop - Bottom (After F1811) AE-102712-17 AE-102712-17 AE-102712-17 AE-102712-17 46 1 Air Stop - Side (Before F1811) - See Note 1 AE-102712-01 AE-102712-01 AE-102712-01 AE-102712-01 46 Air Stop - Side (After F1811) AE-102712-14 AE-102712-14 AE-102712-14 AE-102712-14 47 Top Air Stop Assembly AS-90604-04 AS-90604-04 AS-90604-04 AS-90604-04 48 1 Filter Channel (2) (Before F1811) - See Note 1 AE-102712-03 AE-102712-03 AE-102712-03 AE-102712-03 48 Filter Channel (2) (After F1811) AE-102712-16 AE-102712-16 AE-102712-16 AE-102712-16 49 1 Filter Slide (2) (Before F1811) - See Note 1 AE-102712-02 AE-102712-02 AE-102712-02 AE-102712-02 49 Filter Slide (2) (After F1811) AE-102712-15 AE-102712-15 AE-102712-15 AE-102712-15 50 Filter - 20 in. x 25 in. x 2 in. (8) 54-42541-04 54-42541-04 54-42541-04 54-42541-04
CONDENSER COIL: 37 Stk Condenser Coil Assemlby (2) AS-102647-03 AS-103204-03 AS-102666-03 AS-102666-03
38a Air Stop - Front AE-90706-13 AE-90706-13 AE-90706-13 AE-90706-13 38b Corner Brace - Top Front AS-90706-16H AS-90706-16H AS-90706-16H AS-90706-16H 38c Post - Front AS-90706-14H AS-90706-14H AS-90706-14H AS-90706-14H 39a Air Stop - Rear AE-90706-12 AE-90706-12 AE-90706-12 AE-90706-12 39b Corner Brace - Top Rear AS-90706-17H AS-90706-17H AS-90706-17H AS-90706-17H 39c Post - Rear AS-90706-15H AS-90706-15H AS-90706-15H AS-90706-15H
41 Air Stop- TopRight AS-90753-08H AS-90753-08H AS-90753-08H AS-90753-08H
41a TopSupport - Inner Condenser Coil (2) AE-90612-21 AE-90612-08 AE-90612-08 AE-90612-08 41b TopSupport - Outer Condenser Coil AE-90612-20 AE-90612-11 AE-90612-11 AE-90612-11 41c Top Support - Condenser Bulkhead AE-90612-18 AE-90612-06 AE-90612-06 AE-90612-06
Filter Drier - Liquid Line (2) 83-22755-11 83-22755-11 83-22755-11 83-22755-11
Stk High Pressure Control 47-23699-05 47-23699-05 47-23699-05 47-23699-05
Stk Low Pressure Control
High/Low Pressure Control Assembly (Includes both controls and Wiring Harness) AS-102877-01 AS-102877-01 AS-102877-01 AS-102877-01
MODEL TECHNICALVARIATION COOLING CAPACITY
COIL GROUP (Granite/Steel Gray)
RLNL-
B
180
47-101529-09
(2)
RLNL-
B
210
47-101529-09
(2)
RLNL-
B
240
47-101529-09
(2)
RLNL-
B
300
47-101529-09
(2)
Page 26 of 48
31-March-2014
92-42800-RLNL-B
Page 27
No. Notes
EVAPORATOR COIL GROUP: 40 Air Flow Panel AS-90828-02A AS-90828-02A AS-90828-02A AS-90828-02A 42 Stk Complete Coil - Indoor AS-102821-03 AS-102821-03 AS-102652-03 AS-102428-03
Stk TXV/Distributor Assembly - Circuit #1 61-102845-01 61-102845-01 61-102687-01 61-102815-01
Stk TXV/Distributor Assembly - Circuit #2 61-102845-01 61-102845-01 61-102687-01 61-102815-01 43 Stk Drain Pan - Removable 68-102699-01 68-102699-01 68-102699-01 68-102699-01
FILTER PIECES: 44 Filter Frame AE-90606-10 AE-90606-10 AE-90606-10 AE-90606-10 45 1 Air Stop - Bottom (Before F1811) - See Note 1 AE-102712-05 AE-102712-05 AE-102712-05 AE-102712-05 45 Air Stop - Bottom (After F1811) AE-102712-17 AE-102712-17 AE-102712-17 AE-102712-17 46 1 Air Stop - Side (Before F1811) - See Note 1 AE-102712-01 AE-102712-01 AE-102712-01 AE-102712-01 46 Air Stop - Side (After F1811) AE-102712-14 AE-102712-14 AE-102712-14 AE-102712-14 47 Top Air Stop Assembly AS-90604-04 AS-90604-04 AS-90604-04 AS-90604-04 48 1 Filter Channel (2) (Before F1811) - See Note 1 AE-102712-03 AE-102712-03 AE-102712-03 AE-102712-03 48 Filter Channel (2) (After F1811) AE-102712-16 AE-102712-16 AE-102712-16 AE-102712-16 49 1 Filter Slide (2) (Before F1811) - See Note 1 AE-102712-02 AE-102712-02 AE-102712-02 AE-102712-02 49 Filter Slide (2) (After F1811) AE-102712-15 AE-102712-15 AE-102712-15 AE-102712-15 50 Filter - 20 in. x 25 in. x 2 in. (8) 54-42541-04 54-42541-04 54-42541-04 54-42541-04
CONDENSER COIL: 37 Stk Condenser Coil Assemlby (2) AS-102647-03 AS-103204-03 AS-102666-03 AS-102666-03
38a Air Stop - Front AE-90706-13 AE-90706-13 AE-90706-13 AE-90706-13 38b Corner Brace - Top Front AS-90706-16A AS-90706-16A AS-90706-16A AS-90706-16A 38c Post - Front AS-90706-14A AS-90706-14A AS-90706-14A AS-90706-14A 39a Air Stop - Rear AE-90706-12 AE-90706-12 AE-90706-12 AE-90706-12 39b Corner Brace - Top Rear AS-90706-17A AS-90706-17A AS-90706-17A AS-90706-17A 39c Post - Rear AS-90706-15A AS-90706-15A AS-90706-15A AS-90706-15A
41 Air Stop- TopRight AS-90753-08A AS-90753-08A AS-90753-08A AS-90753-08A
41a TopSupport - Inner Condenser Coil (2) AE-90612-21 AE-90612-08 AE-90612-08 AE-90612-08 41b TopSupport - Outer Condenser Coil AE-90612-20 AE-90612-11 AE-90612-11 AE-90612-11 41c Top Support - Condenser Bulkhead AE-90612-18 AE-90612-06 AE-90612-06 AE-90612-06
Filter Drier - Liquid Line (2) 83-22755-11 83-22755-11 83-22755-11 83-22755-11
Stk High Pressure Control 47-23699-05 47-23699-05 47-23699-05 47-23699-05
Stk Low Pressure Control - Before F2710
Stk Low Pressure Control - After F2710
High/Low Pressure Control Assembly (Includes both controls and Wiring Harness) AS-102877-01 AS-102877-01 AS-102877-01 AS-102877-01
MODEL TECHNICALVARIATION COOLING CAPACITY
COIL GROUP (Neutra Green)
RLNL-
B
180
47-101529-05
(2)
47-101529-09
(2)
RLNL-
B
210
47-101529-05
(2)
47-101529-09
(2)
RLNL-
B
240
47-101529-05
(2)
47-101529-09
(2)
RLNL-
B
300
47-101529-05
(2)
47-101529-09
(2)
Page 27 of 48
31-March-2014
92-42800-RLNL-B
Page 28
MODEL
No.Notes
Compressor ID: 7916 8597 7910 7897
75 Stk Compressor #1 55-102045-37S55-102471-21S 55-102045-43S 55-102045-08S 75 Stk Compressor #2 N/A N/A N/A 55-102045-08S
Stk Cranckcase Heater 44-17402-10 44-17402-10 44-17402-10 N/A Stk Plug Harness - Compressor #1 45-102708-01 45-102708-01 45-102708-01 45-102708-01 Stk Plug Harness - Compressor #2 N/A N/A N/A 45-102708-02
No.Notes
Compressor ID: 7917 8598 7911 7898
75 Stk Compressor #1 55-102045-38S55-102471-22S 55-102045-45S 55-102045-07S 75 Stk Compressor #2 N/A N/A N/A 55-102045-07S
Stk Cranckcase Heater 44-17402-11 44-17402-11 44-17402-11 N/A Stk Plug Harness - Compressor #1 45-102708-01 45-102708-01 45-102708-01 45-102708-01 Stk Plug Harness - Compressor #2 N/A N/A N/A 45-102708-02
No.Notes
Compressor ID: 7918 8599 7912 7899
75 Stk Compressor #1 55-102045-39S55-102471-23S 55-102045-44S 55-102045-42S 75 Stk Compressor #2 N/A N/A N/A 55-102045-42S
Stk Cranckcase Heater 44-17402-12 44-17402-12 44-17402-12 N/A Stk Plug Harness - Compressor #1 45-102708-01 45-102708-01 45-102708-01 45-102708-01 Stk Plug Harness - Compressor #2 N/A N/A N/A 45-102708-02
TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
COMPRESSOR GROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
COMPRESSOR GROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
COMPRESSOR GROUP
RLNL-
B
072
C
RLNL-
B
072
D
RLNL-
B
072
Y
RLNL-
B
073
C
RLNL-
B
073
D
RLNL-
B
073
Y
RLNL-
B
085
C
RLNL-
B
085
D
RLNL-
B
085
Y
RLNL-
B
090
C
RLNL-
B
090
D
RLNL-
B
090
Y
Page 28 of 48
31-March-2014
92-42800-RLNL-B
Page 29
MODEL
No.Notes
Compressor ID: 7940 7946 7900 8306
75 Stk Compressor #1 55-102045-34S 55-102045-27S 55-102471-14S55-102471-14S 75 Stk Compressor #2 55-102045-34S 55-102045-27S 55-102471-18S55-102471-18S
Stk Cranckcase Heater N/A N/A N/A N/A Stk Plug Harness - Compressor #1 45-102708-01 45-102708-01 45-102708-03 45-102708-03 Stk Plug Harness - Compressor #2 45-102708-02 45-102708-02 45-102708-04 45-102708-04
Compressor ID: 8789
75 Stk Compressor #1 55-102045-93S 75 Stk Compressor #2 55-102045-93S
Stk Cranckcase Heater N/A Stk Plug Harness - Compressor #1 45-102708-01 Stk Plug Harness - Compressor #2 45-102708-02
No.Notes
Compressor ID: 7941 7947 7901 8307
75 Stk Compressor #1 55-102045-35S 55-102045-28S 55-102471-16S55-102471-16S 75 Stk Compressor #2 55-102045-35S 55-102045-28S 55-102471-19S55-102471-19S
Stk Cranckcase Heater N/A N/A N/A N/A Stk Plug Harness - Compressor #1 45-102708-01 45-102708-01 45-102708-03 45-102708-03 Stk Plug Harness - Compressor #2 45-102708-02 45-102708-02 45-102708-04 45-102708-04
Compressor ID: 8790
75 Stk Compressor #1 55-102045-94S 75 Stk Compressor #2 55-102045-94S
Stk Cranckcase Heater N/A Stk Plug Harness - Compressor #1 45-102708-01 Stk Plug Harness - Compressor #2 45-102708-02
No.Notes
Compressor ID: 7942 7948 7902 8308
75 Stk Compressor #1 55-102045-36S 55-102045-41S 55-102471-15S55-102471-15S 75 Stk Compressor #2 55-102045-36S 55-102045-41S 55-102471-17S55-102471-17S
Stk Cranckcase Heater N/A N/A N/A N/A Stk Plug Harness - Compressor #1 45-102708-01 45-102708-01 45-102708-03 45-102708-03 Stk Plug Harness - Compressor #2 45-102708-02 45-102708-02 45-102708-04 45-102708-04
Compressor ID: 8791
75 Stk Compressor #1 55-102045-95S 75 Stk Compressor #2 55-102045-95S
Stk Cranckcase Heater N/A Stk Plug Harness - Compressor #1 45-102708-01 Stk Plug Harness - Compressor #2 45-102708-02
TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
COMPRESSOR GROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
COMPRESSOR GROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
COMPRESSOR GROUP
RLNL-
B
102
C
RLNL-
B
102
D
RLNL-
B
102
Y
RLNL-
B
120
C
RLNL-
B
120
D
RLNL-
B
120
Y
RLNL-
B
150
C
RLNL-
B
150
D
RLNL-
B
150
Y
RLNL-
B
151
C
RLNL-
B
151
D
RLNL-
B
151
Y
Page 29 of 48
31-March-2014
92-42800-RLNL-B
Page 30
MODEL
No.Notes
Compressor: 7882 8053 7885 7888
75 Stk Compressor #1 55-23156-20S 55-102471-03S55-102471-02S55-102471-13S 75 Stk Compressor #2 55-23156-20S 55-102471-03S55-102471-03S55-102471-13S
Stk Plug Harness - Compressor #1 45-42522-73 45-42522-73 45-42522-73 45-42522-73 Stk Plug Harness - Compressor #2 45-42522-72 45-42522-72 45-42522-72 45-42522-72 High Pressure Control 47-23699-05 47-23699-05 47-23699-05 47-23699-05 Low Pressure Control 47-101529-05 47-101529-05 47-101529-05 47-101529-05 Harness - High/Low Pressure Switch Assembly (includes High and Low Switches) AS-102877-01 AS-102877-01 AS-102877-01 AS-102877-01
No.Notes
Compressor: 7883 8054 7886 7889
75 Stk Compressor #1 55-23156-21S 55-102471-07S55-102471-09S55-102471-08S 75 Stk Compressor #2 55-23156-21S 55-102471-07S55-102471-07S55-102471-08S
Stk Plug Harness - Compressor #1 45-42522-73 45-42522-73 45-42522-73 45-42522-73 Stk Plug Harness - Compressor #2 45-42522-72 45-42522-72 45-42522-72 45-42522-72 High Pressure Control 47-23699-05 47-23699-05 47-23699-05 47-23699-05 Low Pressure Control 47-101529-05 47-101529-05 47-101529-05 47-101529-05 Harness - High/Low Pressure Switch Assembly (includes High and Low Switches) AS-102877-01 AS-102877-01 AS-102877-01 AS-102877-01
No.Notes
Compressor: 7884 8055 7887 7890
75 Stk Compressor #1 55-23156-22S 55-102471-10S55-102471-11S55-102471-12S 75 Stk Compressor #2 55-23156-22S 55-102471-10S55-102471-10S55-102471-12S
Stk Plug Harness - Compressor #1 45-42522-73 45-42522-73 45-42522-73 45-42522-73 Stk Plug Harness - Compressor #2 45-42522-72 45-42522-72 45-42522-72 45-42522-72 High Pressure Control 47-23699-05 47-23699-05 47-23699-05 47-23699-05 Low Pressure Control 47-101529-05 47-101529-05 47-101529-05 47-101529-05 Harness - High/Low Pressure Switch Assembly (includes High and Low Switches) AS-102877-01 AS-102877-01 AS-102877-01 AS-102877-01
TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
COMPRESSOR GROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
COMPRESSOR GROUP
MODEL TECHNICALVARIATION COOLING CAPACITY ELECTRICAL DESIGNATION
COMPRESSOR GROUP
RLNL-
B
180
C
RLNL-
B
180
D
RLNL-
B
180
Y
RLNL-
B
210
C
RLNL-
B
210
D
RLNL-
B
210
Y
RLNL-
B
240
C
RLNL-
B
240
D
RLNL-
B
240
Y
RLNL-
B
300
C
RLNL-
B
300
D
RLNL-
B
300
Y
Page 30 of 48
31-March-2014
92-42800-RLNL-B
Page 31
No. Notes
Electric Element Kits - Option RXJJ-CC10C RXJJ-CC15C RXJJ-CC20C RXJJ-CC30C RXJJ-CC31C
Electric Element Kits - Option RXJJ-CC40C RXJJ-CC41C RXJJ-CC50C RXJJ-CC51C
Electric Element Kits - Option RXJJ-CC10D RXJJ-CC15D RXJJ-CC20D RXJJ-CC30D RXJJ-CC31D
Electric Element Kits - Option RXJJ-CC40D RXJJ-CC50D RXJJ-CC51D
Electric Element Kits - Option RXJJ-CC10Y RXJJ-CC15Y RXJJ-CC20Y RXJJ-CC30Y RXJJ-CC40Y
Electric Element Kits - Option RXJJ-CC50Y
No. Notes
Electric Element Kits - Option RXJJ-CE20C RXJJ-CE40C RXJJ-CE60C RXJJ-CE75C
Electric Element Kits - Option RXJJ-CE20D RXJJ-CE40D RXJJ-CE60D RXJJ-CE75D
Electric Element Kits - Option RXJJ-CE20Y RXJJ-CE40Y RXJJ-CE60Y RXJJ-CE75Y
MODEL TECHNICALVARIATION COOLING CAPACITY
ELECTRIC HEATER KITS - ELECTRICAL DESGINATIONC
ELECTRIC HEATER KITS - ELECTRICAL DESGINATIOND
ELECTRIC HEATER KITS - ELECTRICAL DESGINATIONY
MODEL TECHNICALVARIATION COOLING CAPACITY
ELECTRIC HEATER KITS - ELECTRICAL DESGINATIONC
ELECTRIC HEATER KITS - ELECTRICAL DESGINATIOND
ELECTRIC HEATER KITS - ELECTRICAL DESGINATIONY
RLNL-
B
072-151
RLNL-
B
180-300
RLNL-
B
072-151
RLNL-
B
180-300
RLNL-
B
072-151
RLNL-
B
180-300
RLNL-
B
072-151
RLNL-
B
180-300
RLNL-
B
072-151
Page 31 of 48
31-March-2014
92-42800-RLNL-B
Page 32
No.Notes
Louver Panel - Option (6 - 10 Ton)(Neutra Green) RXRX-AAD01C Louver Panel - Option (6 - 10 Ton)(Granite/Steel Gray) AXRX-AAD01C Carbon Dioxide Sensor RXRX-AR02 Dual Enthalpy Kit RXRX-AV02 Manual Fresh Air (Left Panel Mounted) (Neutra Green) RXRF-KDA1 Manual Fresh Air (Left Panel Mounted) (Granite/Steel Gray) AXRF-KDA1 Motor Kit for ()XRF-KDA1 RXRX-AW02 Manual Fresh Air (Return Panel) (Neutra Green) RXRF-JDA1 Manual Fresh Air (Return Panel) (Granite/Steel Gray) AXRF-JDA1 Motorized Fresh Air (Return Panel) (Neutra Green) RXRF-JDB1 Motorized Fresh Air (Return Panel) (Granite/Steel Gray) AXRF-JDB1 Time Delay Relay - Option RXMD-A04 Freeze Stat - Option RXRX-AM01 Convenience Outlet - Option RXRX-AN01 Low Ambient Control Kit (1 Per Compressor) RXRZ-C02
No.Notes
Economizer - Single Enthalpy (Neutra Green) RXRD-PDCM3 Economizer - Single Enthalpy (Granite/Steel Gray) AXRD-PDCM3 Economizer - Single Enthalpy w/Smoke Detector (Neutra Green) RXRD-SDCM3 Economizer - Single Enthalpy w/Smoke Detector (Granite/Steel Gray) AXRD-SDCM3 Horizontal Economizer - Single Enthalpy (Neutra Green) RXRD-RDCM3 Horizontal Economizer - Single Enthalpy (Granite/Steel Gray) AXRD-RDCM3
No.
Power Exhaust RXRX-BFF02C Power Exhaust RXRX-BFF02D
Power Exhaust RXRX-BFF02Y
MODEL TECHNICALVARIATION COOLING CAPACITY
ACCESSORIES
MODEL TECHNICALVARIATION COOLING CAPACITY
ECONOMIZERS
MODEL TECHNICALVARIATION COOLING CAPACITY
POWER EXHAUST
RLNL-
B
072-151
RLNL-
B
072-151
RLNL-
B
072-151
Page 32 of 48
31-March-2014
92-42800-RLNL-B
Page 33
No.Notes
Carbon Dioxide Sensor RXRX-AR02 Dual Enthalpy Kit RXRX-AV02 Manual Fresh Air Damper (Neutra Green) RXRF-KFA1 Manual Fresh Air Damper (Granite/Steel Gray) AXRF-KFA1 Motorized Kit for ()XRF-KFA1 RXRX-AW03 Freeze Stat Kit RXRX-AM03 Unwired Convenience Outlet RXRX-AN01 Low Ambient Control Kit (1 Per Compressor) RXRZ-C02 Louver Panel Kit (Hail Guard) - Left and Right (Granite/Steel Gray) AXRX-AAD01L
No.Notes
Downflow Economizer - Single Enthalpy (Neutra Green) RXRD-PGCM3 Downflow Economizer - Single Enthalpy (Granite/Steel Gray) AXRD-PGCM3 Downfloe Economizer - Single Enthalpy w/Smoke Detector (Neutra Green) RXRD-SGCM3 Downfloe Economizer - Single Enthalpy w/Smoke Detector (Granite/Steel Gray) AXRD-SGCM3 Horizontal Economizer - Single Enthalpy (Neutra Green) RXRD-RGCM3 Horizontal Economizer - Single Enthalpy (Granite/Steel Gray) AXRD-RGCM3
No.
Power Exhaust RXRX-BGF05C Power Exhaust RXRX-BGF05D
Power Exhaust RXRX-BGF05Y
MODEL TECHNICALVARIATION COOLING CAPACITY
ACCESSORIES
MODEL TECHNICALVARIATION COOLING CAPACITY
ECONOMIZERS
MODEL TECHNICALVARIATION COOLING CAPACITY
POWER EXHAUST
RLNL-
B
180-300
RLNL-
B
180-300
RLNL-
B
180-300
Page 33 of 48
31-March-2014
92-42800-RLNL-B
Page 34
Exploded View 072-151
Page 34 of 48
31-March-2014
92-42800-RLNL-B
Page 35
Exterior - Front 072-151
Exterior - Back 072-151
Page 35 of 48
31-March-2014
92-42800-RLNL-B
Page 36
Filter-Coil Assembly 072-151
Condenser Coil Assembly 072-151
Page 36 of 48
31-March-2014
92-42800-RLNL-B
Page 37
Front Panel Brackets 072-151
Page 37 of 48
31-March-2014
92-42800-RLNL-B
Page 38
Filter Frame Assembly 072-151
Blower Assembly 072-151
Page 38 of 48
31-March-2014
92-42800-RLNL-B
Page 39
Control Box 072-151
Page 39 of 48
31-March-2014
92-42800-RLNL-B
Page 40
Low Voltage Shields 090-151
Page 40 of 48
31-March-2014
92-42800-RLNL-B
Page 41
Exterior - Front 180-300
Exterior - Rear 180-300
Page 41 of 48
31-March-2014
92-42800-RLNL-B
Page 42
Base Pan Assembly 180-300
Base Rail Assembly 180-300
Page 42 of 48
31-March-2014
92-42800-RLNL-B
Page 43
Front Panel Brackets 180-300
Interior - Coil 180-300
Page 43 of 48
31-March-2014
92-42800-RLNL-B
Page 44
Heat Compartment 180-300
Condenser Bulkhead 180-300
Page 44 of 48
31-March-2014
92-42800-RLNL-B
Page 45
Filter Frame Assembly 180-300
Blower Assembly 180-300
Page 45 of 48
31-March-2014
92-42800-RLNL-B
Page 46
Control Box 180-300
Page 46 of 48
31-March-2014
92-42800-RLNL-B
Page 47
Electric Heat Block-Off 180-300
Page 47 of 48
31-March-2014
92-42800-RLNL-B
Page 48
NOTES
Stk It is recommended that stock be maintained for this part.
N/A Not Applicable
1 Older (Before F1811) filter frame components are not individually compatible with newer (After F1811) filter frame
components. Depending upon availability of older (Before F1811) components, it may be necessary to replace entire filter frame assembly (Air Stops - Bottom and Side, Filter Channels and Filter Slides) with the newer style (After F1811) components.
DISCLAIMER: This document is intended to provide general replacement parts information to aid qualified service personnel in the repair of these models. The complete Model and Serial Number of the unit under repair should be specified when selecting and ordering replacement parts. Specifications and illustrations are subject to change without notice. Document 92-42800-RLNL-B supersedes all previous parts lists for these models. See http://www.rheempartslists.net/92-42800-RLNL-B for the latest revision of this document. The manufacturer assumes no obligation for errors or omissions. Service personnel must verify the proper and safe operation of equipment after the replacement of any original components.
P.O. Box 17010
Fort Smith, AR 72917-7010
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
