RJMA
Parts List
07-May-2014
This parts list is current as of the above revision date.
See http://www.rheempartslists.net/92-42800-RJMA.pdf for the current revision.
Package Heat Pumps - Commercial
Table of Contents
Model Explanation.. .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... Page 3
Parts Numbers
Panels - Miscellaneous .. ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... Page 4
Electrical Group . ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... .. Page 5
Fan Group.. .......... ... ... ... ... ... ............. ... ... ... ... ............. ... ... ... ... ............. ... ... ... ... . Page 5
Blower Group - Direct Drive.. ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... ...... Page 6
Blower Assembly - Belt Drive . ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .. Page 7
Blower Motor Group - Belt Drive ... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... Page8
Blower Motor Mount - Belt Drive ... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... Page9
Coil Parts .. ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... Page 10
Compressor Group .. ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... Page 11
Heater Kits .. ............. ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... .. Page 12
Accessories .. ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... . Page 13
Drawings/Photographs
Exploded View ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... ....... Page 14
Control Box.. ............. ... ... ... ... ............. ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... .. Page 15
Blower Parts - Direct Drive.. ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... ...... Page15
Blower Parts - Belt Drive.. ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... ........ Page 16
Blower Mounting - Date Code F4897 or Before. ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... .. Page 17
Blower Mounting - Date Codes F4897 - F4298 . ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... ......... Page 17
Blower Mounting - Date Codes F4298 - F2004 . ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... ......... Page 17
Blower Mounting - Date Code F2004 or After.. ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... Page 18
Coil Group Cut-away View ...... ... ... ... ... ... ............. ... ... ... ... ............. ... ... ... ... ............. .. Page 19
Evaporator Coil - Filter Parts. ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... ..... Page 19
Freeze Stat Control - TXV... ............. ... ... ... ... ............. ... ... ... ... ............. ... ... ... ... ......... Page 20
Compressor - Refrigeration Group . ... ... .......... ... ... ... ... ... .......... ... ... ... ... ... .......... ... ... ... .. Page 20
Notes/Disclaimer . ... ............. ... ... ... ... ............. ... ... ... ... ............. ... ... ... ... ... .......... ... ... ... ... ... ........ Page 21
Page 2 of 21
07-May-2014
92-42800-RJMA
MODEL NUMBER EXPLANATION
R J M A - A 0 3 6 J K 0 1 0
1 2 3 4 5 6 7 8 9
1 TRADEBRAND 7 ELECTRICAL DESIGNATION
J = 208-230/1/60
2 J = PACKAGE HEAT PUMP C = 208-230/3/60
D = 460/3/50
3 EFFICIENCY DESIGNATION Y = 575/3/60
K = Standard Efficiency (10 SEER)
M = High Efficiency (12 SEER) 8 DRIVE PACKAGE
K = Direct Drive
4 DESIGN SERIES L = Belt Drive
A = 1st Design M = Belt Drive - High Static
5 TECHNICAL VARIATIONS 9 ELECTRIC DESIGNATION - (Resistance Heat)
000 = No Resistance Heat
6 COOLING CAPACITY (BTU/HR) 006 = 6 KW
036 = 36,000 010 = 10KW
042 = 42,000 012 = 12 KW
048 = 48,000 015 = 15 KW
060 = 60,000 020 = 20 KW
021 = 20 KW
SERIAL NUMBER EXPLANATION
1 2 3 4 F 0 5 9 6 0 0 0 0 1
1 2 3 4 5
1 COMPRESSOR IDENTIFICATION NUMBER
2 PRODUCTION LOCATION
F = Fort Smith, AR
3 WEEK OF PRODUCTION
4 YEAR OF PRODUCTION
5 PRODUCTION NUMBER
Page 3 of 21
07-May-2014
92-42800-RJMA
No. Notes
1 Base Rail - Side (2) AE-58900-01
2 Base Rail - Condenser End AE-58901-01
3 Base Rail - EvaporatorEnd AE-58902-01
4 Outdoor Coil Base Pan AS-59051-01
5 Indoor Coil Base Pan AS-58910-01
6 Condenser Bulkhead (Does not includeLimit Baffle or Tube Support Angles) AS-59126-02
7 Shield (Covers openingon the Condenser Bulkhead Assembly) AS-59152-01
8 Blower Bulkhead (Does notinclude Tube Support Angle, Blower Extension, or Insulation Retainer) AS-59129-01
9 Blower Extension - Front AE-58928-01
10 Blower Extension - End AE-58928-02
11 Cover Plate (Onthe Blower Extension - Front tocover the Limit Control opening) AE-76216-01
Insulation Retainer AE-59059-01
12 Wire Chase AS-58927-01
13 Corner Post (2) AE-58965-01
15 Louvered Panel- Small See Accessories
16 Louvered Panel-Long See Accessories
17 Louvered Panel(Square) See Accessories
18 Supply/Return Panels (2) AS-58992-01
19 Rear Panel (IncludesInsulation, Filler Panel, and Stripping) AS-58976-01
20 Filler Panel AE-58974-01
Filler Panel Stripping AE-58897-10
21 Blower/Filter Access Panels (2) AS-58990-01
22 Post -LeftEnd AS-58973-01
23 Front Panel AS-59132-01
24 Electric Heat Access Panel AS-59121-02
25 Compressor Access Panel AE-58983-02
26 PowerEntry Panel AE-58968-03
27 Front Panel AE-58967-01
28 Indoor CoilTop Panel AS-58979-01
29 Condenser Top Panel AS-58982-01
30 Motor Mounting Plate AE-58109-02
31 Wire Grille 95-22758-05
32 Wire Grille Cap AE-58110-02
33 Control Box (w/o components) AS-59039-01
MODEL
TECHNICALVARIATION
COOLING CAPACITY
PANELS, MISCELLANEOUS PARTS
RJMA-
A
036-060
Page 4 of 21
07-May-2014
92-42800-RJMA
No. Notes

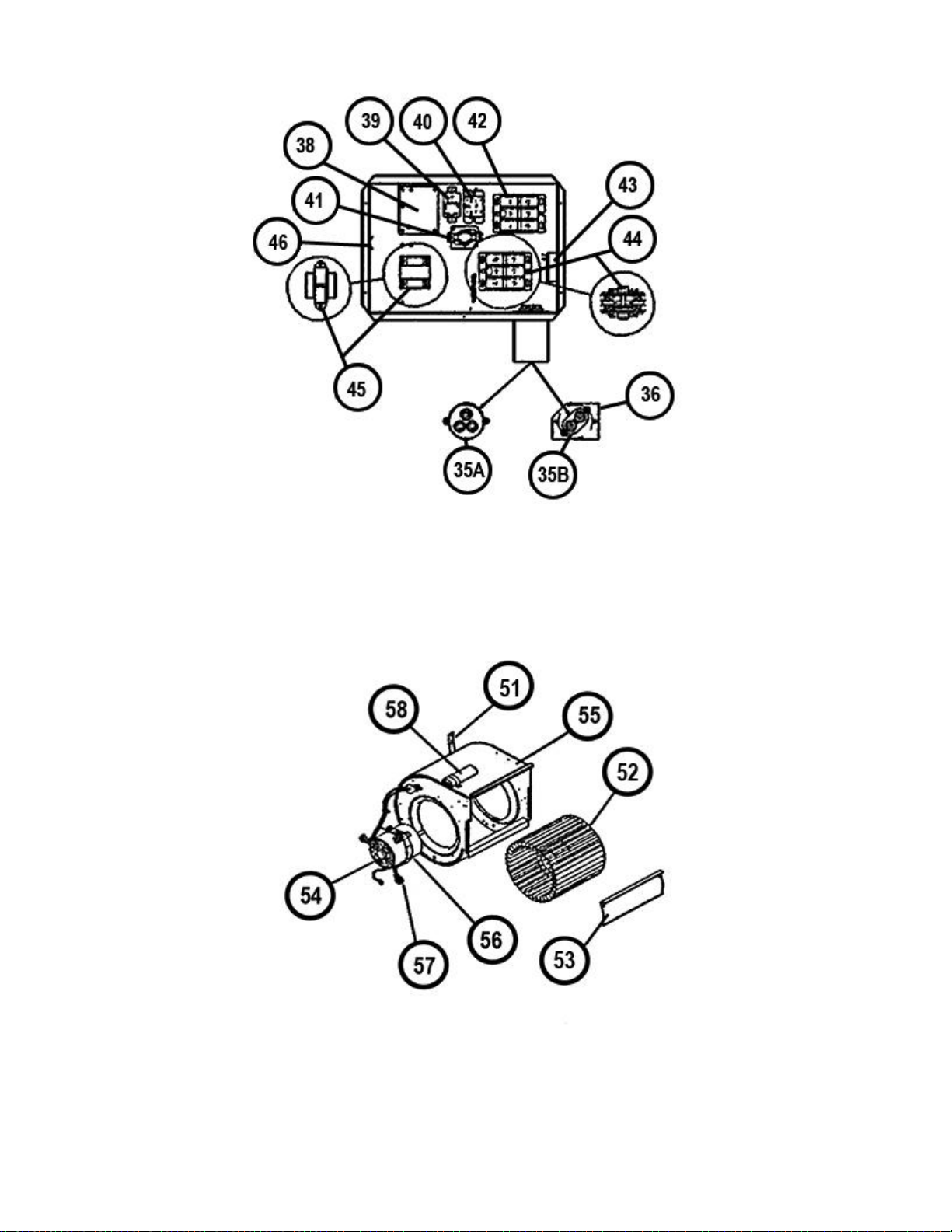

CONTROL BOX COMPONENTS (Items 35,36, 38-46):
38 Stk Defrost Control 47-21776-06 47-21776-06 47-21776-06 47-21776-06
39 Blower Relay 42-25104-06 42-25104-06 42-25104-06 42-25104-06
40 Stk Defrost Relay 42-21786-06 42-21786-06 42-21786-06 42-21786-06
41 Stk BlowerTime Delay Relay 42-21593-03 42-21593-03 42-21593-03 42-21593-03
42 Blower Contactor - BeltDrive N/A 42-25103-01 42-25103-01 42-25103-01
43 Compressor TimeDelay See Compressor Group
44 Compressor Contactor 42-25103-03 42-25103-01 42-25103-01 42-25103-01
35A Capacitor (Dual Round- Compressor/Fan) See Compressor Group
35B Capacitor - Fan Motor See FanGroup
45 Stk Control Transformer 46-23600-01 46-23600-01 46-23600-02 46-23600-02
46 Stk Terminal Block 45-23591-01 45-23591-01 45-23591-01 45-23591-01
47 Stk Defrost Sensor 47-23136-02 47-23136-02 47-23136-02 47-23136-02
Stk Low Ambient Control 47-21465-02 47-21465-02 47-21465-02 47-21465-02
Stk Low Pressure Control 47-21466-01 47-21466-01 47-21466-01 47-21466-01
48 Stk High Pressure Control 47-21604-01 47-21604-01 47-21604-01 47-21604-01
49 Stk Freeze Stat 47-23683-01 47-23683-01 47-23683-01 47-23683-01
No. Notes
34 Stk Fan Motor 51-42179-01 51-42179-01 51-42180-01 51-42180-02
35B Stk Capacitor - Fan Motor N/A 43-25134-04 43-25134-04 43-25134-03
36 Capacitor Adapter Plate N/A AE-54609-02 AE-54609-02 AE-54609-02
37 Stk Fan Blade 70-19897-01 70-19897-01 70-19897-01 70-19897-01
MODEL
TECHNICALVARIATION
ELECTRICAL DESIGNATION
ELECTRICAL GROUP
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
FANGROUP
RJMA
A
J
RJMA
A
036-060
J
RJMA-
A
C
RJMA-
A
036-060
C
RJMA-
A
D
RJMA-
A
036-060
D
RJMA-
A
Y
RJMA-
A
036-060
Y
Page 5 of 21
07-May-2014
92-42800-RJMA
MODEL
No. Note
50 Stk Blower Assembly -Direct Drive AS-59050-03 AS-59050-09 AS-59050-03 AS-59050-03 AS-59050-09
51 Housing AS-58944-01 AS-58944-01 AS-58944-01 AS-58944-01 AS-58944-01
52 Stk Wheel 70-23110-30 70-23110-30 70-23110-30 70-23110-30 70-23110-30
53 Cut-Off AE-64401-05 AE-64401-05 AE-64401-05 AE-64401-05 AE-64401-05
54 Stk Blower Motor 51-23679-01 51-23679-02 51-23679-01 51-23679-01 51-23679-02
55 Stk Capacitor - BlowerMotor 43-100496-12 43-100496-12 43-100496-12 43-100496-12 43-100496-12
56 Motor Band 70-19927-01 70-19927-01 70-19927-01 70-19927-01 70-19927-01
57 Motor Mounting Arm (3) 70-19929-02 70-19929-02 70-19929-02 70-19929-02 70-19929-02
58 Blower Support AE-58950-02 AE-58950-02 AE-58950-02 AE-58950-02 AE-58950-02
No. Note
50 Stk Blower Assembly- Direct Drive AS-59050-03 AS-59050-03 AS-59050-09 AS-59050-03
51 Housing AS-58944-01 AS-58944-01 AS-58944-01 AS-58944-01
52 Stk Wheel 70-23110-30 70-23110-30 70-23110-30 70-23110-30
53 Cut-Off AE-64401-05 AE-64401-05 AE-64401-05 AE-64401-05
54 Stk Blower Motor 51-23679-01 51-23679-01 51-23679-02 51-23679-01
55 Stk Capacitor - BlowerMotor 43-100496-12 43-100496-12 43-100496-12 43-100496-12
56 Motor Band 70-19927-01 70-19927-01 70-19927-01 70-19927-01
57 Motor Mounting Arm (3) 70-19929-02 70-19929-02 70-19929-02 70-19929-02
58 Blower Support AE-58950-02 AE-58950-02 AE-58950-02 AE-58950-02
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
DRIVE PACKAGE
BLOWER GROUP- DIRECT DRIVE
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
DRIVE PACKAGE
BLOWER GROUP- DIRECT DRIVE
RJMA-
A
036
C
K
RJMA-
A
042
J
K
RJMA-
A
036
D
K
RJMA-
A
048
C
K
RJMA-
A
036
J
K
RJMA-
A
048
D
K
RJMA-
A
042
C
K
RJMA-
A
048
J
K
RJMA-
A
042
D
K
Page 6 of 21
07-May-2014
92-42800-RJMA
MODEL
No. Notes

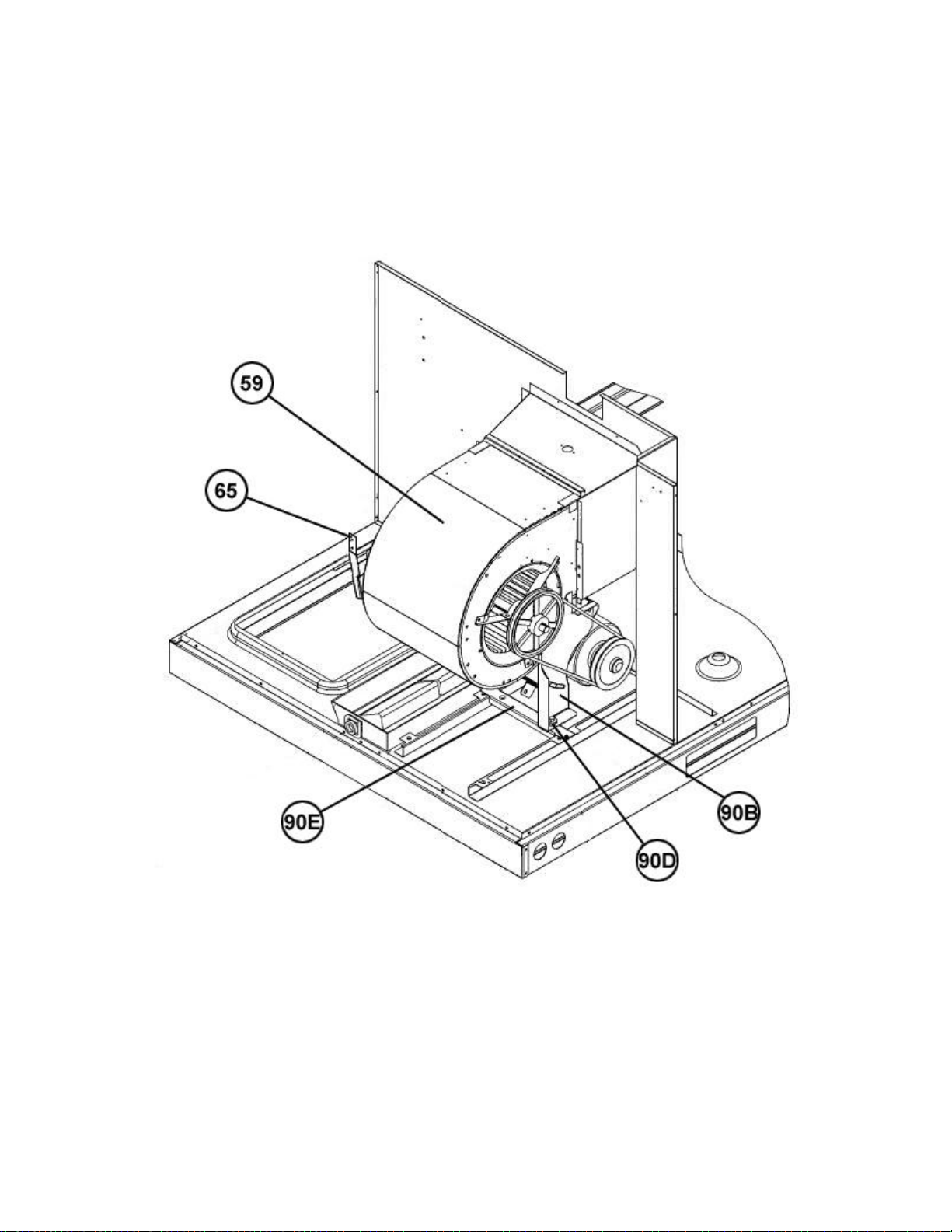

59 Stk Blower Assembly(w/o Motor, Belt, and Sheaves) AS-59056-03 AS-59056-04 AS-59056-04
60 Housing AS-58944-01 AS-58944-01 AS-58944-01
61 Bearing FrameTri-Arm (2) 70-41723-03 70-41723-03 70-41723-03
62 Stk Ball Bearing and Cushion (2) 70-41722-03 70-41722-03 70-41722-03
63 Stk Blower Shaft 70-21933-02 70-21933-02 70-21933-02
64 Stk Fixed PitchSheave 71-21932-04 71-21932-03 71-21932-03
65 Blower Support - Left (Housing toEvaporator Coil) AE-58950-02 AE-58950-02 AE-58950-02
66 Stk Wheel 70-23589-01 70-23589-01 70-23589-01
67 Cut-Off AE-64401-05 AE-64401-05 AE-64401-05
71 Blower Motor See Blower Motor Group - BeltDrive
72 VariablePitch Sheave See Blower Motor Group- Belt Drive
73 Belt See Blower Motor Group- Belt Drive
No. Notes
59 Stk Blower Assembly(w/o Motor, Belt, and Sheaves) AS-101336-01 AS-101336-05 AS-101336-05
60 Housing AS-101341-01 AS-101341-01 AS-101341-01
61 Bearing FrameTri-Arm (2) 70-41723-03 70-41723-03 70-41723-03
62 Stk Ball Bearing and Cushion (2) 70-41911-01 70-41911-01 70-41911-01
63 Stk Blower Shaft 70-21933-02 70-21933-02 70-21933-02
64 Stk Fixed PitchSheave 71-21932-04 71-21932-03 71-21932-03
65 Blower Support - Left AE-58950-02 AE-58950-02 AE-58950-02
66 Stk Wheel 70-23589-01 70-23589-01 70-23589-01
67 Cut-Off Tabulation AE-64401-05 AE-64401-05 AE-64401-05
71 Blower Motor See Blower Motor Group - BeltDrive
72 VariablePitch Sheave See Blower Motor Group- Belt Drive
73 Belt See Blower Motor Group- Belt Drive
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
DRIVE PACKAGE
BLOWER ASSEMBLY - BELT DRIVE (Before F2004)
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
DRIVE PACKAGE
BLOWER ASSEMBLY - BELT DRIVE (After F2004)
RJMA
A
036-048
C/D/Y
L
RJMA
A
036-048
C/D/Y
L
RJMA-
A
060
J/C/D/Y
L
RJMA-
A
060
J/C/D/Y
L
RJMA-
A
036-060
C/D/Y
M
RJMA-
A
036-060
C/D/Y
M
Page 7 of 21
07-May-2014
92-42800-RJMA
MODEL
No. Notes
71 Stk Blower Motor 51-42579-01 51-42579-01 51-21912-01 51-23571-03
72 Stk Variable Pitch Sheave 71-40427-30 71-40427-29 71-40427-29 71-40427-29
73 Stk Belt - On orbefore F4298 71-40235-40 71-40235-41 71-40235-39 71-40235-39
73 Stk Belt - After F4298 71-40235-40 71-40235-40 71-40235-40 71-40235-40
No. Notes
71 Stk Blower Motor 51-42579-01 51-42579-01 51-21909-01 51-23571-03
72 Stk Variable Pitch Sheave 71-40427-30 71-40427-29 71-40427-29 71-40427-29
73 Stk Belt 71-40235-43 71-40235-43 71-40235-42 71-40235-42
No. Notes
71 Stk Blower Motor 51-21912-01 51-21912-01 51-41936-01
72 Stk Variable Pitch Sheave 71-40427-25 71-40427-25 71-40427-25
73 Stk Belt - On orbefore F4298 71-40235-39 71-40235-39 71-40235-39
73 Stk Belt - After F4298 71-40235-40 71-40235-40 71-40235-40
No. Notes
71 Stk Blower Motor 51-21909-01 51-21909-01 51-41936-01
72 Stk Variable Pitch Sheave 71-40427-25 71-40427-25 71-40427-25
73 Stk Belt 71-40235-43 71-40235-43 71-40235-43
No. Notes
71 Stk Blower Motor 51-22241-02 51-22241-02 51-22241-02
72 Stk Variable Pitch Sheave 71-40427-30 71-40427-29 71-40427-29
73 Stk Belt - On orbefore F4298 71-40235-40 71-40235-41 71-40235-39
73 Stk Belt - After F4298 71-40235-40 71-40235-40 71-40235-40
No. Notes
71 Stk Blower Motor 51-22241-02 51-22241-02 51-22241-02
72 Stk Variable Pitch Sheave 71-40427-30 71-40427-29 71-40427-29
73 Stk Belt 71-40235-43 71-40235-43 71-40235-42
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
DRIVE PACKAGE
BLOWER MOTOR GROUP - BELT DRIVE (Before F2004)
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
DRIVE PACKAGE
BLOWER MOTOR GROUP - BELT DRIVE (On or after F2004)
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
DRIVE PACKAGE
BLOWER MOTOR GROUP - BELT DRIVE (Before F2004)
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
DRIVE PACKAGE
BLOWER MOTOR GROUP - BELT DRIVE (On or after F2004)
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
DRIVE PACKAGE
BLOWER MOTOR GROUP - BELT DRIVE (Before F2004)
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
DRIVE PACKAGE
BLOWER MOTOR GROUP - BELT DRIVE (On or after F2004)
RJMA
A
036-042
C/D
L
RJMA
A
036-042
C/D
L
RJMA-
A
036-042
C/D
M
RJMA-
A
036-042
C/D
M
RJMA-
A
036-042
Y
L
RJMA-
A
036
Y
L
RJMA-
A
048
C/D
L
RJMA-
A
048
C/D
L
RJMA-
A
048
C/D
M
RJMA-
A
048
C/D
M
RJMA-
A
048
Y
L
RJMA-
A
048
Y
L
RJMA-
A
060
C/D
L
RJMA-
A
060
C/D
L
RJMA-
A
060
C/D
M
RJMA-
A
060
C/D
M
RJMA-
A
060
Y
L
RJMA-
A
060
Y
L
RJMA-
A
060
J
L
RJMA-
A
060
J
L
Page 8 of 21
07-May-2014
92-42800-RJMA
No. Notes
87 MOTOR MOUNTING (WITHOUT GROMMETS):
87A Right Blower Support AE-59060-01
87B Motor Mounting Assembly (Includes items listed below) AS-59058-01
87C Motor Mounting Base AE-59052-01
87D Motor Mounting Top AS-59054-01
87E Tread Plate 63-23587-01
87F Bolt 63-19919-06
No. Notes
88 MOTOR MOUNTING (WITH 6 GROMMETS):
88A Right Blower Support AE-59060-01
88B Motor Mounting Assembly (Includes items listed below) AS-59058-02
Motor Support Channel (Under Adjusting Plate) AE-59341-01
88C Motor Adjusting Plate AE-59052-02
88D Motor Mounting Top AS-59054-01
88E Treaded Plate 63-23587-01
88F Motor Adjustment Bracket AE-59340-01
88G Bolt 63-19919-06
Grommet (6) 56-18518-04
Bolts (6) 63-20072-03
No. Notes
89 MOTOR MOUNTING (WITH 4 GROMMETS):
89A Right Blower Support AE-59060-02
89B Right Blower Support Bracket AE-59174-01
89C Motor Mounting Assembly (Includes items listedbelow) AS-59058-03
89D Motor Mounting Base AE-59052-03
89E Motor Mounting Top AS-59054-01
89F Threaded Plate 63-23587-01
89G Grommet 56-18518-04
89H Bolt 63-19919-06
No. Notes
90A Blower Bracket AE-101124-01
90B Blower Bracket (Drive side) AE-101124-04
90C Motor Mounting Assembly (Individual items notavailable) AS-101340-01
90D Grommet 56-18518-04
90E Cross Brace AE-101467-01
MODEL
DRIVE PACKAGE
BLOWER MOTOR MOUNTING - BELT DRIVE (Before F4897)
MODEL
DRIVE PACKAGE
BLOWER MOTOR MOUNTING - BELT DRIVE (F4897-F4298)
MODEL
DRIVE PACKAGE
BLOWER MOTOR MOUNTING - BELT DRIVE (F4298-F2004)
MODEL
DRIVE PACKAGE
BLOWER MOTOR MOUNTING - BELT DRIVE (After F2004)
RJMA
L/M
RJMA
L/M
RJMA
L/M
RJMA
L/M
Page 9 of 21
07-May-2014
92-42800-RJMA
No. Note
EVAPORATOR COIL:
74 Stk Evaporator Coil- Includes Metering Devices and Top Air Stop AS-59070-14 AS-59070-14 AS-59070-13 AS-59070-12
75 Stk Flowcheck Distributor 61-23413-08 61-23413-08 61-23413-08 N/A
Stk Flowcheck Piston Kit 61-23414-14 61-23414-14 61-23414-15 N/A
Charge Equalizer (2) AE-56278-01 AE-56278-01 AE-56278-01 AE-56278-01
76 Top Air Stop AE-58933-01 AE-58933-01 AE-58933-01 AE-58933-01
77 Top Coil Support AE-58941-01 AE-58941-01 AE-58941-01 AE-58941-01
78 Stk Indoor Coil Drain Pan 68-23559-01 68-23559-01 68-23559-01 68-23559-01
79 Stk ExpansionValve 61-21922-64 61-21922-64 61-21922-65 61-21922-65
Filter Keeper AE-59168-01 AE-59168-01 AE-59168-01 AE-59168-01
84 Filter Channels (3) - Centeris 2 Channels back-to-back AE-58934-01 AE-58934-01 AE-58934-01 AE-58934-01
85 Filter - Disposable 16X 25 X 1 (2) 54-17531-10 54-17531-10 54-17531-10 54-17531-10
CONDENSER COIL:
82 Stk Condenser Coil AS-59102-06 AS-59102-06 AS-59102-07 AS-59102-04
Stk Flowcheck Distributor 61-23413-06 61-23413-06 61-23413-10 61-23413-10
Stk Flowcheck Piston Kit 61-23414-14 61-23414-14 61-23414-15 61-23414-17
REFRIGERATION GROUP:
80 Stk ReversingValve w/Coil- Before F4704 61-22880-83 61-22880-83 61-22880-83 61-22880-83
81 Stk Solenoid Coil forReversing Valve - Before F4704 61-22883-01 61-22883-01 61-22883-01 61-22883-01
80 Stk ReversingValve w/Coil-After F4704 61-101684-03 61-101684-03 61-101684-03 61-101684-03
81 Stk Solenoid Coil forReversing Valve - After F4704 61-101713-01 61-101713-01 61-101713-01 61-101713-01
Wiring Harness - ReversingValve 61-22882-01 61-22882-01 61-22882-01 61-22882-01
MODEL
TECHNICALVARIATION
COOLING CAPACITY
COIL GROUP
RJMA-
A
036
RJMA-
A
042
RJMA-
A
048
RJMA-
A
060
Page 10 of 21
07-May-2014
92-42800-RJMA
MODEL
No. Notes
Compressor ID: 5584 5588 5592 5596 5706 5710 5713
86 Stk Compressor 55-23139-57S 55-23139-62S 55-23139-25S 55-23139-33S 55-21737-53 55-21737-63S 55-21737-26S
Compressor ID: 5705 5709 5628 5716 5585 5589 5593
86 Stk Compressor 55-21737-52 55-21737-62 55-21737-25S 55-21737-33S 55-23139-53 55-23139-63S 55-23139-26S
Compressor ID: 6868 6866
86 Stk Compressor 55-23139-18S 55-23158-01S
35A Stk Capacitor - Fan/Compressor 43-23204-37 43-23204-38 43-23204-39 43-23204-30 N/A N/A N/A
Stk Start Kit Accessory SK-A1-1 SK-A1-1 SK-A4-1 SK-A4-1 N/A N/A N/A
Stk Start Relay 42-25105-01 42-25105-01 42-25105-01 42-25105-01 N/A N/A N/A
Stk Start Capacitor 43-17075-04 43-17075-04 43-17075-07 43-17075-07 N/A N/A N/A
43 Stk Time Delay Relay See Accessories
No. Note
Compressor ID: 5597 5707 5711 5594 5598 5708
86 Stk Compressor 55-23139-34S 55-21737-54 55-21737-64S 55-23139-27S 55-23139-35S 55-21737-55
Compressor ID: 5717 5586 5590 5714 5718 5587
86 Stk Compressor 55-21737-34S 55-23139-54 55-23139-64S 55-21737-27S 55-21737-35S 55-23139-55
Compressor ID: 6867
86 Stk Compressor 55-23158-02S
43 Stk Time Delay Relay See Accessories
No. Notes
Compressor ID: 5595 5599
86 Stk Compressor 55-23139-28S 55-23139-36S
Compressor ID: 5715 5719
86 Stk Compressor 55-21737-28S 55-21737-36S
Compressor ID: 6869
86 Stk Compressor 55-23158-03S
43 Stk Time Delay Relay See Accessories
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
RJMA-
A
036
J
RJMA-
A
060
C
RJMA-
A
048
Y
RJMA-
A
042
J
COMPRESSOR GROUP
RJMA-
A
036
D
COMPRESSOR GROUP
RJMA-
A
060
Y
COMPRESSOR GROUP
RJMA-
048
RJMA-
042
A
J
A
D
RJMA-
A
060
J
RJMA-
A
048
D
RJMA-
A
036
C
RJMA-
A
060
D
RJMA-
A
042
C
RJMA-
A
036
Y
RJMA-
A
048
C
Page 11 of 21
07-May-2014
92-42800-RJMA
No. Notes
Electric Heater Kit N/A RXJJ-A06J RXJJ-A10J RXJJ-A11J RXJJ-A12J RXJJ-A15J RXJJ-A20J
No. Notes
Electric Heater Kit RXJJ-A21J N/A RXJJ-A06C RXJJ-A10C RXJJ-A11C RXJJ-A12C RXJJ-A15C
No. Notes
Electric Heater Kit RXJJ-A20C RXJJ-A21C RXJJ-A24C N/A RXJJ-A06D RXJJ-A09D RXJJ-A10D
No. Notes
Electric Heater Kit RXJJ-A11D RXJJ-A12D RXJJ-A15D RXJJ-A20D RXJJ-A21D RXJJ-A24D N/A
No. Notes
Electric Heater Kit RXJJ-A15Y RXJJ-A20Y RXJJ-A24Y
MODEL
TECHNICALVARIATION
HEATING CAPACITY
MODEL
TECHNICALVARIATION
HEATING CAPACITY
MODEL
TECHNICALVARIATION
HEATING CAPACITY
MODEL
TECHNICALVARIATION
HEATING CAPACITY
MODEL
TECHNICALVARIATION
HEATING CAPACITY
RJMA-
J
000
RJMA-
J
021
RJMA-
C/P
020
RJMA-
D/N
011
RJMA-
Y
015
RJMA-
J
006
HEATER KITS
RJMA-
C/P
000
HEATER KITS
RJMA-
C/P
021
HEATER KITS
RJMA-
D/N
012
HEATER KITS
RJMA-
Y
020
HEATER KITS
RJMA-
J
010
RJMA-
C/P
006
RJMA-
C/P
024
RJMA-
D/N
015
RJMA-
Y
024
RJMA-
J
011
RJMA-
C/P
010
RJMA-
D/N
000
RJMA-
D/N
020
RJMA-
J
012
RJMA-
C/P
011
RJMA-
D/N
006
RJMA-
D/N
021
RJMA-
J
015
RJMA-
C/P
012
RJMA-
D/N
009
RJMA-
D/N
024
RJMA-
J
020
RJMA-
C/P
015
RJMA-
D/N
010
RJMA-
Y
000
Page 12 of 21
07-May-2014
92-42800-RJMA
No. Notes
Economizer - 3 Position RXRE-CBA20
Economizer - Fully ModulatingEnthalpy - Downflow RXRD-CBM10
Economizer - 3 Position - Horizontal RXRE-CCA30
Economizer - Modulating -Horizontal RXRD-CCM10
Economizer ? Downflowwith Power Exhaust ( X= Voltage J, C, D, N,P,Y) RXRD-DB_M2
Economizer - Outdoor AirSensor Field Install RXRD-EECM2
Economizer - Single Enthalpy Field RXRD-EECM3
Economizer - Dual Enthalpy RXRD-EECM4
Fresh Air Damper? w/o Motor, Blade, Blade Seal RXRF-FBA1
Fresh Air Damper- Including Motor, Blade, Blade Seal RXRF-FBB1
PowerExhaust RXRX-BFF04C
PowerExhaust (Electrical Designation - C) RXRX-BFF02C
PowerExhaust (Electrical Designation - D) RXRX-BFF02D
PowerExhaust (Electrical Designation - Y) RXRX-BFF02Y
Fully Modulation DifferentialKit RXRD-CBD10
Low Ambient Control Kit RXRZ-A18
Zero Degree Ambient Kit RXPZ-C01
Time Delay Relay Kit RXMD-B01
Low Pressure Control Kit RXAC-A02
High Pressure Control Kit RXAB-A02
Louver PanelKits - Sizes 036-060 (Option 597) RXRX-AAD01B
MODEL
TECHNICALVARIATION
OPTIONS AND ACCESSORIES
RJMA
All
Page 13 of 21
07-May-2014
92-42800-RJMA
Exploded View
Page 14 of 21
07-May-2014
92-42800-RJMA
Control Box
Blower Parts - Direct Drive
Page 15 of 21
07-May-2014
92-42800-RJMA
Blower Parts - Belt Drive
Page 16 of 21
07-May-2014
92-42800-RJMA
Blower Mounting - Date Code F4897 or Before
Blower Mounting - Date Codes F4897 - F4298
Blower Mounting - Date Codes F4298 - F2004
Page 17 of 21
07-May-2014
92-42800-RJMA
Blower Mounting - Date Code F2004 or After
Page 18 of 21
07-May-2014
92-42800-RJMA
Coil Group Cut-away View
Evaporator Coil - Filter Parts
Page 19 of 21
07-May-2014
92-42800-RJMA
Freeze Stat Control - TXV
Compressor - Refrigeration Group
Page 20 of 21
07-May-2014
92-42800-RJMA
NOTES
Stk It is recommended that stock be maintained for this part.
N/A Not Applicable
DISCLAIMER: This document is intended to provide general replacement parts information to aid qualified
service personnel in the repair of these models. The complete Model and Serial Number of the unit under repair
should be specified when selecting and ordering replacement parts. Specifications and illustrations are subject
to change without notice. Document 92-42800-RJMA supersedes all previous parts lists for these models. See
http://www.rheempartslists.net/92-42800-RJMA for the latest revision of this document. The manufacturer
assumes no obligation for errors or omissions. Service personnel must verify the proper and safe operation of
equipment after the replacement of any original components.
P.O. Box 17010
Fort Smith, AR 72917-7010
Loading...
