Rheem Air Handler
FORM NO. H11-555
RF1T- Series
X-13 (ECM) Motor
Efficiencies up to 16 SEER
RF1P- Series
PSC Motor
Efficiencies up to 14.5 SEER
• Front or Bottom Return with aluminum tube and fin coil
• Flow Check Piston for cooling or heat pump operation
• Wall-hanging brackets
• Built in Filter Rack
• Suitable for R-410A or R-22 Refrigerants (RF1P Only)
• AHRI Certified
• UL Certified
• Molex Plug Connections for field installed heater kits
• Dual Voltage Direct Drive Blower with multi-speed motor
• Thermoplastic Drain Pan with bottom primary and secondary
connections
• Optional Decorative Grill for front return applications
• Optional Factory Installed Condensate Float Switch which
shuts off the outdoor unit in event the condensate pan
becomes clogged
Air
Air Handlers
RF1T/RF1P Series
Air
Table of Contents
RF1T/RF1P Series
2
TABLE OF CONTENTS
Engineering Features ......................................................................................3
Model Number Identification ............................................................................4
Dimensional Data ........................................................................................5-6
Airflow Performance Data ............................................................................7-9
Piston Sizing Chart ........................................................................................10
Electrical Data ..............................................................................................11
Accessories ............................................................................................................12
Limited Warranty ..........................................................................................13
Air
Engineering Features
RF1T/RF1P Series
3
Engineering Features
RF1T/RF1P- Series
• The most compact unit design available, all standard heat air
handler models only 36" [915 mm].
• Rugged wall steel cabinet construction, designed for added
strength and versatility.
• 1.0" foil faced insulation for excellent thermal and sound
performance.
• Four leg blower motor mount.
• Traditional open wire element design for heat applications.
• Indoor coil design provides low air side pressure drop, high
performance and extremely compact size.
[ ] Designates Metric Conversions
• Coils are constructed of aluminum fins and internally grooved
aluminum tubing.
• Molded polymer corrosion resistant condensate drain pan is
provided for all indoor coils.
• Connection point for high voltage wiring is inside the air handler cabinet. Low voltage connection is made on the outside
of the air handler cabinet.
• Concentric knockouts are provided for power connection to
cabinet. Installer may pull desired hole size up to 1
3
/8 inch
inches [35 mm] for
7
/8 inch [22 mm] conduit.
Air
Model Number Identification
RF1T/RF1P Series
4
Model Number Identification
R F 1 T 24 21 S P A N J A N 00 ***
Option Code
Blank = None
Factory Heat
00 = NO HEAT
03 = 3 kW
05 = 5 kW
08 = 8 kW
10 = 10 kW
Disconnect
B = Breaker
N = None
Minor Series
A = First
Voltage
J = 208/240/1/60
Controls
N = Non-communicating
Major Series
A = First
Metering Device
T = TEV
P = Piston
Efficiency
S = Standard
M = Medium
H = High
Width
21 = 21.5"
24 = 24"
Nominal Capacity
18 = 18,000 BTU/H [5.30 kW]
24 = 24,000 BTU/H [7.03 kW]
30 = 30,000 BTU/H [8.80 kW]
36 = 36,000 BTU/H [10.6 kW]
Motor Type
P = PSC
T = Constant Torque
Stage of Air Flow
1 = Single
Product Category
F = Front Return Air Handler
Rheem
Note: All models available with option code 417
(float switch)
• Supply circuit protective devices may be fuses or
“HACR” type circuit breakers.
• Largest motor load is included in single circuit.
• If non-standard fuse size is specified, use the next
larger fuse size.
• J Voltage (230V) single-phase air handler is
designed to be used with single or three phase 230
volt power. In the case of connecting 3-phase
power to the air handler terminal block, bring only
two leads to the terminal block. Cap, insulate and
fully secure the third lead.
• The air handlers are shipped from the factory with
the proper indoor coil installed, and cannot be
ordered without a coil.
Available Models
RF1P1821SPANJAB03
RF1P1821SPANJAB05
RF1P1821SPANJAB08
RF1P1821SPANJAN00
RF1P2421SPANJAB03
RF1P2421SPANJAB05
RF1P2421SPANJAB08
RF1P2421SPANJAB10
RF1P2421SPANJAN00
RF1P3024SPANJAB03
RF1P3024SPANJAB05
RF1P3024SPANJAB08
RF1P3024SPANJAB10
RF1P3024SPANJAN00
RF1P3624SPANJAB03
RF1P3624SPANJAB05
RF1P3624SPANJAB10
RF1P3624SPANJAN00
RF1P3624STANJAB03
RF1P3624STANJAB05
RF1P3624STANJAB08
RF1P3624STANJAB10
RF1P3624STANJAN00
RF1T2421MTANJAB03
RF1T2421MTANJAB05
RF1T2421MTANJAB08
RF1T2421MTANJAB10
RF1T2421MTANJAN00
RF1T3624MTANJAB03
RF1T3624MTANJAB05
RF1T3624MTANJAB08
RF1T3624MTANJAB10
RF1T3624MTANJAN00
Air
Dimensional Data
RF1T/RF1P Series
5
Unit Dimensions
Dimensional Data
RF1P18 20 [508] 600 [283] — 80 [36] / 90 [41]
RF1P24 20 [508] 800 [378] — 80 [36] / 90 [41]
RF1P30 23 [584.2] 1000 [472] — 95 [43] / 105 [48]
RF1T24 20 [508] 600 [283] 800 [378] 95 [43] / 105 [48]
RF1T36 23 [584.2] 1000 [472] 1200 [566] 95 [43] / 105 [48]
241/2 [609.6]
211/2 [546.1]
211/2 [546.1]
241/2 [609.6]
211/2 [546.1]
36 [914.4]
36 [914.4]
36 [914.4]
36 [914.4]
36 [914.4]
241/2 [609.6] 36 [914.4]RF1P36 23 [584.2] 1200 [566] — 95 [43] / 105 [48]
21 [533.4]
17 [431.8]
17 [431.8]
21 [533.4]
17 [431.8]
21 [533.4]
213/88 [542.9]
177/16 [442.9]
213/88 [542.9]
177/16 [442.9]
213/88 [542.9]
177/16 [442.9]
Model
(C) Unit
Depth
In. [mm]
(D) Return
Air Opening
Width
In. [mm]
Air Flow
CFM (Nom.) [L/s]
Unit Weight/
Shipping Weight (Lbs.) [kg]
(A) Unit
Width
In. [mm]
(B) Unit
Height
In. [mm]
Low High
(E) Return
Air Opening
Height
In. [mm]
Unit Dimensions & Weights
[ ] Designates Metric Conversions
Air
Dimensional Data
RF1T/RF1P Series
6
[ ] Designates Metric Conversions
11/2 & 2 TON [5.28 & 7.03 kW] MODELS 21/2 & 3 TON [8.79 & 10.6 kW] MODELS
Unit Dimensions (con’t.)
Air
Airflow Performance Data
RF1T/RF1P Series
7
Airflow Performance
Cooling BTUH x 1,000
Cooling Tons Nominal
-18
1.5
-24
2
-30
2.5
-36
3
Heat Pump or Air Conditioning
Maximum Heat/Cool CFM [L/s]
(37.5 CFM [18 L/s]/1,000 BTUH)
(450 CFM [212 L/s]/Ton Nominal)
675
[319]
900
[425]
1125
[531]
1350
[637]
Heat Pump or Air Conditioning
Nominal Heat/Cool CFM [L/s]
(33.3 CFM [16 L/s]/1,000 BTUH)
(400 CFM [189 L/s]/Ton Nominal)
600
[283]
800
[378]
1000
[472]
1200
[566]
Heat Pump or Air Conditioning
Minimum Heat/Cool CFM [L/s]
(30.0 CFM [14 L/s]/1,255 BTUH)
(360 CFM [170 L/s]/Ton Nominal)
540
[255]
720
[340]
900
[425]
1080
[510]
Maximum kW Electric Heating
& Minimum Electric Heat CFM [L/s]
8
450 [212]
10
690 [326]
10
808 [381]
10
976 [461]
Maximum Electric Heat Rise °F [°C] 54 [12] 44 [7] 44 [7] 44 [7]
Airflow performance data is based on cooling performance
with a coil and filter in place. Select performance table for
appropriate unit size, voltage and number of electric heaters to
be used. Make sure external static applied to unit allows operation within the minimum and maximum limits shown in table
below for both cooling and electric heat operation. For optimum blower performance, operate the unit in the .3 [8 mm] to
.7 inches [18 mm] W.C. external static range. Units with coils
should be applied with a minimum of .1 inch [3 mm] W.C.
external static range.
Airflow Operating Limits
[ ] Designates Metric Conversions
Air
Airflow Performance Data
RF1T/RF1P Series
8
Nominal
Cooling
Capacity
Tons [kW]
Manufacturer
Recommended
Air-Flow Range
(Min/Max) CFM
Blower Size/
Motor
HP [W] &
# of Speeds
Motor
Speed
from
Factory
Motor
Speed
PSC
CFM Dry Delivery/filter/heaters/RPM/Watts
External Static Pressure-Inches W.C. [kPa]
0.1 [.02] 0.2 [.05]
0.3 [.07]
0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17]
1.5
873/438
10X6 1/5 Hp
2 speed
dual voltage
High
High
CFM
873 828 785
751
707 —
—
RPM
897 923
948
955
981 —
—
Watts
288 286 283 280 274 —
—
Low
CFM
572 543 508
477 438
—
—
RPM
706 753 791 830 869 —
—
Watts
184 181 187
178 172
—
—
2 1137/764
10X6 1/5 Hp
2 speed
dual voltage
High
High
CFM
1137 1097
1034
985 933 868 810
RPM
1101 1104 1114
1118
1124 1130
1136
Watts
438 444
446
421 391
377
360
Low
CFM
867 855 827 798 764 —
—
RPM
864 902 948
978 1002
—
—
Watts
324 317 290 285 283 —
—
2.5
1148/802
10X8T 1/4 Hp
2 speed
dual voltage
High
High
CFM
1148
1104
1040
980
926 855
750
RPM
862 889
918
943 962 984 1012
Watts
411 420 379 367 369 350
317
Low
CFM
1000 958 910
853 802
—
—
RPM
788 823 855 889 914 — —
Watts
343
344
346
322 317
—
—
3
1363/1048
10X8T 1/3 Hp
2 speed
dual voltage
High
High
CFM
1363
1303 1240
1169 1096
1030
—
RPM
1029 1047
1060
1082
1095 1104
—
Watts
515 514
468
428 428 394 —
Low
CFM
1196 1158 1105 1048 — —
—
RPM
958 984 1012
1037 —
—
—
Watts
423
402 402
360
—
— —
208V/240V Airflow Performance Data—RF1P (PSC Motor)
Notes: • All 208/240V PSC motors have voltage taps for 208 and 240 volts.
• All 208/240V PSC motors are shipped on high speed and 240 volts.
• If the application external static is less than 0.5" WC, adjust the motor speed to the low static speed as described below:
• Unplug the black motor wire off the relay on the control board and plug in the red motor wire.
• Replace the cap on the black motor wire.
• Voltage change (208/240V motors):
• Move the orange lead to transformer 208V tap from 240V tap. Replace the wire cap on 240V tap.
• Unplug the purple motor wire off the transformer and plug in the yellow motor wire.
• Replace the cap on the purple motor wire.
• The above airflow table lists the airflow information for air handlers with maximum heater allowed for each model.
[ ] Designates Metric Conversions
Air
Airflow Performance Data
RF1T/RF1P Series
9
Nominal
Cooling
Capacity
Tons [kW]
Manufacturer
Recommended
Air-Flow Range
(Min/Max) CFM
Blower Size/
Motor
HP [W] &
# of Speeds
Motor
Speed
from
Factory
Motor
Speed
X-13
CFM Dry Delivery/filter/heaters/RPM/Watts
External Static Pressure-Inches W.C.
0.1 [.02]
0.2 [.05]
0.3 [.07] 0.4 [.10] 0.5 [.12]
0.6 [.15]
0.7 [.17]
1.5
852/510
10X6 1/3 Hp
2 speed
dual voltage
5 3
CFM
852 823
792
770 738 713 690
RPM
847 881
915
949
989 1026
1057
Watts
162 151 144 168
182
196
178
5
2
CFM
669
628
593 552 510 — —
RPM
669 713 760 806 852 — —
Watts
80 87
82 94
86 —
—
2 973/733
10X6 1/3 Hp
2 speed
dual voltage
5
5
CFM
973
945
922 896 872 852 833
RPM
956 991
1020
1054 1083 1117 1145
Watts
222 221
247
256 253
261
260
5 4
CFM
841
807 780 753
733 — —
RPM
849
890
925 957 992 — —
Watts
160 168 179 187 187 — —
2.5
1145/894
10X8 1/2 Hp
2 speed
dual voltage
5 3
CFM
1145 1122 1084
1064
1055 1025 1002
RPM
767 780
797
820 855
900
954
Watts
240 237 239 245 274 276 306
5 2
CFM
1037
1005
956 924
894 —
—
RPM
798
845
901
945
980 — —
Watts
199
213
196
226 237 — —
3
1306/1040
10X8 1/2 Hp
2 speed
dual voltage
5
5
CFM
1306 1268
1223
1195
1162
1128
1093
RPM
887 933
986
1019 1056 1096
1133
Watts
307 313
313 339 373
356
370
5 4
CFM
1201
1163 1129
1094 1065
1040
—
RPM
866
914
964 999 1032
—
—
Watts
278 286
301
324 348 — —
208V/240V Airflow Performance Data—RF1T (X-13 (ECM) Motor)
Notes: X-13 motor speed changes.
All X-13 motors have 5 speed taps. Speed tap 1 is for continuous fan. Speed tap 2 (low static) and speed tap 3 (high static) are for lower tonnage. Speed tap 4 (low
static) and speed tap 5 (high static) are for higher tonnage.
X-13 air handlers are always shipped from factory at speed tap 5. To change to 1.5-ton or 2.5-ton airflow, move the blue wire to speed tap 2 or 3 on the
X-13 motor. The low static speed tap 2 (lower tonnage) and 4 (higher tonnage) are used for external static below 0.5" WC. The high static speed tap 3 (lower tonnage)
and 5 (higher tonnage) are used for external static exceeding 0.5" WC. Move the blue wire to the appropriate speed tap as required by the application needs.
• The airflow for continuous fan (speed tap 1) is 50% of the speed tap 4 airflow.
• The above airflow table lists the airflow information for air handlers with maximum heater allowed for each model.
[ ] Designates Metric Conversions
Air
Piston Sizing Chart
RF1T/RF1P Series
10
Indoor Unit Factory Piston
SEER Rating
OD Unit
Nominal Tons Refrigerant Orifice Size
13 1.5 R22 0.049
RF1P1821SPANJA 0.047
14 1.5 R410a 0.049
13 1.5 R410a 0.047
12 1.5 R22 0.051
10 1.5 R22 0.053
RF1P2421SPANJA 0.053
13 2 R410a 0.053
14 2 R410a 0.057
13 2 R22 0.057
12 2 R22 0.061
10 2 R22 0.063
RF1P3024SPANJA 0.061
13 2.5 R410a 0.061
14 2.5 R410a 0.063
13 2.5 R22 0.065
12 2.5 R22 0.065
10 2.5 R22 0.065
RF1P3624SPANJA 0.065
13 3 R410a 0.065
14 3 R410a 0.068
13 3 R22 0.069
12 3 R22 0.070
10 3 R22 0.070
Piston Sizing Chart
Air
Electrical Data
RF1T/RF1P Series
11
Model/Nominal
Cooling Tons
Voltage Phase Hertz HP [W] RPM Speeds
Circuit
Amps.
Minimum
Circuit
Ampacity
Maximum
Circuit
Protector
RF1P1821 208/230 1 60 1/5 [149] 1075 2 1.5 3 15
RF1P3024 208/230 1 60 1/4 [186] 1075 2 2.5 4 15
RF1P2421 208/230 1 60 1/5 [149] 1075 2 1.5 3 15
RF1P3624 208/230 1 60 1/3 [249] 1075 2 2.5 4 15
RF1T2421 208/230 1 60 1/3 [249] 300-1100 4 1.6 3 15
RF1T3624 208/230 1 60 1/2 [373] 300-1100 4 2.7 4 15
RF1P/RF1T Electrical Data – Blower Motor Only – No Electric Heat
*Blower motors are all single phase motors.
Cooling
Capacity Tons
Heater
kW
(208/240V)
PH/Hz
No. Elements -
kW Per
Type Supply
Circuit
Circuit
Amps.
Motor
Ampacity
Maximum
Circuit
Protection
RF1P/RF1T
18
2.25/3.0 1/60 1-3.0 Single 10.8/12.5 1.5 20/20
3.6/4.8 1/60 1-4.8 Single 17.3/20.0 1.5 25/30
5.4/7.2 1/60 2-3.6 Single 26.0/30.0 1.5 35/40
Model
No.
RXHJ-21B/T05J
RXHJ-21B/T03J
RXHJ-21B/T08J
Minimum
Circuit
Ampacity
24/27
16/18
35/40
RF1P/RF1T
24
RXHJ-21B/T03J 2.25/3.0 1/60 1-3.0 Single 10.8/12.5 1.5 16/18 20/20
RXHJ-21B/T05J 3.6/4.8 1/60 1-4.8 Single 17.3/20.0 1.5 24/27 25/30
RXHJ-21B/T08J 5.4/7.2 1/60 2-3.6 Single 26.0/30.0 1.5 35/40 35/40
RXHJ-21B/T10J 7.2/9.6 1/60 2-4.8 Single 34.6/40.0 1.5 46/52 50/60
RF1P/RF1T
30
RXHJ-24B/T03J 2.25/3.0 1/60 1-3.0 Single 10.8/12.5 2.5 17/19 20/20
RXHJ-24B/T05J 3.6/4.8 1/60 1-4.8 Single 17.3/20.0 2.5 25/29 25/30
RXHJ-24B/T08J 5.4/7.2 1/60 2-3.6 Single 26.0/30.0 2.5 36/41 40/45
RXHJ-24B/T10J 7.2/9.6 1/60 2-4.8 Single 34.6/40.0 2.5 47/54 50/60
RF1P/RF1T
36
RXHJ-24B/T03J 2.25/3.0 1/60 1-3.0 Single 10.8/12.5 2.5 17/19 20/20
RXHJ-24B/T05J 3.6/4.8 1/60 1-4.8 Single 17.3/20.0 2.5 25/29 25/30
RXHJ-24B/T08J 5.4/7.2 1/60 2-3.6 Single 26.0/30.0 2.5 36/41 40/45
RXHJ-24B/T10J 7.2/9.6 1/60 2-4.8 Single 34.6/40.0 2.5 47/54 50/60
RF1P/RF1T Electrical Data – with Electric Heat
Installation of the U.L. Listed original equipment manufacturer provided heater kits listed in the table below is recommended for all
auxiliary heating requirements.
• Electric heater BTUH - (heater watts + motor watts) x 3.414 (see airflow table for motor watts.)
• Supply circuit protective devices may be fused or “HACR” type circuit breakers.
• If non-standard fuse size is specified, use next size larger standard fuse size.
• Largest motor load is included in single circuit or circuit 1 of multiple circuits.
• No electrical heating elements are permitted to be used with A Voltage (115V) air handler.
• J voltage (230V) single phase air handler is designed to be used with single or three phase
230 volt electric heaters. In the case of connecting 3 phase power to air handler terminal block
without the heater, bring only two leads to terminal block, cap, insulate and fully secure the third lead.
• Do not use 480 volts electrical heaters on 230 volts air handler.
Electrical Wiring:
Power Wiring
• Field wiring must comply with the National Electrical Code
(C.E.C. in Canada) and any applicable local ordinance.
• Supply wiring must be 75°C minimum copper conductors only.
• See electrical data for product Ampacity rating and Circuit
Protector requirement.
[ ] Designates Metric Conversions
Grounding
• This product must be sufficiently grounded in accordance with
National Electrical Code (C.E.C. in Canada) and any applicable
local ordinance.
• A grounding lug is provided.
Air
Accessories
RF1T/RF1P Series
12
Accessory Number
RXHK-B01
Indoor Unit
RF1P-FR24
RF1P-FR18
RF1T-FR24
RXHK-B02
RF1P-FR36
RF1P-FR30
RF1T-FR36

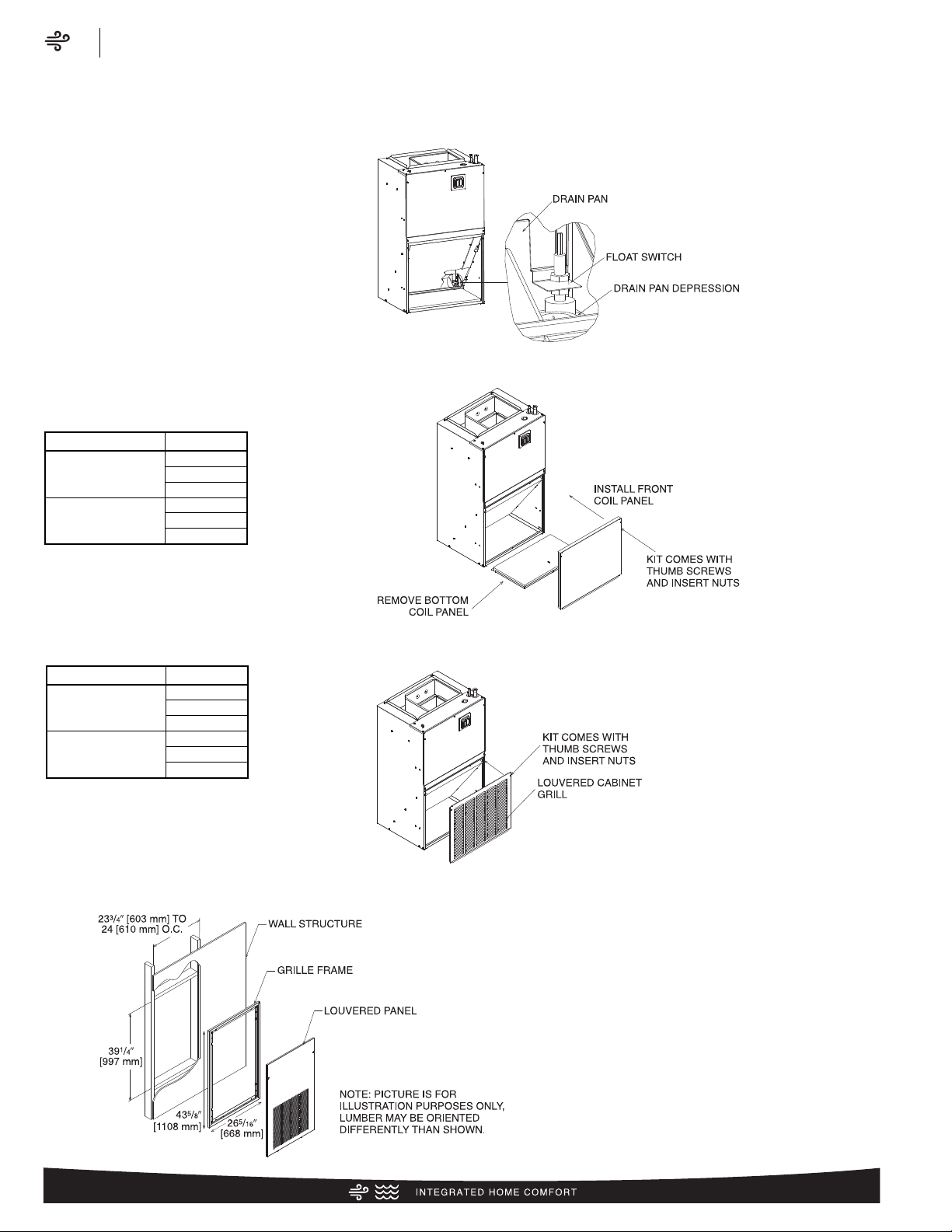

16.0 Accessories-Kits-Parts
• Drain Pan Over Flow Switch RXHK-A01 is used to detect condensate drain blockage and will shut down the outdoor unit in order to
prevent structural damage to the surrounding structures of the air handler.
• Bottom Return Conversion Kit RXHK- is used to divert the return air from the factory standard front return to a bottom return.
[ ] Designates Metric Conversions
Accessory Number
RXHK-C02
RF1P-FR36
RF1P-FR30
RF1T-FR36
RXHK-C01
Indoor Unit
RF1P-FR24
RF1P-FR18
RF1T-FR24
• Louvered Cabinet Grill RXHK- is used as decorative grill which covers the return air opening of the front return air handler.
• Decorative Wall Grill RXHK-D01 is used in applications where the air handler is installed in a closet or interior wall and allows
adequate return air back to the unit.
Air
Limited Warranty
RF1T/RF1P Series
13
GENERAL TERMS OF LIMITED WARRANTY*
Rheem will furnish a replacement for any part of this product
which fails in normal use and service within the applicable
periods stated, in accordance with the terms of the limited
warranty.
Conditional Parts (Registration Required) ..........Ten (10) Years
*For complete details of the Limited and Conditional Warranties, including
applicable terms and conditions, contact your local contractor or the
Manufacturer for a copy of the product warranty certificate.
Air
Notes
RF1T/RF1P Series
14
Air
Notes
RF1T/RF1P Series
15
The new degree of comfort.
™
Rheem Heating, Cooling & Water Heating • P.O. Box 17010
Fort Smith, Arkansas 72917 • www.rheem.com
In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.
PRINTED IN U.S.A. 12/14 QG FORM NO. H11-555
Rheem Canada Ltd./Ltée • 125 Edgeware Road, Unit 1
Brampton, Ontario • L6Y 0P5
Loading...
